Schema RDL0.52.xsd


schema location:  RDL0.52.xsd

Elements  Complex types
AbstractRequest  applicationType
Application  catalogType
Dataset  datasetType
Environment  environmentType
GenericDataset  genericDatasetType
InputEvents  javaTaskType
InputFiles  resourceType
InputResource  rootTaskType
InputTracks  scriptTaskType
JavaTask  taskType
MemoryPerProcess  textType
OutputEvents
OutputFiles
OutputResource
OutputTracks
Request
ResourceSpecifications
RootTask
ScriptTask
Task
Text

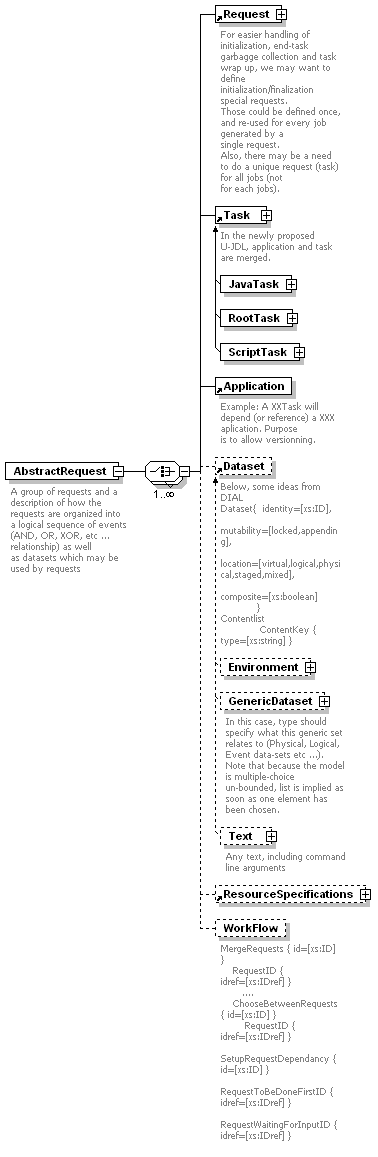

element AbstractRequest
diagram
properties
content complex
children Request Task Application Dataset ResourceSpecifications WorkFlow
attributes
Name  Type  Use  Default  Fixed  Annotation
version  optional  V0.50
annotation
documentation
A group of requests and a description of how the requests are organized into
a logical sequence of events (AND, OR, XOR, etc ... relationship) as well
as datasets which may be used by requests

element AbstractRequest/WorkFlow
diagram
properties
isRef 0
annotation
documentation
MergeRequests { id=[xs:ID] }
    RequestID { idref=[xs:IDref] }
       ....
    ChooseBetweenRequests { id=[xs:ID] }
        RequestID { idref=[xs:IDref] }
    SetupRequestDependancy { id=[xs:ID] }
        RequestToBeDoneFirstID { idref=[xs:IDref] }
        RequestWaitingForInputID { idref=[xs:IDref] }

element Application
diagram
type applicationType
properties
content complex
used by
element AbstractRequest
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional
name  xsd:stringrequired
ver  xsd:stringoptional
annotation
documentation
Example: A XXTask will depend (or reference) a XXX aplication. Purpose
is to allow versionning.

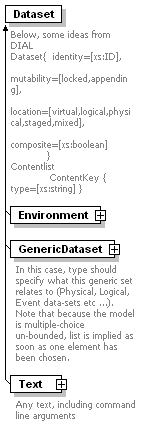

element Dataset
diagram
type datasetType
properties
content complex
used by
element AbstractRequest
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
annotation
documentation
Below, some ideas from DIAL
Dataset{  identity=[xs:ID],
               mutability=[locked,appending],
               location=[virtual,logical,physical,staged,mixed],
               composite=[xs:boolean]
            }
Contentlist
             ContentKey { type=[xs:string] }

element Environment
diagram
type environmentType
properties
content complex
substGrp Dataset
children EnvironmentVariable
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired

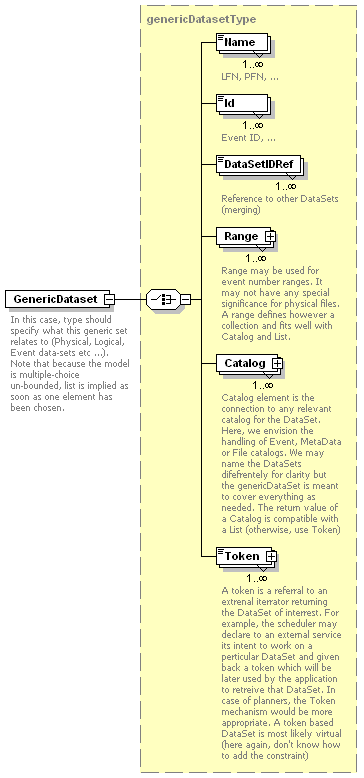

element GenericDataset
diagram
type extension of genericDatasetType
properties
content complex
substGrp Dataset
children Name Id DataSetIDRef Range Catalog Token
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  required
annotation
documentation
In this case, type should specify what this generic set relates to (Physical, Logical, Event data-sets etc ...). Note that because the model is multiple-choice un-bounded, list is implied as soon as one element has been chosen.

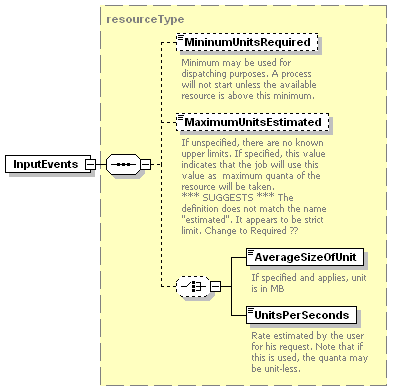

element InputEvents
diagram
type resourceType
properties
content complex
substGrp InputResource
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds

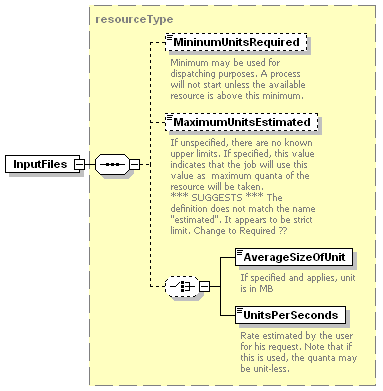

element InputFiles
diagram
type resourceType
properties
content complex
substGrp InputResource
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds

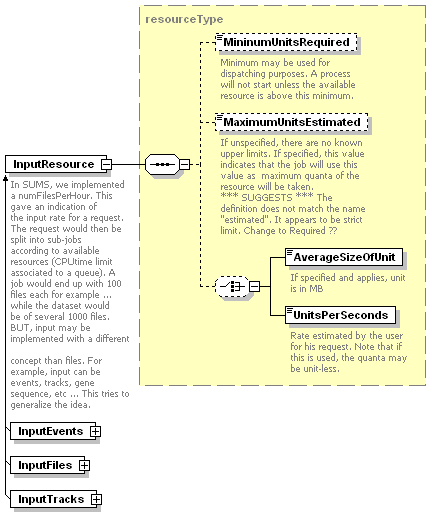

element InputResource
diagram
type resourceType
properties
content complex
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds
used by
element ResourceSpecifications
annotation
documentation
In SUMS, we implemented a numFilesPerHour. This gave an indication of
the input rate for a request. The request would then be split into sub-jobs
according to available resources (CPUtime limit associated to a queue). A
job would end up with 100 files each for example ... while the dataset would
be of several 1000 files. BUT, input may be implemented with a different
concept than files. For example, input can be events, tracks, gene
sequence, etc ... This tries to generalize the idea.

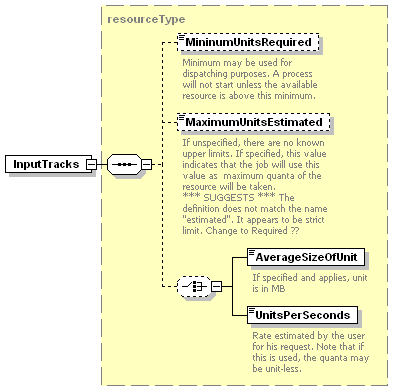

element InputTracks
diagram
type resourceType
properties
content complex
substGrp InputResource
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds

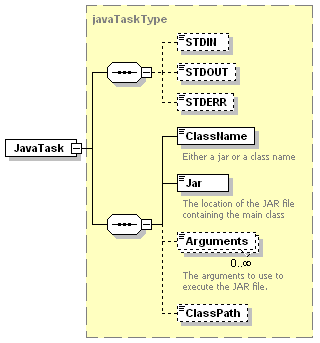

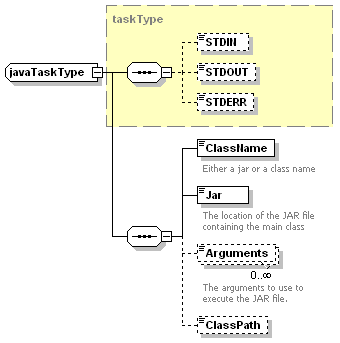

element JavaTask
diagram
type javaTaskType
properties
content complex
substGrp Task
children STDIN STDOUT STDERR ClassName Jar Arguments ClassPath
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional

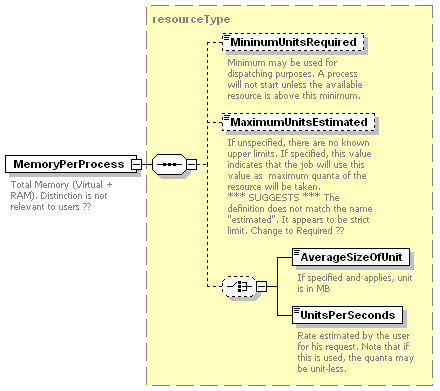

element MemoryPerProcess
diagram
type resourceType
properties
content complex
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds
used by
element ResourceSpecifications
annotation
documentation
Total Memory (Virtual + RAM). Distinction is not relevant to users ??

element OutputEvents
diagram
type resourceType
properties
content complex
substGrp OutputResource
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds

element OutputFiles
diagram
type resourceType
properties
content complex
substGrp OutputResource
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds

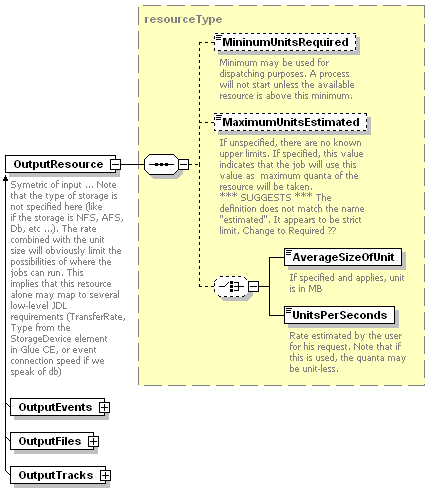

element OutputResource
diagram
type resourceType
properties
content complex
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds
used by
element ResourceSpecifications
annotation
documentation
Symetric of input ... Note that the type of storage is not specified here (like
if the storage is NFS, AFS, Db, etc ...). The rate combined with the unit
size will obviously limit the possibilities of where the jobs can run. This
implies that this resource alone may map to several low-level JDL
requirements (TransferRate, Type from the StorageDevice element
in Glue CE, or event connection speed if we speak of db)

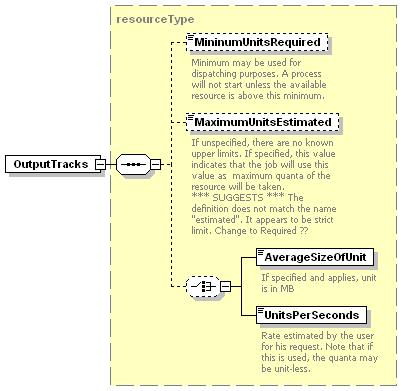

element OutputTracks
diagram
type resourceType
properties
content complex
substGrp OutputResource
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds

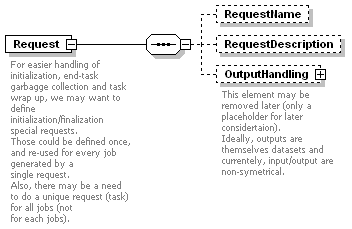

element Request
diagram
properties
content complex
children RequestName RequestDescription OutputHandling
used by
element AbstractRequest
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:ID
taskRef  xsd:IDREFrequired
appRef  xsd:IDREFrequired
datasetRef  xsd:IDREFoptional
resourceRef  xsd:IDREFoptional
annotation
documentation
For easier handling of initialization, end-task garbagge collection and task
wrap up, we may want to define initialization/finalization special requests.
Those could be defined once, and re-used for every job generated by a
single request.
Also, there may be a need to do a unique request (task) for all jobs (not
for each jobs).

element Request/RequestName
diagram
properties
isRef 0

element Request/RequestDescription
diagram
properties
isRef 0

element Request/OutputHandling
diagram
properties
isRef 0
content complex
children Copy Register
annotation
documentation
This element may be removed later (only a placeholder for later considertaion).
Ideally, outputs are themselves datasets and currentely, input/output are
non-symetrical.

element Request/OutputHandling/Copy
diagram
properties
isRef 0
content complex
children Source Destination

element Request/OutputHandling/Copy/Source
diagram
properties
isRef 0

element Request/OutputHandling/Copy/Destination
diagram
properties
isRef 0

element Request/OutputHandling/Register
diagram
properties
isRef 0

element ResourceSpecifications
diagram
properties
content complex
children MemoryPerProcess InputResource OutputResource Time
used by
element AbstractRequest
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired

element ResourceSpecifications/Time
diagram
properties
isRef 0

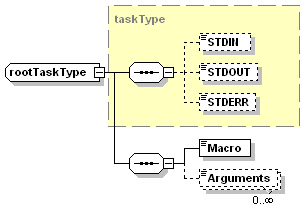

element RootTask
diagram
type rootTaskType
properties
content complex
substGrp Task
children STDIN STDOUT STDERR Macro Arguments
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional

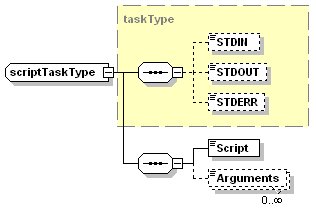

element ScriptTask
diagram
type scriptTaskType
properties
content complex
substGrp Task
children STDIN STDOUT STDERR Script Arguments
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional

element Task
diagram
type taskType
properties
content complex
children STDIN STDOUT STDERR
used by
element AbstractRequest
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional
annotation
documentation
In the newly proposed U-JDL, application and task are merged.

element Text
diagram
type textType
properties
content complex
substGrp Dataset
children Line
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
annotation
documentation
Any text, including command line arguments

complexType applicationType
diagram
used by
element Application
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional
name  xsd:stringrequired
ver  xsd:stringoptional

complexType catalogType
diagram
children Type Name Query
used by
element genericDatasetType/Catalog

element catalogType/Type
diagram
type xsd:string
properties
isRef 0
content simple

element catalogType/Name
diagram
type xsd:anyURI
properties
isRef 0
content simple

element catalogType/Query
diagram
type xsd:string
properties
isRef 0
content simple

complexType datasetType
diagram
used by
element Dataset
complexTypes environmentType genericDatasetType textType
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired

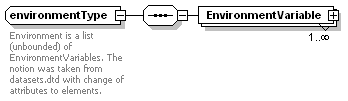

complexType environmentType
diagram
type extension of datasetType
properties
base datasetType
children EnvironmentVariable
used by
element Environment
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
annotation
documentation
Environment is a list (unbounded) of EnvironmentVariables. The notion was taken from datasets.dtd with change of attributes to elements.

element environmentType/EnvironmentVariable
diagram
properties
isRef 0
content complex
children Name Value

element environmentType/EnvironmentVariable/Name
diagram
type xsd:string
properties
isRef 0
content simple

element environmentType/EnvironmentVariable/Value
diagram
type xsd:string
properties
isRef 0
content simple

complexType genericDatasetType
diagram
type extension of datasetType
properties
base datasetType
children Name Id DataSetIDRef Range Catalog Token
used by
element GenericDataset
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired

element genericDatasetType/Name
diagram
type xsd:anyURI
properties
isRef 0
content simple
annotation
documentation
LFN, PFN, ...

element genericDatasetType/Id
diagram
type xsd:long
properties
isRef 0
content simple
annotation
documentation
Event ID, ...

element genericDatasetType/DataSetIDRef
diagram
type xsd:IDREF
properties
isRef 0
content simple
annotation
documentation
Reference to other DataSets (merging)

element genericDatasetType/Range
diagram
properties
isRef 0
content complex
children Minimum Maximum
annotation
documentation
Range may be used for event number ranges. It may not have any special significance for physical files. A range defines however a collection and fits well with Catalog and List.

element genericDatasetType/Range/Minimum
diagram
type xsd:anySimpleType
properties
isRef 0
content simple

element genericDatasetType/Range/Maximum
diagram
type xsd:anySimpleType
properties
isRef 0
content simple

element genericDatasetType/Catalog
diagram
type catalogType
properties
isRef 0
content complex
children Type Name Query
annotation
documentation
Catalog element is the connection to any relevant catalog for the DataSet. Here, we envision the handling of Event, MetaData or File catalogs. We may
name the DataSets difefrentely for clarity but the genericDataSet is meant to cover everything as needed. The return value of a Catalog is compatible with a List (otherwise, use Token)

element genericDatasetType/Token
diagram
type xsd:anyType
properties
isRef 0
content complex
mixed true
attributes
Name  Type  Use  Default  Fixed  Annotation
annotation
documentation
A token is a referral to an extrenal iterrator returning the DataSet of interrest. For example, the scheduler may declare to an external service its intent to work on a perticular DataSet and given back a token which will be later used by the application to retreive that DataSet. In case of planners, the Token mechanism would be more appropriate. A token based DataSet is most likely virtual (here again, don't know how to add the constraint)

complexType javaTaskType
diagram
type extension of taskType
properties
base taskType
children STDIN STDOUT STDERR ClassName Jar Arguments ClassPath
used by
element JavaTask
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional

element javaTaskType/ClassName
diagram
type xsd:anyURI
properties
isRef 0
content simple
annotation
documentation
Either a jar or a class name

element javaTaskType/Jar
diagram
type xsd:anyURI
properties
isRef 0
content simple
annotation
documentation
The location of the JAR file containing the main class

element javaTaskType/Arguments
diagram
type xsd:string
properties
isRef 0
content simple
annotation
documentation
The arguments to use to execute the JAR file.

element javaTaskType/ClassPath
diagram
type xsd:anyURI
properties
isRef 0
content simple

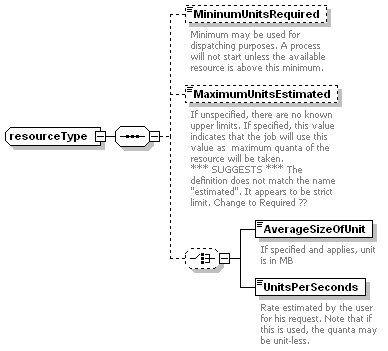

complexType resourceType
diagram
children MininumUnitsRequired MaximumUnitsEstimated AverageSizeOfUnit UnitsPerSeconds
used by
elements InputEvents InputFiles InputResource InputTracks MemoryPerProcess OutputEvents OutputFiles OutputResource OutputTracks

element resourceType/MininumUnitsRequired
diagram
type xsd:long
properties
isRef 0
content simple
annotation
documentation
Minimum may be used for dispatching purposes. A process will not start unless the available resource is above this minimum.

element resourceType/MaximumUnitsEstimated
diagram
type xsd:long
properties
isRef 0
content simple
annotation
documentation
If unspecified, there are no known upper limits. If specified, this value indicates that the job will use this value as  maximum quanta of the resource will be taken.
*** SUGGESTS *** The definition does not match the name "estimated". It appears to be strict limit. Change to Required ??

element resourceType/AverageSizeOfUnit
diagram
type xsd:float
properties
isRef 0
content simple
annotation
documentation
If specified and applies, unit is in MB

element resourceType/UnitsPerSeconds
diagram
type xsd:float
properties
isRef 0
content simple
annotation
documentation
Rate estimated by the user for his request. Note that if this is used, the quanta may be unit-less.

complexType rootTaskType
diagram
type extension of taskType
properties
base taskType
children STDIN STDOUT STDERR Macro Arguments
used by
element RootTask
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional

element rootTaskType/Macro
diagram
type extension of xsd:string
properties
isRef 0
content complex

element rootTaskType/Arguments
diagram
type xsd:string
properties
isRef 0
content simple

complexType scriptTaskType
diagram
type extension of taskType
properties
base taskType
children STDIN STDOUT STDERR Script Arguments
used by
element ScriptTask
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional

element scriptTaskType/Script
diagram
type extension of xsd:string
properties
isRef 0
content complex

element scriptTaskType/Arguments
diagram
type xsd:string
properties
isRef 0
content simple

complexType taskType
diagram
children STDIN STDOUT STDERR
used by
element Task
complexTypes javaTaskType rootTaskType scriptTaskType
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired
type  xsd:stringoptional

element taskType/STDIN
diagram
type xsd:anyURI
properties
isRef 0
content simple

element taskType/STDOUT
diagram
type xsd:anyURI
properties
isRef 0
content simple

element taskType/STDERR
diagram
type xsd:anyURI
properties
isRef 0
content simple

complexType textType
diagram
type extension of datasetType
properties
base datasetType
children Line
used by
element Text
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  xsd:IDrequired

element textType/Line
diagram
type xsd:string
properties
isRef 0
content simple


XML Schema documentation generated with
XMLSPY Schema Editor http://www.altova.com/xmlspy
