IOPerf results
Results were obtained using a 8 kByte buffer, 50000 IO 1 pass. The test
order in that table is :
- IO test on individual partition (one at a time)
- One IO thread per volume, 7 volumes.
- Parralele IO (10 threads per volume). One result-average shown.
|
Block IO |
Character |
Random |
fwrite |
fread |
putc |
getc |
seek |
Machine/FS | KB |
KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
|
_star_test0_ | 400000 |
15942.61 | 15974.44 | 99.80 |
47169.81 | 47169.81 | 100.00 |
1157.24 | 1159.22 | 99.83 |
3344.20 | 3345.04 | 99.97 |
519.45 | 519.45 | 100.00 |
_star_test1_ | 400000 |
15835.31 | 15879.32 | 99.72 |
48309.18 | 48309.18 | 100.00 |
1157.98 | 1160.09 | 99.82 |
3344.76 | 3346.44 | 99.95 |
519.45 | 519.45 | 100.00 |
_star_test2_ | 400000 |
16077.17 | 16109.54 | 99.80 |
46296.30 | 46296.30 | 100.00 |
1155.00 | 1155.27 | 99.98 |
3333.61 | 3334.72 | 99.97 |
519.45 | 519.45 | 100.00 |
_star_test3_ | 400000 |
16135.54 | 16214.03 | 99.52 |
46349.94 | 46349.94 | 100.00 |
1148.90 | 1150.19 | 99.89 |
3338.90 | 3339.73 | 99.97 |
519.45 | 519.45 | 100.00 |
_star_test4_ | 400000 |
16064.26 | 16116.04 | 99.68 |
46082.95 | 46082.95 | 100.00 |
1150.32 | 1150.48 | 99.99 |
3330.84 | 3331.67 | 99.98 |
513.98 | 513.98 | 100.00 |
_star_test5_ | 400000 |
16057.81 | 16109.54 | 99.68 |
47732.70 | 47732.70 | 100.00 |
1154.27 | 1154.50 | 99.98 |
3342.80 | 3343.64 | 99.97 |
515.34 | 515.34 | 100.00 |
_star_test6_ | 400000 |
15847.86 | 16122.53 | 98.30 |
47169.81 | 47169.81 | 100.00 |
1140.02 | 1141.39 | 99.88 |
3342.53 | 3343.36 | 99.97 |
516.70 | 516.70 | 100.00 |
P_star_test0_test_ | 400000 |
13976.24 | 15048.91 | 92.87 |
13093.29 | 29090.91 | 45.01 |
602.44 | 1086.28 | 55.46 |
1846.47 | 3195.14 | 57.79 |
279.02 | 489.51 | 57.00 |
_star_test0_test_ | 400000 |
4122.22 | 14914.88 | 27.64 |
5622.00 | 25004.21 | 22.50 |
428.20 | 1092.32 | 39.20 |
1285.70 | 3204.70 | 40.12 |
354.13 | 495.90 | 71.34 |
- Only 40000 IO (factor a 10 down, IOZone ~ 15 in file size),
note the improved read-rate corresponding to the 'dome-shape'
profile effect.
- IO test on individual partition (one at a time)
- One IO thread per volume, 4 volumes. New notation 1PV .
- Parralele IO (10 threads per volume). New notation NPV .
|
Block IO |
Character |
Random |
fwrite |
fread |
putc |
getc |
seek |
Machine/FS | KB |
KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
|
_star_test0_ | 40000 |
16877.64 | 16877.64 | 100.00 |
83333.33 | 83333.33 | 100.00 |
1177.51 | 1178.55 | 99.91 |
3445.31 | 3445.31 | 100.00 |
527.87 | 527.87 | 100.00 |
_star_test1_ | 40000 |
15748.03 | 15873.02 | 99.21 |
83333.33 | 83333.33 | 100.00 |
1131.54 | 1134.75 | 99.72 |
3451.25 | 3451.25 | 100.00 |
527.87 | 527.87 | 100.00 |
_star_test2_ | 40000 |
15503.88 | 16064.26 | 96.51 |
85106.38 | 85106.38 | 100.00 |
1160.77 | 1160.77 | 100.00 |
3454.23 | 3454.23 | 100.00 |
513.98 | 513.98 | 100.00 |
_star_test3_ | 40000 |
16260.16 | 16528.93 | 98.37 |
83333.33 | 83333.33 | 100.00 |
1177.16 | 1180.64 | 99.71 |
3445.31 | 3445.31 | 100.00 |
500.80 | 500.80 | 100.00 |
1PV_star_test0_test_ | 40000 |
16194.33 | 16194.33 | 100.00 |
83333.33 | 83333.33 | 100.00 |
1093.19 | 1106.19 | 98.82 |
3369.84 | 3401.36 | 99.07 |
513.98 | 513.98 | 100.00 |
1PV_star_test1_test_ | 40000 |
15936.25 | 16000.00 | 99.60 |
78431.37 | 78431.37 | 100.00 |
1078.17 | 1094.39 | 98.52 |
3350.08 | 3369.84 | 99.41 |
513.98 | 513.98 | 100.00 |
1PV_star_test2_test_ | 40000 |
15748.03 | 15810.28 | 99.61 |
68965.52 | 68965.52 | 100.00 |
1085.48 | 1112.04 | 97.61 |
3347.28 | 3347.28 | 100.00 |
527.87 | 527.87 | 100.00 |
1PV_star_test3_test_ | 40000 |
13840.83 | 15686.27 | 88.24 |
70175.44 | 71428.57 | 98.25 |
1106.81 | 1121.08 | 98.73 |
3372.68 | 3372.68 | 100.00 |
513.98 | 513.98 | 100.00 |
NPV_star_test0_test_ | 40000 |
4813.46 | 14724.81 | 32.67 |
19679.77 | 33358.14 | 59.68 |
428.41 | 1098.82 | 38.99 |
1409.61 | 3290.86 | 42.84 |
379.89 | 506.07 | 75.17 |
NPV_star_test1_test_ | 40000 |
4753.41 | 14621.94 | 32.53 |
18319.79 | 33036.32 | 55.77 |
430.50 | 1098.55 | 39.19 |
1434.92 | 3288.70 | 43.64 |
336.49 | 502.39 | 67.36 |
NPV_star_test2_test_ | 40000 |
4932.96 | 14577.32 | 33.79 |
17138.53 | 35101.01 | 49.48 |
429.23 | 1098.04 | 39.09 |
1466.38 | 3285.72 | 44.63 |
357.31 | 506.27 | 70.58 |
NPV_star_test3_test_ | 40000 |
4425.09 | 14915.03 | 29.69 |
17729.67 | 33795.97 | 51.63 |
425.02 | 1094.94 | 38.82 |
1609.91 | 3287.41 | 48.96 |
400.82 | 511.49 | 78.41 |
- Another factor of 10 down (now at 12), only the seek time is
improved (not suprising since it does not have to scan as much
of the file size).
|
Block IO |
Character |
Random |
fwrite |
fread |
putc |
getc |
seek |
Machine/FS | KB |
KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
|
_star_test0_ | 4000 |
16000.00 | 16666.67 | 96.00 |
80000.00 | 80000.00 | 100.00 |
1183.43 | 1183.43 | 100.00 |
3418.80 | 3418.80 | 100.00 |
488.28 | 488.28 | 100.00 |
_star_test1_ | 4000 |
16666.67 | 16666.67 | 100.00 |
80000.00 | 80000.00 | 100.00 |
1183.43 | 1186.94 | 99.70 |
3448.28 | 3448.28 | 100.00 |
488.28 | 488.28 | 100.00 |
_star_test2_ | 4000 |
16666.67 | 16666.67 | 100.00 |
80000.00 | 80000.00 | 100.00 |
1179.94 | 1179.94 | 100.00 |
3448.28 | 3448.28 | 100.00 |
488.28 | 488.28 | 100.00 |
_star_test3_ | 4000 |
16000.00 | 16000.00 | 100.00 |
80000.00 | 80000.00 | 100.00 |
1183.43 | 1186.94 | 99.70 |
3418.80 | 3418.80 | 100.00 |
488.28 | 488.28 | 100.00 |
1PV_star_test0_test_ | 4000 |
16000.00 | 16666.67 | 96.00 |
100000.00 | 100000.00 | 100.00 |
1186.94 | 1186.94 | 100.00 |
3478.26 | 3478.26 | 100.00 |
976.56 | 976.56 | 100.00 |
1PV_star_test1_test_ | 4000 |
16666.67 | 16666.67 | 100.00 |
80000.00 | 80000.00 | 100.00 |
1173.02 | 1176.47 | 99.71 |
3478.26 | 3478.26 | 100.00 |
488.28 | 488.28 | 100.00 |
1PV_star_test2_test_ | 4000 |
16666.67 | 16666.67 | 100.00 |
80000.00 | 80000.00 | 100.00 |
1156.07 | 1159.42 | 99.71 |
3448.28 | 3448.28 | 100.00 |
488.28 | 488.28 | 100.00 |
1PV_star_test3_test_ | 4000 |
16000.00 | 16000.00 | 100.00 |
80000.00 | 80000.00 | 100.00 |
1055.41 | 1055.41 | 100.00 |
3418.80 | 3418.80 | 100.00 |
488.28 | 488.28 | 100.00 |
NPV_star_test0_test_ | 4000 |
6361.66 | 15085.12 | 42.21 |
49072.26 | 65158.73 | 74.80 |
429.94 | 1098.44 | 39.17 |
2252.42 | 3413.45 | 66.10 |
453.40 | 488.28 | 92.86 |
NPV_star_test1_test_ | 4000 |
6505.36 | 14890.29 | 44.03 |
40760.40 | 65190.48 | 65.81 |
439.63 | 1100.89 | 40.00 |
2006.54 | 3413.88 | 58.85 |
455.73 | 488.28 | 93.33 |
NPV_star_test2_test_ | 4000 |
5805.70 | 15026.86 | 38.88 |
42837.51 | 67761.91 | 62.02 |
453.47 | 1092.67 | 41.56 |
1892.04 | 3401.52 | 55.65 |
488.28 | 488.28 | 100.00 |
NPV_star_test3_test_ | 4000 |
5233.29 | 15308.98 | 34.48 |
47928.57 | 60476.19 | 79.32 |
440.97 | 1100.81 | 40.11 |
2106.61 | 3401.86 | 61.97 |
537.11 | 537.11 | 100.00 |
- As before for the number of IO but this time, instead of using a
8KByte buffer (2^3) we use a 64 KByte buffer (2^6).
- 5 % gain in write and read mode . Comparing to the IOZone graphs,
we should now be on the record size=6, file size ~ 12, bottom graphs.
- Note ta this stage that test0 always seem to do better
read-wise than the others. Any tuning issues ?
- Also, the 1PV tests are : one thread per volume (all volume
simultaneously), there are no significant differences in rates comparing
to a single thread, one volume at a time. Is this expected ??
|
Block IO |
Character |
Random |
fwrite |
fread |
putc |
getc |
seek |
Machine/FS | KB |
KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
| KB/sec Real | KB/sec CPU | %CPU
|
_star_test0_ | 32000 |
16580.31 | 16580.31 | 100.00 |
84210.53 | 84210.53 | 100.00 |
1167.03 | 1167.03 | 100.00 |
3433.48 | 3433.48 | 100.00 |
488.28 | 488.28 | 100.00 |
_star_test1_ | 32000 |
16842.11 | 16842.11 | 100.00 |
84210.53 | 84210.53 | 100.00 |
1188.27 | 1188.27 | 100.00 |
3463.20 | 3463.20 | 100.00 |
488.28 | 488.28 | 100.00 |
_star_test2_ | 32000 |
16666.67 | 16753.93 | 99.48 |
84210.53 | 84210.53 | 100.00 |
1106.88 | 1110.73 | 99.65 |
3440.86 | 3444.56 | 99.89 |
488.28 | 488.28 | 100.00 |
_star_test3_ | 32000 |
16666.67 | 16666.67 | 100.00 |
84210.53 | 84210.53 | 100.00 |
1140.41 | 1140.41 | 100.00 |
3459.46 | 3459.46 | 100.00 |
488.28 | 488.28 | 100.00 |
1PV_star_test0_test_ | 32000 |
16666.67 | 16753.93 | 99.48 |
86486.49 | 86486.49 | 100.00 |
1096.27 | 1114.59 | 98.36 |
3379.09 | 3389.83 | 99.68 |
488.28 | 488.28 | 100.00 |
1PV_star_test1_test_ | 32000 |
16494.85 | 16580.31 | 99.48 |
80000.00 | 80000.00 | 100.00 |
1081.81 | 1095.52 | 98.75 |
3389.83 | 3400.64 | 99.68 |
976.56 | 976.56 | 100.00 |
1PV_star_test2_test_ | 32000 |
16080.40 | 16243.65 | 98.99 |
76190.48 | 76190.48 | 100.00 |
1082.18 | 1103.83 | 98.04 |
3386.24 | 3418.80 | 99.05 |
488.28 | 488.28 | 100.00 |
1PV_star_test3_test_ | 32000 |
13733.91 | 15311.00 | 89.70 |
66666.67 | 66666.67 | 100.00 |
1099.66 | 1113.04 | 98.80 |
3433.48 | 3433.48 | 100.00 |
488.28 | 488.28 | 100.00 |
NPV_star_test0_test_ | 32000 |
4626.94 | 15152.89 | 30.51 |
19517.83 | 34733.29 | 55.94 |
429.30 | 1096.93 | 39.14 |
1482.39 | 3297.30 | 44.96 |
444.88 | 488.28 | 91.11 |
NPV_star_test1_test_ | 32000 |
4947.71 | 15282.74 | 32.36 |
21458.08 | 34283.35 | 63.61 |
427.49 | 1100.20 | 38.86 |
1613.10 | 3296.29 | 48.94 |
537.11 | 537.11 | 100.00 |
NPV_star_test2_test_ | 32000 |
5323.42 | 14787.27 | 35.91 |
18265.83 | 36711.84 | 50.54 |
425.83 | 1096.76 | 38.83 |
1542.92 | 3292.90 | 46.85 |
493.70 | 537.11 | 91.11 |
NPV_star_test3_test_ | 32000 |
5103.55 | 14708.89 | 34.68 |
16168.03 | 35475.83 | 45.65 |
428.48 | 1099.18 | 38.99 |
1595.63 | 3289.54 | 48.51 |
447.59 | 488.28 | 91.67 |

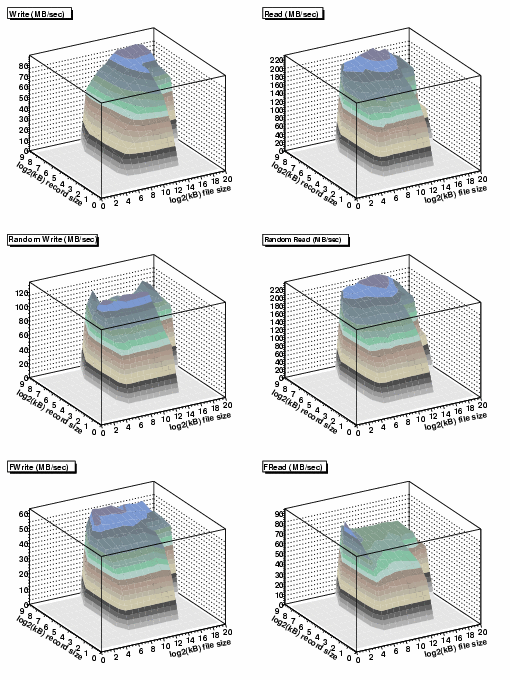

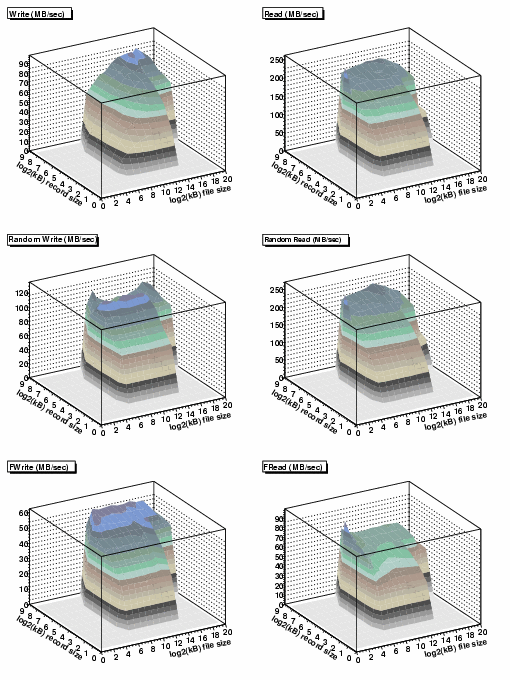

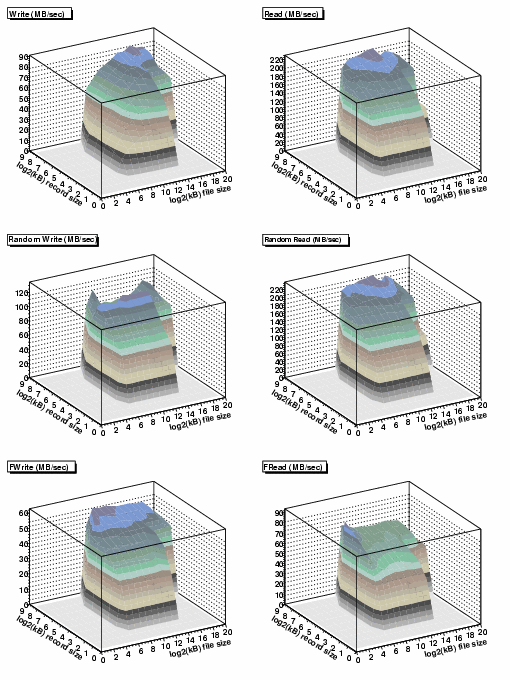

IOzone profiling
The profiling gives a gross performance view for several kByte buffer
and several file size.
The Read/Write tests are unbuffered while FRead/FWrite tests are
buffered.
