Scan of track & charge reconstruction for high energy electrons using geometry UPGR12
Updated Wed Jan 10 12:07:16 EST 2007
- Input events:
*fixed PT=5,10,...,50 GeV
*fixed zVertex=-30cm, 0, +30 cm
*uniform eta[0,3], bined by 0.2 in histos
*uniform phi in 2 pi, integrated
- Tracking uses: vertex+FST+FGT+TPC+ESMD.
Here is more details of the analysis
- The following detector configuartions have been considered
Config | Prim Vertex | FST disks | FGT disks | TPC | Endcap SMD
|
A | yes | all | all | yes | yes
|
B | yes | - | - | yes | yes
|
C | yes | - | - | yes | -
|
D | yes | 1+4 | 1+3 | yes | yes
|
E | yes | - | 1+3 | yes | yes
|
F | yes | all | all | yes | -
|

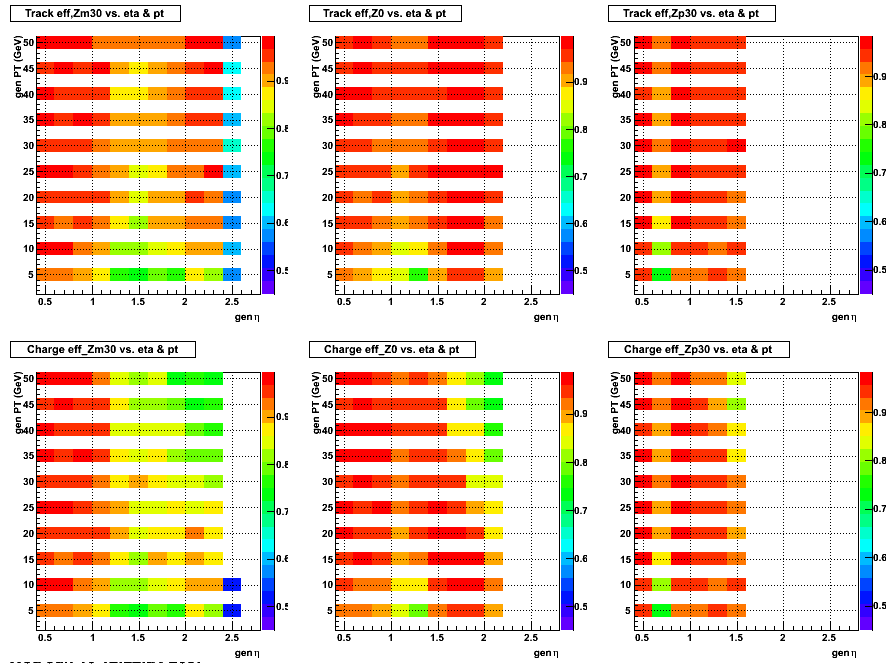

- Config A, FST=all, FGT=all, ESMD=yes , table w/ charge reco effi. Primary vertex & TPC are used in all configurations.
Reconstruction efficiency
Top row of plots: track reco efficiency, bottom row: charge reco efficiency.
3 columns of plots: zVertex=-30 cm, 0, +30 cm.
Z scale range set to [0.45,1.0]
Note, electrons were thrown for eta up to 3.0 in all cases.

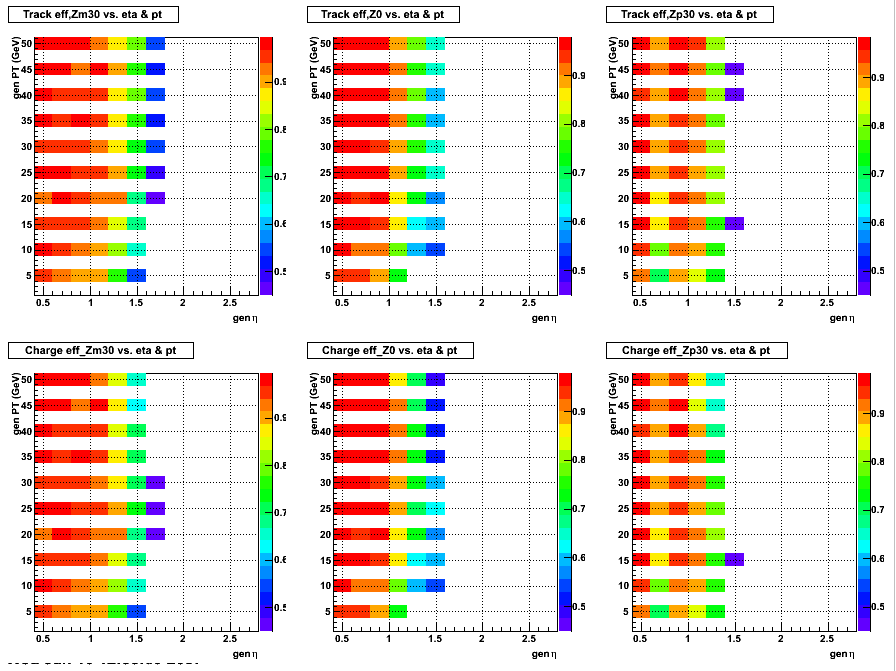

- Config B, FST=no, FGT=no, ESMD=yes ,
table w/ charge reco effi.

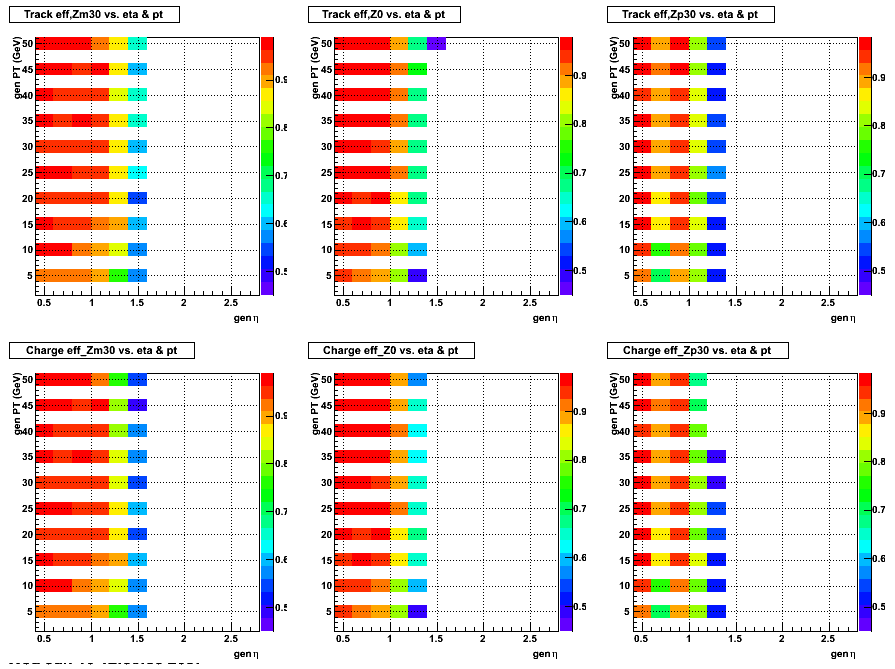

- Config C FST=no, FGT=no, ESMD=no ,
table w/ charge reco effi.

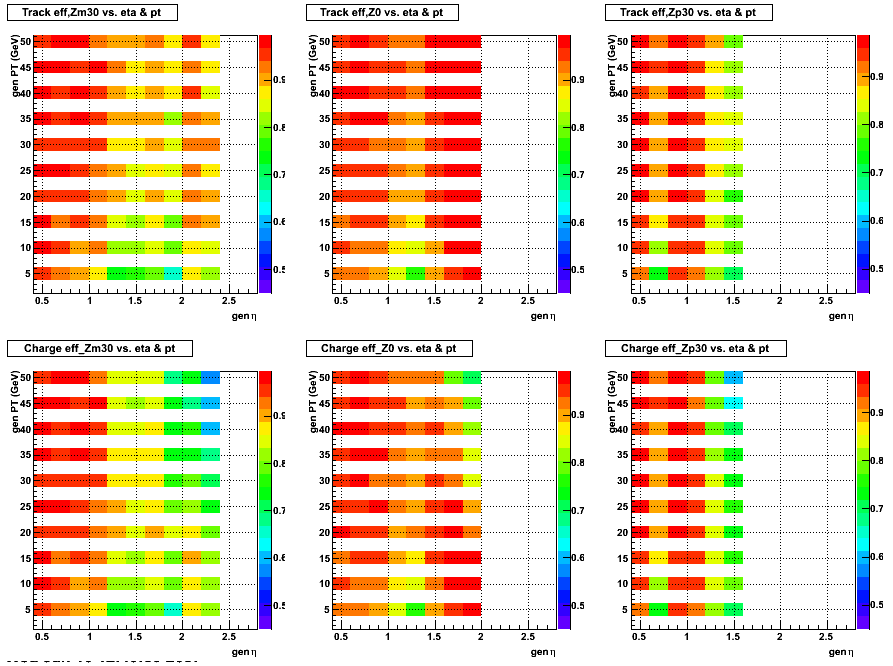

- Config D FST=1+4, FGT=1+3, ESMD=yes,
table w/ charge reco effi.
- Config E FST=no, FGT=1+3, ESMD=yes,
table w/ charge reco effi.

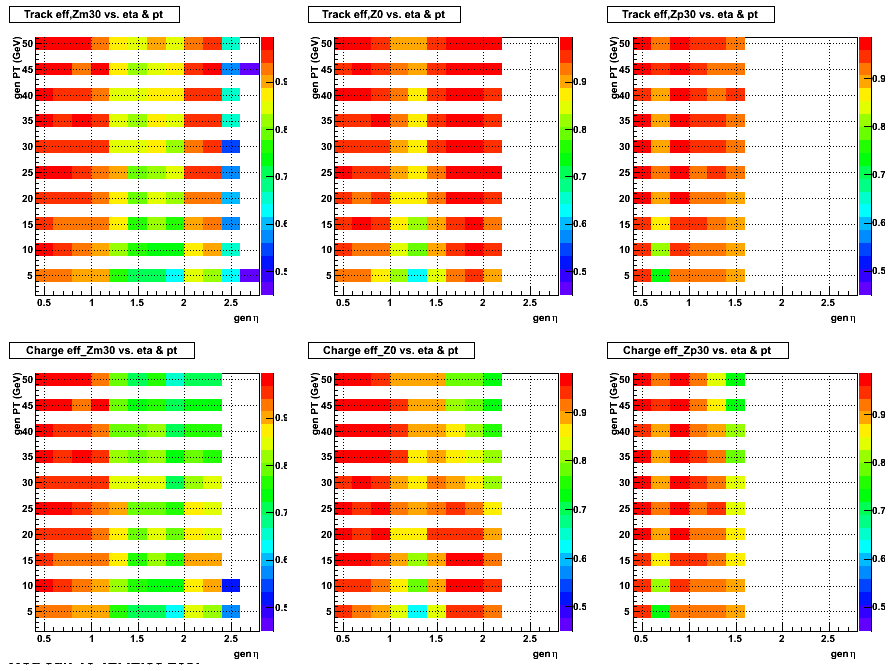

- Config F FST=all, FGT=all, ESMD=no ,
table w/ charge reco effi.
Used macros: scanEff.C ,
plScanEff.C .
