Average response to MIP of PRES-1, Pers-2, PostShower after gain correction

Using the previously obtained gains, the sum of PreShower 1, PreShower 2, and PoatShower Mips are shown in Figures 1, 2, and 3, respectively.

The MPV of Landay fit is at one as expected.

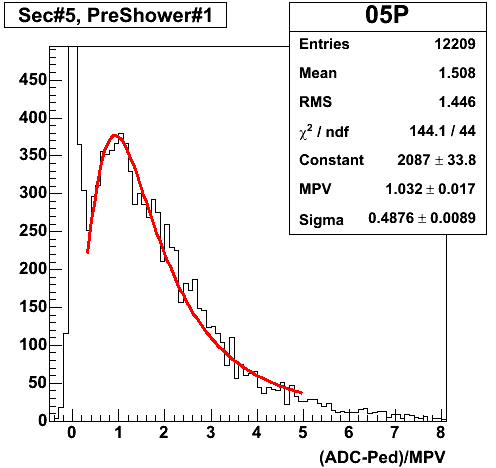

Figure 1 : The sum of all 60 PreShower 1 Mips.

The sum of the Mips for individual &eat; bins for PreShower 1 is shown here.

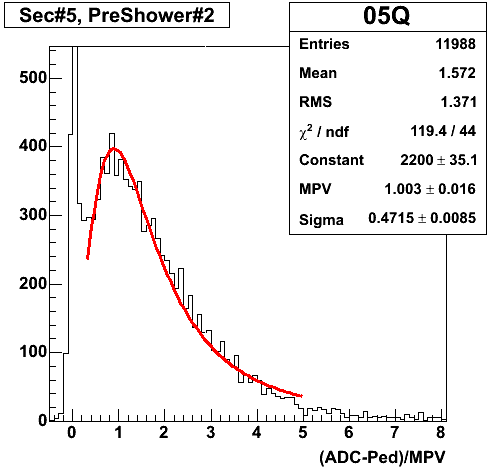

Figure 2 : The sum of all 60 PreShower 2 Mips.

The sum of the Mips for individual &eat; bins for PreShower 2 is shown here.

Figure 3 : The sum of all 60 PostShower Mips.


The response to Mips for individual η bins of PostShower is shown here.
