Preliminary Tower gains for pp200 data
(Using the SMD mip method)
Input: ~1.6M minB pp events from 2004 run.
The mips for sectors#5 towers are shown here.
The gains for all towers are listed here (done with getTGains.C). Since the gains here are just the mean of Gaussian fit, η dependence is eliminated

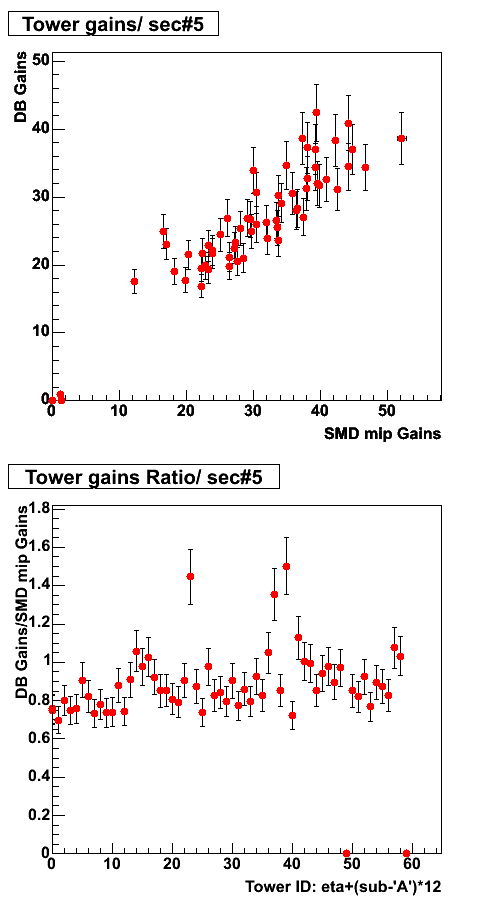

Figure 1 shows a comparison between the Database gains and the gains obtained from the SMD mips method.
Figure 1

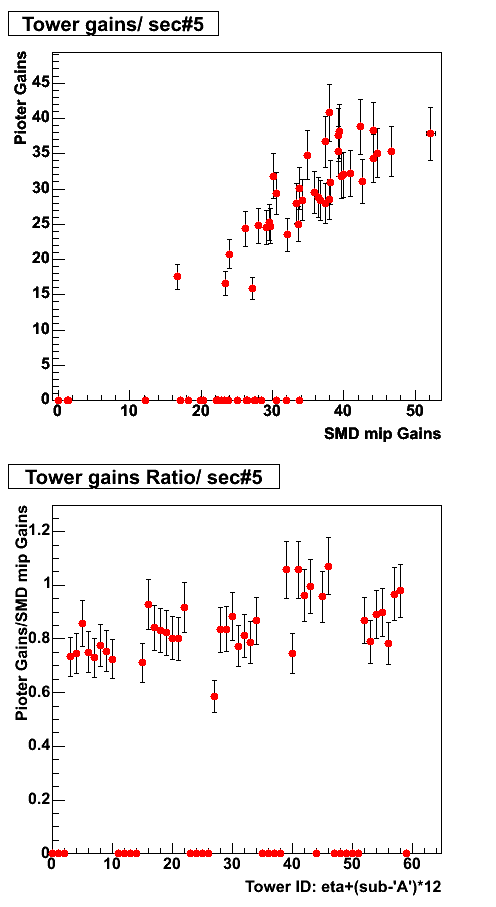

Figure 2 shows a comparison between the Pioter gains and the gains obtained from the SMD mips method.
Figure 2
