• setup: HV set H, towers 8TD09 & 8TE04 masked out in DSM and set to zero in q8_Hmask.

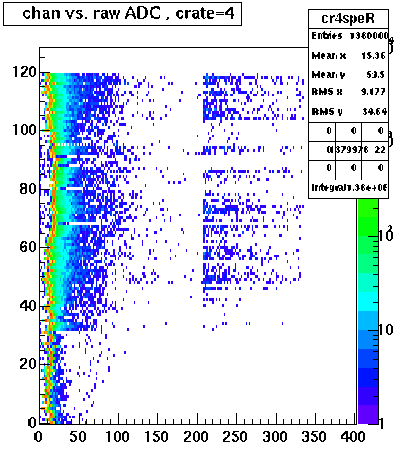

  • TH1 at ch12 , BBC rate 36KHz, trig rate 26 Hz, miniDaq run May3/run6+7

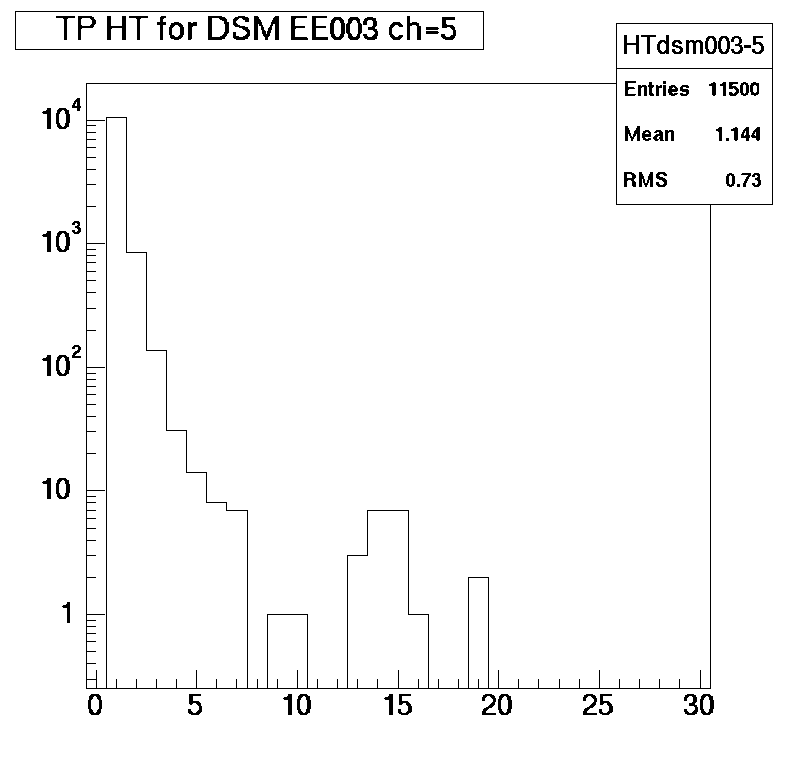

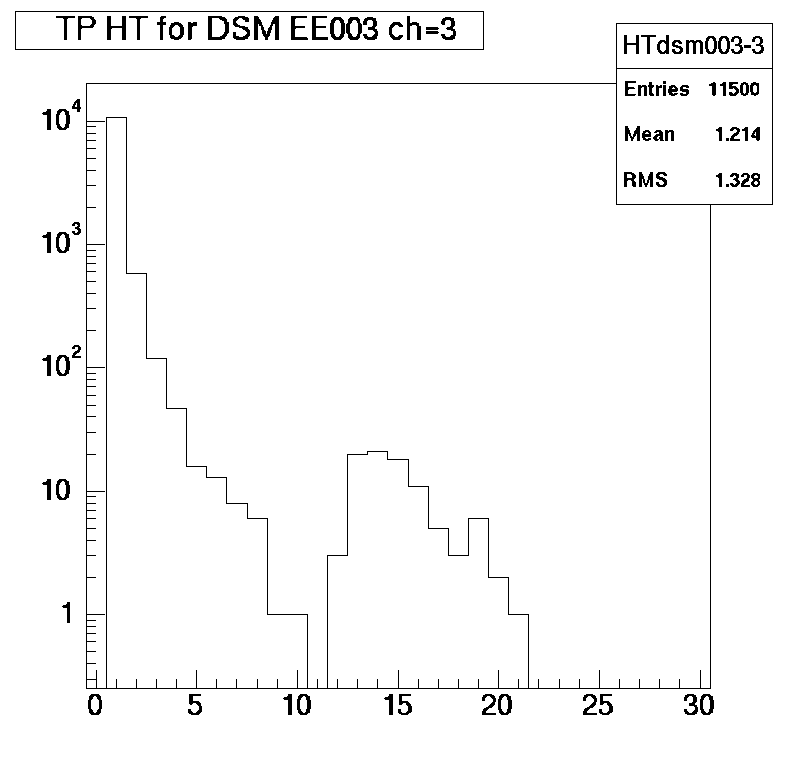

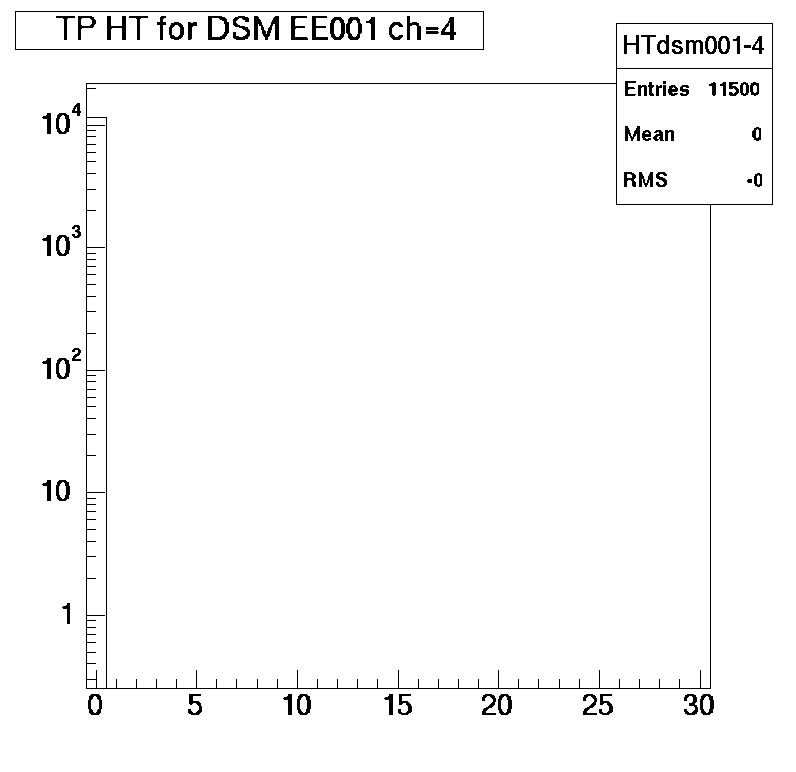

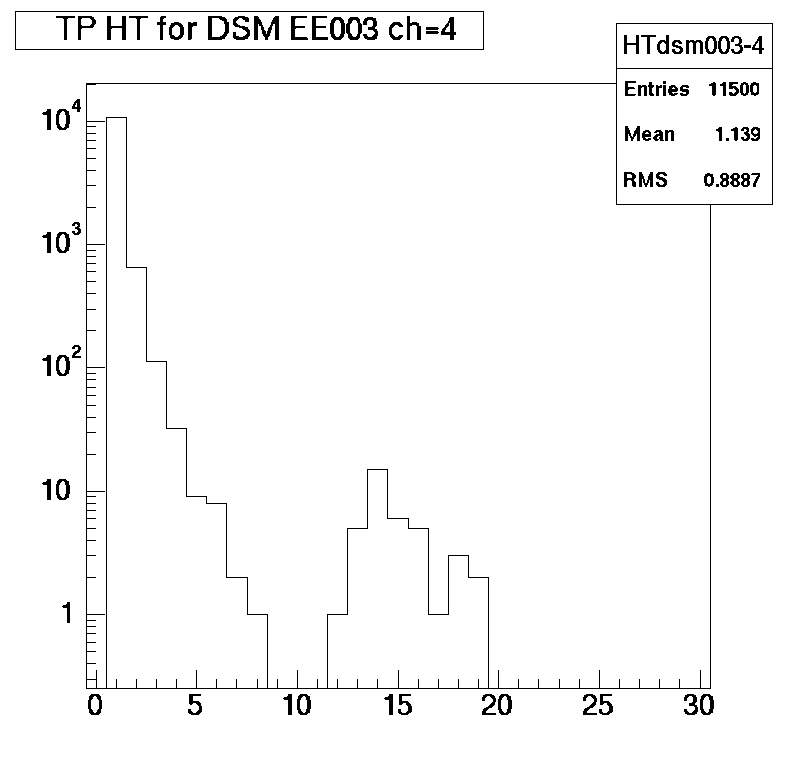

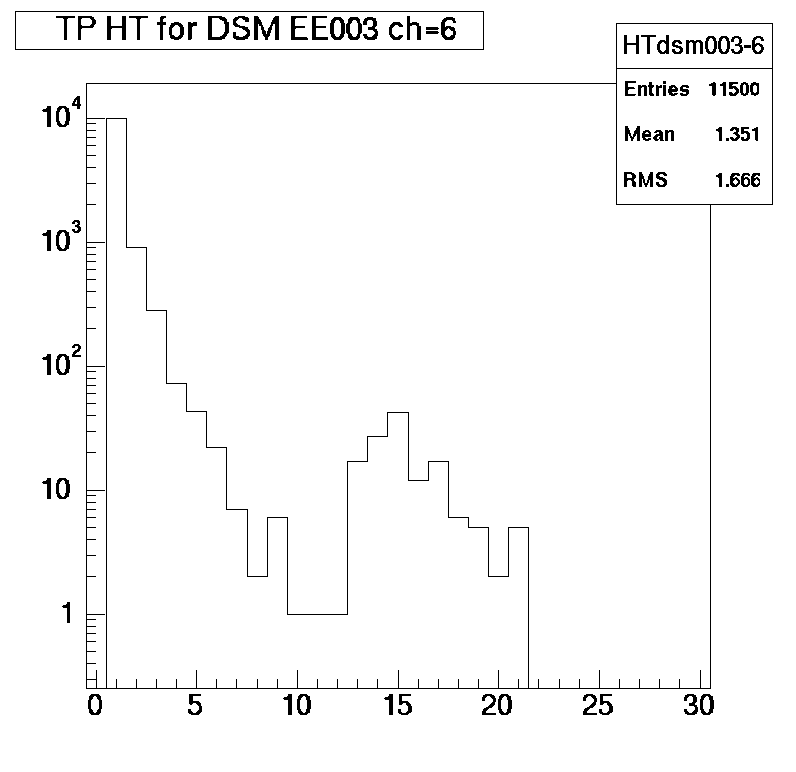

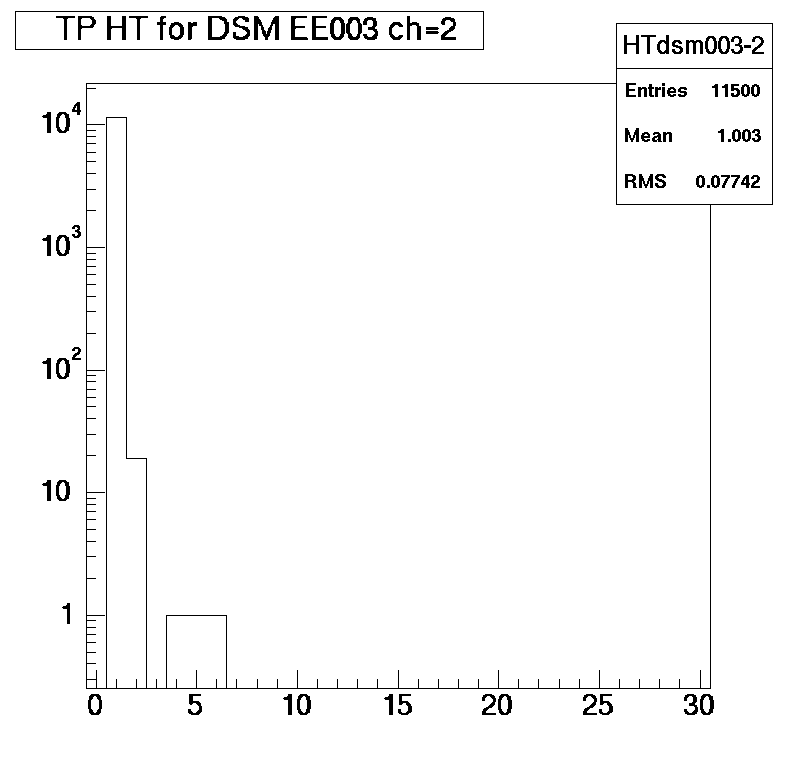

    DSM001-0 DSM002-0 DSM003-0 DSM004-0 DSM005-0
    DSM001-1 DSM002-1 DSM003-1 DSM004-1 DSM005-1
    DSM001-2 DSM002-2 DSM003-2 DSM004-2 DSM005-2
    DSM001-3 DSM002-3 DSM003-3 DSM004-3 DSM005-3
    DSM001-4 DSM002-4 DSM003-4 DSM004-4 DSM005-4
    DSM001-5 DSM002-5 DSM003-5 DSM004-5 DSM005-5
    DSM001-6 DSM002-6 DSM003-6 DSM004-6 DSM005-6
    DSM001-7 DSM002-7 DSM003-7 DSM004-7 DSM005-7
    DSM001-8 DSM002-8 DSM003-8 DSM004-8 DSM005-8
    DSM001-9 DSM001-9 DSM001-9 DSM001-9 DSM001-9

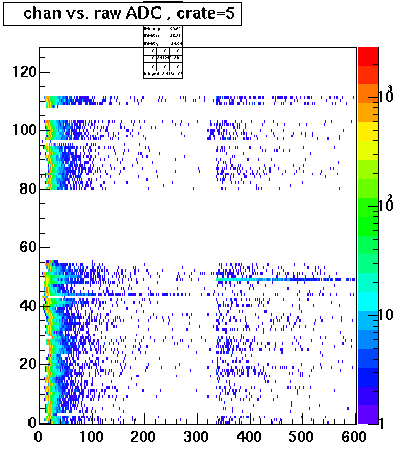

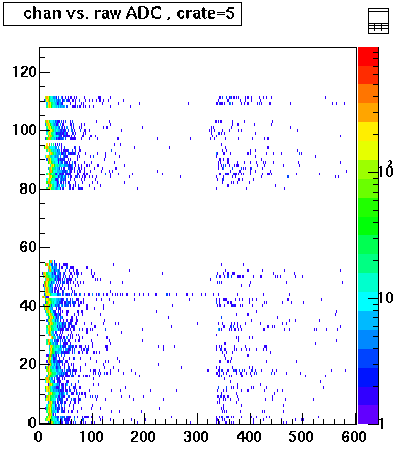

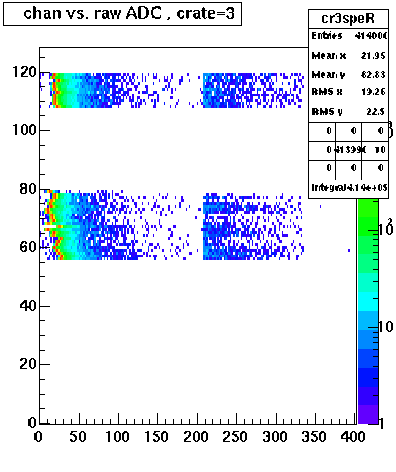

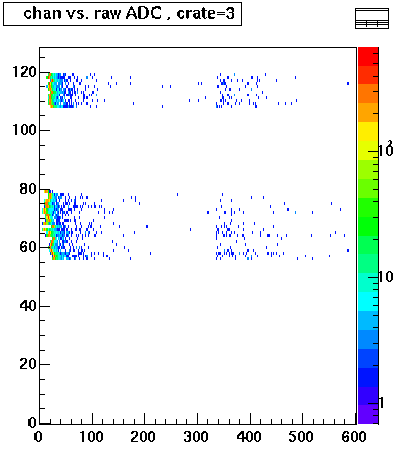

    2D spectra of ADC vs. crate/channel after xRay()

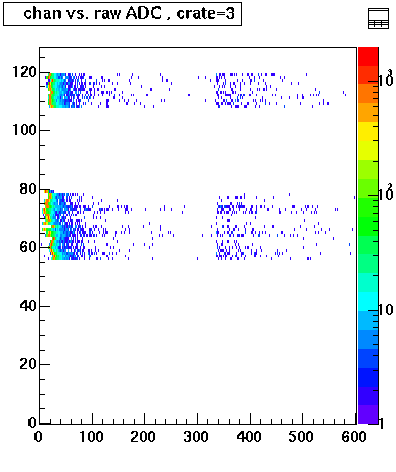

  • TH2 at ch20 , BBC rate 36KHz, trig rate 3.0 Hz, miniDaq run May3/run8
    hot tower is 8TE02

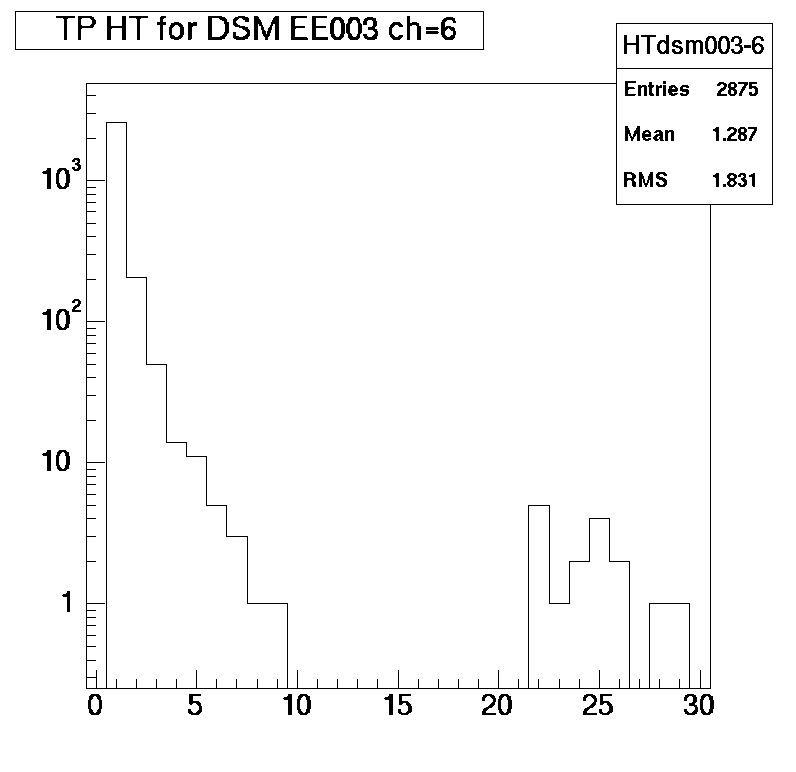

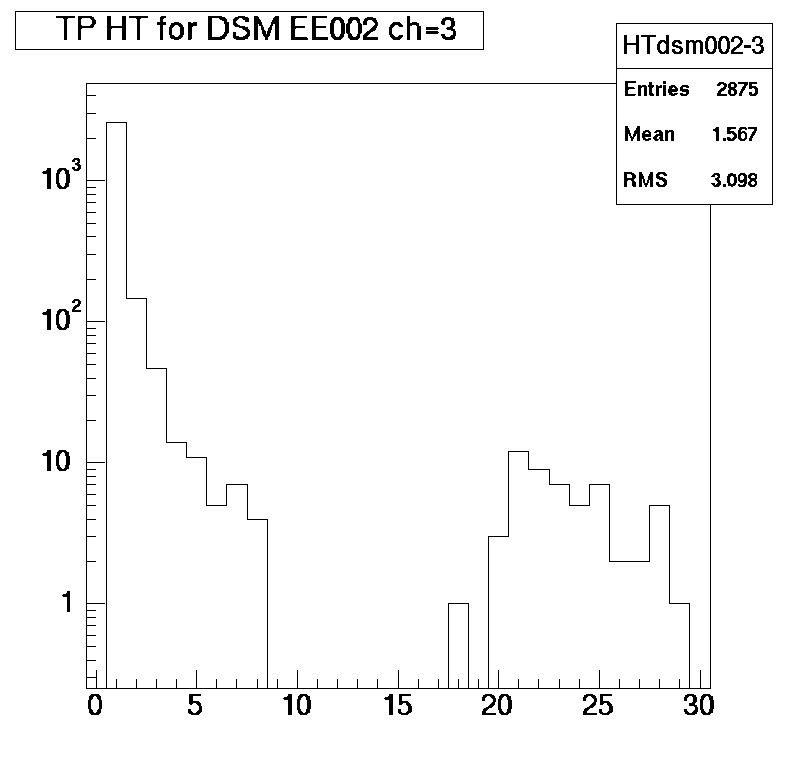

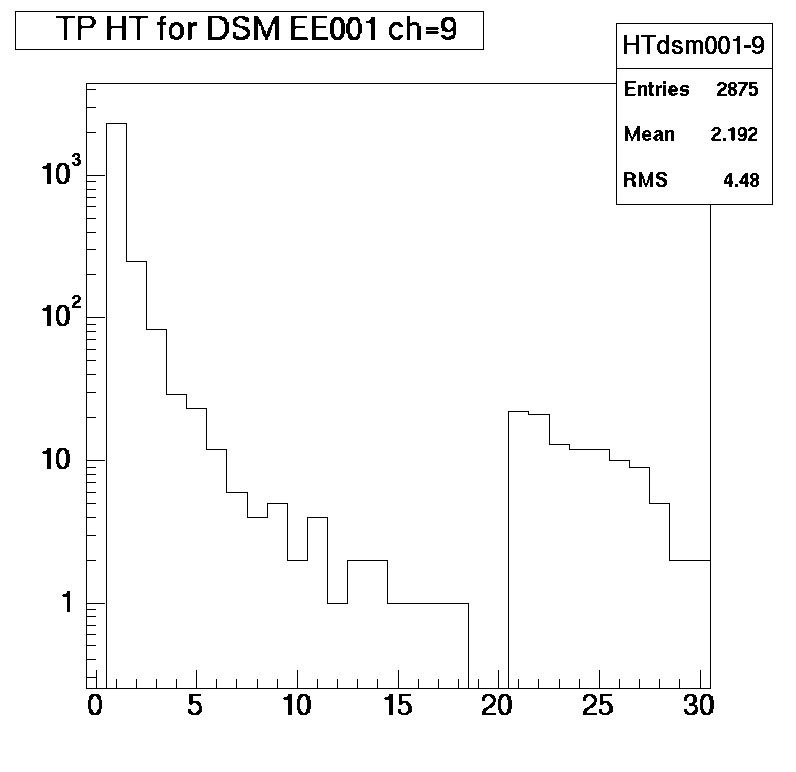

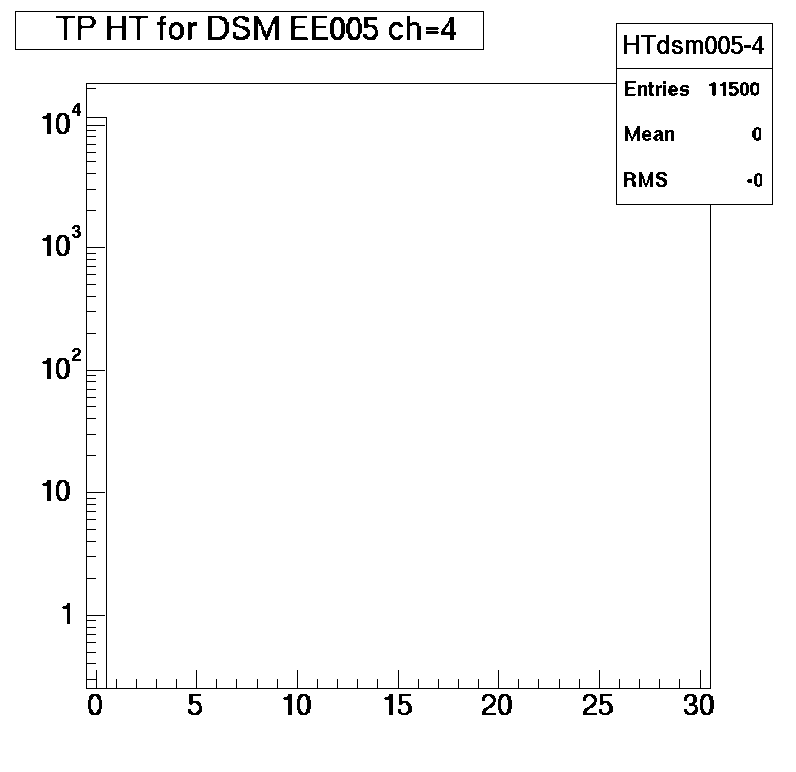

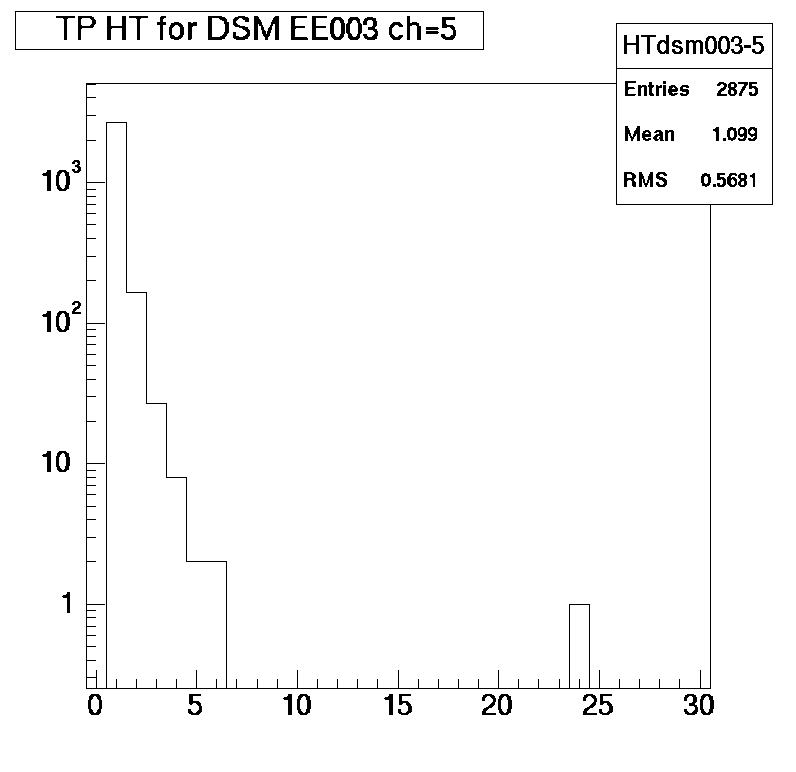

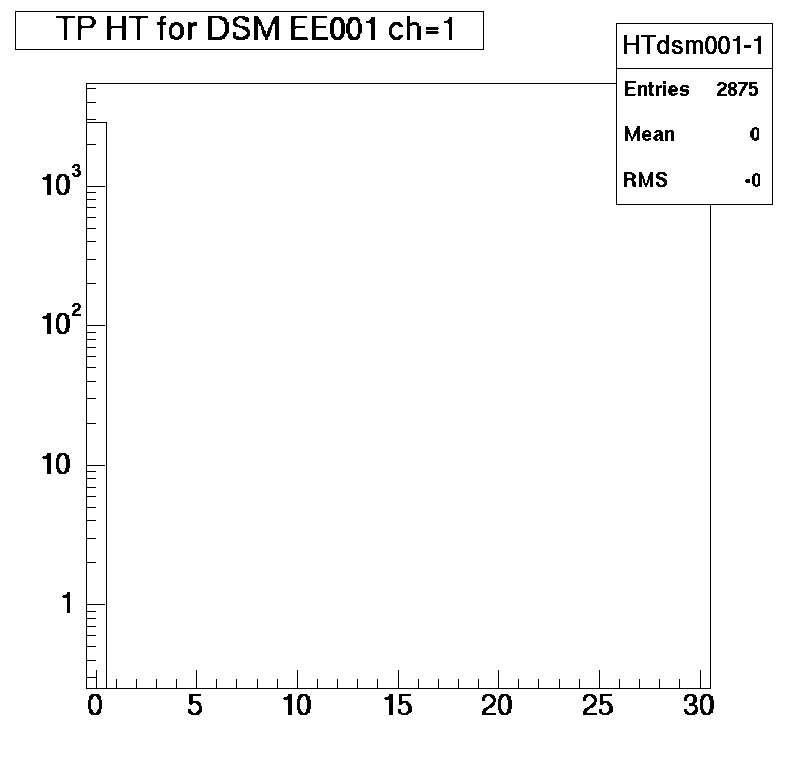

    DSM001-0 DSM002-0 DSM003-0 DSM004-0 DSM005-0
    DSM001-1 DSM002-1 DSM003-1 DSM004-1 DSM005-1

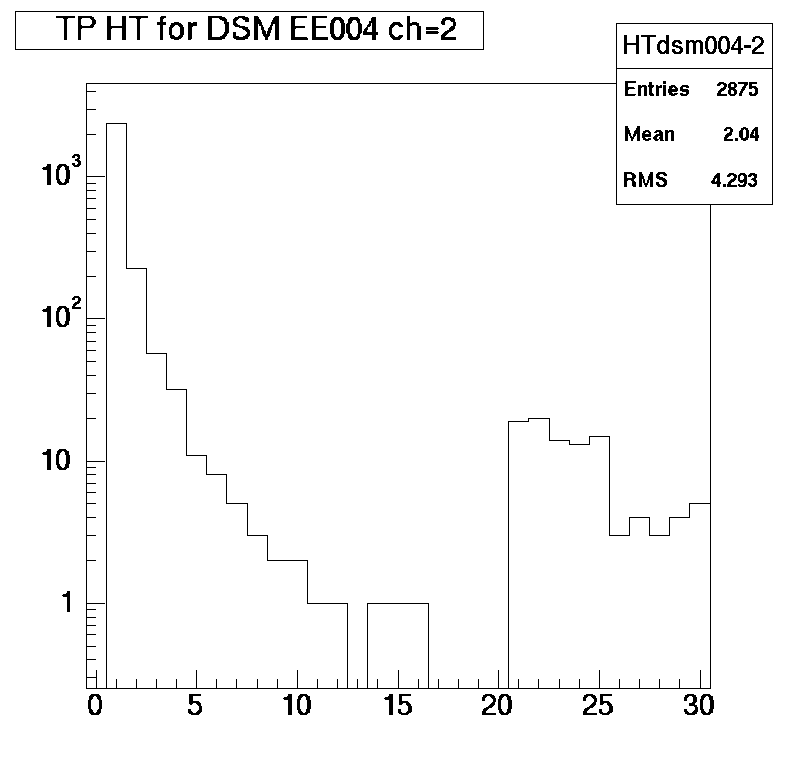

    DSM001-2 DSM002-2 DSM003-2 DSM004-2 DSM005-2
    DSM001-3 DSM002-3 DSM003-3 DSM004-3 DSM005-3
    DSM001-4 DSM002-4 DSM003-4 DSM004-4 DSM005-4
    DSM001-5 DSM002-5 DSM003-5 DSM004-5 DSM005-5
    DSM001-6 DSM002-6 DSM003-6 DSM004-6 DSM005-6
    DSM001-7 DSM002-7 DSM003-7 DSM004-7 DSM005-7
    DSM001-8 DSM002-8 DSM003-8 DSM004-8 DSM005-8
    DSM001-9 DSM001-9 DSM001-9 DSM001-9 DSM001-9

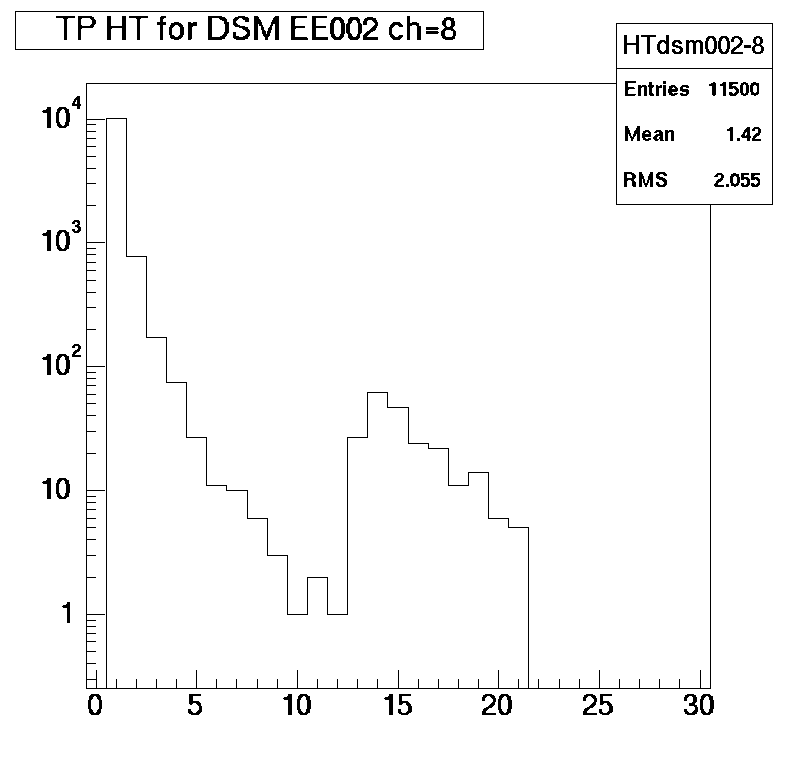

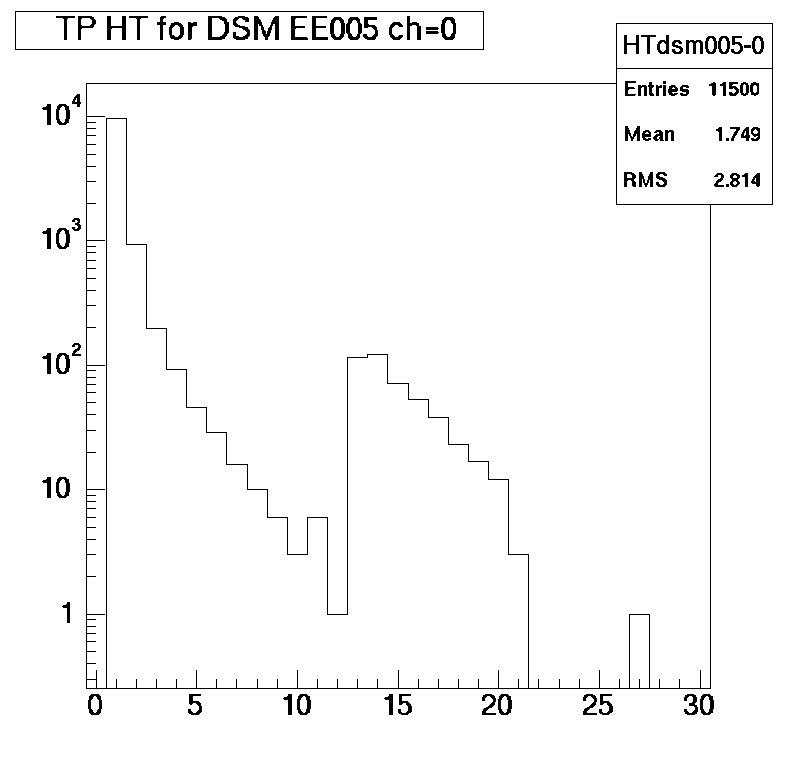

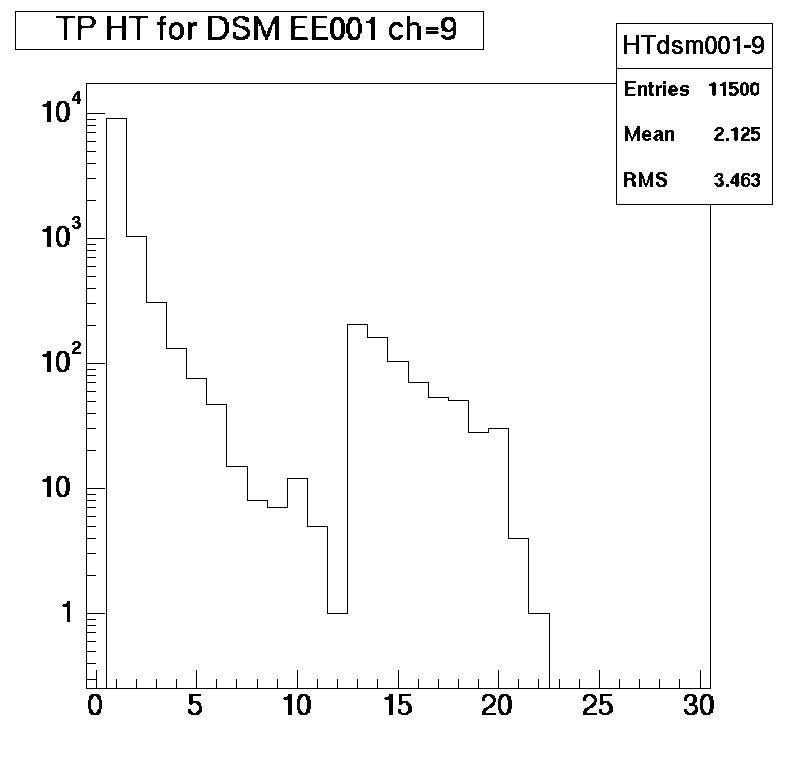

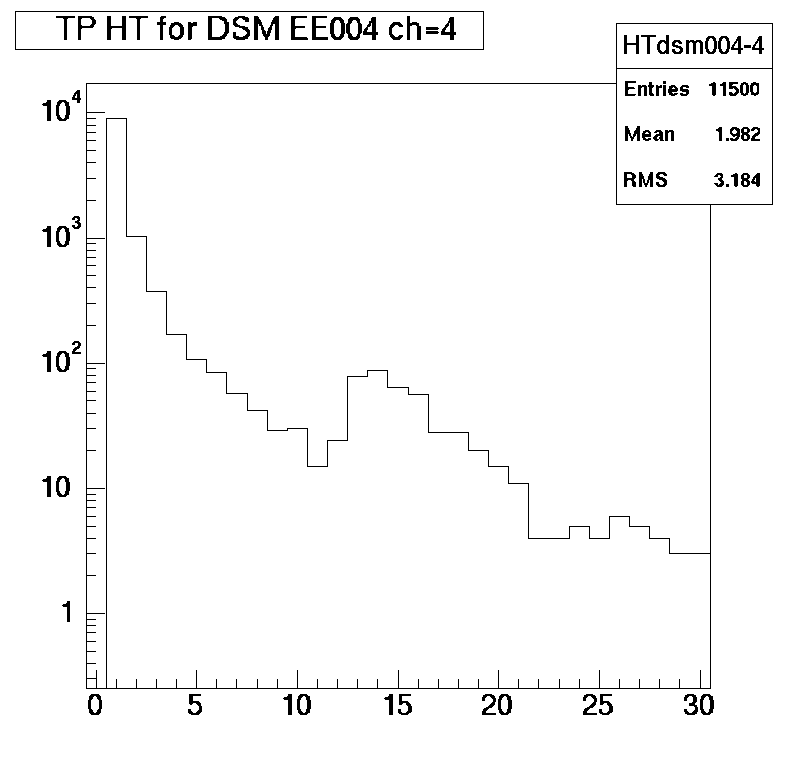

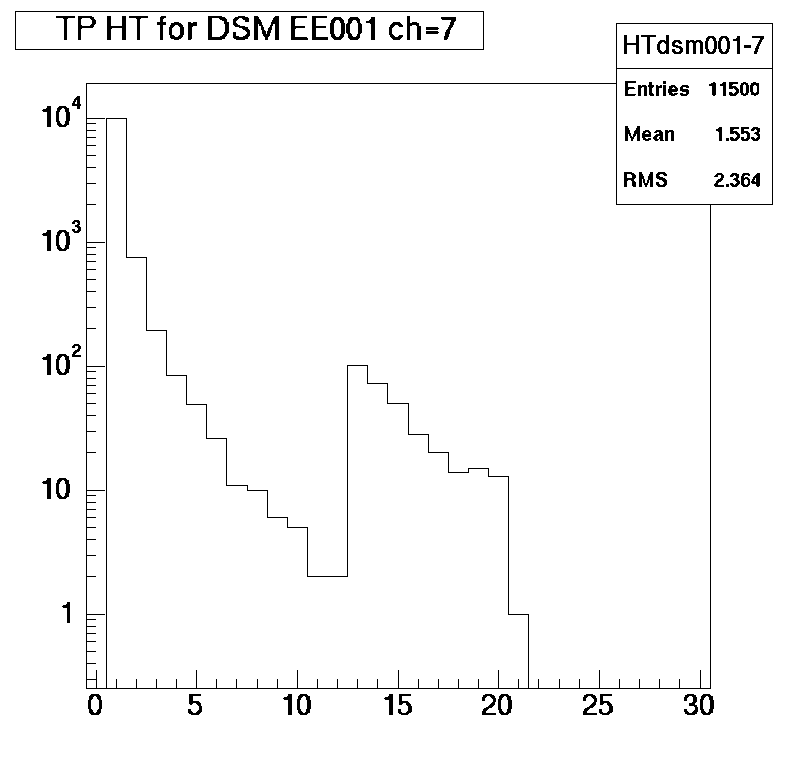

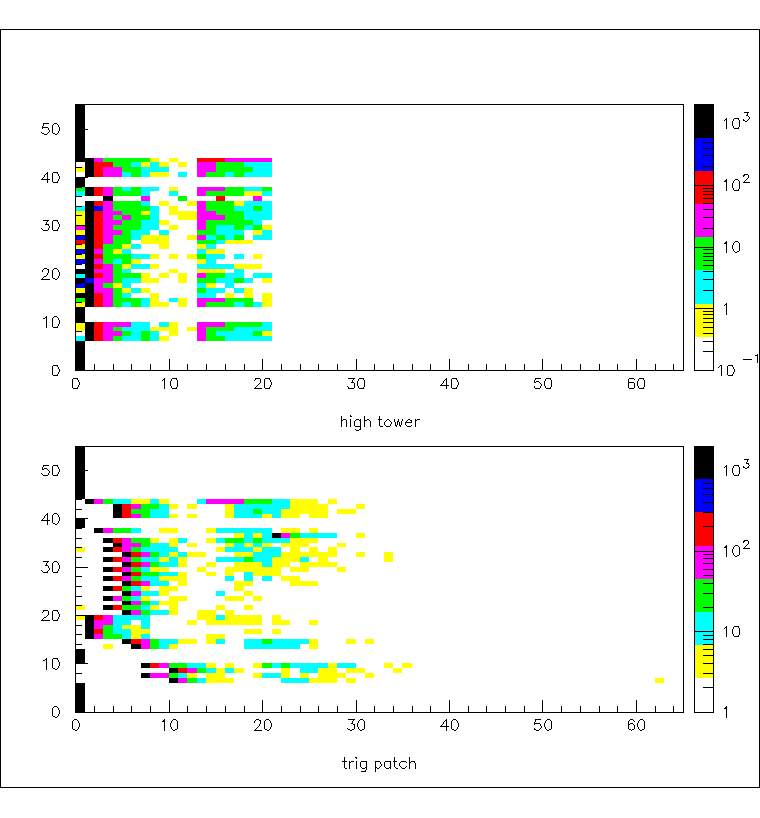

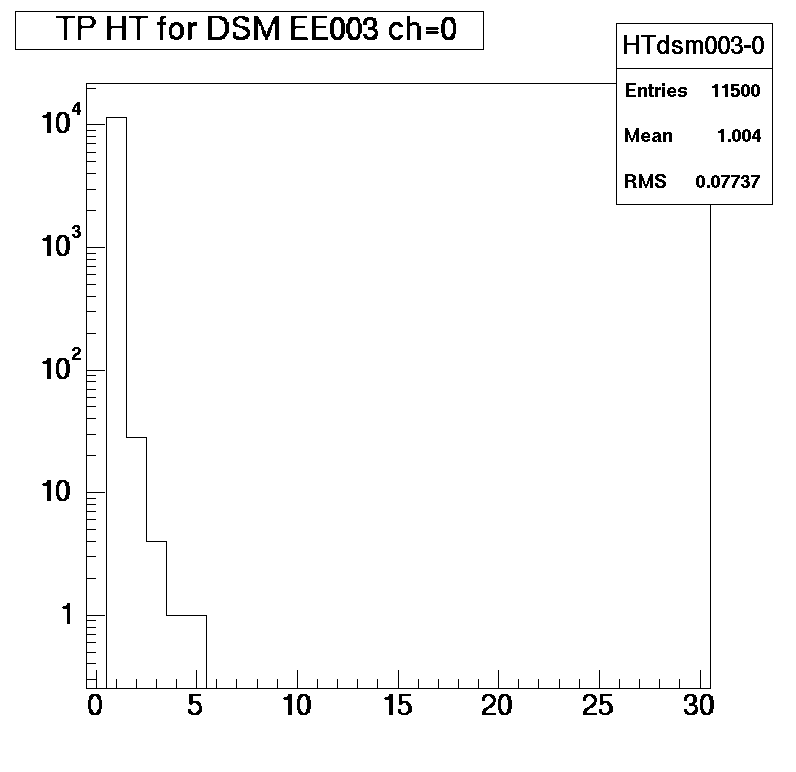

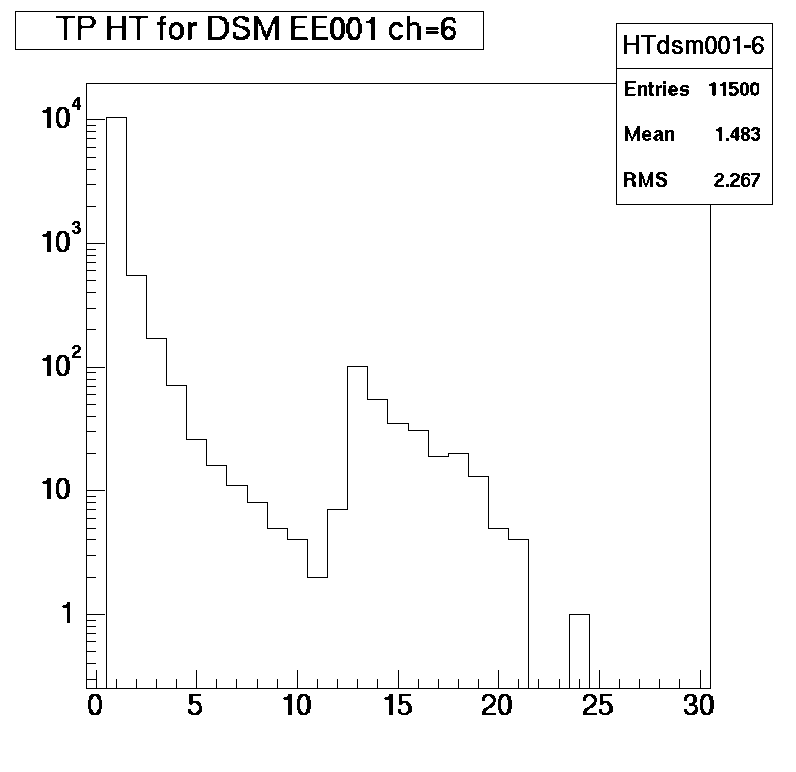

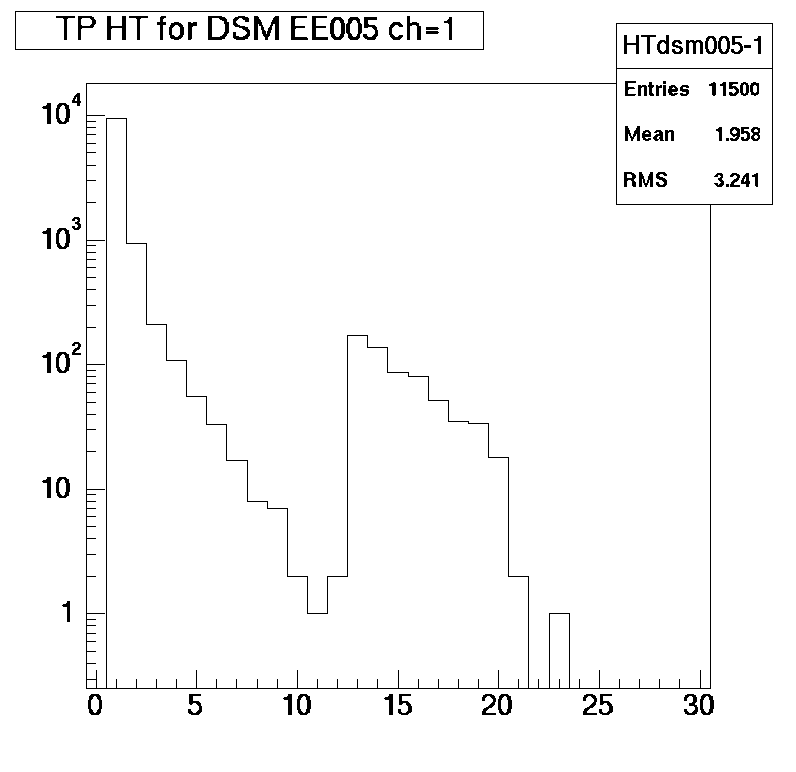

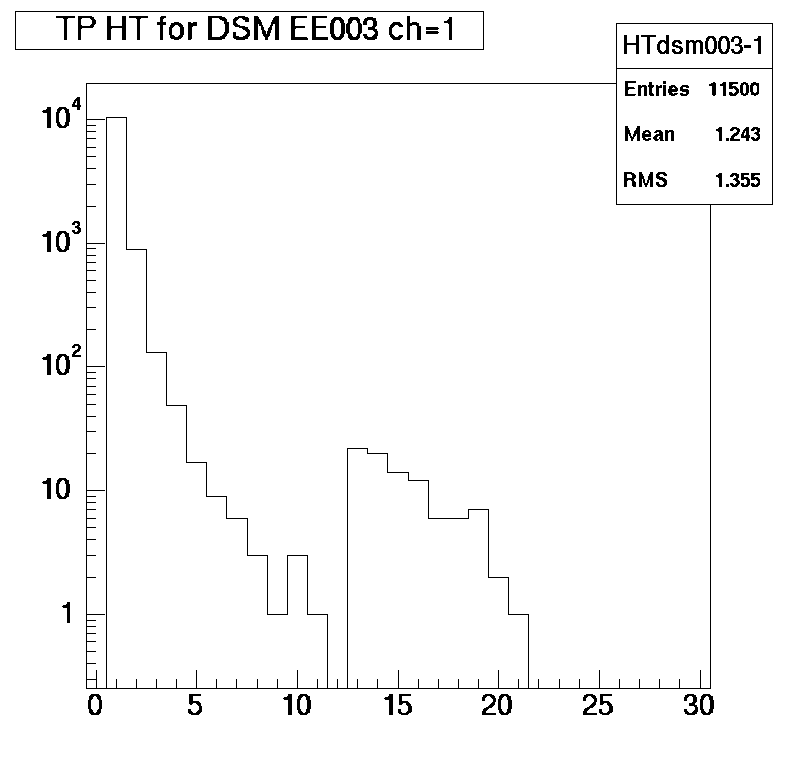

  • Here are High tower triggers and jet patch triggers in the DSMs

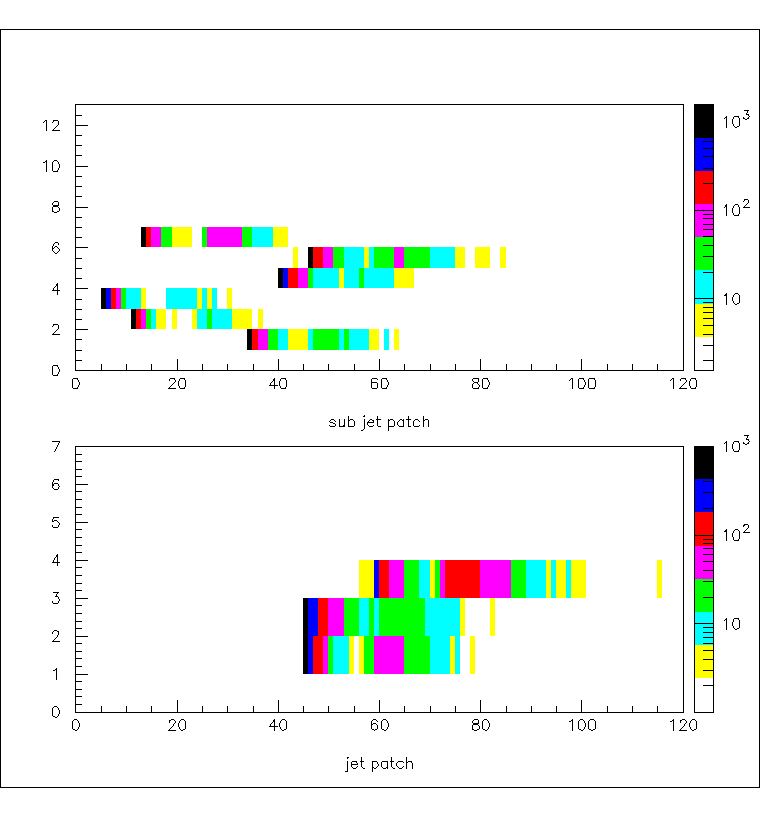

  • look at the 3 jet patches individually

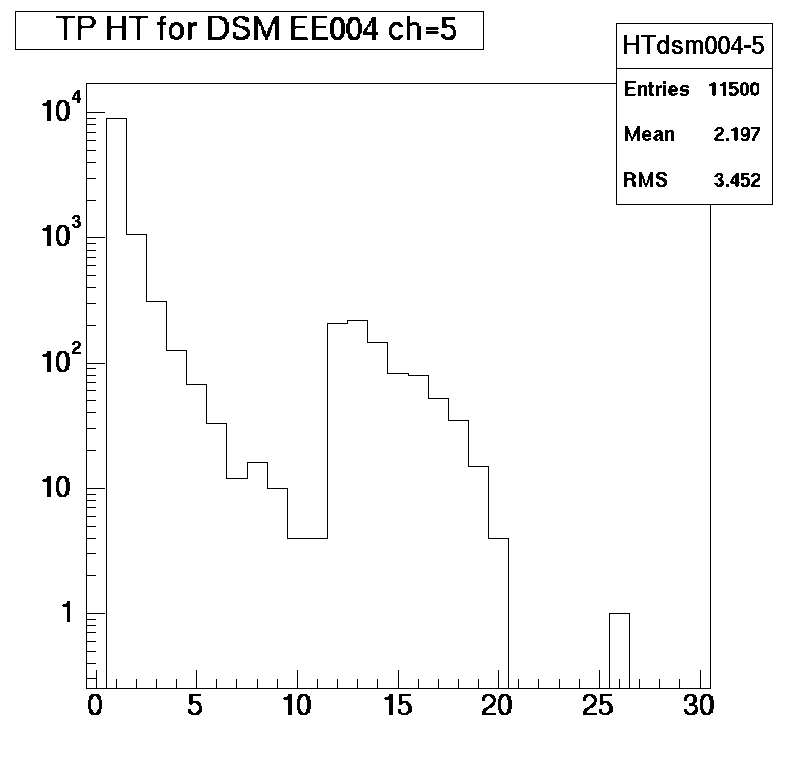

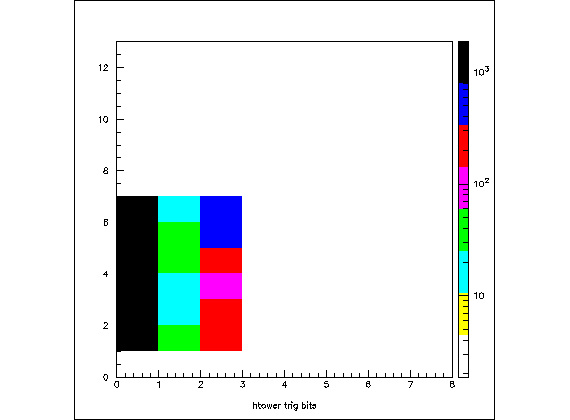

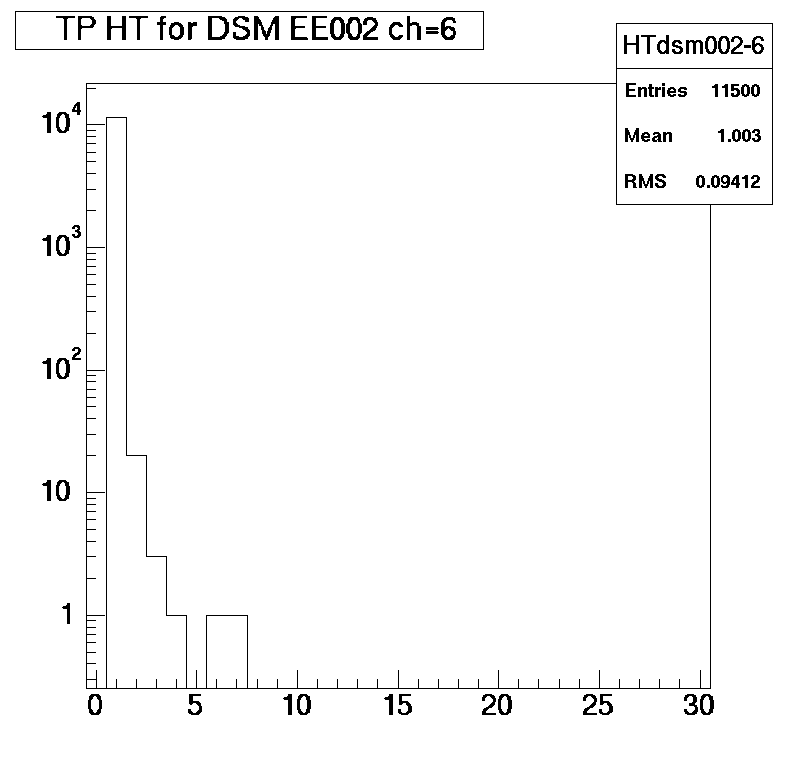

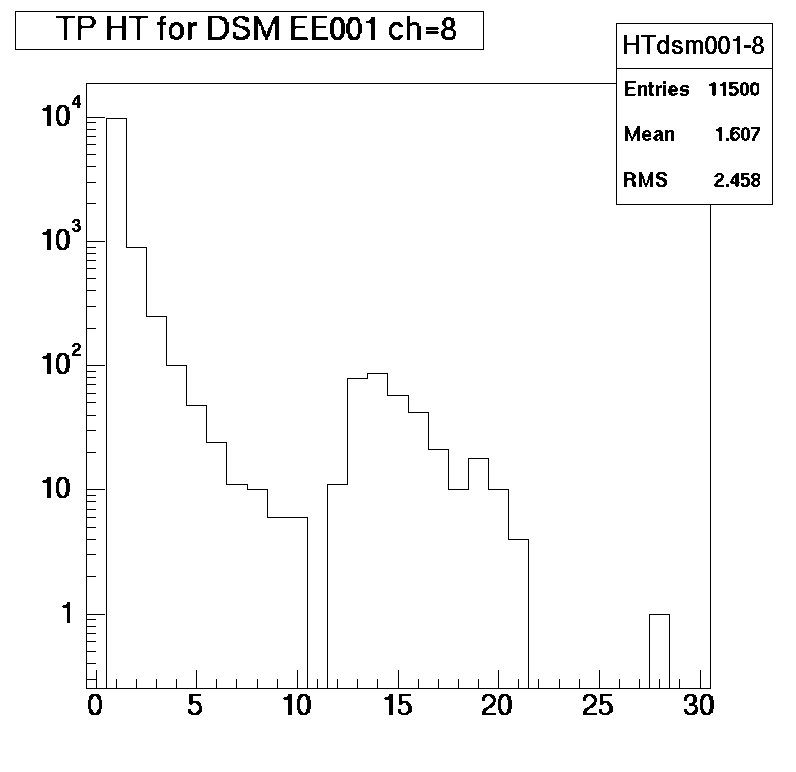

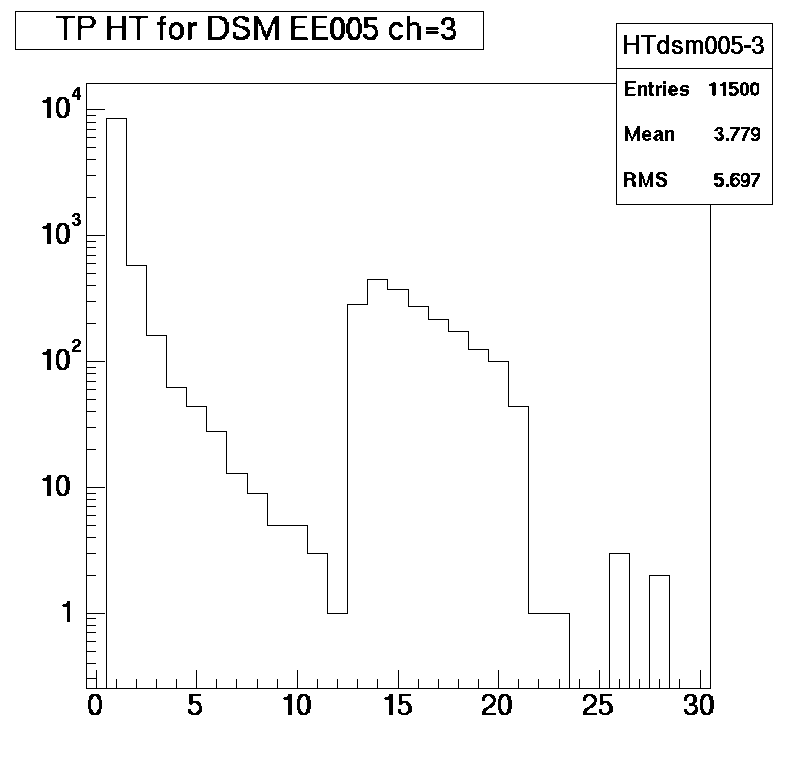

  • This is the trigger bit pattern out of layer 0. Note we trigger on th1 and not th2.

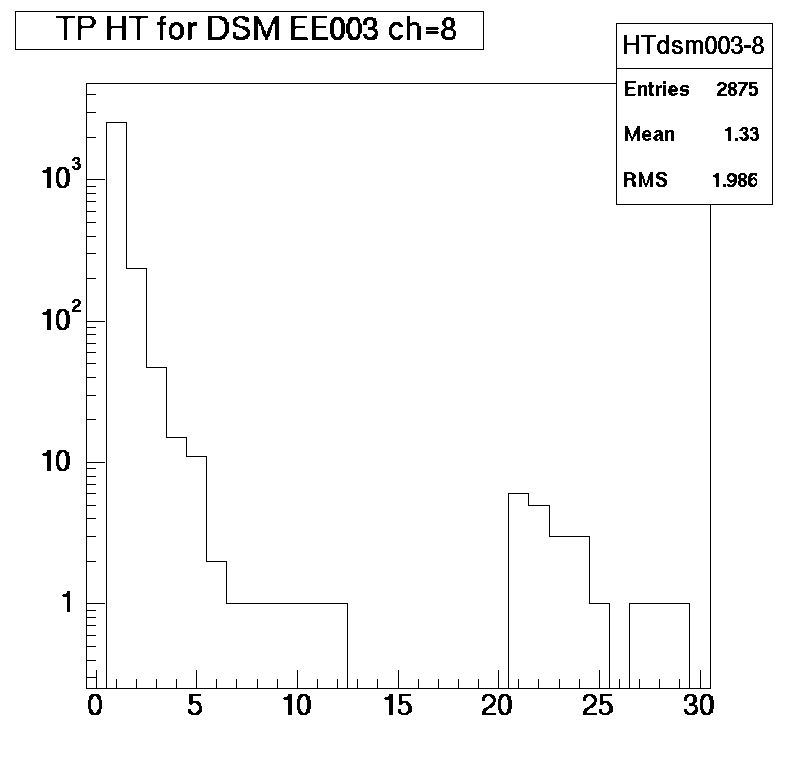

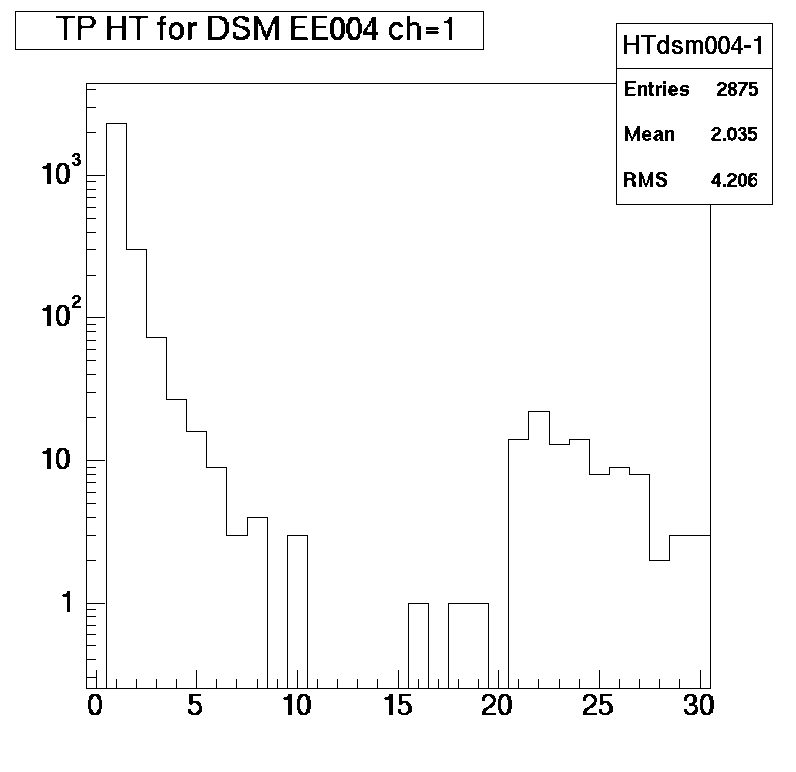

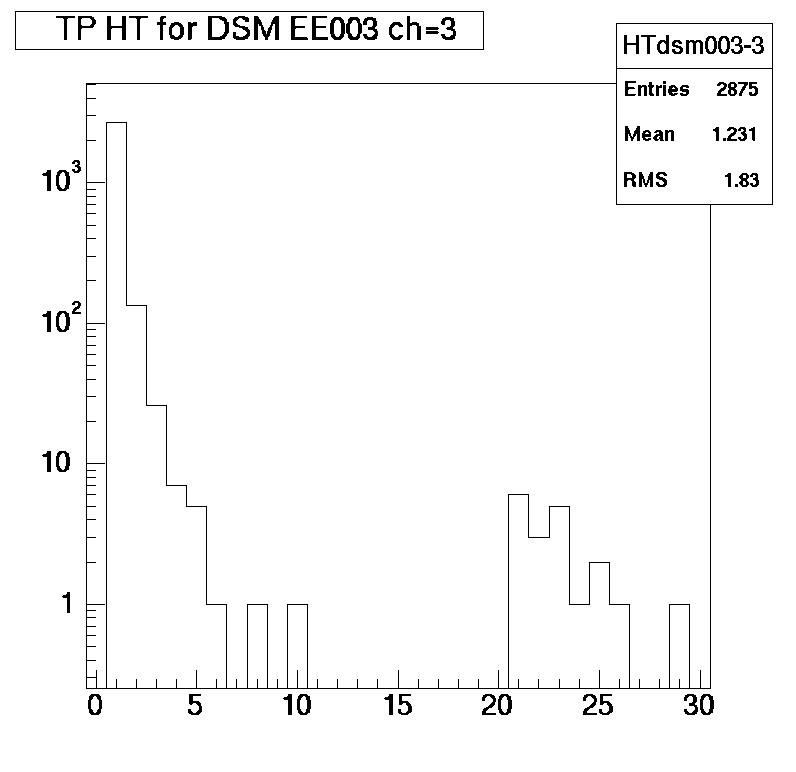

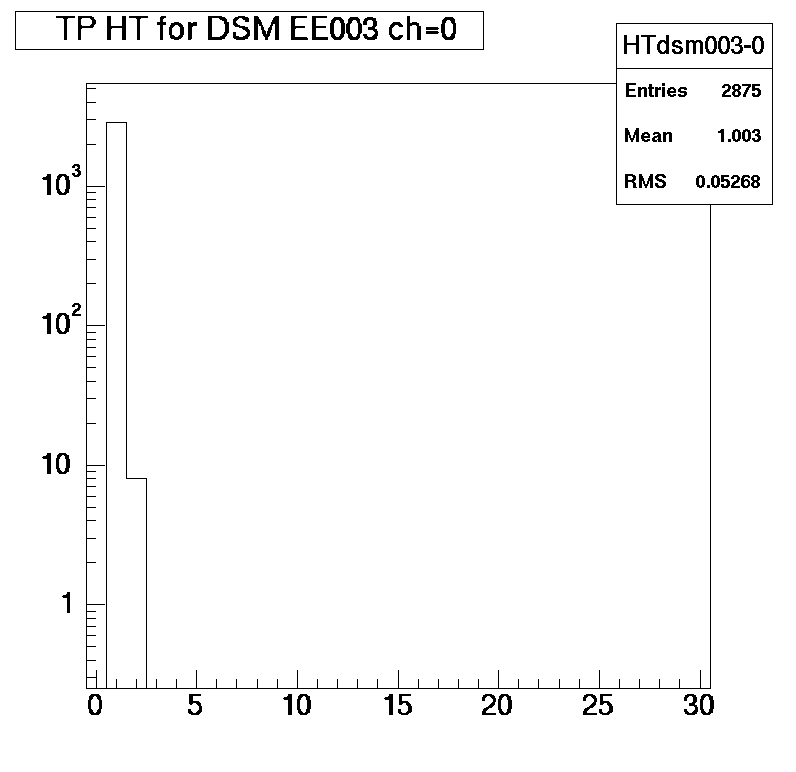

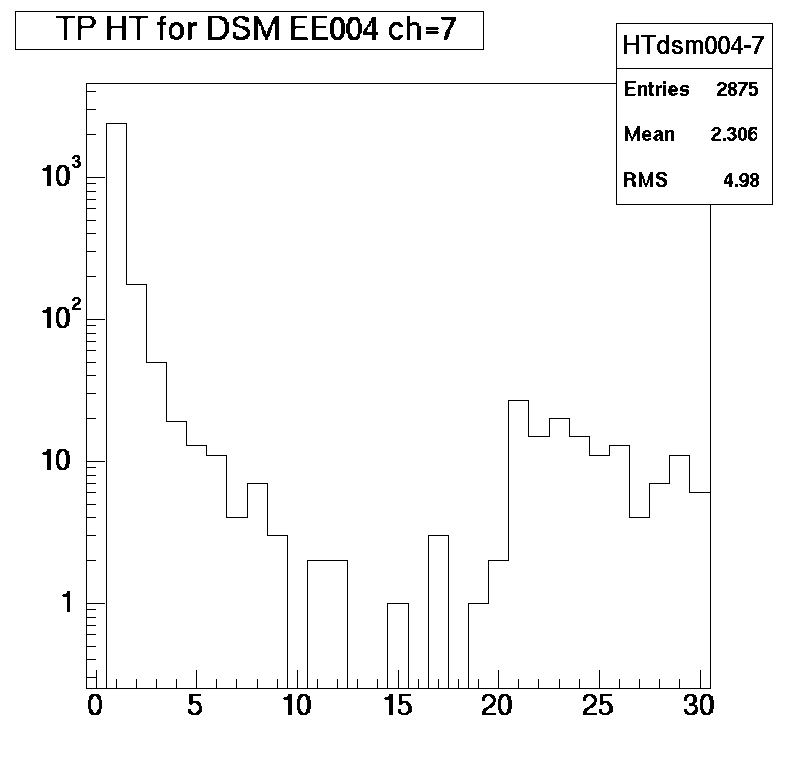

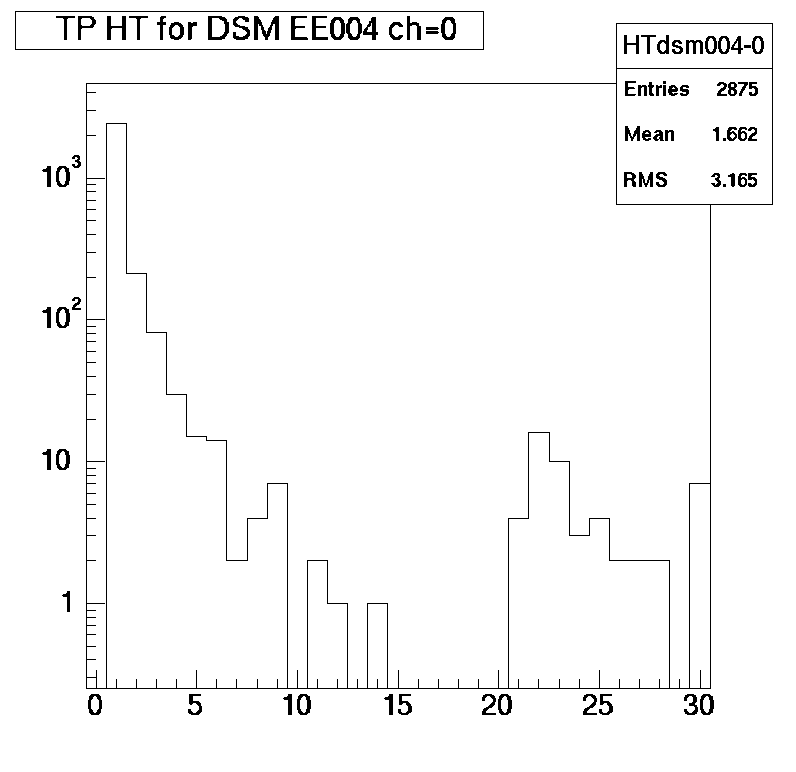

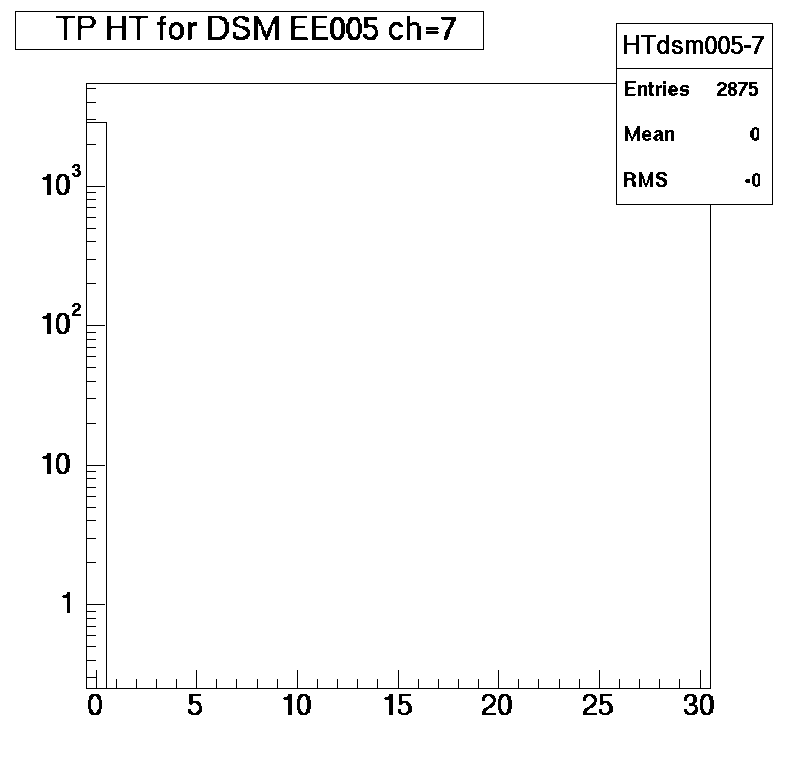

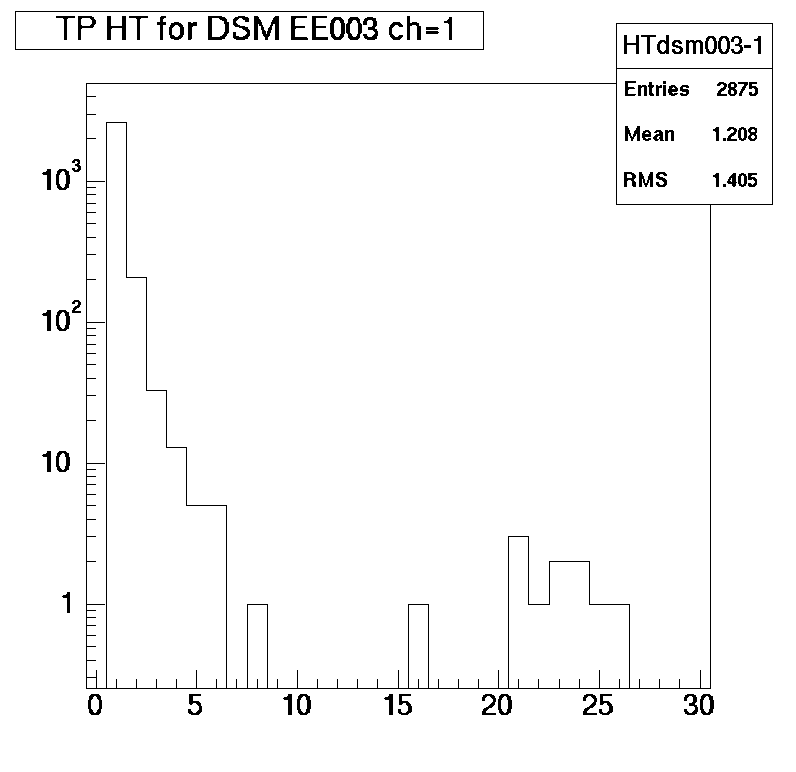

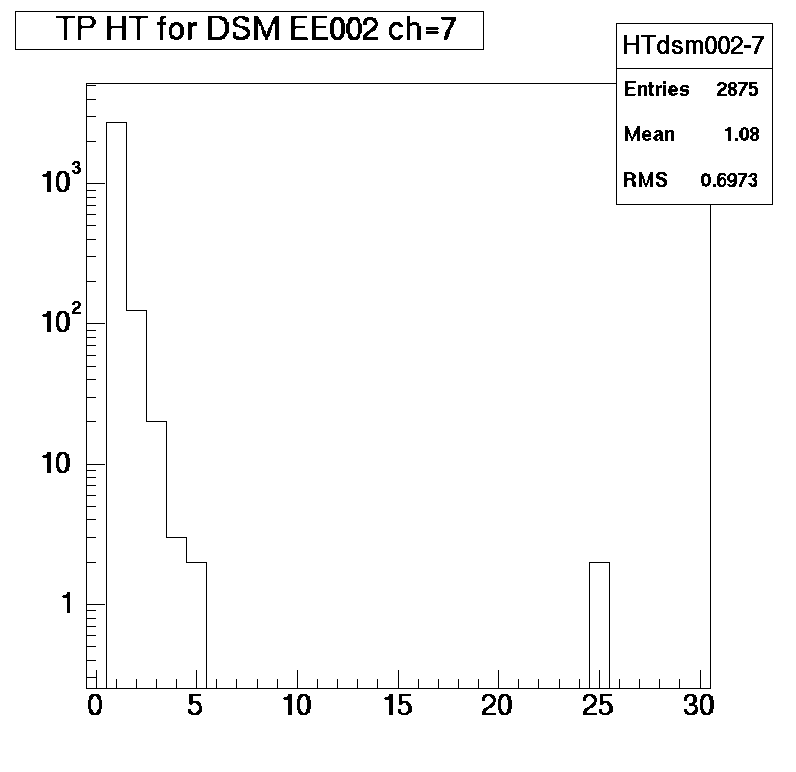

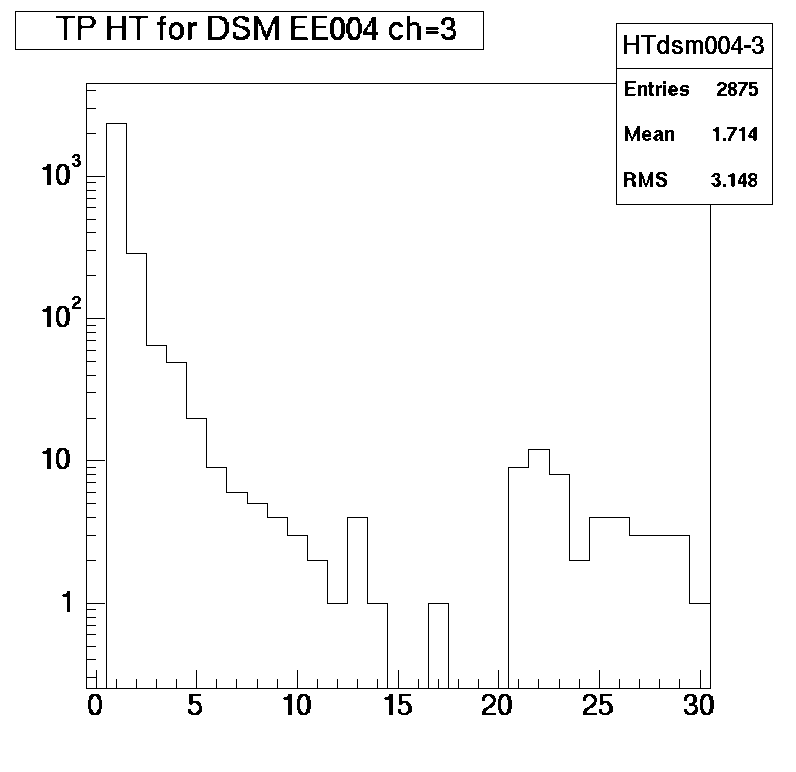

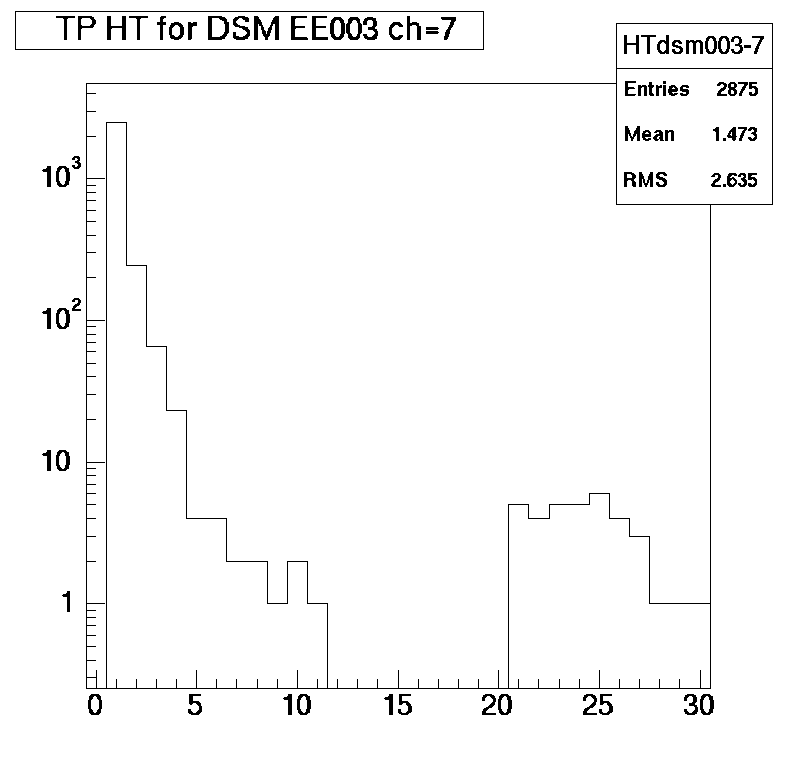

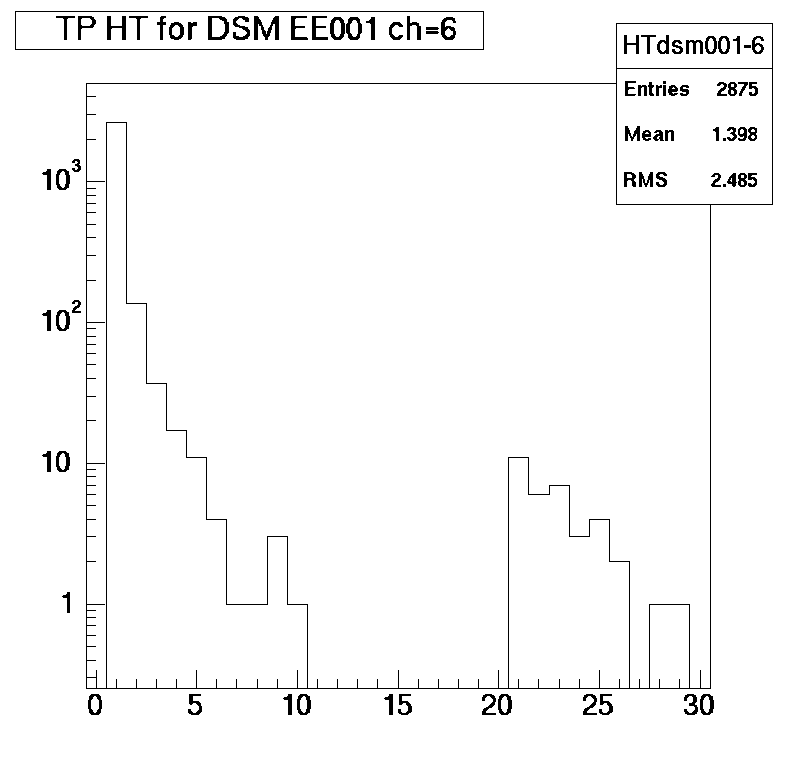

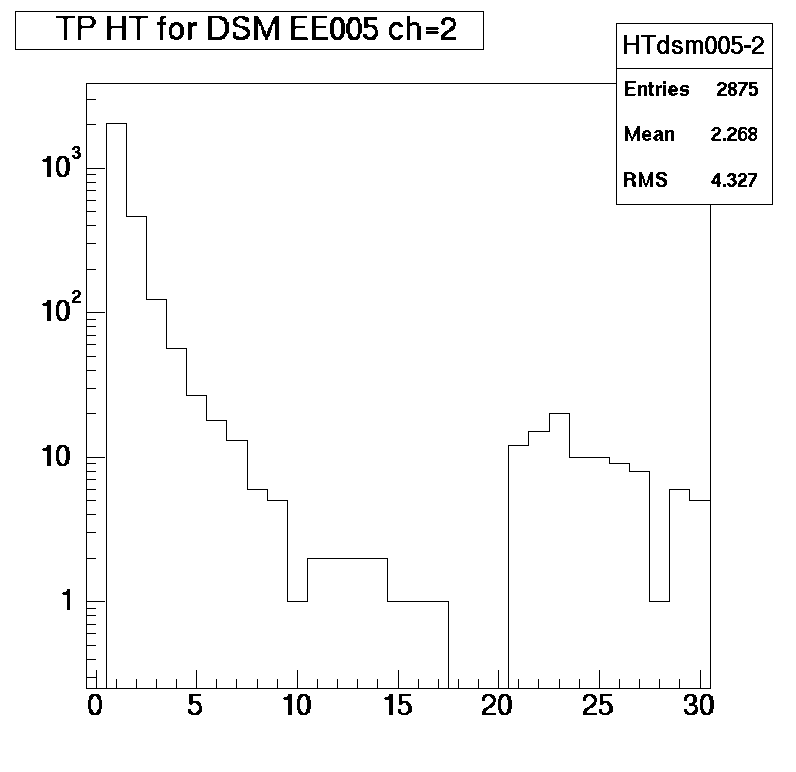

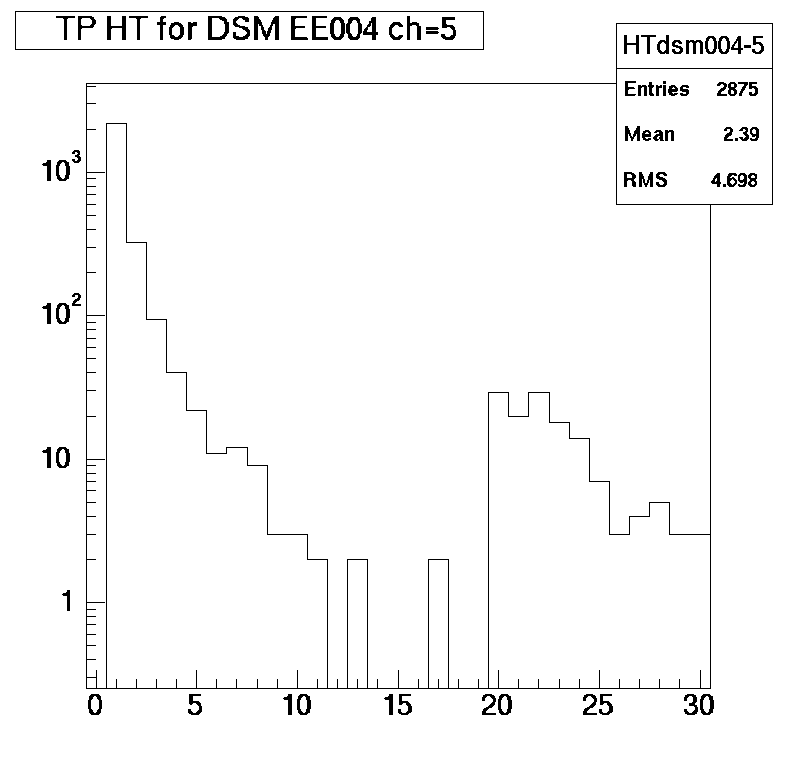

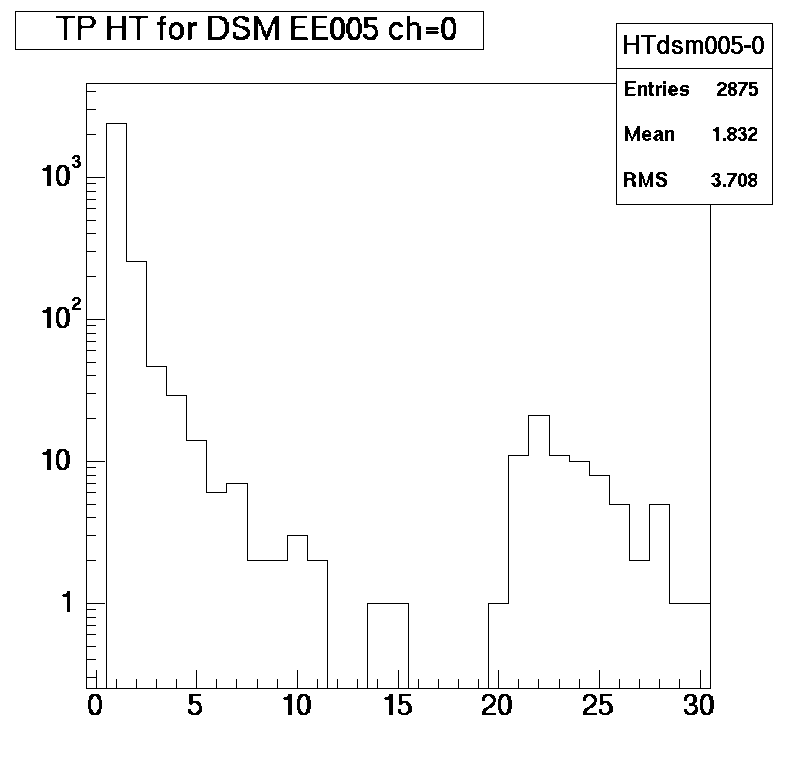

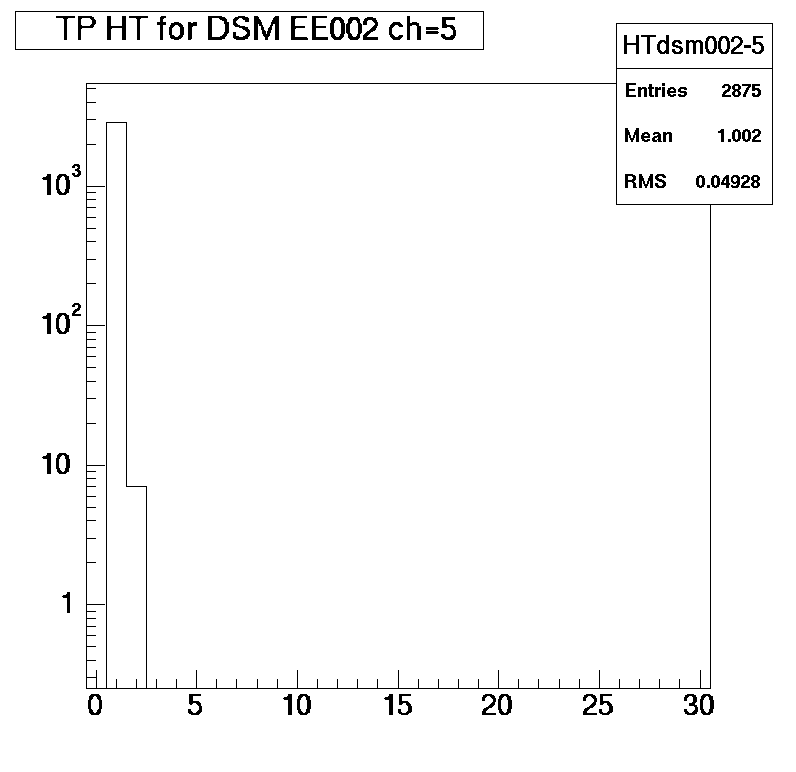

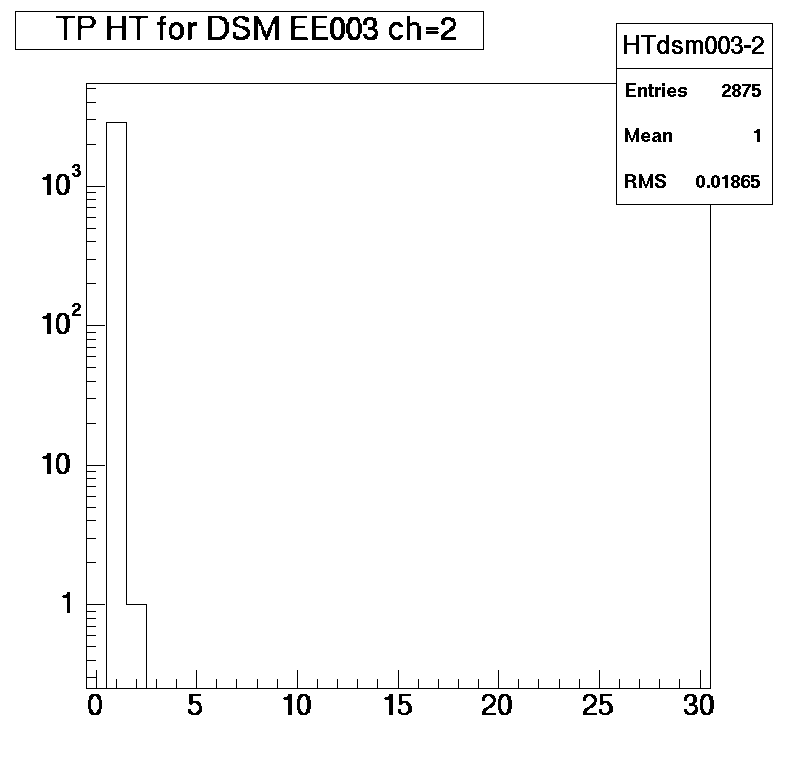

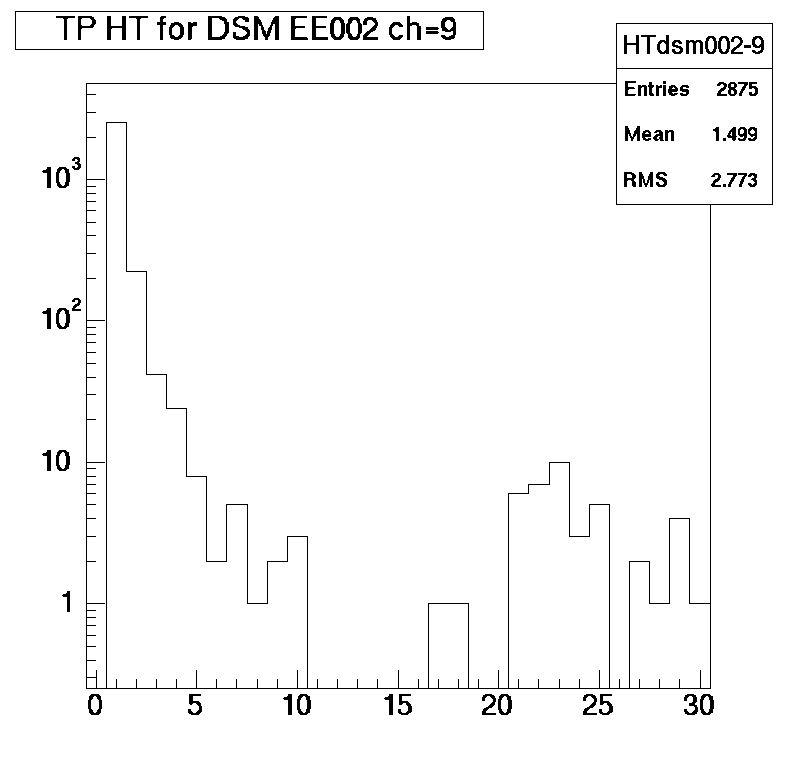

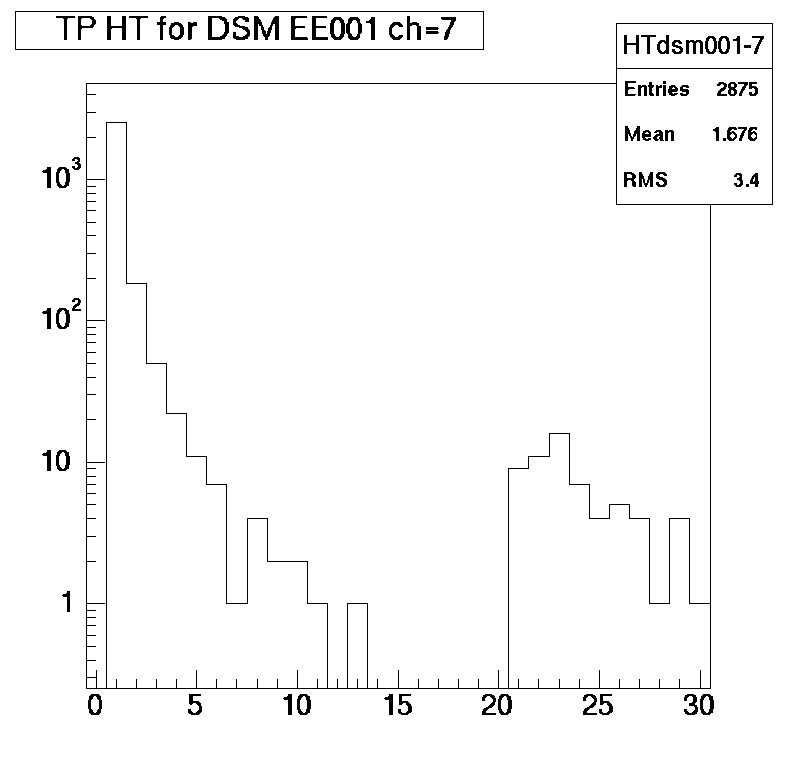

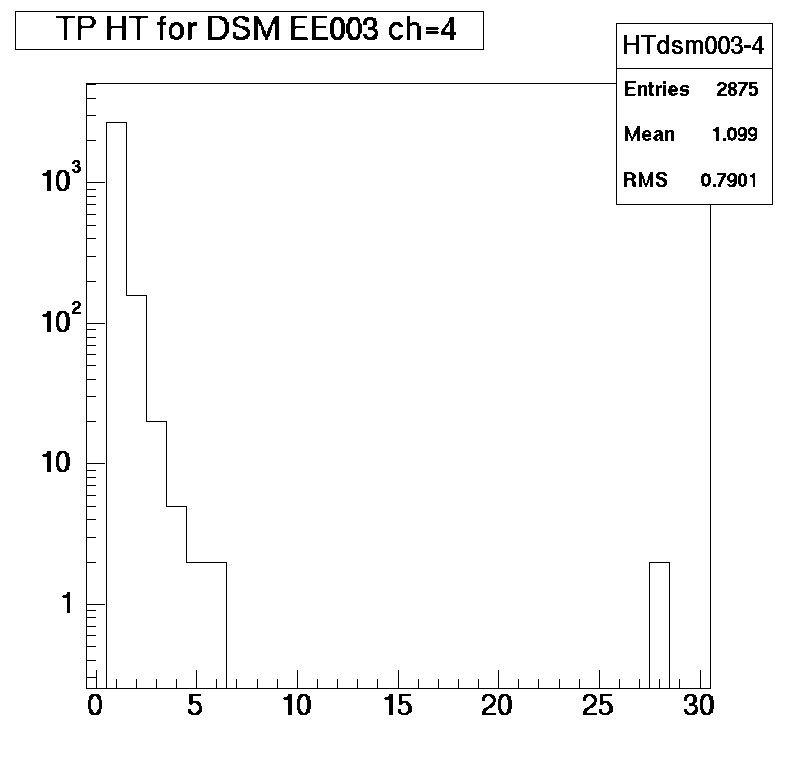

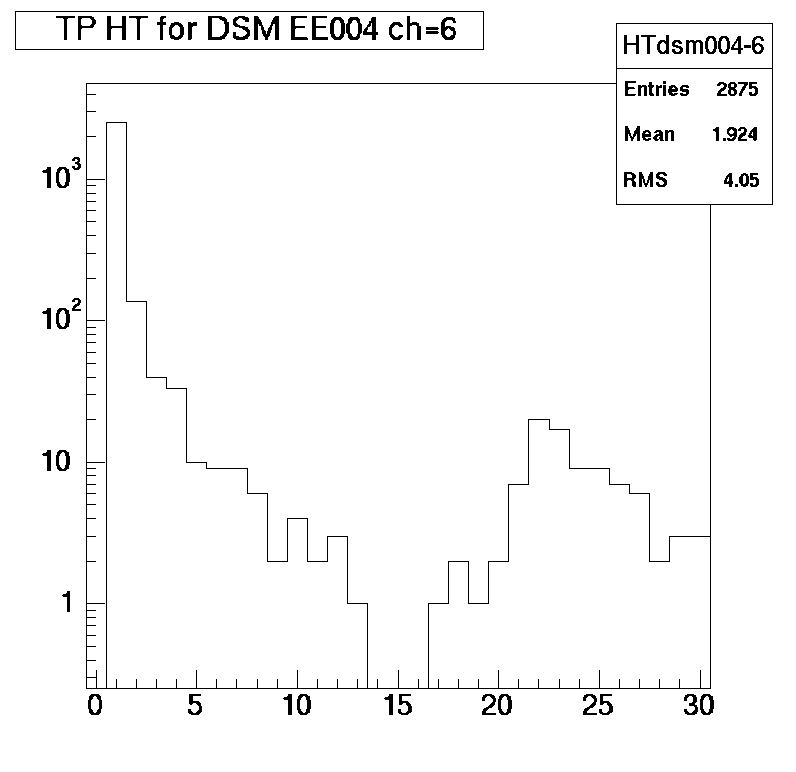

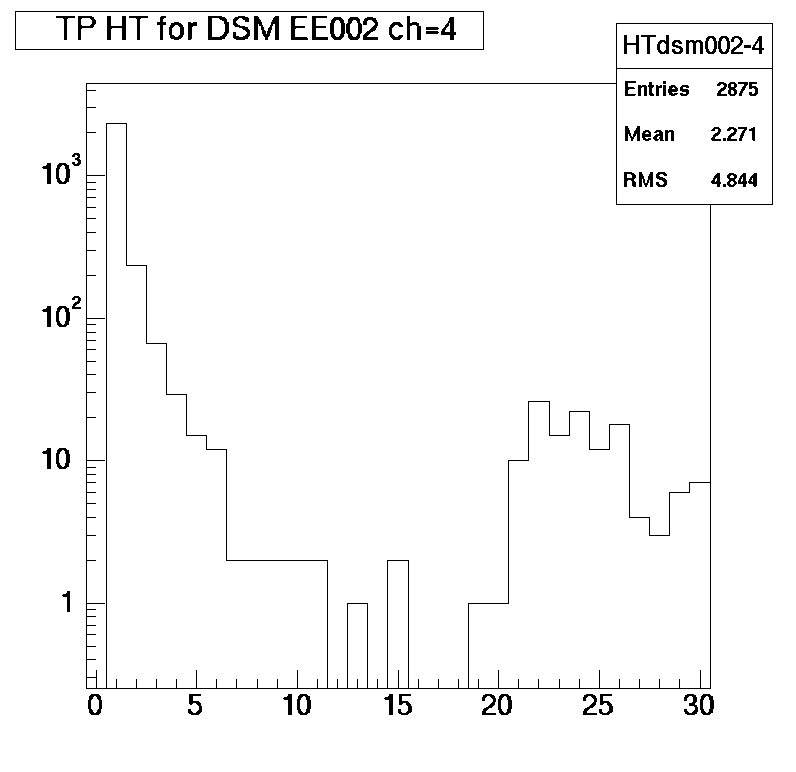

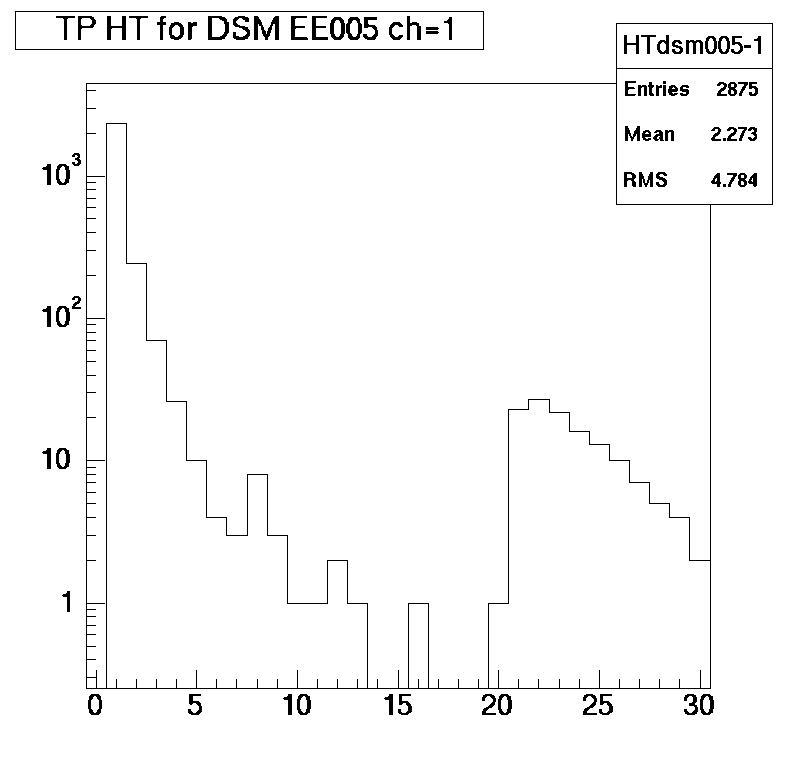

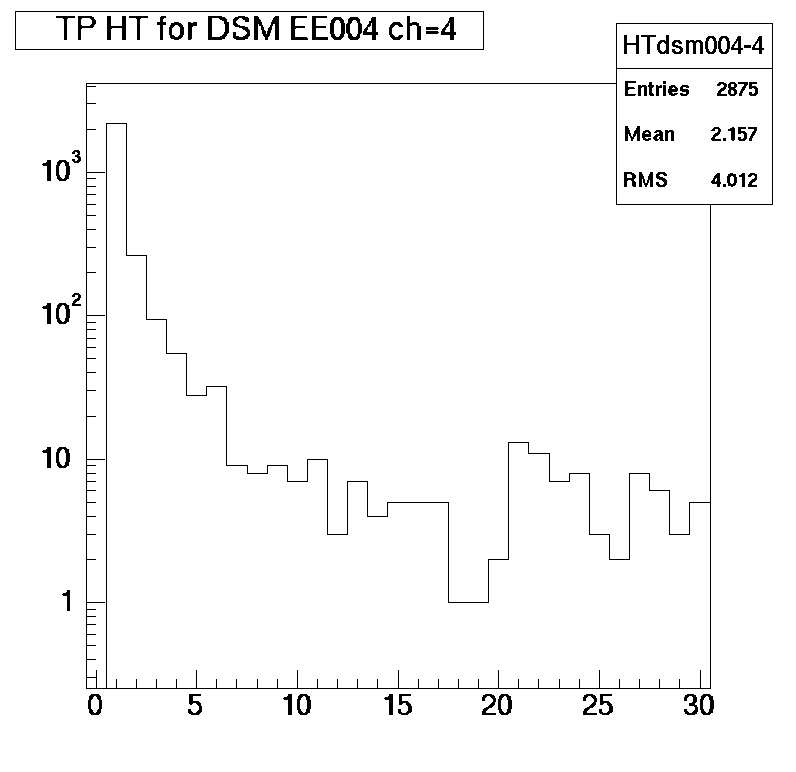

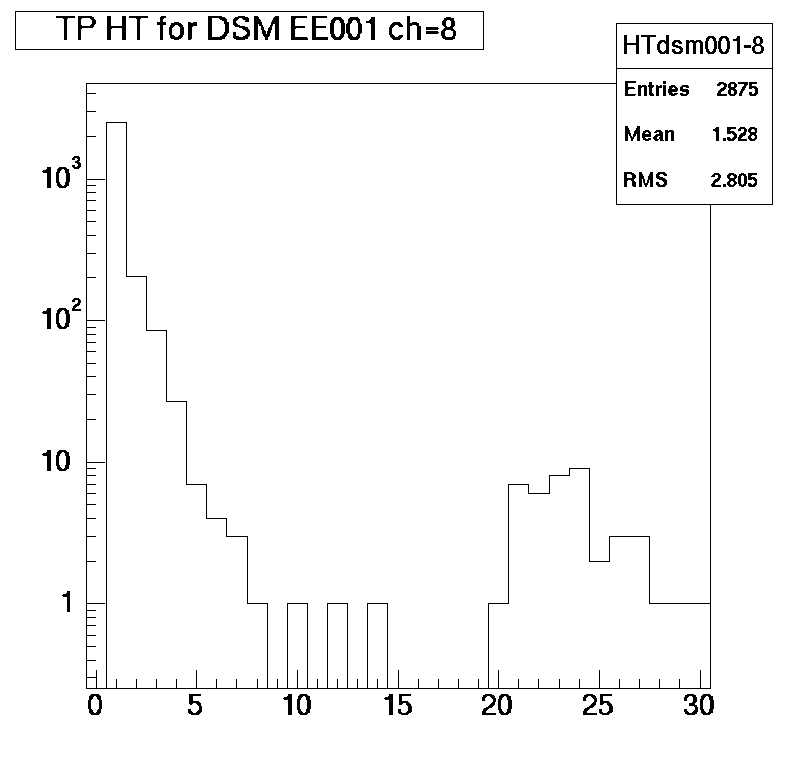

  • Here are the same plots for th2
  • TH2 at ch20 , BBC rate 28KHz, trig rate ~1.2 Hz, miniDaq run May3/run11
    hot tower 8TE02 was masked out in FEE and it works ! We get just 1001 events because of high presure in SCR :)
    New HV set J was loded

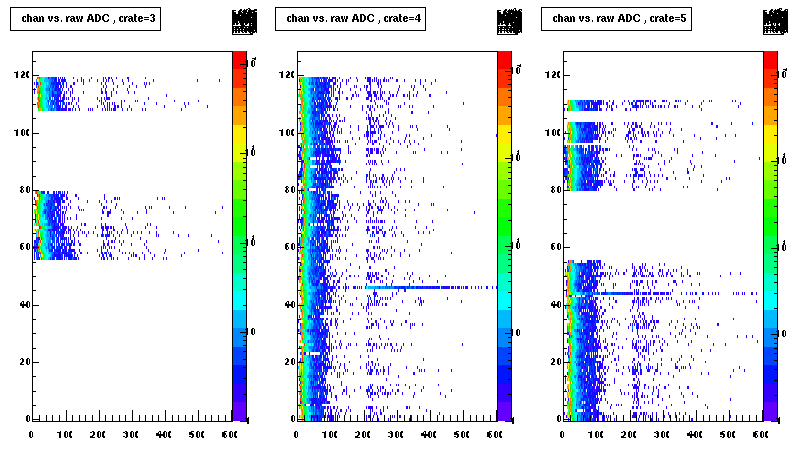

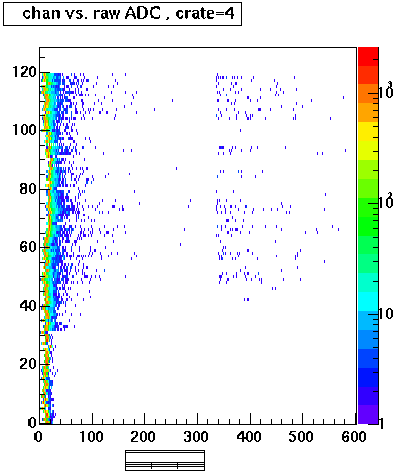

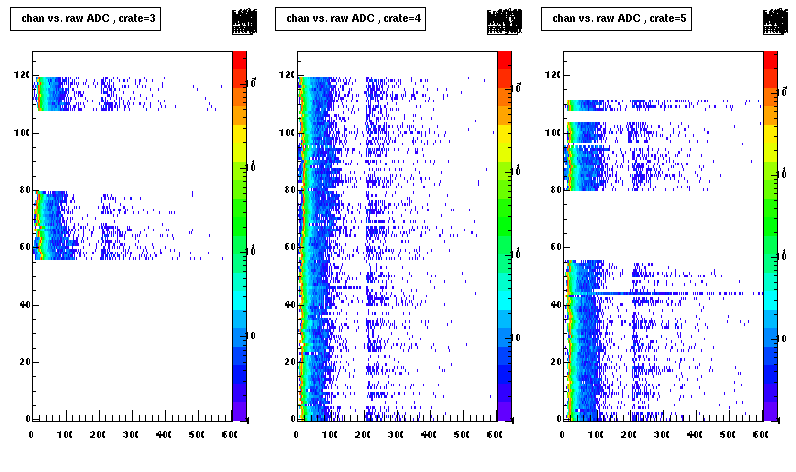

    The EHT1 got hot due to 6TD11 , carte 4 ch46. The spectrum for miniDaq run 17, stoped at 18:30 is below
    Note, the new set of masks is saved in to the file with the masked tower in the name.

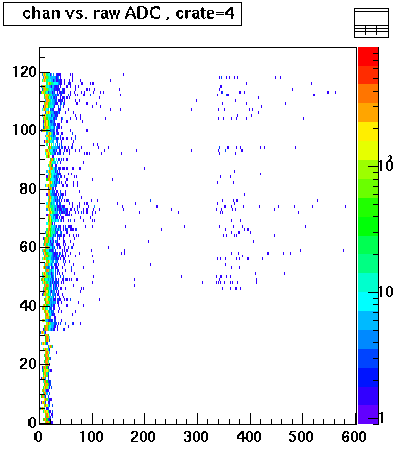

    The mask in the crate 4, bord2, J1 was changed from f8f8 --> b8f8. It worked . Data taken at 18:30 ~18:40

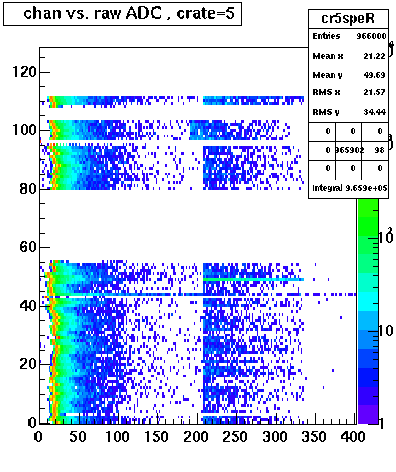

    But now the tower in crate 5 chan 44 =8TD09 seems to be high. This tower should be already masked out: cr5 brd2 J1 mask=e8f8. I have read from the crate 5 its mask and it was OK. No clue what is going on?!
