FTPC Picture Pool

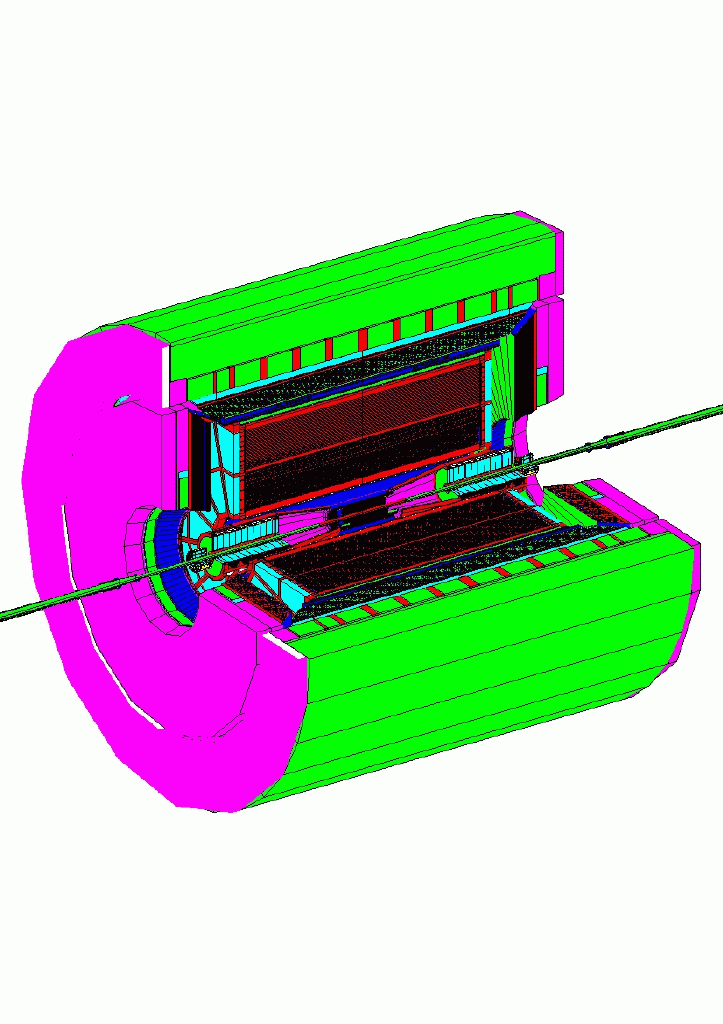

• 3D cut of the STAR detector (80 Kbytes)

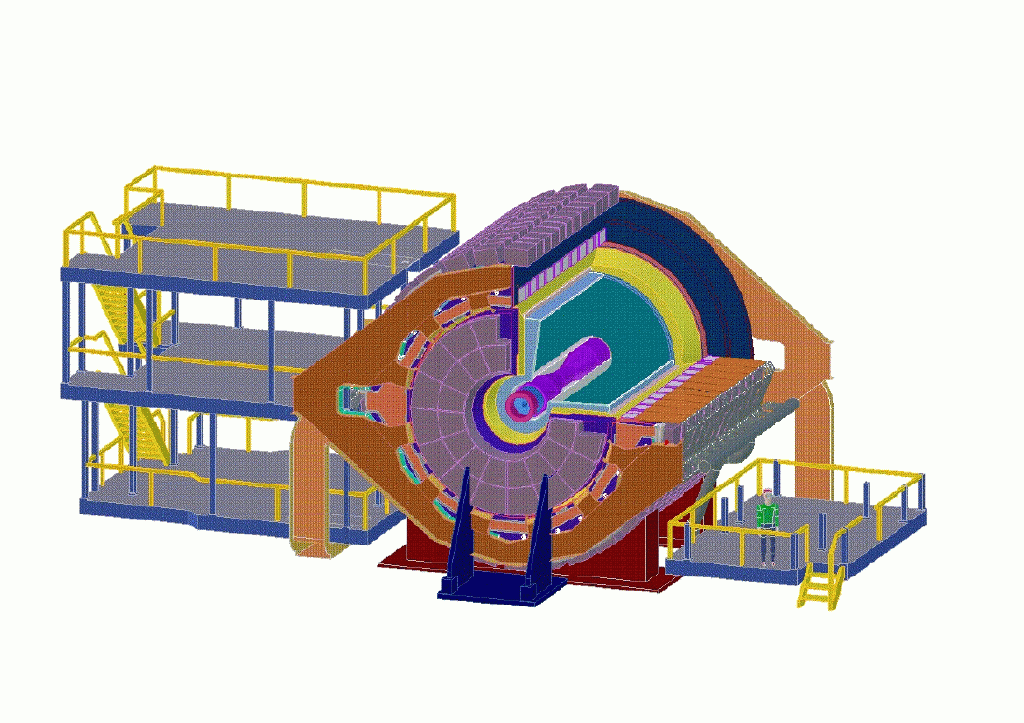

• Full detector equipment of STAR (202 Kbytes)
• Technical drawing of 1/4 of the STAR detector setup (63 Kbytes)

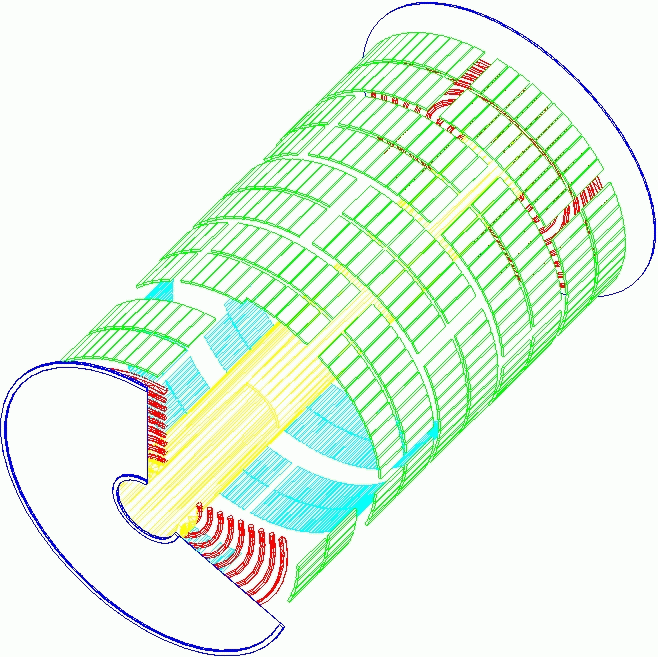

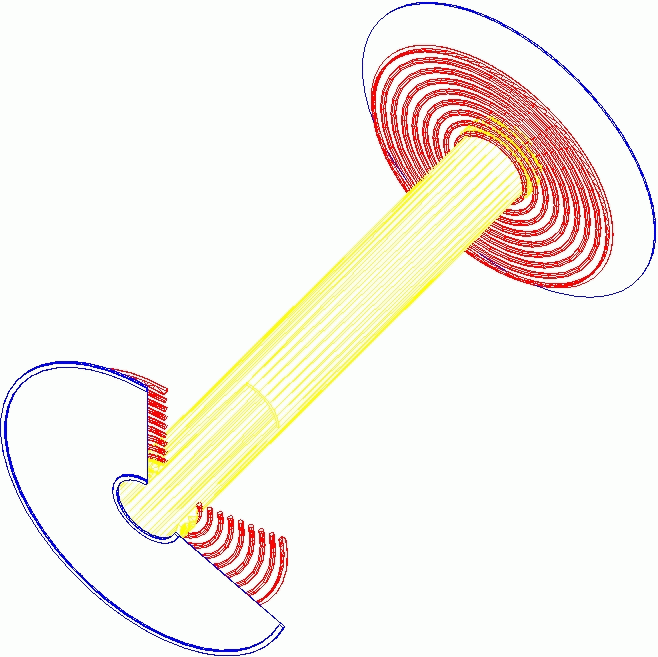

• FTPC field cage (1) (gif, 57 Kbytes)
• FTPC field cage (2) (gif, 84 Kbytes)

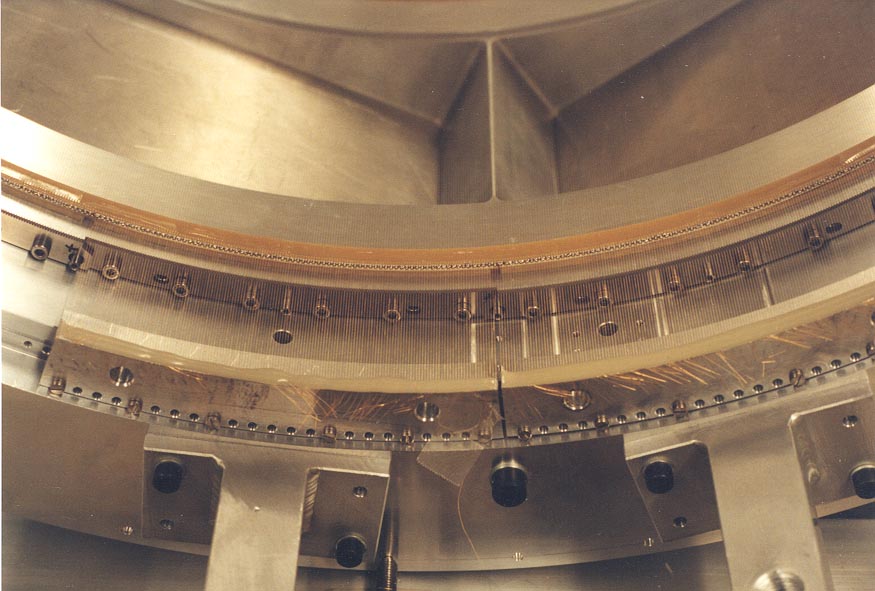

• FTPC main chamber body, after machining, being inspected by our engineer Klaus Ackermann (jpg, 34 Kbytes)

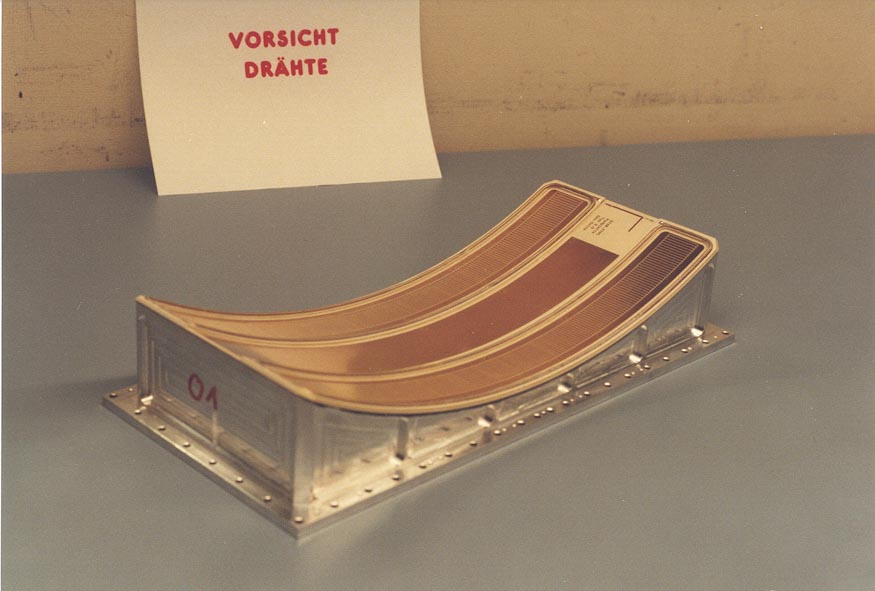

• FTPC readout chamber mounted in frame (jpg, 60 Kbytes)

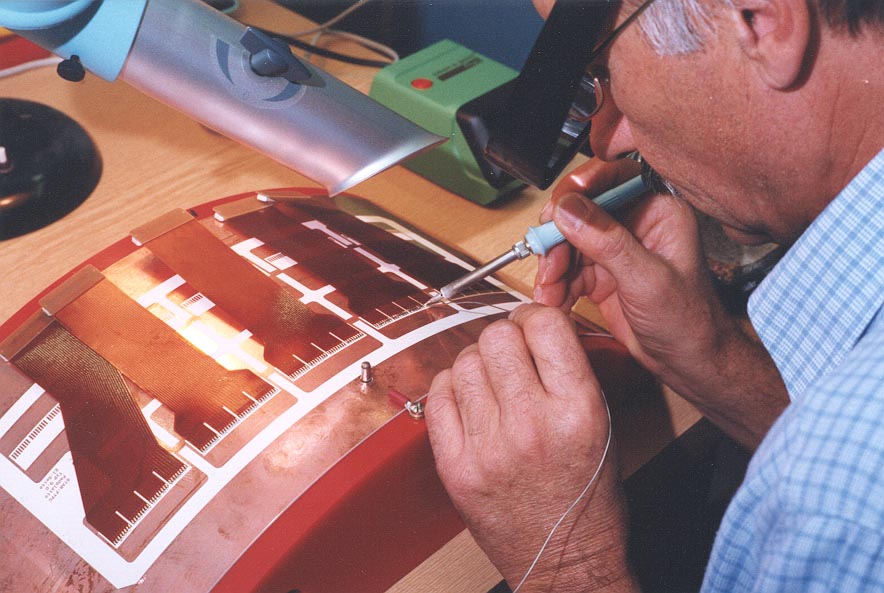

• FTPC readout chamber, soldering of electrical connections to the pad plane (jpg, 101 Kbytes)

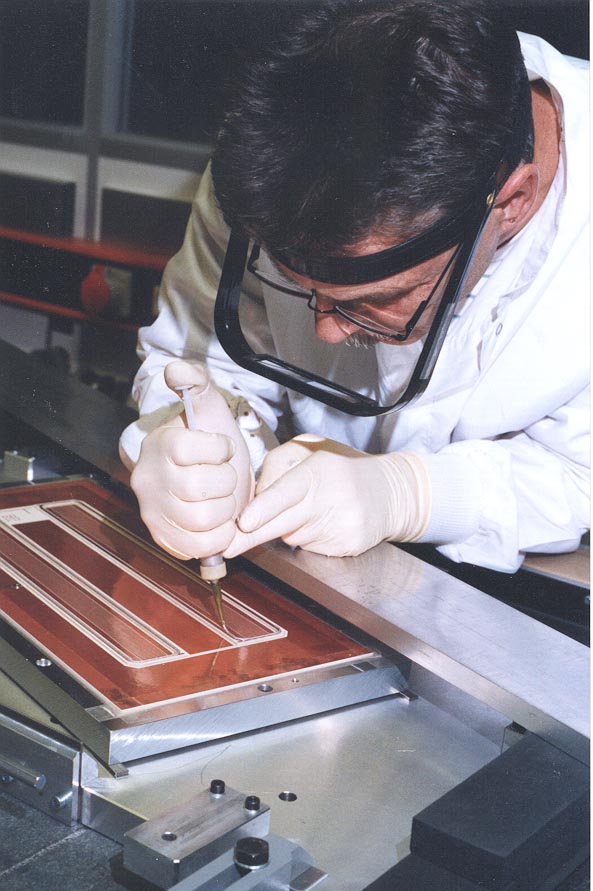

• FTPC readout chamber, glueing of the anode wires before bending, using conductive glue (jpg, 88 Kbytes)
• FTPC gating grid segment, while the glue is hardening. The Frisch grid is visible above (jpg, 86 Kbytes)

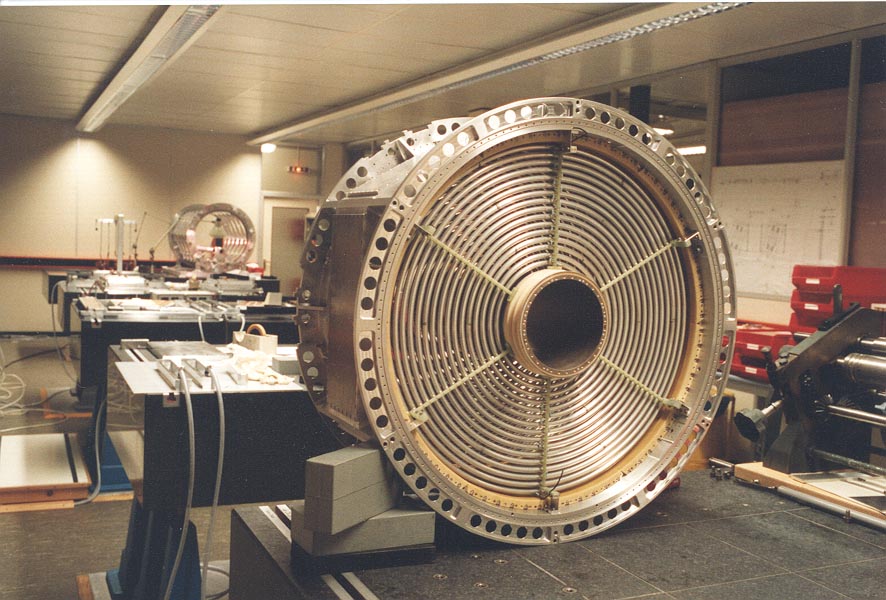

• Test-FTPC with field cage visible during final work in the MPI clean room (jpg, 122 Kbytes)

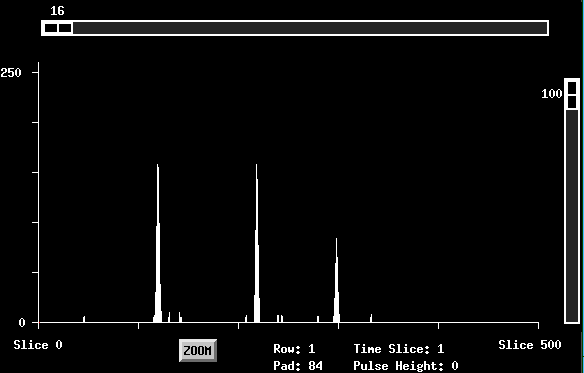

• First laser signals from the Test-FTPC (gif, 4 Kbytes)

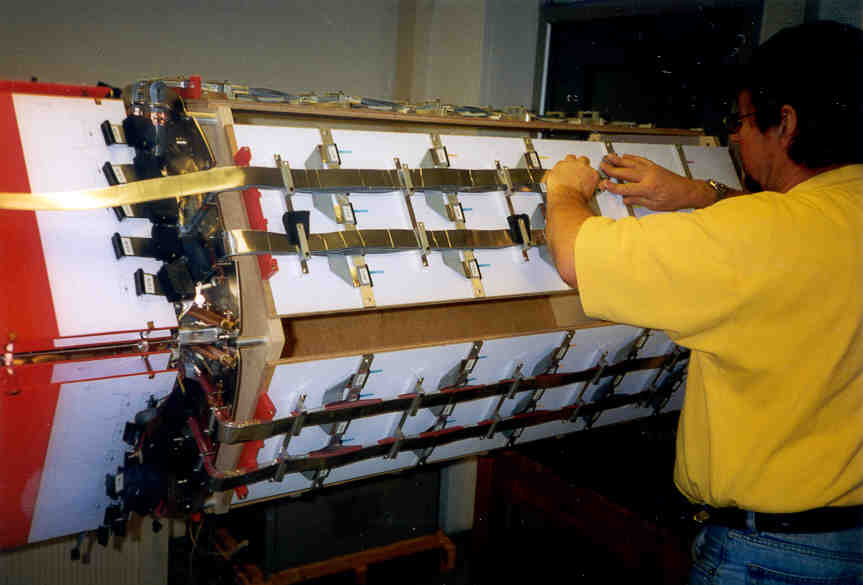

• Electronics cabling test on the wooden FTPC mockup (jpg, 39 Kbytes)
