Efficiency and contamination plots

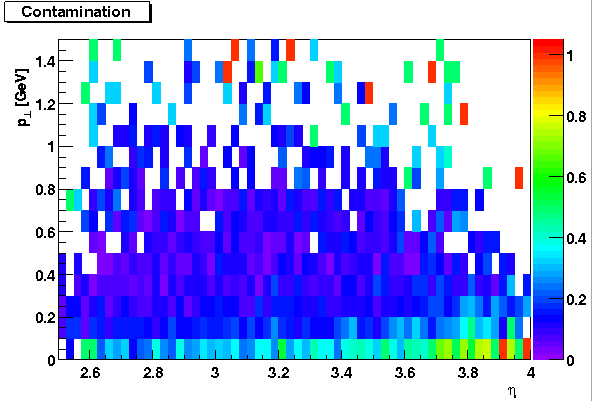

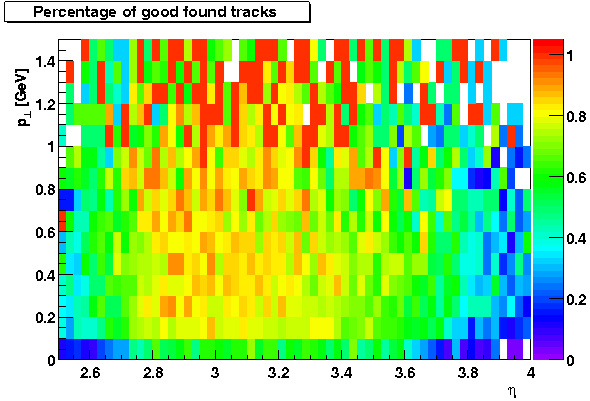

Reconstruction efficiency and contamination as functions of eta and pt, simulated from 70 hijing events. The reconstruction efficiency includes the losses at the sector boundaries. The contamination includes, besides <3% of falsely reconstructed tracks, conversion electrons from the beampipe support and feeddown from weak decays.






Markus Oldenburg

Last modified: Thu Jan 20 17:05:19 CET 2000
