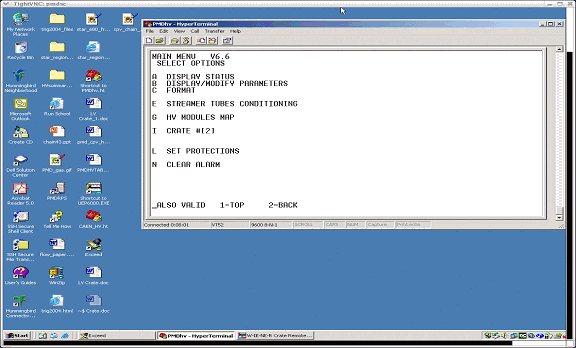

4. This window ( Fig. 3) is the remotely displayed window from
the machine kept near PMD crate which is used for PMD slow
control to control CEAN HV SY1527 ( HV for PMD plane only,
for CPV plane see sec. B), and W-IE-NE-R crate ( LV for both
PMD and CPV planes). If Window for CAEN-HV and W-IE-
NE-R are not seen in the display, please click the shortcut on the
desktop named as CAEN_HV.ht and shrotcut to
5. Parameters written in the inner window above ( Figure 3)
have the following significance :
1=Top, this option takes you to the main menu as shown in the
Figure. Please press 1 whenever you want to select any other
option. THINK TWICE BEFORE PRESSING ANY BUTTONS
as you are directly controlling the hardware here.
A : Display Status i.e., click on a or A to see the display
status of different channels as shown in Fig. 4.
