6

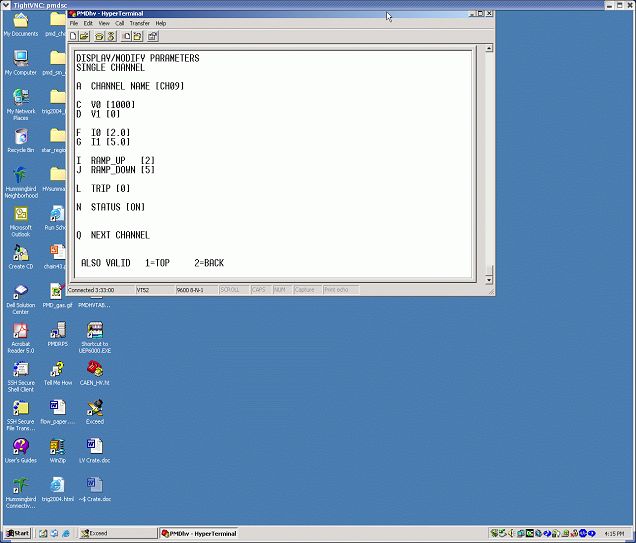

Fig. 7
8. All the options to perform a particular action is written in
front, select them to change voltage/current/ramp rate etc.
For example  if the status has to be changed, i.e., to change
the status from “ON” to “OFF” simply press “n”. It will
change the state of the supermodule. Now to change the
parameters of next supermodules press “q”, which is next
channel. And press “n” again to change the state from “ON
to “OFF” or vice versa. Similarly if the ramp rate has to be
changed, press “i” and type the required ramp rate where the
cursor is blinking, as shown next:
