SSD Installation during the Summer 2002
Documents :
Mechanics :
-
Drawing (Q243DET132) of the bracket supporting the SSD shield rings : PS
-
Drawing (Q243DET133) of the SSD shield rings : PS,
pdf
-
Drawing (Q243DET135) of the airflow hole in the SSD shield : PS,pdf
-

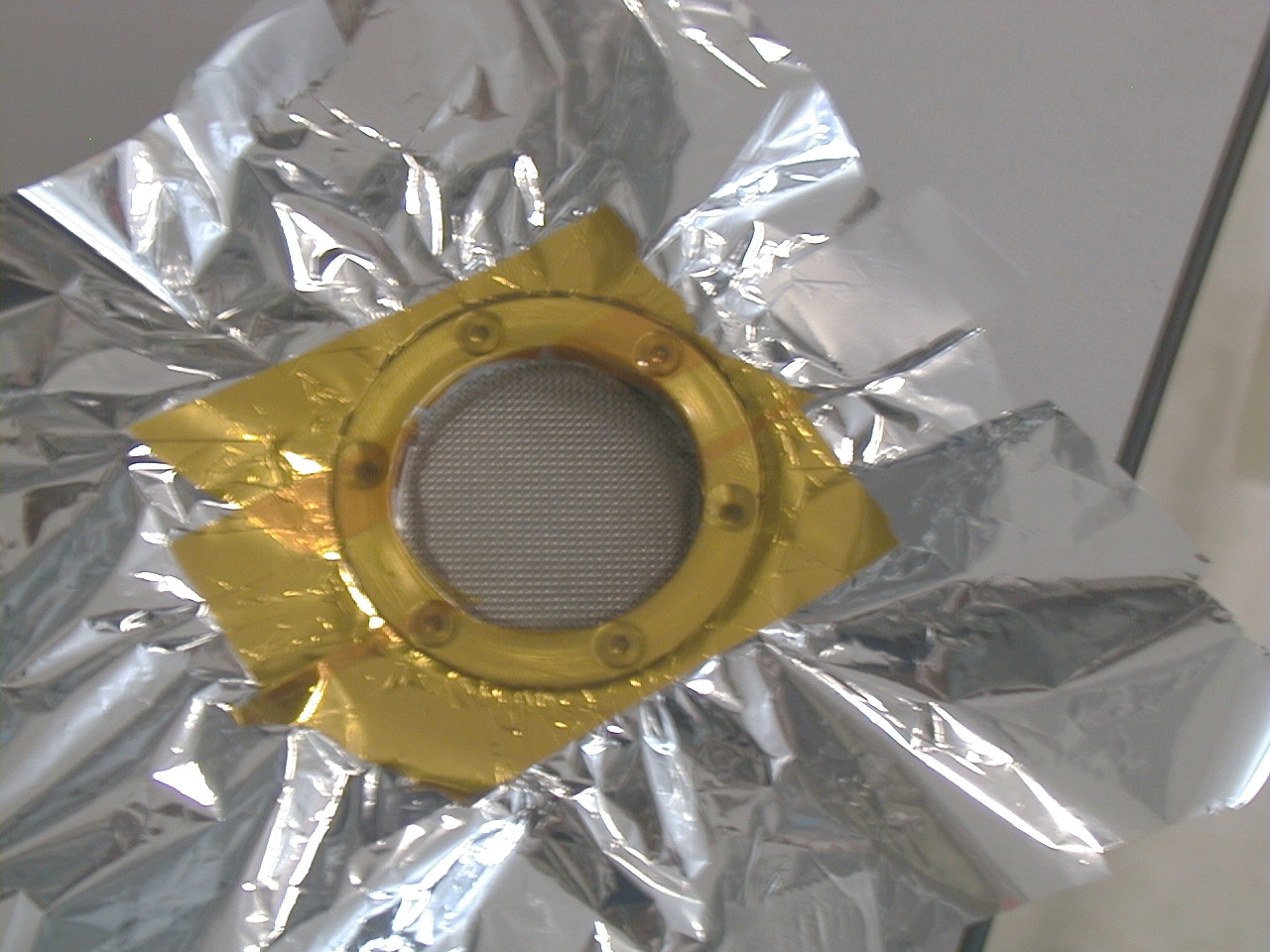

Top view of the airflow hole in the SSD shield (the piece has been assembled
upside down to achieve a good electrical continuity. The curvature of the
piece will be reversed : jpg
-

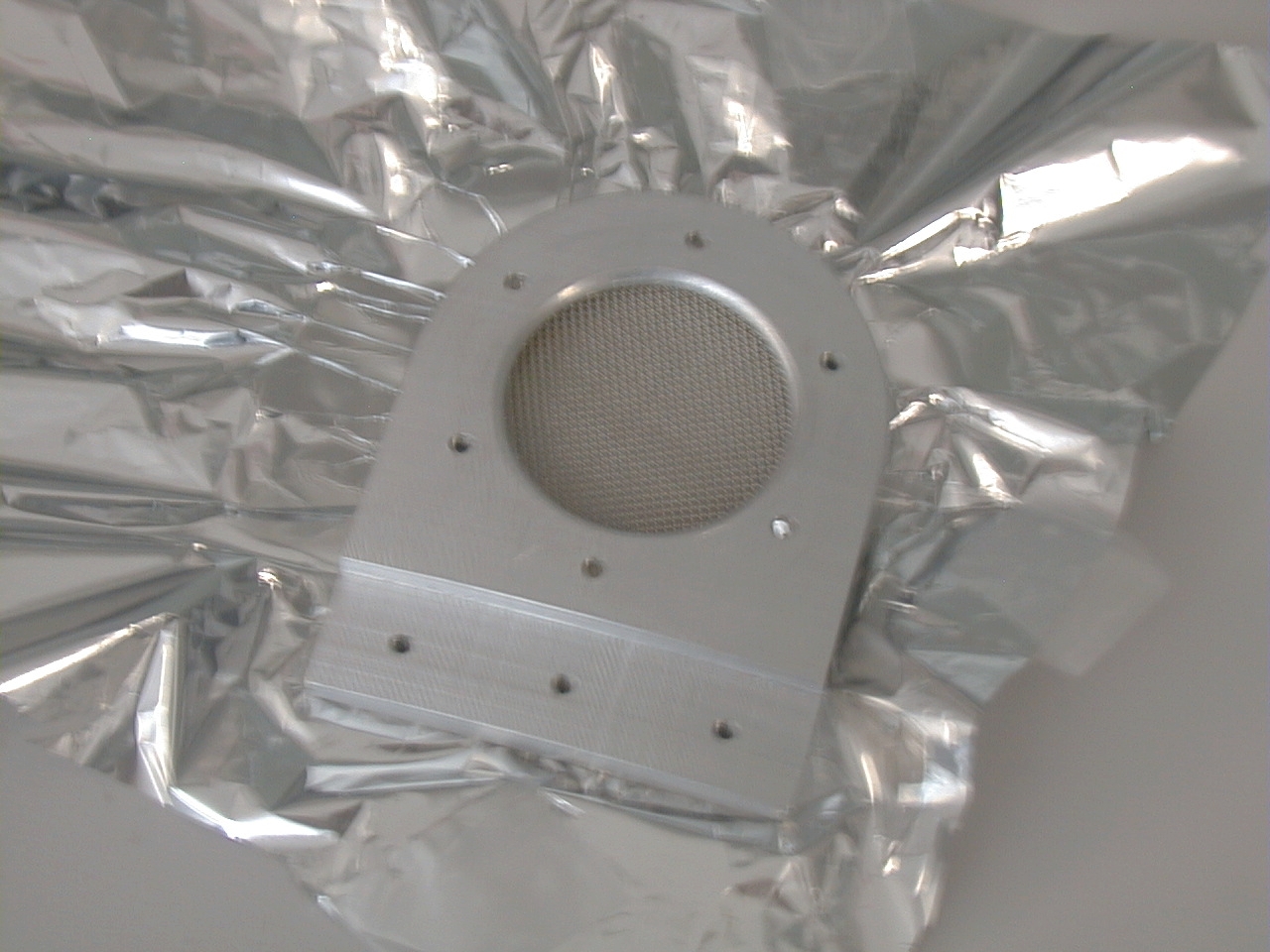

Bottom view of the airflow hole in the SSD shield : jpg
-
Drawing (Q243DET136) of the intermediate piece to support the SSD ladder
: PS, pdf
-
Drawing (Q243DET137) of the SSD bracket (for the full SSD) with the survey
mark (new version with the SVT cable clearance) : PS
-
Drawing (Q243DET138) of a part of the SSD ladder bracket : PS,
pdf
-
Drawing (Q243DET139) of the SSD ladder with the SVT water manifold : PS,
pdf
-
Drawing (Q243DET141) of the axle guiding the SSD ladder on the cone : PS,
pdf
-
Drawing (Q243DET142) of the SSD ladder installation scenario : PS,
pdf
-
Drawing (Q243DET143) of the SSD readout box : PS,
pdf
-
Drawing (Q240DET147) of the SSD readout box : PS,
pdf
-
Drawing (Q240EET134) of the entire mechanical support for the SSD ladder
(the design of the bracket for the ladder is updated) : PS,
pdf
-
Drawing (Q240DET106) of the clamshell support for the SSD barrel : PS,
pdf
-
Drawing (Q240DET146) of the clamshell support for the SSD barrel : PS,
pdf
-
Drawing (Q240DET148) of the SSD with a ladder : PS,
pdf
-
New drawings of the clamshell : Q243DET151.pdf,
Q243DET151.dxf, Q240DET152.pdf,Q240DET152.dxf,
Q240DET153.pdf, Q240DET153.dxf,
Q240DET154.dwg
Cable
routing:
-

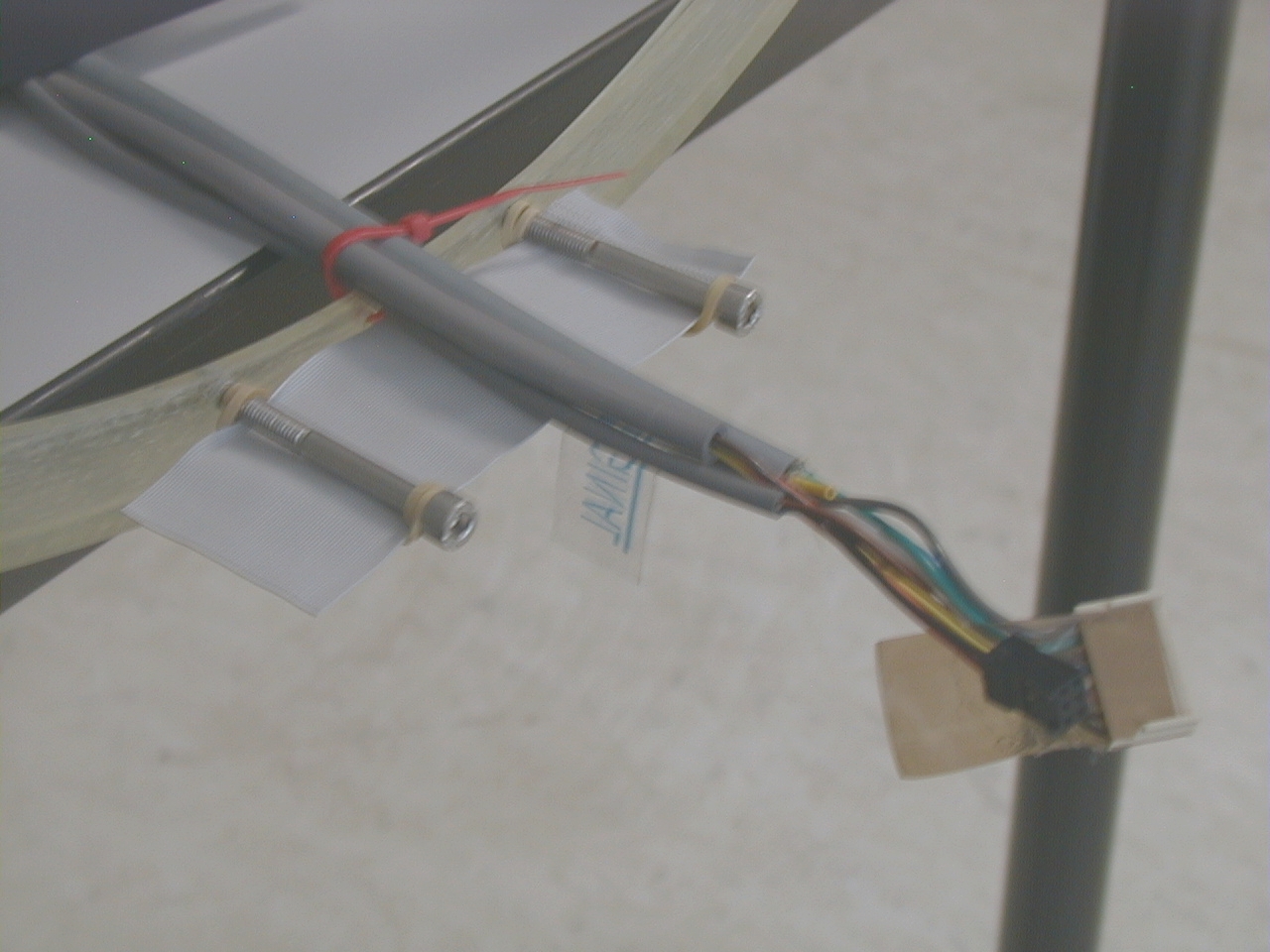

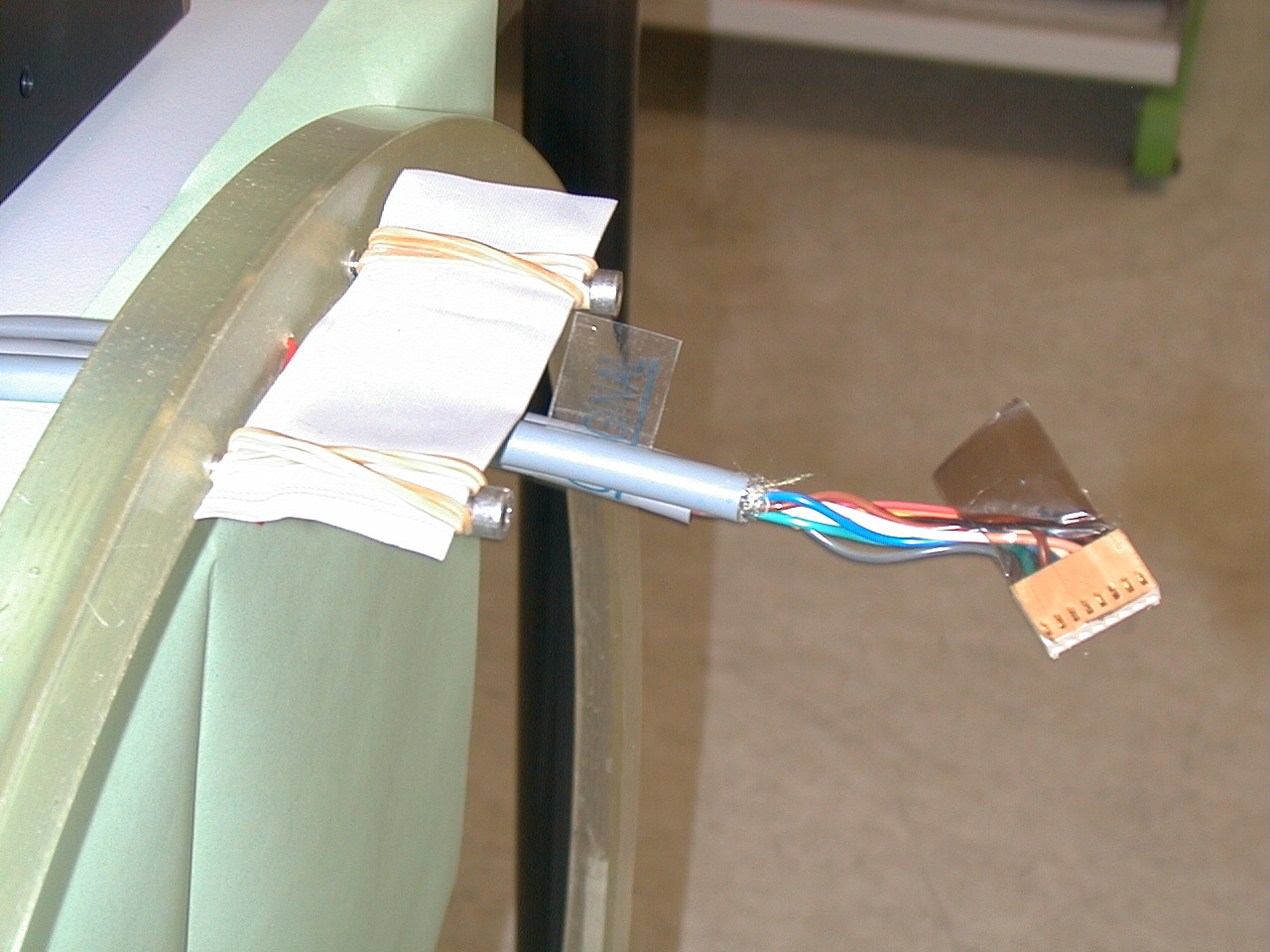

Attempt to route our power cables and hold them on the rings. The flat
cable is the output cable linking all the ADC boards. The screws might
be replaced by small carbon tubes : jpg
-
Same as above but for cables at the top of the rings : jpg
Cooling:
-

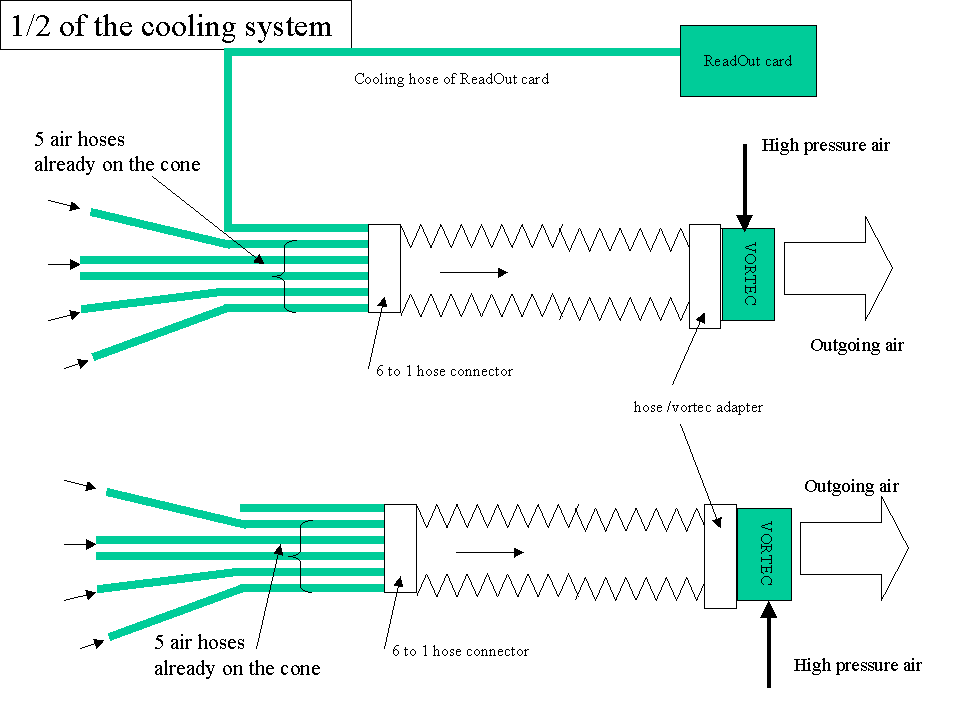

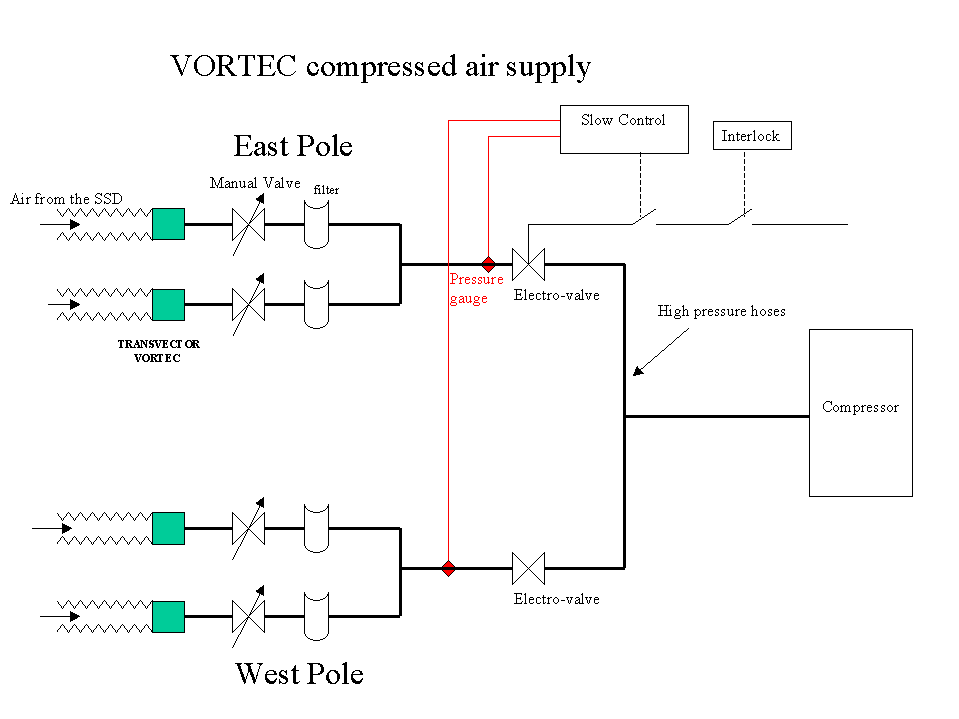

Schematic drawing of the SSD cooling system on the pole tips : gif
-
Schematic drawing of the SSD cooling system inside the magnet : gif
-

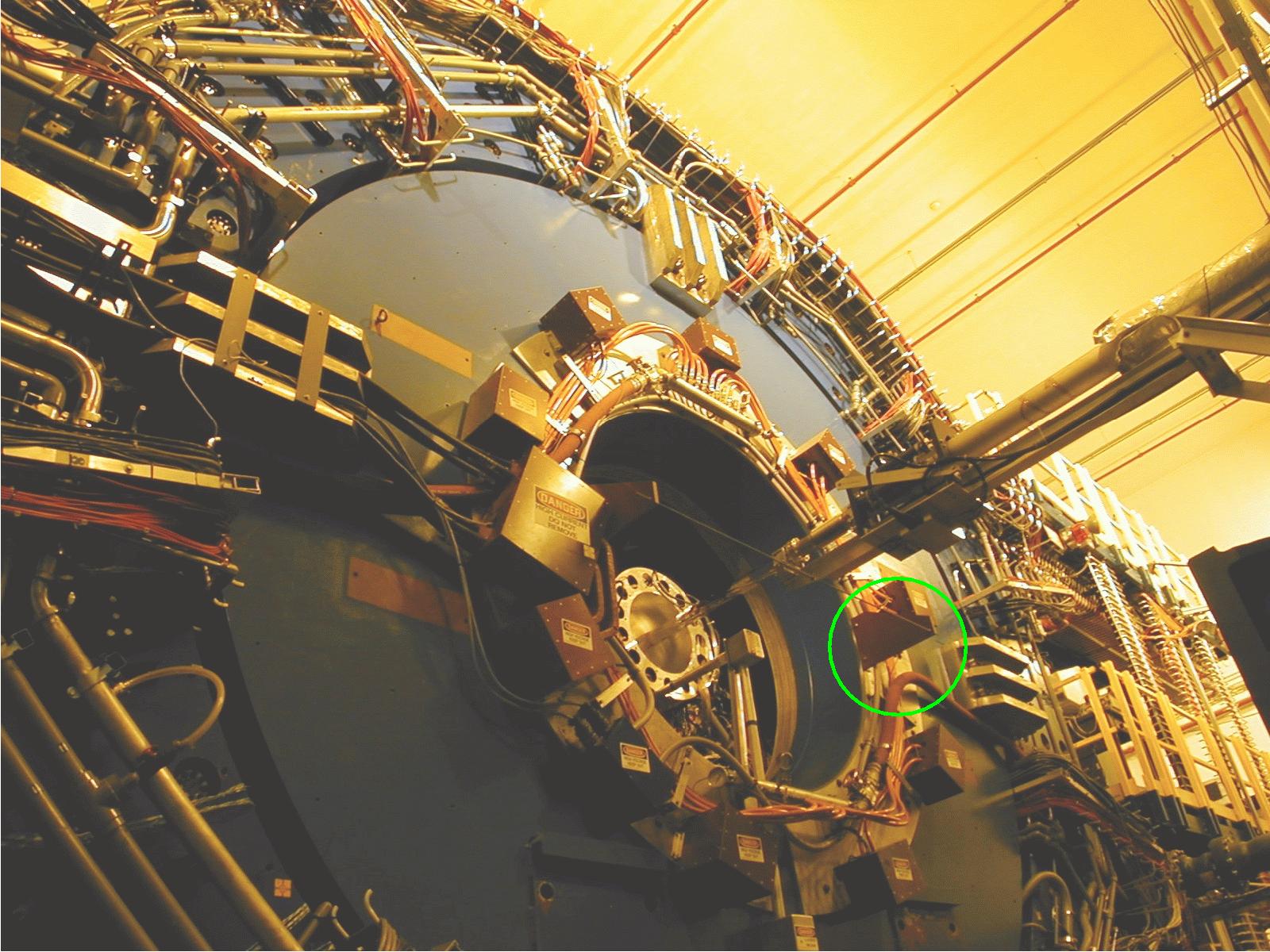

Identified spot to install the SSD cooling system on the pole tips : jpg
-

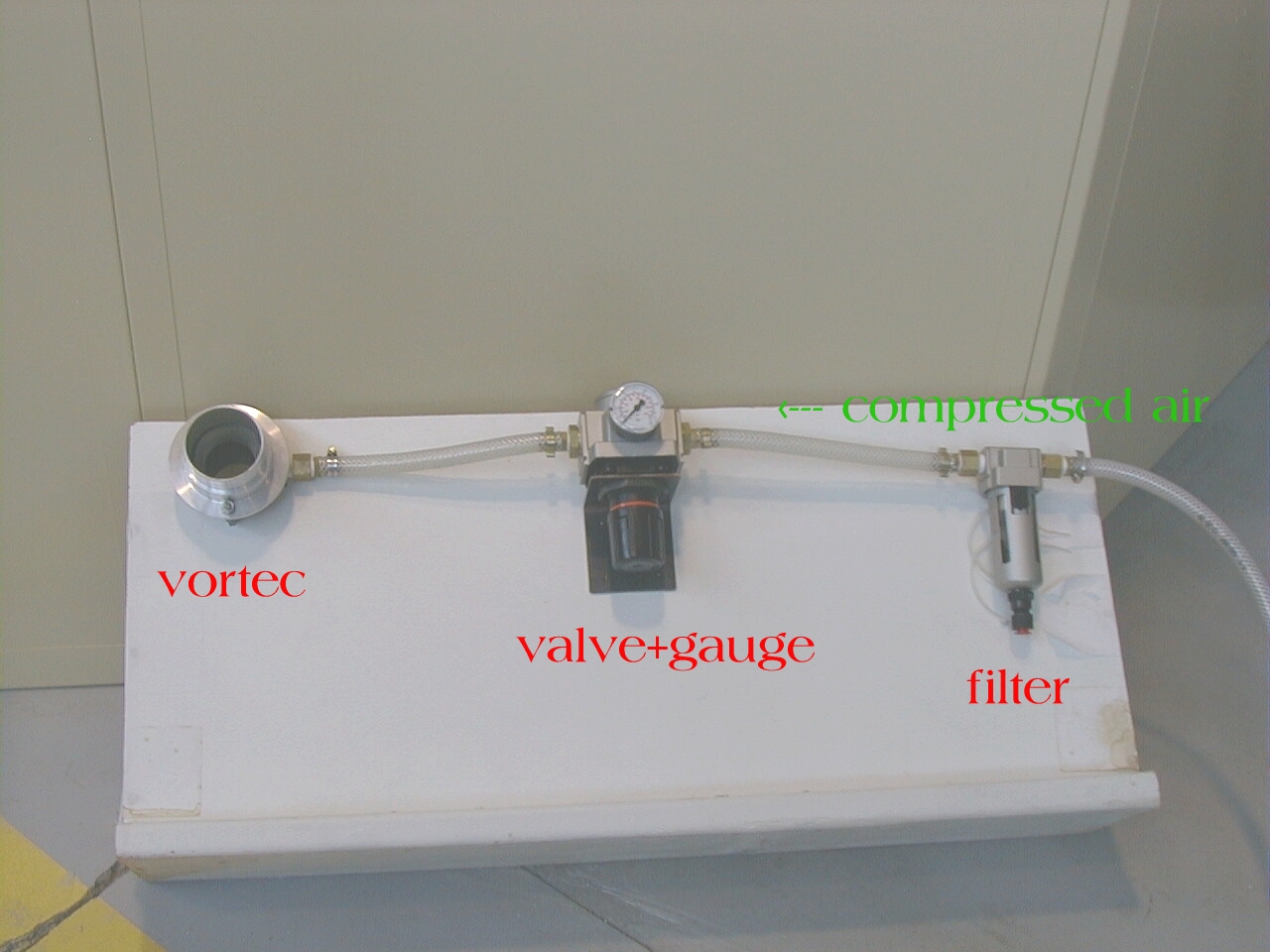

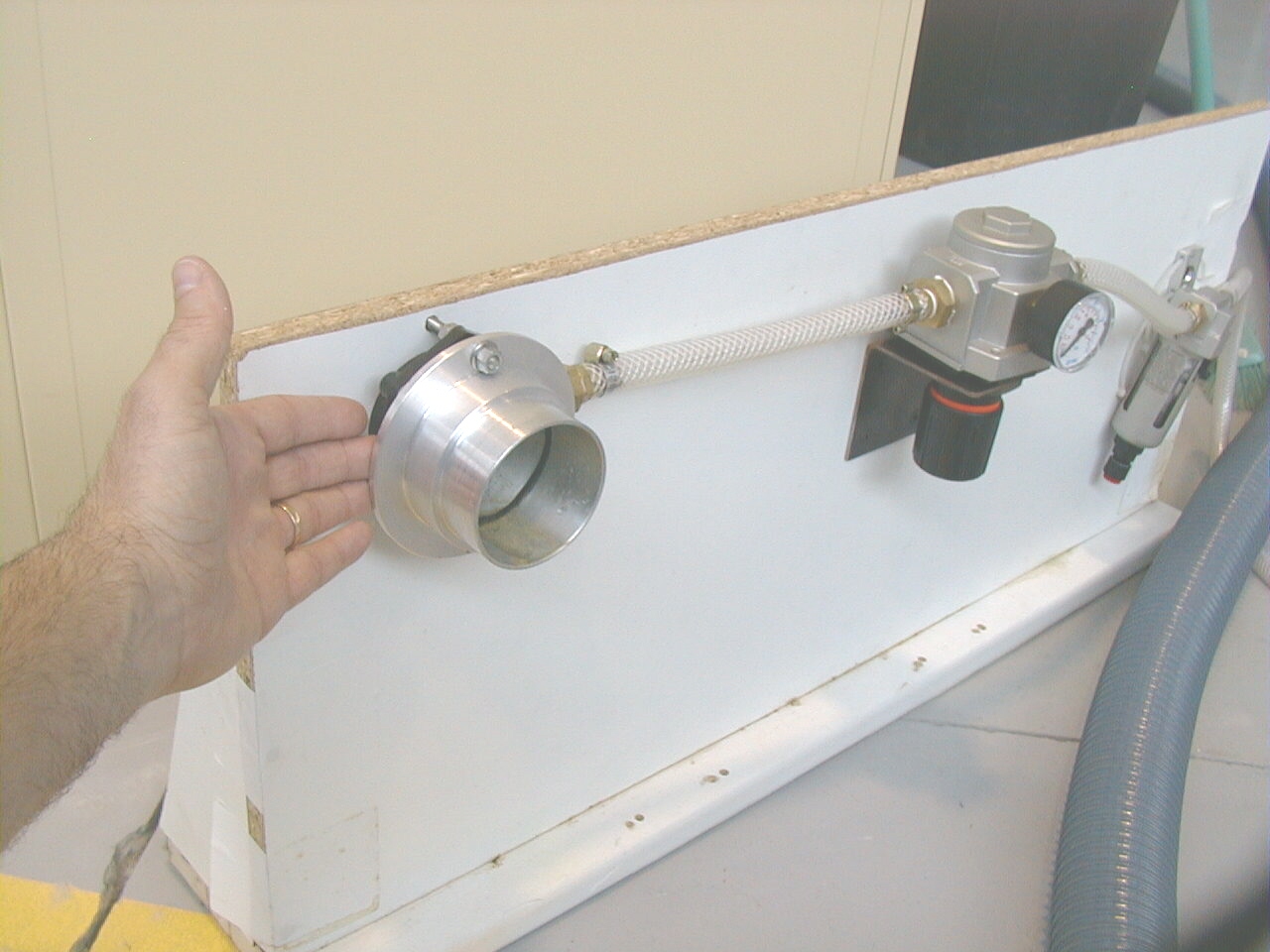

Front view of the air cooling system prototype used at Nantes. The vortec
is at the left, the valve and the gauge at the center and the filter at
the right. : jpg
-
Same as above but with some scale indication : jpg
-
Front view of the air cooling system prototype with the low pressure air
hose from the ladder connected : jpg
-

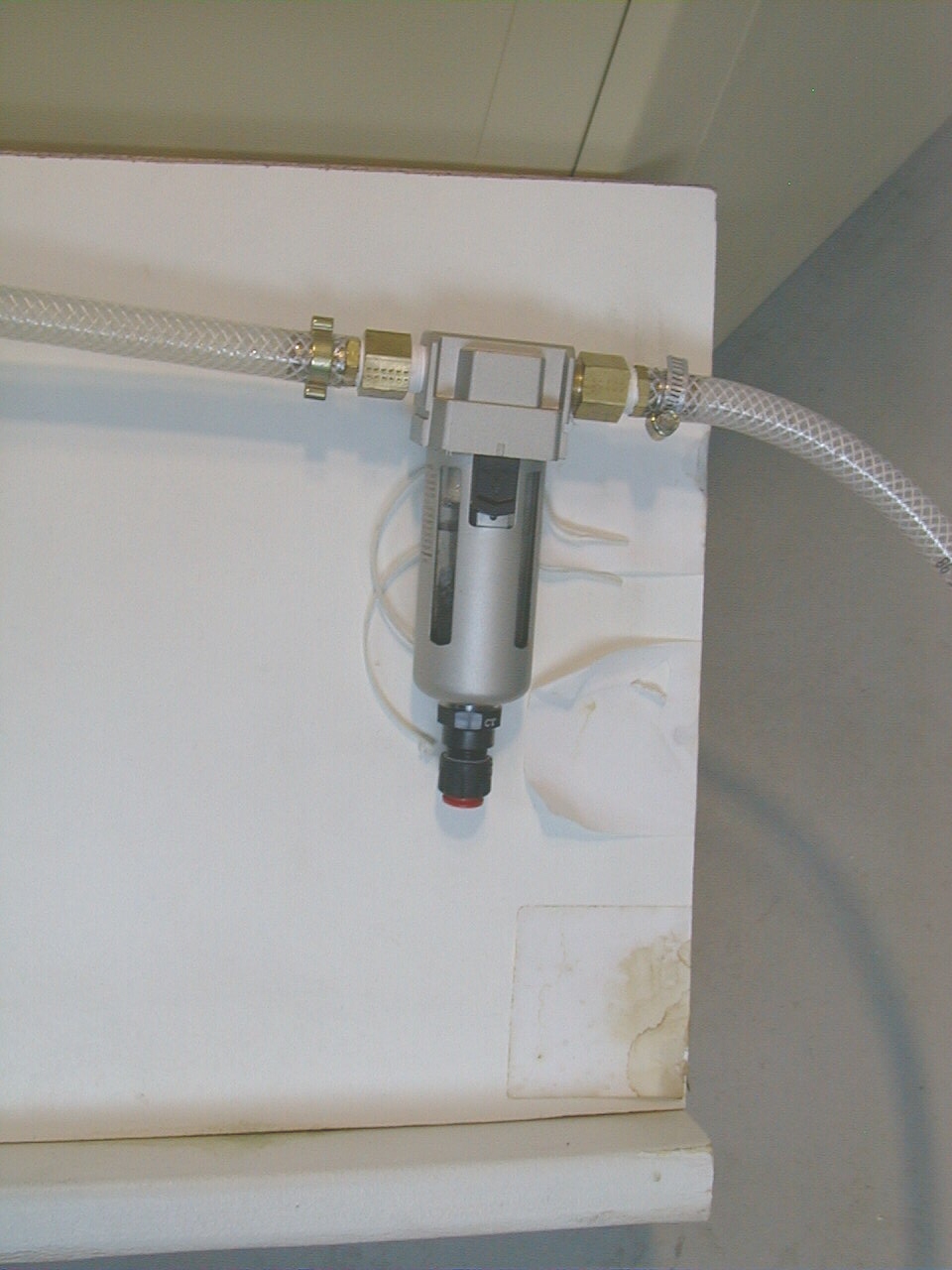

Front view of the filter: jpg
-

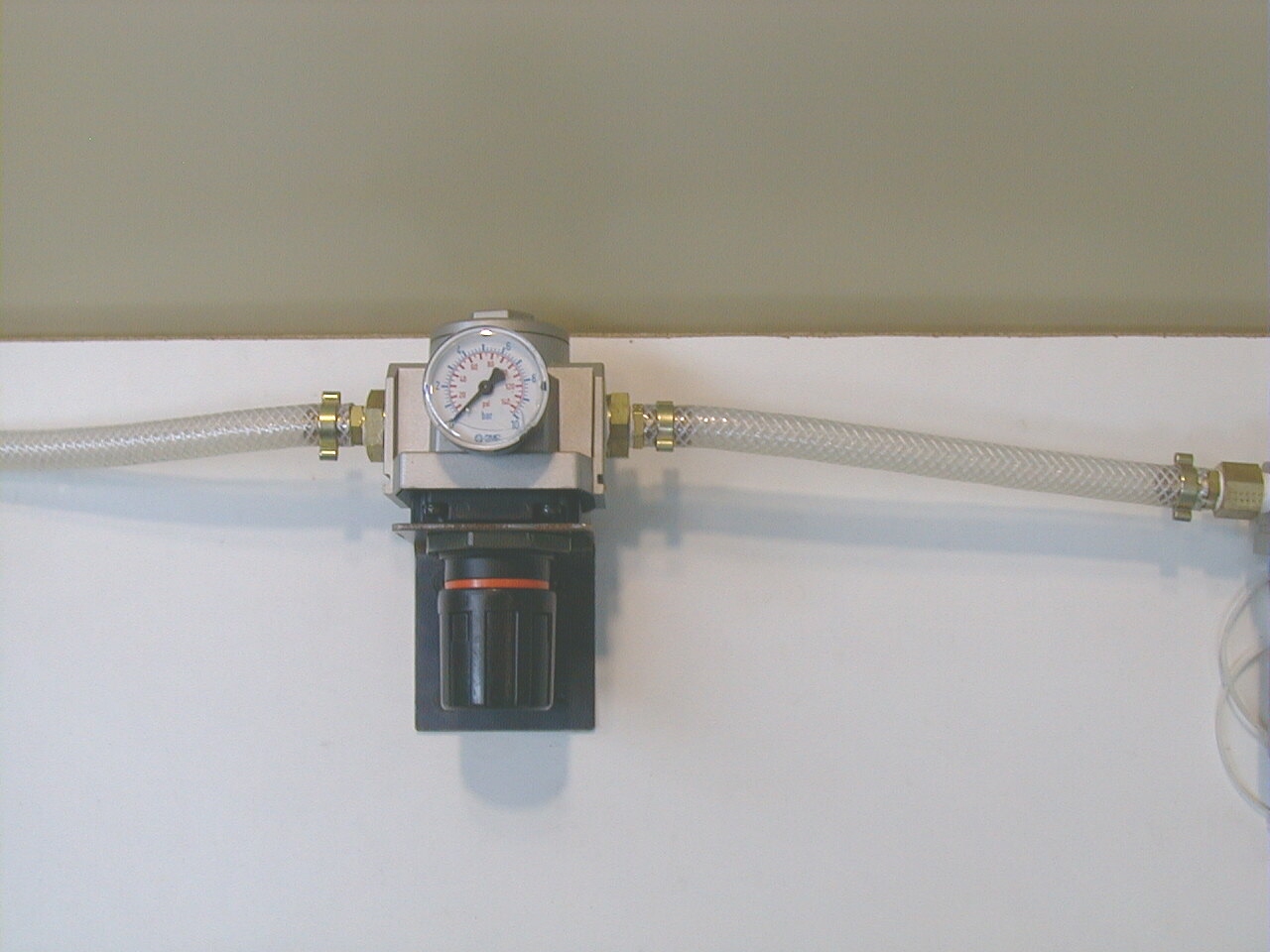

Front view of the valve and gauge: jpg
-

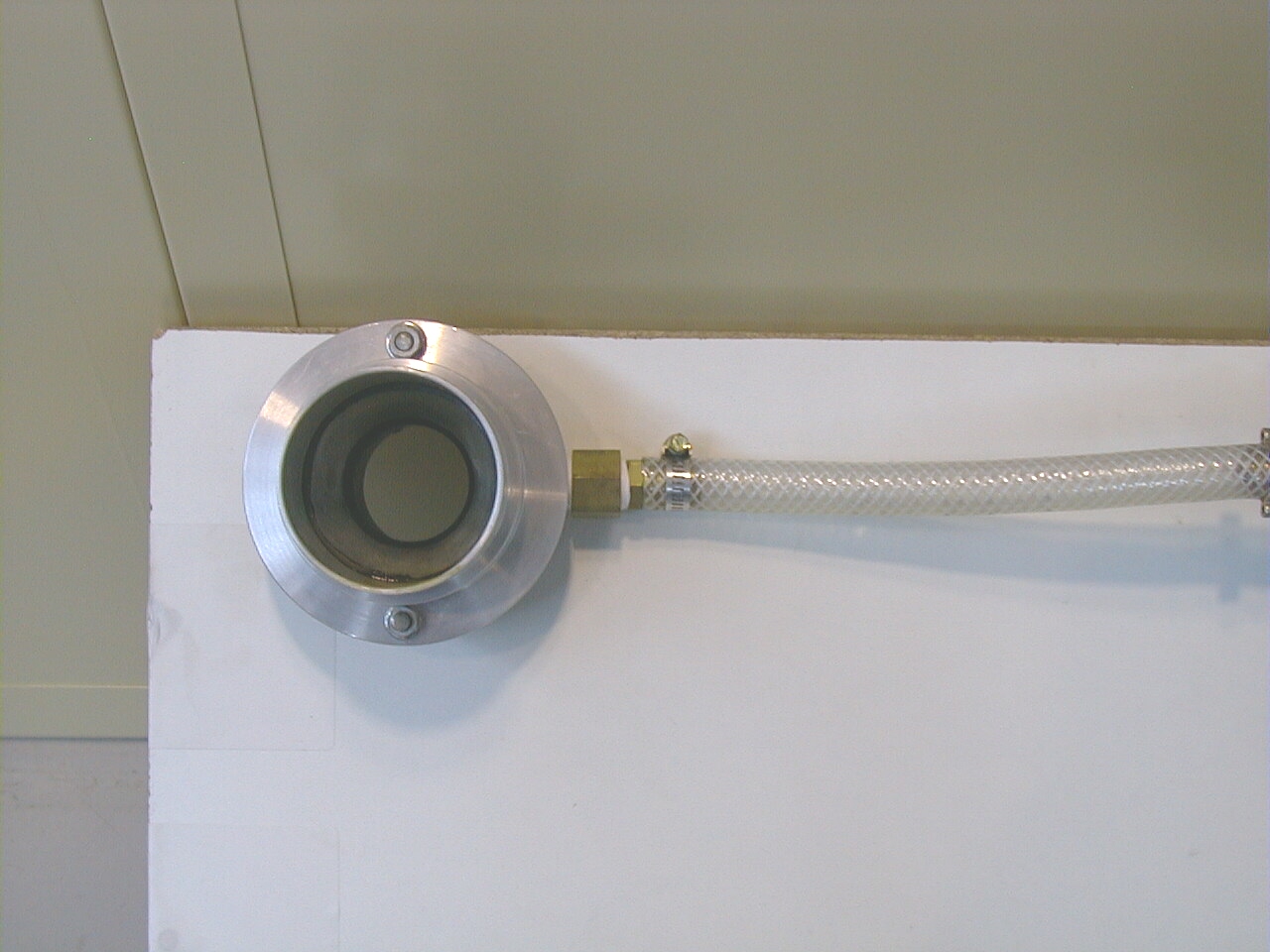

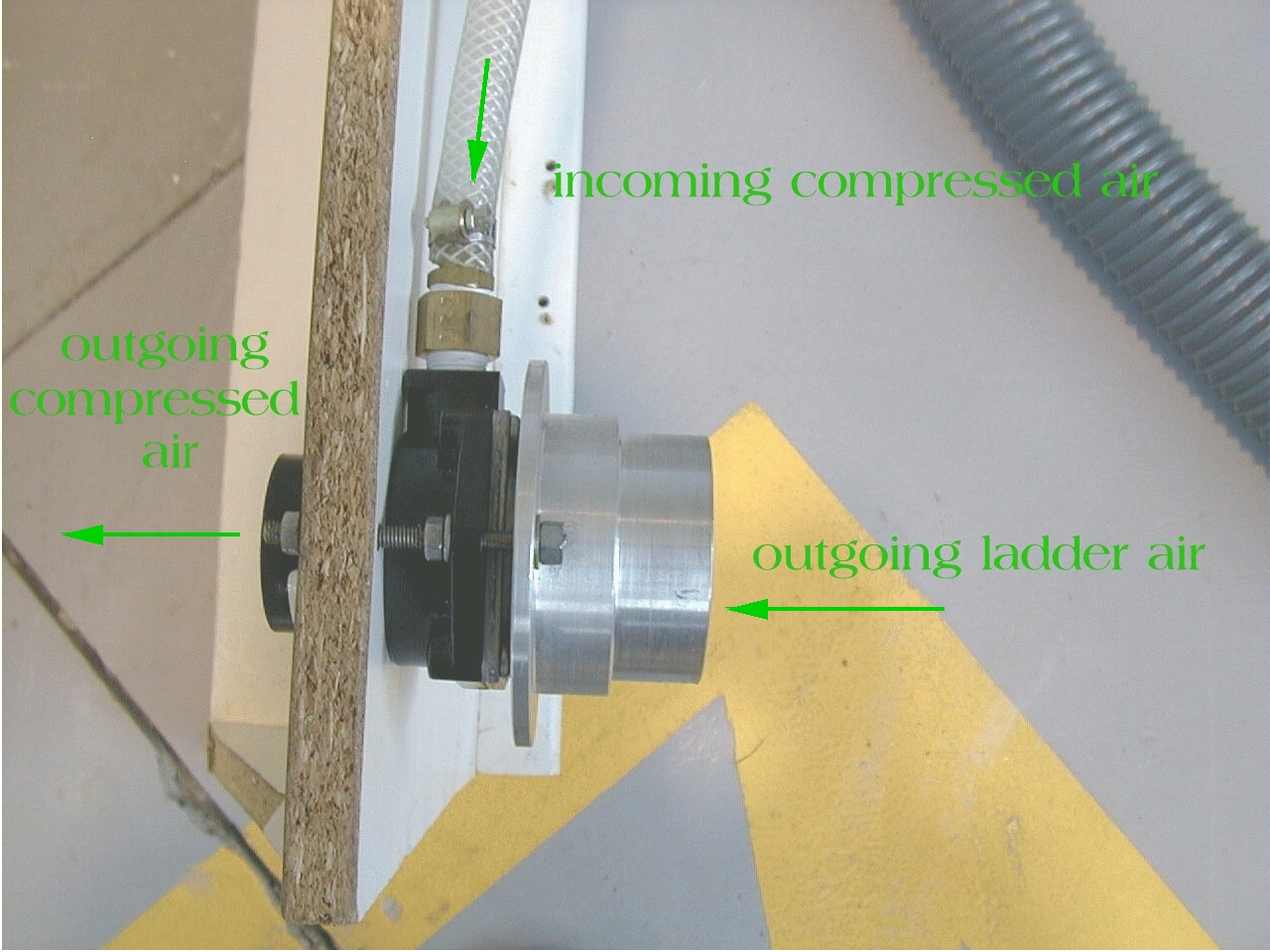

Front view of the vortec: jpg
-
Side view of the vortec: jpg
-
Drawing (Q213DCO028)of the flange connecting the low pressure air hose
the vortec : PS, pdf
-
Drawing (Q213DCO140)of the 1-to-6 distribution flange : PS,
pdf
ReadOut
:
-

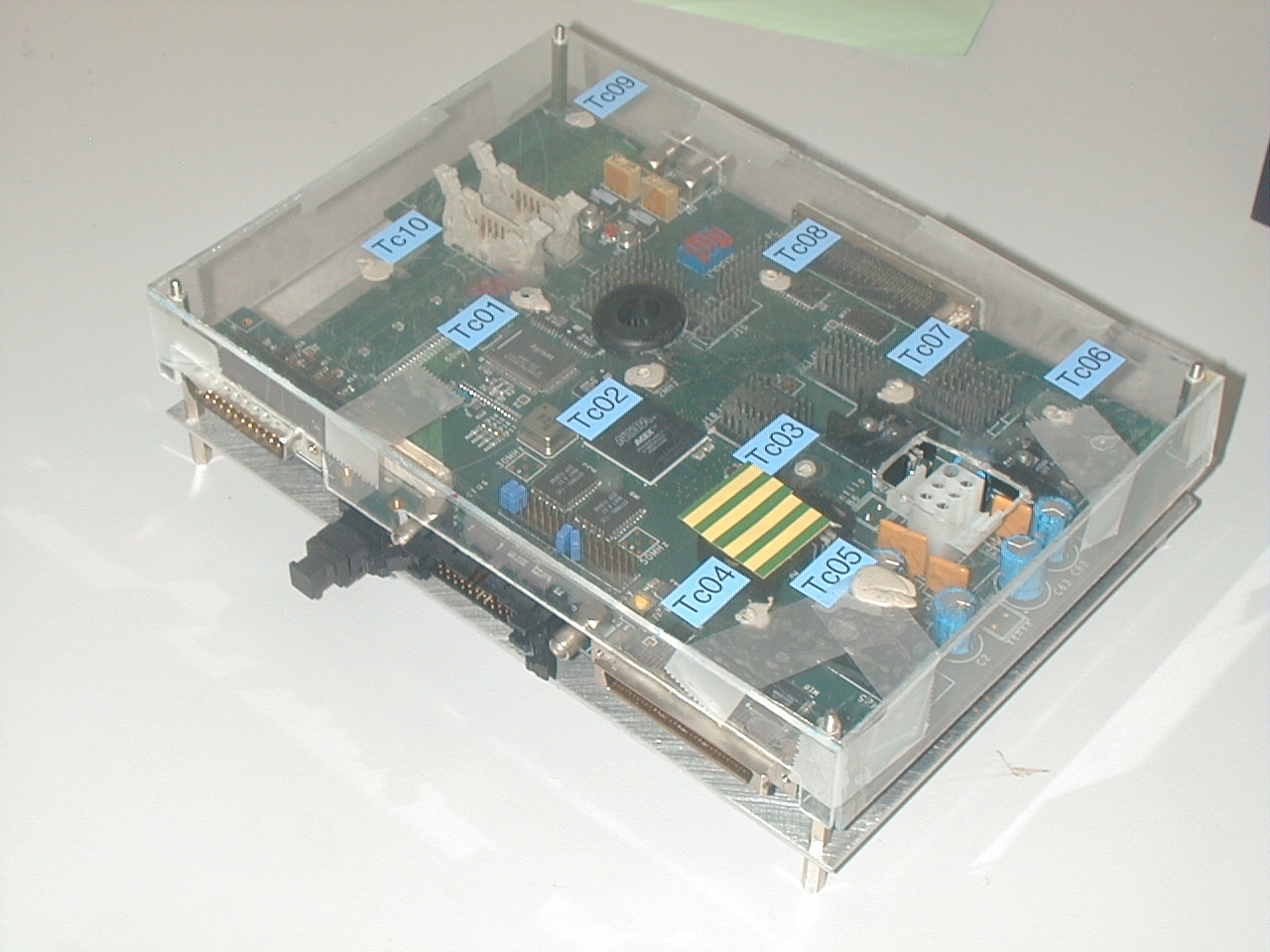

Top view of the RDO board in its box. The bottom plate is the top plate
of the SVT RDO box. The black hole in the middle will receive the air cooling
pipe : jpg
-

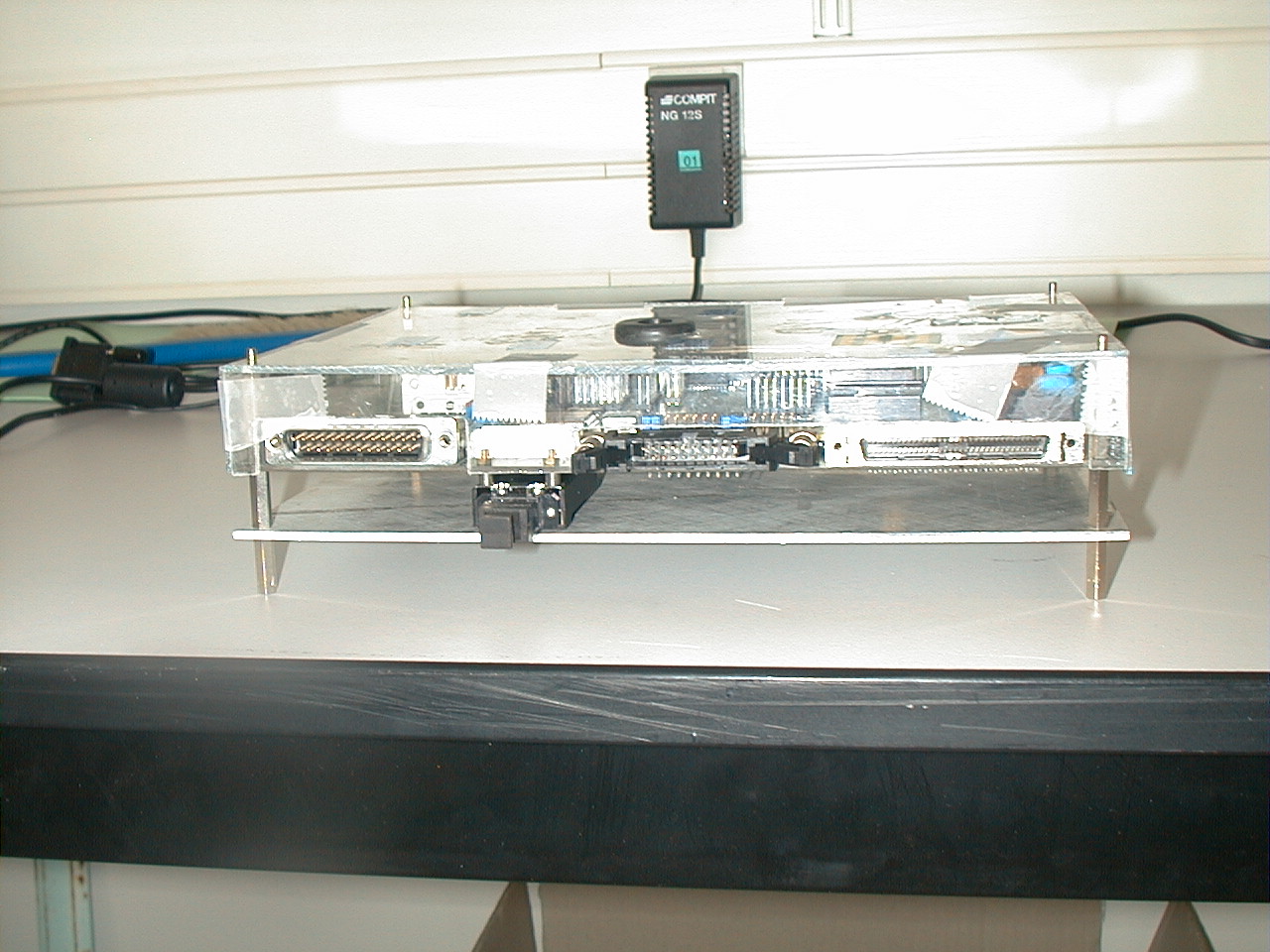

Side view of the RDO board in its box : jpg
Lilian MARTIN28-augu-2002
