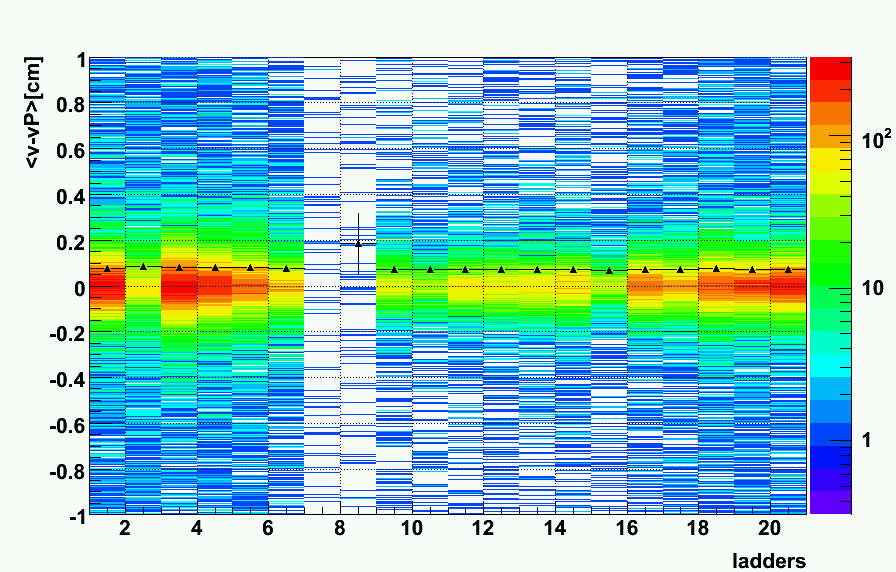

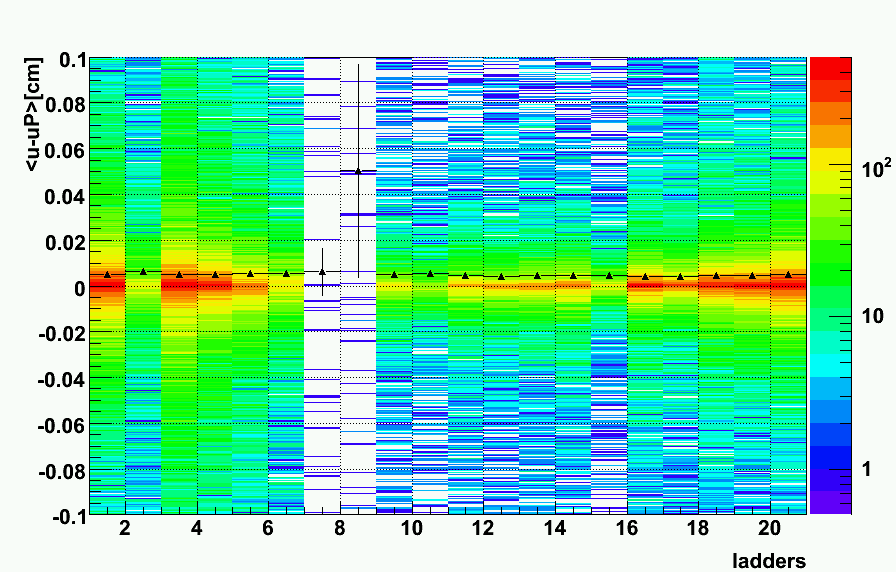

| Figure 1 : day 50 : u-uP vs ladder Id | Figure 2 : day 50 : v-vP vs ladder Id |
For each, the black point represent the sigma of the distribution ; I used FitSlices with a fitting range of [-0.01;0.01] cm and [-0.2;0.2] cm for
Examples of the following are :
 |
 |

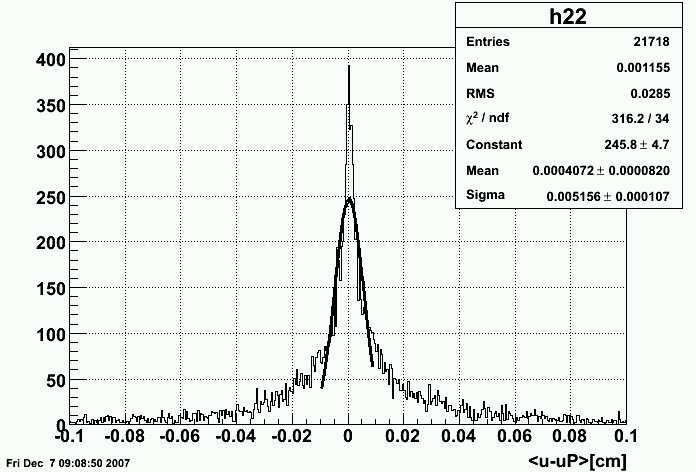

| Figure 3 : day 50 : u-uP for ladder 1 | Figure 4 : day 50 : v-vP for ladder 1 |
difference in SSD hits with the number of TPC hits on tracks
 |
 |
 |

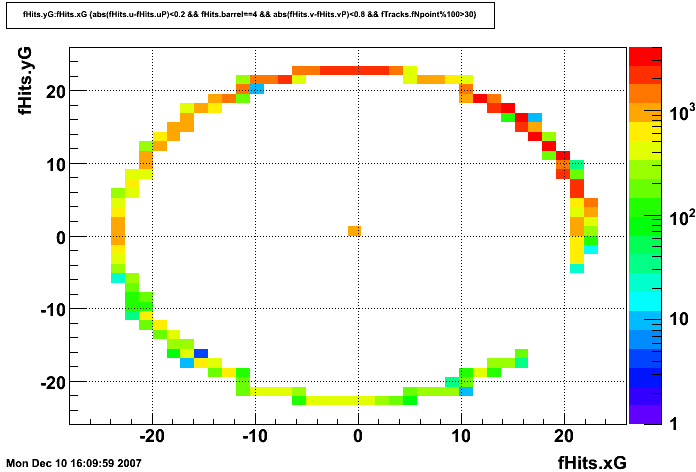

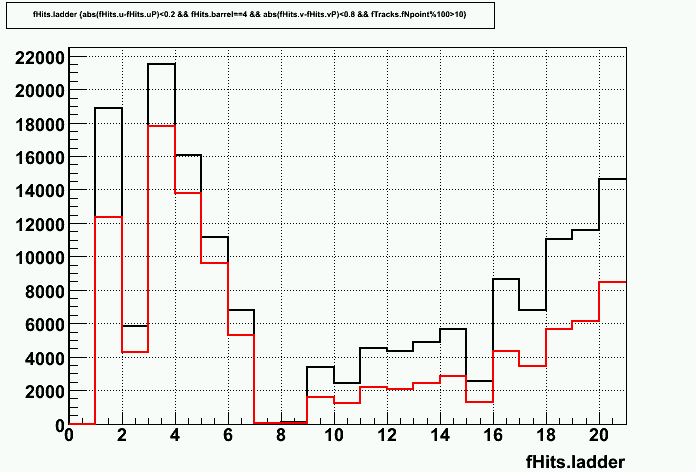

| Figure 5 : day 50 : NTpc > 10 | Figure 6 : day 50 : NTpc > 30 | Figure 7 : Difference in the number of hits per ladder |
For Fig.7, the black line stands for NTpc > 10 hits and the red line for NTpc > 30 hits.
day 51
 |
 |

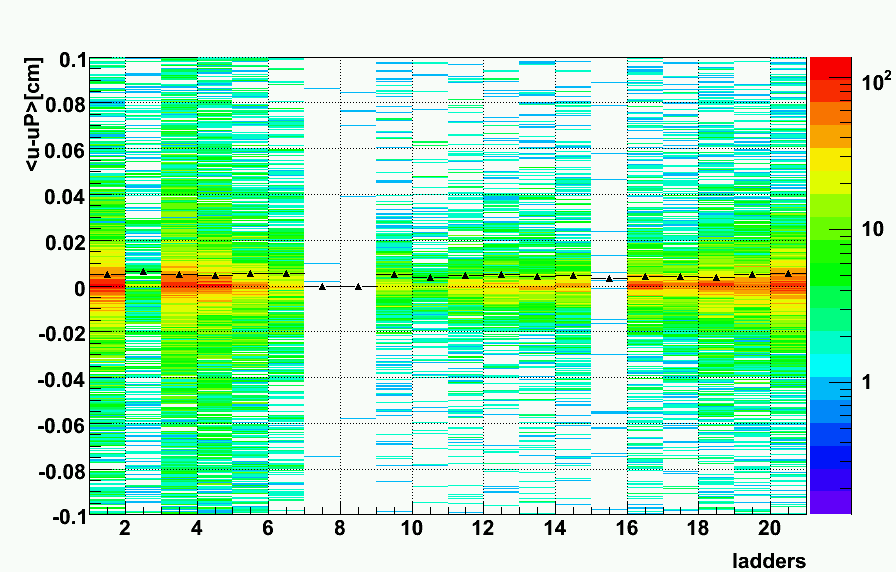

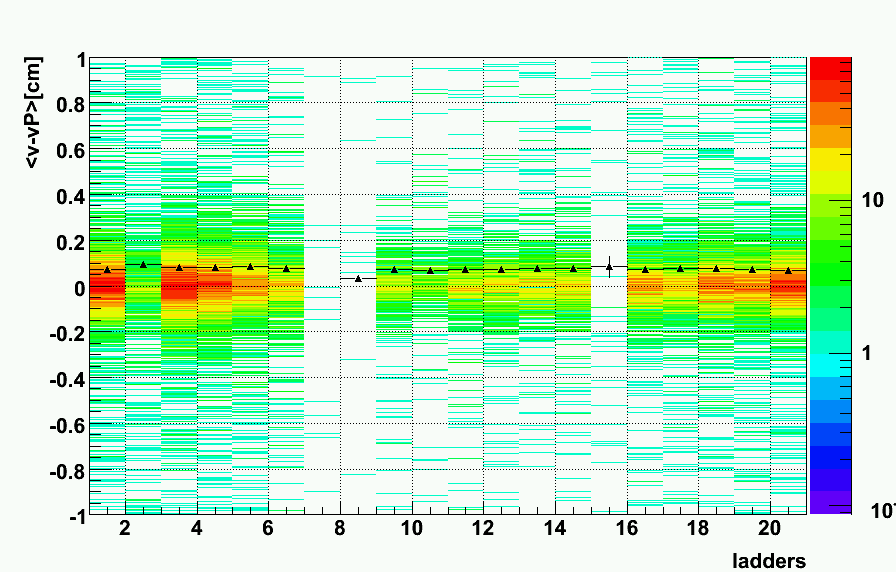

| Figure 7 : day 51 : u-uP vs ladder Id | Figure 8 : day 51 : v-vP vs ladder Id |
day 20
 |
 |

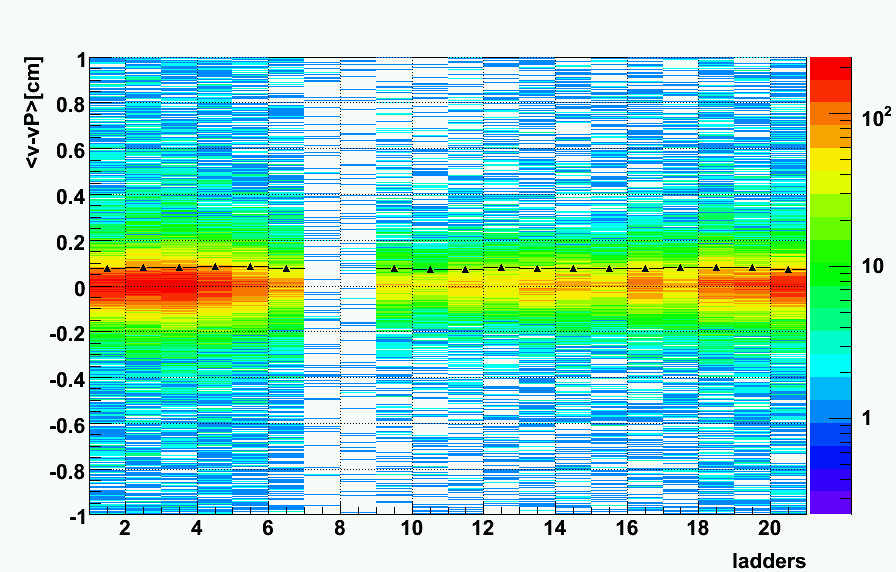

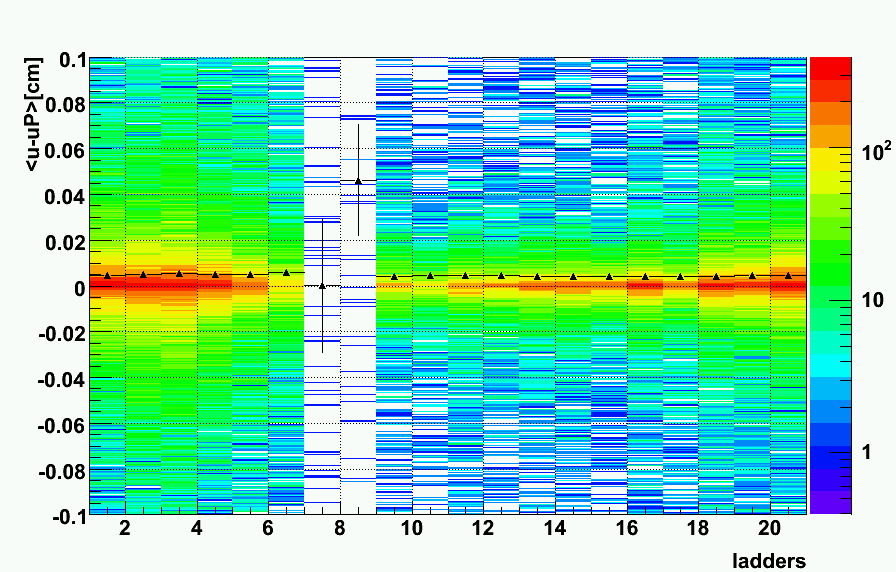

| Figure 9 : day 20 : u-uP vs ladder Id | Figure 10 : day 20 : v-vP vs ladder Id |
day 21
 |
 |

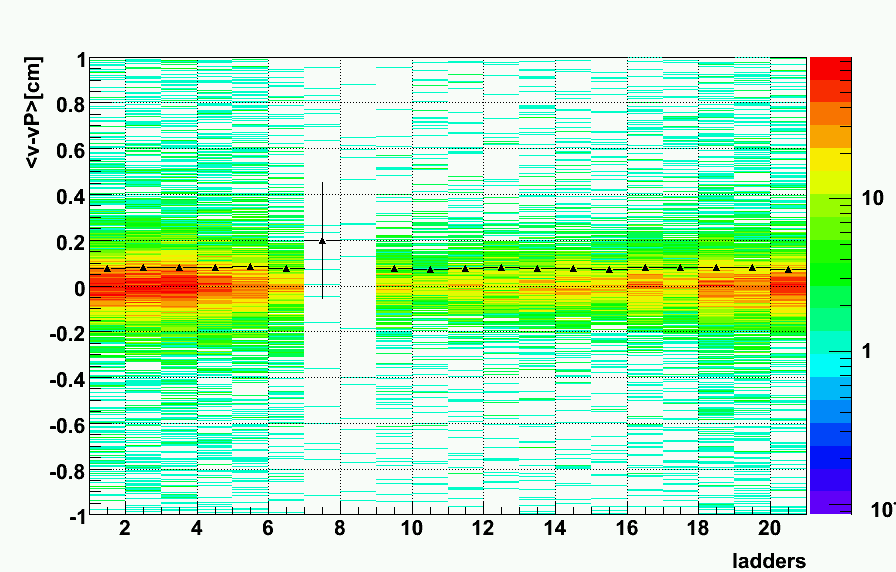

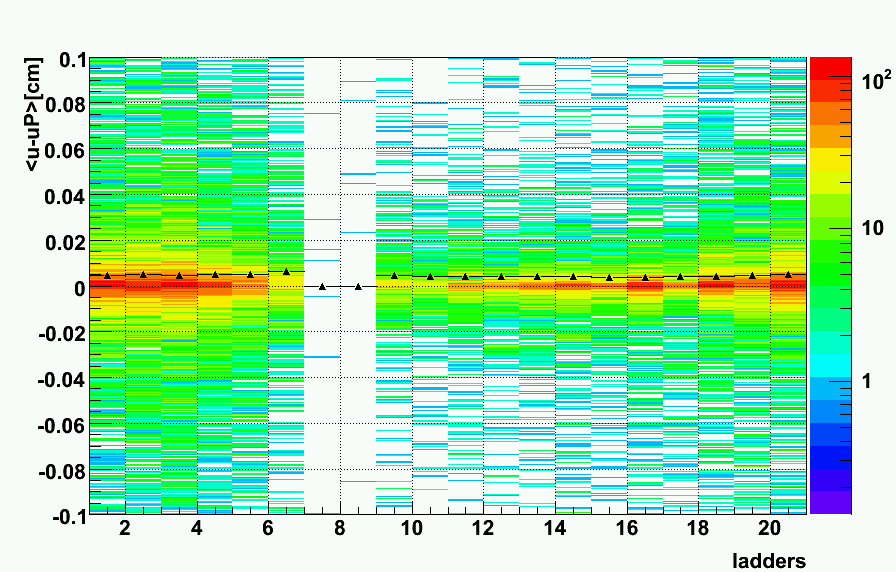

| Figure 11 : day 21 : u-uP vs ladder Id | Figure 12 : day 21 : v-vP vs ladder Id |
day 22
 |
 |

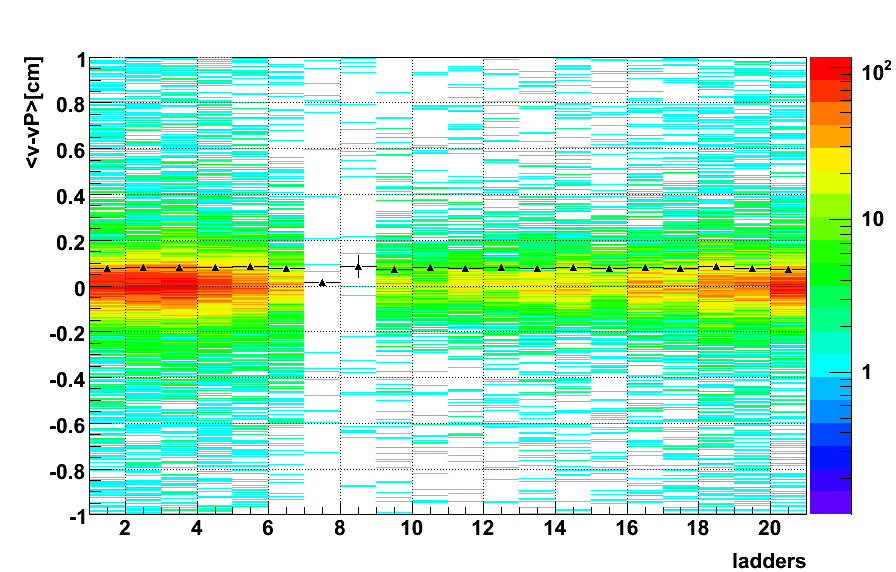

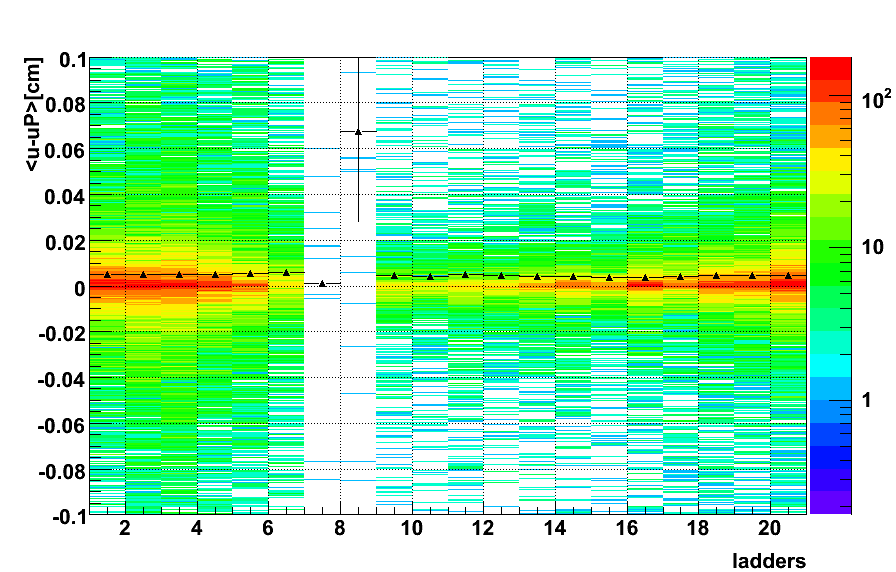

| Figure 13 : day 22 : u-uP vs ladder Id | Figure 14 : day 22 : v-vP vs ladder Id |
Jonathan Bouchet Last modified: Tue Dec 11 17:15:33 EST 2007
