August 1st

This page is to prepare the future work on the ssd embedding.

Brief summary

This section briefly summarizes the ssd soft in simulation.
More details can be found on : STAR SSD- Softwarepage

Simulation

SSD Database Manager (SDM)

Calibration, Condition : it simulates the detector response (pedestal,noise,dead strips...)

SSD Lazy Simulator (SLS)

Converts the geant hits into sequences of amplitudes on strips : it simulates the charge collection and the charge sharing between the strips.
Out put : sls_strip table

SSD Pedestal Annihilator (SPA)

Read the strips amplitudes, add noise and pedestal.
Substract the pedestal and apply a DAQ Cut.
Output : spa_strip table.

Hit reco.

SSD Cluster Finder (SCF)

Scan the strips on both sides to built the clusters.
Output : scf_cluster table.

SSD Cluster Matcher (SCM)

Association of the clusters found on the 2 sides of each wafer. The charge matching is used to solve ambiguous packages.
Output : scm_cluster table

Status & Exemples

SSD Database Manager (SDM)

Actually, for the simulation concerning the ssd, it requires a timestamp to the pedestal files (the same case for the data : a correct timestamp refering to the day number is required to pick the right pedestal file)
The simulation has a specific timestamp which refers to a 'default' pedestal file that stores for each strip a noise = 3 ADC and a pedestal = 100 ADC.
(Again the same as for the data reco --> see this message : SSD hypernews)
In this case, the sdm_Maker is not use.

Exemple of the sdm_Maker

Until now, 2 tables (stored in root files) are created with this maker. Noise and pedestals values (in electrons) are randomly generated.
To remind a MIP particle creates 25000 electrons in 300um of silicon.
The conversion factor of electrons into adc count depends of the electronic chain and is : conversionFactor = (NAdcChannel)/(ADCDynamic*NElectronInAMip)
conversionFactor = 2^10/(22500*20) = 0.002275
The values setted in the sdm_Maker are :

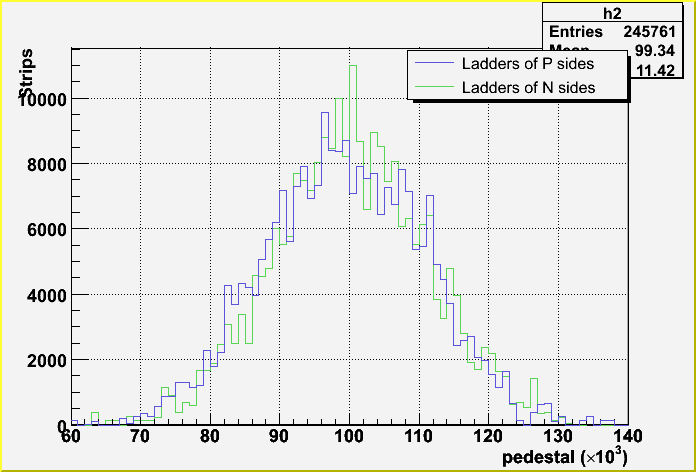

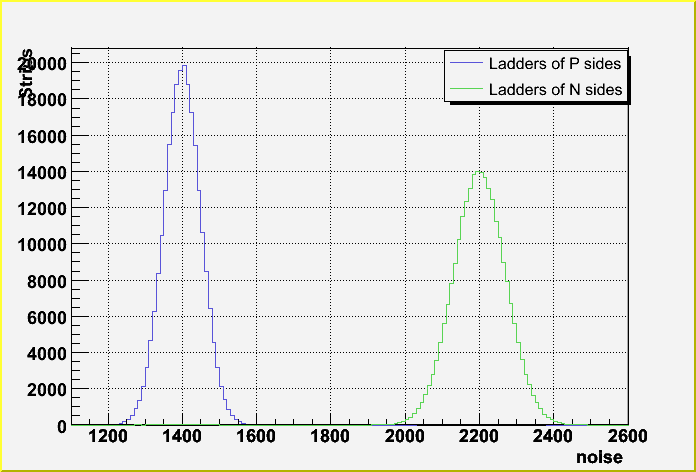

Figure 1 : Pedestals in electrons Figure 2 : Noise in electrons
Then, the same values in adc : vv

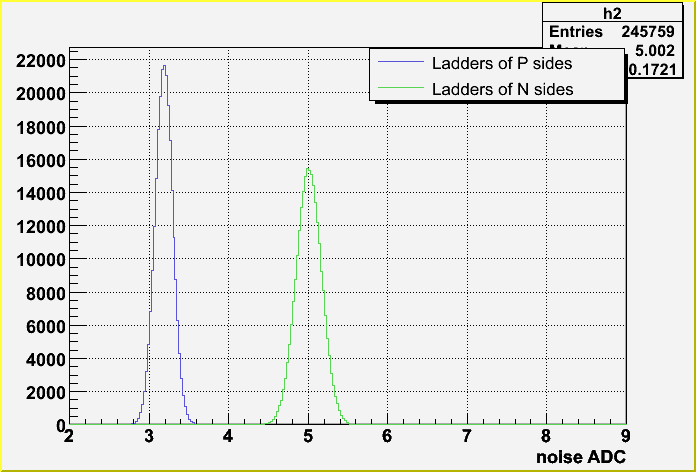

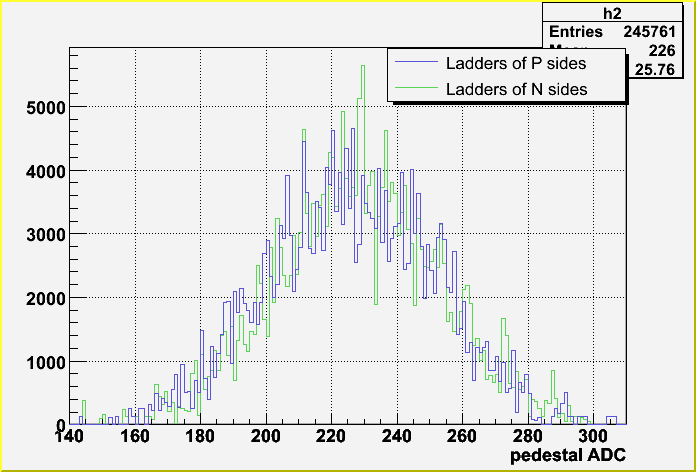

Figure 3 : Pedestals in ADCFigure 4 : Noise in ADC
The main remark is that those values are far from the pedestal and noise values for 2005. RunV analysis by Lilian .
Thus a realistic simulation must take account of this and modify the parameters.
From the data, the pedestals are fluctuated between 100 and 150 ADC for the P and N sides, whereas the simulation generates values from 140 to 300 ADC.
The same is for the noise : I then plot, as an exemple ,the pedestal and noise distribution for data ( 1 pedestal run ):

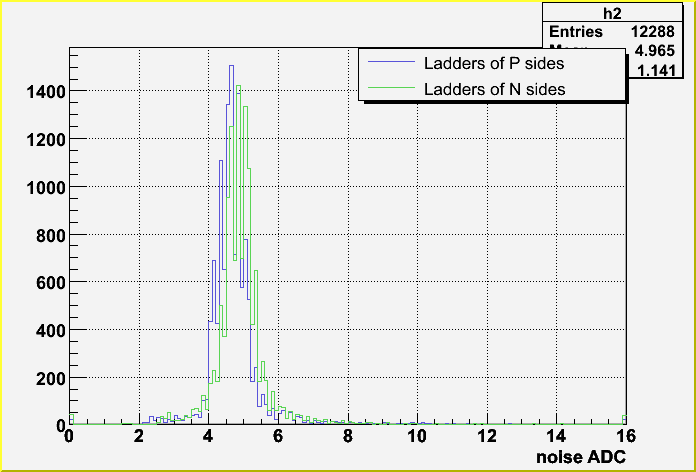

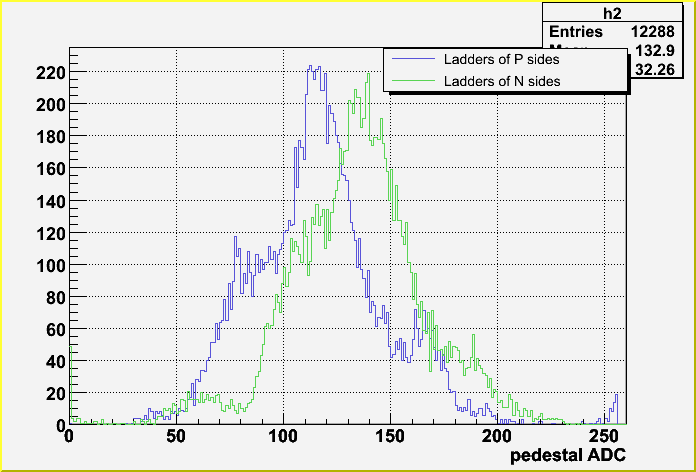

Figure 5 : Pedestals in ADC of 1 pedestal run in 2005 Figure 6 : Noise in ADC of 1 pedestal run in 2005

Try a more realistic pedestal & noise values

Here are the new set of values for the sdm simulation that I try: The others values remain the same.

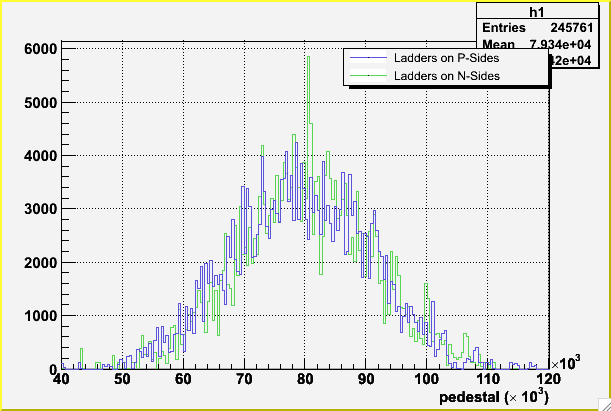

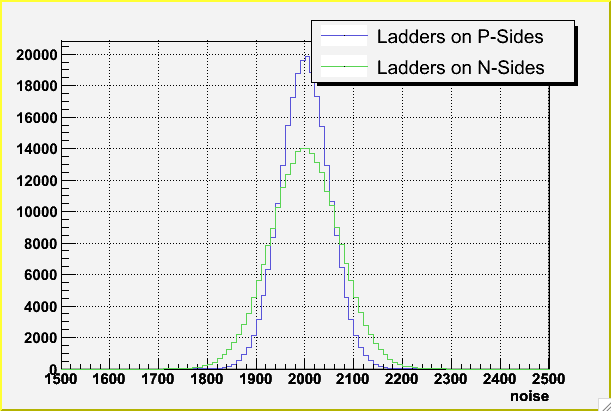

Figure 7 : Pedestals in electrons Figure 8 : Noise in electrons
Then we see that the pedestal goes to [40000 ; 110000] electrons ; that gives a pedestal [90 ; 250 ] ADC.
The noise goes to [1800 ; 2200] electrons; that gives a noise [4 ; 5] ADC.
These values reflects, cf the web page, a little bit more the real pedestal and noise values .
We can also said that the default pedestal (100 ADC) and noise (3 ADC) are far too from the realistic pedestal ans noise values.

Comparison

In this section, I compare the results of 2 differents calibrations on the physical values of the SSD, such as the size (strips) of the clusters, their signal to noise ratio and the charge matching of the reconstructed hits.

Default calibration

This calibration is the one which the simulation is actually done :

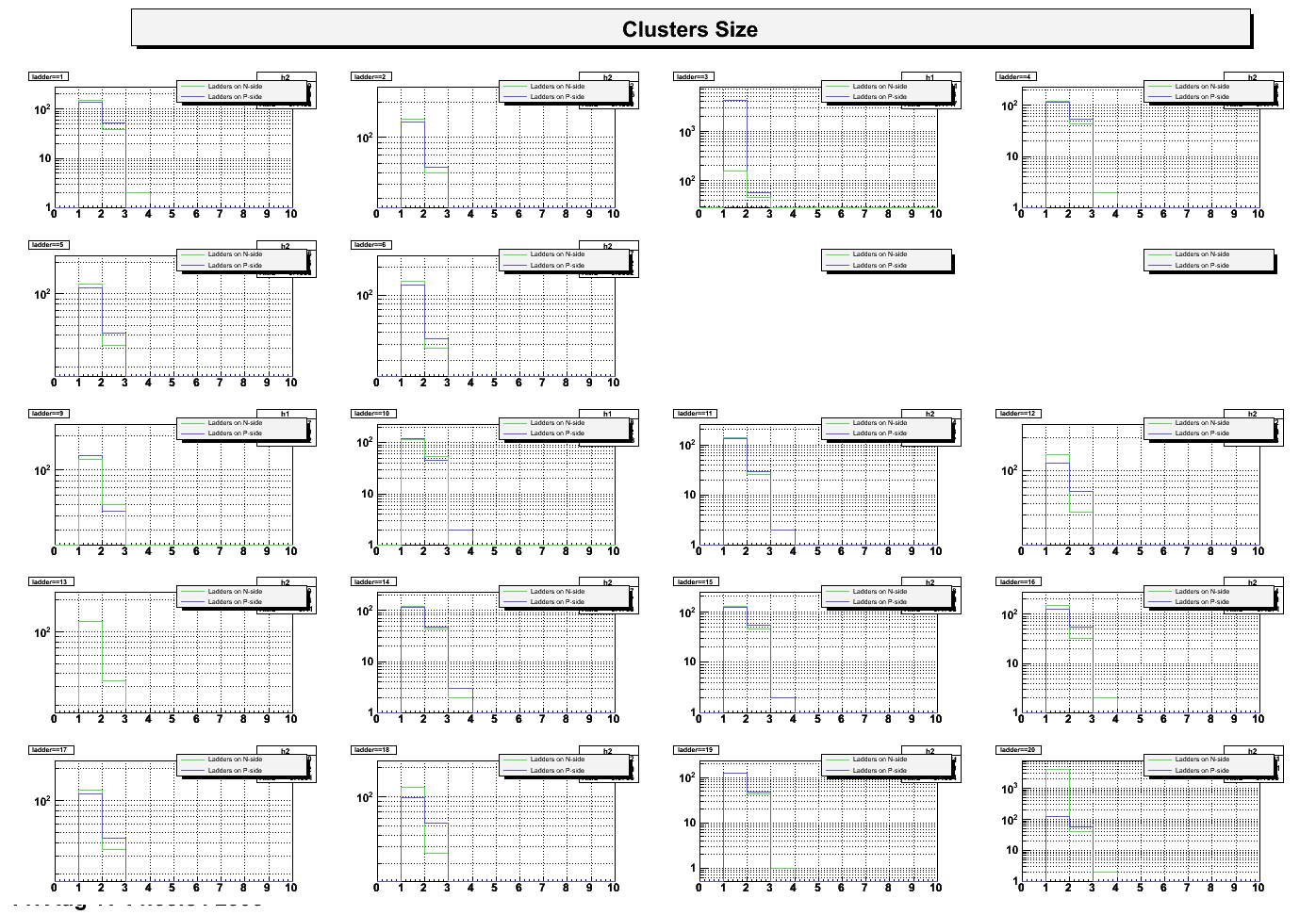

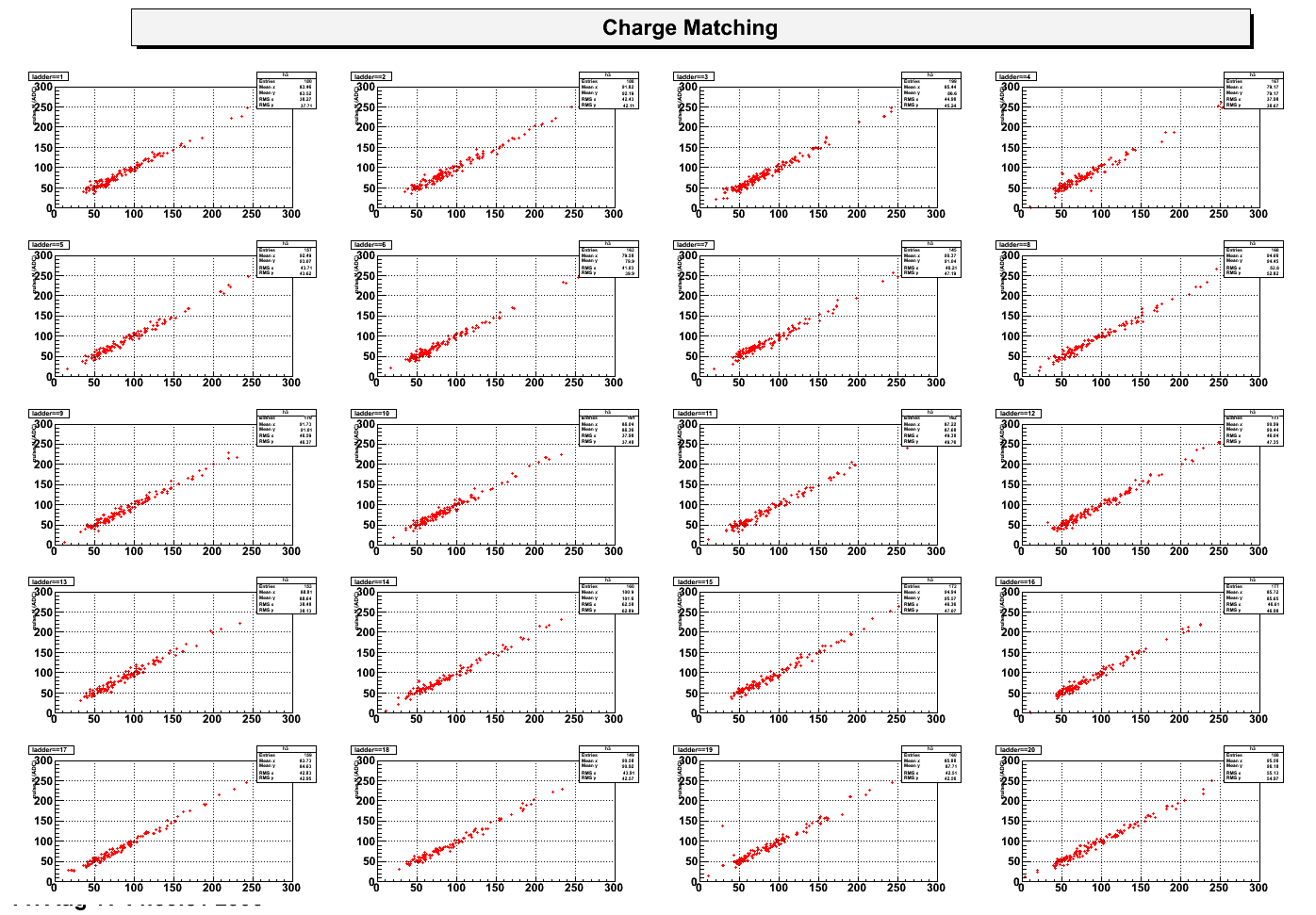

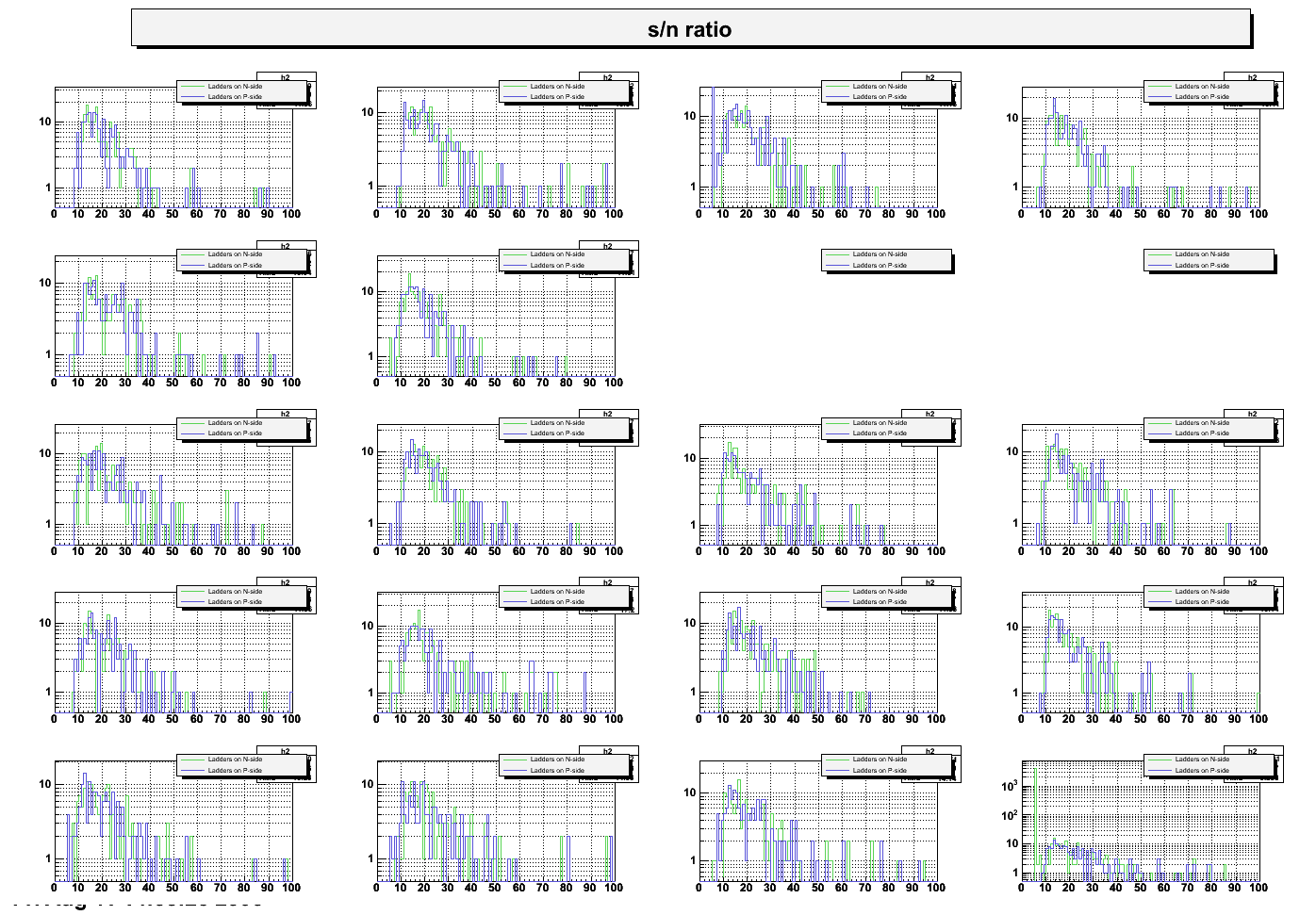

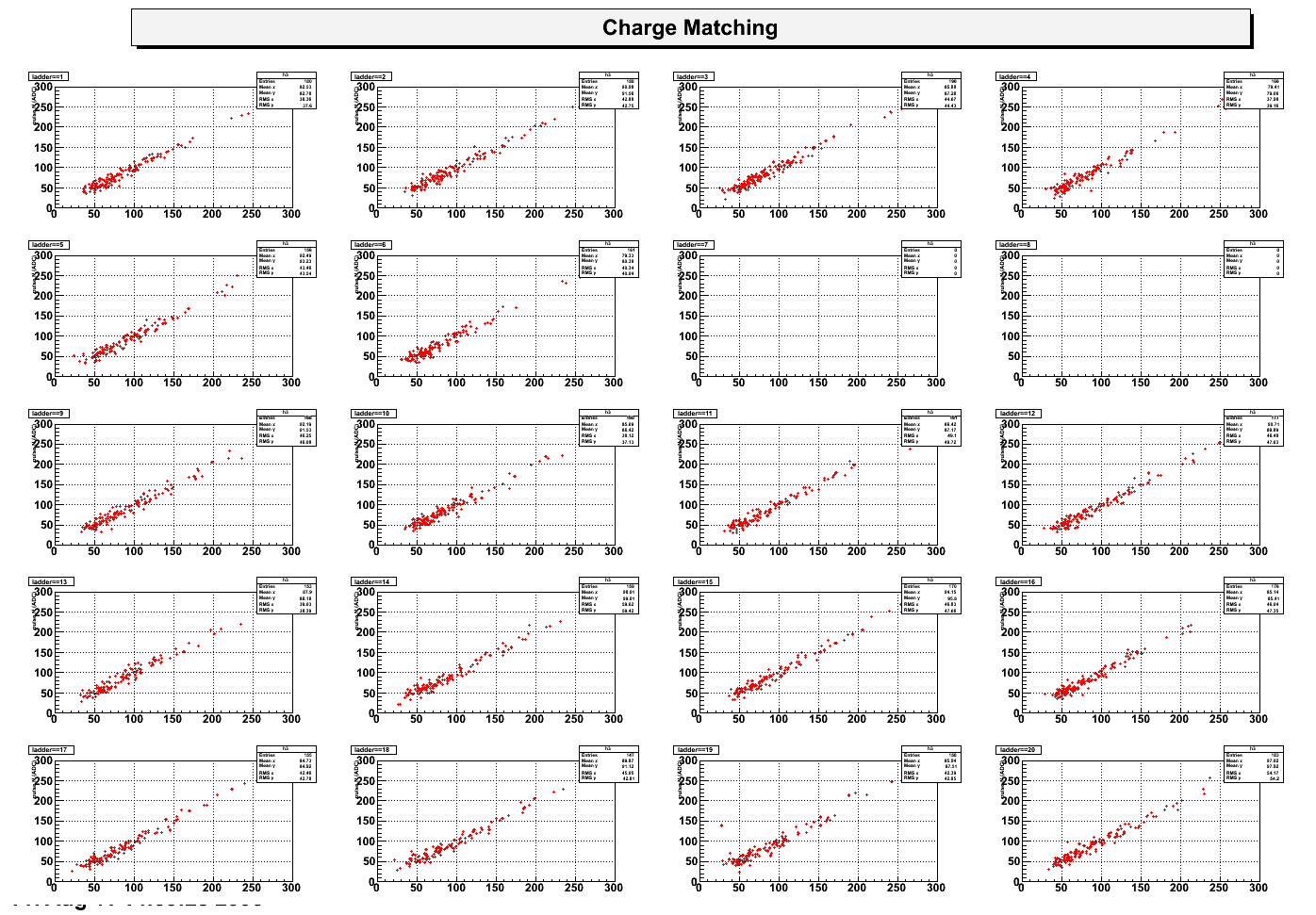

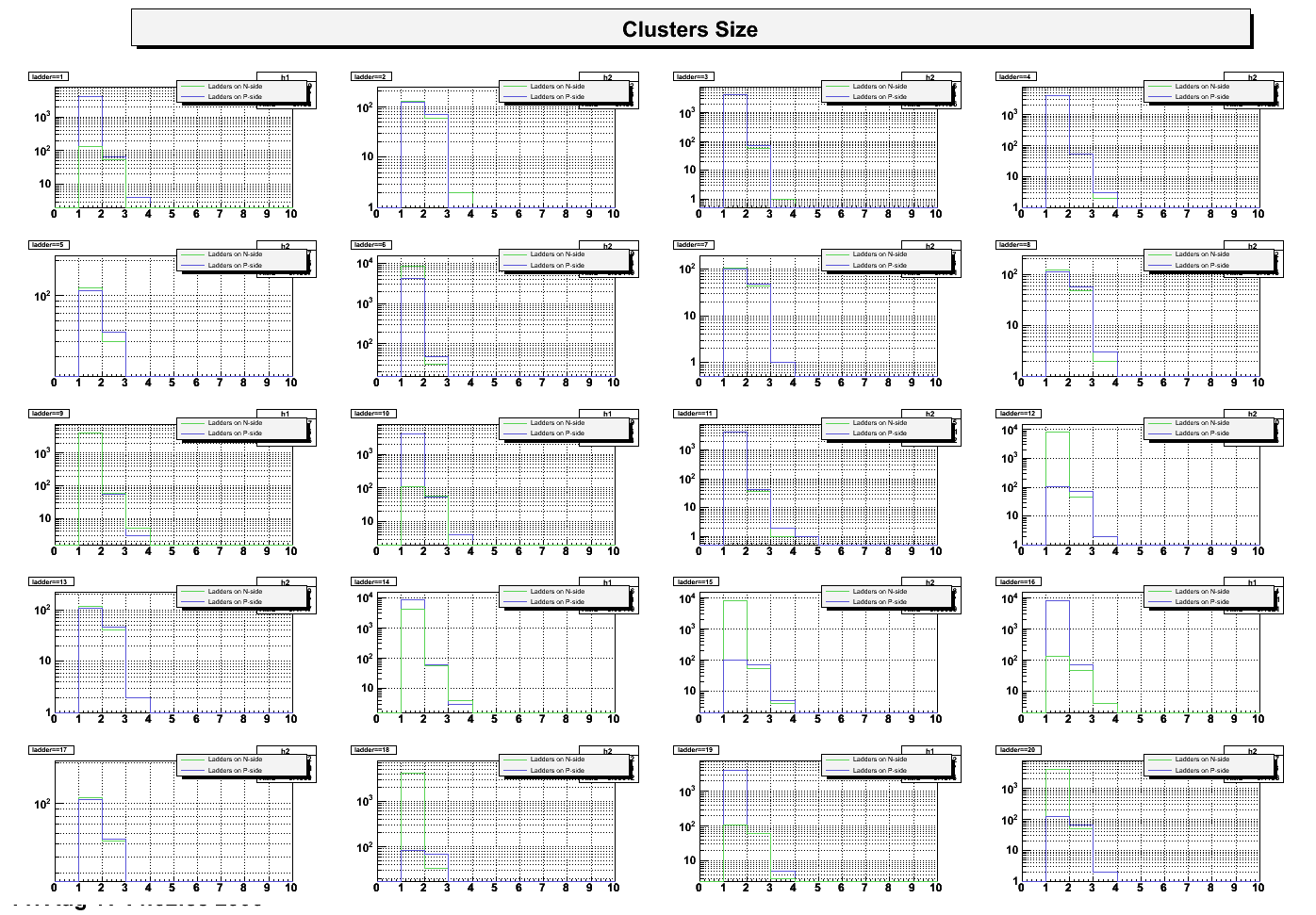

Figure 9 : Size of the clusters Figure 10 : Signal to noise ratio Figure 11 : Charge on N side vs Charge on P side

Modified calibration

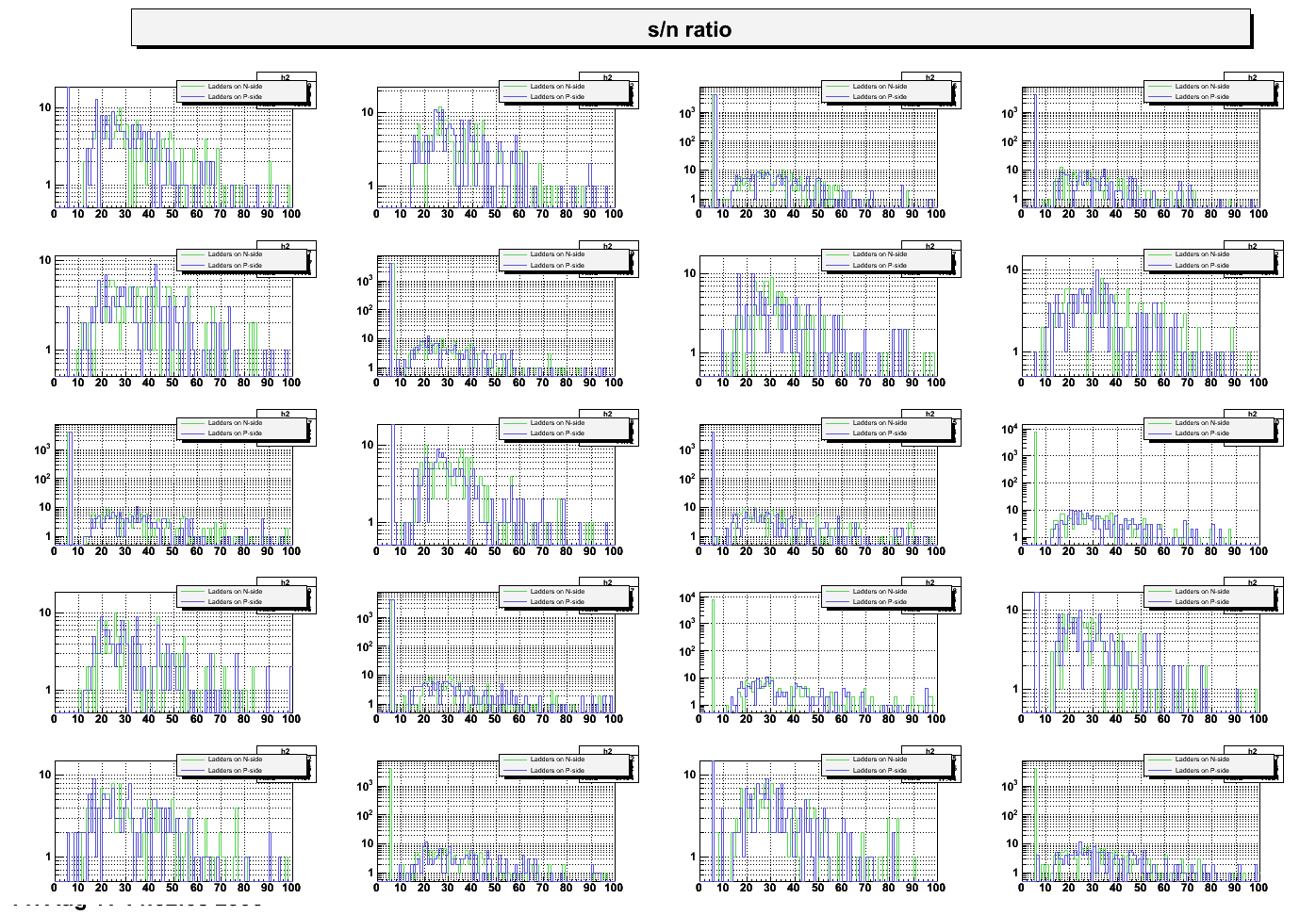

Figure 12 : Size of the clusters Figure 13 : Signal to noise ratio Figure 14 : Charge on N side vs Charge on P side

Conclusions & Oulooks



Comparison the data and the simulation

To compare : The next plots show thesize of the clusters for all the ladders ( in blue = P side , orange = the N side)
For each plot :

Simulation (cucu200 GeV)

Before cluster Matching

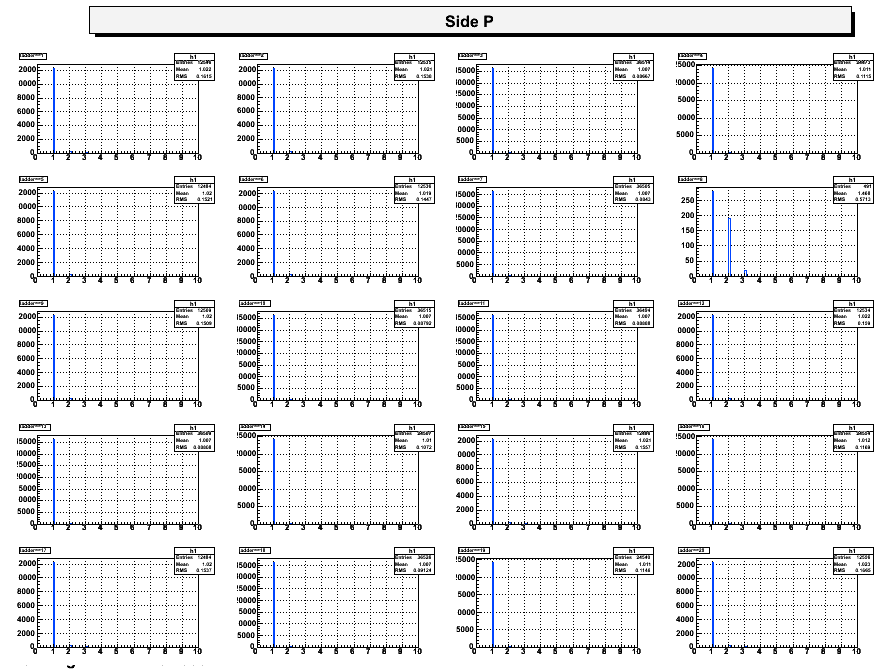

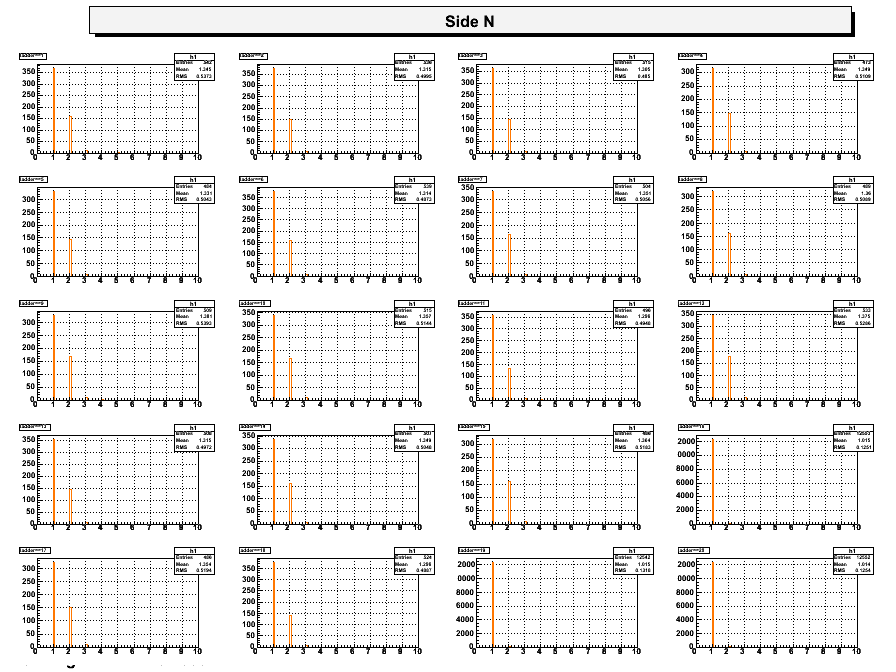

Figure 15 : Ladders on p side Figure 16 : Ladders on n side

Simulation

After cluster Matching

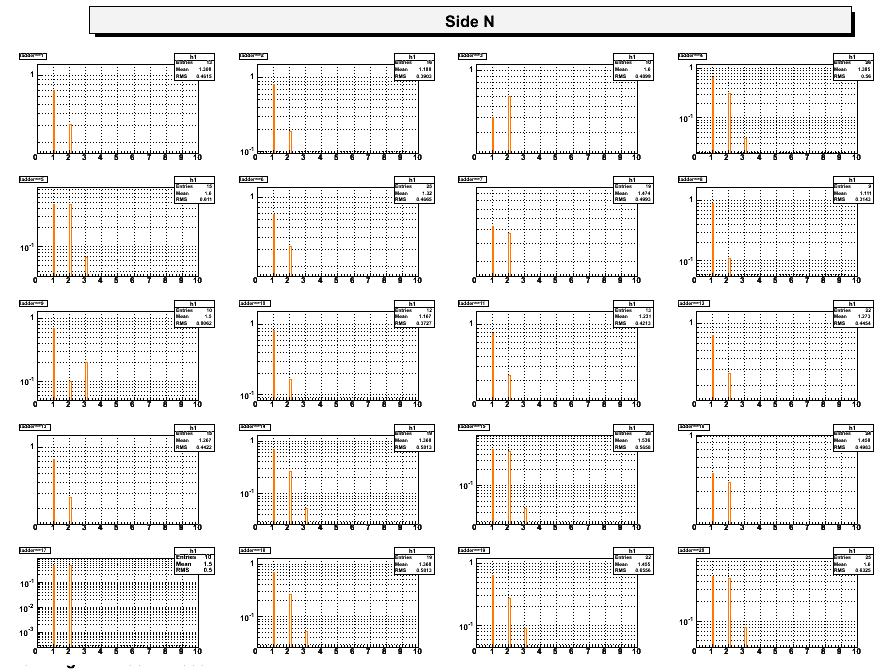

Figure 15 : Ladders on p side Figure 16 : Ladders on n side

Data

cucu62 GeV

Daq files : st_physics_6073023_raw_2030001.daq
Pedestal file = ssdStripCalib.20050314.80908.root

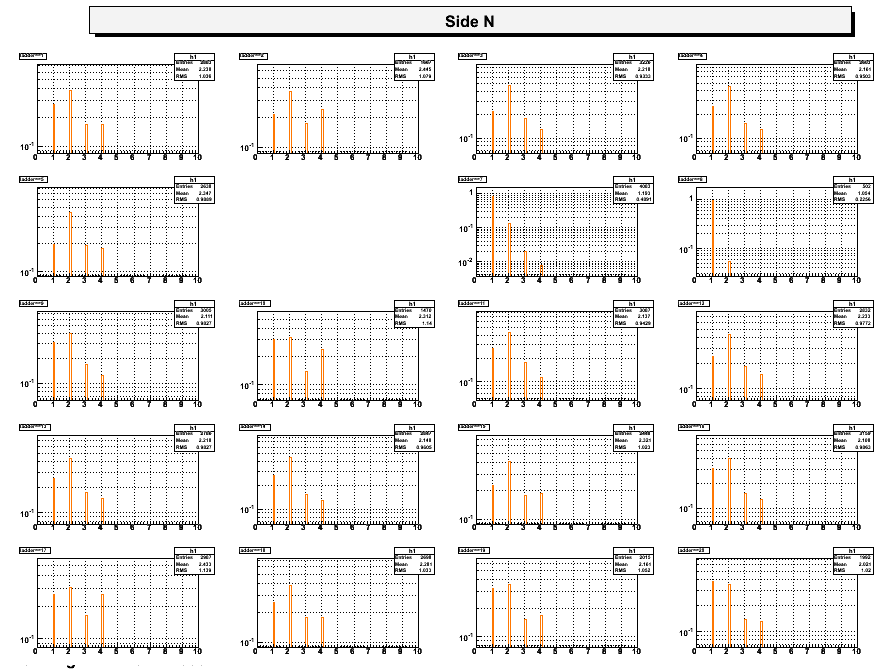

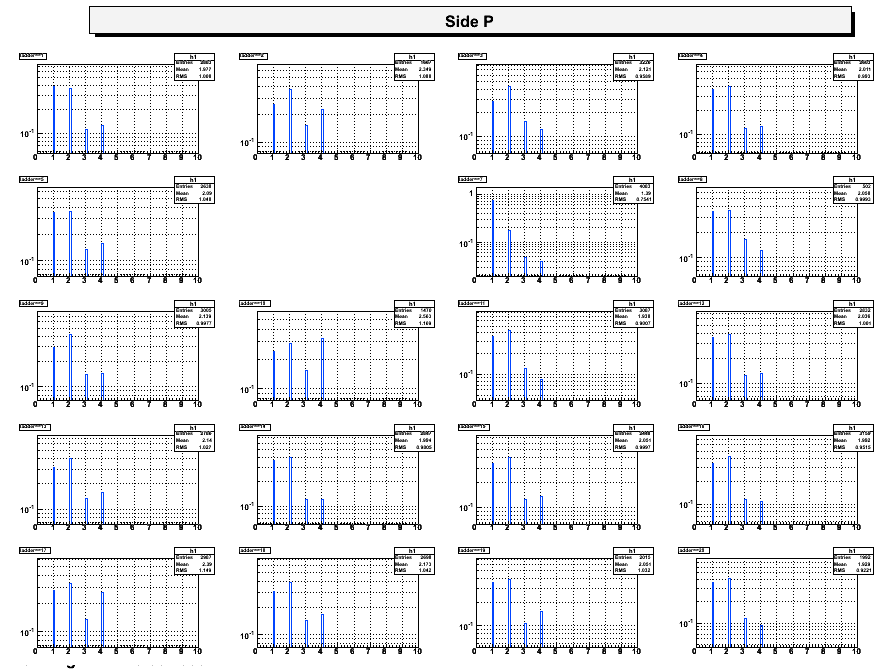

Figure 19 : Ladders on p side Figure 20 : Ladders on n side

cucu200 GeV

Daq files : st_physics_6049030_raw_1040001.daq
Pedestal file = ssdStripCalib.20050218.81219.root

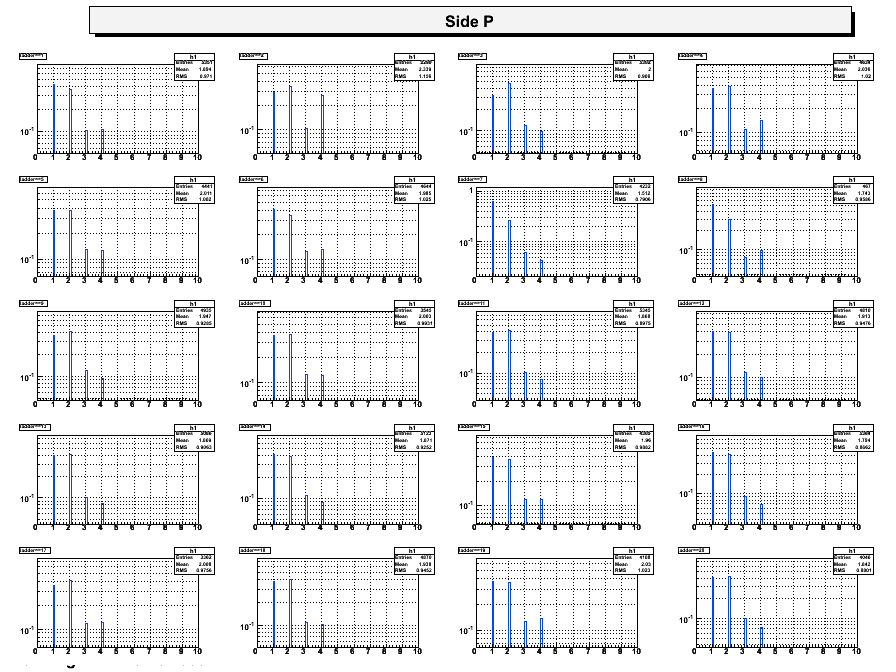

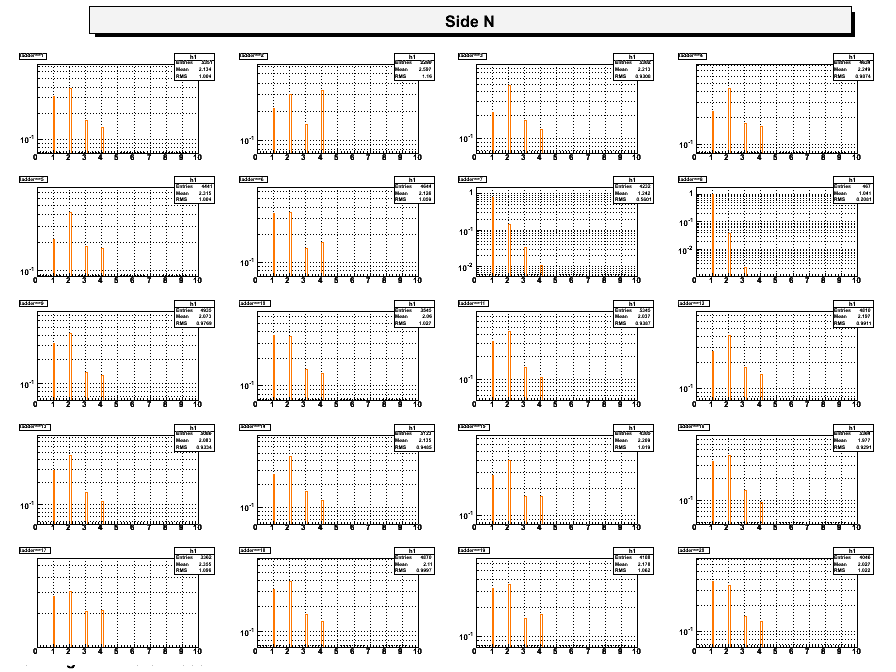

Figure 21 : Ladders on p side Figure 22 : Ladders on n side

First conclusions

For these 2 datasets, the prevention for clusters bigger than 4 strips is actually on and the number of clusters with 1 strip is comparable to the number of clusters with 2 strips.
It seems also that the size of the clusters from the hits actually stored into the StEvent container looks the same (no more differencies as I found before)
Jonathan Bouchet
Last modified: Mon Aug 21 14:44:16 EDT 2006
