Schema dataset.xsd

Elements	Complex types
CbntDataset	ContentIdListType
CommandLine	EventIdListType
Environment	LogicalFileType
EventMergeDataset
Location
LogicalFiles
Text

element CbntDataset

diagram
properties	content  complex
children	LogicalFile EventIdList ContentIdList
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string required         parent   xs:string required         file_event_count   xs:string required

element CbntDataset/LogicalFile

diagram
type	LogicalFileType
properties	isRef  0 content  complex
children	FileCatalog FileId
attributes	Name   Type   Use   Default   Fixed   Annotation state   xs:string required         name   xs:string

element CbntDataset/EventIdList

diagram
type	EventIdListType
properties	isRef  0 content  complex
children	EventId EventIdRange

element CbntDataset/ContentIdList

diagram
type	ContentIdListType
properties	isRef  0 content  complex
children	ContentId

element CommandLine

diagram
properties	content  complex
children	CommandLineArgument
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string required

element CommandLine/CommandLineArgument

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:string required

element Environment

diagram
properties	content  complex
children	EnvironmentalVariable

element Environment/EnvironmentalVariable

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string required         value   xs:string required

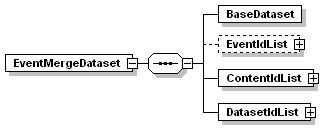

element EventMergeDataset

diagram
properties	content  complex
children	BaseDataset EventIdList ContentIdList DatasetIdList
attributes	Name   Type   Use   Default   Fixed   Annotation event_count   xs:string required

element EventMergeDataset/BaseDataset

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation id   xs:string required         parent   xs:string

element EventMergeDataset/EventIdList

diagram
type	EventIdListType
properties	isRef  0 content  complex
children	EventId EventIdRange

element EventMergeDataset/ContentIdList

diagram
type	ContentIdListType
properties	isRef  0 content  complex
children	ContentId

element EventMergeDataset/DatasetIdList

diagram
properties	isRef  0 content  complex
children	DatasetId

element EventMergeDataset/DatasetIdList/DatasetId

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation collection   xs:string required         entry   xs:string required

element Location

diagram
properties	content  complex
children	LogicalFile

element Location/LogicalFile

diagram
type	LogicalFileType
properties	isRef  0 content  complex
children	FileCatalog FileId
attributes	Name   Type   Use   Default   Fixed   Annotation state   xs:string required         name   xs:string

element LogicalFiles

diagram
properties	content  complex
children	LogicaFile

element LogicalFiles/LogicaFile

diagram
properties	isRef  0 content  complex

element Text

diagram
properties	content  complex
children	Line
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string          nline   xs:string required

element Text/Line

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation number   xs:string required         text   xs:string required

complexType ContentIdListType

diagram
children	ContentId
used by	elements  CbntDataset/ContentIdList EventMergeDataset/ContentIdList

element ContentIdListType/ContentId

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string required         key   xs:string

complexType EventIdListType

diagram
children	EventId EventIdRange
used by	elements  CbntDataset/EventIdList EventMergeDataset/EventIdList

element EventIdListType/EventId

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation run   xs:string required         event   xs:string required

element EventIdListType/EventIdRange

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation run   xs:string required         first   xs:string required         last   xs:string required

complexType LogicalFileType

diagram
children	FileCatalog FileId
used by	elements  CbntDataset/LogicalFile Location/LogicalFile
attributes	Name   Type   Use   Default   Fixed   Annotation state   xs:string required         name   xs:string

element LogicalFileType/FileCatalog

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:string required         name   xs:string

element LogicalFileType/FileId

diagram
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation index   xs:string          name   xs:string
