schema location: | RDL.xsd |
schema HTML | RDL.xsd |

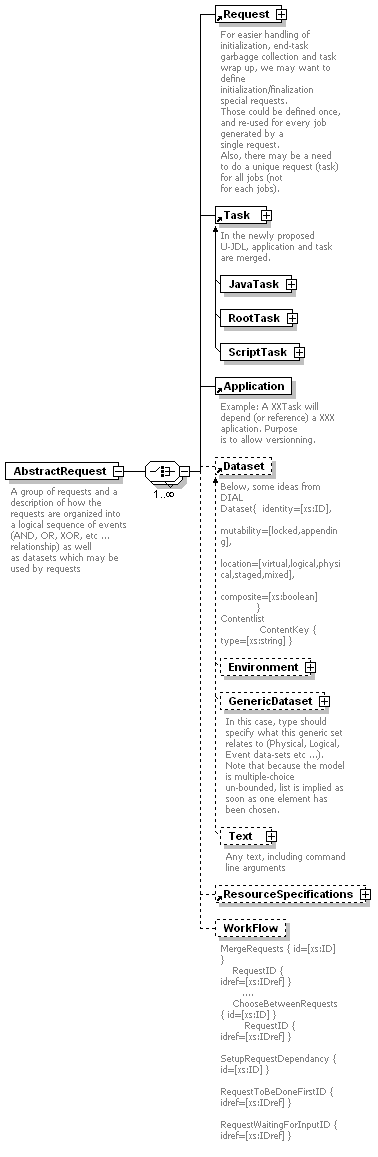

diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
children | Request Task Application Dataset ResourceSpecifications WorkFlow | ||||||||||||
attributes |
|
||||||||||||
annotation |
|
diagram | ![]() |
||
properties |
|
||
annotation |
|
diagram | ![]() |
||||||||||||||||||||||||||||||
type | applicationType | ||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||||||||
annotation |
|

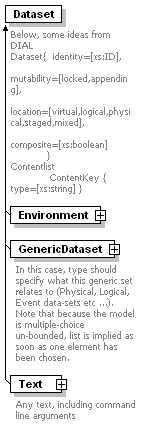

diagram | ![]() |
||||||||||||
type | datasetType | ||||||||||||
properties |
|
||||||||||||
used by |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
diagram | ![]() |
||||||||||||

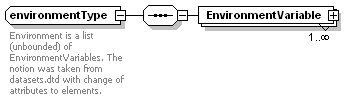

type | environmentType | ||||||||||||
properties |
|
||||||||||||
children | EnvironmentVariable | ||||||||||||
attributes |
|

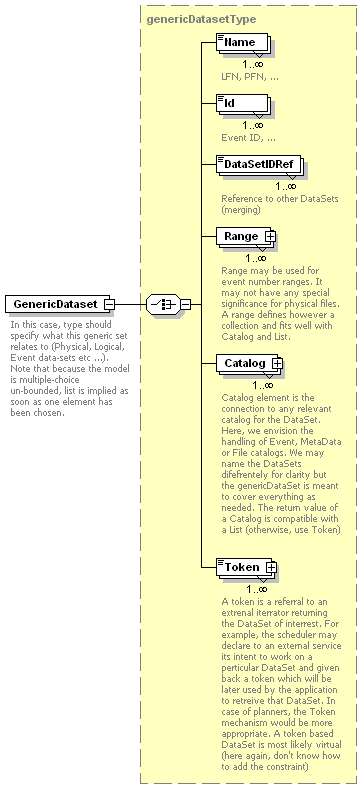

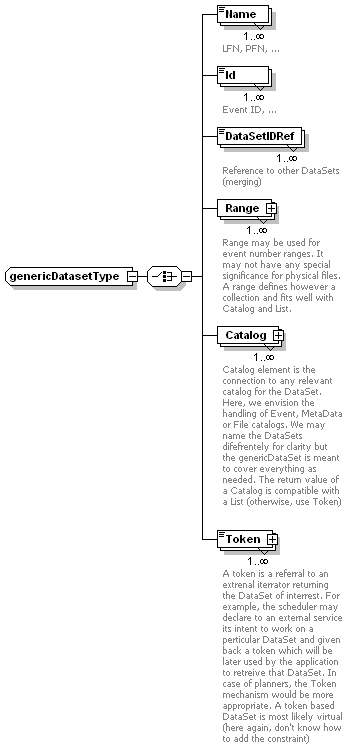

diagram | ![]() |
||||||||||||||||||
type | extension of genericDatasetType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | Name Id DataSetIDRef Range Catalog Token | ||||||||||||||||||
attributes |
|
||||||||||||||||||
annotation |
|
diagram | ![]() |
||||

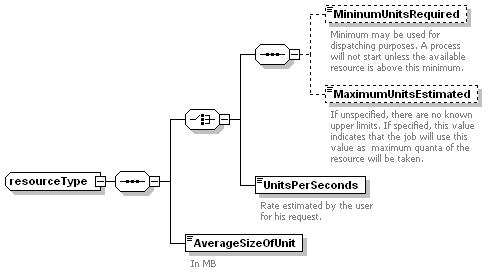

type | resourceType | ||||
properties |
|
||||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit |

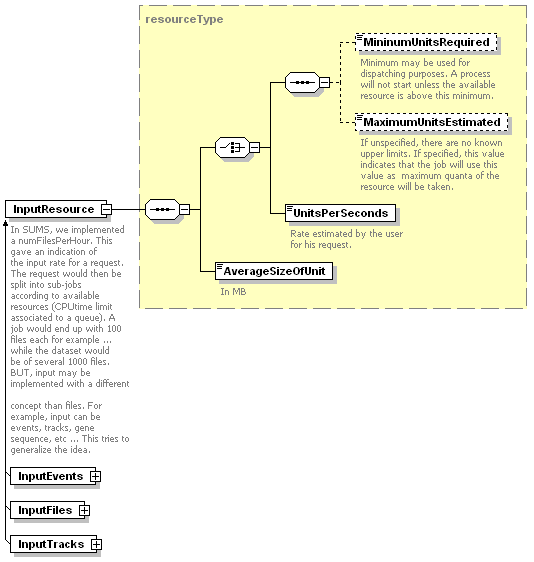

diagram | ![]() |
||||
type | resourceType | ||||
properties |
|
||||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit |

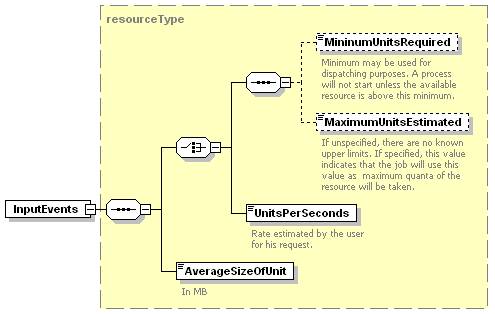

diagram | ![]() |
||
type | resourceType | ||
properties |
|
||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit | ||
used by |
|
||
annotation |
|
diagram | ![]() |
||||
type | resourceType | ||||
properties |
|
||||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit |

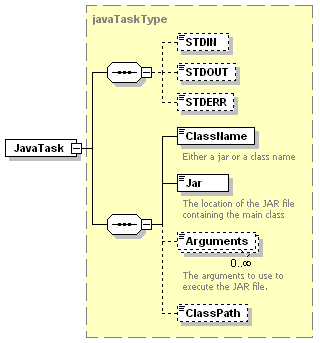

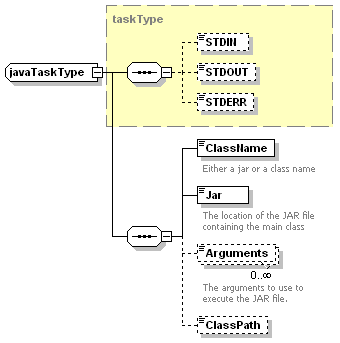

diagram | ![]() |
||||||||||||||||||
type | javaTaskType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | STDIN STDOUT STDERR ClassName Jar Arguments ClassPath | ||||||||||||||||||
attributes |
|

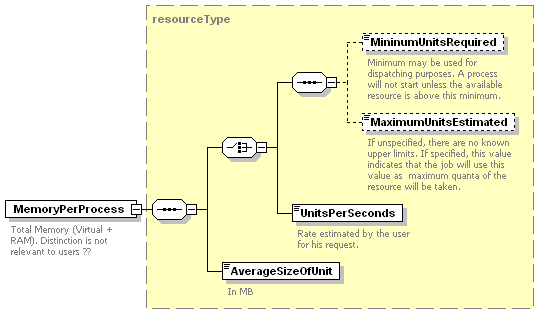

diagram | ![]() |
||
type | resourceType | ||
properties |
|
||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit | ||
used by |
|
||
annotation |
|
diagram | ![]() |
||||
type | resourceType | ||||
properties |
|
||||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit |
diagram | ![]() |
||||
type | resourceType | ||||
properties |
|

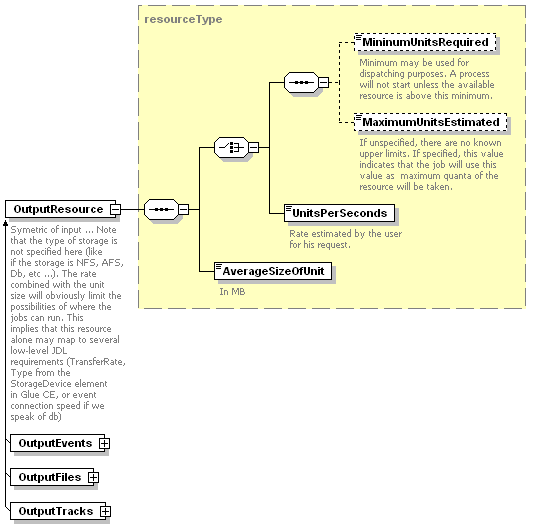

||||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit |
diagram | ![]() |
||
type | resourceType | ||
properties |
|
||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit | ||
used by |
|
||
annotation |
|

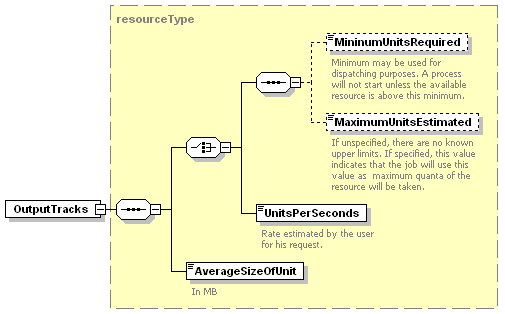

diagram | ![]() |
||||
type | resourceType | ||||
properties |
|
||||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit |

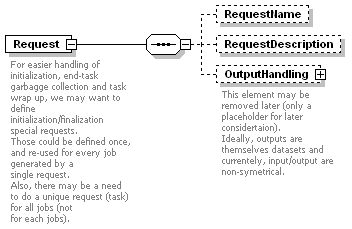

diagram | ![]() |
||||||||||||||||||||||||||||||||||||
properties |
|
||||||||||||||||||||||||||||||||||||
children | RequestName RequestDescription OutputHandling | ||||||||||||||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||||||||||||||
attributes |
|
||||||||||||||||||||||||||||||||||||
annotation |
|
diagram | ![]() |
||
properties |
|
diagram | ![]() |
||
properties |
|
diagram | ![]() |
||||
properties |
|
||||
children | Copy Register | ||||
annotation |
|
diagram | ![]() |
||||
properties |
|
||||
children | Source Destination |
diagram | ![]() |
||
properties |
|
diagram | ![]() |
||
properties |
|
diagram | ![]() |
||
properties |
|

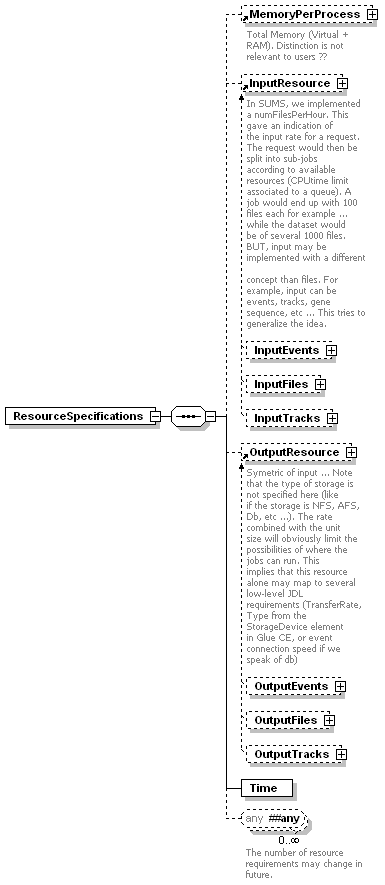

diagram | ![]() |
||||||||||||
properties |
|
||||||||||||
children | MemoryPerProcess InputResource OutputResource Time | ||||||||||||
used by |
|
||||||||||||
attributes |
|
diagram | ![]() |
||
properties |
|
diagram | ![]() |
||||||||||||||||||

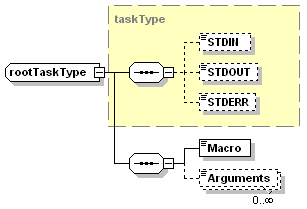

type | rootTaskType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | STDIN STDOUT STDERR Macro Arguments | ||||||||||||||||||
attributes |
|
diagram | ![]() |
||||||||||||||||||

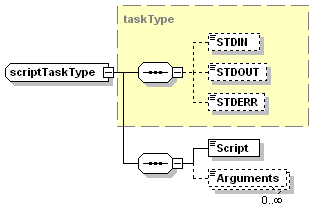

type | scriptTaskType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | STDIN STDOUT STDERR Script Arguments | ||||||||||||||||||
attributes |
|
diagram | ![]() |
||||||||||||||||||
type | taskType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | STDIN STDOUT STDERR | ||||||||||||||||||
used by |
|
||||||||||||||||||
attributes |
|
||||||||||||||||||
annotation |
|
diagram | ![]() |
||||||||||||
type | textType | ||||||||||||
properties |
|
||||||||||||
children | Line | ||||||||||||
attributes |
|
||||||||||||
annotation |
|
diagram | ![]() |
||||||||||||||||||||||||||||||
used by |
|
||||||||||||||||||||||||||||||
attributes |
|
diagram | ![]() |
||
children | Type Name Query | ||
used by |
|
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
diagram | ![]() |
||||||||||||
used by |
|
||||||||||||
attributes |
|
diagram | ![]() |
||||||||||||
type | extension of datasetType | ||||||||||||
properties |
|
||||||||||||
children | EnvironmentVariable | ||||||||||||
used by |
|
||||||||||||
attributes |
|
||||||||||||
annotation |
|
diagram | ![]() |
||||
properties |
|
||||
children | Name Value |
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
diagram | ![]() |
||||||||||||
type | extension of datasetType | ||||||||||||
properties |
|
||||||||||||
children | Name Id DataSetIDRef Range Catalog Token | ||||||||||||
used by |
|
||||||||||||
attributes |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:long | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:IDREF | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
properties |
|
||||
children | Minimum Maximum | ||||
annotation |
|
diagram | ![]() |
||||
type | xsd:anySimpleType | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:anySimpleType | ||||
properties |
|
diagram | ![]() |
||||
type | catalogType | ||||
properties |
|
||||
children | Type Name Query | ||||
annotation |
|
diagram | ![]() |
||||||
type | xsd:anyType | ||||||
properties |
|
||||||
attributes |
|
||||||
annotation |
|
diagram | ![]() |
||||||||||||||||||
type | extension of taskType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | STDIN STDOUT STDERR ClassName Jar Arguments ClassPath | ||||||||||||||||||
used by |
|
||||||||||||||||||
attributes |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
diagram | ![]() |
||
children | MininumUnitsRequired MaximumUnitsEstimated UnitsPerSeconds AverageSizeOfUnit | ||
used by |
|
diagram | ![]() |
||||
type | xsd:long | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:long | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:long | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||
type | xsd:float | ||||
properties |
|
||||
annotation |
|
diagram | ![]() |
||||||||||||||||||
type | extension of taskType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | STDIN STDOUT STDERR Macro Arguments | ||||||||||||||||||
used by |
|
||||||||||||||||||
attributes |
|
diagram | ![]() |
||||
type | extension of xsd:string | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
diagram | ![]() |
||||||||||||||||||
type | extension of taskType | ||||||||||||||||||
properties |
|
||||||||||||||||||
children | STDIN STDOUT STDERR Script Arguments | ||||||||||||||||||
used by |
|
||||||||||||||||||
attributes |
|
diagram | ![]() |
||||
type | extension of xsd:string | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
diagram | ![]() |
||||||||||||||||||
children | STDIN STDOUT STDERR | ||||||||||||||||||
used by |
|
||||||||||||||||||
attributes |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
diagram | ![]() |
||||
type | xsd:anyURI | ||||
properties |
|
diagram | ![]() |
||||||||||||
type | extension of datasetType | ||||||||||||
properties |
|
||||||||||||
children | Line | ||||||||||||
used by |
|
||||||||||||
attributes |
|
diagram | ![]() |
||||
type | xsd:string | ||||
properties |
|
