Schema gdml_1.0.xsd

schema location

Elements

Complex types

Simple types

Groups

Attr. groups

/STAR/comp/simu/GDM/V1.0/gdml_1.0.xsd






(HTML)

gdml

AssemblyVolumeType





structure

IdentifiableVolumeType






SinglePlacementType






VolumeType










/STAR/comp/simu/GDM/V1.0/gdml_simple_core.xsd






(HTML)


ConstantType

ExpressionOrIDREFType





IdentifiableConstantType

InlineExpressionType





IdentifiableExpressionType






IdentifiableExpressionType






IdentifiableQuantityType






IdentifiableQuantityVectorType






IdentifiableThreeVectorType






QuantityType






QuantityVectorType






ReferenceListType






ReferenceType






ThreeVectorType










/STAR/comp/simu/GDM/V1.0/gdml_simple_define.xsd






(HTML)

define

defineType






positionType






rotationType










/STAR/comp/simu/GDM/V1.0/gdml_simple_materials.xsd






(HTML)

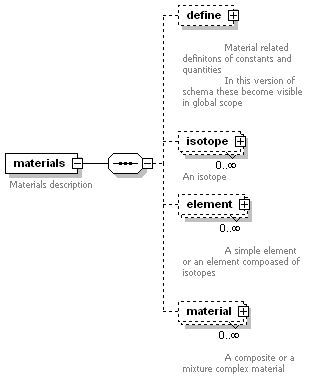

materials

AtomType

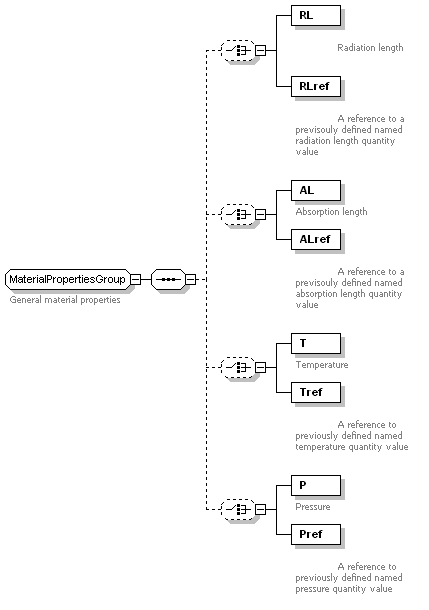

MaterialPropertiesGroup

MaterialAttributeGroup



DensityType

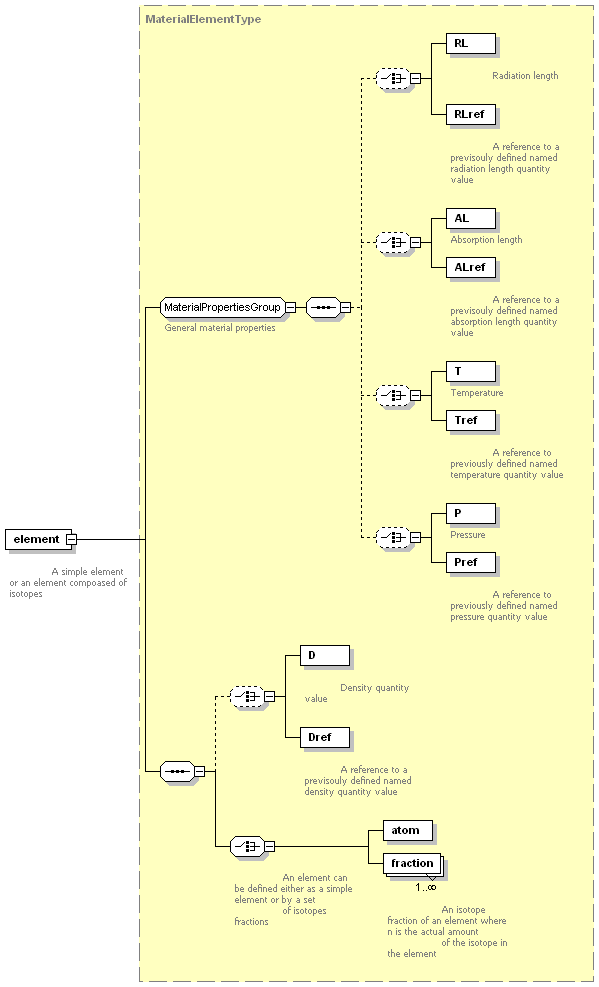

MaterialElementType






MaterialIsotopeType

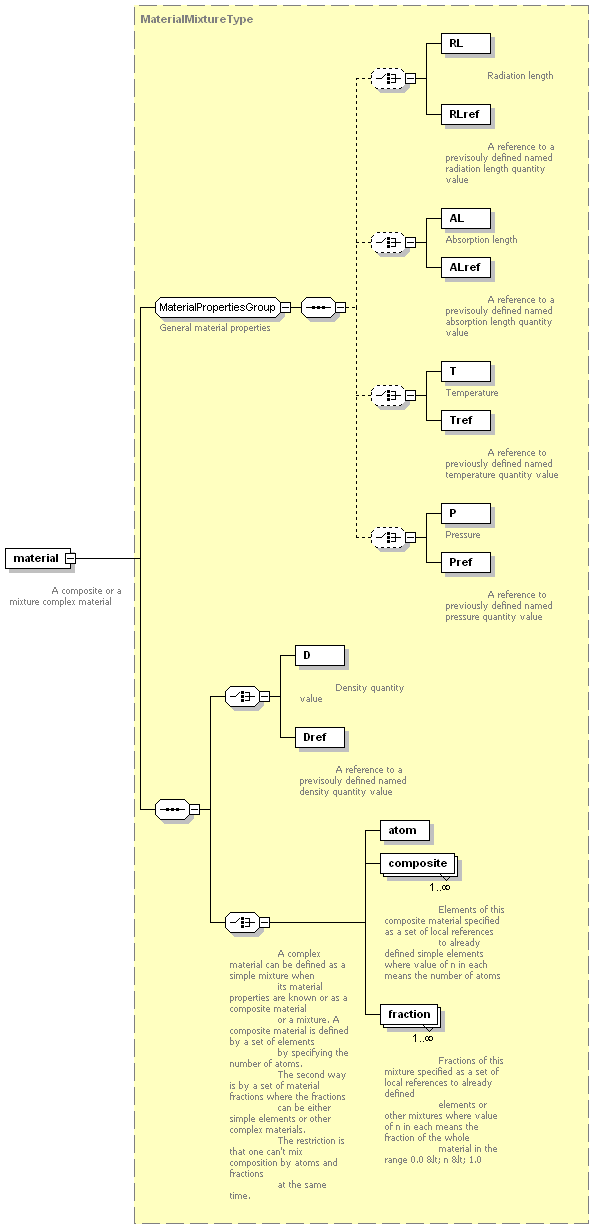

MaterialMixtureType






MaterialType










/STAR/comp/simu/GDM/V1.0/gdml_simple_solids.xsd






(HTML)

box

BooleanSolidType





cone

SolidType

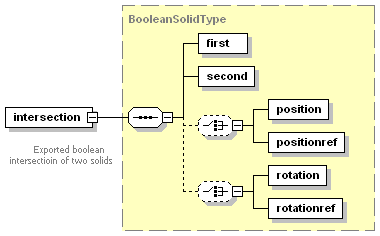

intersection






para






Solid

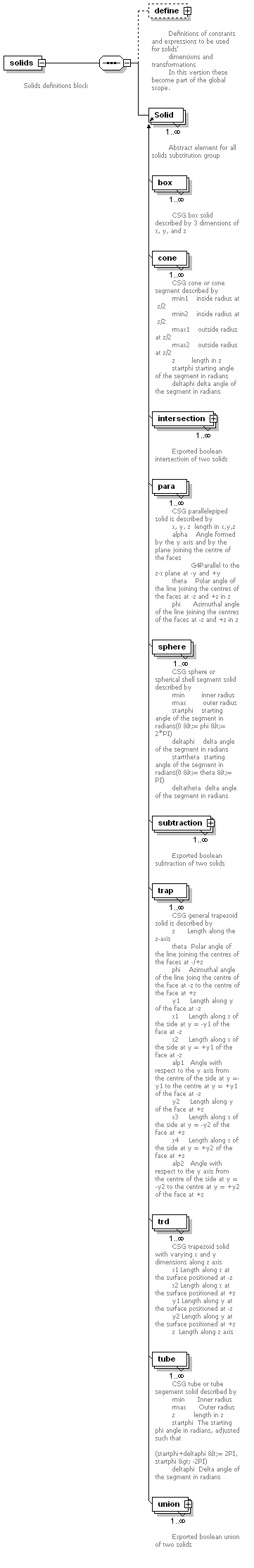

solids






sphere






subtraction






trap







trd







tube

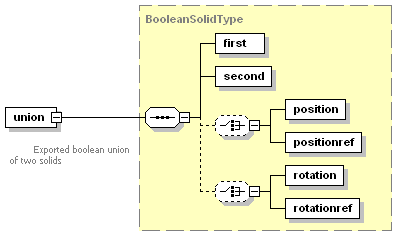

union

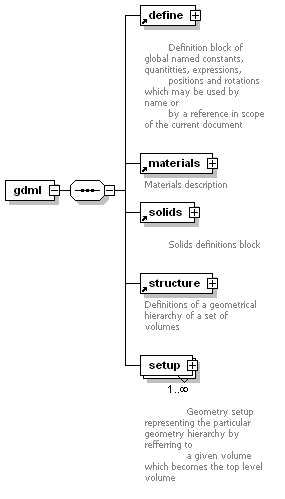

element gdml

diagram

children

define materials solids structure setup

attributes

Name

Type

Use

Default

Fixed

Annotation

version

xs:string





1.0

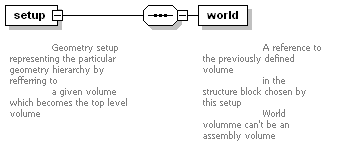

element gdml/setup

diagram

children

world

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required






version

xs:string

required






annotation

documentation

              Geometry setup representing the particular geometry hierarchy by refferring to
              a given volume which becomes the top level volume




element gdml/setup/world

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

                    A reference to the previously defined volume
                    in the structure block chosen by this setup
                    World volumme can't be an assembly volume

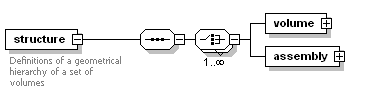

element structure

diagram

children

volume assembly

used by

element

gdml

annotation

documentation

Definitions of a geometrical hierarchy of a set of volumes

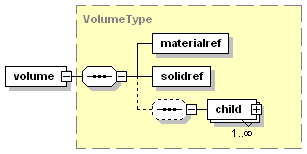

element structure/volume

diagram

type

VolumeType

children

materialref solidref child

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required







element structure/assembly

diagram

type

AssemblyVolumeType

children

child

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required

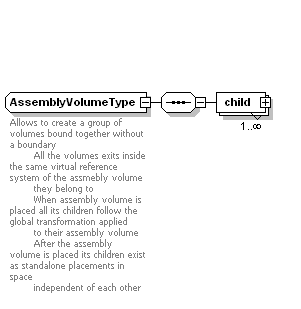

complexType AssemblyVolumeType

diagram

type

extension of IdentifiableVolumeType

children

child

used by

element

structure/assembly

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required






annotation

documentation

Allows to create a group of volumes bound together without a boundary
        All the volumes exits inside the same virtual reference system of the assmebly volume
        they belong to
        When assembly volume is placed all its children follow the global transformation applied
        to their assembly volume
        After the assembly volume is placed its children exist as standalone placements in space
        independent of each other



element AssemblyVolumeType/child

diagram

type

SinglePlacementType

children

volumeref positionref rotationref


complexType IdentifiableVolumeType

diagram

used by

complexTypes

AssemblyVolumeType VolumeType

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required

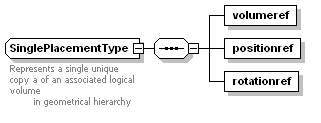

complexType SinglePlacementType

diagram

children

volumeref positionref rotationref

used by

elements

VolumeType/child AssemblyVolumeType/child

annotation

documentation

Represents a single unique copy a of an associated logical volume
        in geometrical hierarchy



element SinglePlacementType/volumeref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







element SinglePlacementType/positionref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







element SinglePlacementType/rotationref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required

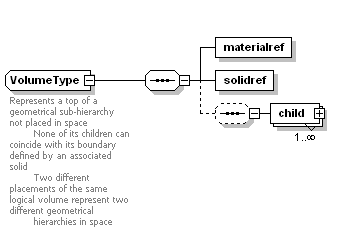

complexType VolumeType

diagram

type

extension of IdentifiableVolumeType

children

materialref solidref child

used by

element

structure/volume

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required






annotation

documentation

Represents a top of a geometrical sub-hierarchy not placed in space
        None of its children can coincide with its boundary defined by an associated solid
        Two different placements of the same logical volume represent two different geometrical
        hierarchies in space



element VolumeType/materialref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







element VolumeType/solidref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







element VolumeType/child

diagram

type

SinglePlacementType

children

volumeref positionref rotationref


complexType ConstantType

diagram

used by

complexTypes

IdentifiableConstantType QuantityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






annotation

documentation

        An anonymous, local scope, value




complexType IdentifiableConstantType

diagram

type

extension of ConstantType

used by

element

defineType/constant

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






name

xs:ID

required






annotation

documentation

        Named (referenced), global scope, constant value




complexType IdentifiableExpressionType

diagram

type

extension of InlineExpressionType

used by

element

defineType/expression

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required







complexType IdentifiableQuantityType

diagram

type

extension of QuantityType

used by

element

defineType/quantity

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional






type

xs:string

optional






name

xs:ID

required






annotation

documentation

        Named (referenced), global scope,(possibly of a given type) quantity




complexType IdentifiableQuantityVectorType

diagram

type

extension of QuantityVectorType

used by

complexTypes

positionType rotationType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




unit

xs:string

optional






type

xs:string

optional






name

xs:ID

required






annotation

documentation

        Named (referenced), 3 dimensional, global scope, with a unit,
        (possibly of a given type) quantity vector




complexType IdentifiableThreeVectorType

diagram

type

extension of ThreeVectorType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




name

xs:ID

required






annotation

documentation

        Named (referenced), 3 dimensional, global scope, vector of doubles




complexType QuantityType

diagram

type

extension of ConstantType

used by

elements

MaterialPropertiesGroup/AL MaterialPropertiesGroup/P MaterialPropertiesGroup/RL MaterialPropertiesGroup/T

complexTypes

AtomType DensityType IdentifiableQuantityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional






type

xs:string

optional






annotation

documentation

        An anonymous quantity, local scope, with a unit,
        (possibly of a given type) quantity




complexType QuantityVectorType

diagram

type

extension of ThreeVectorType

used by

complexType

IdentifiableQuantityVectorType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




unit

xs:string

optional






type

xs:string

optional






annotation

documentation

        An anonymous, 3 dimensional, local scope, with a unit,
        (possibly of a given type) quantity vector




complexType ReferenceListType

diagram

attributes

Name

Type

Use

Default

Fixed

Annotation

refs

xs:IDREFS

required






annotation

documentation

        List of local references to a set of element of a named type




complexType ReferenceType

diagram

used by

elements

MaterialPropertiesGroup/ALref MaterialMixtureType/composite MaterialIsotopeType/Dref MaterialElementType/Dref MaterialMixtureType/Dref BooleanSolidType/first MaterialElementType/fraction MaterialMixtureType/fraction VolumeType/materialref BooleanSolidType/positionref SinglePlacementType/positionref MaterialPropertiesGroup/Pref MaterialPropertiesGroup/RLref SinglePlacementType/rotationref BooleanSolidType/rotationref BooleanSolidType/second VolumeType/solidref MaterialPropertiesGroup/Tref SinglePlacementType/volumeref gdml/setup/world

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

        Local reference to an element of a named type




complexType ThreeVectorType

diagram

used by

complexTypes

IdentifiableThreeVectorType QuantityVectorType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




annotation

documentation

        An anonymous, 3 dimensional, local scope, vector of doubles




simpleType ExpressionOrIDREFType

type

union of (xs:IDREF, InlineExpressionType, xs:double)

used by

attributes

para/@alpha trap/@alpha1 trap/@alpha2 cone/@deltaphi sphere/@deltaphi tube/@deltaphi sphere/@deltatheta trap/@phi para/@phi sphere/@rmax tube/@rmax cone/@rmax1 cone/@rmax2 sphere/@rmin tube/@rmin cone/@rmin1 cone/@rmin2 cone/@startphi tube/@startphi sphere/@startphi sphere/@starttheta para/@theta trap/@theta ConstantType/@value para/@x ThreeVectorType/@x box/@x trd/@x1 trap/@x1 trd/@x2 trap/@x2 trap/@x3 trap/@x4 box/@y ThreeVectorType/@y para/@y trap/@y1 trd/@y1 trd/@y2 trap/@y2 ThreeVectorType/@z trap/@z trd/@z para/@z cone/@z tube/@z box/@z


simpleType InlineExpressionType

type

xs:string

used by

complexType

IdentifiableExpressionType

simpleType

ExpressionOrIDREFType

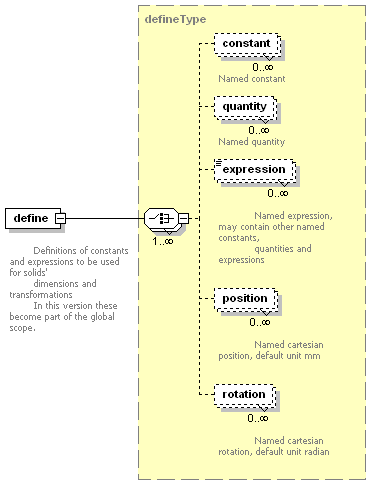

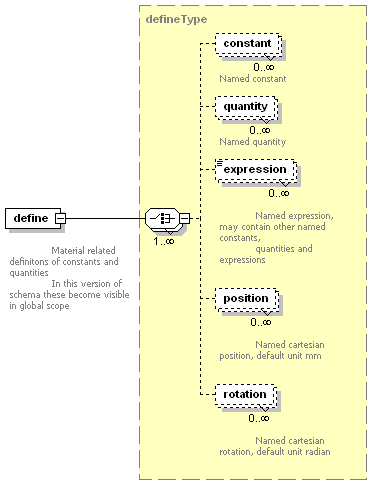

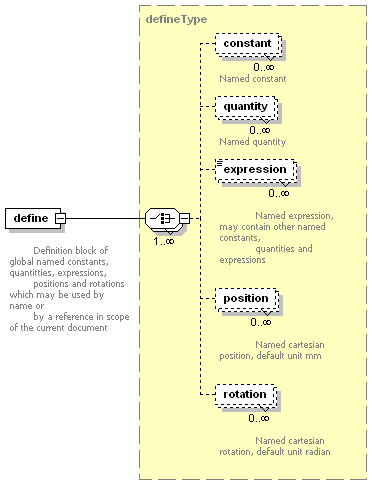

element define

diagram

type

defineType

children

constant quantity expression position rotation

used by

element

gdml

annotation

documentation

        Definition block of global named constants, quantitties, expressions,
        positions and rotations which may be used by name or
        by a reference in scope of the current document

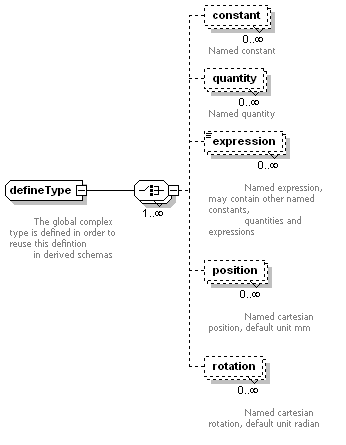

complexType defineType

diagram

children

constant quantity expression position rotation

used by

elements

define materials/define solids/define

annotation

documentation

        The global complex type is defined in order to reuse this defintion
        in derived schemas




element defineType/constant

diagram

type

IdentifiableConstantType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






name

xs:ID

required






annotation

documentation

Named constant


element defineType/quantity

diagram

type

IdentifiableQuantityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional






type

xs:string

optional






name

xs:ID

required






annotation

documentation

Named quantity


element defineType/expression

diagram

type

IdentifiableExpressionType

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required






annotation

documentation

            Named expression, may contain other named constants,
            quantities and expressions




element defineType/position

diagram

type

positionType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




name

xs:ID

required






unit





mm




type





cartesian




annotation

documentation

            Named cartesian position, default unit mm




element defineType/rotation

diagram

type

rotationType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




name

xs:ID

required






unit





radian




type





cartesian




annotation

documentation

            Named cartesian rotation, default unit radian




complexType positionType

diagram

type

restriction of IdentifiableQuantityVectorType

used by

elements

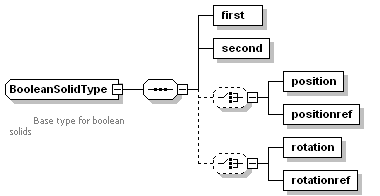

defineType/position BooleanSolidType/position

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




unit

xs:string

optional

mm




type

xs:string

optional

cartesian




name

xs:ID

required







complexType rotationType

diagram

type

restriction of IdentifiableQuantityVectorType

used by

elements

defineType/rotation BooleanSolidType/rotation

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




unit

xs:string

optional

radian




type

xs:string

optional

cartesian




name

xs:ID

required







element materials

diagram

children

define isotope element material

used by

element

gdml

annotation

documentation

Materials description


element materials/define

diagram

type

defineType

children

constant quantity expression position rotation

annotation

documentation

              Material related definitons of constants and quantities
              In this version of schema these become visible in global scope

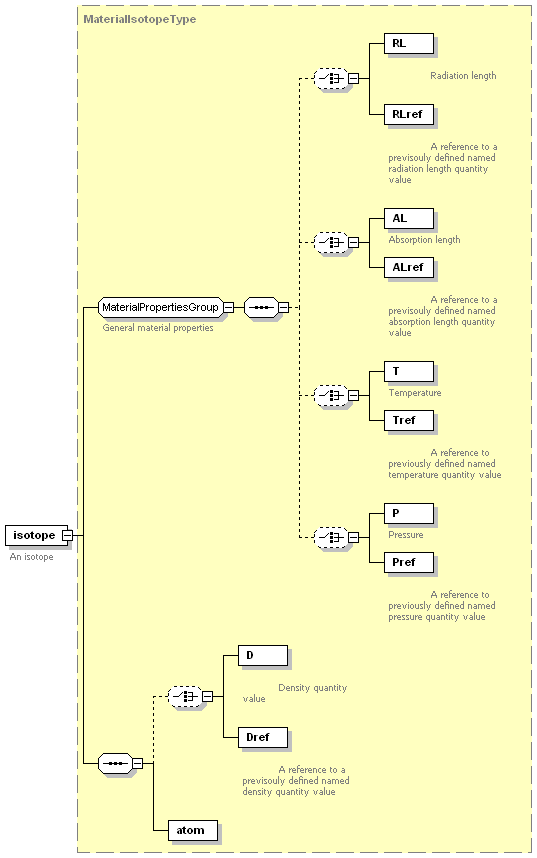

element materials/isotope

diagram

type

MaterialIsotopeType

children

RL RLref AL ALref T Tref P Pref D Dref atom

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

          Material physical state



N

xs:positiveInteger

required





documentation

Number of nucleons

Z

xs:double

required





documentation

Atomic number

annotation

documentation

An isotope


element materials/element

diagram

type

MaterialElementType

children

RL RLref AL ALref T Tref P Pref D Dref atom fraction

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

          Material physical state



N

xs:positiveInteger

optional





documentation

Number of nucleons

Z

xs:double

optional





documentation

Atomic number

annotation

documentation

              A simple element or an element compoased of isotopes

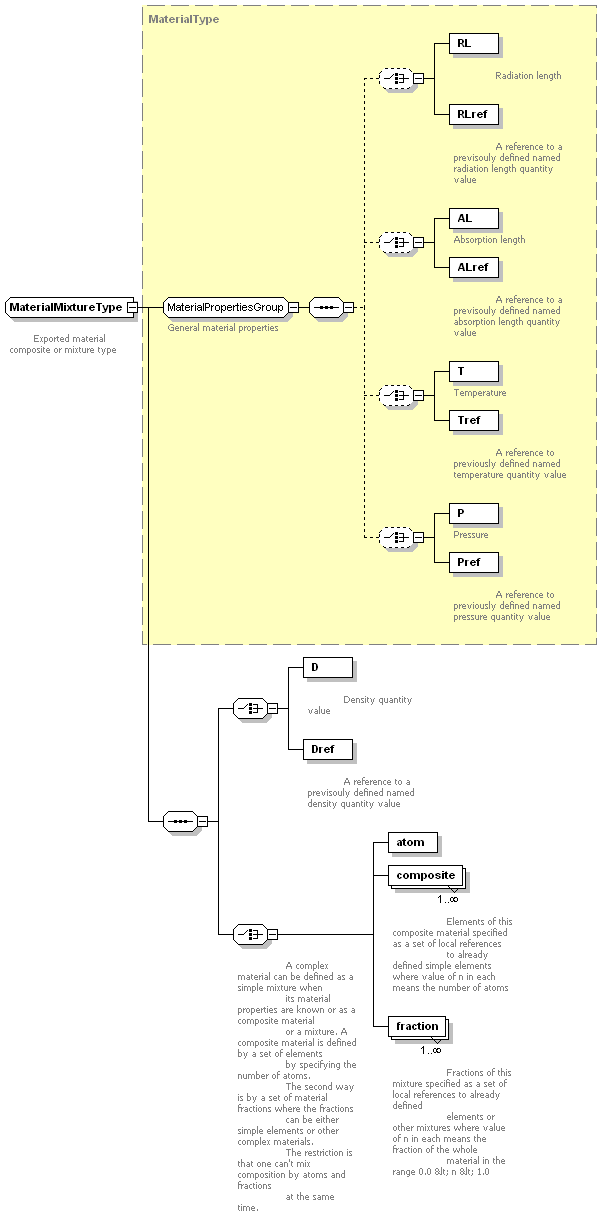

element materials/material

diagram

type

MaterialMixtureType

children

RL RLref AL ALref T Tref P Pref D Dref atom composite fraction

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

          Material physical state



Z

xs:double

optional





documentation

Atomic number

annotation

documentation

              A composite or a mixture complex material

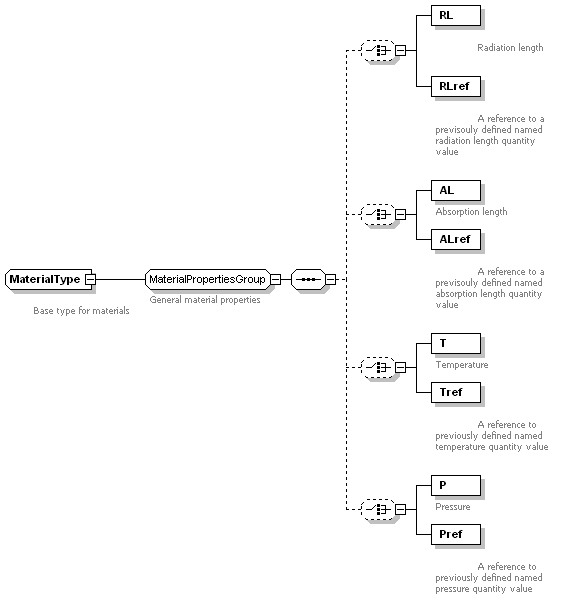

group MaterialPropertiesGroup

diagram

children

RL RLref AL ALref T Tref P Pref

used by

complexType

MaterialType

annotation

documentation

General material properties


element MaterialPropertiesGroup/RL

diagram

type

restriction of QuantityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional

cm




type

xs:string

optional



X0


annotation

documentation

              Radiation length




element MaterialPropertiesGroup/RLref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

              A reference to a previsouly defined named radiation length quantity value




element MaterialPropertiesGroup/AL

diagram

type

restriction of QuantityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional

cm




type

xs:string

optional



lambda


annotation

documentation

Absorption length


element MaterialPropertiesGroup/ALref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

              A reference to a previsouly defined named absorption length quantity value




element MaterialPropertiesGroup/T

diagram

type

restriction of QuantityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional

K




type

xs:string

optional



temperature


annotation

documentation

Temperature


element MaterialPropertiesGroup/Tref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

              A reference to previously defined named temperature quantity value




element MaterialPropertiesGroup/P

diagram

type

restriction of QuantityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional

pascal




type

xs:string

optional



pressure


annotation

documentation

Pressure


element MaterialPropertiesGroup/Pref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

              A reference to previously defined named pressure quantity value




complexType AtomType

diagram

type

restriction of QuantityType

used by

elements

MaterialIsotopeType/atom MaterialElementType/atom MaterialMixtureType/atom

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional

g/mole




type

xs:string

optional



A


annotation

documentation

        Atomic mass, quantity type A, default unit g/mole




complexType DensityType

diagram

type

restriction of QuantityType

used by

elements

MaterialIsotopeType/D MaterialElementType/D MaterialMixtureType/D

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit

xs:string

optional

g/cm3




type

xs:string

optional



density


annotation

documentation

Density

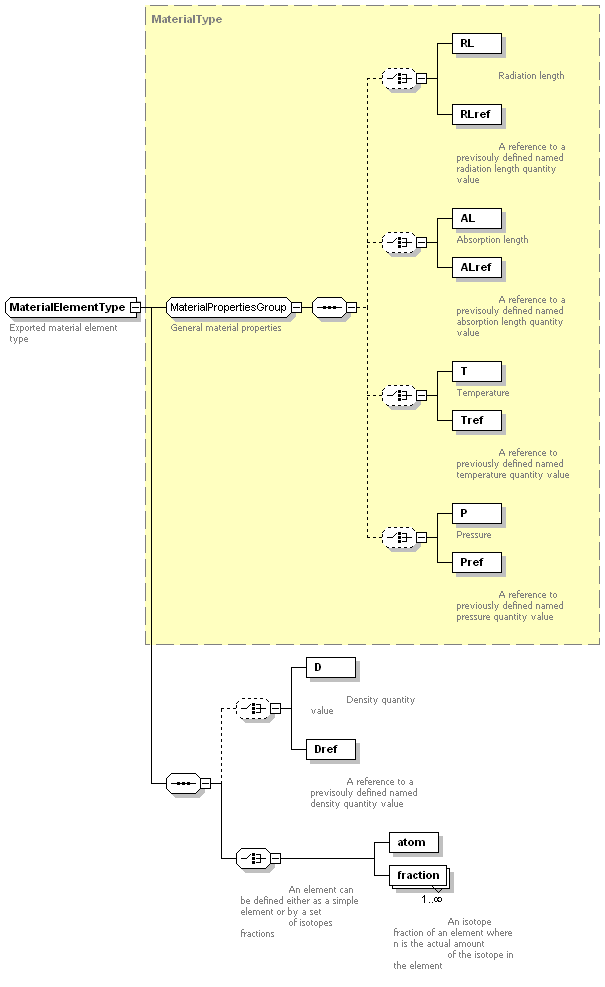

complexType MaterialElementType

diagram

type

extension of MaterialType

children

RL RLref AL ALref T Tref P Pref D Dref atom fraction

used by

element

materials/element

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

          Material physical state



N

xs:positiveInteger

optional





documentation

Number of nucleons

Z

xs:double

optional





documentation

Atomic number

annotation

documentation

Exported material element type


element MaterialElementType/D

diagram

type

DensityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit





g/cm3




type







density


annotation

documentation

            Density quantity value




element MaterialElementType/Dref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

            A reference to a previsouly defined named density quantity value




element MaterialElementType/atom

diagram

type

AtomType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit





g/mole




type







A



element MaterialElementType/fraction

diagram

type

extension of ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






n

xs:double

required






annotation

documentation

                  An isotope fraction of an element where n is the actual amount
                  of the isotope in the element

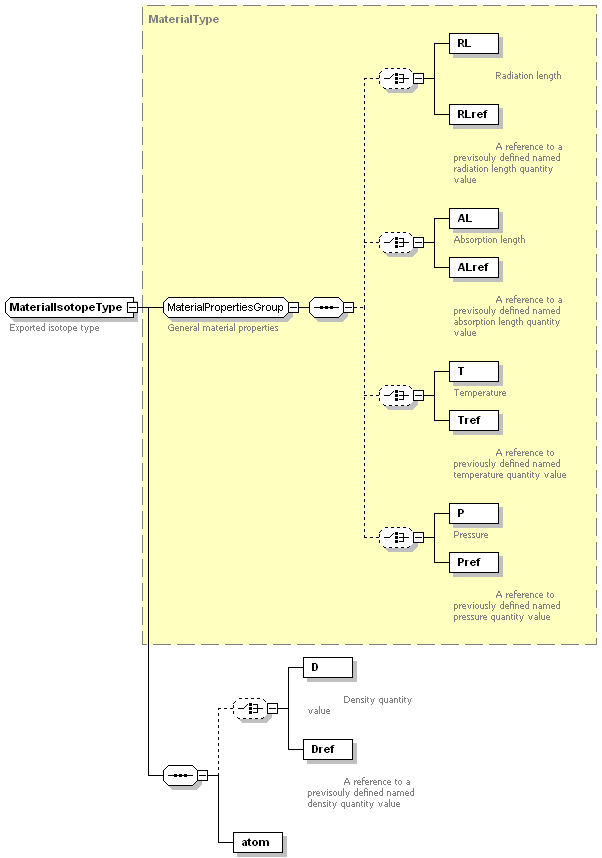

complexType MaterialIsotopeType

diagram

type

extension of MaterialType

children

RL RLref AL ALref T Tref P Pref D Dref atom

used by

element

materials/isotope

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

Material physical state



N

xs:positiveInteger

required





documentation

Number of nucleons

Z

xs:double

required





documentation

Atomic number

annotation

documentation

Exported isotope type


element MaterialIsotopeType/D

diagram

type

DensityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit





g/cm3




type







density


annotation

documentation

            Density quantity value




element MaterialIsotopeType/Dref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

            A reference to a previsouly defined named density quantity value




element MaterialIsotopeType/atom

diagram

type

AtomType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit





g/mole




type







A



complexType MaterialMixtureType

diagram

type

extension of MaterialType

children

RL RLref AL ALref T Tref P Pref D Dref atom composite fraction

used by

element

materials/material

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

Material physical state



Z

xs:double

optional





documentation

Atomic number

annotation

documentation

        Exported material composite or mixture type




element MaterialMixtureType/D

diagram

type

DensityType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit





g/cm3




type







density


annotation

documentation

            Density quantity value




element MaterialMixtureType/Dref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






annotation

documentation

            A reference to a previsouly defined named density quantity value




element MaterialMixtureType/atom

diagram

type

AtomType

attributes

Name

Type

Use

Default

Fixed

Annotation

value

ExpressionOrIDREFType

required






unit





g/mole




type







A



element MaterialMixtureType/composite

diagram

type

extension of ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






n

xs:positiveInteger

required






annotation

documentation

                  Elements of this composite material specified as a set of local references
                  to already defined simple elements where value of n in each means the number of atoms




element MaterialMixtureType/fraction

diagram

type

extension of ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required






n

xs:double

required






annotation

documentation

                  Fractions of this mixture specified as a set of local references to already defined
                  elements or other mixtures where value of n in each means the fraction of the whole
                  material in the range 0.0 < n < 1.0




complexType MaterialType

diagram

children

RL RLref AL ALref T Tref P Pref

used by

complexTypes

MaterialElementType MaterialIsotopeType MaterialMixtureType

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

Material physical state



annotation

documentation

        Base type for materials




attributeGroup MaterialAttributeGroup

used by

complexType

MaterialType

attributes

Name

Type

Use

Default

Fixed

Annotation

name

xs:ID

required





documentation

Material name

formula

xs:string

optional





documentation

Material chemical formula

state

xs:NMTOKEN



unknown



documentation

Material physical state



annotation

documentation

        General material attributes




element box

diagram

type

extension of SolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

Angle unit of angles used in definition of this solid



name

xs:ID

required






x

ExpressionOrIDREFType

required






y

ExpressionOrIDREFType

required






z

ExpressionOrIDREFType

required






annotation

documentation

        CSG box solid described by 3 dimensions of x, y, and z




element cone

diagram

type

extension of SolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

Angle unit of angles used in definition of this solid



name

xs:ID

required






z

ExpressionOrIDREFType

required






rmin1

ExpressionOrIDREFType



0.0




rmin2

ExpressionOrIDREFType



0.0




rmax1

ExpressionOrIDREFType

required






rmax2

ExpressionOrIDREFType

required






startphi

ExpressionOrIDREFType



0.0




deltaphi

ExpressionOrIDREFType

required






annotation

documentation

        CSG cone or cone segment described by
        rmin1    inside radius at  z/2
        rmin2    inside radius at  z/2
        rmax1    outside radius at z/2
        rmax2    outside radius at z/2
        z        length in z
        startphi starting angle of the segment in radians
        deltaphi delta angle of the segment in radians



element intersection

diagram

type

BooleanSolidType

children

first second position positionref rotation rotationref

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






annotation

documentation

        Exported boolean intersectioin of two solids




element para

diagram

type

extension of SolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






x

ExpressionOrIDREFType

required






y

ExpressionOrIDREFType

required






z

ExpressionOrIDREFType

required






alpha

ExpressionOrIDREFType

required






theta

ExpressionOrIDREFType

required






phi

ExpressionOrIDREFType

required






annotation

documentation

        CSG parallelepiped solid is described by
        x, y, z  length in x,y,z
        alpha    Angle formed by the y axis and by the plane joining the centre of the faces
                 G4Parallel to the z-x plane at -y and +y
        theta    Polar angle of the line joining the centres of the faces at -z and +z in z
        phi      Azimuthal angle of the line joining the centres of the faces at -z and +z in z

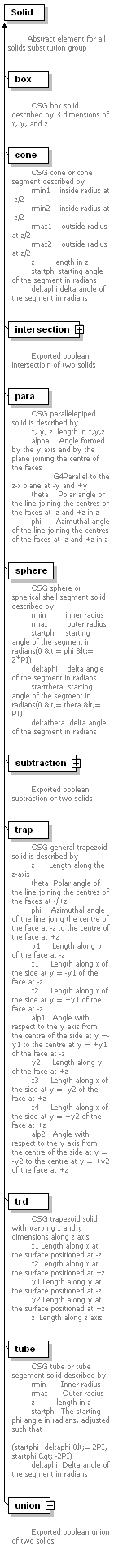

element Solid

diagram

type

SolidType

used by

element

solids

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

Angle unit of angles used in definition of this solid



name

xs:ID

required






annotation

documentation

        Abstract element for all solids substitution group




element solids

diagram

children

define Solid

used by

element

gdml

annotation

documentation

        Solids definitions block




element solids/define

diagram

type

defineType

children

constant quantity expression position rotation

annotation

documentation

        Definitions of constants and expressions to be used for solids'
        dimensions and transformations
        In this version these become part of the global scope.




element sphere

diagram

type

extension of SolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






rmin

ExpressionOrIDREFType



0.0




rmax

ExpressionOrIDREFType

required






startphi

ExpressionOrIDREFType



0.0




deltaphi

ExpressionOrIDREFType

required






starttheta

ExpressionOrIDREFType



0.0




deltatheta

ExpressionOrIDREFType

required






annotation

documentation

        CSG sphere or spherical shell segment solid described by
        rmin        inner radius
        rmax        outer radius
        startphi    starting angle of the segment in radians(0 <= phi <= 2*PI)
        deltaphi    delta angle of the segment in radians
        starttheta  starting angle of the segment in radians(0 <= theta <= PI)
        deltatheta  delta angle of the segment in radians



element subtraction

diagram

type

BooleanSolidType

children

first second position positionref rotation rotationref

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






annotation

documentation

        Exported boolean subtraction of two solids

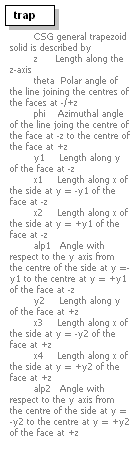

element trap

diagram

type

extension of SolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

Angle unit of angles used in definition of this solid


name

xs:ID

required






z

ExpressionOrIDREFType

required






theta

ExpressionOrIDREFType

required






phi

ExpressionOrIDREFType

required






y1

ExpressionOrIDREFType

required






x1

ExpressionOrIDREFType

required






x2

ExpressionOrIDREFType

required






alpha1

ExpressionOrIDREFType

required






y2

ExpressionOrIDREFType

required






x3

ExpressionOrIDREFType

required






x4

ExpressionOrIDREFType

required






alpha2

ExpressionOrIDREFType

required






annotation

documentation

        CSG general trapezoid solid is described by
        z      Length along the z-axis
        theta  Polar angle of the line joining the centres of the faces at -/+z
        phi    Azimuthal angle of the line joing the centre of the face at -z to the centre of the face at +z
        y1     Length along y of the face at -z
        x1     Length along x of the side at y = -y1 of the face at -z
        x2     Length along x of the side at y = +y1 of the face at -z
        alp1   Angle with respect to the y axis from the centre of the side at y =- y1 to the centre at y = +y1 of the face at -z
        y2     Length along y of the face at +z
        x3     Length along x of the side at y = -y2 of the face at +z
        x4     Length along x of the side at y = +y2 of the face at +z
        alp2   Angle with respect to the y axis from the centre of the side at y = -y2 to the centre at y = +y2 of the face at +z



element trd

diagram

type

extension of SolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






x1

ExpressionOrIDREFType

required






x2

ExpressionOrIDREFType

required






y1

ExpressionOrIDREFType

required






y2

ExpressionOrIDREFType

required






z

ExpressionOrIDREFType

required






annotation

documentation

        CSG trapezoid solid with varying x and y dimensions along z axis
        x1 Length along x at the surface positioned at -z
        x2 Length along x at the surface positioned at +z
        y1 Length along y at the surface positioned at -z
        y2 Length along y at the surface positioned at +z
        z  Length along z axis



element tube

diagram

type

extension of SolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






z

ExpressionOrIDREFType








rmin

ExpressionOrIDREFType



0.0




rmax

ExpressionOrIDREFType

required






startphi

ExpressionOrIDREFType



0.0




deltaphi

ExpressionOrIDREFType

required






annotation

documentation

        CSG tube or tube segement solid described by
        rmin      Inner radius
        rmax      Outer radius
        z         length in z
        startphi  The starting phi angle in radians, adjusted such that
                  (startphi+deltaphi <= 2PI, startphi > -2PI)
        deltaphi  Delta angle of the segment in radians



element union

diagram

type

BooleanSolidType

children

first second position positionref rotation rotationref

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






annotation

documentation

        Exported boolean union of two solids




complexType BooleanSolidType

diagram

type

extension of SolidType

children

first second position positionref rotation rotationref

used by

elements

intersection subtraction union

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






annotation

documentation

        Base type for boolean solids




element BooleanSolidType/first

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







element BooleanSolidType/second

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







element BooleanSolidType/position

diagram

type

positionType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




name

xs:ID

required






unit





mm




type





cartesian





element BooleanSolidType/positionref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







element BooleanSolidType/rotation

diagram

type

rotationType

attributes

Name

Type

Use

Default

Fixed

Annotation

x

ExpressionOrIDREFType



0.0




y

ExpressionOrIDREFType



0.0




z

ExpressionOrIDREFType



0.0




name

xs:ID

required






unit





radian




type





cartesian





element BooleanSolidType/rotationref

diagram

type

ReferenceType

attributes

Name

Type

Use

Default

Fixed

Annotation

ref

xs:IDREF

required







complexType SolidType

diagram

used by

elements

box cone para Solid sphere trap trd tube

complexType

BooleanSolidType

attributes

Name

Type

Use

Default

Fixed

Annotation

lunit

xs:string



mm



documentation

          Length unit of all dimensions used for this instance of solid



aunit

xs:string



radian



documentation

          Angle unit of angles used in definition of this solid



name

xs:ID

required






annotation

documentation

        Base solid type





XML Schema documentation generated by J.Lauret, June 21st 2004
