3-Iteration of PQR gains from pp200 minB data taken in 2004

  • events from any runs (also fast only) were added together, runList
  • any minB triggered events are used (fast & slow), total XXX1.5M accepted eve

  • INPUT: tower gains found by Murad after iteration 2 are used. ( September 25 )
    SMD gains & masks as in iteration 2
    INPUT

    Sector 5-8 tower gains from MIP analysis using UxV method :

  • gains05tower.dat
  • gains06tower.dat
  • gains07tower.dat
  • gains08tower.dat , 08QC03 is masked out only for runs < R5118000
    OUTPUT

    pre/post gains were found by Murad , Record from Sep 30, 2004.

    Resulting pre/post gains. Note errors have two contributions added in square: error of MVP from the Landau fit and 1 ch to account for ped instability.

  • gains05PQR.dat
  • gains06PQR.dat
  • gains07PQR.dat
  • gains08PQR.dat

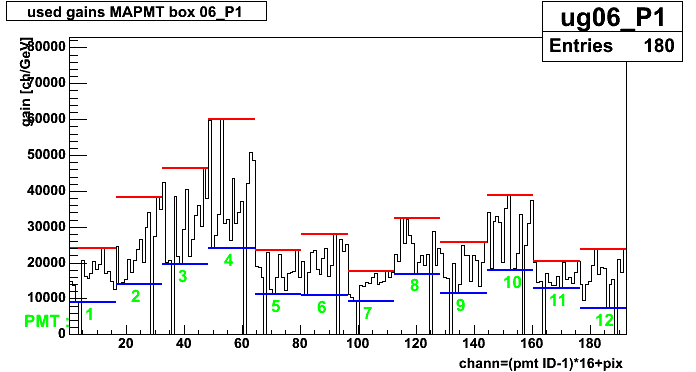

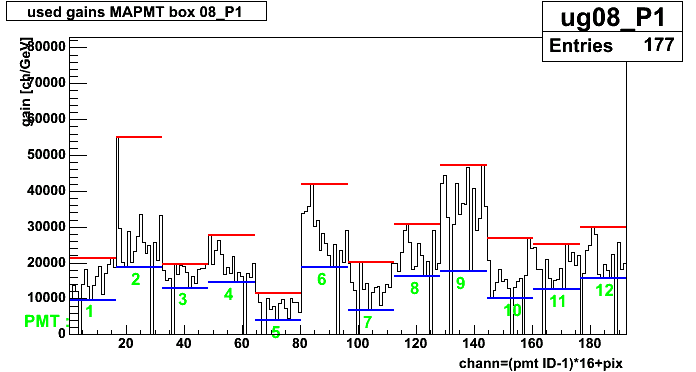

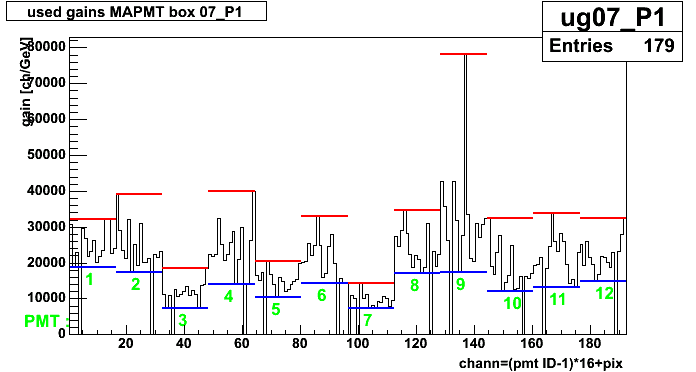

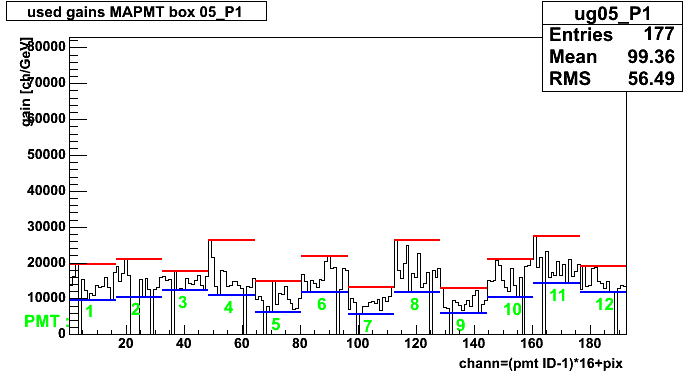

    Min & Max gain for 16 pixels of every MAPMT is marked as red & blue bars , respectively. MAPMT ID within the box is prited in green .
