Preliminary SMD gains for pp200 runs
(Using the integration method)
Input: ~1.6M minB pp events from 2004 run.
The following are an ADC-ped spectra for some strips chosen randomly from sector#5:
05U095 ,
05U195 ,
05U250 ,
05V075 ,
05V150 , and
05V260

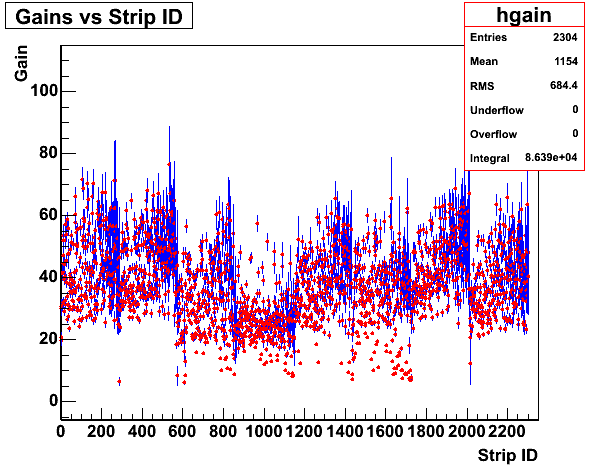

Figure 1 shows the gains for all 4 sectors and both U and V planes.
Figure 1

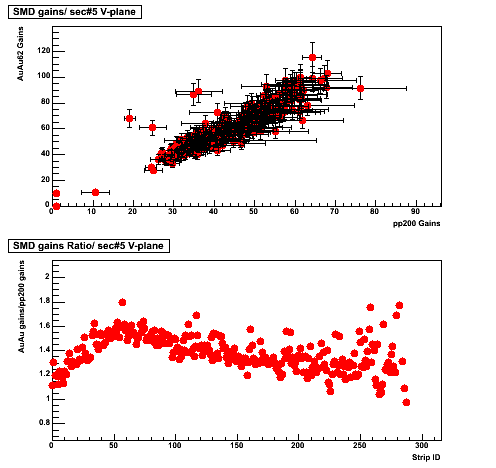

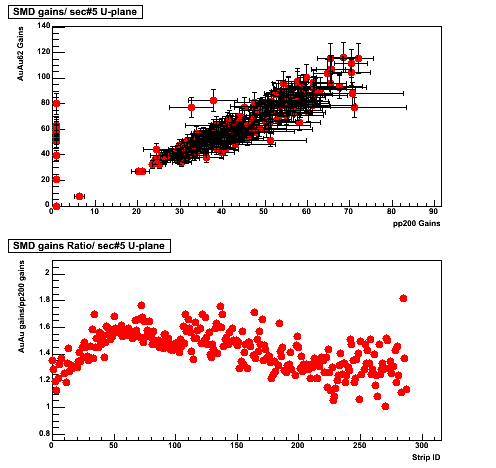

Figures 2 and 3 show the correlation as well as the ratio of the pp200 gain to AuAu62 gains for sector#5 planes U and V, respectively.
Figure 2
Figure 3
