Each file contains a 12-eta by 12-time slot plot of histograms for a given sector and subsector. On the horizontal axis of the 12 by 12 plot is eta, 1-12 consecutively from left to right. On the vertical axis is time slot, from 1-12 consecutively from top to bottom. Each element in the plot is an individual histogram corresponding to a particular eta and time slot. For each element histogram both the x and y axes are shown with the log scale for easier viewing. One should see a diagonal pattern if the correct eta corresponds with the correct time slot.
Jan's Comments: The HV test was fully automated. First DAC value in all 240 cells was set to zero, tower by tower (you know I do not trust global commands). Next, for 60 consecutive towers A01, A02, ...A12, B01,.... E12 the HV was switched on for ~7 seconds, one at a time. Simultaneously in 4 sub sectors, depending which HVsys controller was used. The unix time just after any HV on command was recorded in the log file. All events were stored in one ezTree-file. Melanie uses this unix time to select only this 7 seconds of relevant time. She is accumulating all 720 towers each time and save histos in different file. (It is overkill, but we used existing event sort as is.) Melanie is displaying 12 towers for 12 consecutive time slots. For eta bins 2-11 we see also data from previous and later time slots. Even if she would missed a time slot by one the peak(s) would show up in off-diagonal plots. I do not see this.
all fine = see signal for each eta and matches the correct time slot
additions shown in red
Sec,Sub | .gif | .ps | Comments | |
---|---|---|---|---|

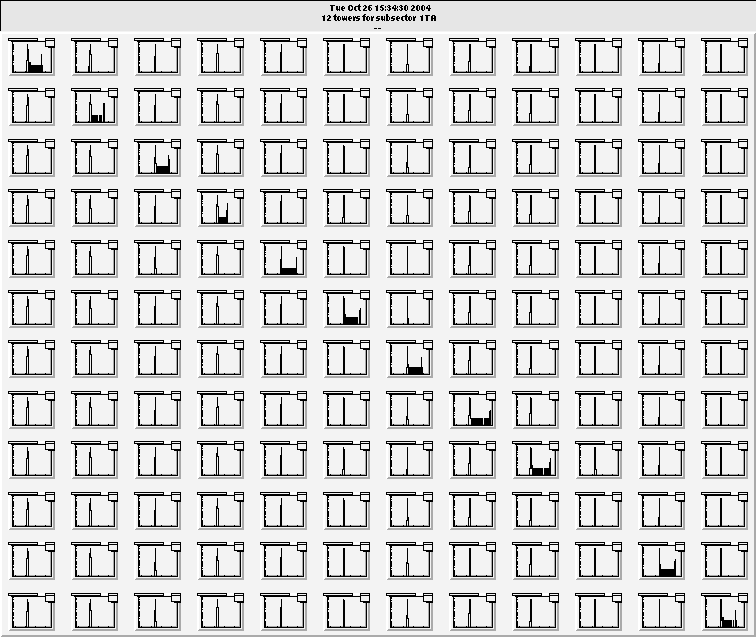

01TA | 01TA.gif | 01TA.ps.gz | 01TA10 - No response | |

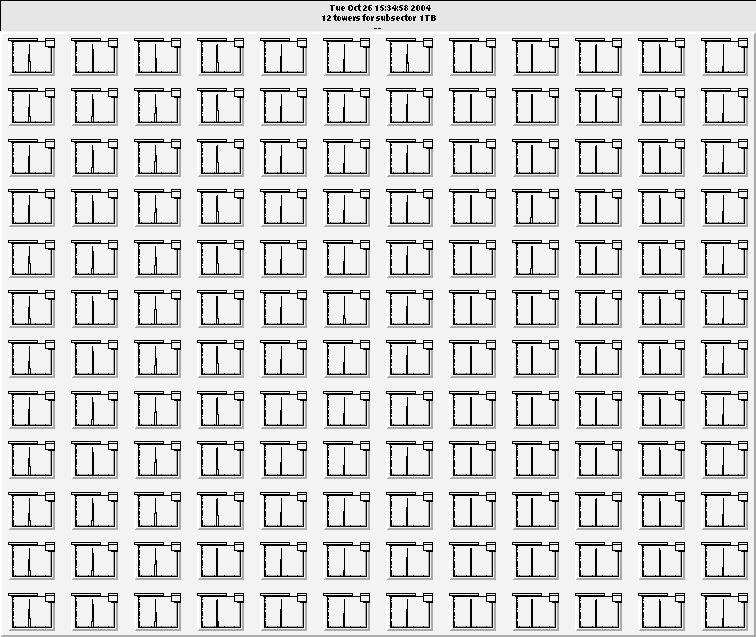

01TB | 01TB.gif | 01TB.ps.gz | No response from all eta (peds. only) | |

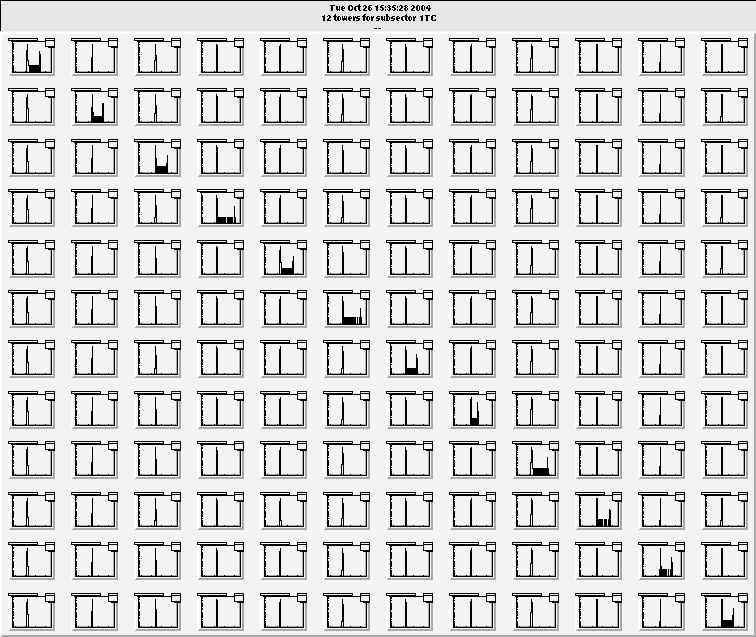

01TC | 01TC.gif | 01TC.ps.gz | all fine | |
01TD | No response at all from all eta (no pedestals) | |||

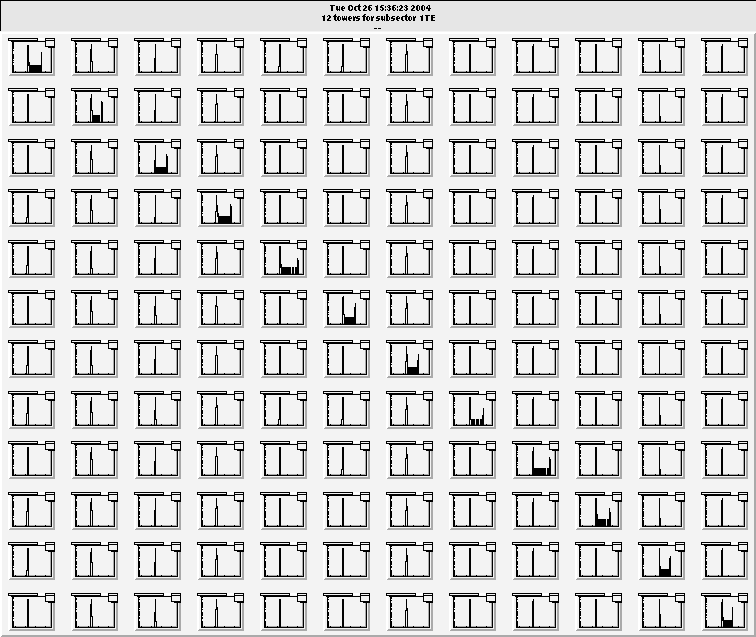

01TE | 01TE.gif | 01TE.ps.gz | all fine | |
02TA | 02TA.gif | 02TA.ps.gz | 02TA06 - No response, rest fine | |

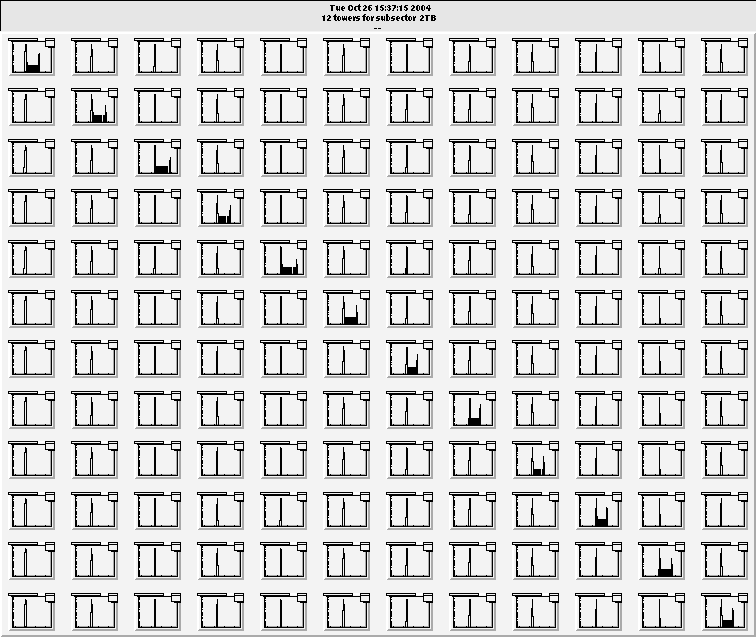

02TB | 02TB.gif | 02TB.ps.gz | all fine | |

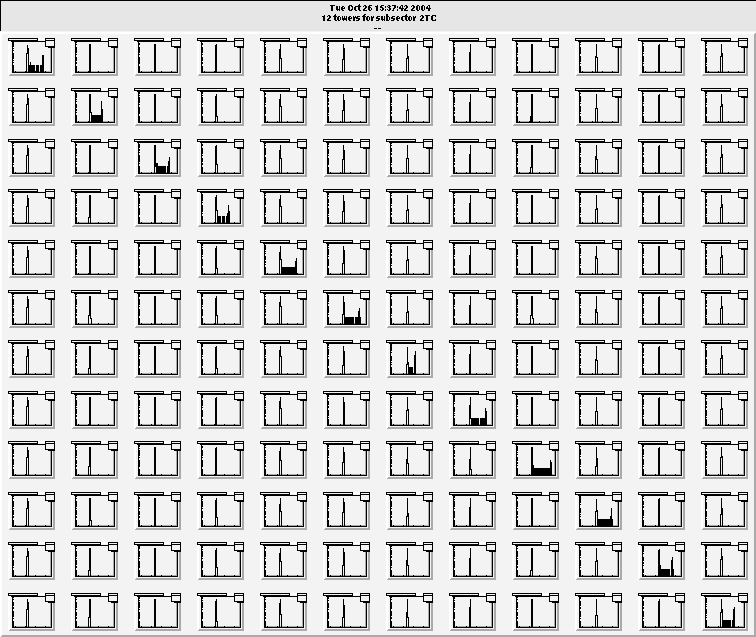

02TC | 02TC.gif | 02TC.ps.gz | all fine | |
02TD | 02TD.gif | 02TD.ps.gz | all fine | |

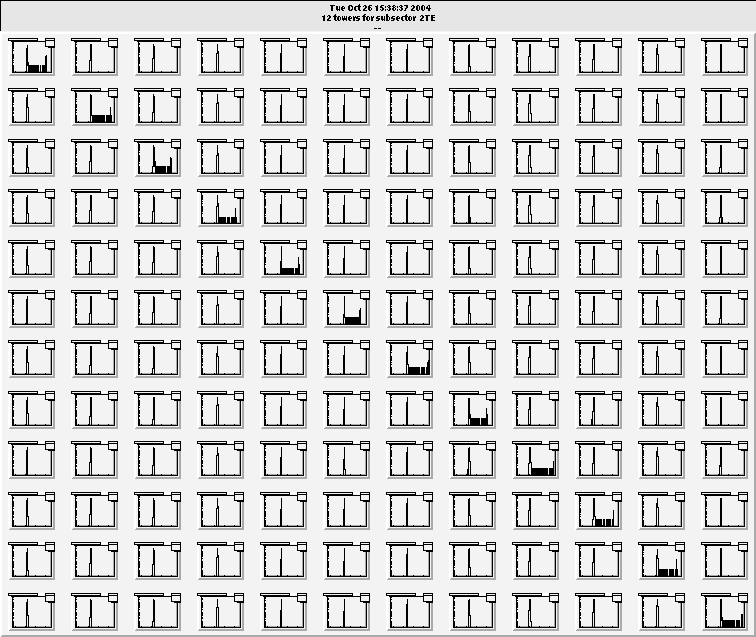

02TE | 02TE.gif | 02TE.ps.gz | all fine | |
03TA | 03TA.gif | 03TA.ps.gz | all fine | |

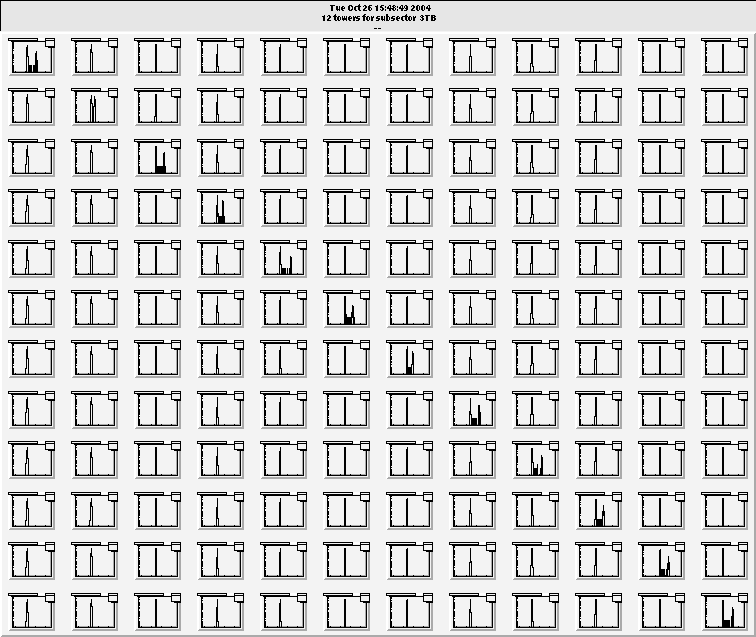

03TB | 03TB.gif | 03TB.ps.gz | all fine | |

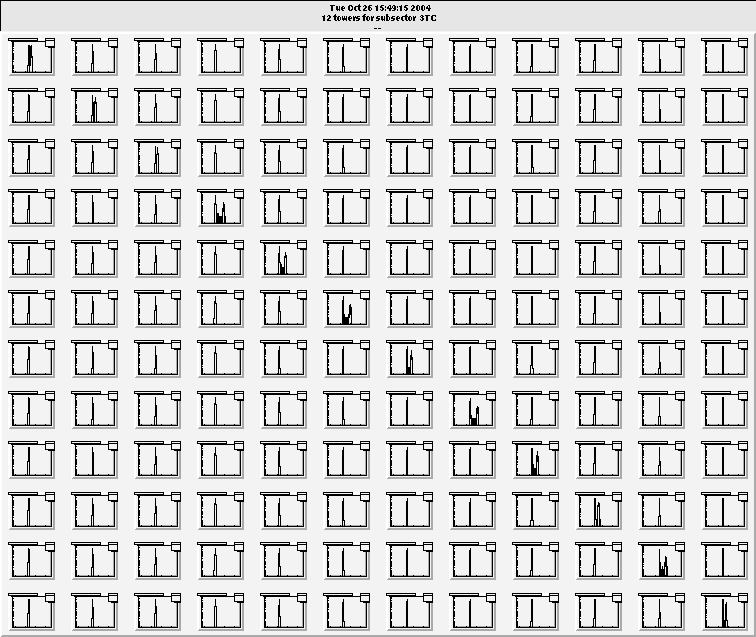

03TC | 03TC.gif | 03TC.ps.gz | all fine | |

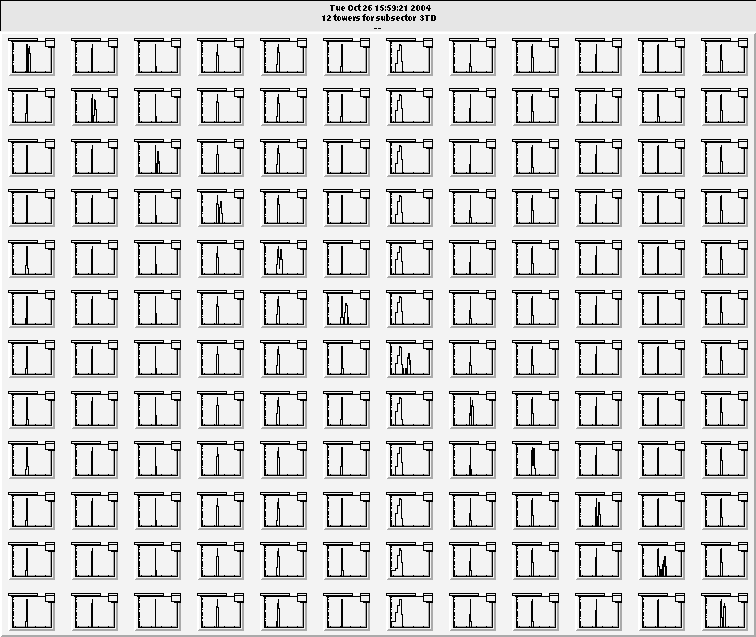

03TD | 03TD.gif | 03TD.ps.gz | all fine | |

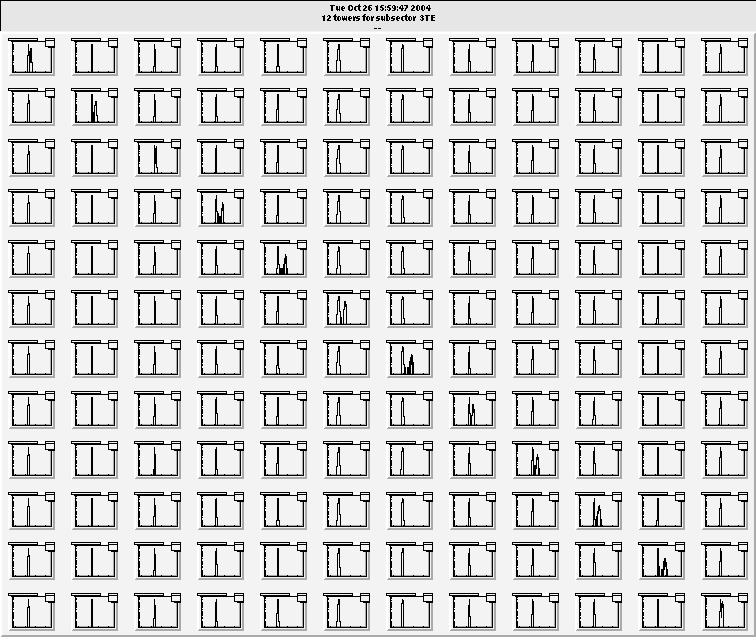

03TE | 03TE.gif | 03TE.ps.gz | all fine | |

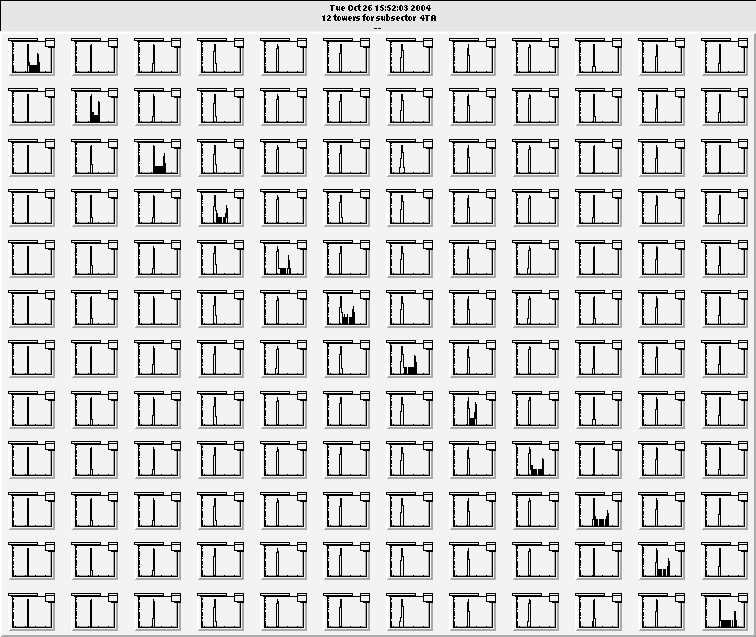

04TA | 04TA.gif | 04TA.ps.gz | all fine | |

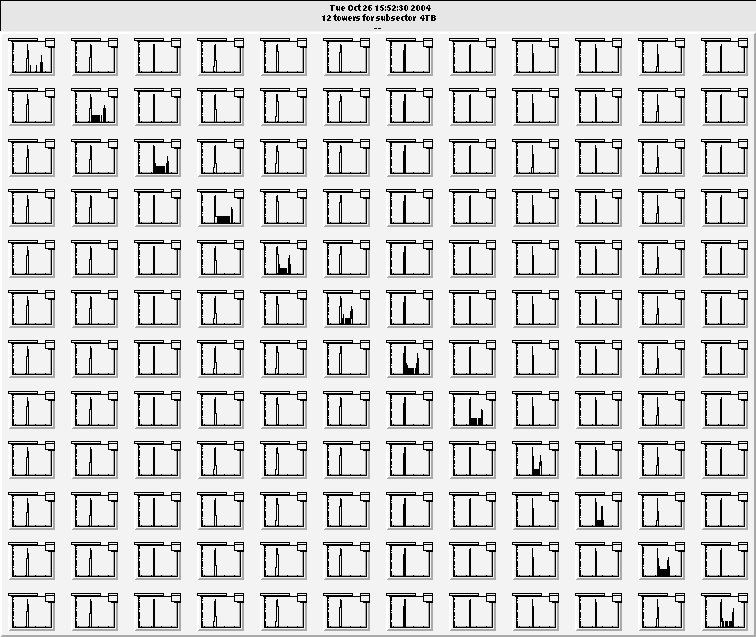

04TB | 04TB.gif | 04TB.ps.gz | all fine | |

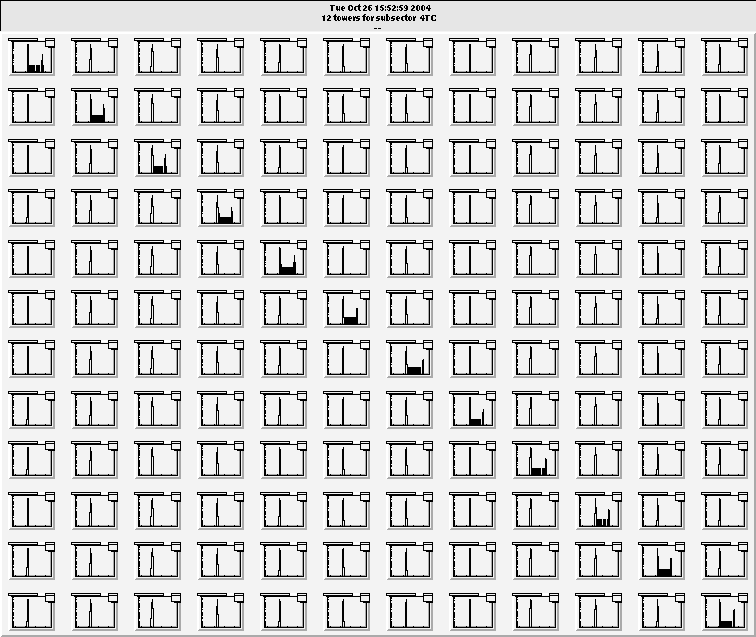

04TC | 04TC.gif | 04TC.ps.gz | all fine | |

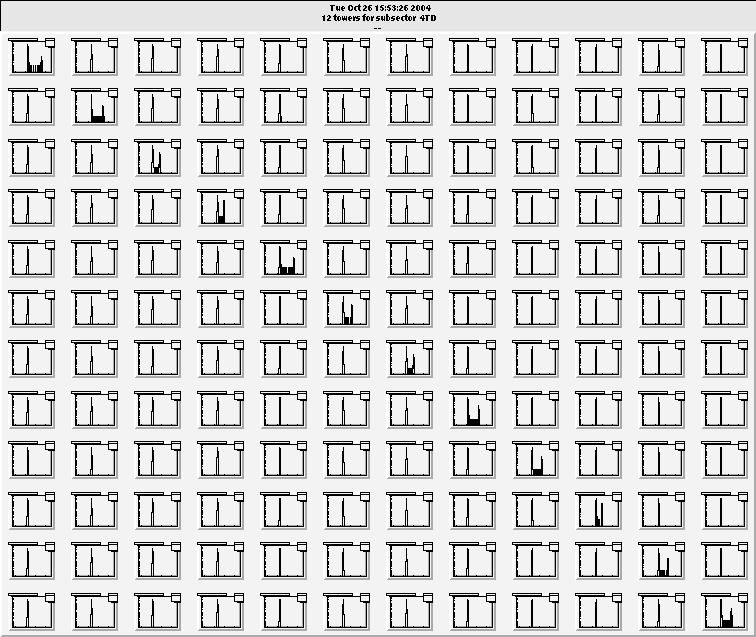

04TD | 04TD.gif | 04TD.ps.gz | all fine | |

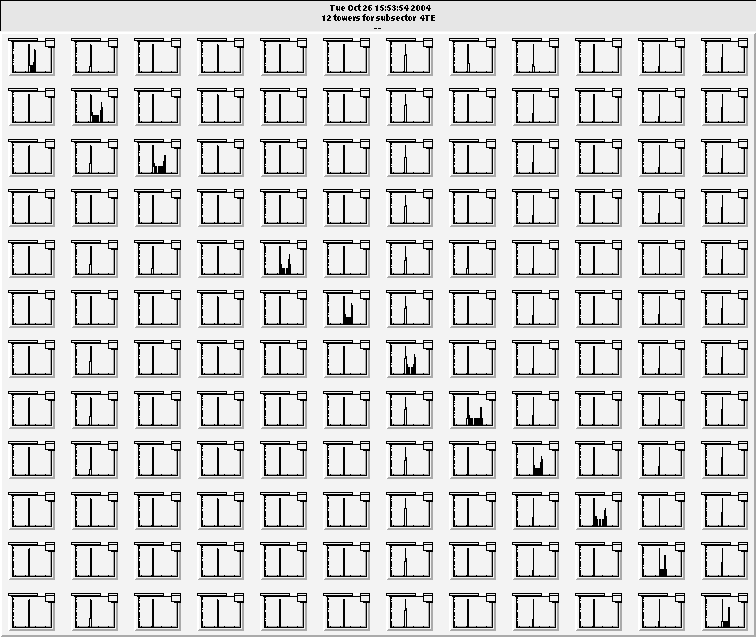

04TE | 04TE.gif | 04TE.ps.gz | 04TE04 - No response, rest fine | |

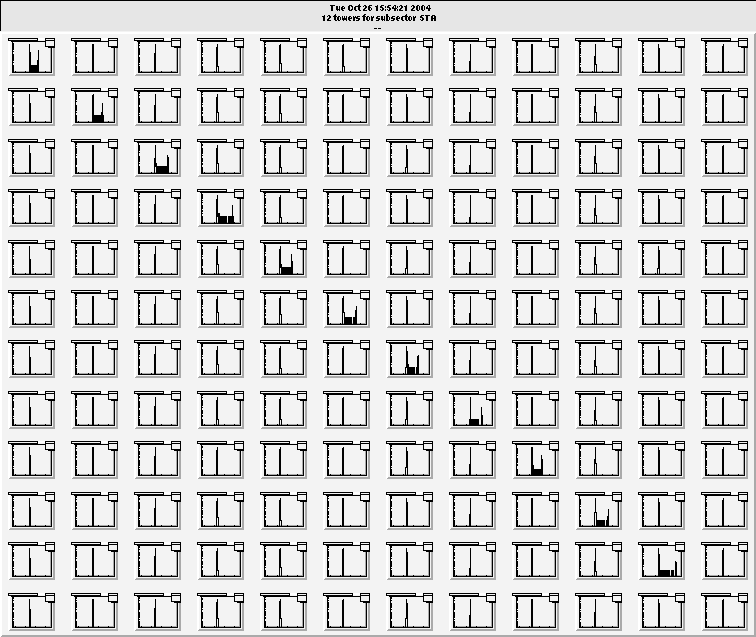

05TA | 05TA.gif | 05TA.ps.gz | 05TA12 - No response, rest fine | |

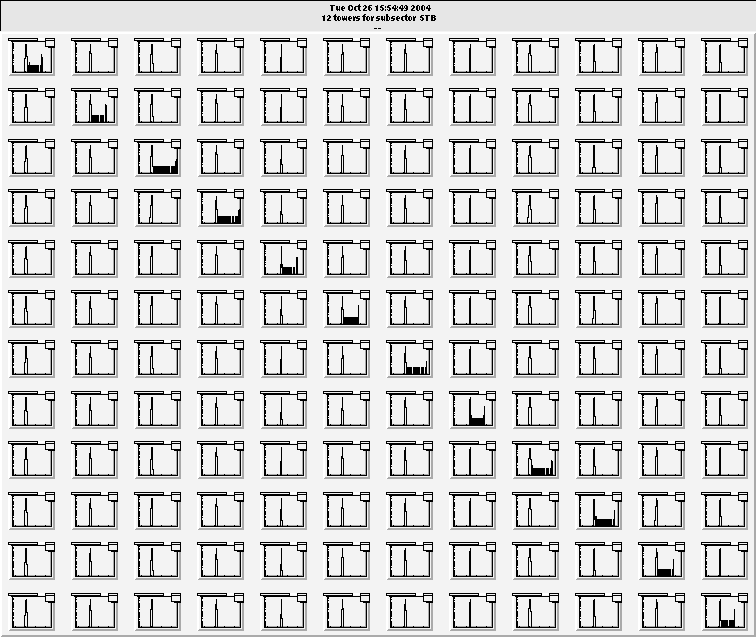

05TB | 05TB.gif | 05TB.ps.gz | all fine | |

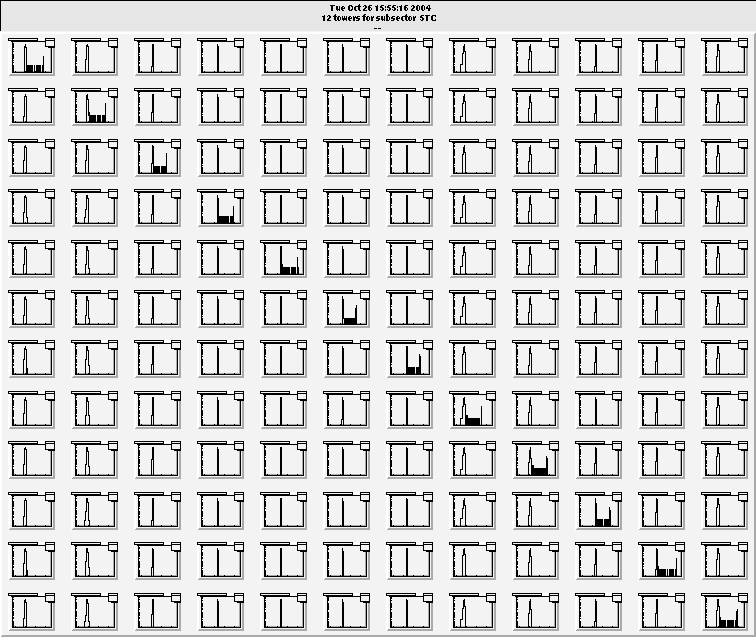

05TC | 05TC.gif | 05TC.ps.gz | all fine | |

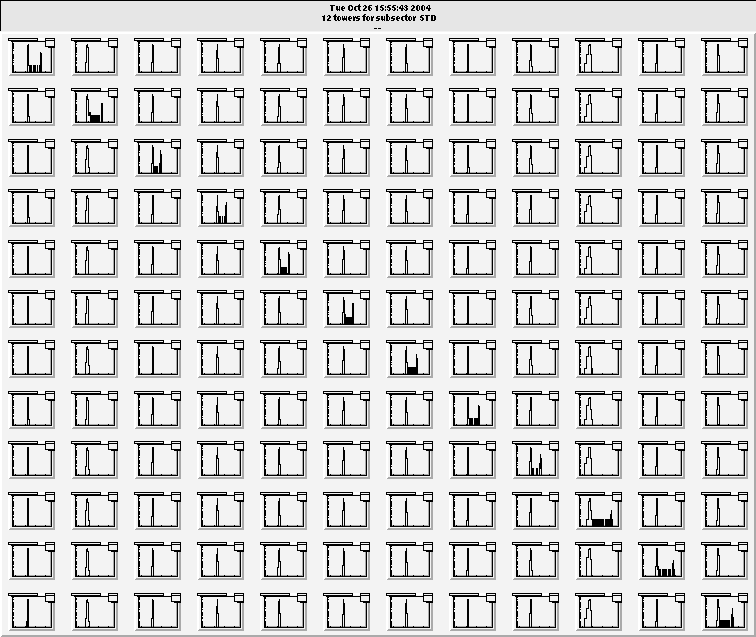

05TD | 05TD.gif | 05TD.ps.gz | all fine | |

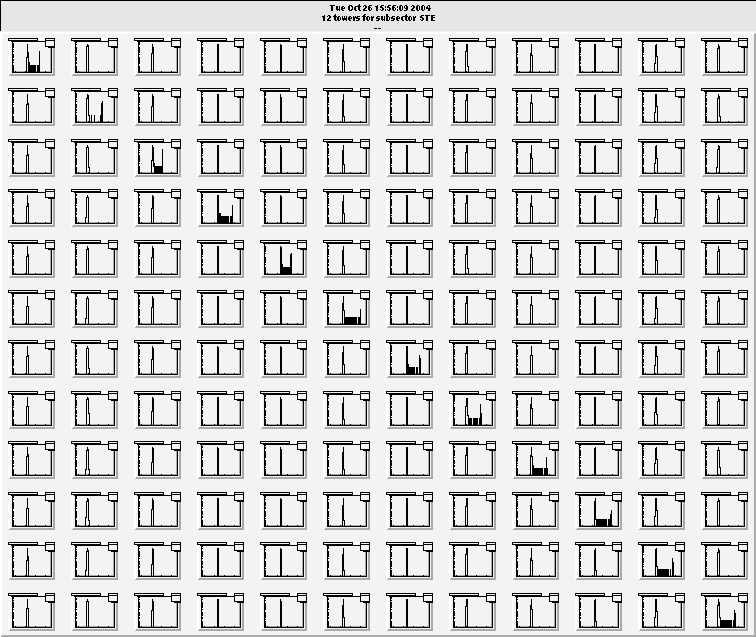

05TE | 05TE.gif | 05TE.ps.gz | all fine | |

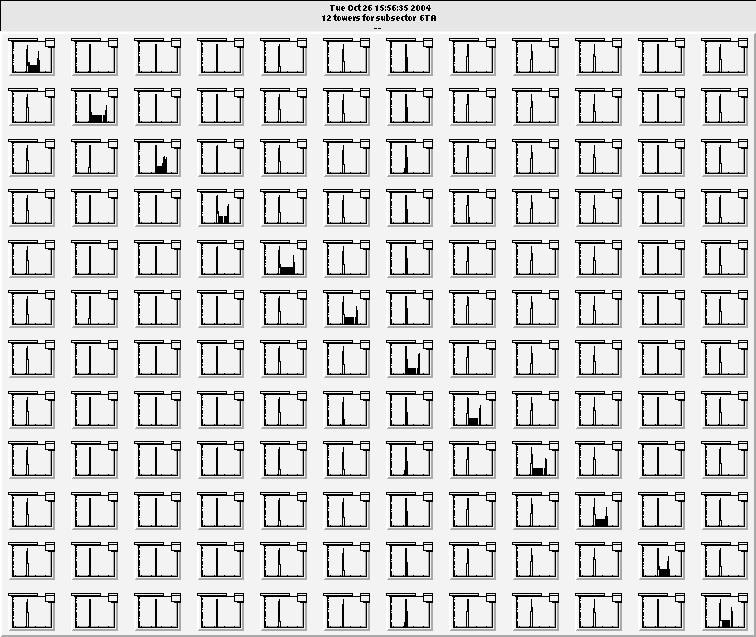

06TA | 06TA.gif | 06TA.ps | all fine | |

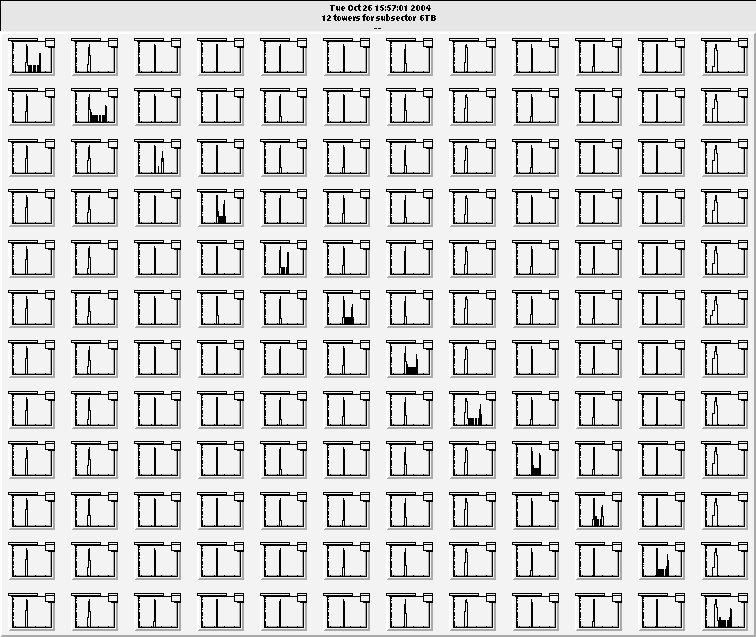

06TB | 06TB.gif | 06TB.ps.gz | all fine | |

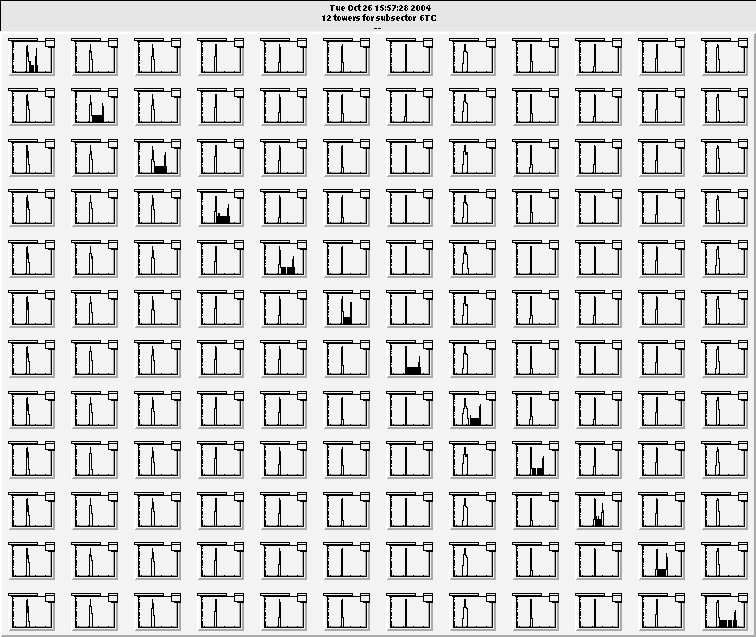

06TC | 06TC.gif | 06TC.ps.gz | all fine | |

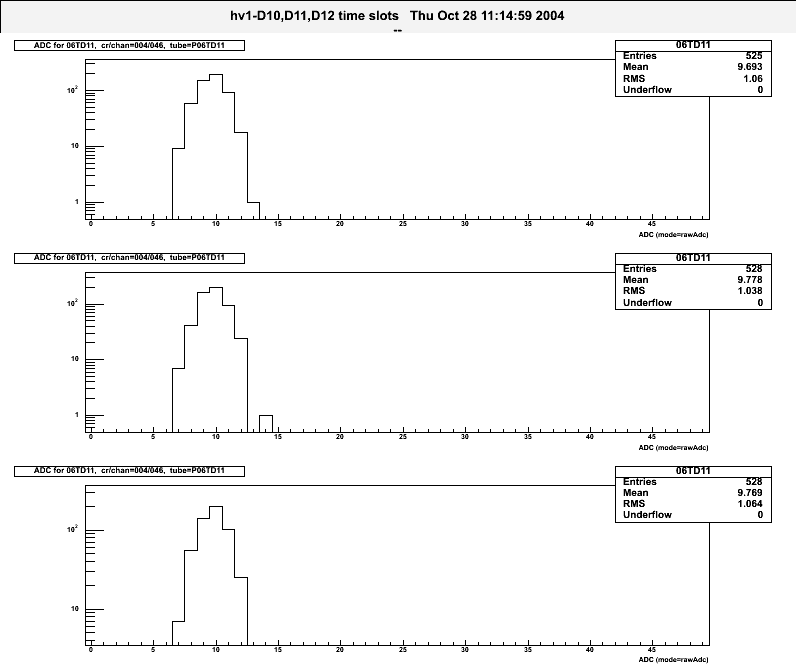

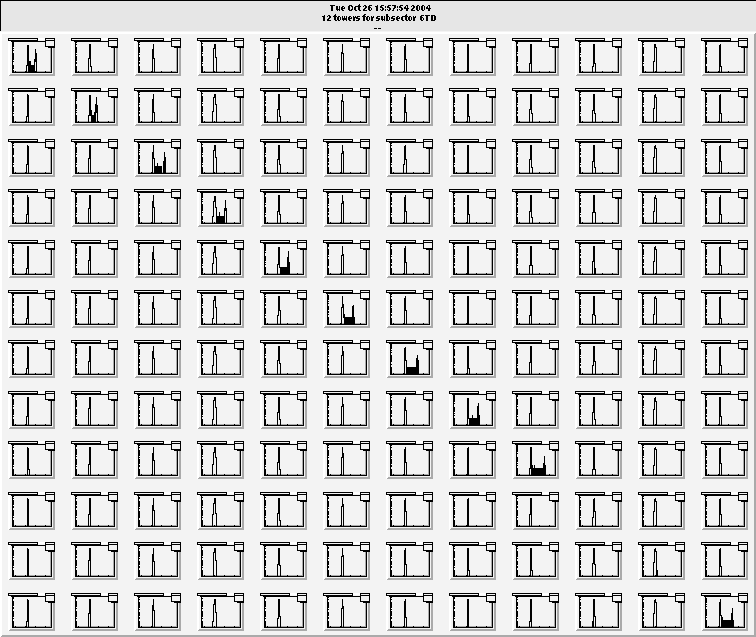

06TD | 06TD.gif | 06TD.ps.gz | 06TD10, 06TD11 - No response, rest fine (06TD11 close up with only y log scale using 06TD 10,11,12 time slots) | |

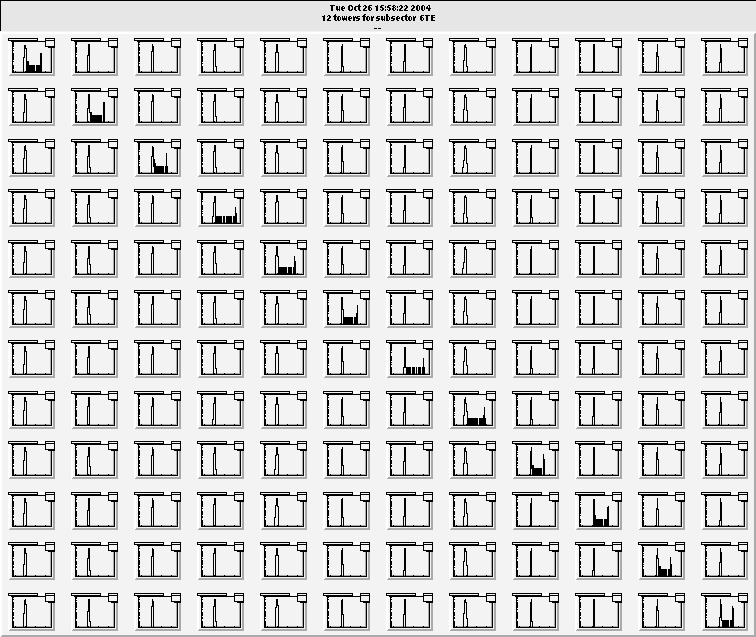

06TE | 06TE.gif | 06TE.ps.gz | all fine | |

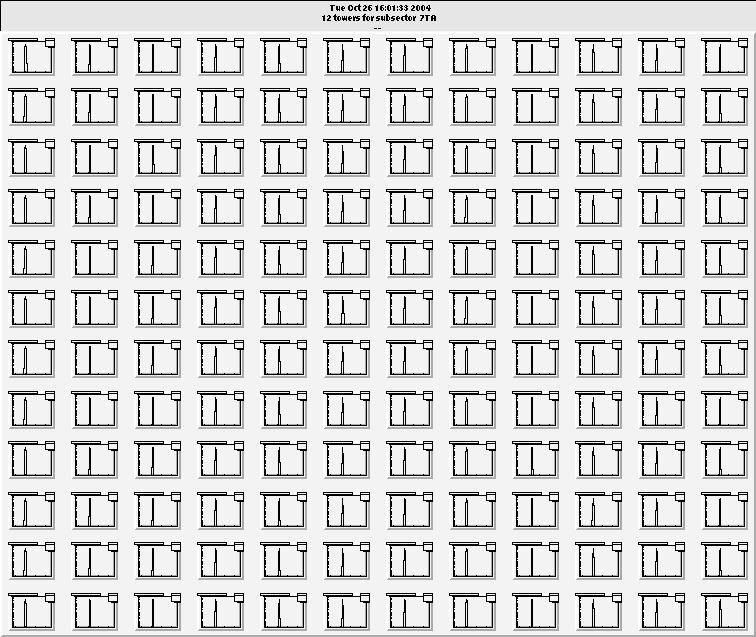

07TA | 07TA.gif | 07TA.ps.gz | No response from all eta (peds. only) | |

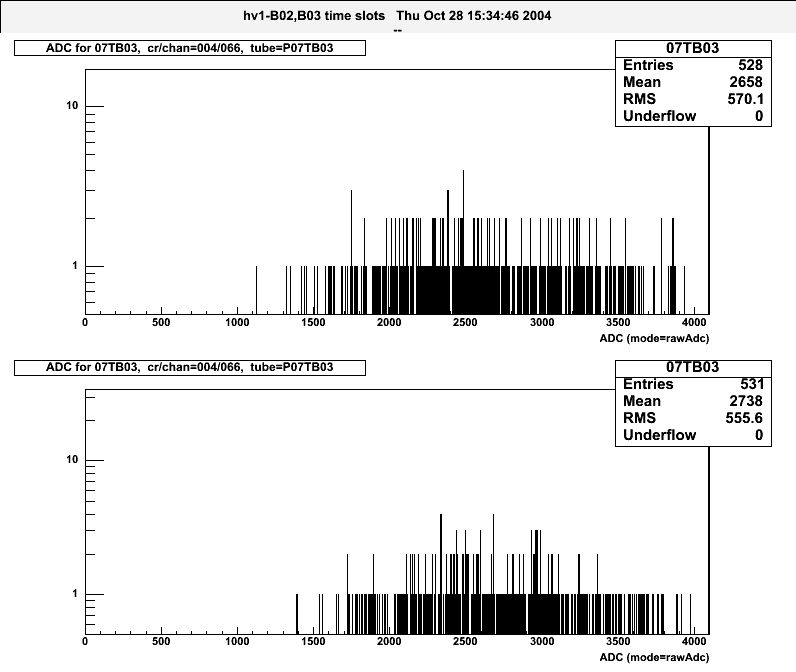

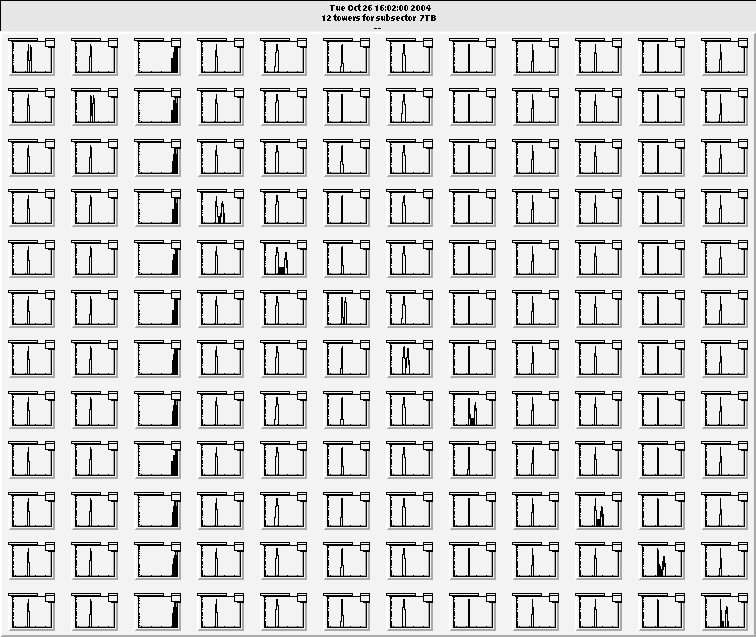

07TB | 07TB.gif | 07TB.ps.gz | 07TB09 - No response; 07TB03 has abnormal signal, rest fine (07TB03 close up with only y log scale using 07TB 02, 03 time slots) | |

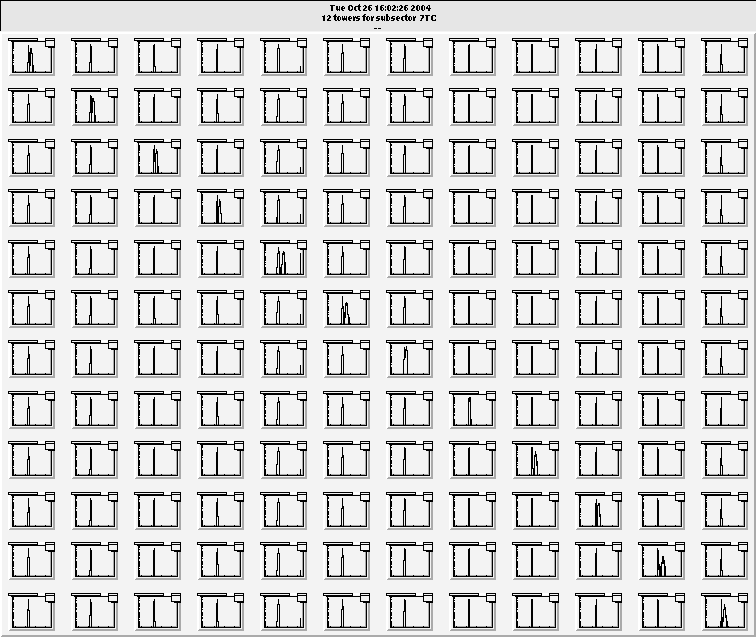

07TC | 07TC.gif | 07TC.ps.gz | 07TC08 - No response, rest fine | |
07TD | 07TD.gif | 07TD.ps.gz | all fine | |

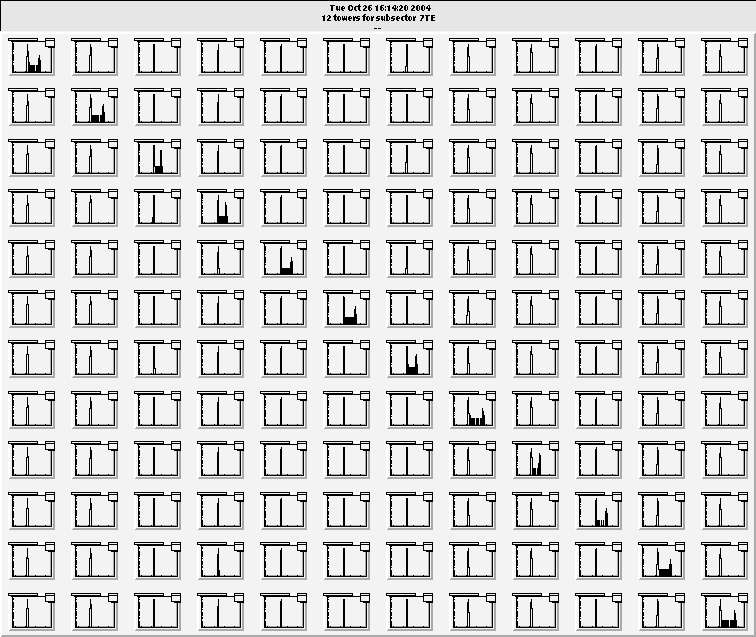

07TE | 07TE.gif | 07TE.ps.gz | all fine | |

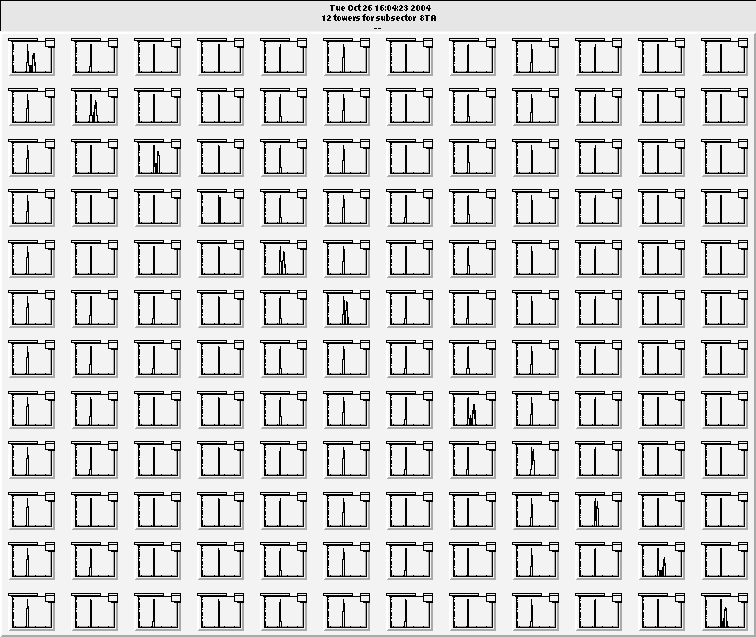

08TA | 08TA.gif | 08TA.ps.gz | 08TA07 - No response | |

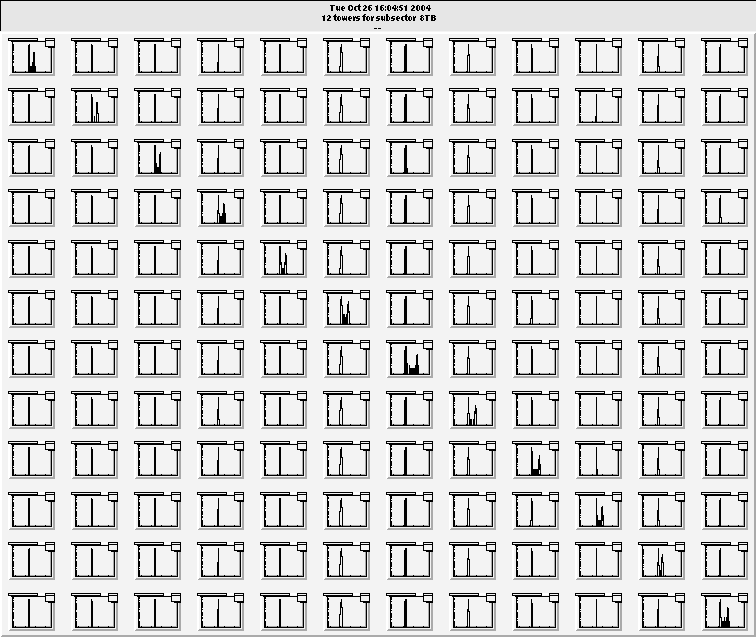

08TB | 08TB.gif | 08TB.ps.gz | all fine | |

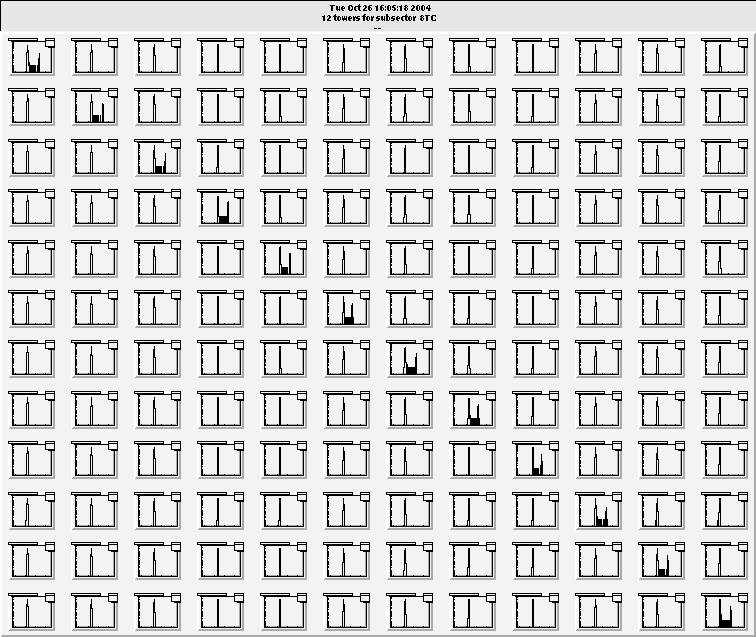

08TC | 08TC.gif | 08TC.ps.gz | all fine | |

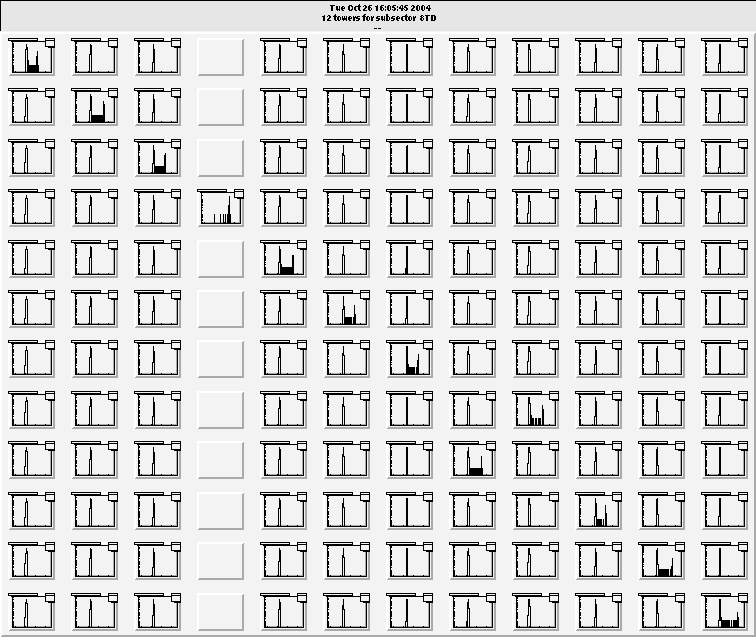

08TD | 08TD.gif | 08TD.ps.gz | 08TD08 and 08TD09 flipped; 08TD04 - neg. ped. so not all histograms were able to be produced with log scales | |

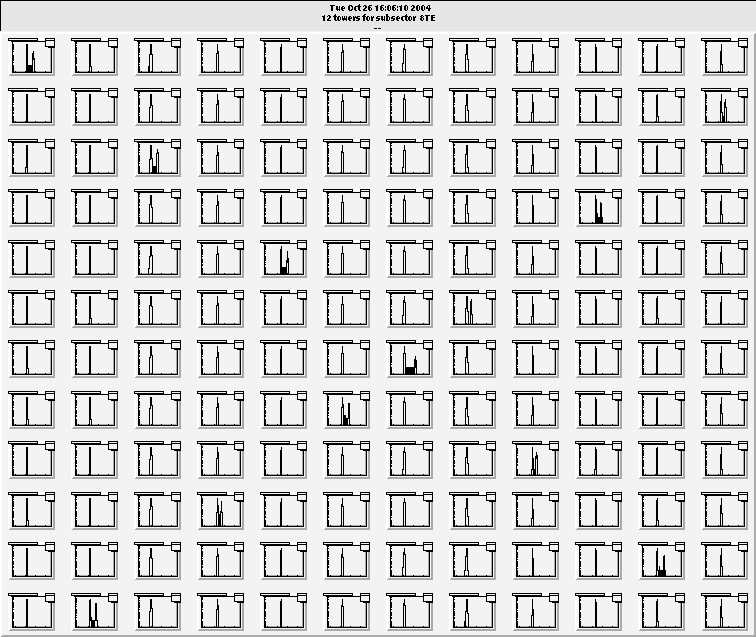

08TE | 08TE.gif | 08TE.ps.gz | 08TE02 and 08TE12 flipped; 08TE04 and 08TE10 flipped; 08TE06 and 08TE08 flipped, rest fine | |

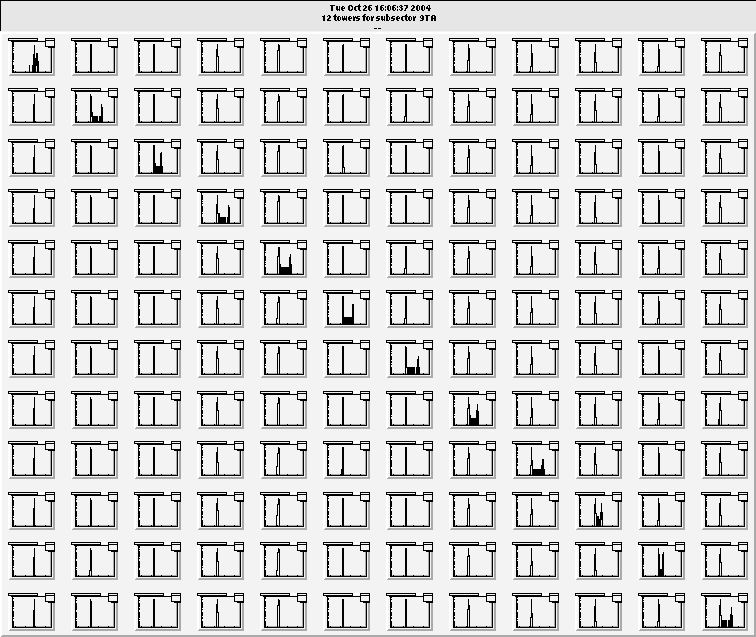

09TA | 09TA.gif | 09TA.ps.gz | all fine | |
09TB | 09TB.gif | 09TB.ps.gz | all fine | |

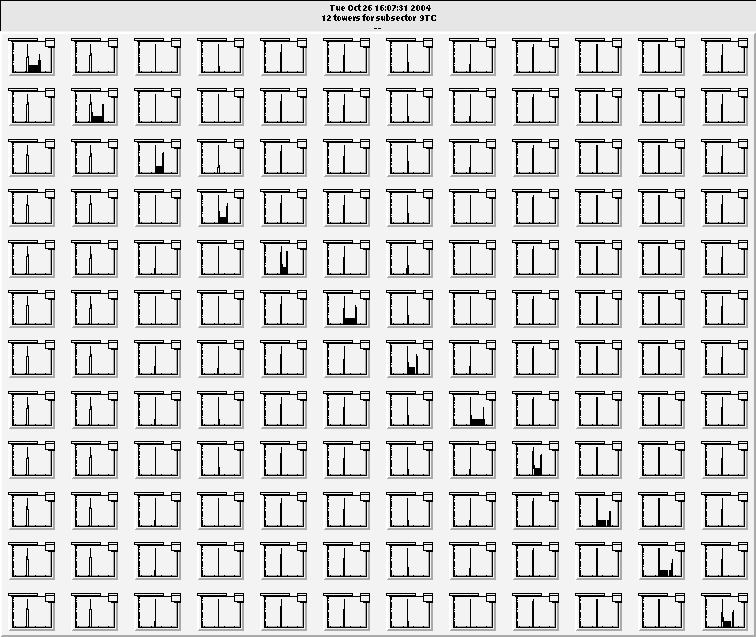

09TC | 09TC.gif | 09TC.ps.gz | all fine | |

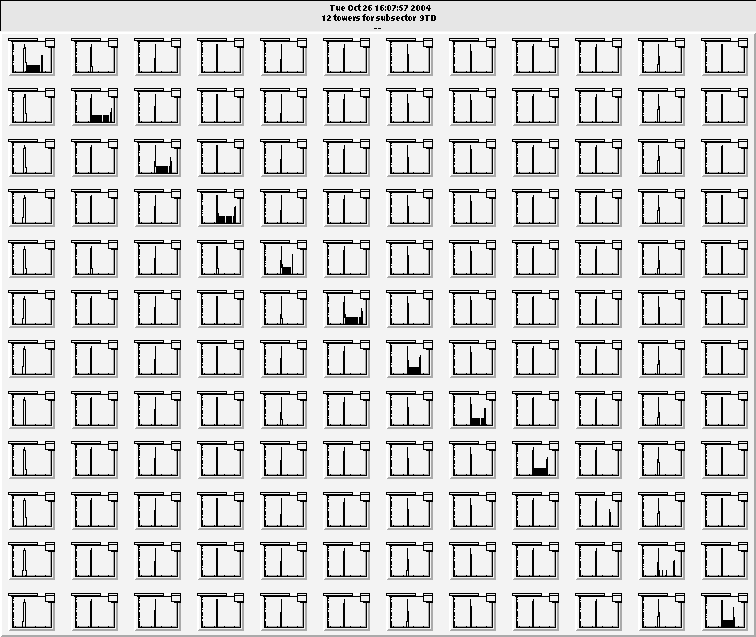

09TD | 09TD.gif | 09TD.ps.gz | all fine | |

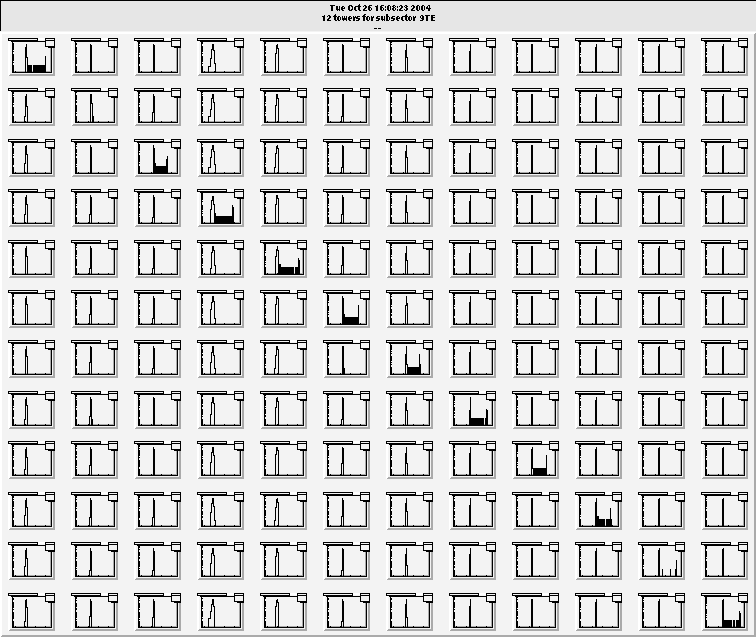

09TE | 09TE.gif | 09TE.ps.gz | 09TE02 - No response, rest fine | |

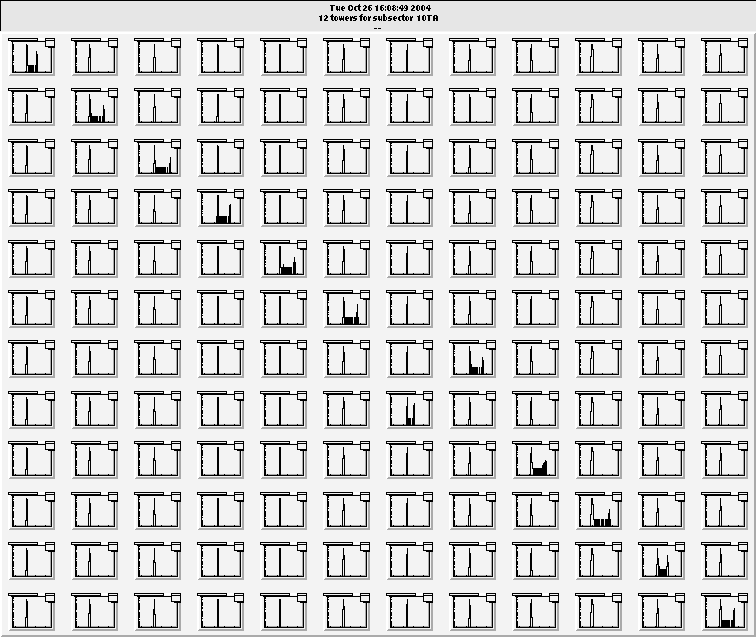

10TA | 10TA.gif | 10TA.ps.gz | 10TA07 and 10TA08 flipped, rest fine | |

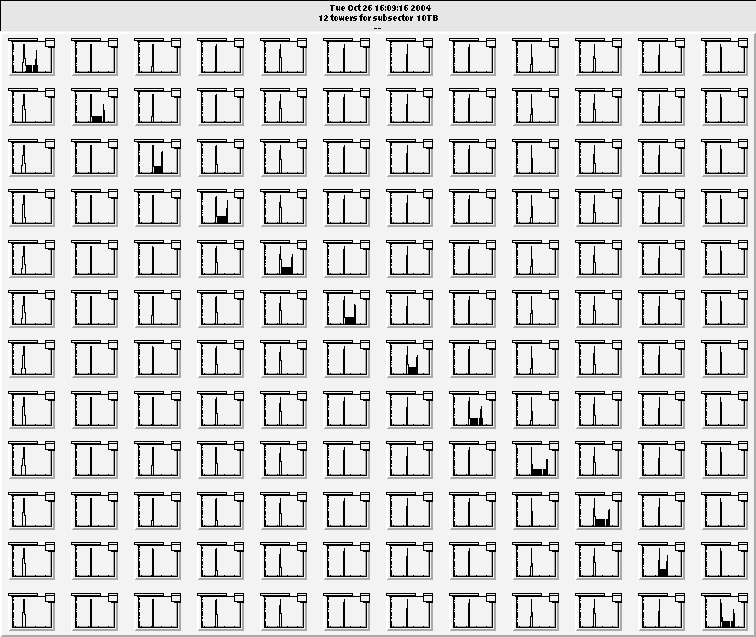

10TB | 10TB.gif | 10TB.ps.gz | all fine | |

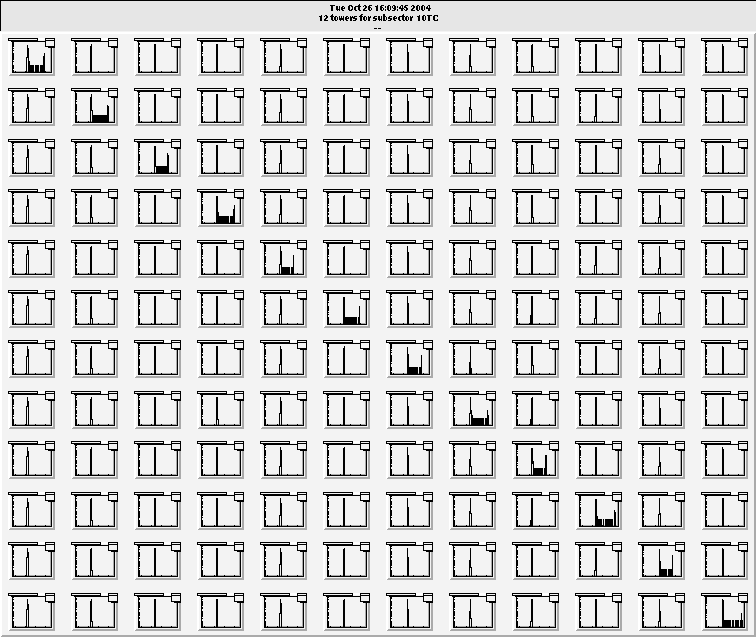

10TC | 10TC.gif | 10TC.ps.gz | all fine | |

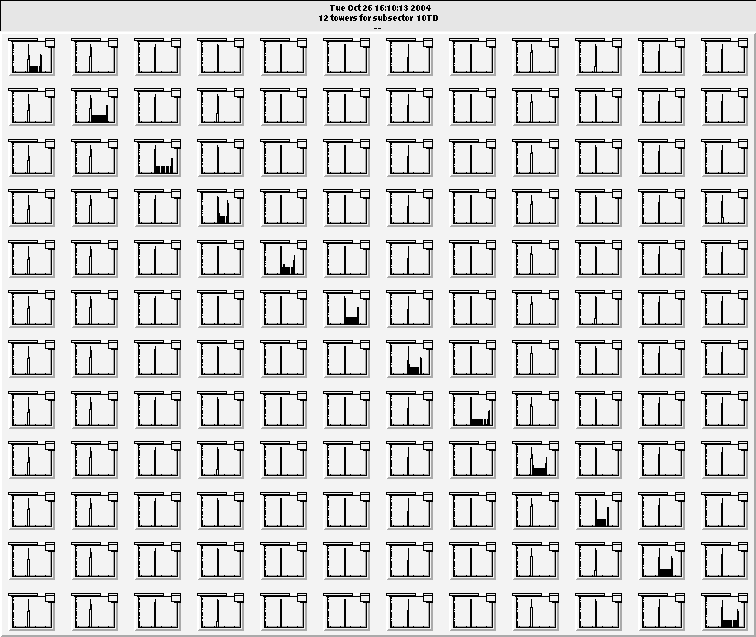

10TD | 10TA.gif | 10TD.ps.gz | all fine | |

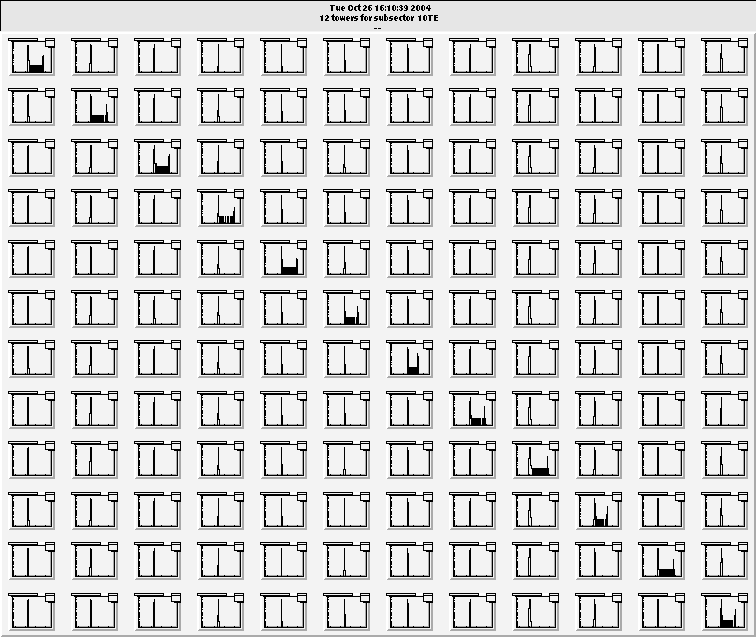

10TE | 10TE.gif | 10TE.ps.gz | all fine | |

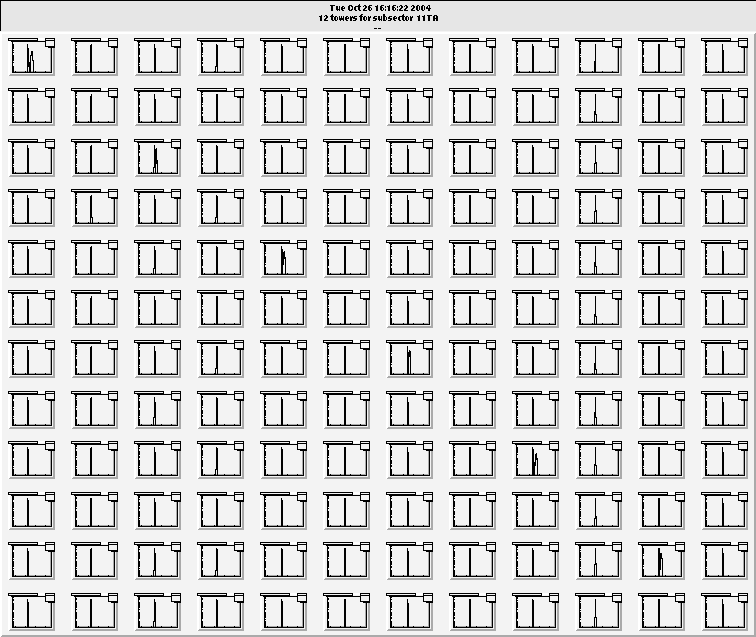

11TA | 11TA.gif | 11TA.ps.gz | No response from eta 02,04,06,08,10,12 | |

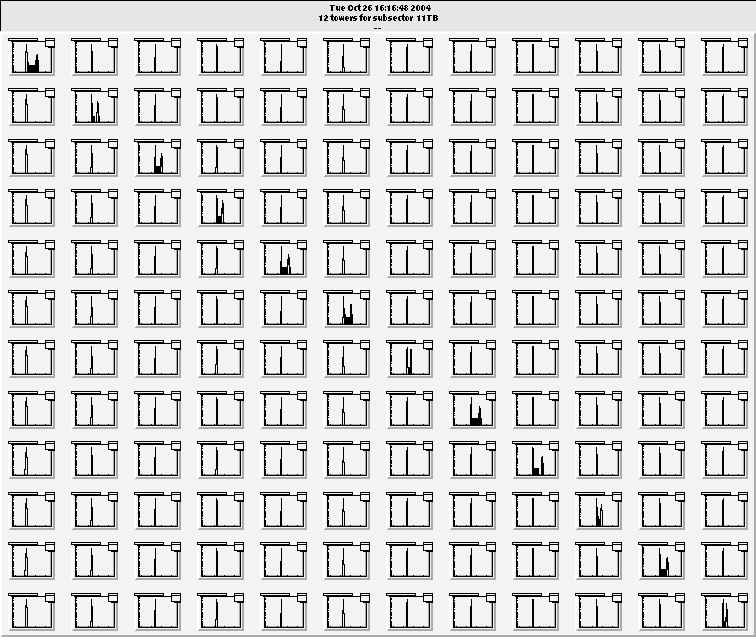

11TB | 11TB.gif | 11TB.ps.gz | all fine | |

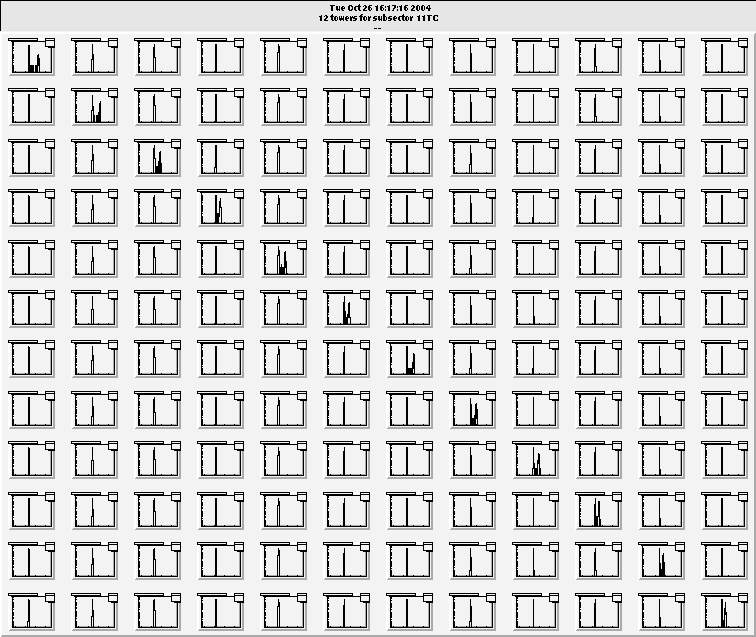

11TC | 11TC.gif | 11TC.ps.gz | all fine | |

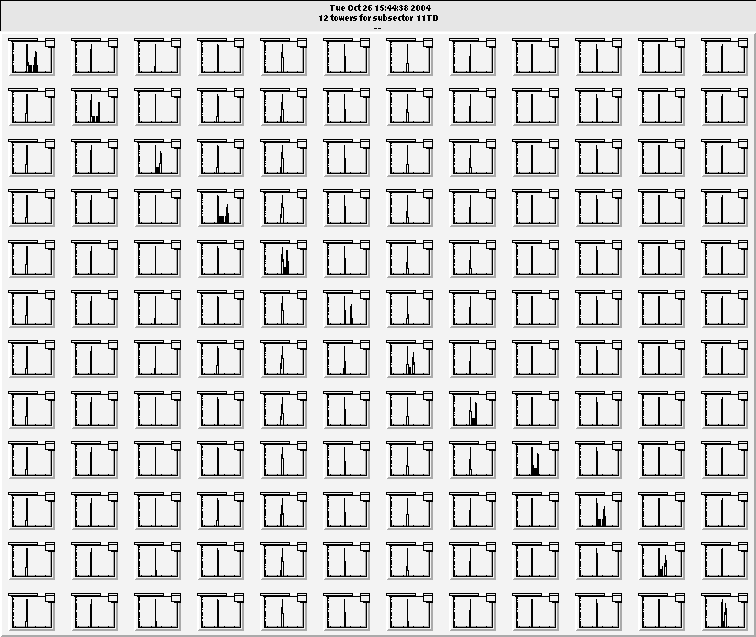

11TD | 11TD.gif | 11TD.ps.gz | all fine | |

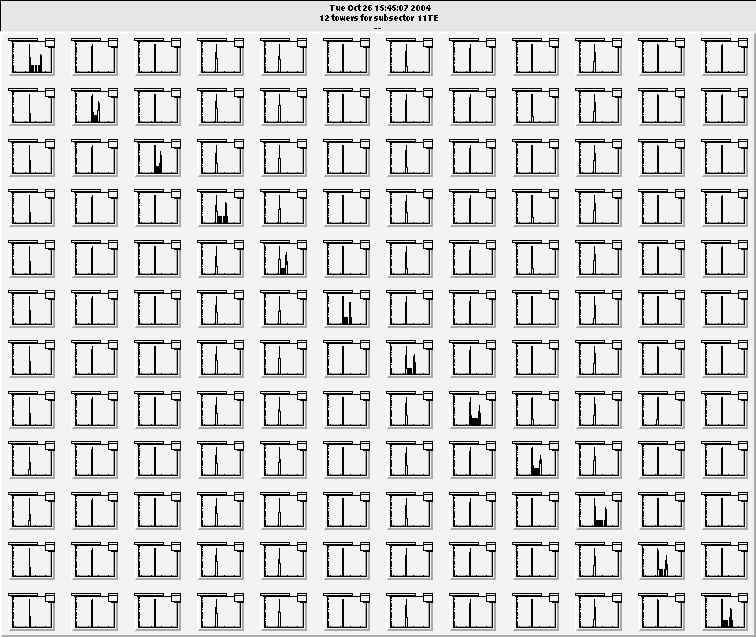

11TE | 11TE.gif | 11TE.ps.gz | all fine | |

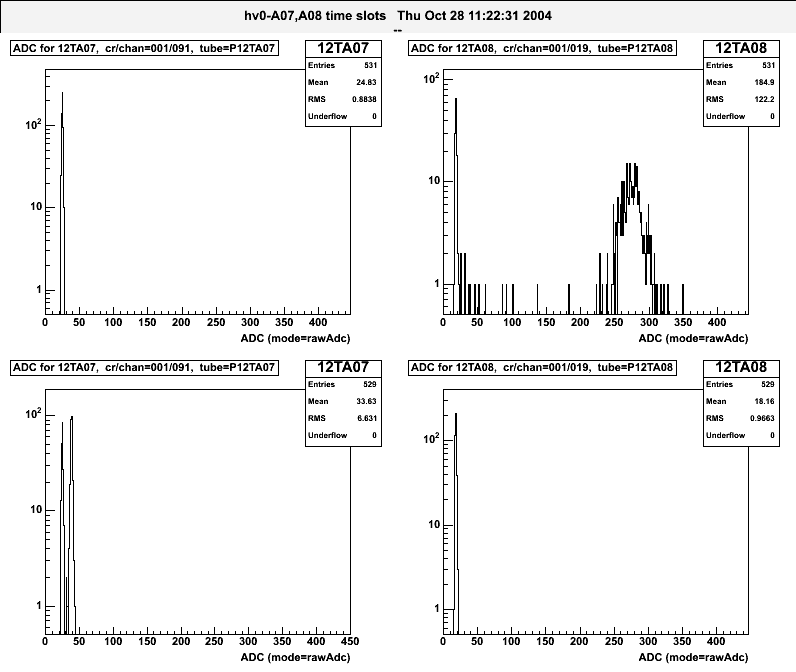

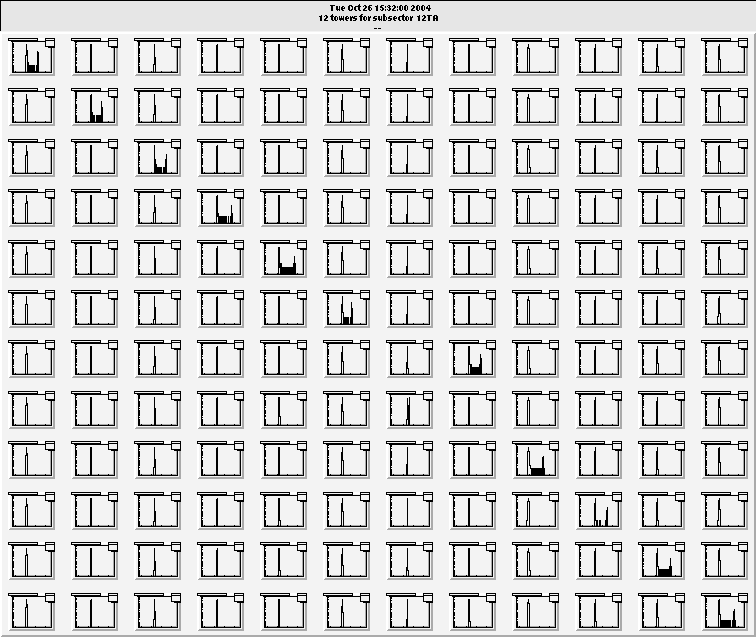

12TA | 12TA.gif | 12TA.ps.gz | 12TA07 and 12TA08 flipped, rest fine (12TA08 close up with only y log scale using 12TA 07 and 08 time slots) | |

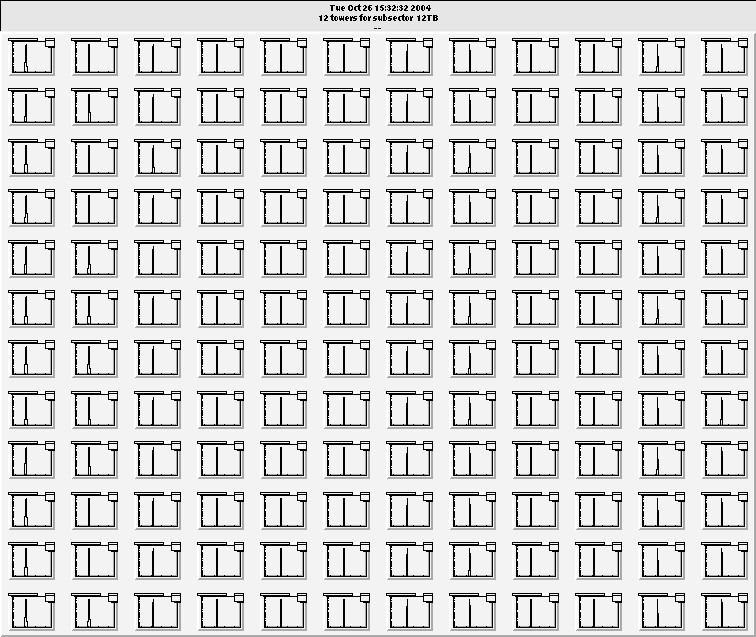

12TB | 12TB.gif | 12TB.ps.gz | No response from all eta (peds. only) | |

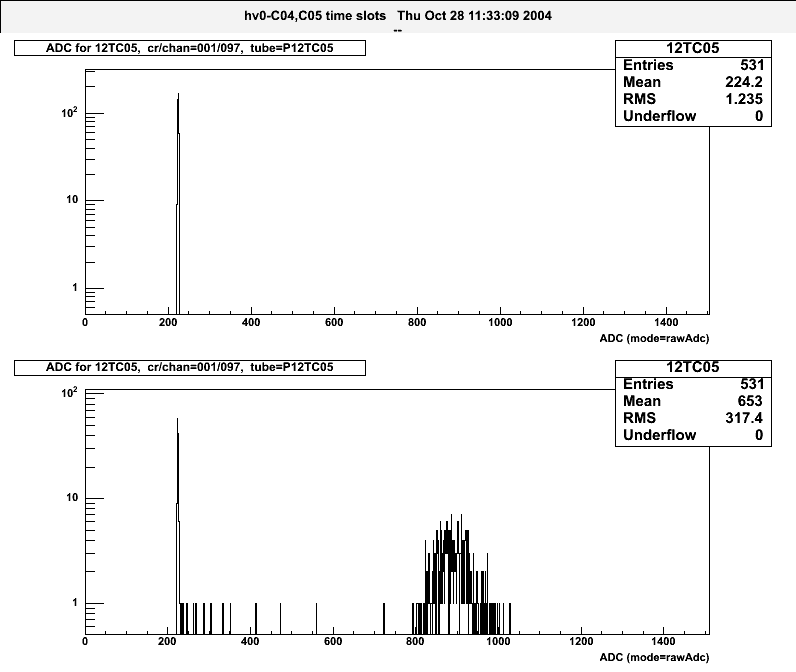

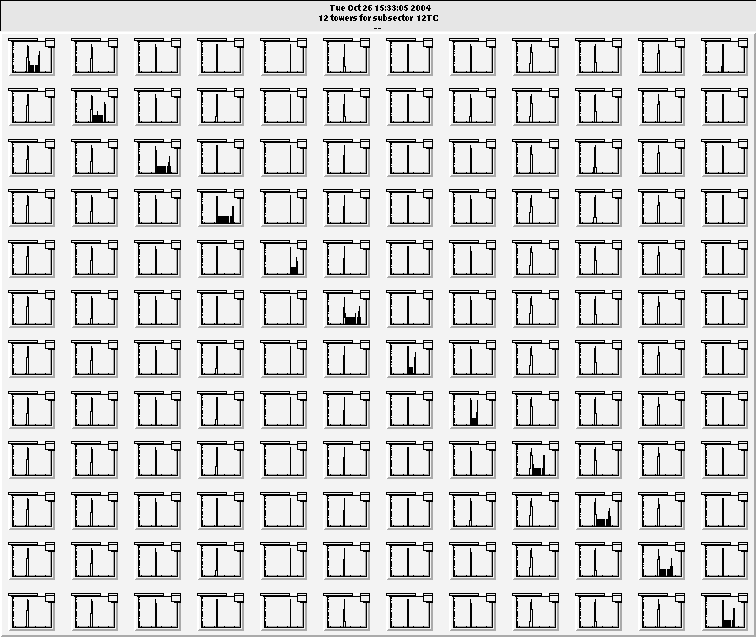

12TC | 12TC.gif | 12TC.ps.gz | all fine (12TC05 close up with only y log scale using 12TC 04 and 05 time slots) | |

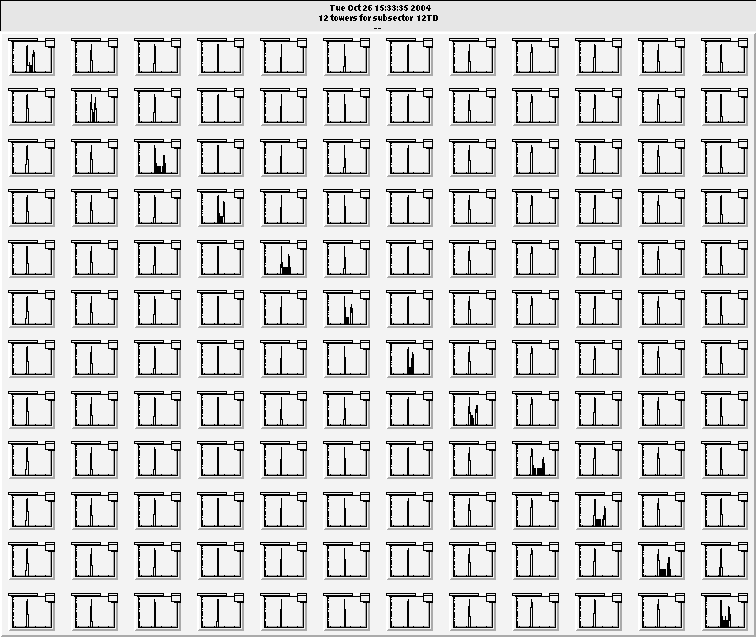

12TD | 12TD.gif | 12TD.ps.gz | all fine | |

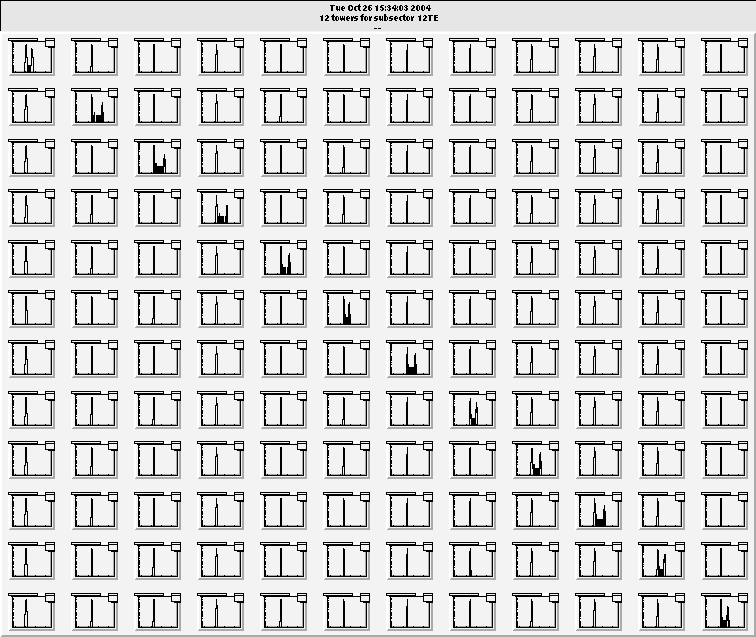

12TE | 12TE.gif | 12TE.ps.gz | all fine |
rcas6001:...scratch/bulling/log>grep "req HV/V= 850" log[ABC] | grep -v UNKNOWN | grep -v GOOD | sort -u |nl 1 logA:"01TA10" req HV/V= 850.0-->DAC=679 679<--meas b=0 cell= 94 stat=111 **BAD** 2 logA:"01TB03" req HV/V= 850.0-->DAC=679 679<--meas b=0 cell= 99 stat=111 **BAD** 3 logA:"02TA06" req HV/V= 850.0-->DAC=679 679<--meas b=1 cell= 32 stat=111 **BAD** 4 logA:"12TA08" req HV/V= 850.0-->DAC=679 679<--meas b=0 cell= 31 stat=111 **BAD** 5 logB:"05TA12" req HV/V= 850.0-->DAC=679 679<--meas b=0 cell= 25 stat=111 **BAD** 6 logB:"06TD10" req HV/V= 850.0-->DAC=679 679<--meas b=1 cell= 58 stat=111 **BAD** 7 logB:"07TB03" req HV/V= 850.0-->DAC=679 679<--meas b=1 cell= 99 stat=111 **BAD** 8 logC:"08TA07" req HV/V= 850.0-->DAC=679 679<--meas b=0 cell= 31 stat=111 **BAD** 9 logC:"09TE02" req HV/V= 850.0-->DAC=679 679<--meas b=1 cell= 14 stat=111 **BAD** 10 logC:"11TA02" req HV/V= 850.0-->DAC=679 -999<--meas b=1 cell= 86 stat=000 SET V NOT EQUAL READ V 11 logC:"11TA04" req HV/V= 850.0-->DAC=679 -999<--meas b=1 cell= 88 stat=000 SET V NOT EQUAL READ V 12 logC:"11TA06" req HV/V= 850.0-->DAC=679 -999<--meas b=1 cell= 90 stat=000 SET V NOT EQUAL READ V 13 logC:"11TA08" req HV/V= 850.0-->DAC=679 -999<--meas b=1 cell= 92 stat=000 SET V NOT EQUAL READ V 14 logC:"11TA10" req HV/V= 850.0-->DAC=679 -999<--meas b=1 cell= 94 stat=000 SET V NOT EQUAL READ V 15 logC:"11TA12" req HV/V= 850.0-->DAC=679 -999<--meas b=1 cell= 96 stat=000 SET V NOT EQUAL READ V
High Voltage and LED setup information.
Crate | pulse | Reads | data set, HVsys |
---|---|---|---|
1 | 12-1 | 11D-E*; 12A-E; 1A-C | A |
2 | 2-3 | 1D-E*; 2A-E; 3A-C | A |
3 | 4-5 | 3D-E*; 4A-E; 5A-C | B |
4 | 6-7 | 5D-E*; 6A-E; 7A-C | B |
5 | 8-9 | 7D-E*; 8A-E; 9A-C | C |
6 | 10-11 | 9D-E*; 10A-E; 11A-C | C |

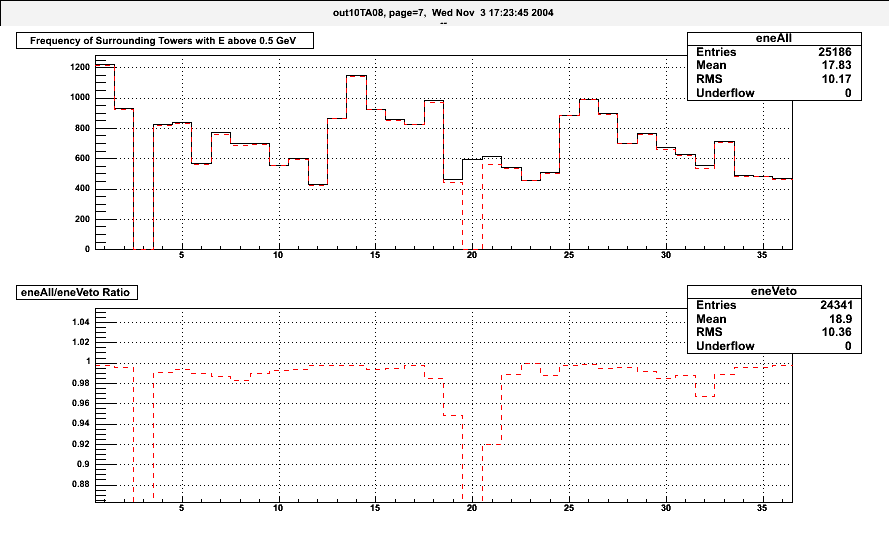

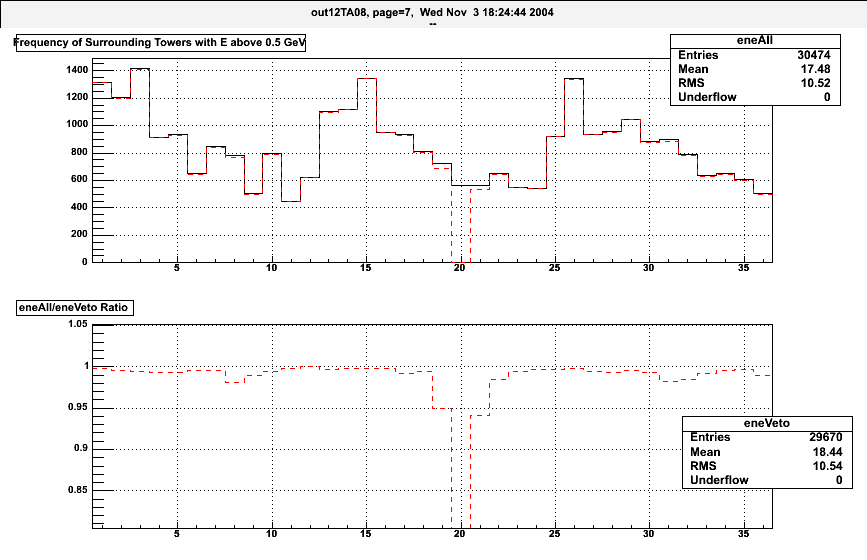

Select tower led response - using 345K events. The top plot show the frequency that a given tower had an energy above a threshold of 0.5 GeV (this is denoted by the black curve). Also for the top plot, the frequency of events for which the tower in question had an energy less than 0.5 GeV (this is denoted by the red dashed curve). The bottom plot shows the ratio of the red and black curves. There are four towers examined:

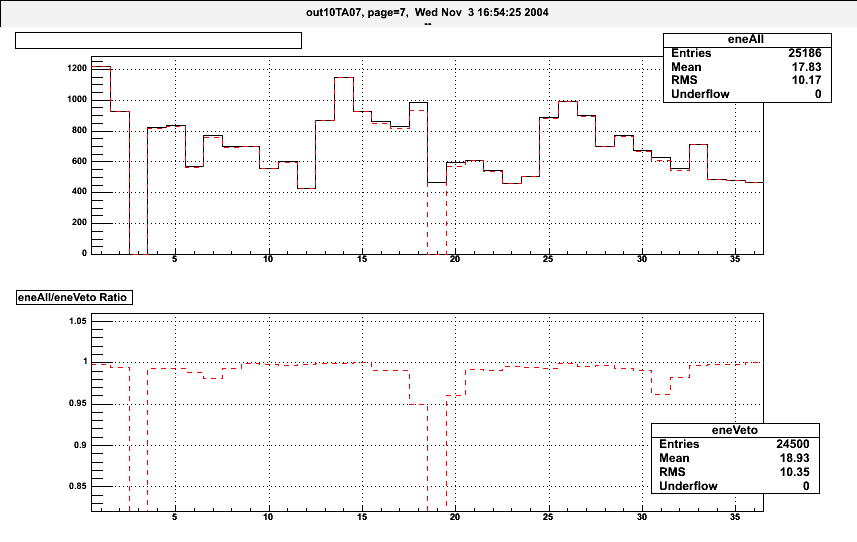

The x-axis covers three phi bins 09TE,10TA,and 10TB, where 1=09TE01, 13=10TA01, 25=10TB01...

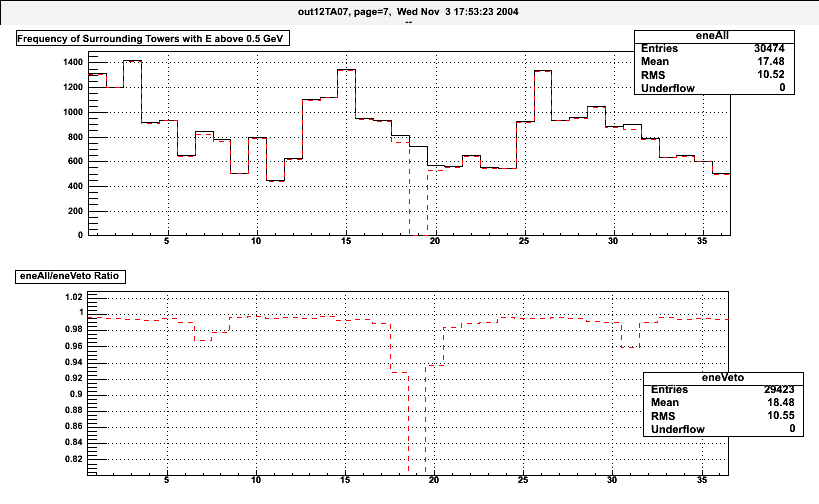

10TA07ledresponse.gifThe x-axis covers three phi bins 11TE,12TA,and 12TB, where 1=11TE01, 13=12TA01, 25=12TB01...
12TA07ledresponse.gifThe plots show that for each of the four towers above, the frequency of events decreases for surrounding towers for the case that the given tower had an energy below the threshold while all other towers had an energy above the threshold.Conclusion: the database was right for last year.
