10 GeV gammas were targeted at tower 06TA05. Intended to hit the center of the tower...

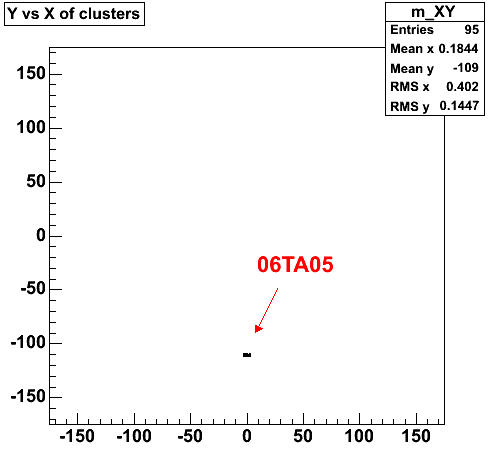

Figure 1 -- Reconstructed tower-only position
The "fzd" file was converted to MuDst, and analysed using the cluster finder. Seed threshold of 0.7 GeV, shape limit of 0.75. Approximately 95% of all gammas were found and accepted by the cluster finder.
The events reconstucted to a mean position in both SMD planes around strip number 82.

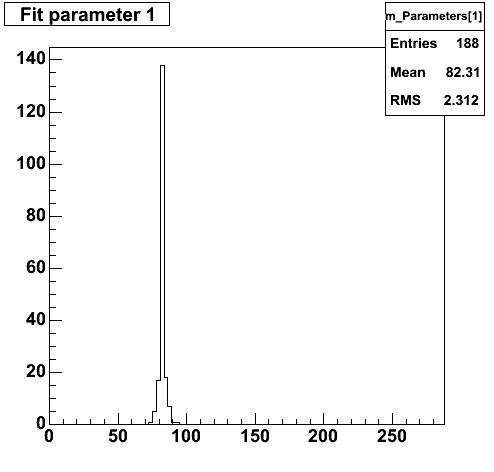

Figure 2 -- Mean smd U and V positions

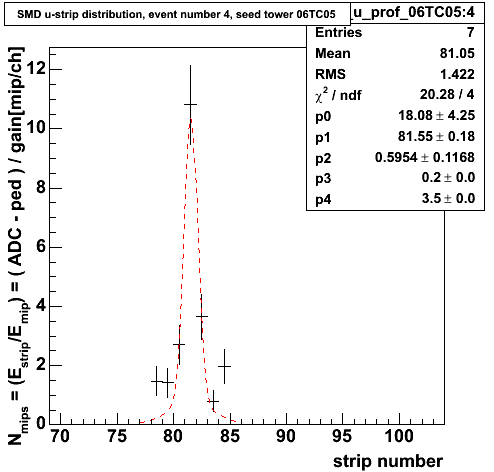

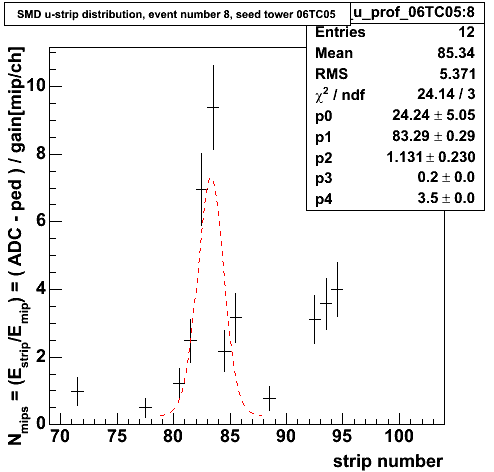

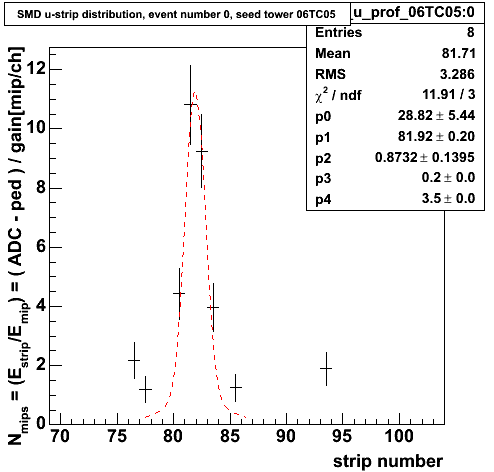

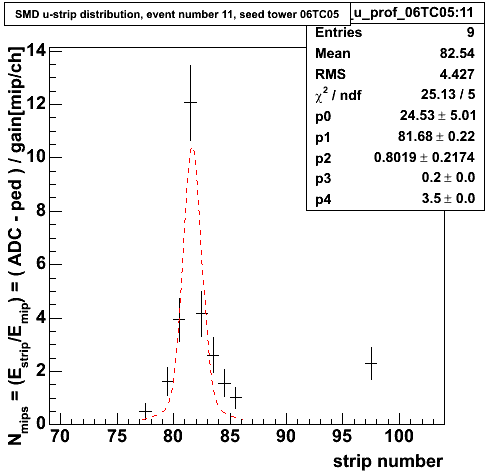

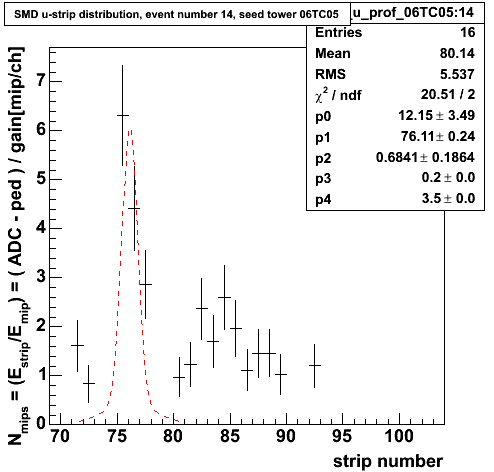

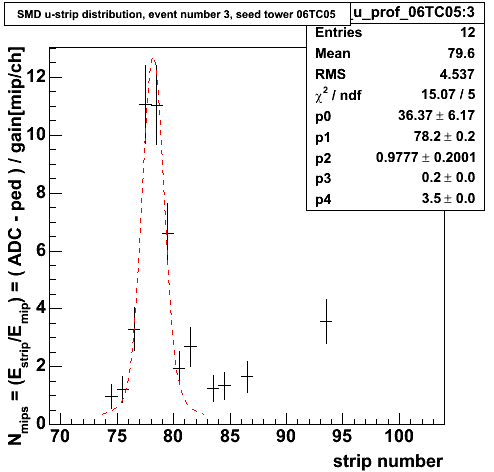

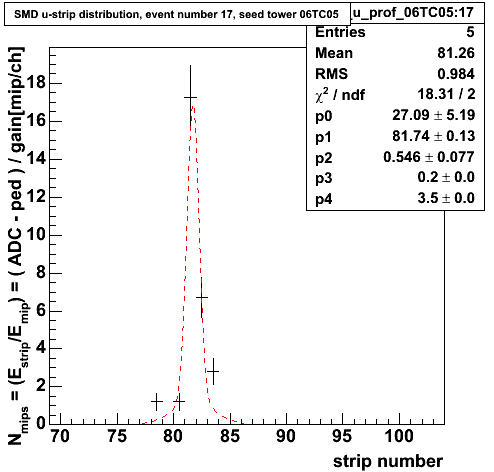

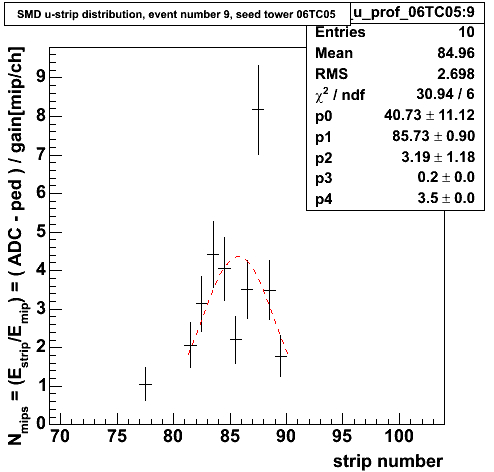

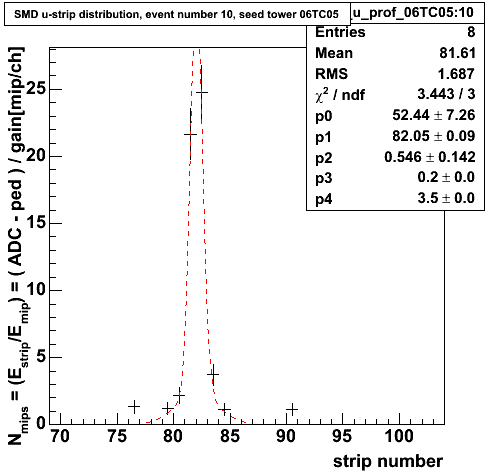

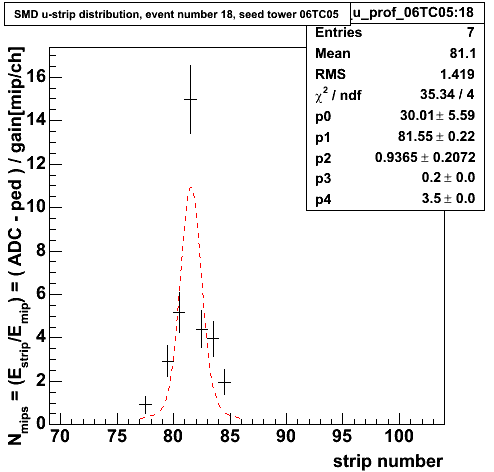

Below are 20 example fits to the SMD-U distributions.
