L2-ped algo QA plots

Jan Balewski, IUCF, 2006

Text Box: 11
Text Box: j-bins
 0-59/119
Text Box: 0
Text Box: j-bins

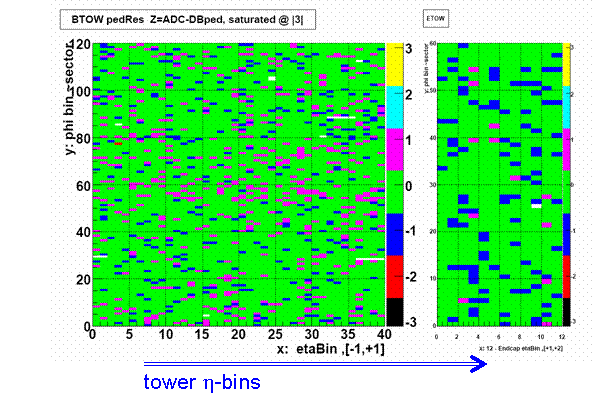

Eta-phi sorted pedestal residua,

 calculated based on MPV. Plot below saturates at |3|. Masked towers are in white.

Definition of X,Y axis are given below.

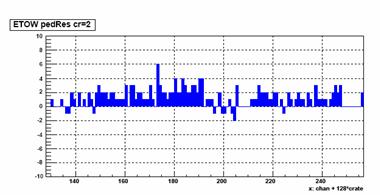

Crate sorted pedestal residua,

 Plot below does NOT saturates. Masked towers are set to zero.

 X axis labels hardware channel .

Text Box: Matched pedestals
Text Box: Unmatched pedestals
