Endcap Calorimeter Prototype

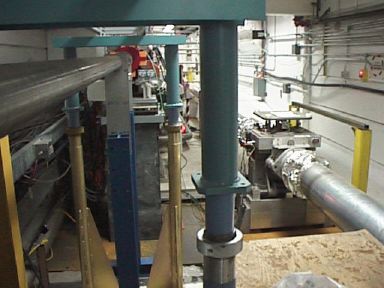

This is a view along the beam pipe looking upstream from the upstream drift space that will possibly be used for the T-438 test. There is approximately four feet of clearance on the beam left side to the nearest obstruction: the large pipe that is below beam height.

  Slide 9 of 12
