Trip =>  If any of the supermodule high voltage trips, it
will be shown red in colour.
To reset trip, please press “CLEAR
TRIP” button to bring the HV again of
the particular channel. This again can
be done in two ways :
(a) Indiviual button.
(b) Just press Physics/Pedestal buton
once again depending on the run state.

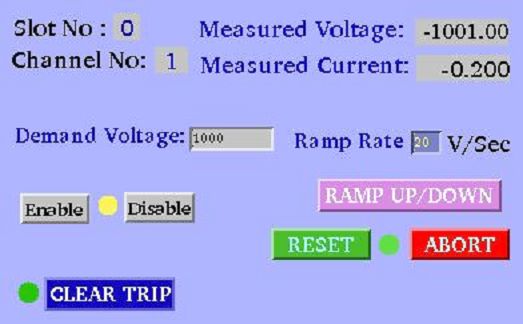

7. Incase you select the indiviual button the following window
will pop up :
8. In this case the following steps have to be followed :
(once again please adhere to these steps only)
Demand Voltage : Enter the required voltage in this
box first.
Ramp rate : The allowed ramp rate for vaious voltage
is as follows :
  Clear Trip
