STAR-SSD-Choice of wafers for assembly on ladders

	STAR SSD	- Choice of wafers for assembly on ladders
Results of sorting wafers with Algorithm_3

See explanation page for details on algorithm.

[Parameters] [Summary for ladders] [Details for each ladder] [Ladder constitution] [All wafers] [Not used wafers]

Parameters

Number of ladder batch to create: 7, (excluding ladder 0)
Number of wafers on one ladder batch: 53,
Qualities accepted : 1 2 3 6 ,
Minimal operating range is 15 volts.

Sort on 395 wafers,
wafers unproper for association (already on ladder/bad modules/wafer by Thales): 39 ( 16/ 13/ 10),
wafers associated by this algorithm: 349,
wafers not associated to any batch: 7.

Result: FAILED, ladder build: 19

For 1 ladder batch(es):

Ladder batch 7: 22 wafers missing

Some statistics on the built ladders:

Voltage domain minimal voltage Maximal voltage Leakage current Dead strips P Deadstrips N

min MEAN max min MEAN max min MEAN max min MEAN max min MEAN max min MEAN max

15 21 26 20 38 62 45 60 77 27.000 47.857 59.000 28 83 151 42 84 124

Voltage domain	minimal voltage	Maximal voltage	Leakage current	Dead strips P	Deadstrips N
min	MEAN	max	min	MEAN	max	min	MEAN	max	min	MEAN	max	min	MEAN	max	min	MEAN	max
15	21	26	20	38	62	45	60	77	27.000	47.857	59.000	28	83	151	42	84	124

Summary for ladders

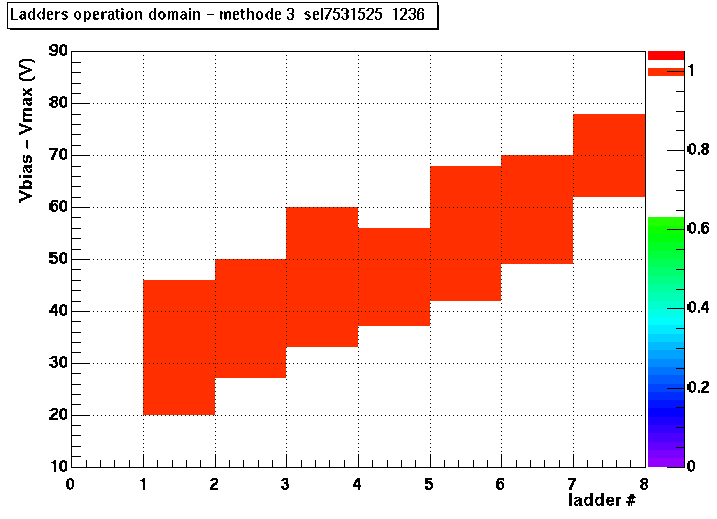

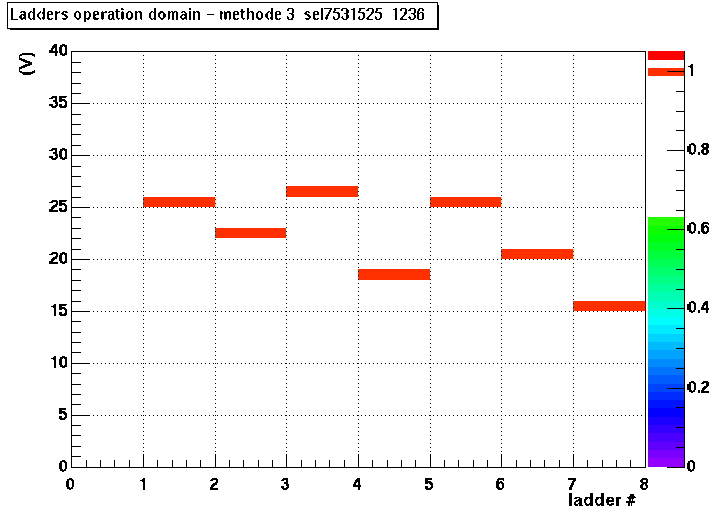

Ladders Vmin - Vmax Ladders domain

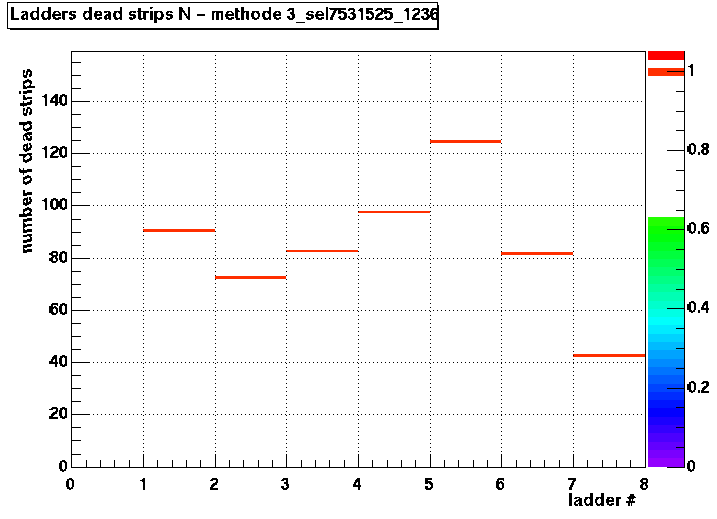

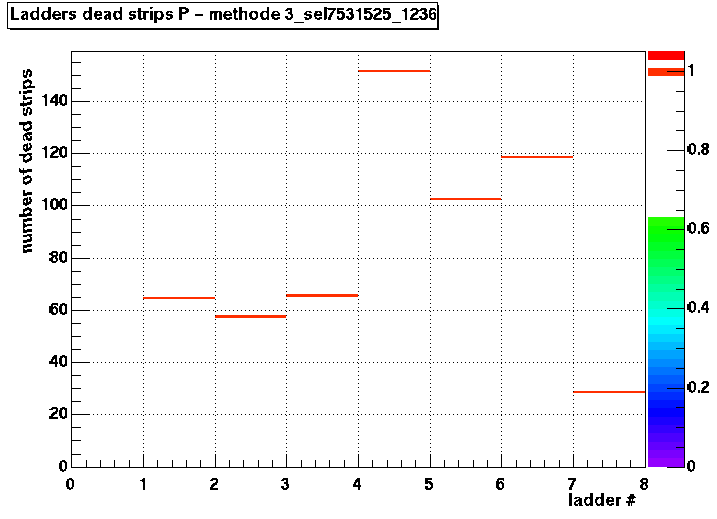

Ladders dead P channels Ladders dead N channels

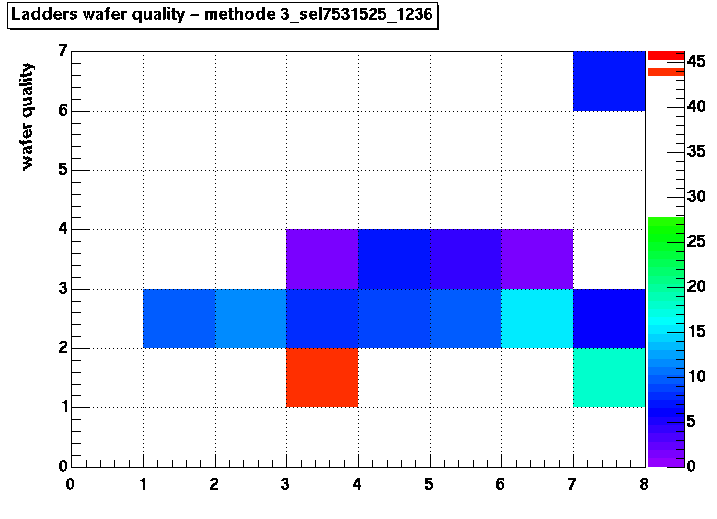

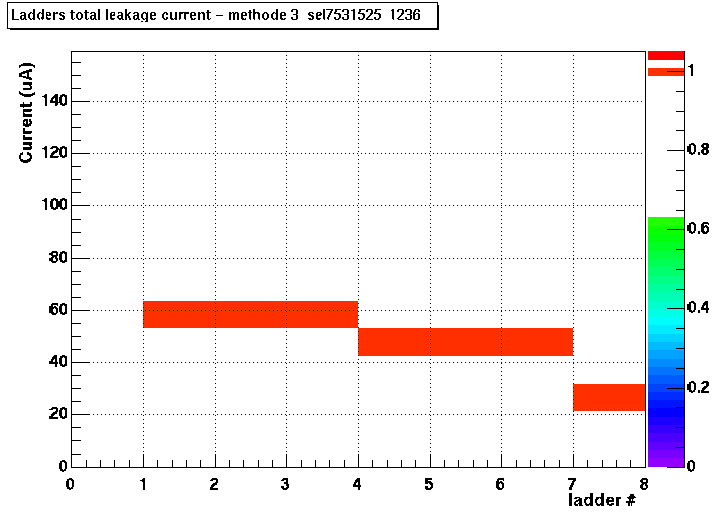

Ladders leakage current Ladders wafers quality

Detail for each ladder

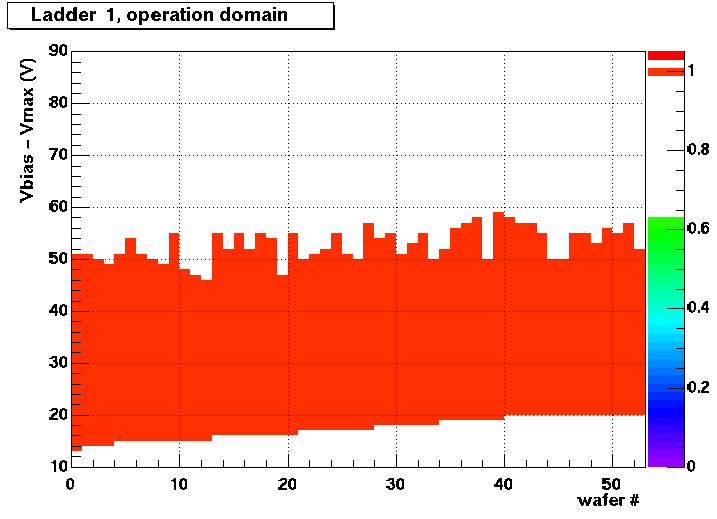

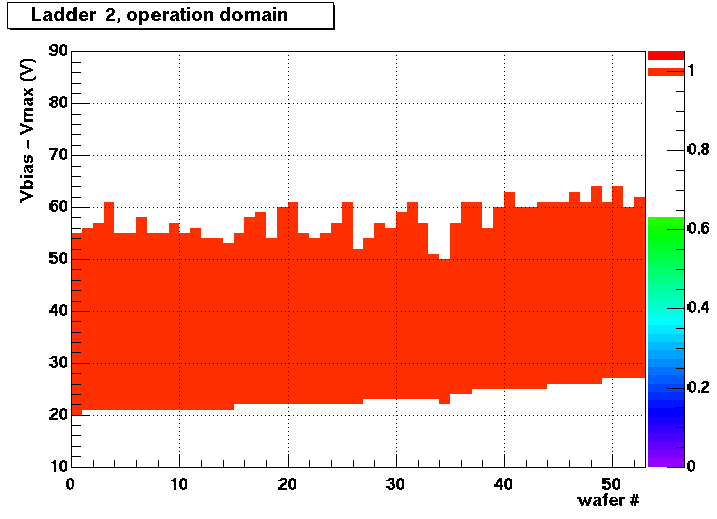

Ladder 1 Operation Domain Ladder 2 Operation Domain

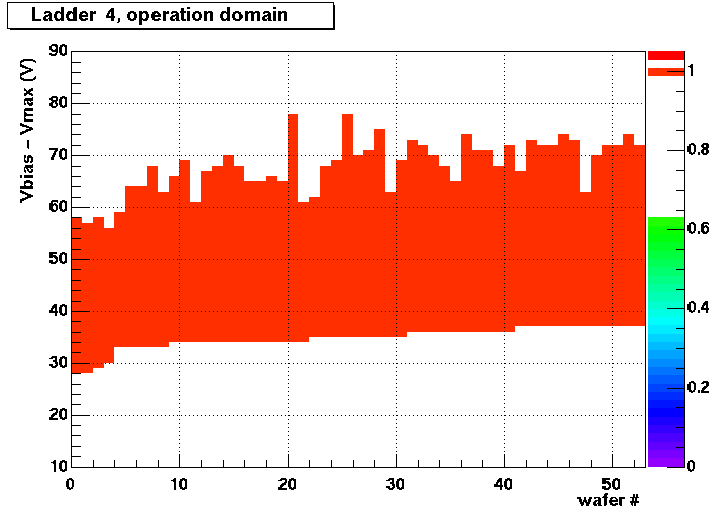

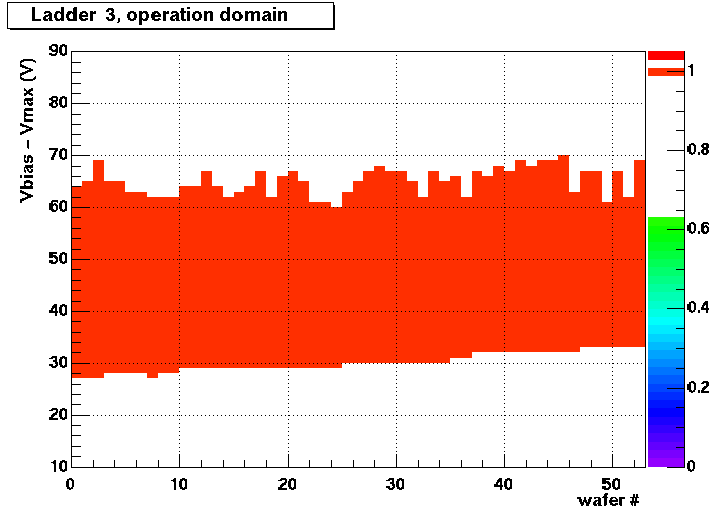

Ladder 3 Operation Domain Ladder 4 Operation Domain

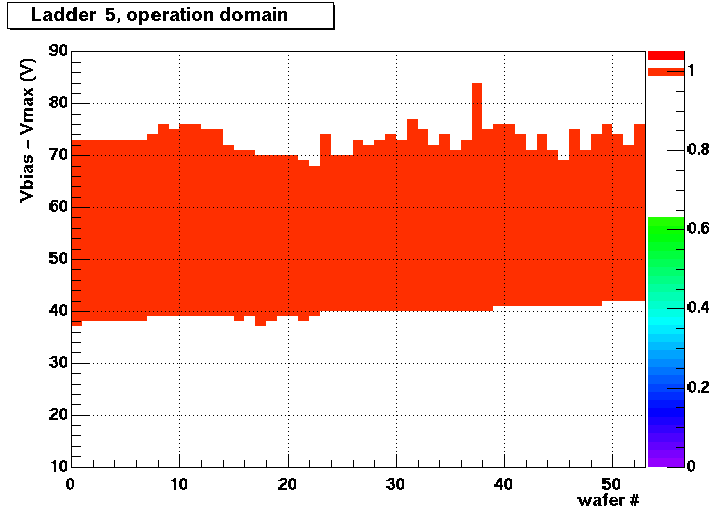

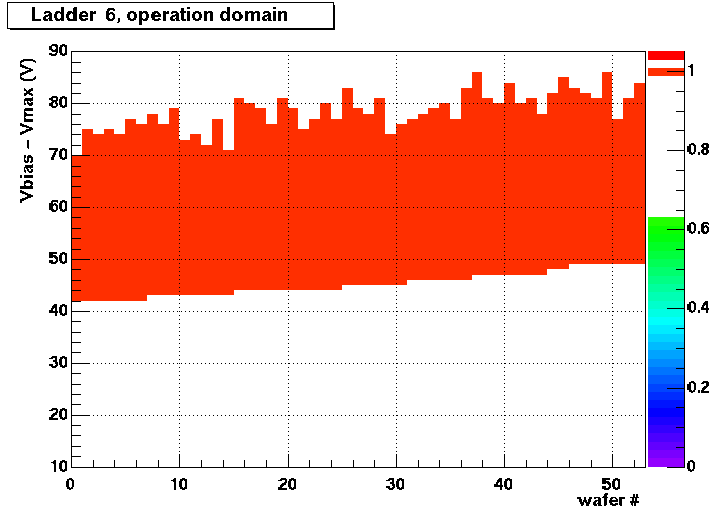

Ladder 5 Operation Domain Ladder 6 Operation Domain

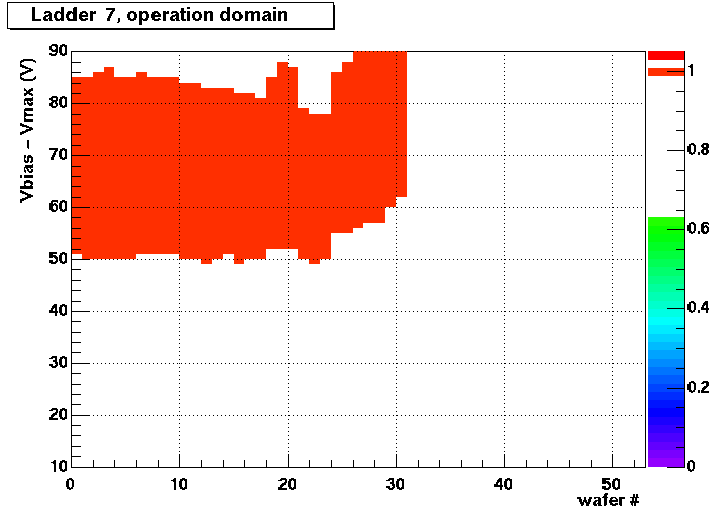

Ladder 7 Operation Domain

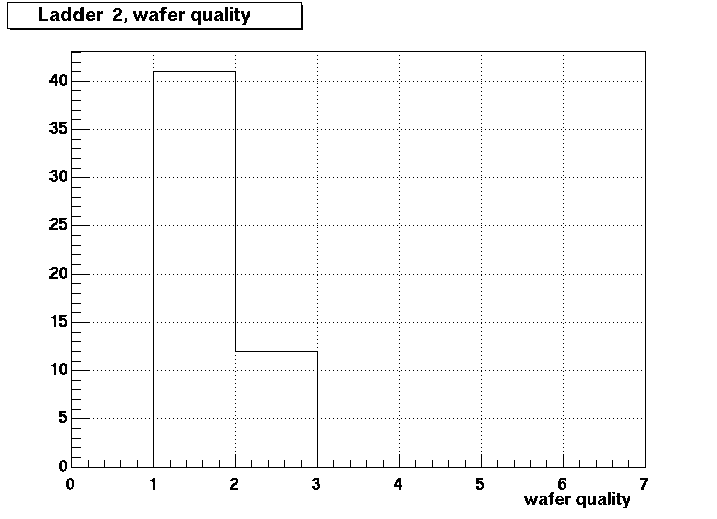

Ladder 1 wafer quality Ladder 2 wafer quality

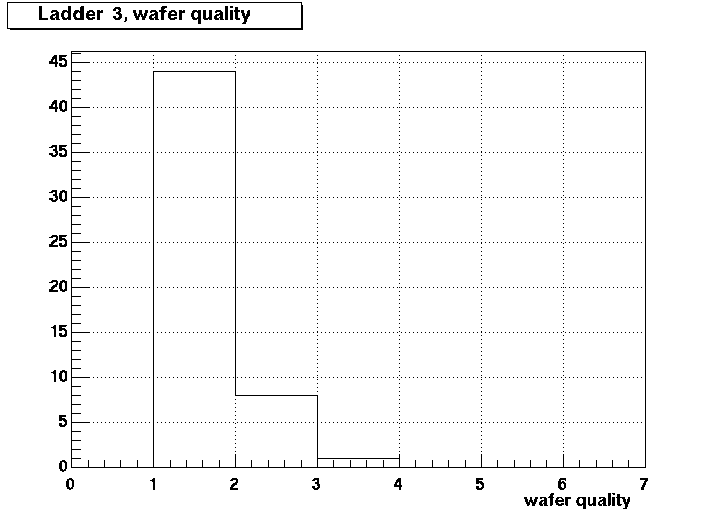

Ladder 3 wafer quality Ladder 4 wafer quality

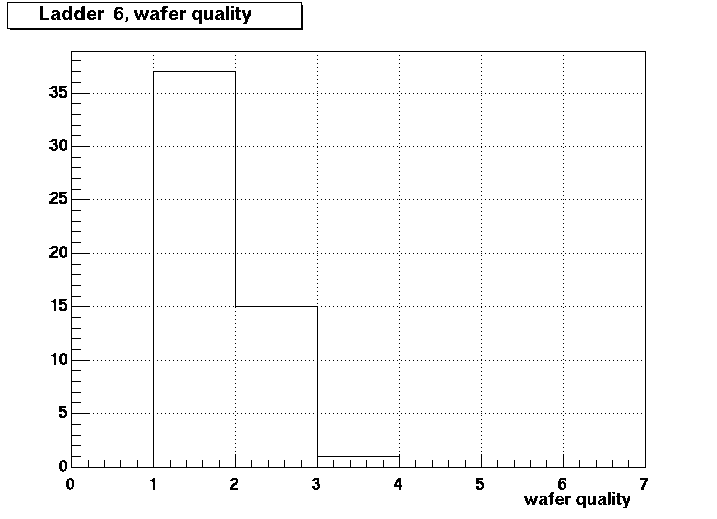

Ladder 5 wafer quality Ladder 6 wafer quality

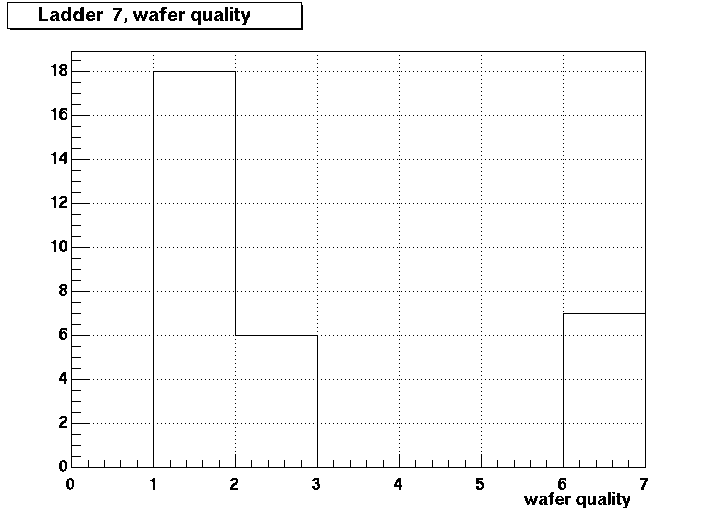

Ladder 7 wafer quality

Ladders consitution

Color code: quality 1, quality 2, quality 3, quality 4, quality 6, others

ladder	wafers	operation domain V	minimum V	maximum V	I total uA	# deads P	# deads N
					number /(NwafersPerLadder/16)
Ladder 1	star_083, star_102, star_109, star_278, star_100, star_201, star_271, star_274, star_300, star_284, star_079, star_081, star_082, star_200, star_298, star_330, star_080, star_287, star_276, star_145, star_090, star_034, star_279, star_087, star_289, star_291, star_101, star_019, star_301, star_290, star_292, star_084, star_288, star_014, star_007, star_157, star_152, star_035, star_010, star_299, star_153, star_304, star_305, star_088, star_089, star_110, star_041, star_021, star_085, star_017, star_003, star_002, star_008,	25	20	45	17	19	27
Ladder 2	star_006, star_293, star_043, star_048, star_203, star_044, star_326, star_004, star_140, star_285, star_272, star_286, star_023, star_068, star_037, star_282, star_439, star_142, star_143, star_099, star_302, star_440, star_283, star_011, star_303, star_020, star_134, star_047, star_209, star_138, star_060, star_141, star_406, star_049, star_321, star_217, star_220, star_061, star_064, star_178, star_294, star_104, star_005, star_144, star_033, star_154, star_277, star_324, star_013, star_094, star_151, star_162, star_148,	22	27	49	16	17	21
Ladder 3	star_092, star_025, star_022, star_024, star_063, star_239, star_027, star_306, star_307, star_317, star_070, star_071, star_311, star_312, star_077, star_036, star_159, star_028, star_065, star_067, star_062, star_069, star_150, star_249, star_091, star_040, star_030, star_074, star_296, star_297, star_075, star_039, star_415, star_438, star_256, star_029, star_032, star_038, star_414, star_434, star_204, star_320, star_127, star_322, star_076, star_310, star_055, star_323, star_056, star_054, star_391, star_263, star_072,	26	33	59	16	19	24
Ladder 4	star_009, star_258, star_066, star_418, star_422, star_031, star_437, star_430, star_379, star_314, star_219, star_416, star_146, star_231, star_390, star_308, star_218, star_266, star_338, star_224, star_371, star_376, star_260, star_386, star_427, star_327, star_401, star_417, star_355, star_412, star_052, star_365, star_369, star_172, star_183, star_387, star_264, star_255, star_397, star_358, star_163, star_222, star_424, star_149, star_133, star_118, star_419, star_421, star_426, star_420, star_058, star_378, star_114,	18	37	55	14	45	29
Ladder 5	star_053, star_385, star_362, star_057, star_269, star_206, star_360, star_187, star_051, star_259, star_388, star_241, star_267, star_344, star_261, star_179, star_361, star_147, star_432, star_433, star_113, star_435, star_123, star_207, star_366, star_335, star_368, star_364, star_247, star_121, star_265, star_373, star_353, star_180, star_120, star_395, star_116, star_240, star_375, star_367, star_170, star_234, star_339, star_175, star_250, star_408, star_119, star_171, star_194, star_334, star_343, star_383, star_428,	25	42	67	14	30	37
Ladder 6	star_363, star_262, star_268, star_122, star_342, star_226, star_384, star_352, star_130, star_374, star_211, star_389, star_347, star_213, star_235, star_128, star_228, star_229, star_357, star_336, star_223, star_216, star_188, star_431, star_182, star_409, star_238, star_337, star_270, star_210, star_230, star_198, star_165, star_309, star_392, star_400, star_243, star_117, star_382, star_425, star_215, star_354, star_174, star_254, star_423, star_407, star_166, star_348, star_236, star_225, star_173, star_232, star_202,	20	49	69	13	35	24
Ladder 7	star_244, star_197, star_208, star_190, star_341, star_169, star_126, star_158, star_248, star_316, star_345, star_331, star_164, star_246, star_346, star_167, star_196, star_129, star_195, star_233, star_191, star_333, star_176, star_380, star_245, star_253, star_124, star_125, star_135, star_199, star_205, 22 wafers missing !	15	62	77	13	14	21

All wafers at the beginning

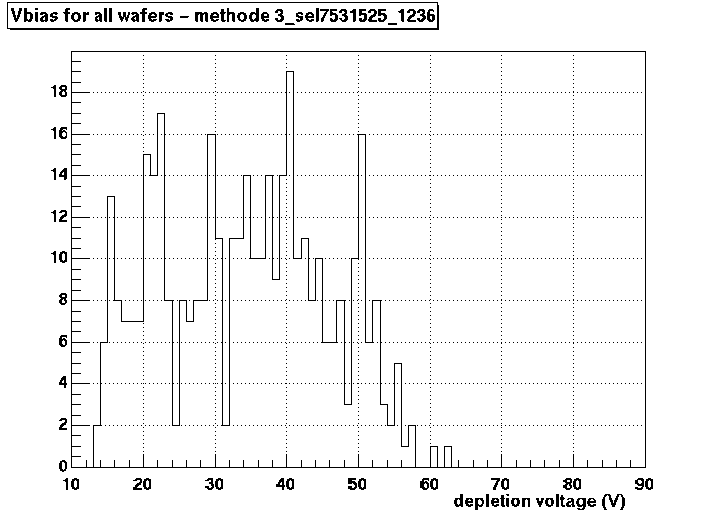

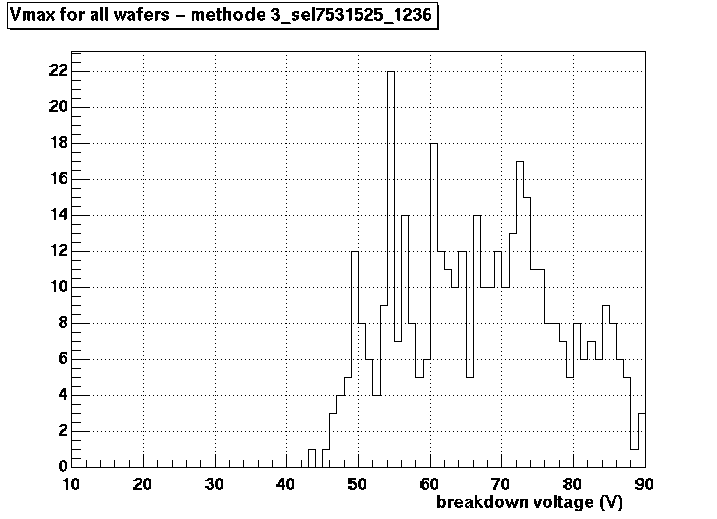

Depletion voltage Breakdown voltage

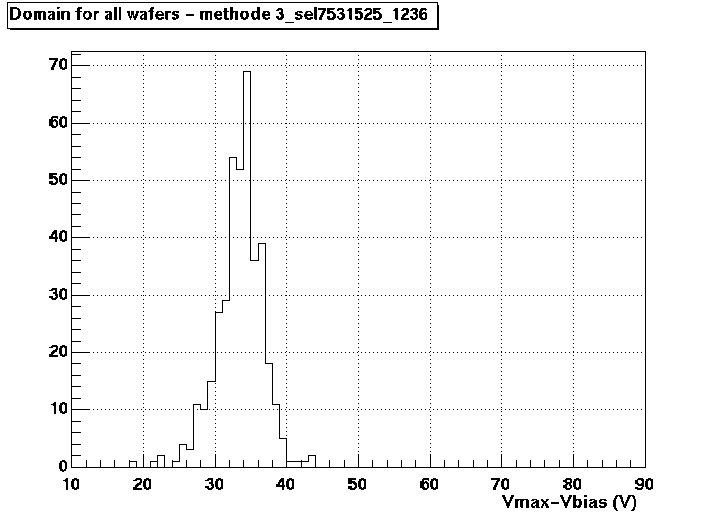

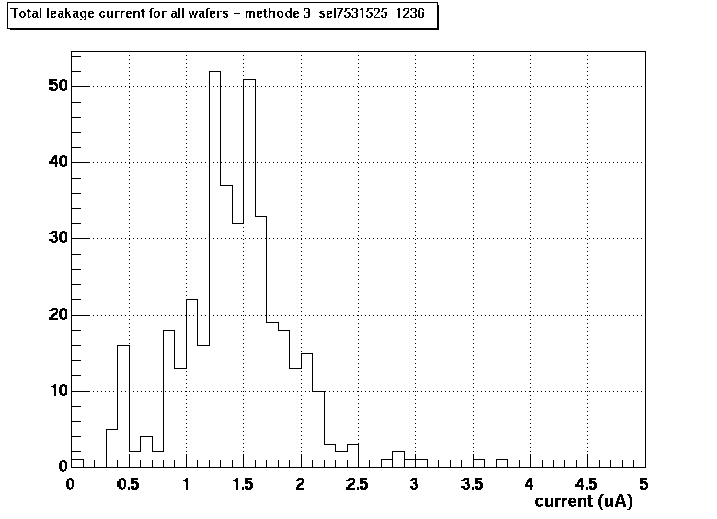

Voltage domain Total leakage current

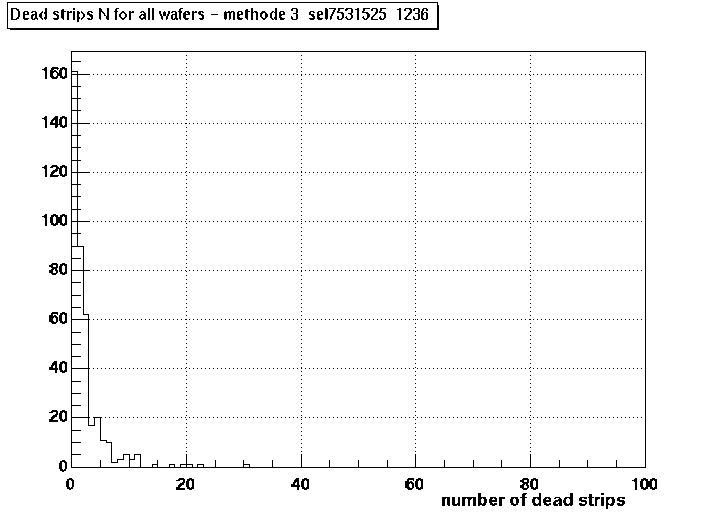

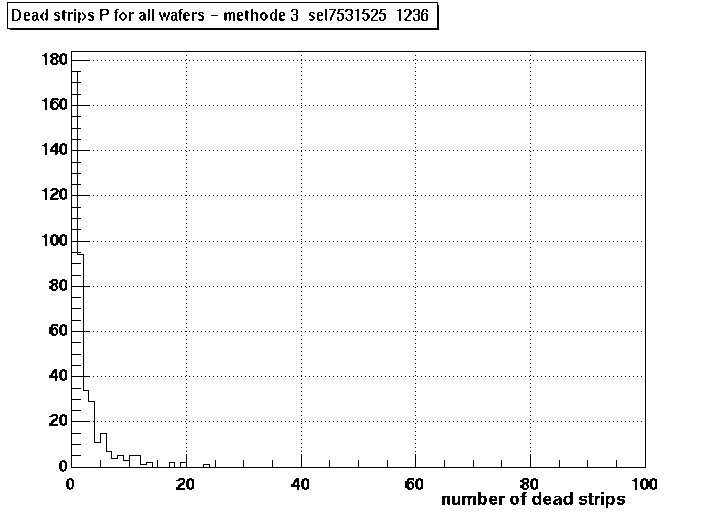

Dead strips P side Dead strips N side

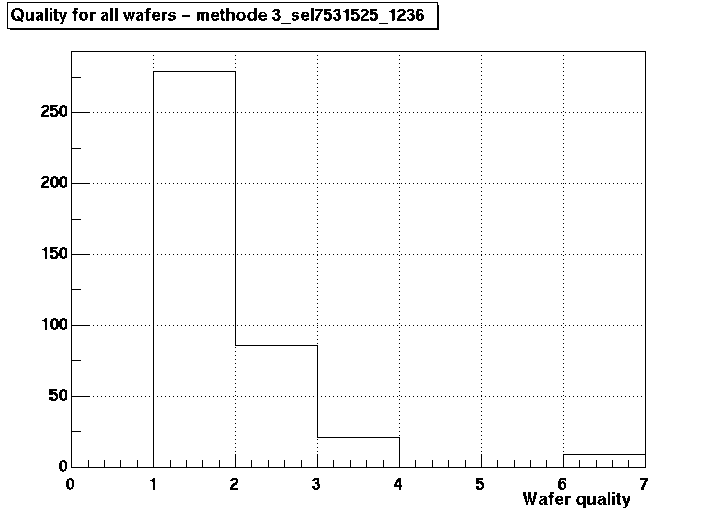

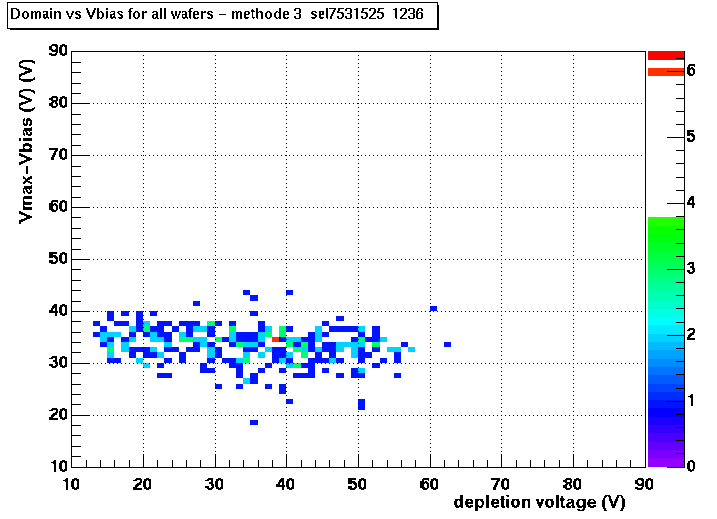

Depletion voltage vs Domain Wafer quality

Not used wafers

name Vbias (V) Vmax (V) Itot (uA) Domain (V) # dead P # dead N Quality could go on ladders
(old->new domain)

star_095 34 43 1.95 9 7 0 2

star_313 35 53 1.97 18 0 0 1 3(26->18 V) 4(18->16 V)

star_136 40 49 1.43 9 5 2 2

star_257 39 64 1.24 25 1 0 1 3(26->20 V) 4(18->16 V) 5(25->22 V) 6(20->15 V)

star_396 39 63 1.64 24 1 4 2 3(26->20 V) 4(18->16 V) 5(25->21 V)

star_399 40 62 2.81 22 4 3 2 3(26->19 V) 4(18->15 V) 5(25->20 V)

star_441 40 72 0.41 32 0 0 1 3(26->19 V) 4(18->15 V) 5(25->25 V) 6(20->20 V)

name	Vbias (V)	Vmax (V)	Itot (uA)	Domain (V)	# dead P	# dead N	Quality	could go on ladders (old->new domain)
star_095	34	43	1.95	9	7	0	2
star_313	35	53	1.97	18	0	0	1	3(26->18 V) 4(18->16 V)
star_136	40	49	1.43	9	5	2	2
star_257	39	64	1.24	25	1	0	1	3(26->20 V) 4(18->16 V) 5(25->22 V) 6(20->15 V)
star_396	39	63	1.64	24	1	4	2	3(26->20 V) 4(18->16 V) 5(25->21 V)
star_399	40	62	2.81	22	4	3	2	3(26->19 V) 4(18->15 V) 5(25->20 V)
star_441	40	72	0.41	32	0	0	1	3(26->19 V) 4(18->15 V) 5(25->25 V) 6(20->20 V)

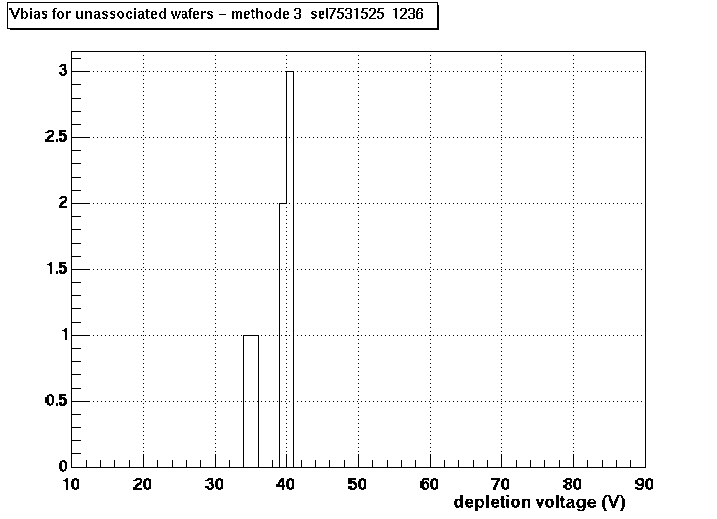

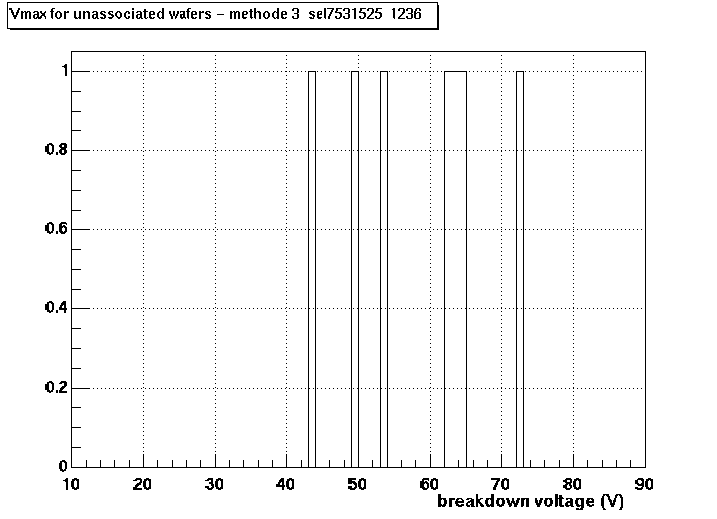

Depletion voltage Breakdown voltage

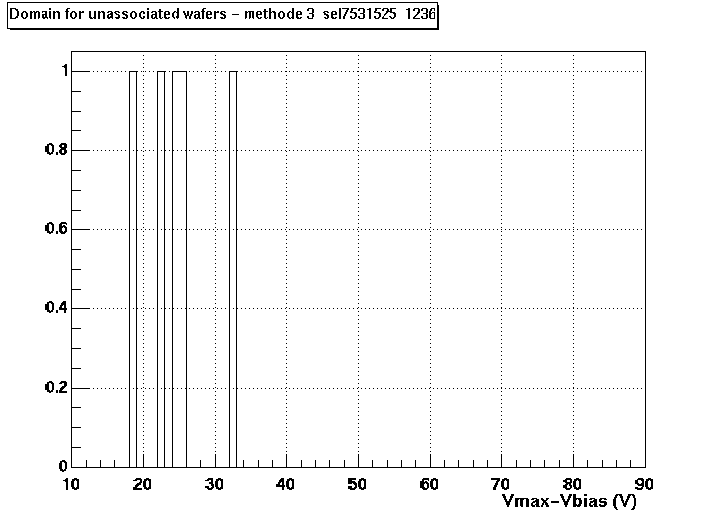

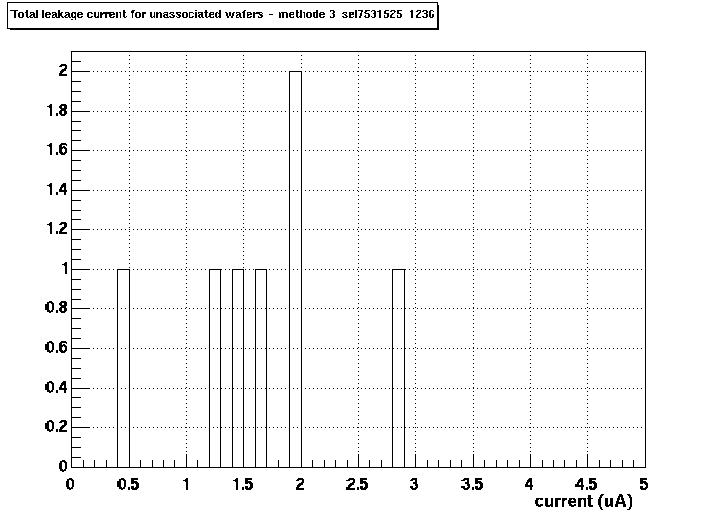

Voltage domain Total leakage current

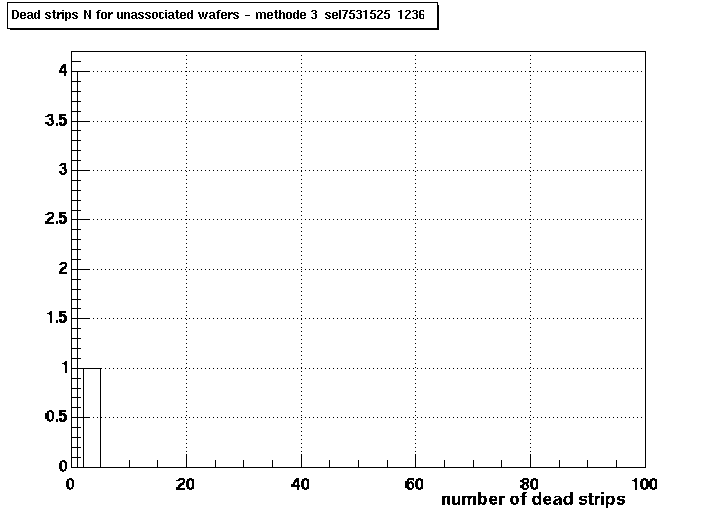

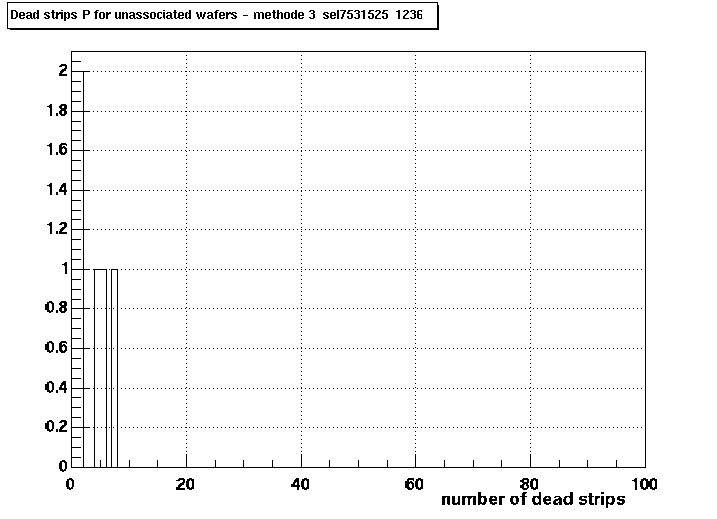

Dead strips P side Dead strips N side

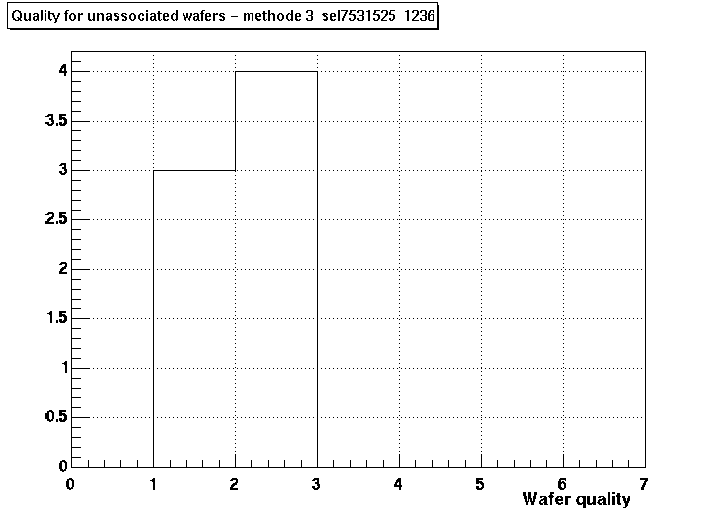

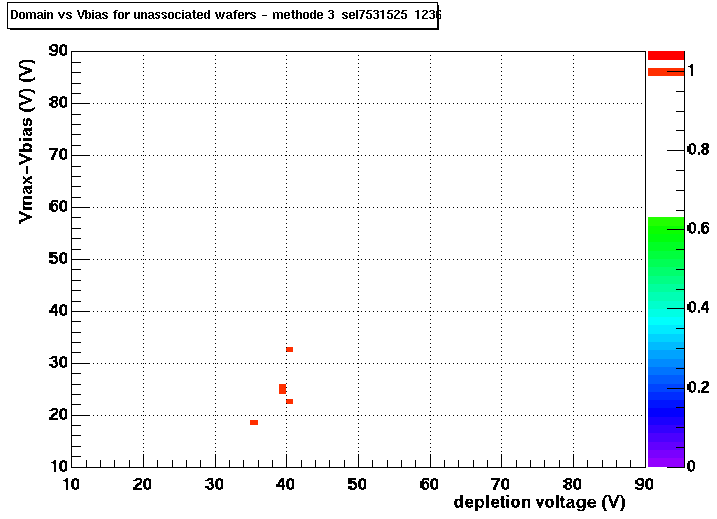

Depletion voltage vs Domain Wafer quality
