STAR SSD

- Choice of wafers for assembly on ladders

Results of sorting wafers with Algorithm_1

[Parameters] [Summary for ladders] [Details for each ladder] [Ladder constitution]

Parameters

Weight for depletion voltage = 1, operating range =15 , leakage current = 1, dead strips = 1.
Minimal operating range is 10 volts.

Summary for ladders

Ladders Vmin - Vmax Ladders domain
Ladders dead P channels Ladders dead N channels
Ladders leakage current

Detail for each ladder

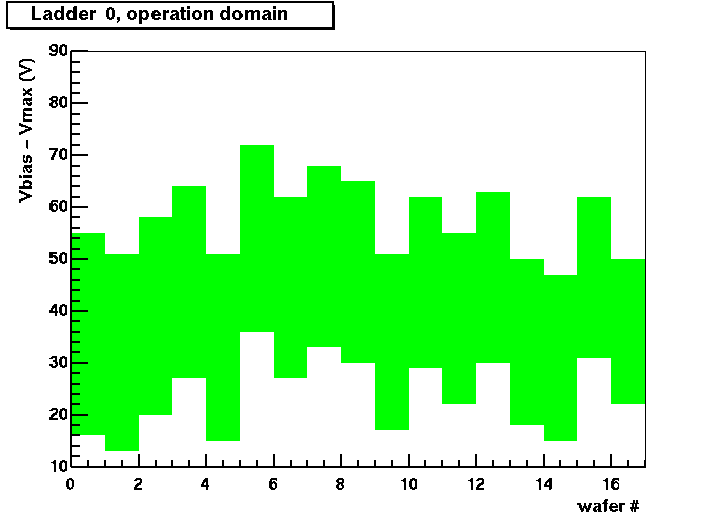

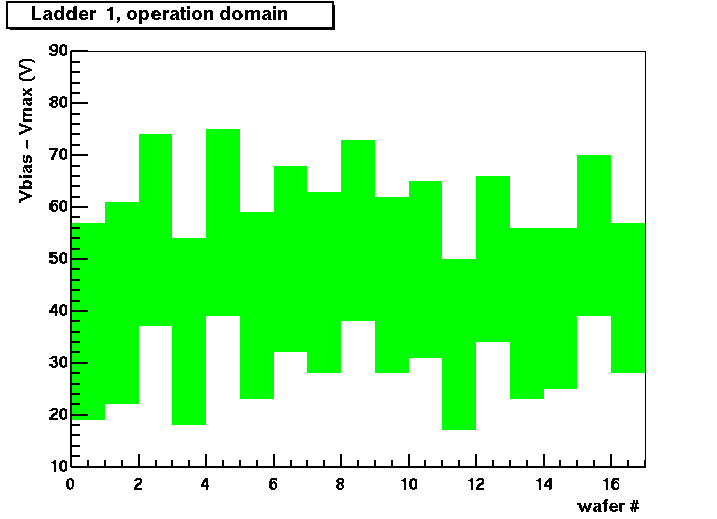

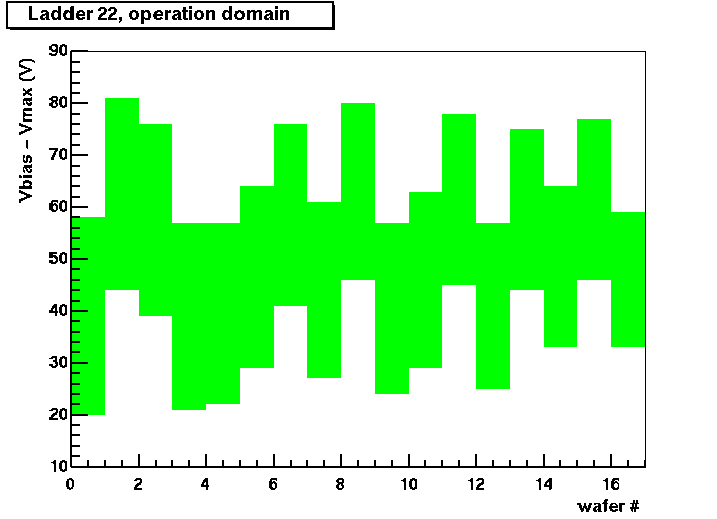

Ladder 0 ladder 1

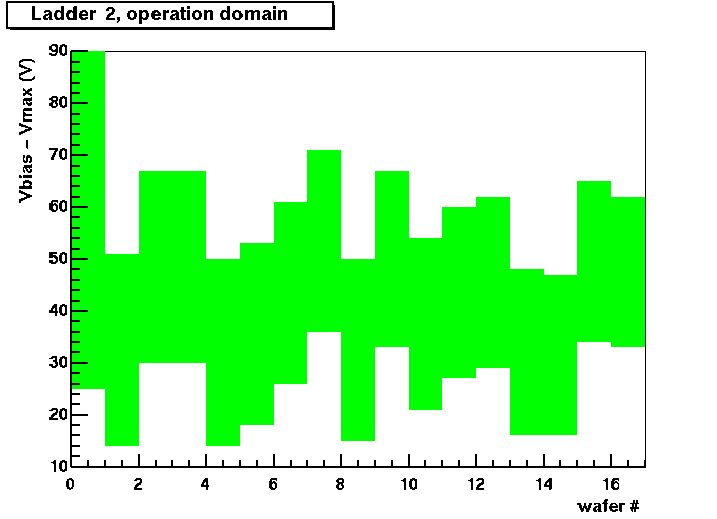

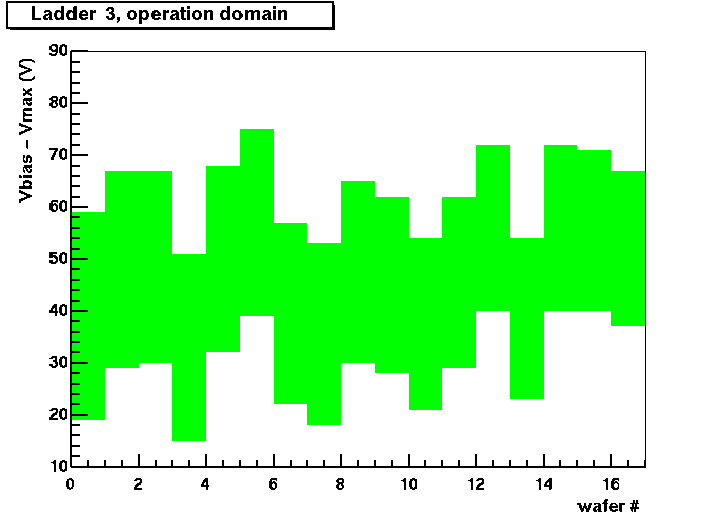

ladder 2 Ladder 3

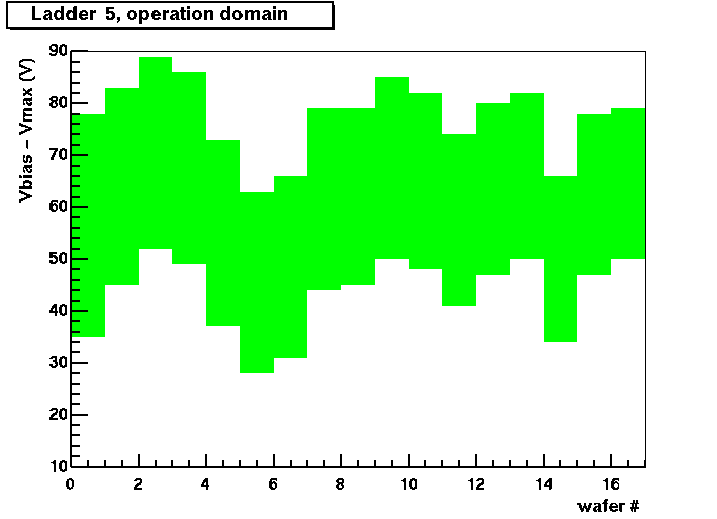

Ladder 4 Ladder 5

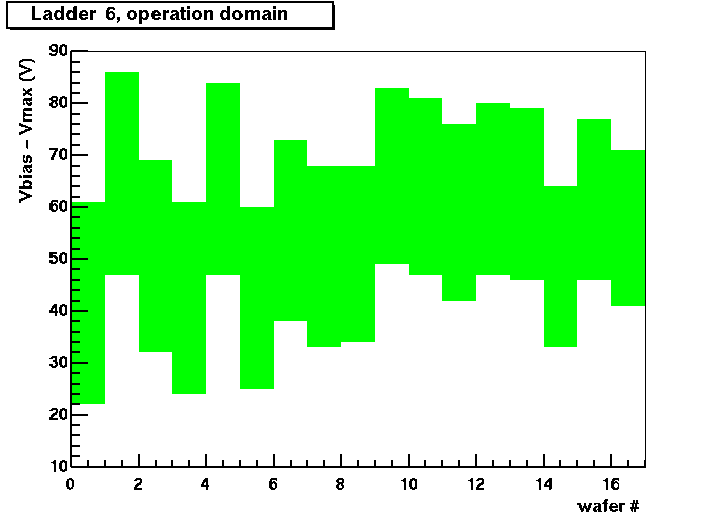

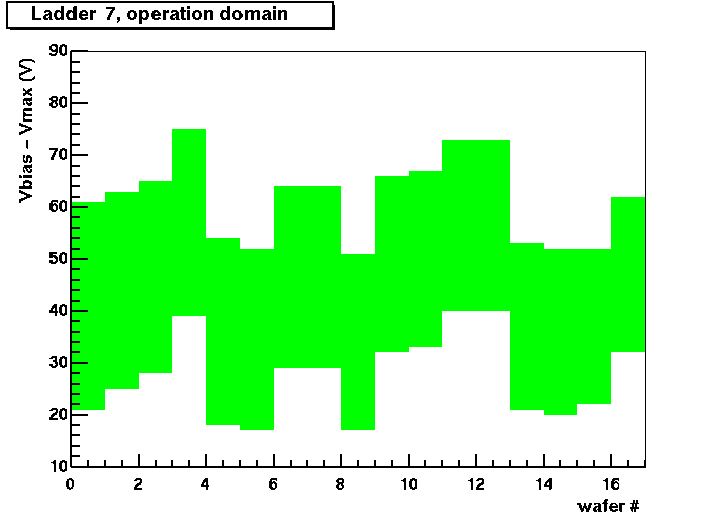

Ladder 6 Ladder 7

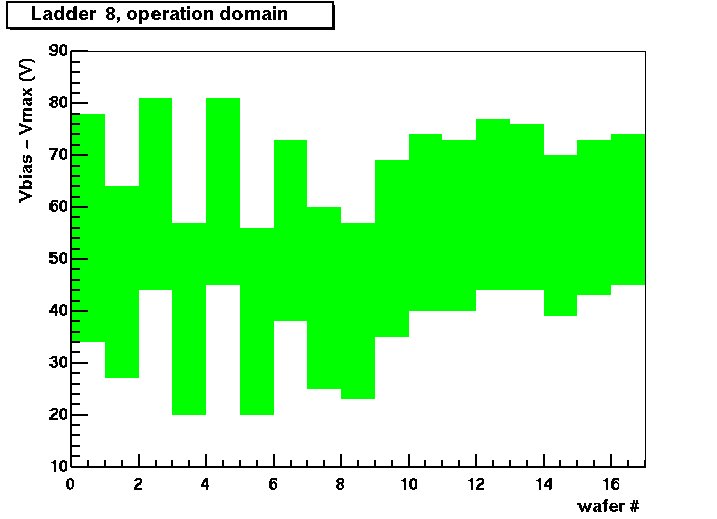

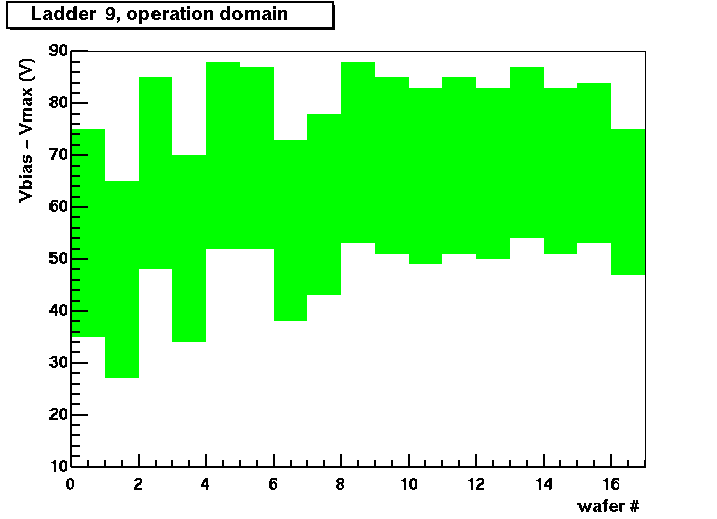

Ladder 8 Ladder 9

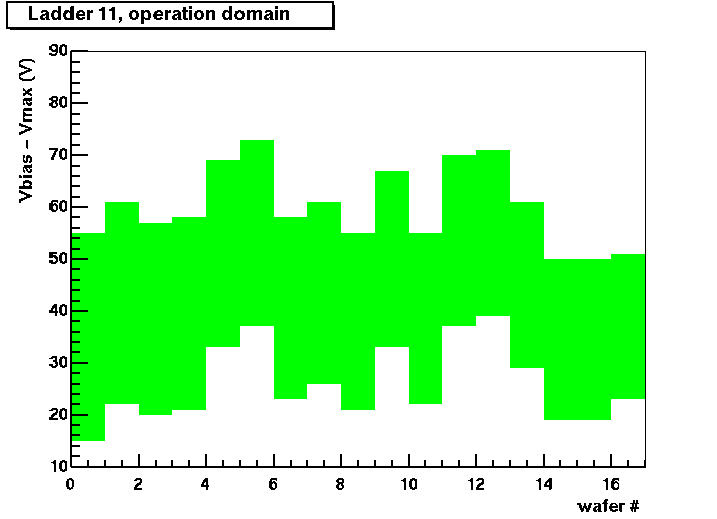

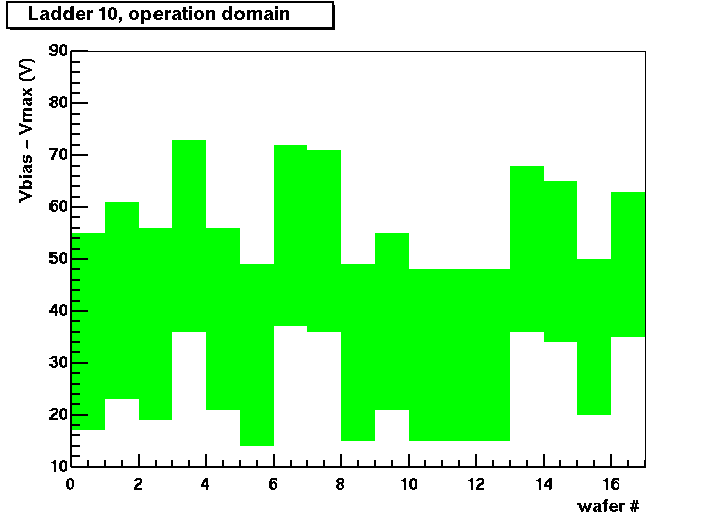

Ladder 10 Ladder 11

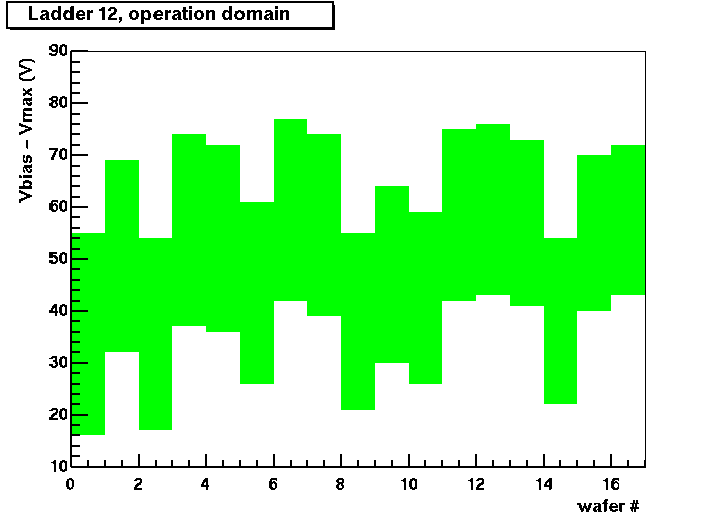

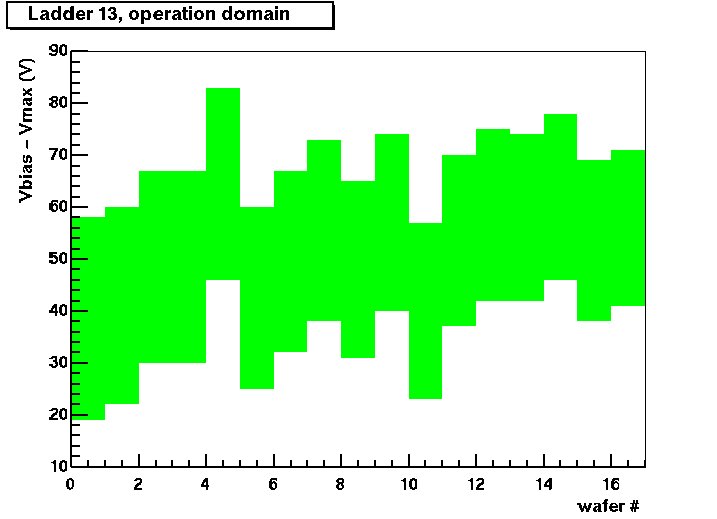

Ladder 12 Ladder 13

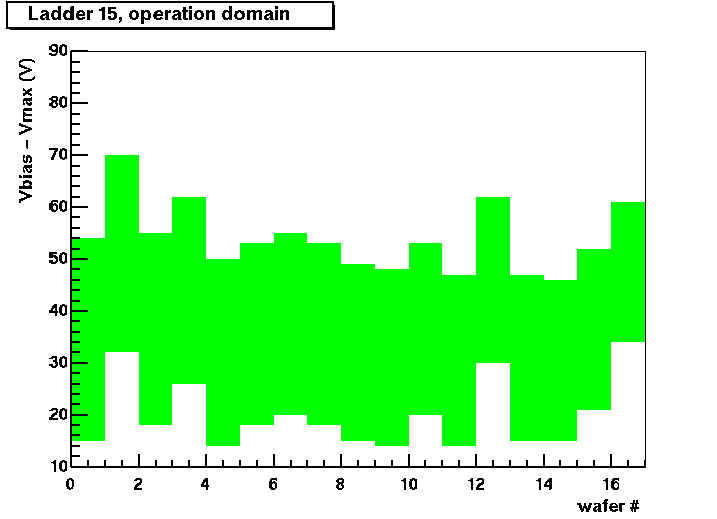

Ladder 14 Ladder 15

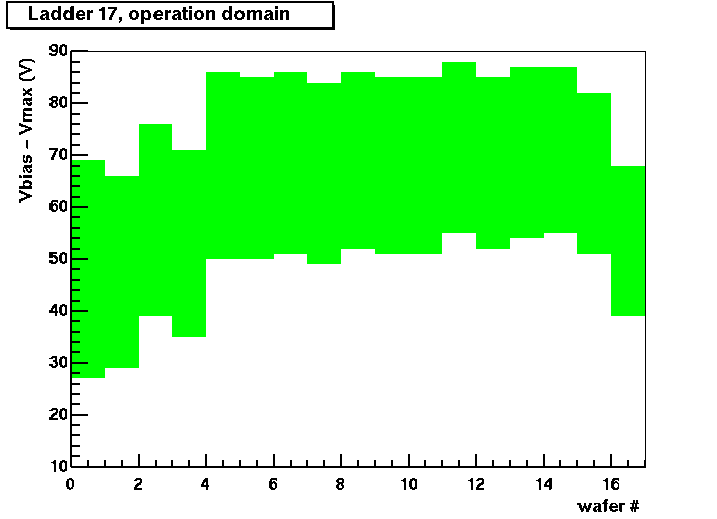

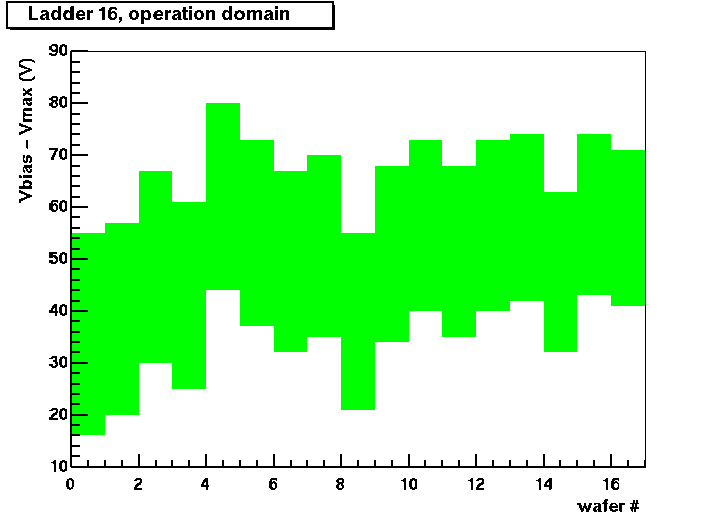

Ladder 16 Ladder 17

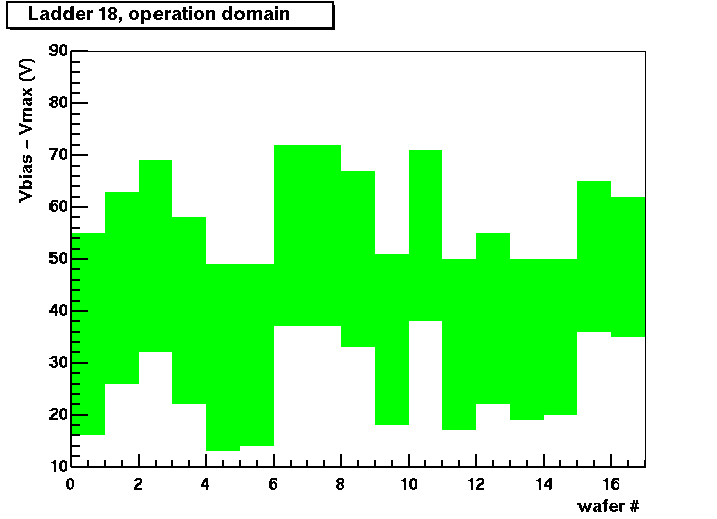

Ladder 18 Ladder 19

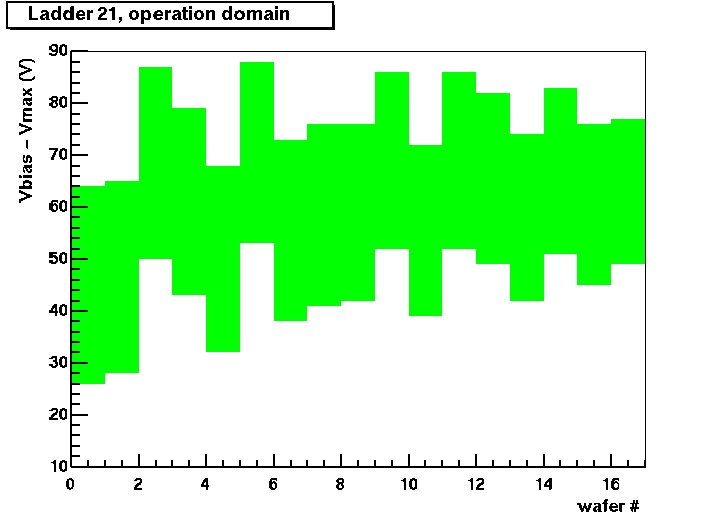

Ladder 20 Ladder 21
Ladder 22

Ladders consitution
