Integrated fluxes and radiation doses in Run XV.

Geometry.

1. Geometry star y2015 : Y cut and R cut.

Data sample:

1. pp 200 GeV, pythia.
2. pAu 200 GeV, hijing.
3. pAl 200 GeV, hijing.

Normalization

The plots are normalized on total no. of inelastic events delivered. Integrated luminosity and estimated inelastic cross sections (σ) for pAu 200 GeV and pAl 200 GeV provided by J.Dunlop.

• pp 200: σ = 45 mb, L_I = 180 pb^-1 → 8.1e12 events.
• pAu 200: σ = 1.5 b, L_I = 620 nb^-1 → 0.93e12 events.
• pAl 200: σ = 0.35 b, L_I = 1.95 pb^-1 → 0.68e12 events.

Legend

• All plots have an associated root files with canvas and can be downloaded by clicking on picture. The canvas can be redrawn in root and any number can be obtained from the canvas via Options → Status Bar.

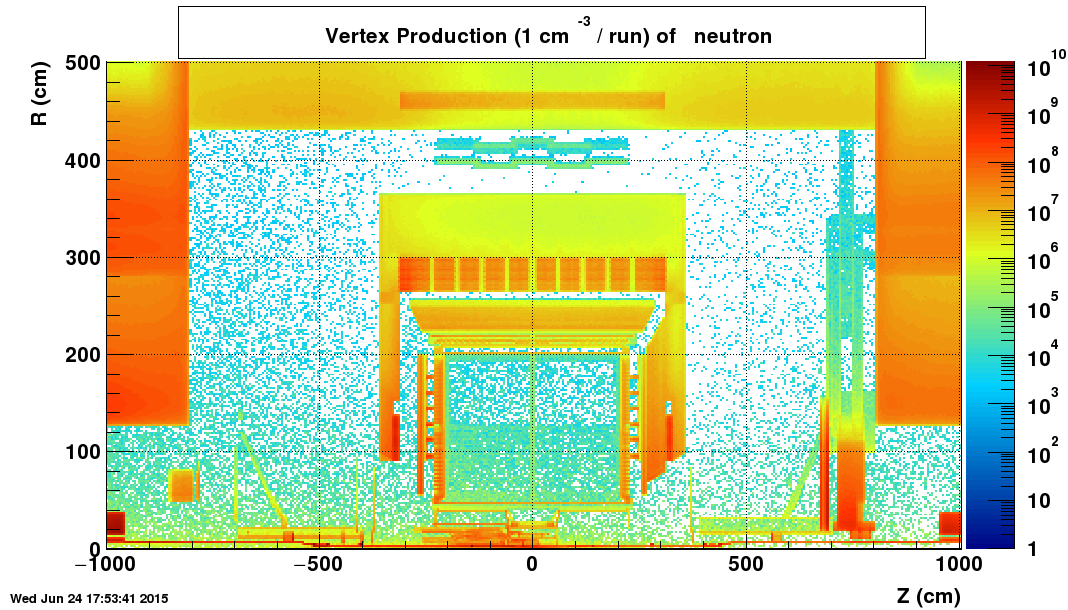

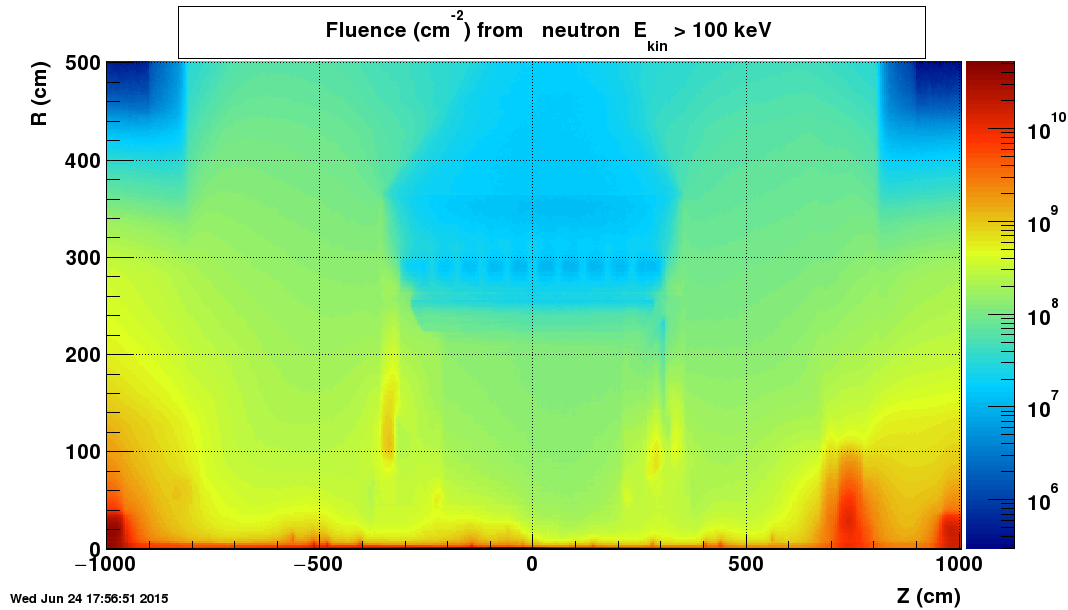

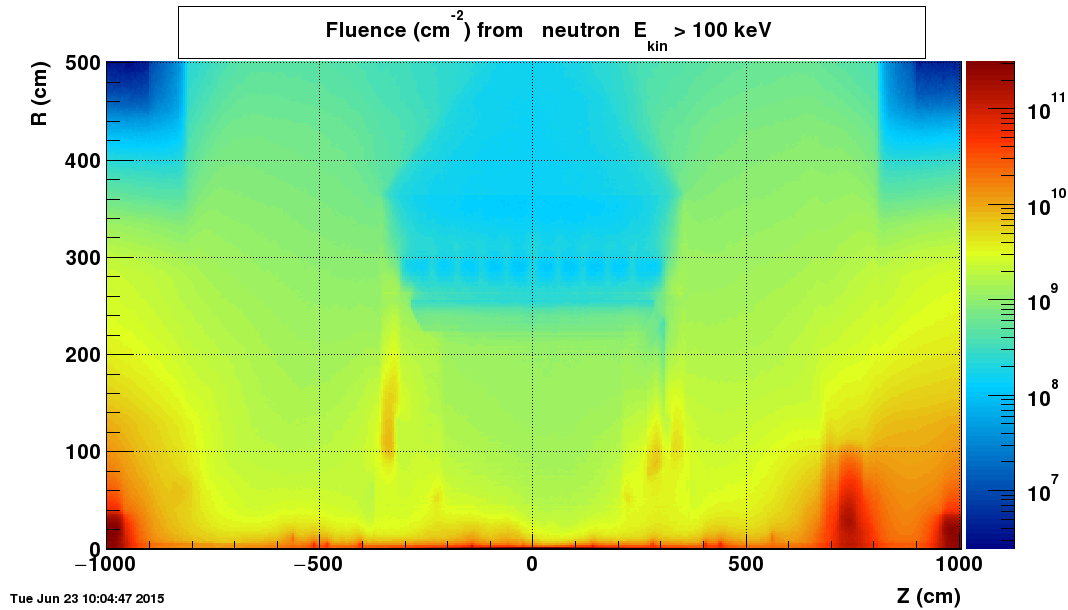

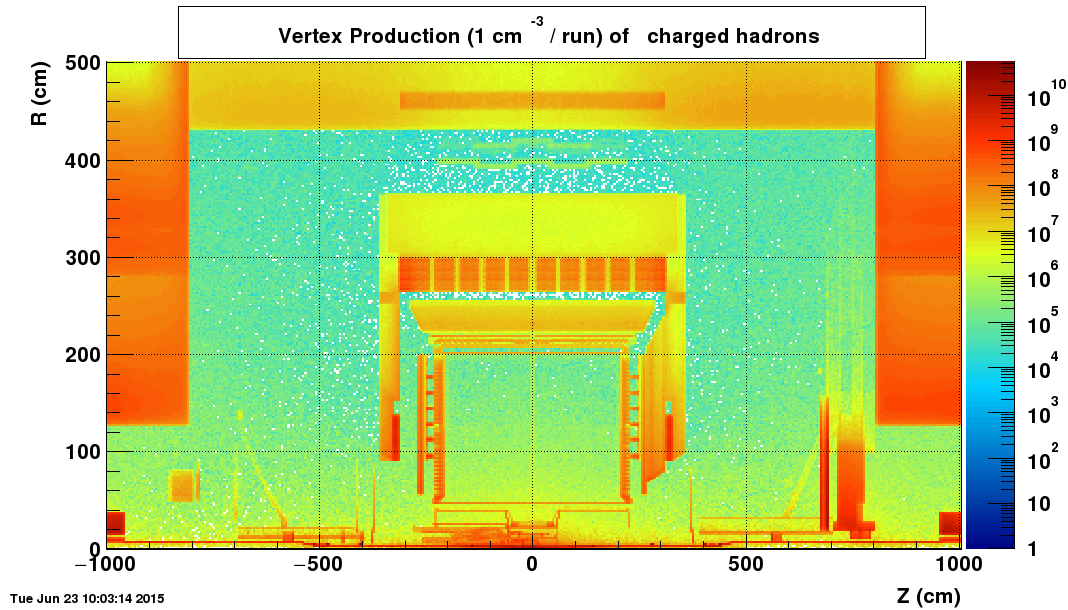

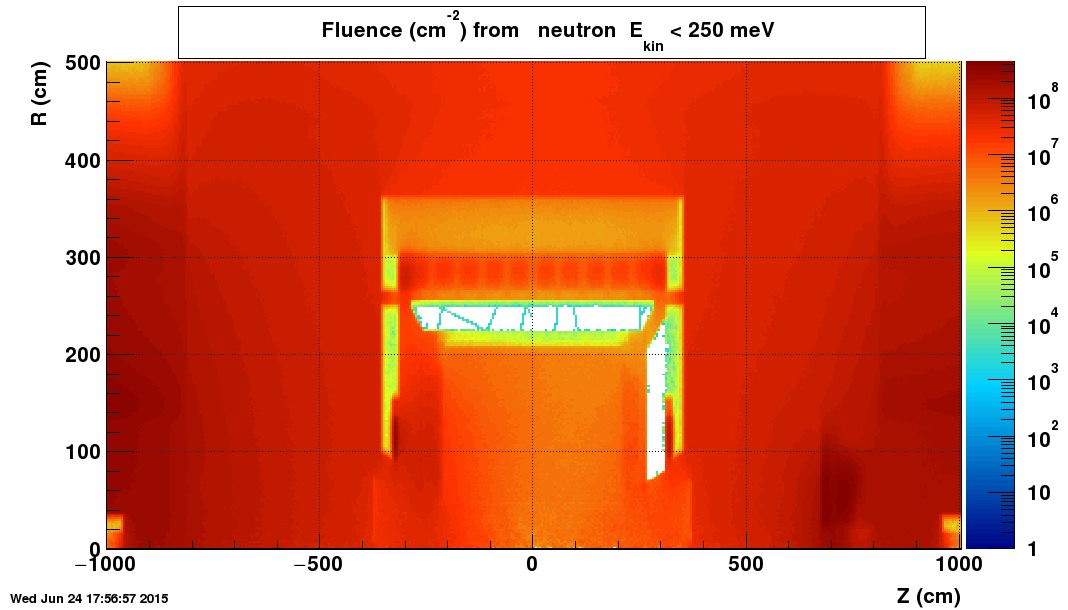

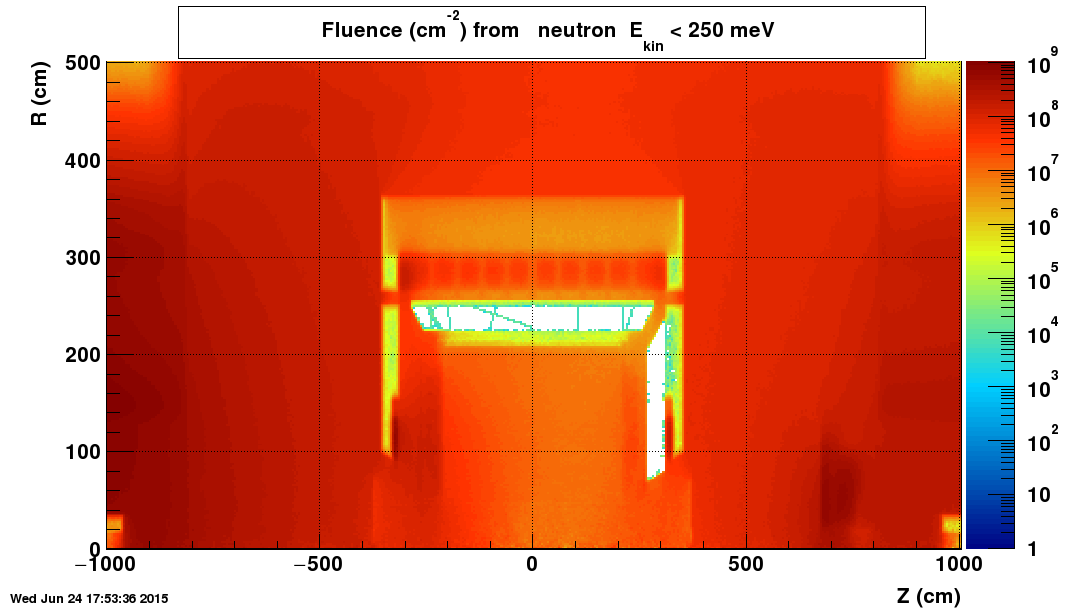

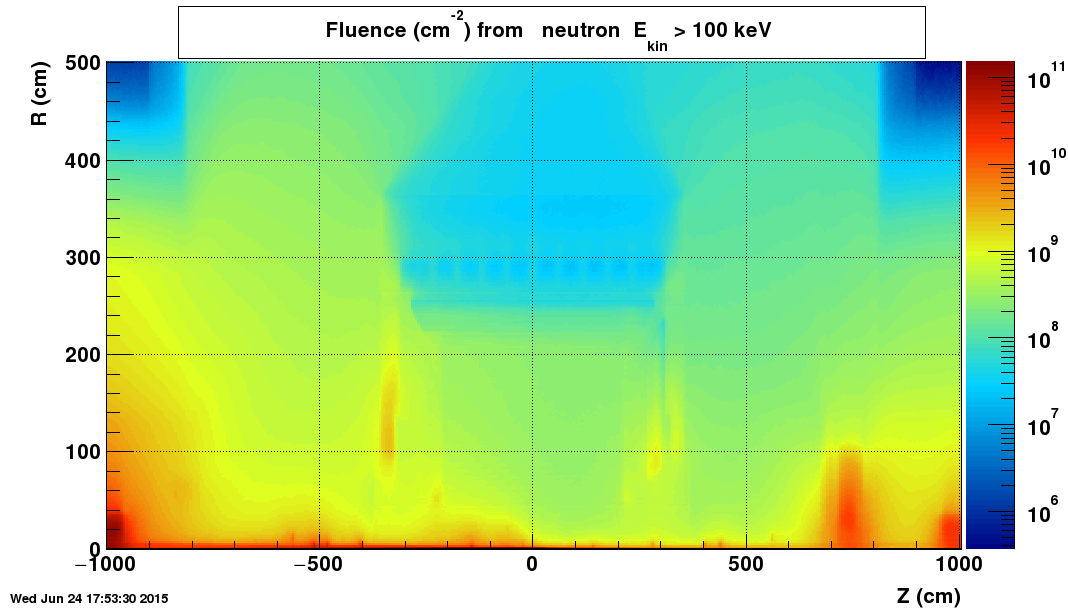

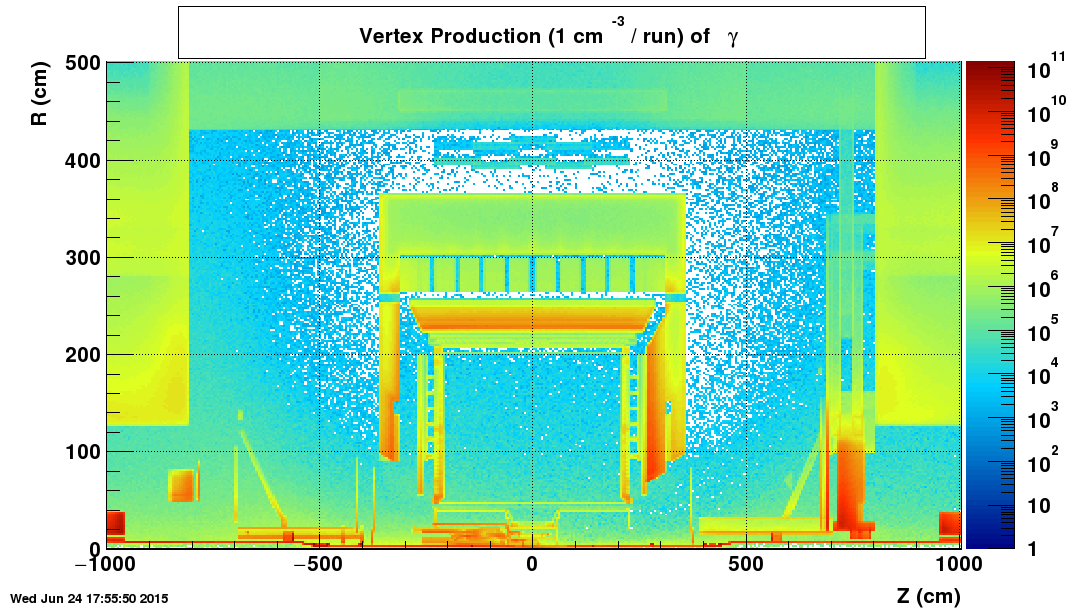

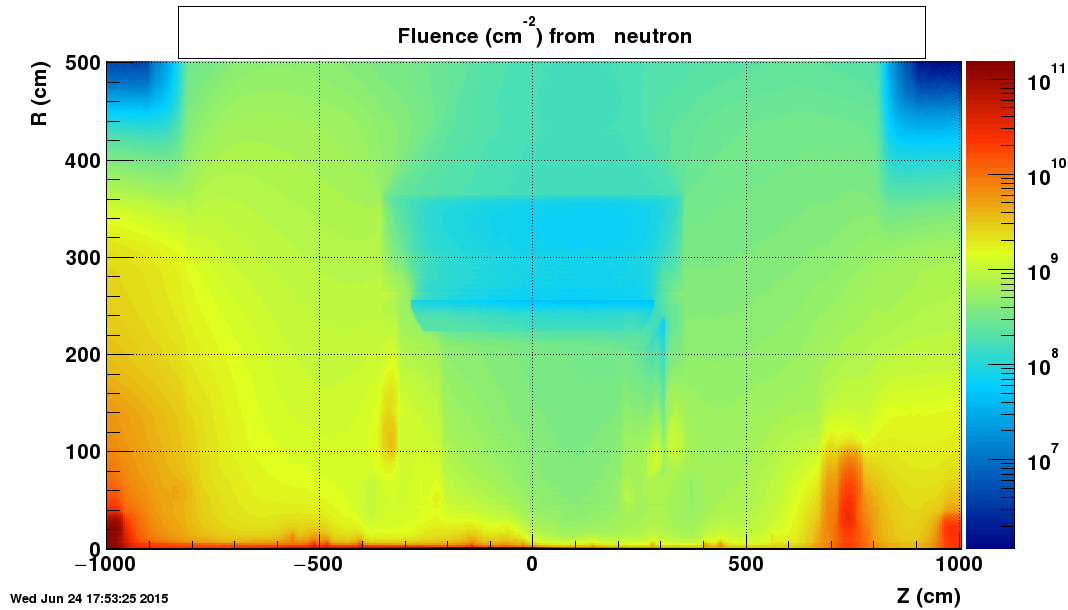

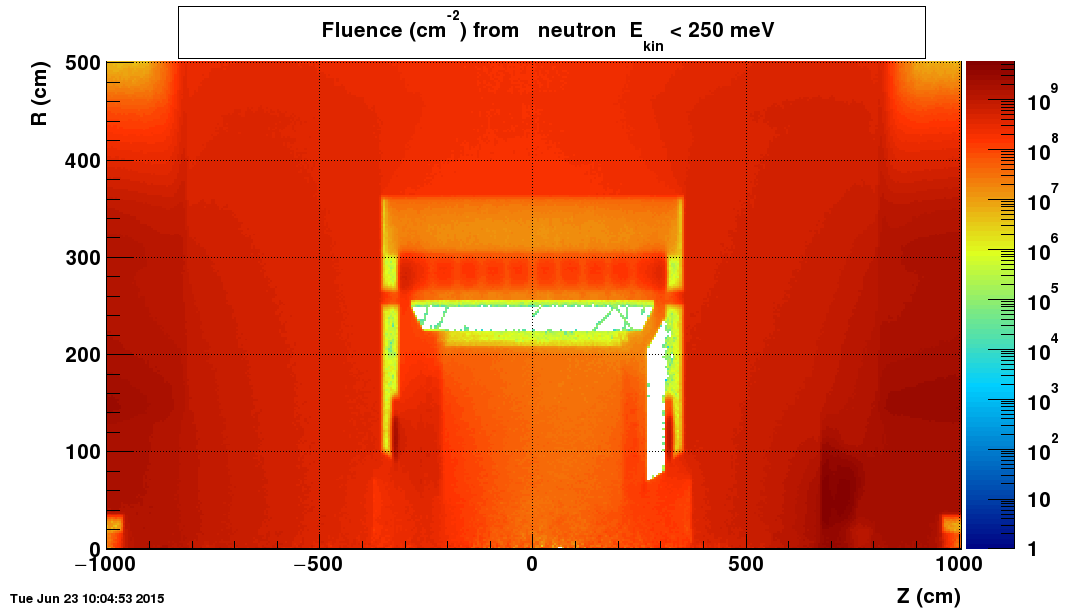

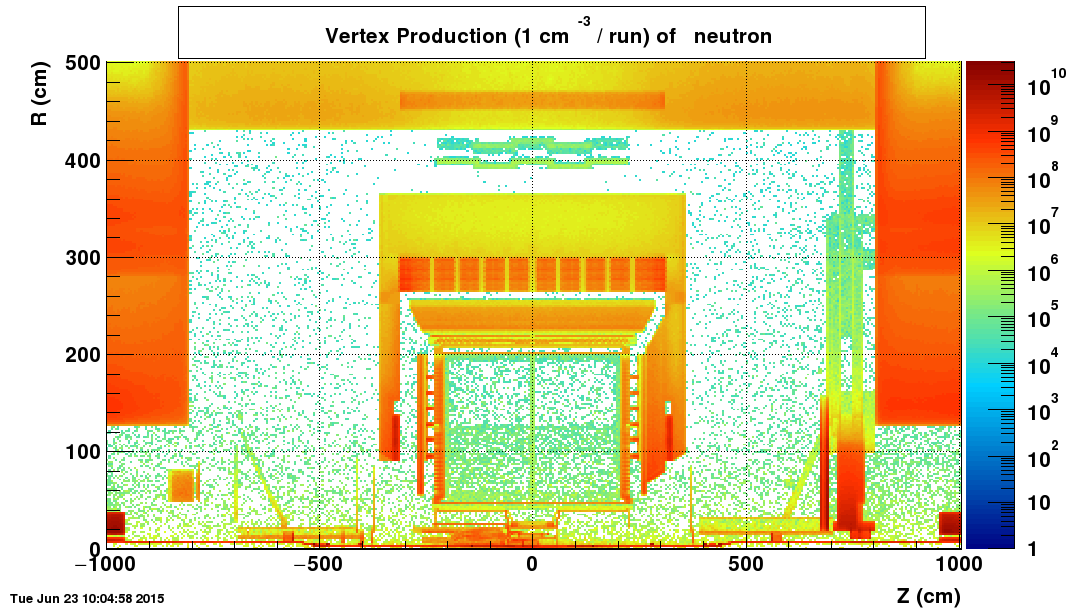

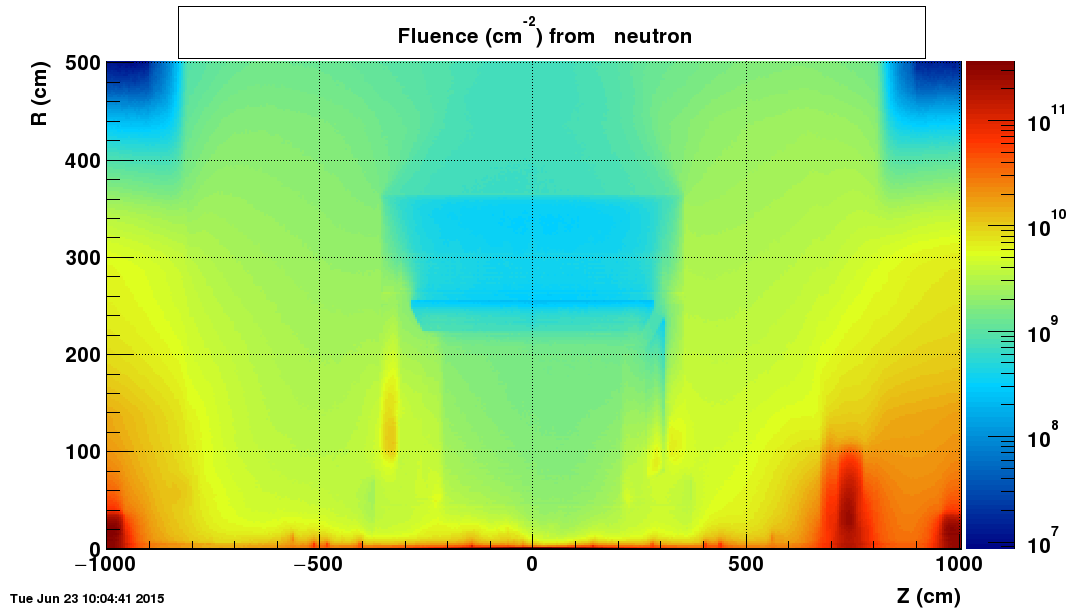

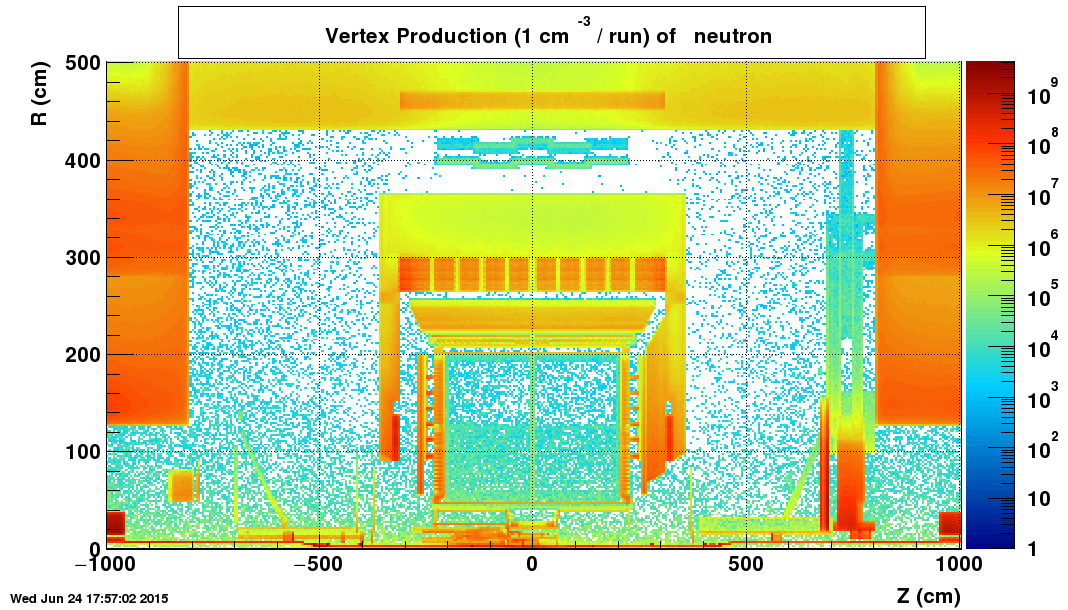

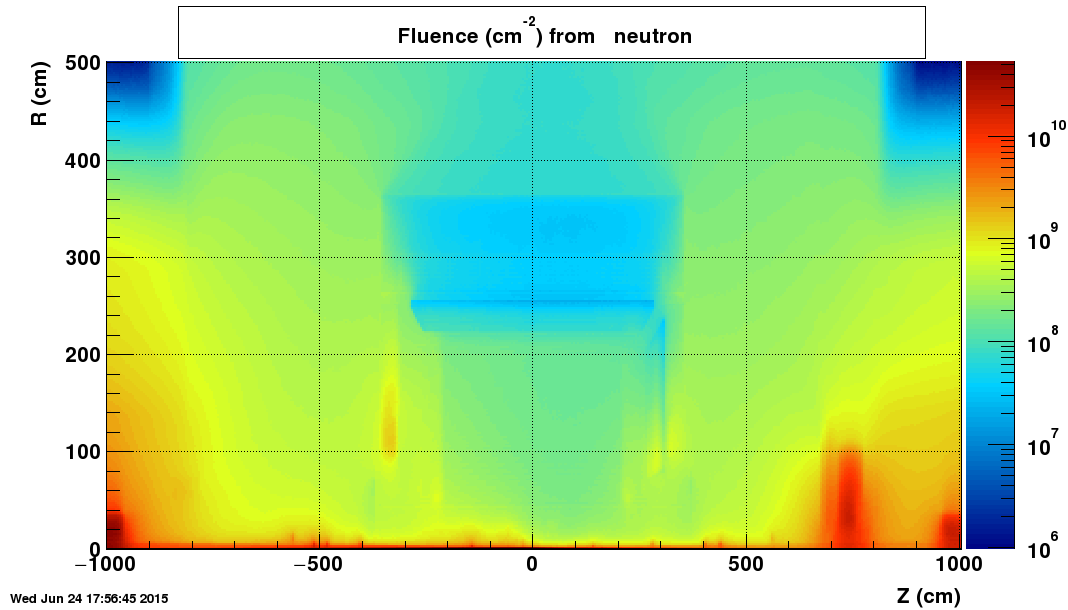

• Fig.1 - Fig.4 show neutron fluxes for all ( Fig.1), with E_kin > 100 MeV ( Fig.2), with with E_kin < 250 meV ( Fig.3), and neutron production vertices ( Fig.4).

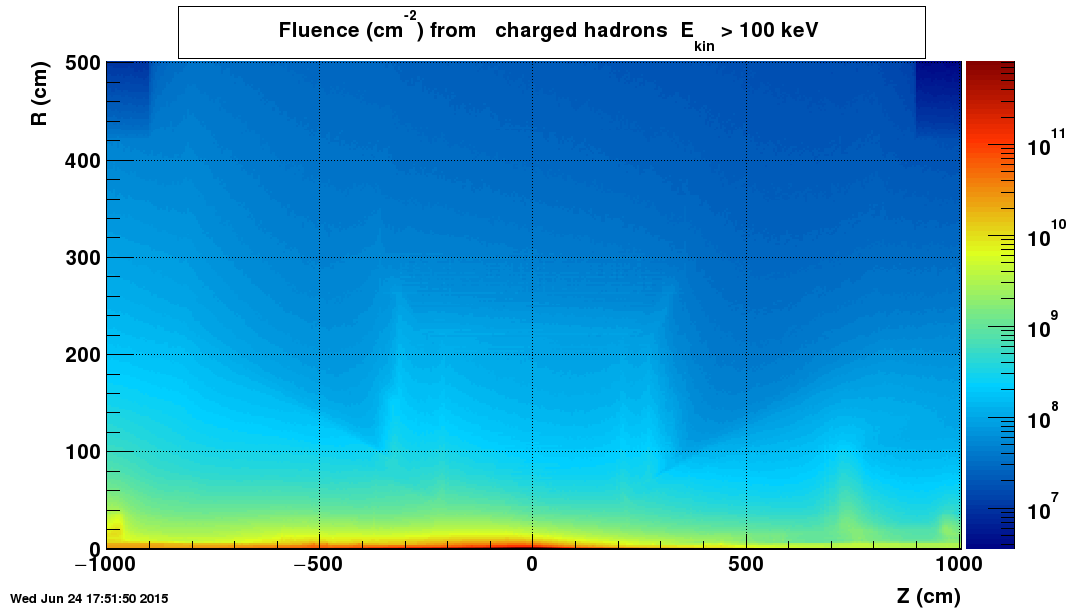

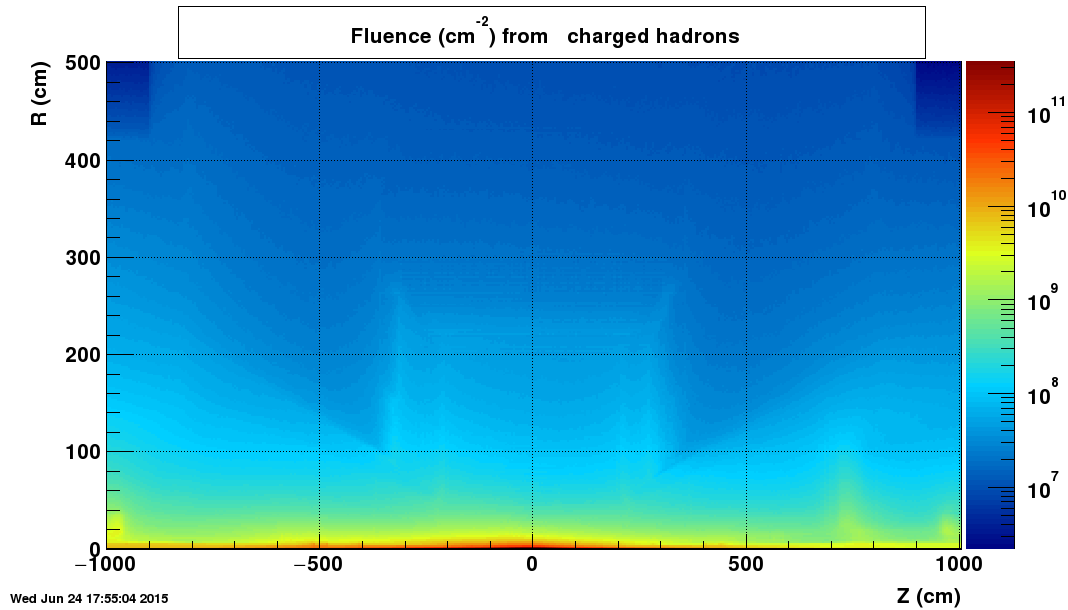

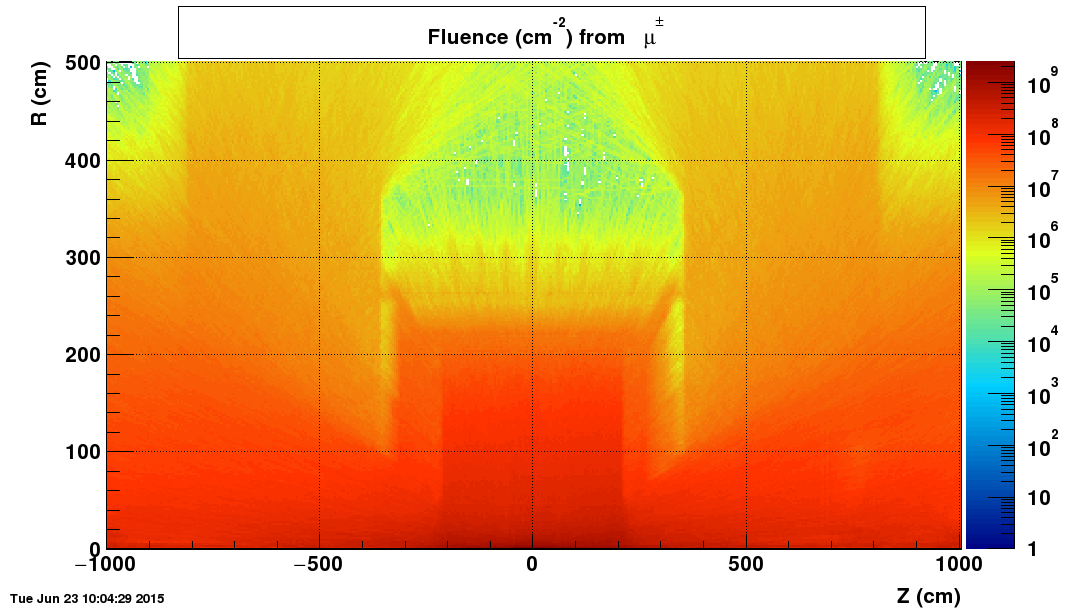

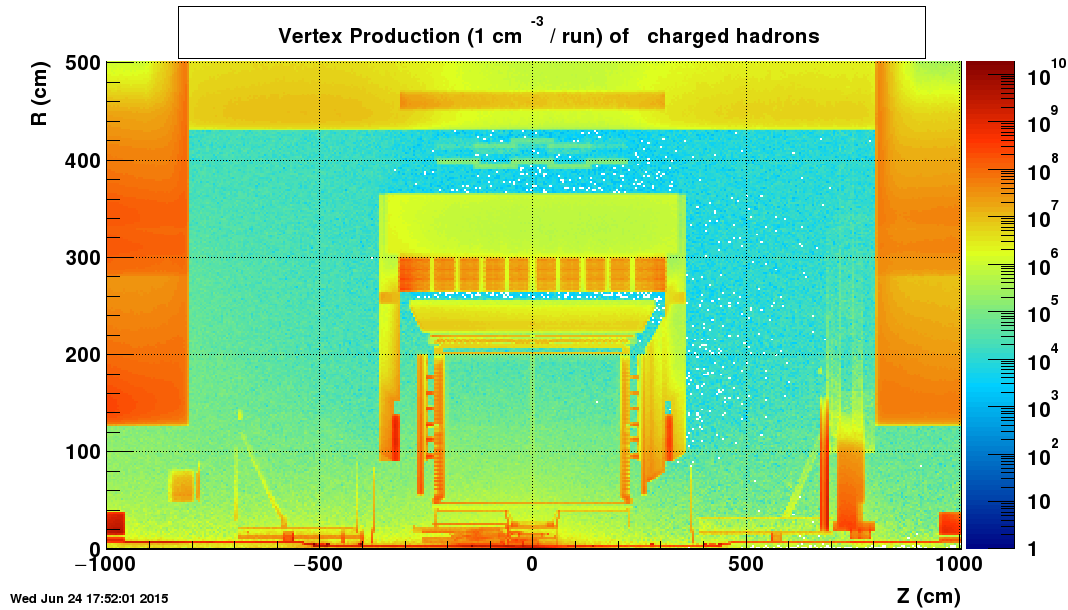

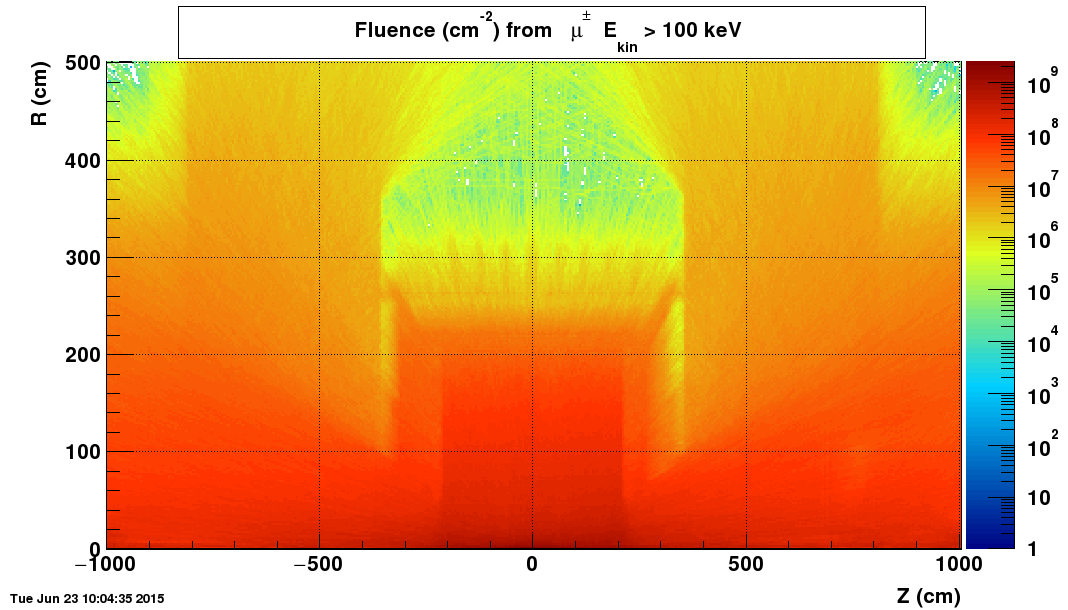

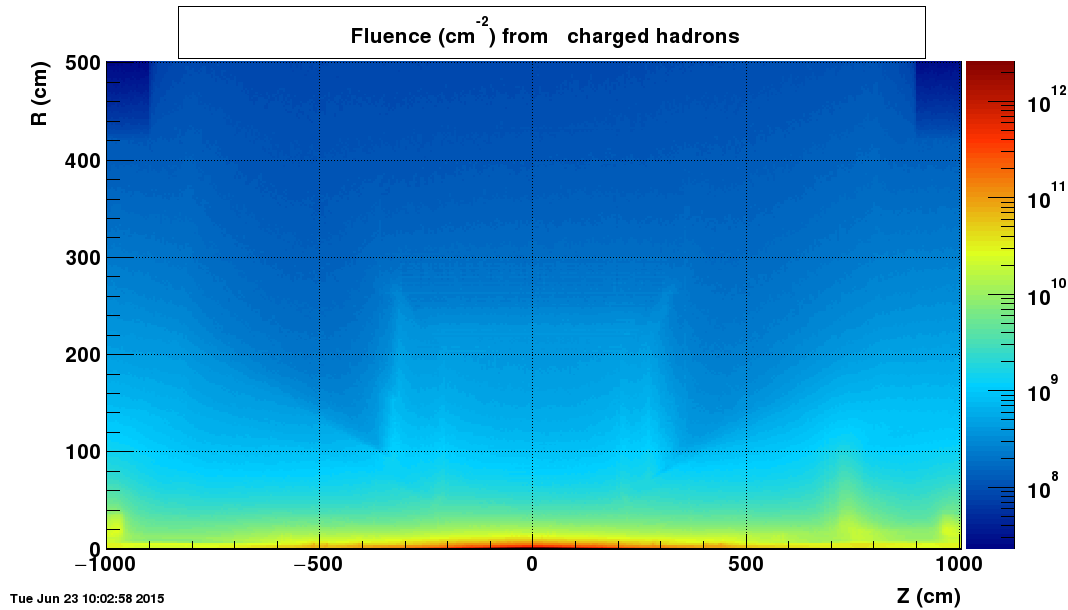

• Fig.5 - Fig.7 show fluxes for charged hadrons.

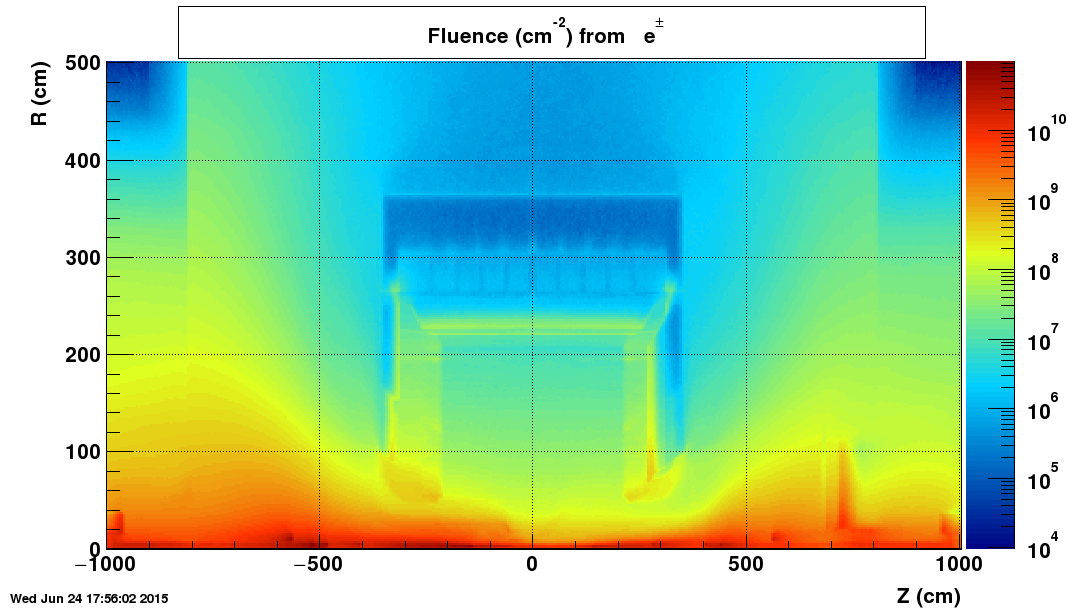

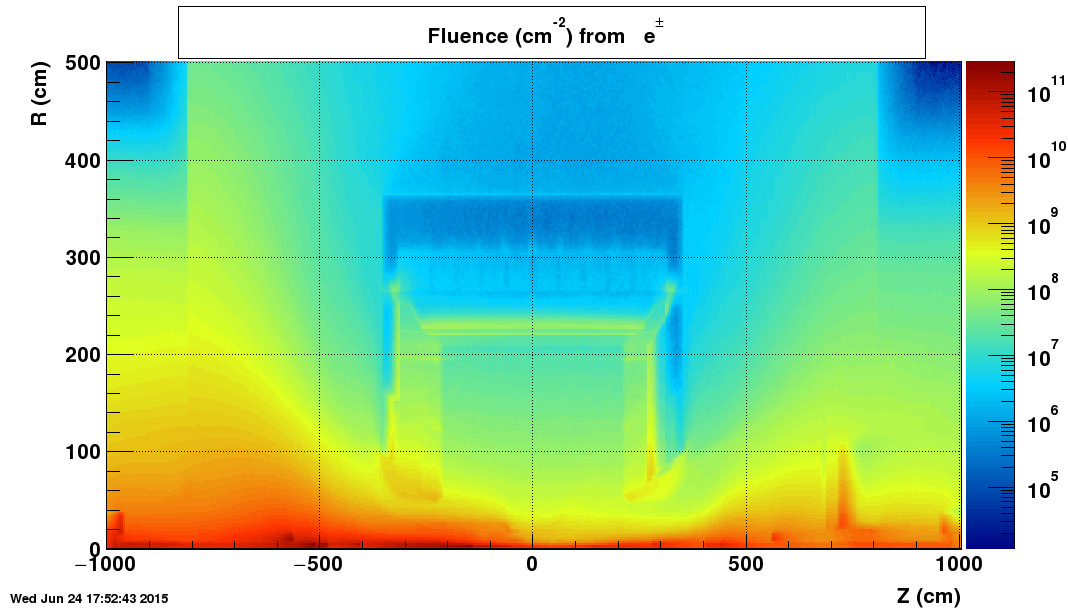

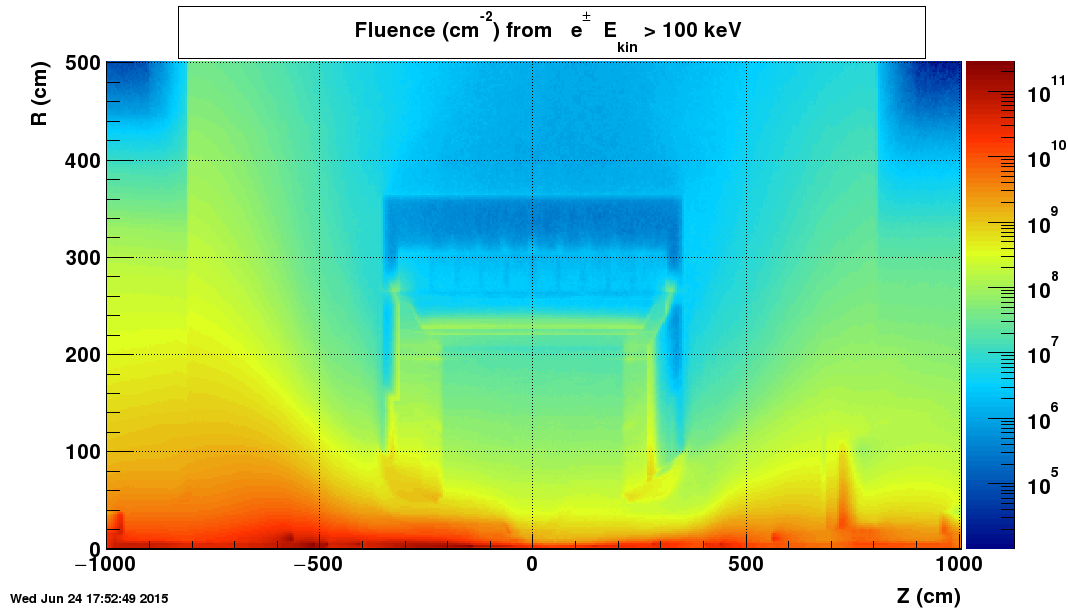

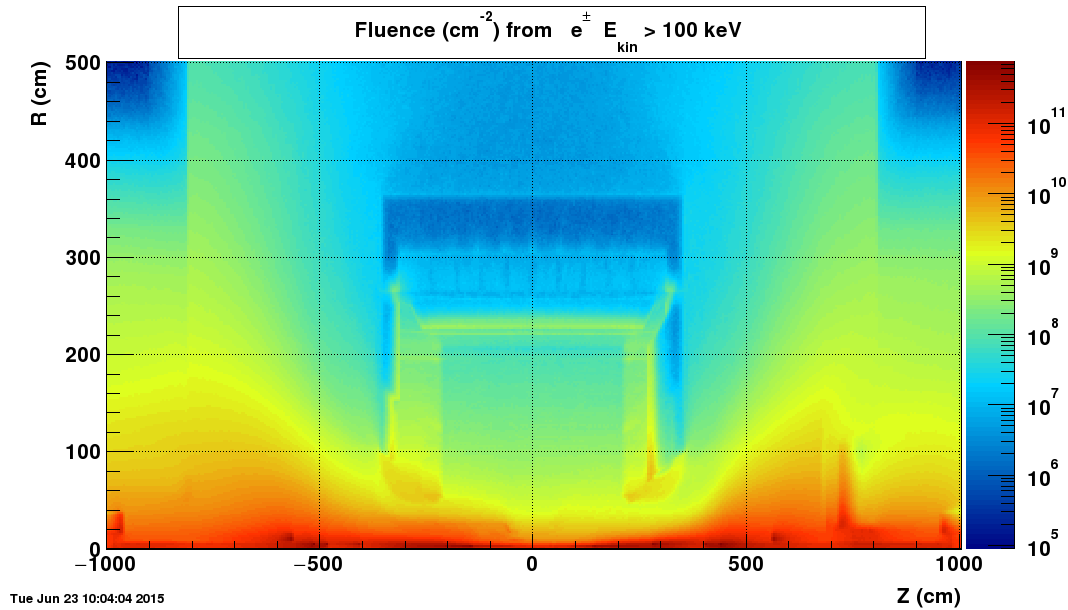

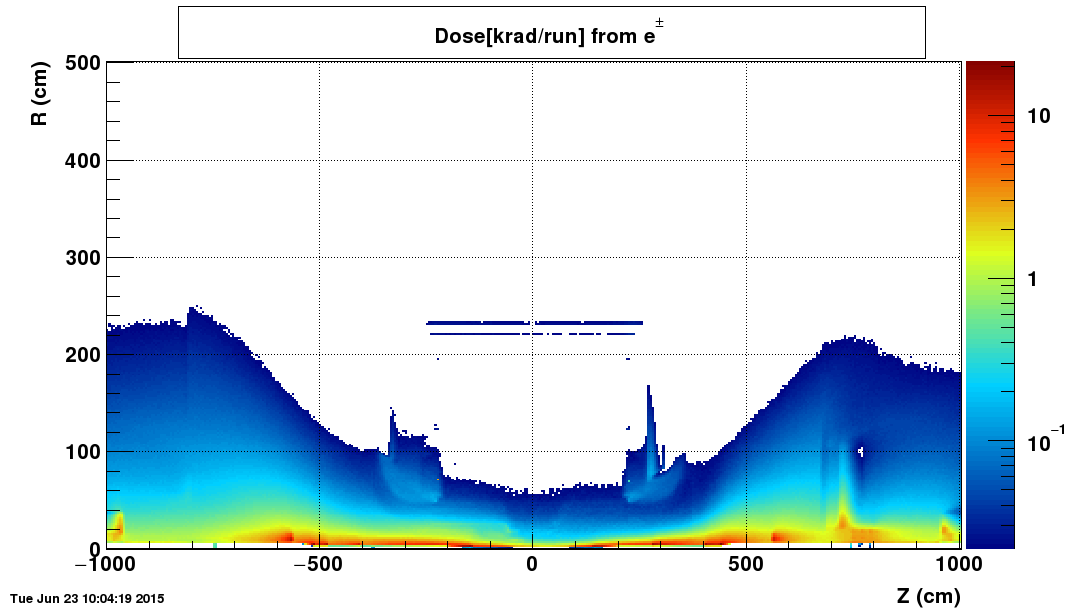

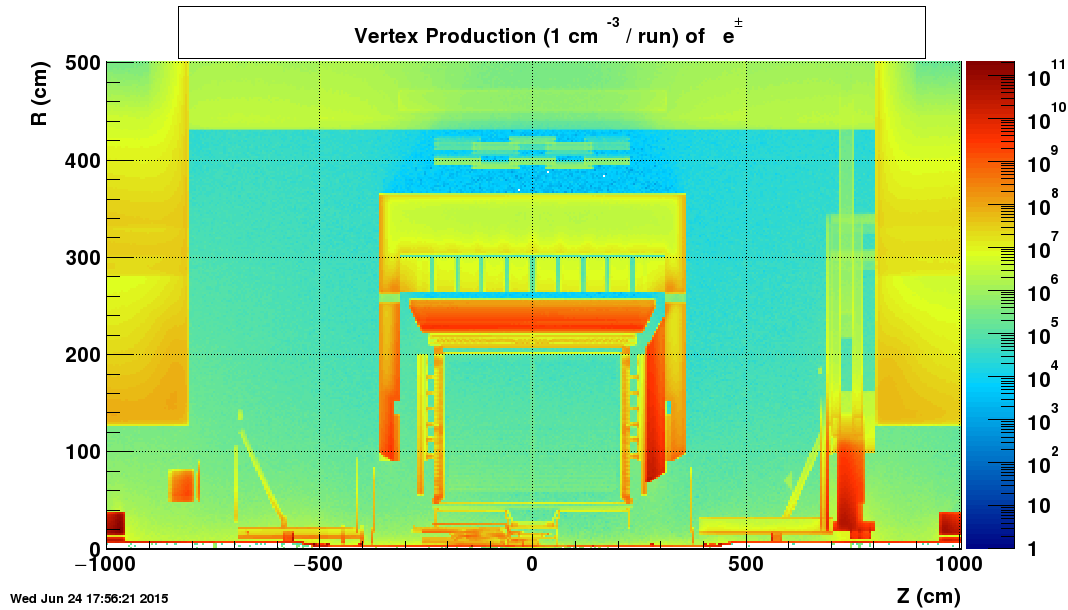

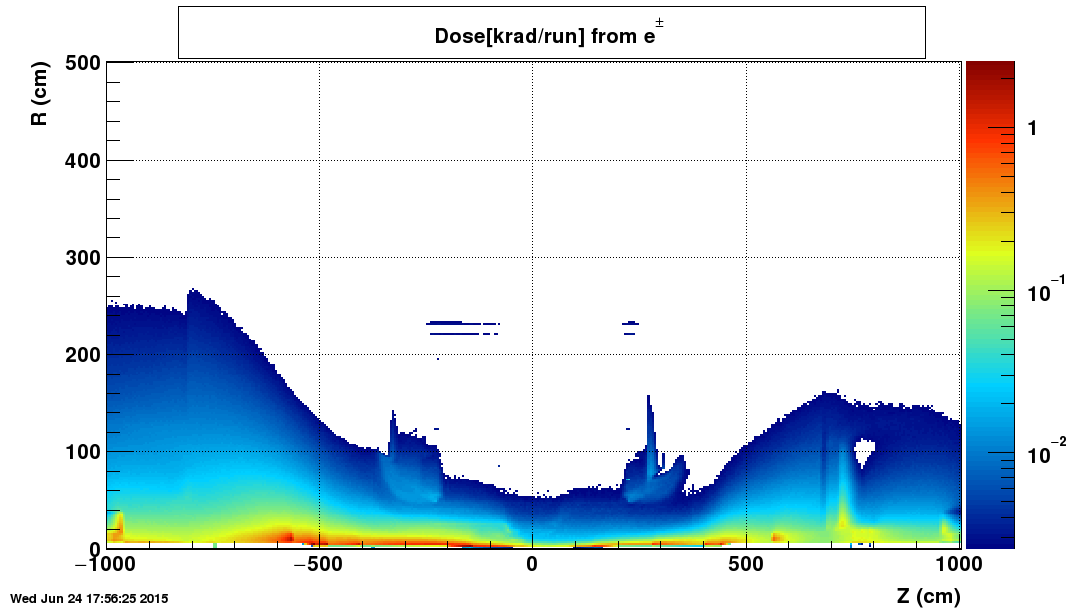

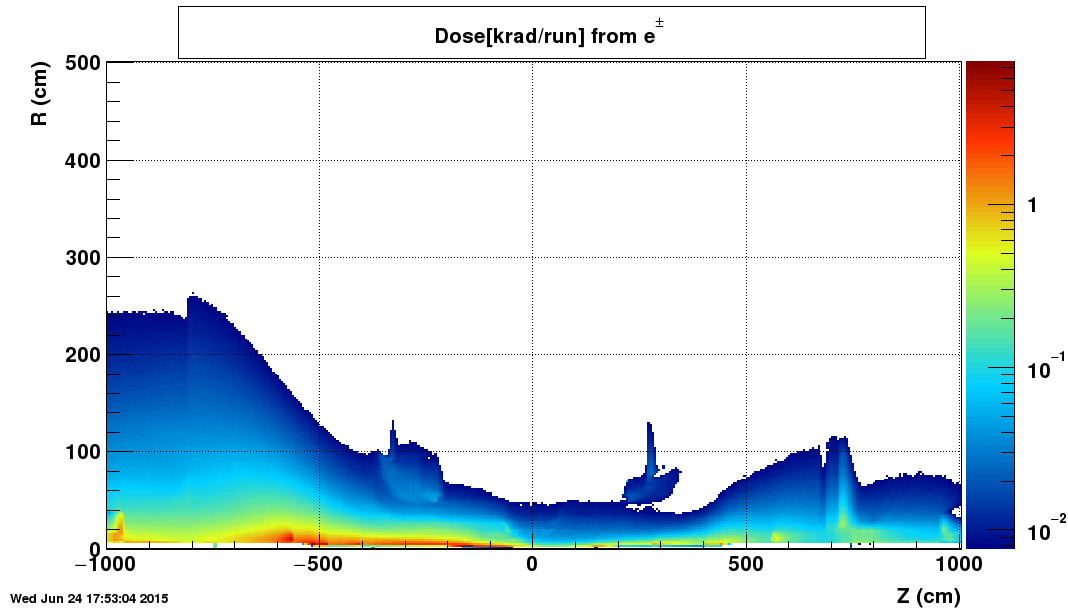

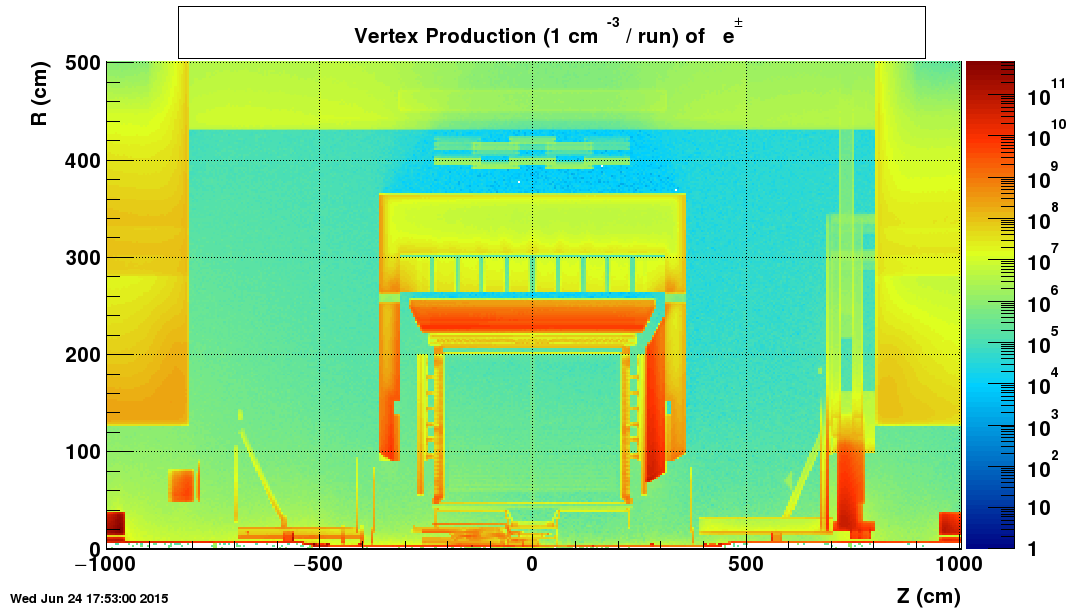

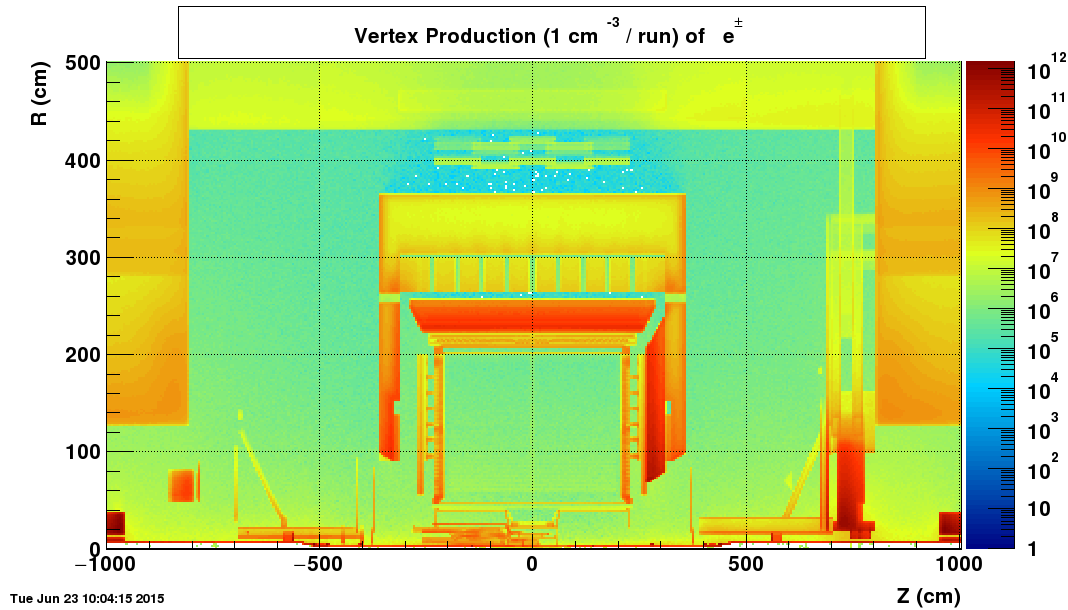

• Fig.8 - Fig.11 show fluxes for electrons.

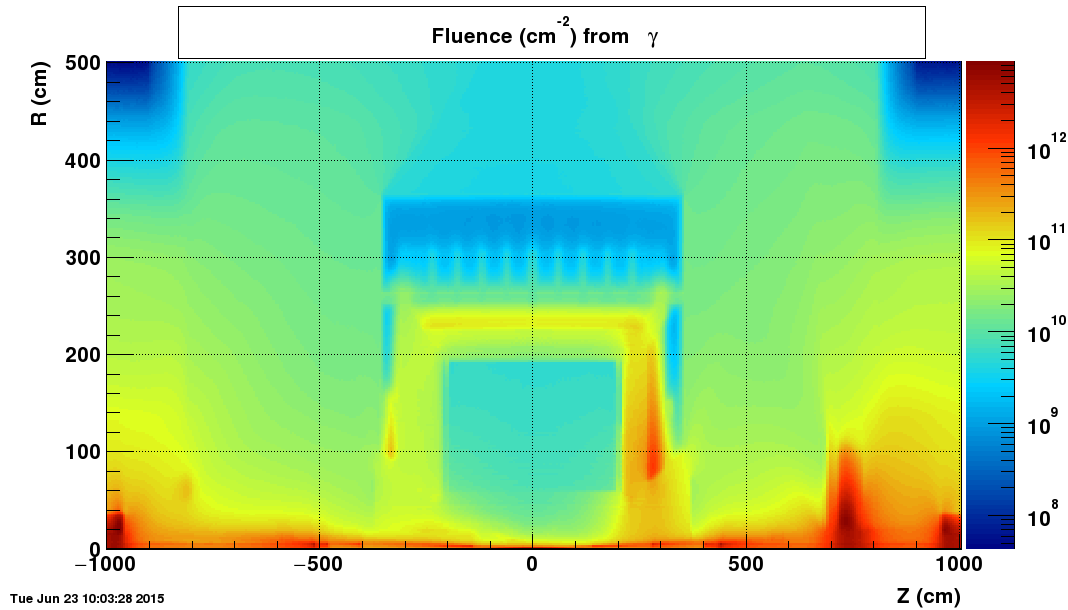

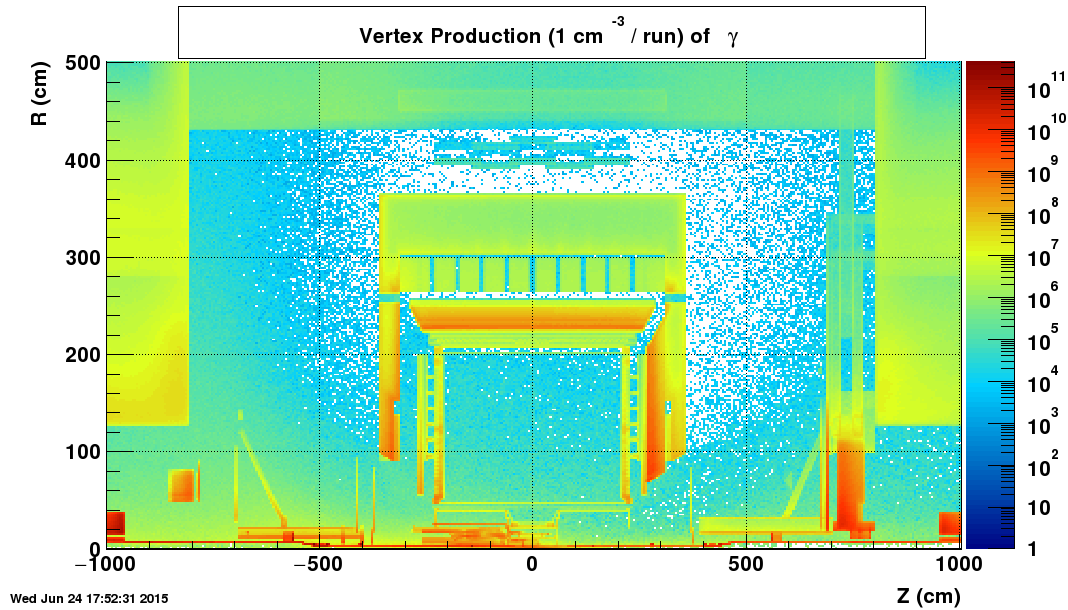

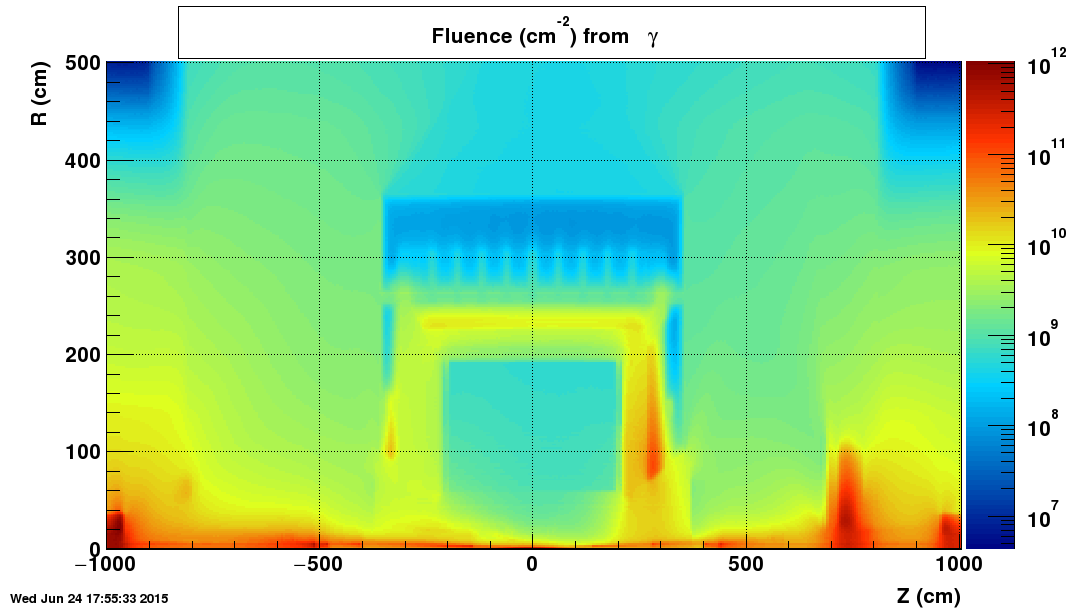

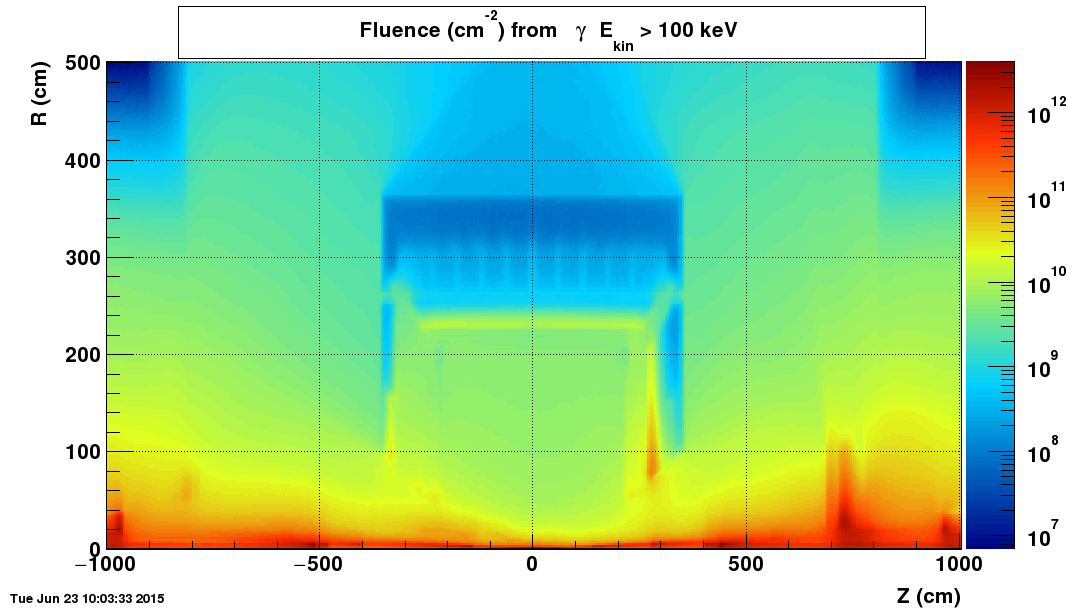

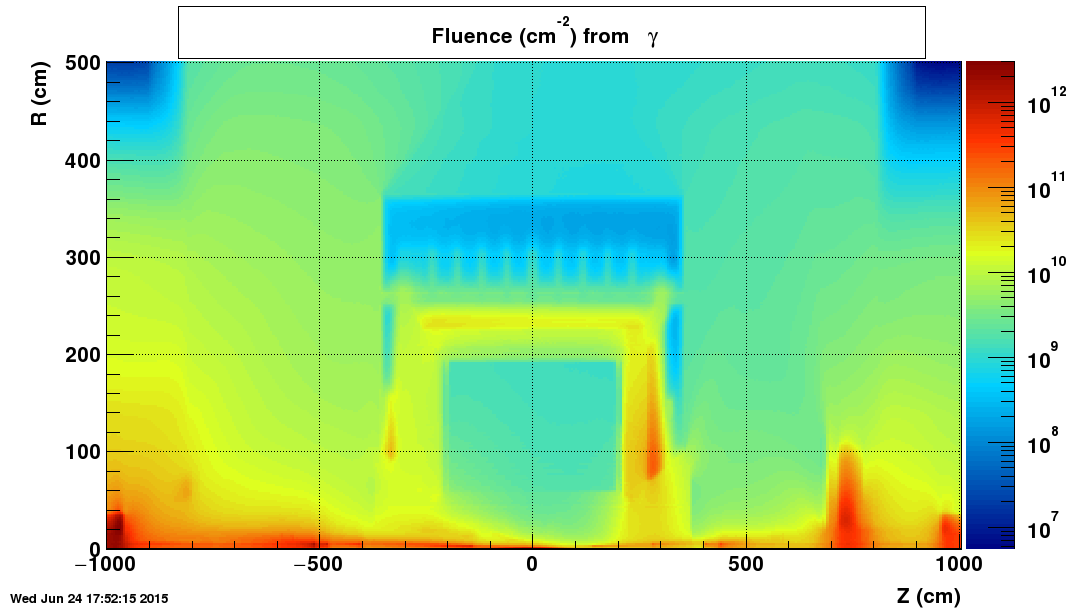

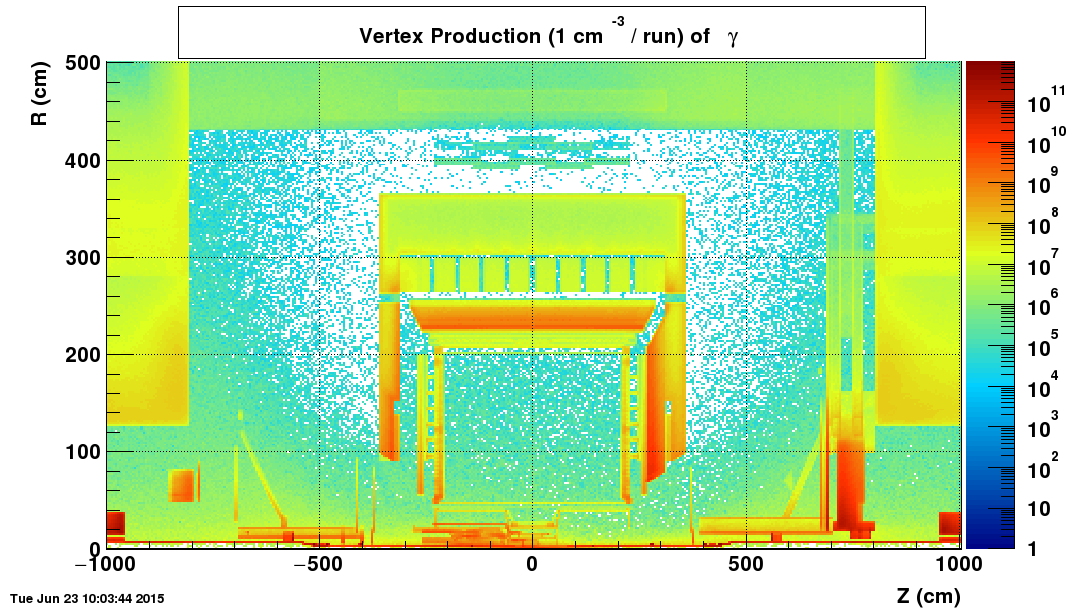

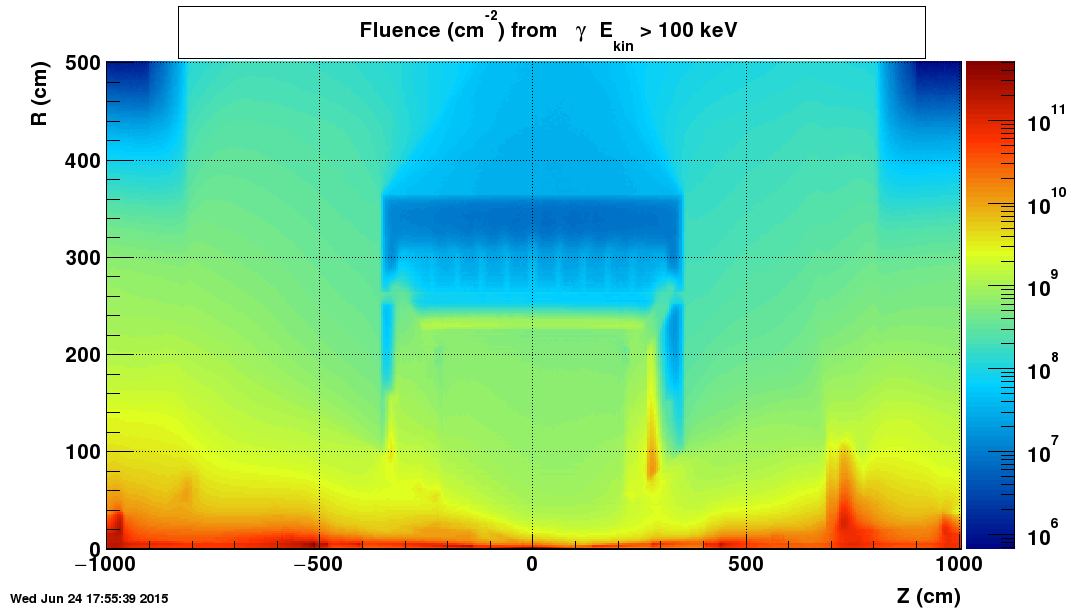

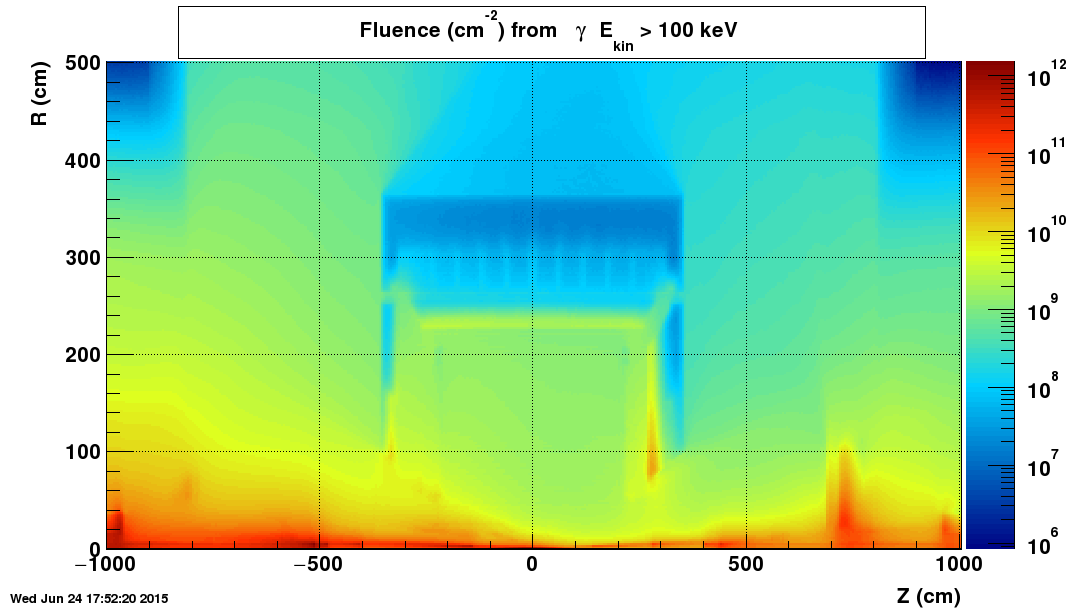

• Fig.12 - Fig.14 show fluxes for γs.
• Fig.15 - Fig.16 show fluxes for γs.

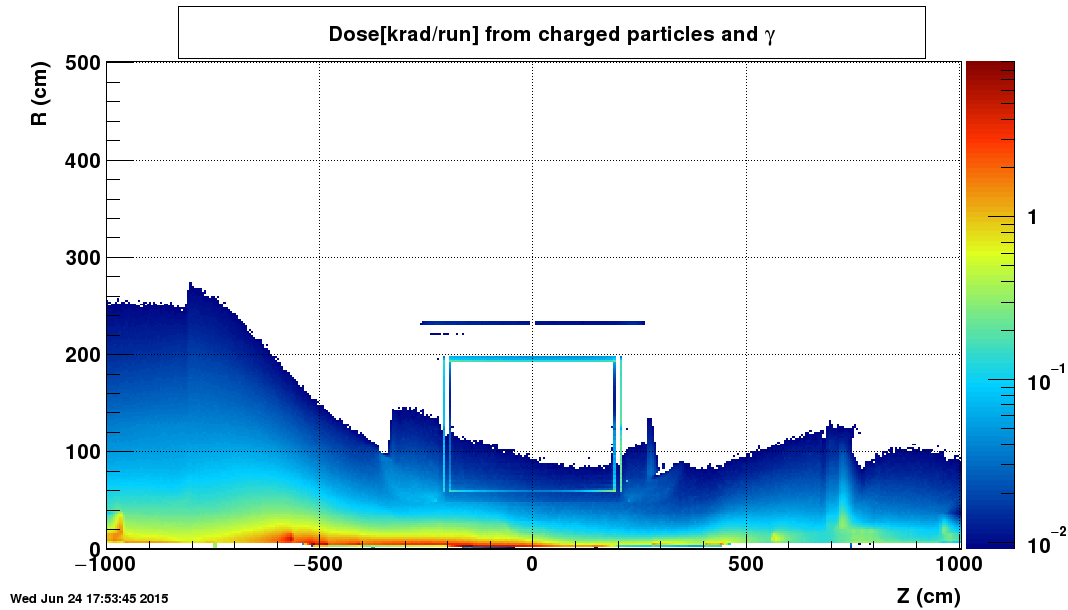

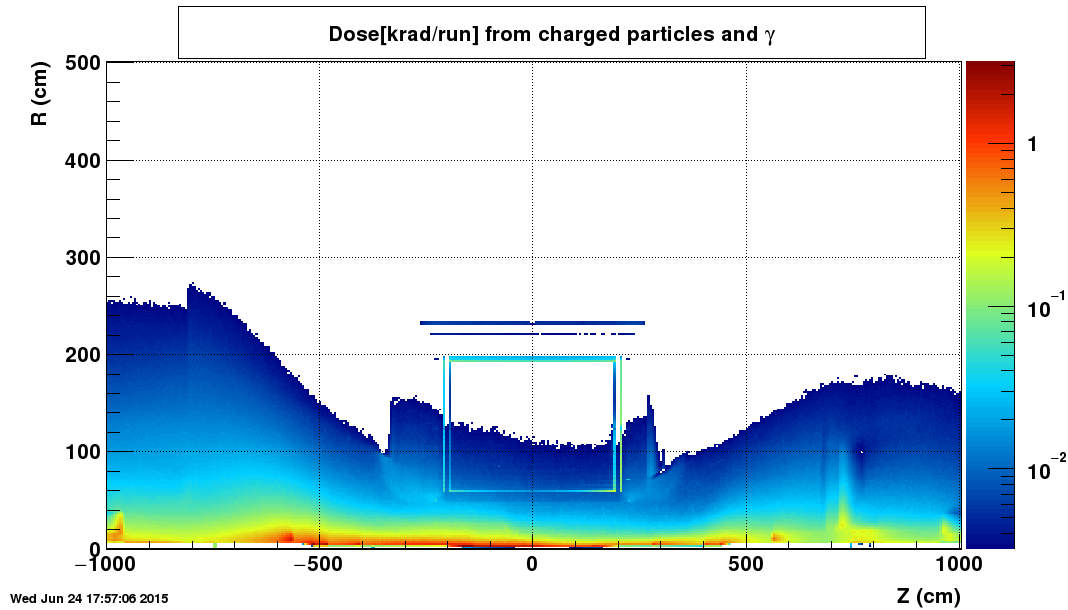

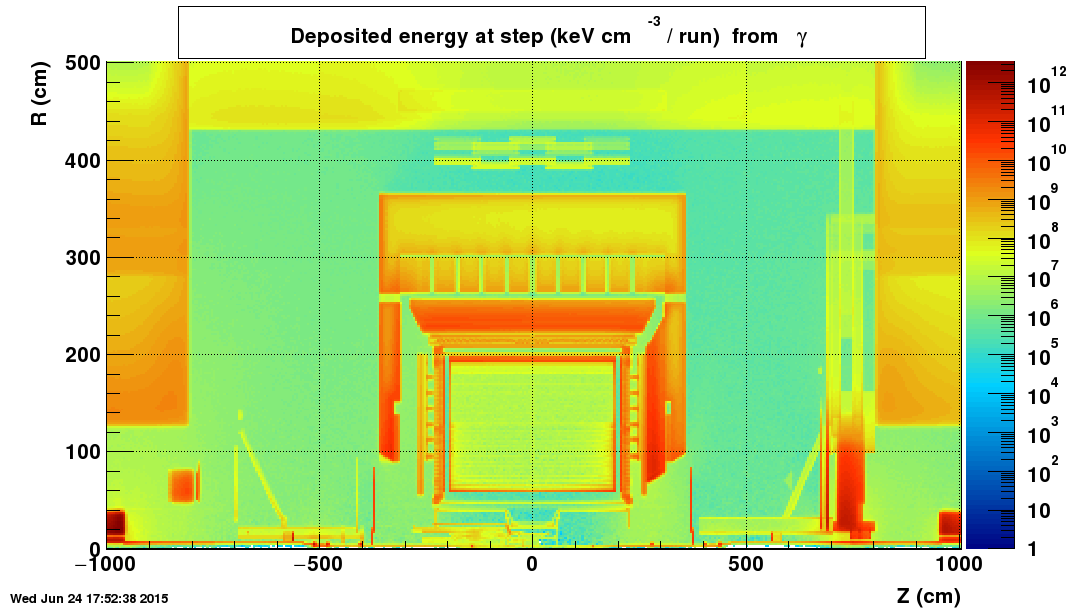

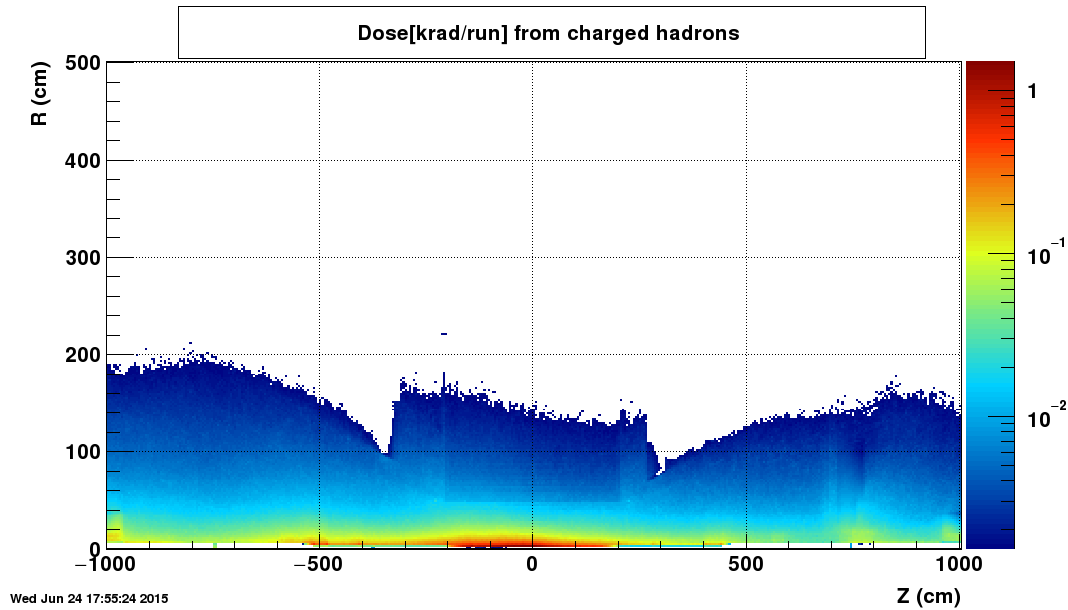

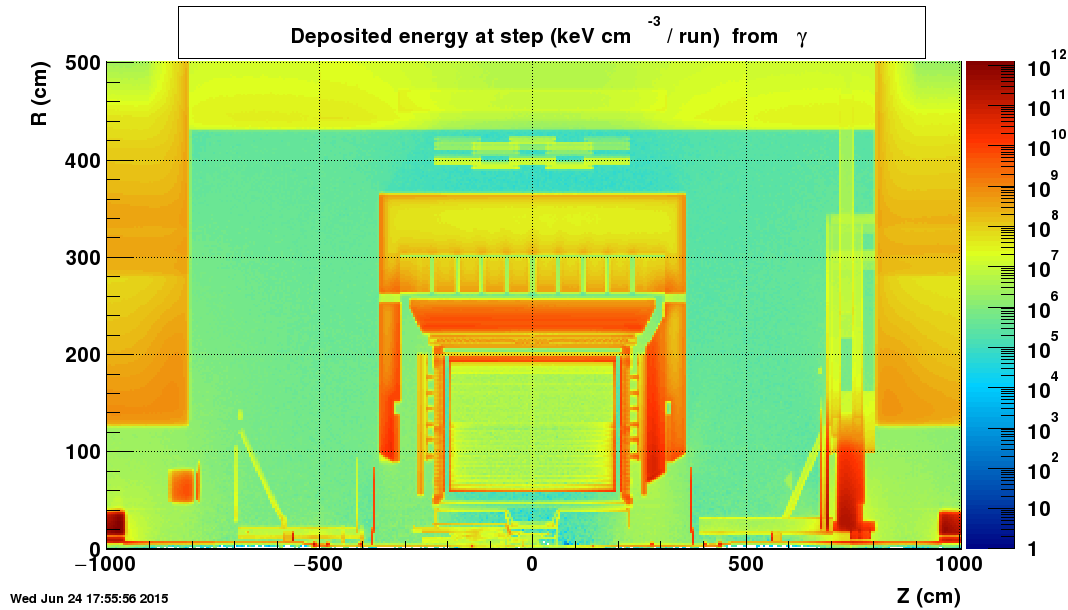

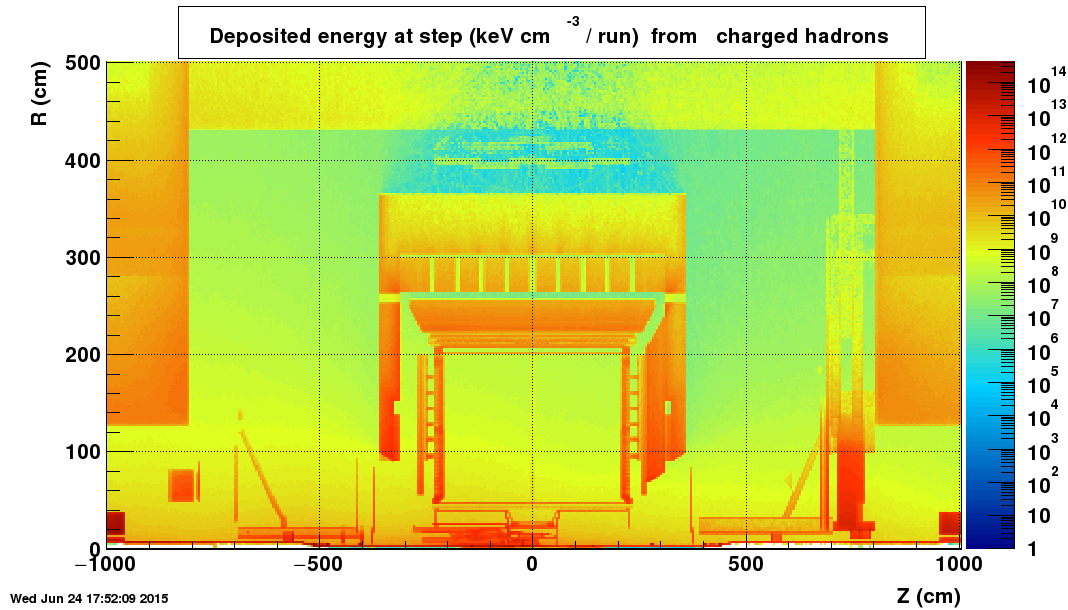

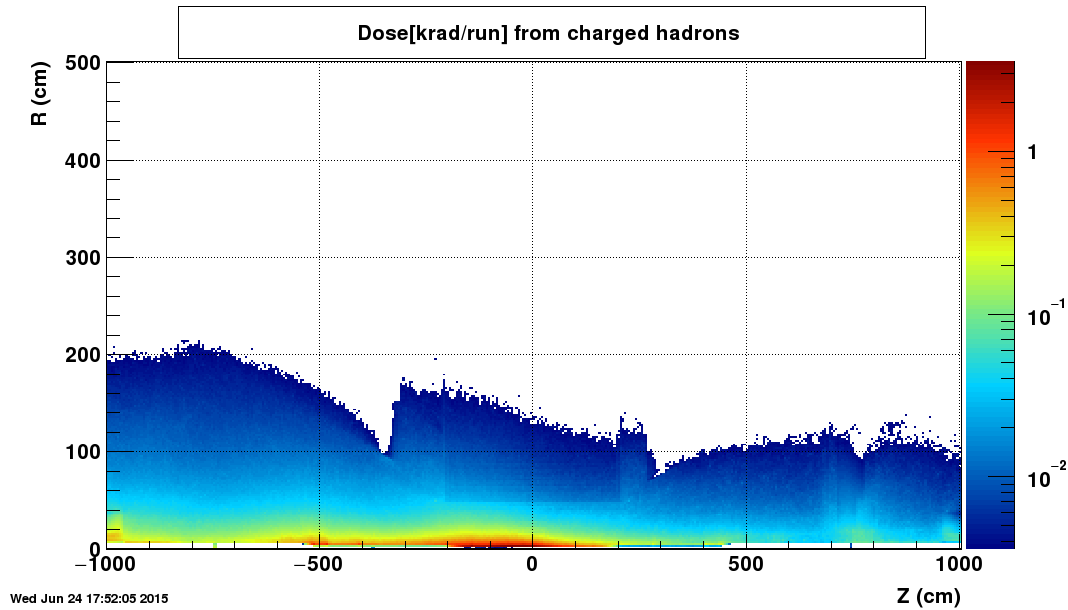

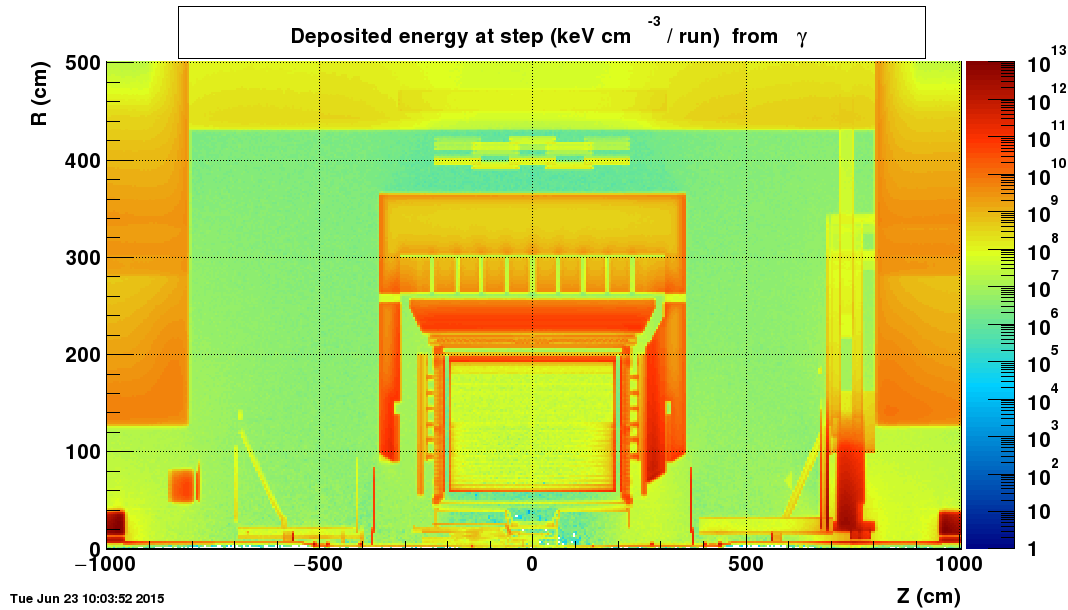

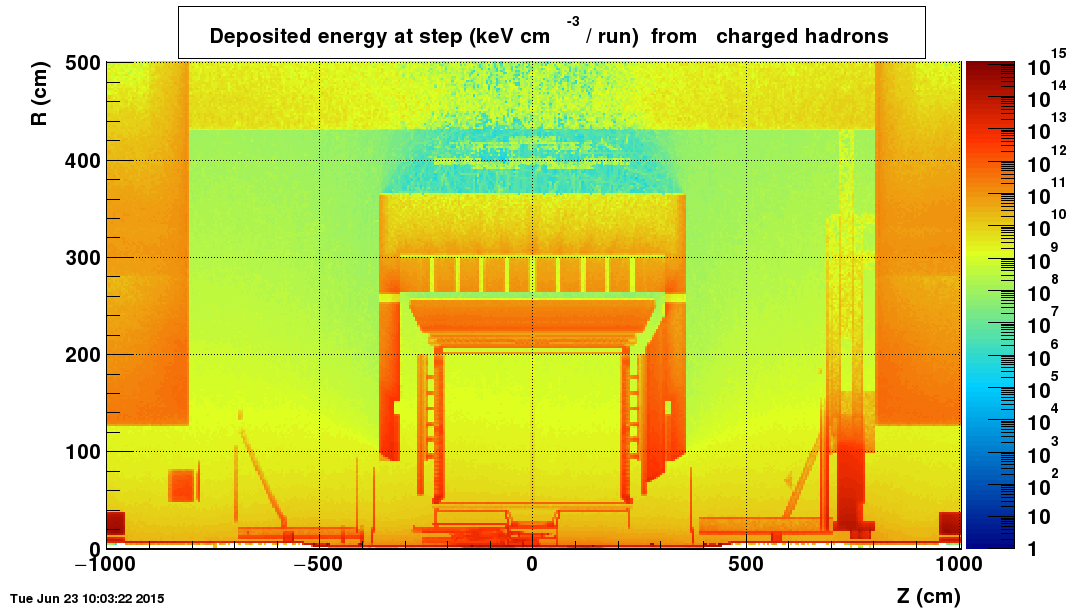

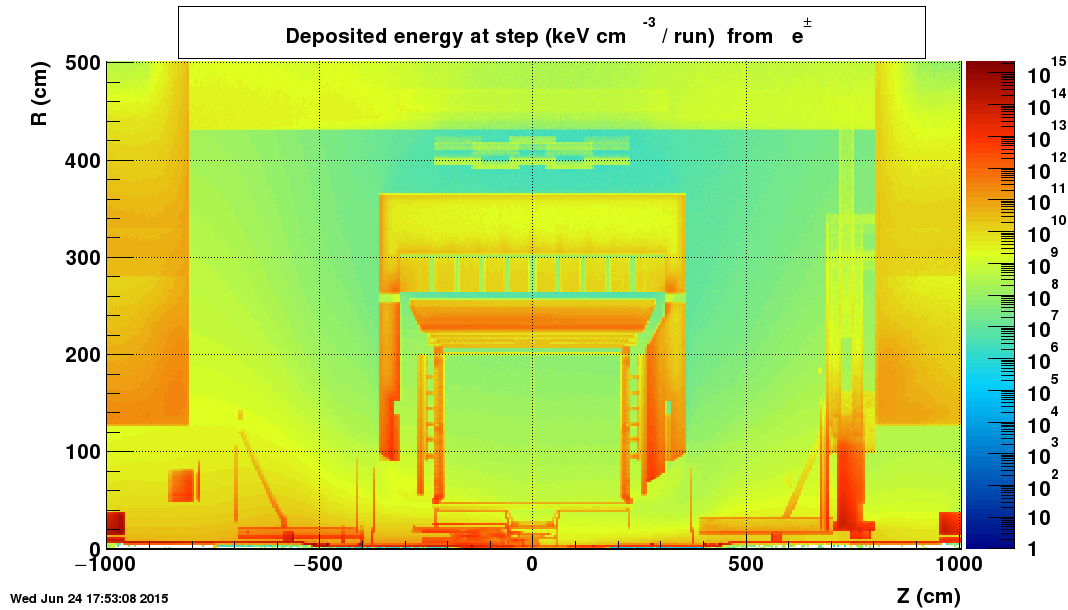

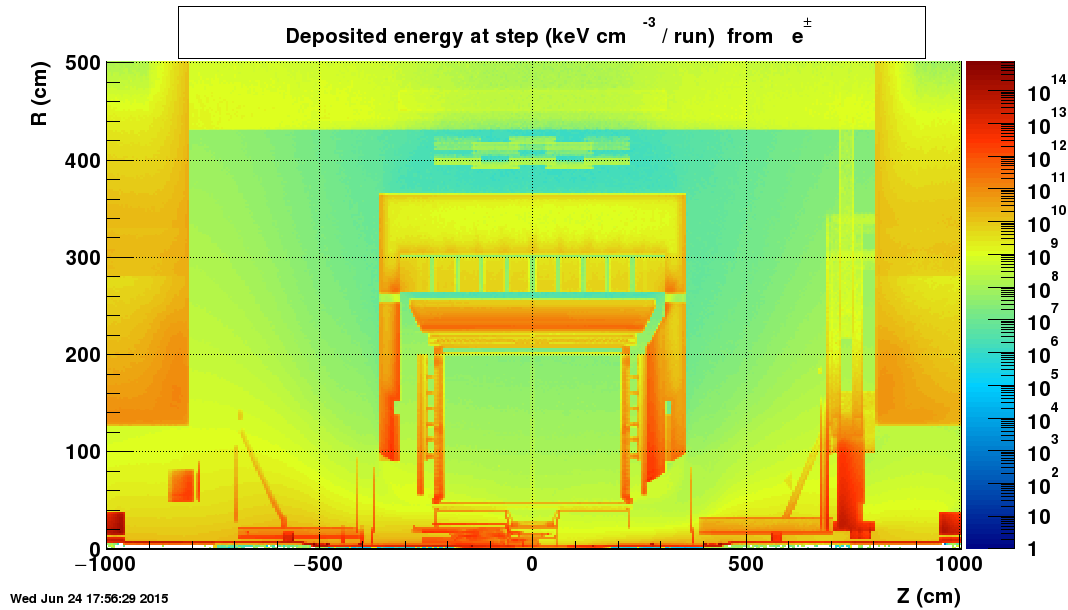

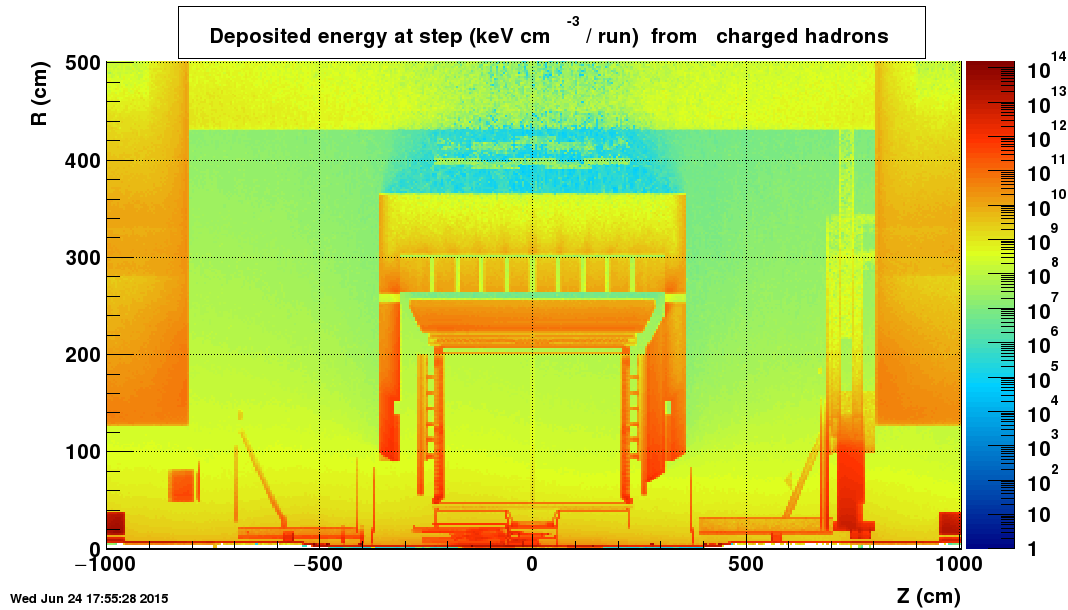

• Fig.17 show deposited energy from charged hadrons, Fig.18 - electrons, Fig.19 - γs.

pp200	pAu200	pAl200
Fig.1
pp200	pAu200	pAl200/
Fig.2
pp200	pAu200	pAl200/
Fig.3
pp200	pAu200	pAl200/
Fig.4
pp200	pAu200	pAl200/
Fig.5
pp200	pAu200	pAl200/
Fig.6
pp200	pAu200	pAl200/
Fig.7
pp200	pAu200	pAl200/
Fig.8
pp200	pAu200	pAl200/
Fig.9
pp200	pAu200	pAl200/
Fig.11
pp200	pAu200	pAl200/
Fig.12
pp200	pAu200	pAl200/
Fig.13
pp200	pAu200	pAl200/
Fig.14
pp200	pAu200	pAl200/
Fig.15
pp200	pAu200	pAl200/
Fig.16
pp200, charged hadrons	pAu200, charged hadrons	pAl200/, charged hadrons
Fig.17
pp200, e±	pAu200, e±	pAl200/, e±
Fig.18
pp200	pAu200	pAl200/
Fig.19

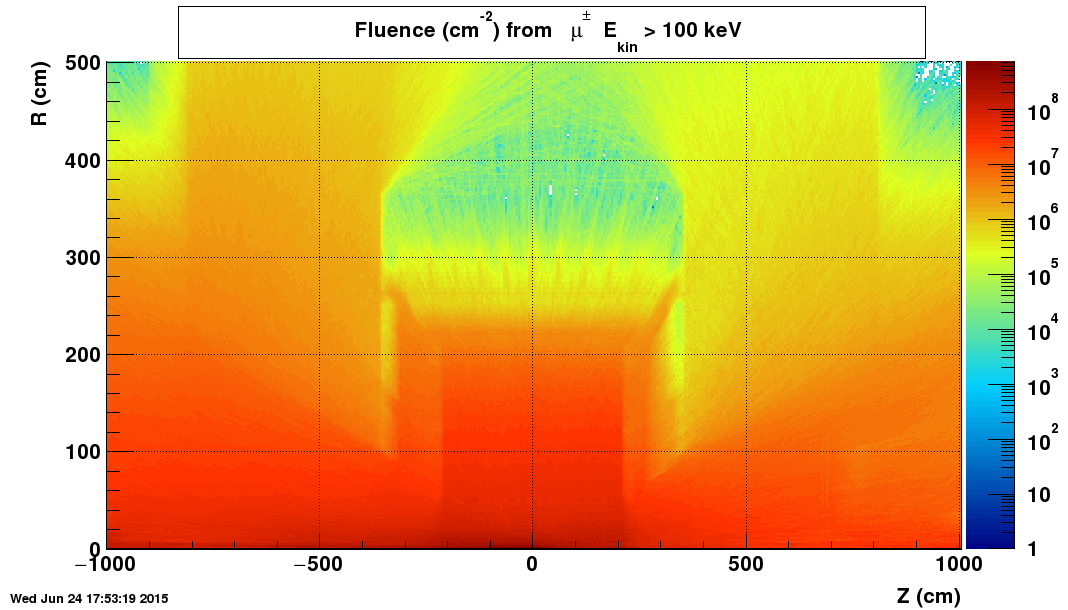

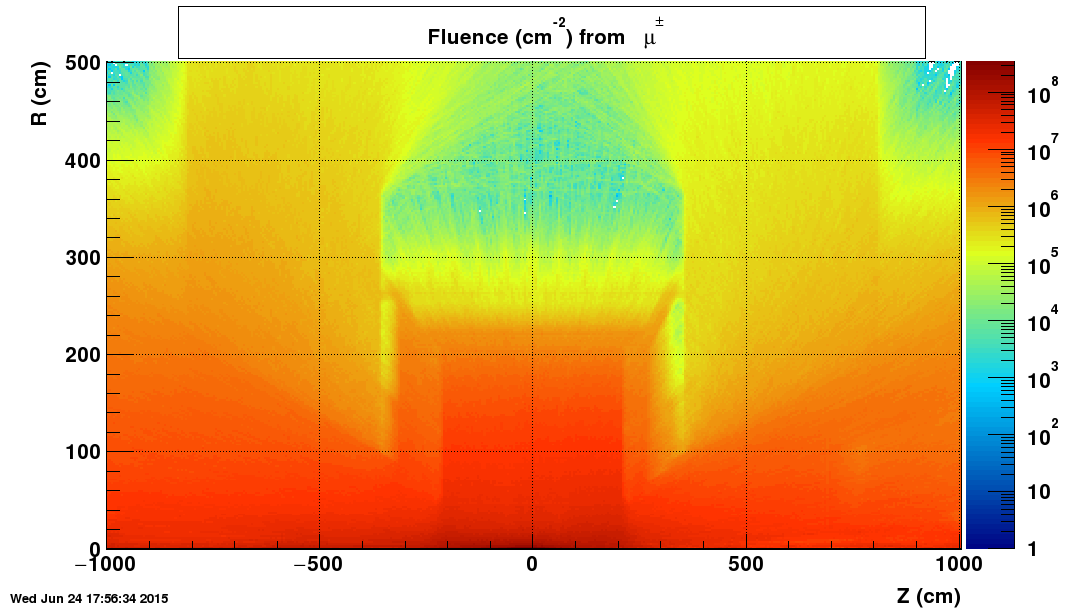

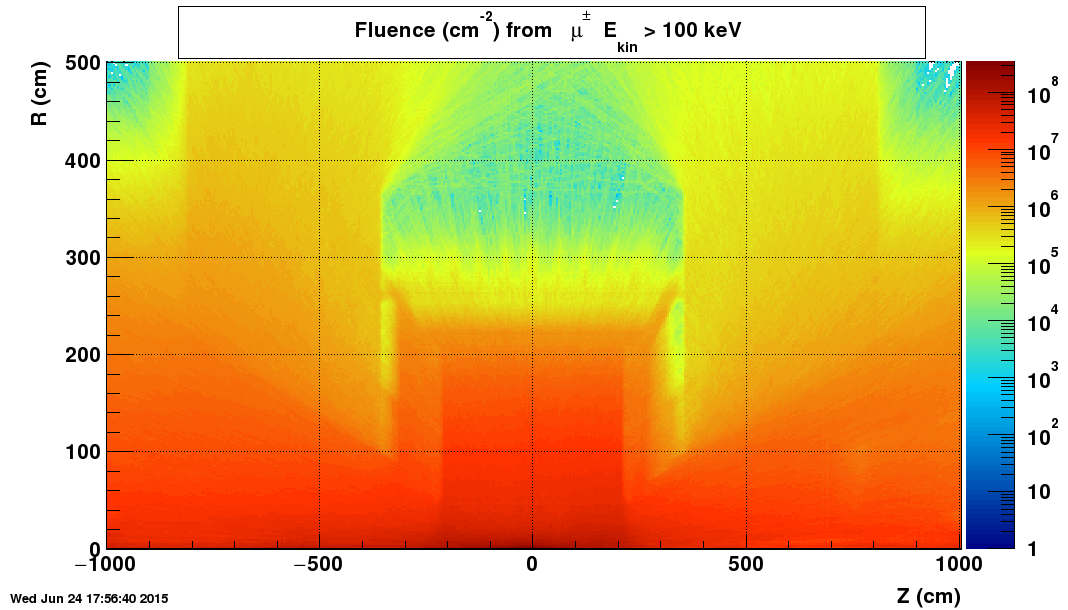

pp200	pAu200	pAl200/

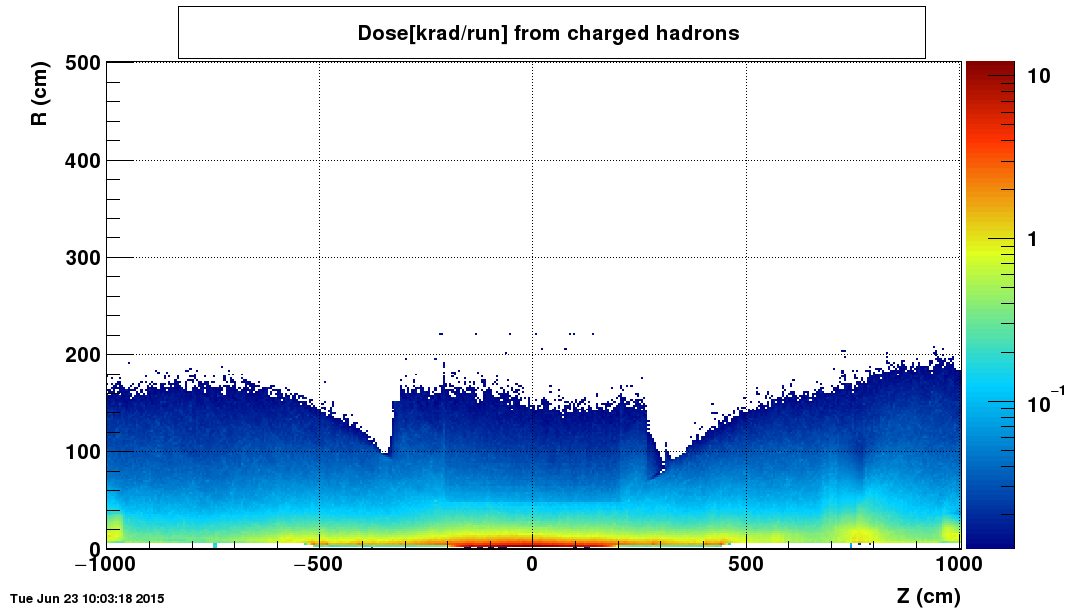

Fig.21 hadrons
Fig.22 electrons

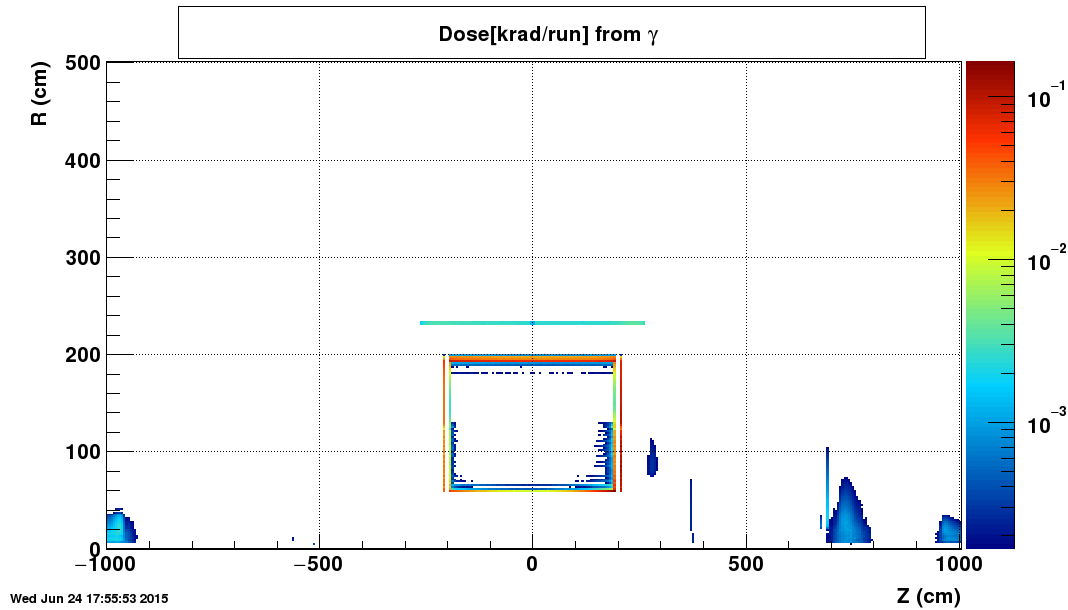

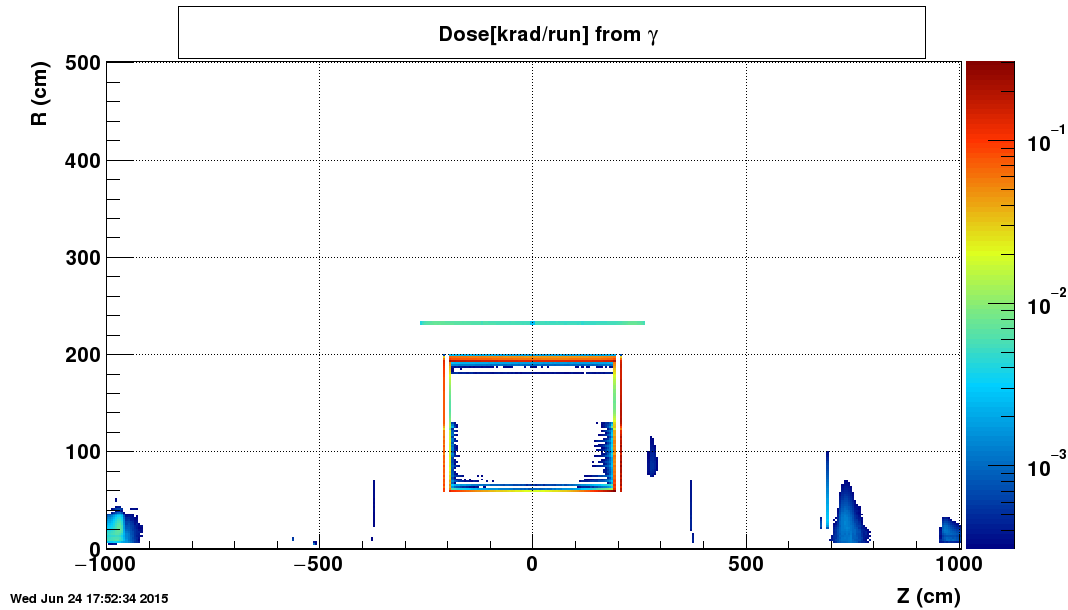

Fig.23 γs

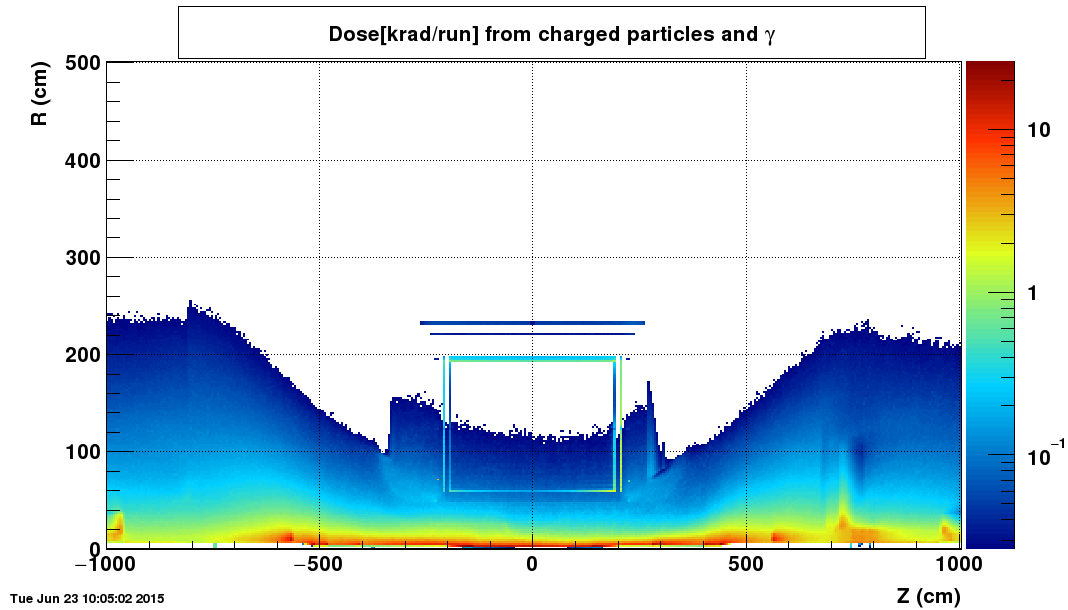

Fig.24 all charged particles and γs

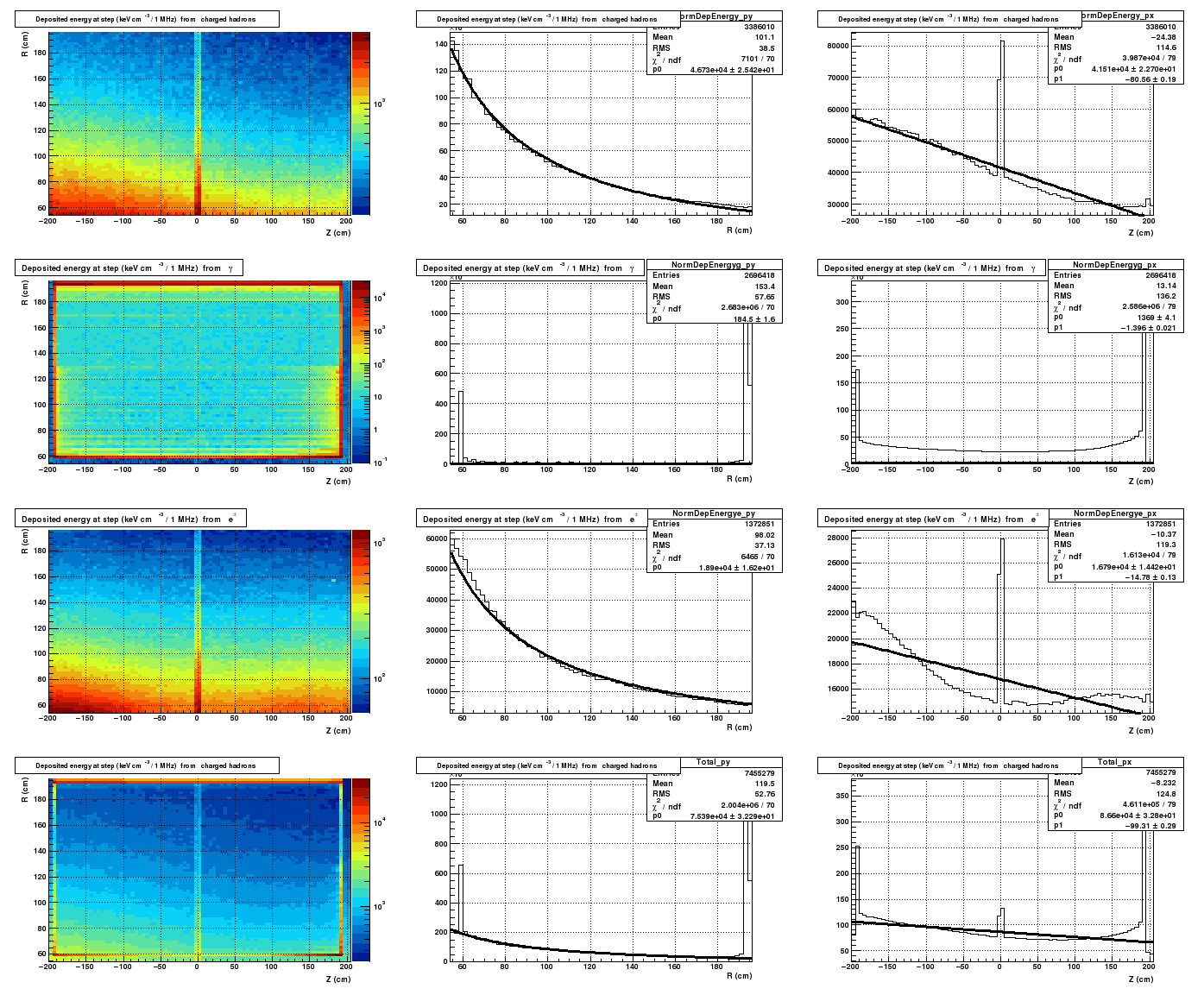

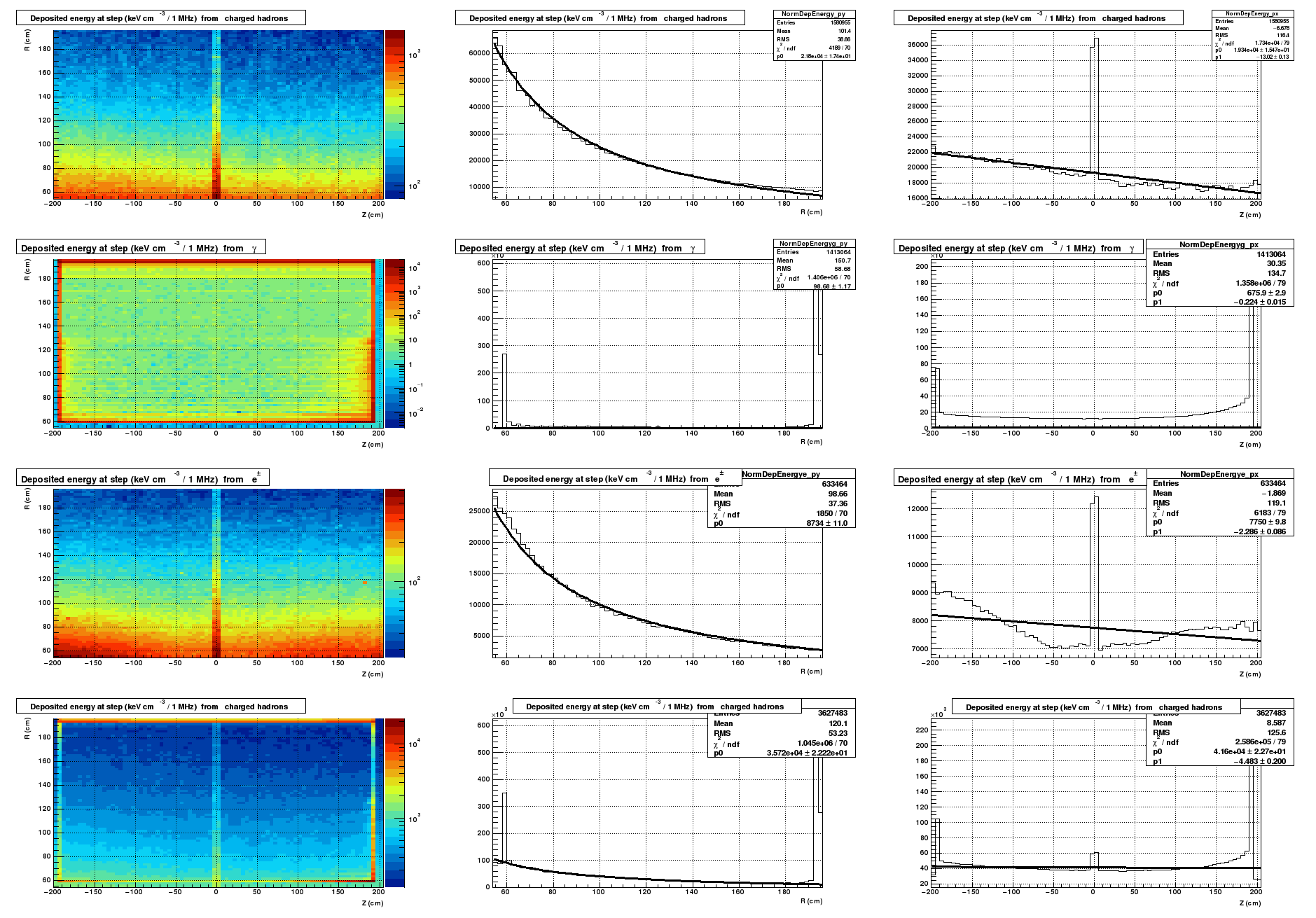

Fig.25 Deposited energy (Space Charge)
