Fluxes
Fluxes
Data sample:
- pp 510 GeV, pythia, geometry 2013 (published as
Yuri Fisyak et al., "Thermal neutron flux measurements in the STAR experimental hall", Nucl.Instrum.Meth. A756 (2017) 68-72,
DOI: 10.1016/j.nima.2014.04.035).
- pp 510 GeV, pythia, geometry 2017.
Legend

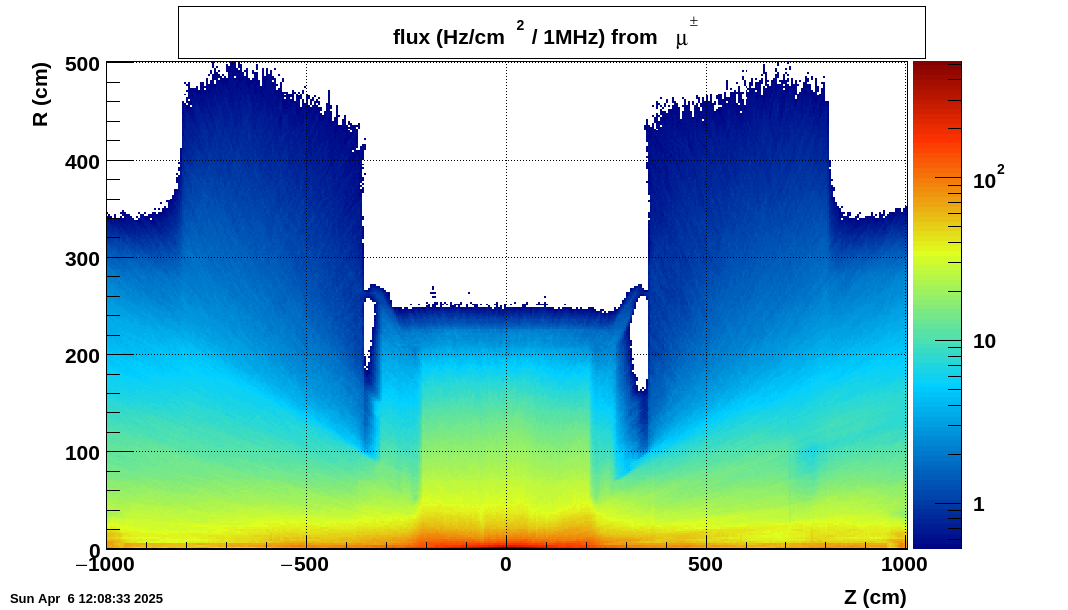

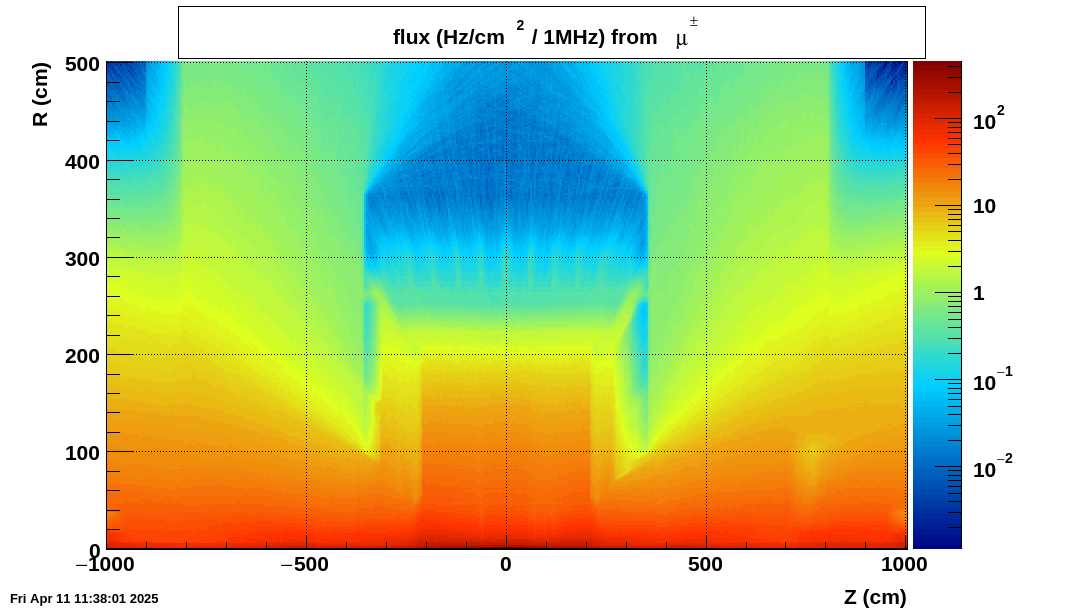

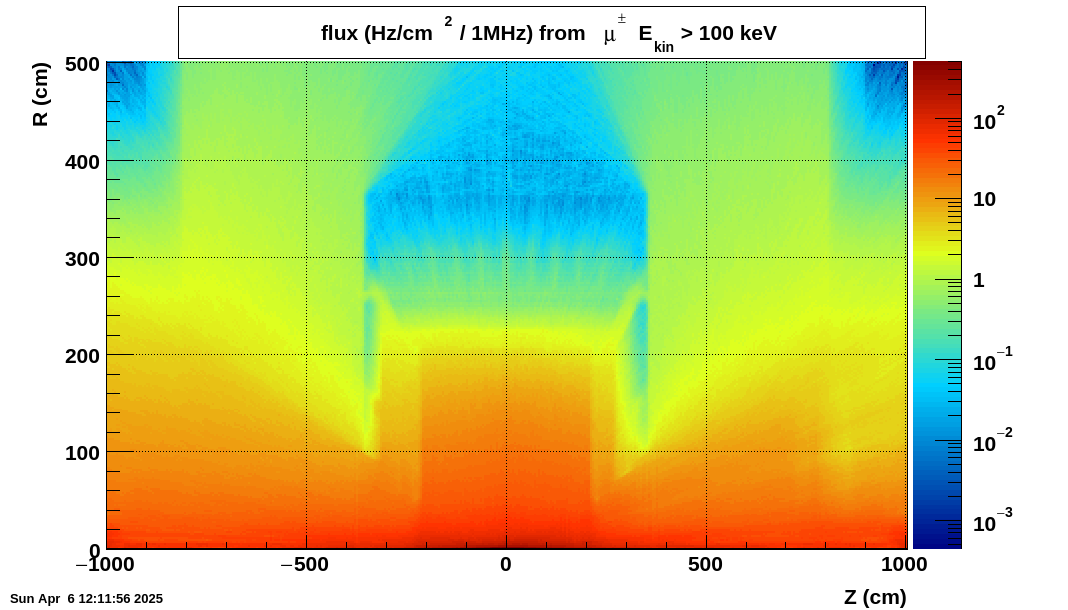

- The plots are normalized on 1 MHz minimum biased collision rate.
- All plots have an associated root files with canvas and can be downloaded by clicking on picture.
The canvas can be redrawn in root and any number can be obtained from the canvas via Options → Status Bar.

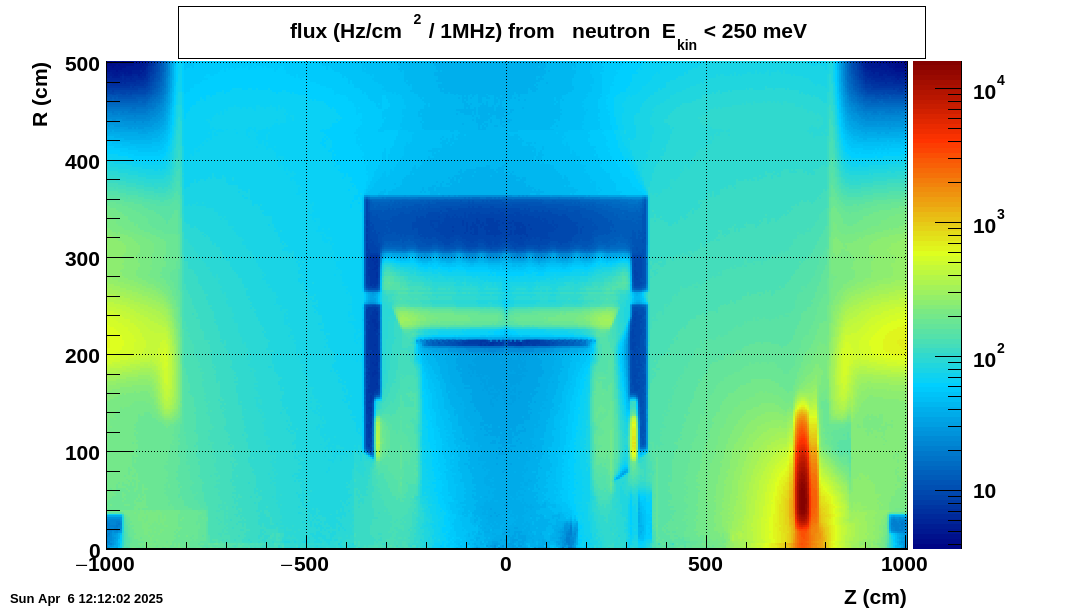

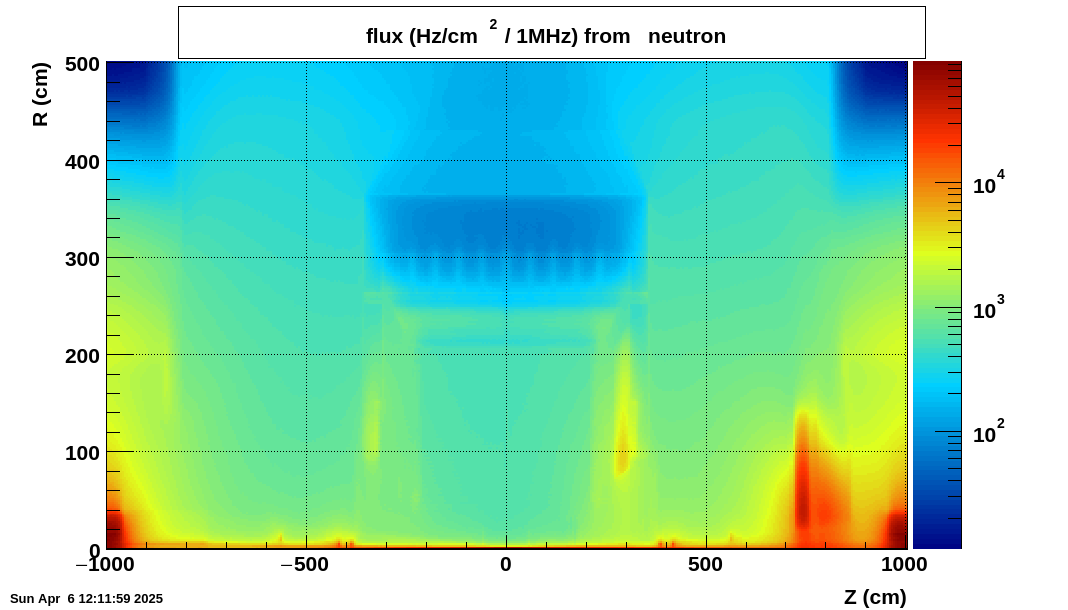

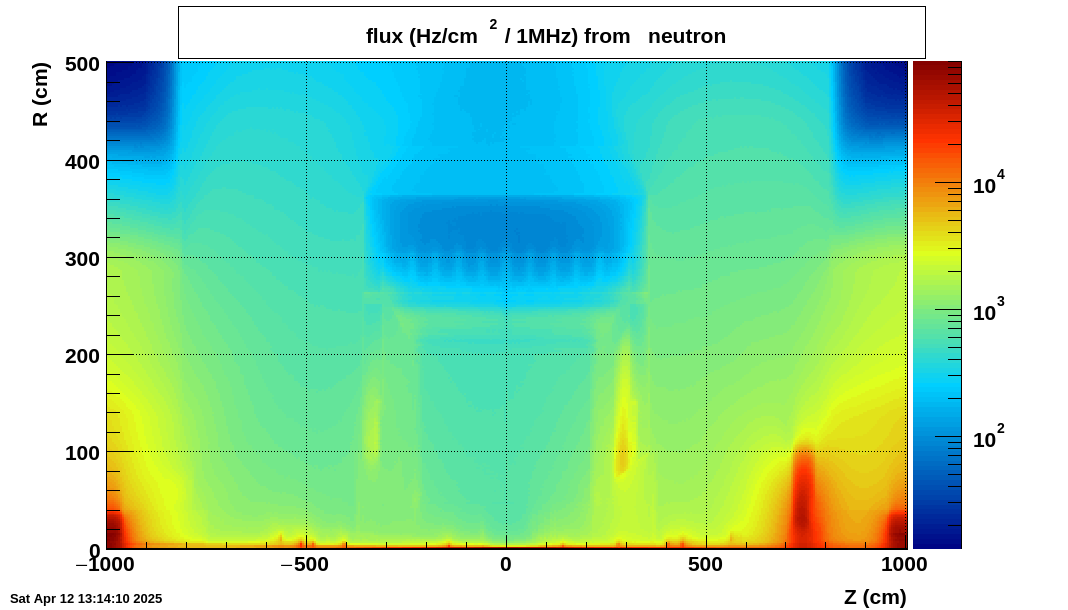

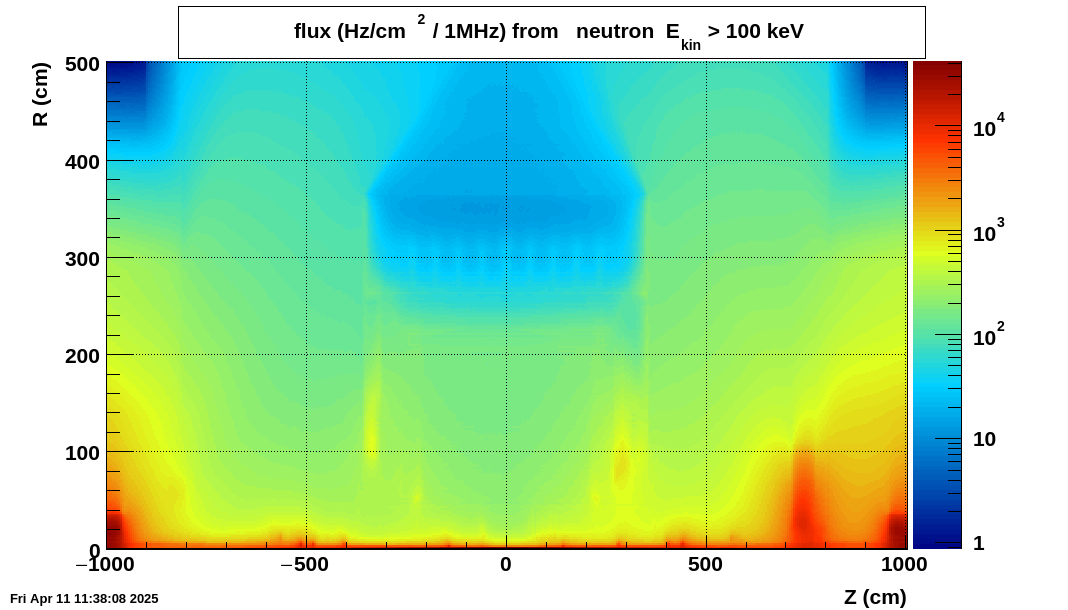

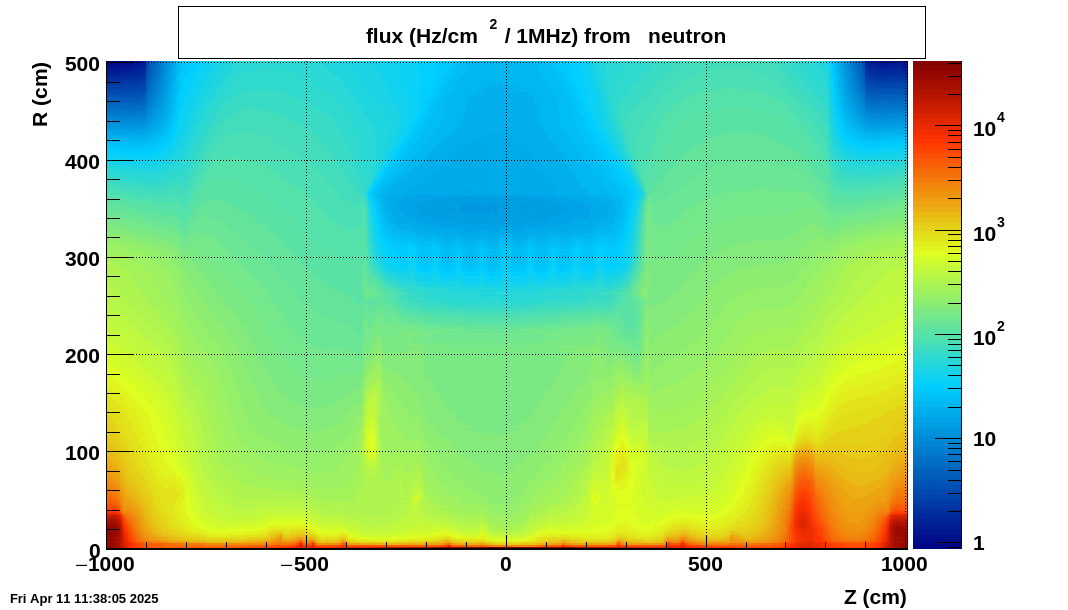

- Fig.1 - Fig.4 show neutron fluxes for all ( Fig.1),

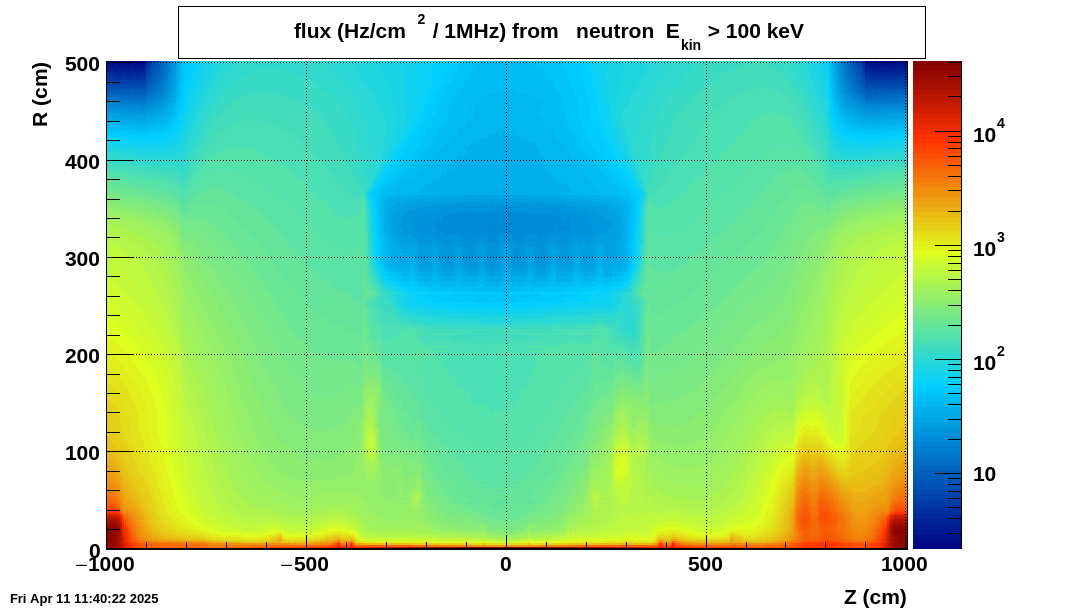

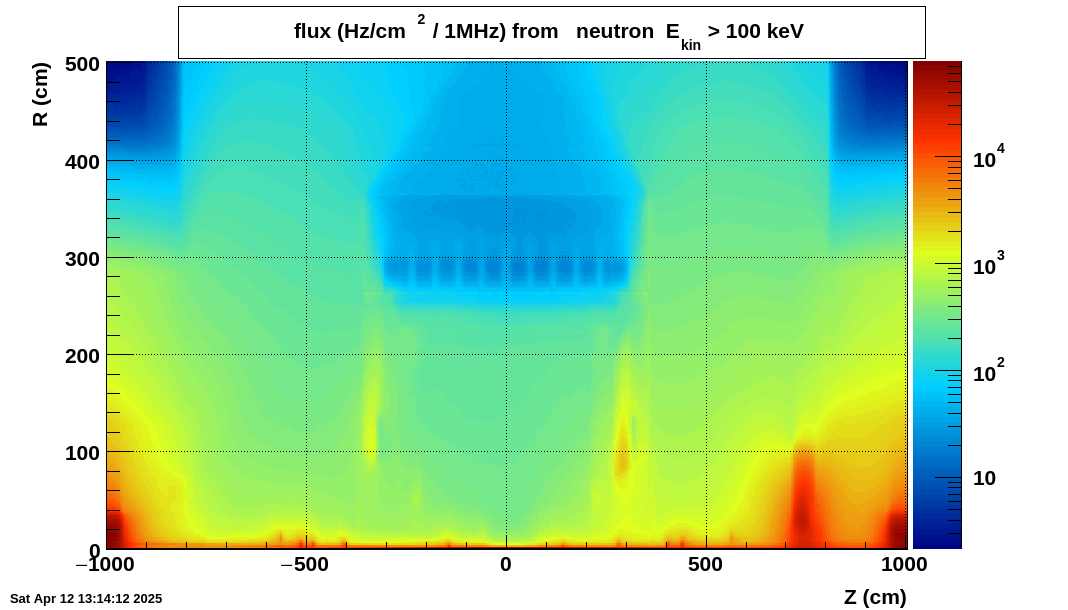

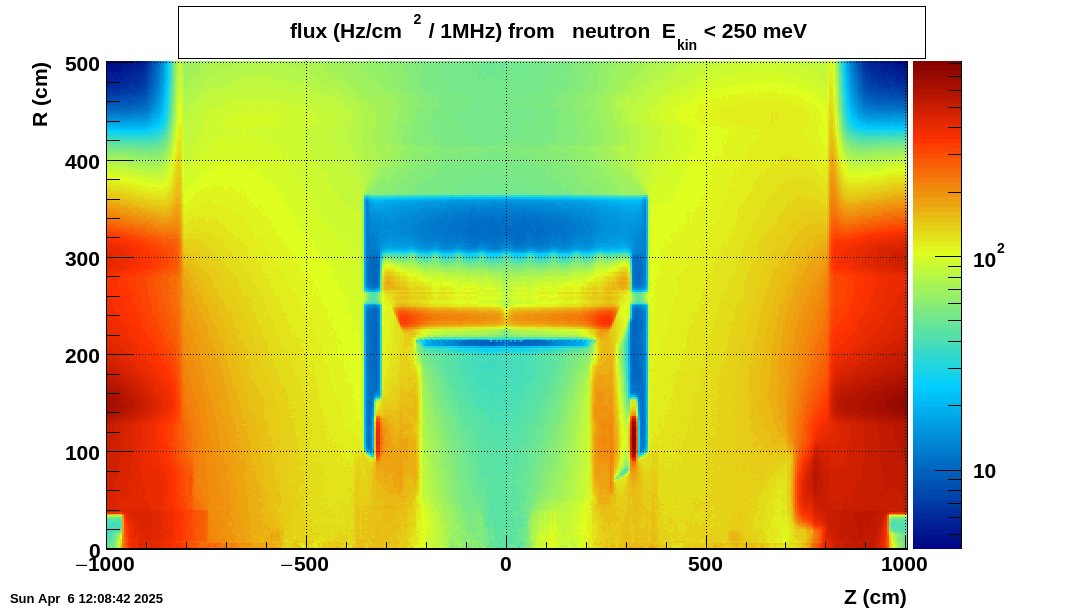

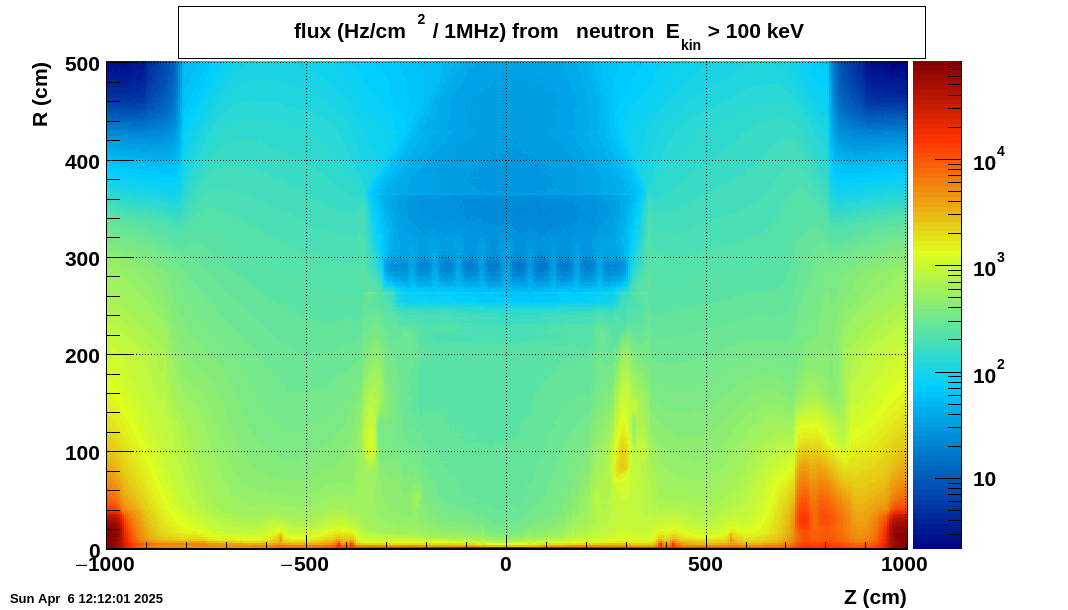

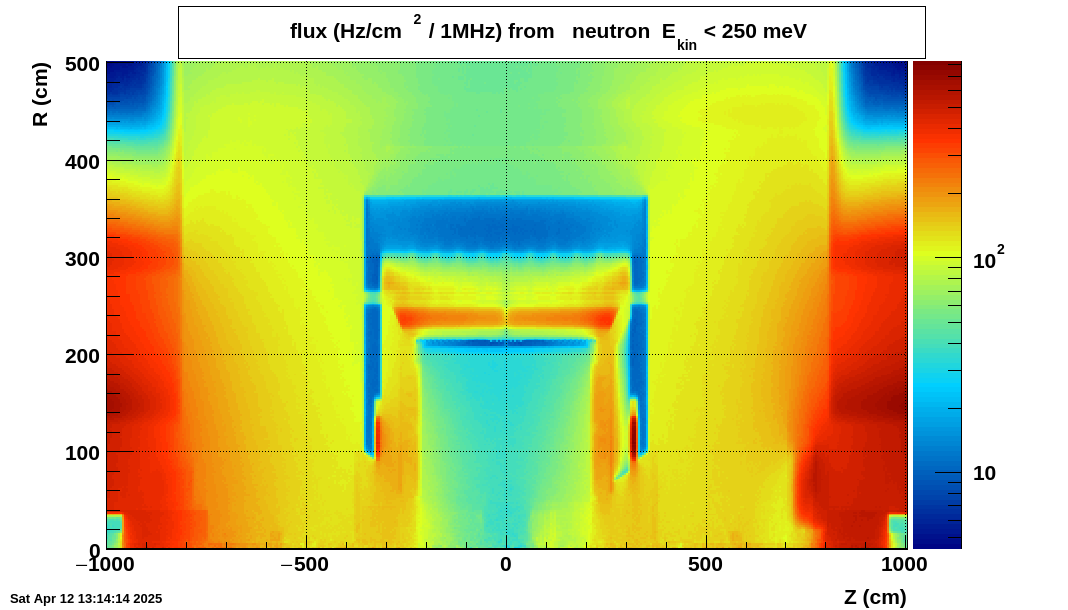

with Ekin > 100 MeV ( Fig.2), with with Ekin < 250 meV ( Fig.3),

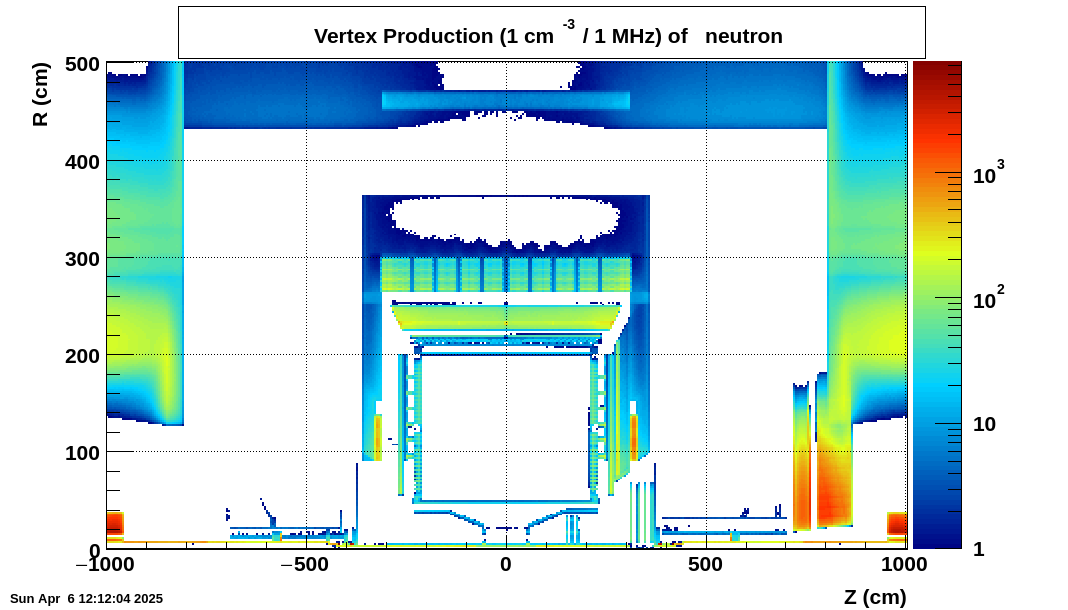

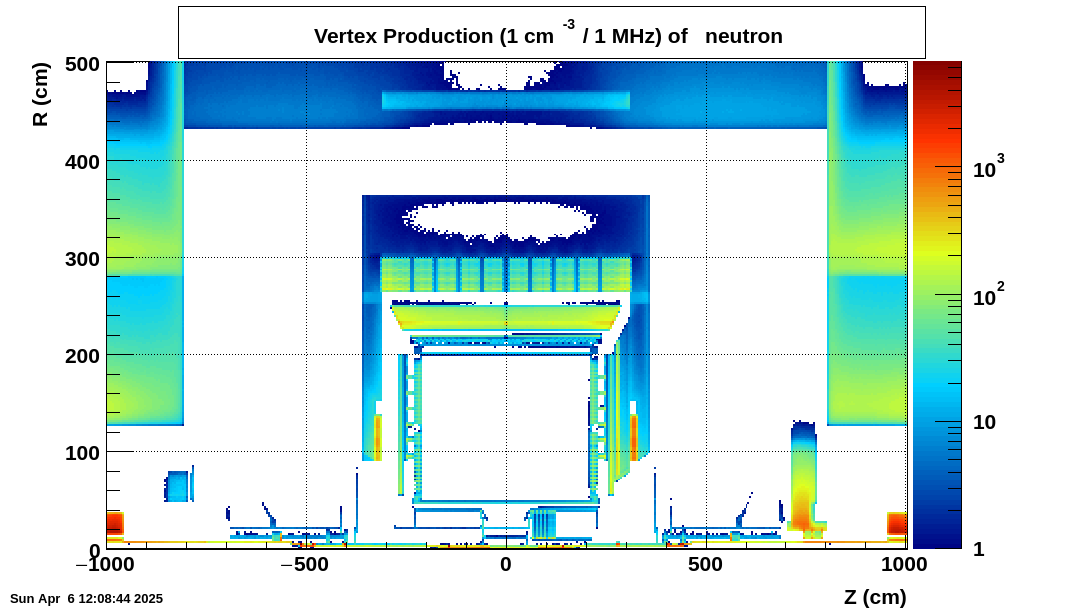

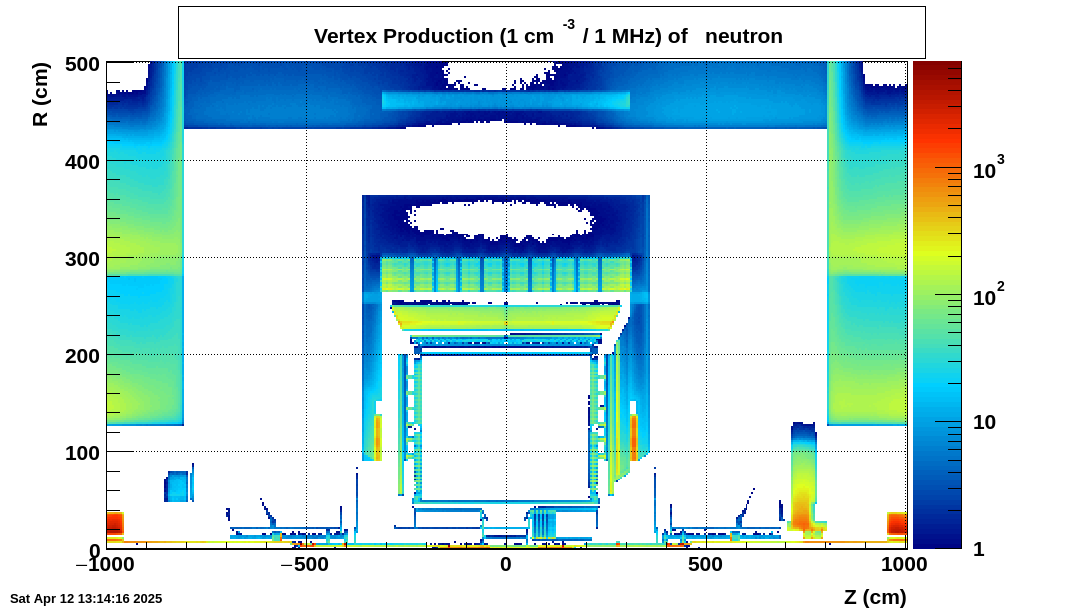

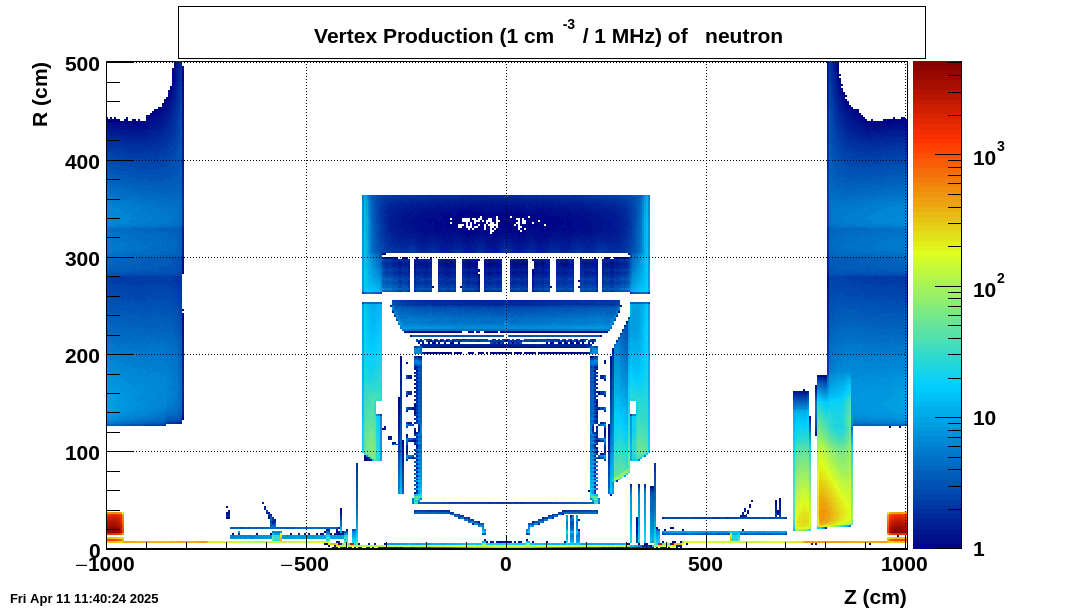

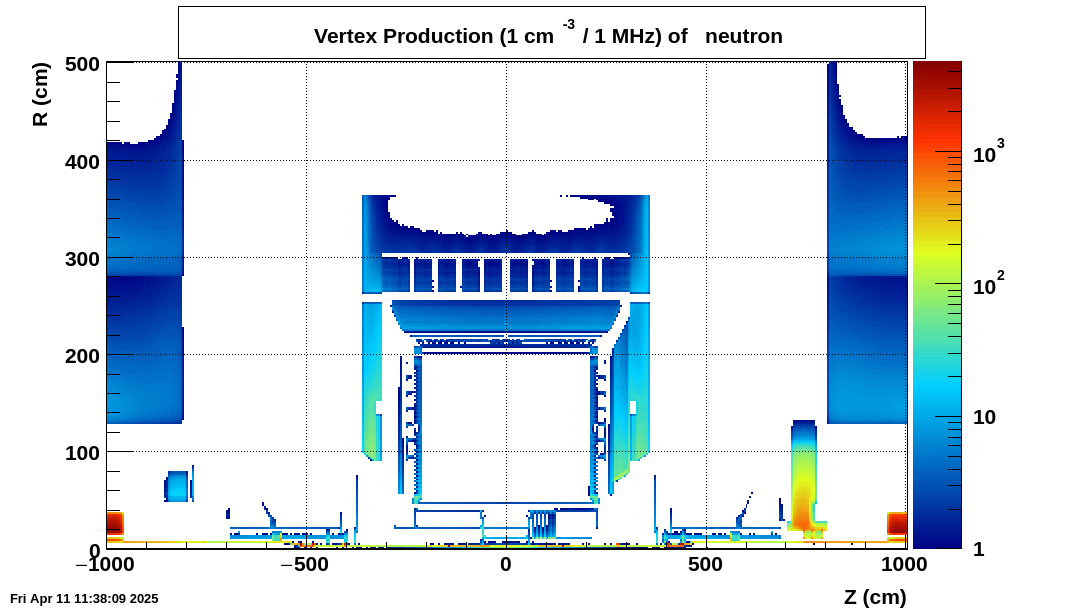

and neutron production vertices ( Fig.4).

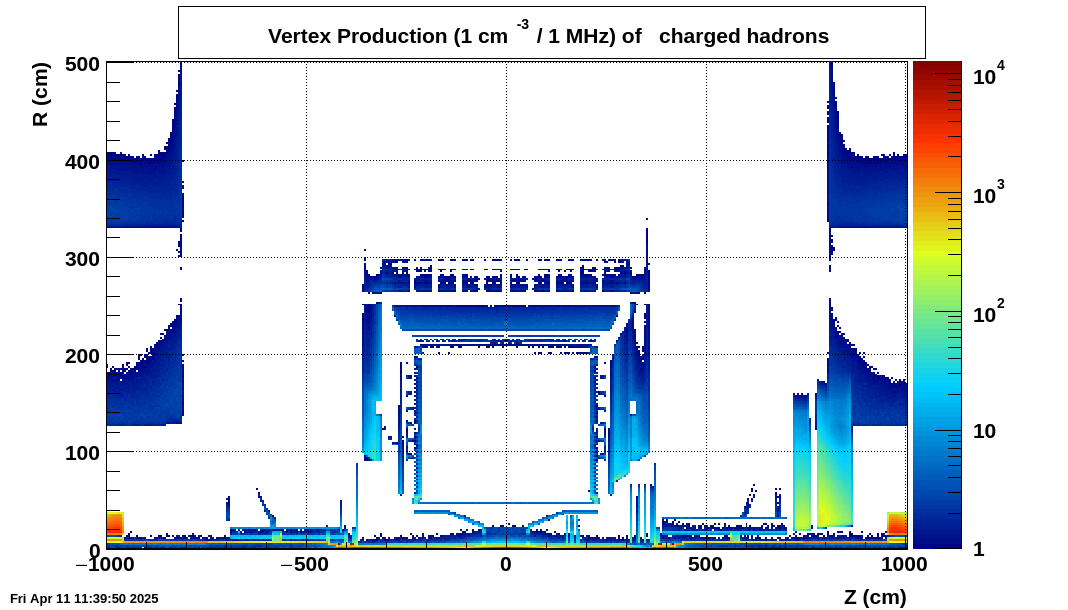

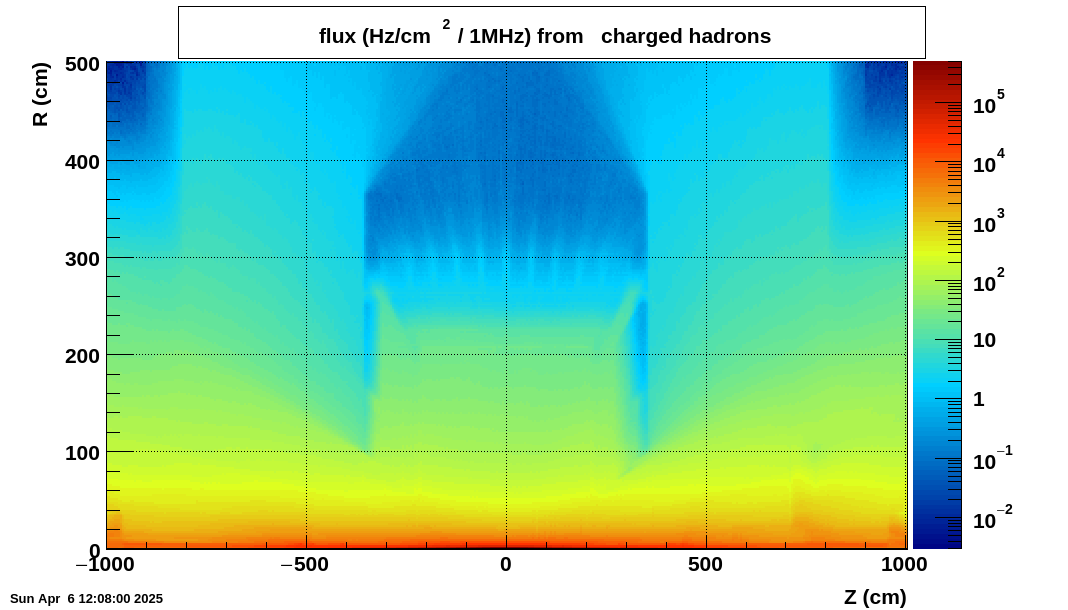

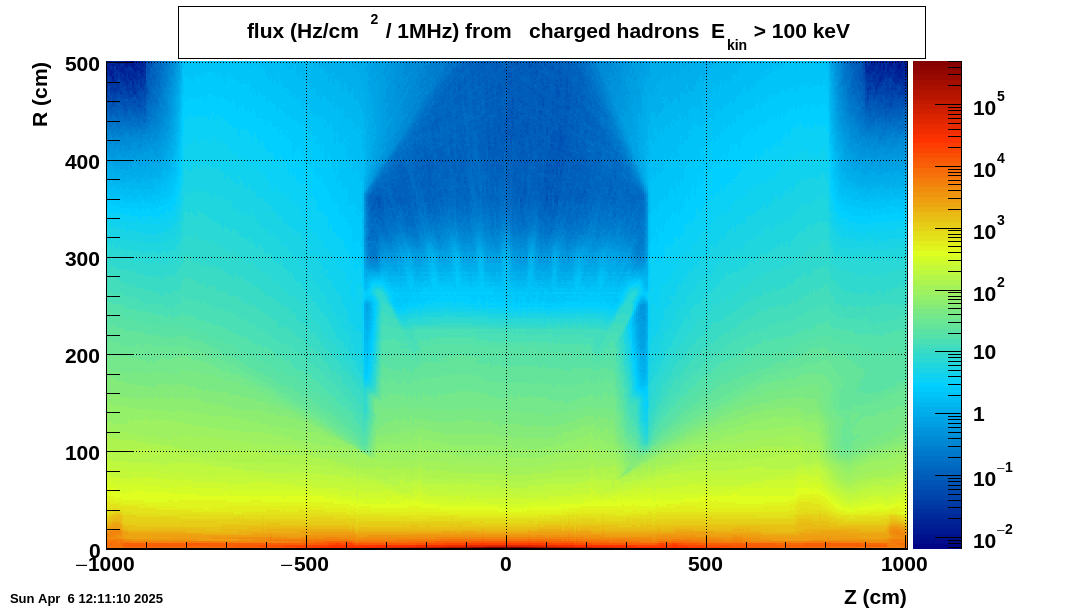

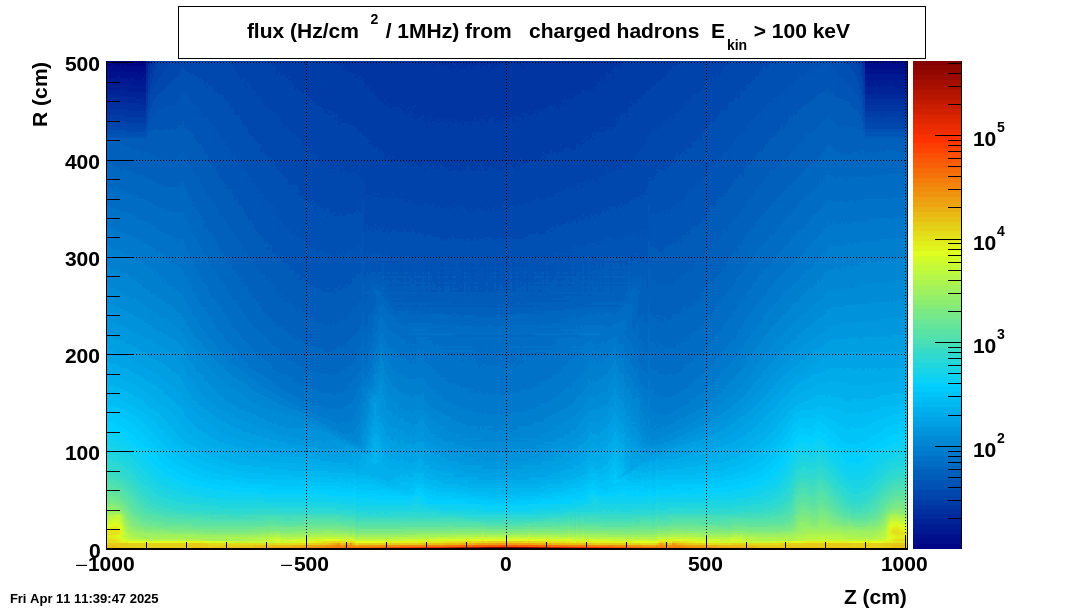

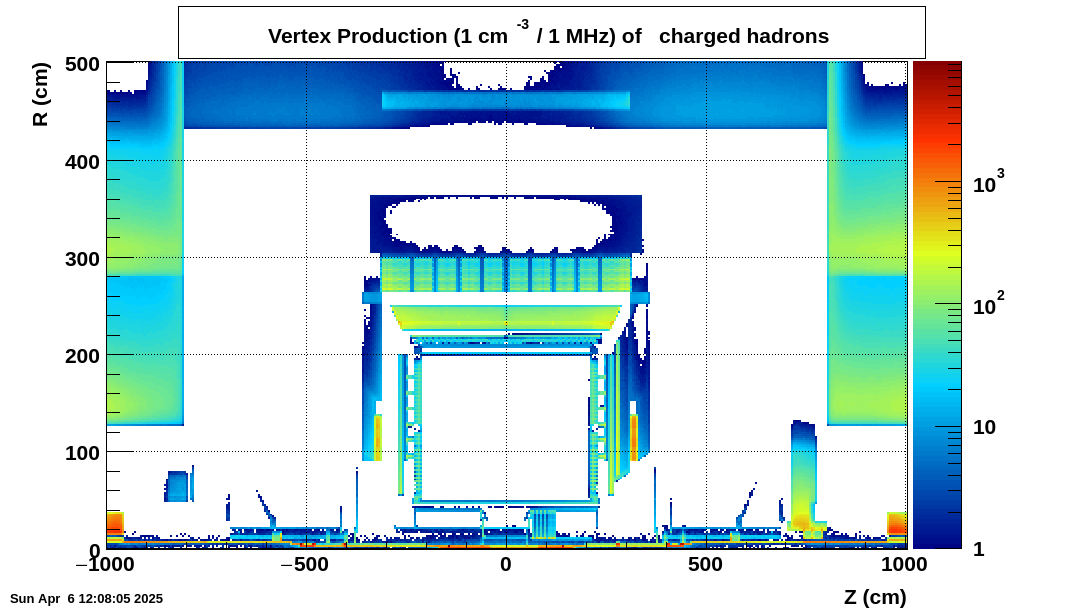

- Fig.5 - Fig.7 show fluxes for charged hadrons.

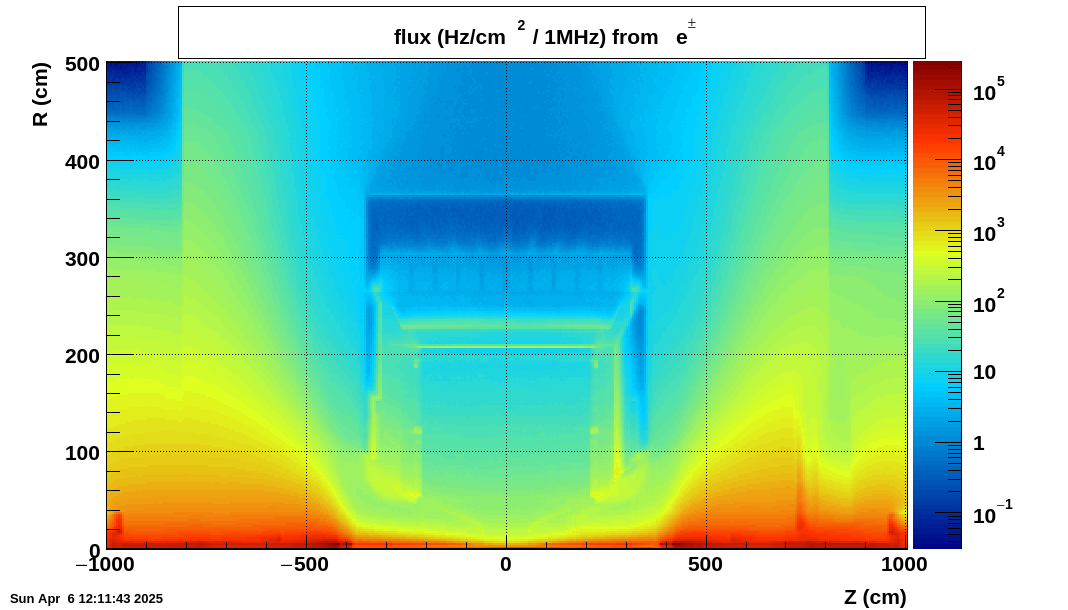

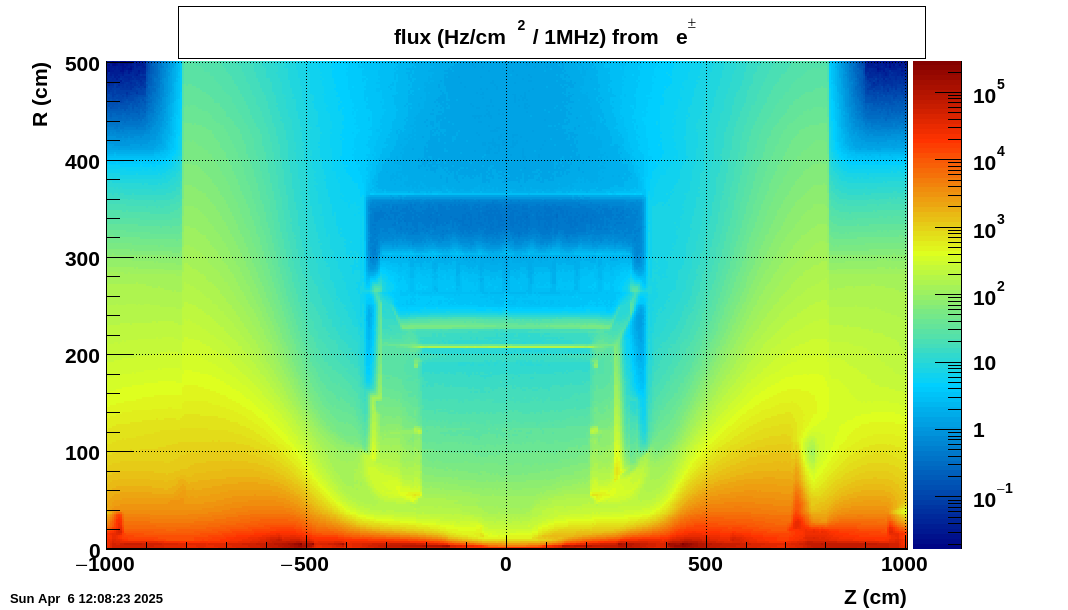

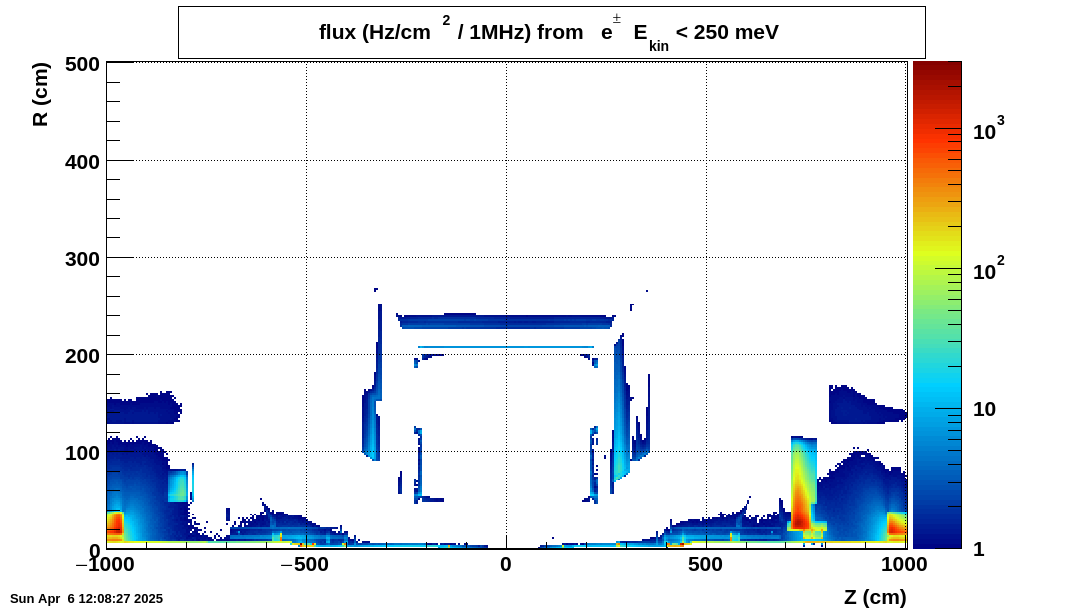

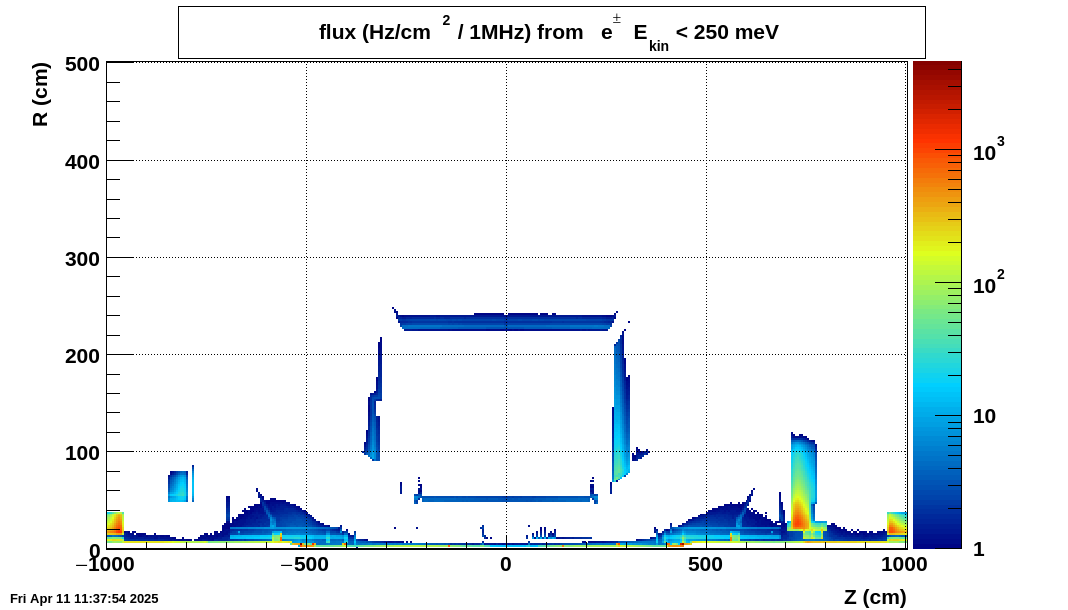

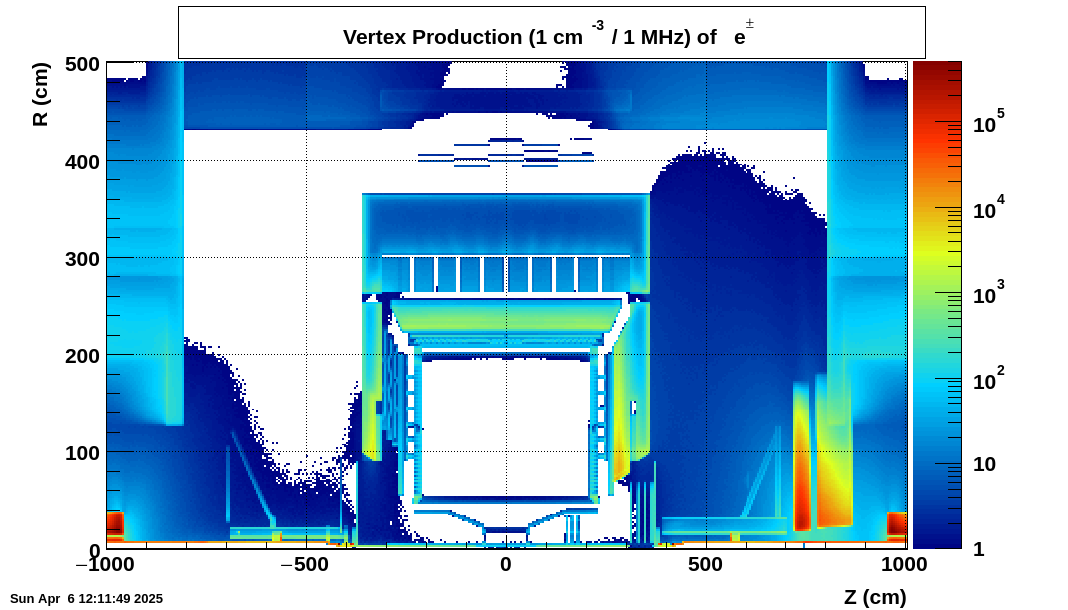

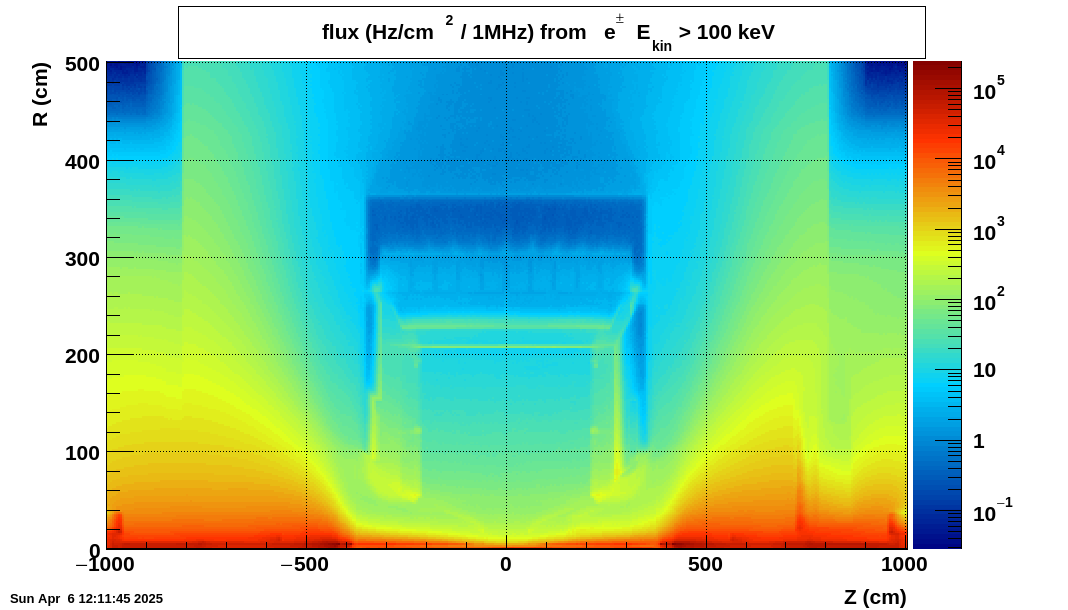

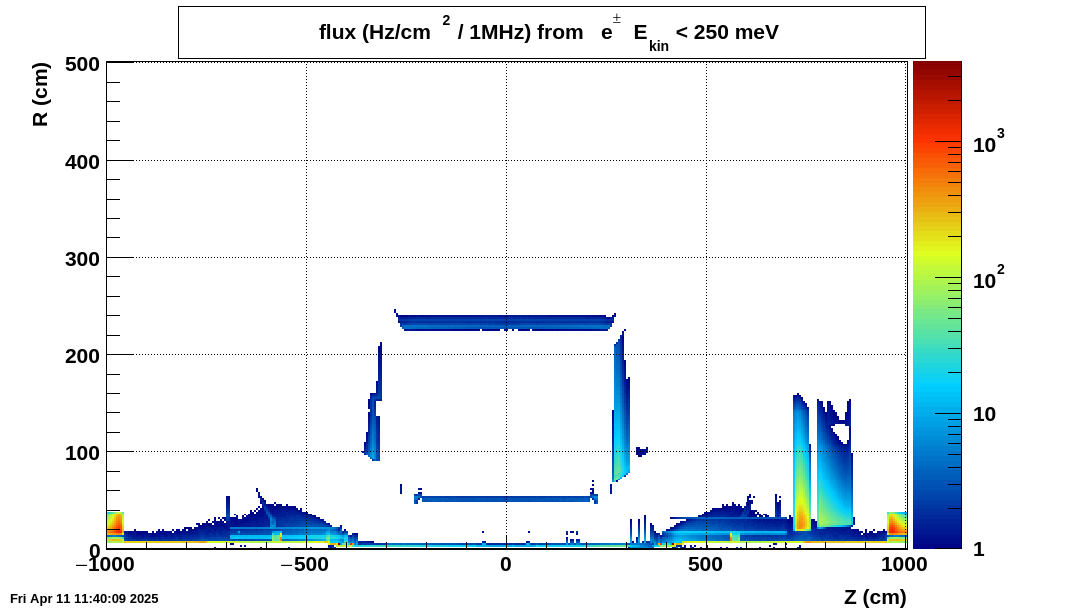

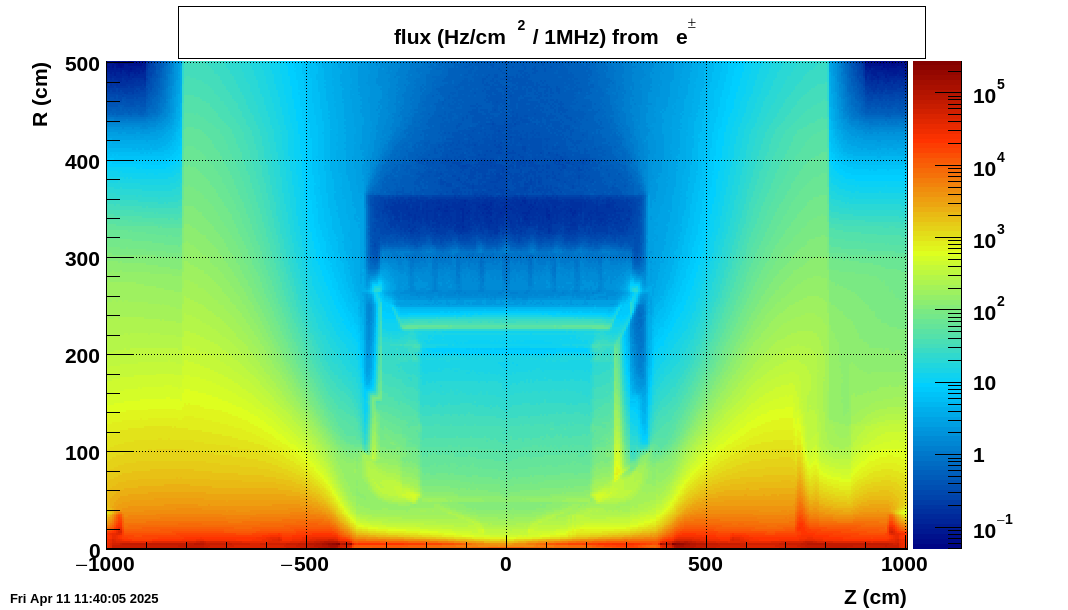

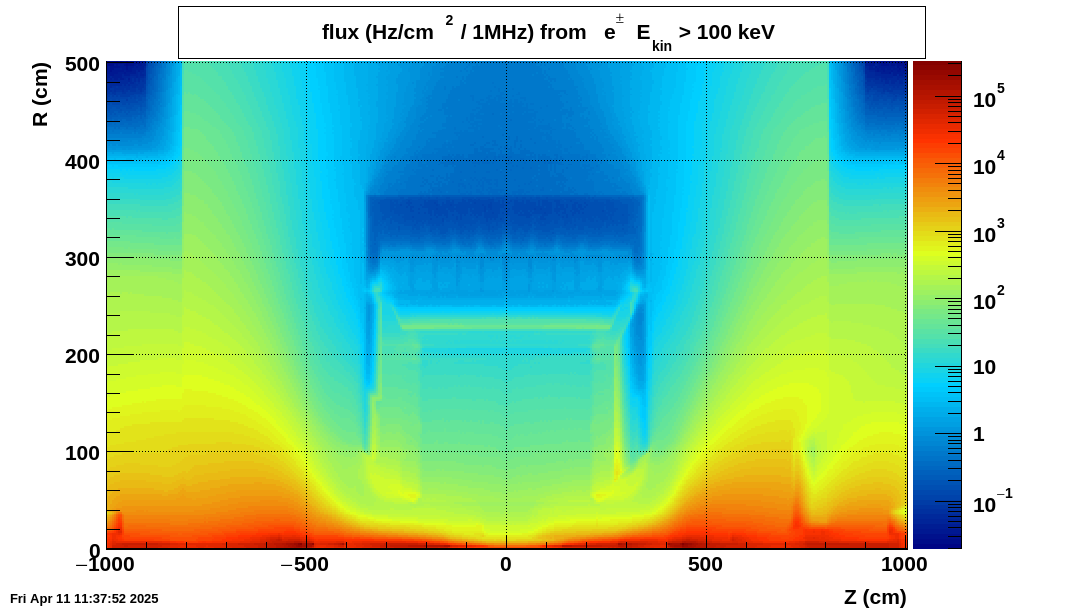

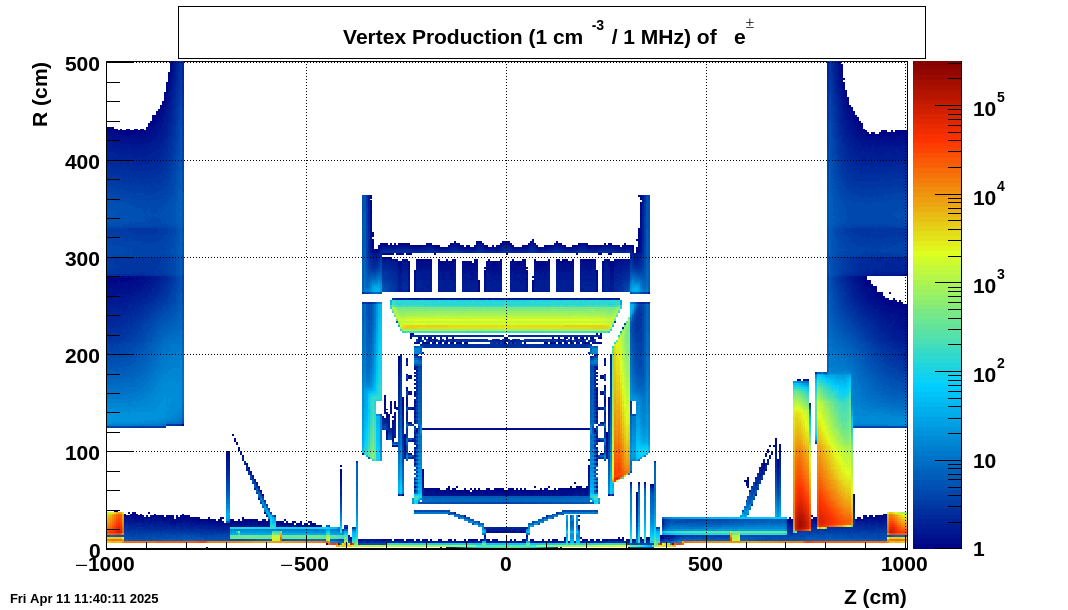

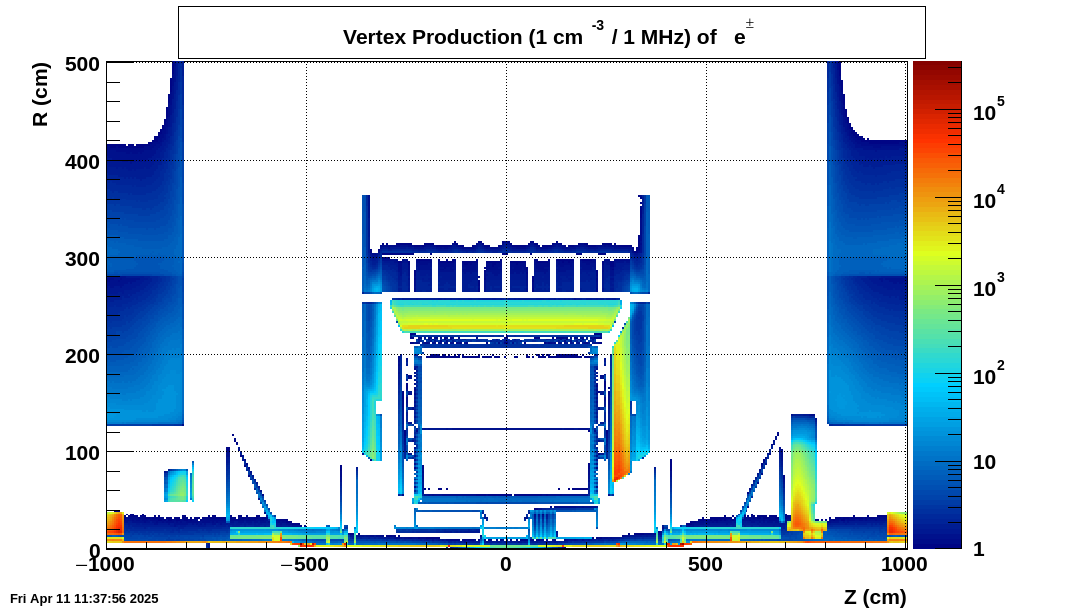

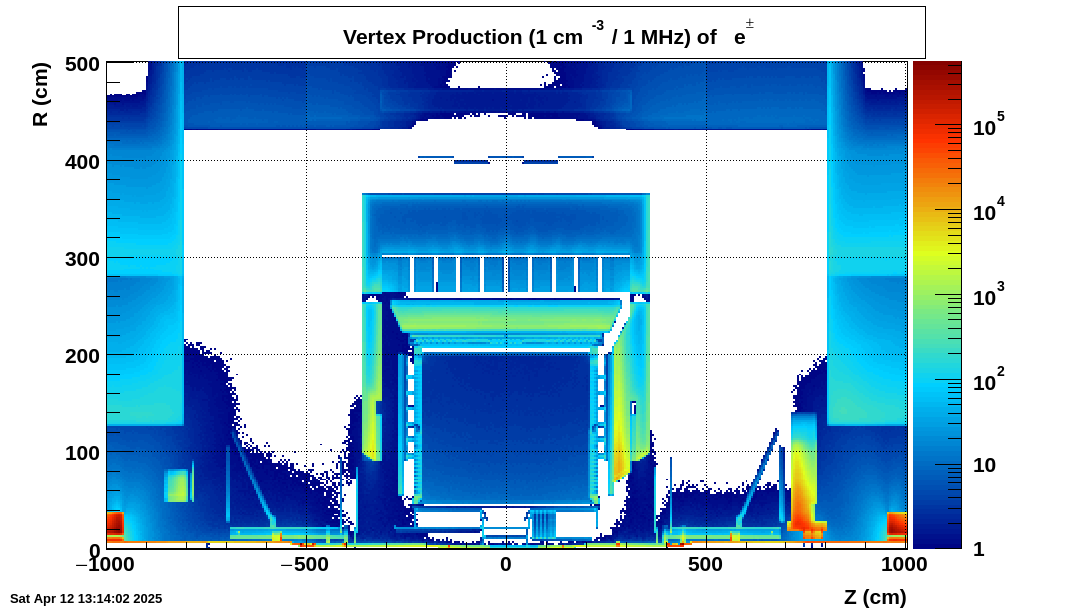

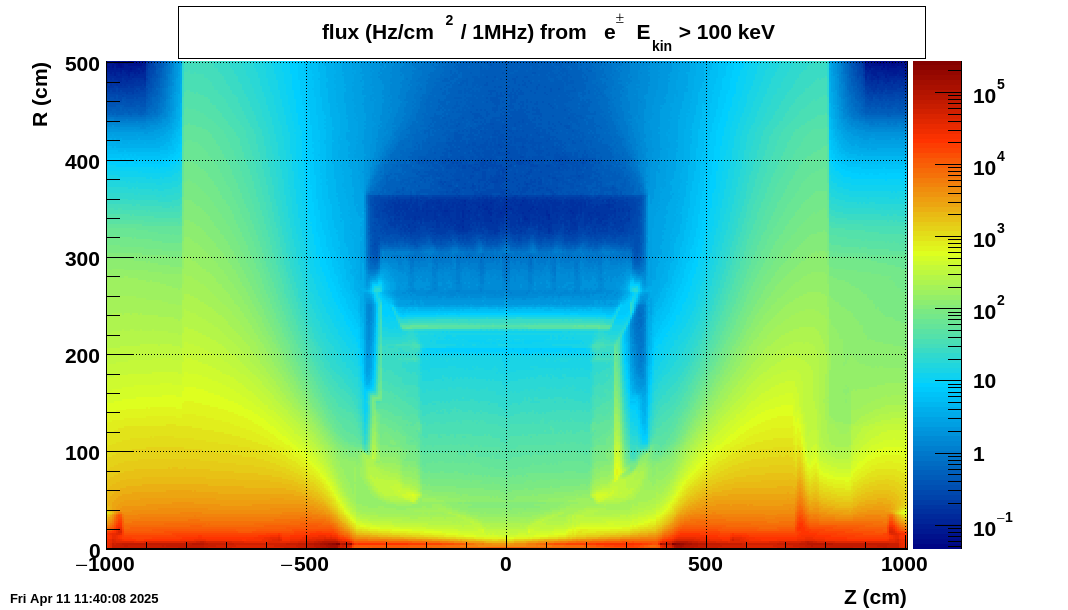

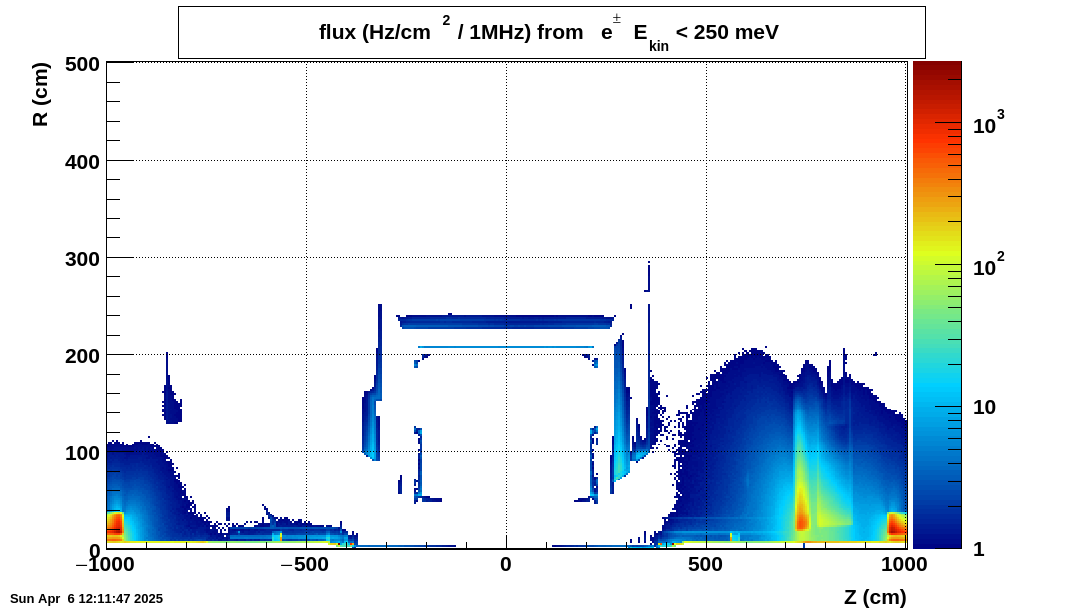

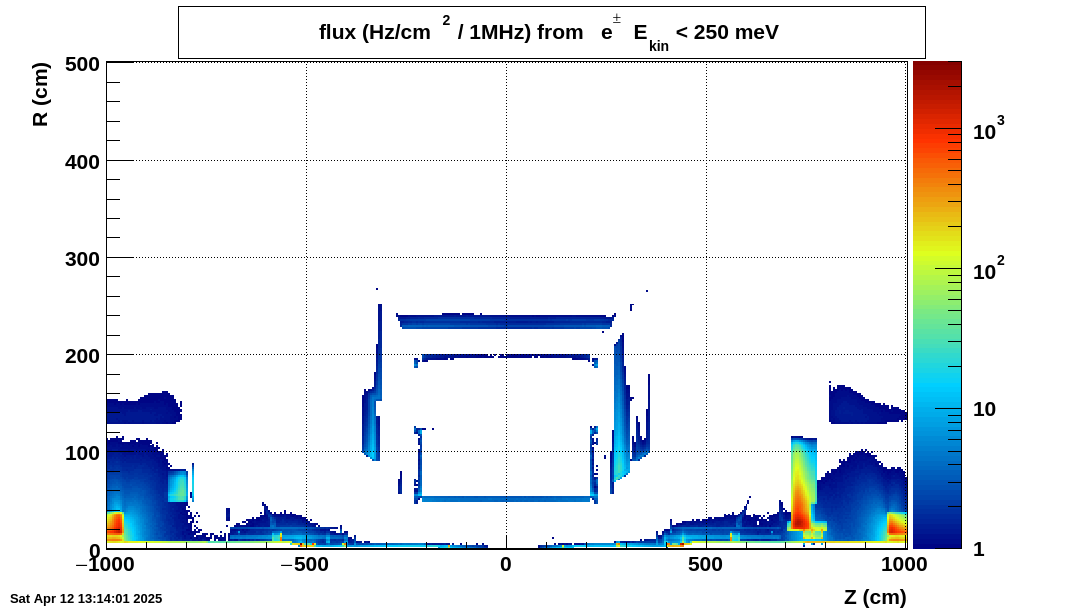

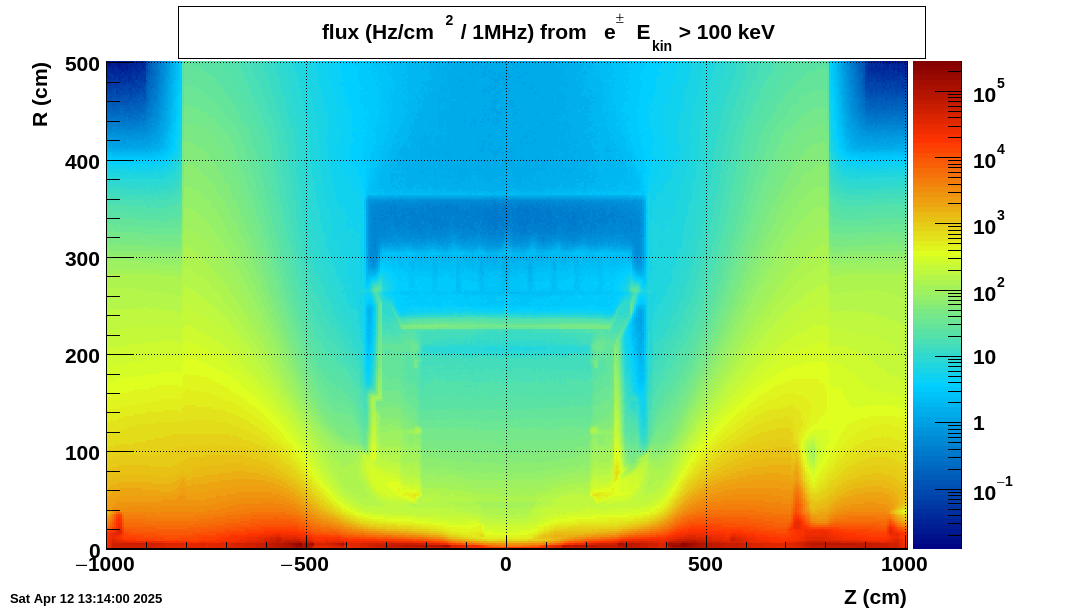

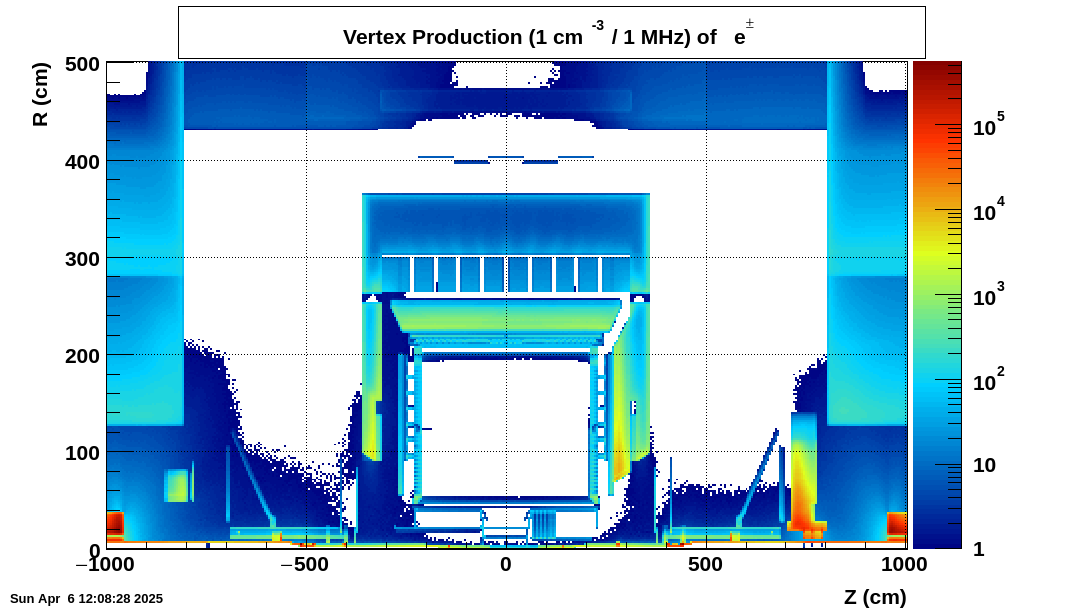

- Fig.8 - Fig.11 show fluxes for electrons.

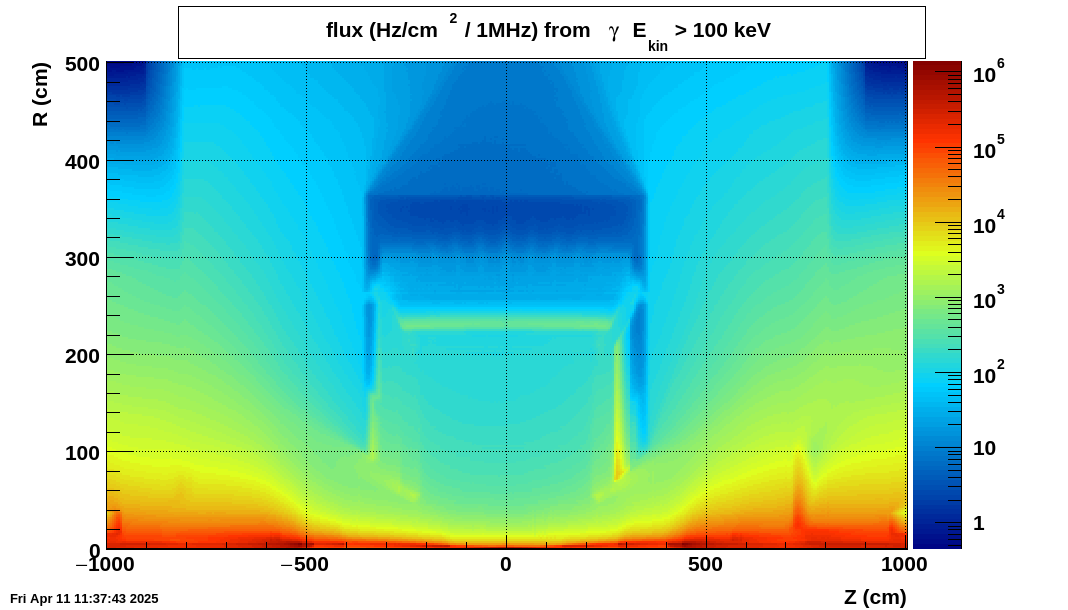

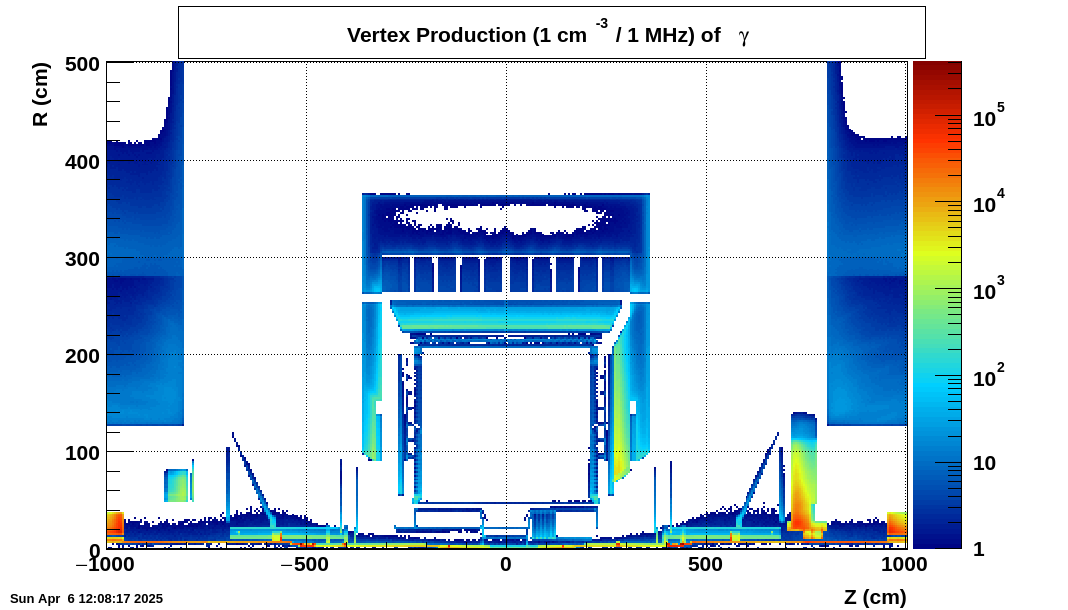

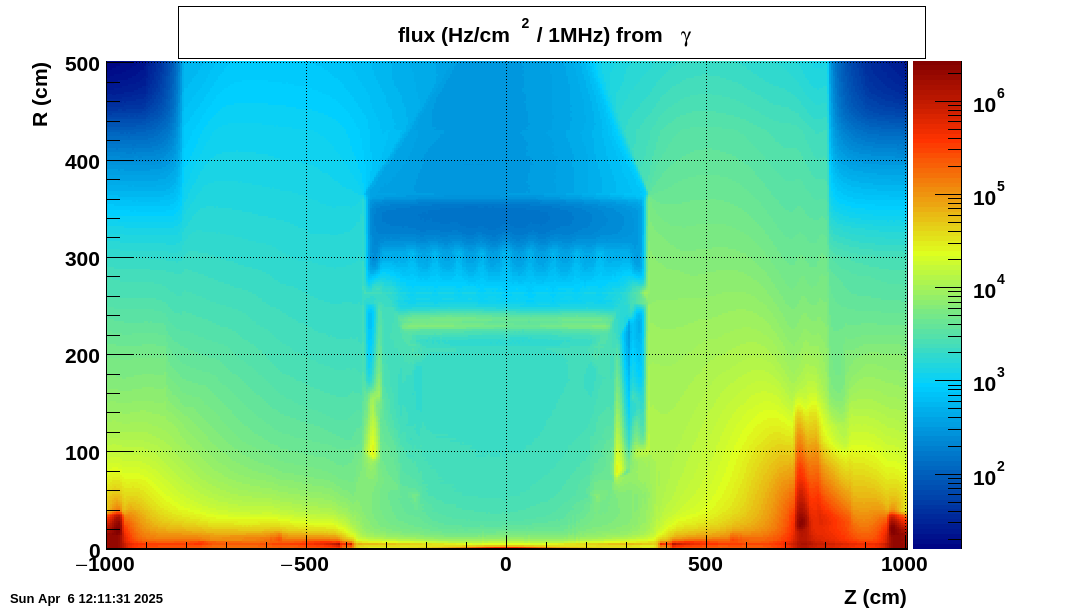

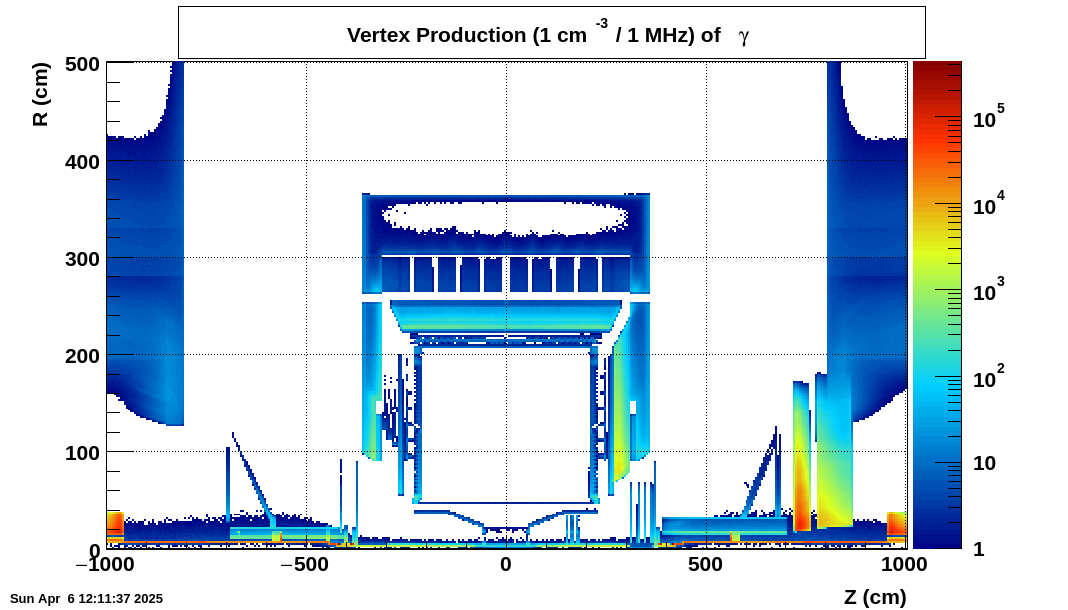

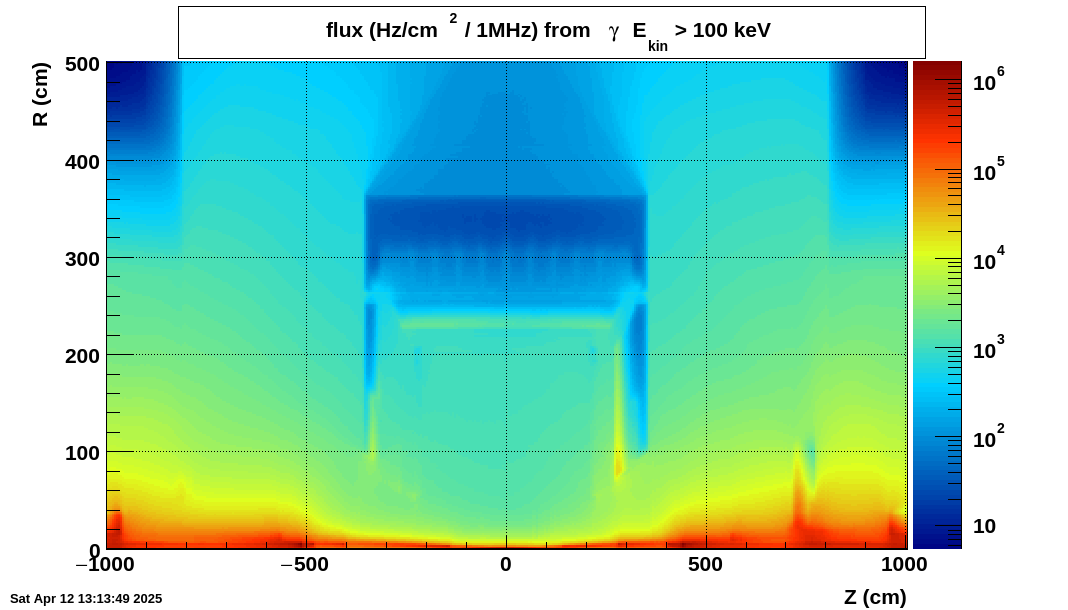

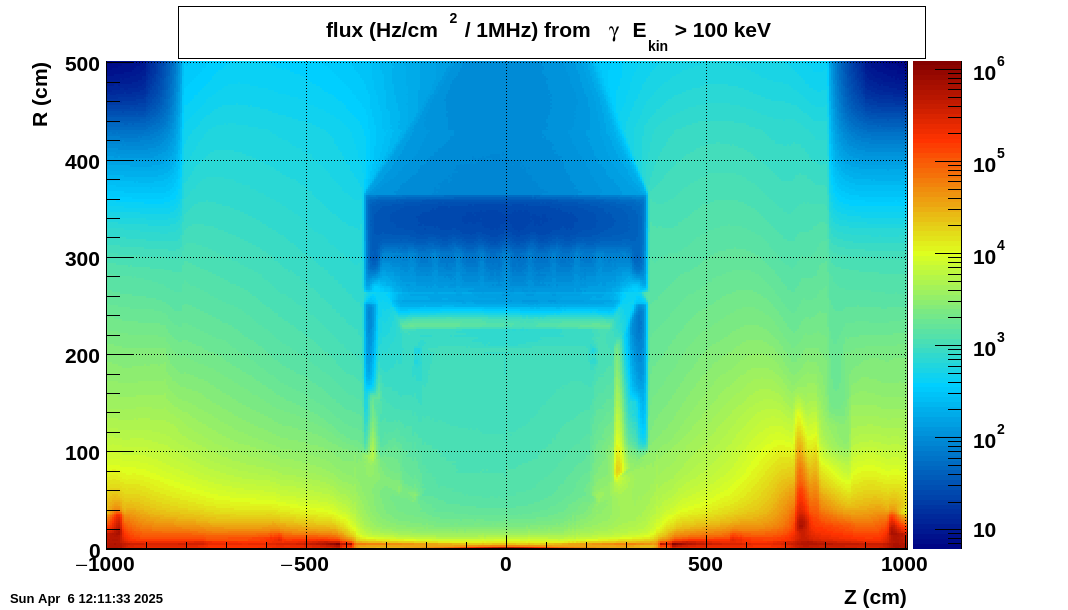

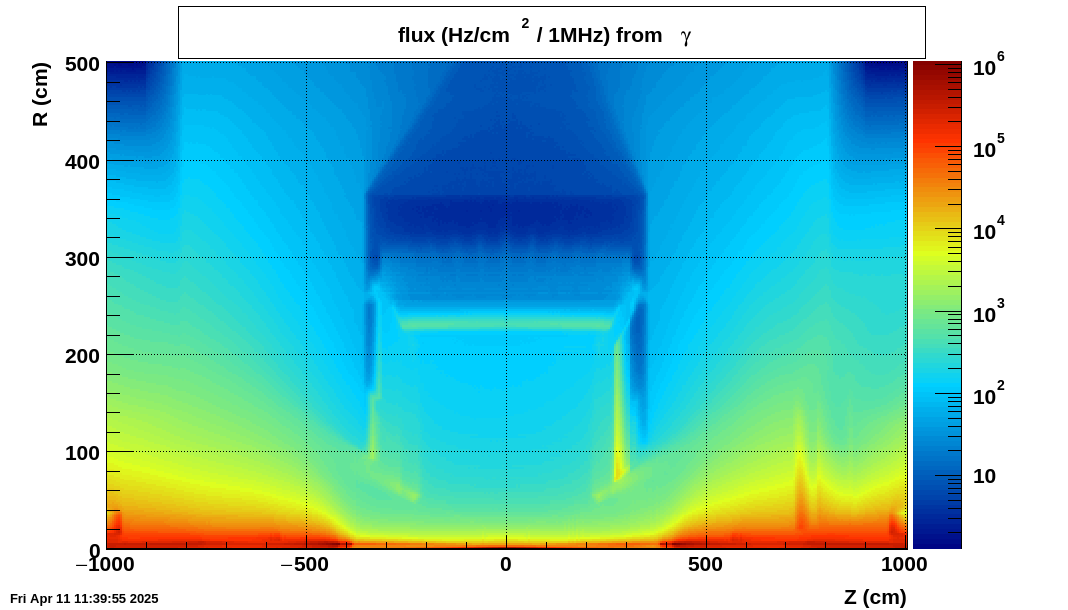

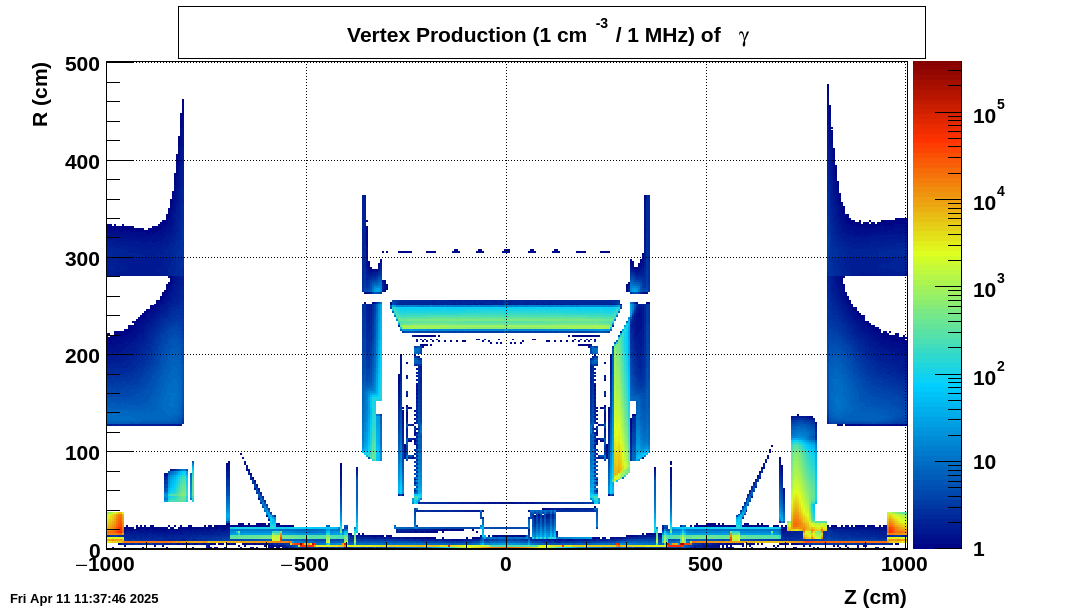

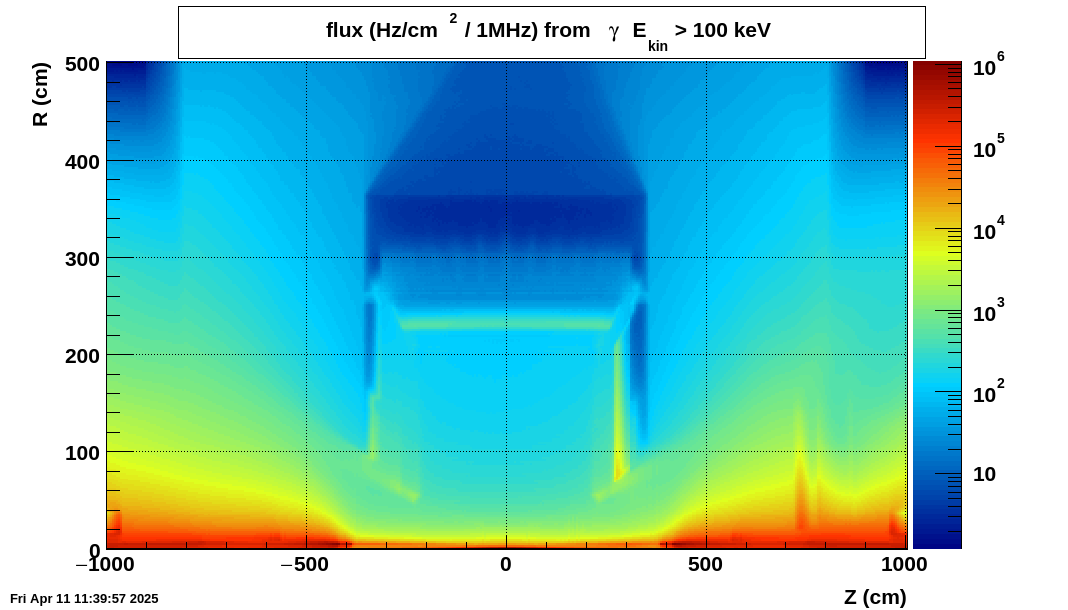

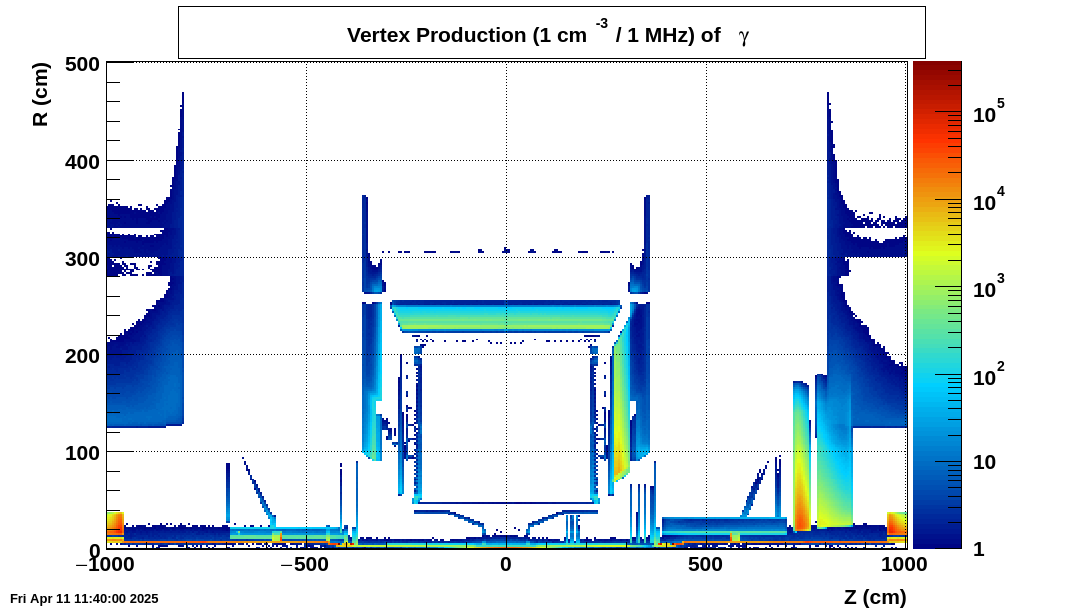

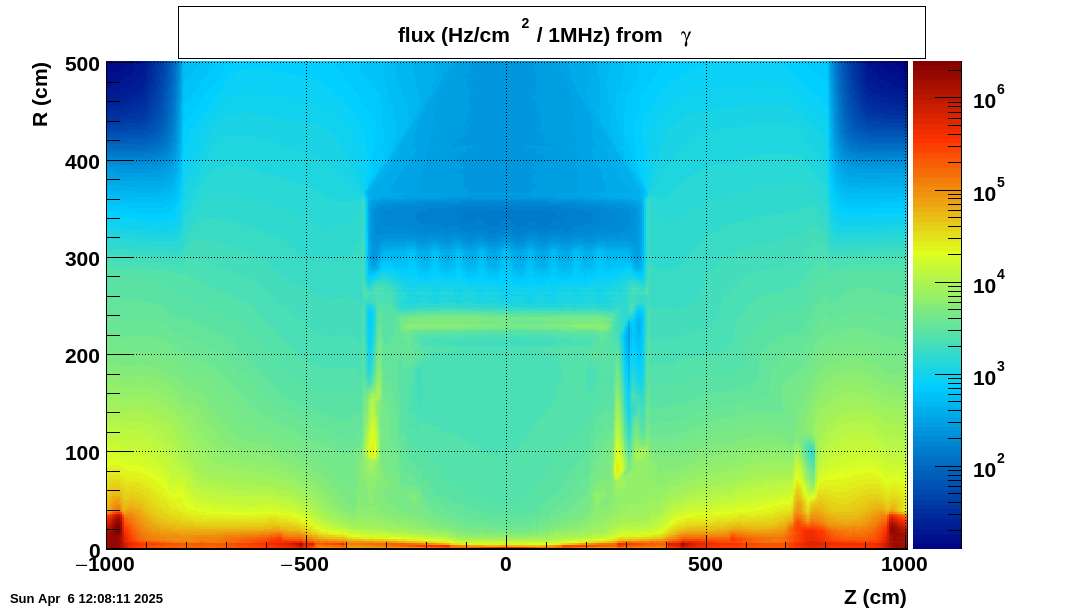

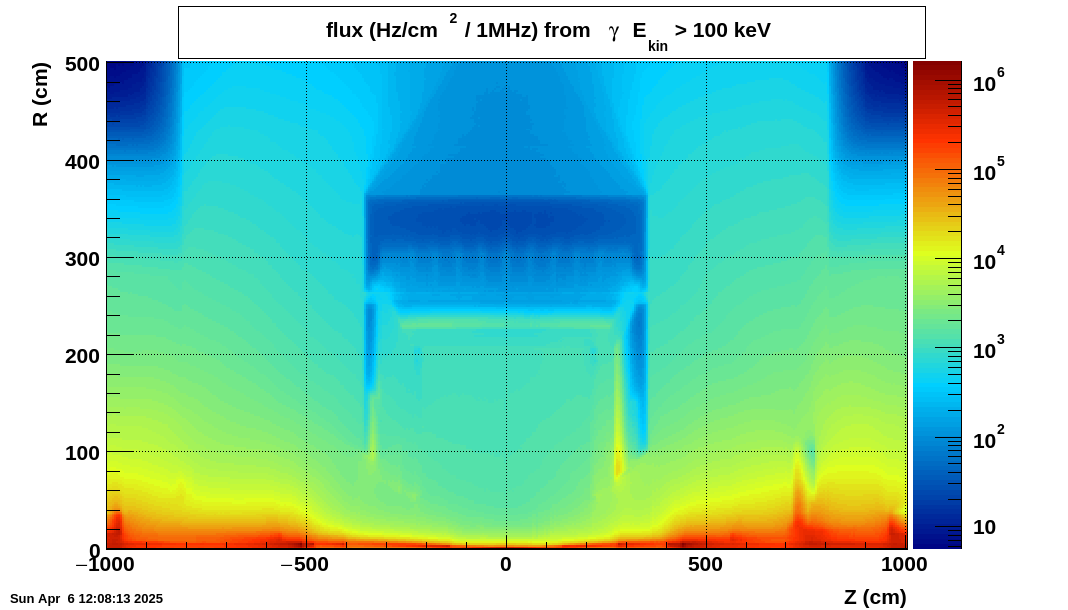

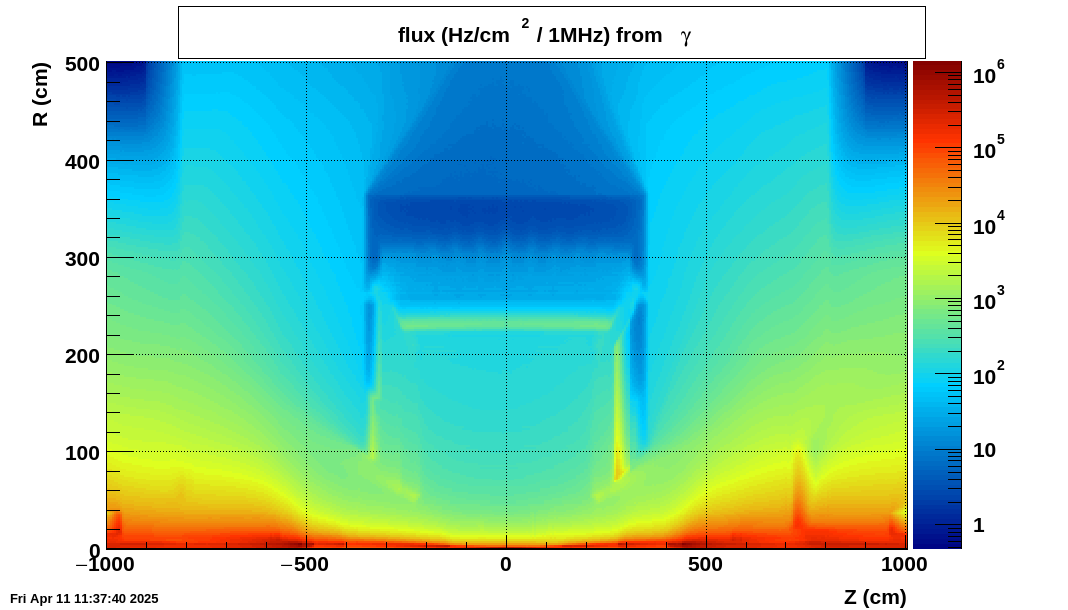

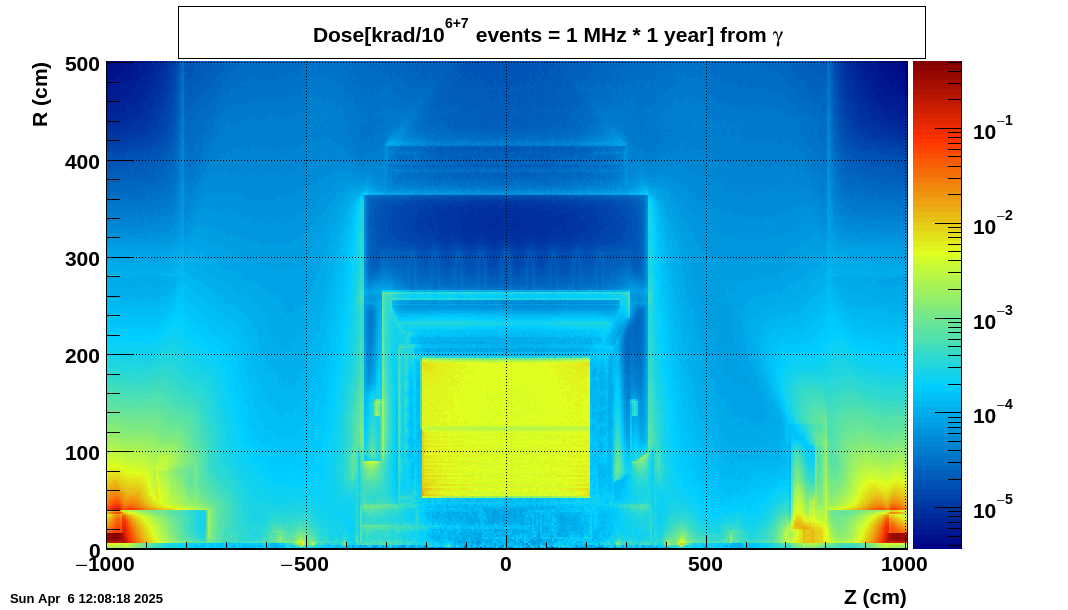

- Fig.12 - Fig.14 show fluxes for γs.
- Fig.15 - Fig.16 show fluxes for γs.

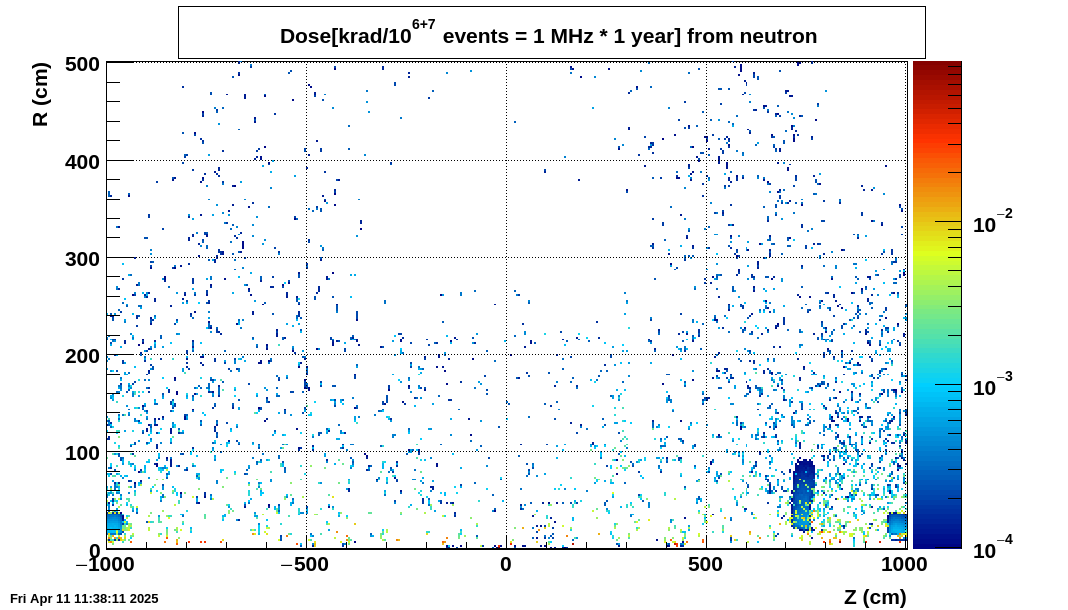

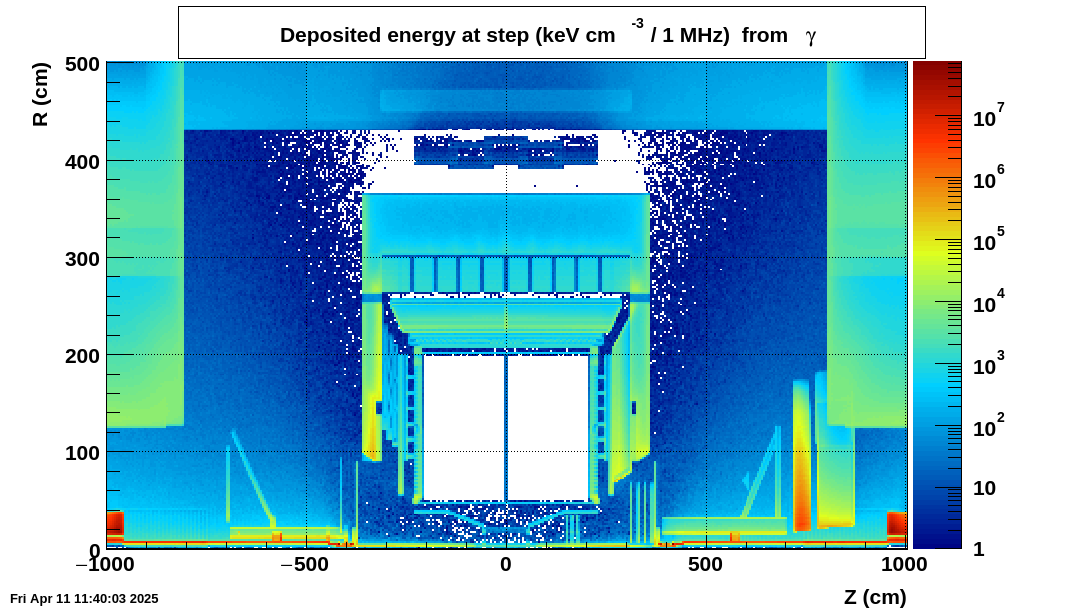

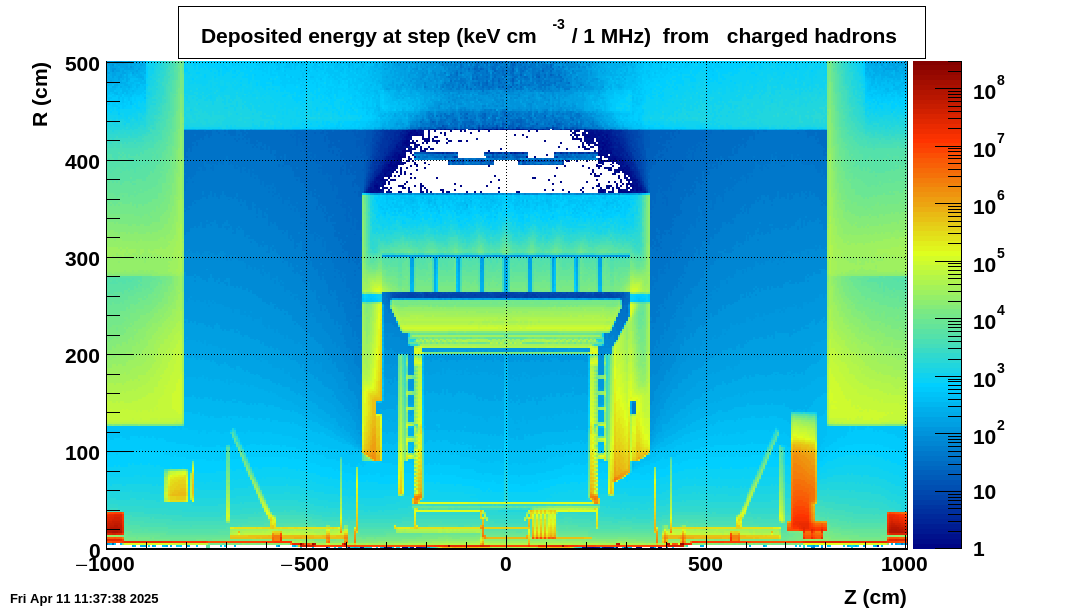

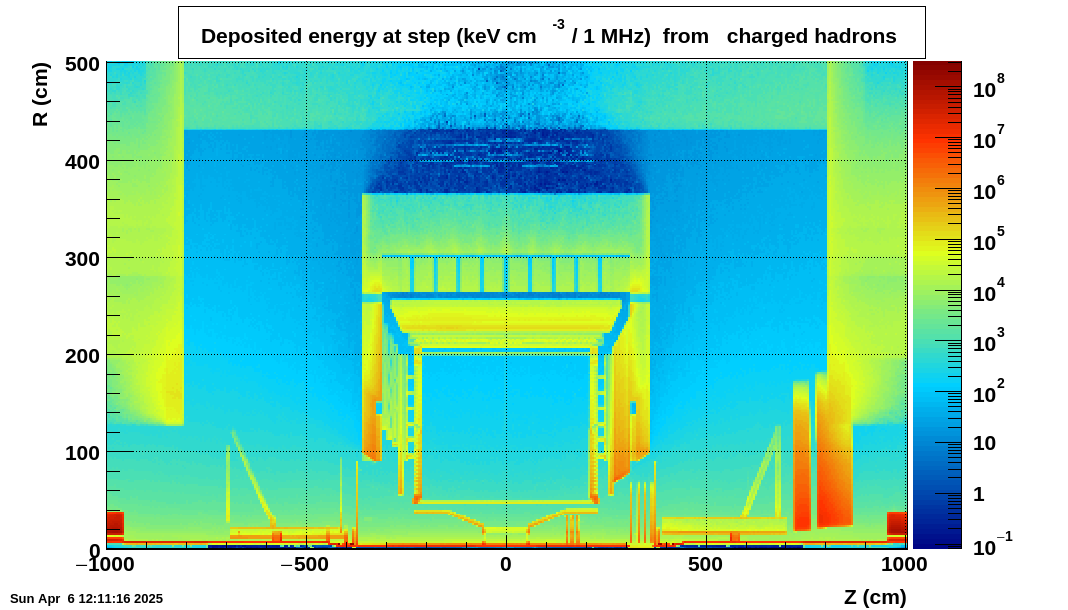

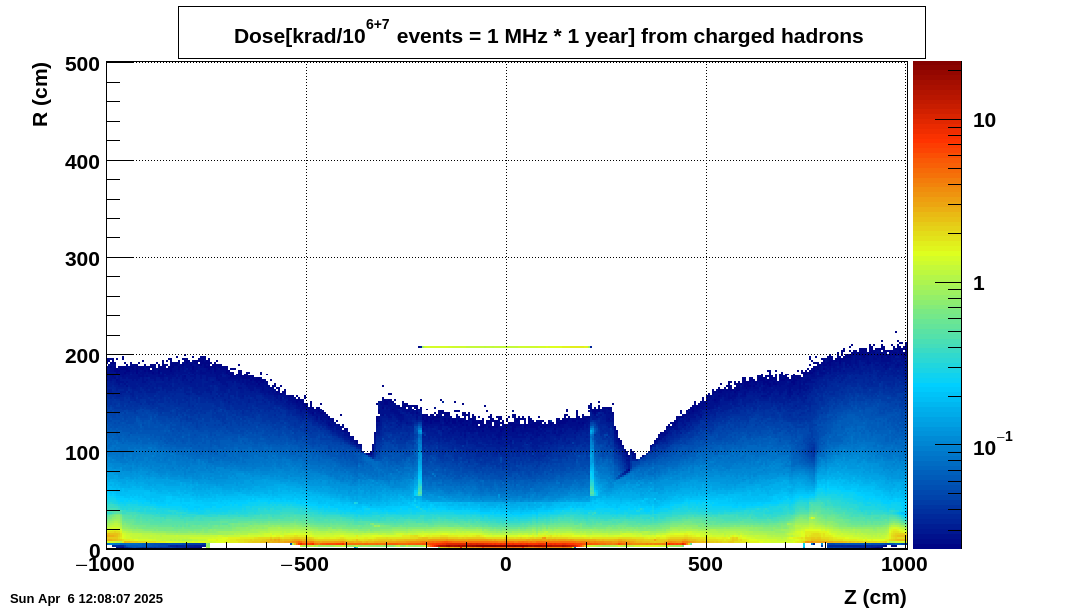

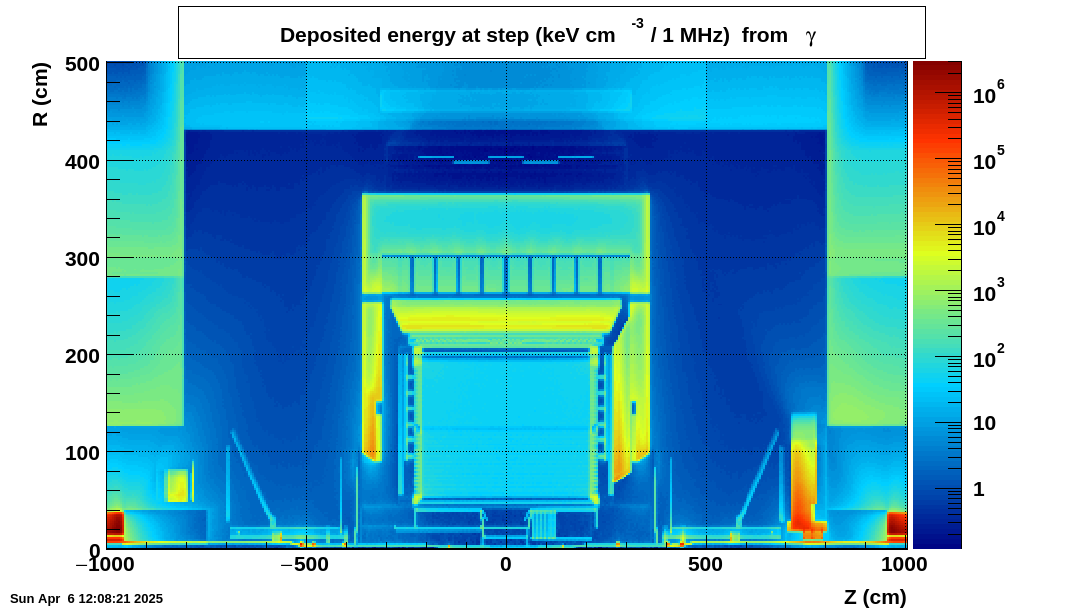

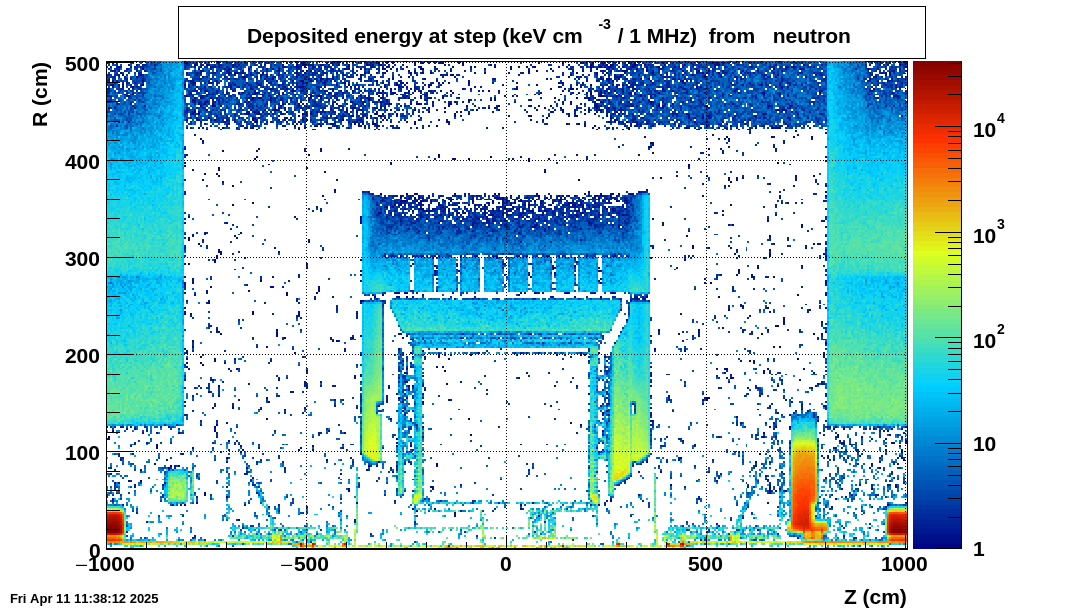

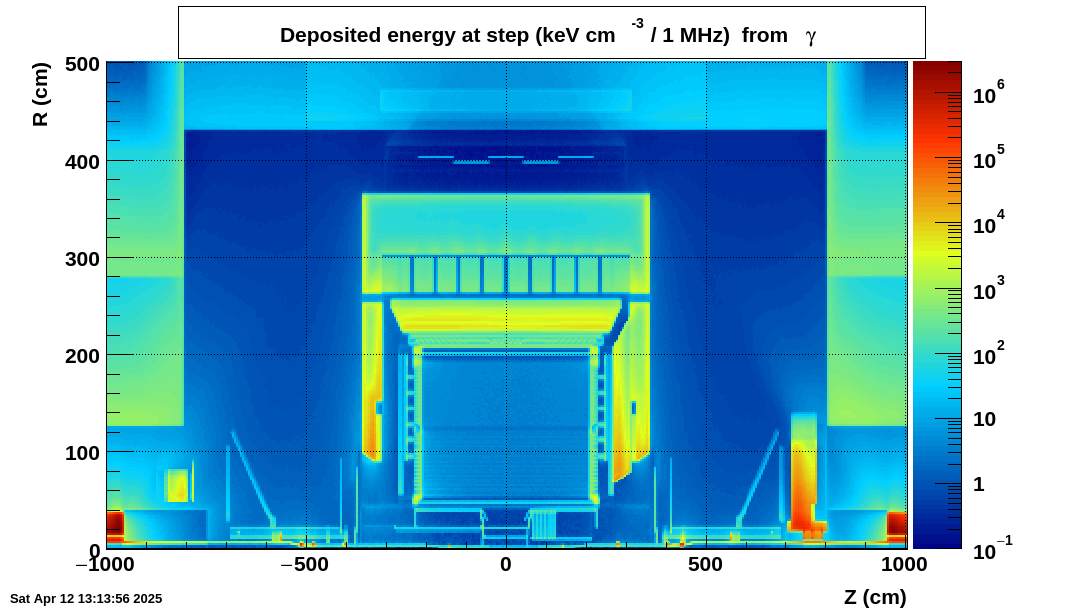

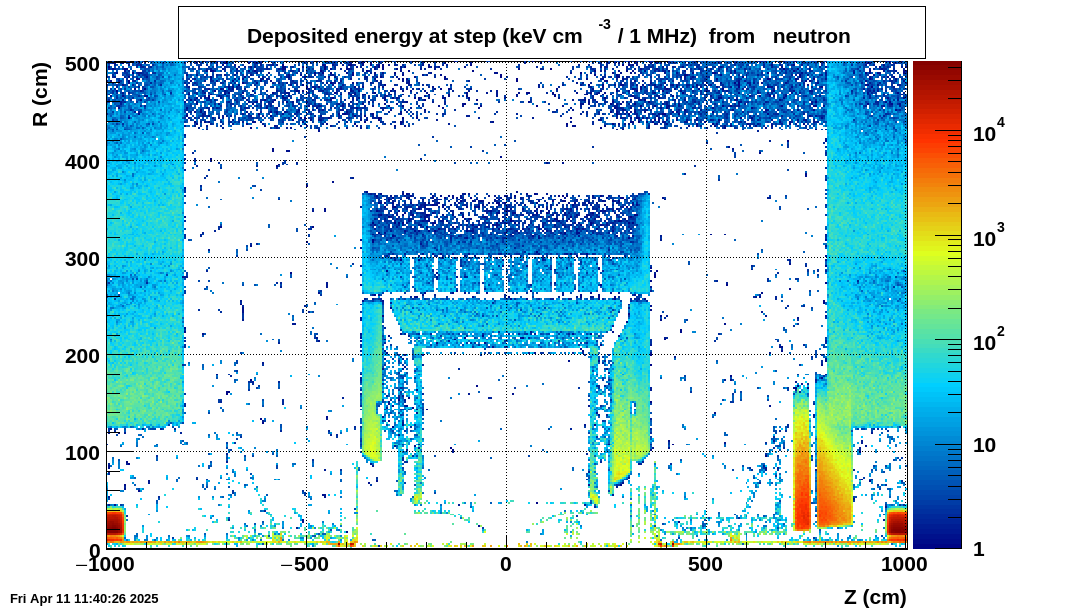

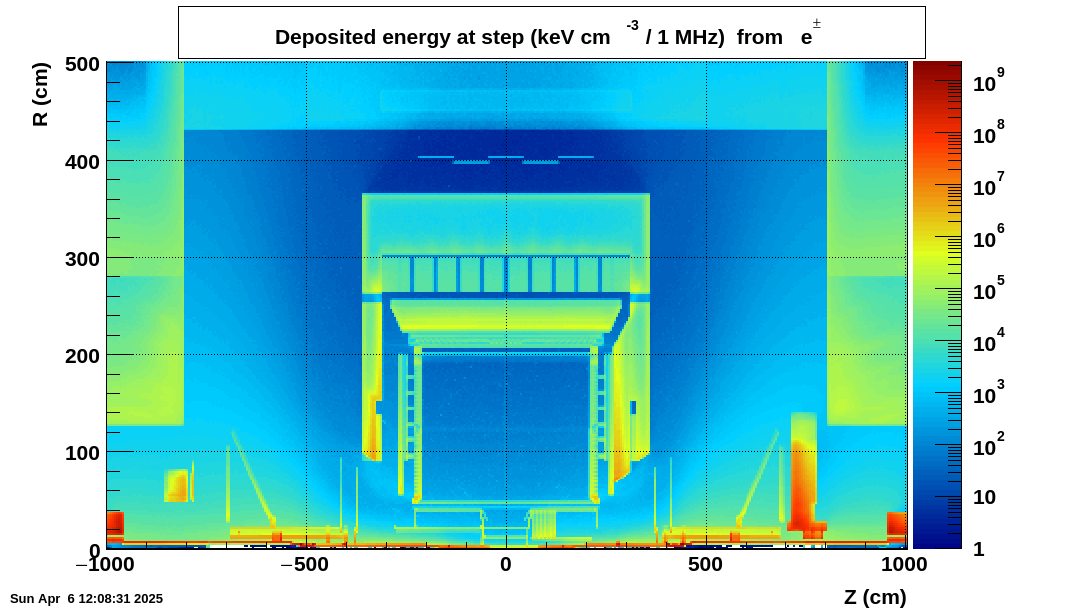

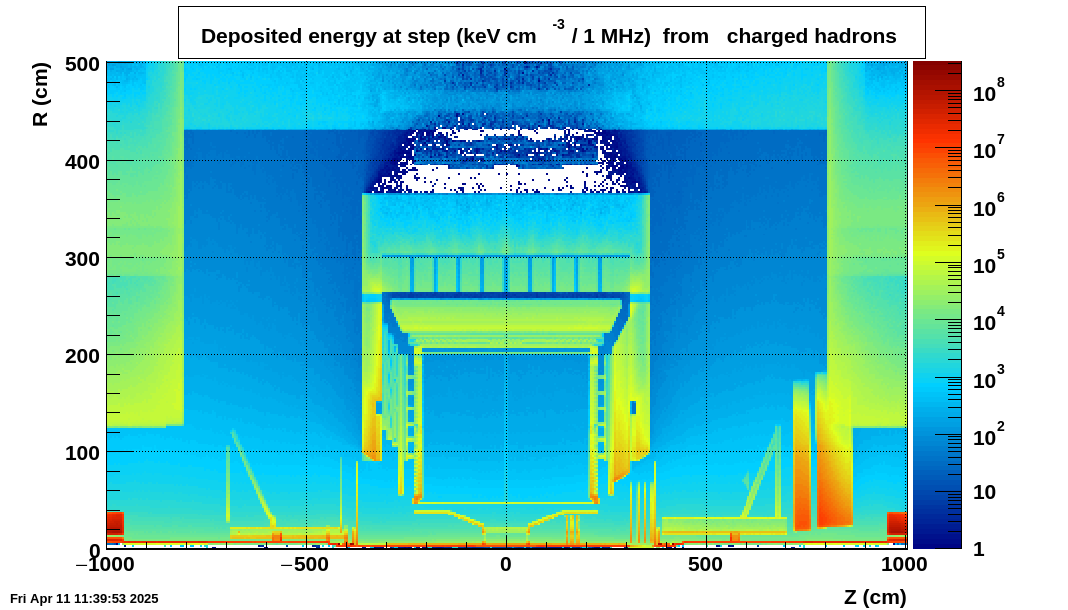

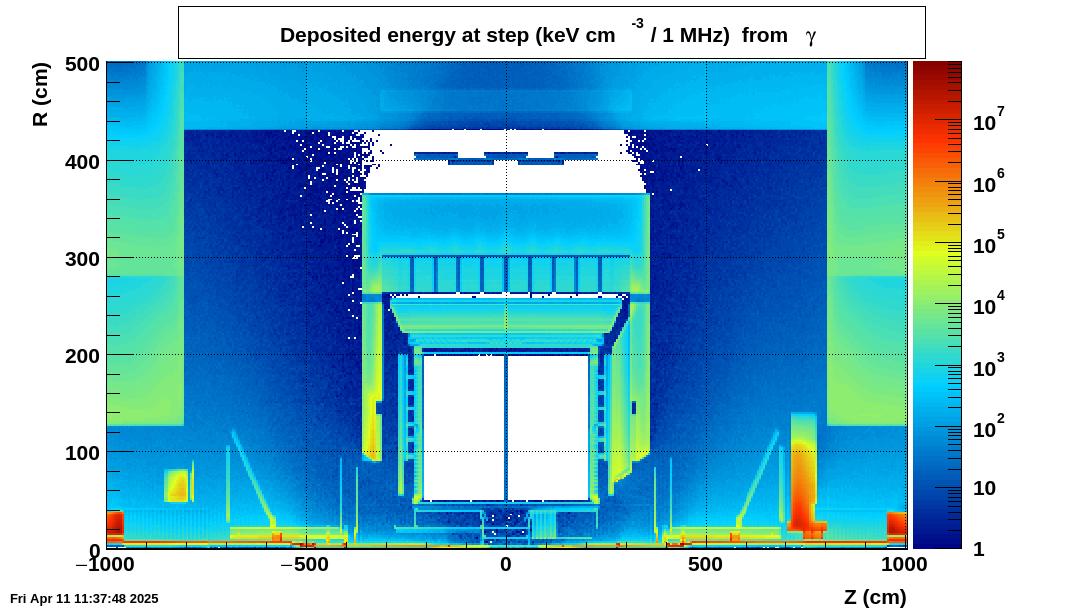

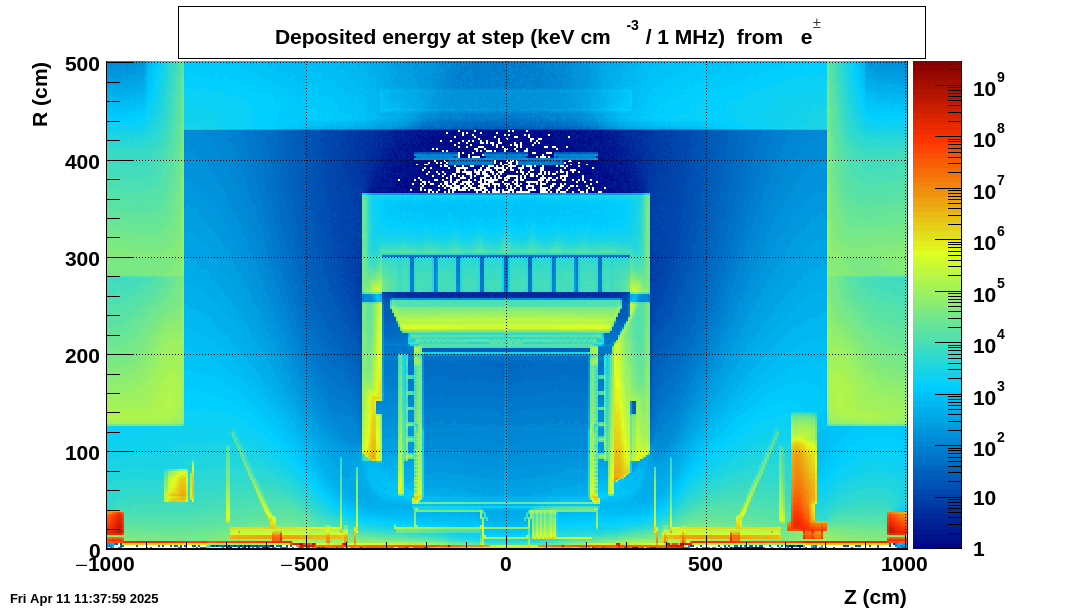

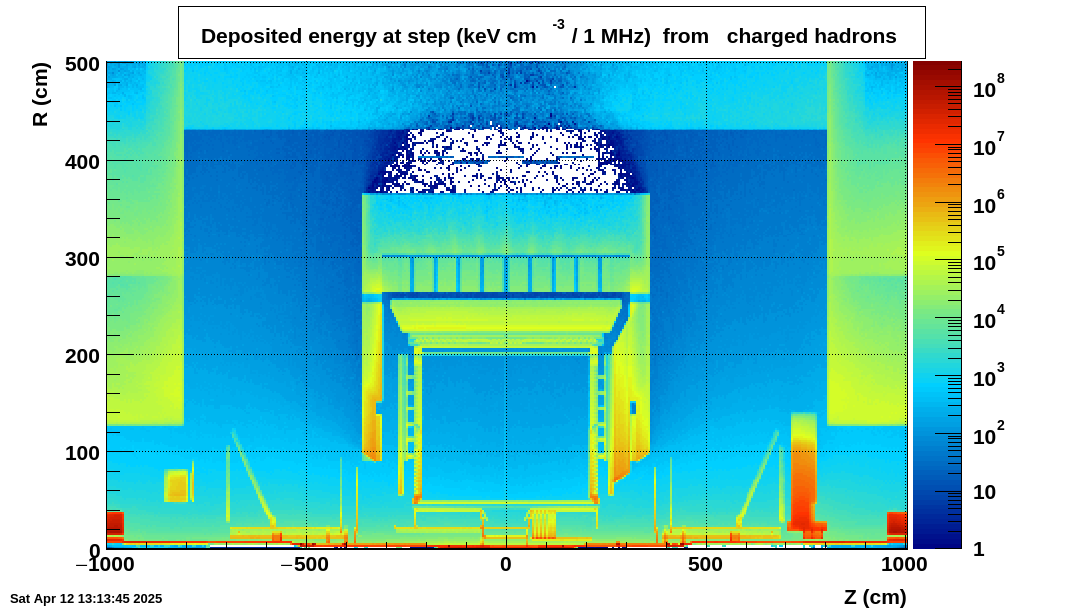

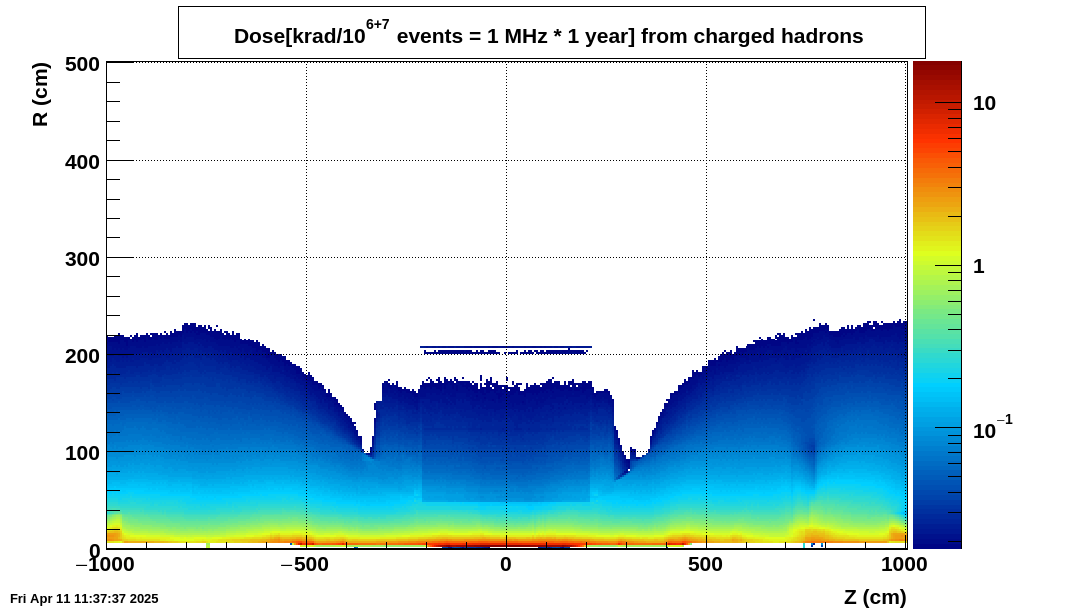

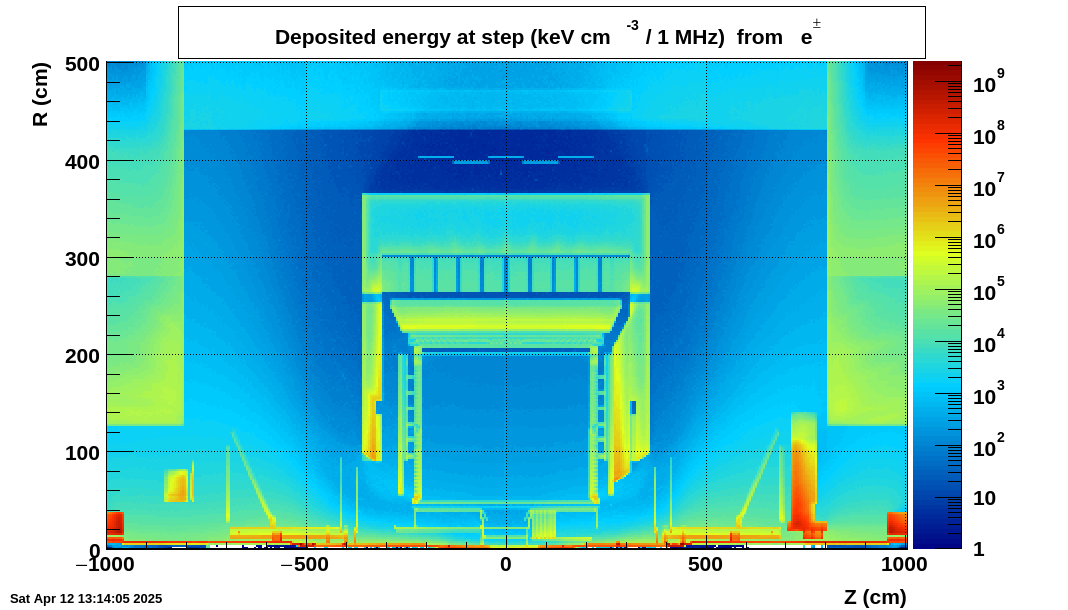

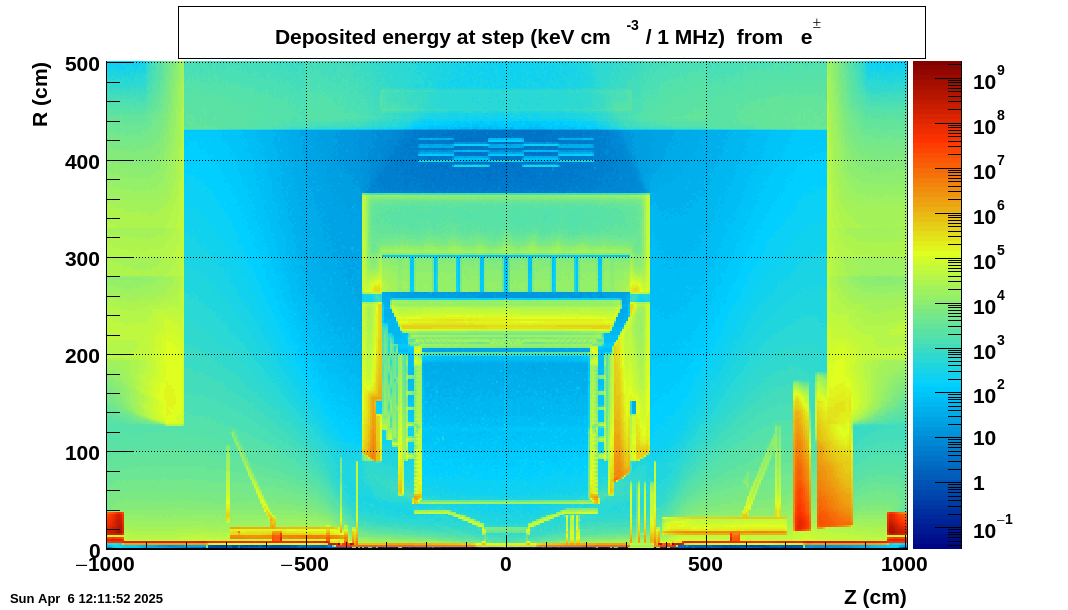

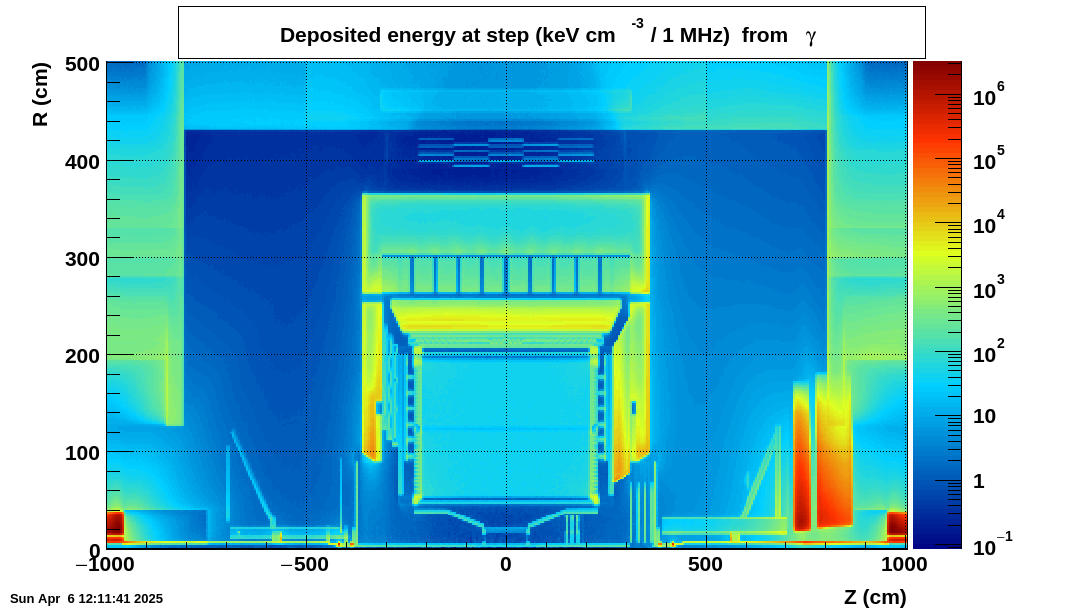

- Fig.17 show deposited energy from charged hadrons, Fig.18 - electrons, Fig.19 - γs.
| 2013 pp510 Geometry |
2022 pp510 Geometry |
Fig.0 |
 |

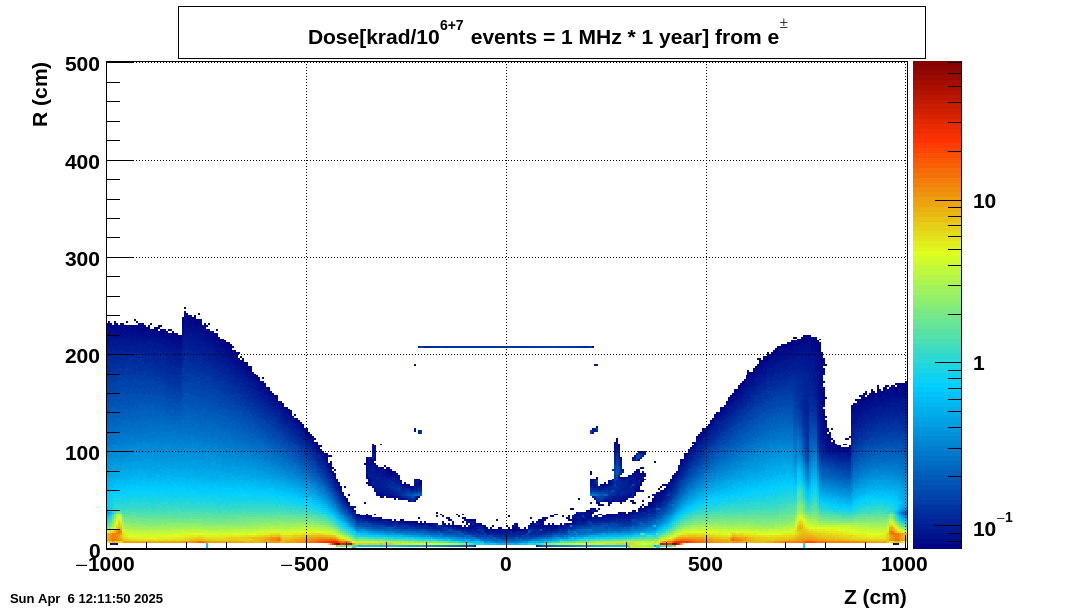

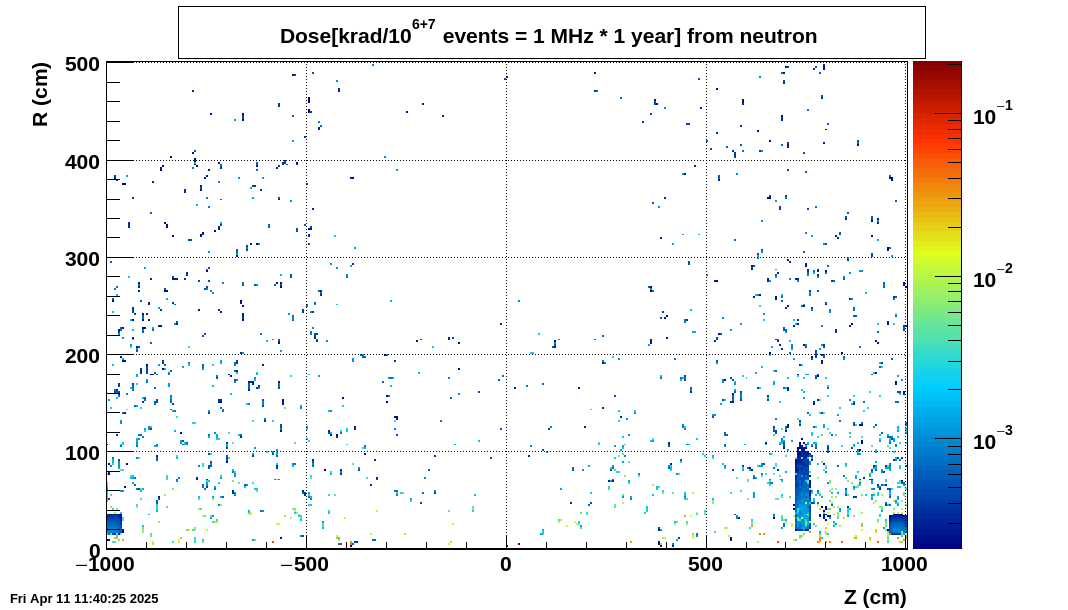

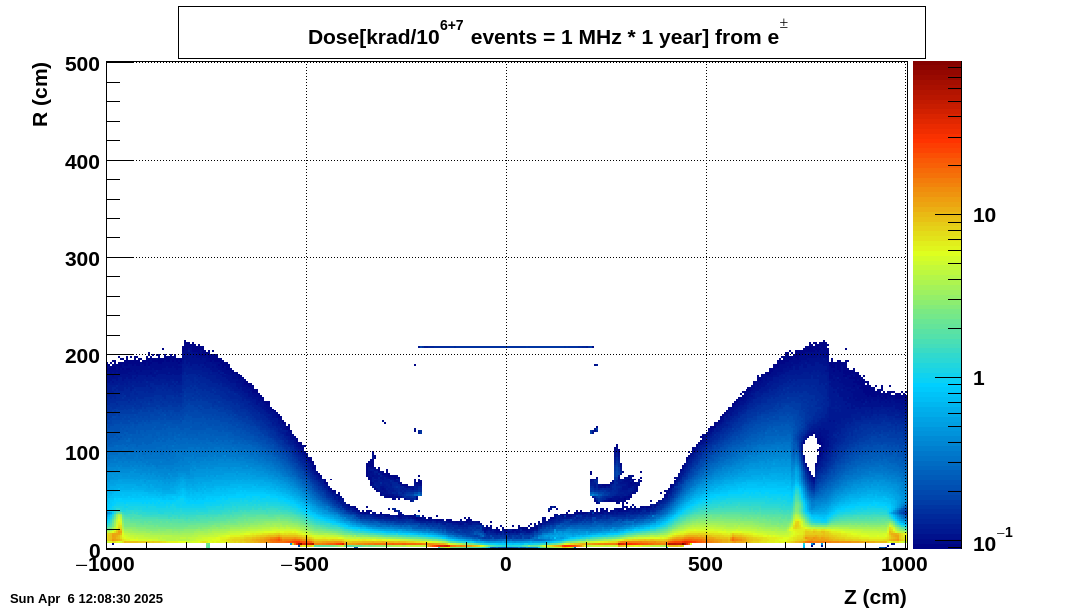

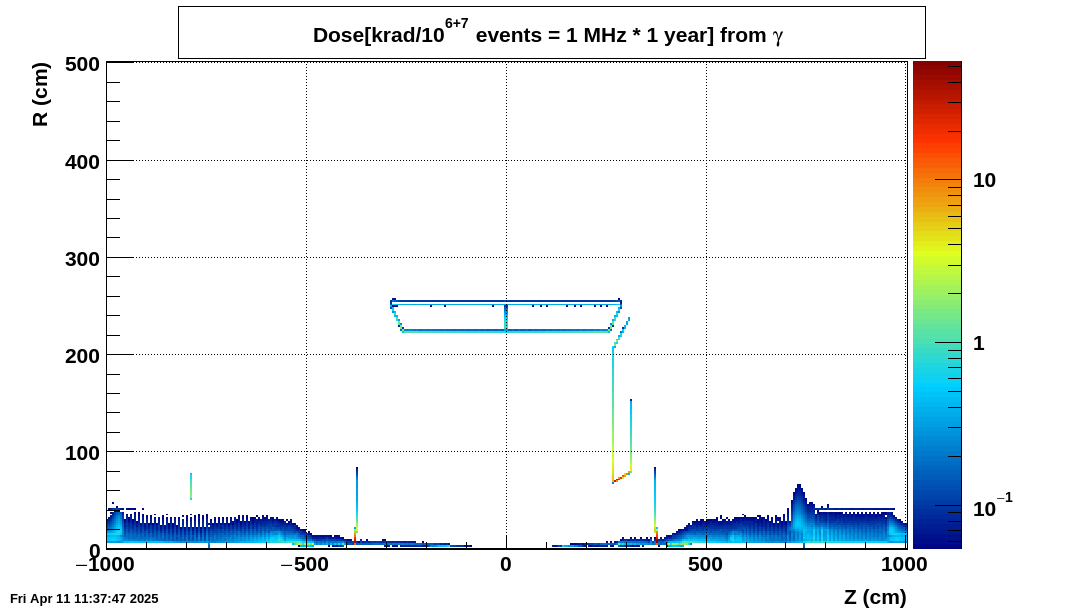

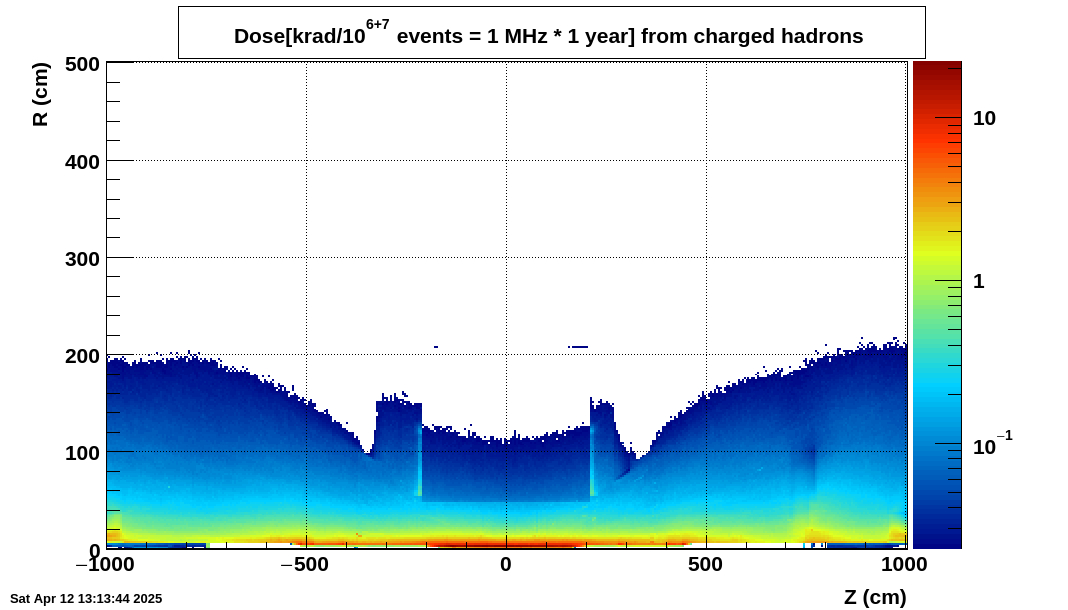

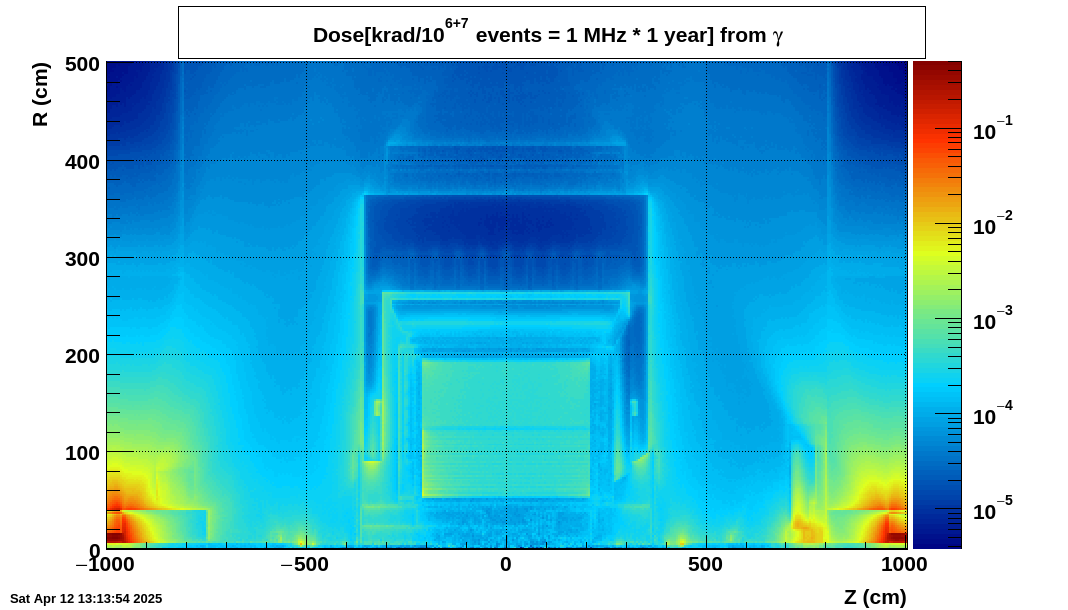

1. Fluxes and doses
