Track by track analyses for AuAu200_2016 sample processed with current DEV, PR(SL24y), and PR-HitError (SL24y - error correction for deconvoluted clusters) STAR library versions.

Legend

Samples have been provided by Gene:

  1. ln -s /star/rcf/test/gitdev/daq_sl302.stica/Mon/year_2016/AuAu200_production_2016_64bit/ PR-HitError
  2. ln -s /star/rcf/test/dev/daq_sl302.stica/Sat/year_2016/AuAu200_production_2016_64bit DEV, current DEV
  3. ln -s /star/rcf/test/gitdev/daq_sl302.stica/Tue/year_2016/AuAu200_production_2016_64bit PR, SL24y, modification from PR#702
  4. ln -s /star/rcf/test/gitdev/daq_sl302.stica/Wed/year_2016/AuAu200_production_2016_64bit/ Prbefore0911, SL24y wirhout modifcation errors for deconvoluted clusters

Conclusion

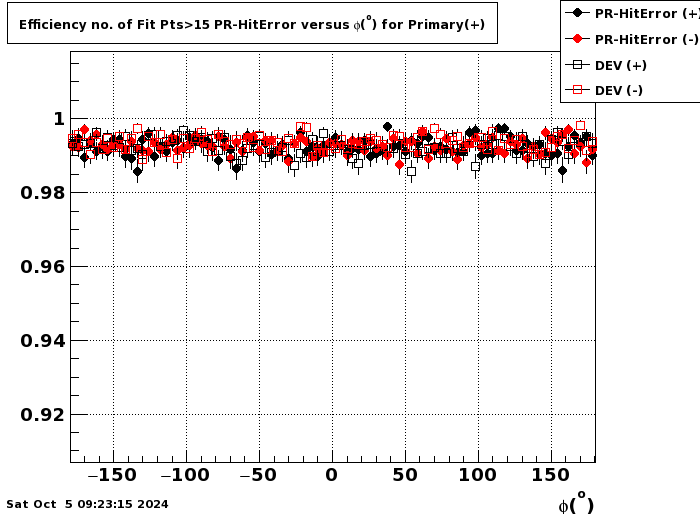

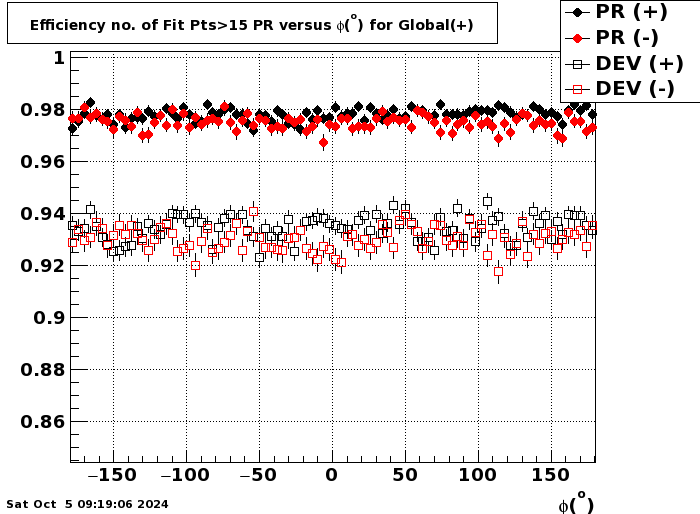

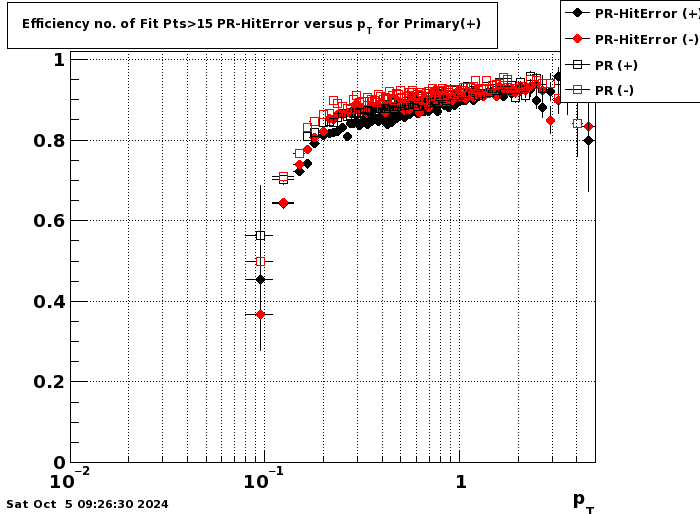

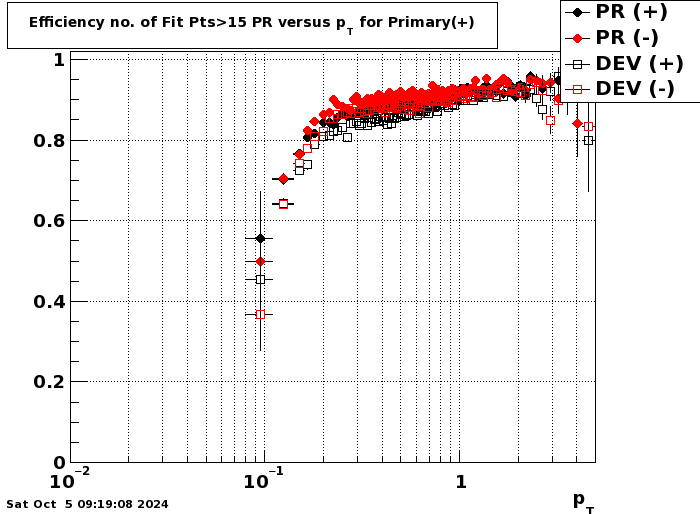

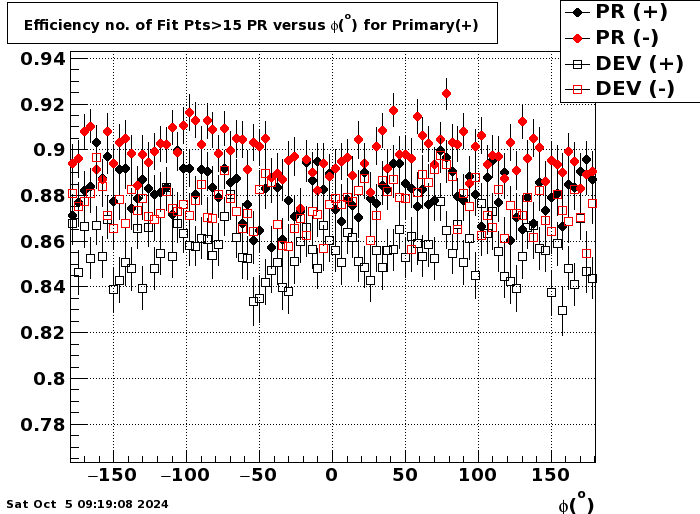

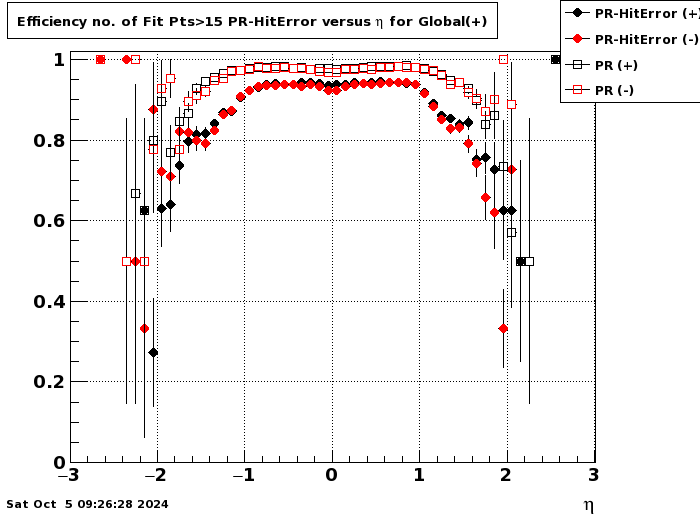

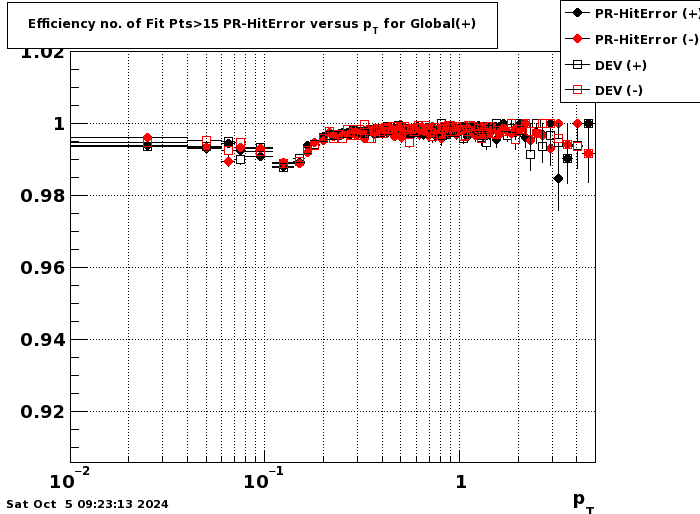

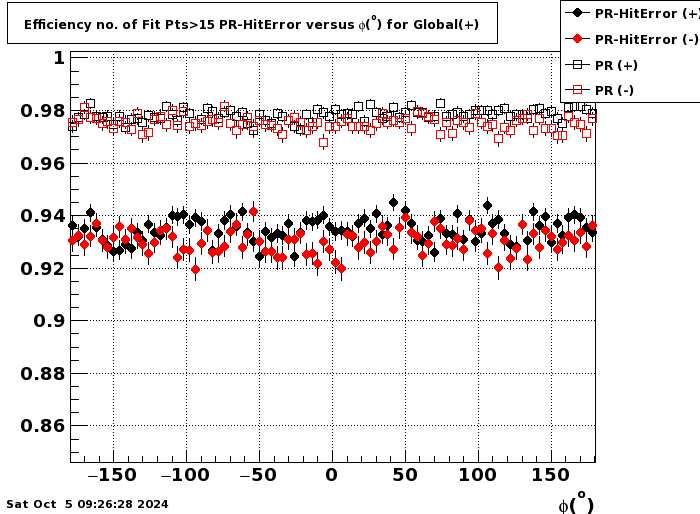

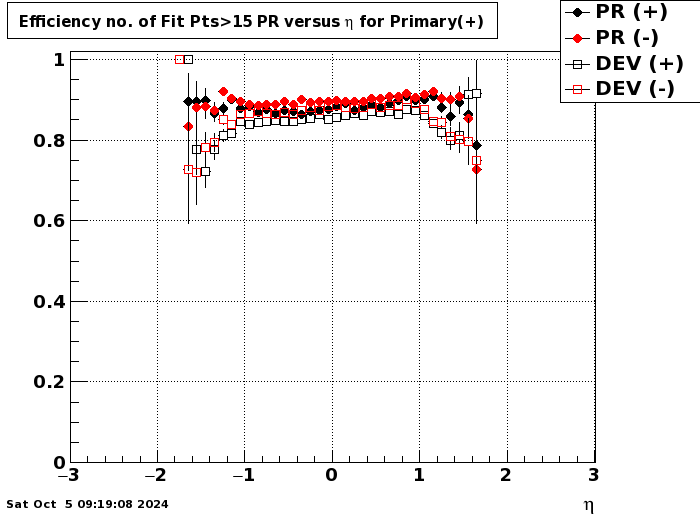

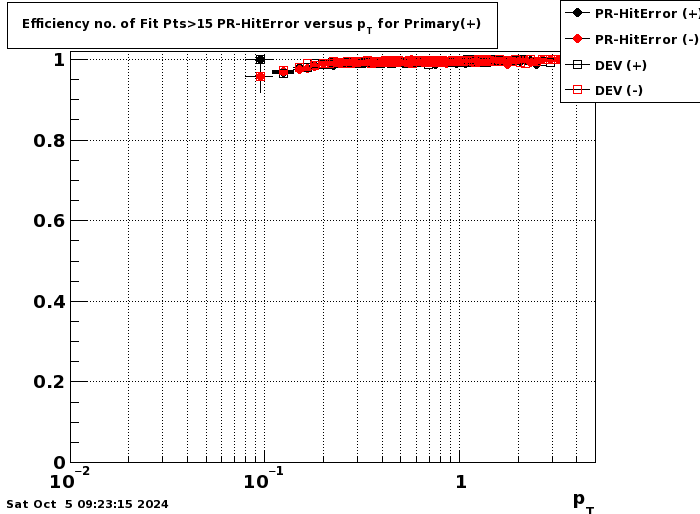

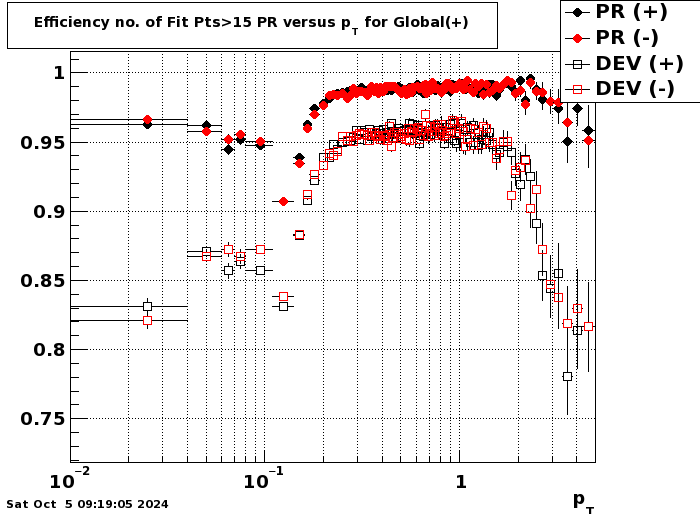

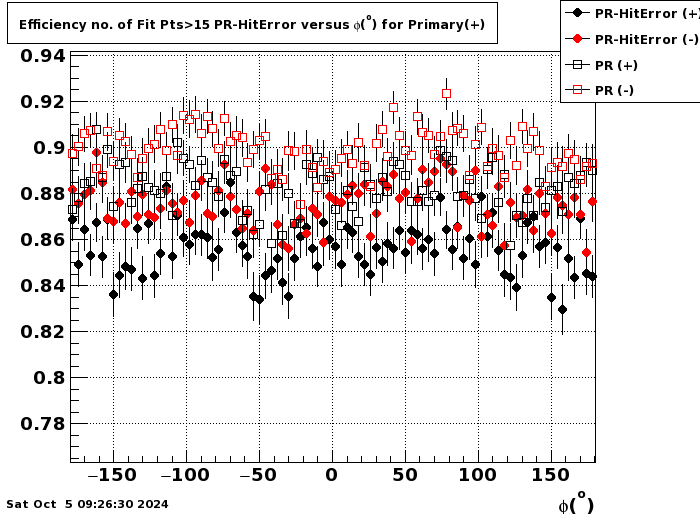

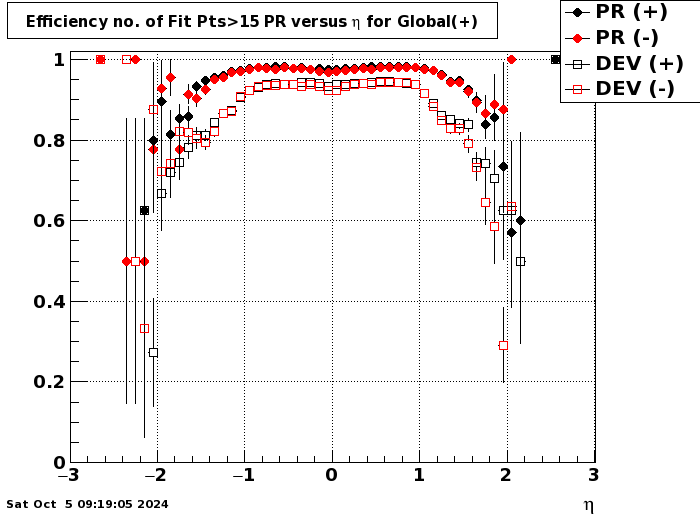

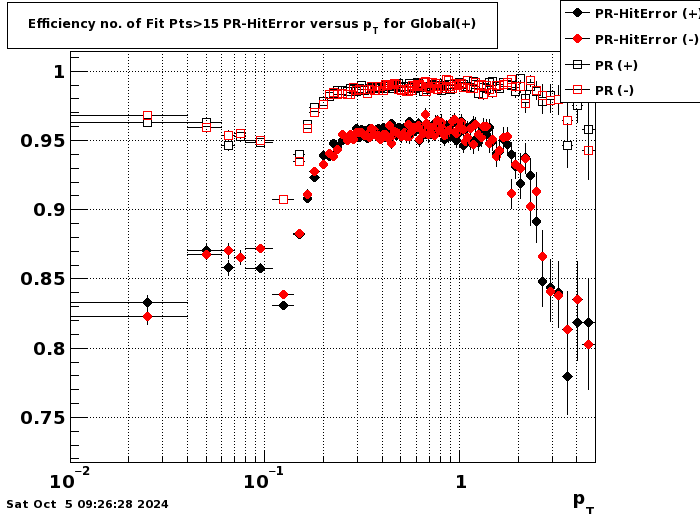

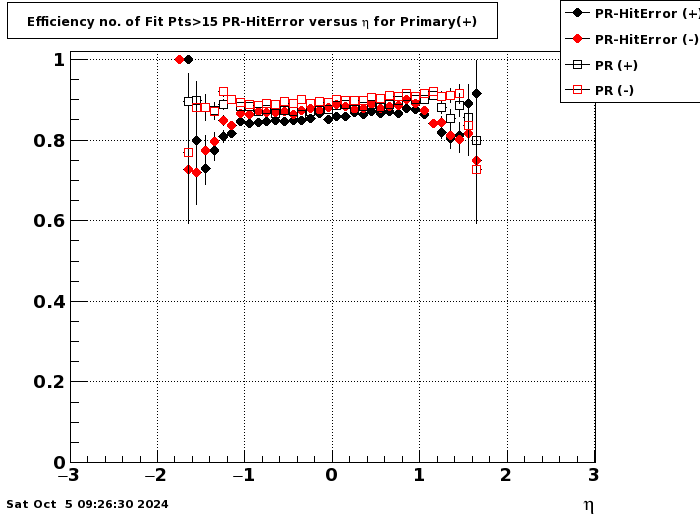

The modification of hit errors for deconvoluted cluasters (PR) increase relative to DEV and PR-HitError efficifiency by ~4% (see Fit.8-13).
Track by track analysis

Track by track analysis


DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.1
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.2
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.3
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.4
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.5
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.6
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.7
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.8
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.9
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.10
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.11
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.12
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.13
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.14
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.15
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.16
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.17
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.18
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.19
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.20
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.21
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.22
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.23
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.24
DEV_PRDEV_PR-HitErrorPR_PR-HitError
Fig.25
