This program does the following:

H. Wieman

+ Reads raw data from the vision machine for pad locations and fiducial

+ Reads file with theoretical pad locations

+ Generates a coordinate transformation using a least square fit so that the measured pad locations will come as close as possible to the theoretical locations.

+ Shows the fiducial locations in the corrected coordinate frame.

+ Shows the difference between these corrected fiducial coordinates and the theoretical locations

First the various routines for this calculation are setup.

To get directly to data entry and the output of results flip to page 4

Routine for extracting and formatting the raw pad coordinate data into a more convenient representation

(note output from Mathcad routines are always returned through the name of the routine, the form can be quite varied.)

Routine for extracting and formatting the fiducial coordinates.

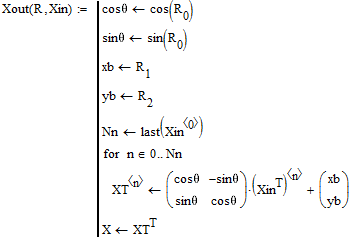

Routine for rotating a set of coordinates to a new frame using the rotation angle and displacement contained in R

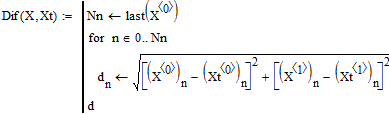

Point by point separation between two sets of points

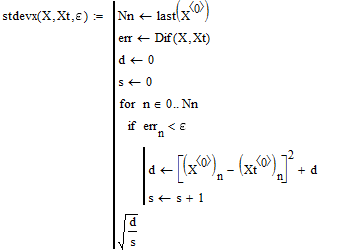

Standard deviation in x between two sets of points, excluding points with a distance of separation greater than e

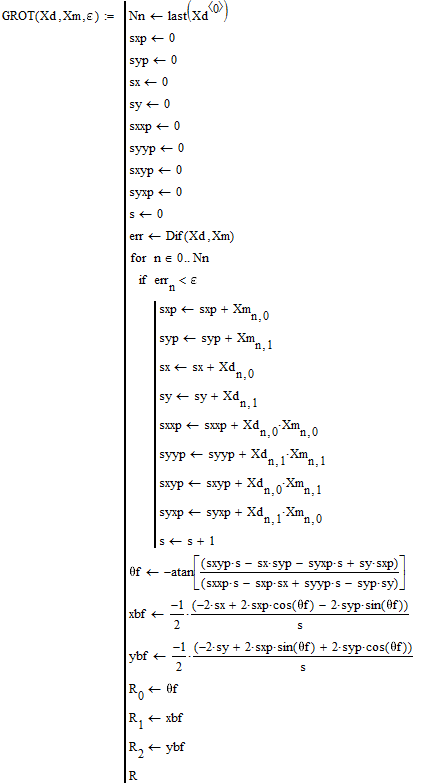

Routine to extract the new coordinate frame parameters using a least square fit.

Xd : the desired or theoretical pad coordinates

Xm : the measured set of pad coordinates

Outliers or points with a separation exceeding e are excluded in this determination

Read in data files. The ordering is as appears in the raw data but the text must be removed before reading in.

SPECIFY DATA FILES HERE

Read in raw pad data. Type in the file name like

inr_pad_10a.txt The result appears with "txt" looking like a subscript and the "." doesn't show. This is a Mathcad feature.

Read in the true or theoretical data.

format the data

Generate the transformation parameters

SPECIFY POINT EXCLUSION DISTANCE HERE

qf

xbf

ybf

Transform fiducial data

to new coordinate frame

x

y

x

y

Large end fiducial

Small end fiducial

Large end fiducial

Small end fiducial

Large end fiducial

Small end fiducial

DATA SET inr_pad_9a.txt and inr_pad_9b.txt

FIDUCIAL CORRECTION PARAMETERS

Large end fiducial

DATA SET A

Small end fiducial

Large end fiducial

DATA SET B

Small end fiducial

Large end fiducial

DATA SET A

Small end fiducial

Large end fiducial

DATA SET B

Small end fiducial

The following are calculations to setup pad point distortion pictures. Skip to page 7 to see results

Rotate the measured pad data to the new coordinate frame

Add in the fiducial points to the pad points and display

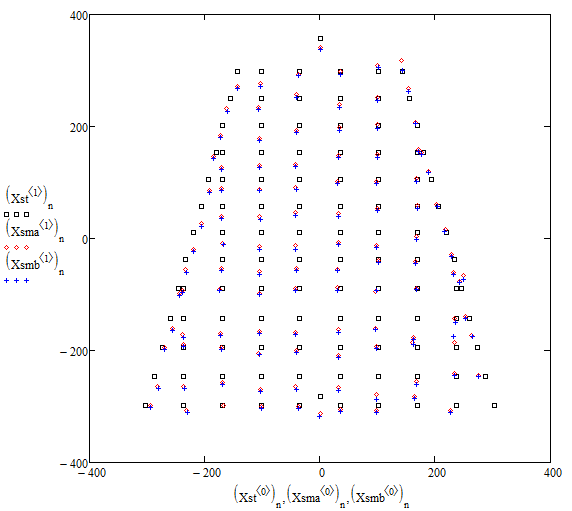

Comparison of corrected pad measurements with theoretical points

THEORETICAL POINTS BOX

DATA SET A MEASUREMENTS DIAMOND

DATA SET B MEASUREMENTS +

error magnification factor in the plot

x error measurement A

x error measurement B

x,y error measurement A

x,y error measurement B

DATA SET inr_pad_8a.txt and inr_pad_8b.txt

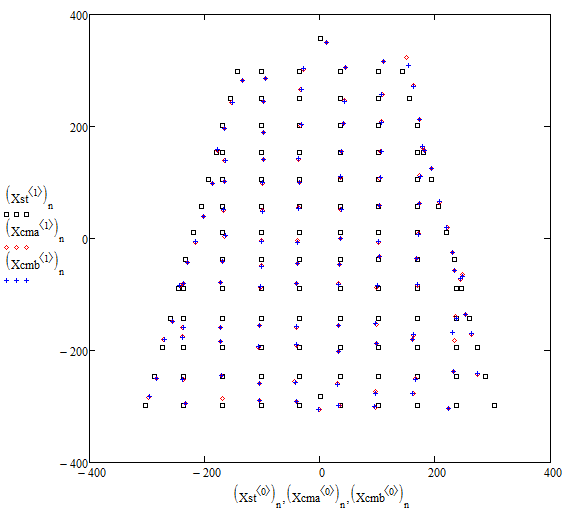

Comparison of raw pad measurements with theoretical points

THEORETICAL POINTS BOX

DATA SET A MEASUREMENTS DIAMOND

DATA SET B MEASUREMENTS +

error magnification factor in the plot

x error measurement A

x error measurement B

x,y error measurement A

x,y error measurement B

DATA SET inr_pad_10a.txt and inr_pad_10b.txt

Some information on distances between measured and theoretical points

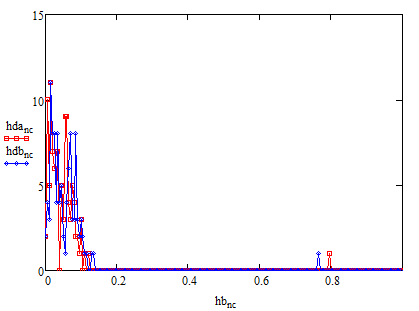

HISTOGRAM SHOWING DISTRIBUTION OF DIFFERENCES

BETWEEN MEASURED POINTS AND THEORETICAL

Distance between measured and theoretical points (mm)

MAXIMUM DISCREPANCY

DATA SET A

DATA SET B

NUMBER OF BAD POINTS

DATA SET A

DATA SET B

DATA SET inr_pad_10a.txt and inr_pad_10b.txt

measurement A

measurement B

theory

x

y

x

y

x

y

x

y

x

y

x

y

x

y

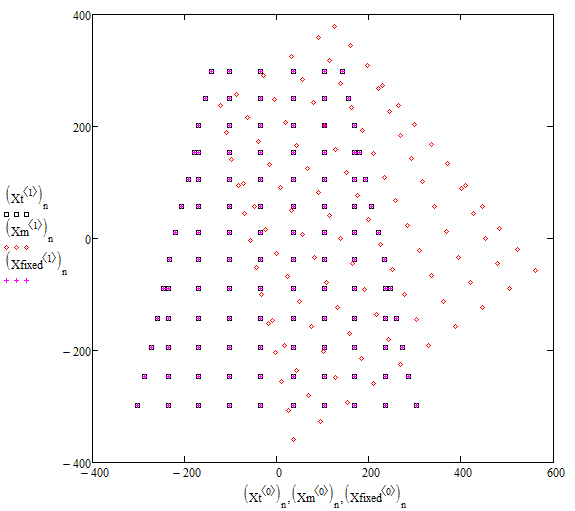

Added distortion to test program's ability to recover correct transformation.
