Reconstruction versus Simulation

Legend

The plots are designed to answer on the following questions:

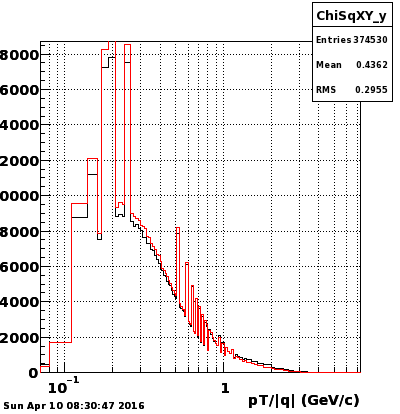

• What tracks (globals and primaries) can be considered as "good" ones depending on total no. of fit points and no. of bad hits ?

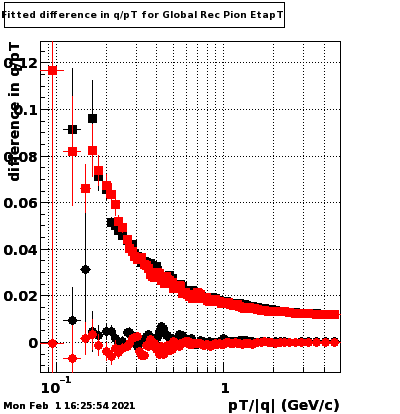

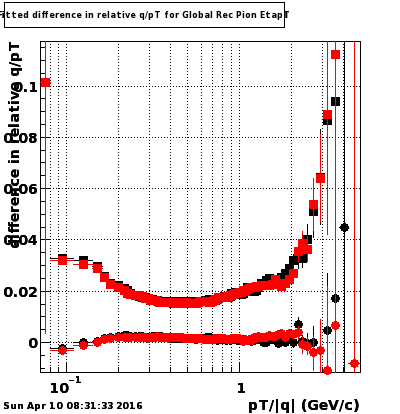

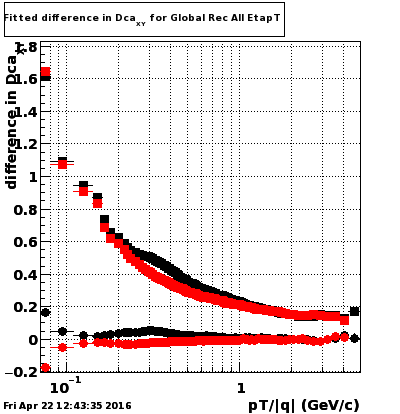

• What is the track parameters and their errors dependence on the track kinematics (φ, η, 1/pT) ?

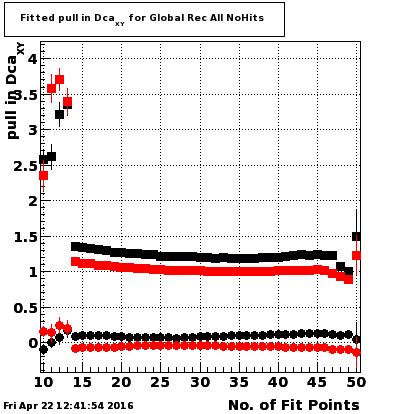

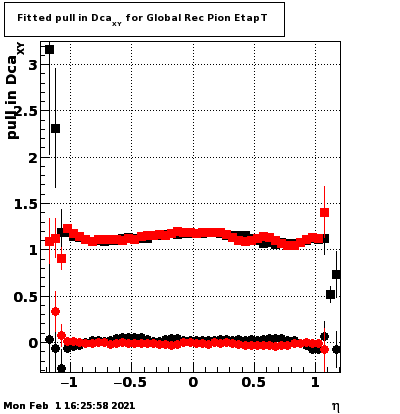

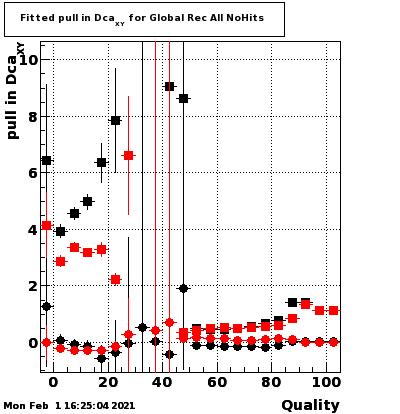

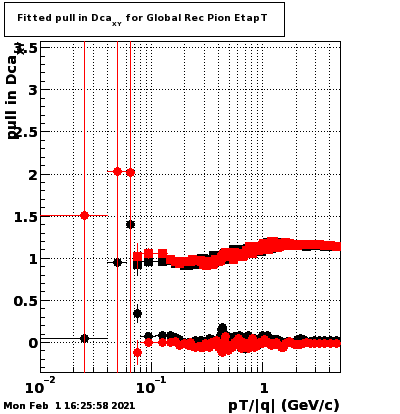

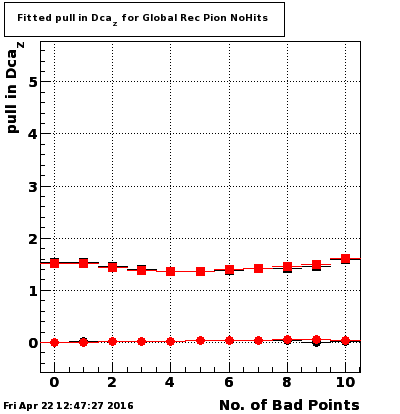

• What is the track paramerer pulls dependence on above kinematics ?

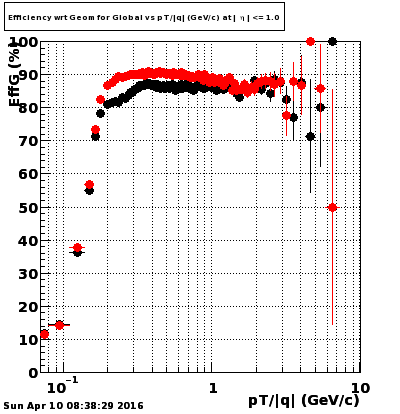

• What is the track reconstruction efficiencies for :
• Geometrical acceptance (MC only),

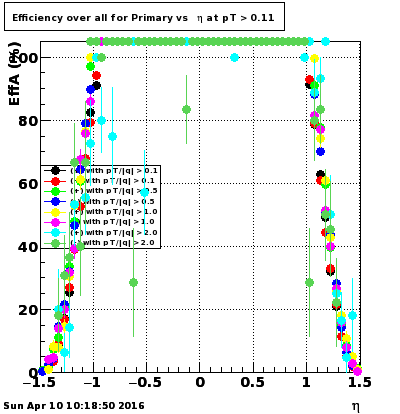

• Reconstruction effiency for track with only match between MC and RC
• Clones, for multiple (>1) match between single MC track to RC one,

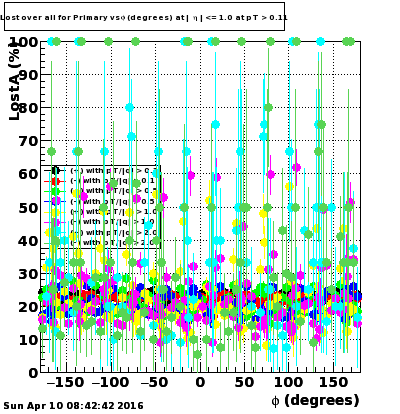

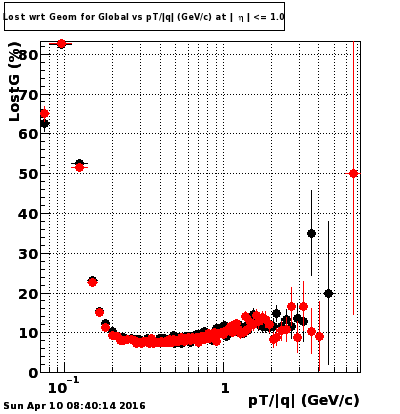

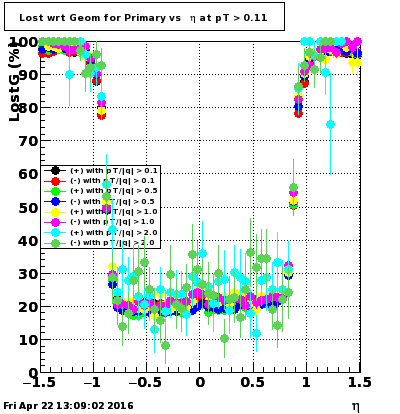

• Lost tracks, MC tracks which have no RC partner.
• Ghost tracks, RC tracks which have no MC partner.
• Color scheme:  • Positive and  • Negative Tracks.
• Results of Gauss fit for slices are presented as • for μ and as box for σ.
• Navigations:
  • Global tracks

1. Tracks

1.1. Quality of reconstructed tracks with respect to MC.

1.1.1. Global tracks.

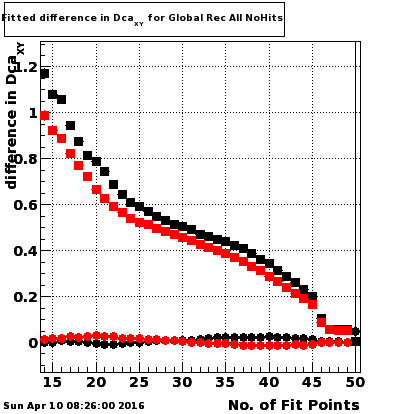

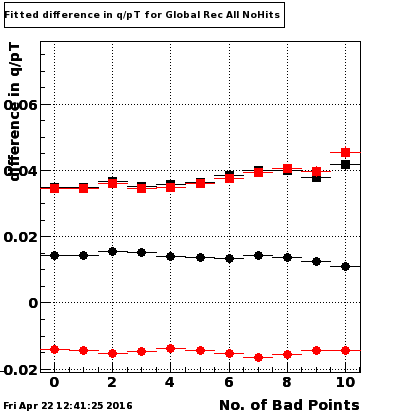

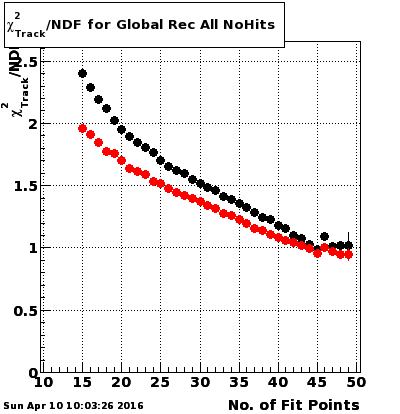

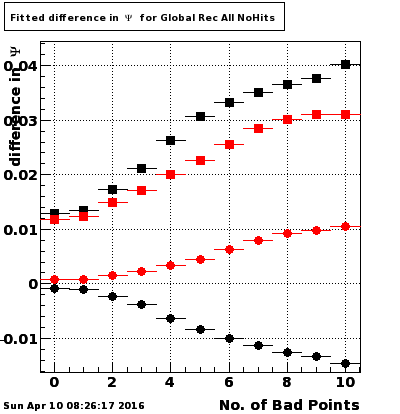

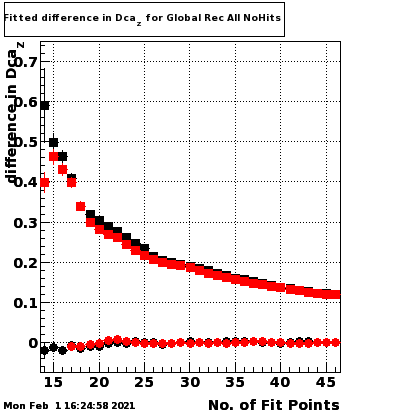

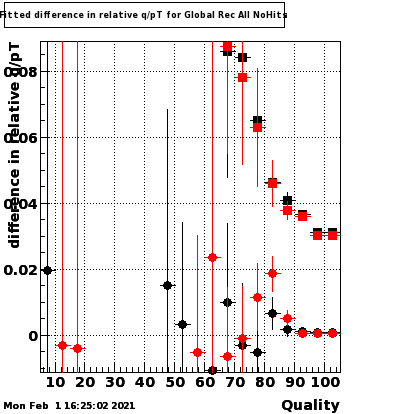

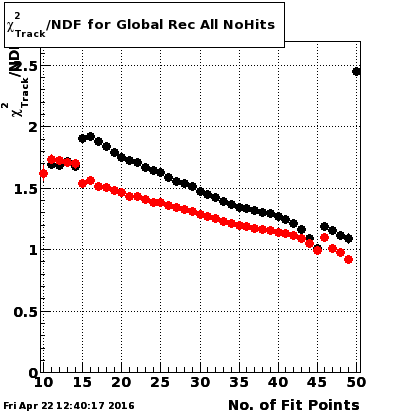

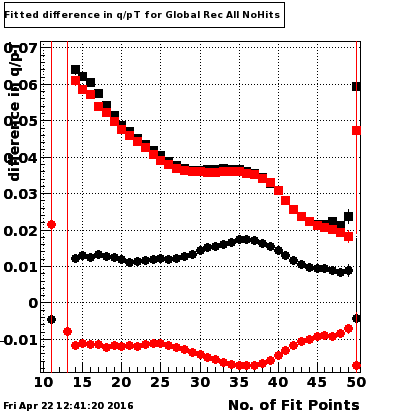

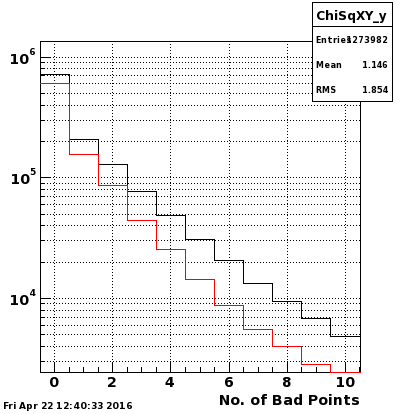

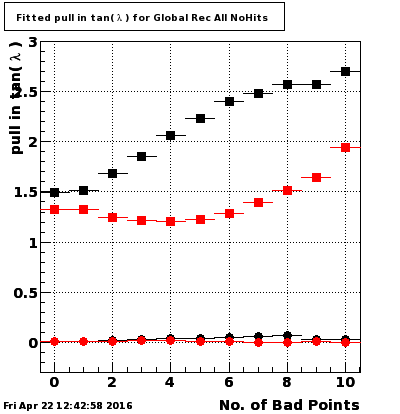

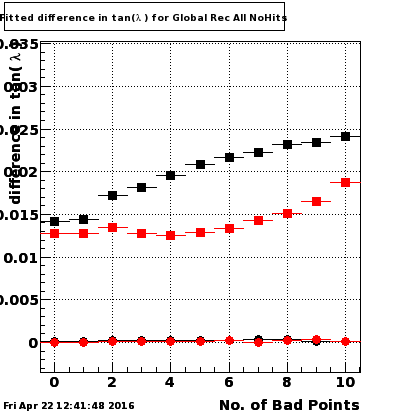

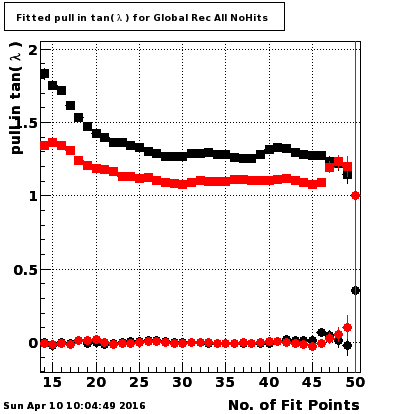

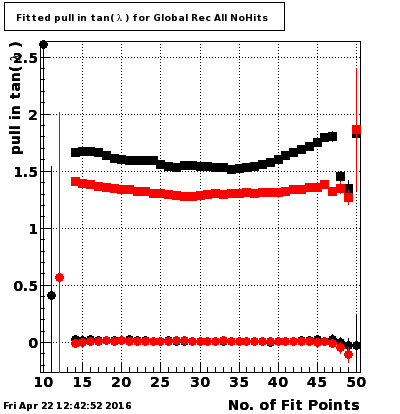

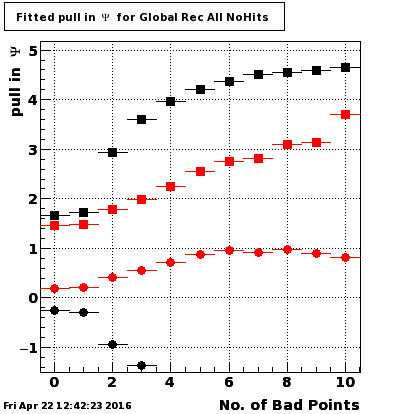

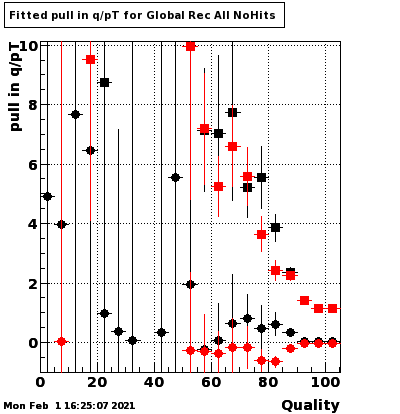

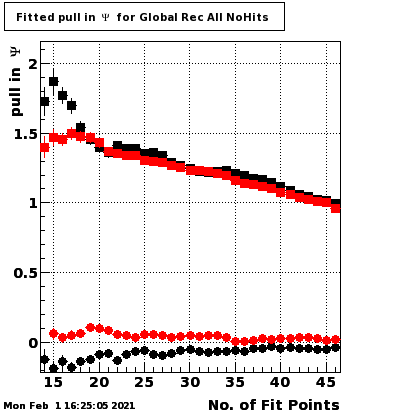

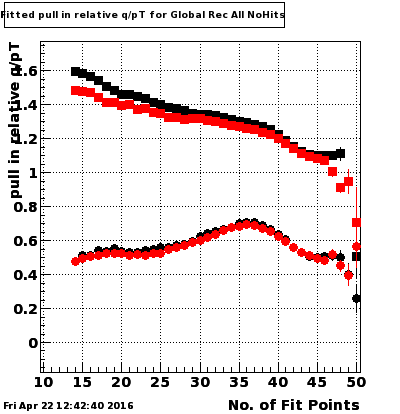

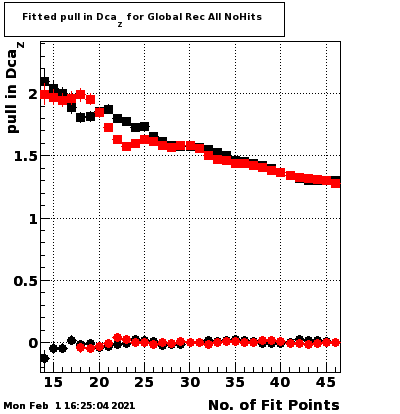

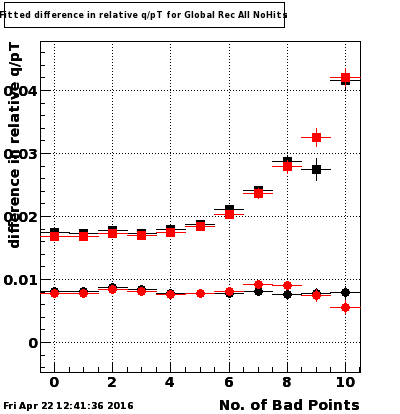

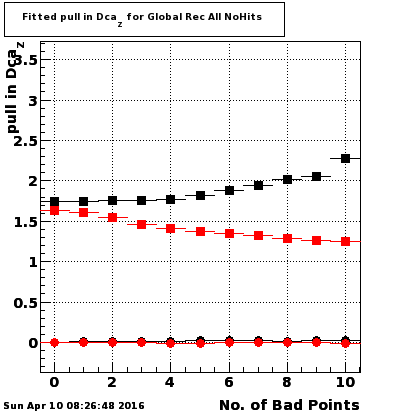

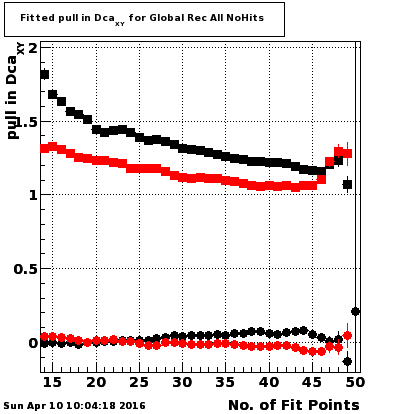

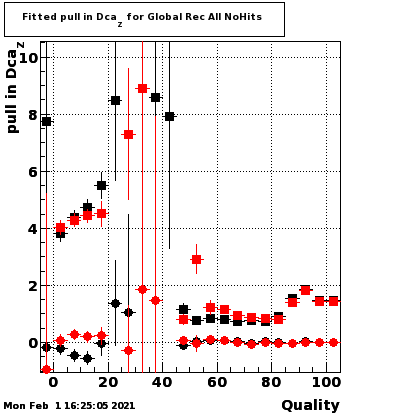

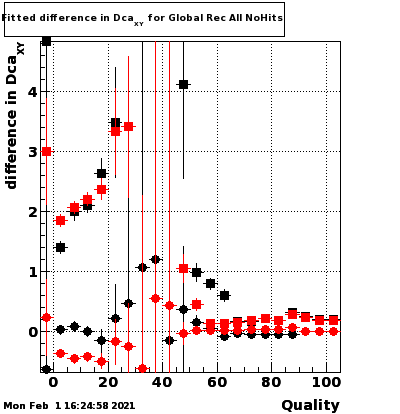

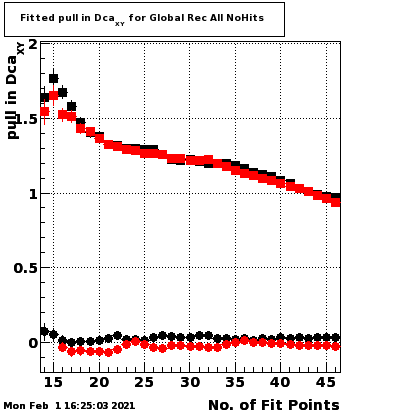

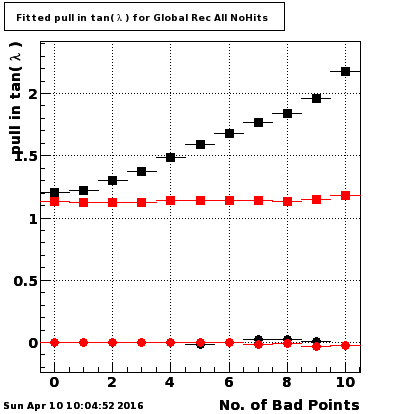

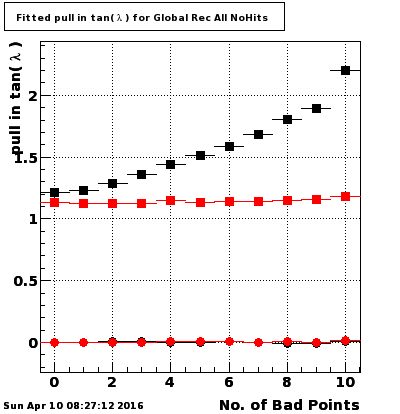

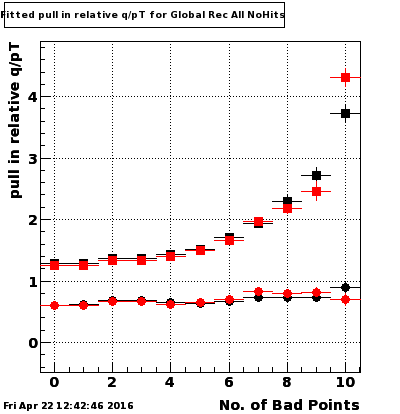

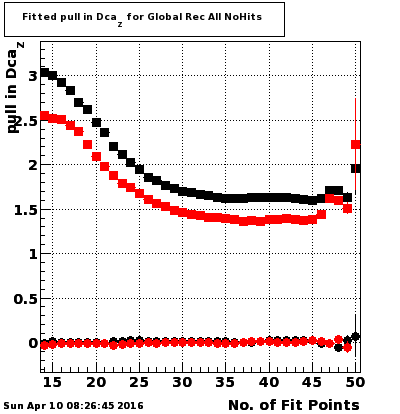

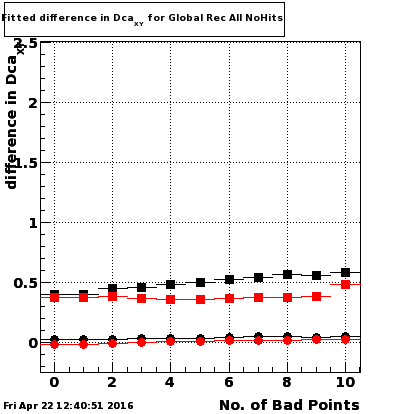

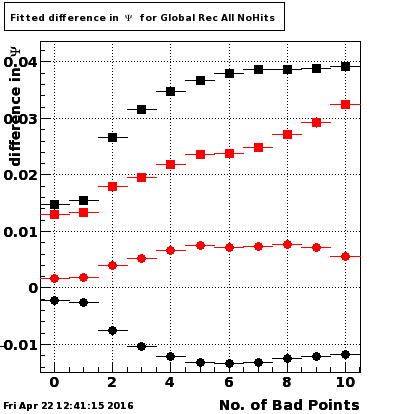

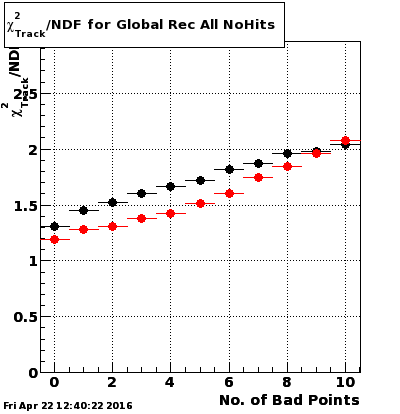

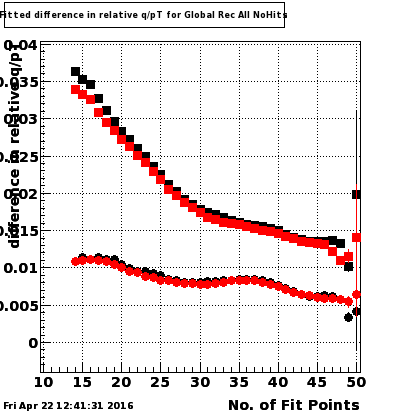

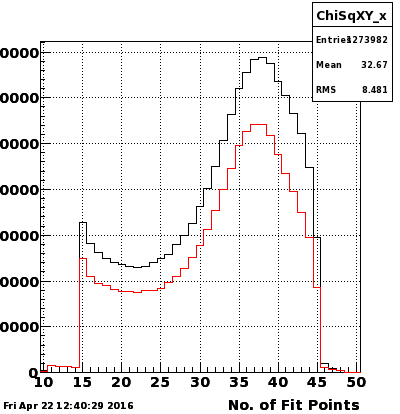

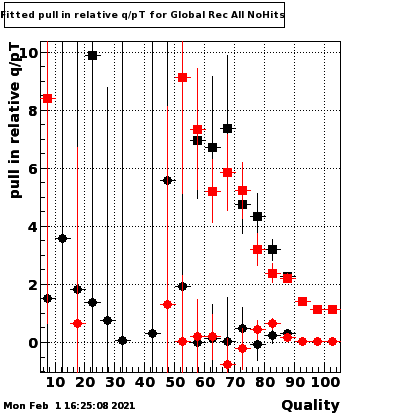

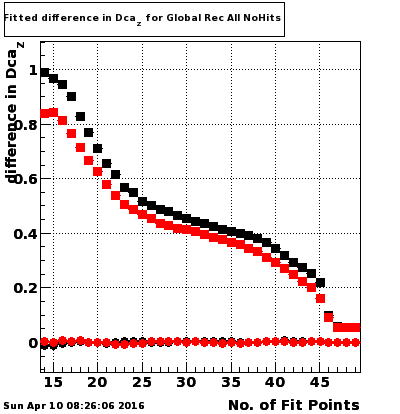

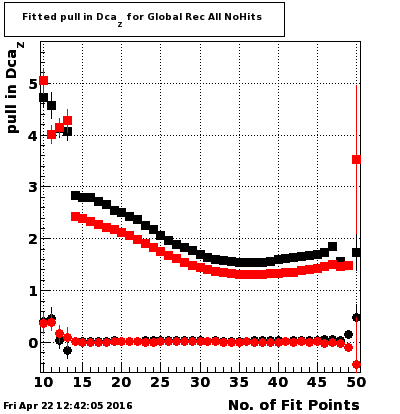

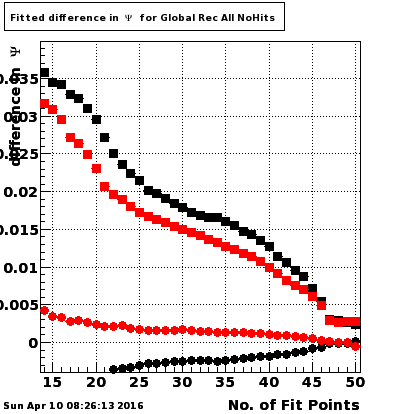

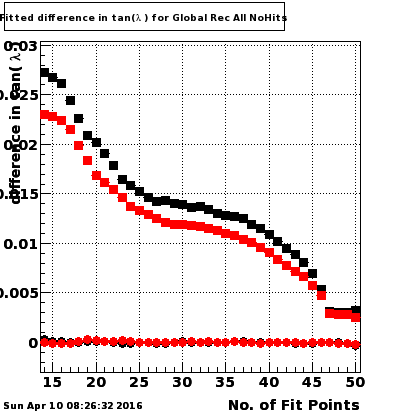

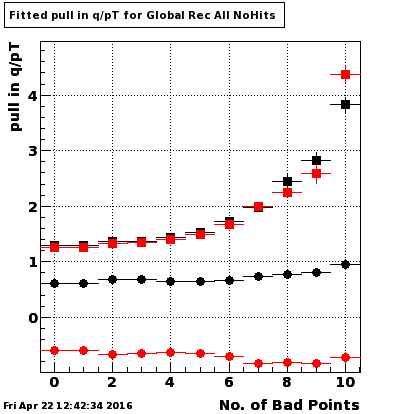

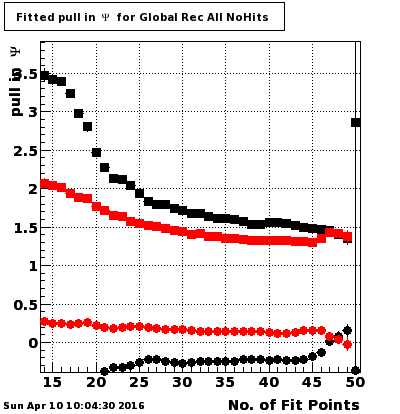

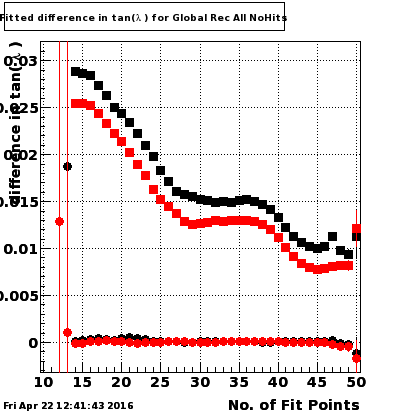

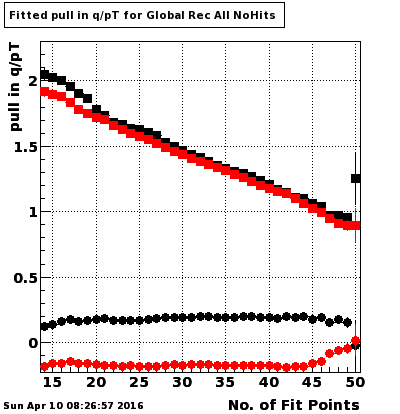

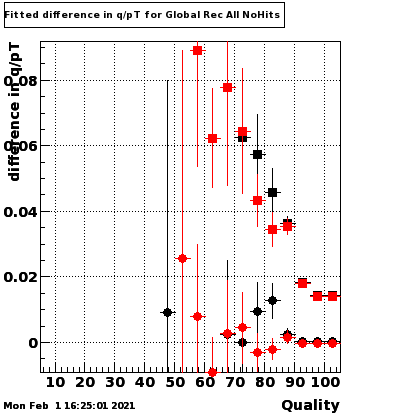

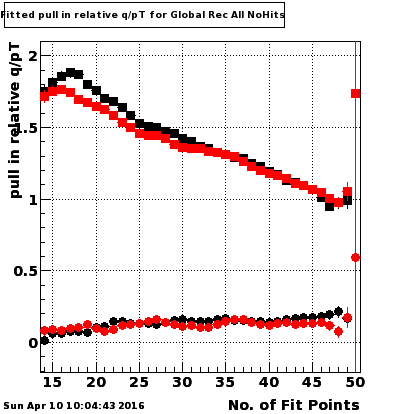

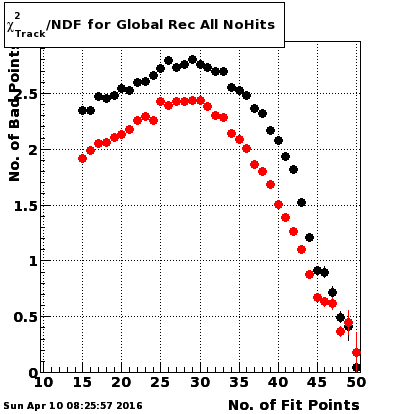

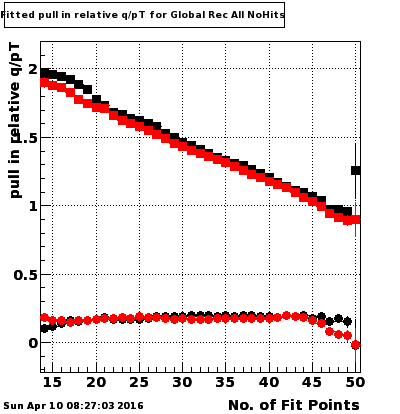

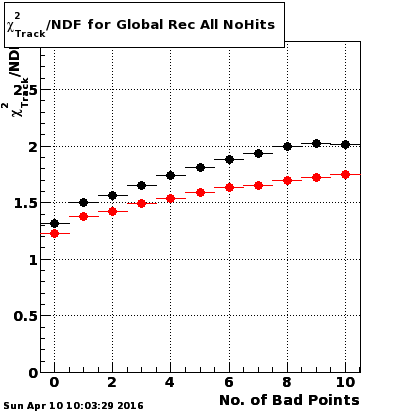

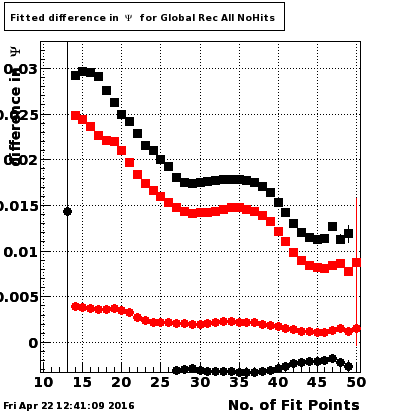

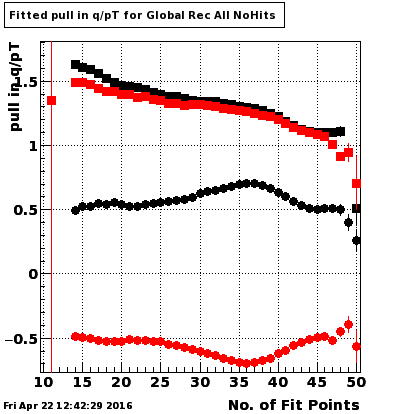

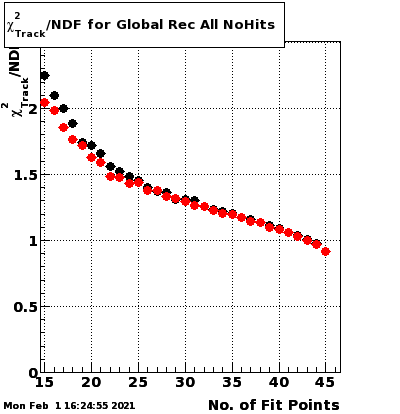

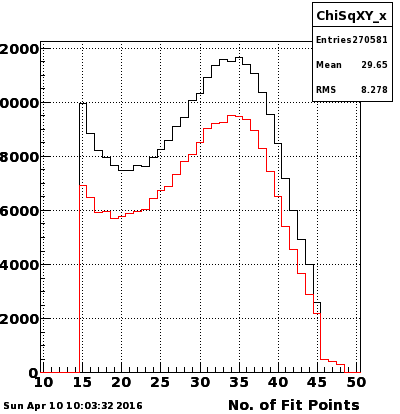

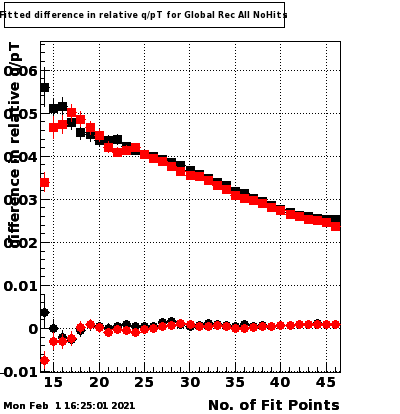

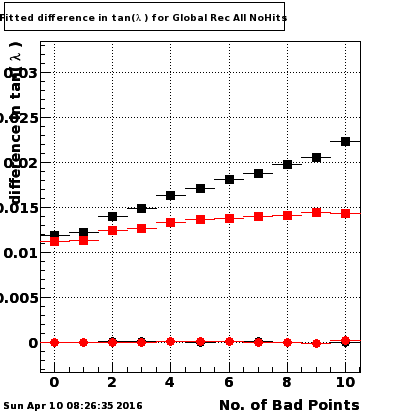

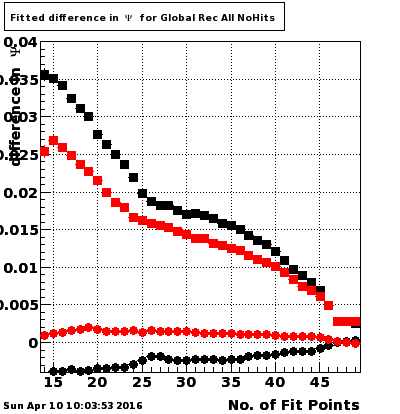

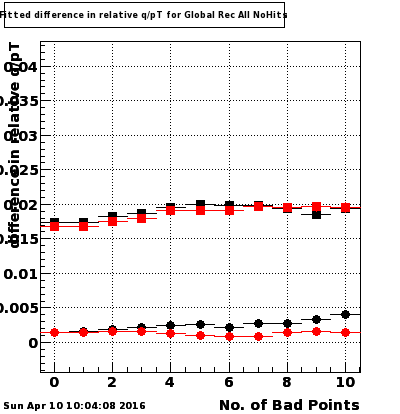

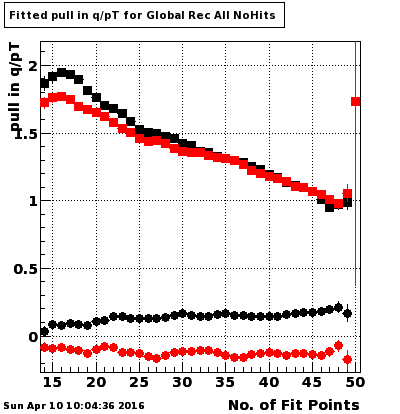

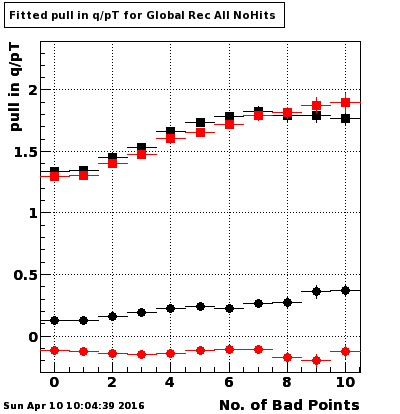

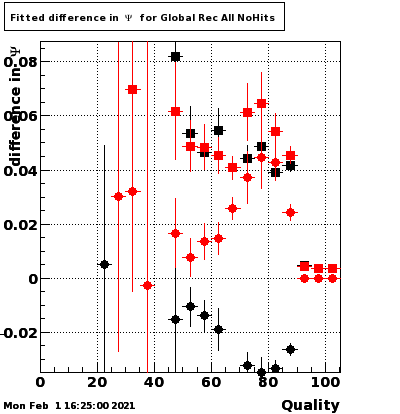

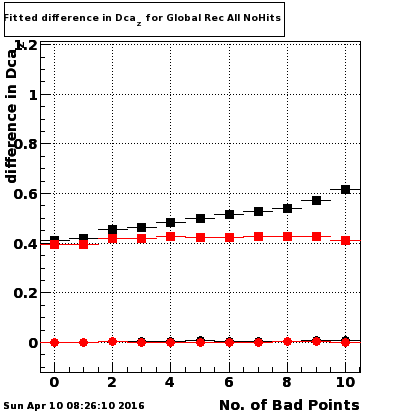

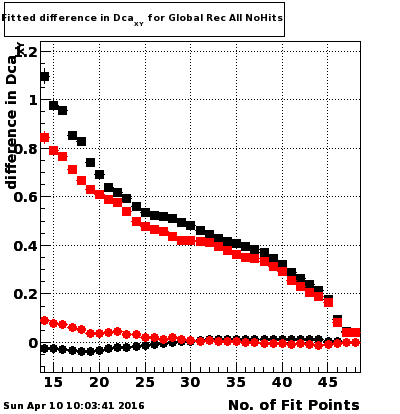

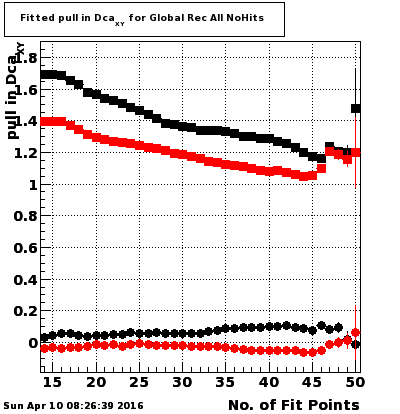

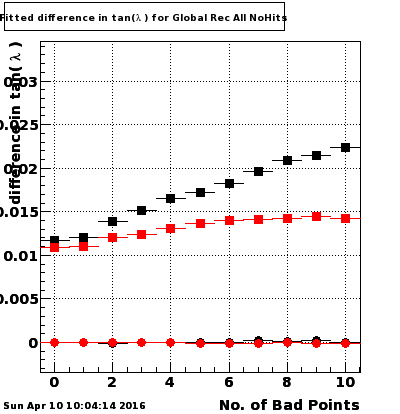

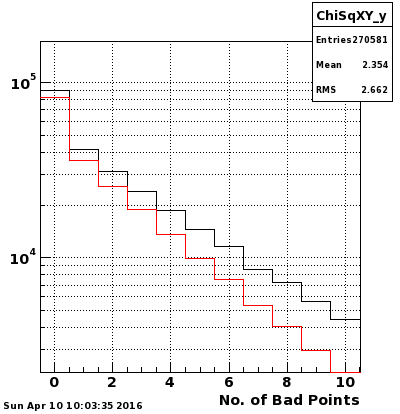

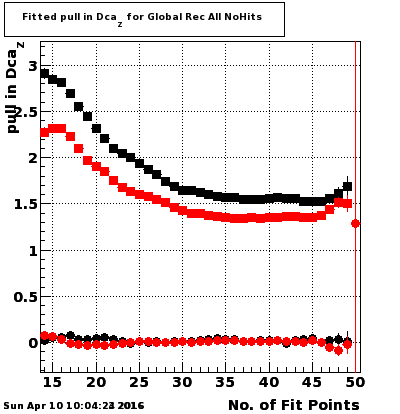

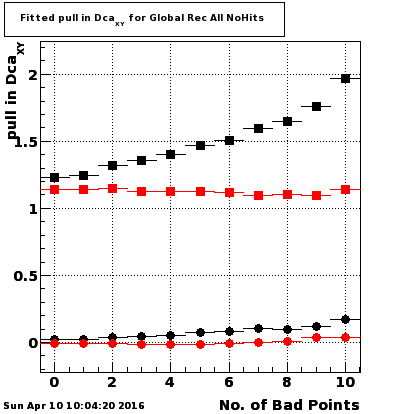

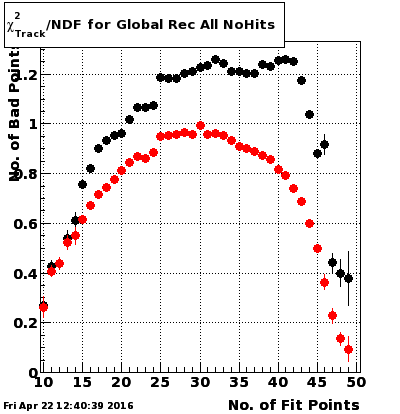

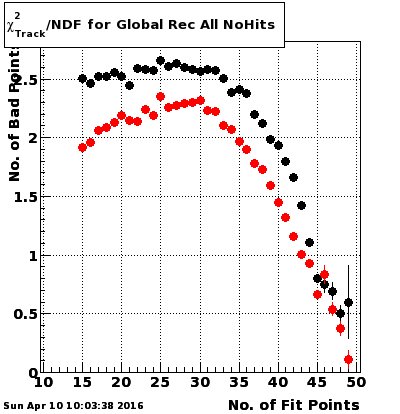

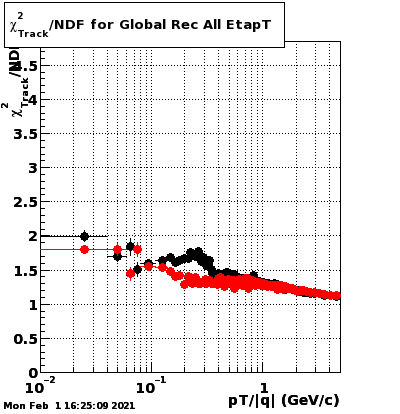

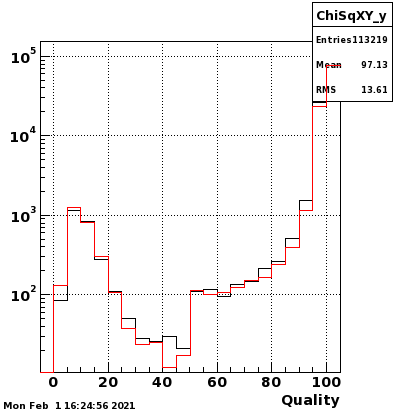

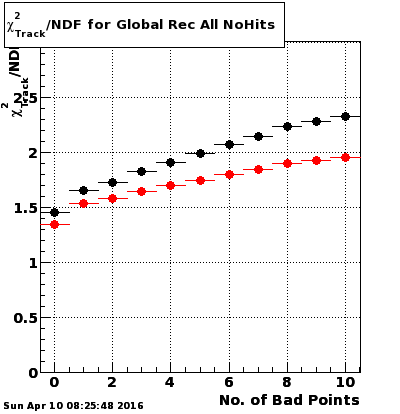

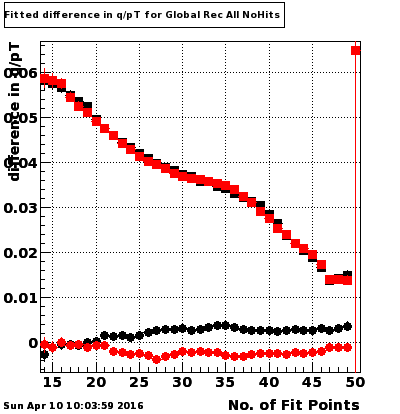

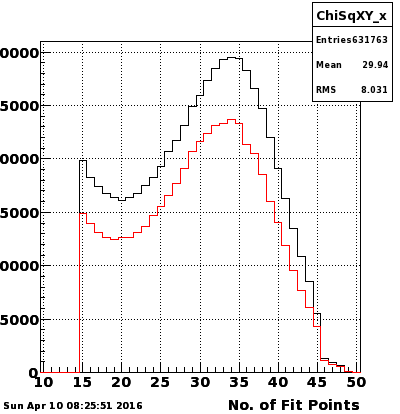

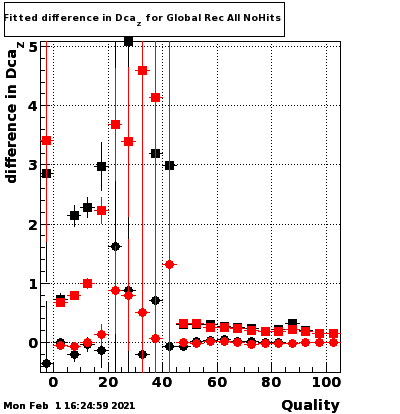

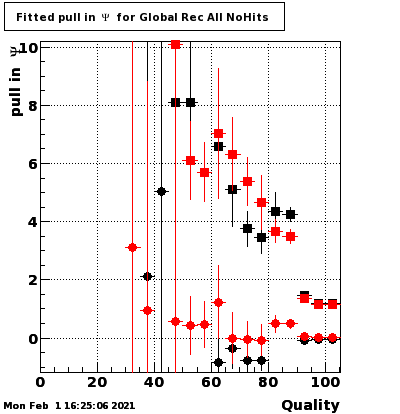

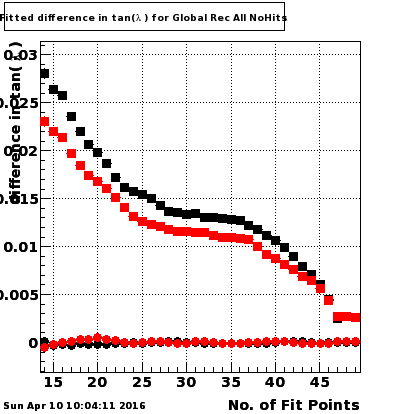

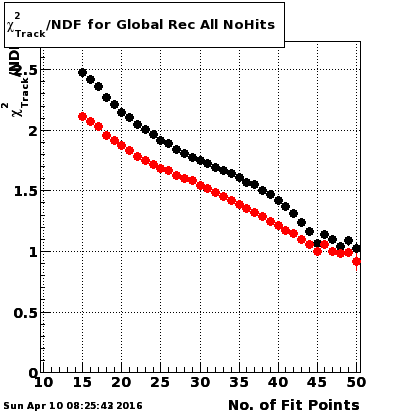

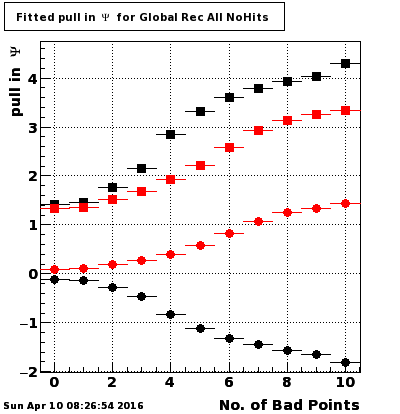

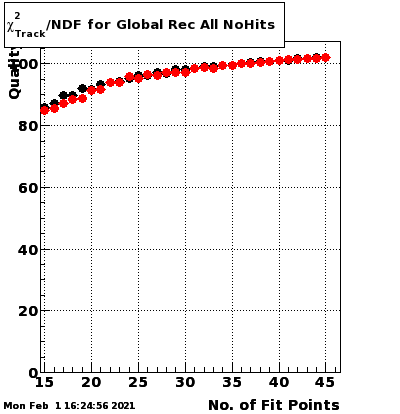

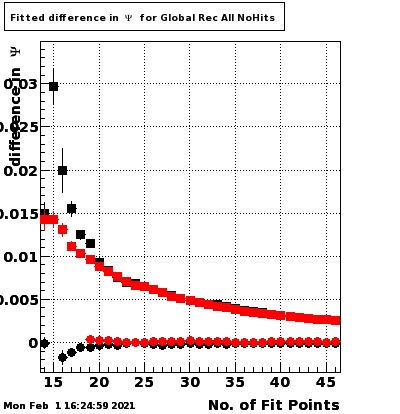

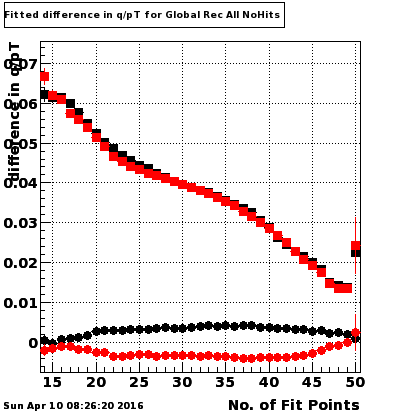

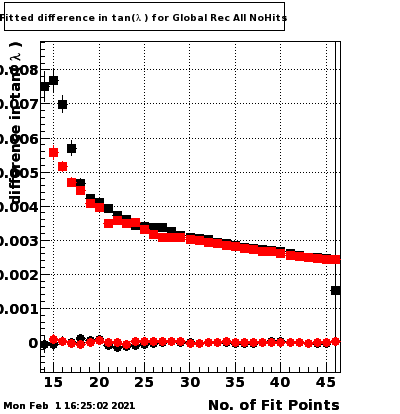

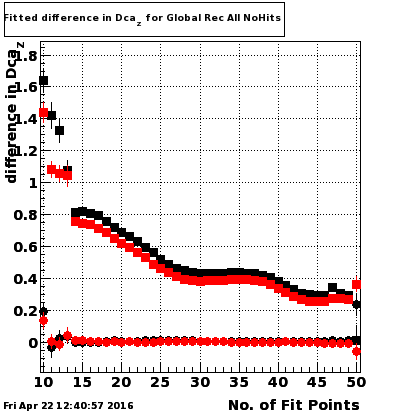

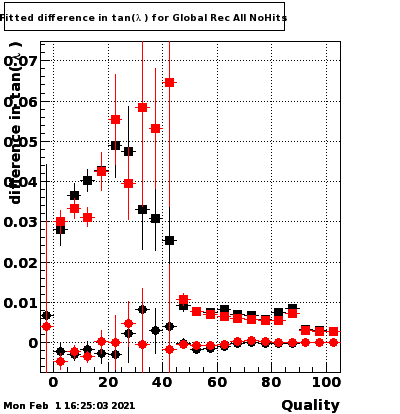

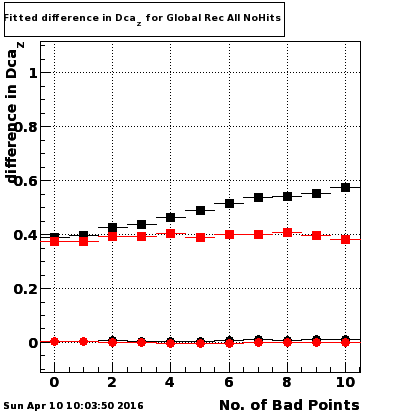

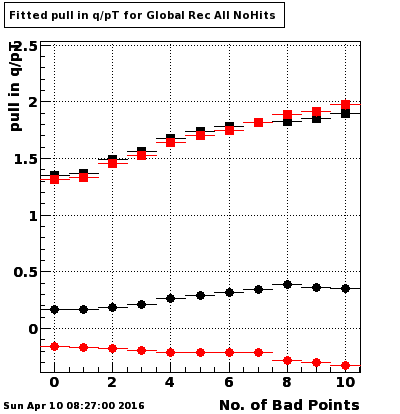

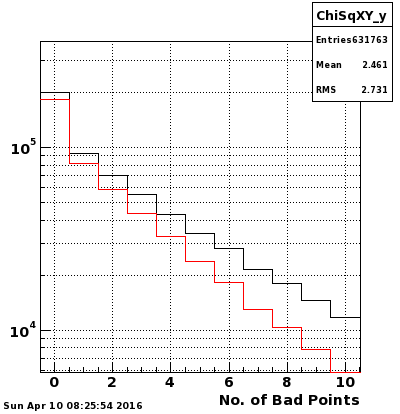

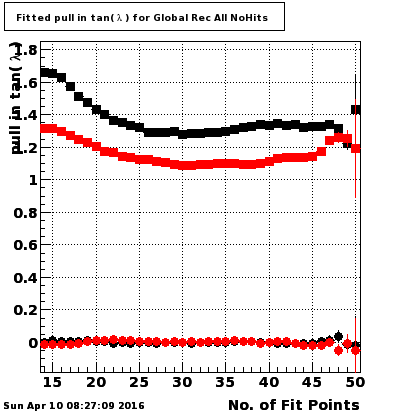

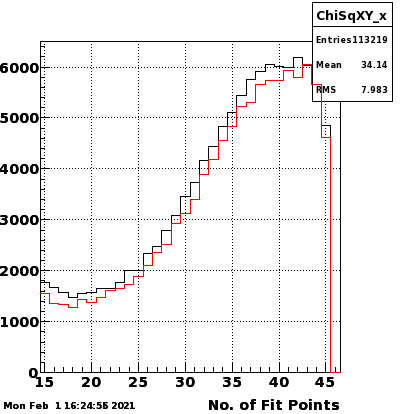

1.1.1.1. Global tracks. All. No. of fit and bad points.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29

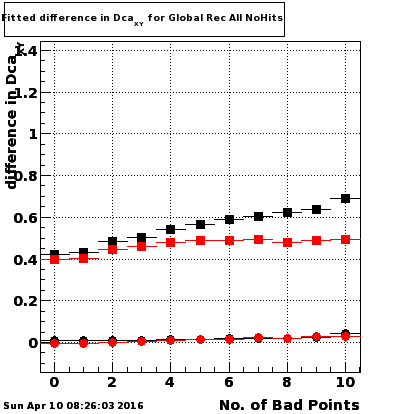

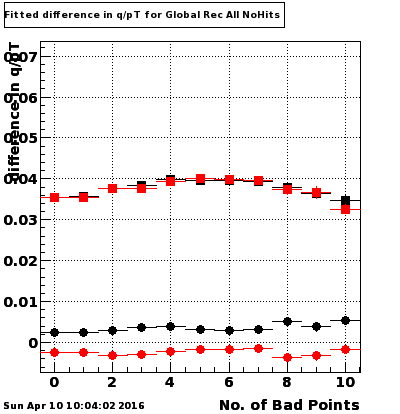

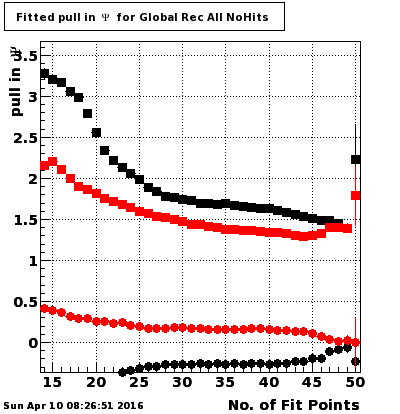

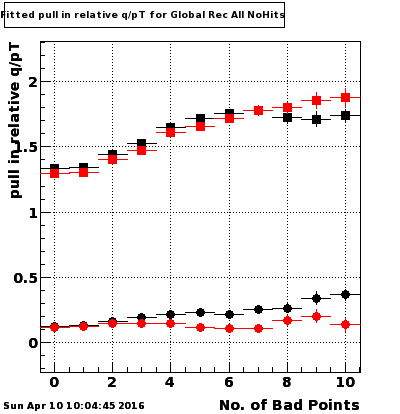

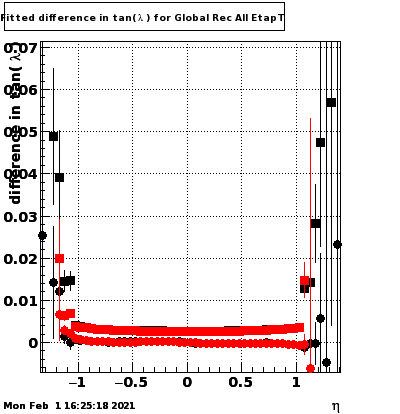

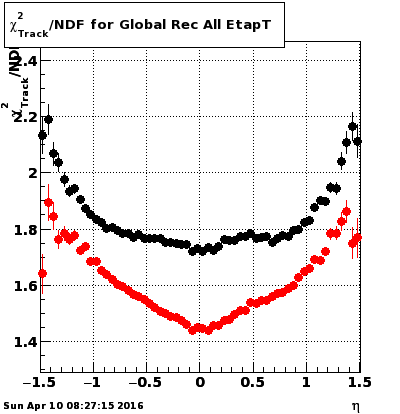

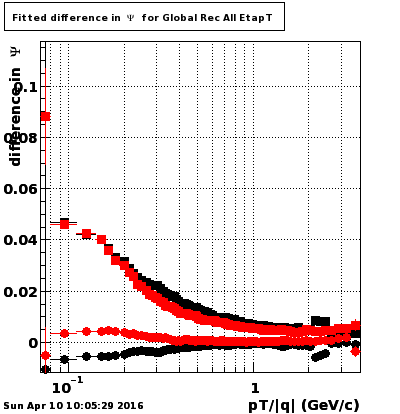

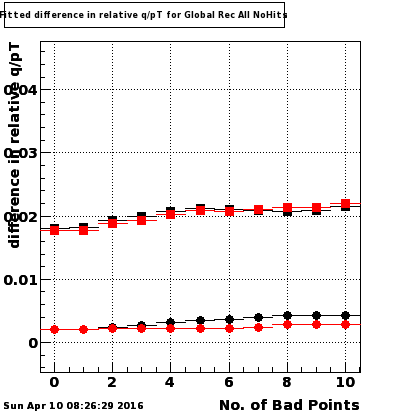

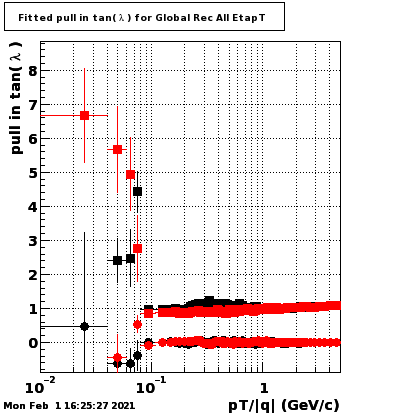

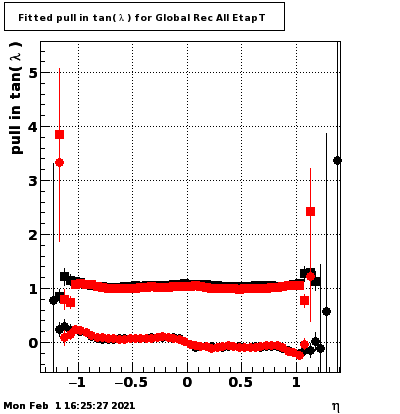

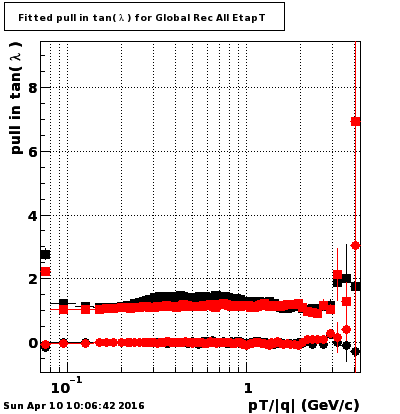

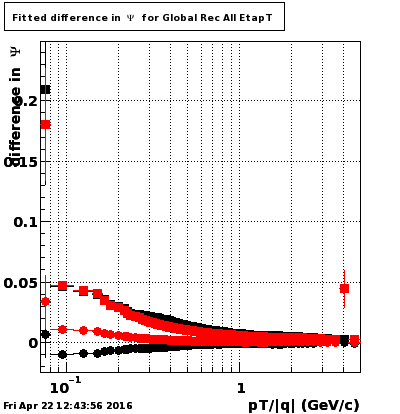

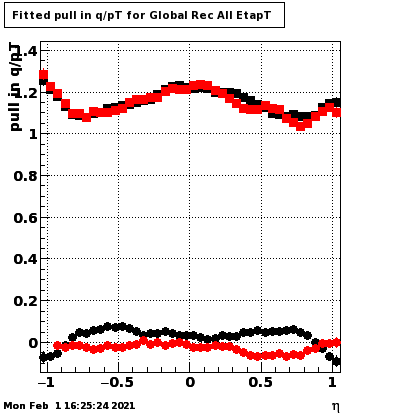

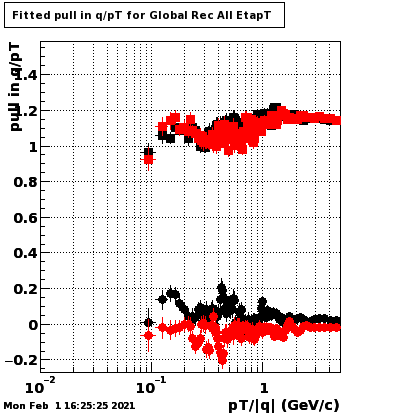

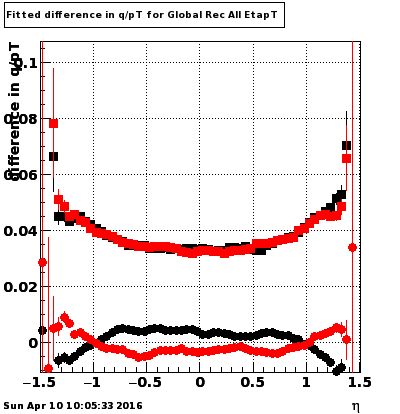

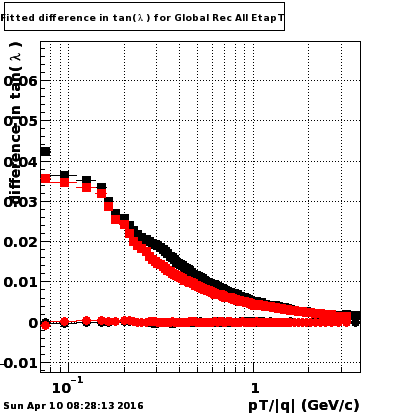

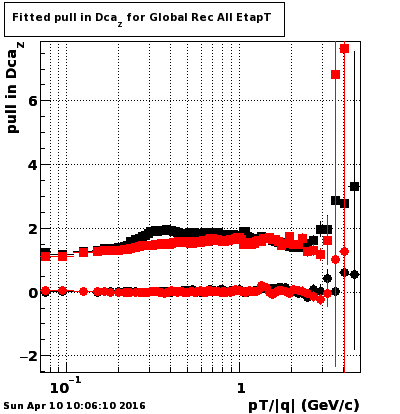

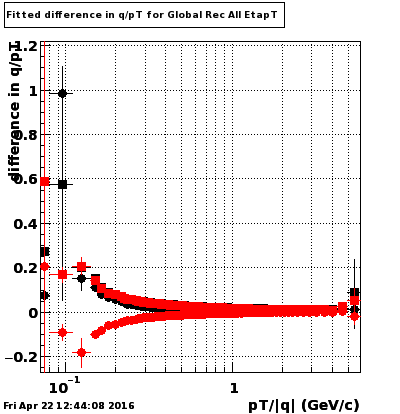

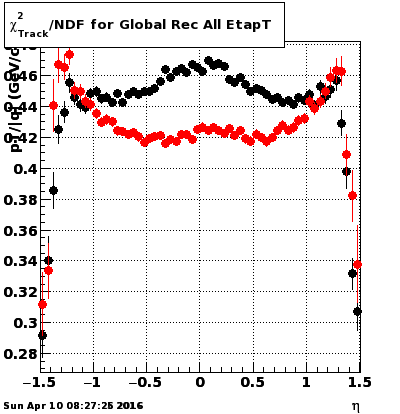

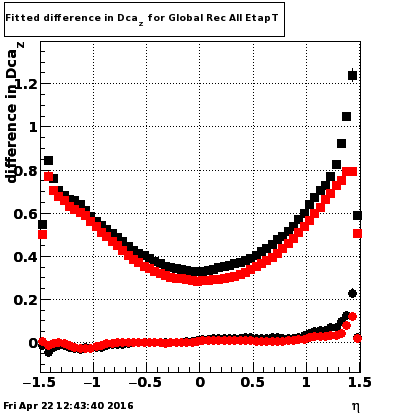

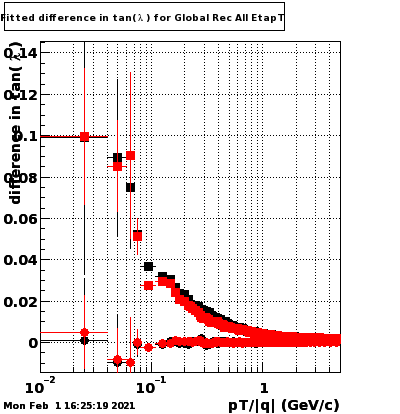

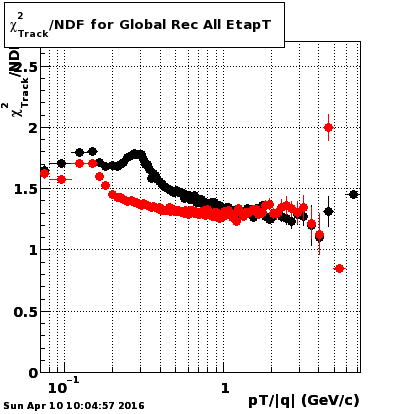

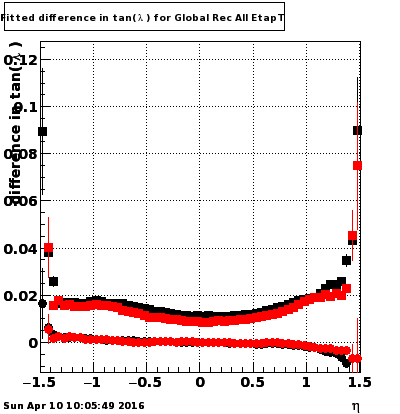

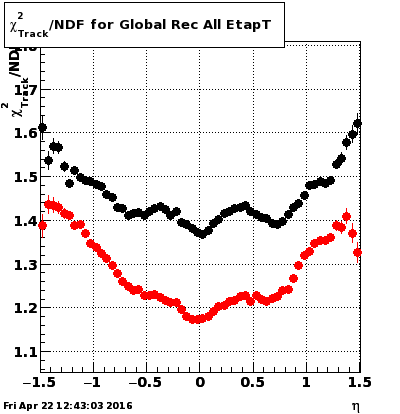

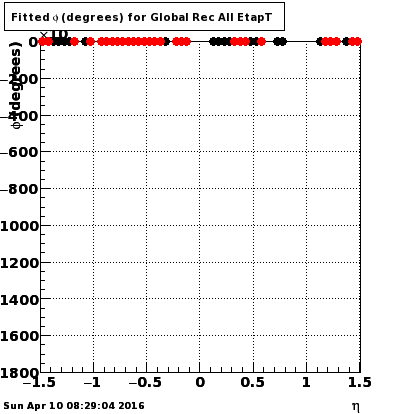

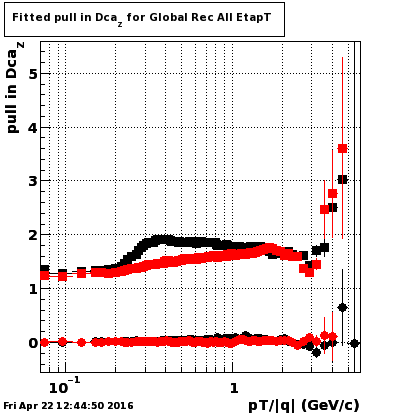

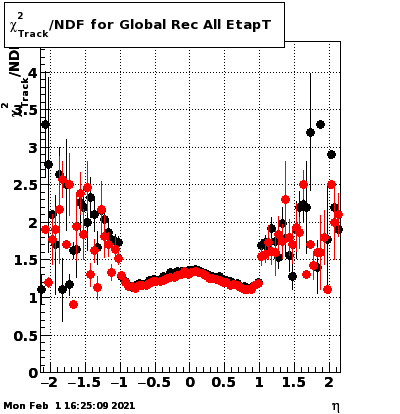

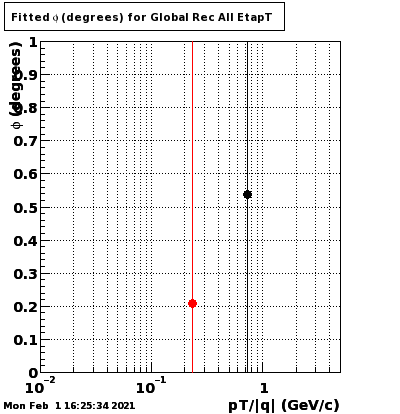

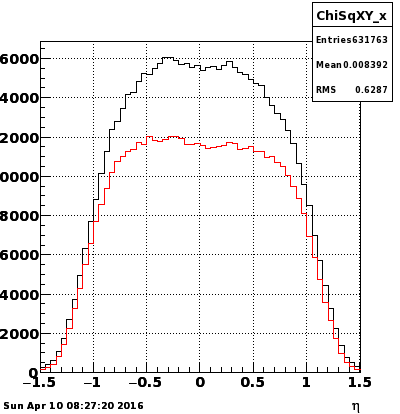

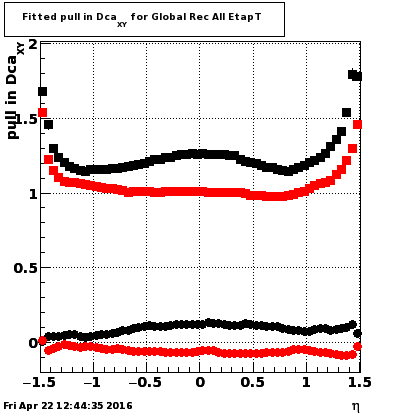

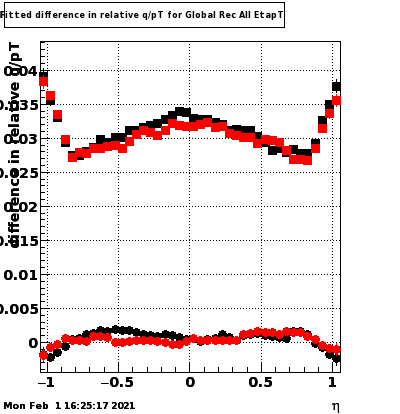

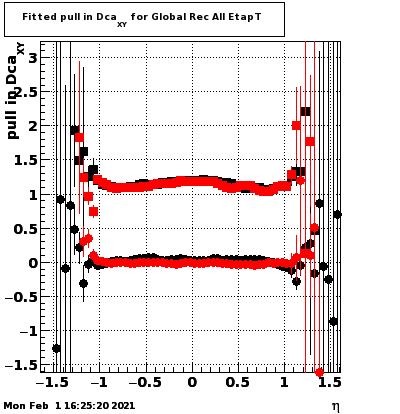

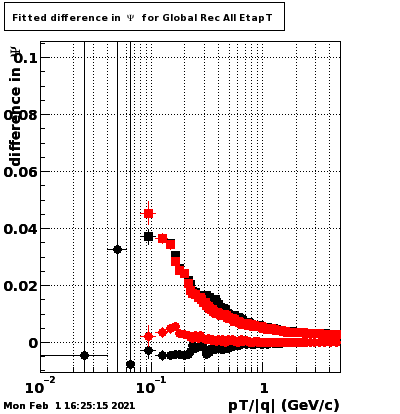

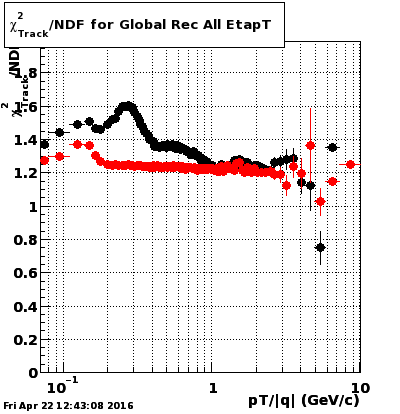

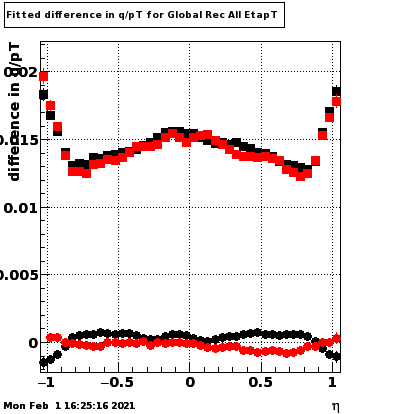

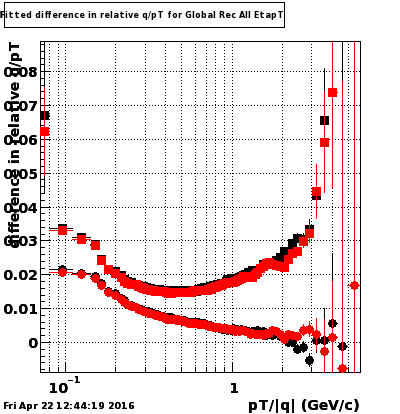

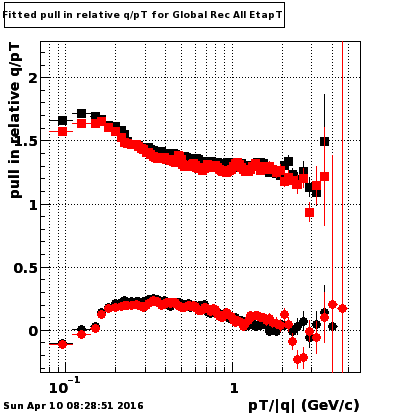

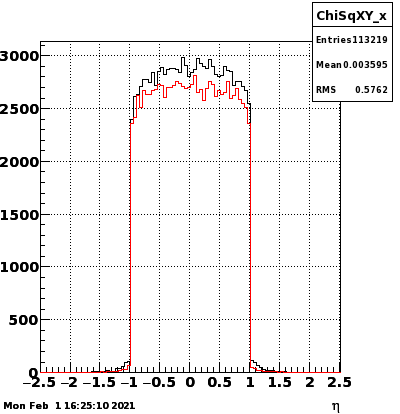

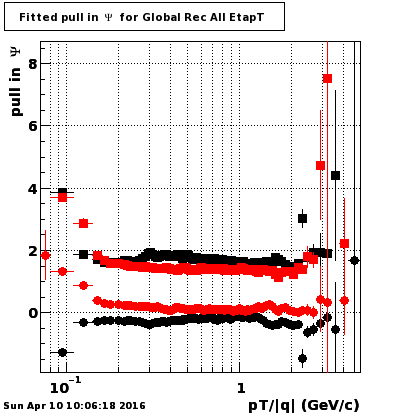

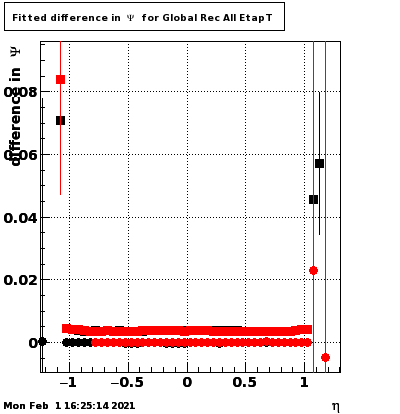

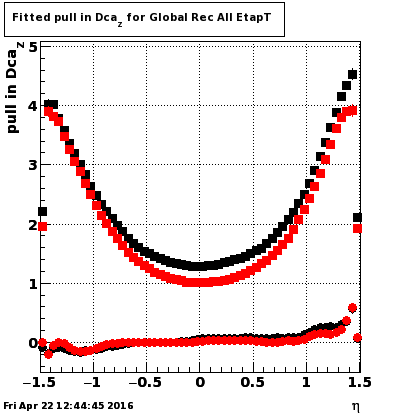

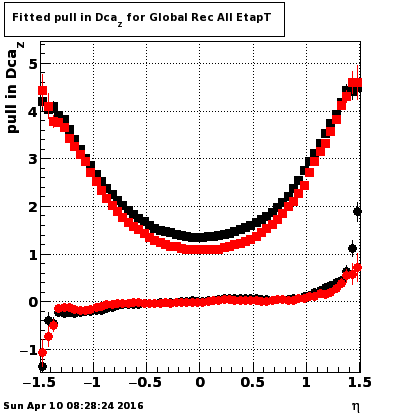

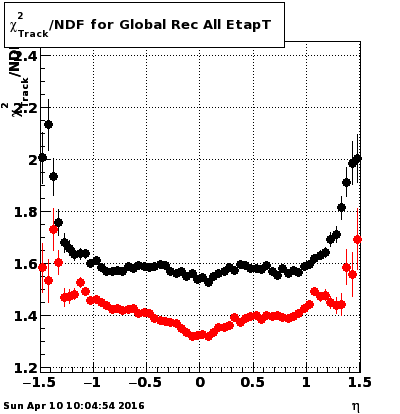

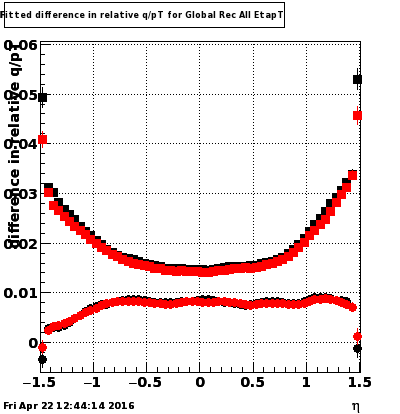

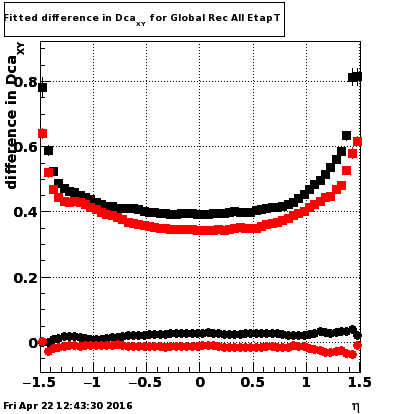

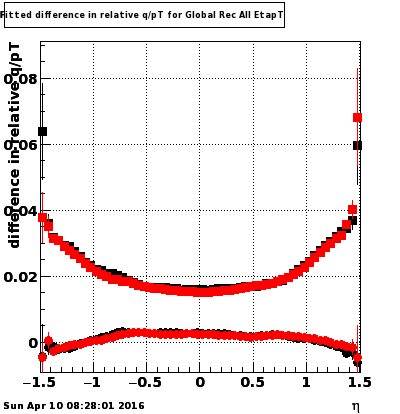

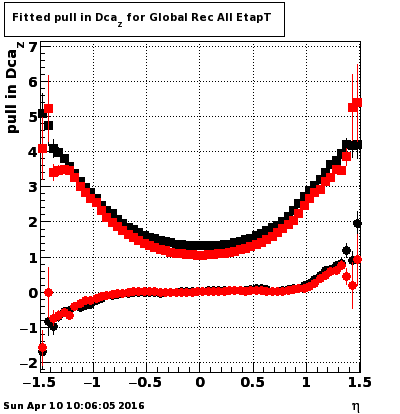

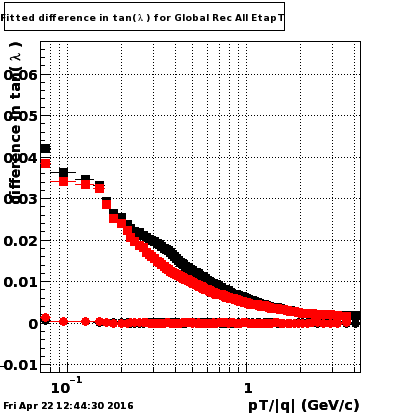

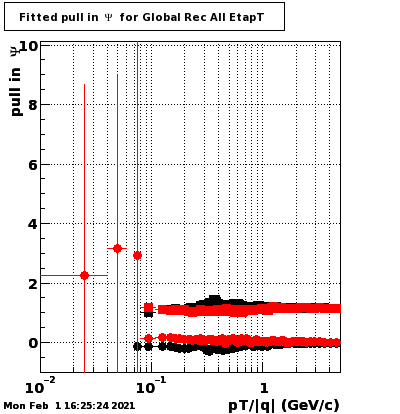

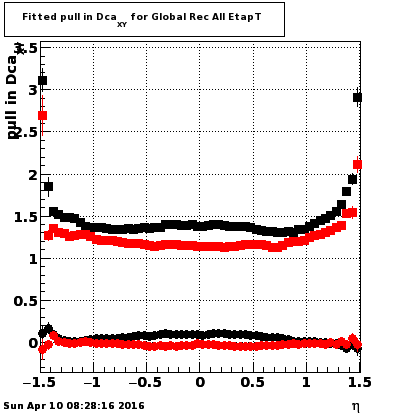

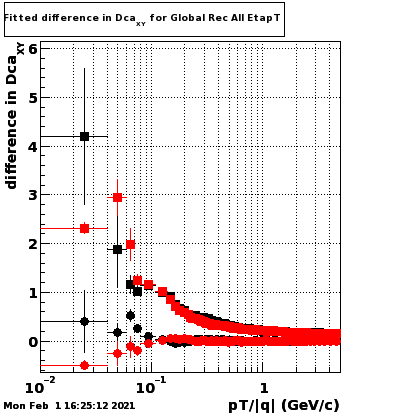

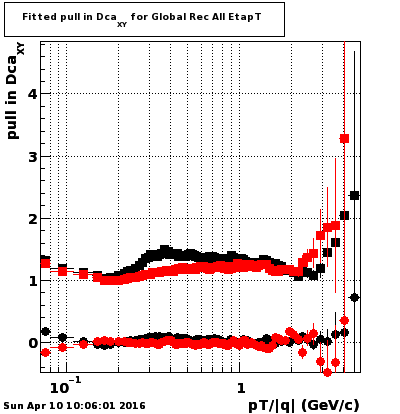

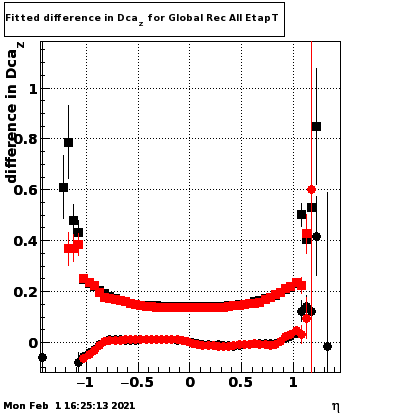

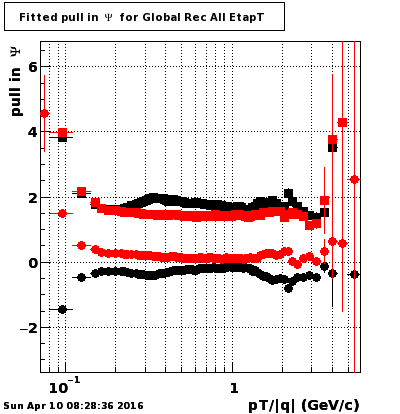

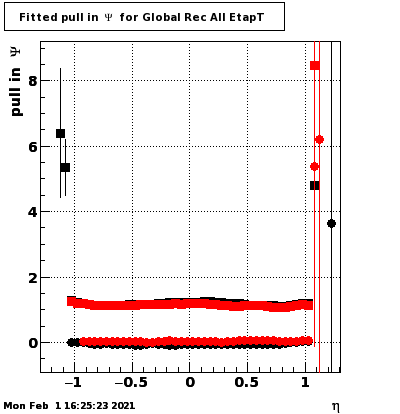

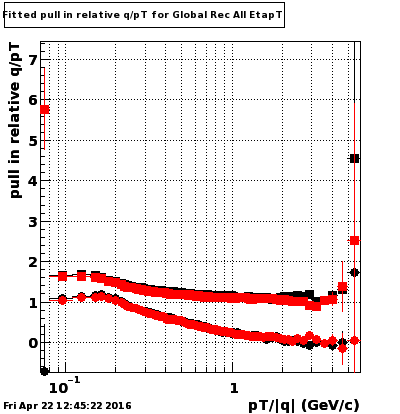

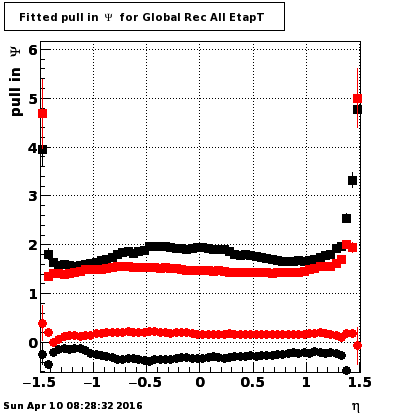

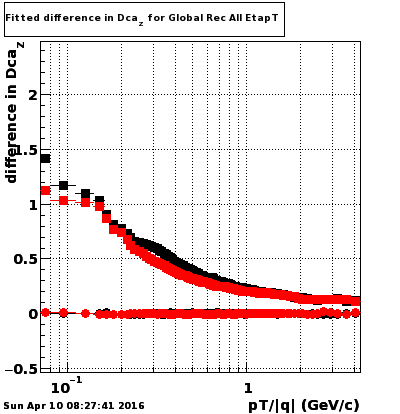

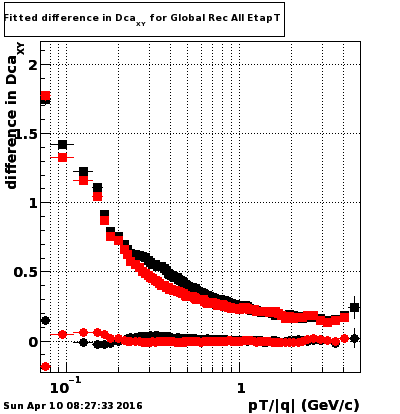

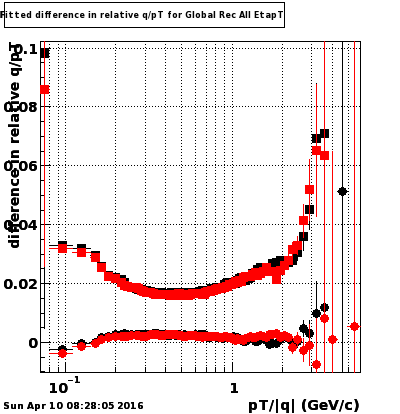

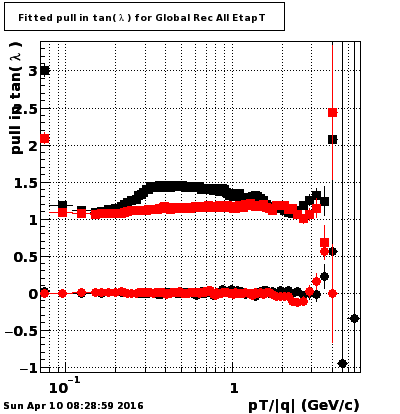

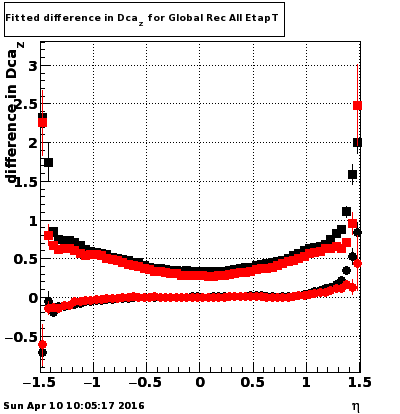

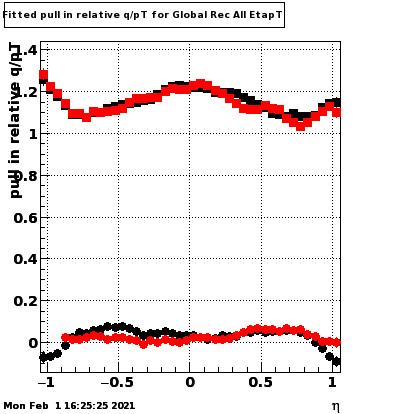

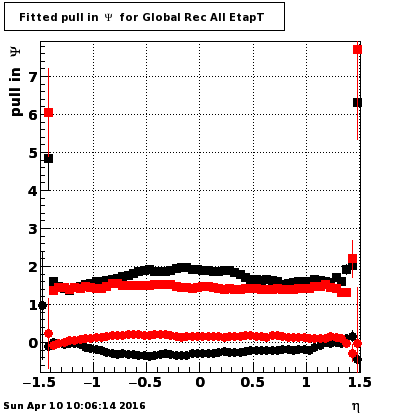

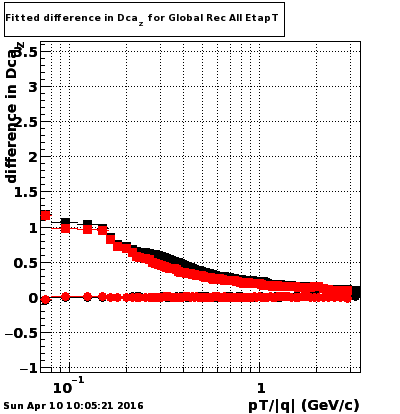

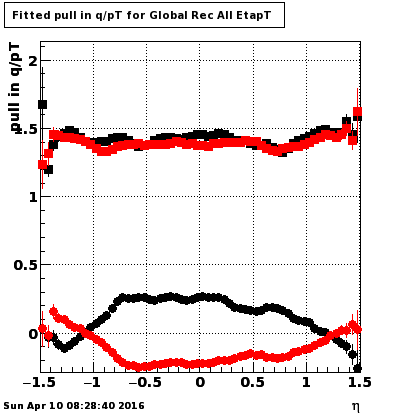

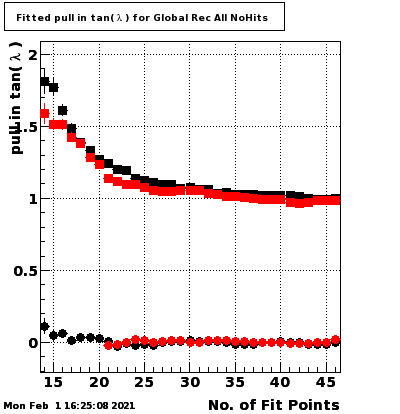

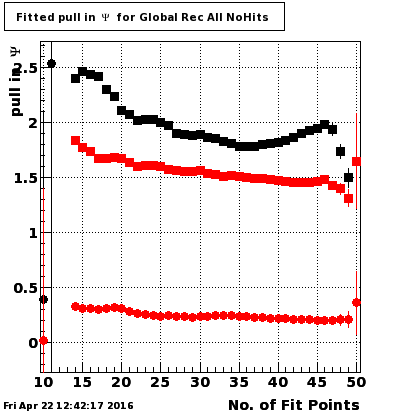

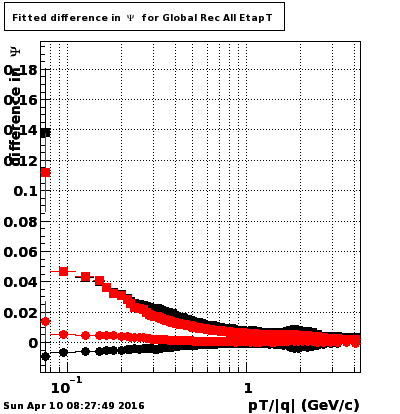

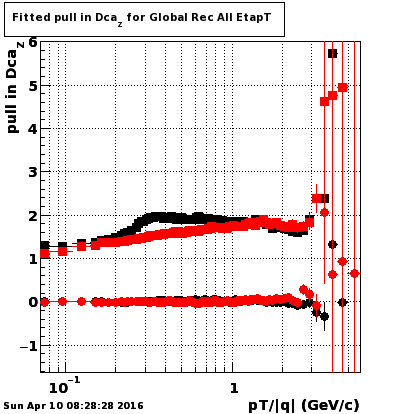

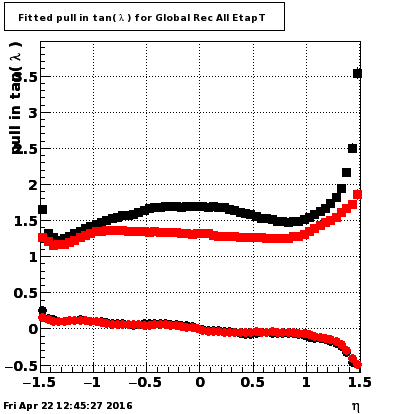

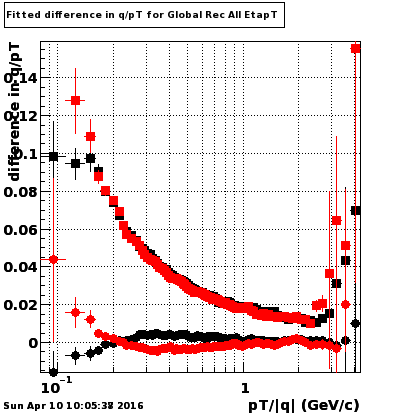

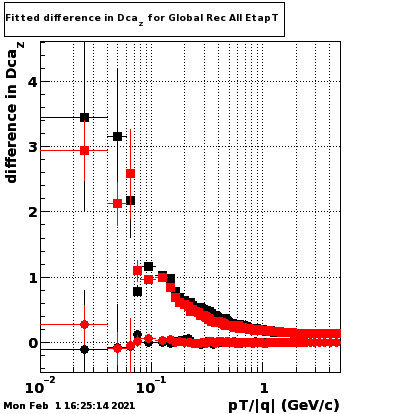

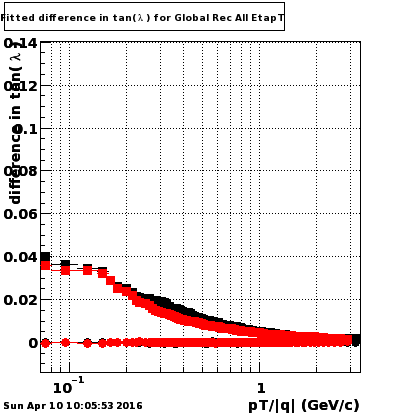

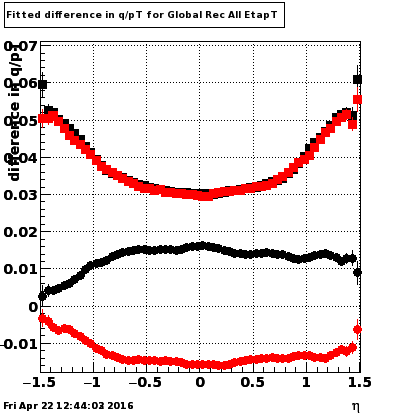

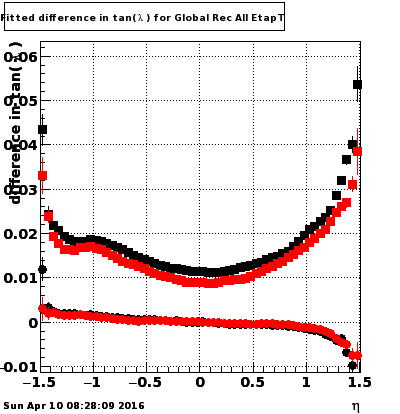

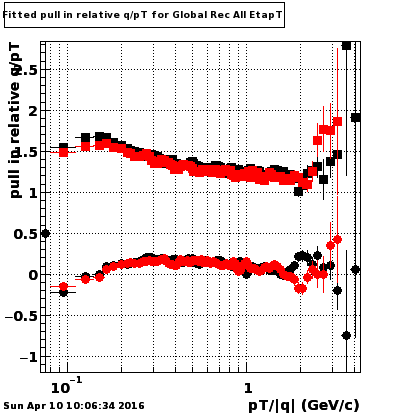

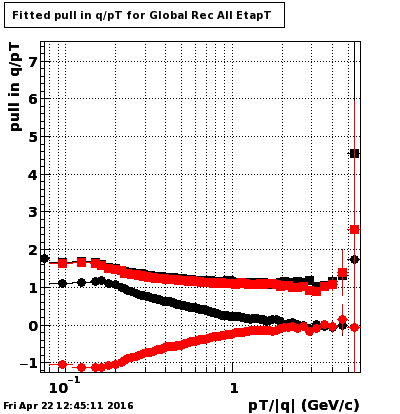

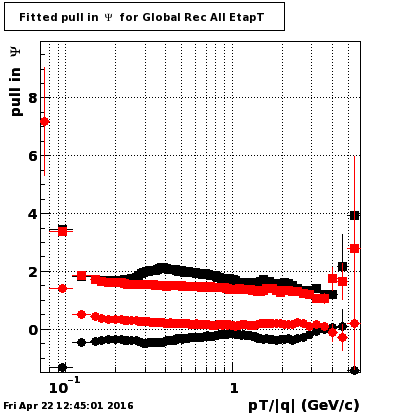

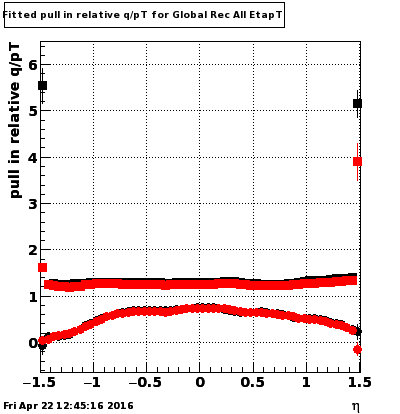

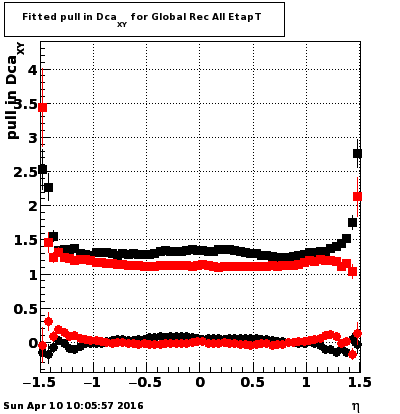

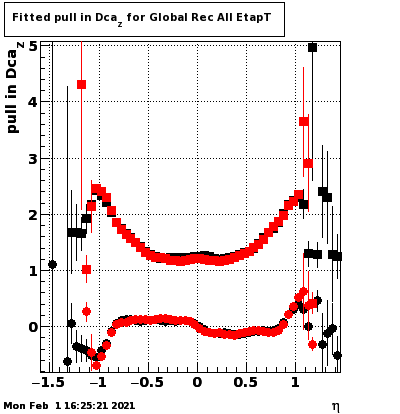

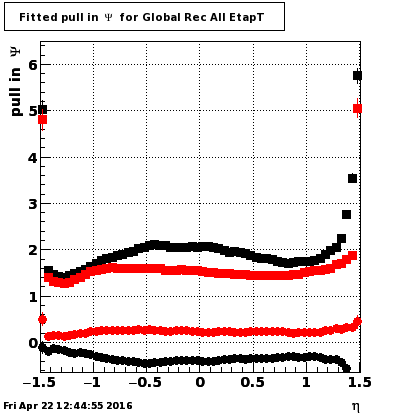

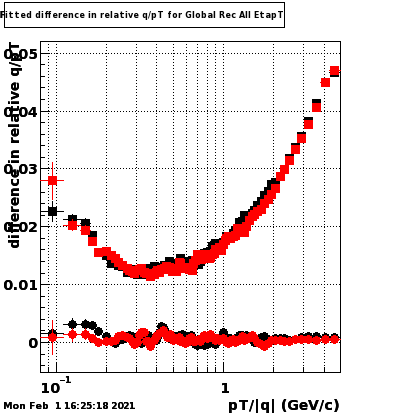

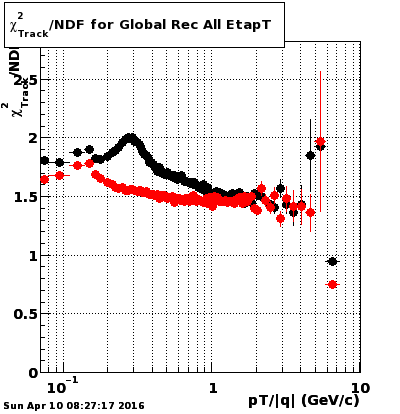

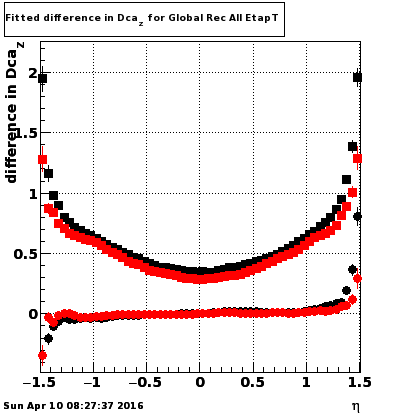

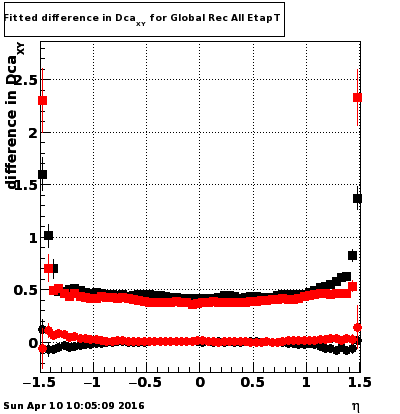

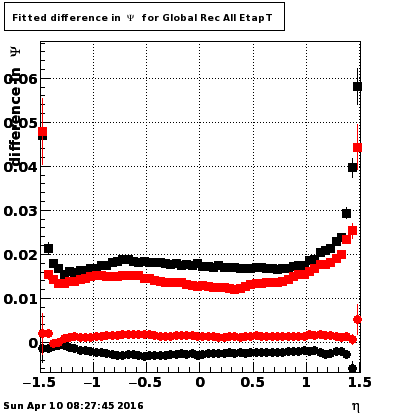

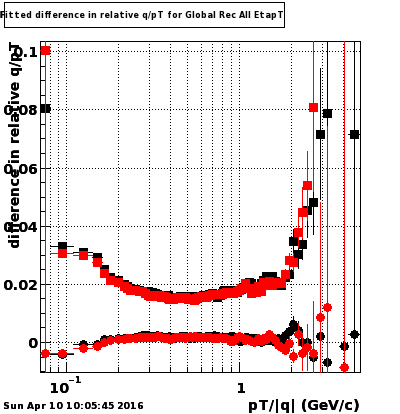

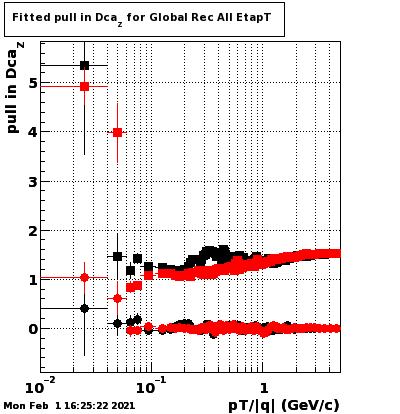

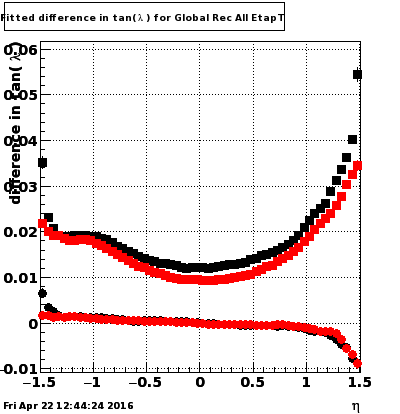

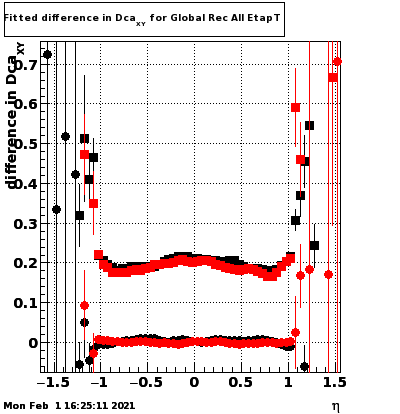

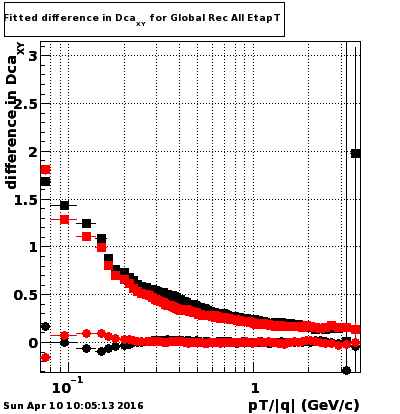

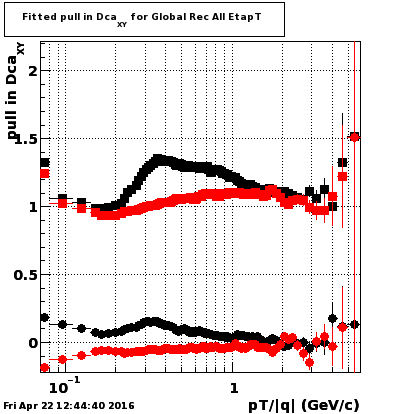

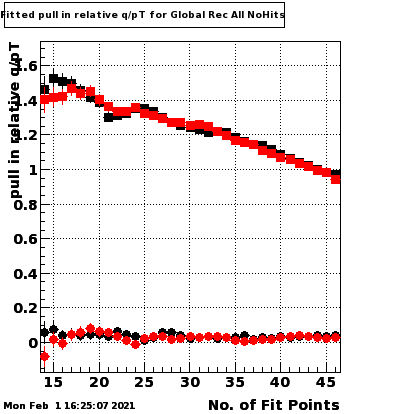

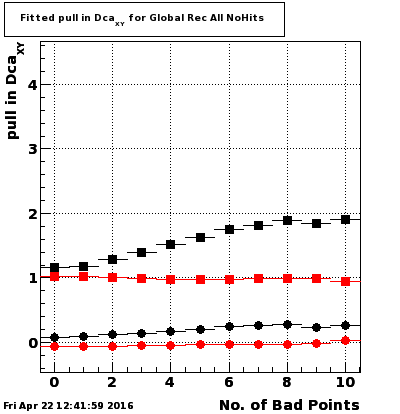

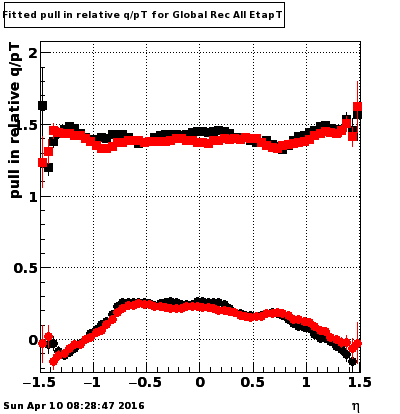

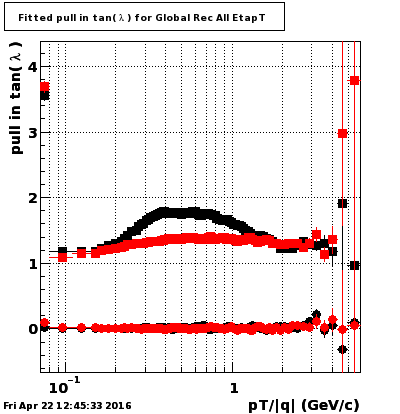

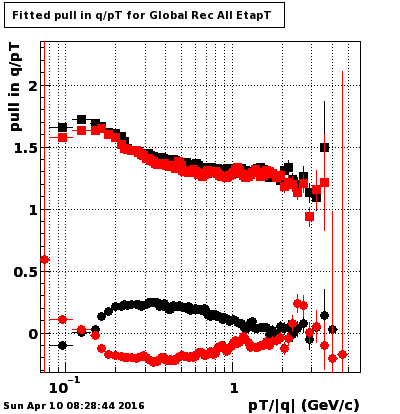

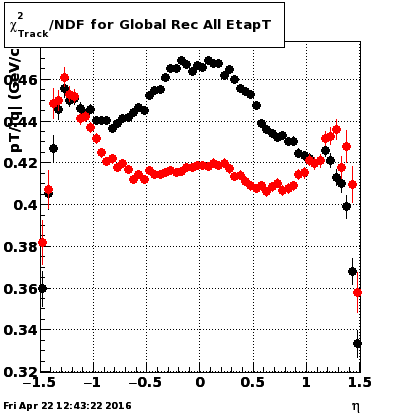

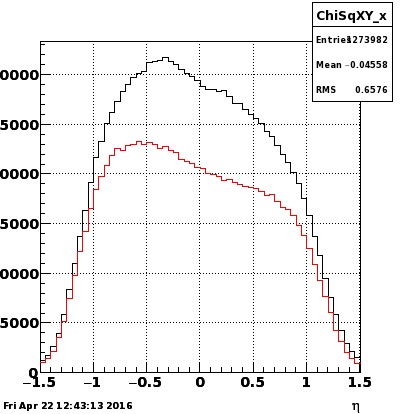

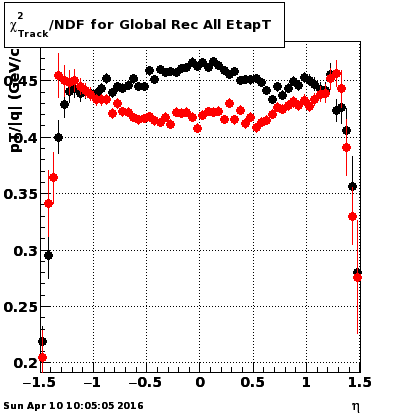

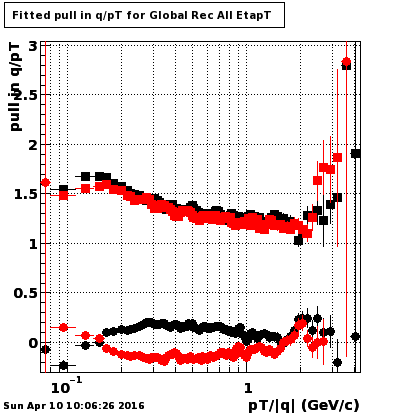

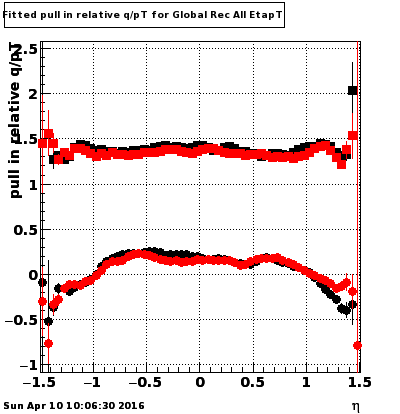

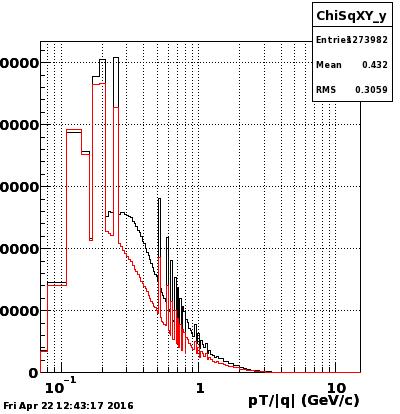

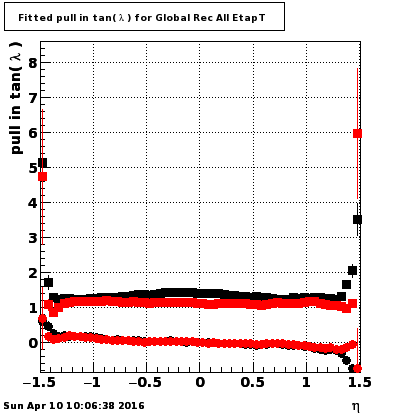

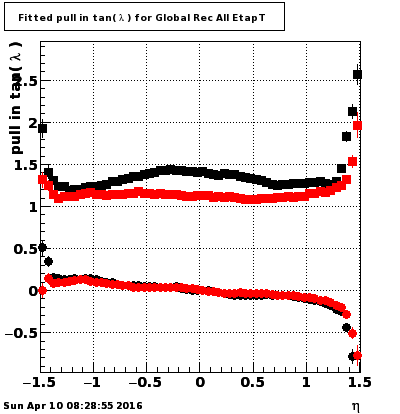

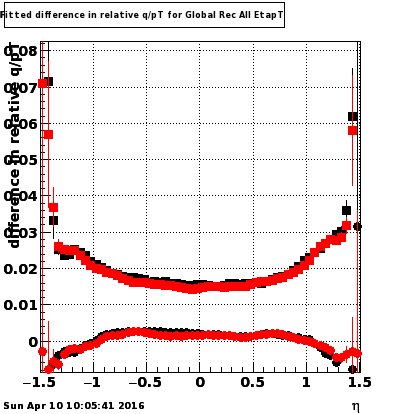

1.1.1.2. Global tracks. All.Track parameters

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29
Fig.30
Fig.31

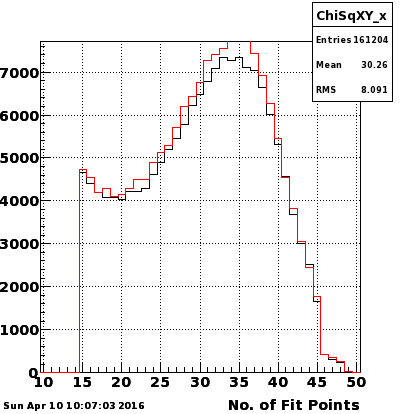

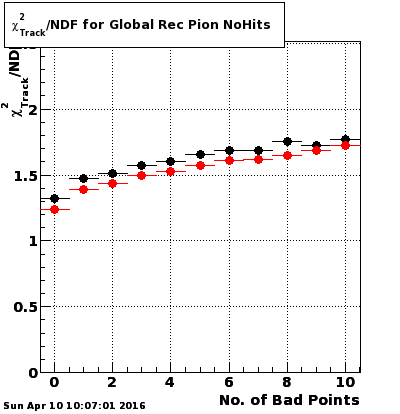

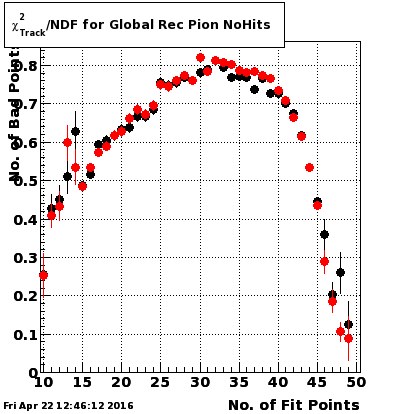

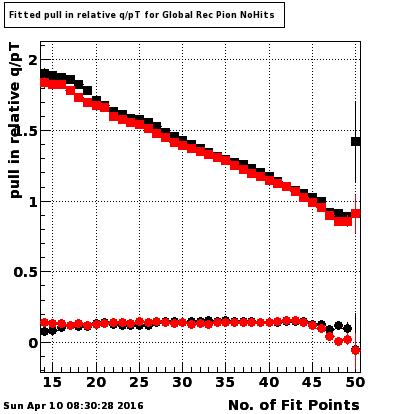

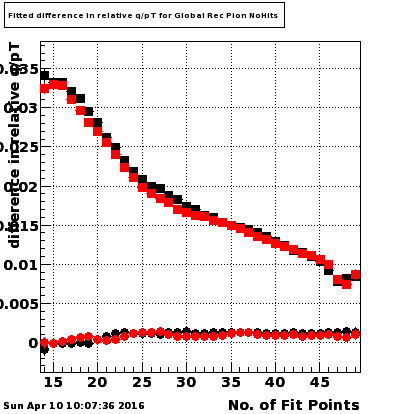

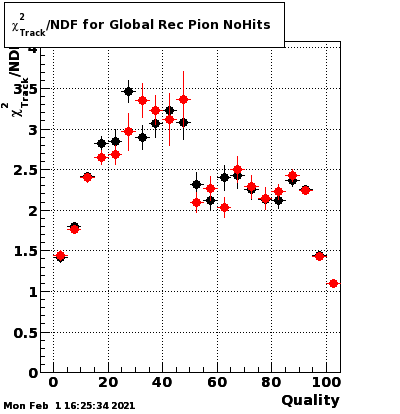

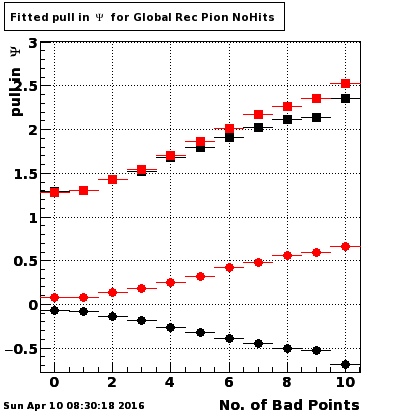

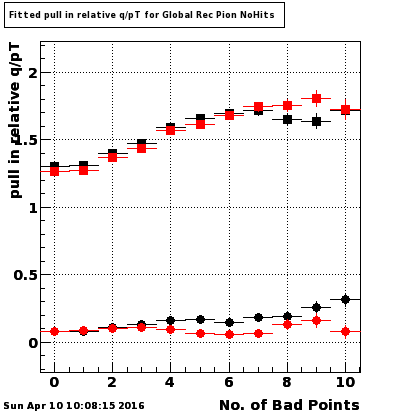

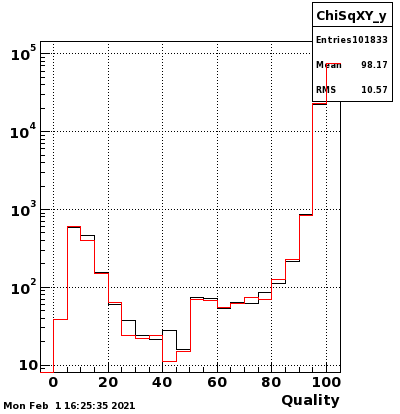

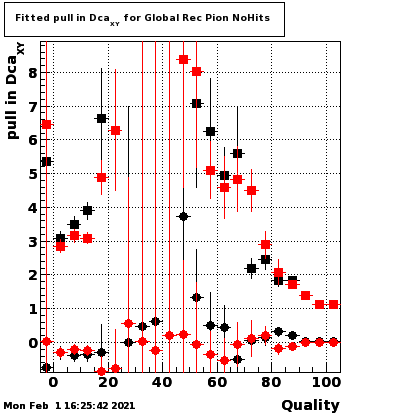

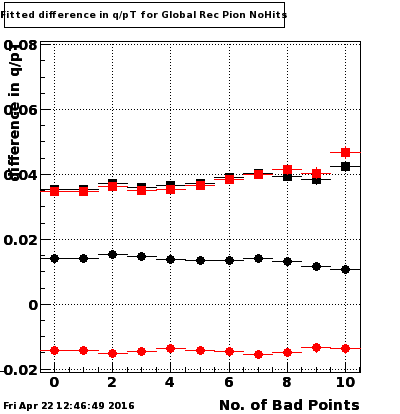

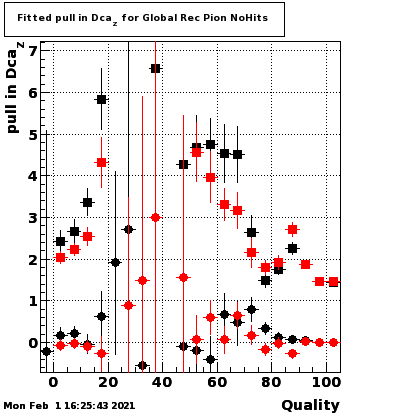

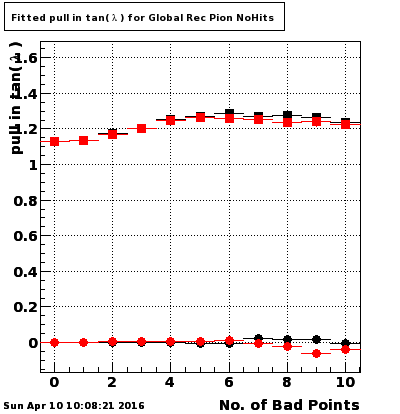

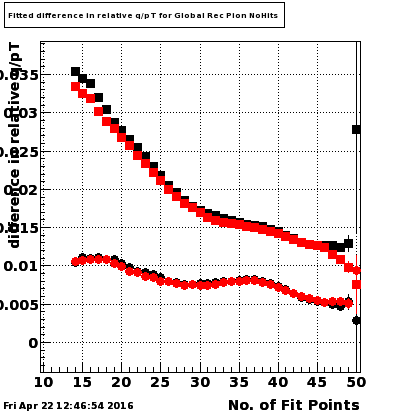

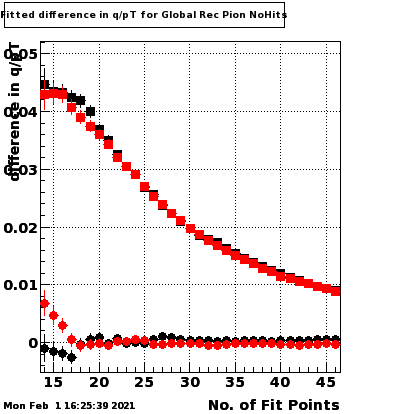

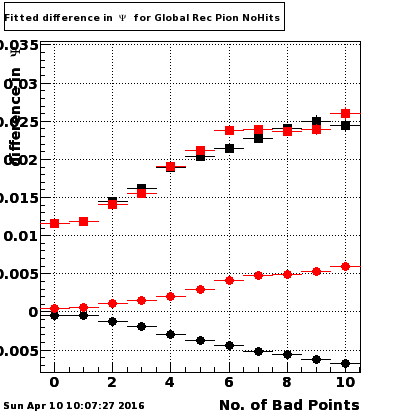

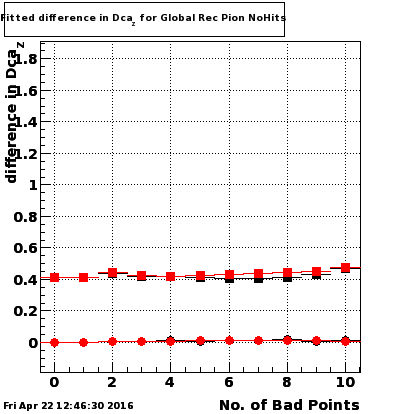

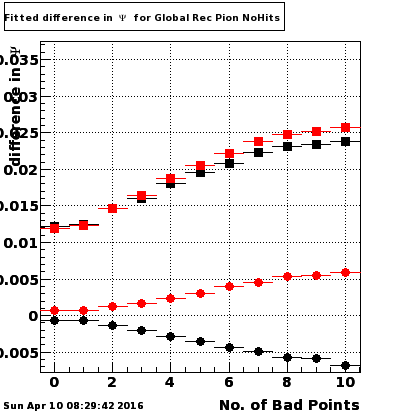

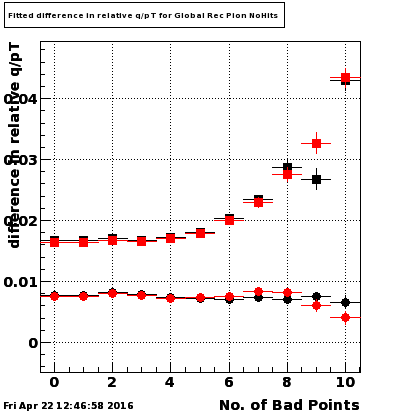

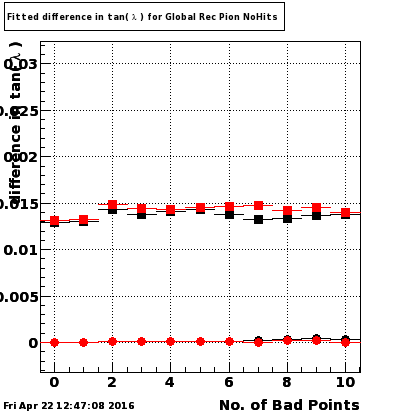

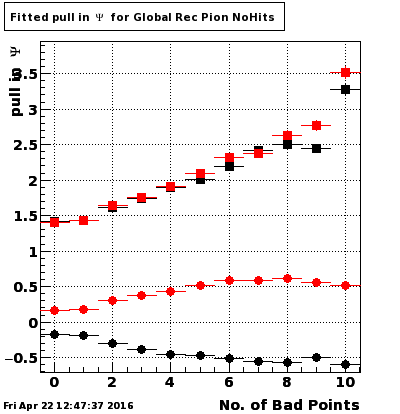

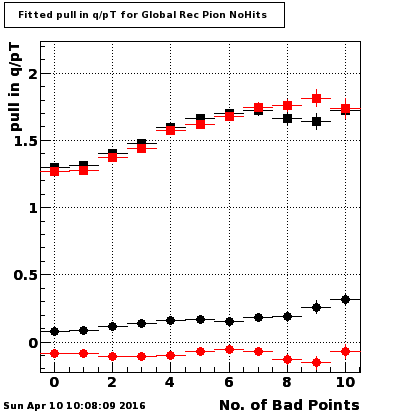

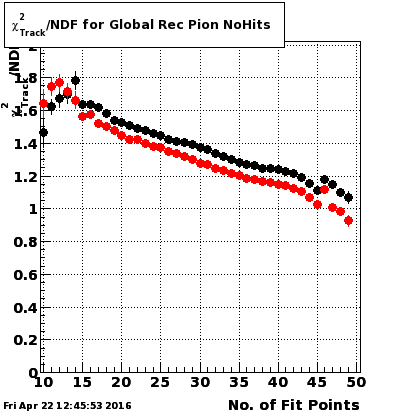

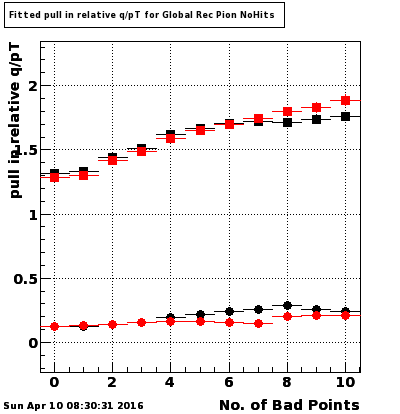

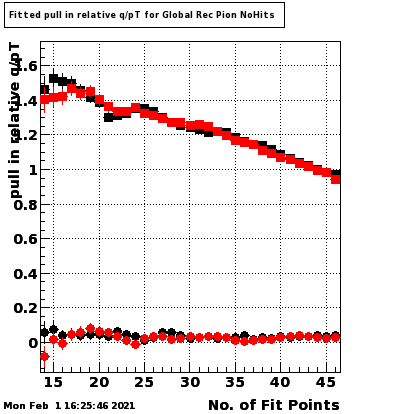

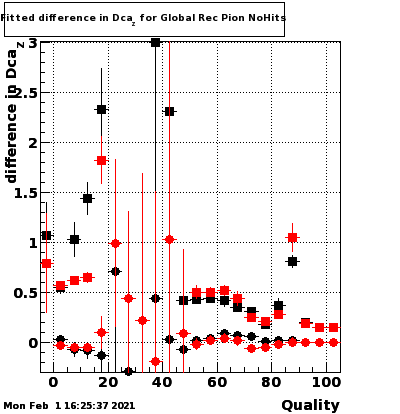

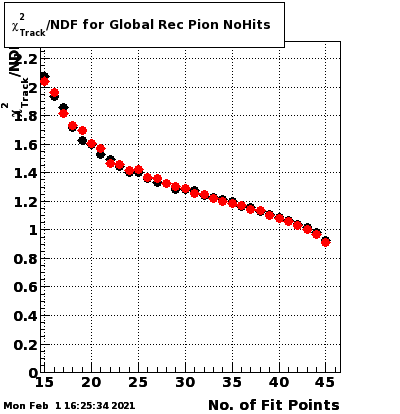

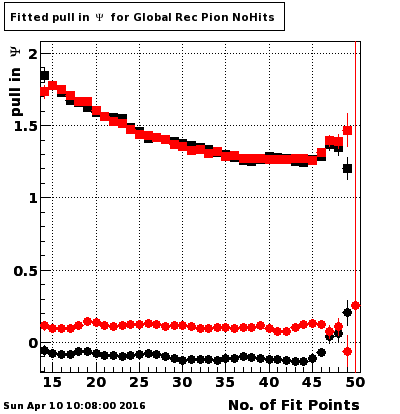

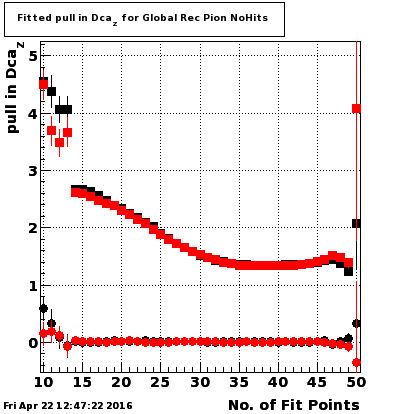

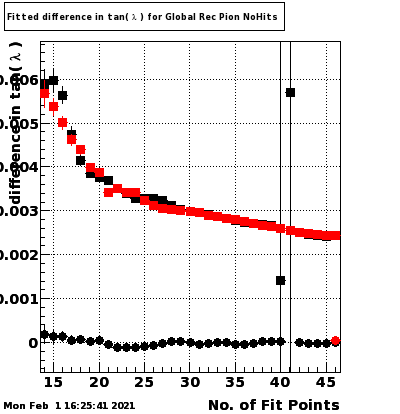

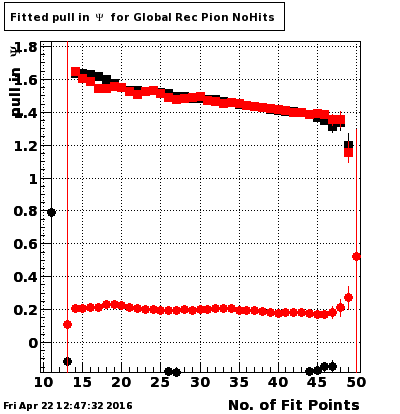

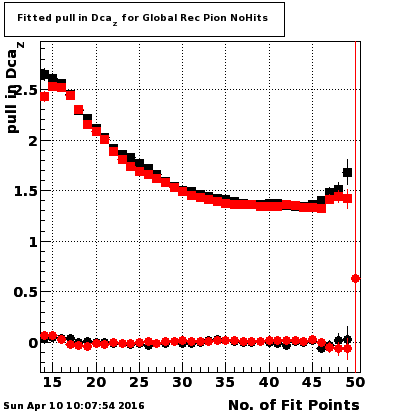

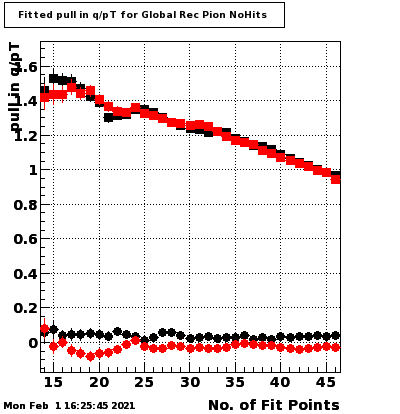

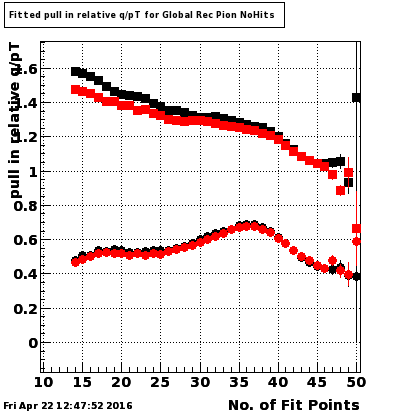

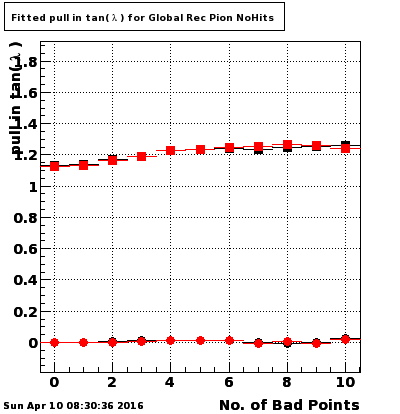

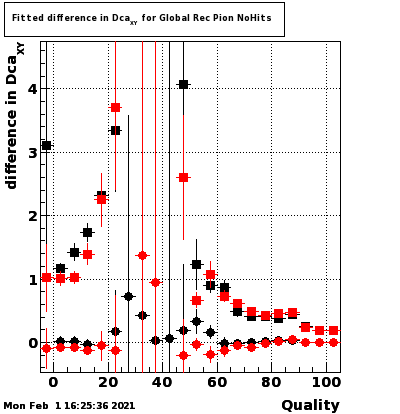

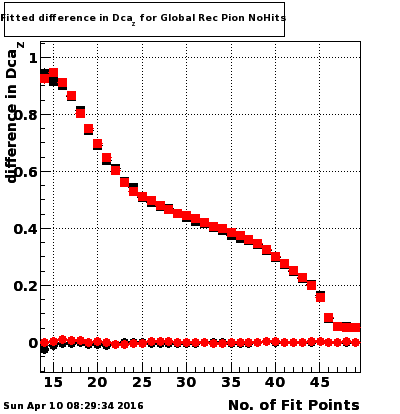

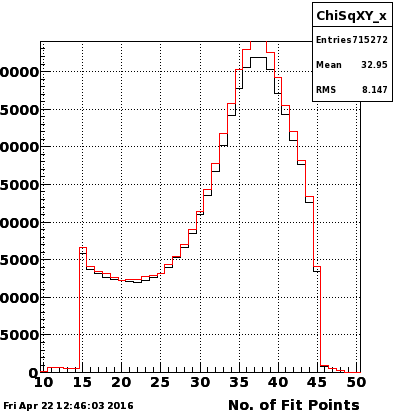

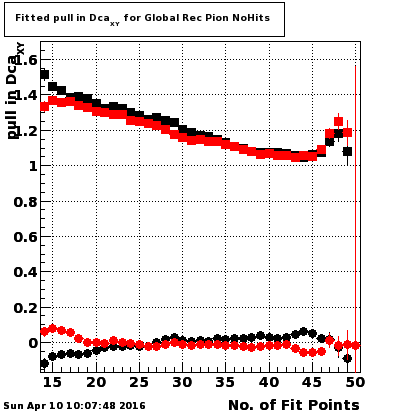

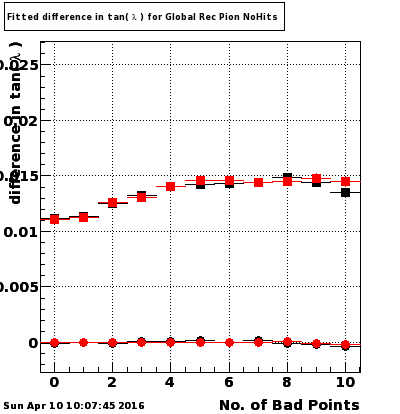

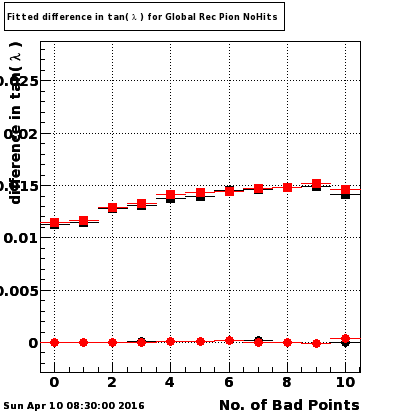

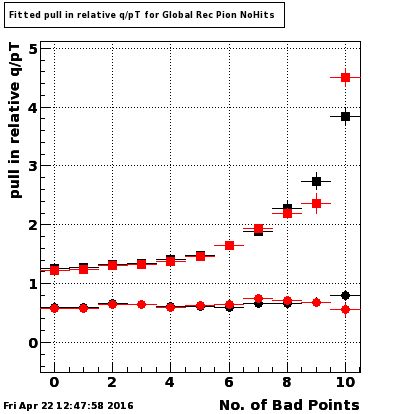

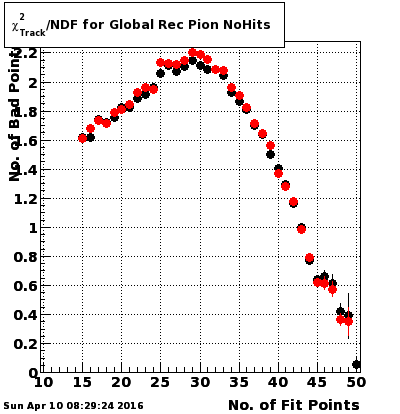

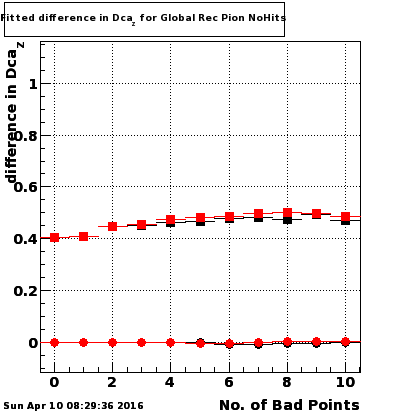

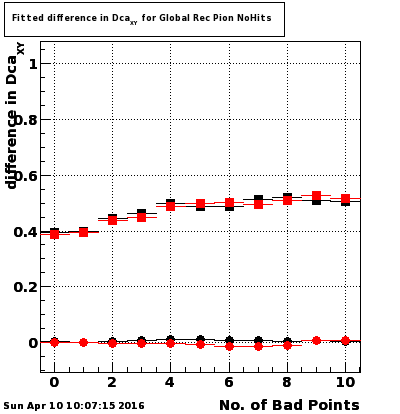

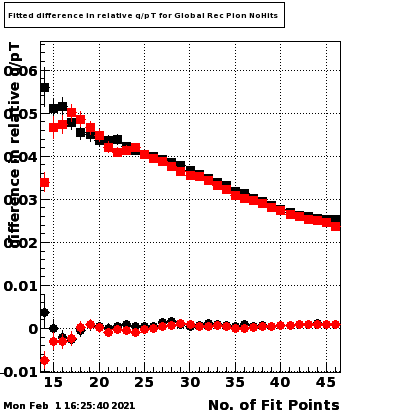

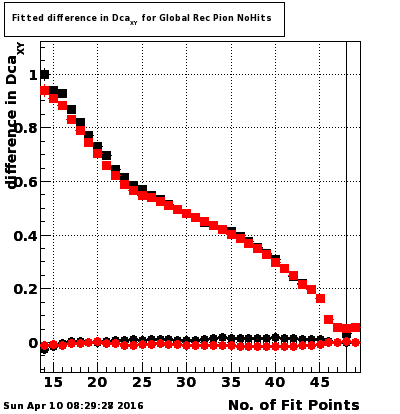

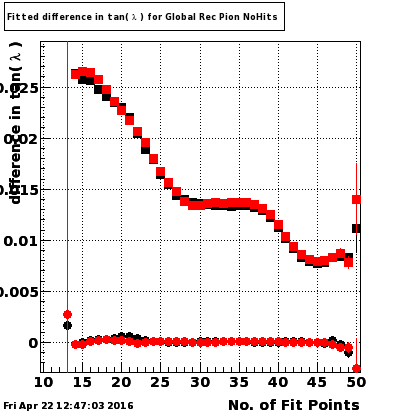

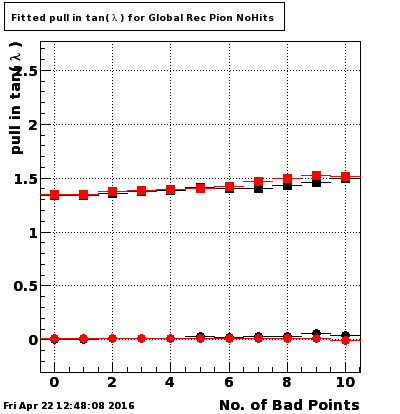

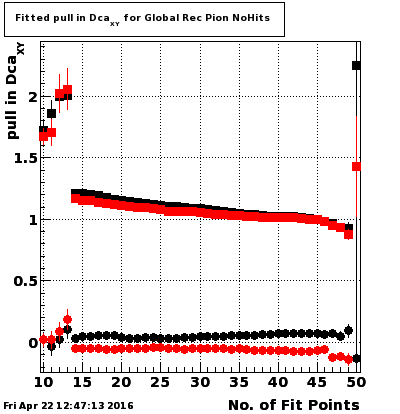

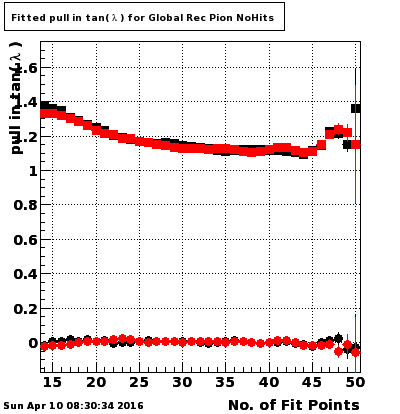

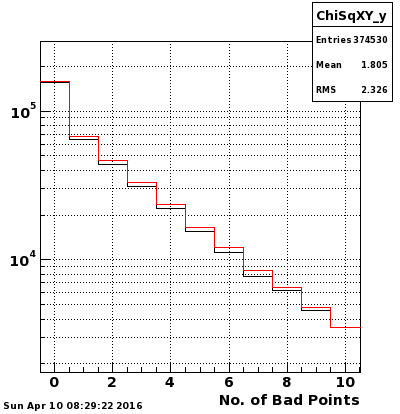

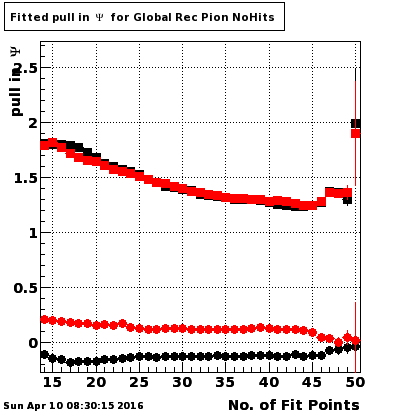

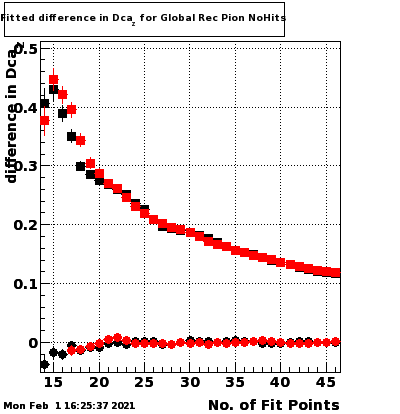

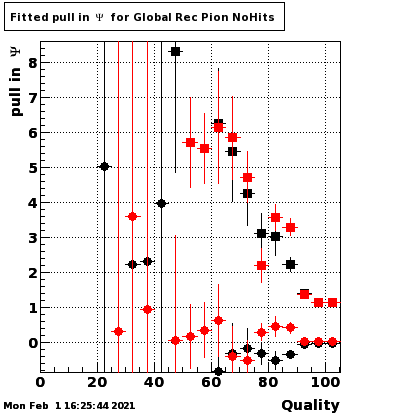

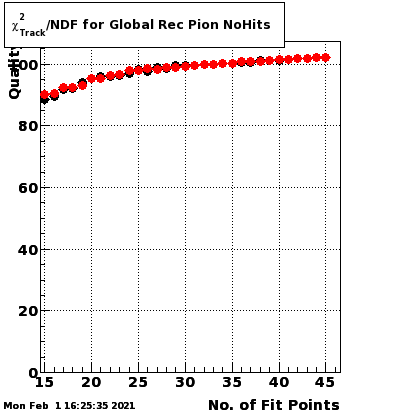

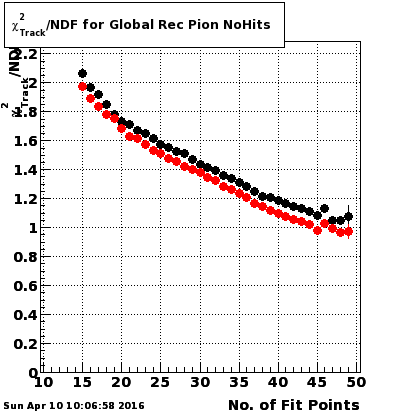

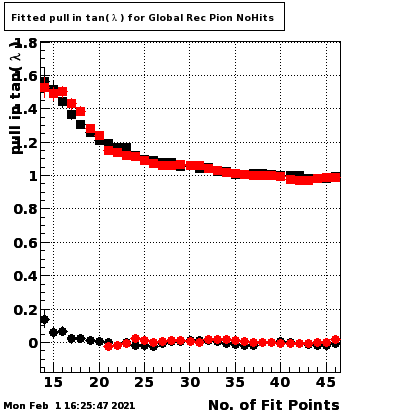

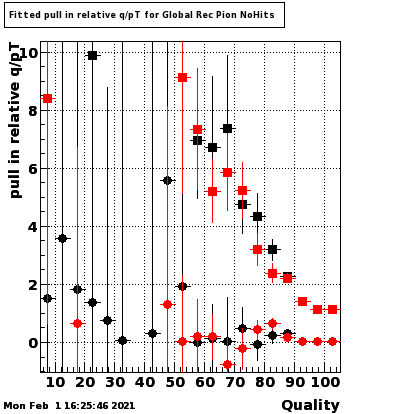

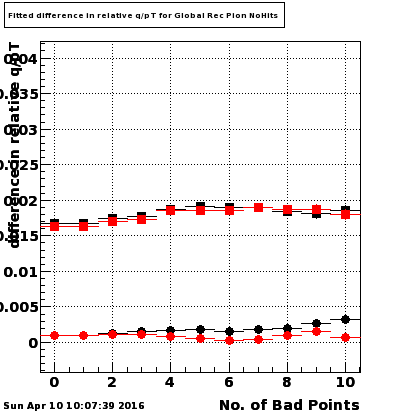

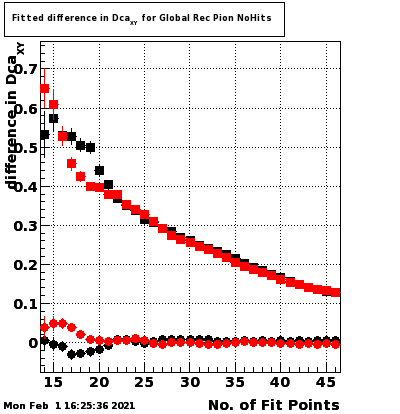

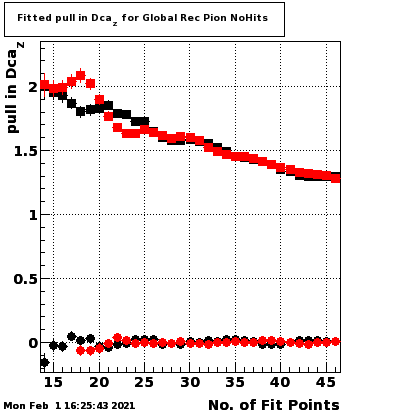

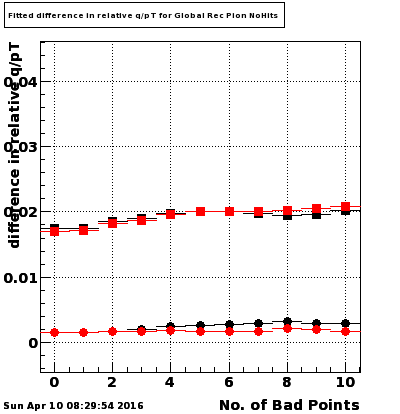

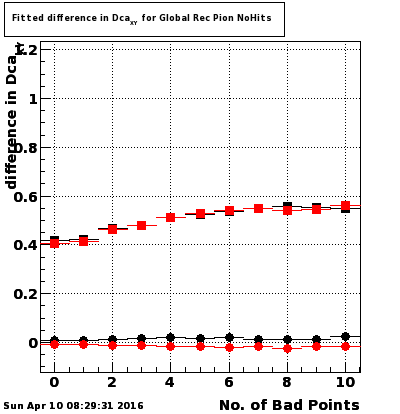

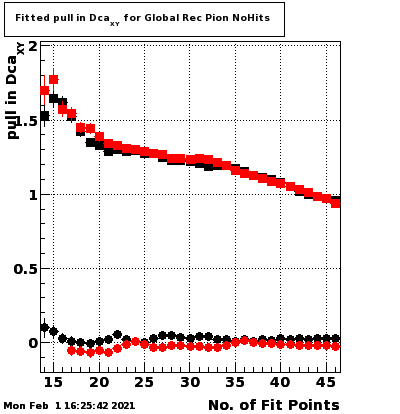

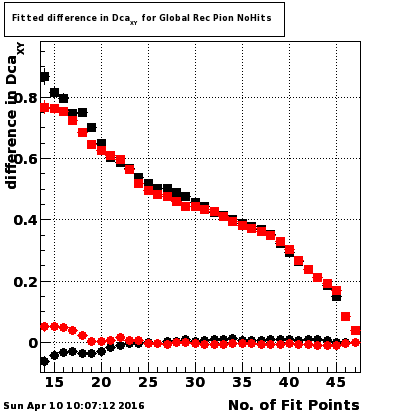

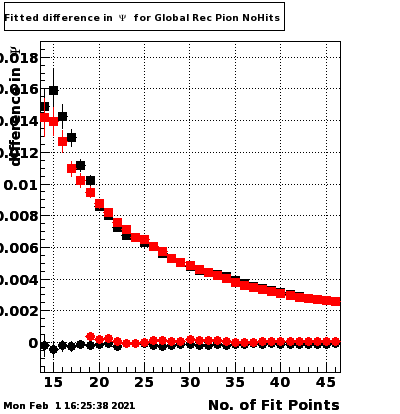

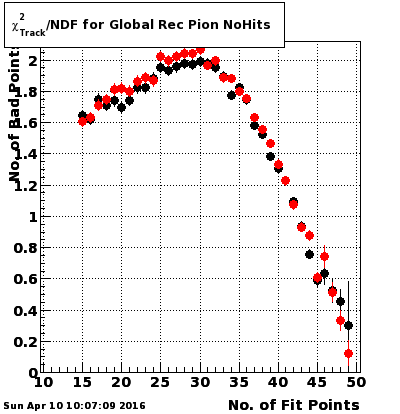

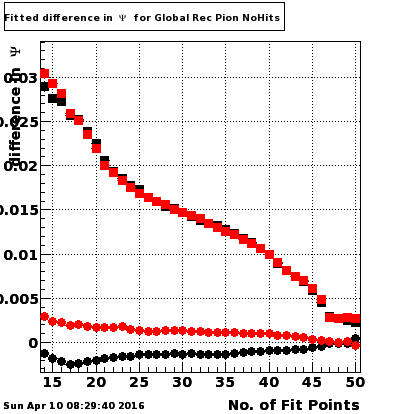

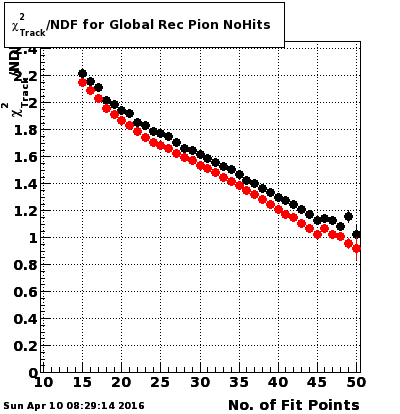

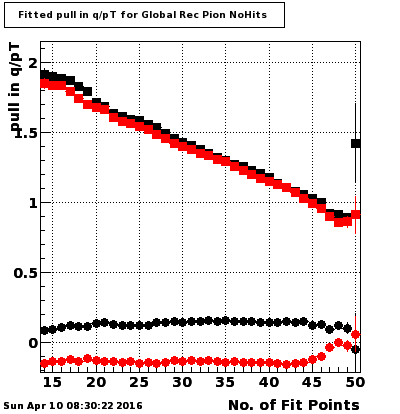

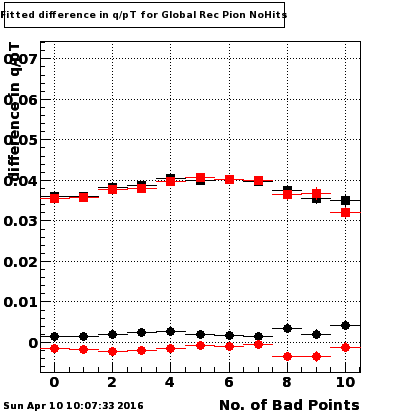

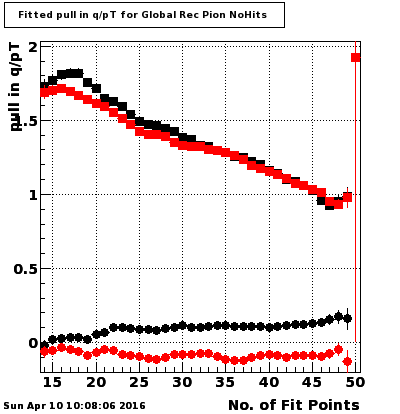

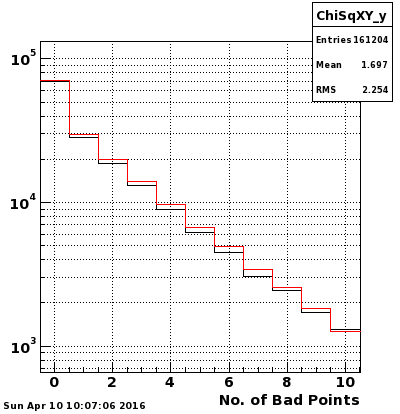

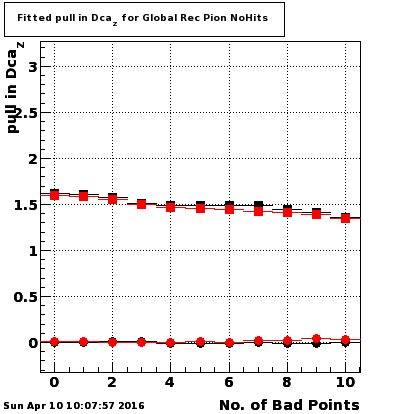

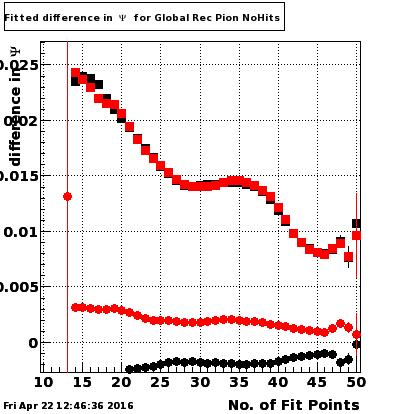

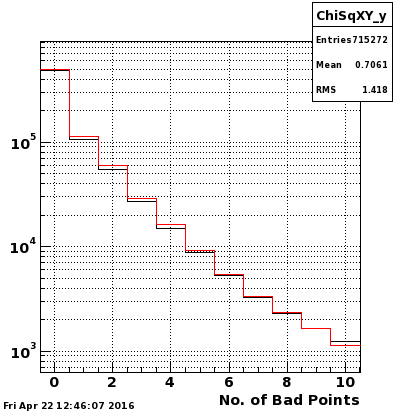

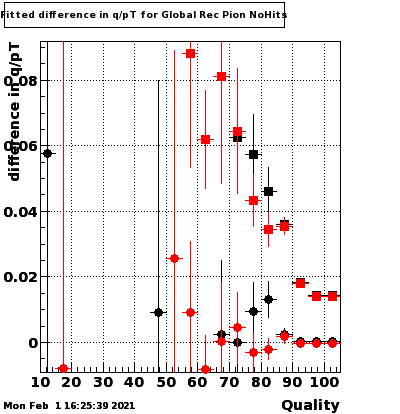

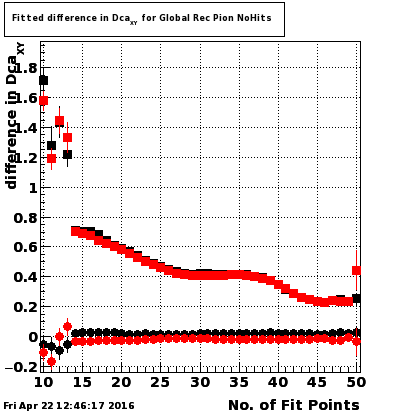

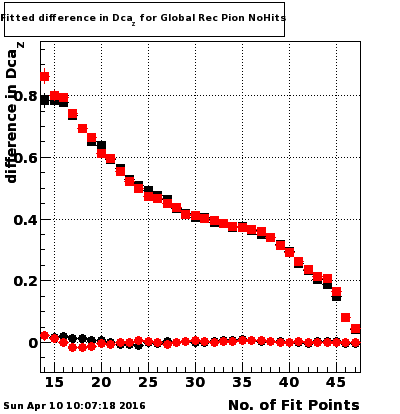

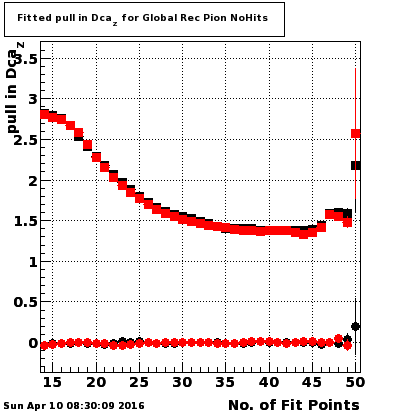

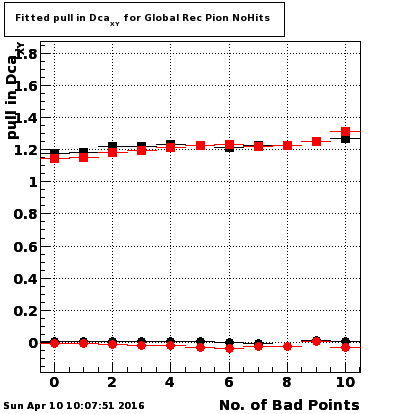

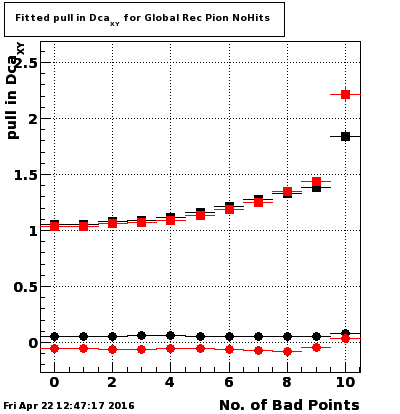

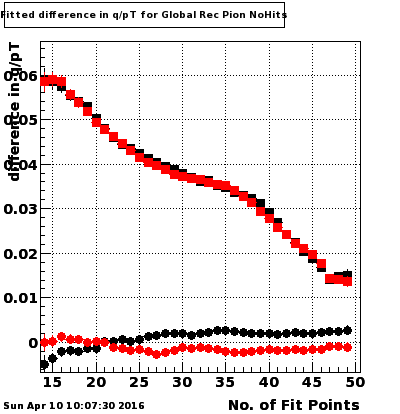

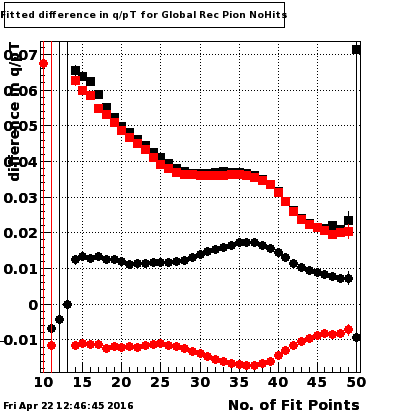

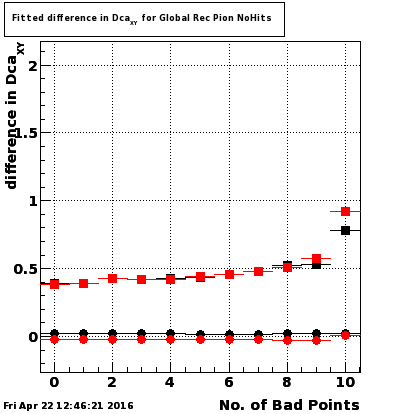

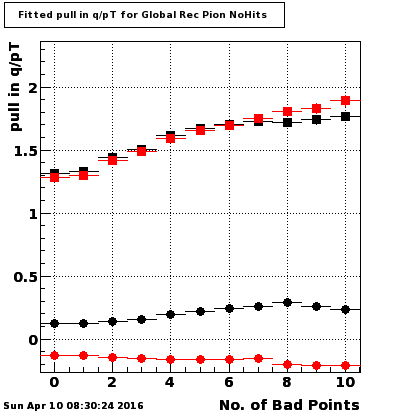

1.1.1.3. Global tracks. Pions. No. of fit and bad points.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29

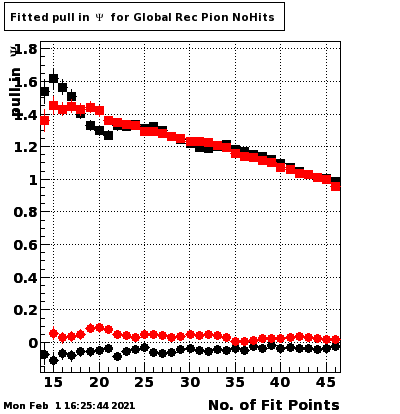

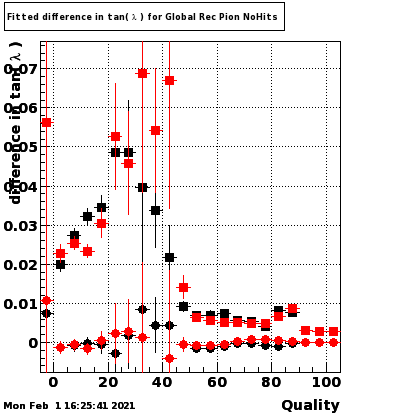

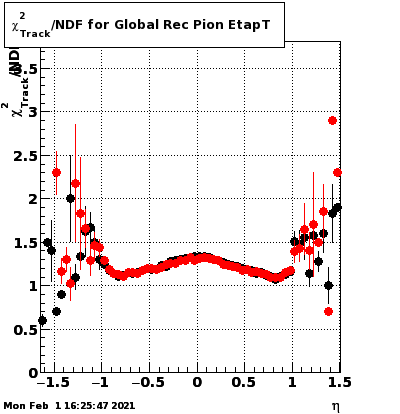

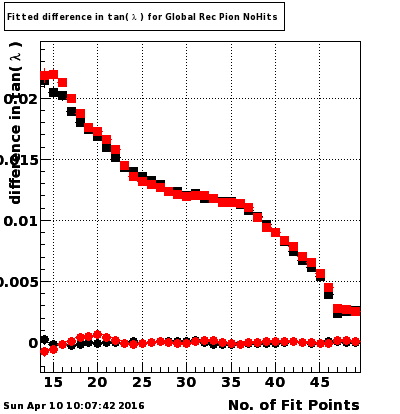

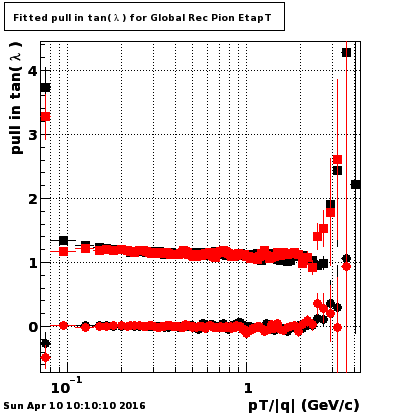

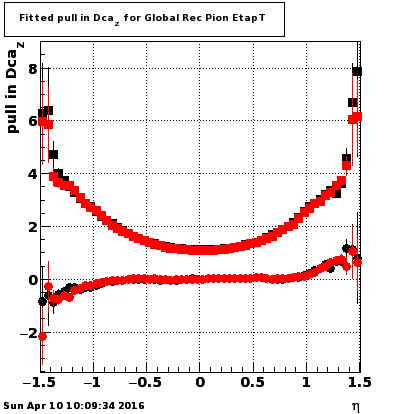

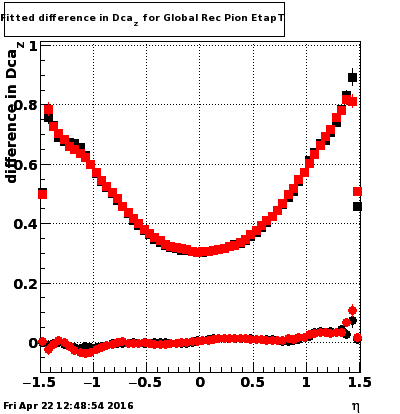

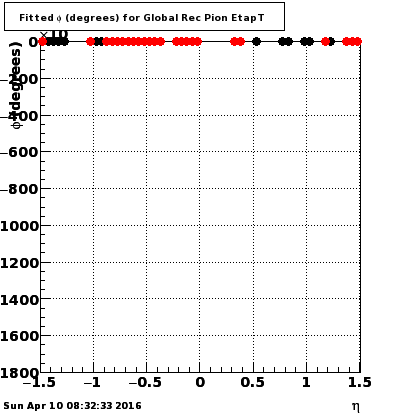

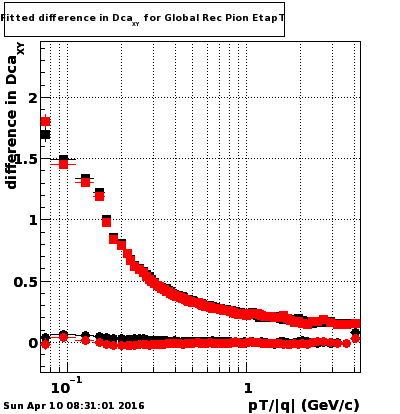

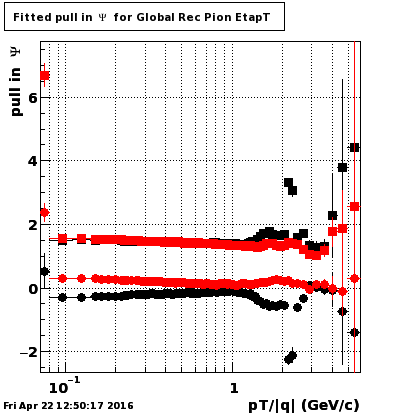

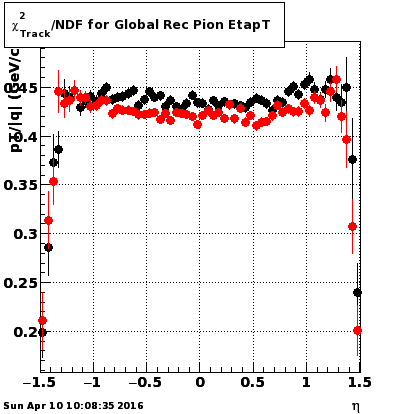

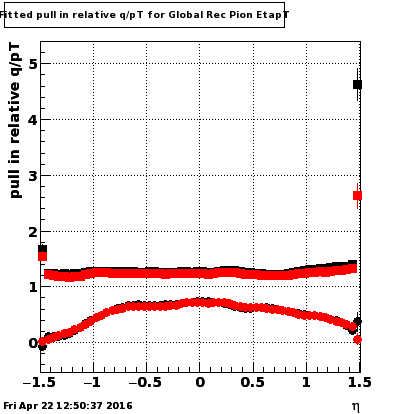

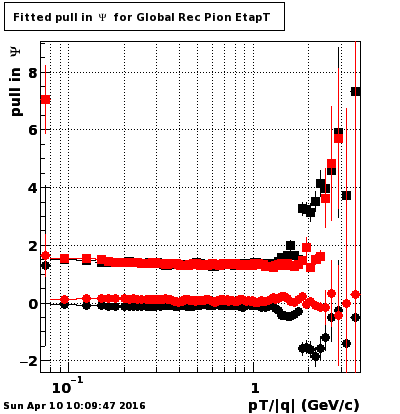

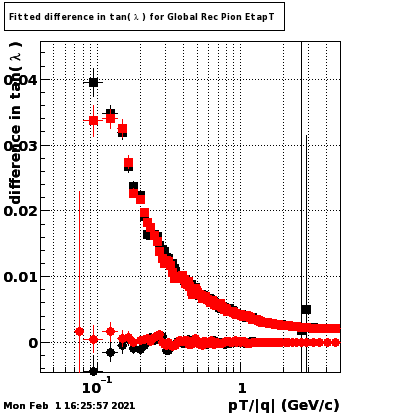

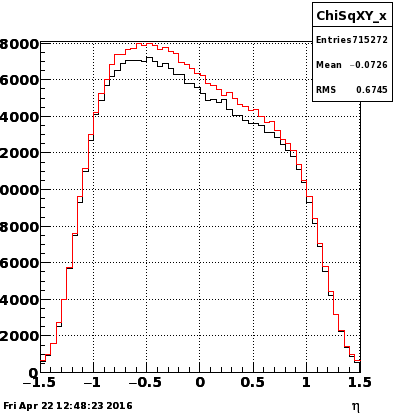

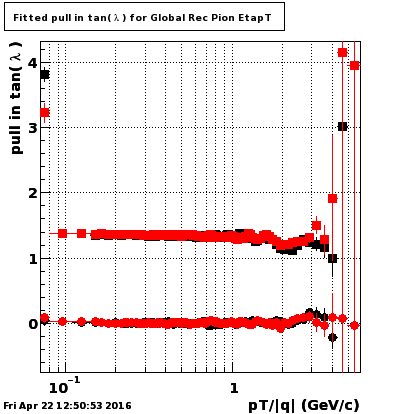

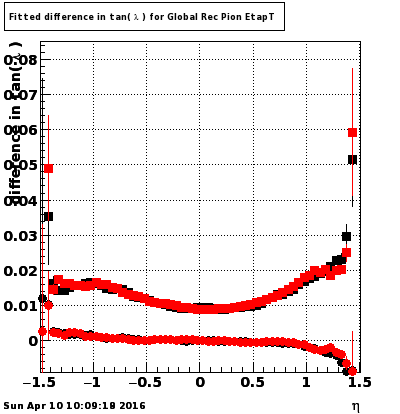

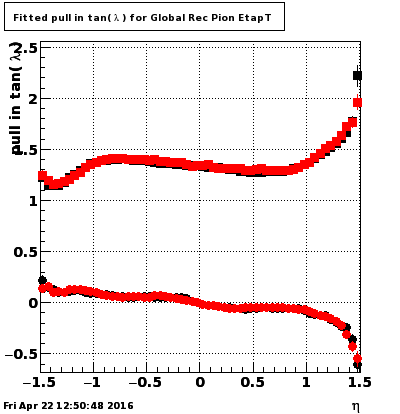

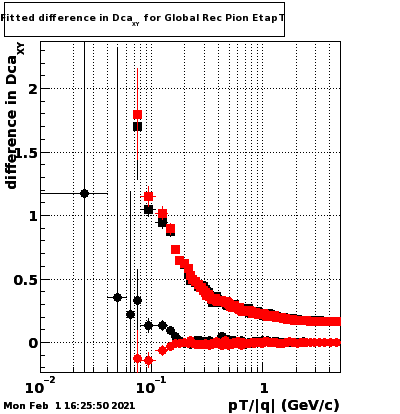

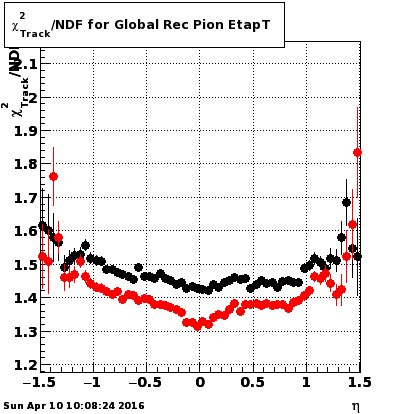

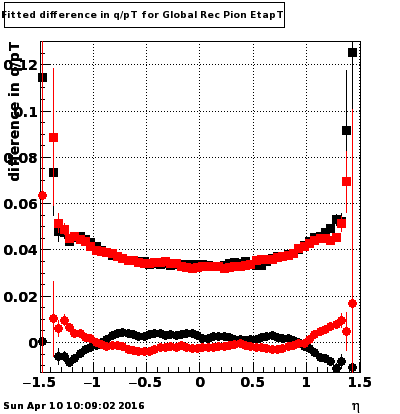

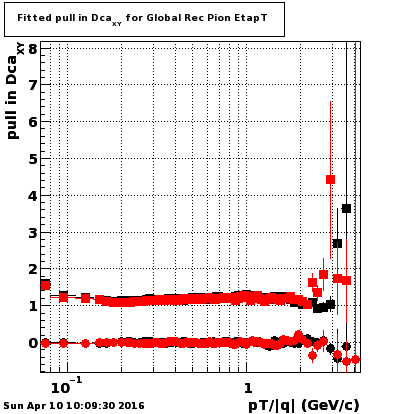

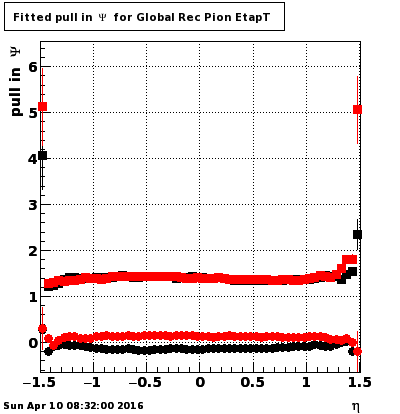

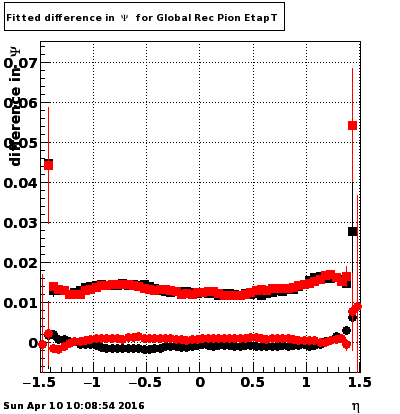

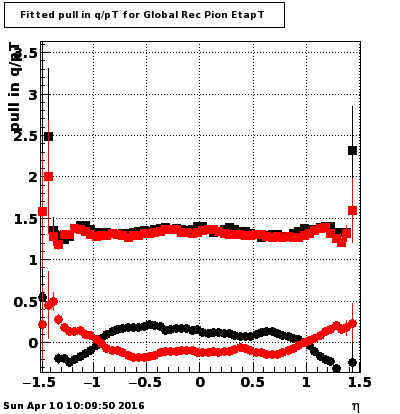

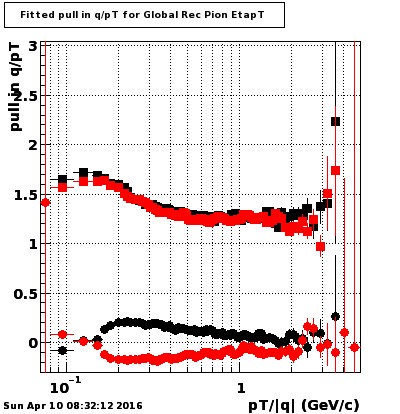

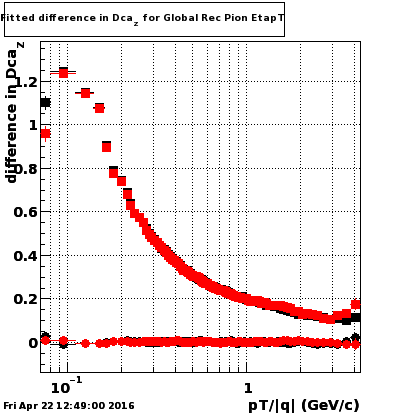

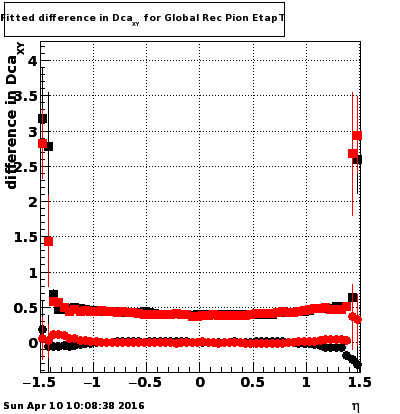

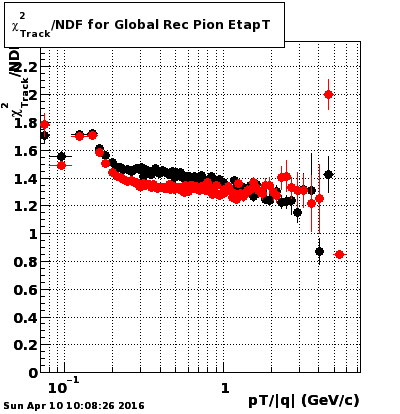

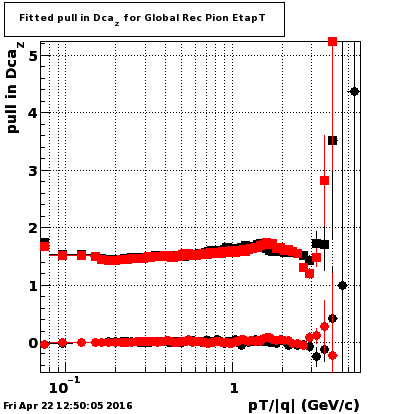

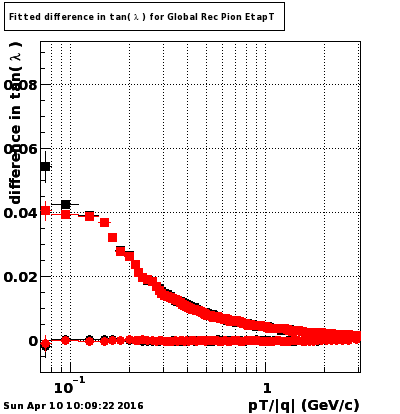

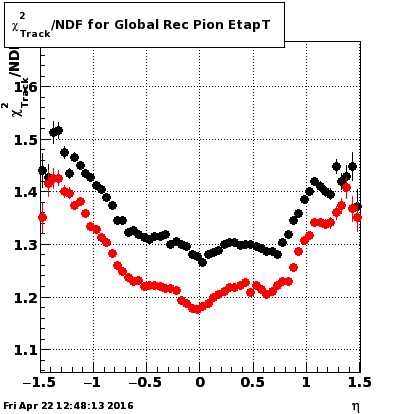

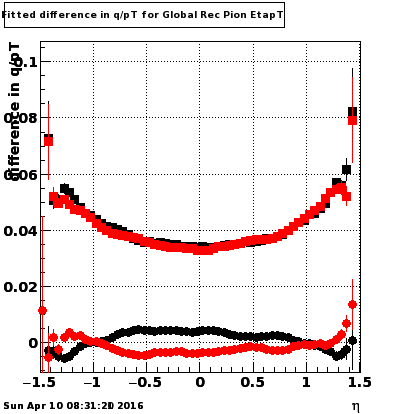

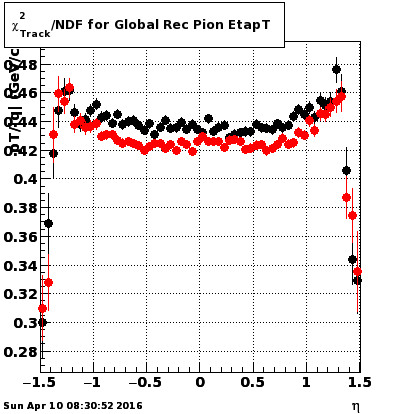

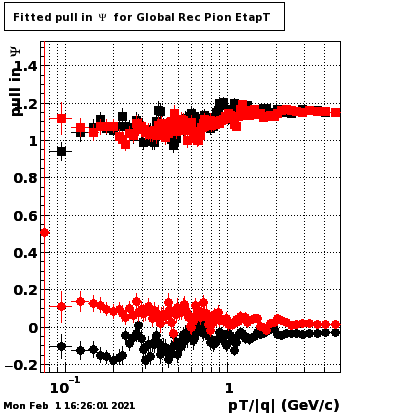

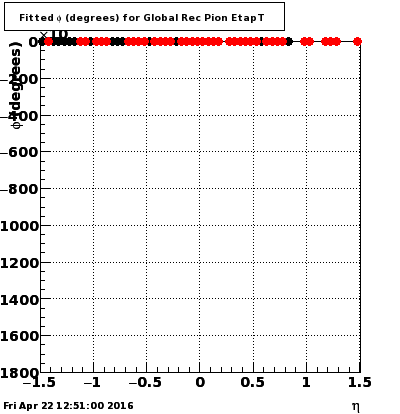

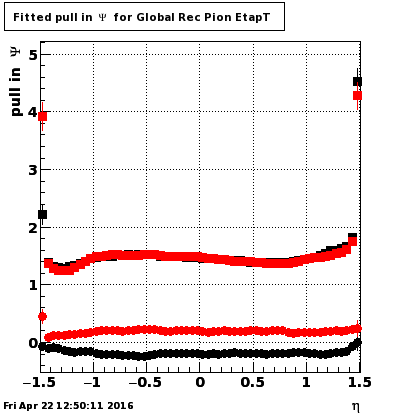

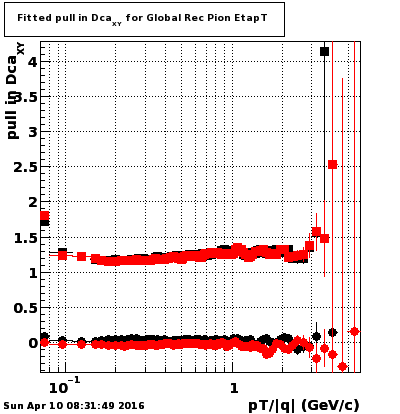

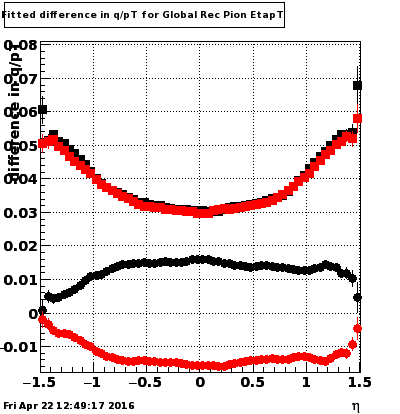

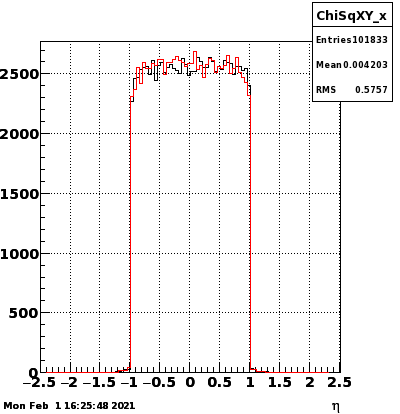

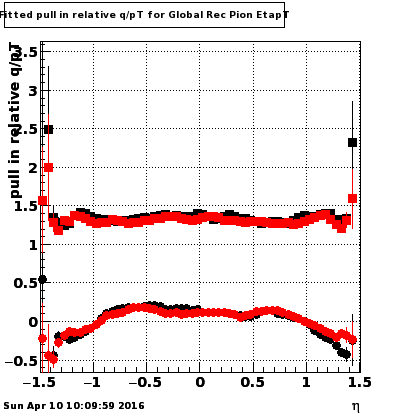

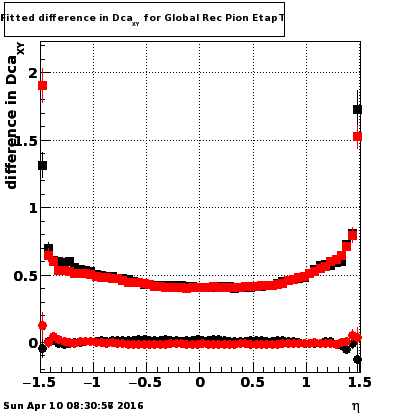

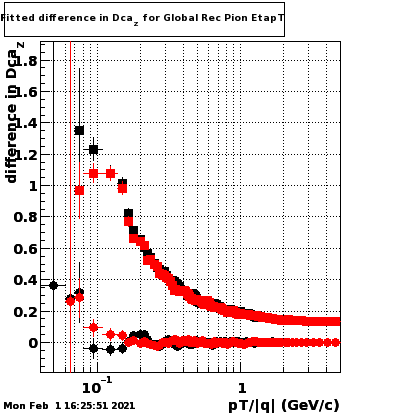

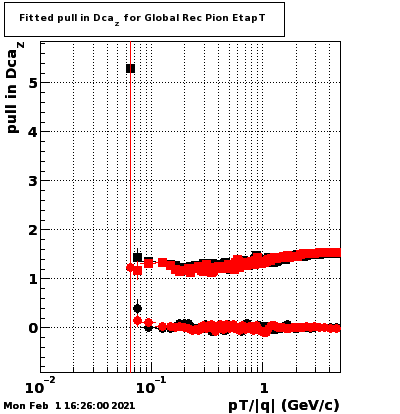

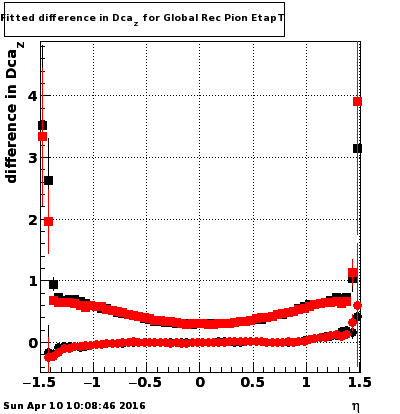

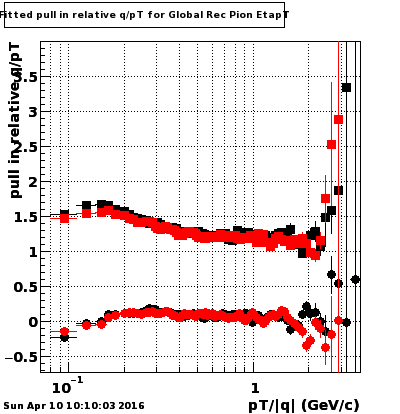

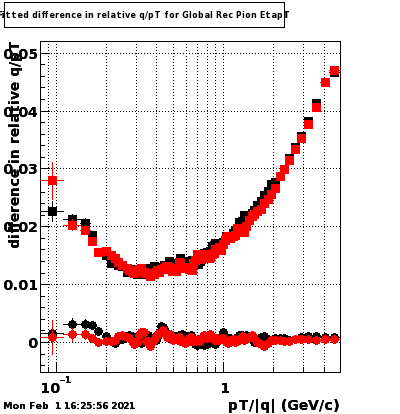

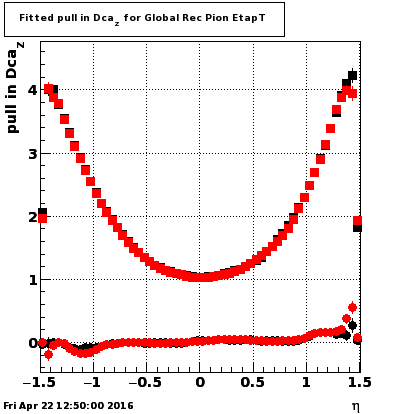

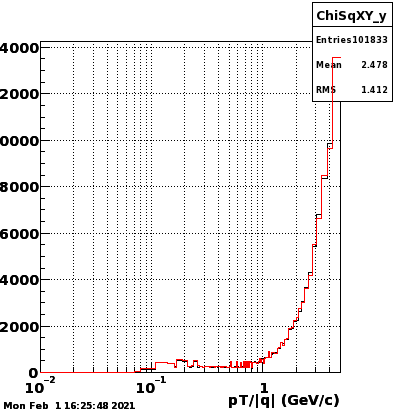

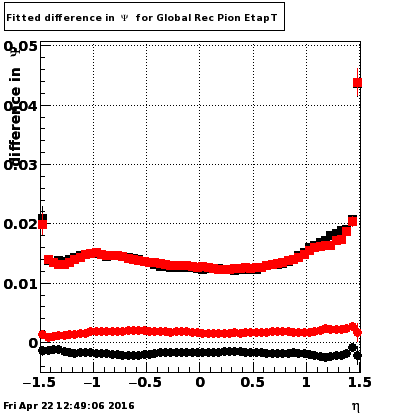

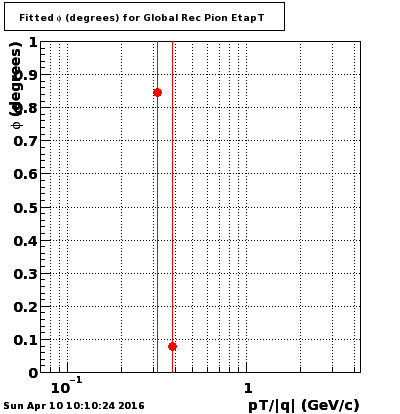

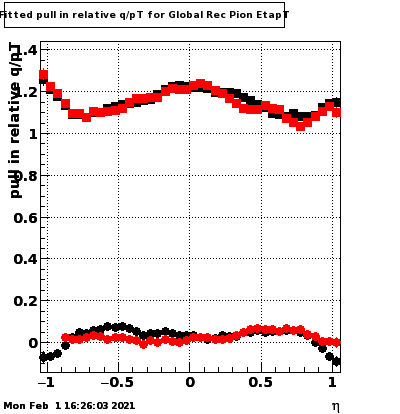

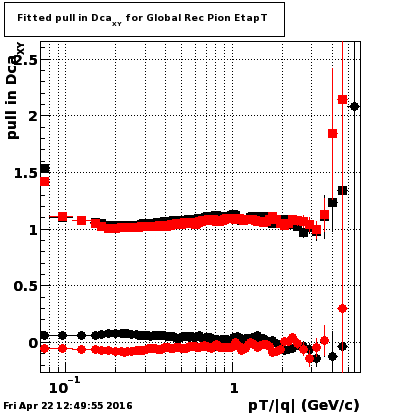

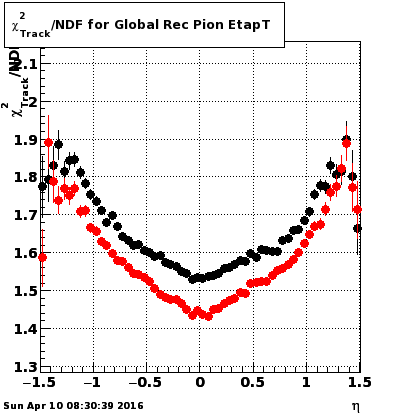

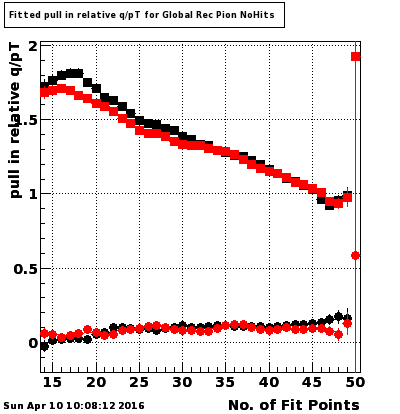

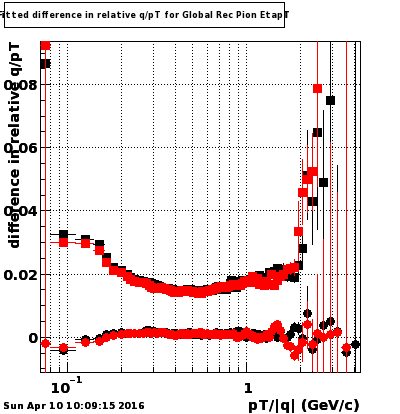

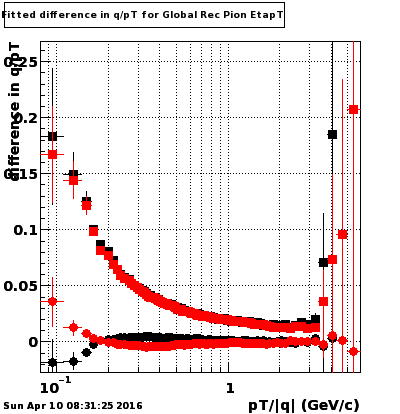

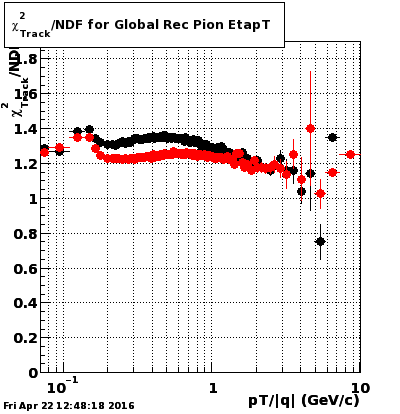

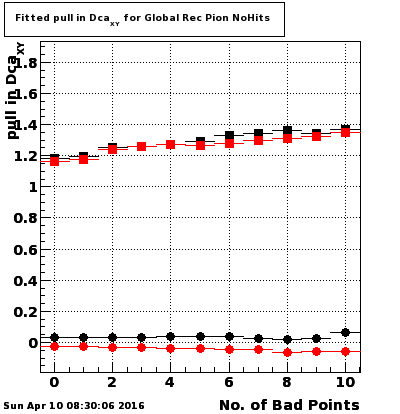

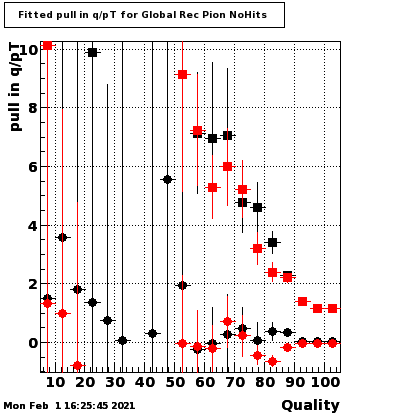

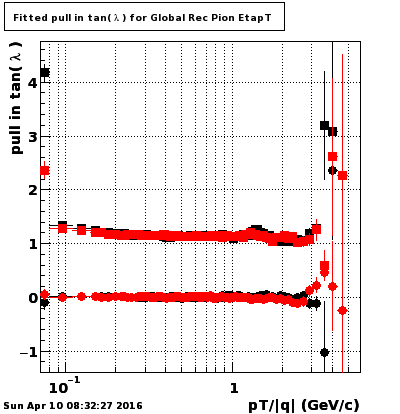

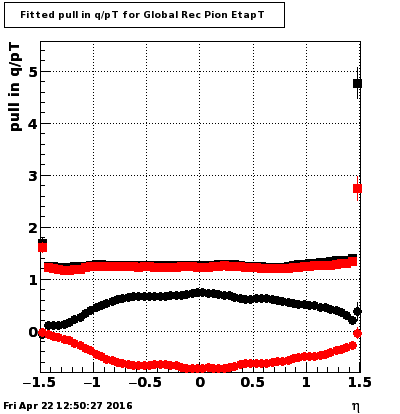

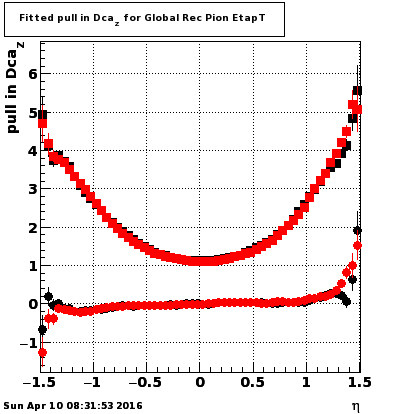

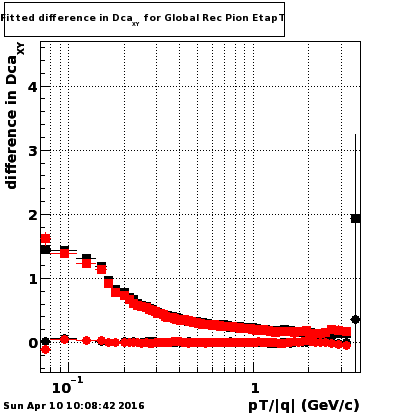

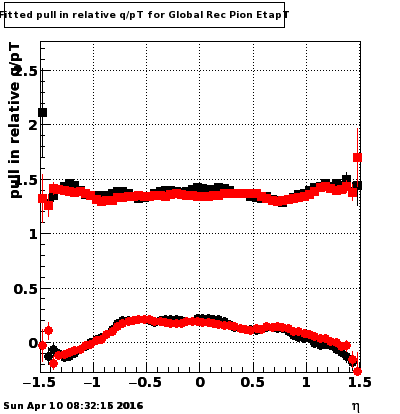

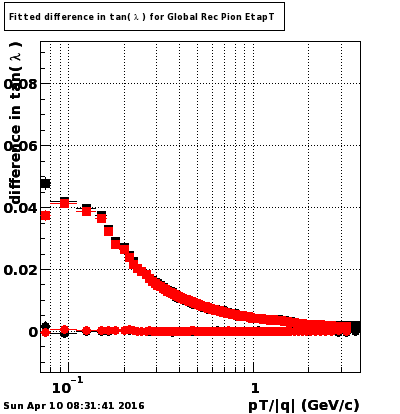

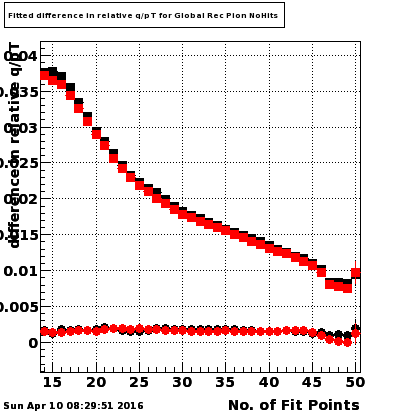

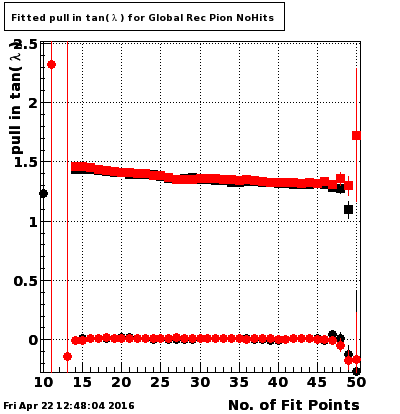

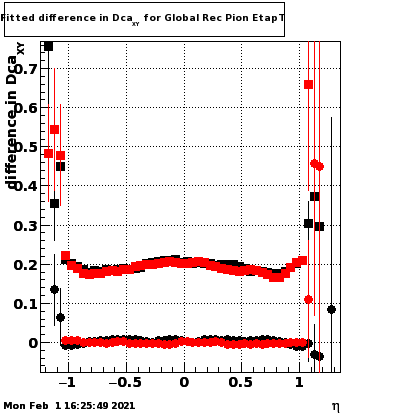

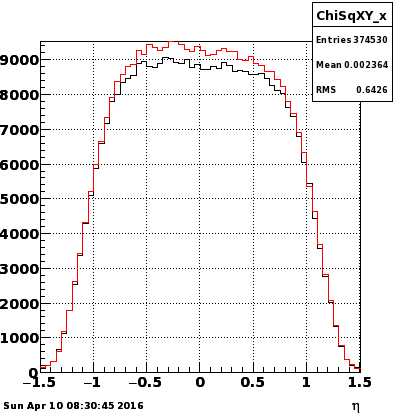

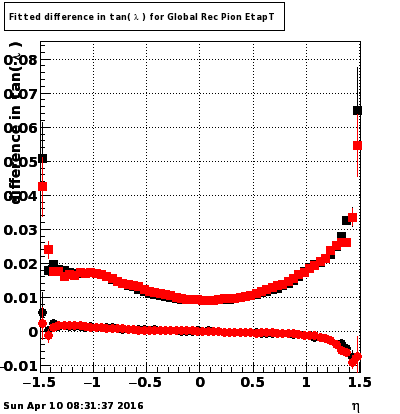

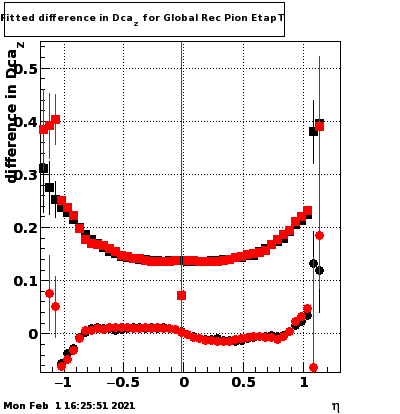

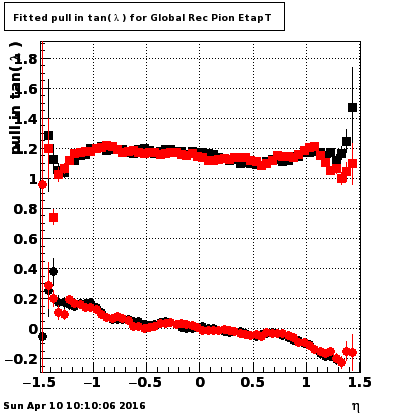

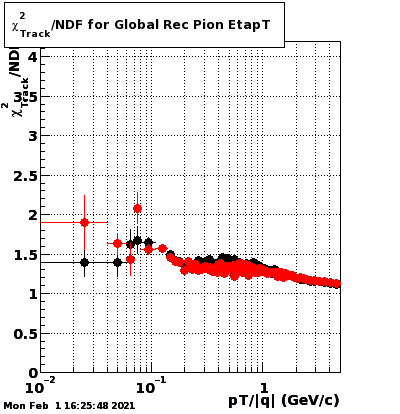

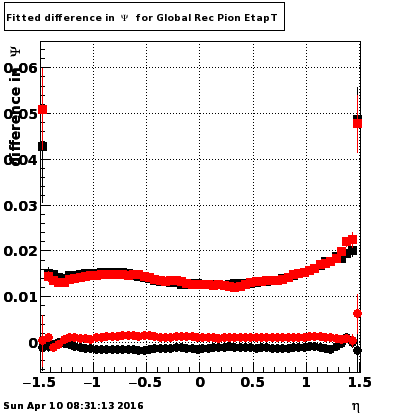

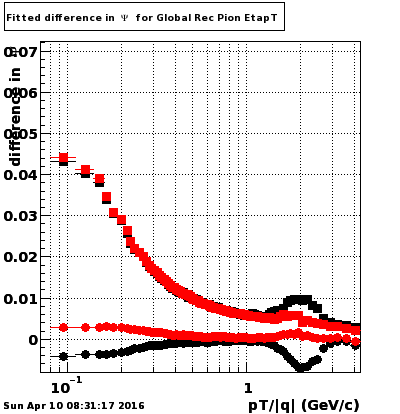

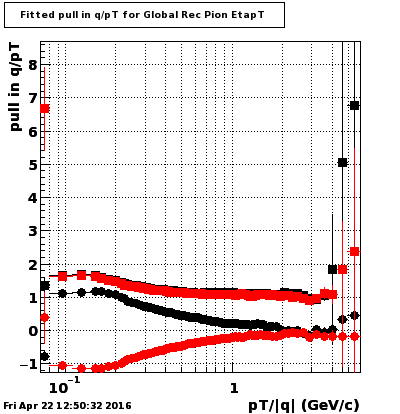

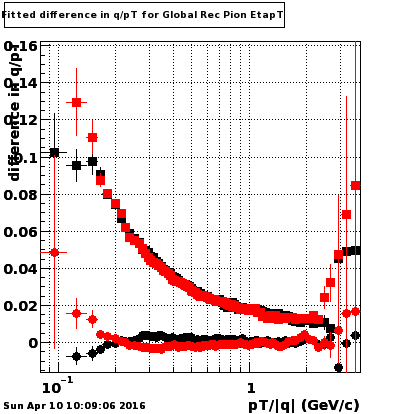

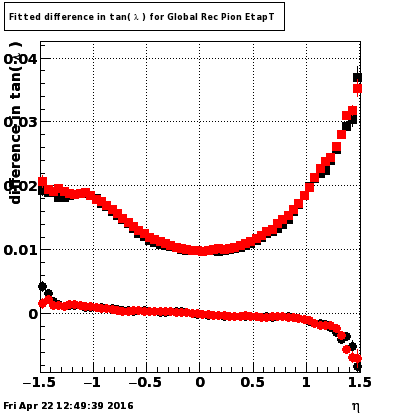

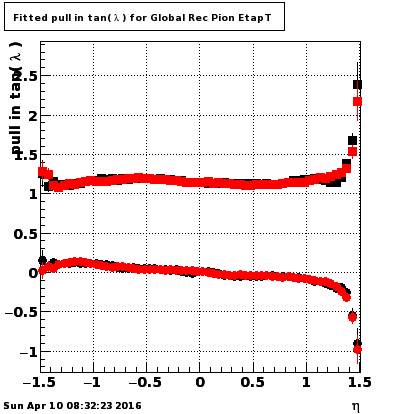

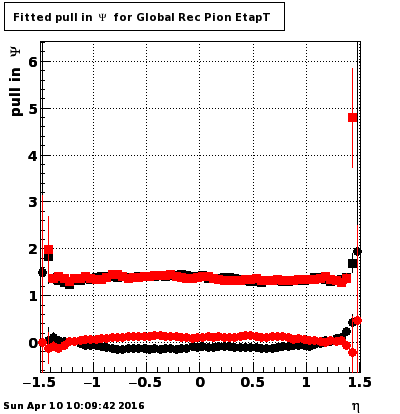

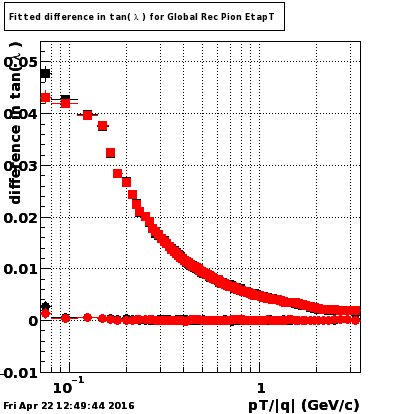

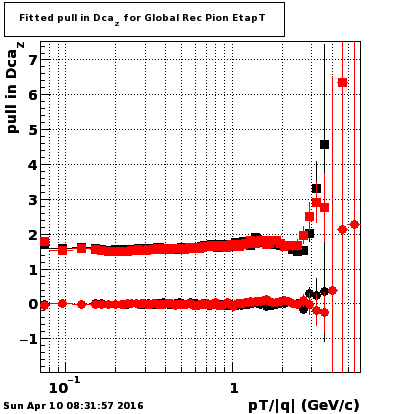

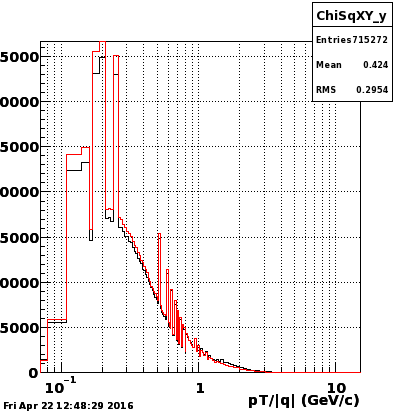

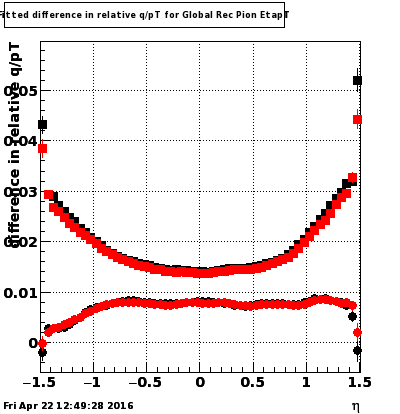

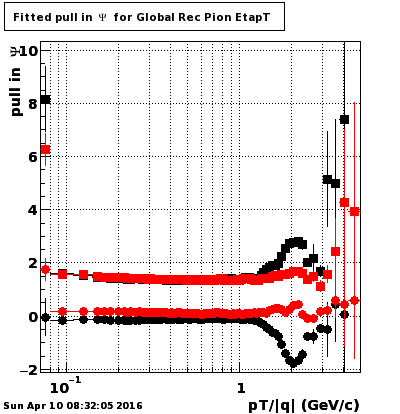

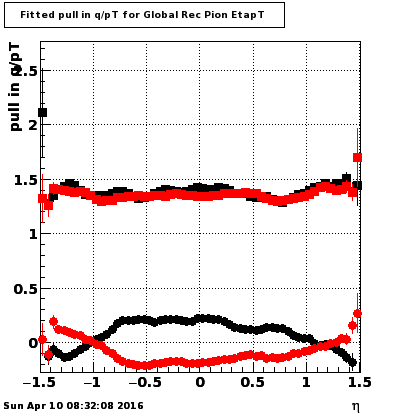

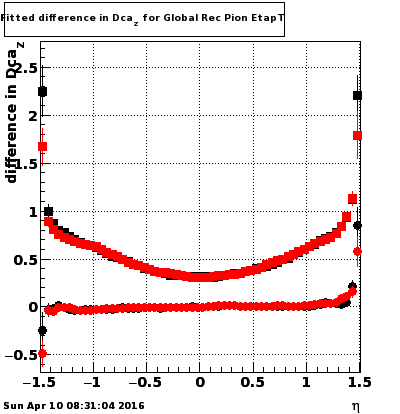

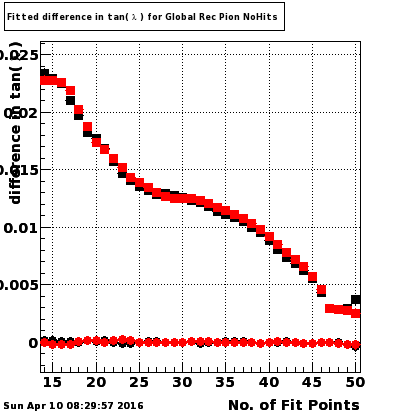

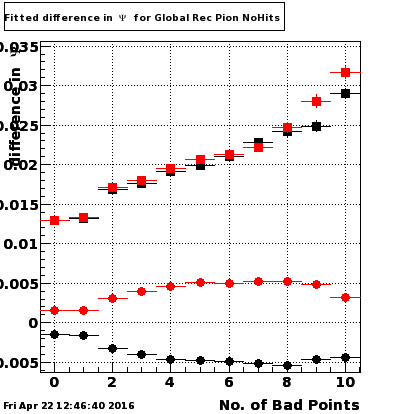

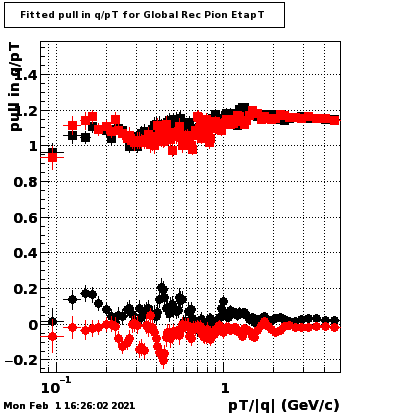

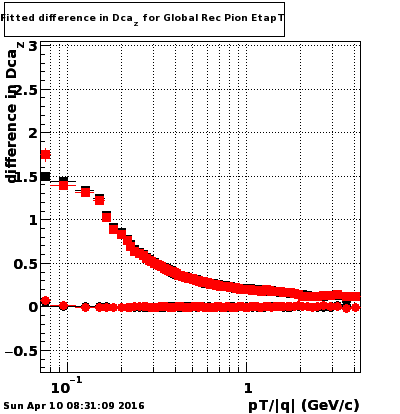

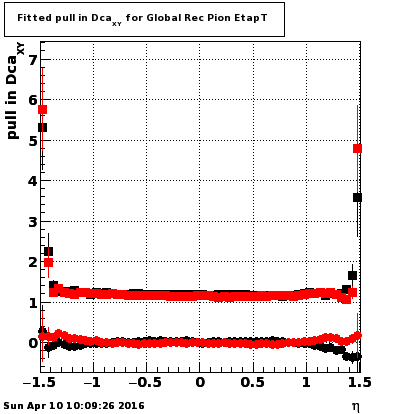

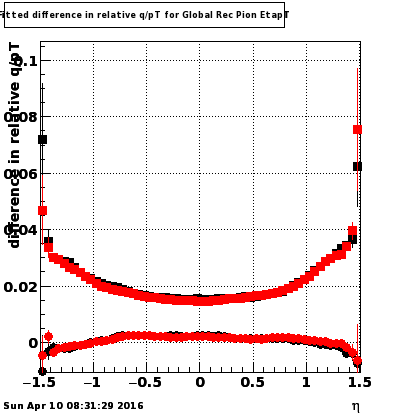

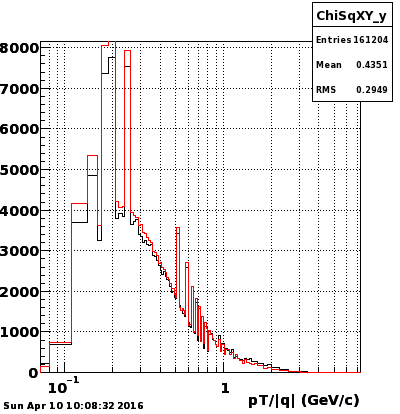

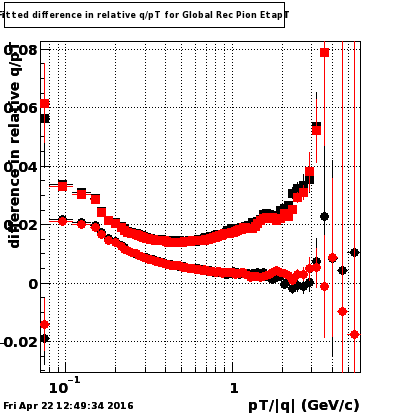

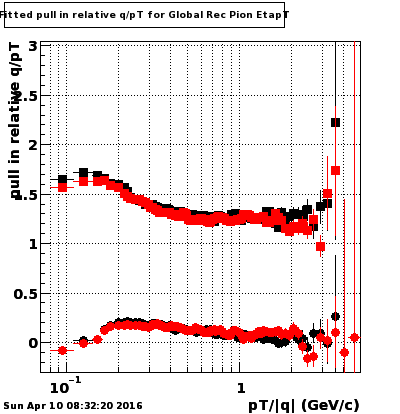

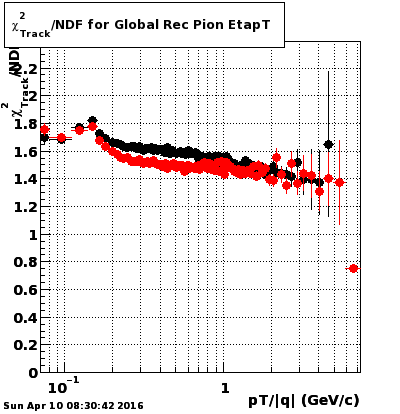

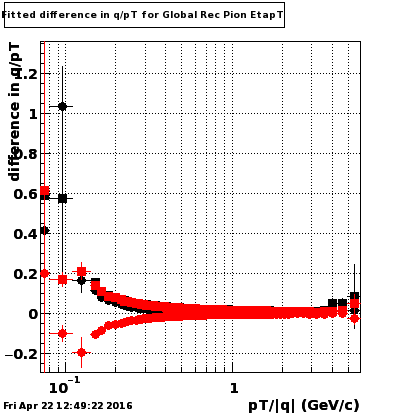

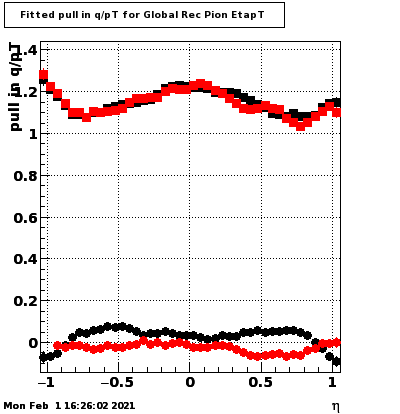

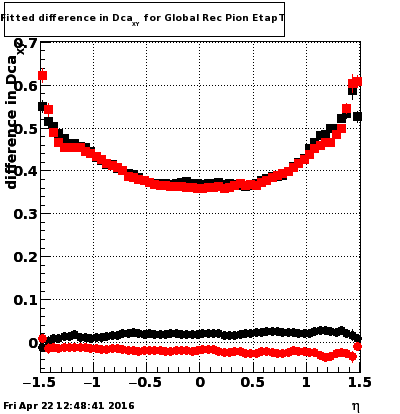

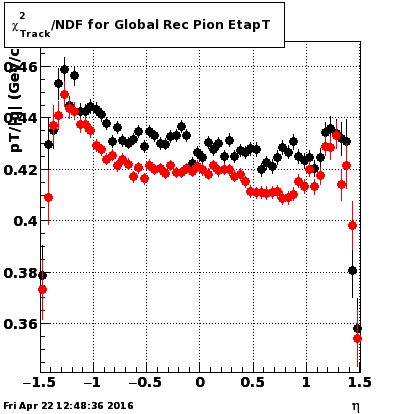

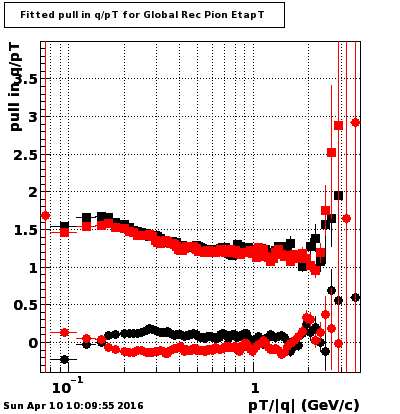

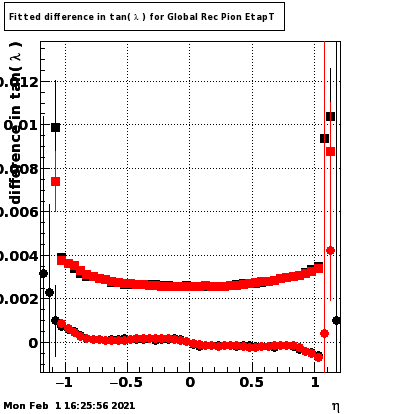

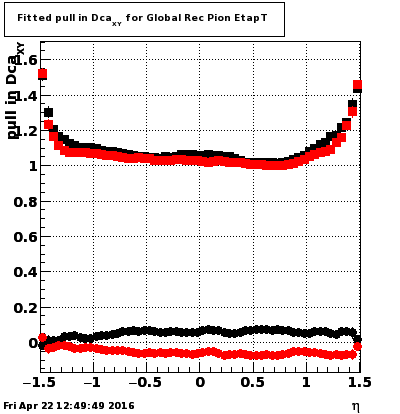

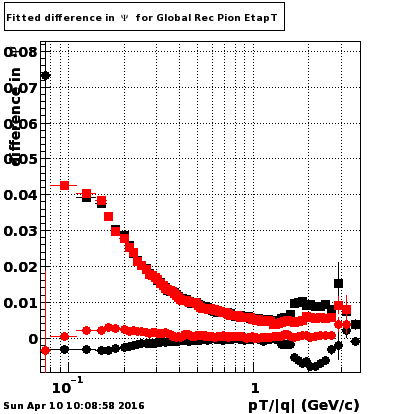

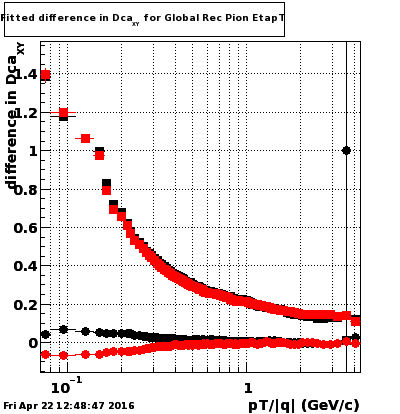

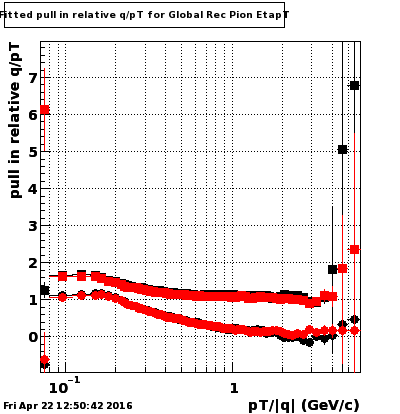

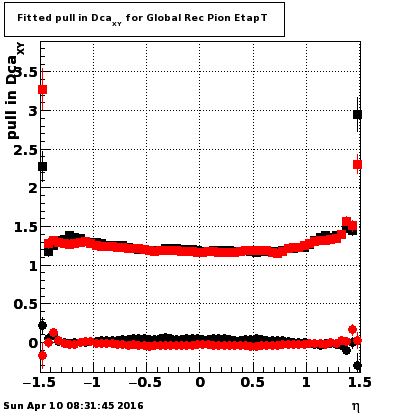

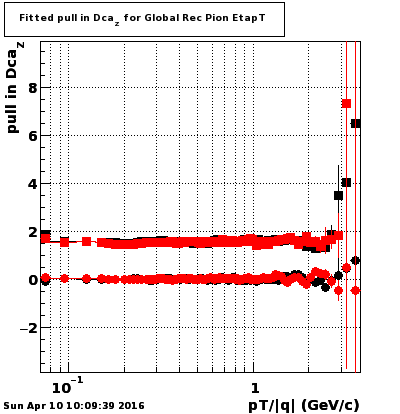

1.1.1.4. Global tracks. Pions.Track parameters

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29
Fig.30
Fig.31

1.1.2. Primary tracks.

1.1.2.1. Primary tracks. All. No. of fit and bad points.

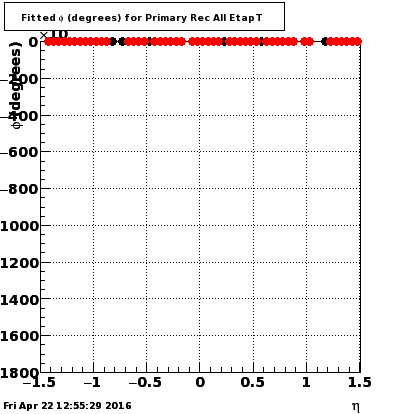

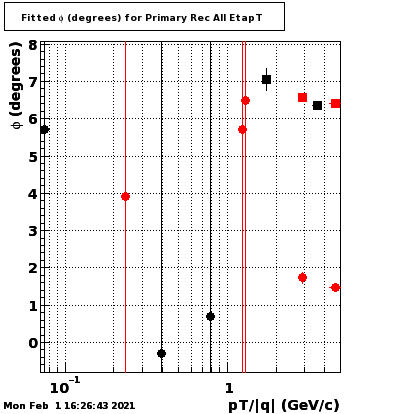

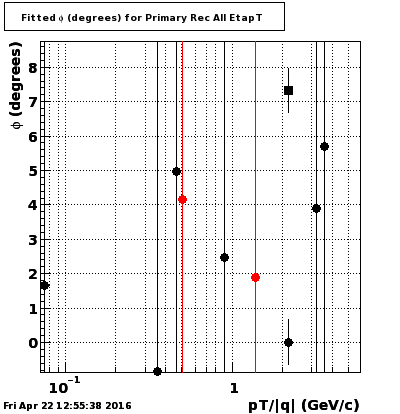

1.1.2.2. Primary tracks. All.Track parameters

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2

1.1.2.3. Primary tracks. Pions. No. of fit and bad points.

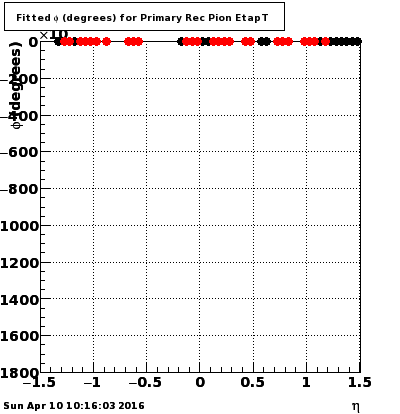

1.1.2.4. Primary tracks. Pions.Track parameters

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2

1.2. Track reconstuction efficiencies.

1.2.1. Global tracks.

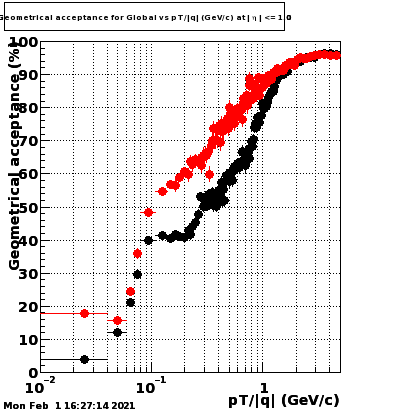

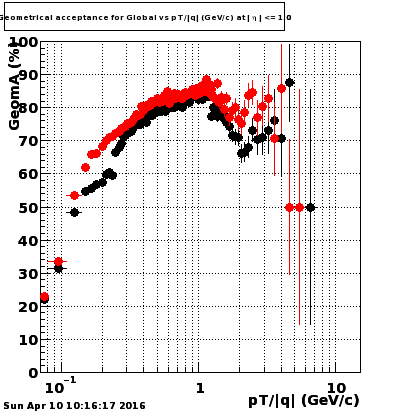

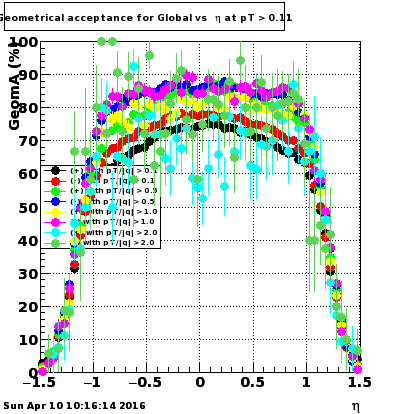

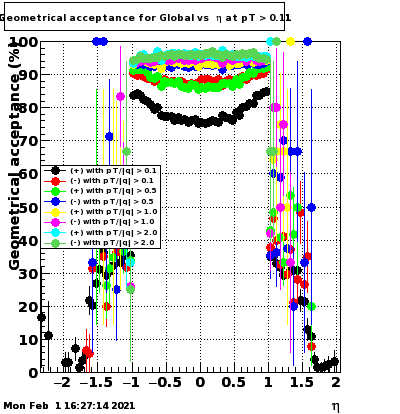

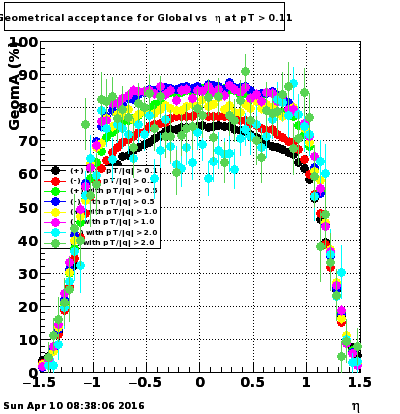

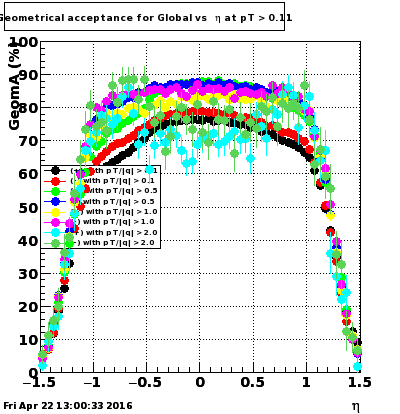

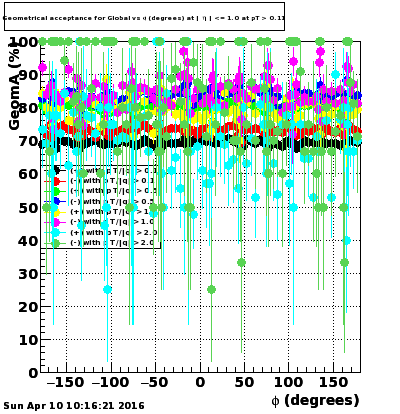

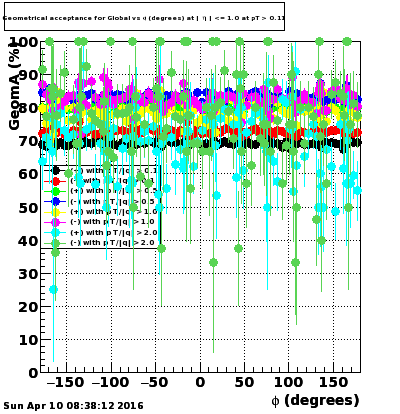

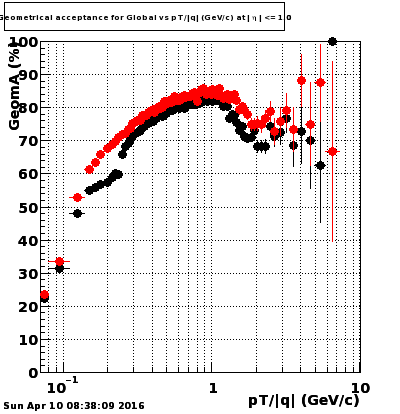

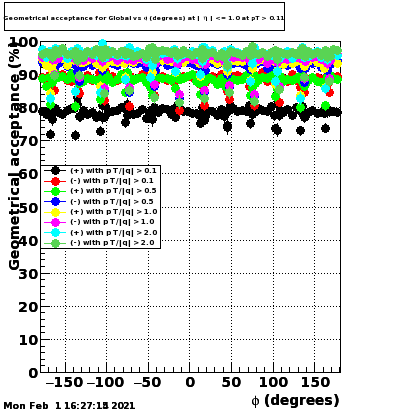

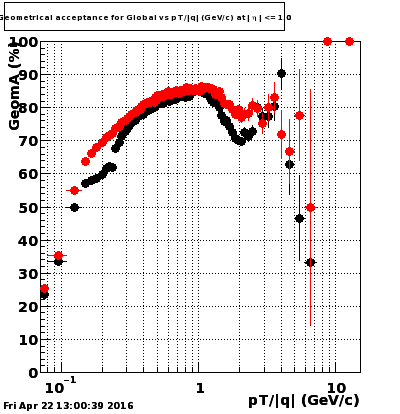

1.2.1.1. Global tracks. All. Geometrical acceptance.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

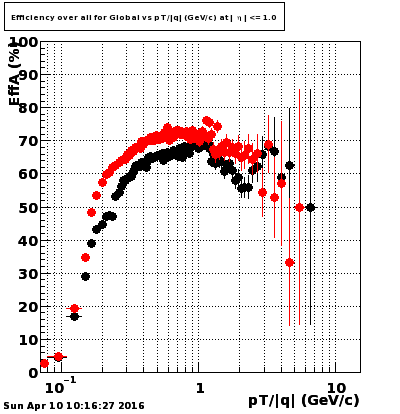

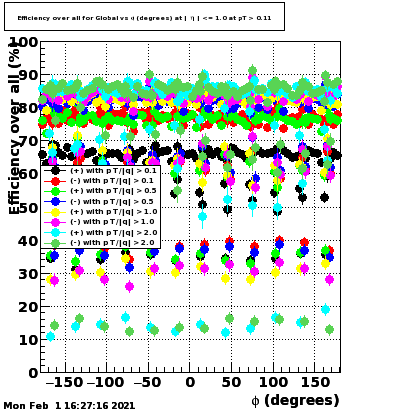

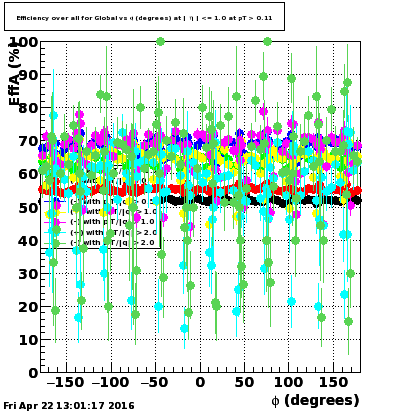

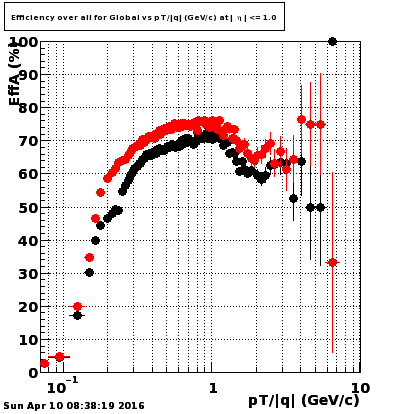

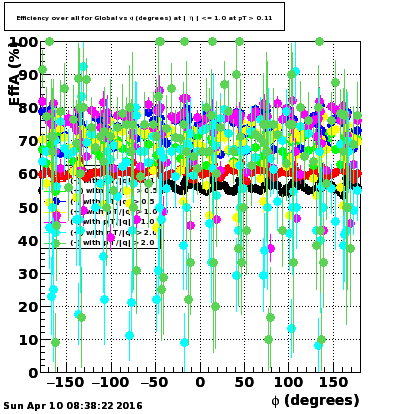

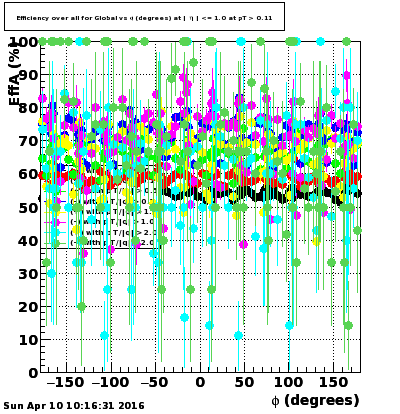

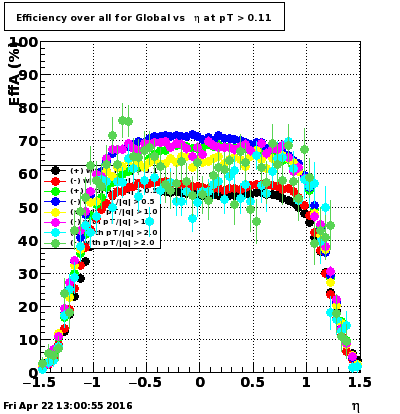

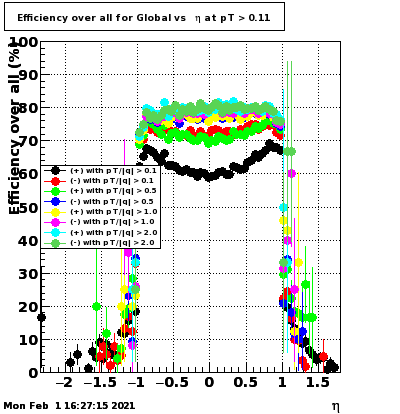

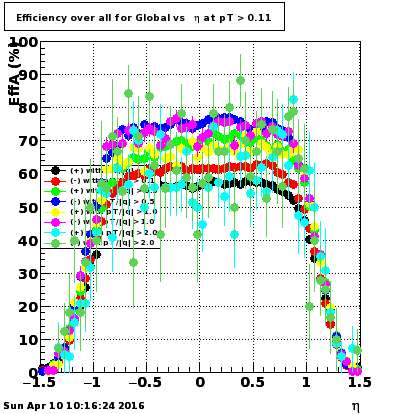

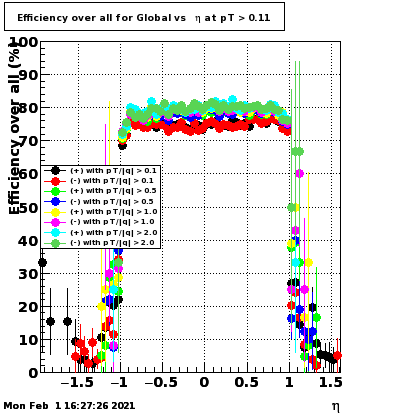

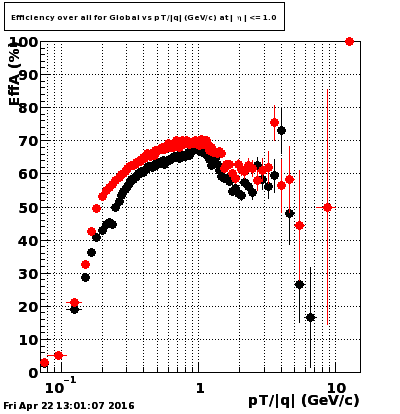

1.2.1.2. Global tracks. All. Efficiency over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

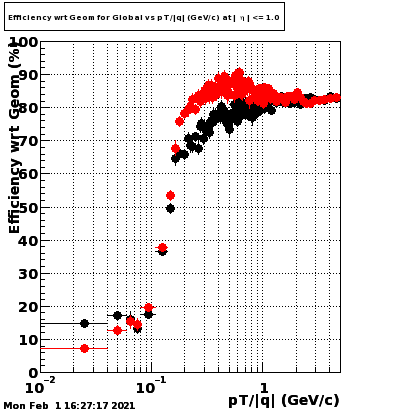

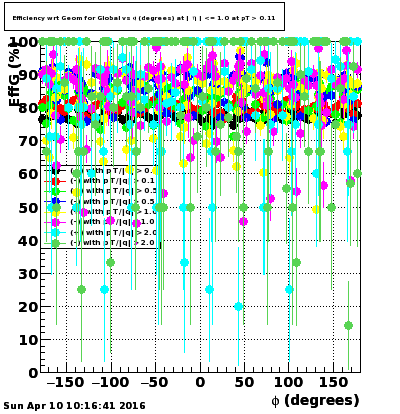

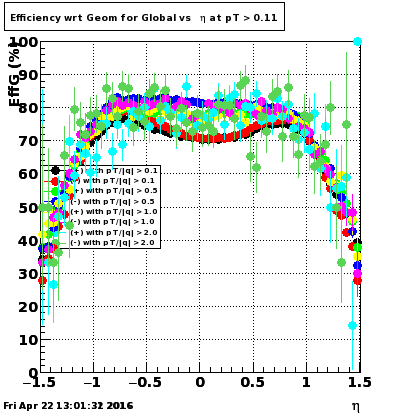

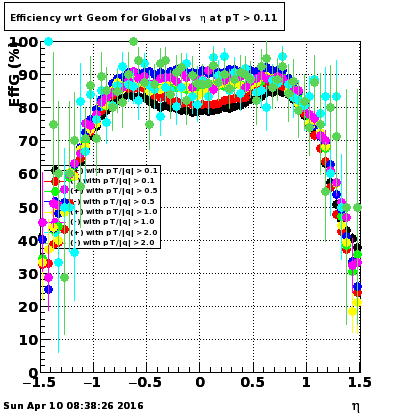

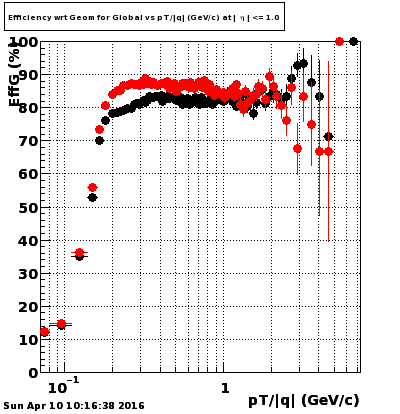

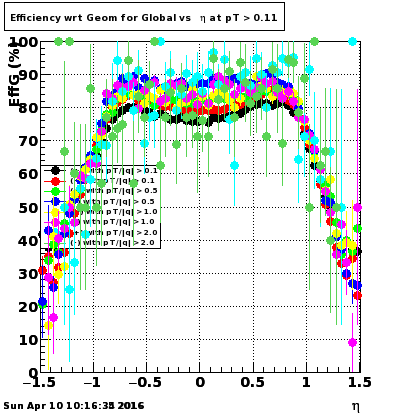

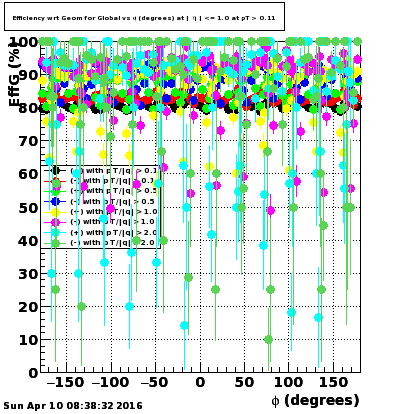

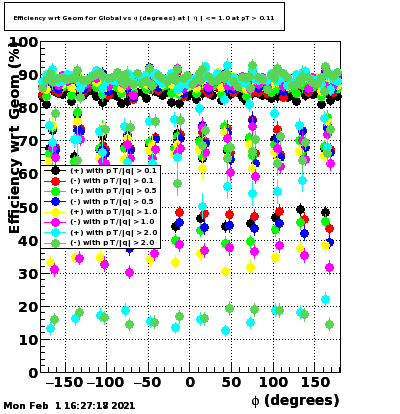

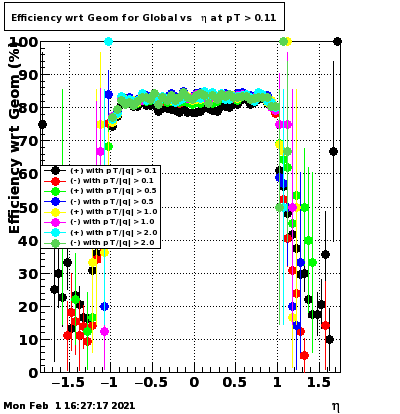

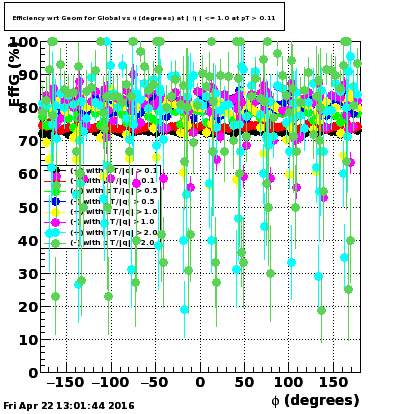

1.2.1.3. Global tracks. All. Efficiency wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

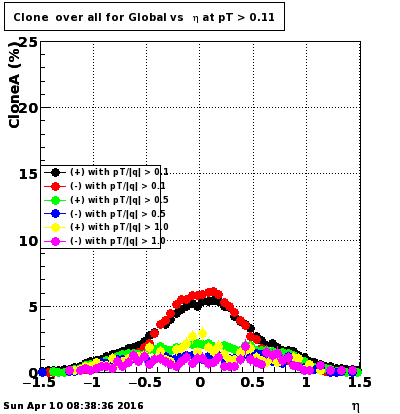

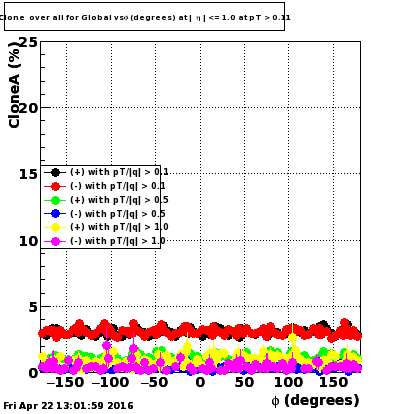

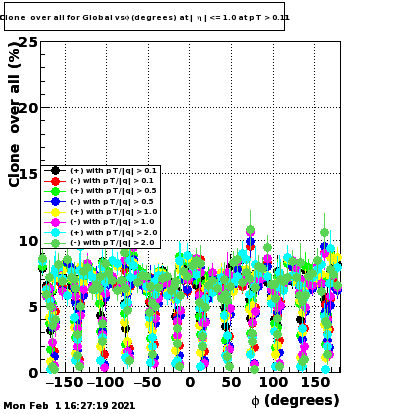

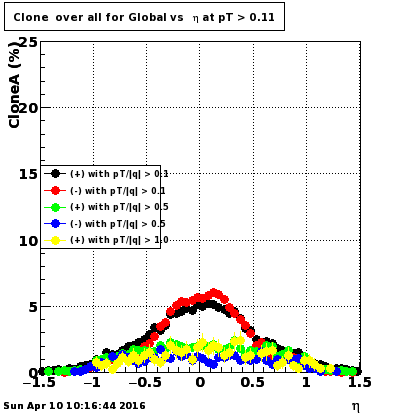

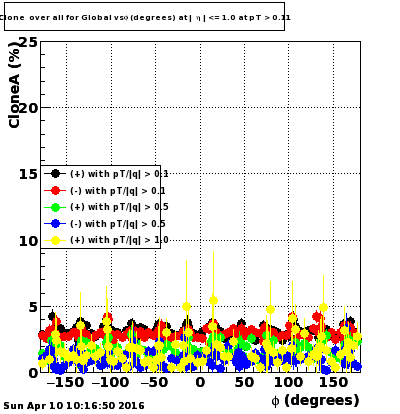

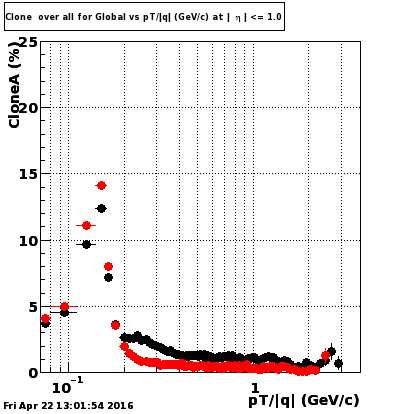

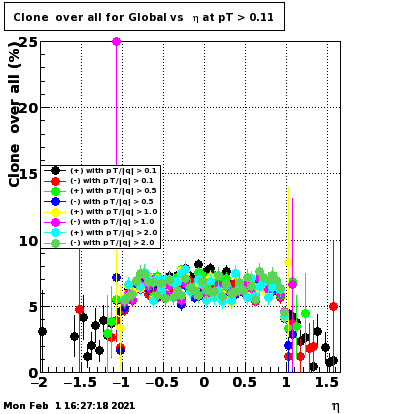

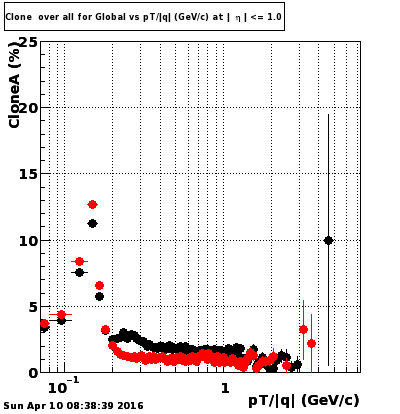

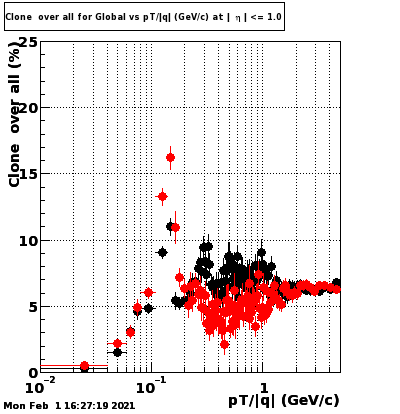

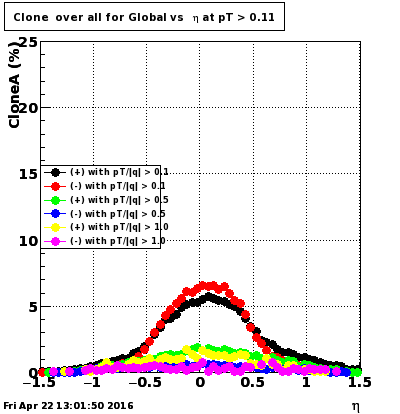

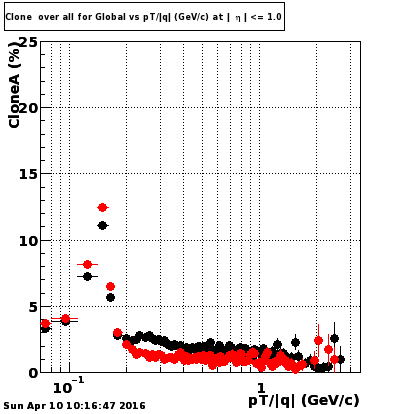

1.2.1.4. Global tracks. All. Clone over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

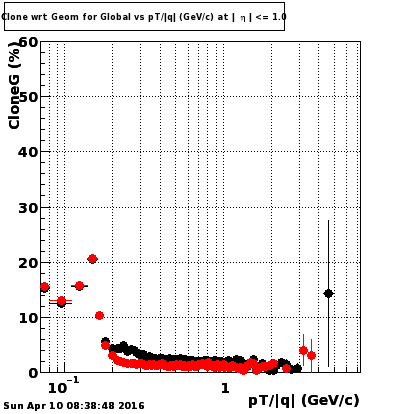

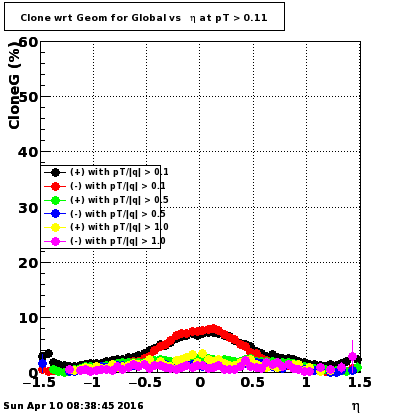

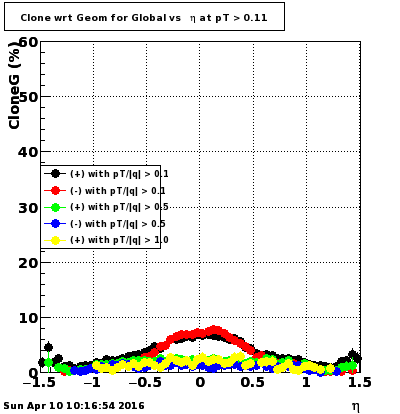

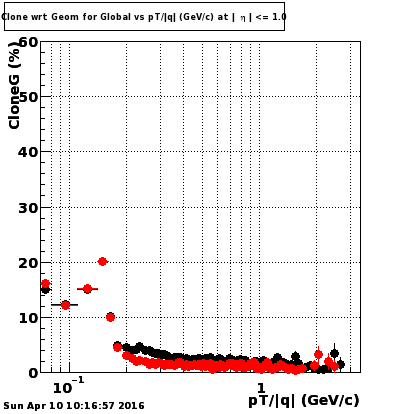

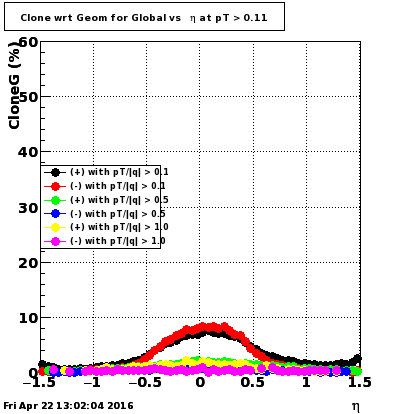

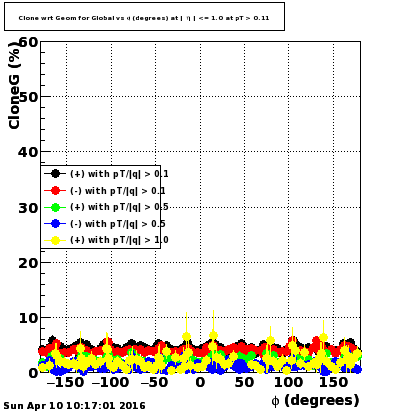

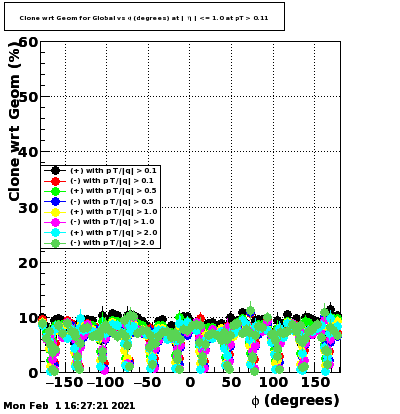

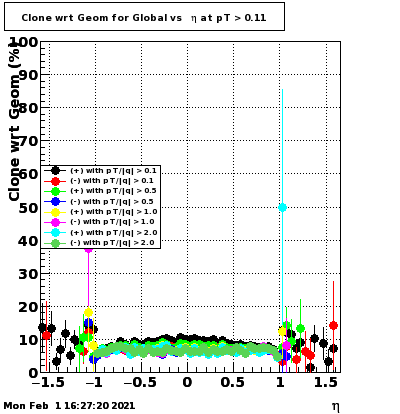

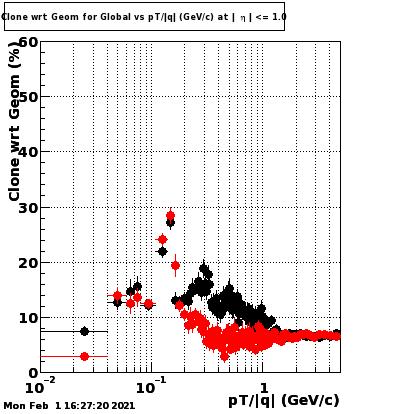

1.2.1.5. Global tracks. All. Clone wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

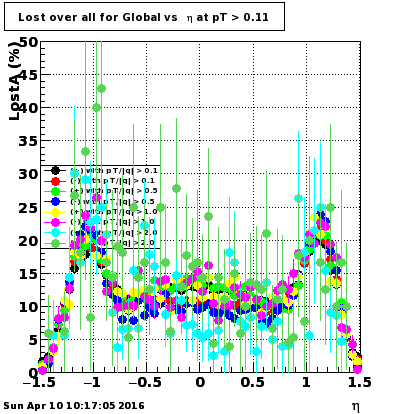

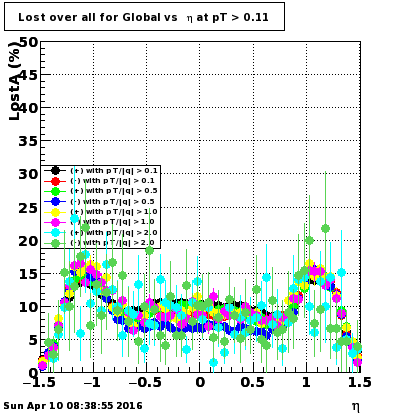

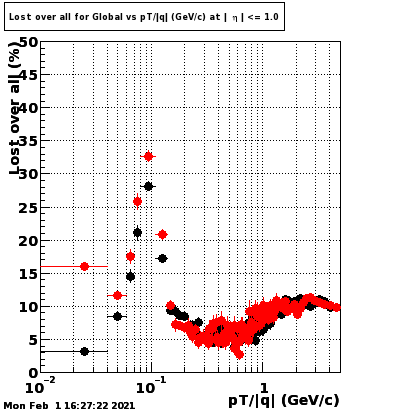

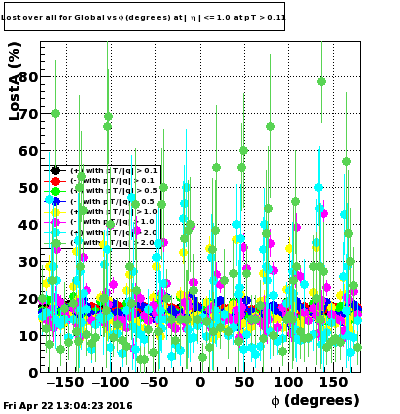

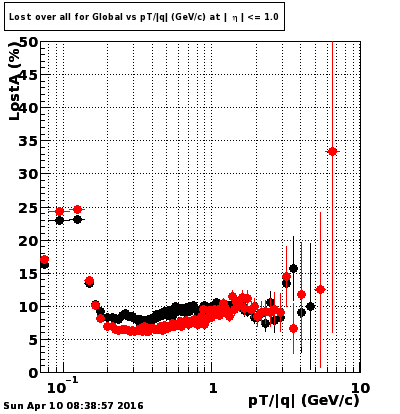

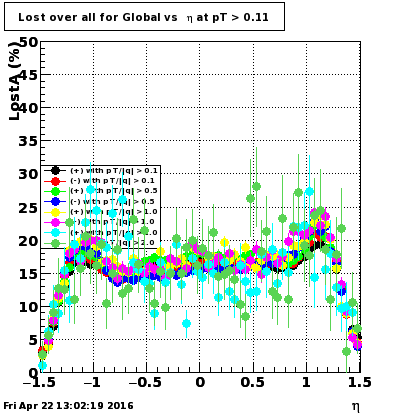

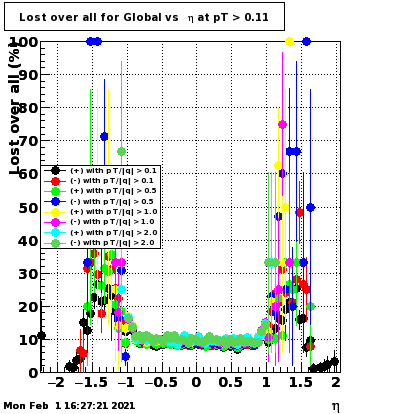

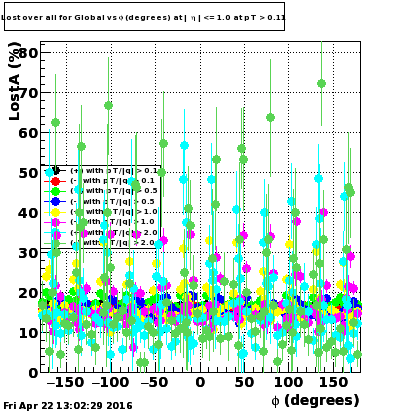

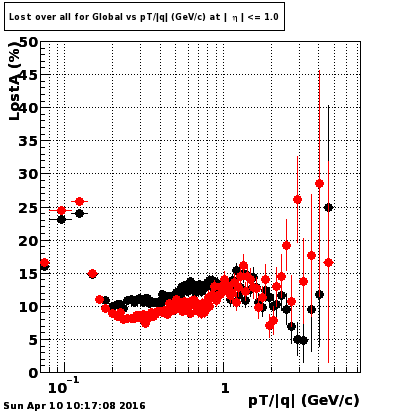

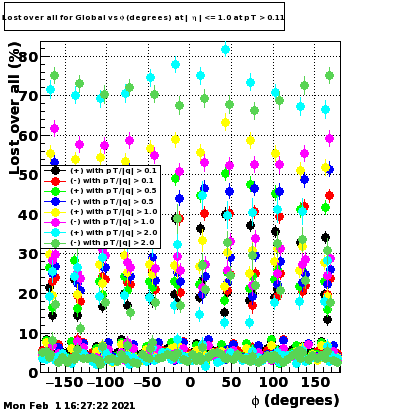

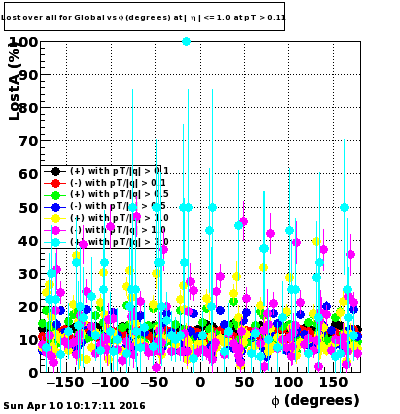

1.2.1.6. Global tracks. All. Lost over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

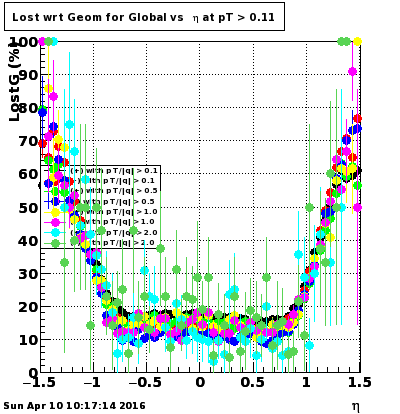

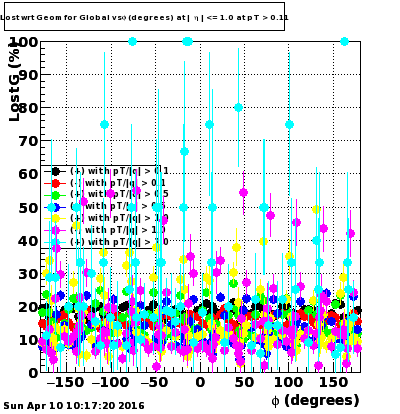

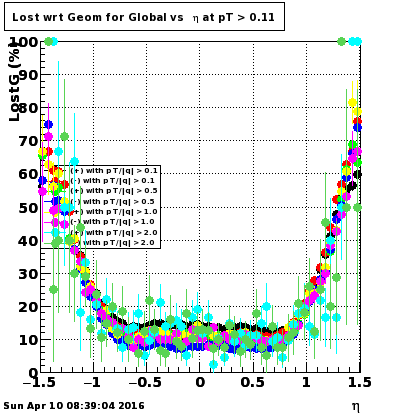

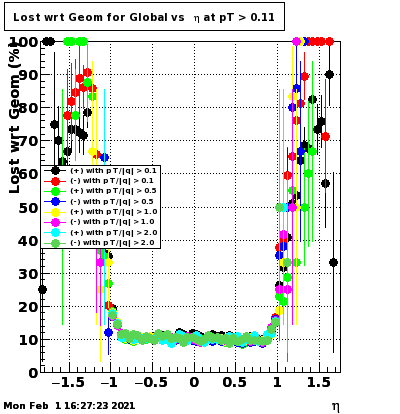

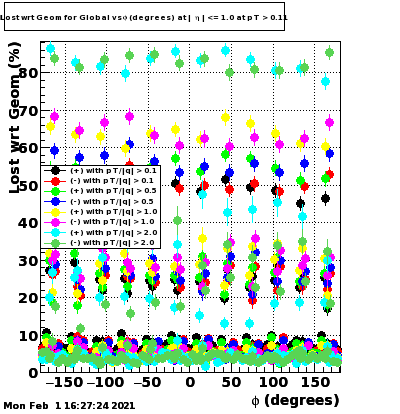

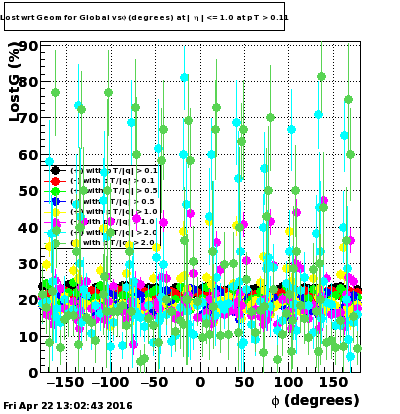

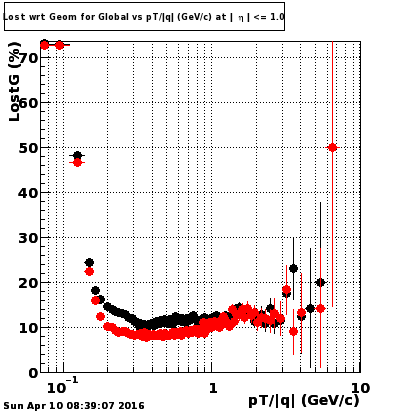

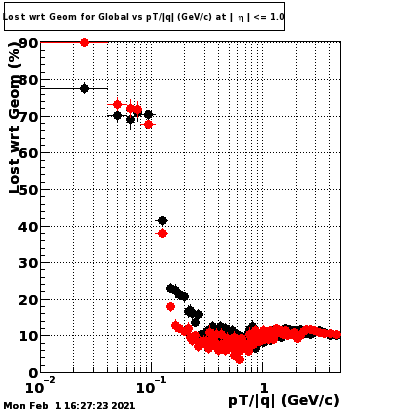

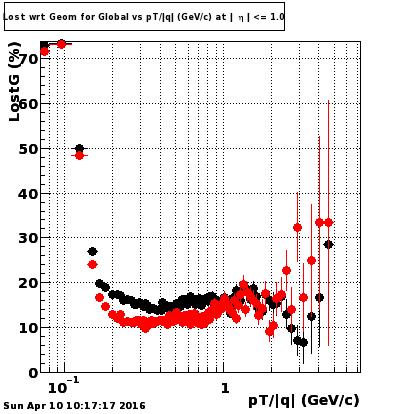

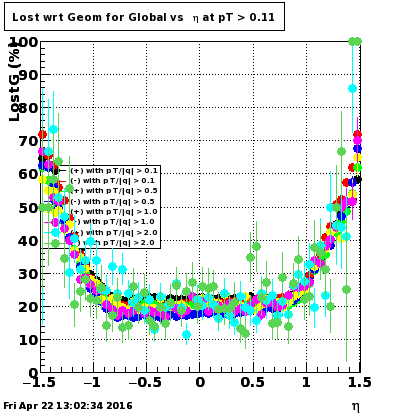

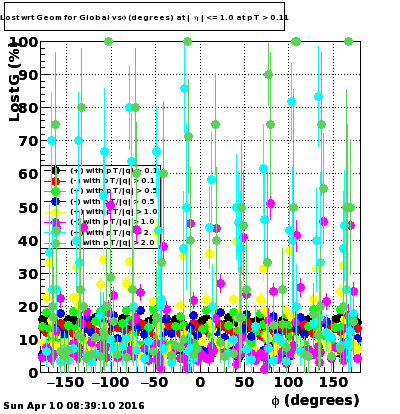

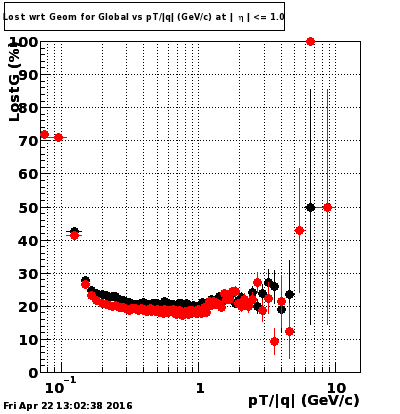

1.2.1.7. Global tracks. All. Lost wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

1.2.1.8. Global tracks. All. Ghost over all.

1.2.1.9. Global tracks. All. Ghost wrt Geom.

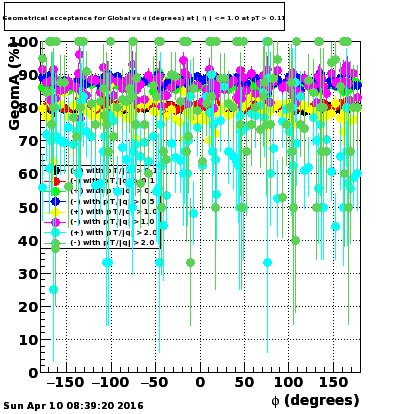

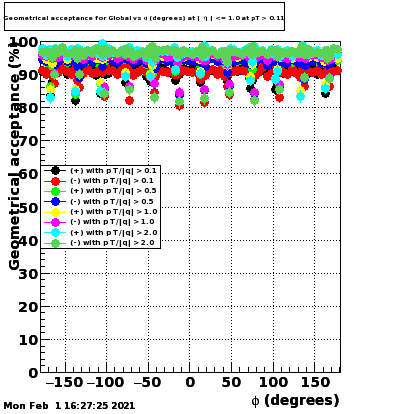

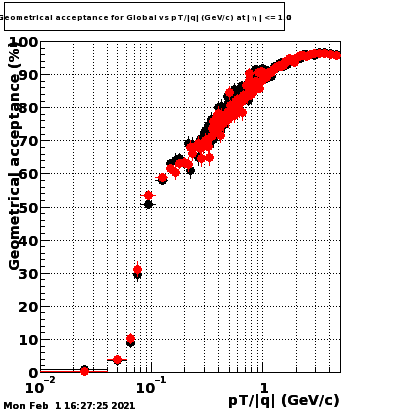

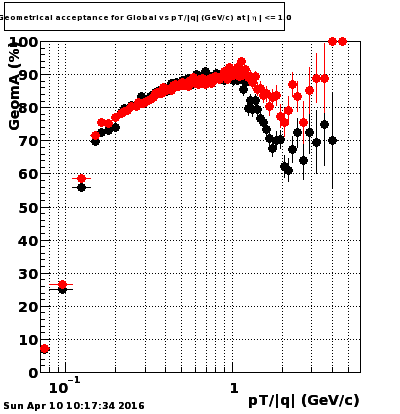

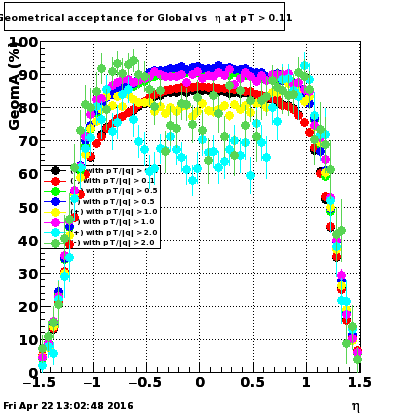

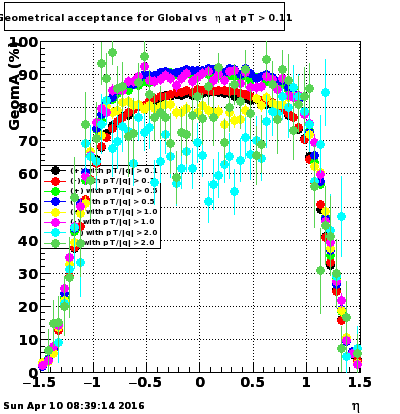

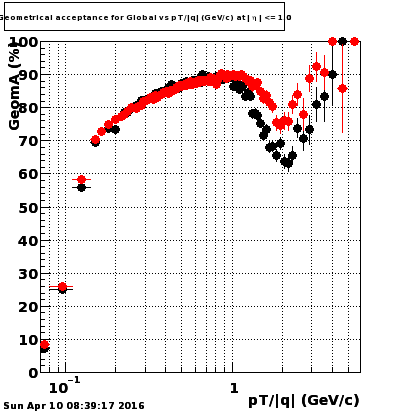

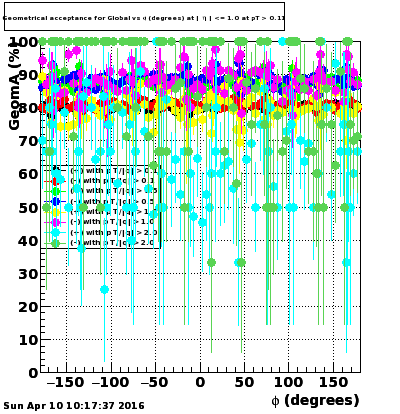

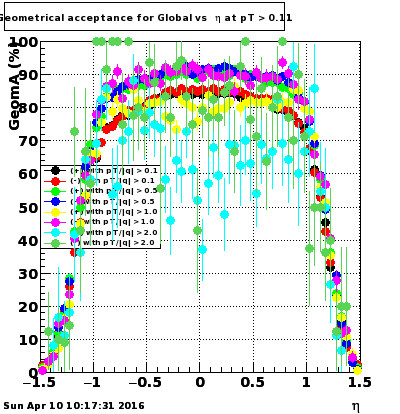

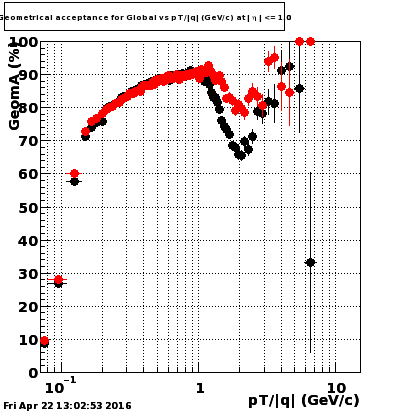

1.2.1.1. Global tracks. Pions. Geometrical acceptance.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

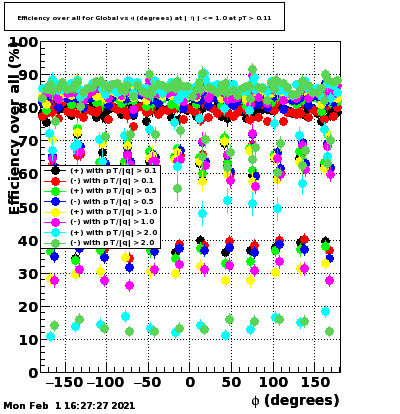

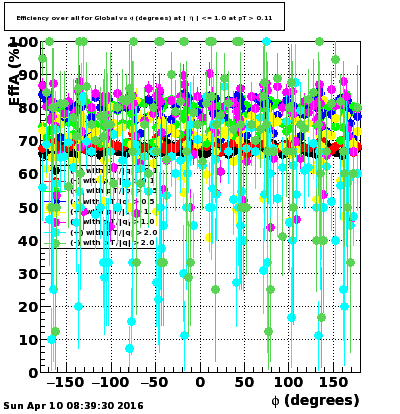

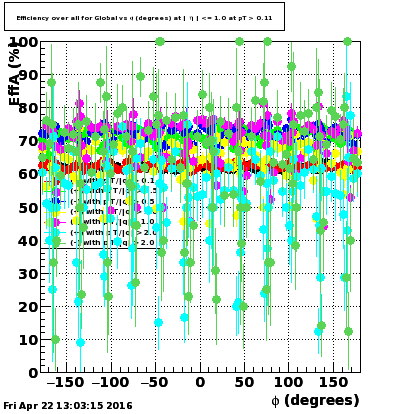

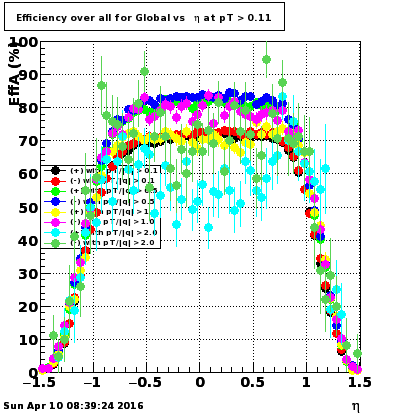

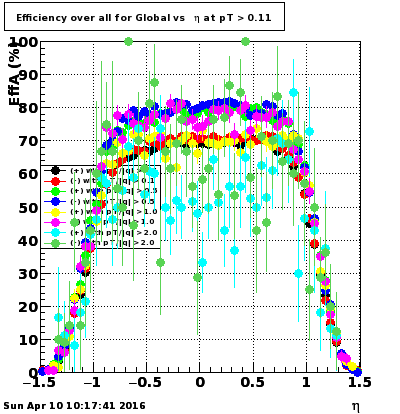

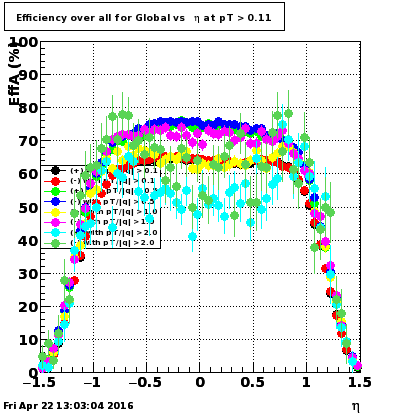

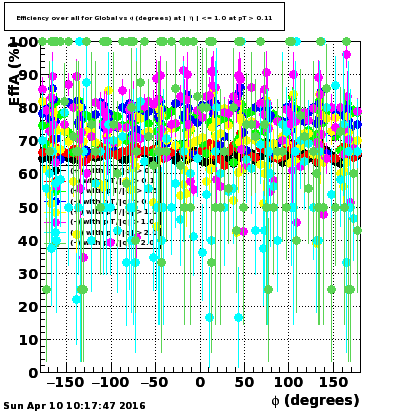

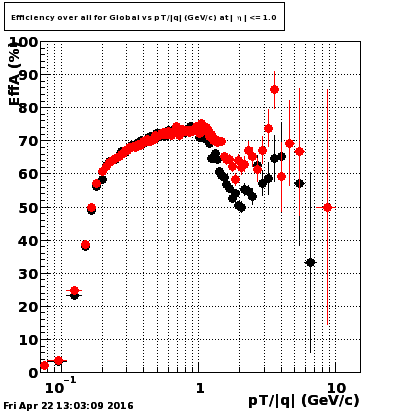

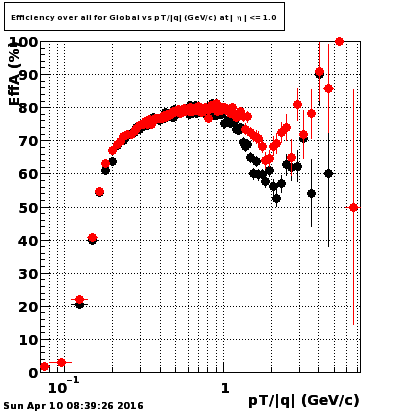

1.2.1.2. Global tracks. Pions. Efficiency over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

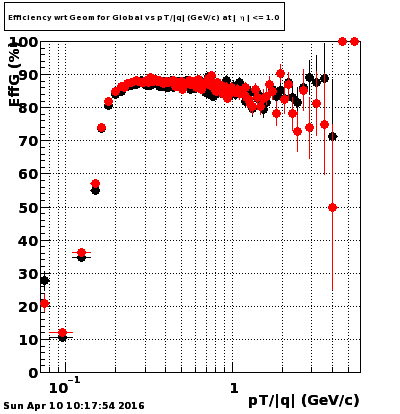

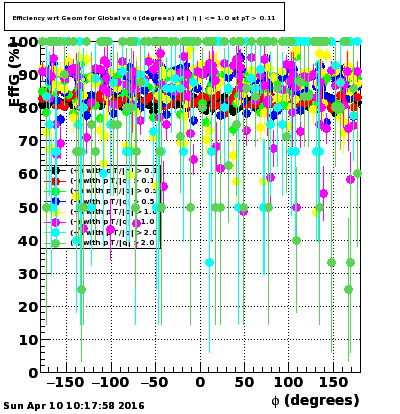

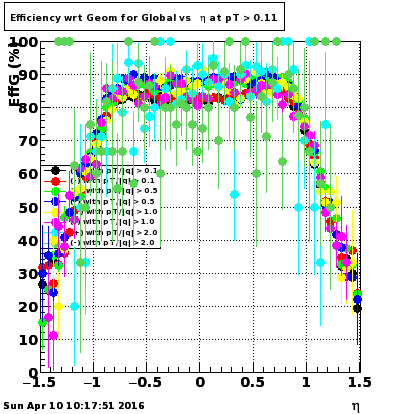

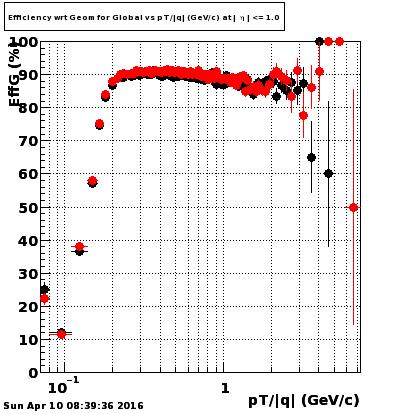

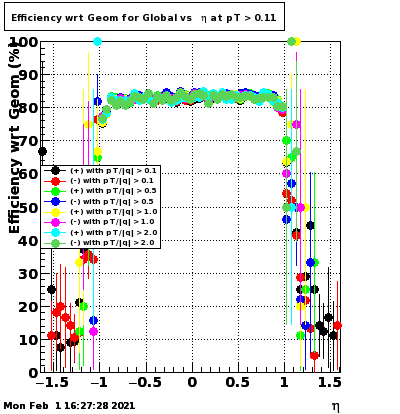

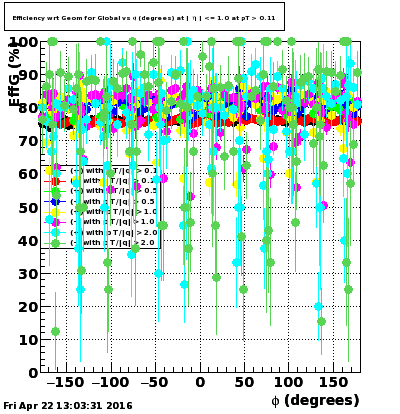

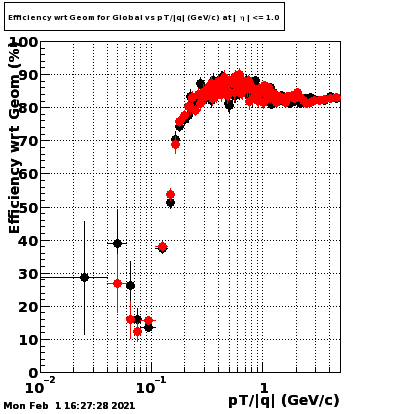

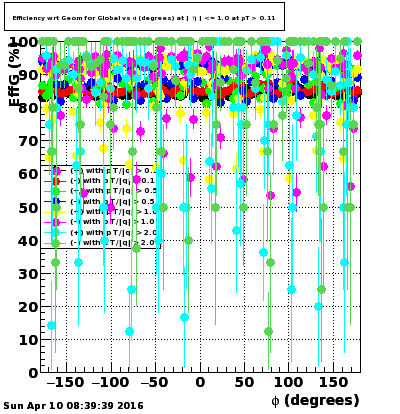

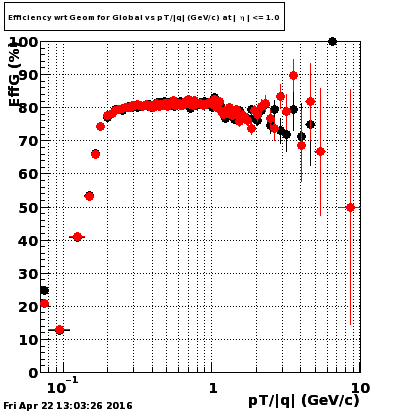

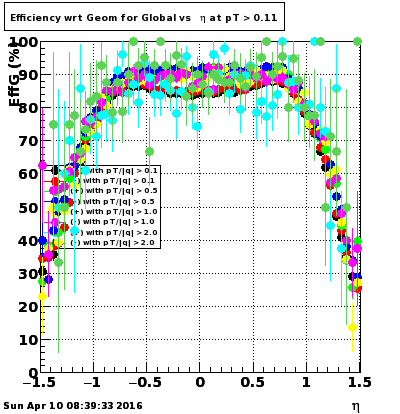

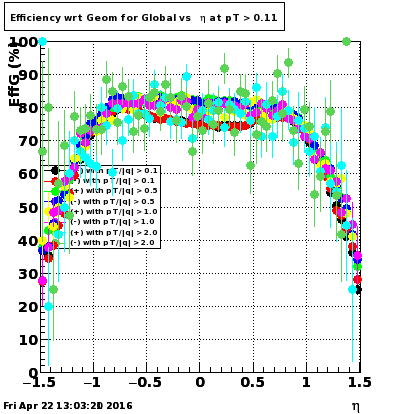

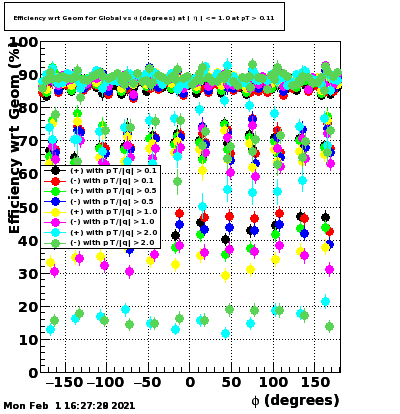

1.2.1.3. Global tracks. Pions. Efficiency wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

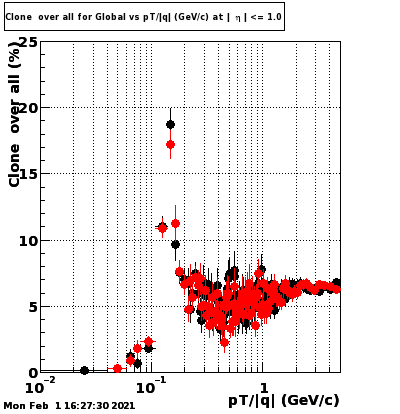

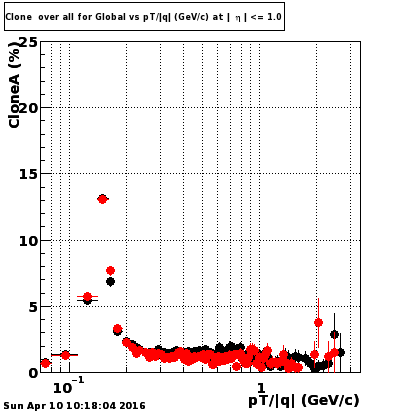

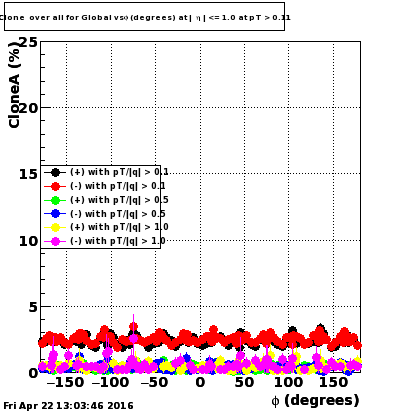

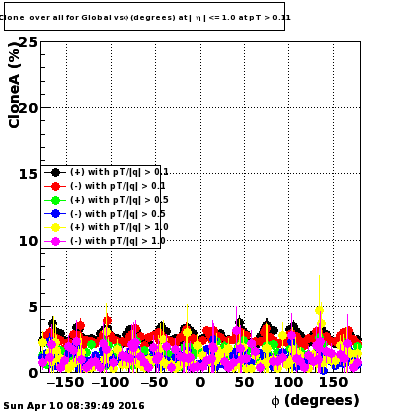

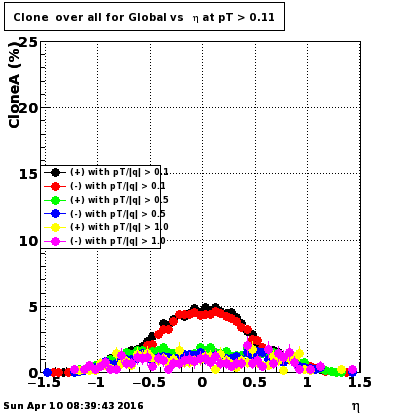

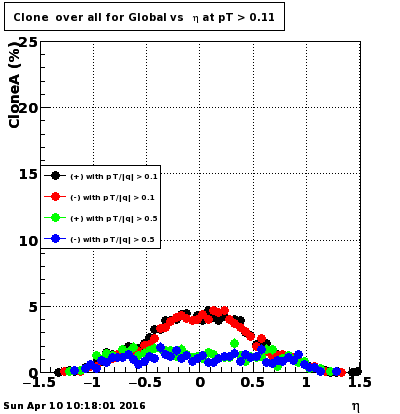

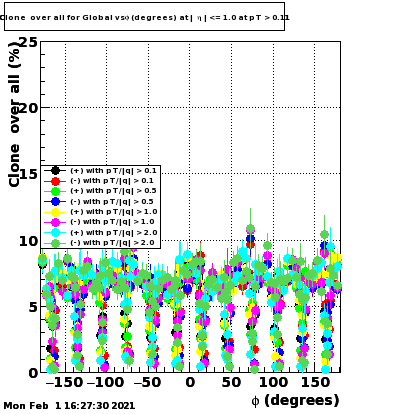

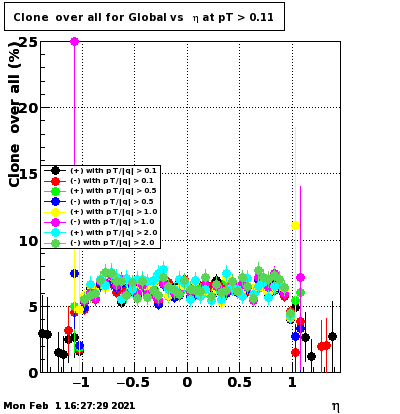

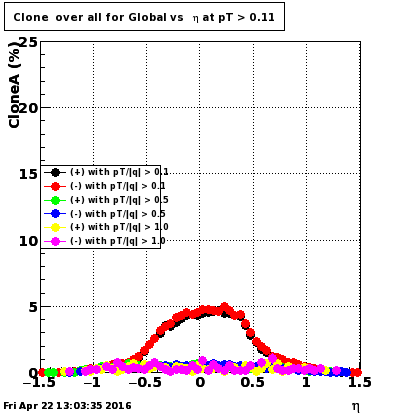

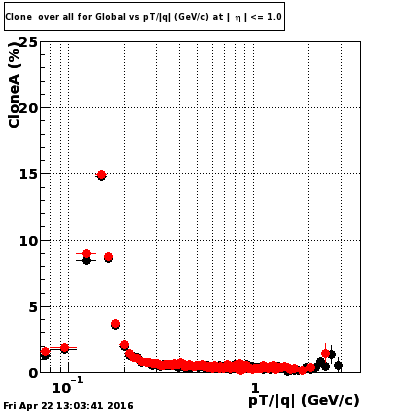

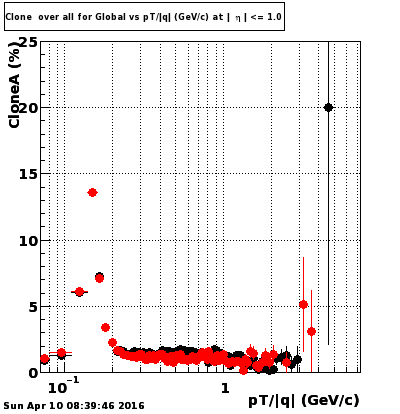

1.2.1.4. Global tracks. Pions. Clone over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

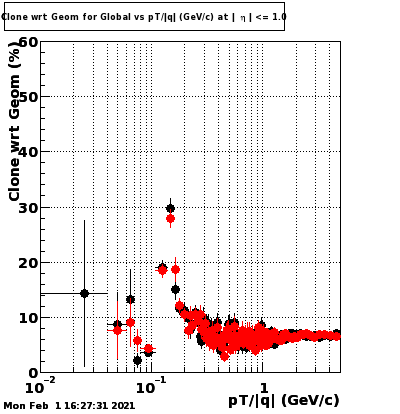

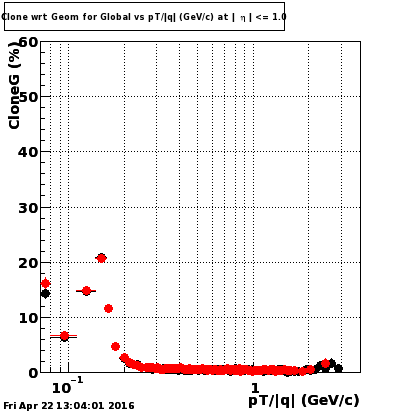

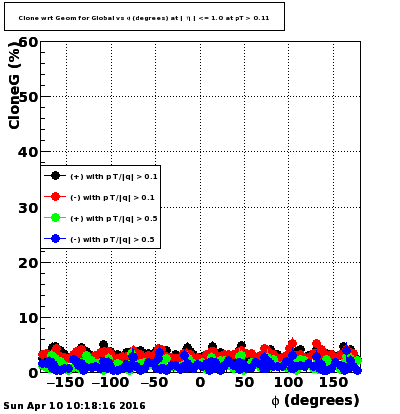

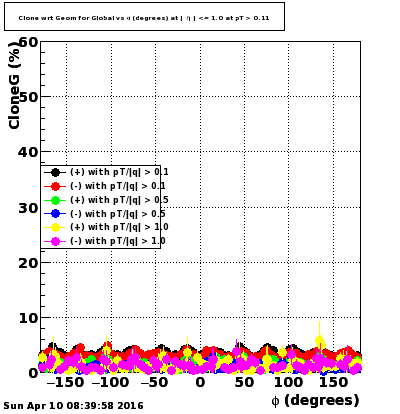

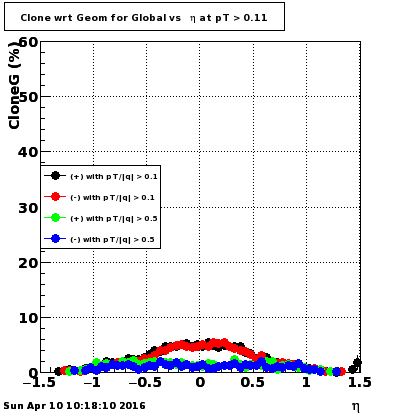

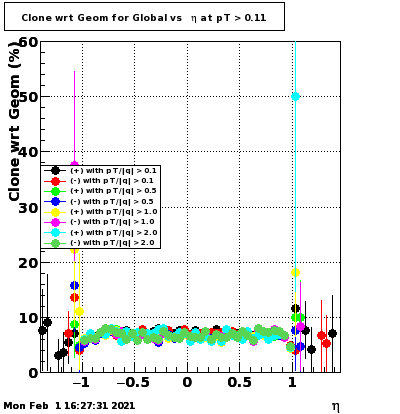

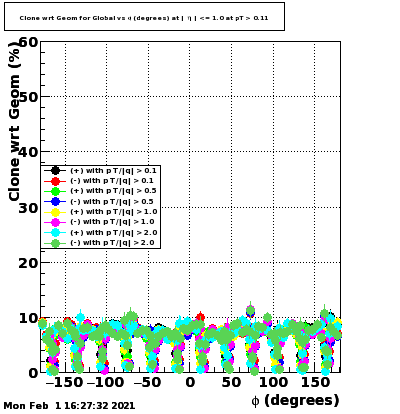

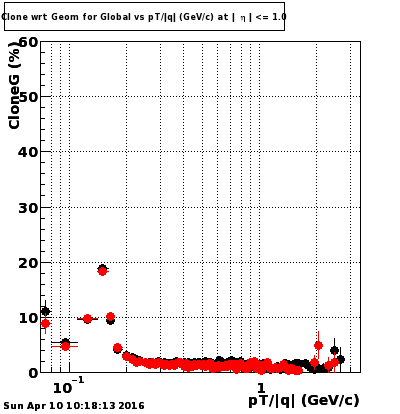

1.2.1.5. Global tracks. Pions. Clone wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

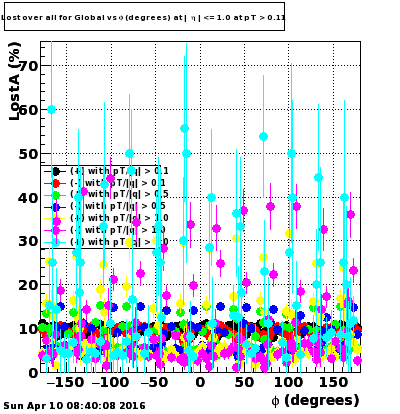

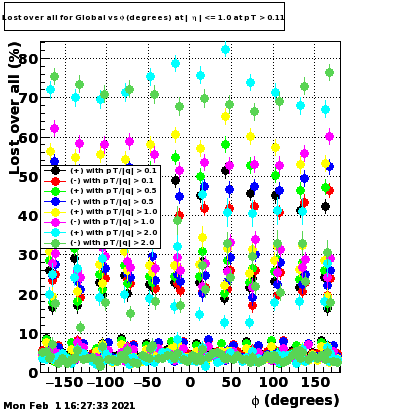

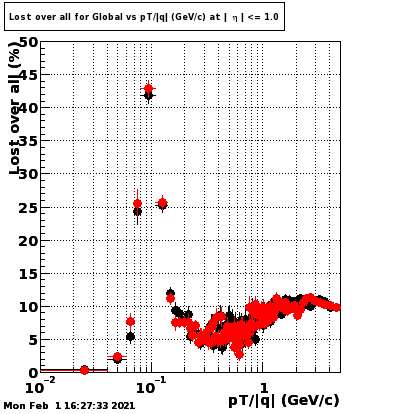

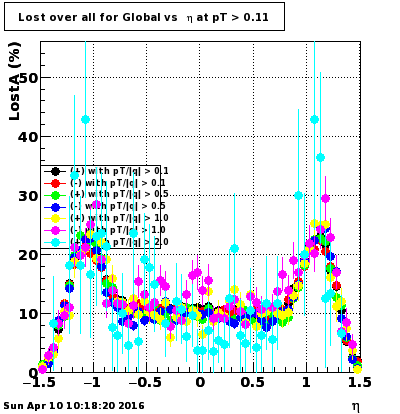

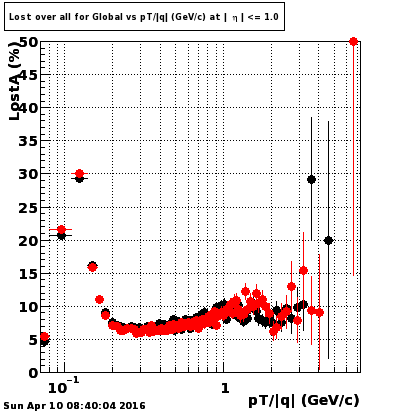

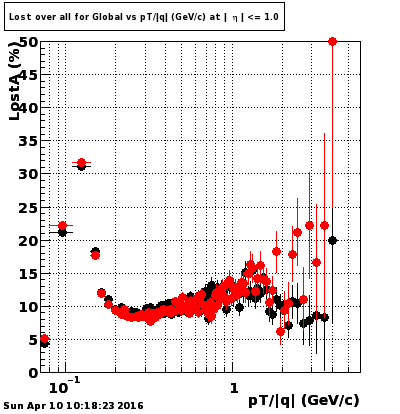

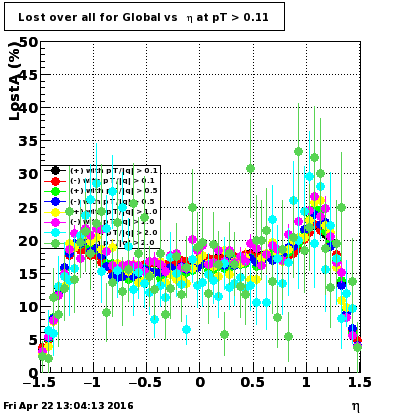

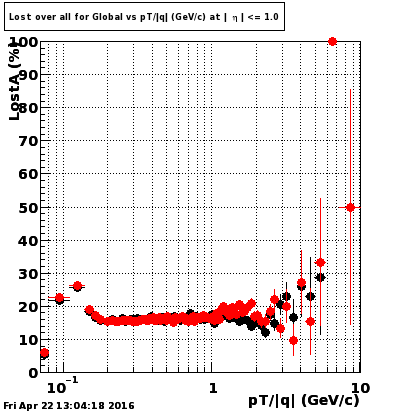

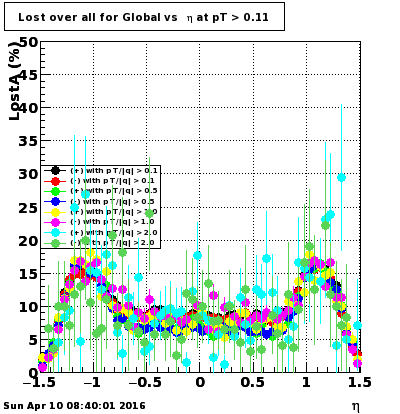

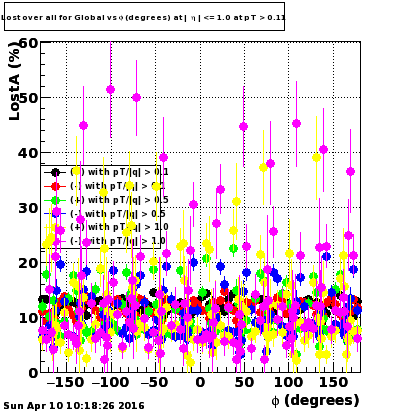

1.2.1.6. Global tracks. Pions. Lost over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

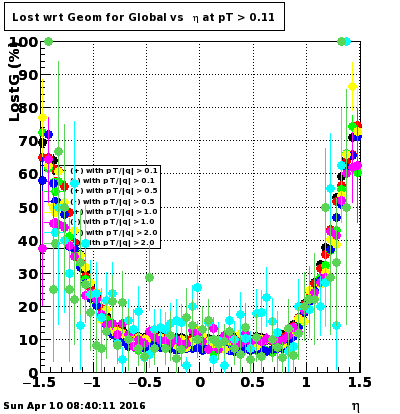

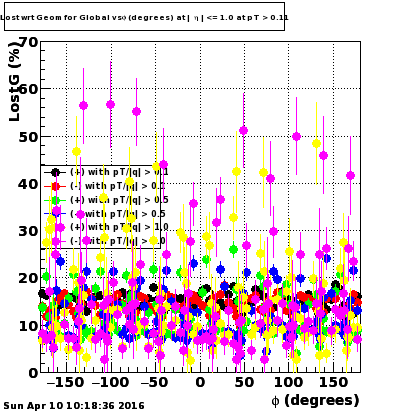

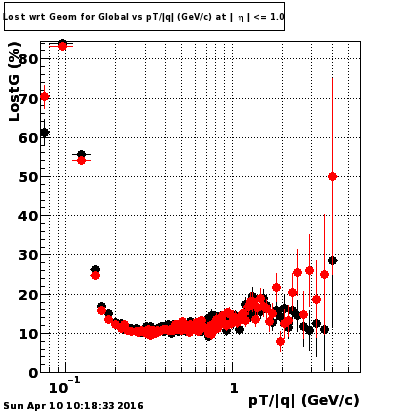

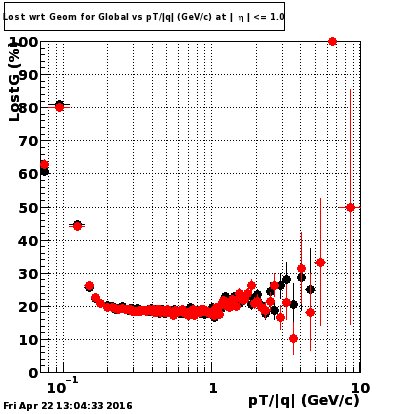

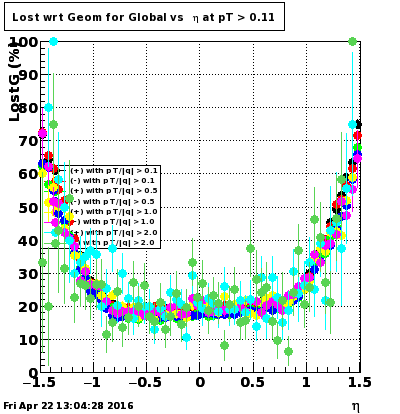

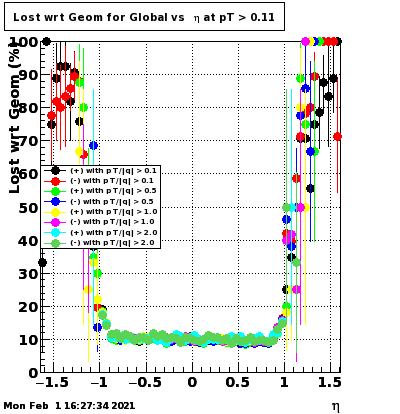

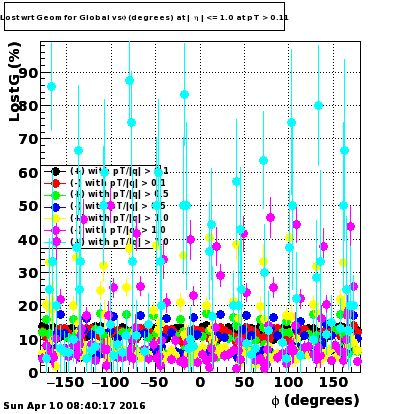

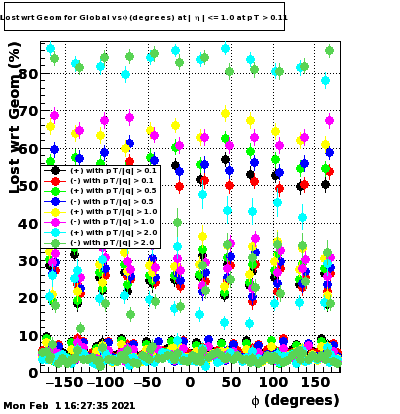

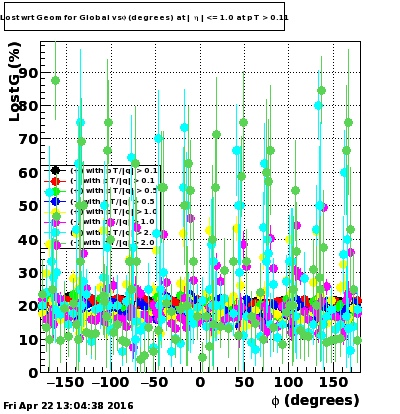

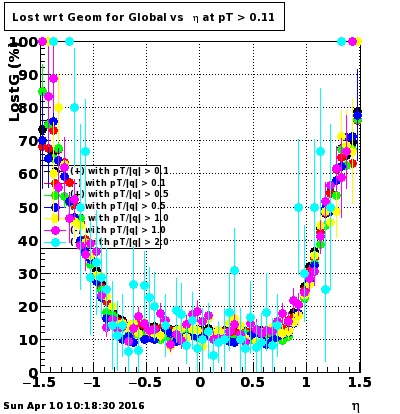

1.2.1.7. Global tracks. Pions. Lost wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

1.2.1.8. Global tracks. Pions. Ghost over all.

1.2.1.9. Global tracks. Pions. Ghost wrt Geom.

1.2.2. Primary tracks.

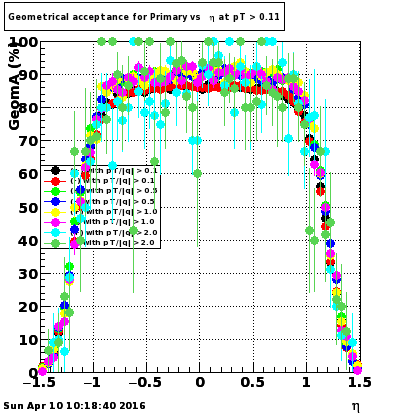

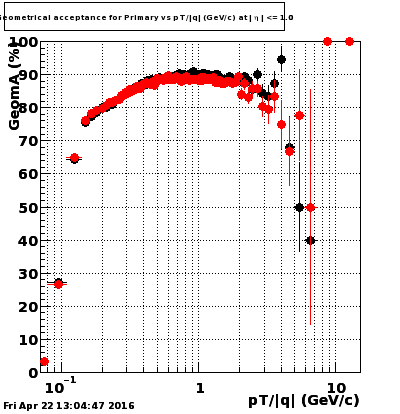

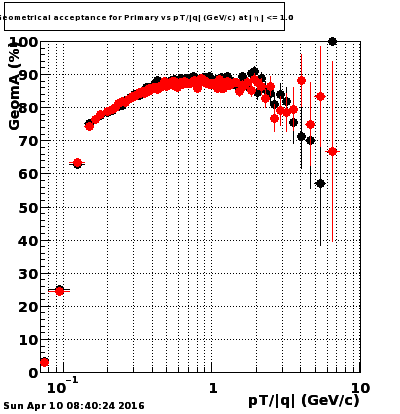

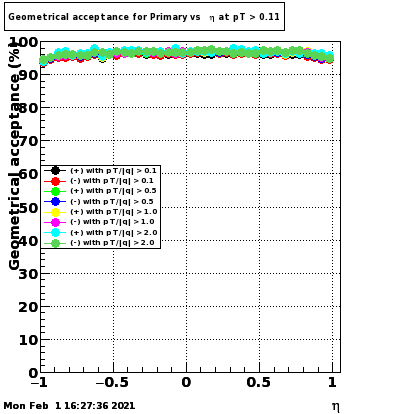

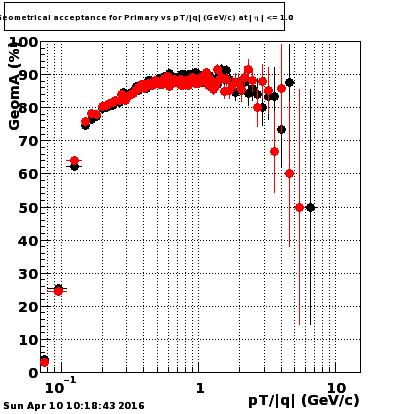

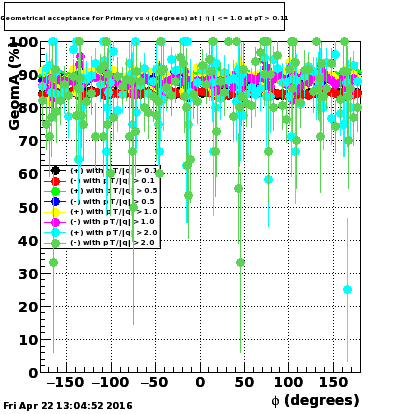

1.2.2.1. Primary tracks. All. Geometrical acceptance.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

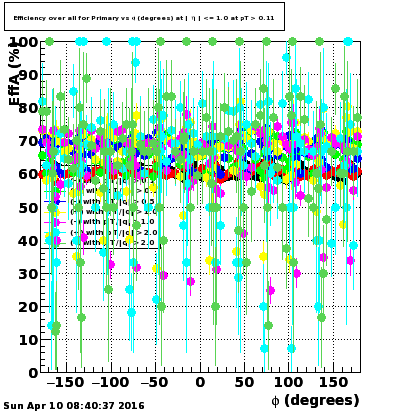

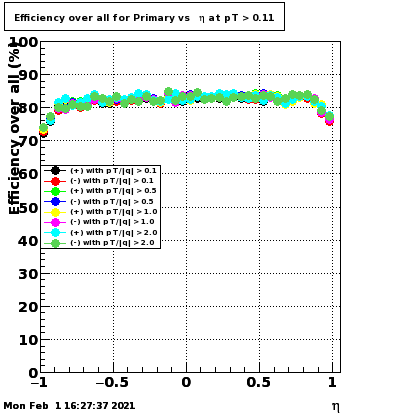

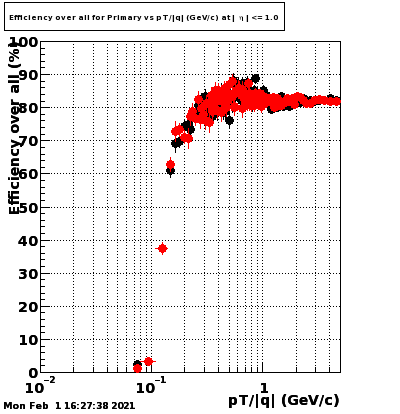

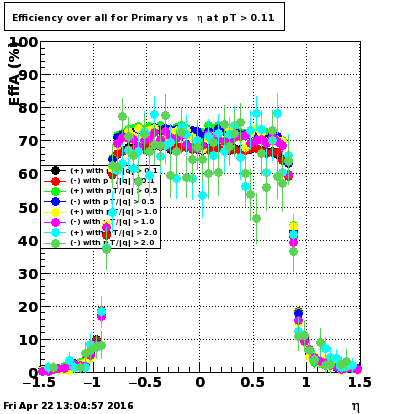

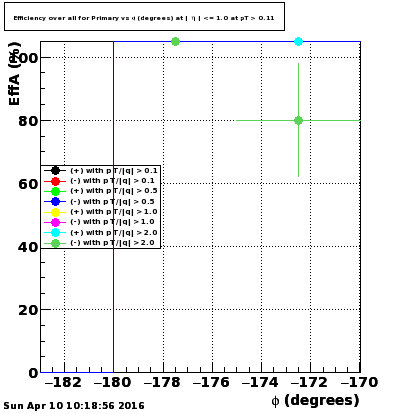

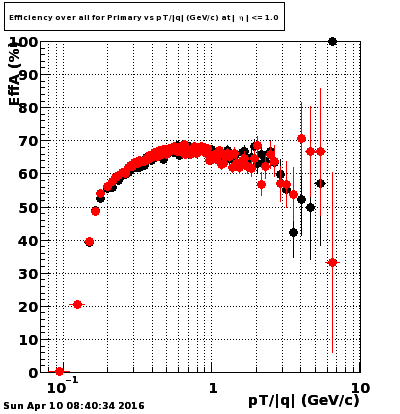

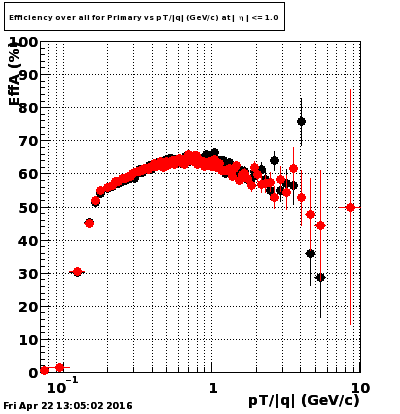

1.2.2.2. Primary tracks. All. Efficiency over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

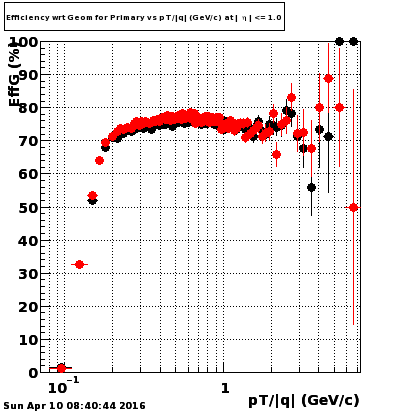

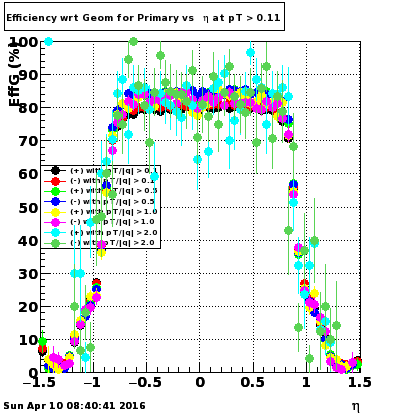

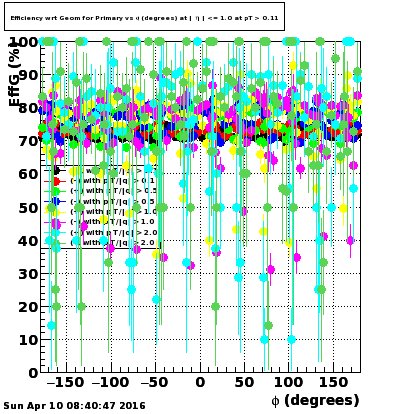

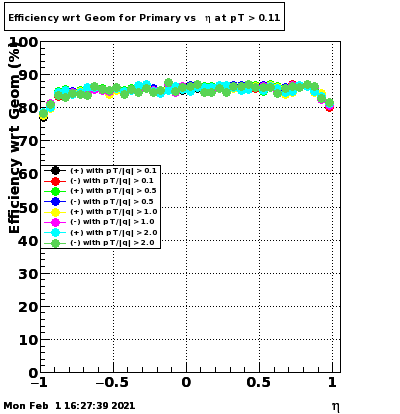

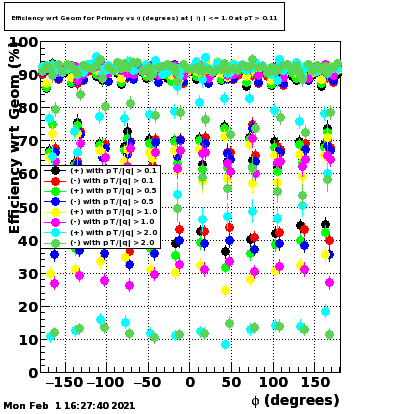

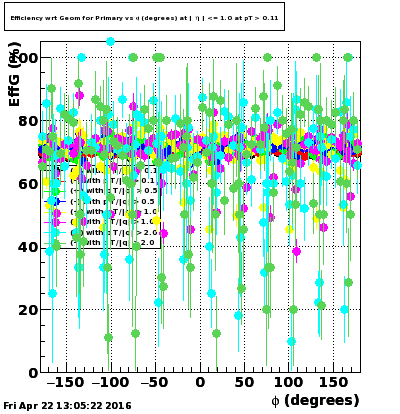

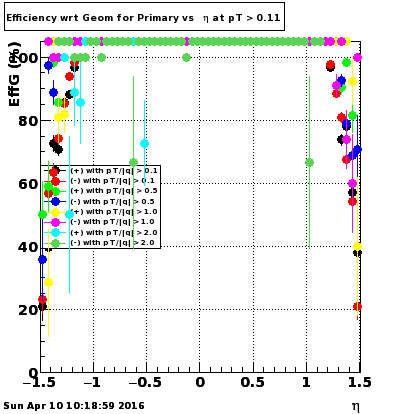

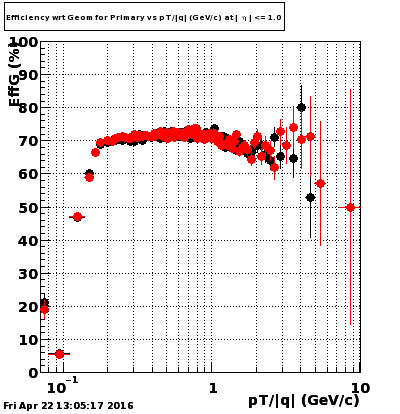

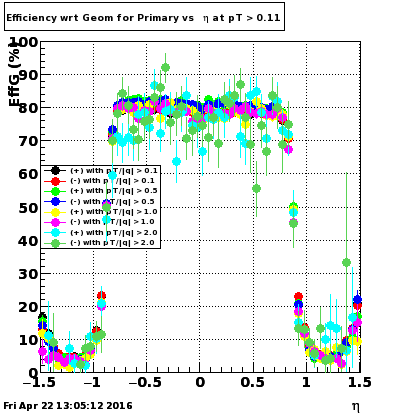

1.2.2.3. Primary tracks. All. Efficiency wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

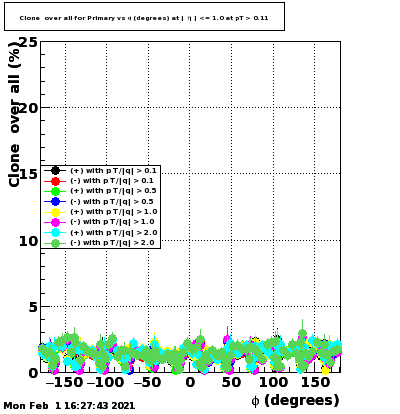

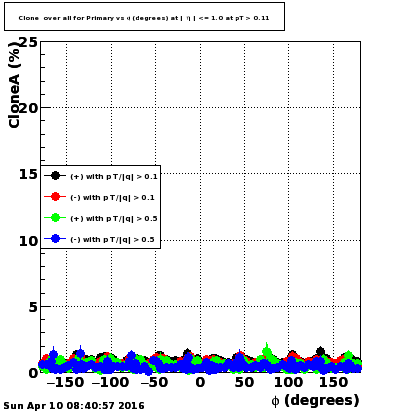

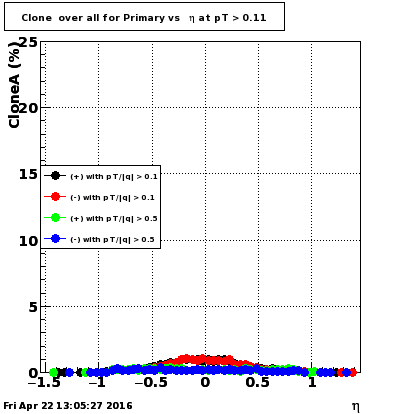

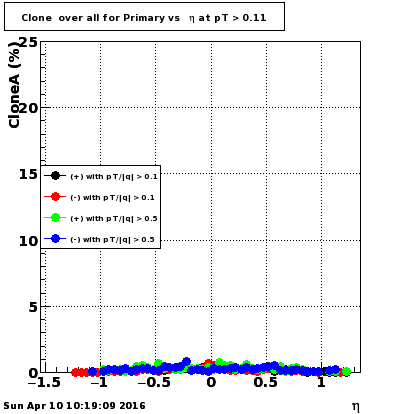

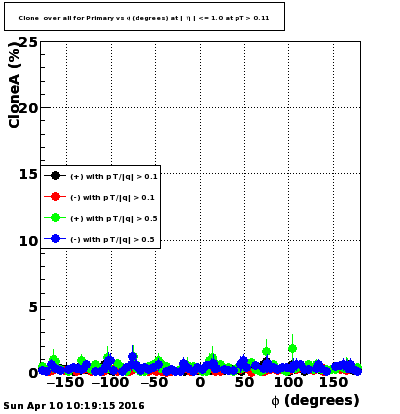

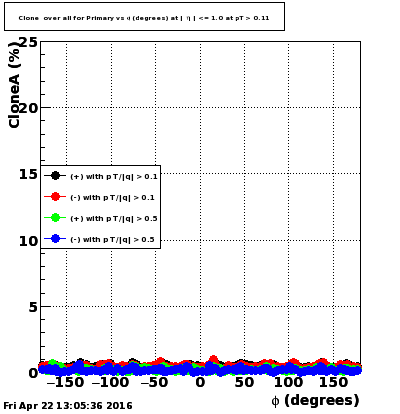

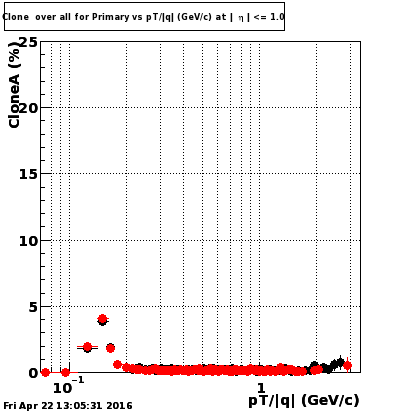

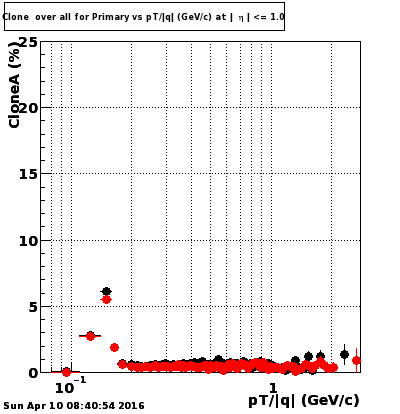

1.2.2.4. Primary tracks. All. Clone over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

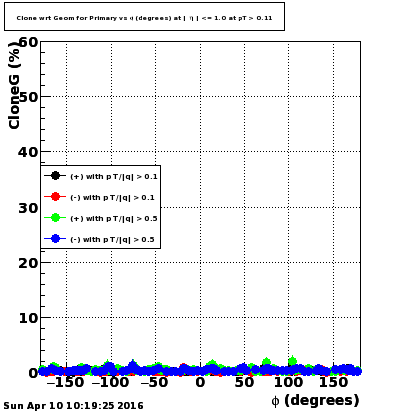

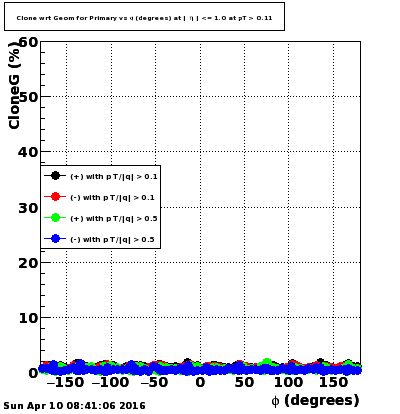

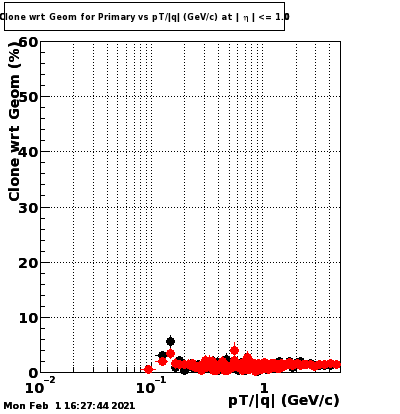

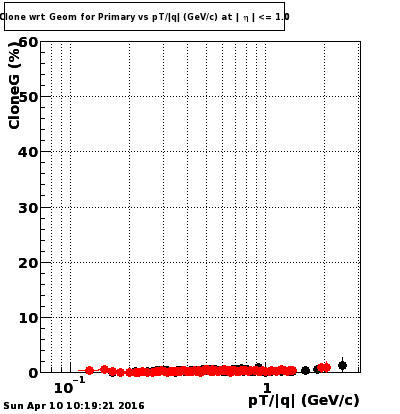

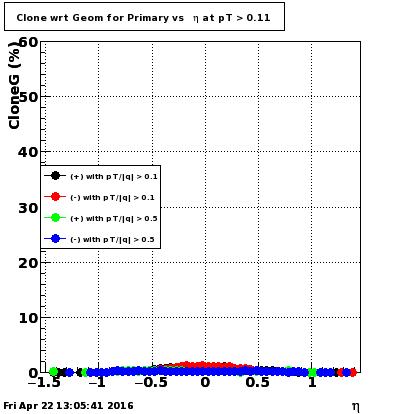

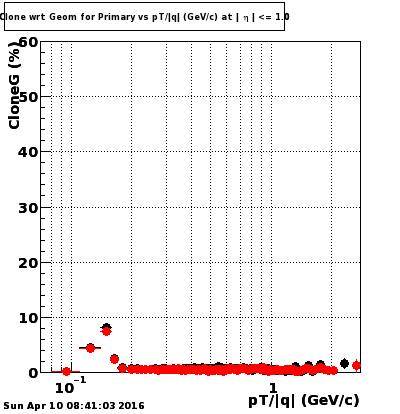

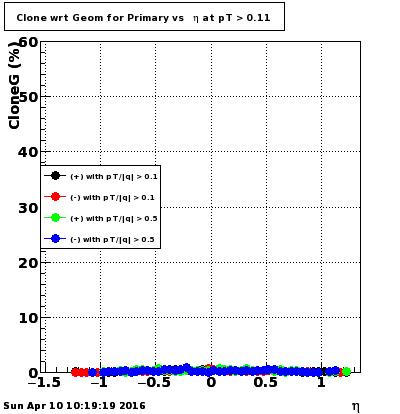

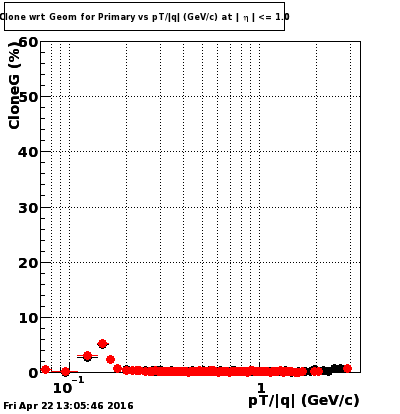

1.2.2.5. Primary tracks. All. Clone wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

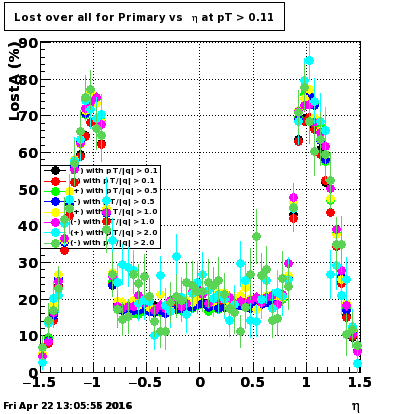

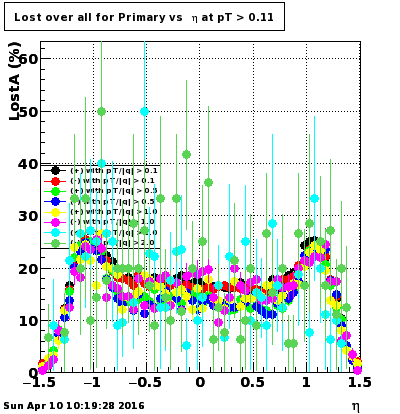

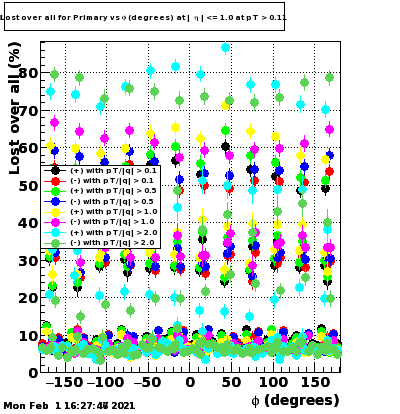

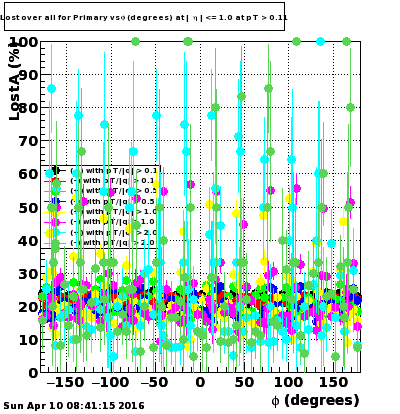

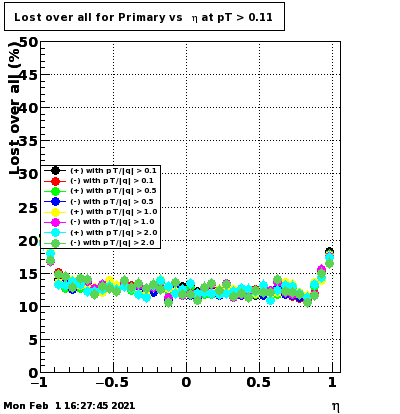

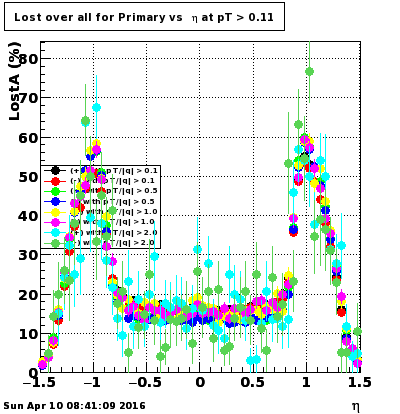

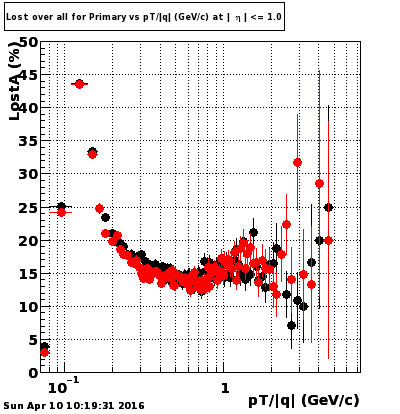

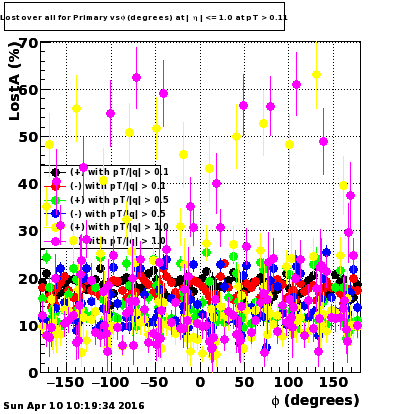

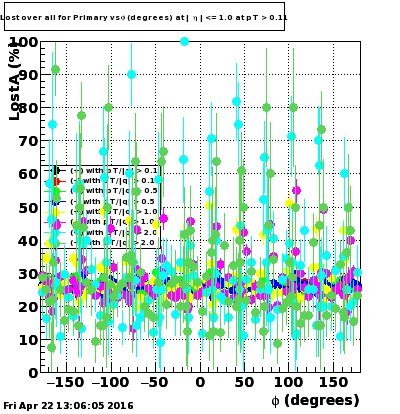

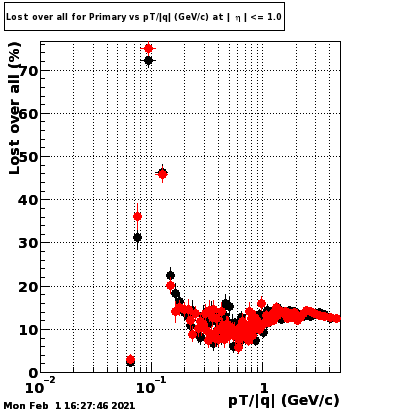

1.2.2.6. Primary tracks. All. Lost over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

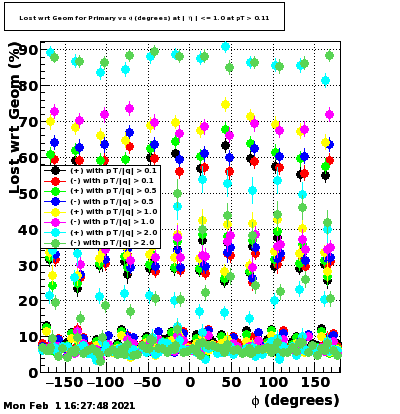

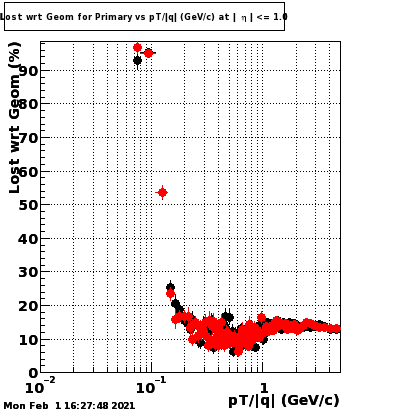

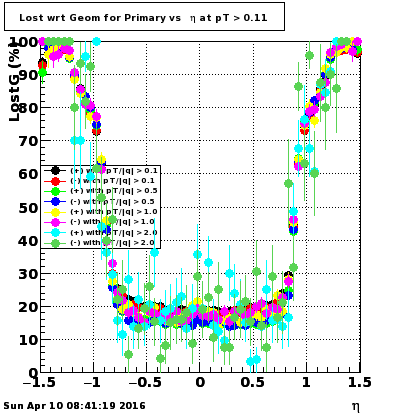

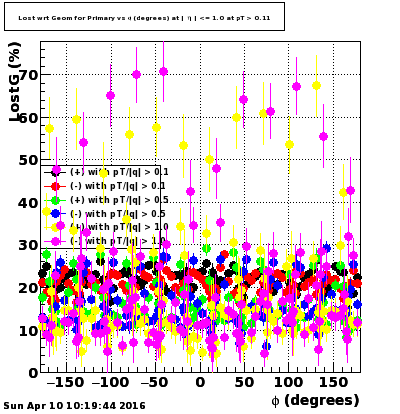

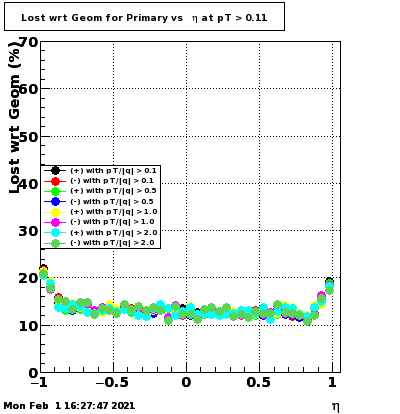

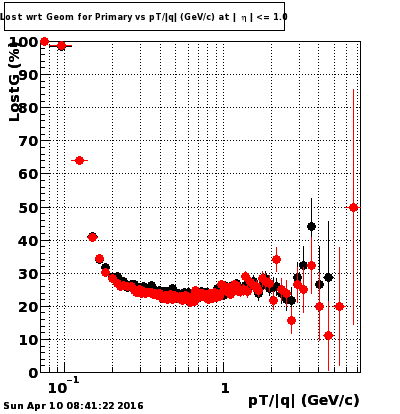

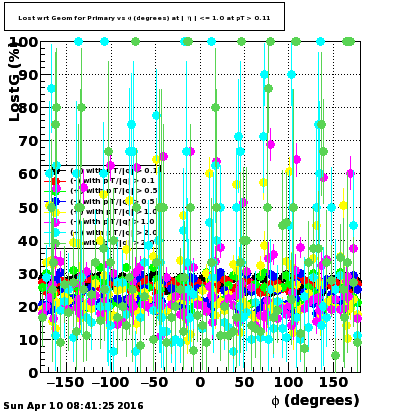

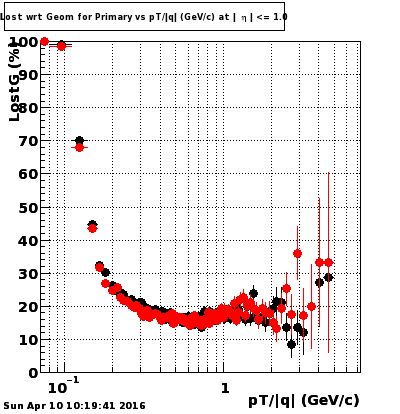

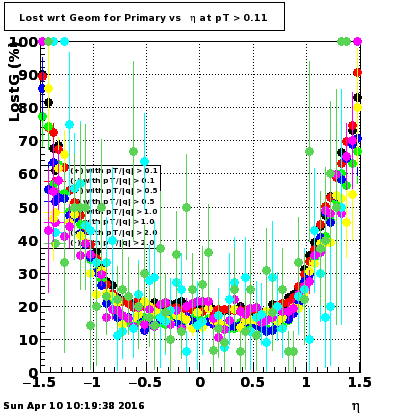

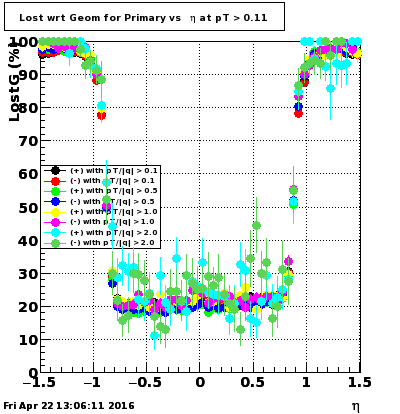

1.2.2.7. Primary tracks. All. Lost wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

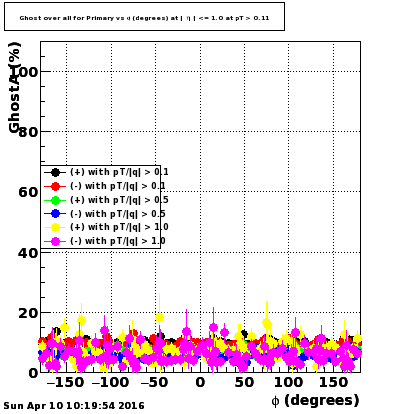

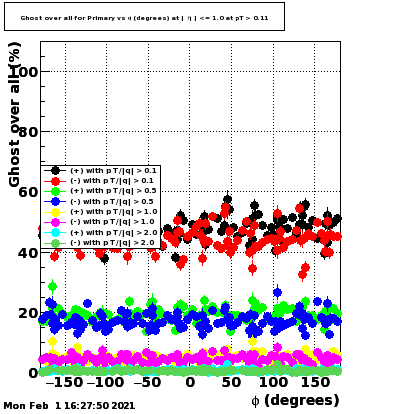

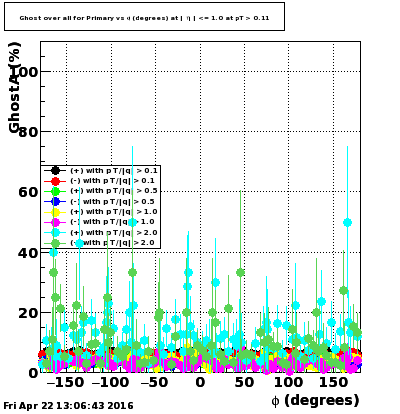

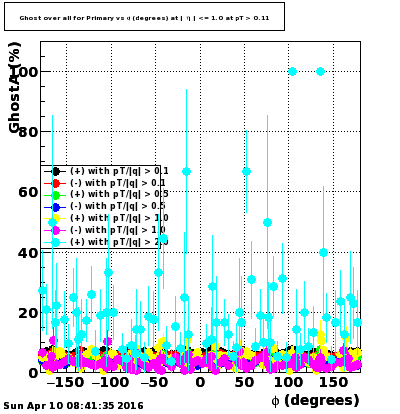

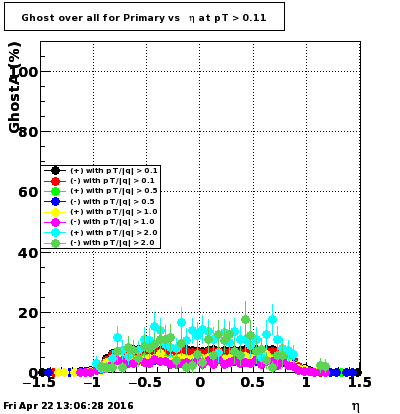

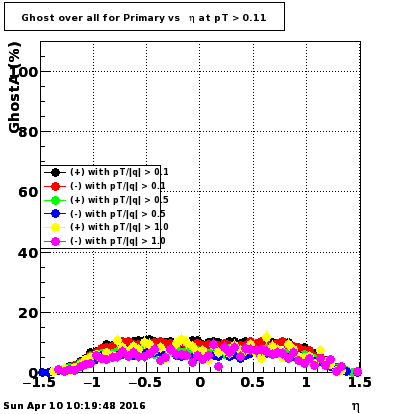

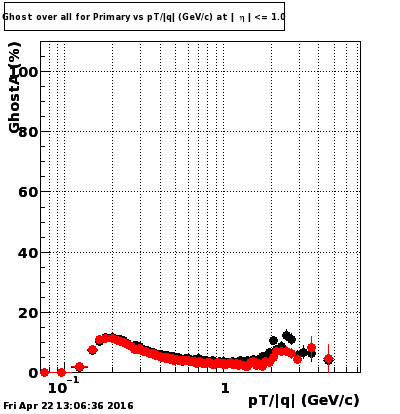

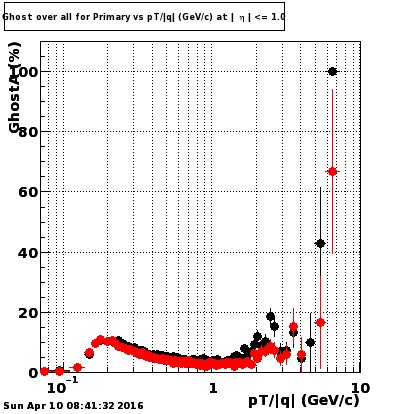

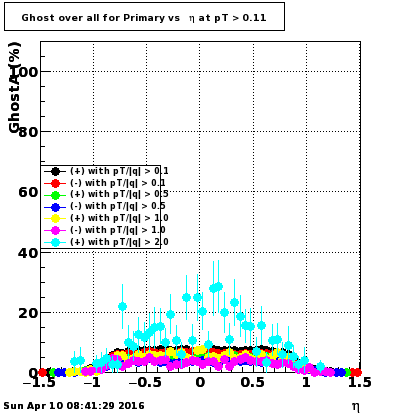

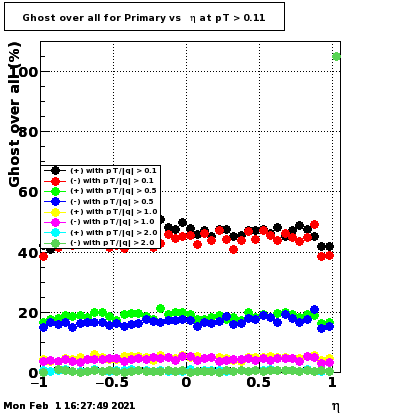

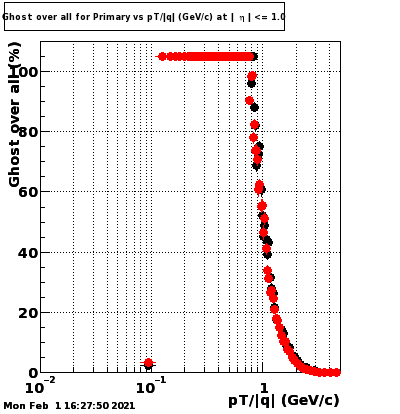

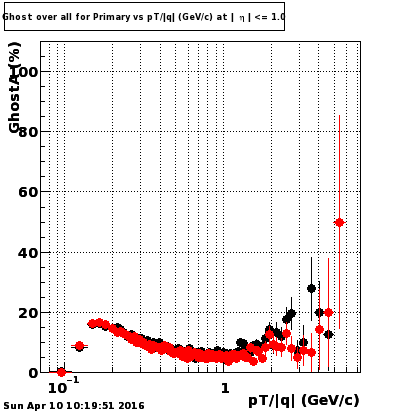

1.2.2.8. Primary tracks. All. Ghost over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

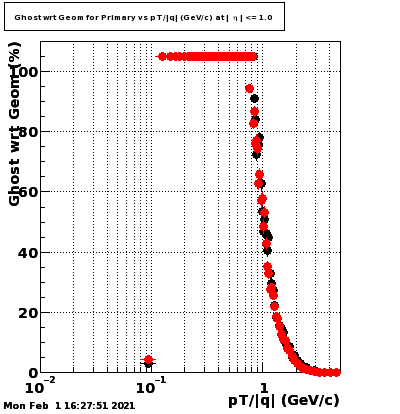

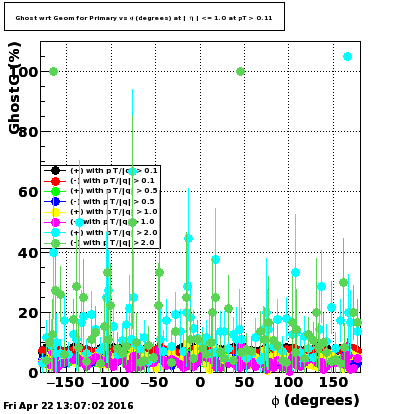

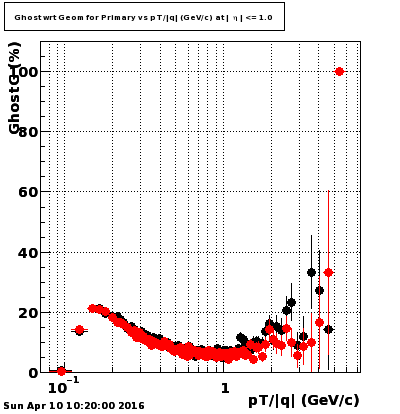

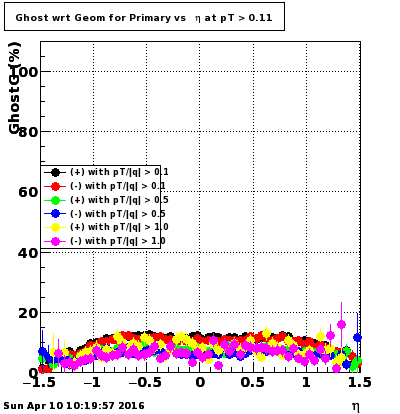

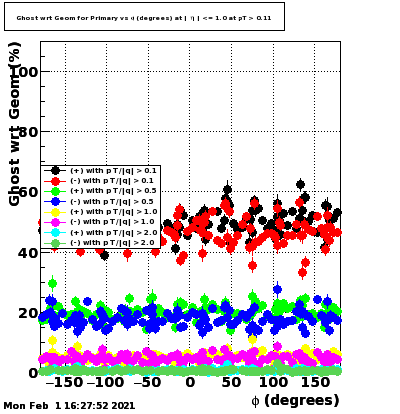

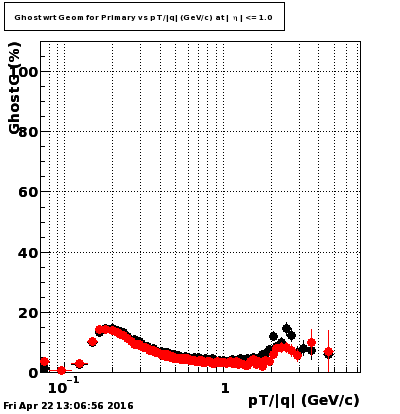

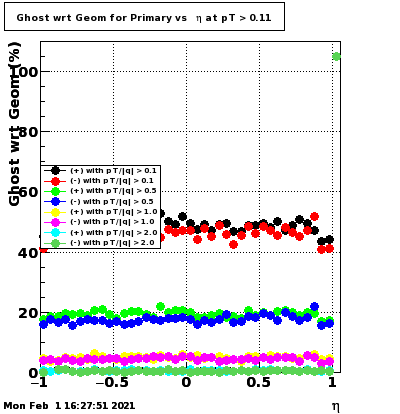

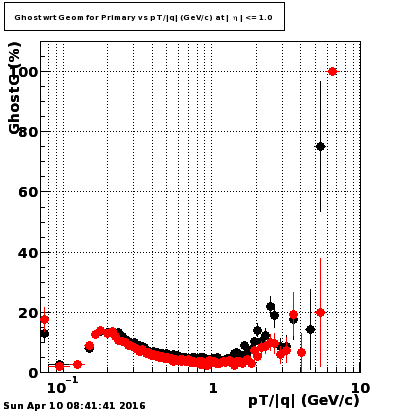

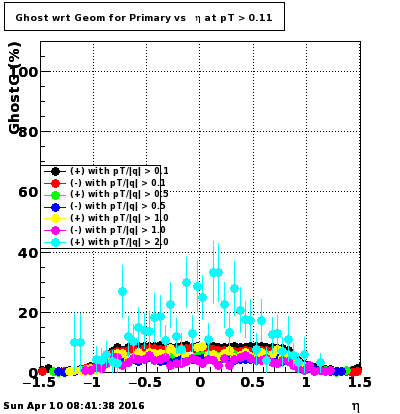

1.2.2.9. Primary tracks. All. Ghost wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

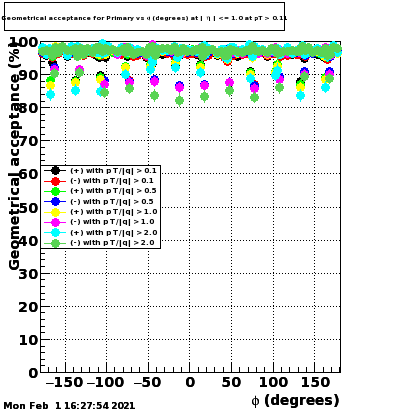

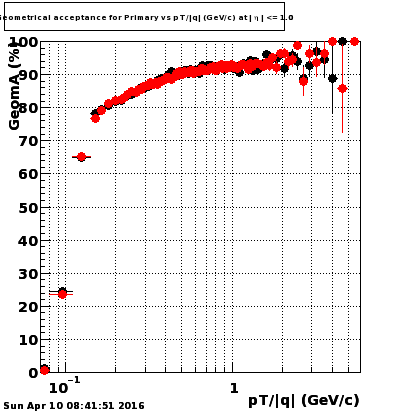

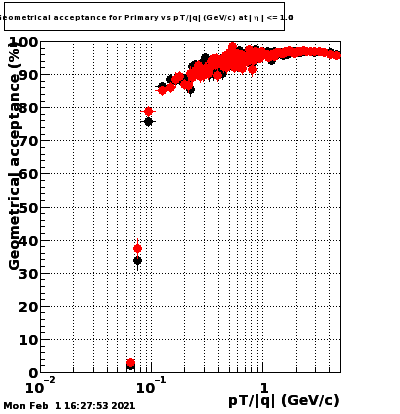

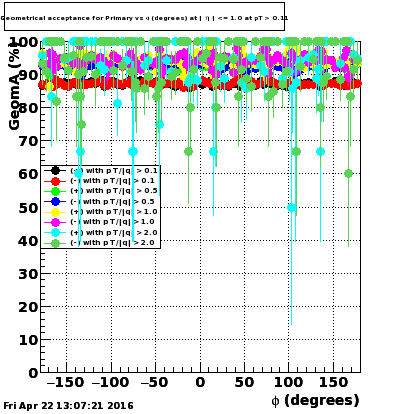

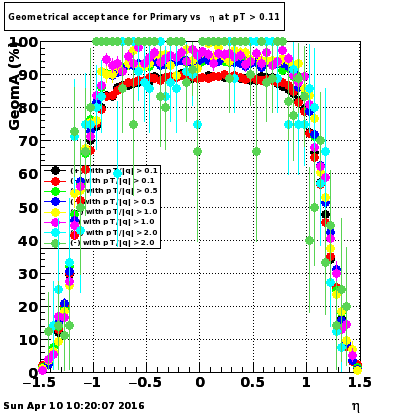

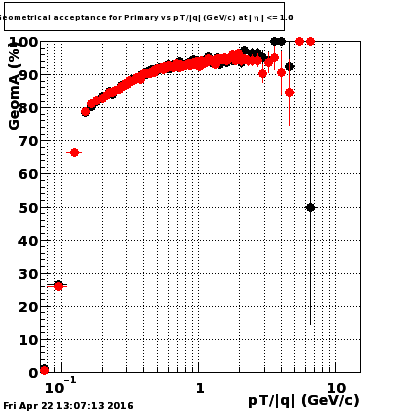

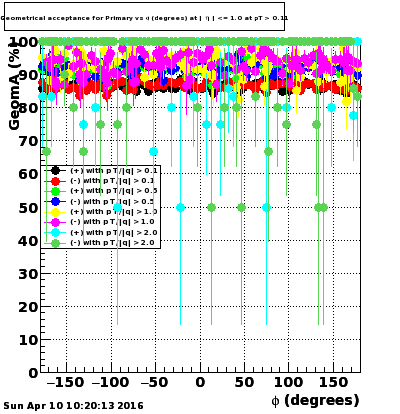

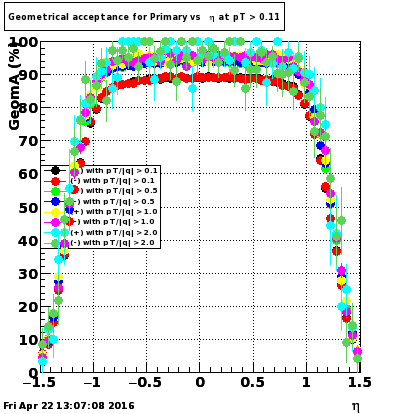

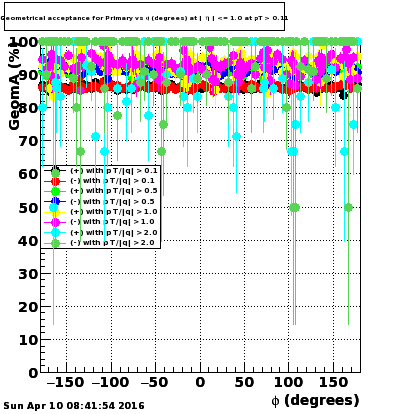

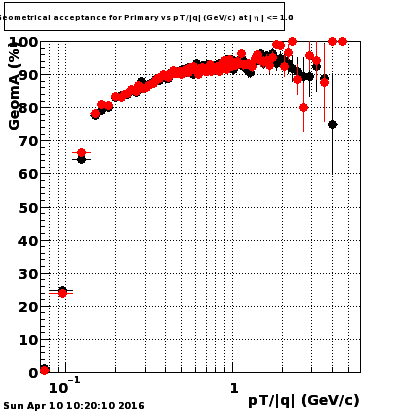

1.2.2.1. Primary tracks. Pions. Geometrical acceptance.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

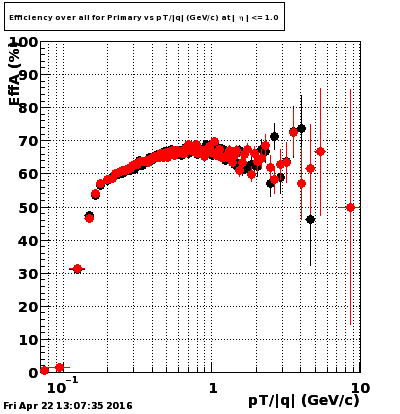

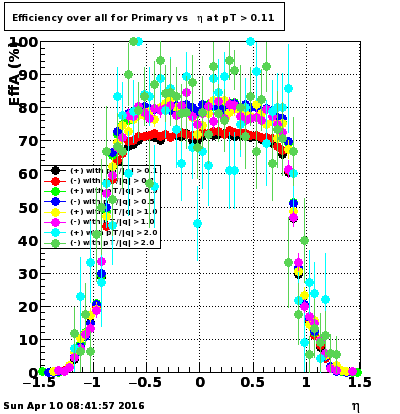

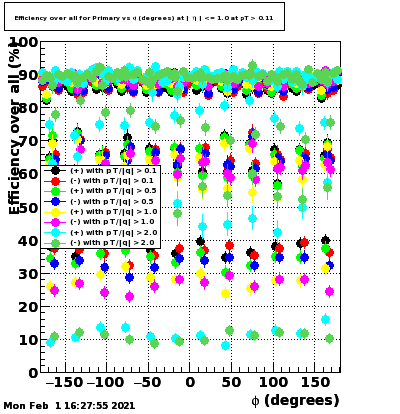

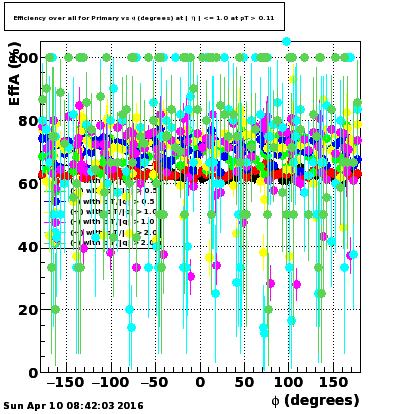

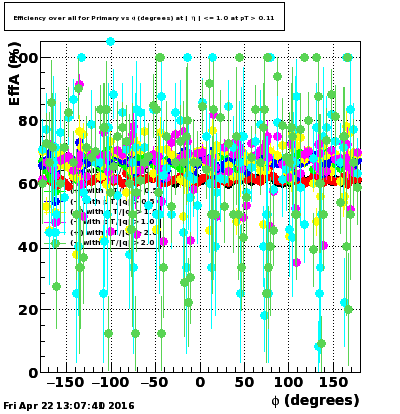

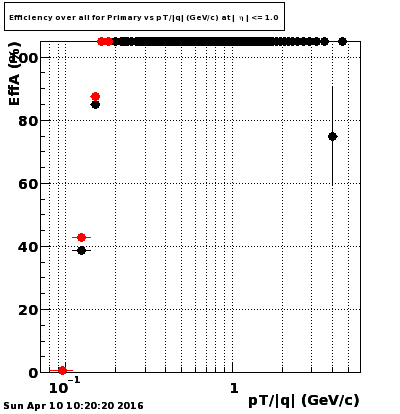

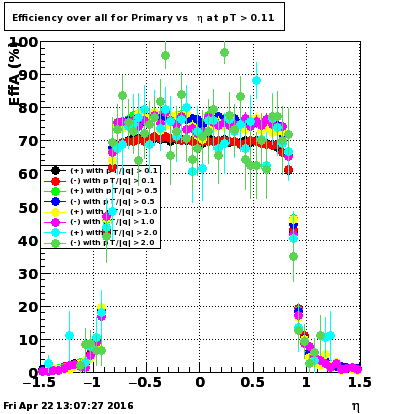

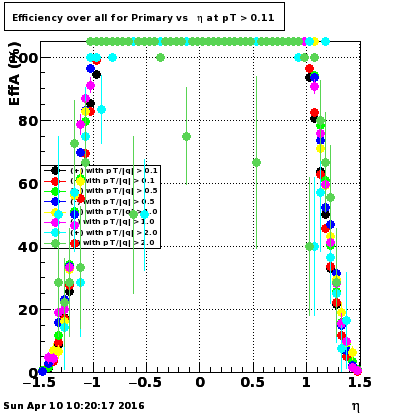

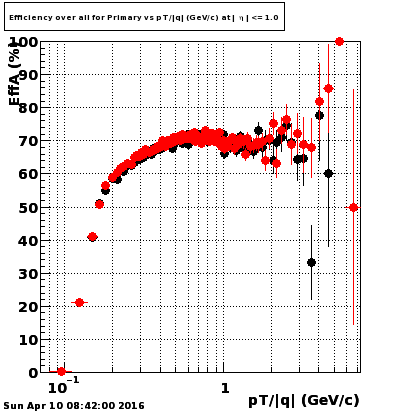

1.2.2.2. Primary tracks. Pions. Efficiency over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

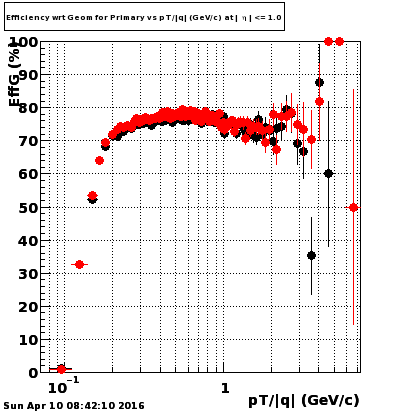

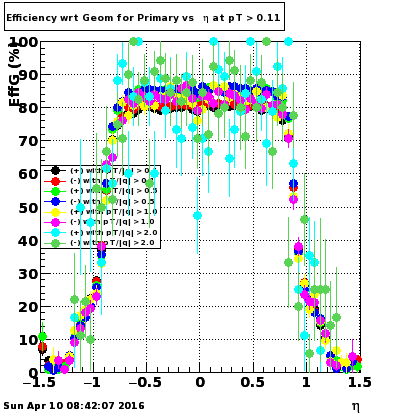

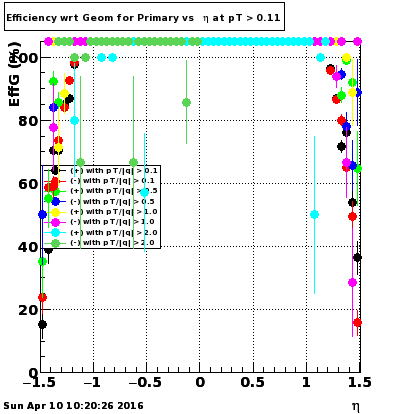

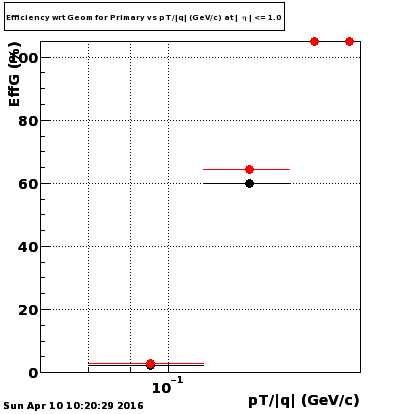

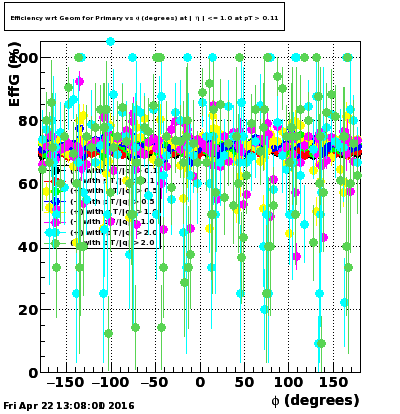

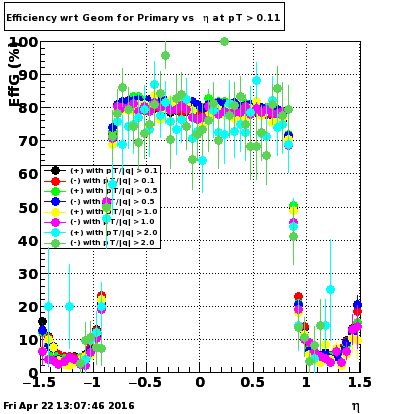

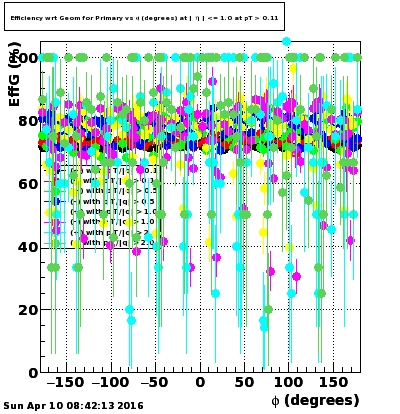

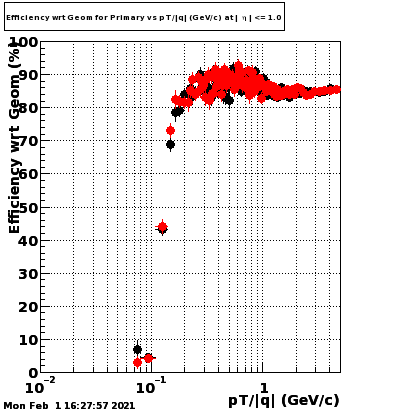

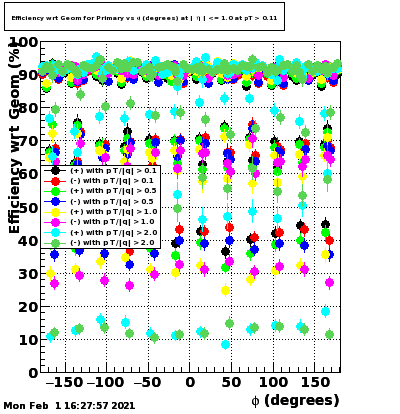

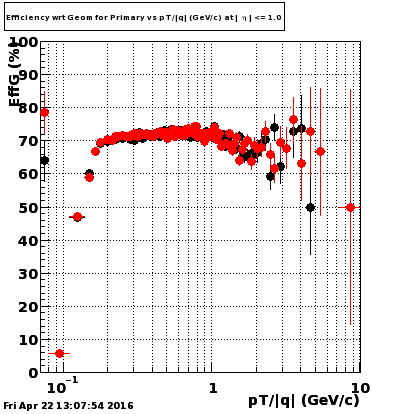

1.2.2.3. Primary tracks. Pions. Efficiency wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

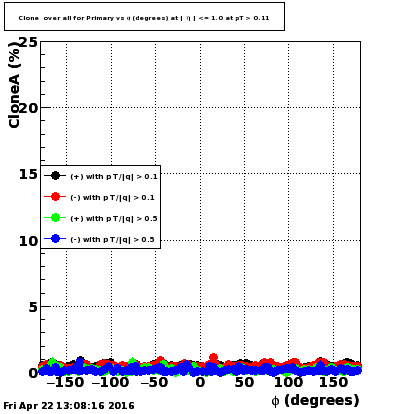

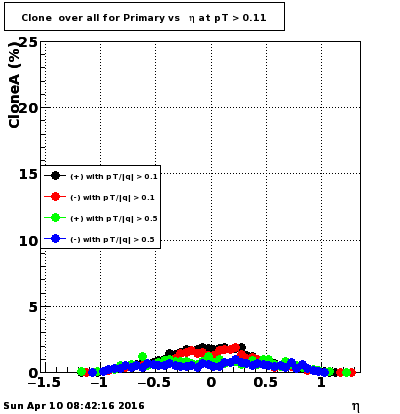

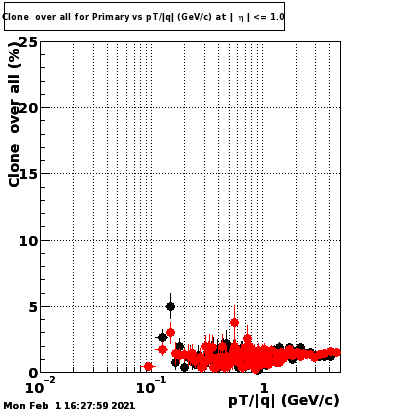

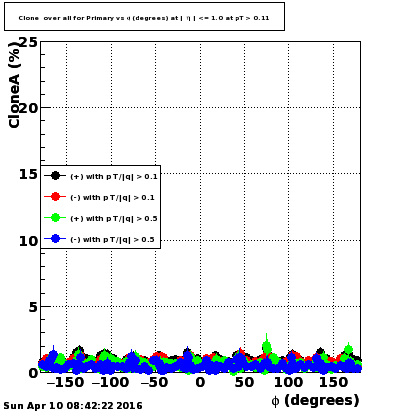

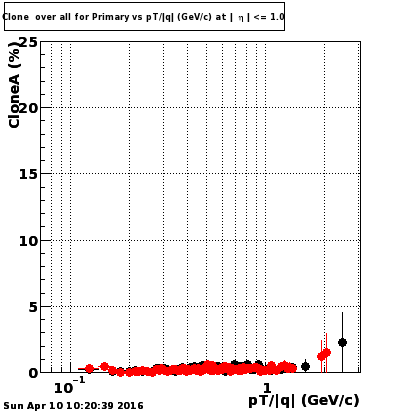

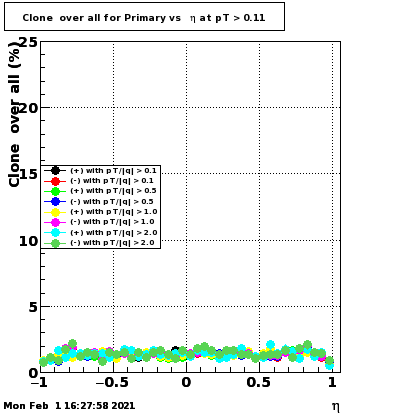

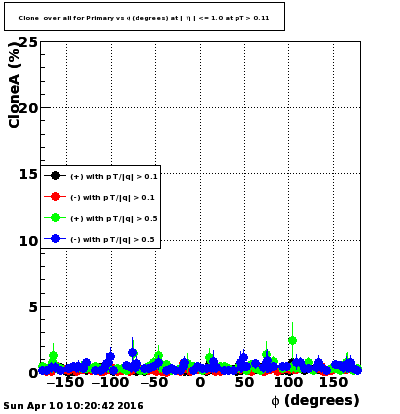

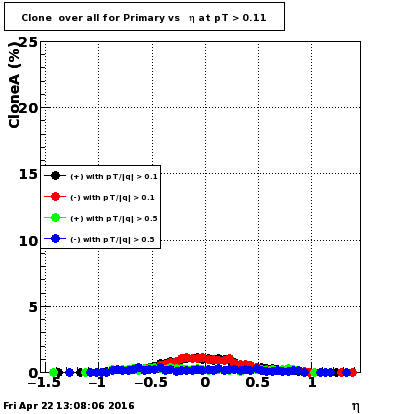

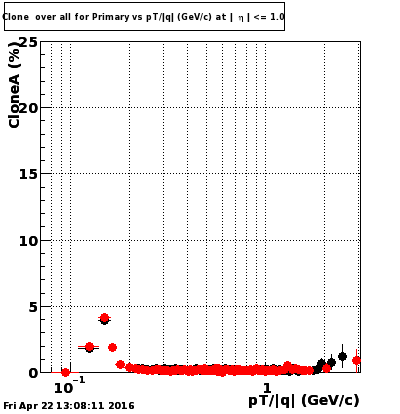

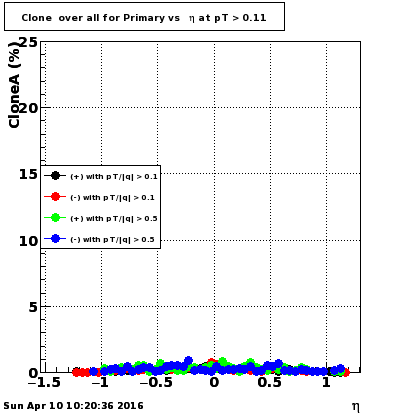

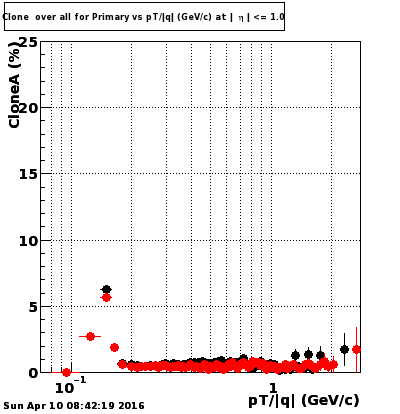

1.2.2.4. Primary tracks. Pions. Clone over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

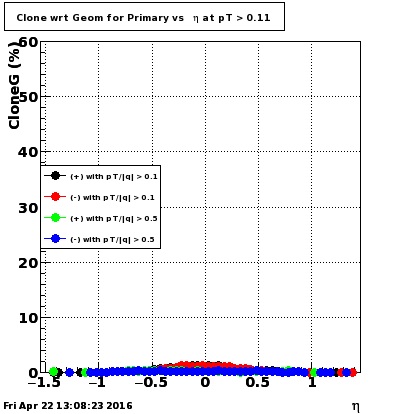

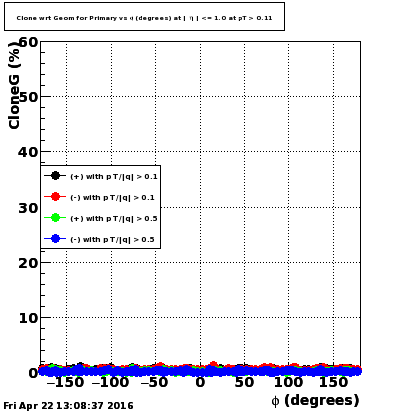

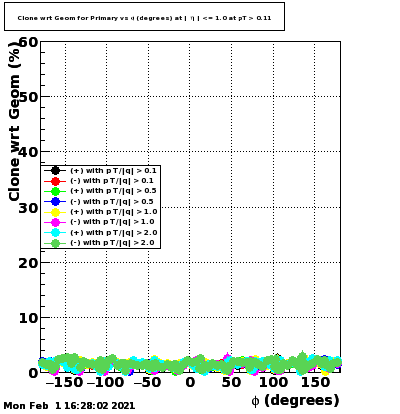

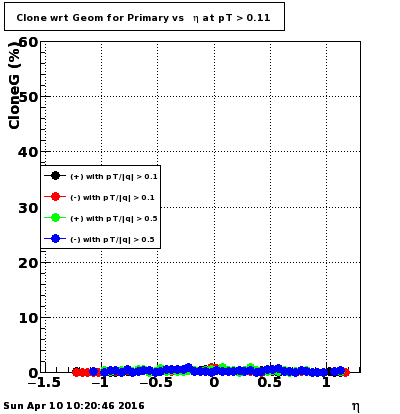

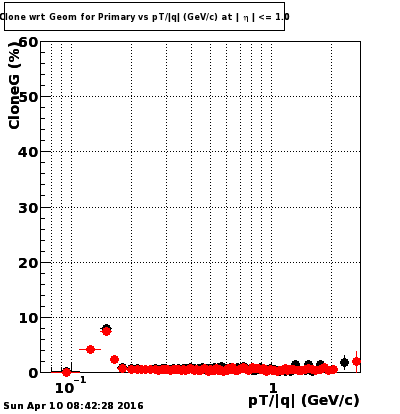

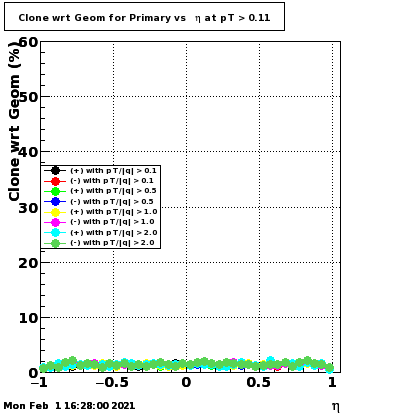

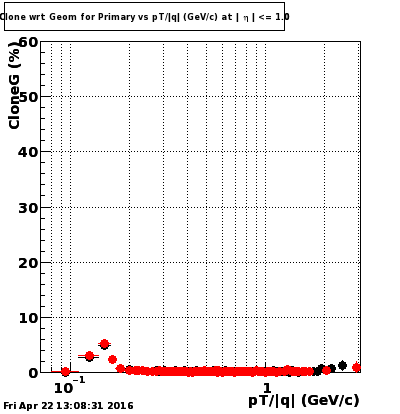

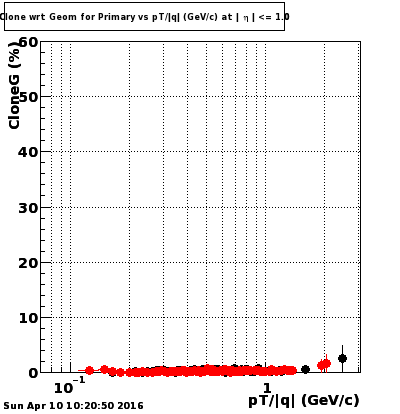

1.2.2.5. Primary tracks. Pions. Clone wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

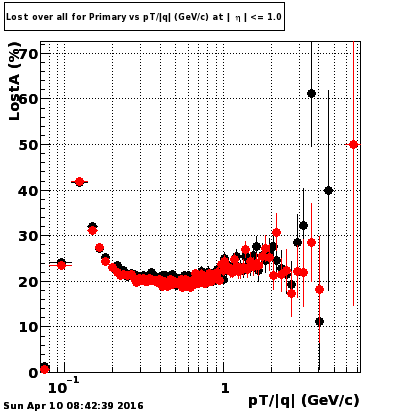

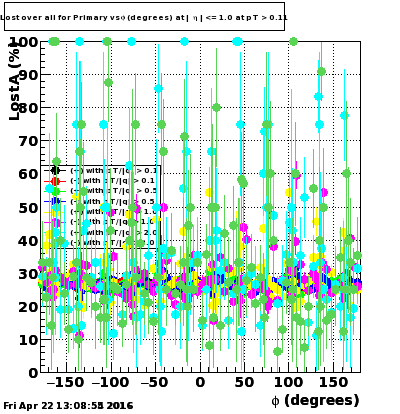

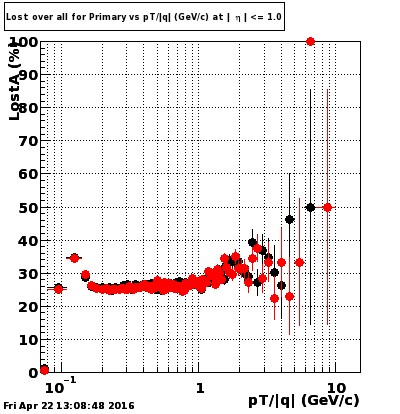

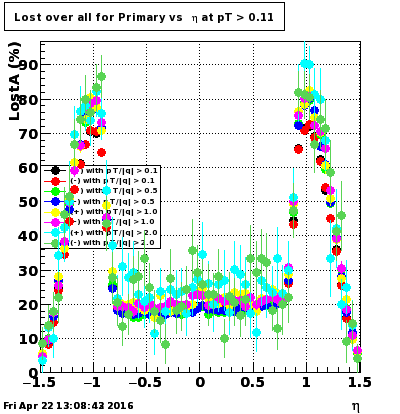

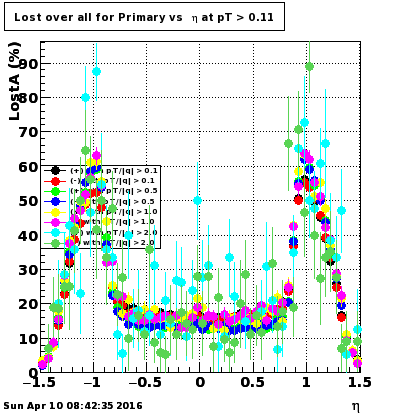

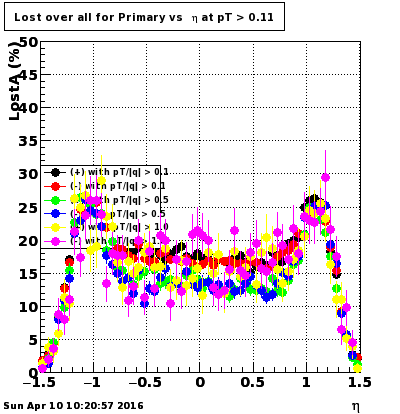

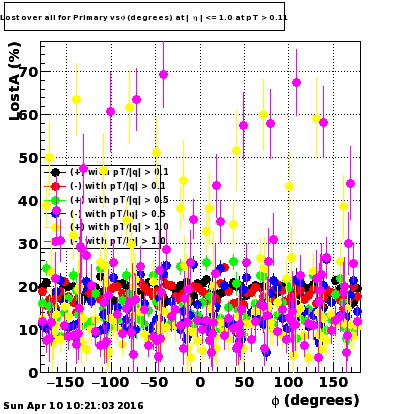

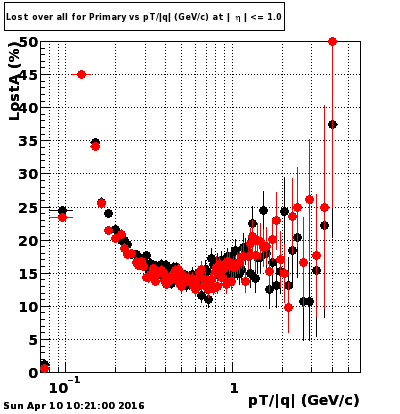

1.2.2.6. Primary tracks. Pions. Lost over all.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

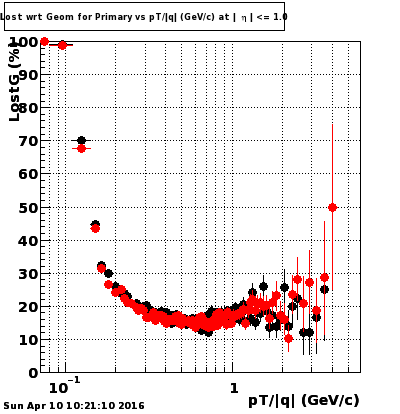

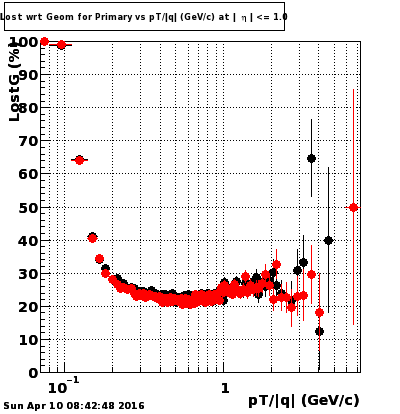

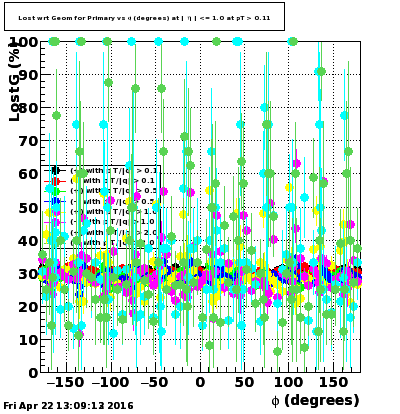

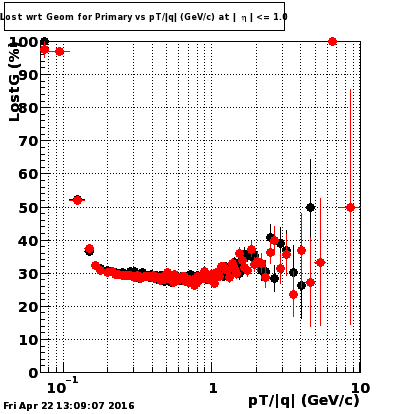

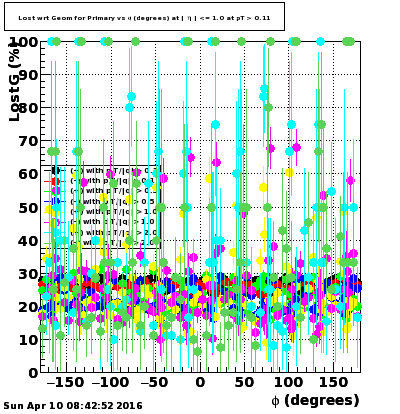

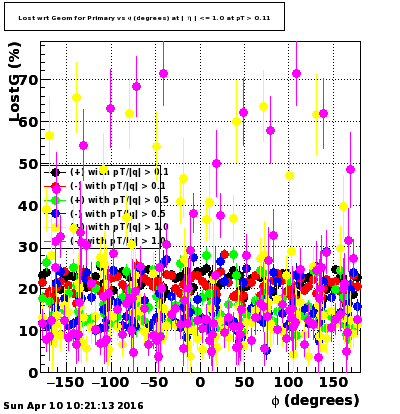

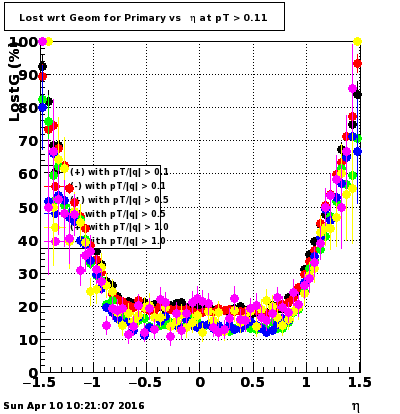

1.2.2.7. Primary tracks. Pions. Lost wrt Geom.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3

1.2.2.8. Primary tracks. Pions. Ghost over all.

1.2.2.9. Primary tracks. Pions. Ghost wrt Geom.

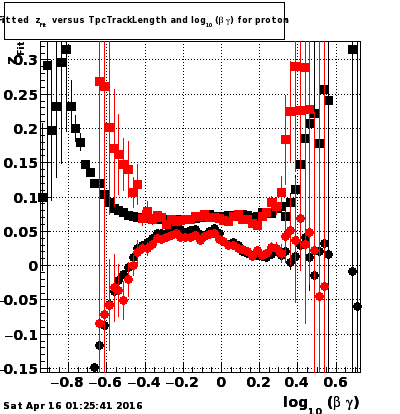

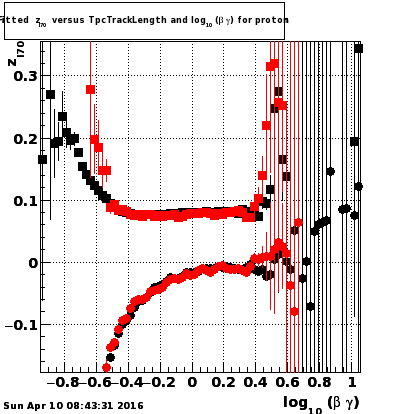

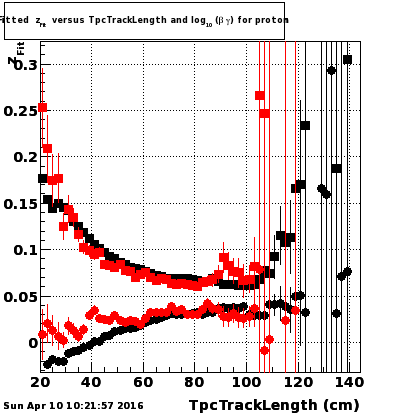

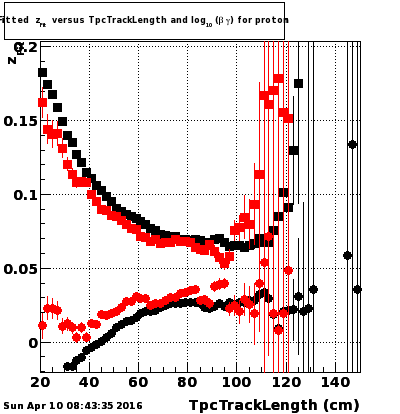

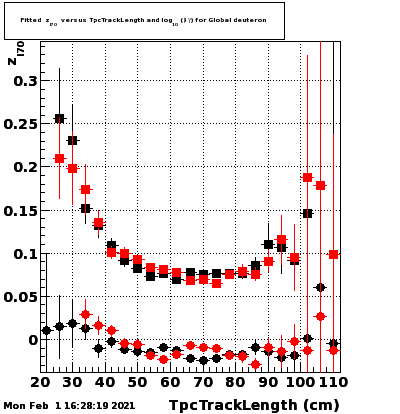

1.3. TPC dE/dx PiD.

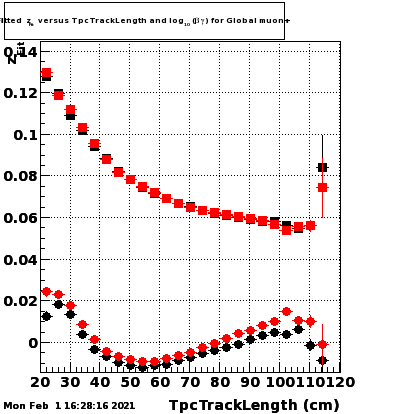

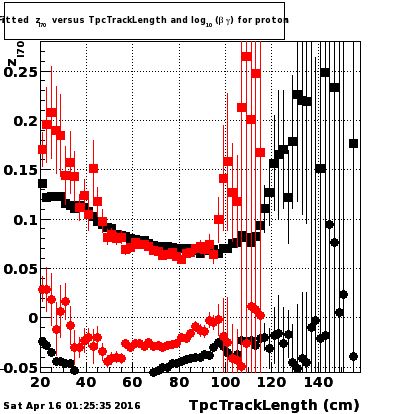

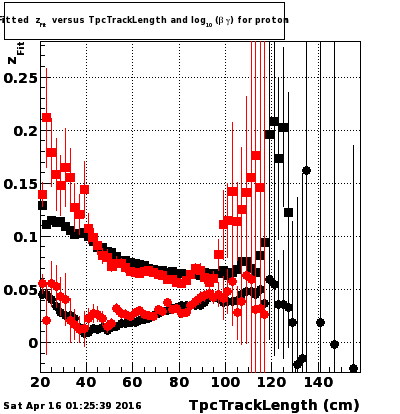

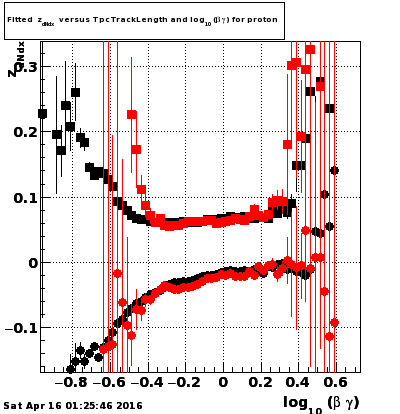

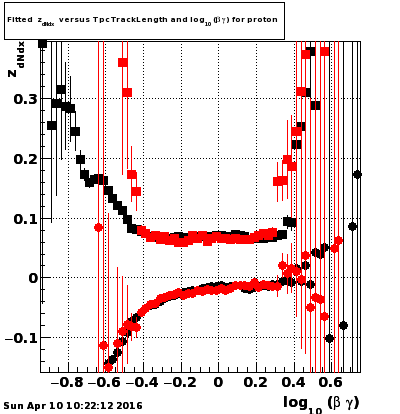

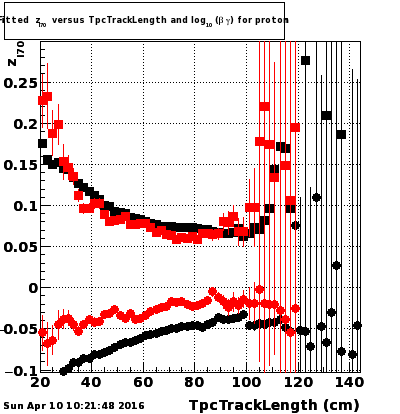

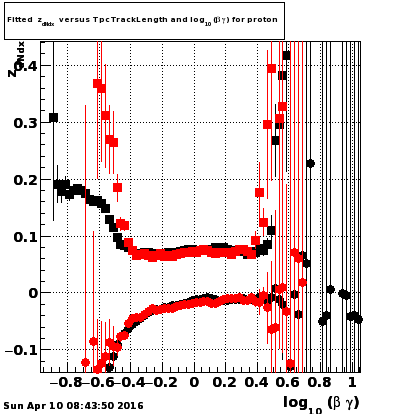

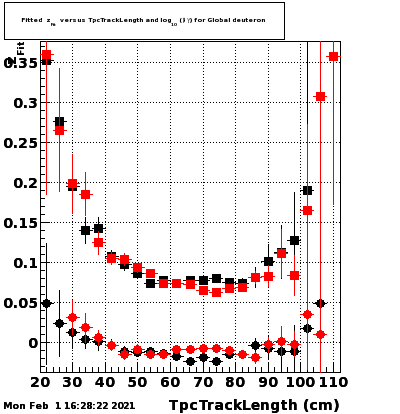

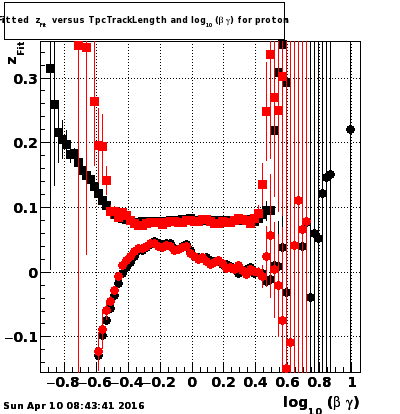

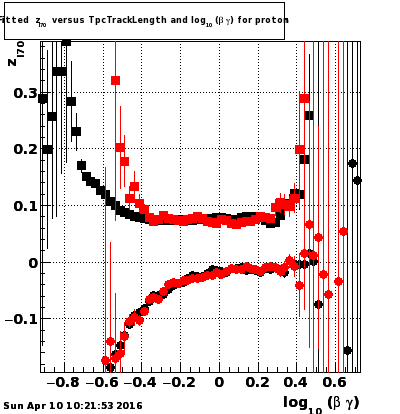

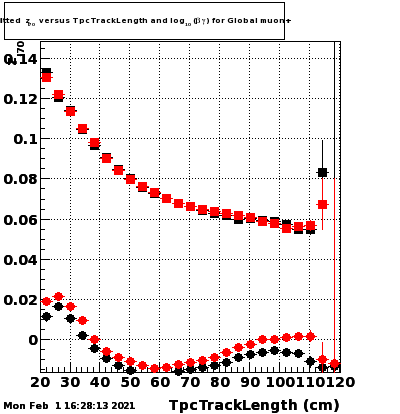

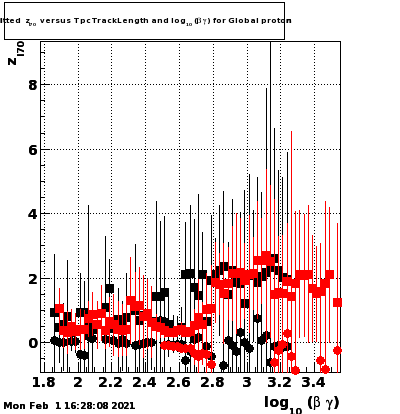

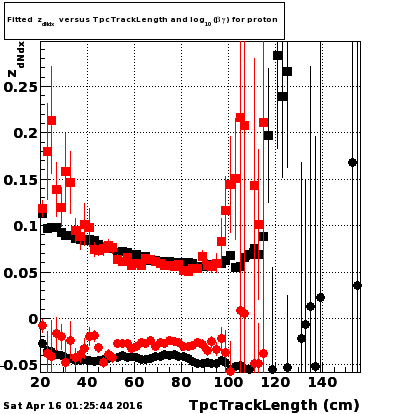

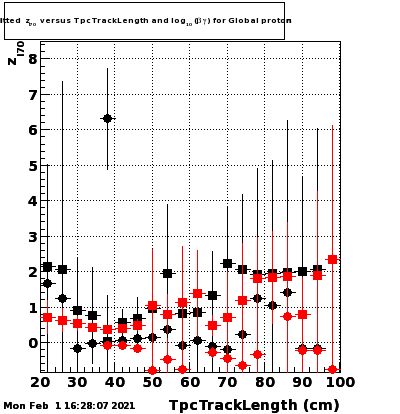

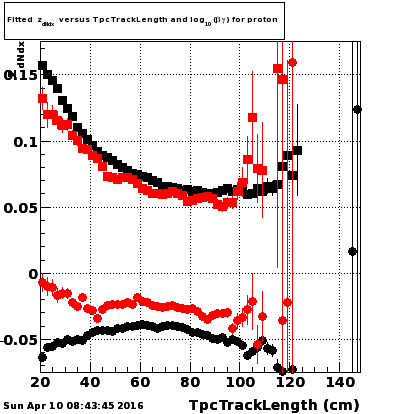

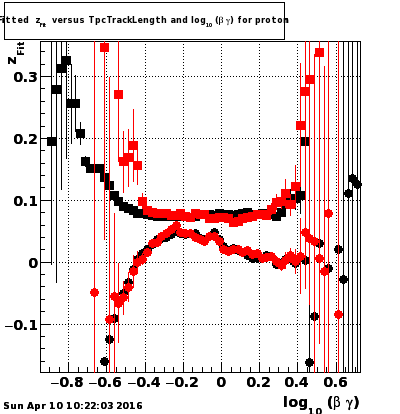

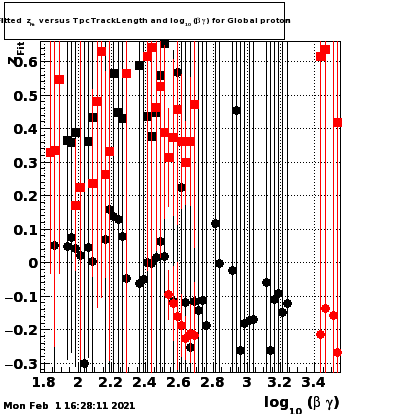

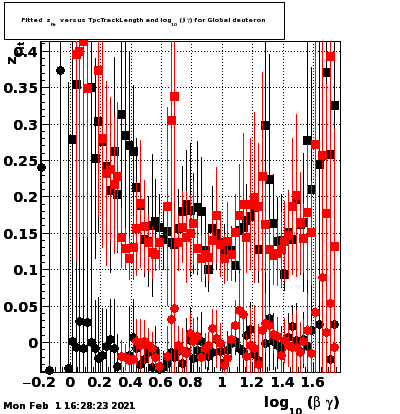

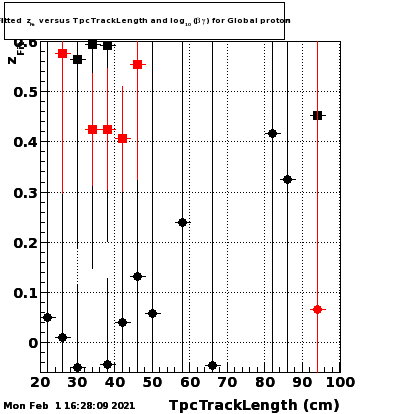

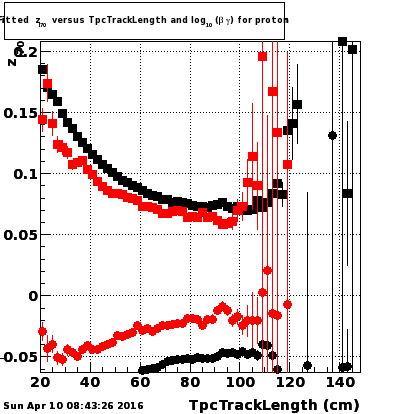

1.3.1. Global tracks.

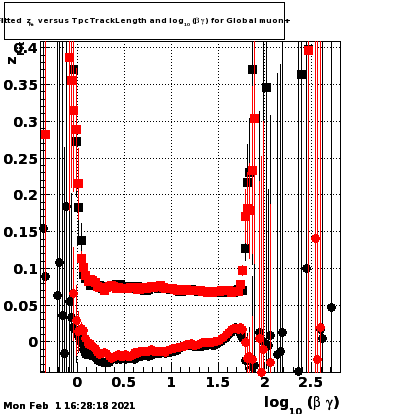

1.3.1.1.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.1.2.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.1.3.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.1.4.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.1.5.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.1.6.

1.3.1.7.

1.3.1.8.

1.3.1.9.

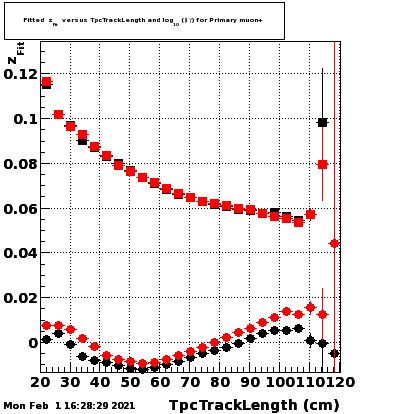

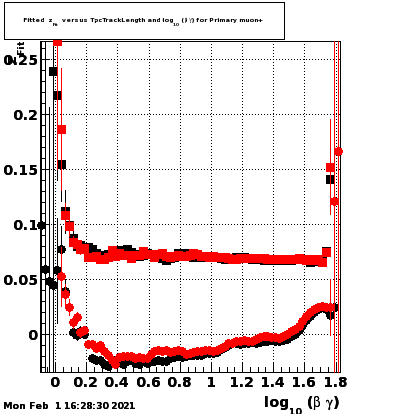

1.3.2. Primary tracks.

1.3.2.1.

1.3.2.2.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.2.3.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.2.4.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.3.2.5.

1.3.2.6.

1.3.2.7.

1.3.2.8.

1.3.2.9.

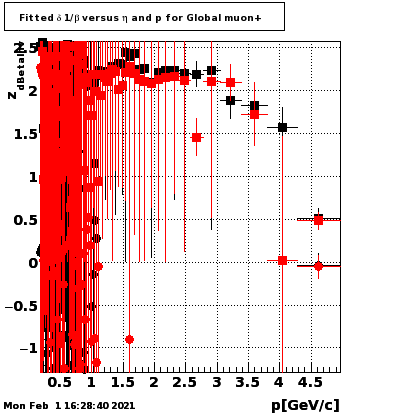

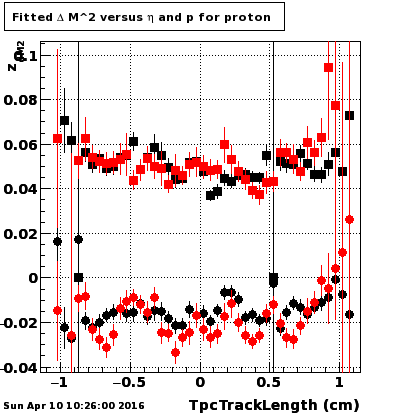

1.4. ToF PiD

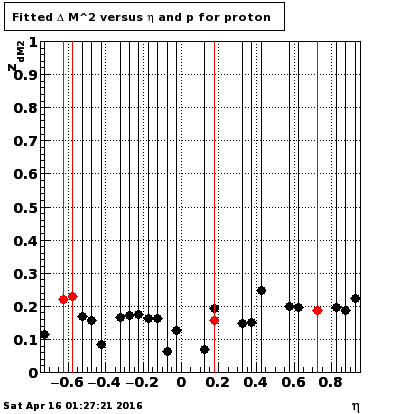

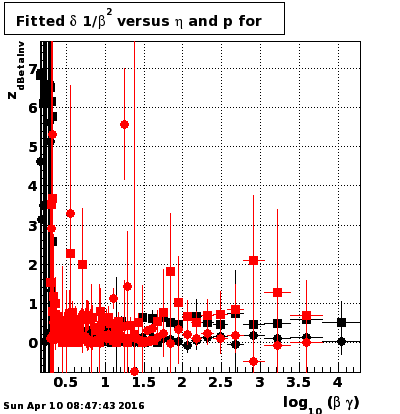

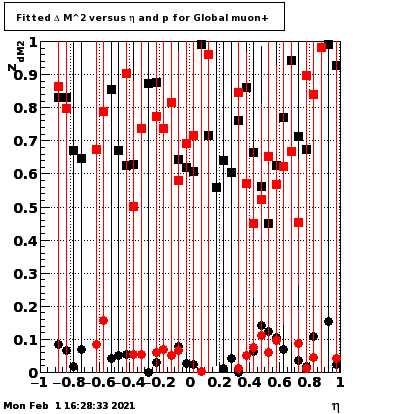

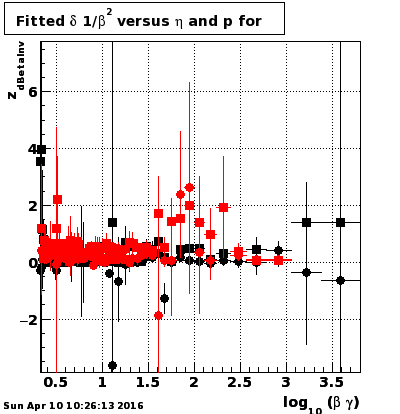

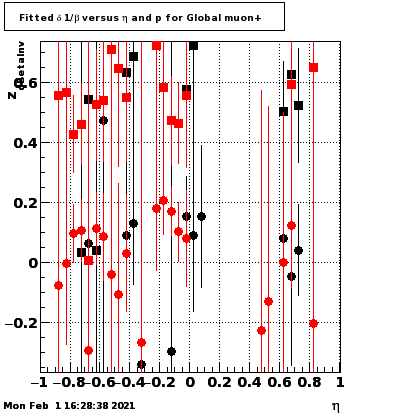

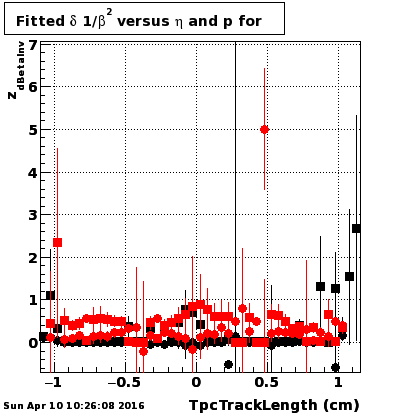

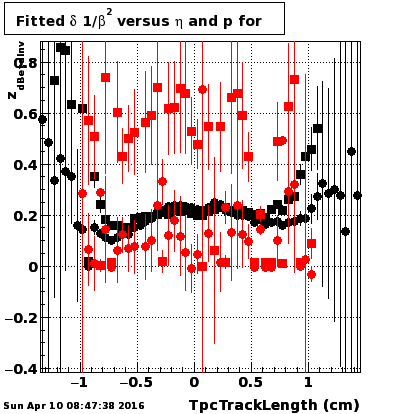

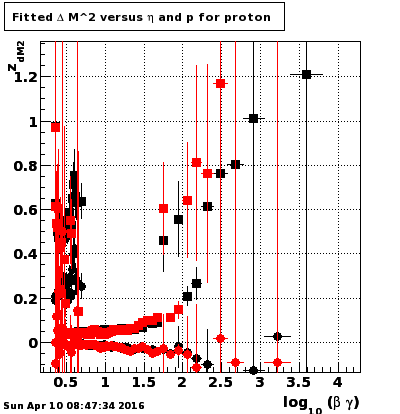

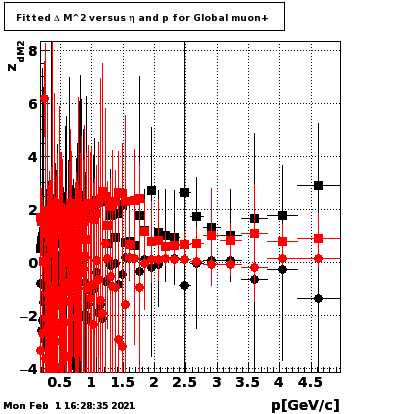

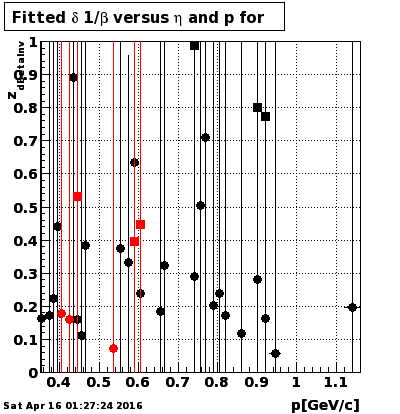

1.4.1. Global tracks.

1.4.1.1.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.1.2.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.1.3.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.1.4.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.1.5.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.1.6.

1.4.1.7.

1.4.1.8.

1.4.1.9.

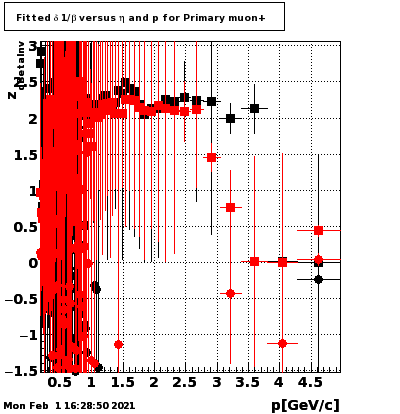

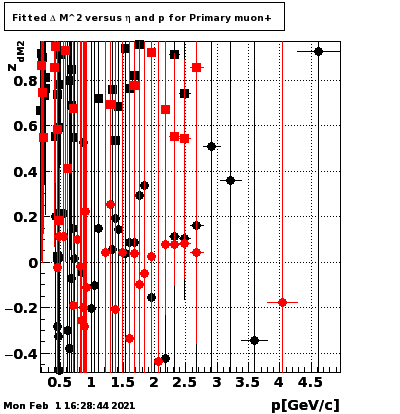

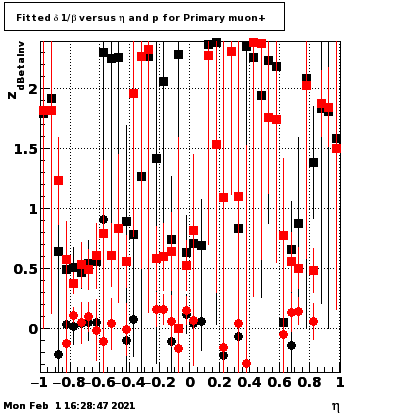

1.4.2. Primary tracks.

1.4.2.1.

1.4.2.2.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.2.3.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.2.4.

Petr	Sti	StiCAKFV	StiCAKFVsdt
Fig.1
Fig.2
Fig.3
Fig.4

1.4.2.5.

1.4.2.6.

1.4.2.7.

1.4.2.8.

1.4.2.9.

2. Vertices

2.1. Primary Vertices
