Reconstruction versus Simulation, G3 versus VMC, old versus new CA

Legend

The plots are designed to answer on the following questions:

What tracks (globals and primaries) can be considered as "good" ones depending on total no. of fit points and no. of bad hits ?

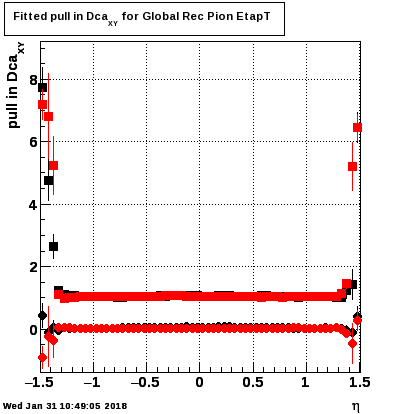

What is the track parameters and their errors dependence on the track kinematics (φ, η, 1/pT) ?
What is the track paramerer pulls dependence on above kinematics ?
What is the track reconstruction efficiencies for :

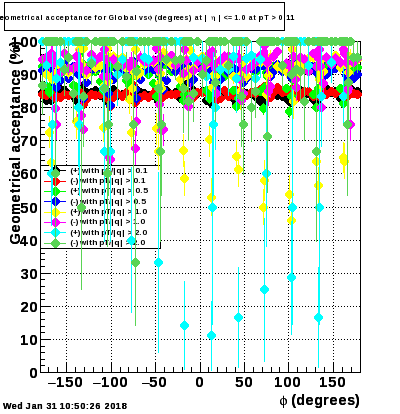

Geometrical acceptance (MC only),

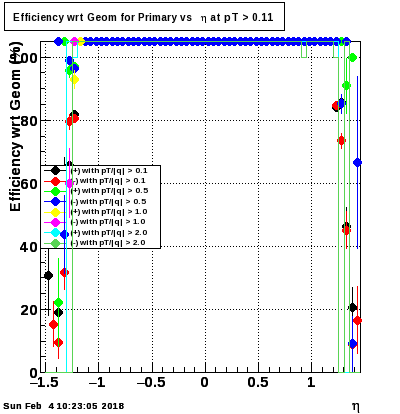

Reconstruction effiency for track with only match between MC and RC

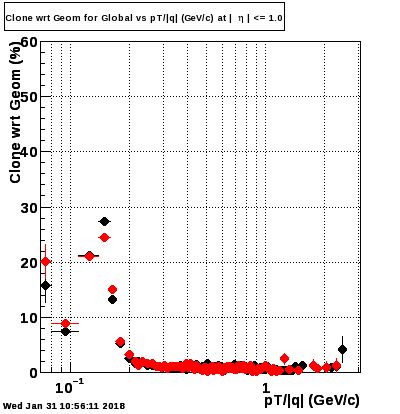

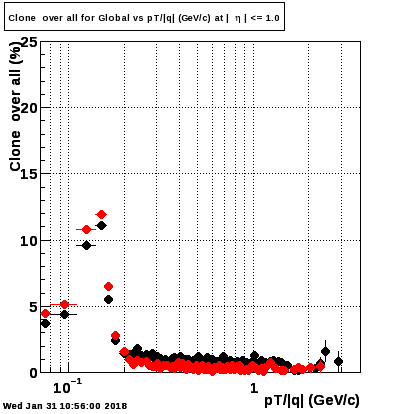

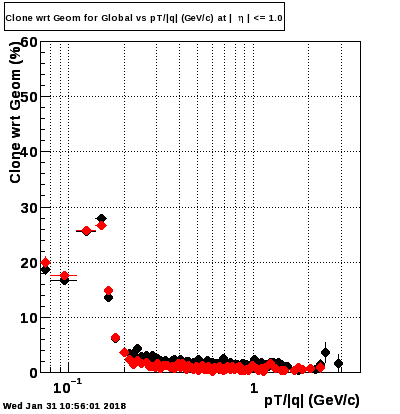

Clones, for multiple (>1) match between single MC track to RC one,

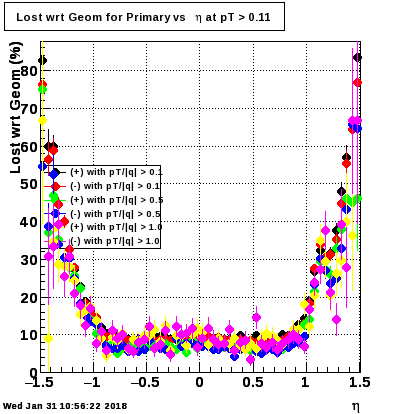

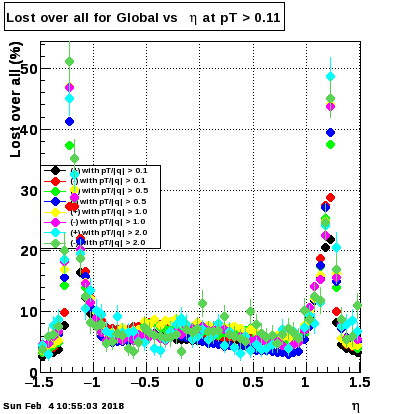

Lost tracks, MC tracks which have no RC partner.
Ghost tracks, RC tracks which have no MC partner.

Color scheme: • Positive and • Negative Tracks.
Results of Gauss fit for slices are presented as • for μ and as box for σ.
Navigations:

Problems:

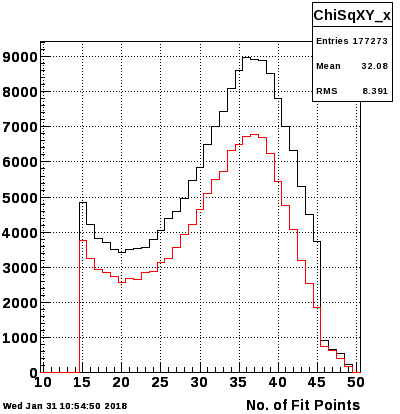

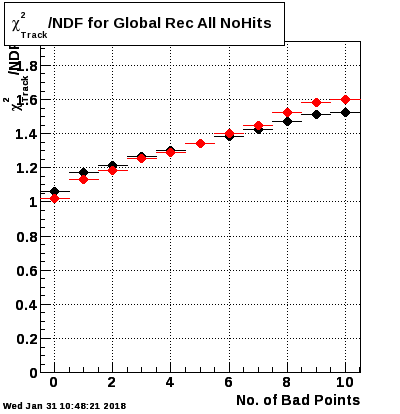

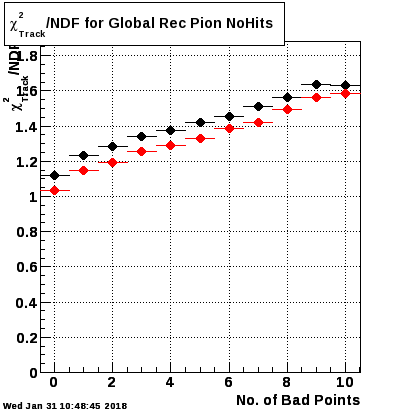

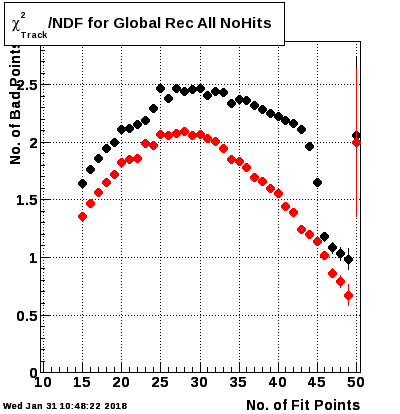

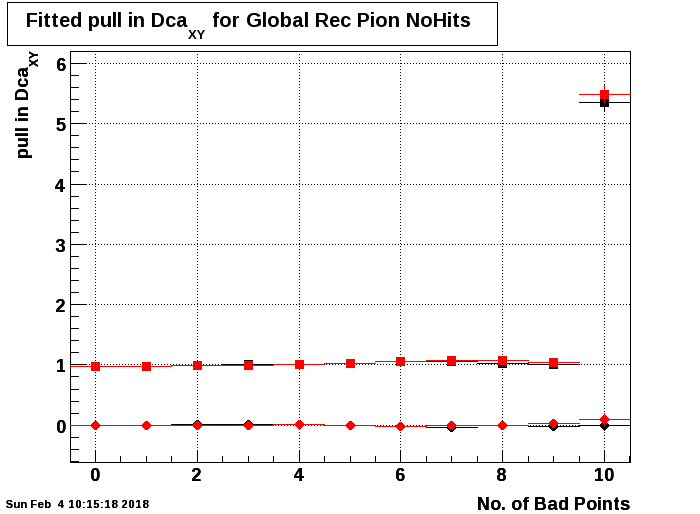

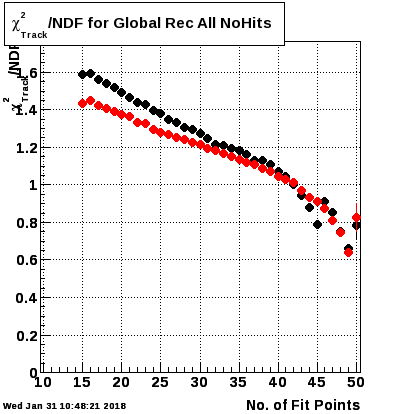

Global Tracks. 1.1.1.1. Global tracks. All. No. of fit and bad points.

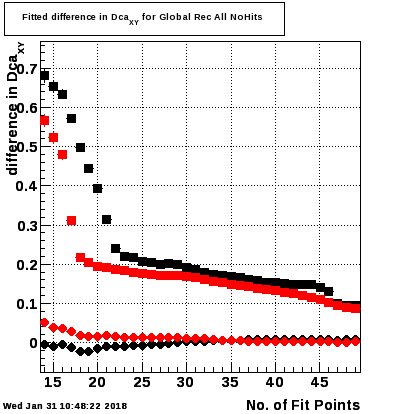

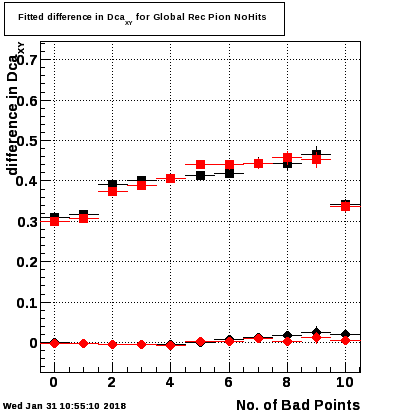

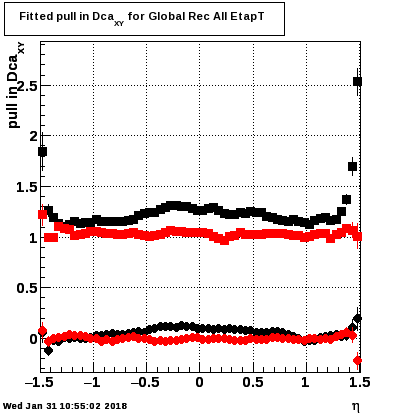

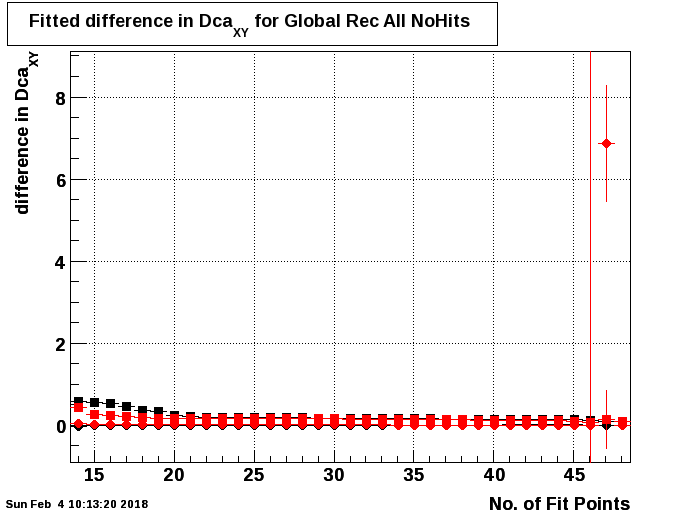

- Fig.6. Step in DCAxy for VMC versus No fit point at No fit points ≈ 20.

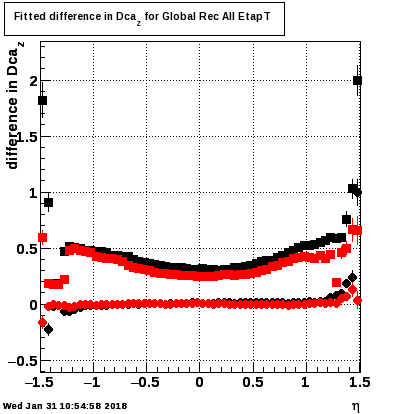

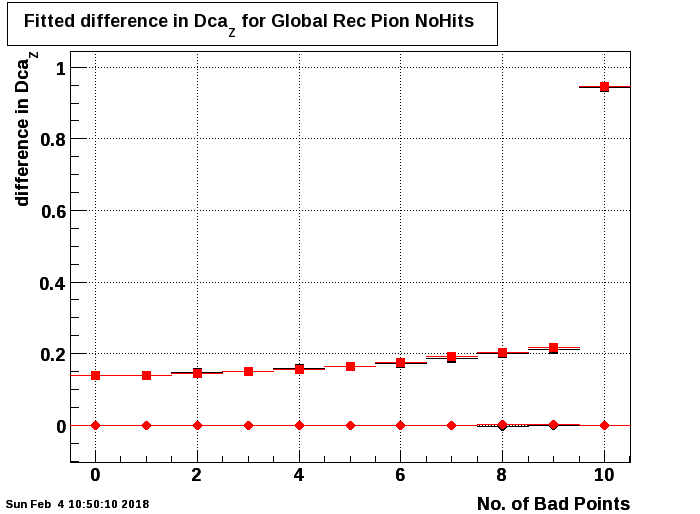

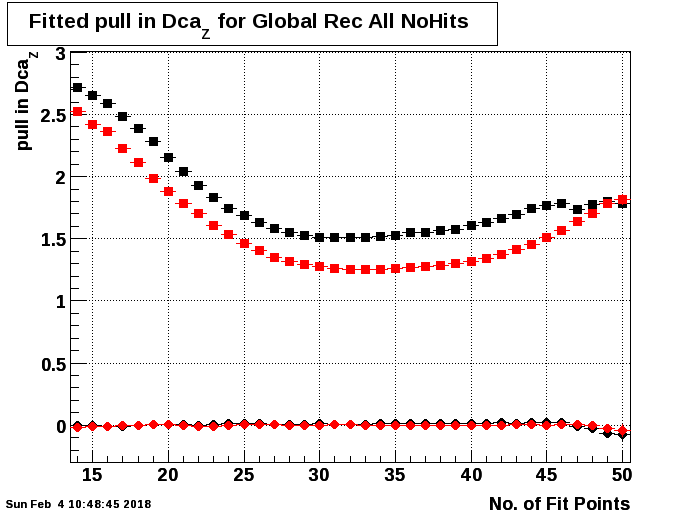

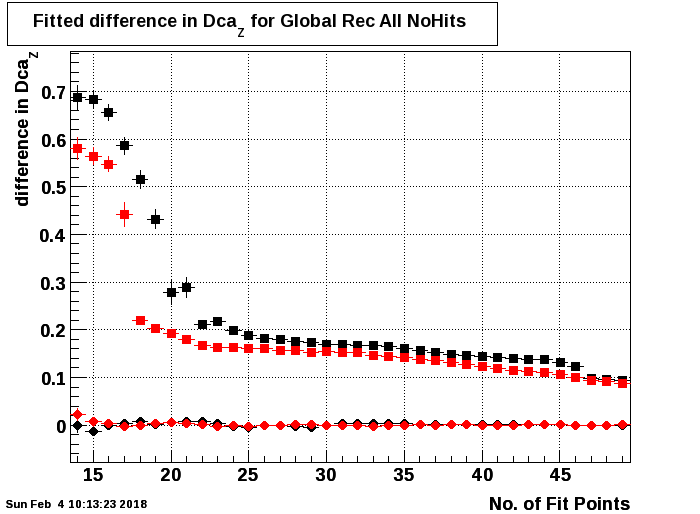

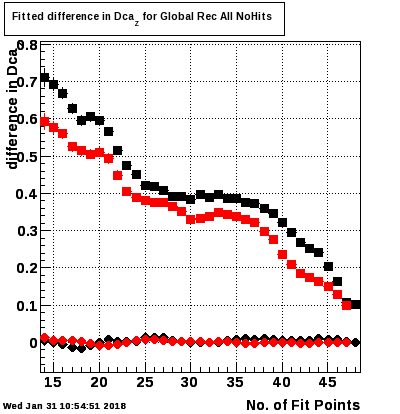

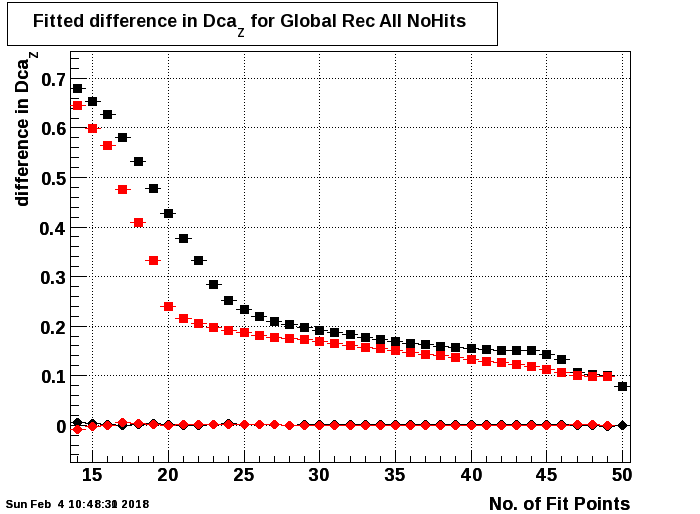

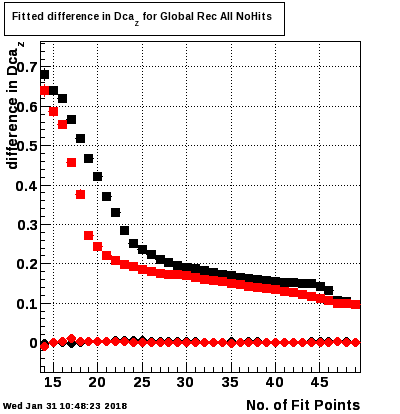

- Fig.8: The same for DCAz.

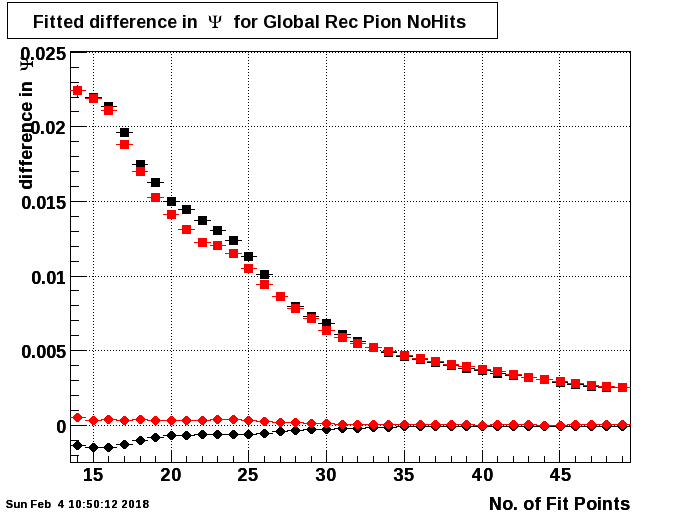

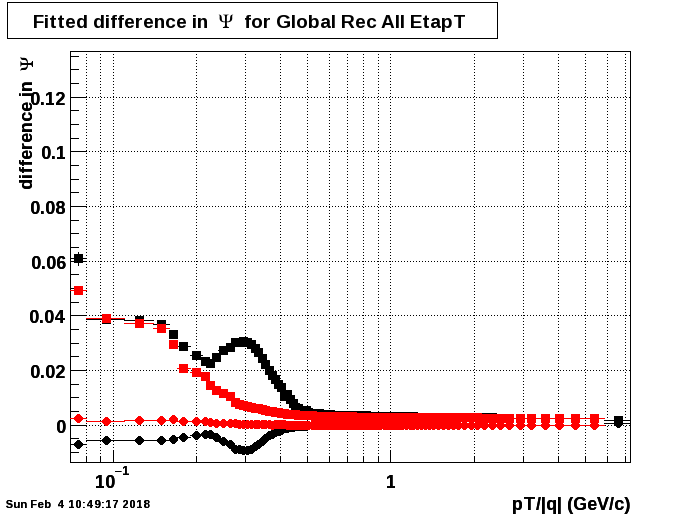

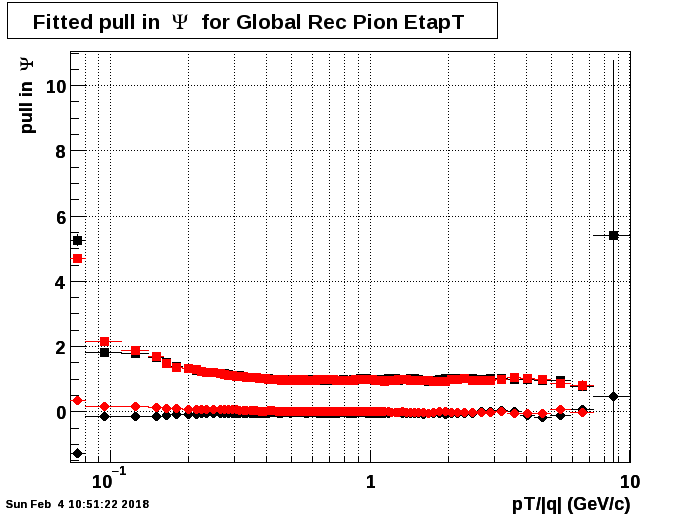

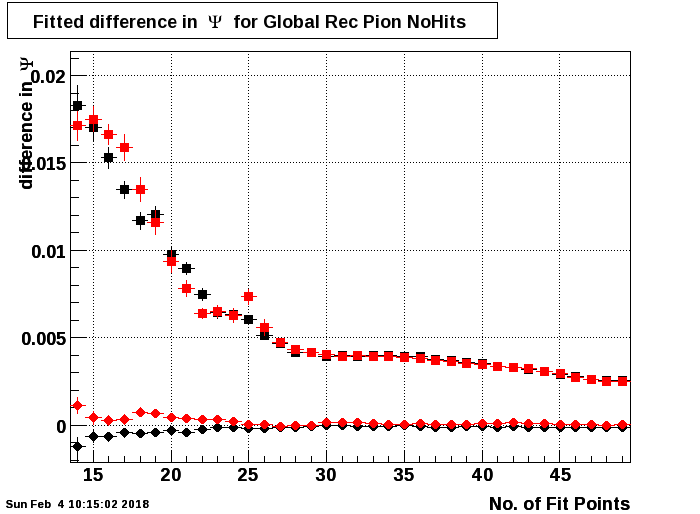

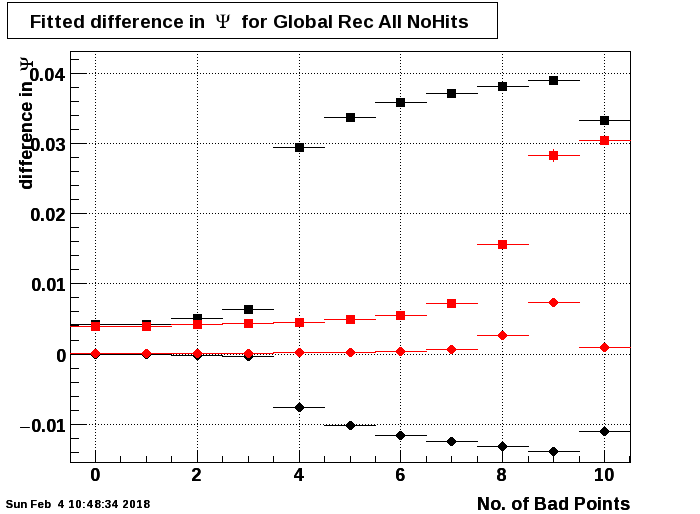

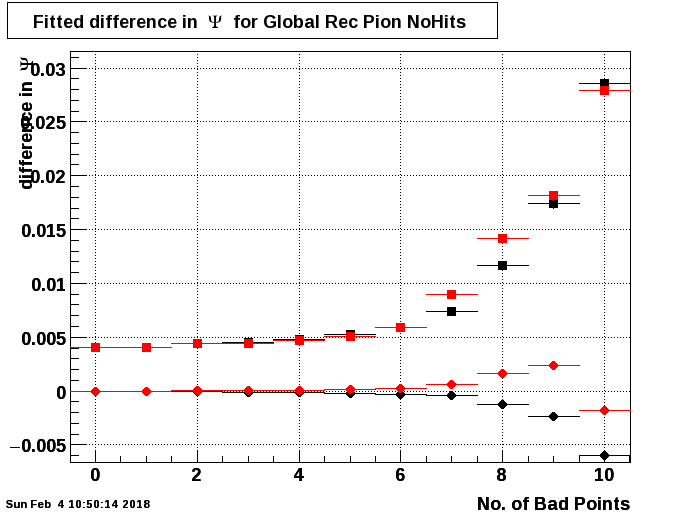

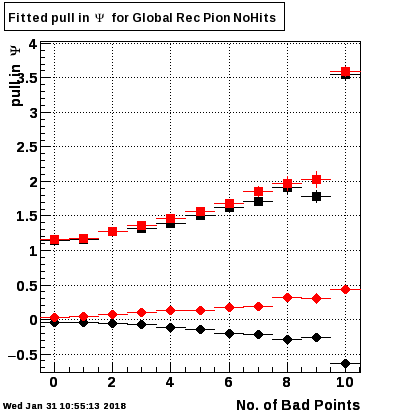

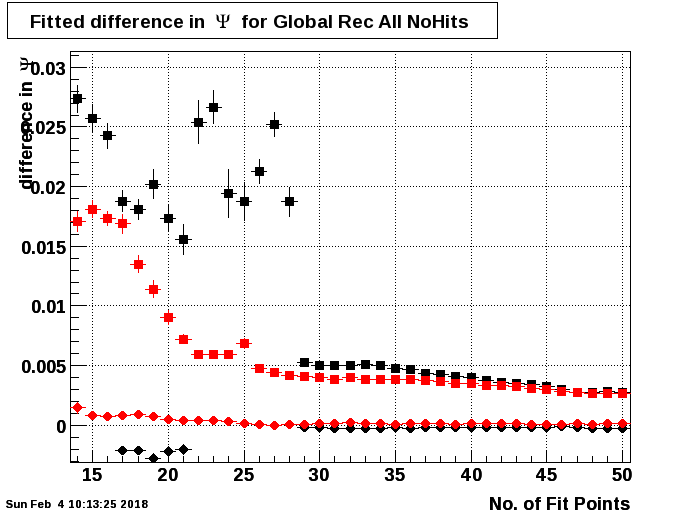

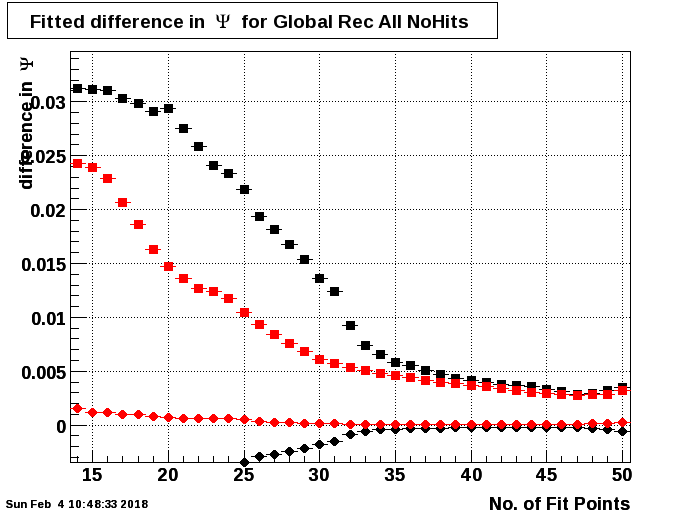

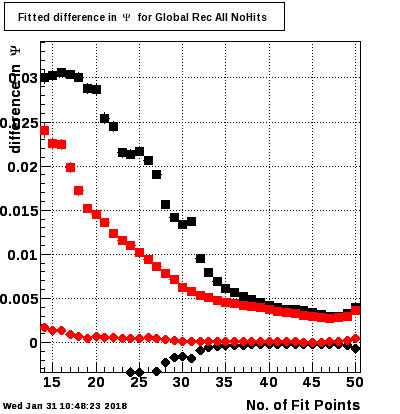

- Fig.10: The same for Ψ. σΨ ≈ 5 mrad.

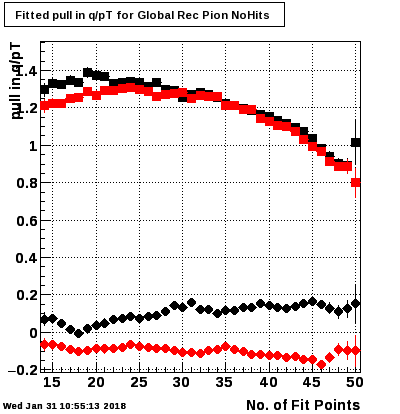

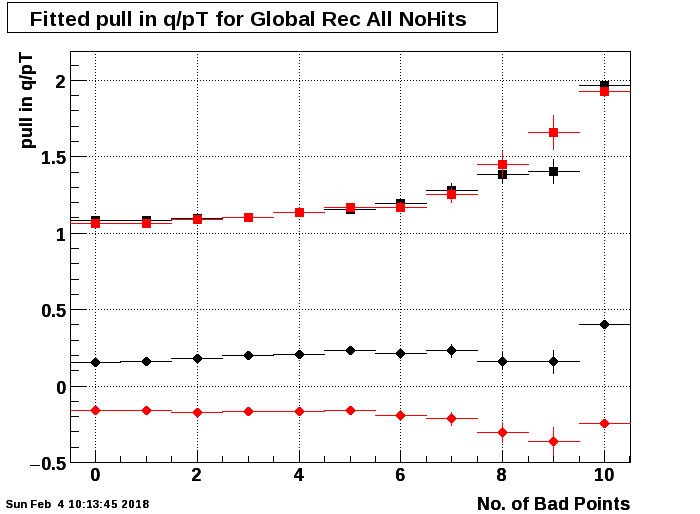

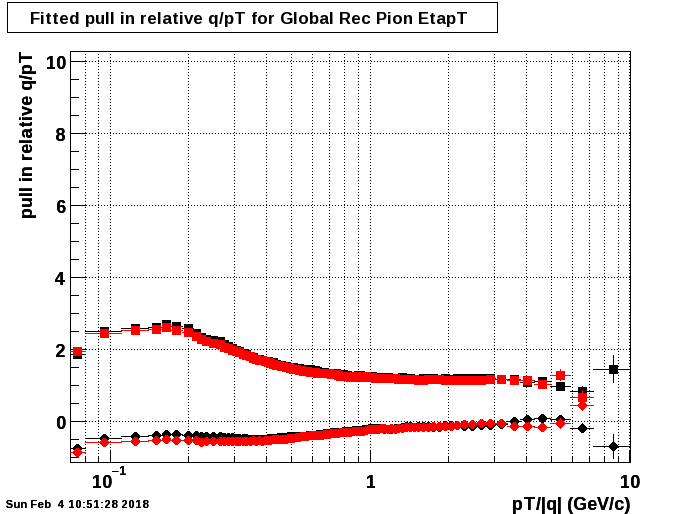

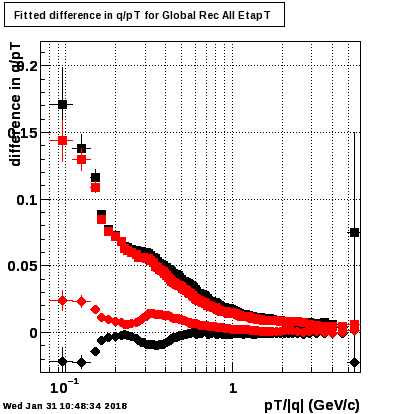

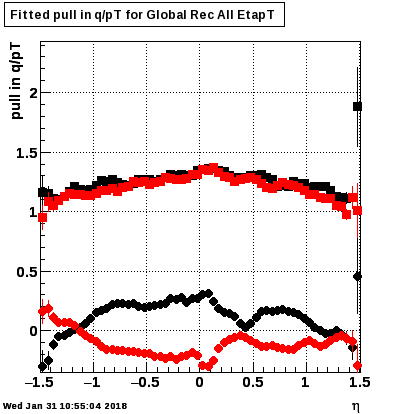

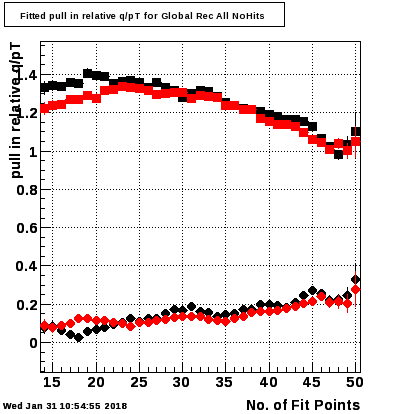

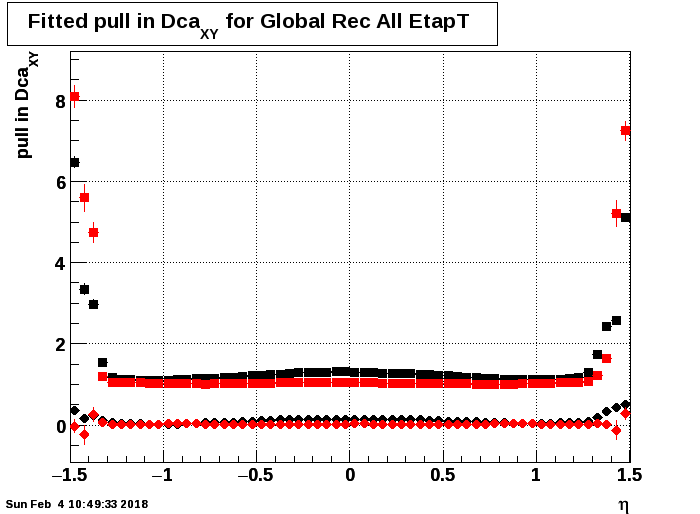

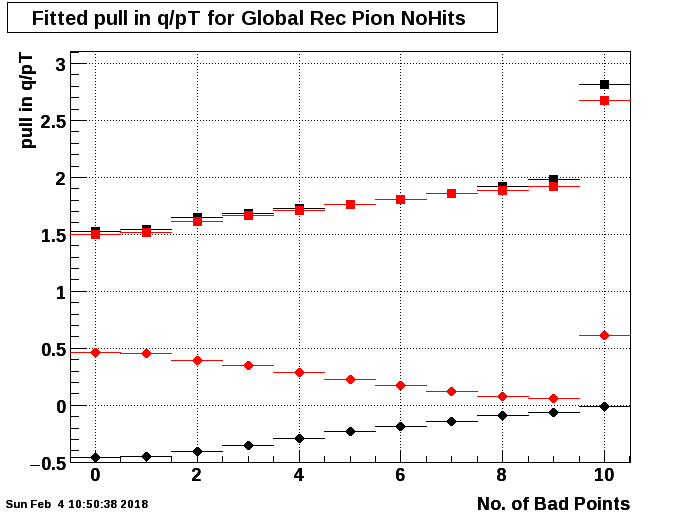

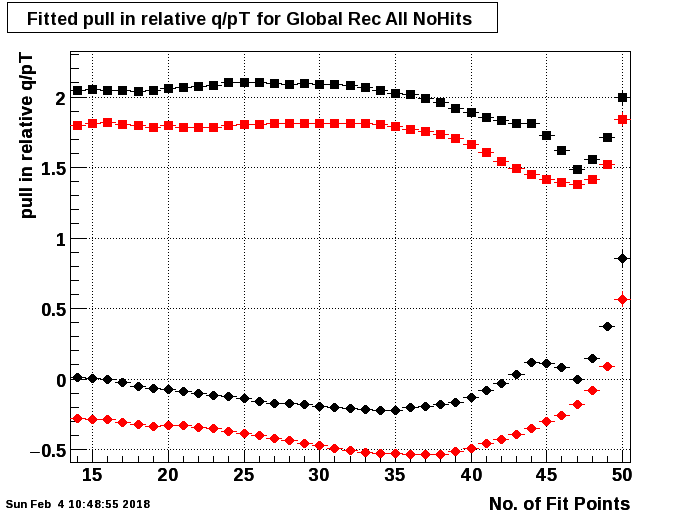

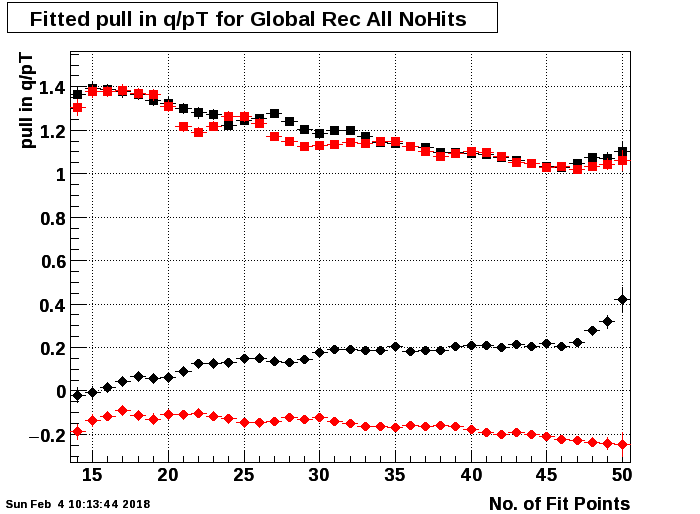

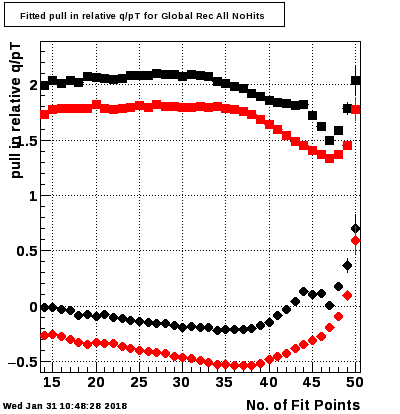

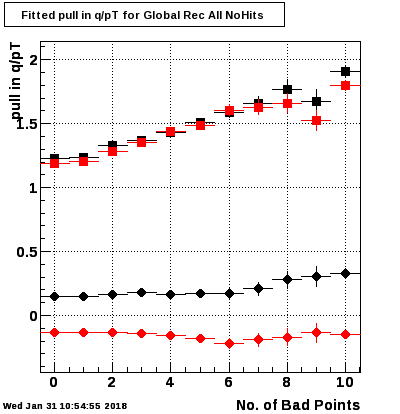

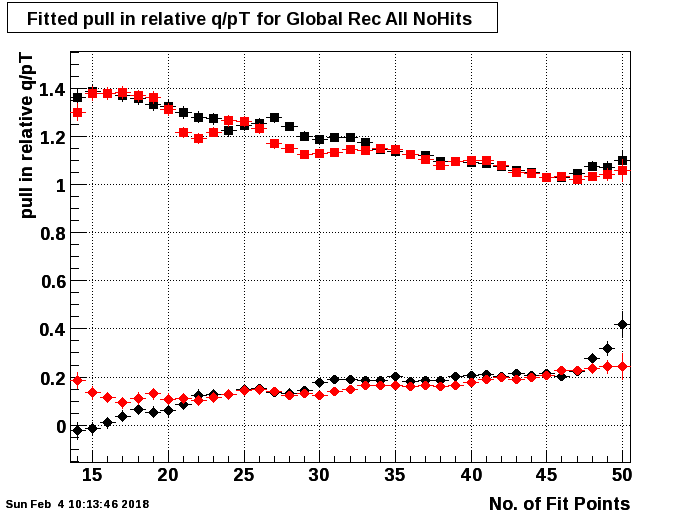

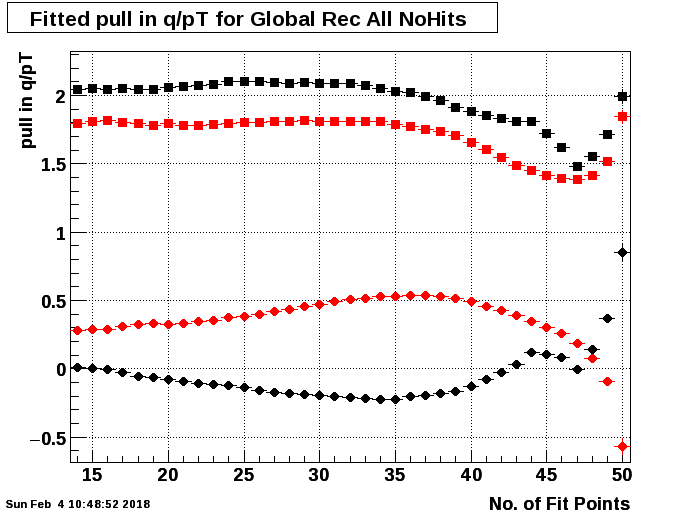

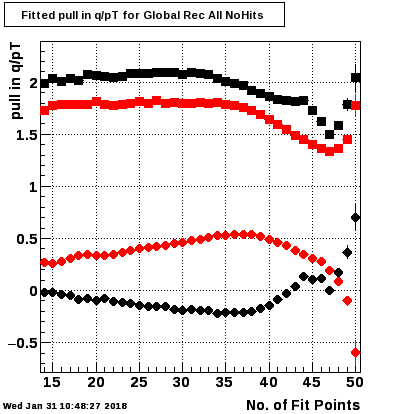

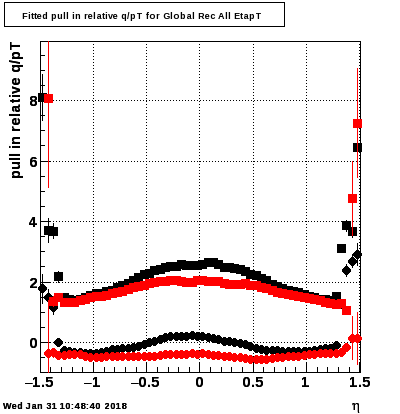

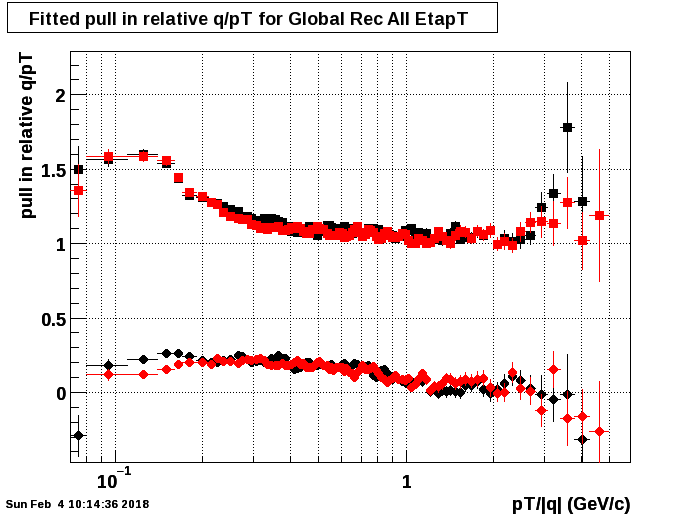

- Fig.24: &sgima; of pull in q/pT for VMC a factor of 1.8 higher

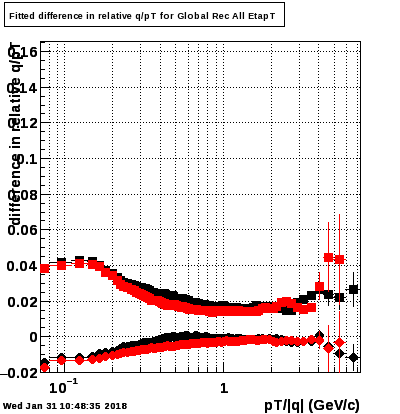

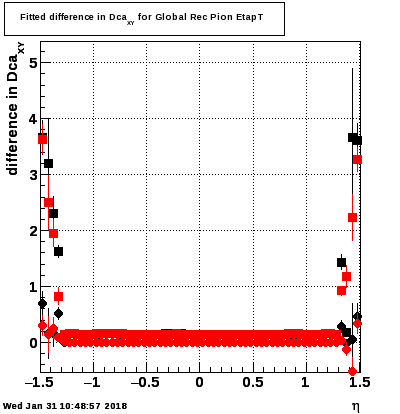

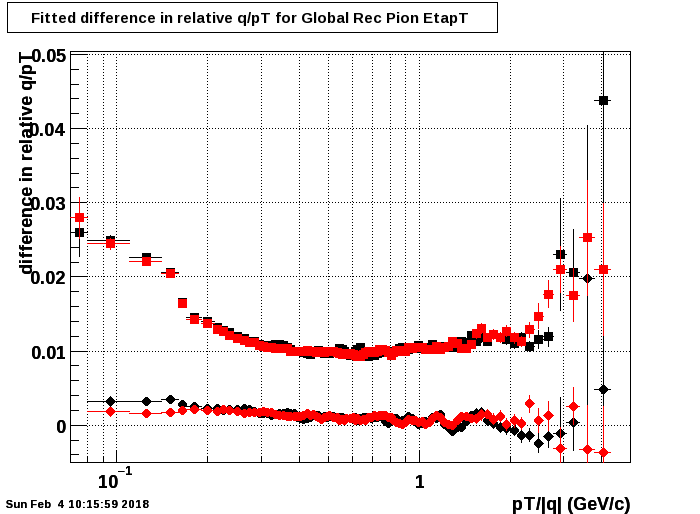

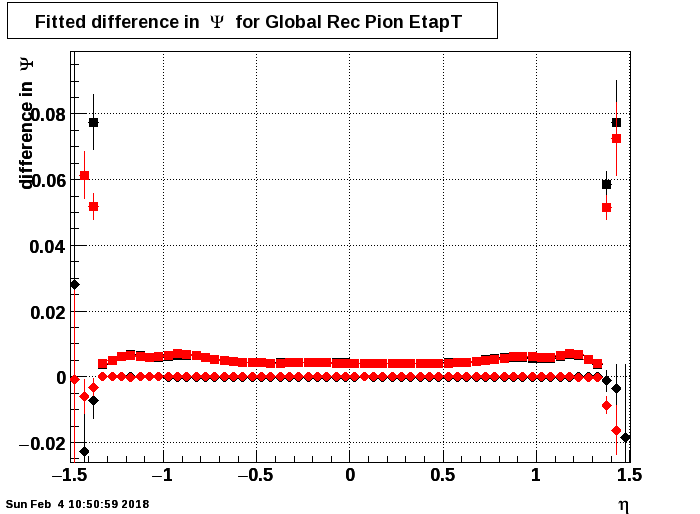

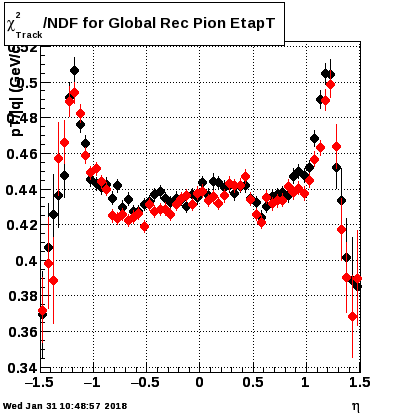

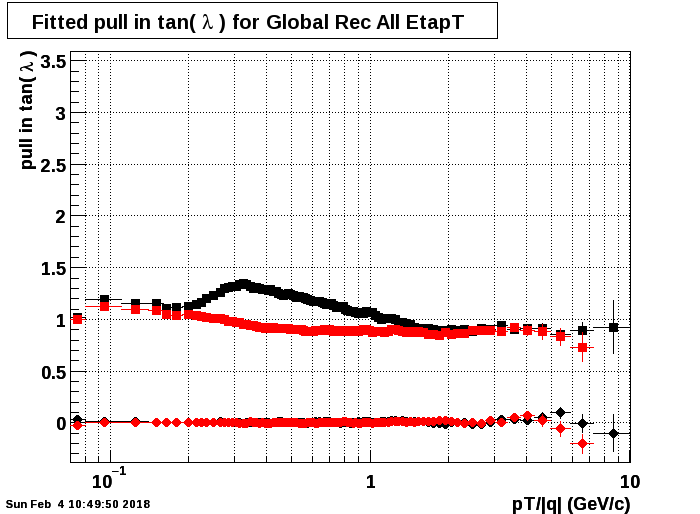

1.1.1.2. Global tracks. All.Track parameters.

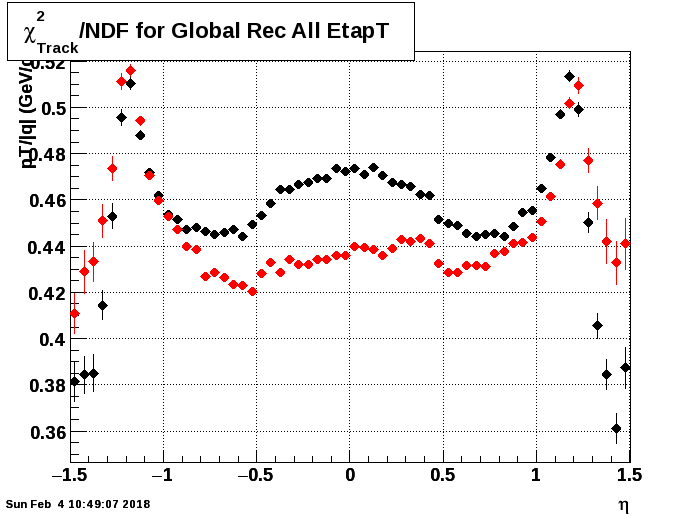

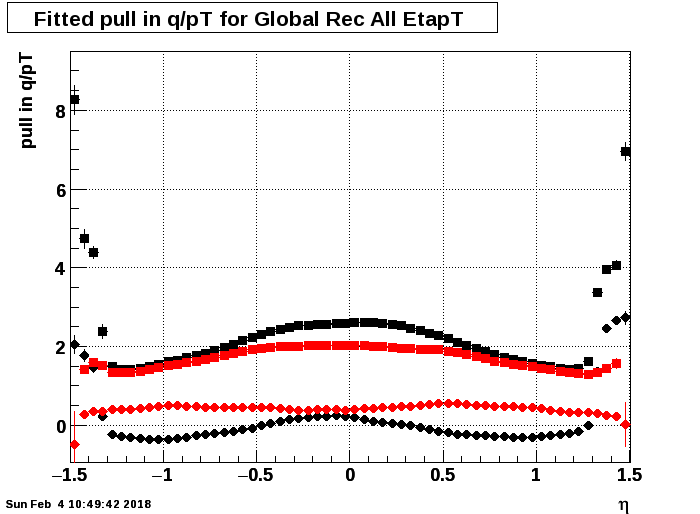

- Fig.24. Strange dependence on η for VMC

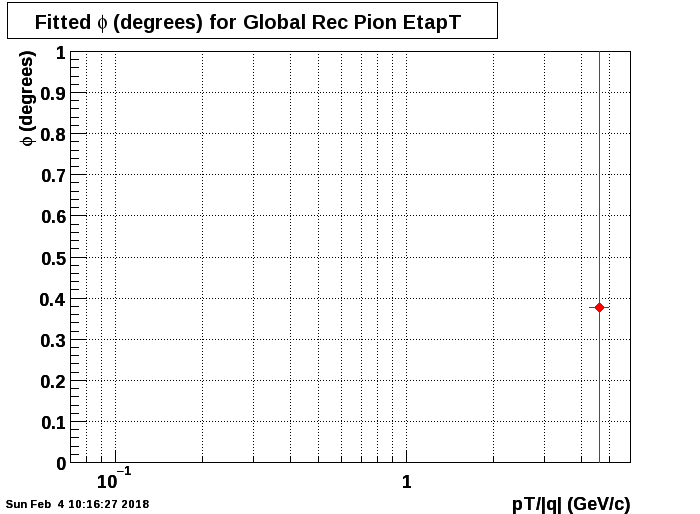

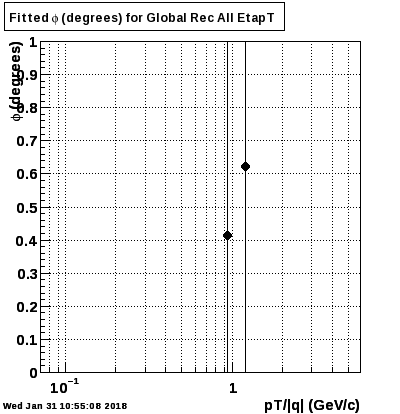

- Fig.30-31 φ empty ?
Primary tracks 1.1.2.2. Primary tracks. All.Track parameters

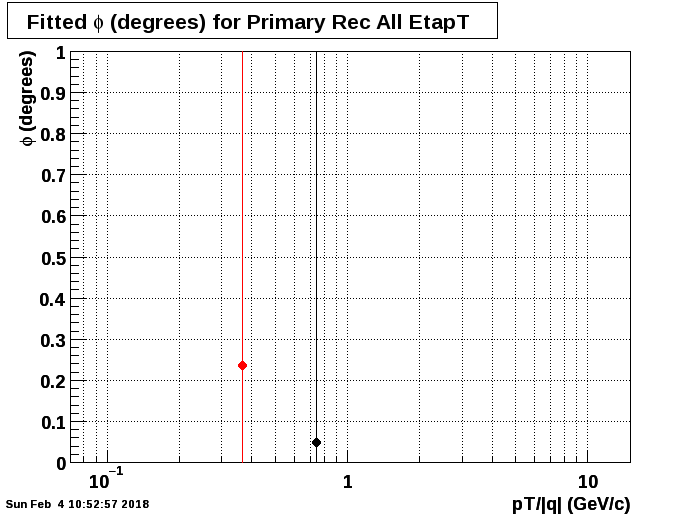

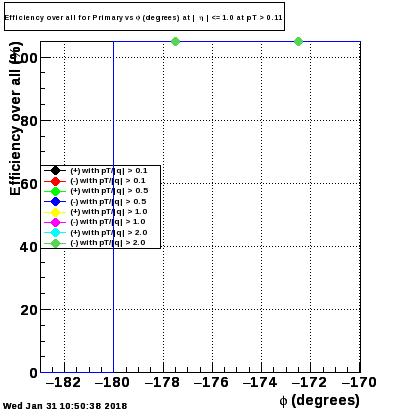

- Fig.1- φ empty ?

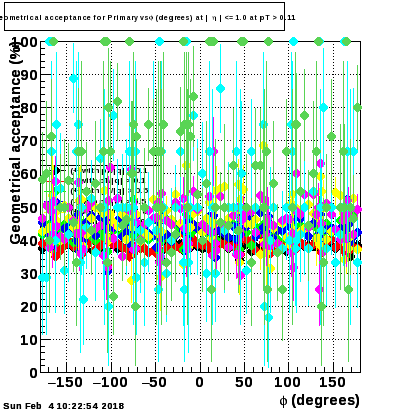

Global tracks. All. Geometrical acceptance.

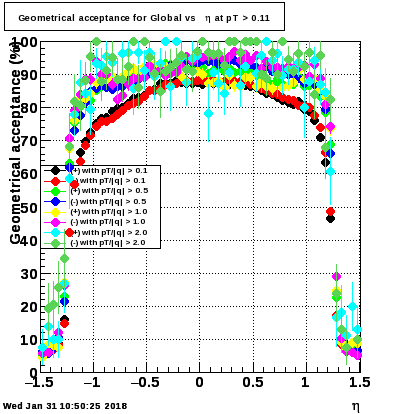

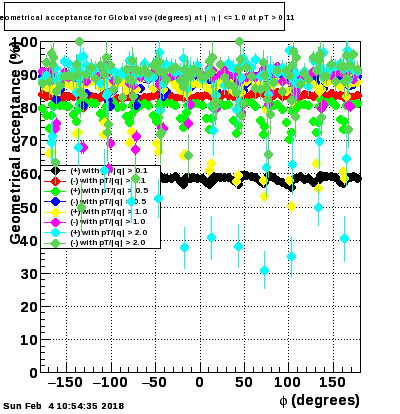

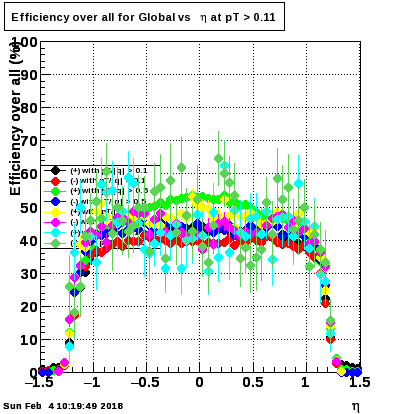

- Fig 1-3. G3 geometrical acceptance a factor of 2 lower than VMC one for both global and primary tracks. ?

1. Tracks

1.1. Quality of reconstructed tracks with respect to MC.

1.1.1. Global tracks.

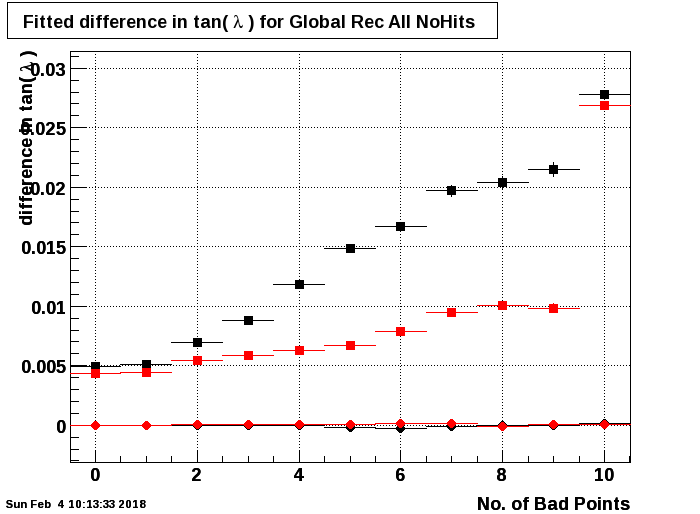

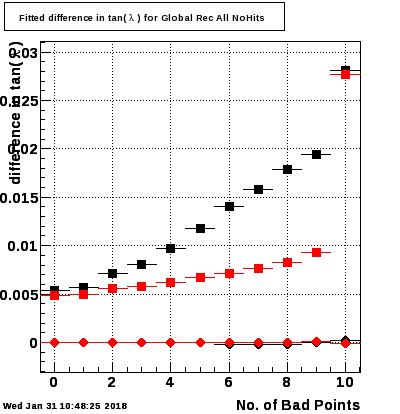

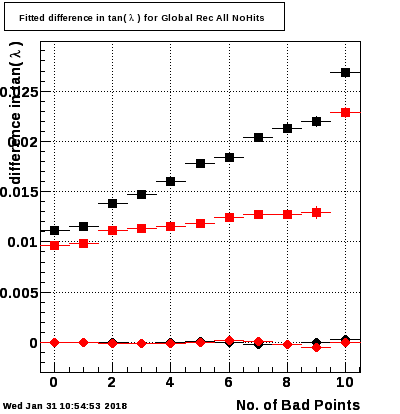

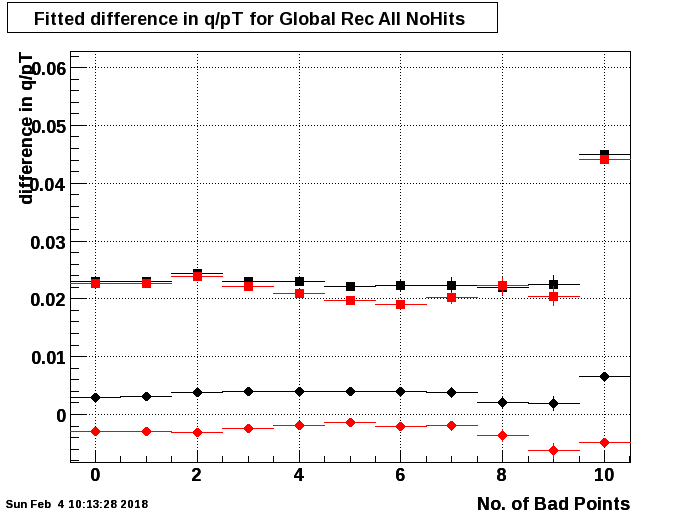

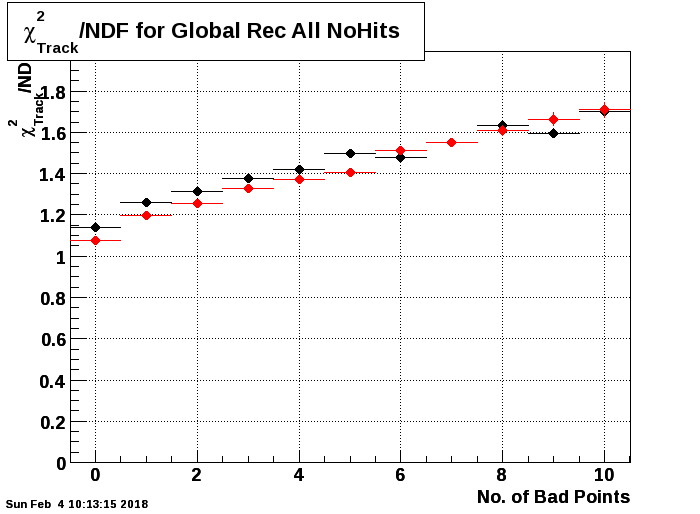

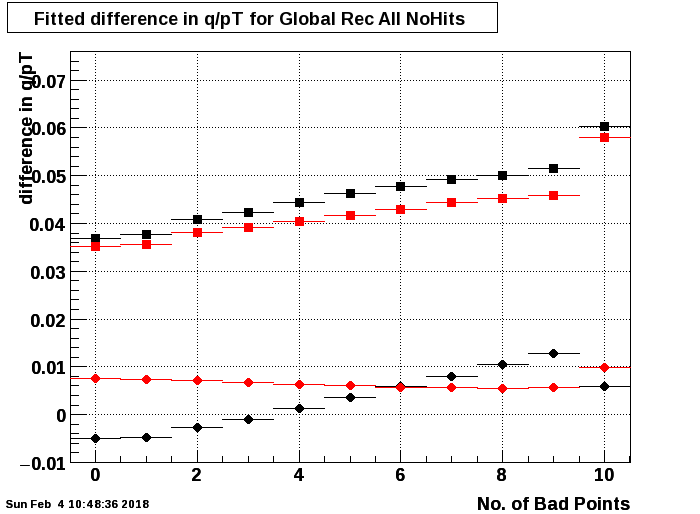

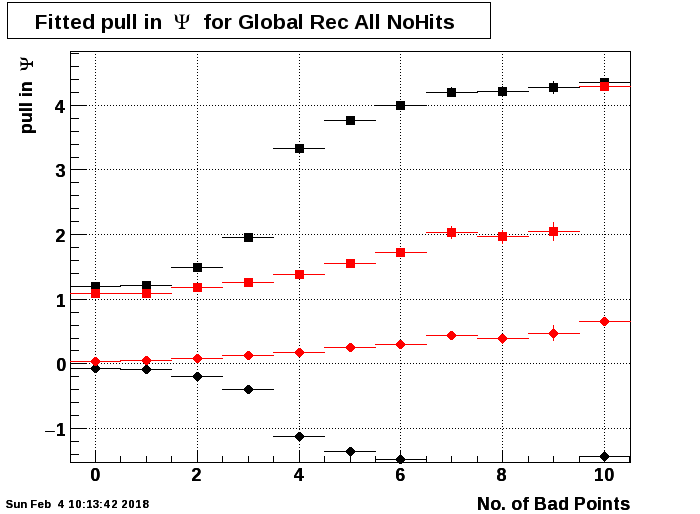

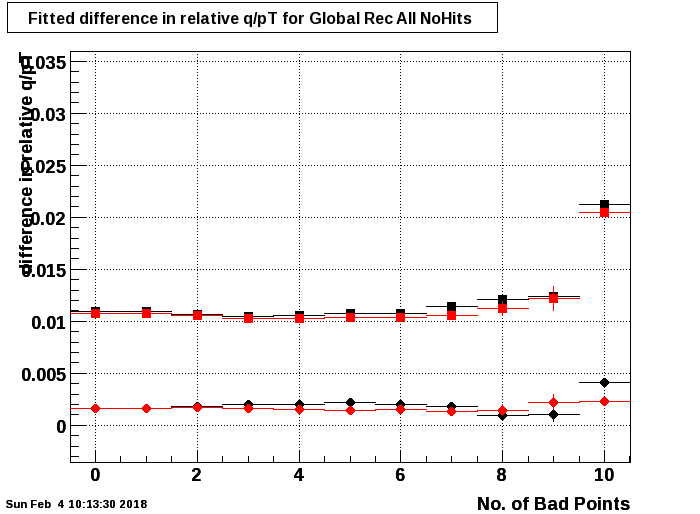

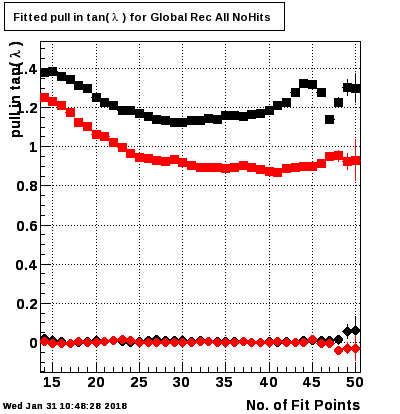

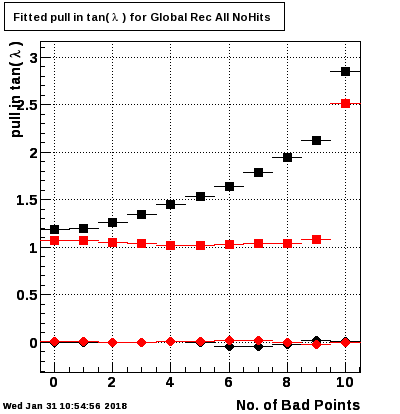

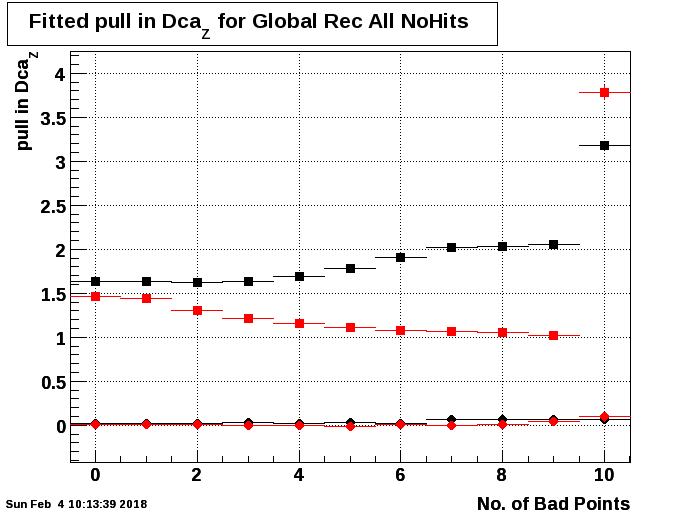

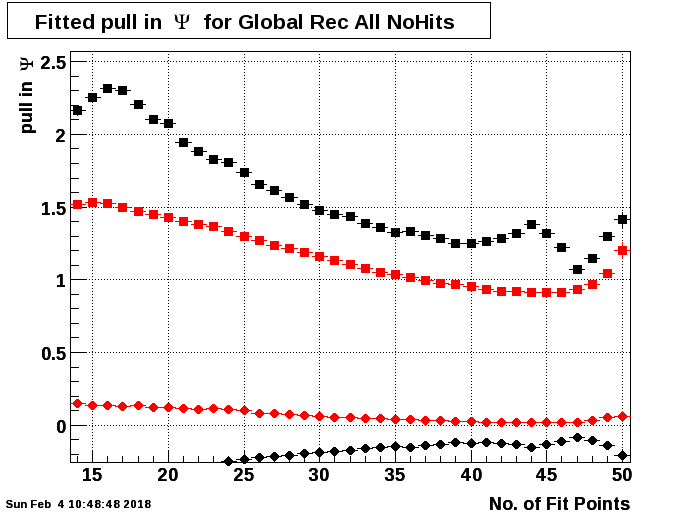

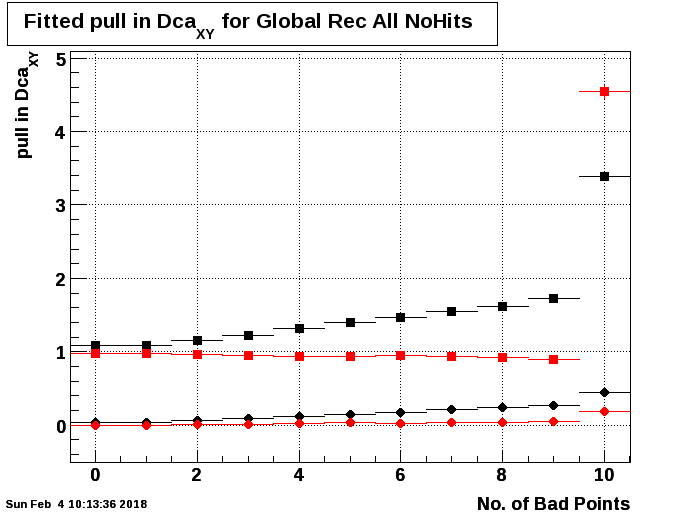

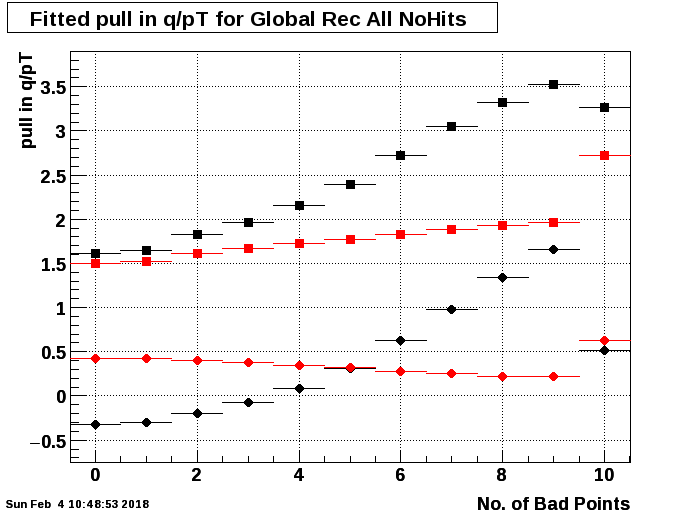

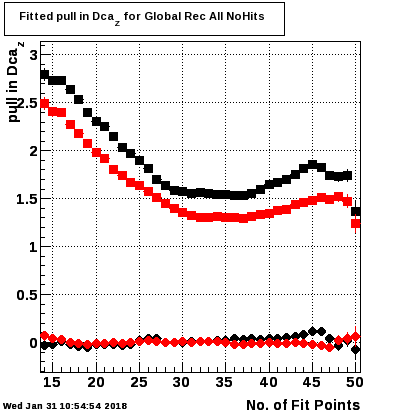

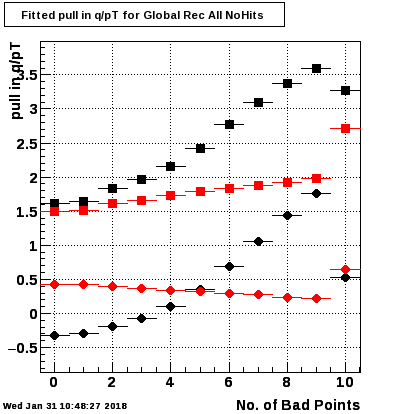

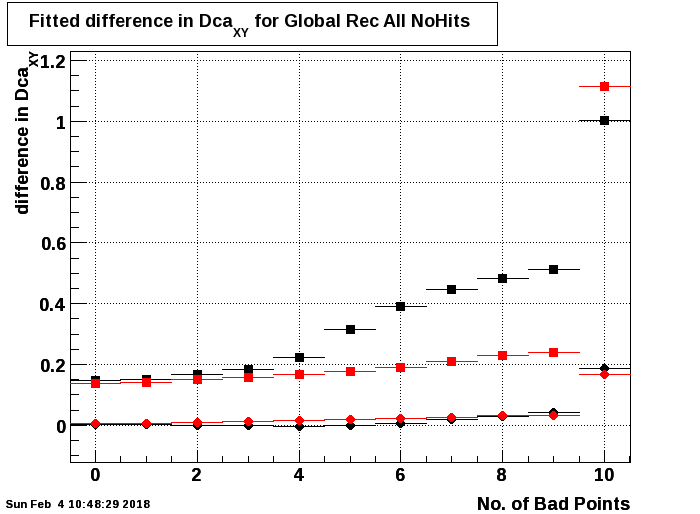

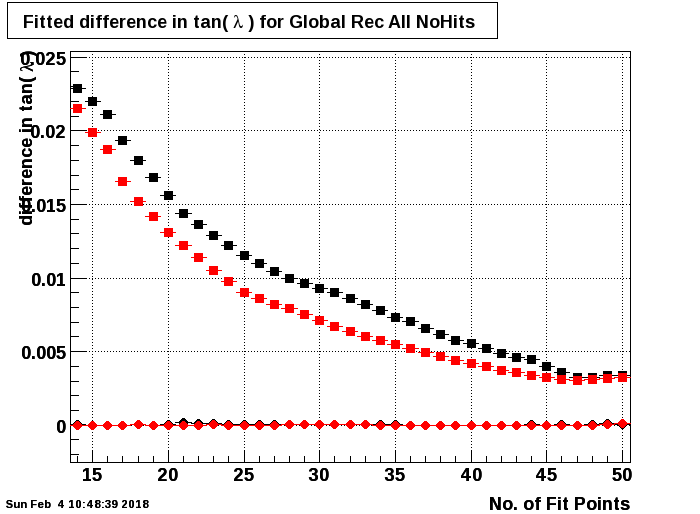

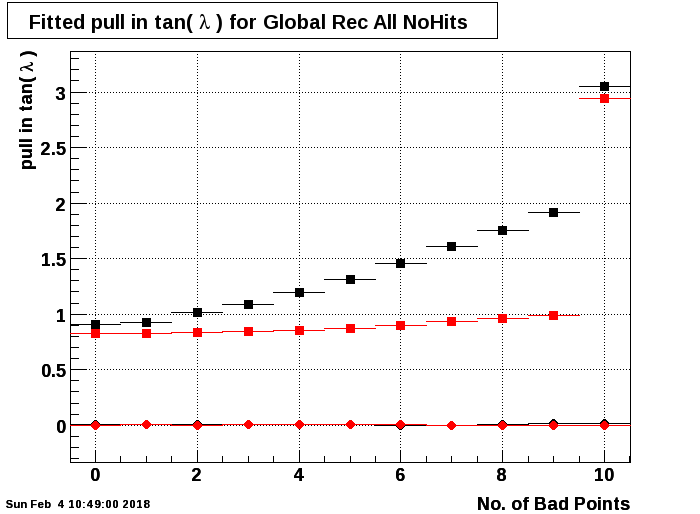

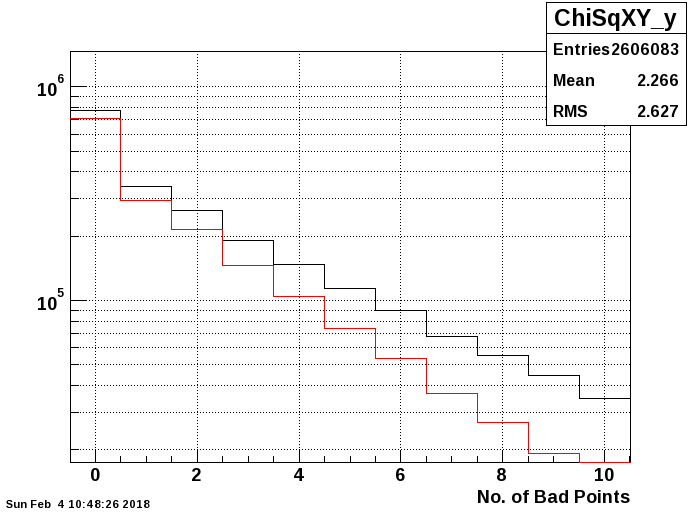

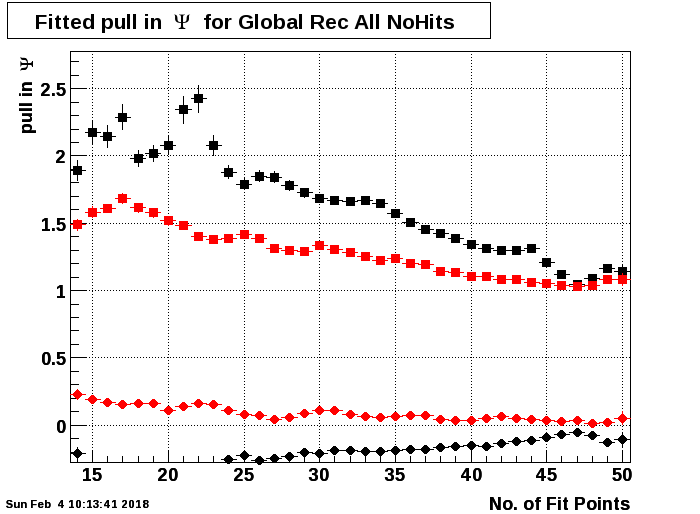

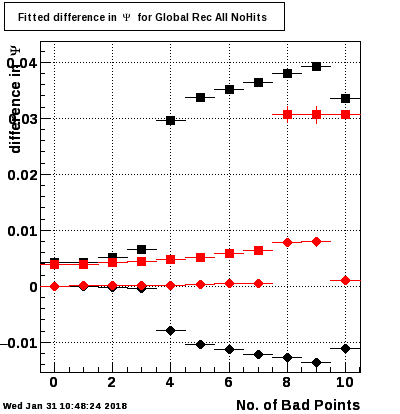

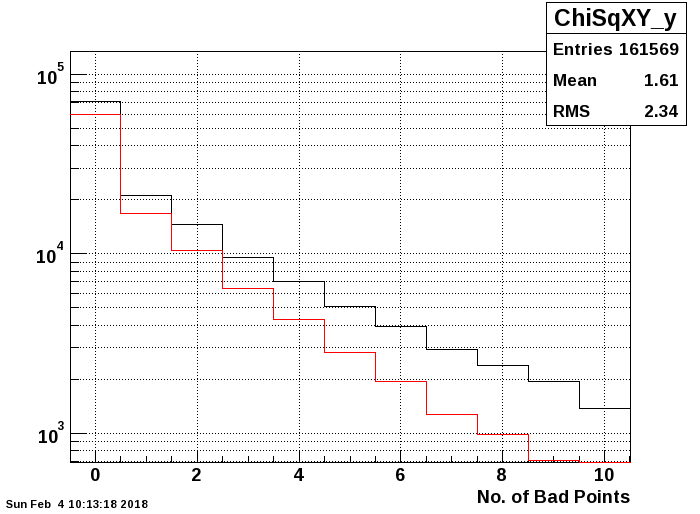

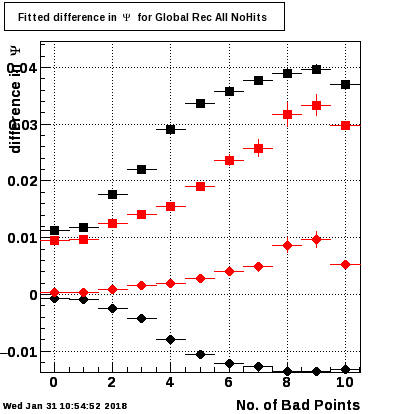

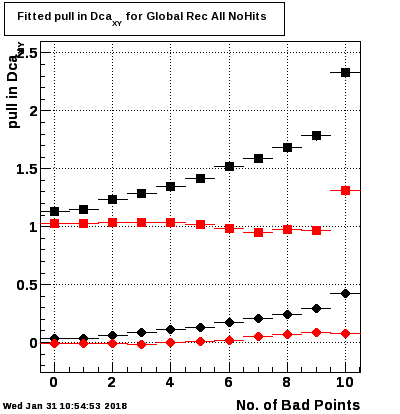

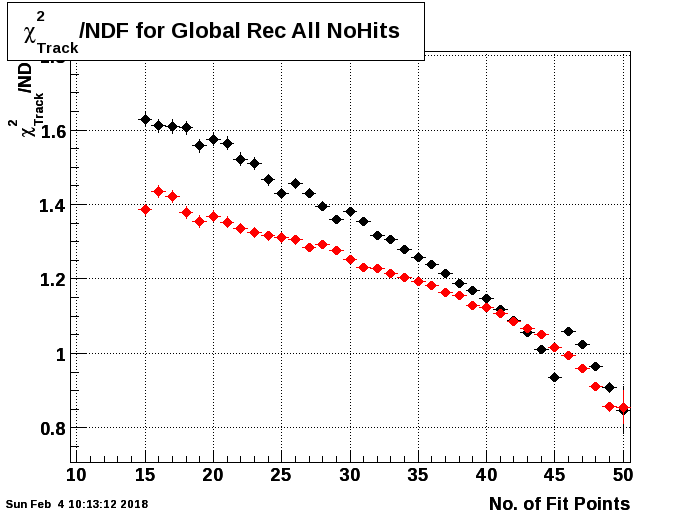

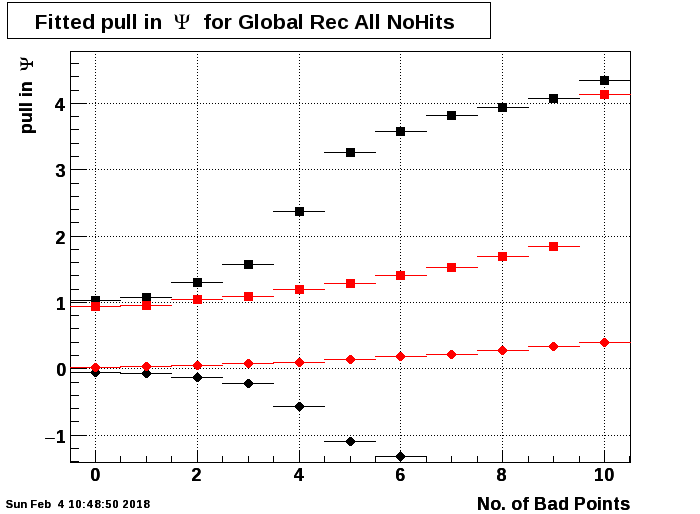

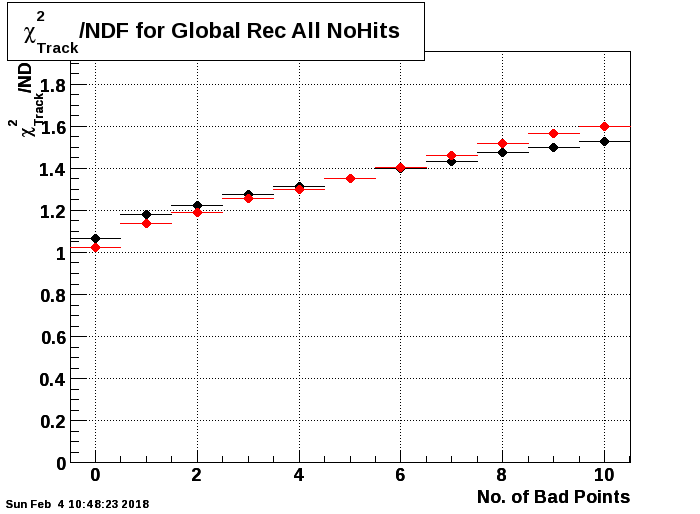

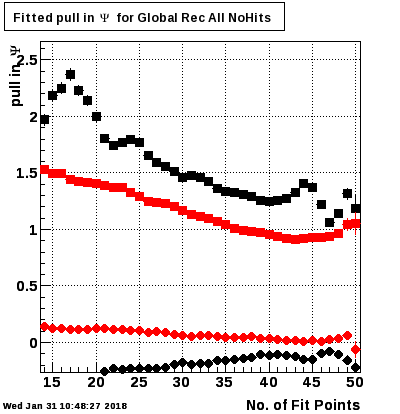

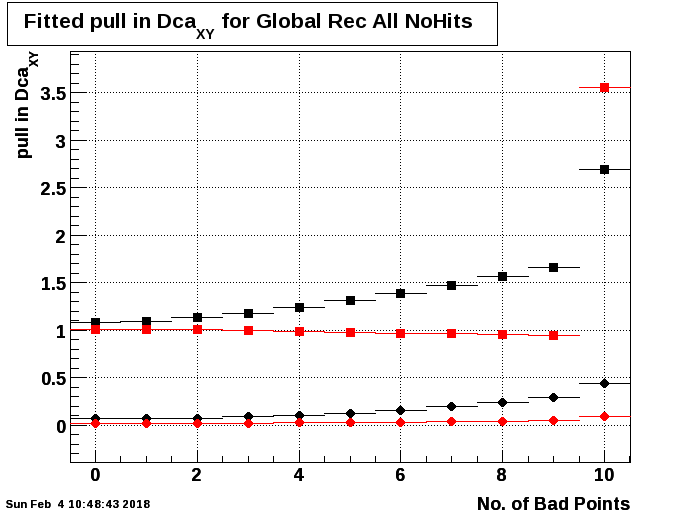

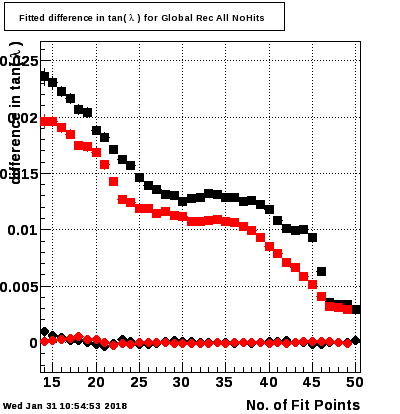

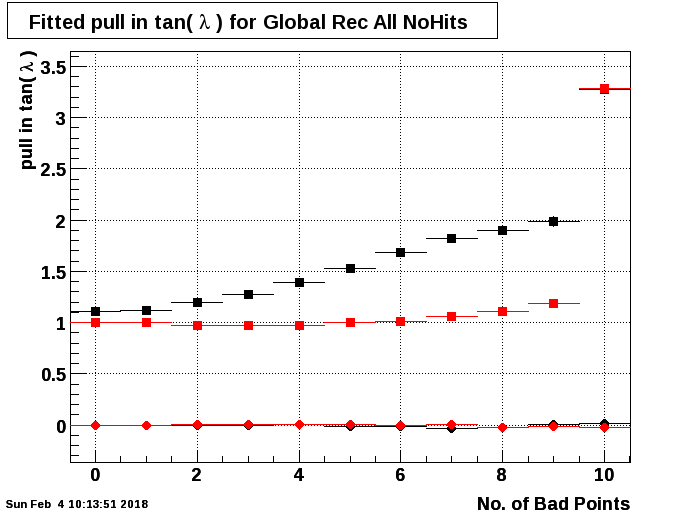

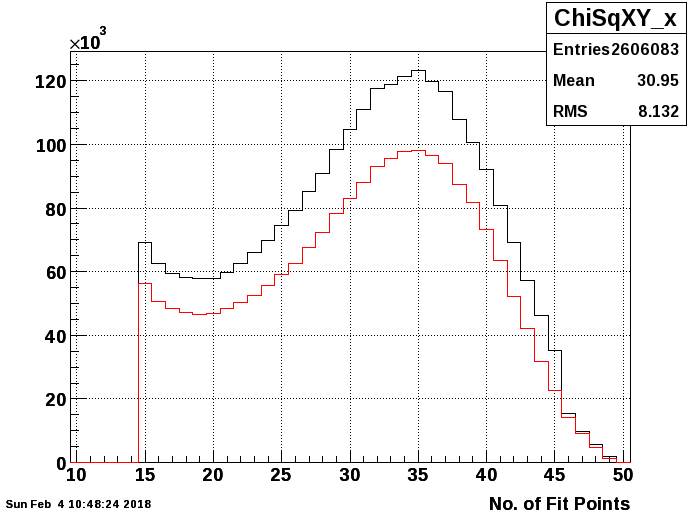

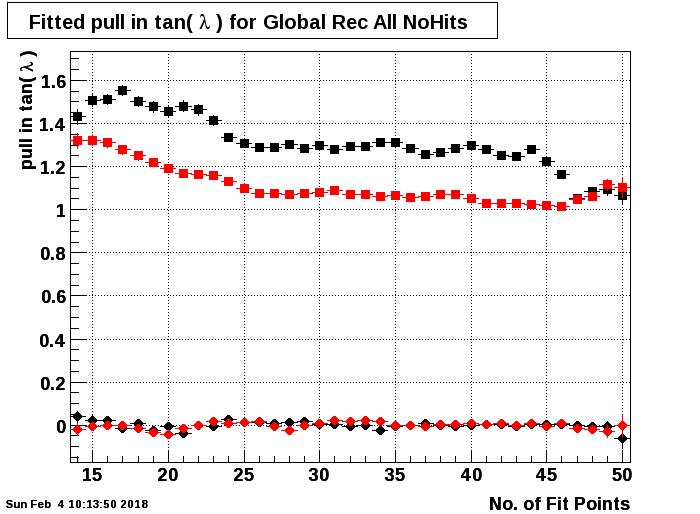

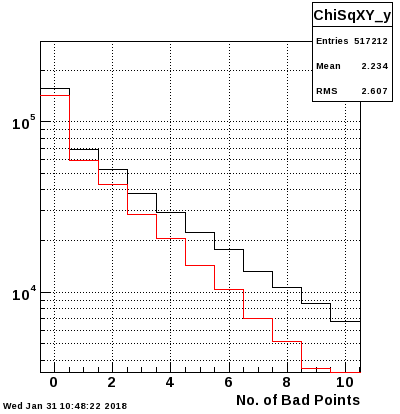

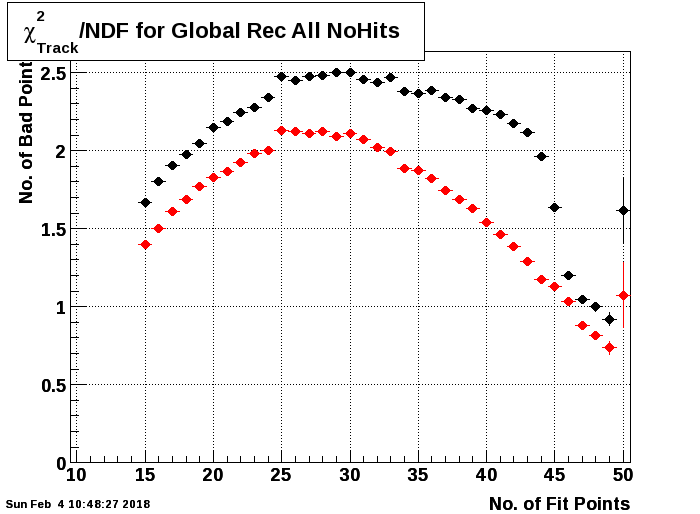

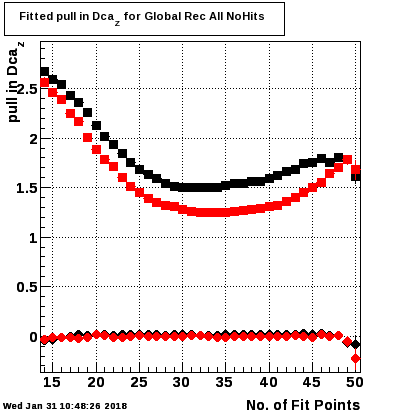

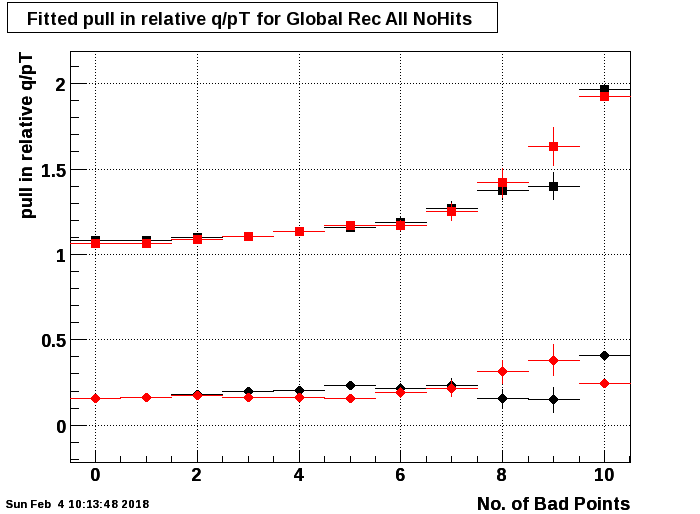

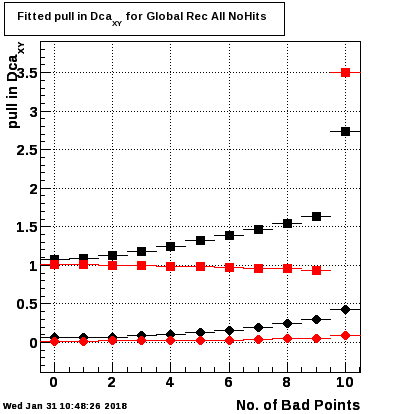

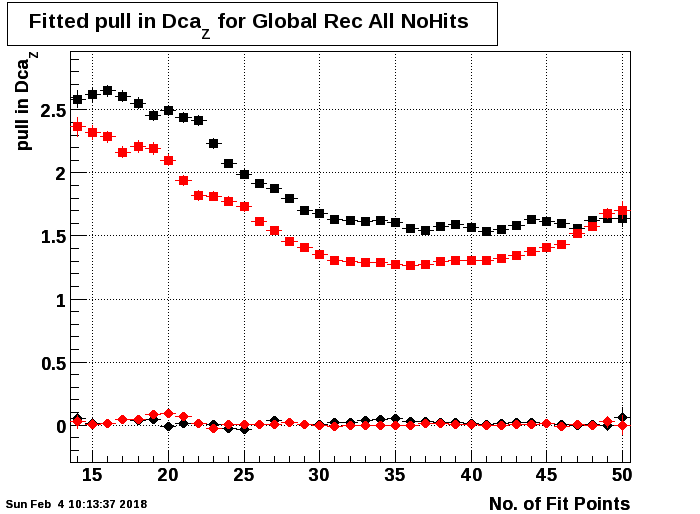

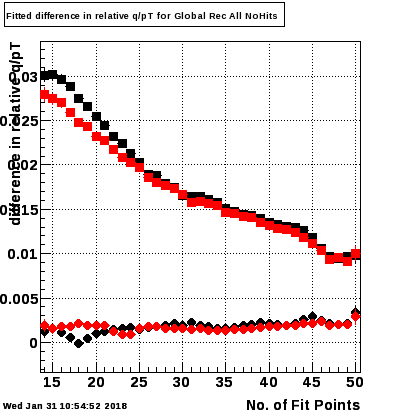

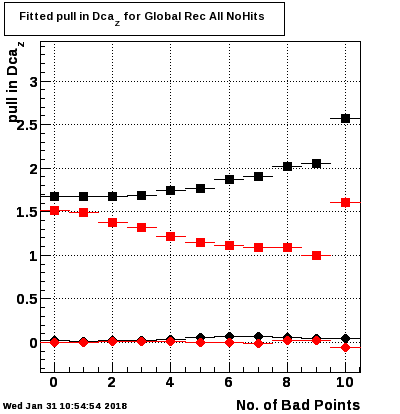

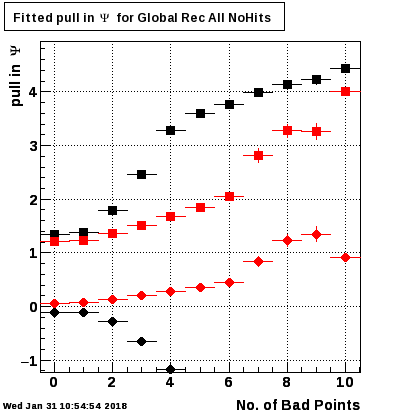

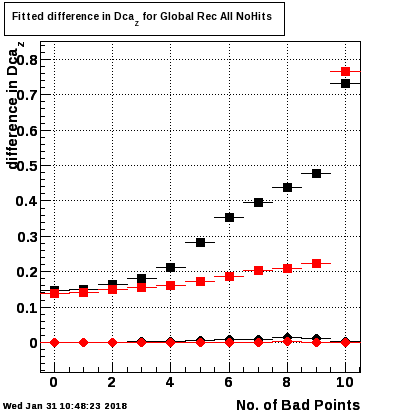

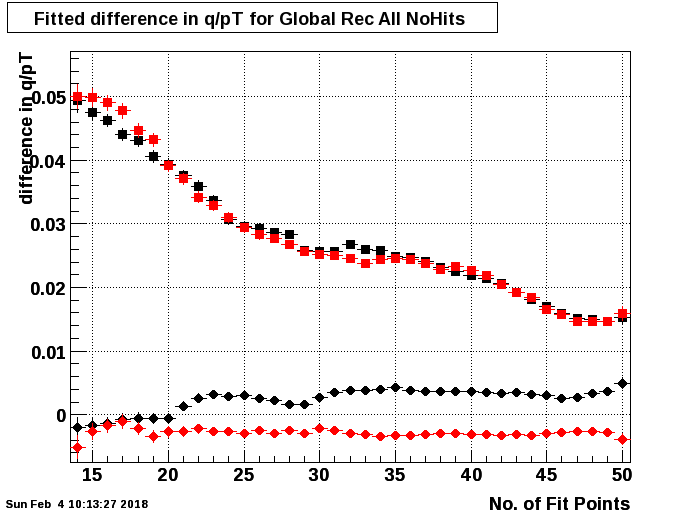

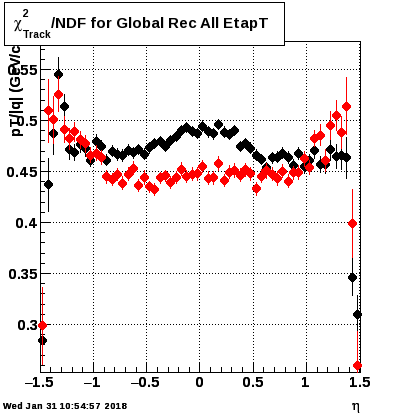

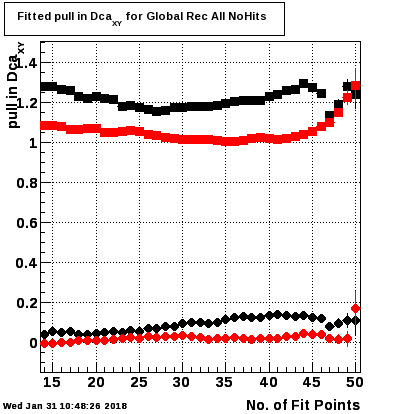

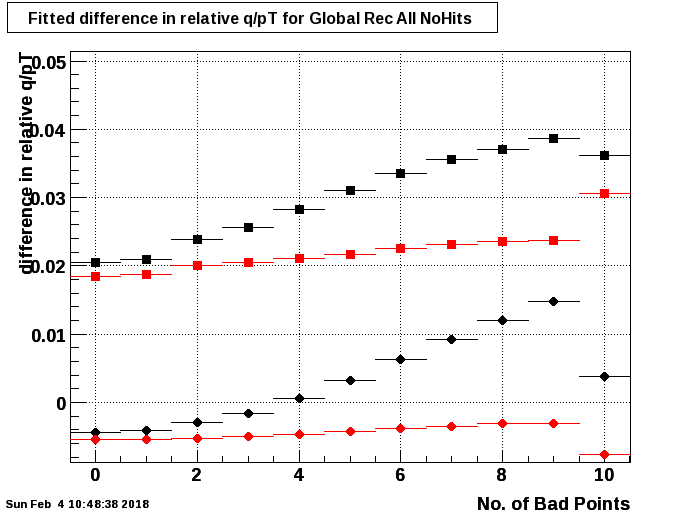

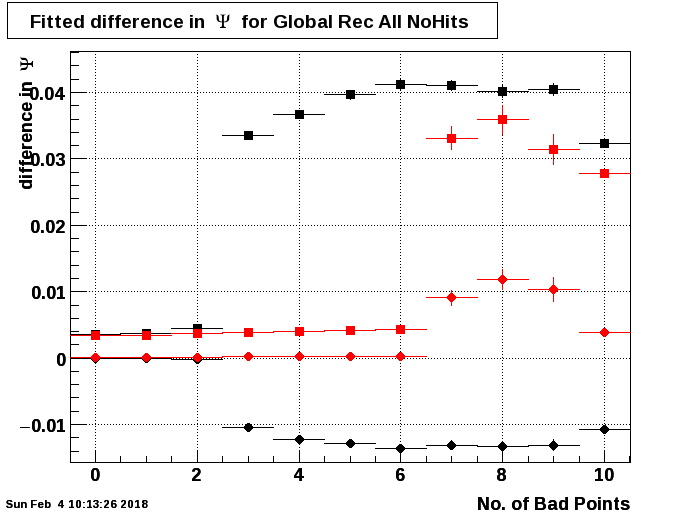

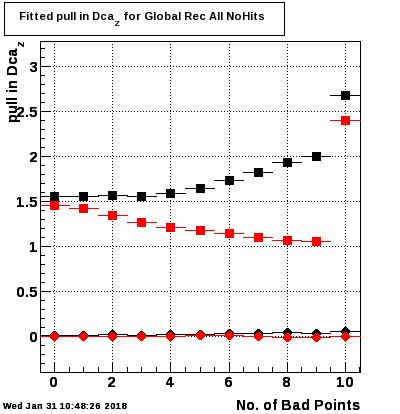

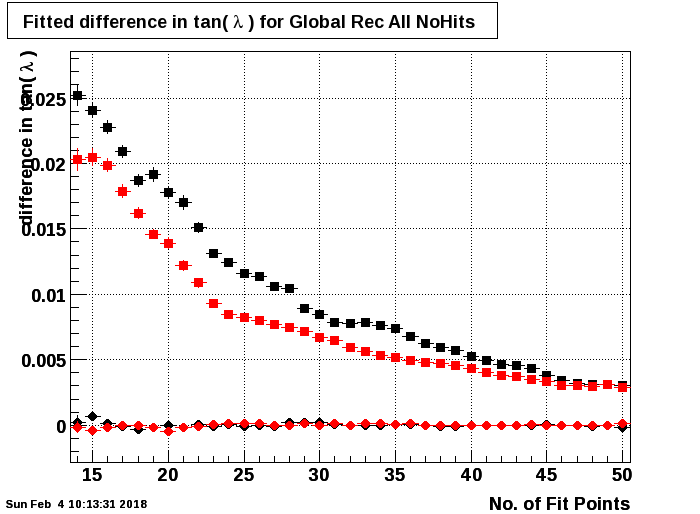

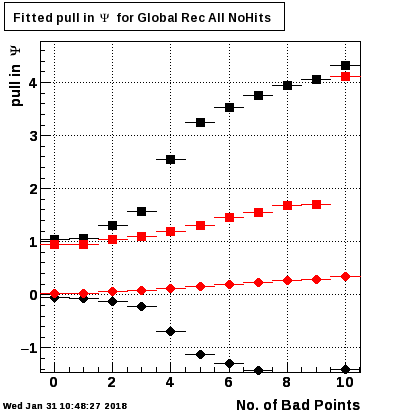

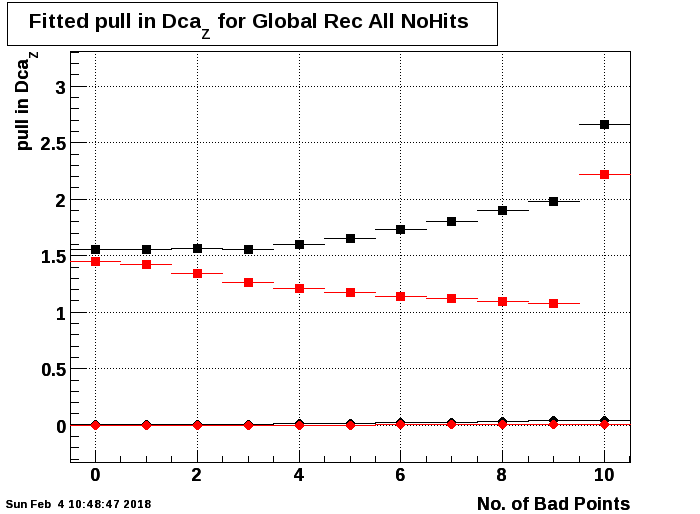

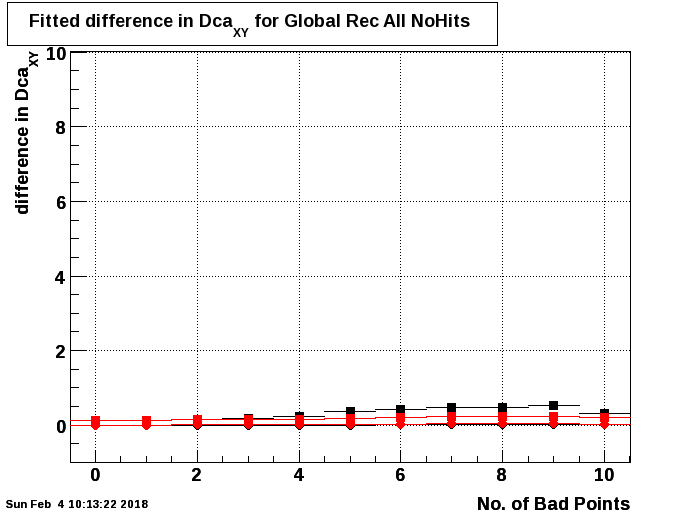

1.1.1.1. Global tracks. All. No. of fit and bad points.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29

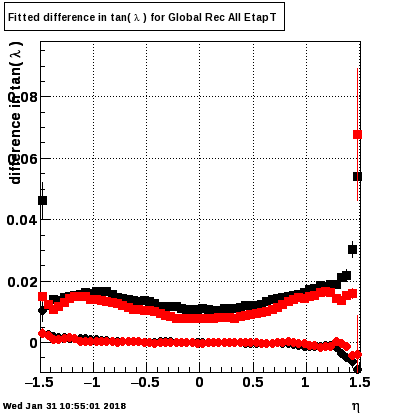

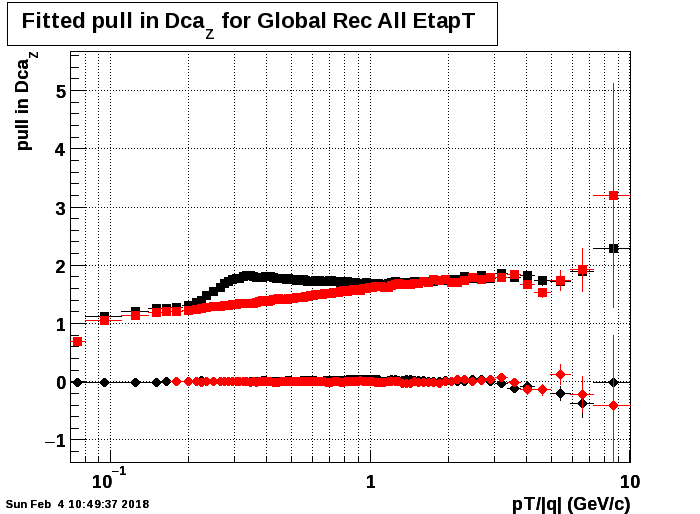

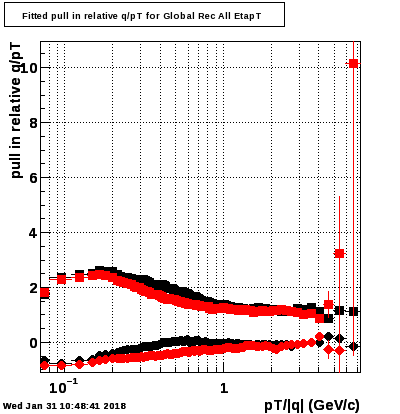

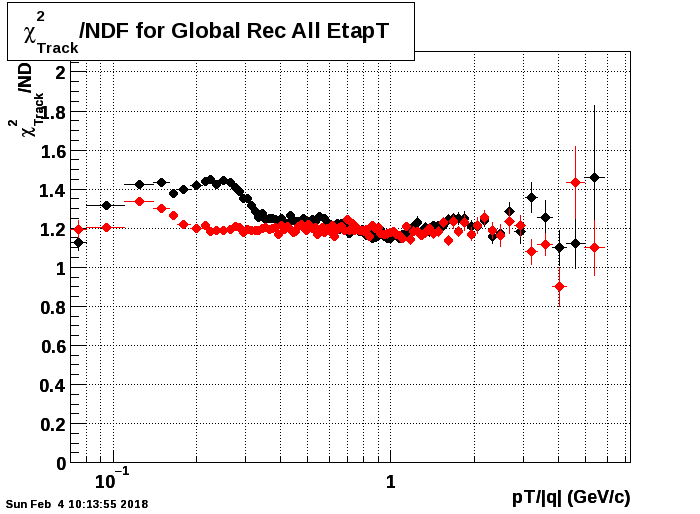

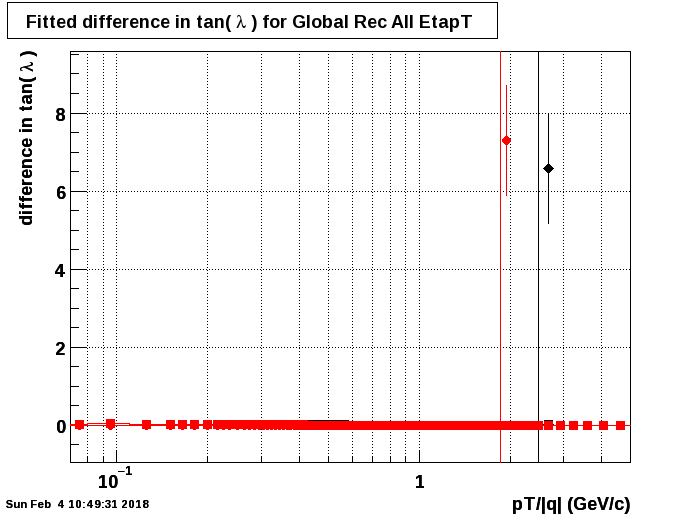

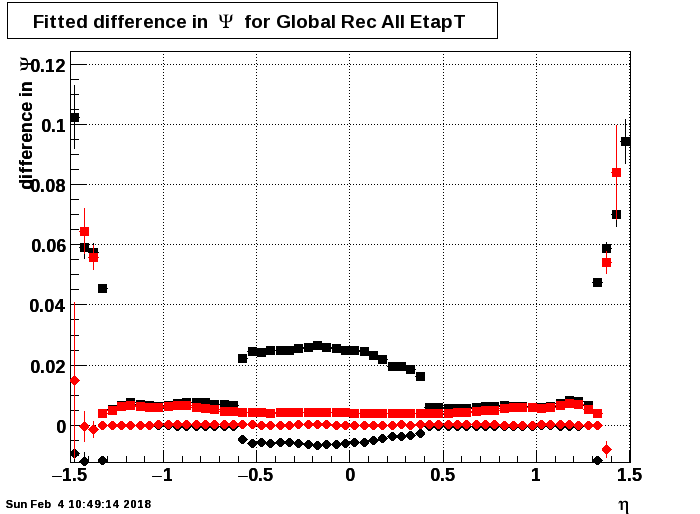

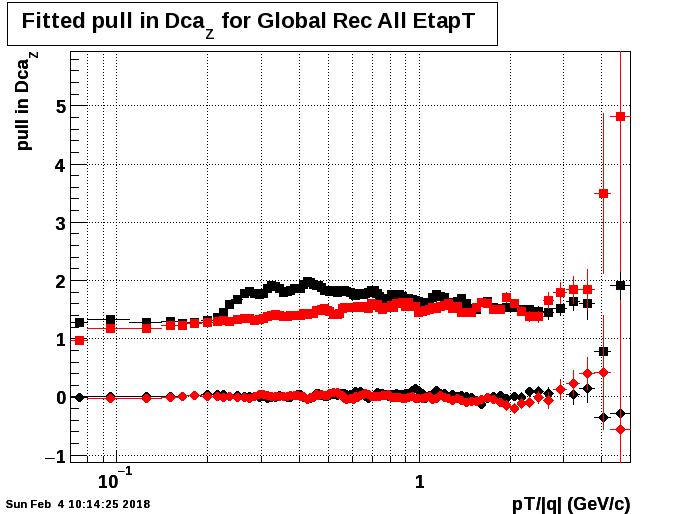

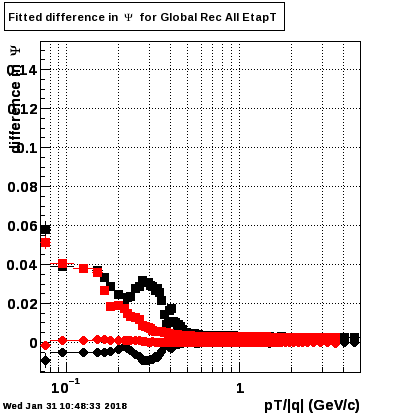

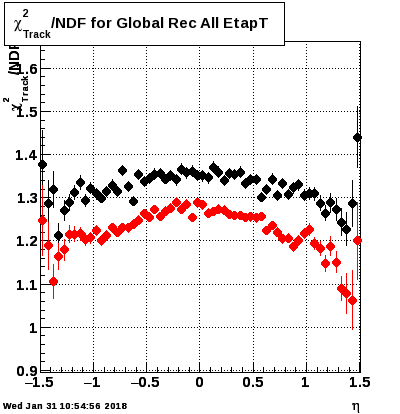

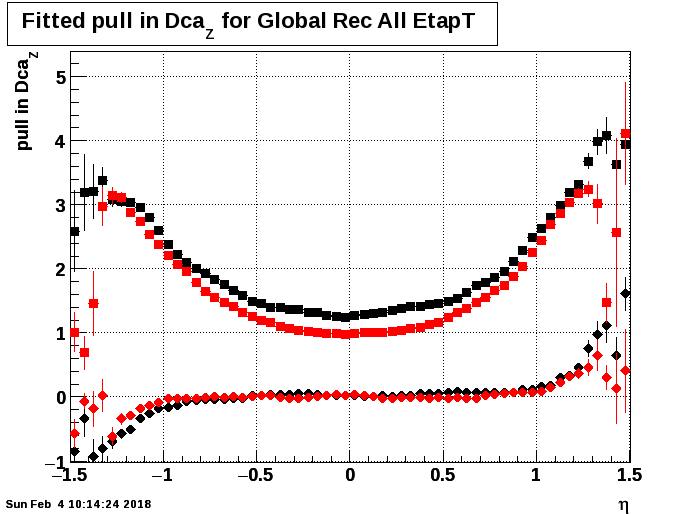

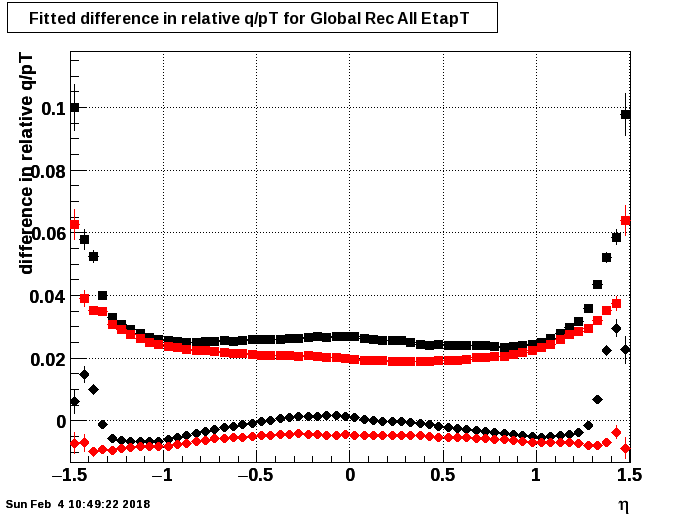

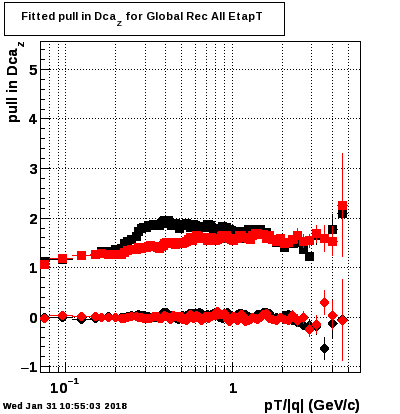

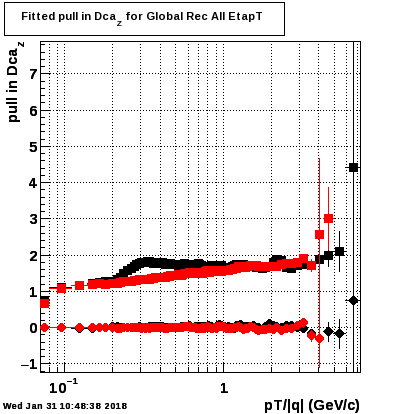

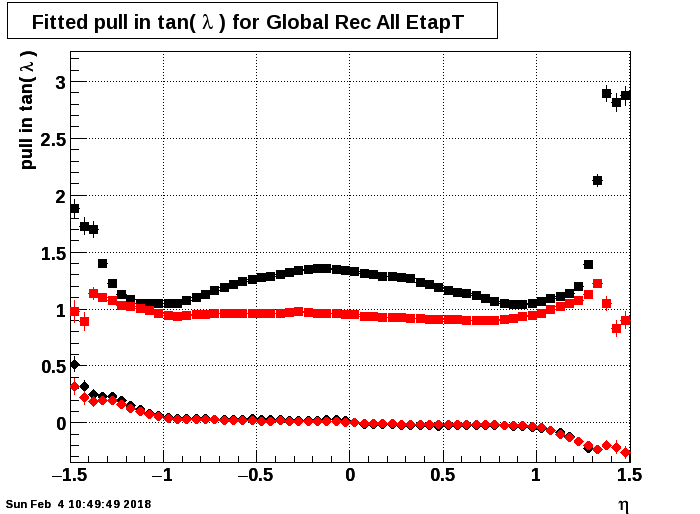

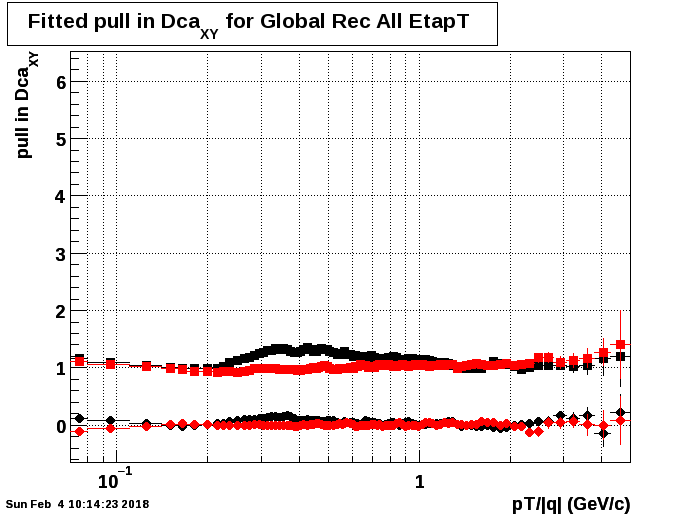

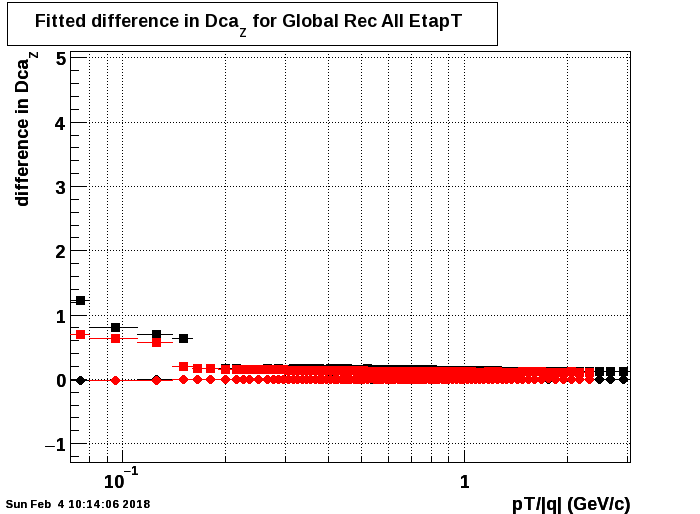

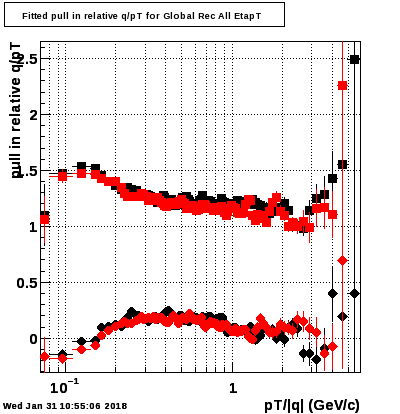

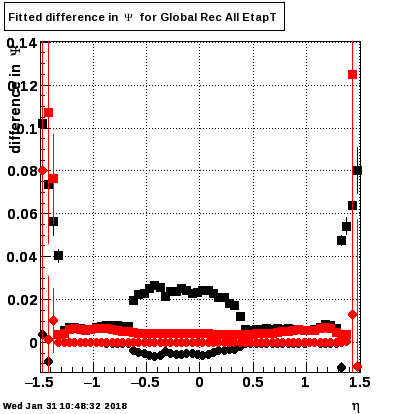

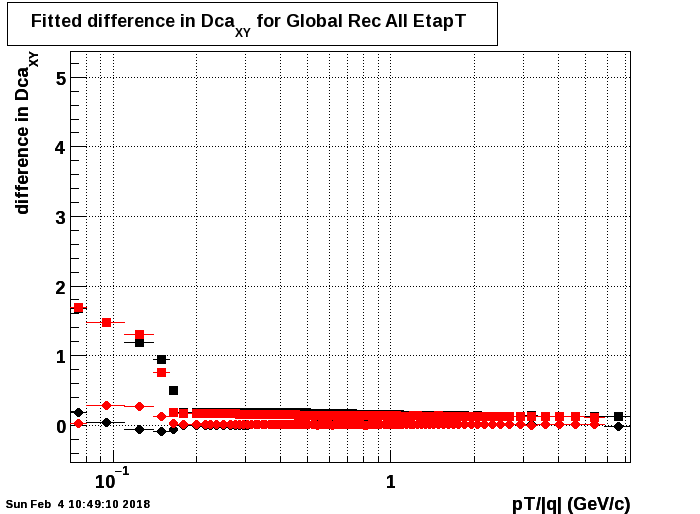

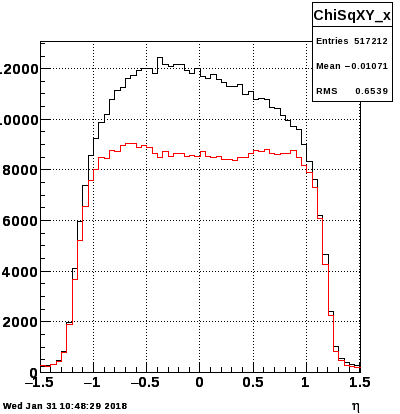

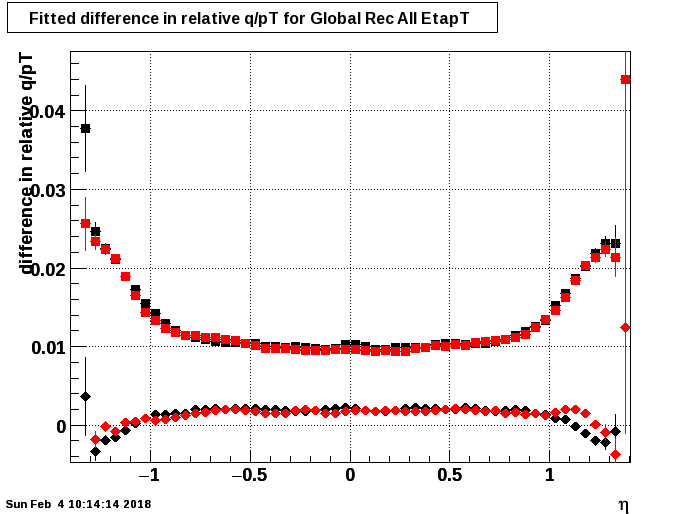

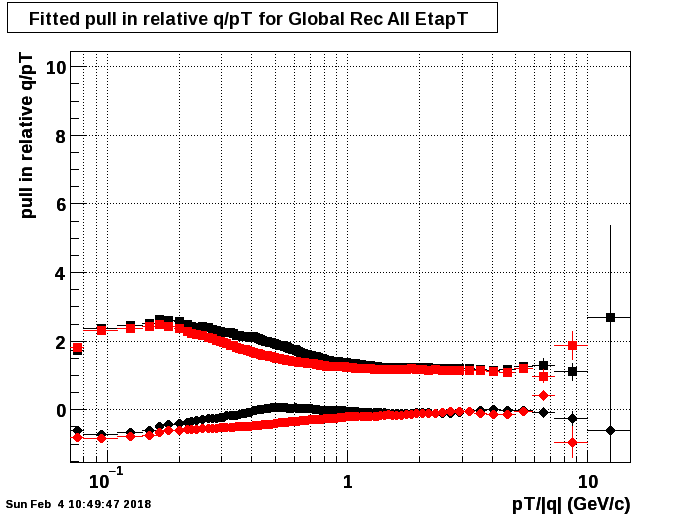

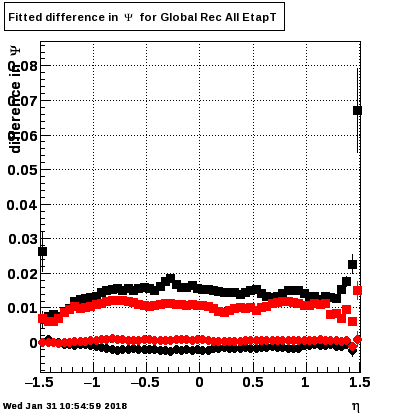

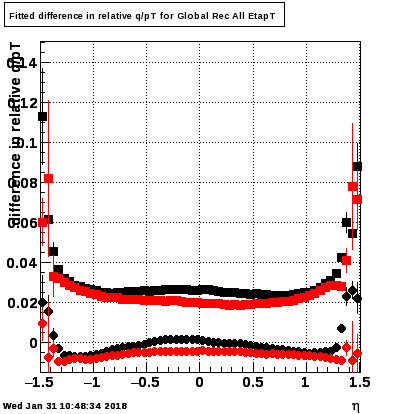

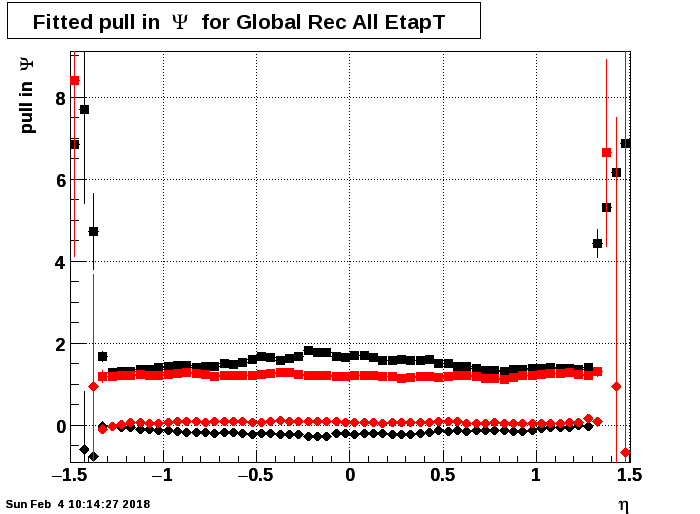

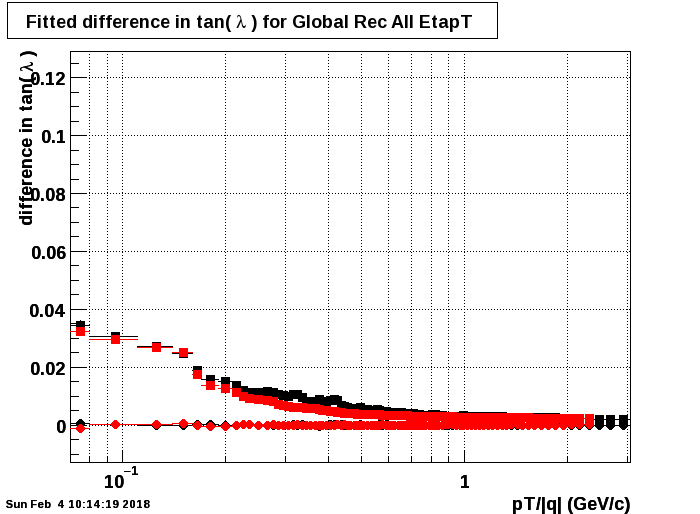

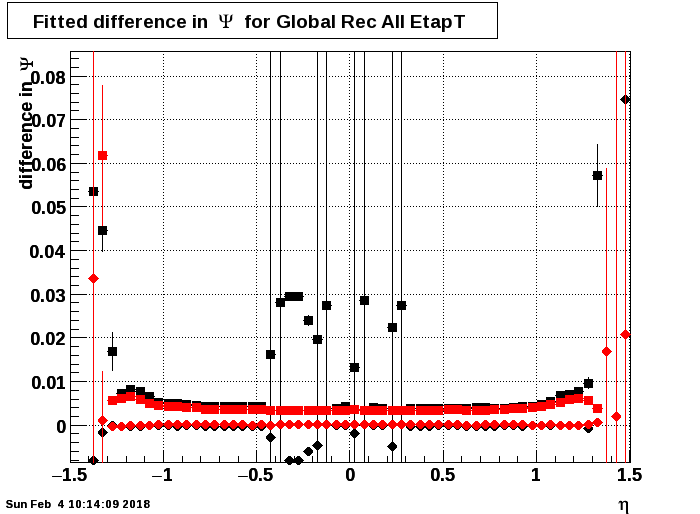

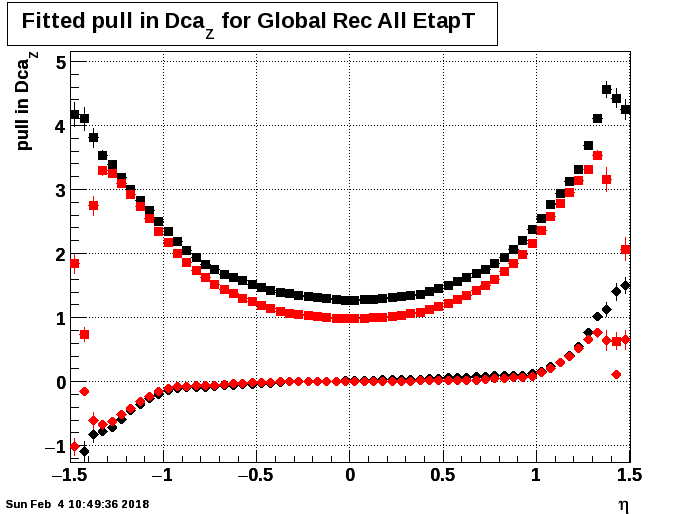

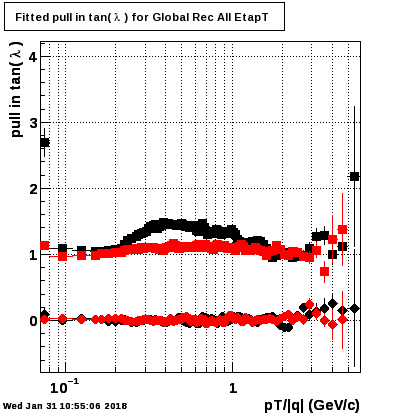

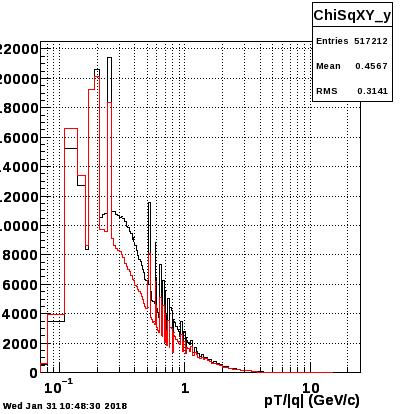

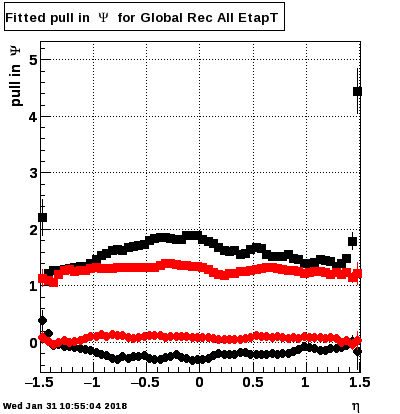

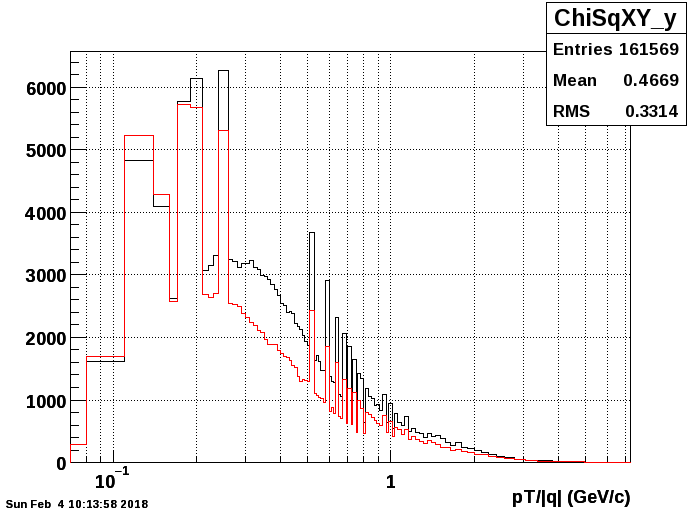

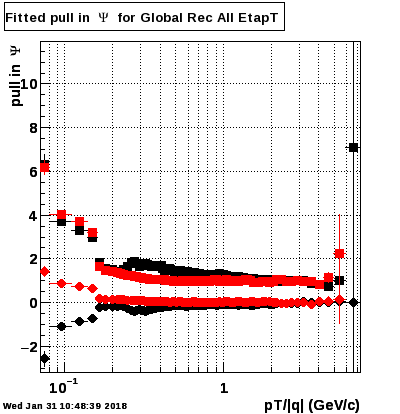

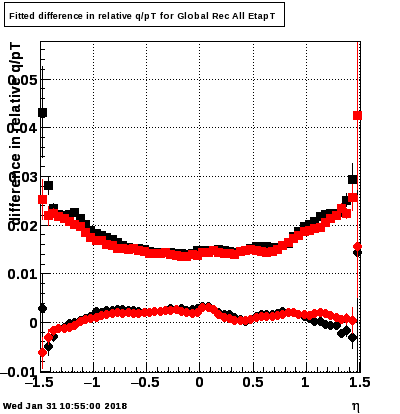

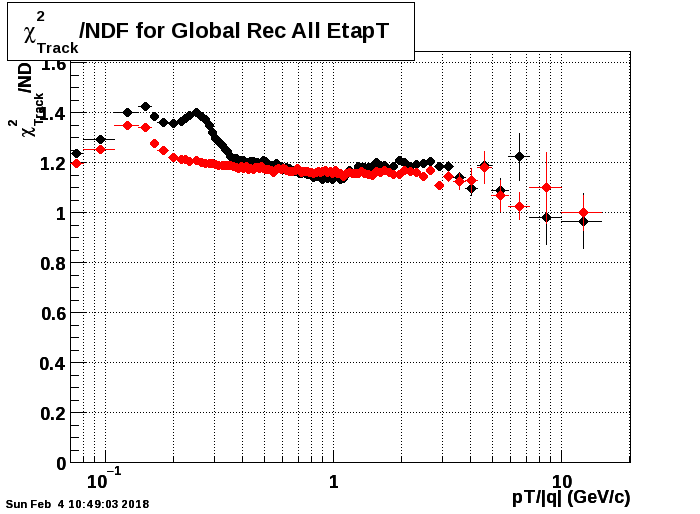

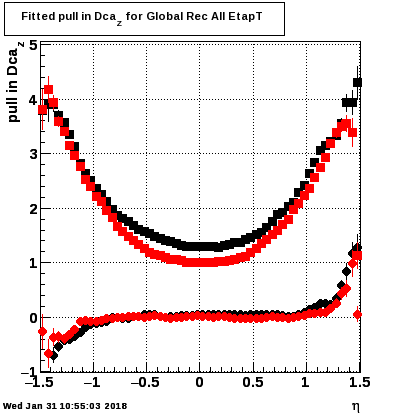

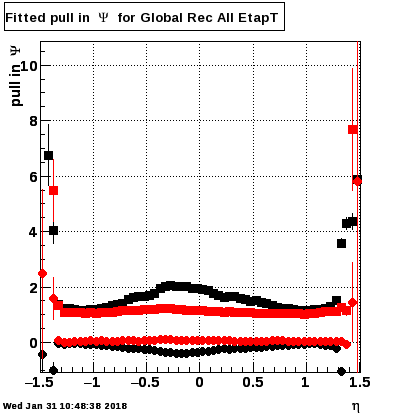

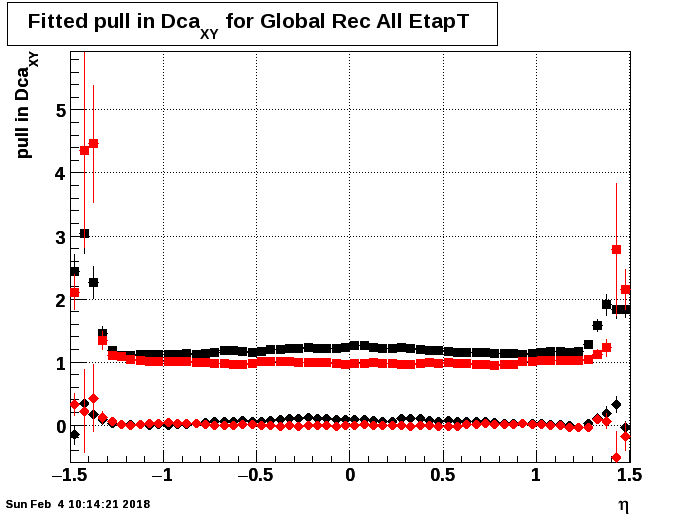

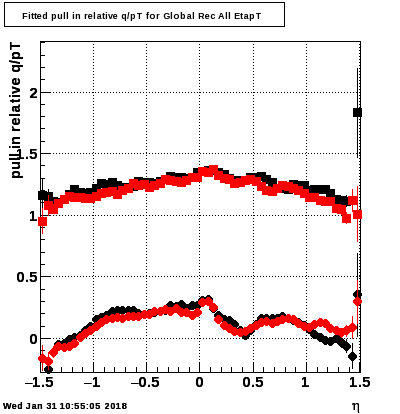

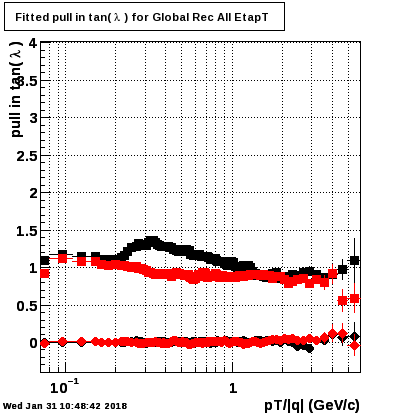

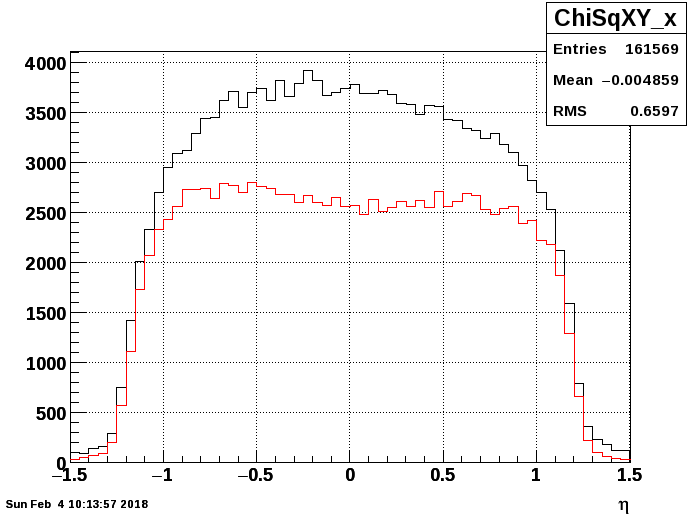

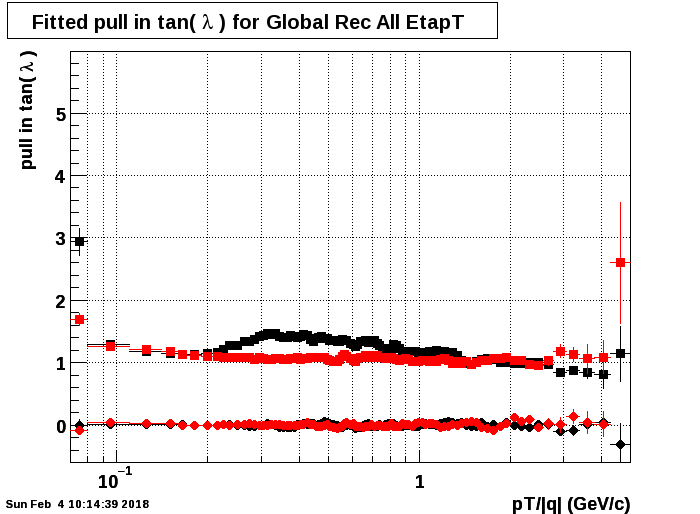

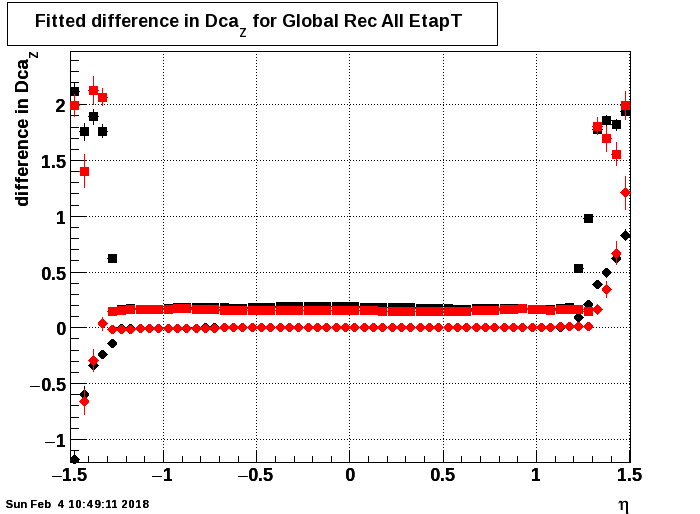

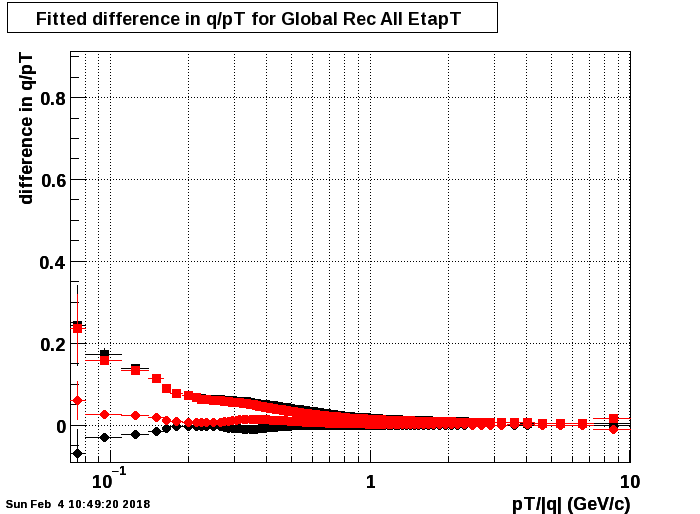

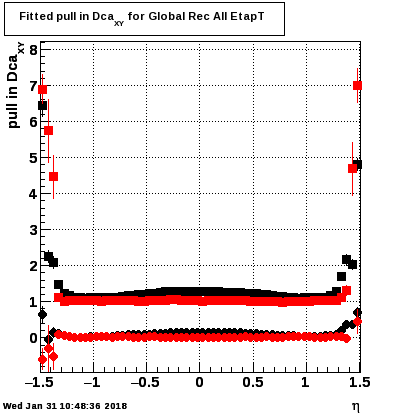

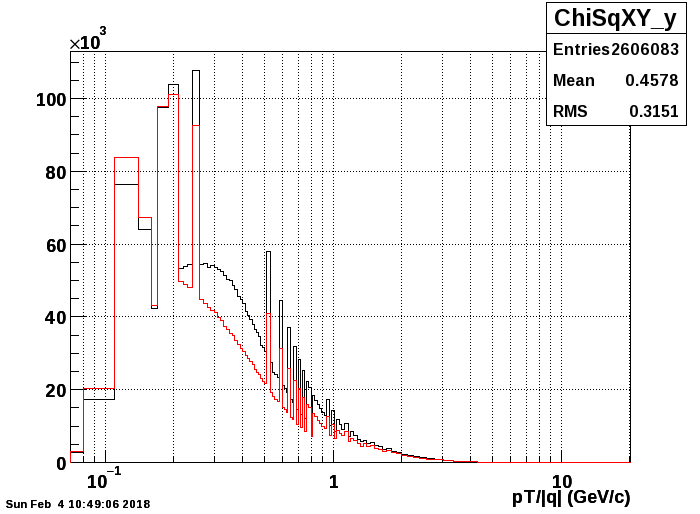

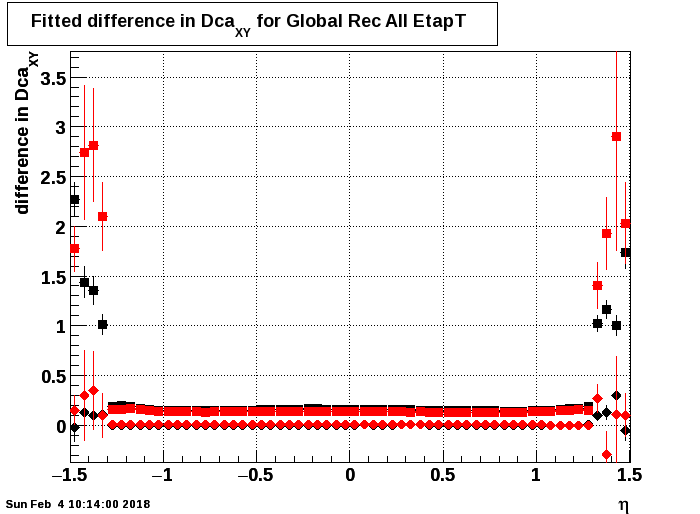

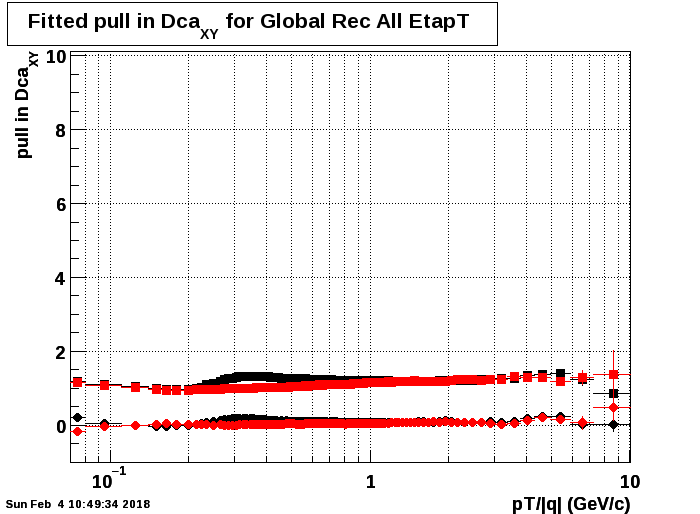

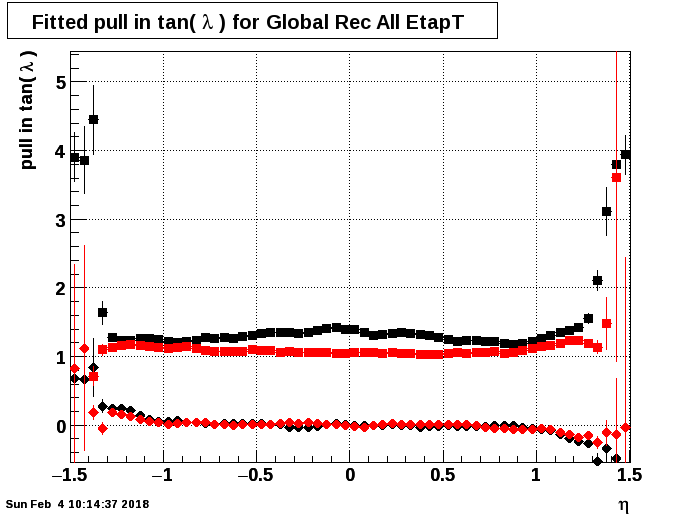

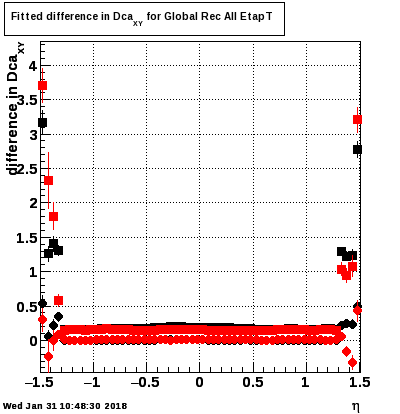

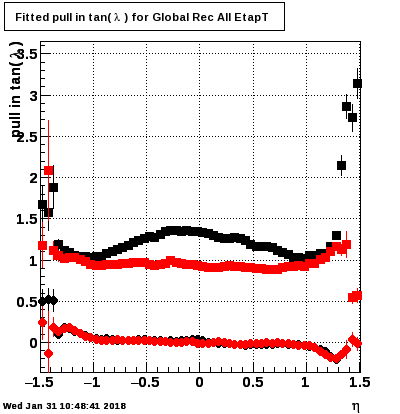

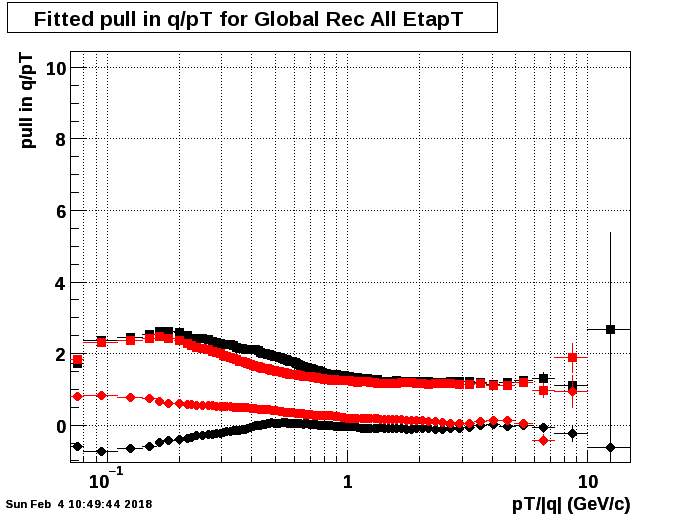

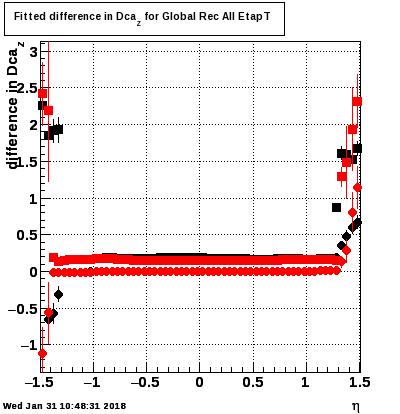

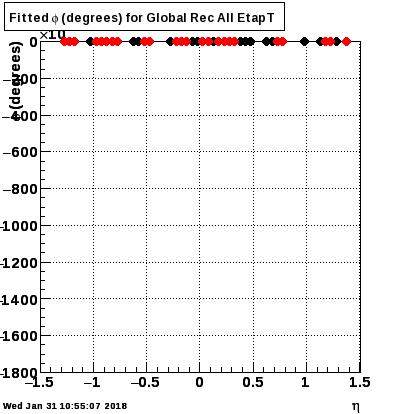

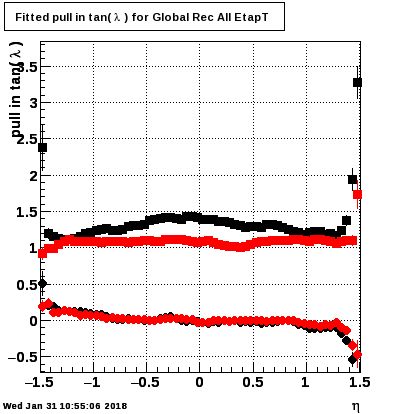

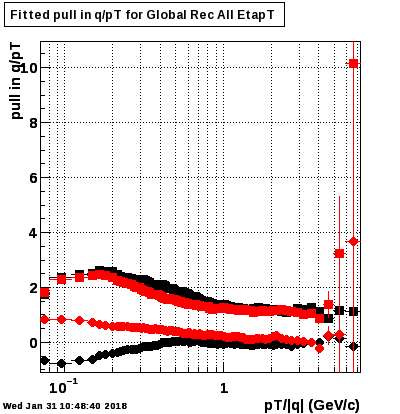

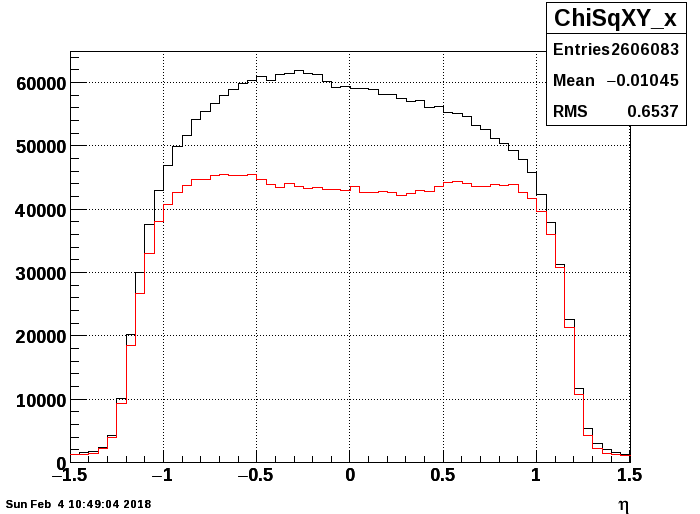

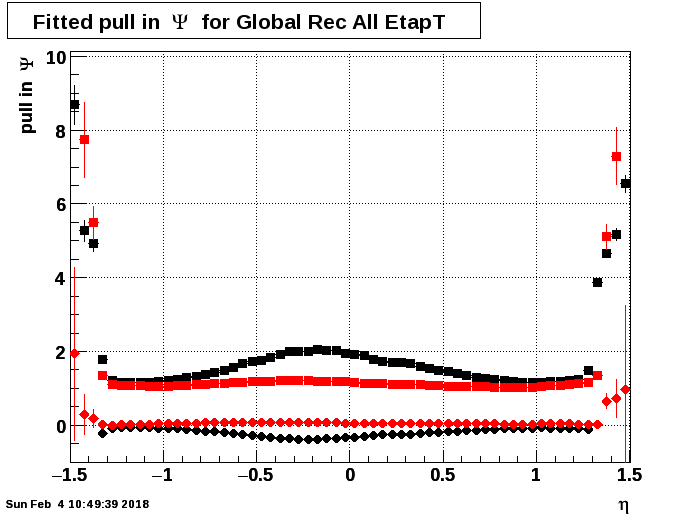

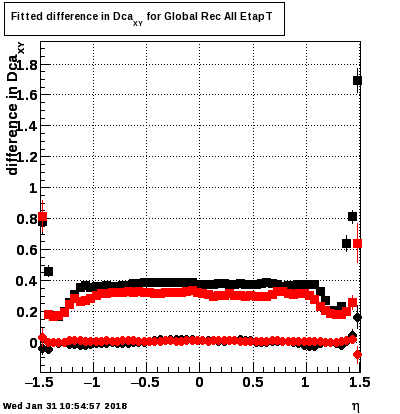

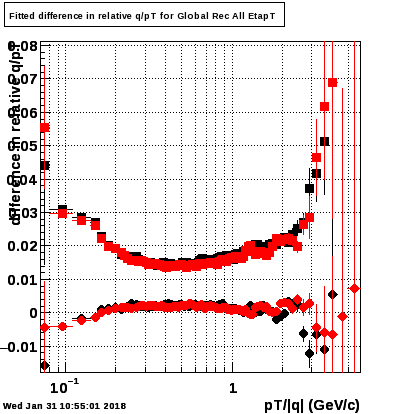

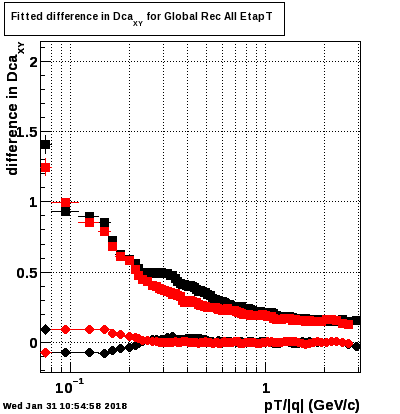

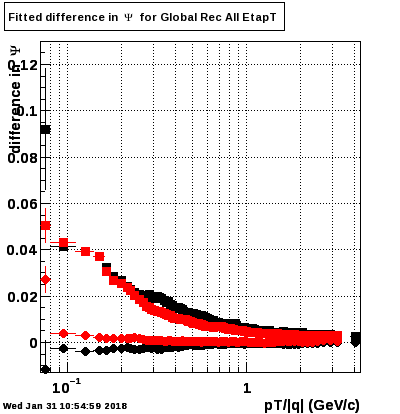

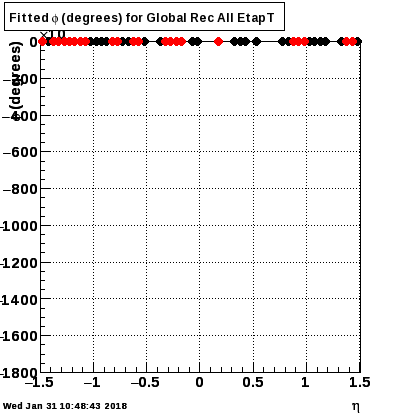

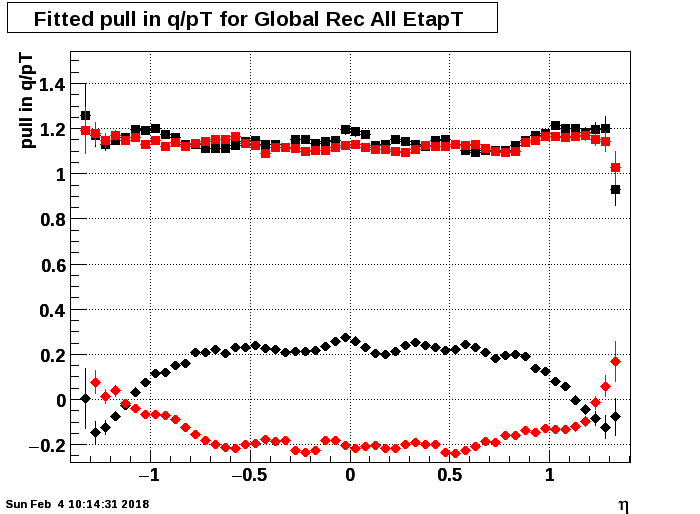

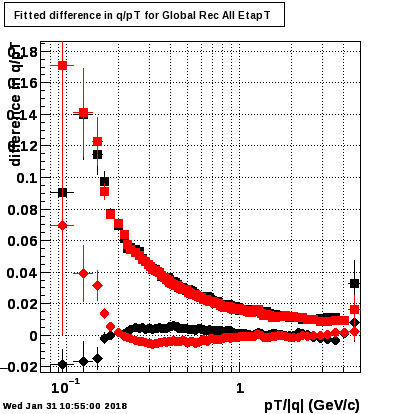

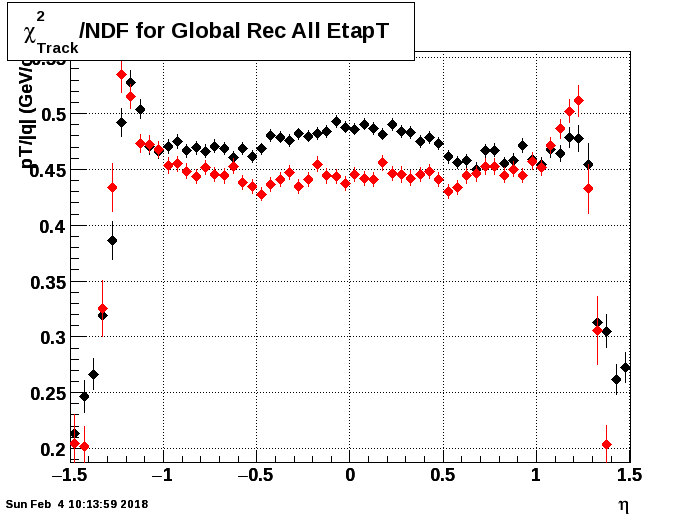

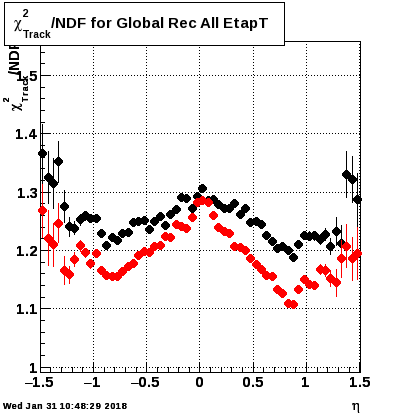

1.1.1.2. Global tracks. All.Track parameters

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29
Fig.30
Fig.31

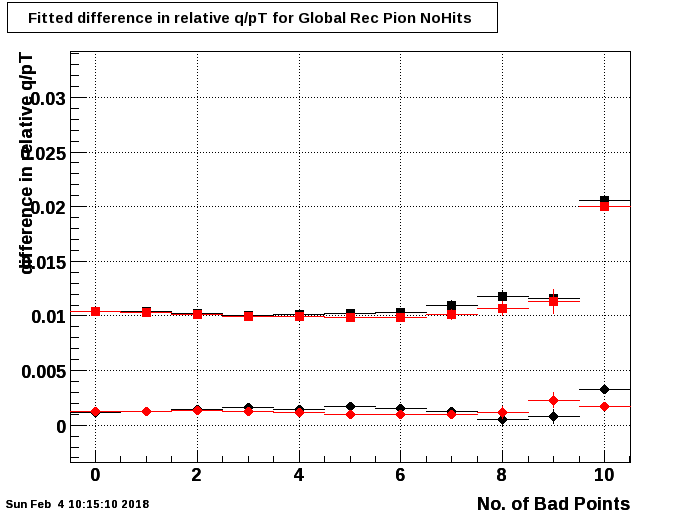

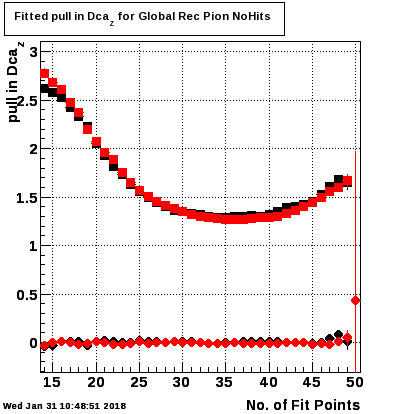

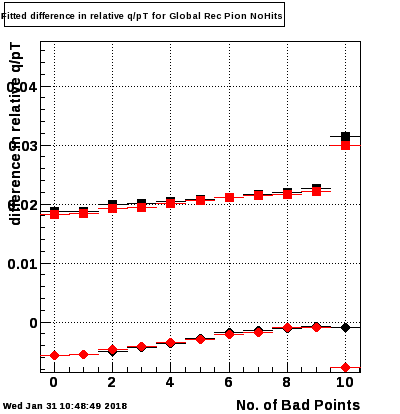

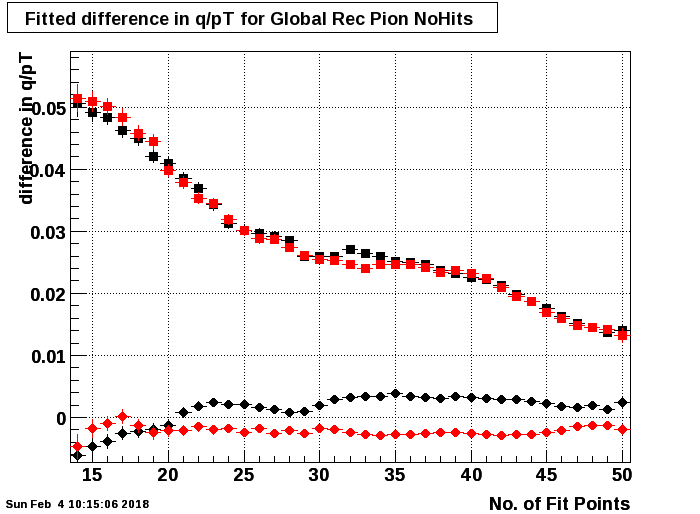

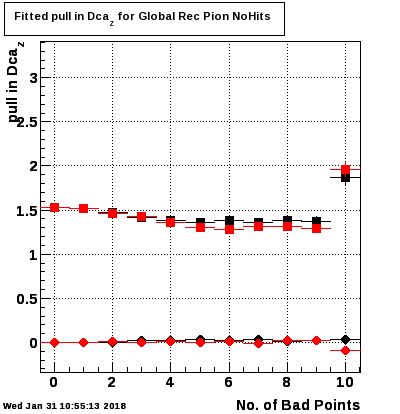

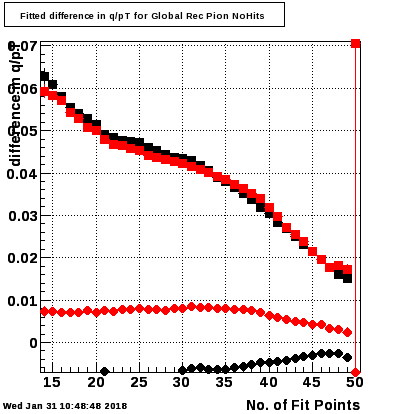

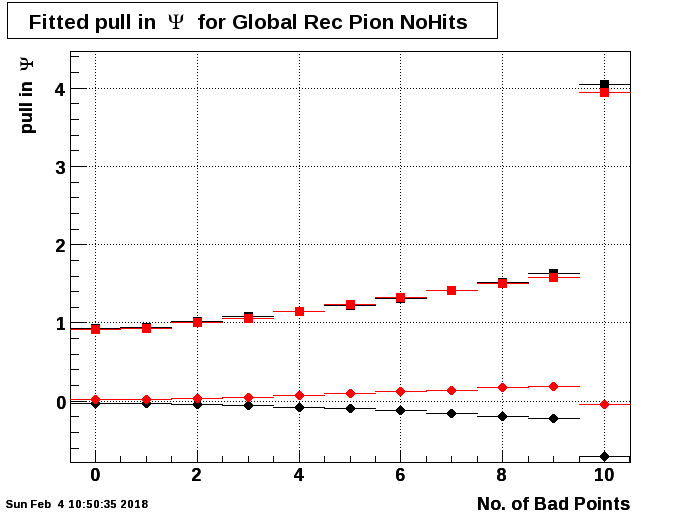

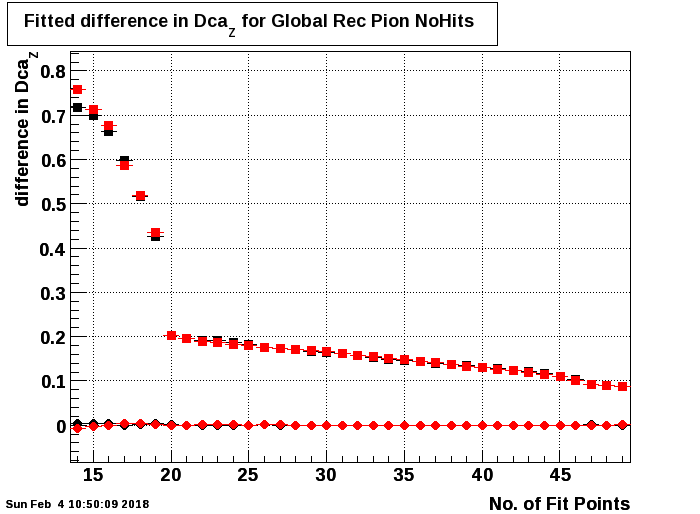

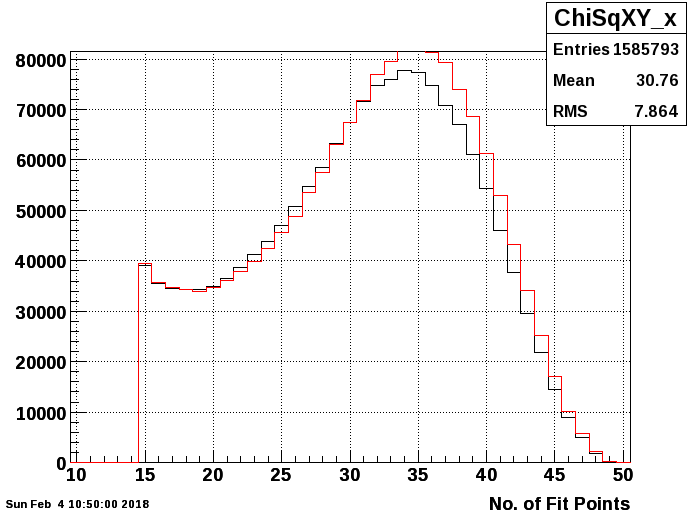

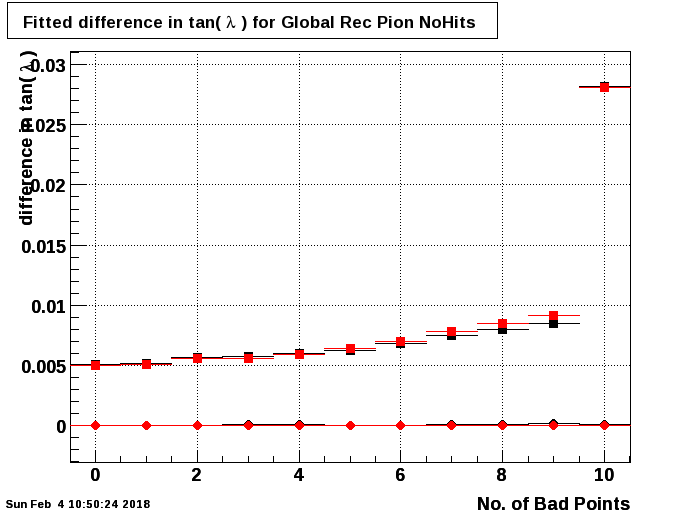

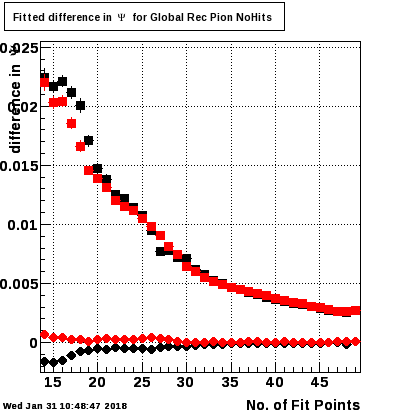

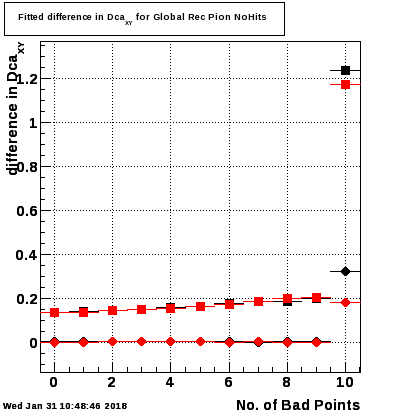

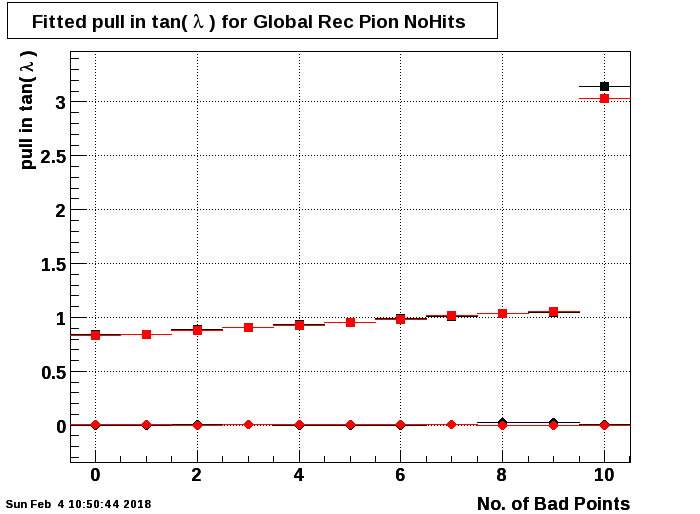

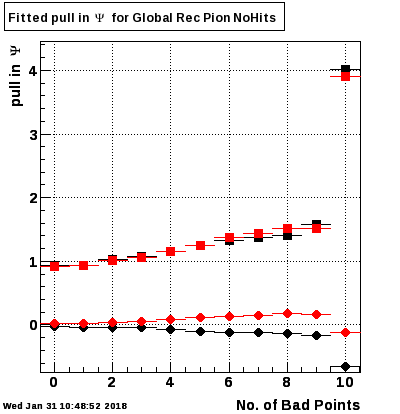

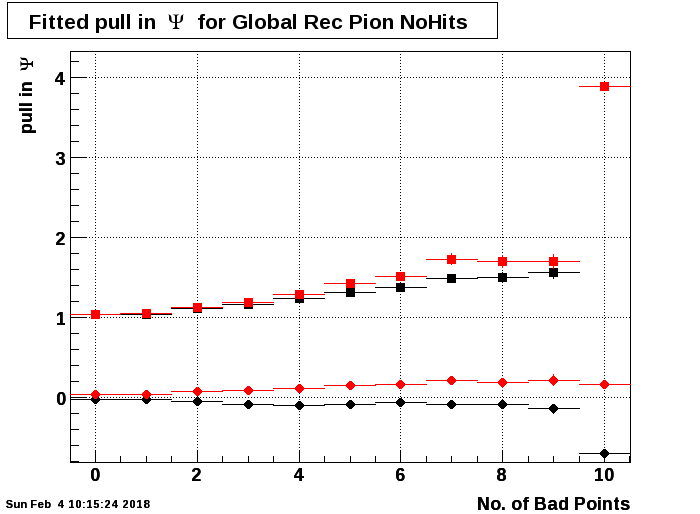

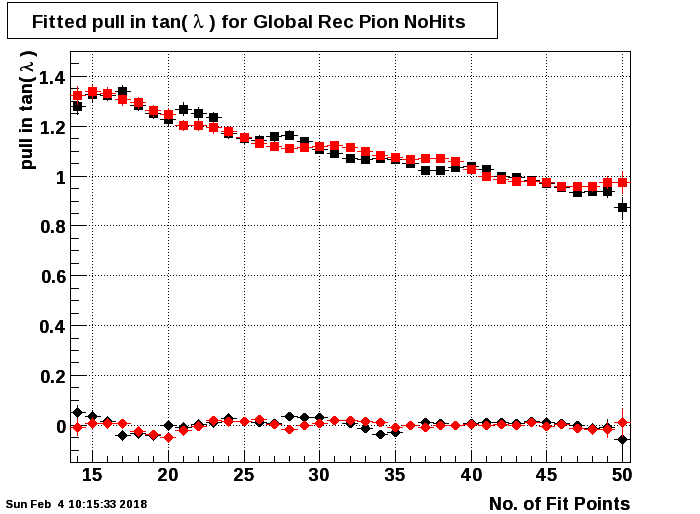

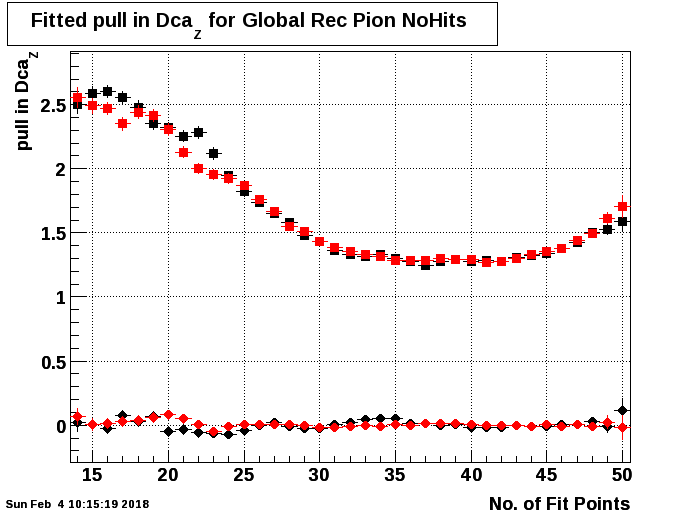

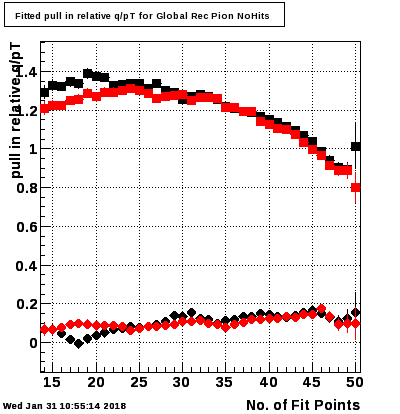

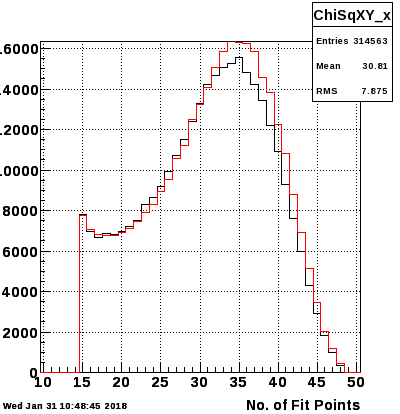

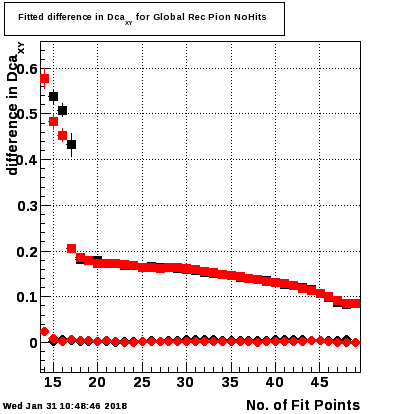

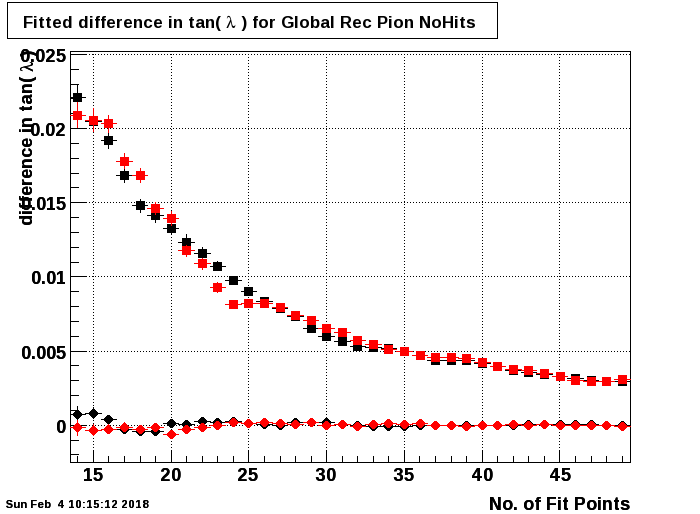

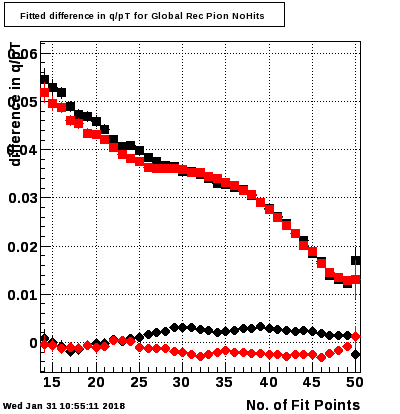

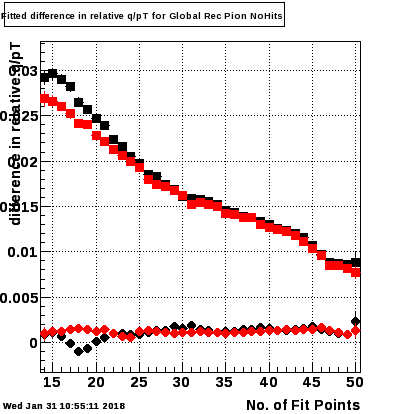

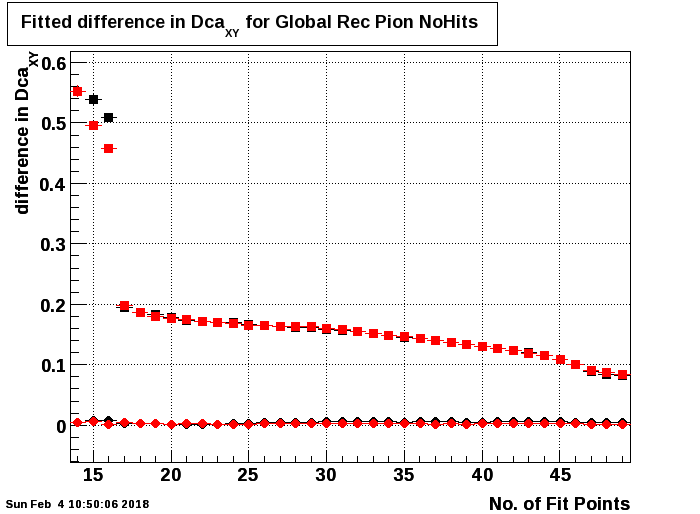

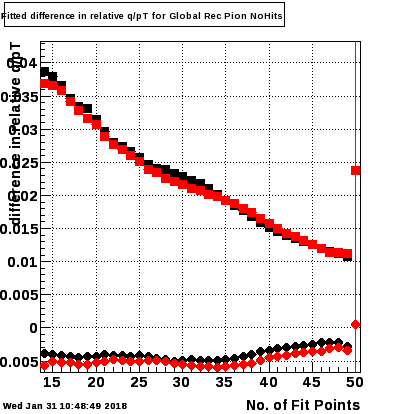

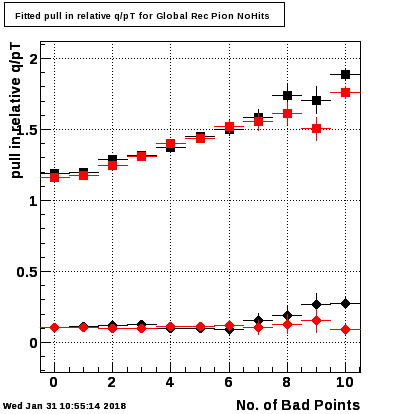

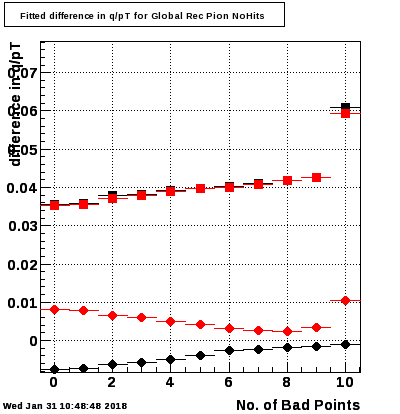

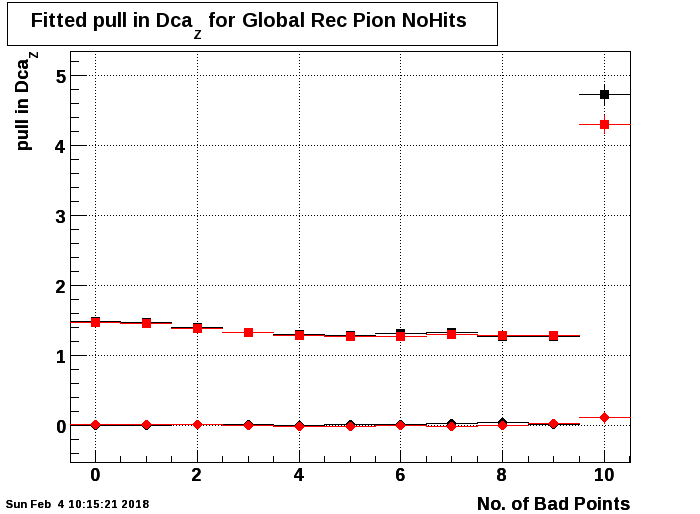

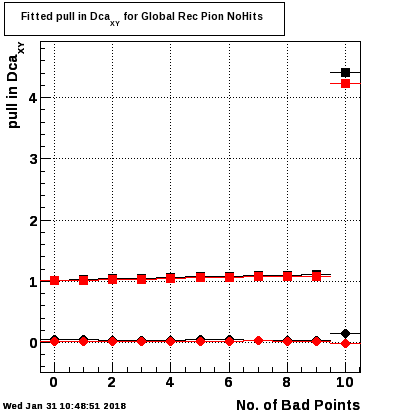

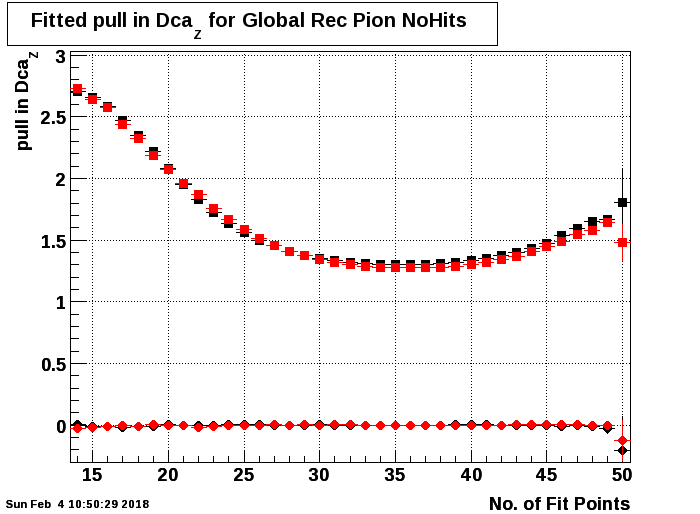

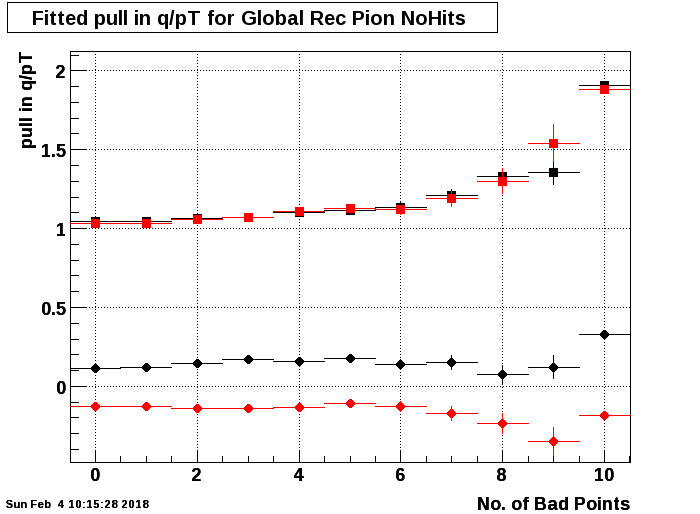

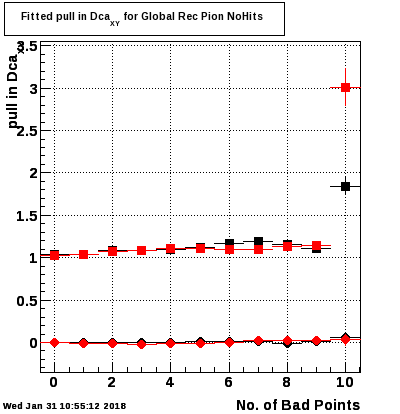

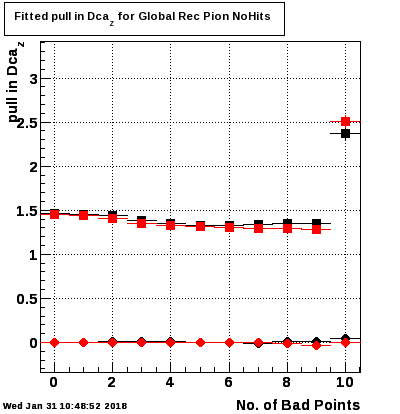

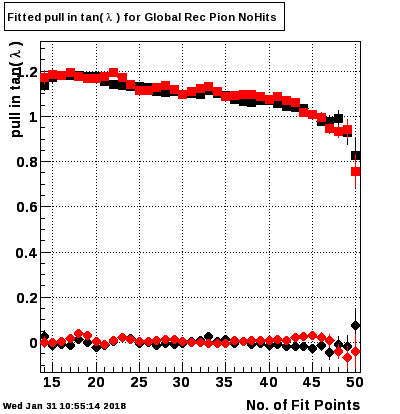

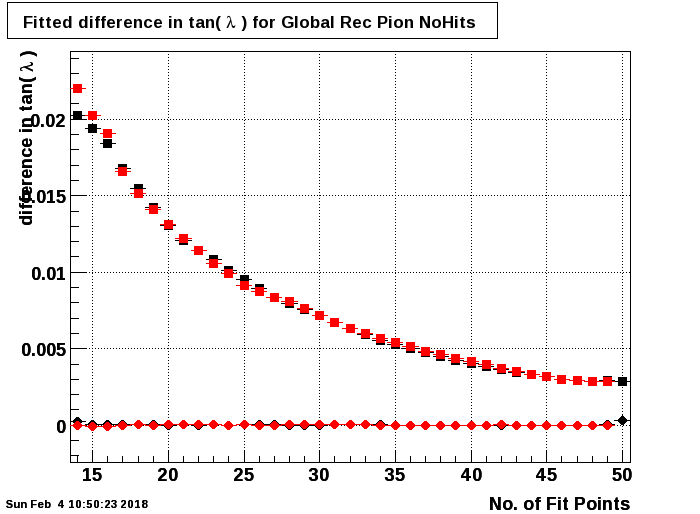

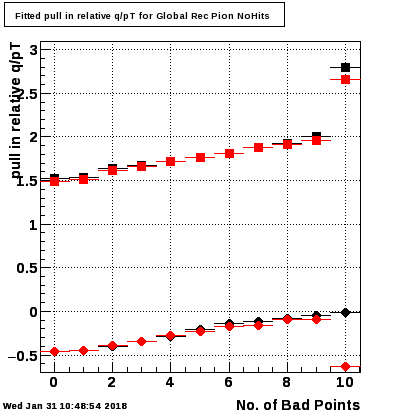

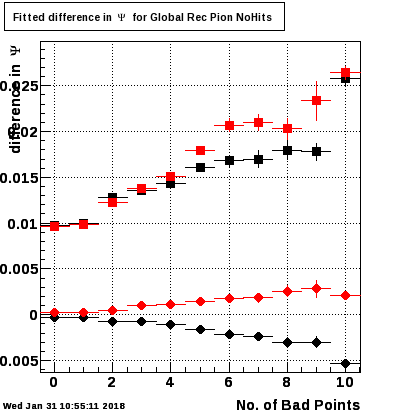

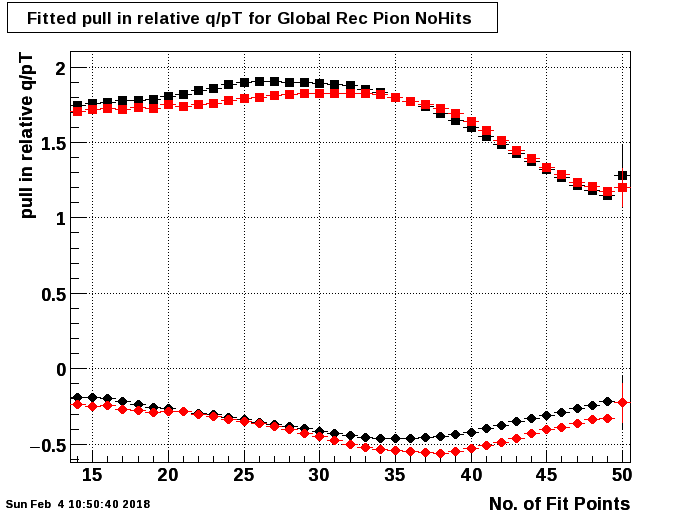

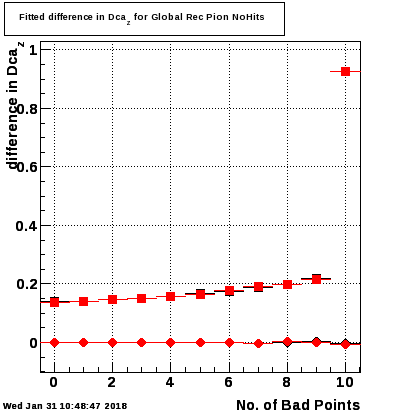

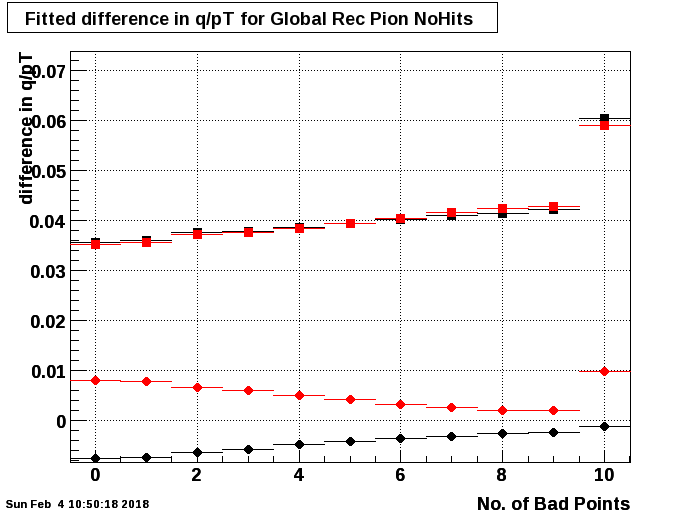

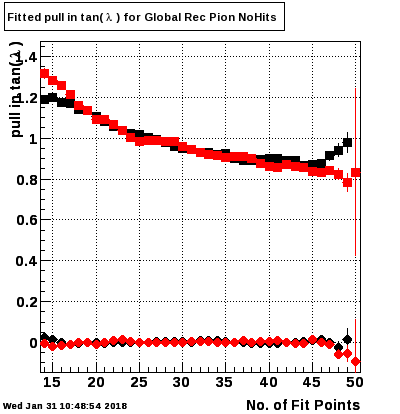

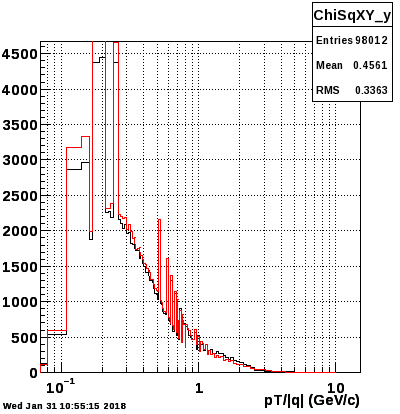

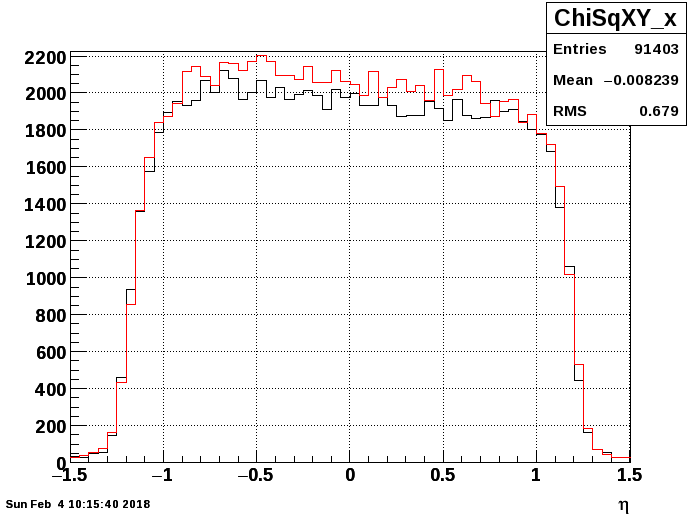

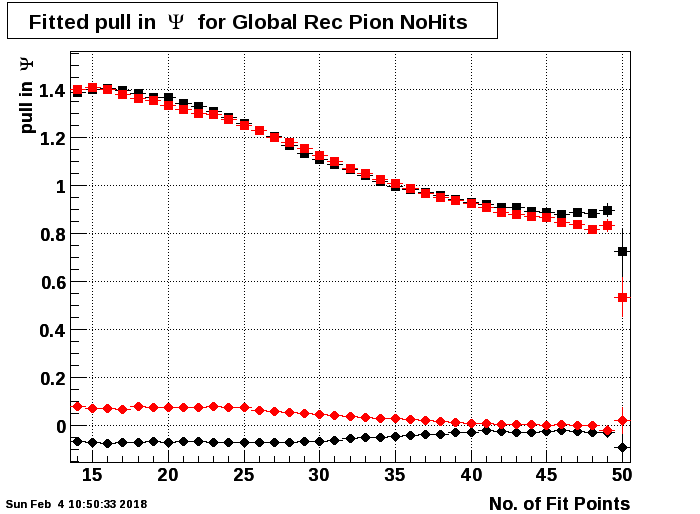

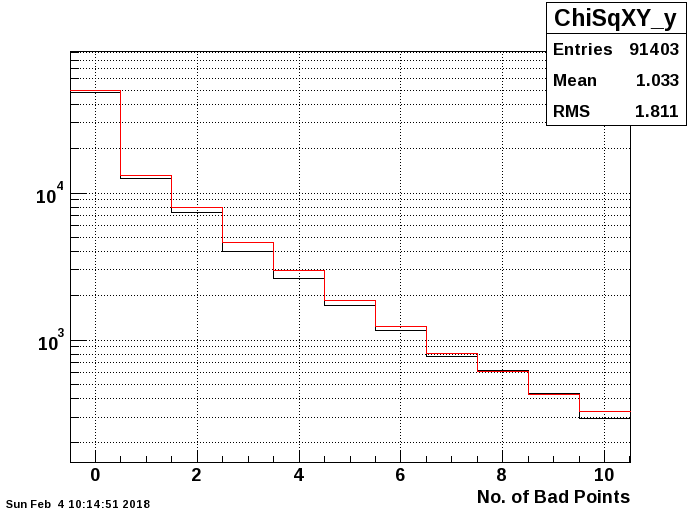

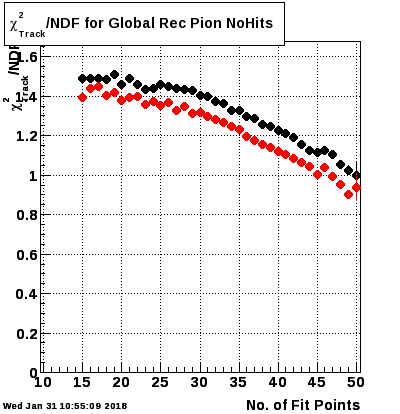

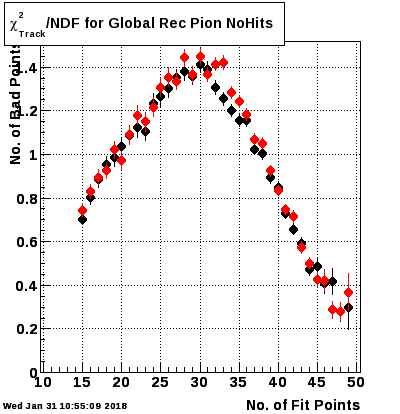

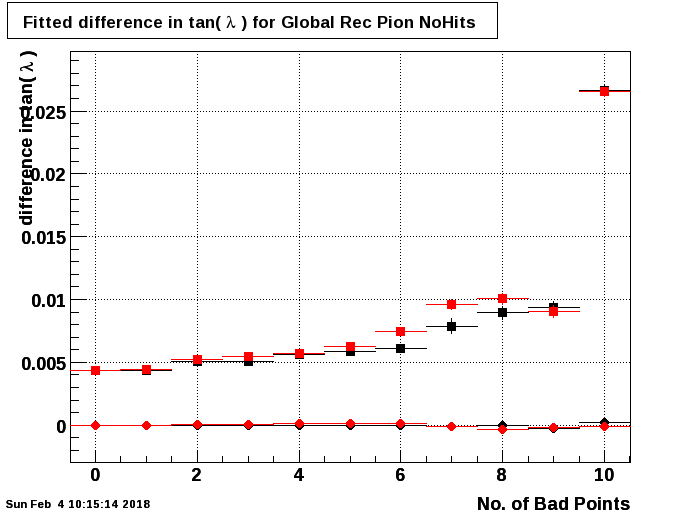

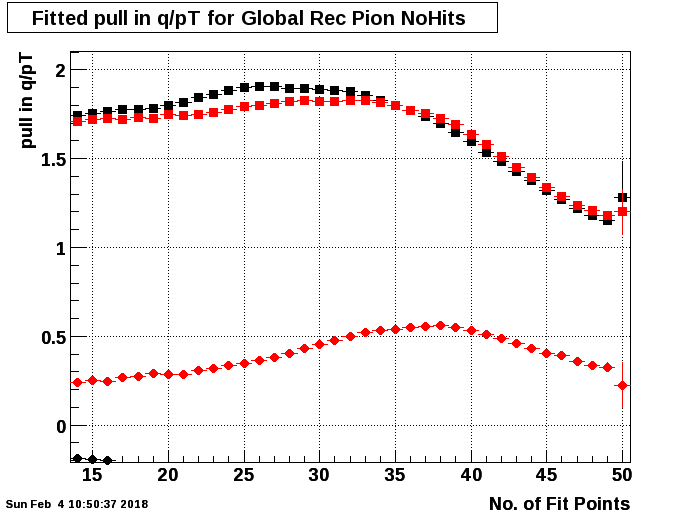

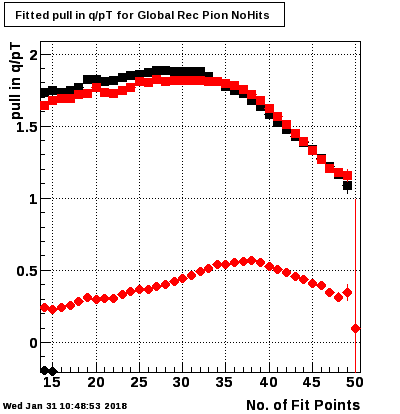

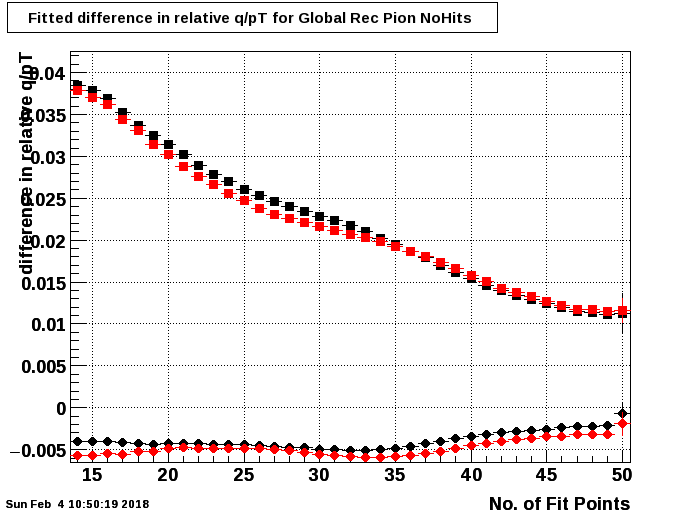

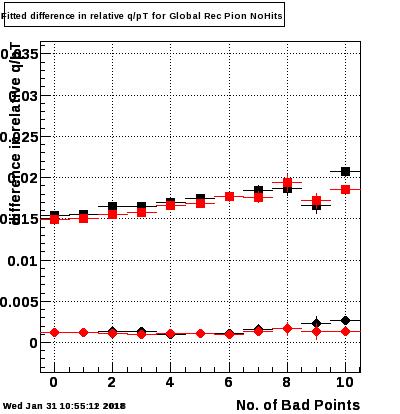

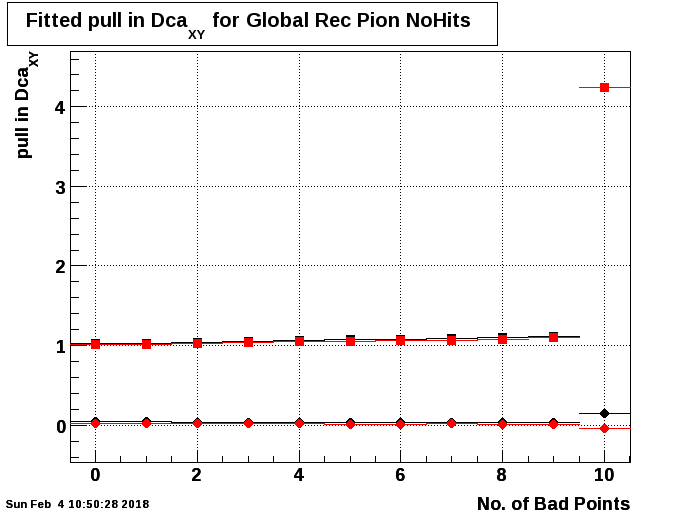

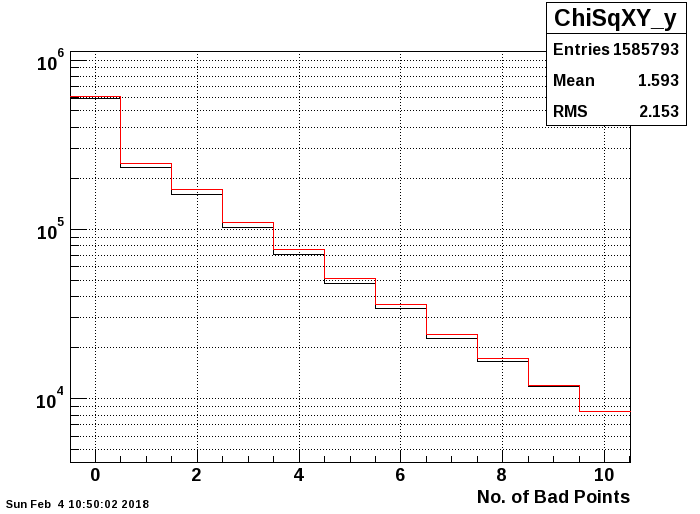

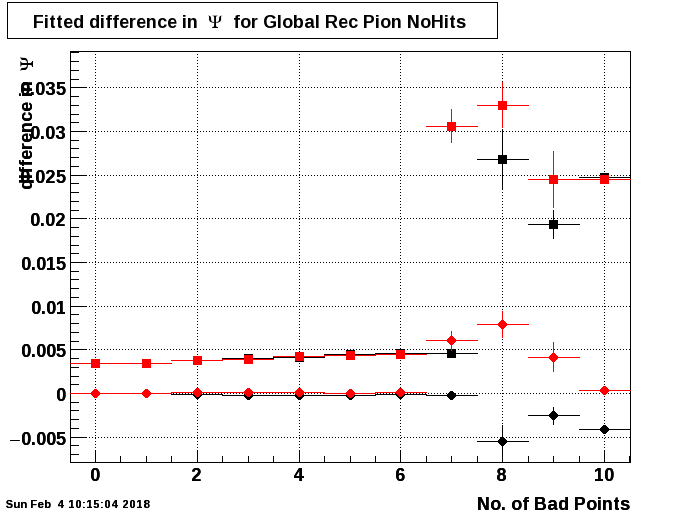

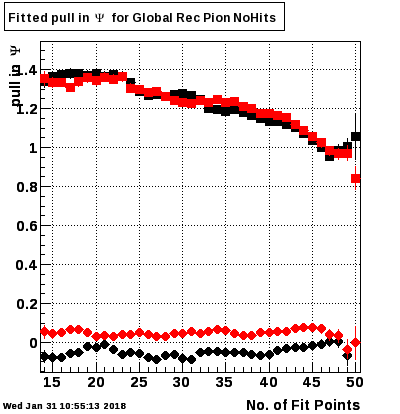

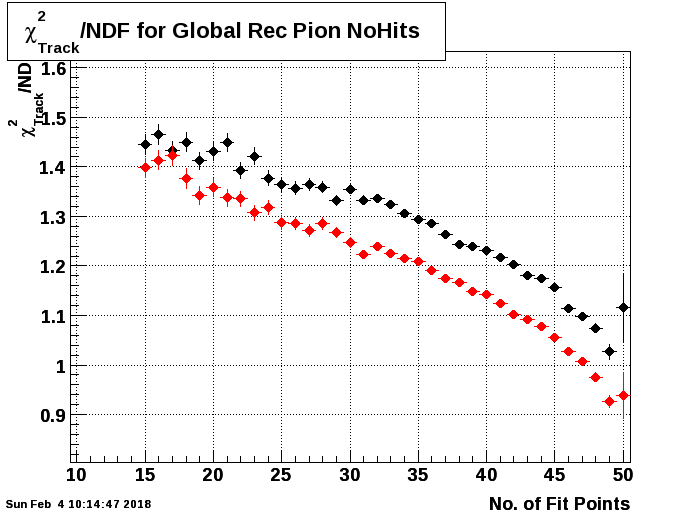

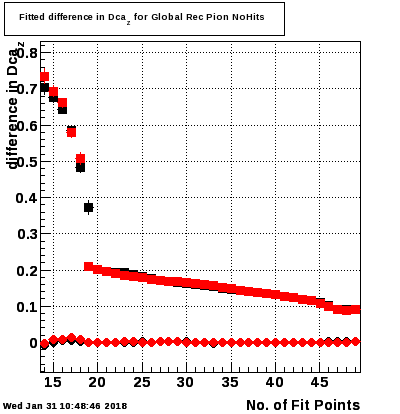

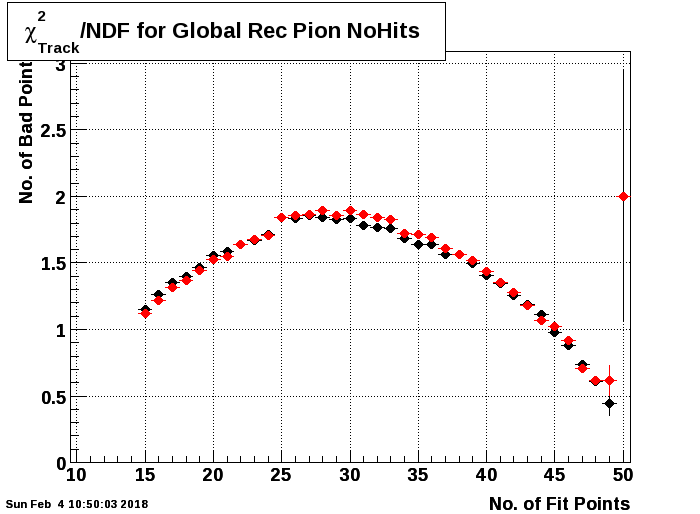

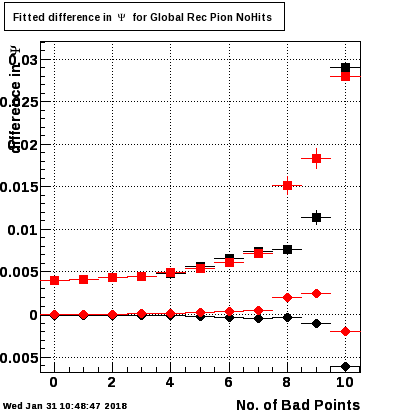

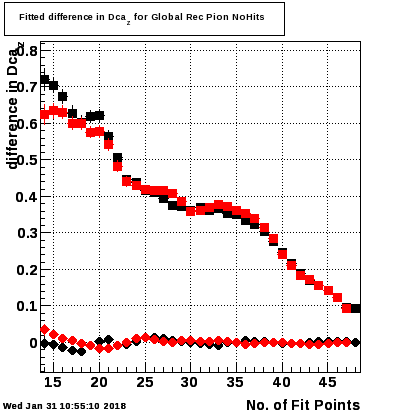

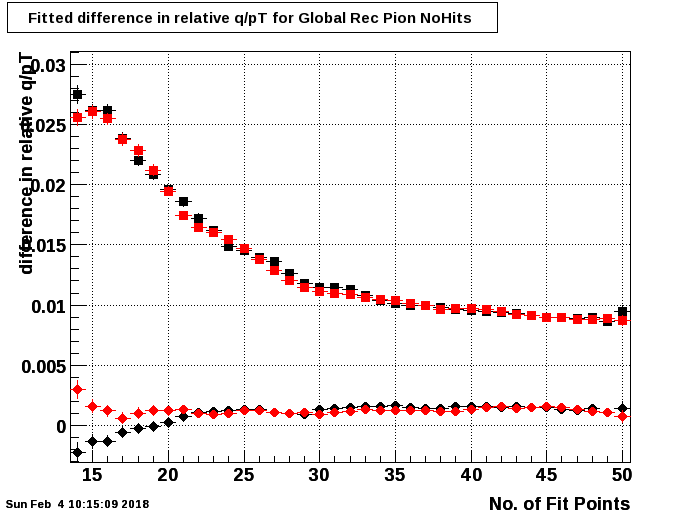

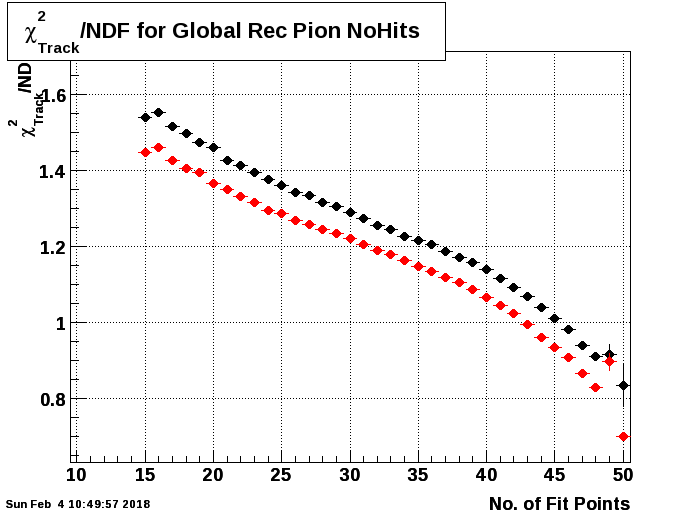

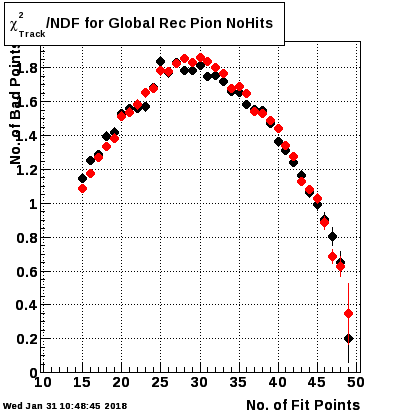

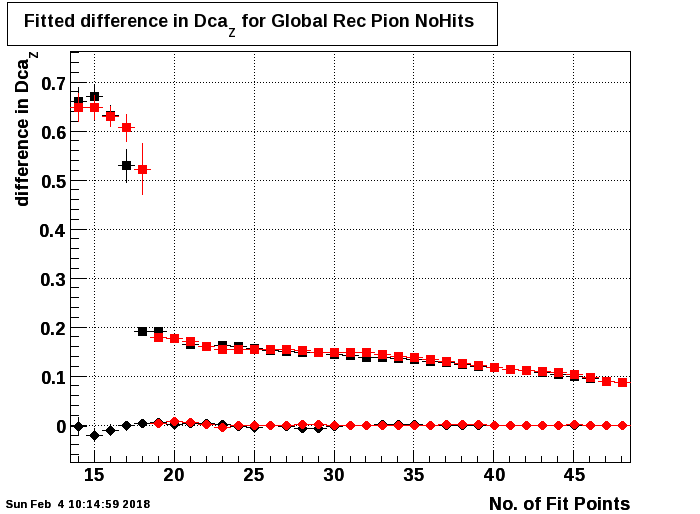

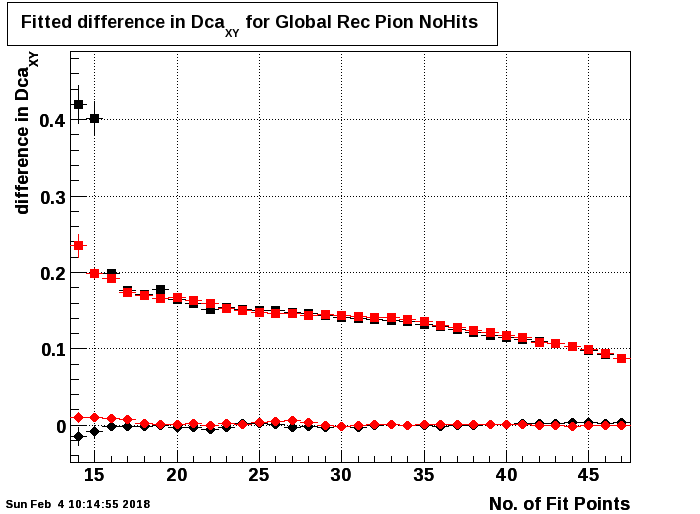

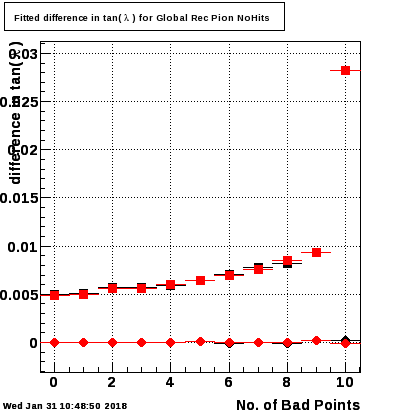

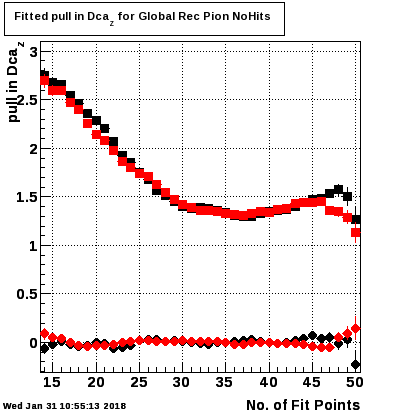

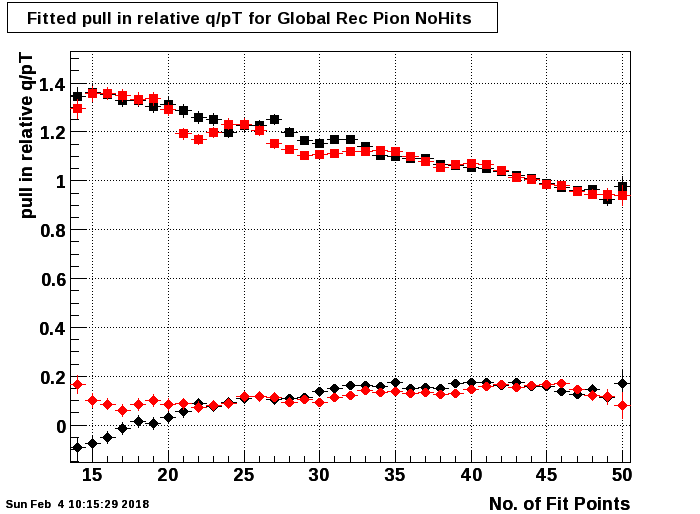

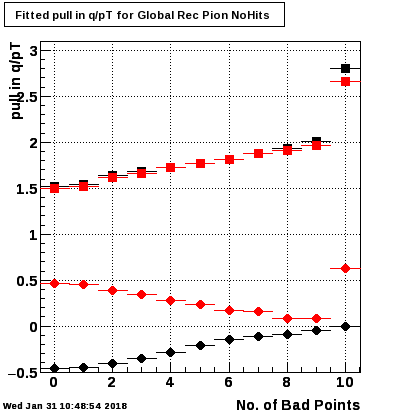

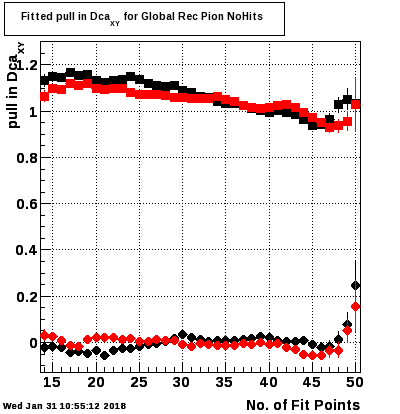

1.1.1.3. Global tracks. Pions. No. of fit and bad points.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29

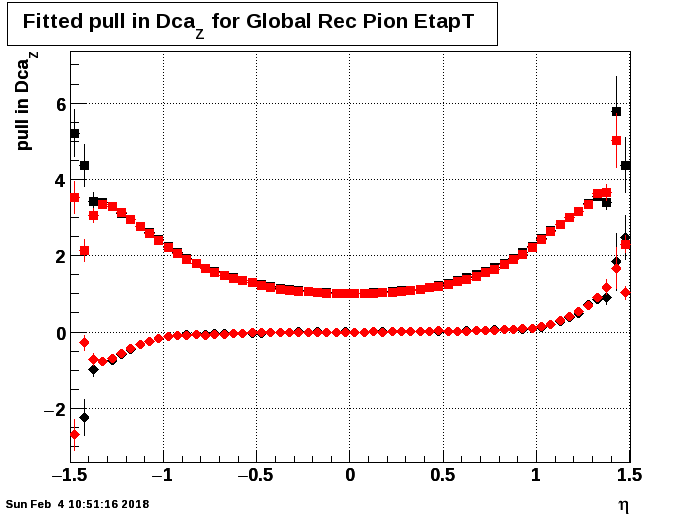

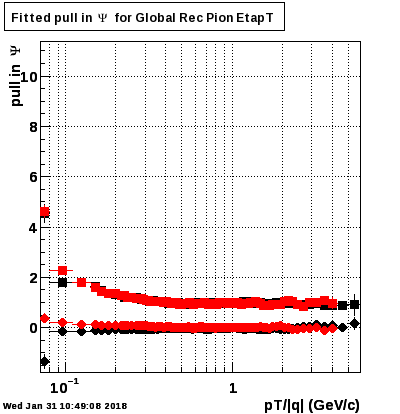

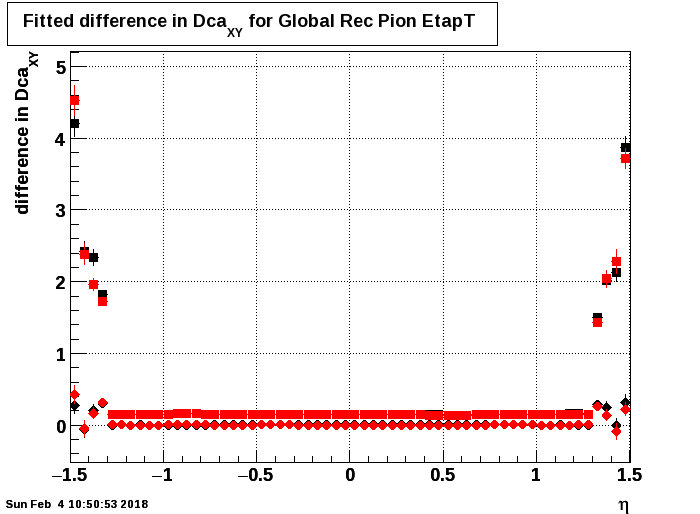

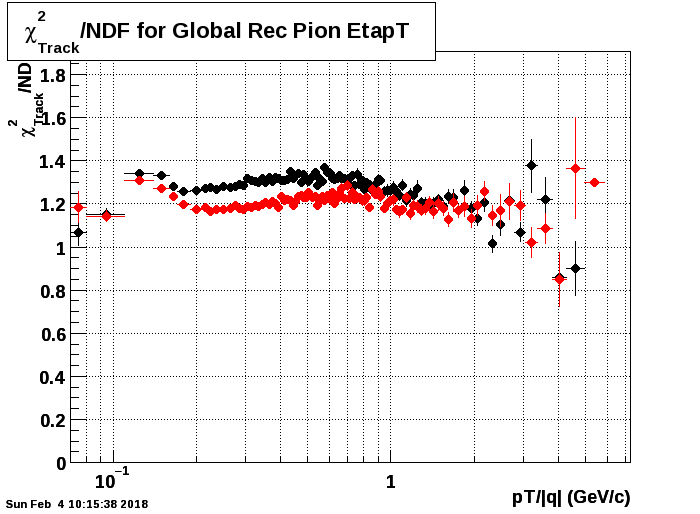

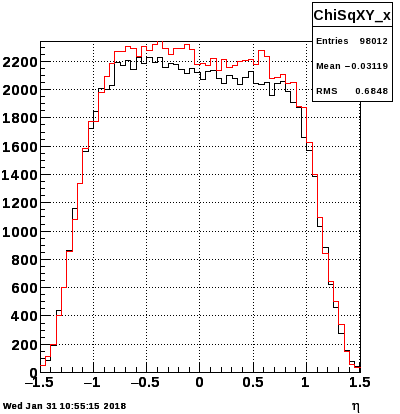

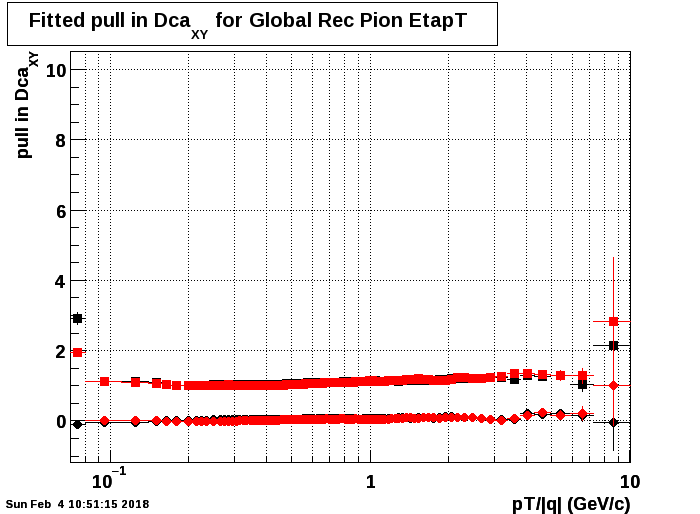

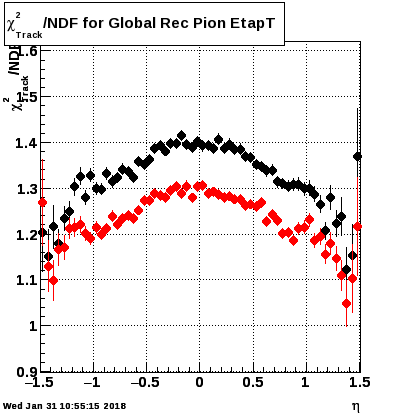

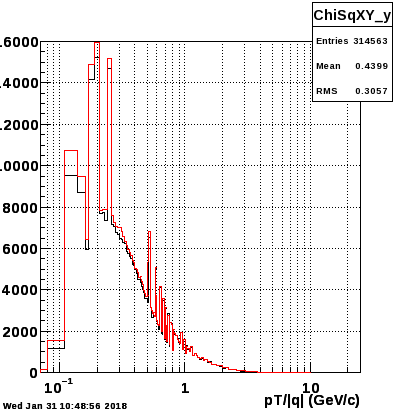

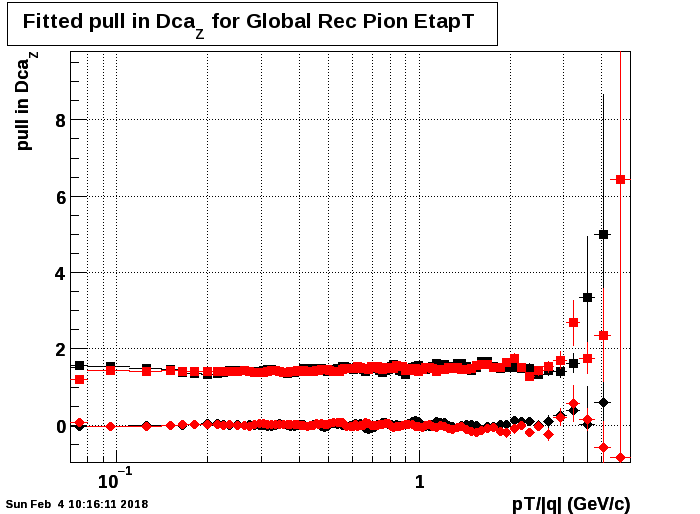

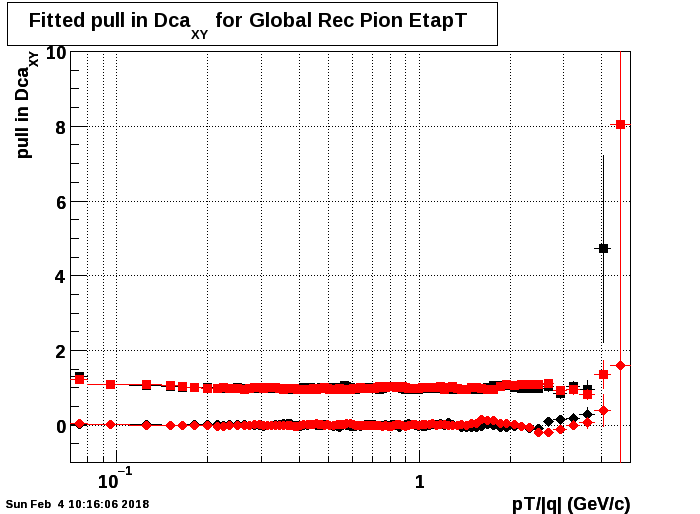

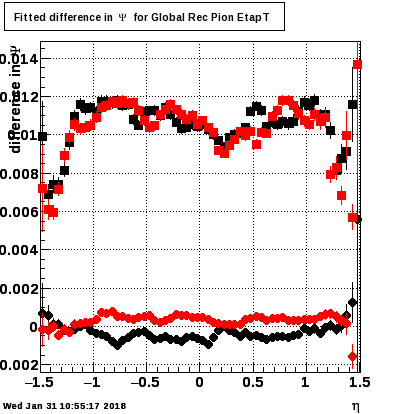

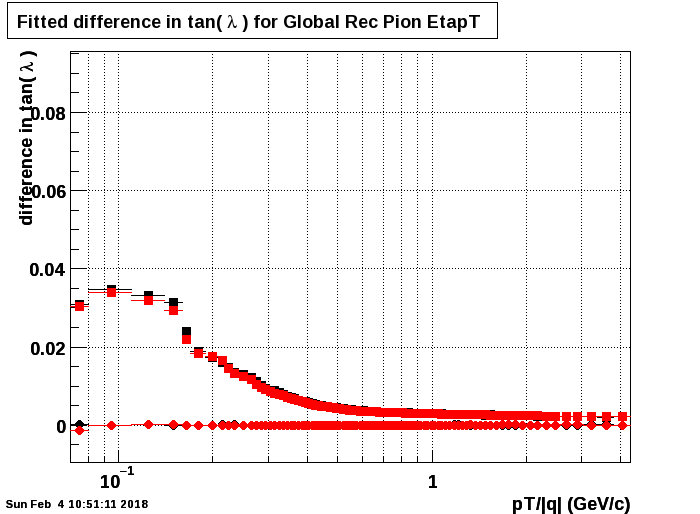

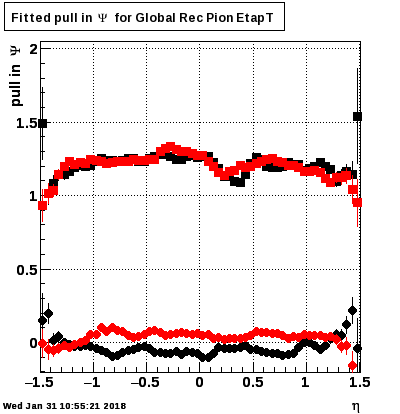

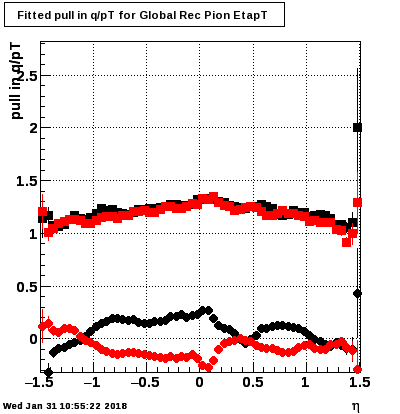

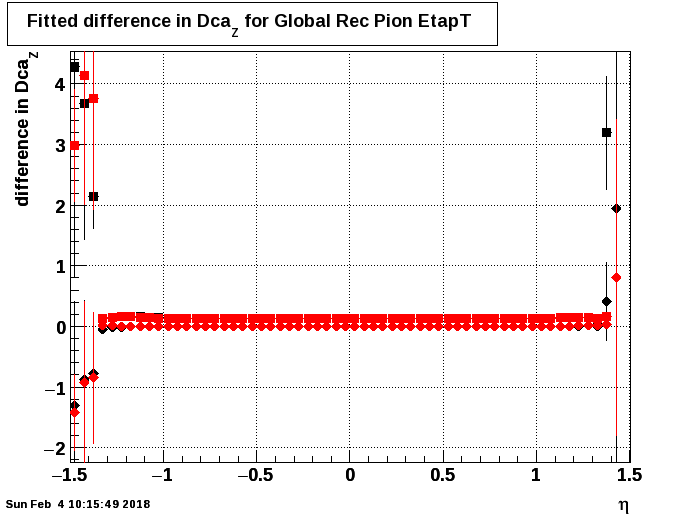

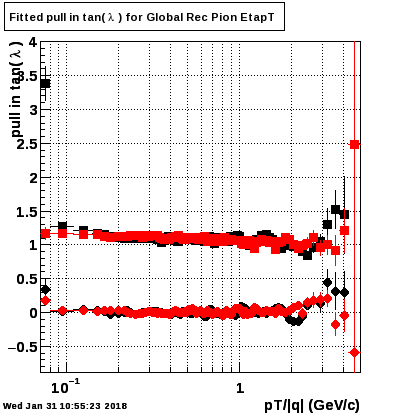

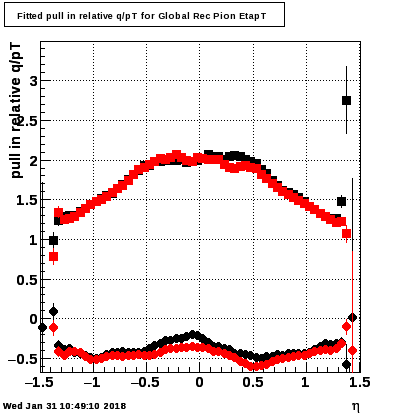

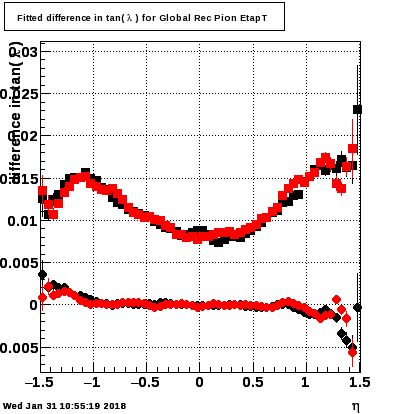

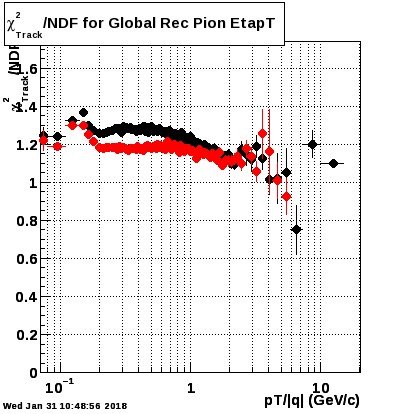

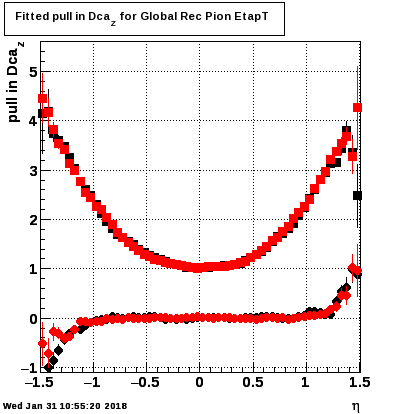

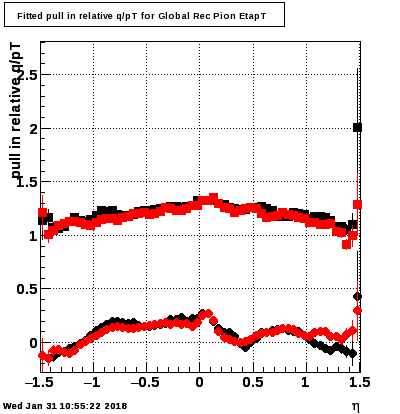

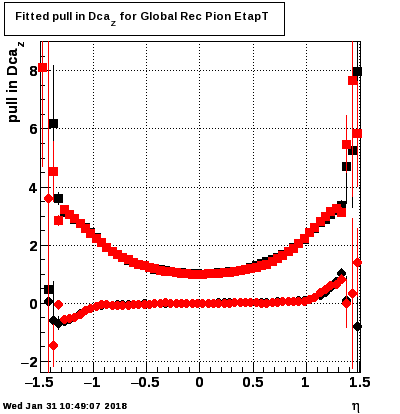

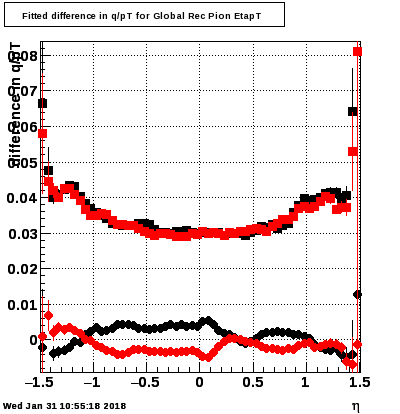

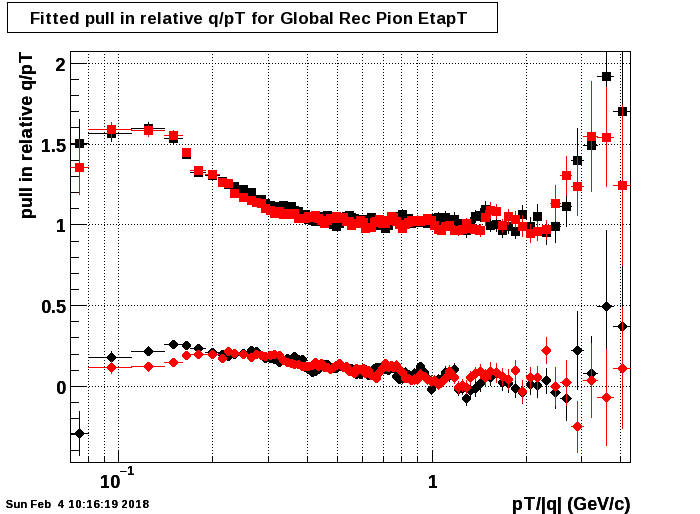

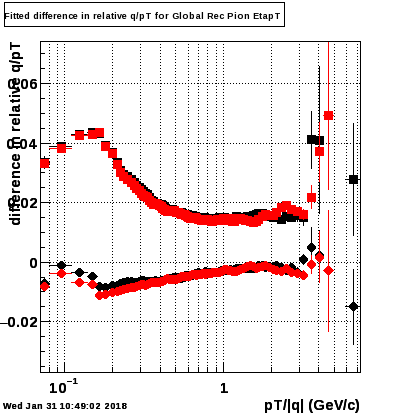

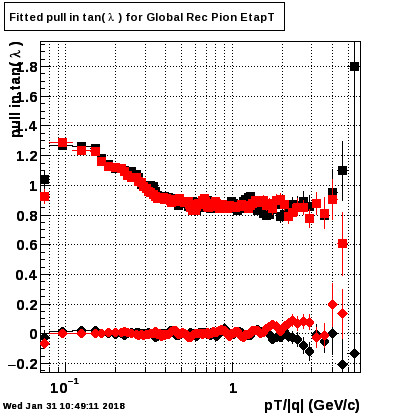

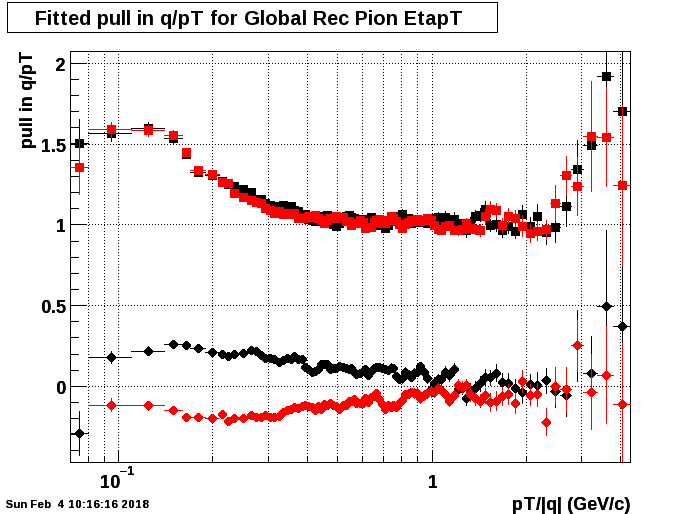

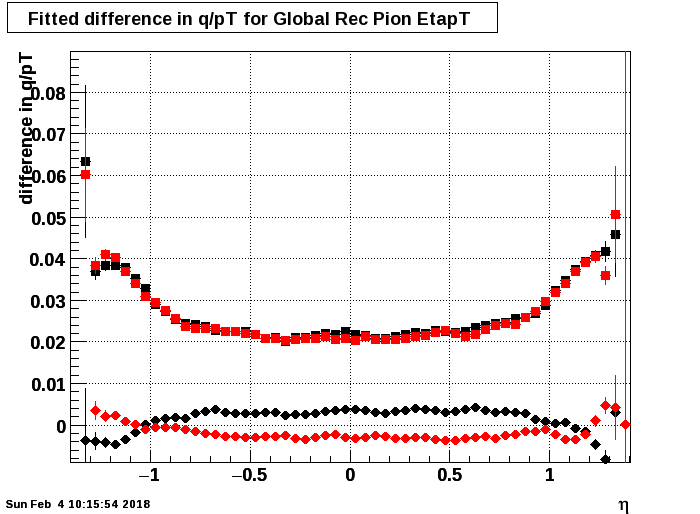

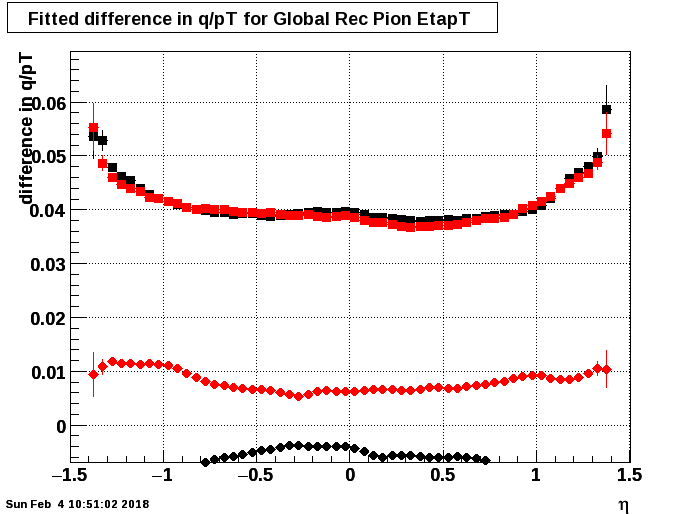

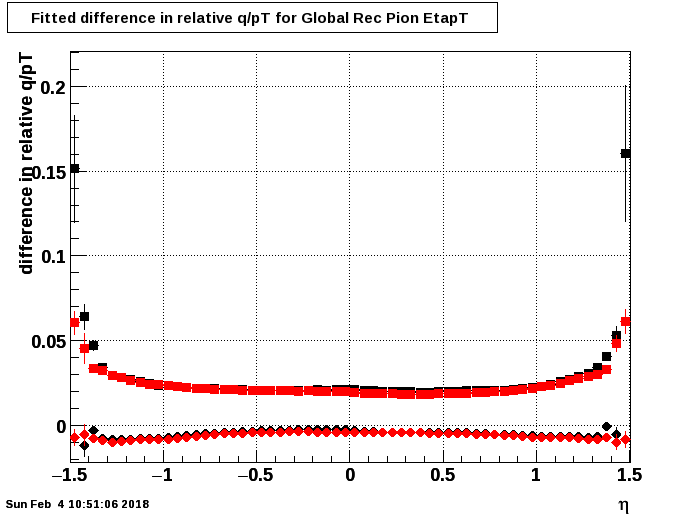

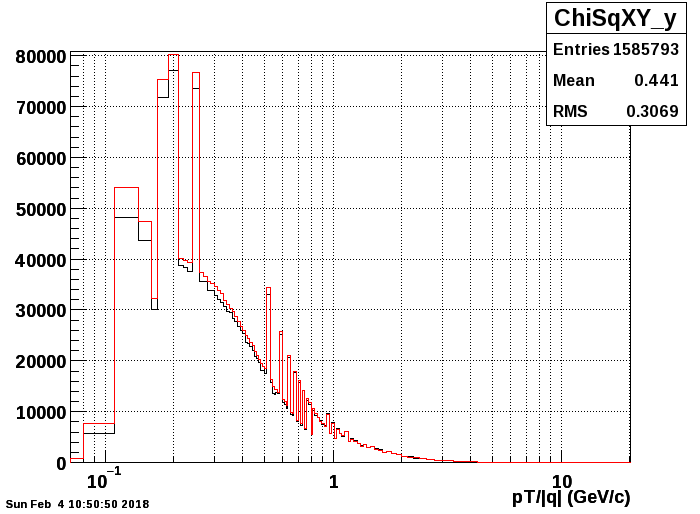

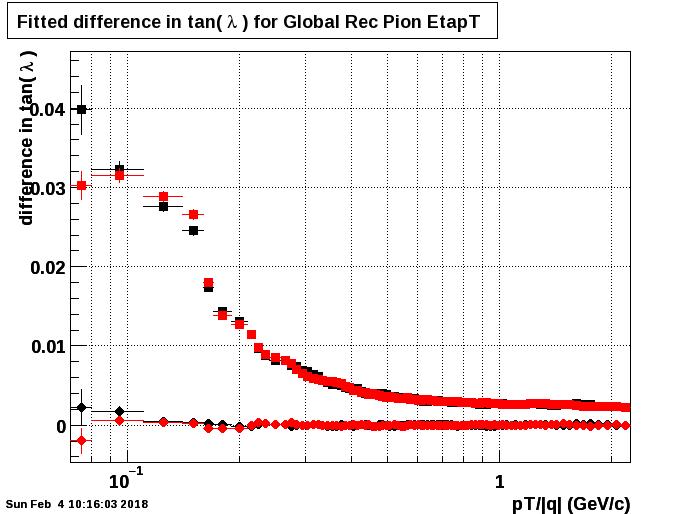

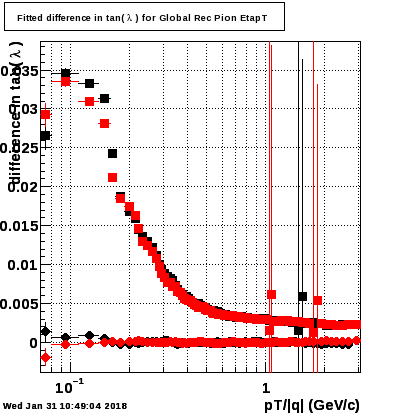

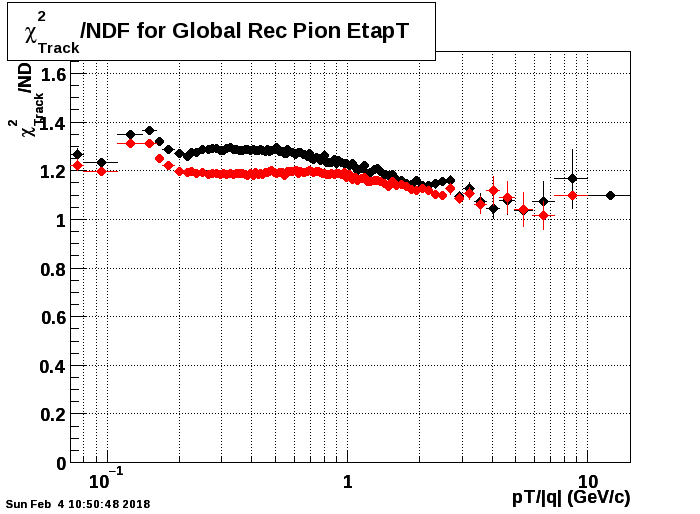

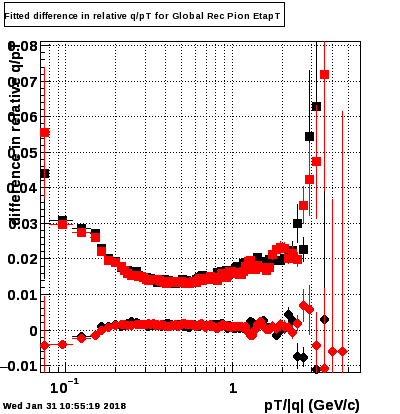

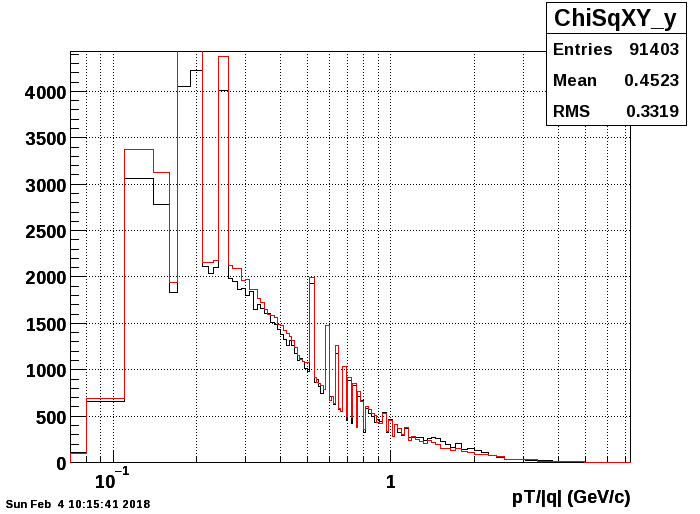

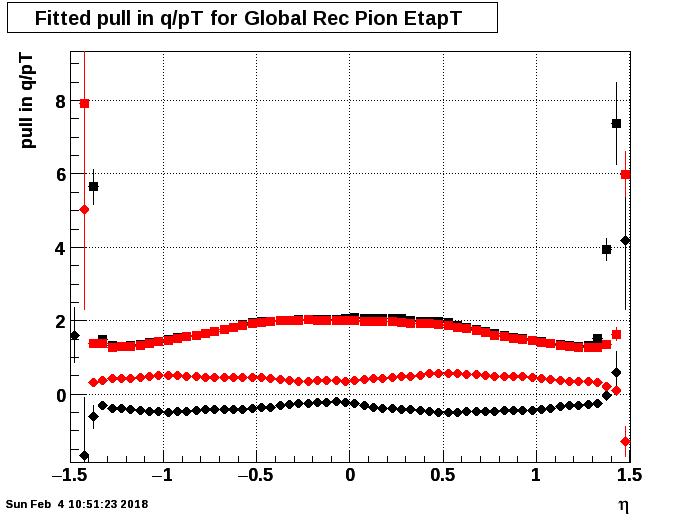

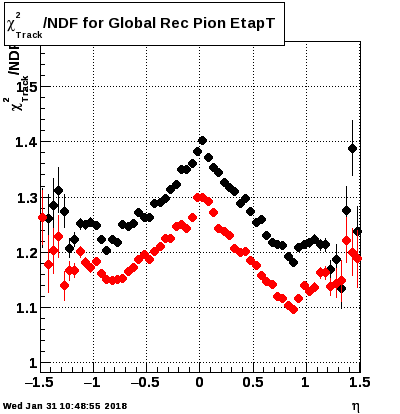

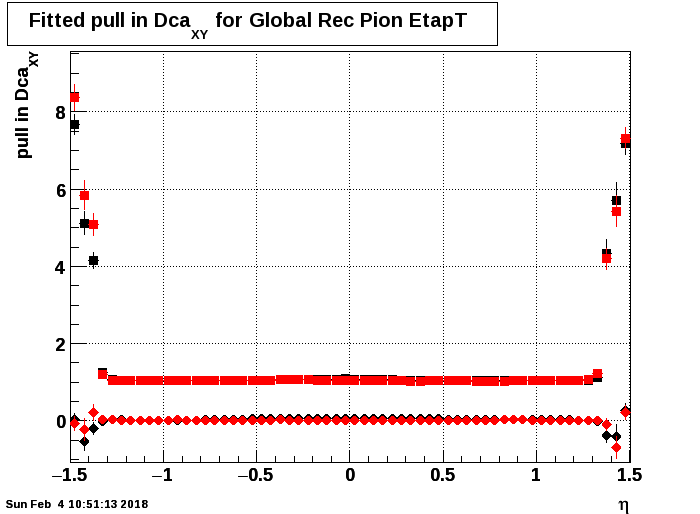

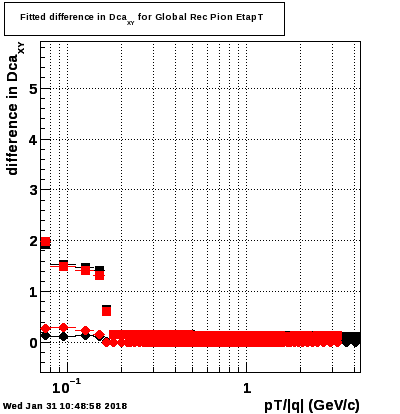

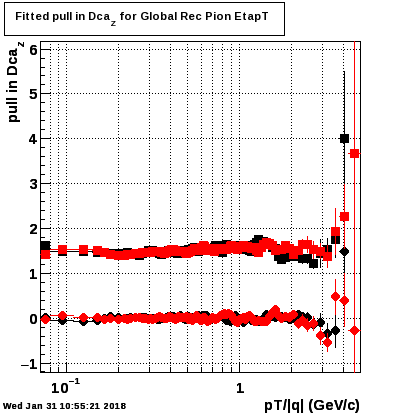

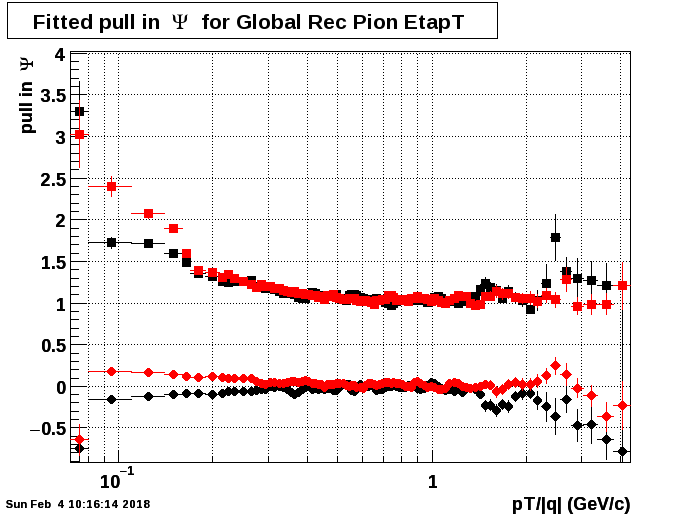

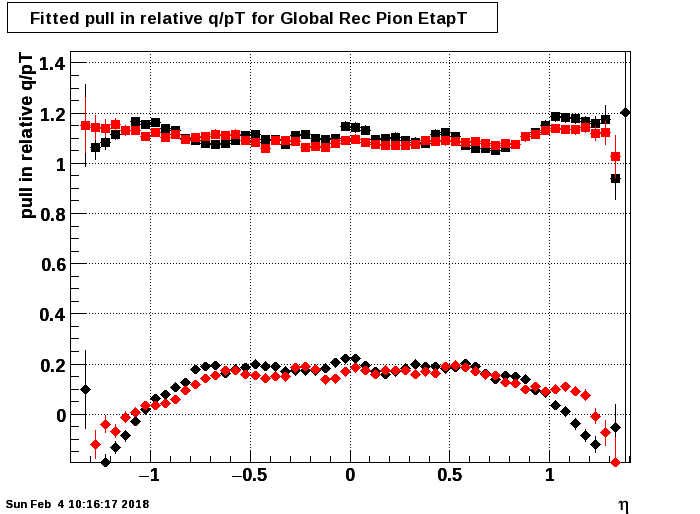

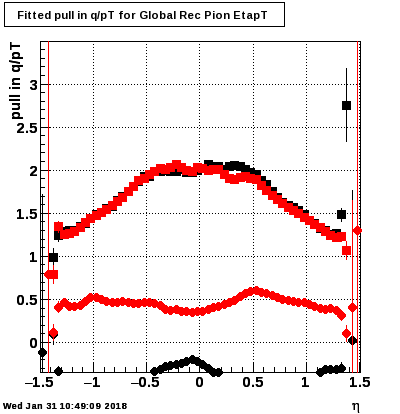

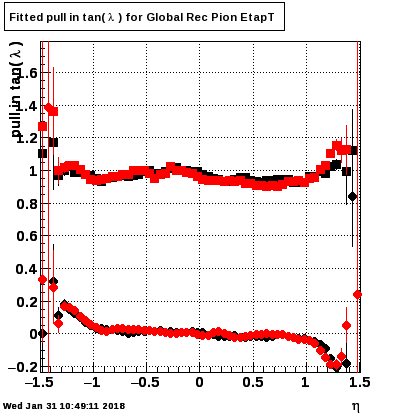

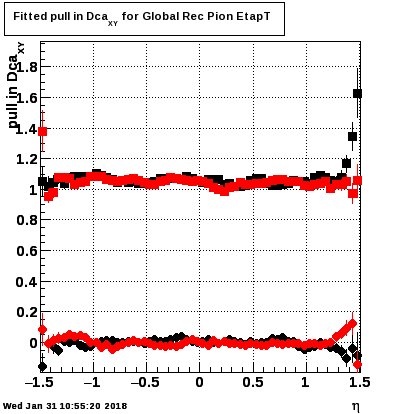

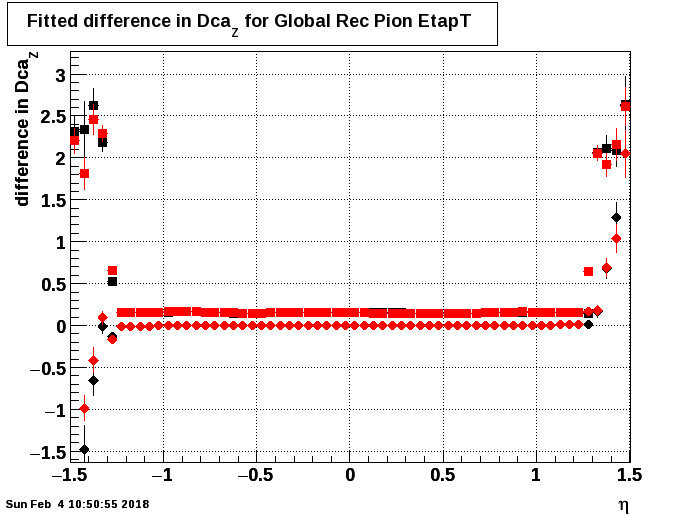

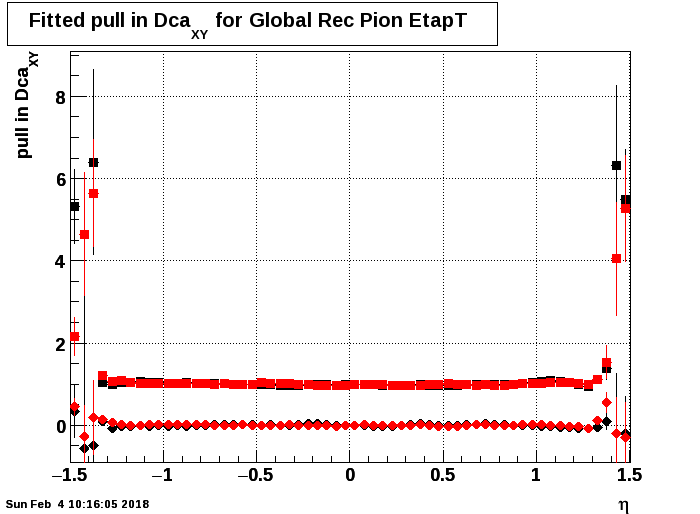

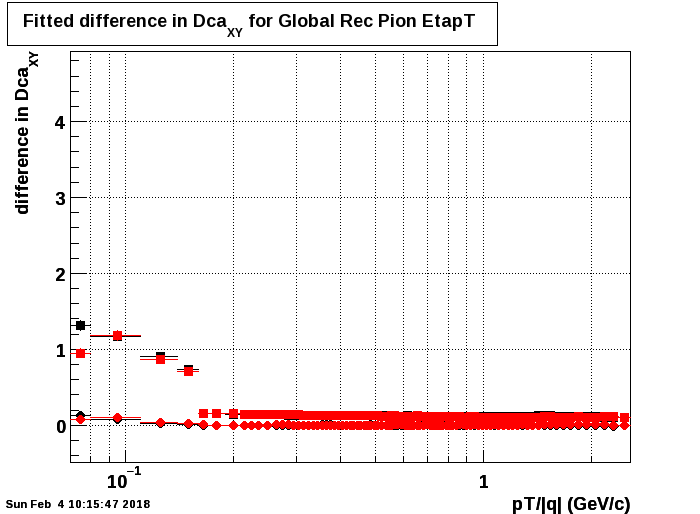

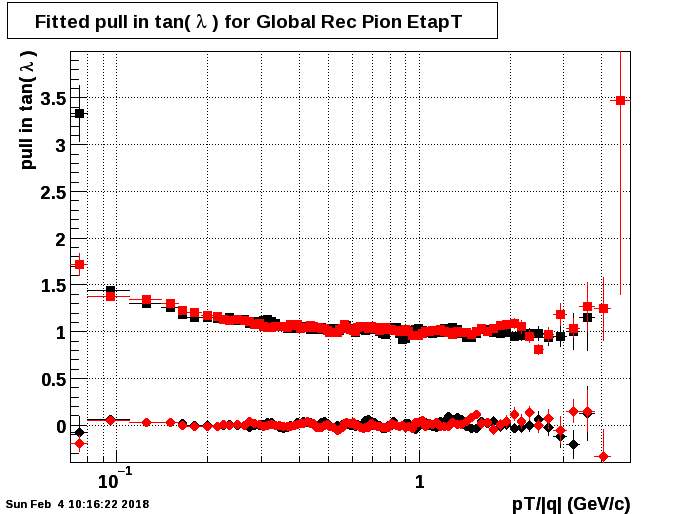

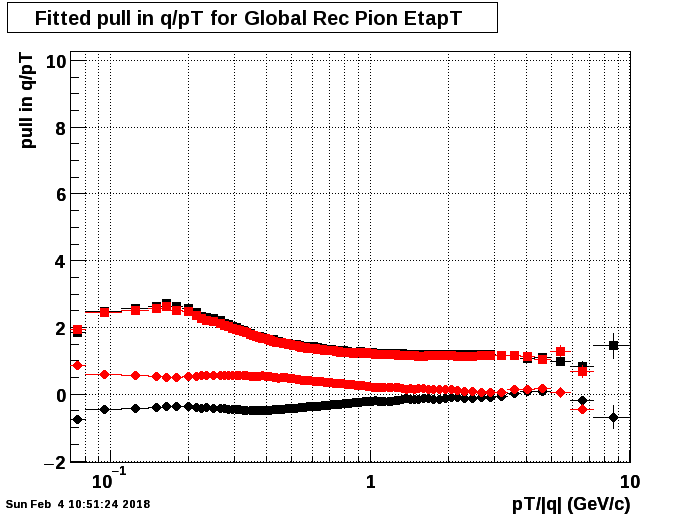

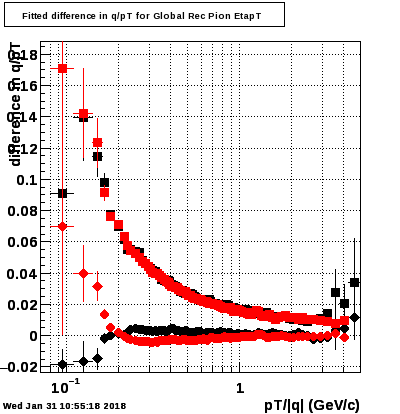

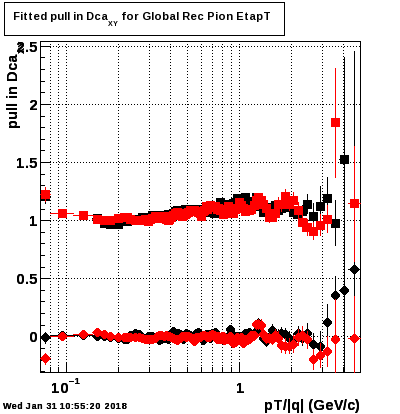

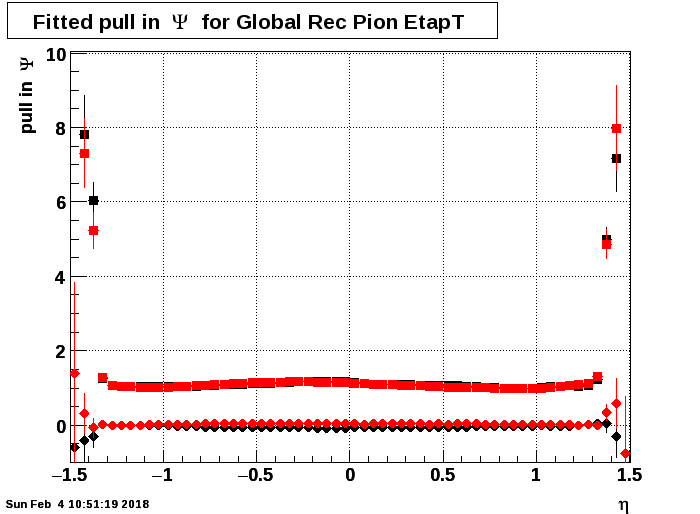

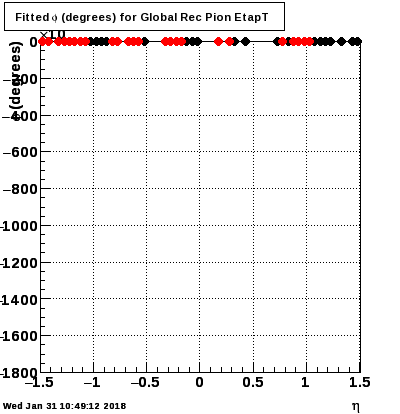

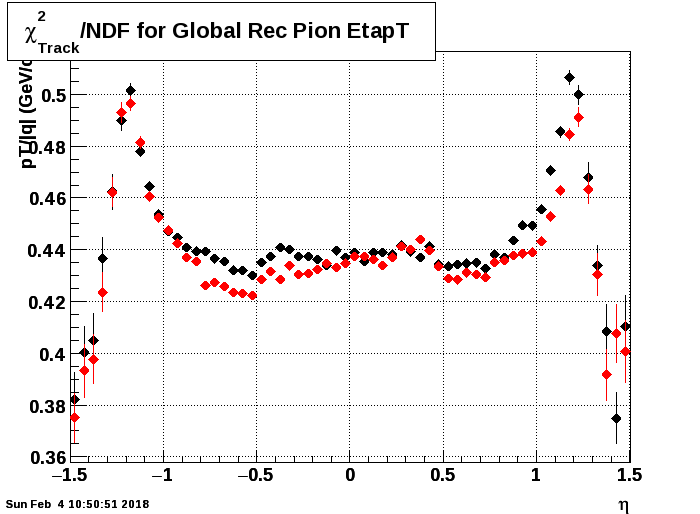

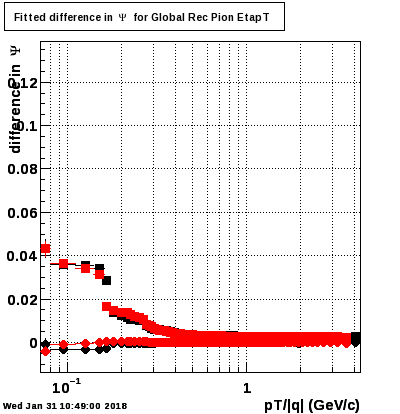

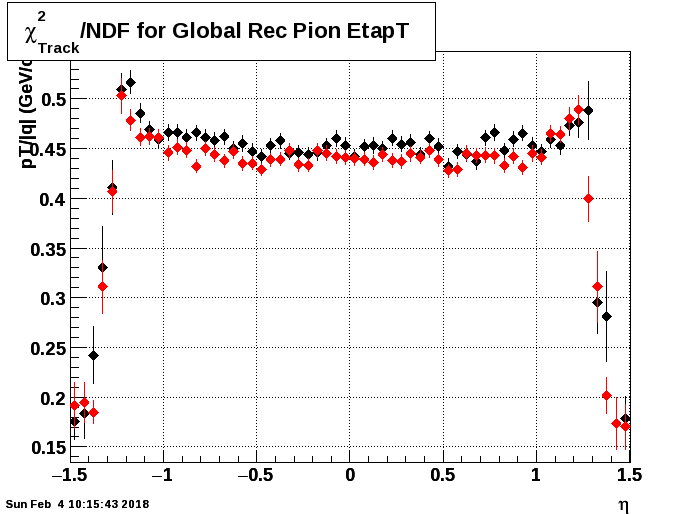

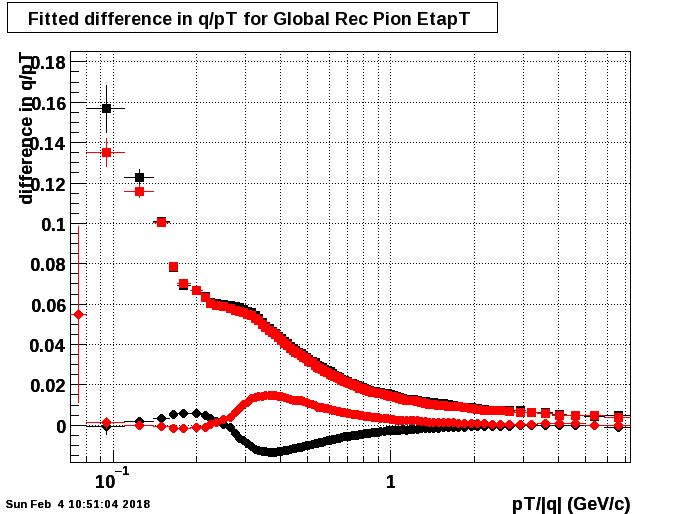

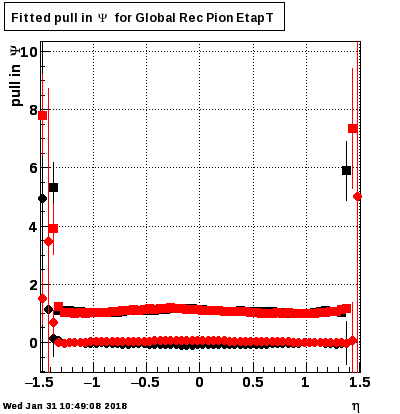

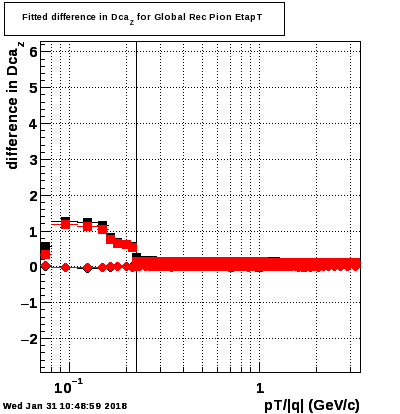

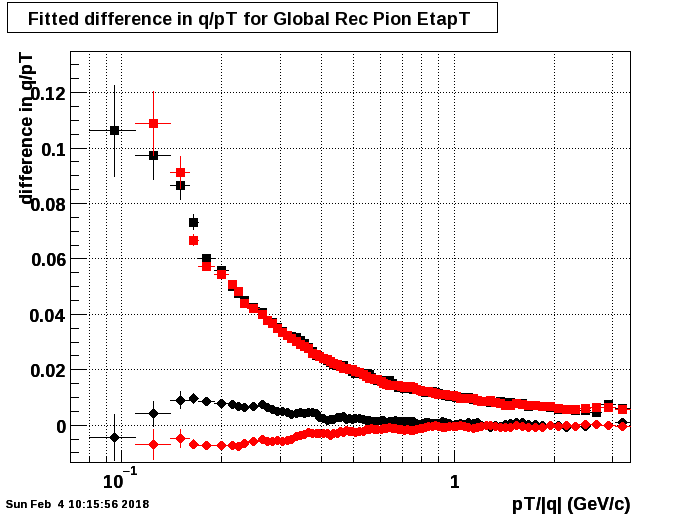

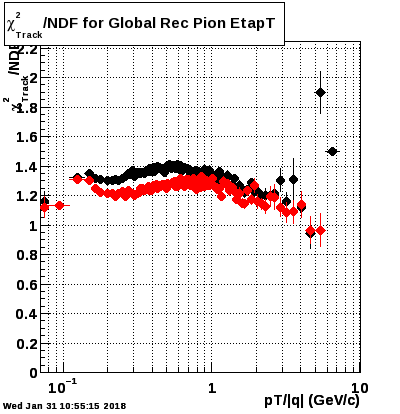

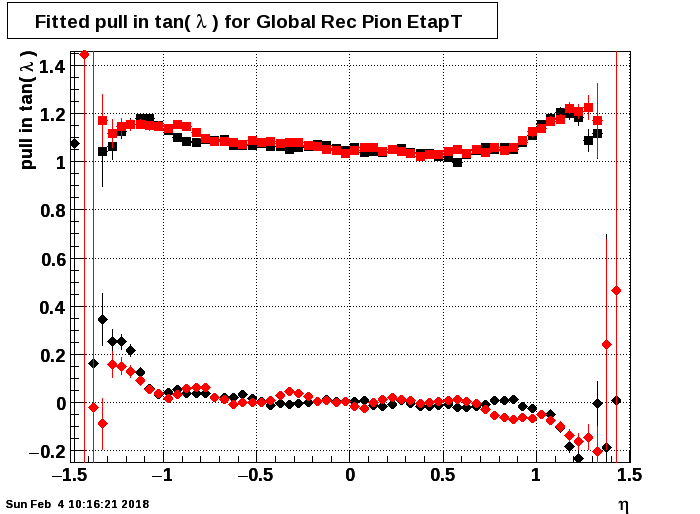

1.1.1.4. Global tracks. Pions.Track parameters

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
Fig.12
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Fig.24
Fig.25
Fig.26
Fig.27
Fig.28
Fig.29
Fig.30
Fig.31

1.1.2. Primary tracks.

1.1.2.1. Primary tracks. All. No. of fit and bad points.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.1.2.2. Primary tracks. All.Track parameters

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

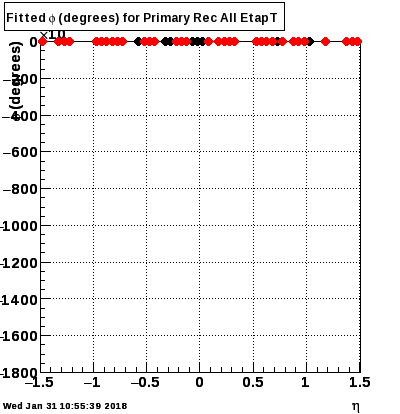

Fig.1
Fig.2

1.1.2.3. Primary tracks. Pions. No. of fit and bad points.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

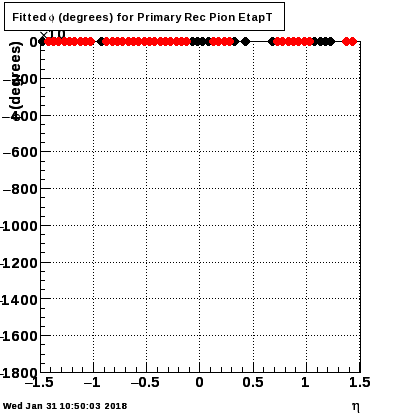

1.1.2.4. Primary tracks. Pions.Track parameters

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2

)); ?>

1.2. Track reconstuction efficiencies.

1.2.1. Global tracks.

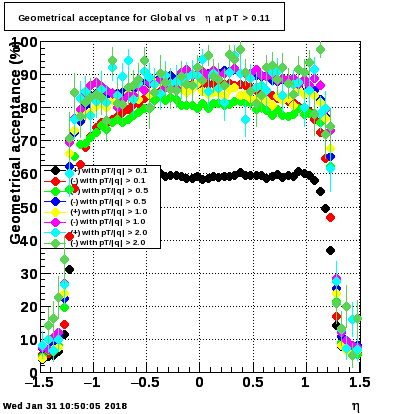

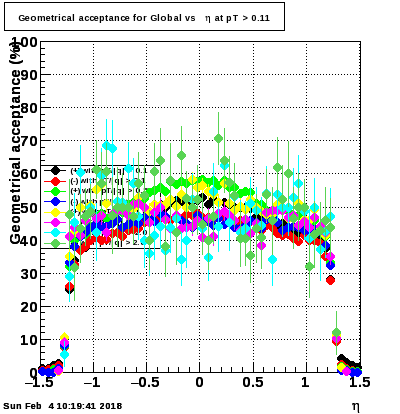

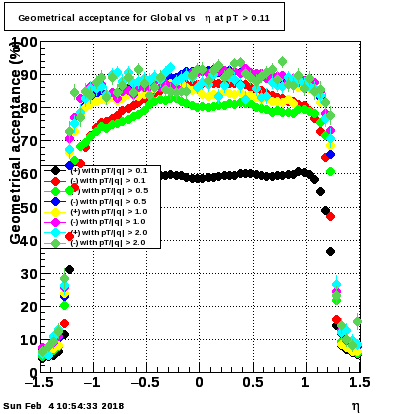

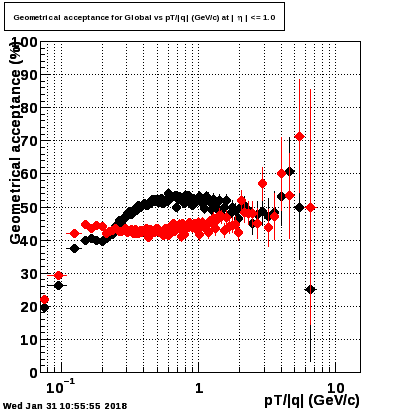

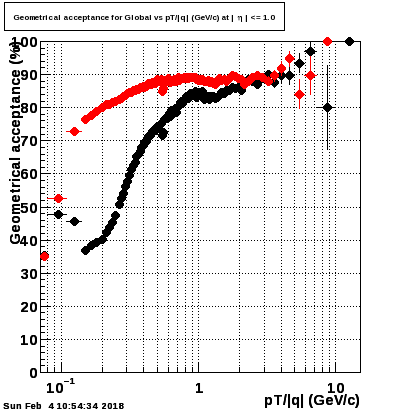

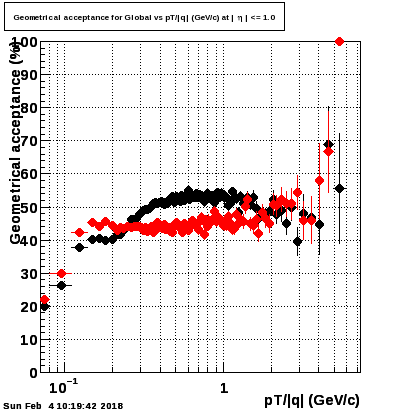

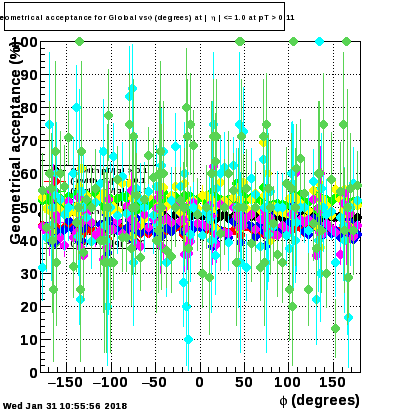

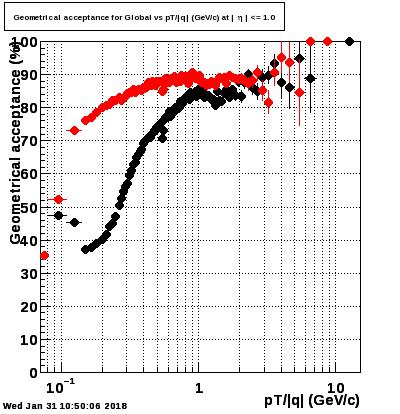

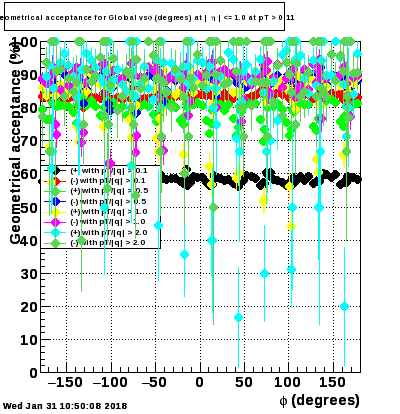

1.2.1.1. Global tracks. All. Geometrical acceptance.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

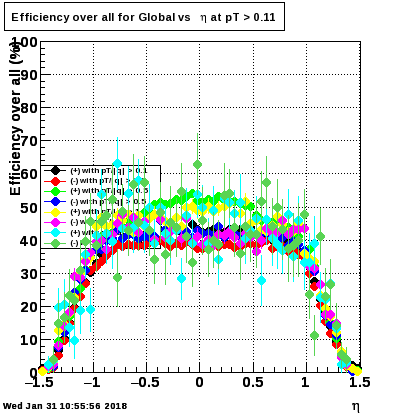

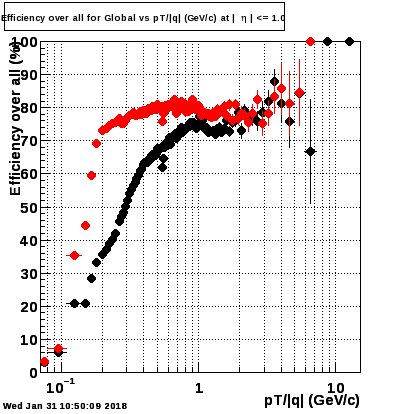

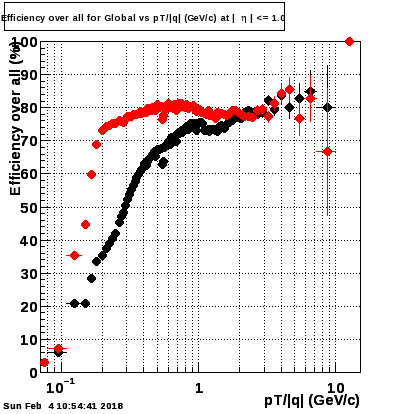

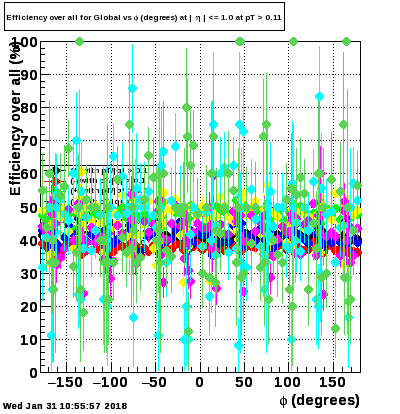

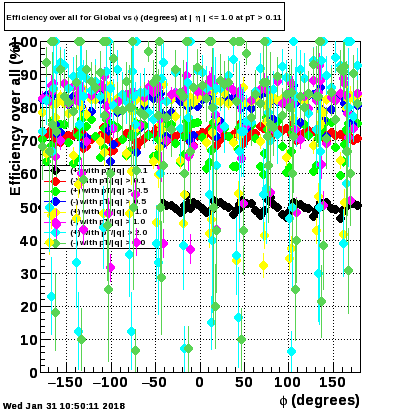

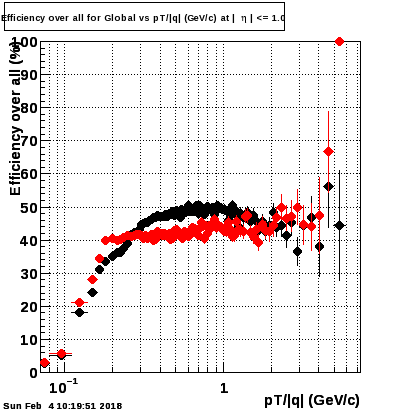

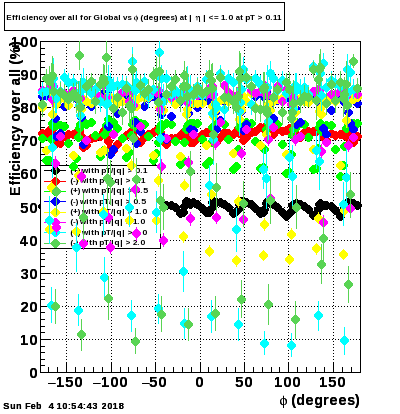

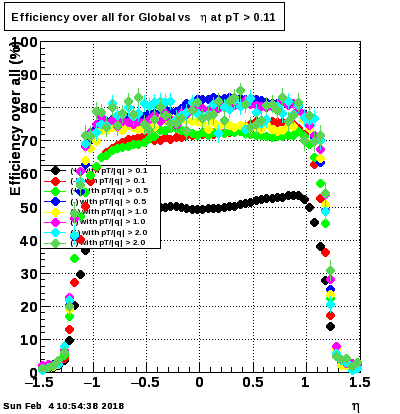

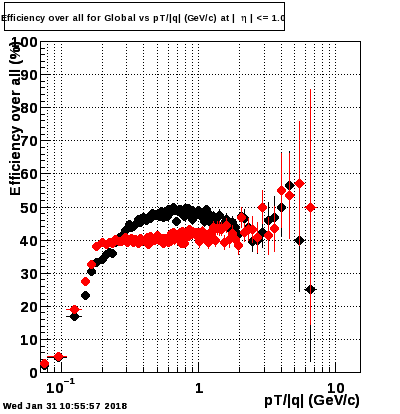

1.2.1.2. Global tracks. All. Efficiency over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

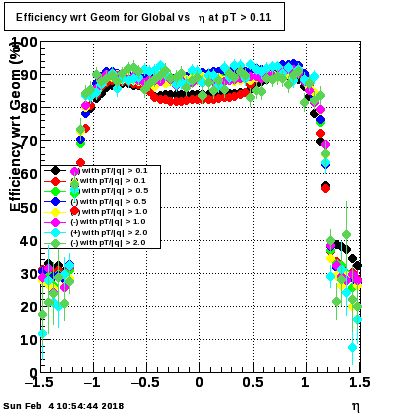

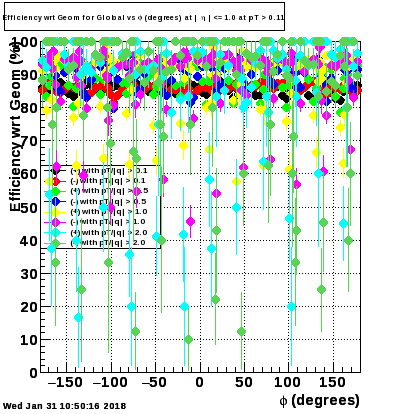

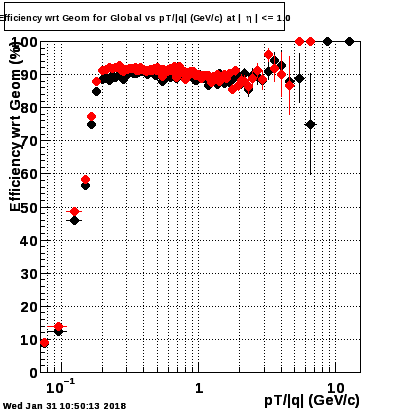

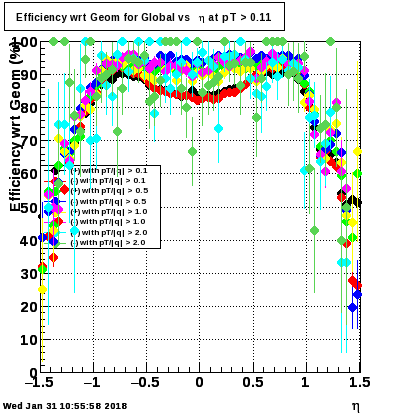

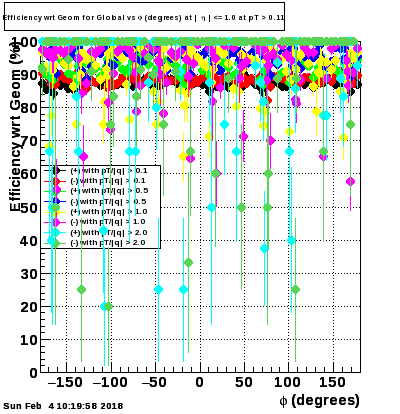

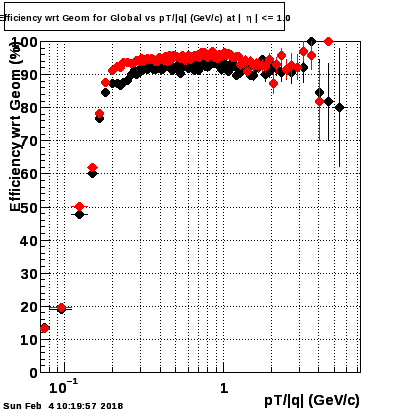

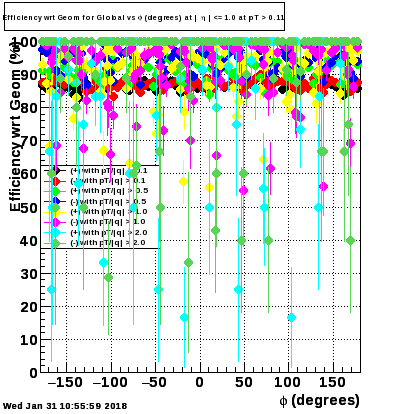

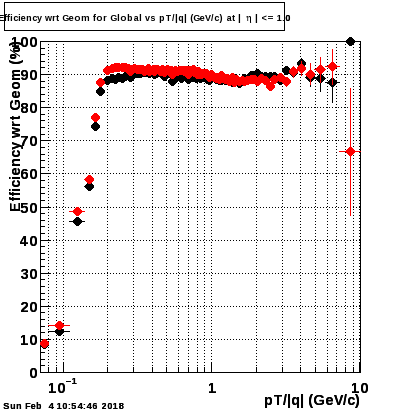

1.2.1.3. Global tracks. All. Efficiency wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

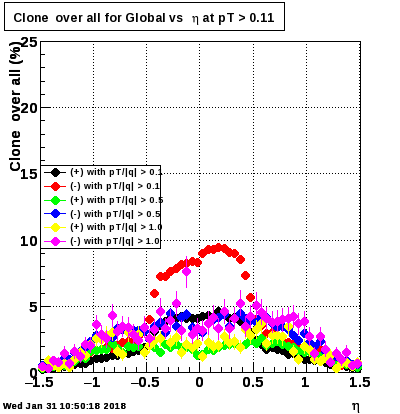

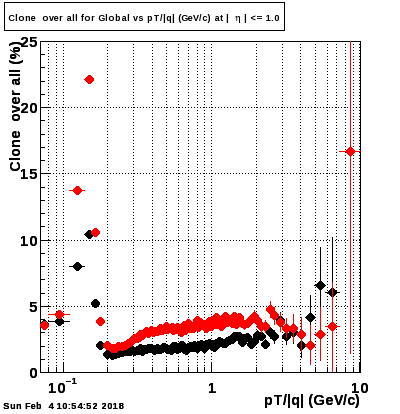

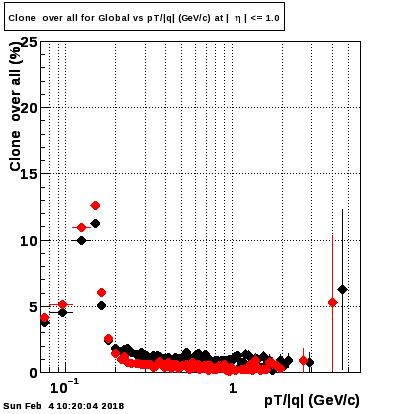

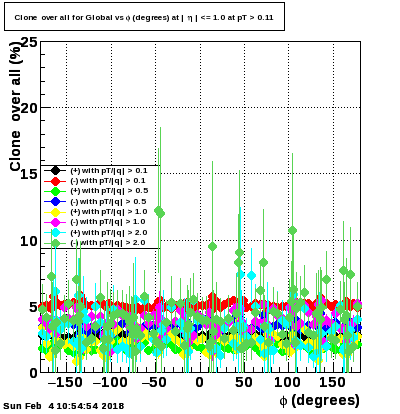

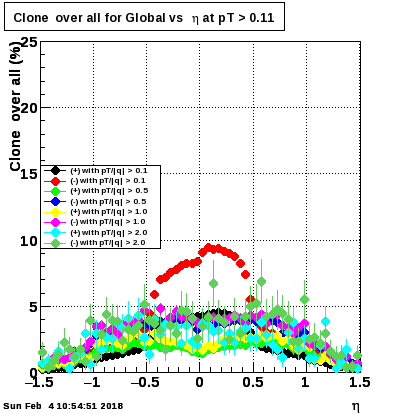

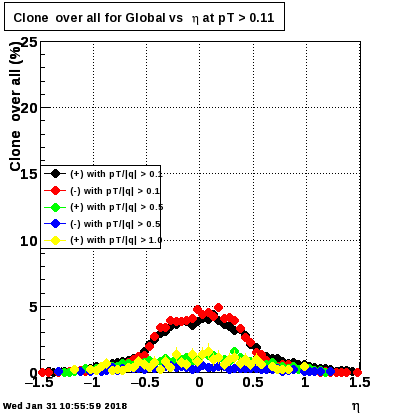

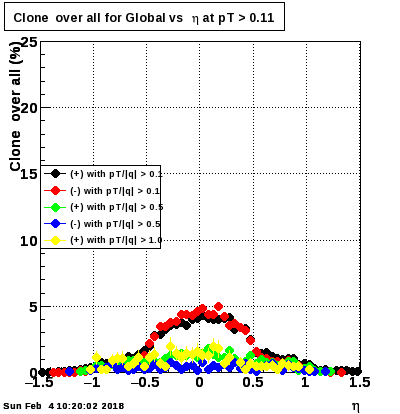

1.2.1.4. Global tracks. All. Clone over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

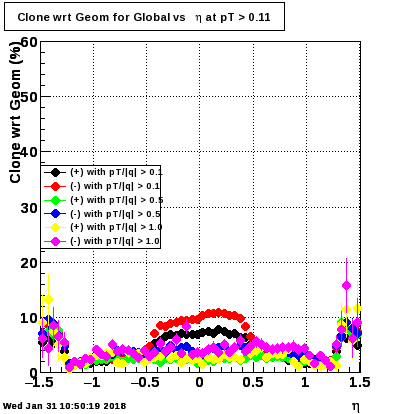

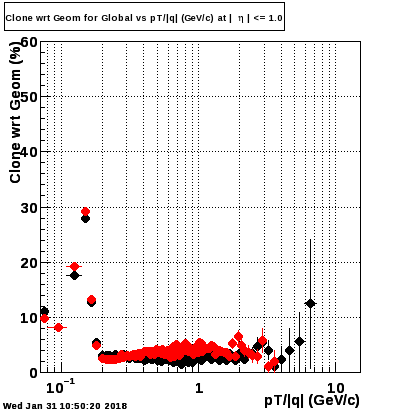

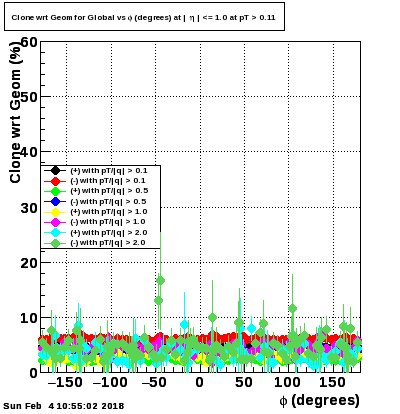

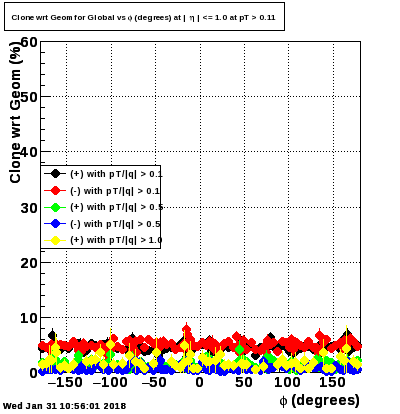

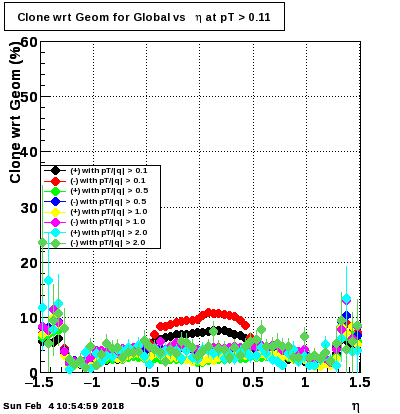

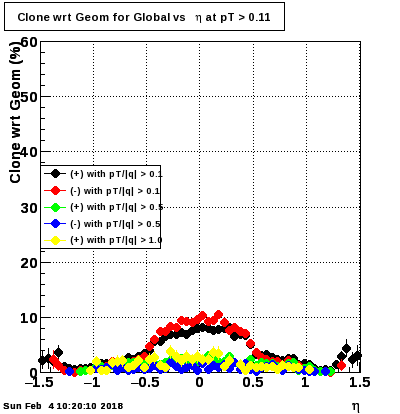

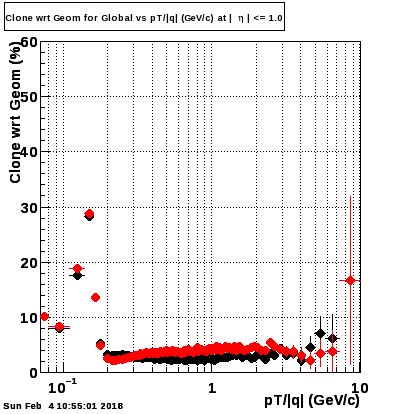

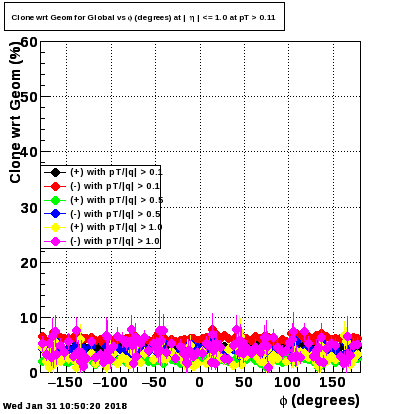

1.2.1.5. Global tracks. All. Clone wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

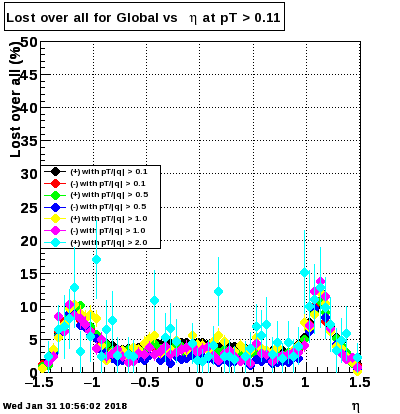

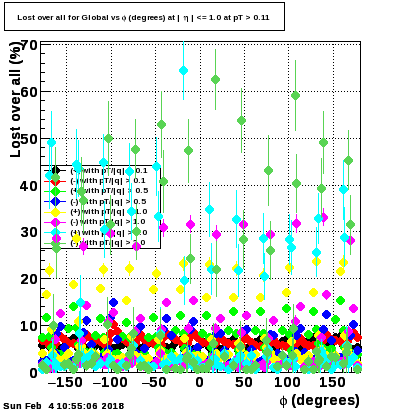

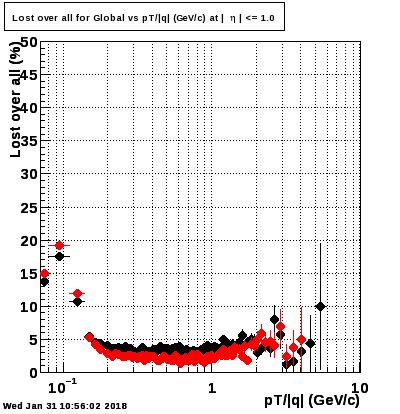

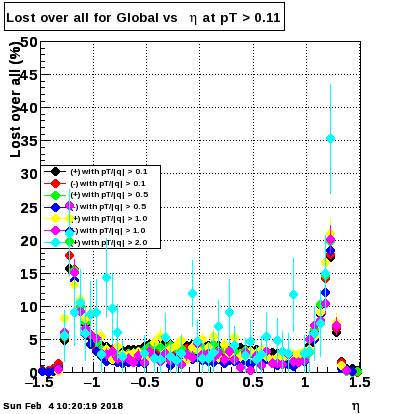

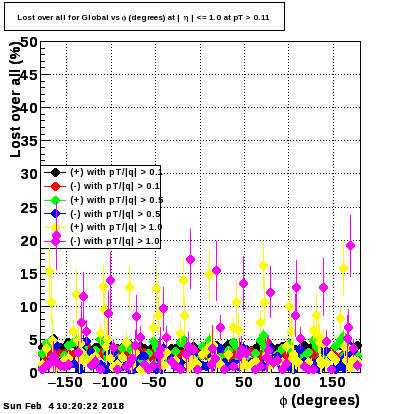

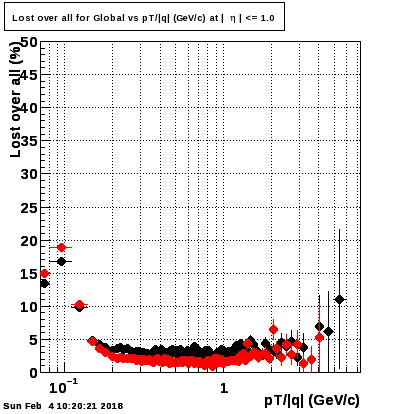

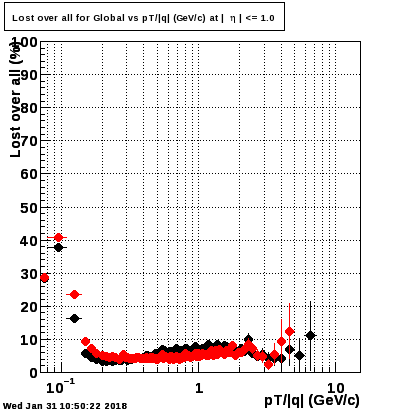

1.2.1.6. Global tracks. All. Lost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

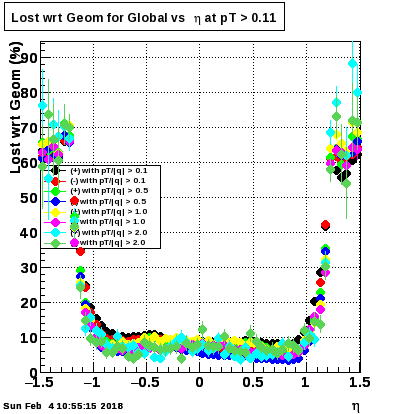

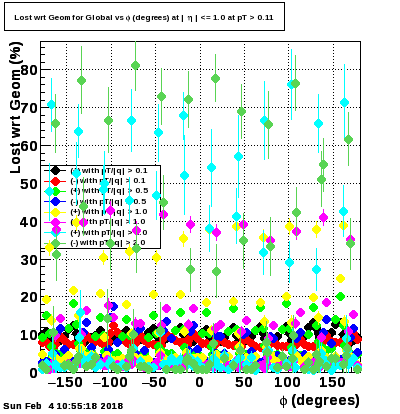

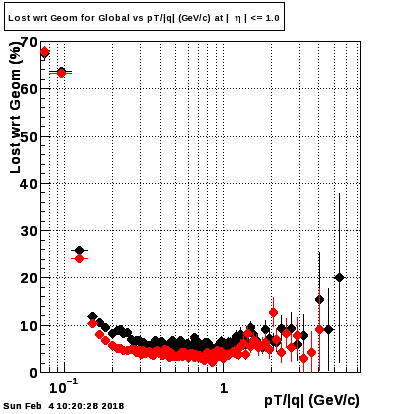

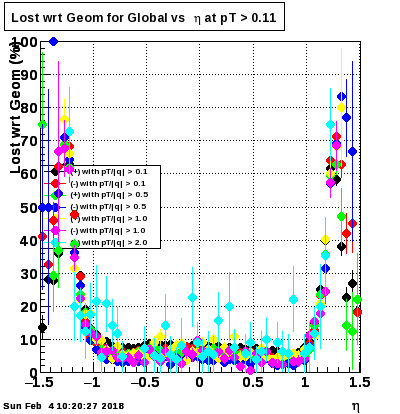

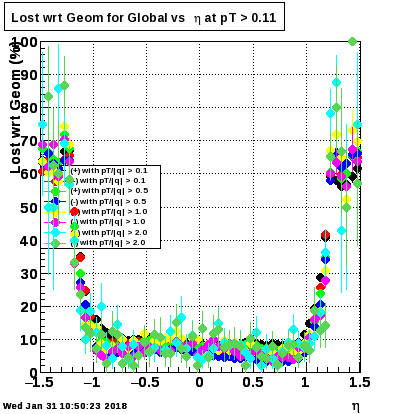

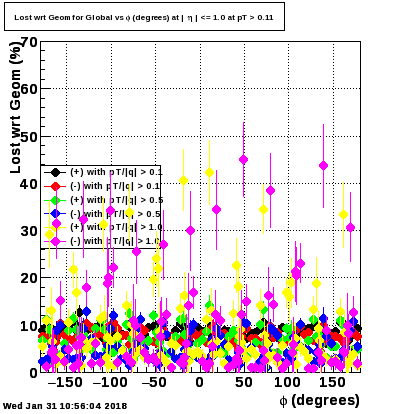

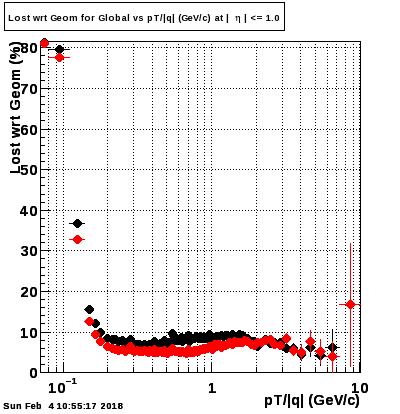

1.2.1.7. Global tracks. All. Lost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

1.2.1.8. Global tracks. All. Ghost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.2.1.9. Global tracks. All. Ghost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

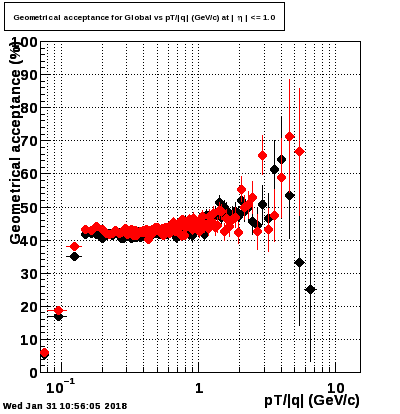

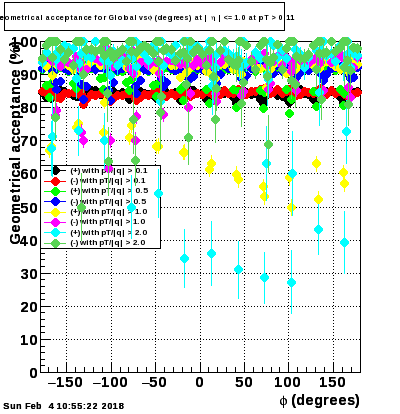

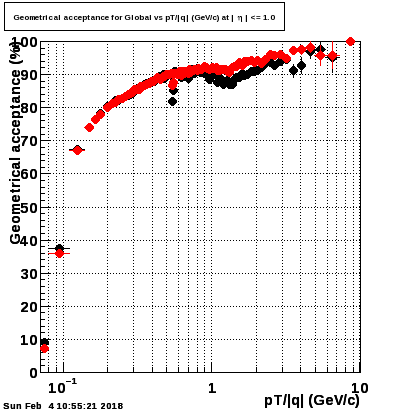

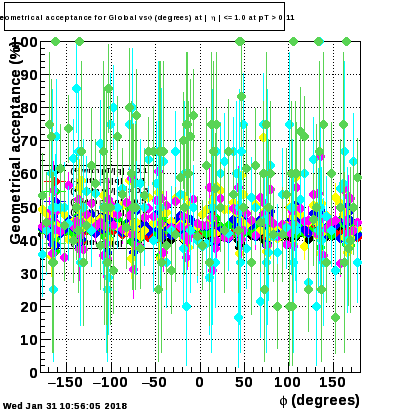

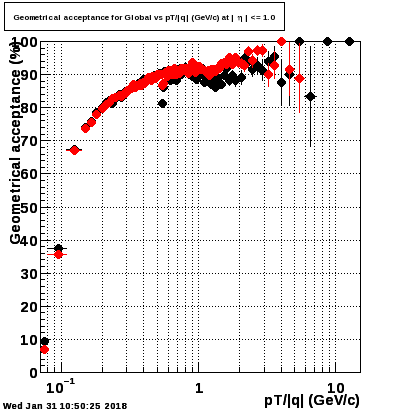

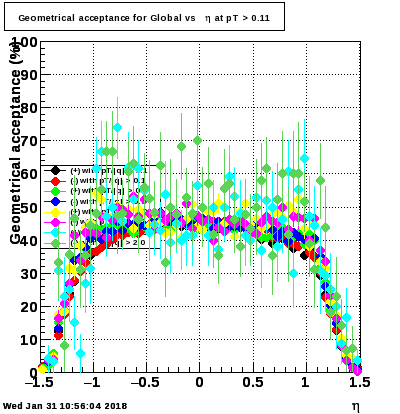

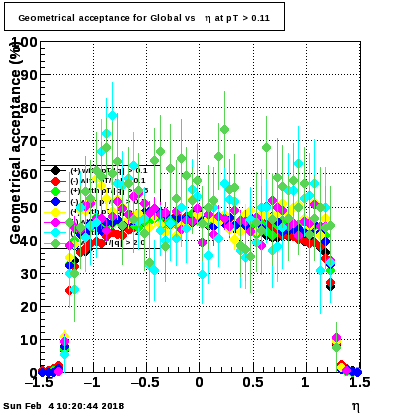

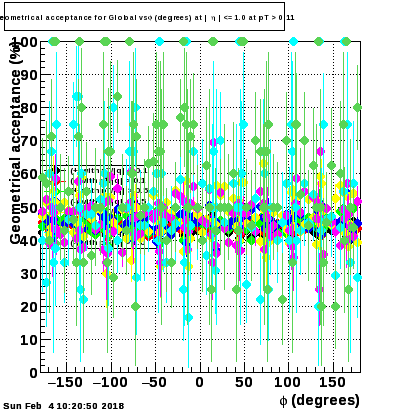

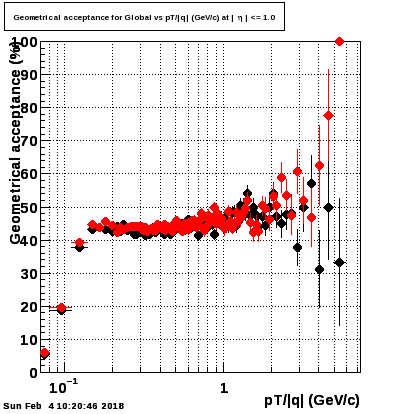

1.3.1.1. Global tracks. Pions. Geometrical acceptance.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

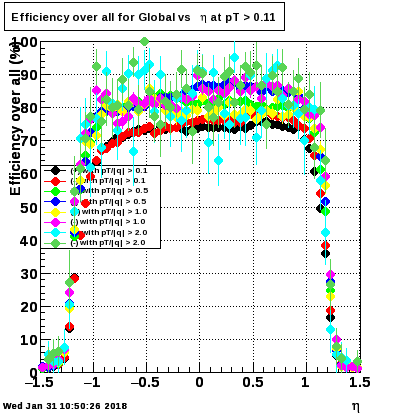

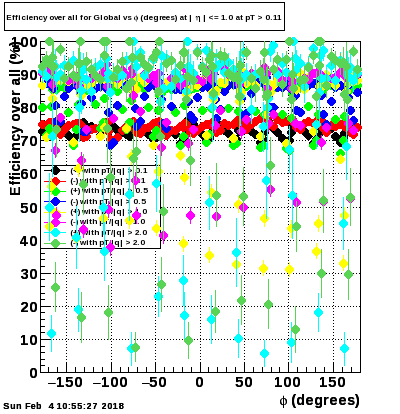

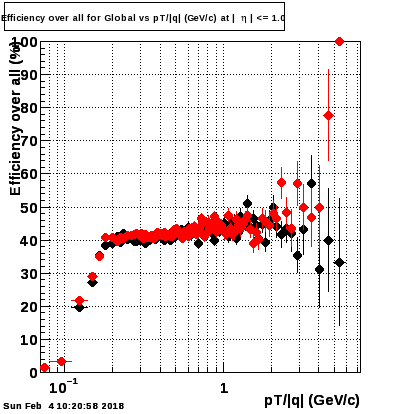

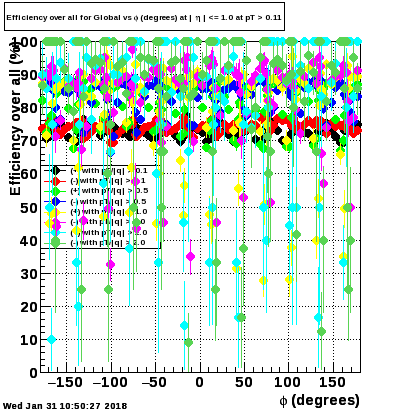

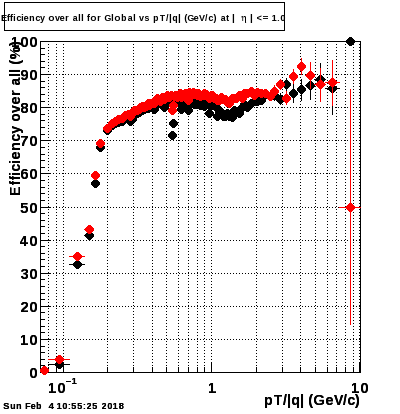

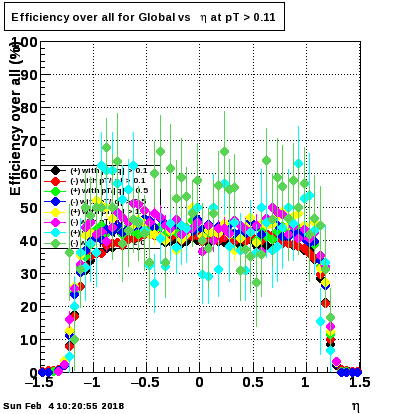

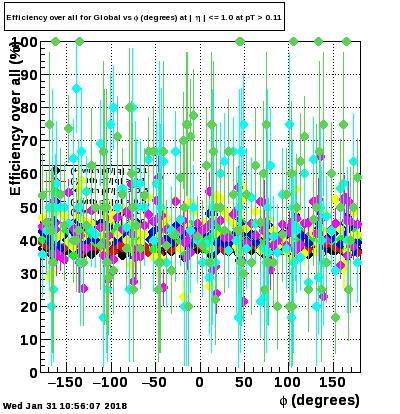

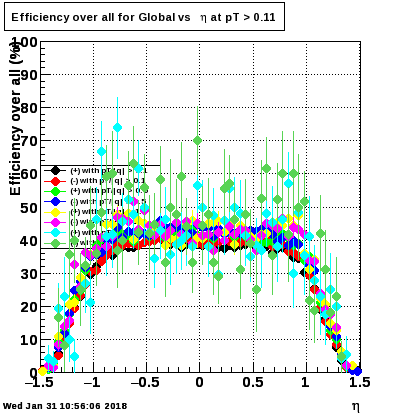

1.3.1.2. Global tracks. Pions. Efficiency over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

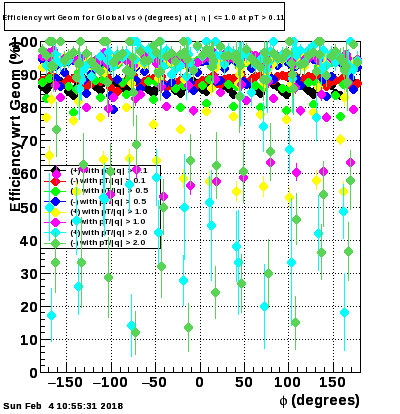

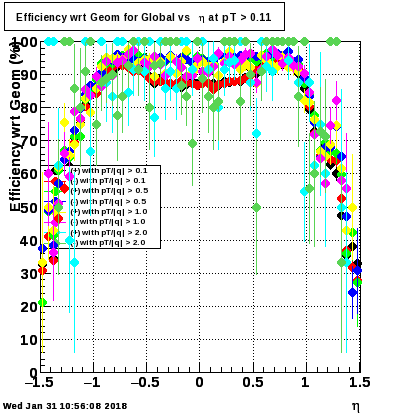

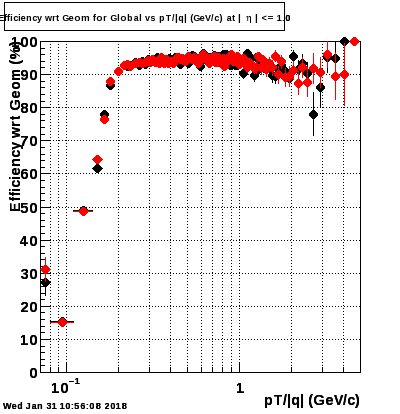

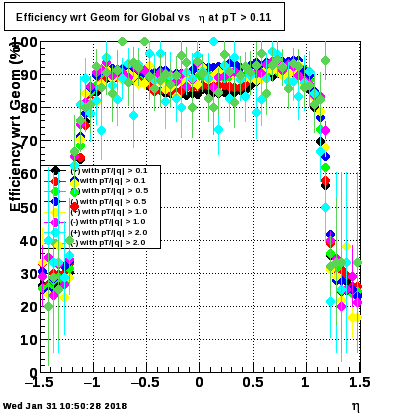

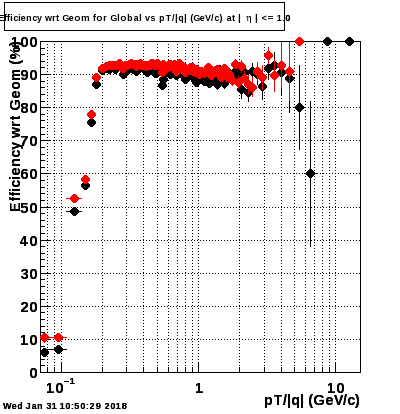

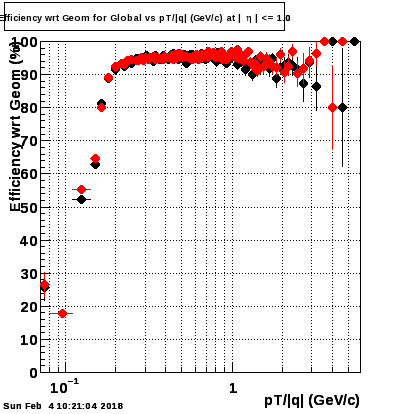

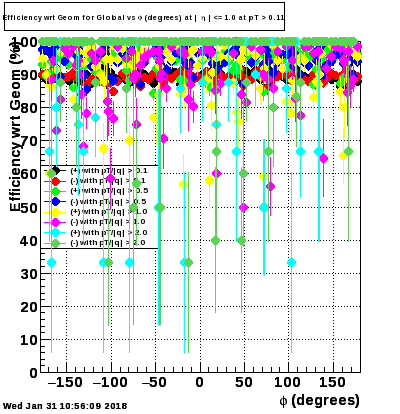

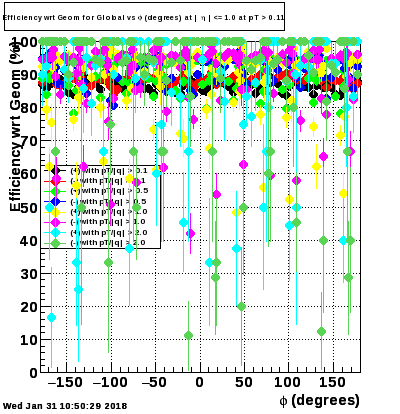

1.3.1.3. Global tracks. Pions. Efficiency wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

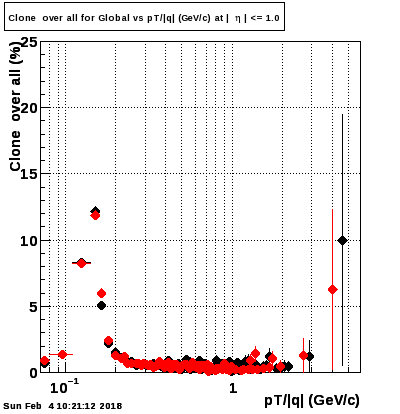

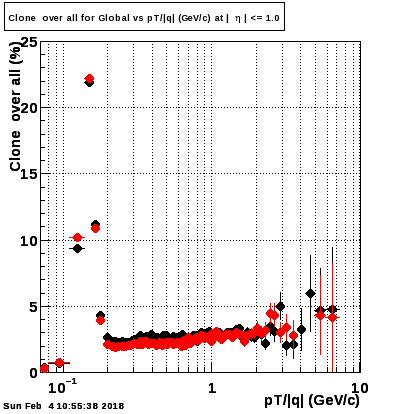

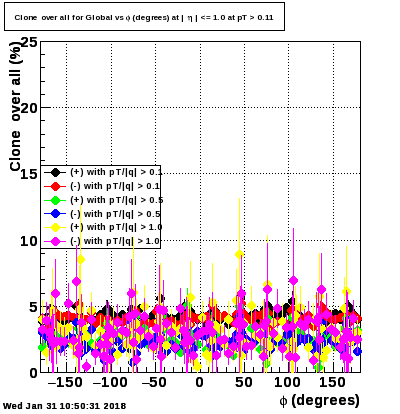

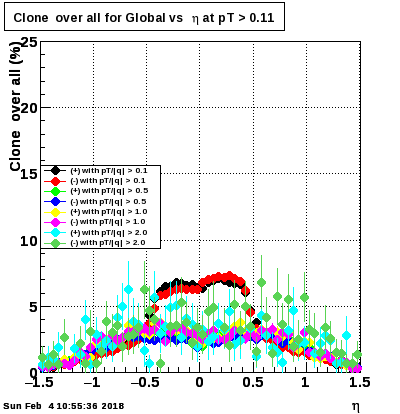

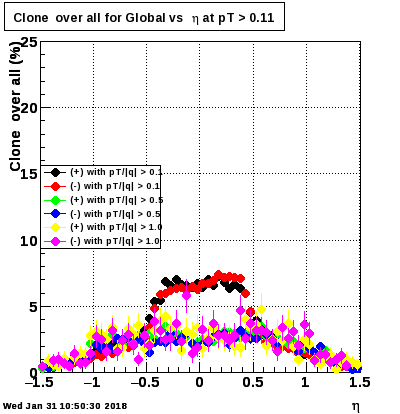

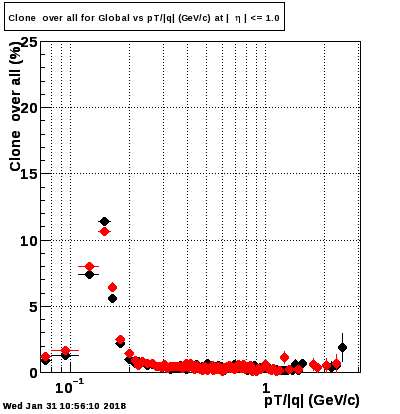

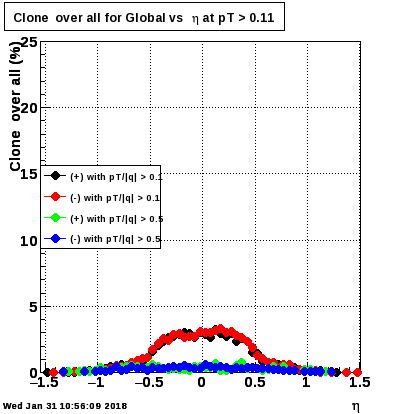

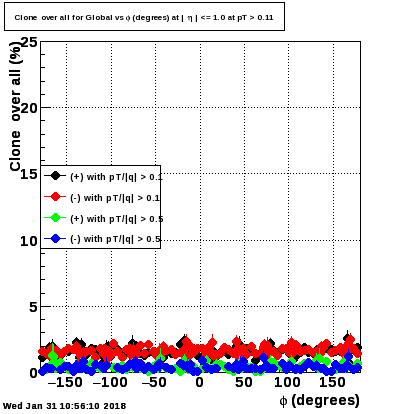

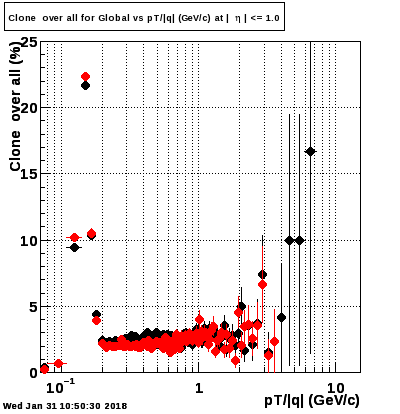

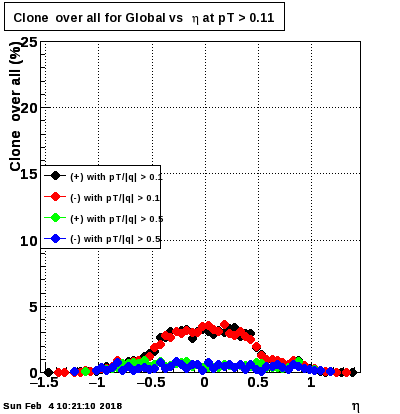

1.3.1.4. Global tracks. Pions. Clone over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

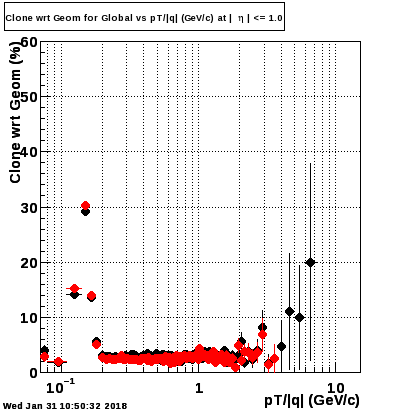

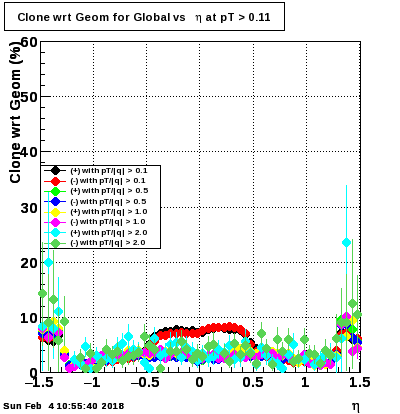

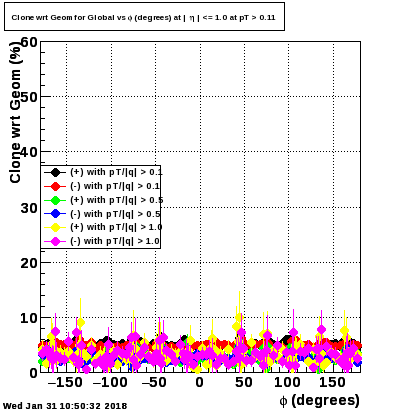

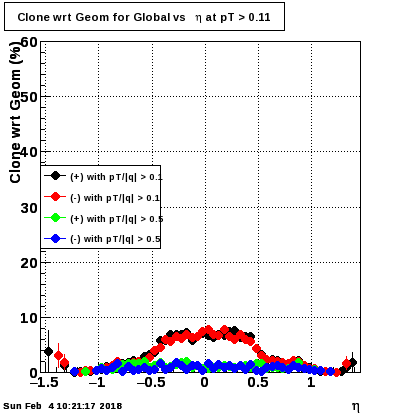

1.3.1.5. Global tracks. Pions. Clone wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

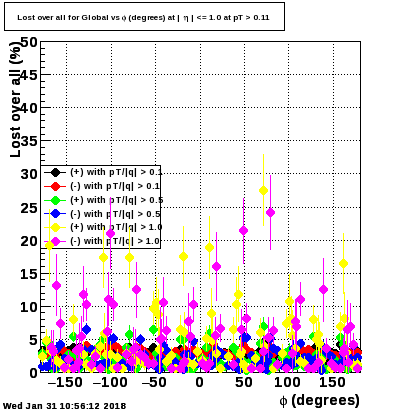

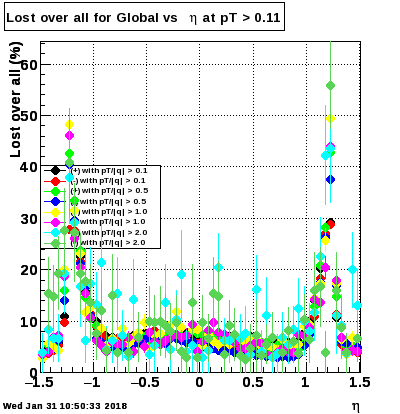

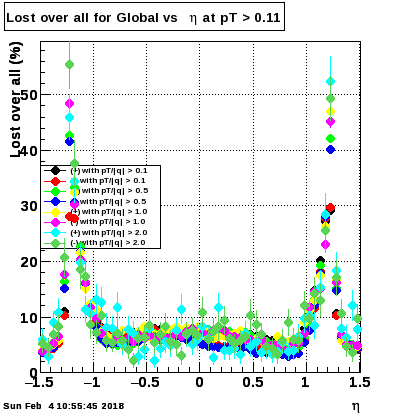

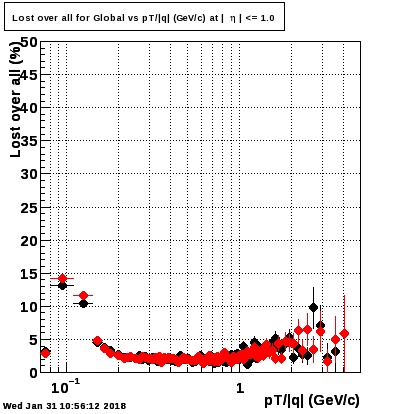

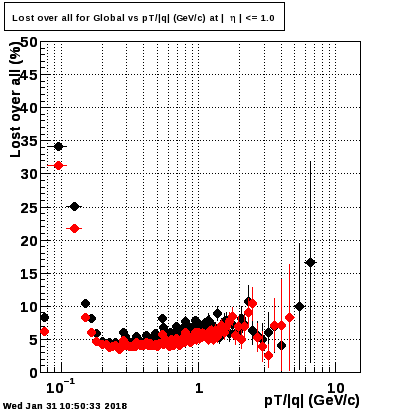

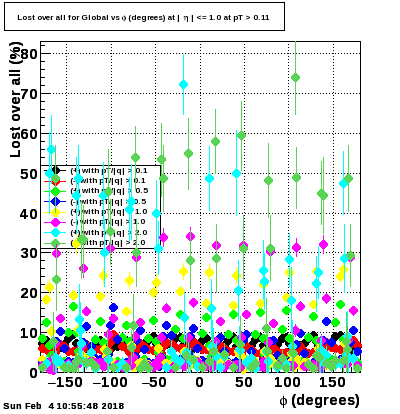

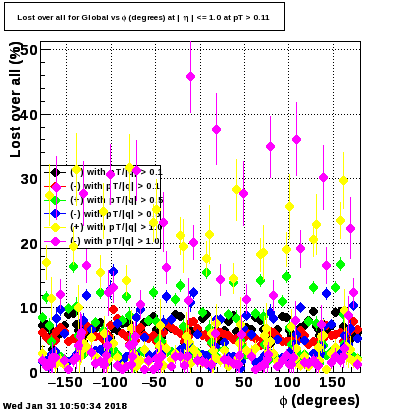

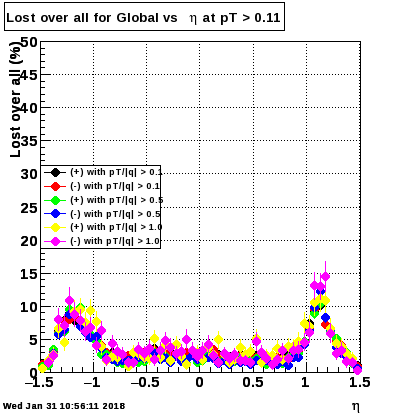

1.3.1.6. Global tracks. Pions. Lost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

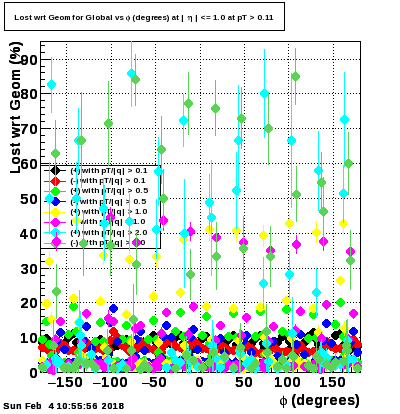

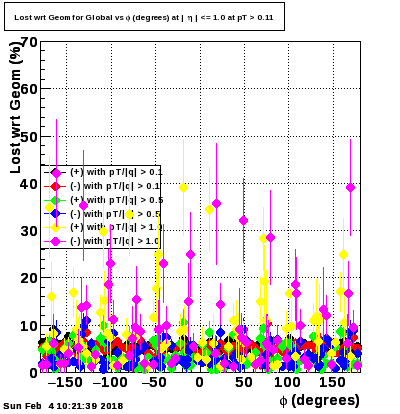

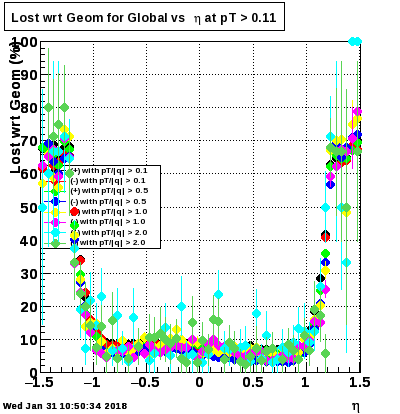

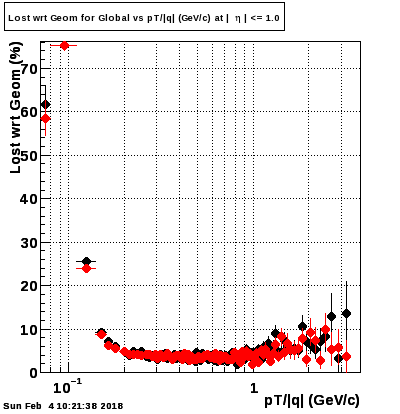

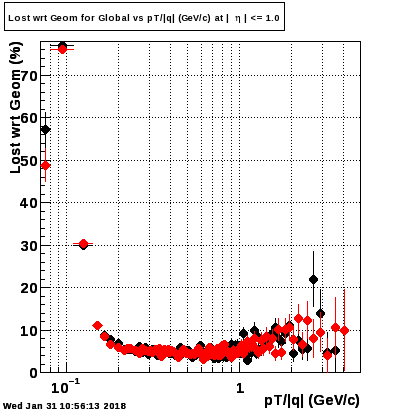

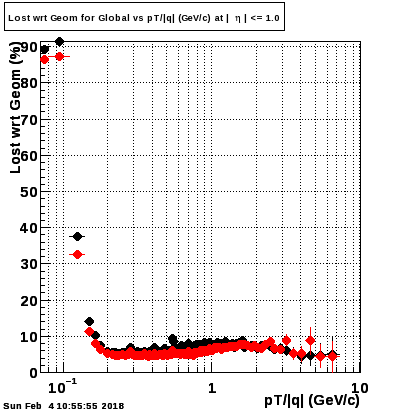

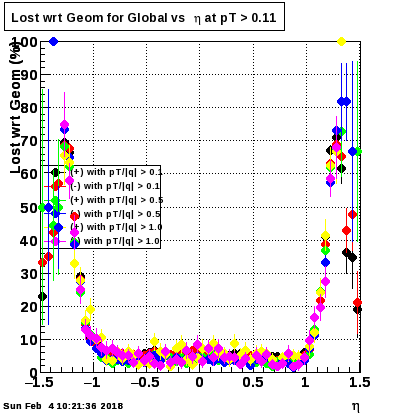

1.3.1.7. Global tracks. Pions. Lost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

1.3.1.8. Global tracks. Pions. Ghost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.3.1.9. Global tracks. Pions. Ghost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.2.2. Primary tracks.

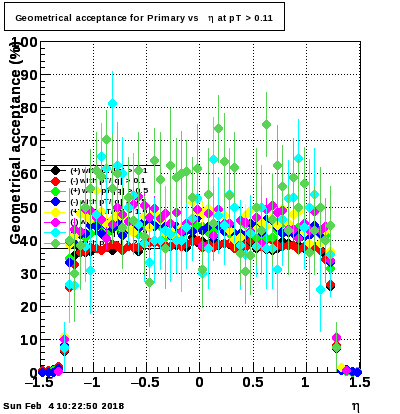

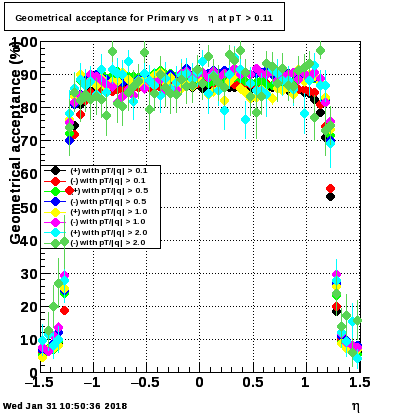

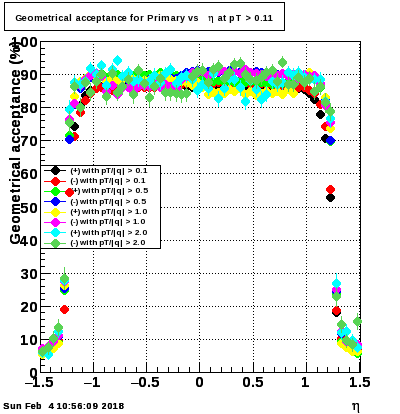

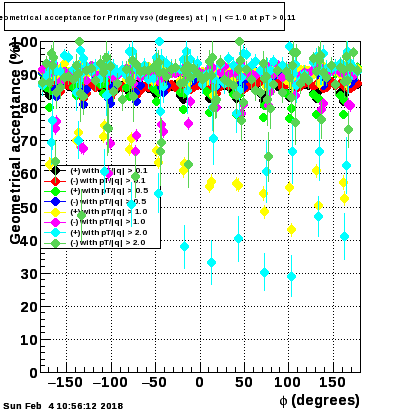

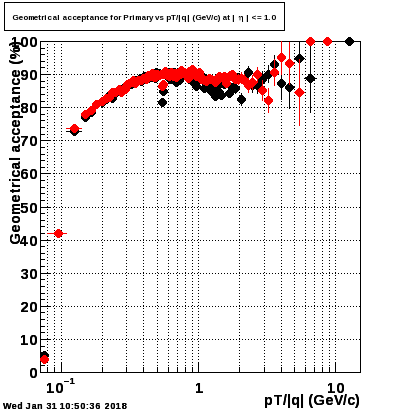

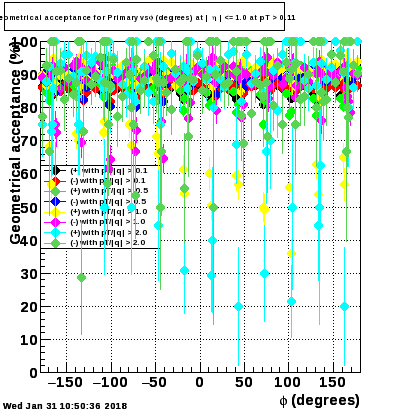

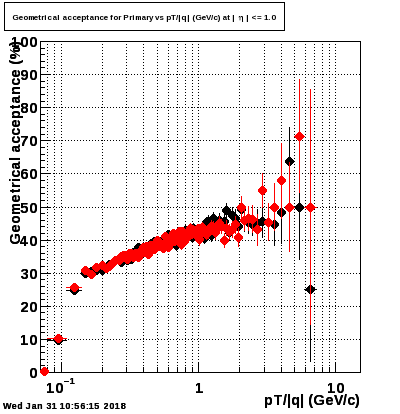

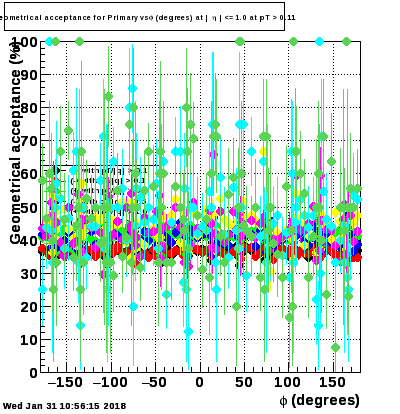

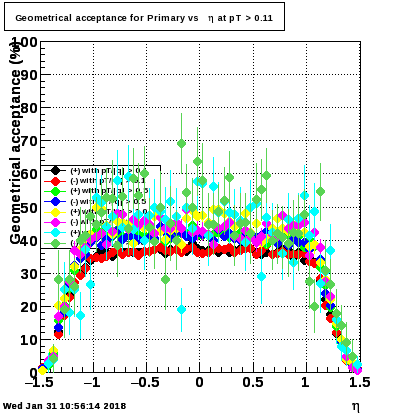

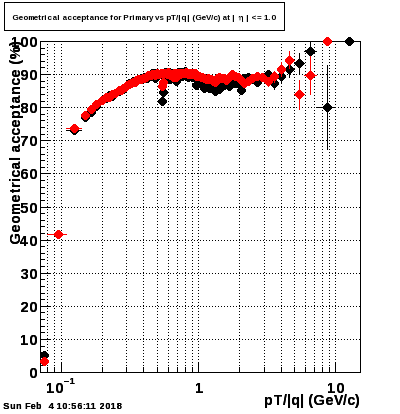

1.3.2.1. Primary tracks. All. Geometrical acceptance.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

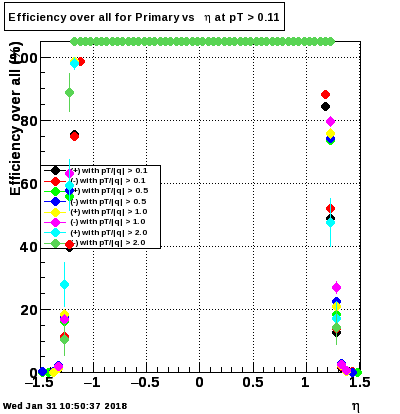

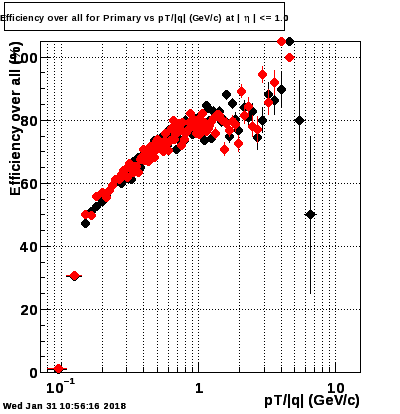

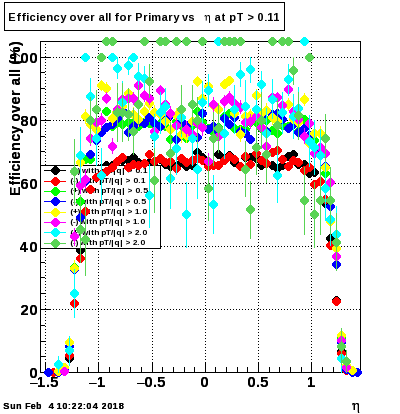

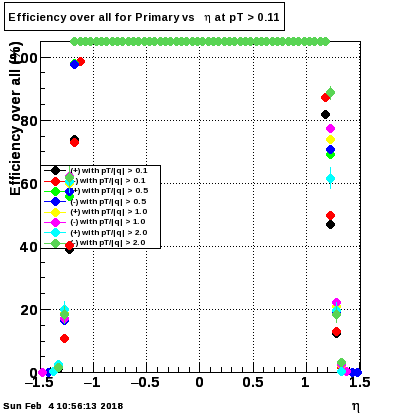

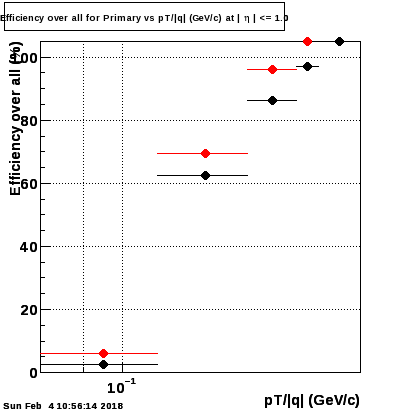

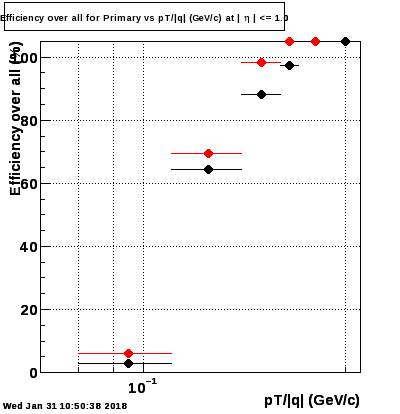

1.3.2.2. Primary tracks. All. Efficiency over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

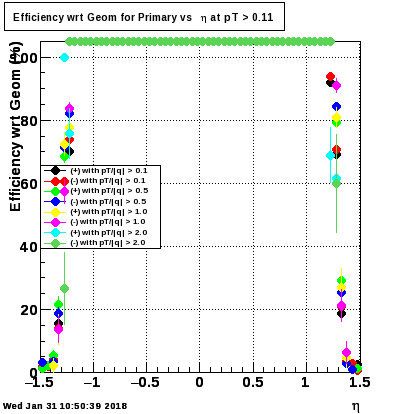

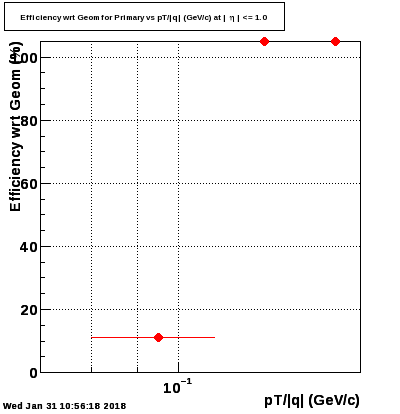

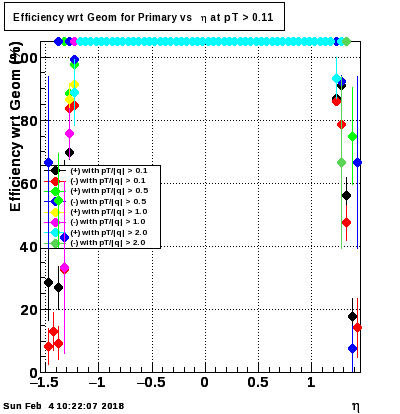

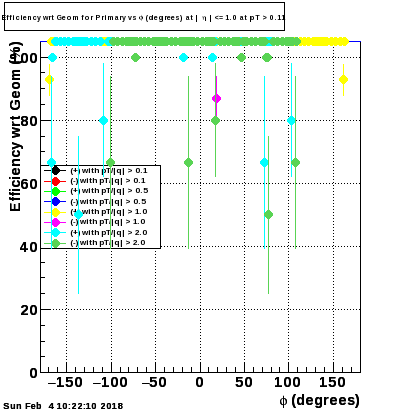

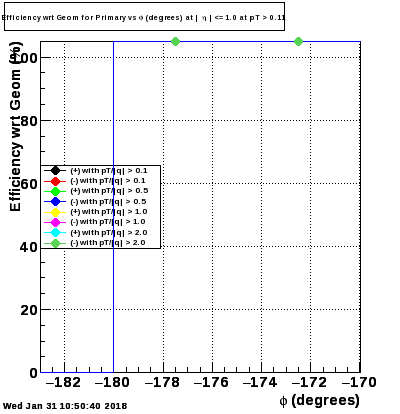

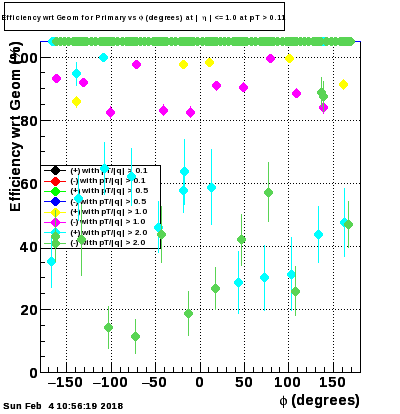

1.3.2.3. Primary tracks. All. Efficiency wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

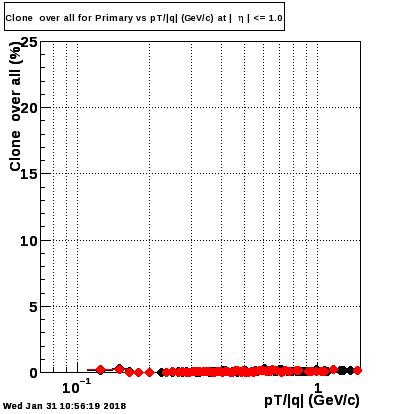

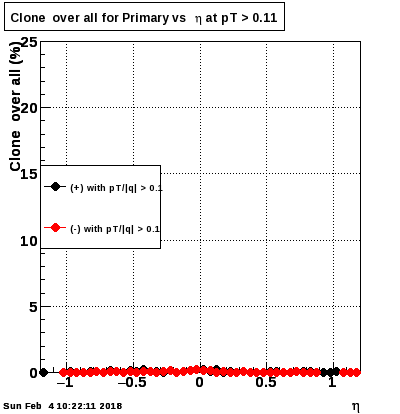

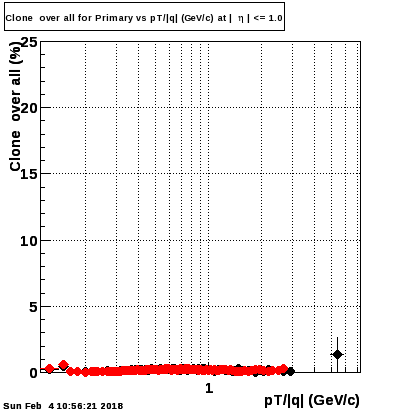

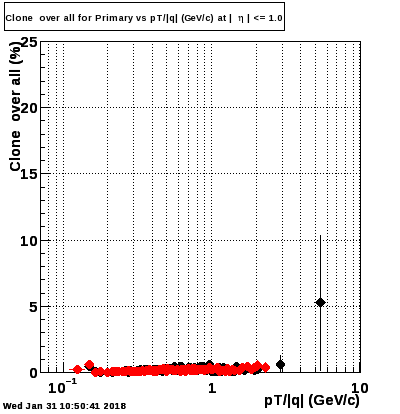

1.3.2.4. Primary tracks. All. Clone over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

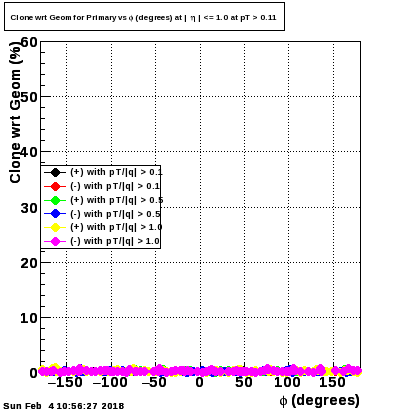

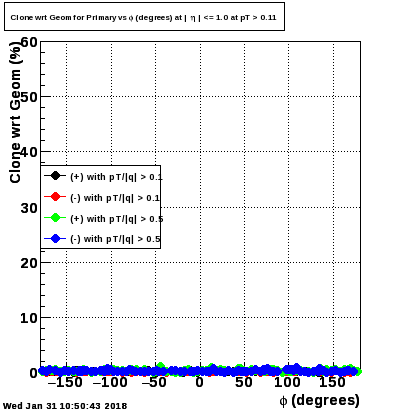

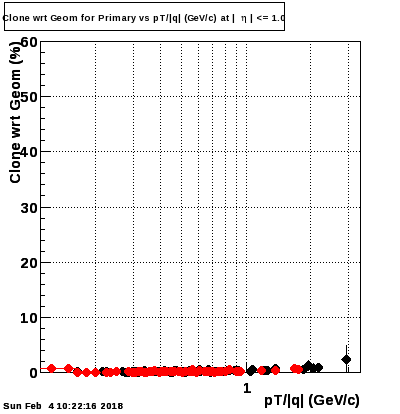

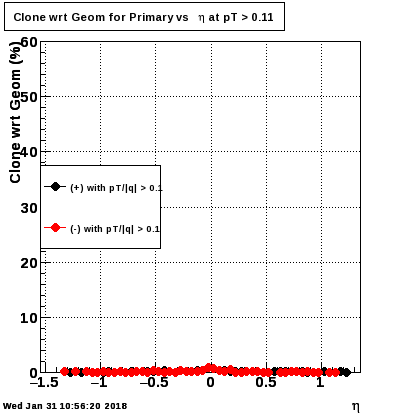

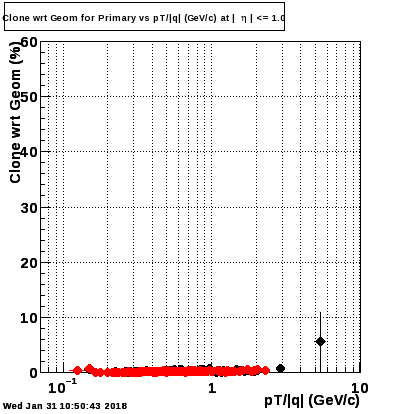

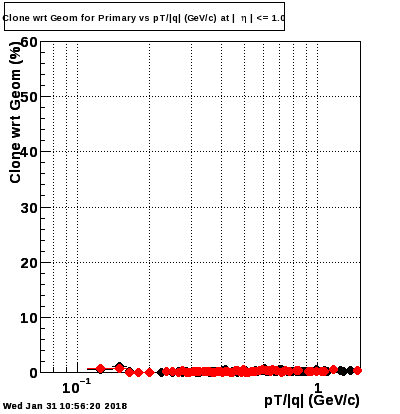

1.3.2.5. Primary tracks. All. Clone wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

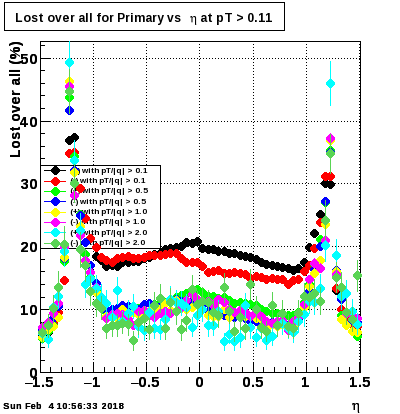

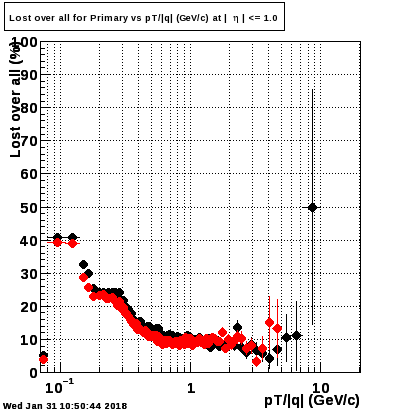

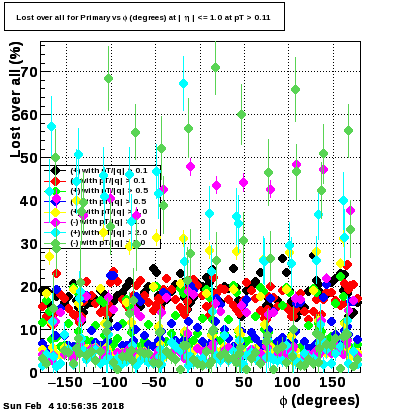

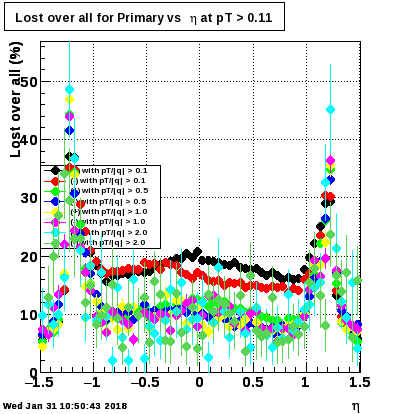

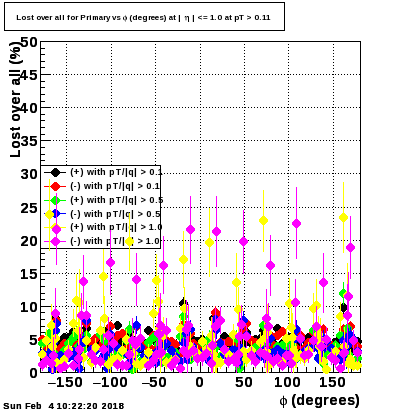

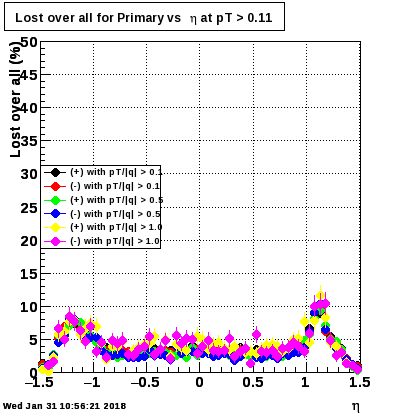

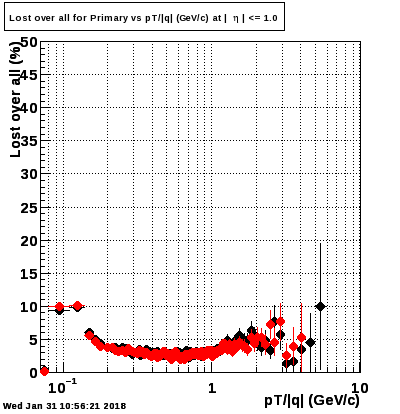

1.3.2.6. Primary tracks. All. Lost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

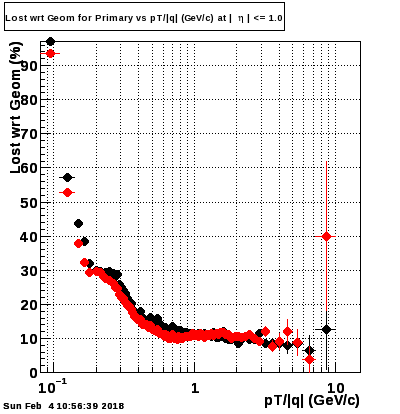

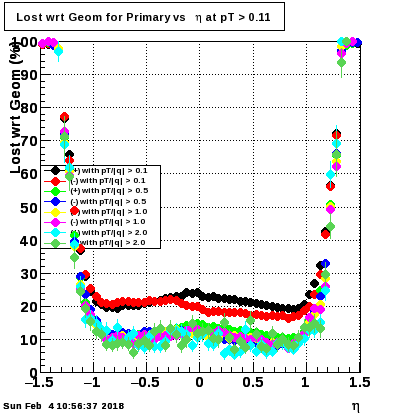

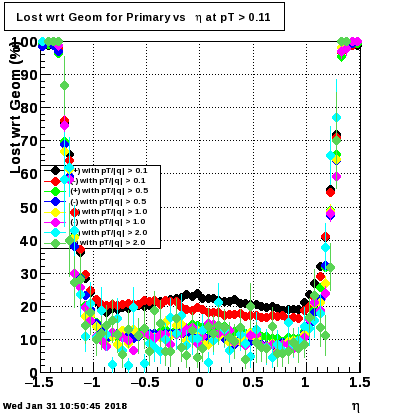

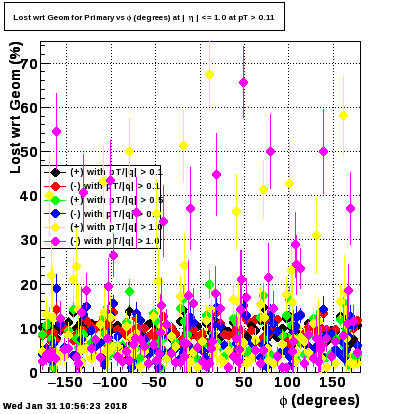

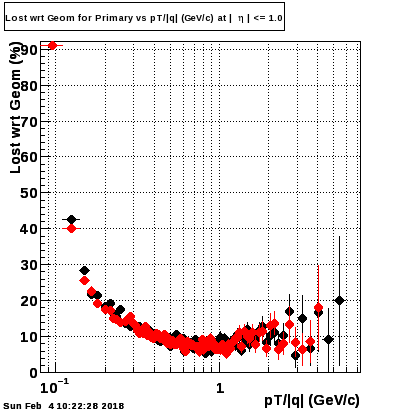

1.3.2.7. Primary tracks. All. Lost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

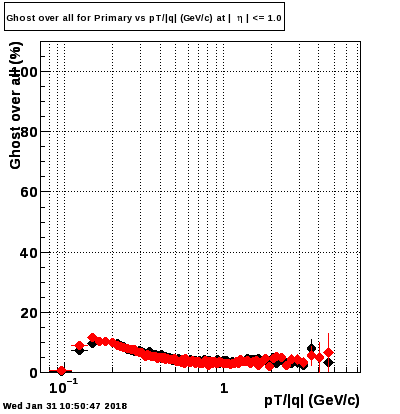

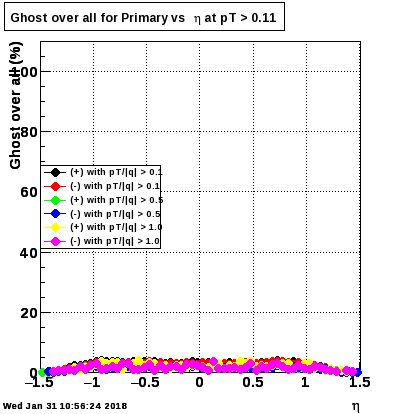

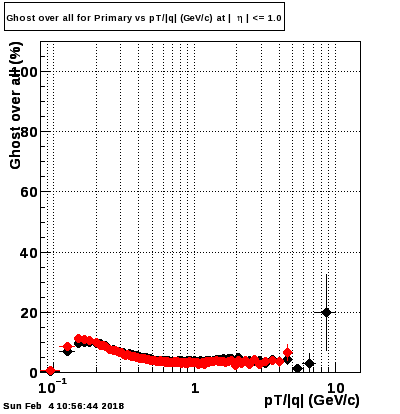

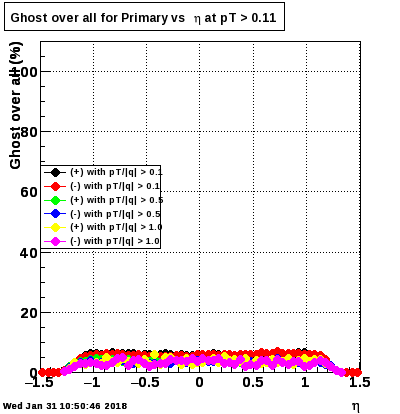

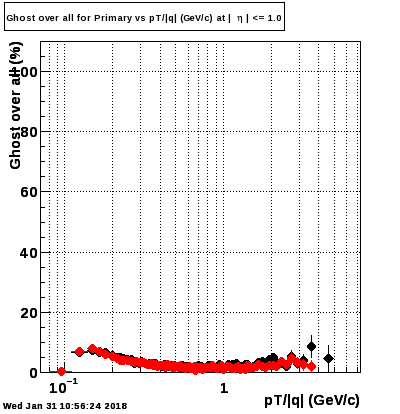

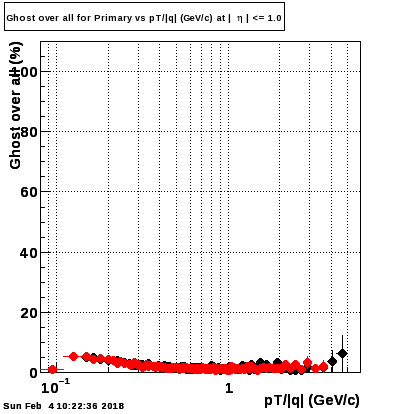

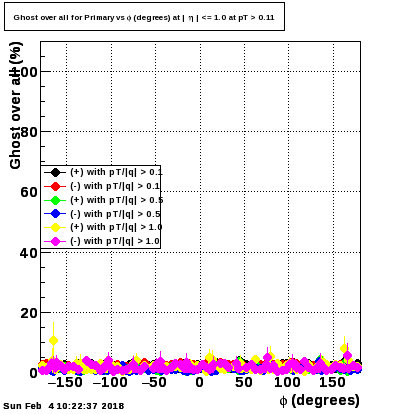

1.3.2.8. Primary tracks. All. Ghost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

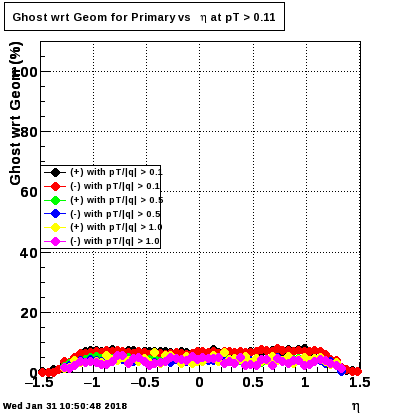

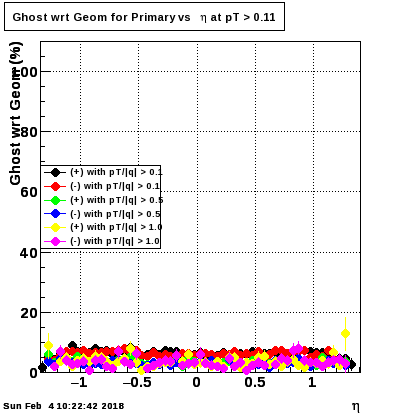

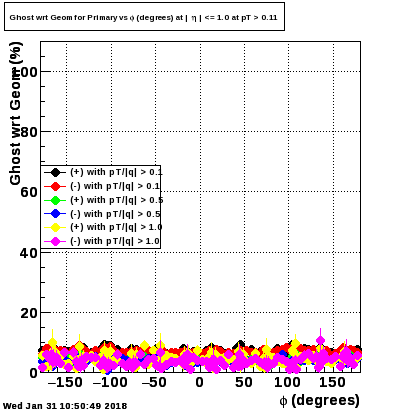

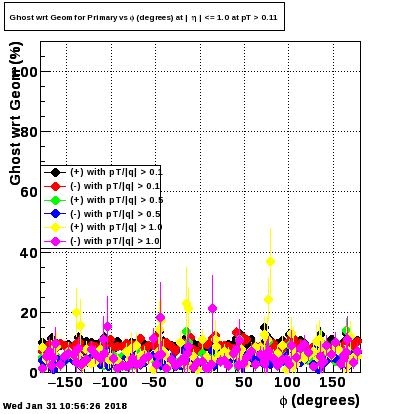

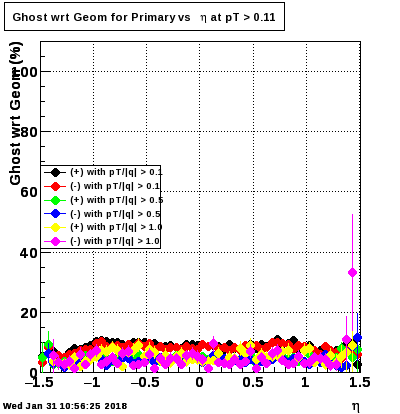

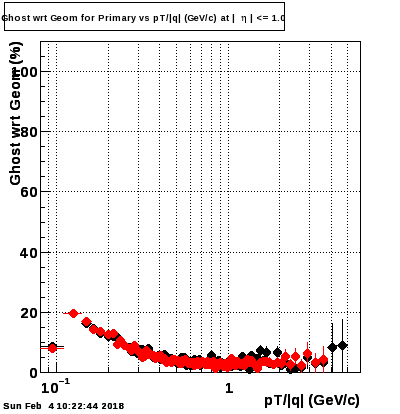

1.3.2.9. Primary tracks. All. Ghost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

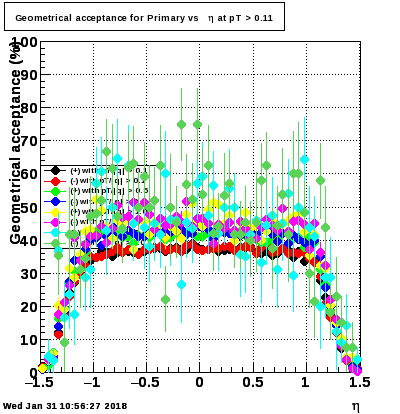

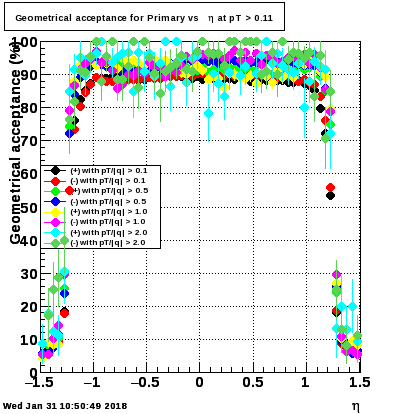

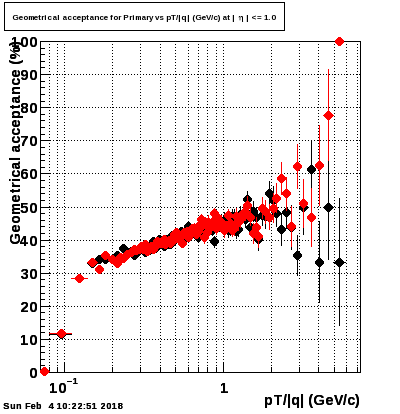

1.4.2.1. Primary tracks. Pions. Geometrical acceptance.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

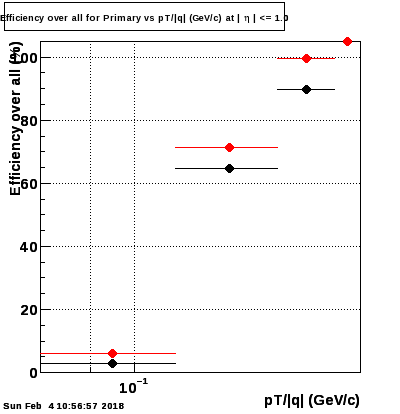

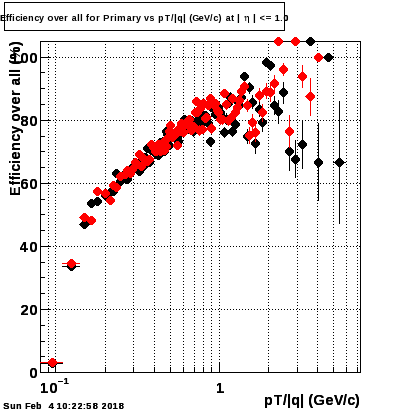

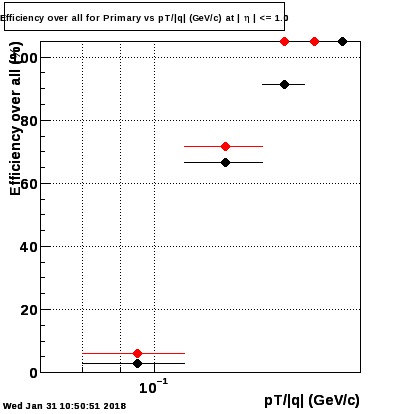

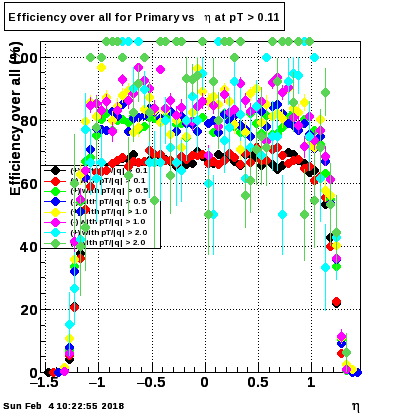

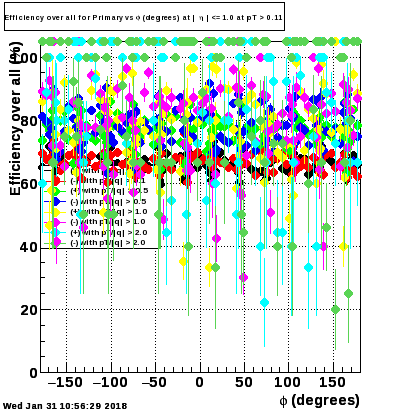

1.4.2.2. Primary tracks. Pions. Efficiency over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

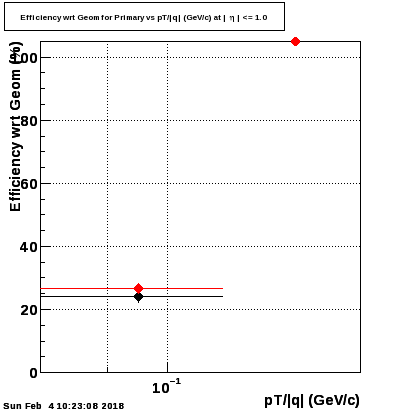

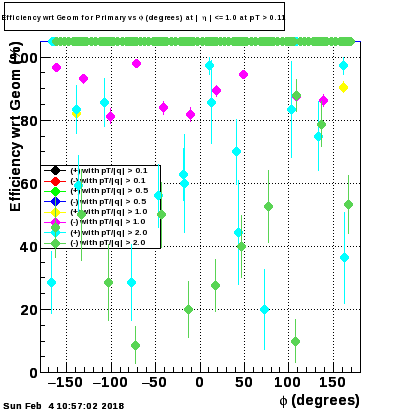

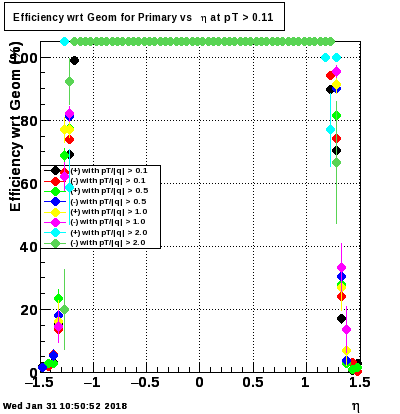

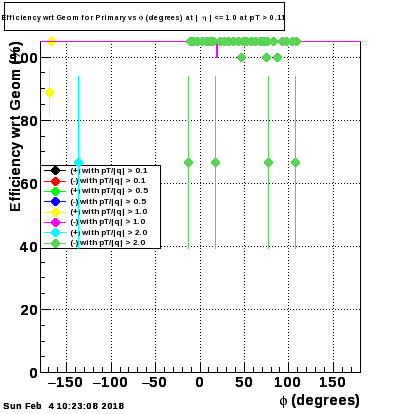

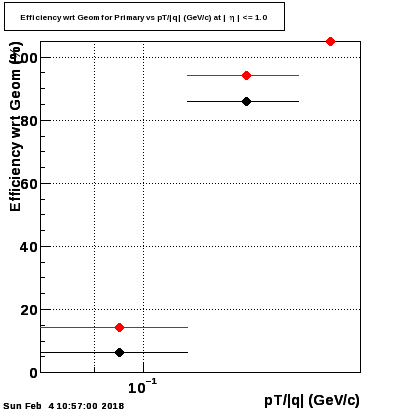

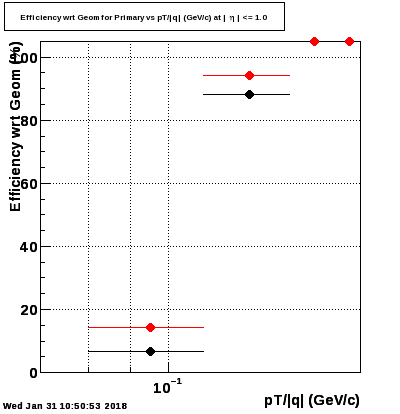

1.4.2.3. Primary tracks. Pions. Efficiency wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

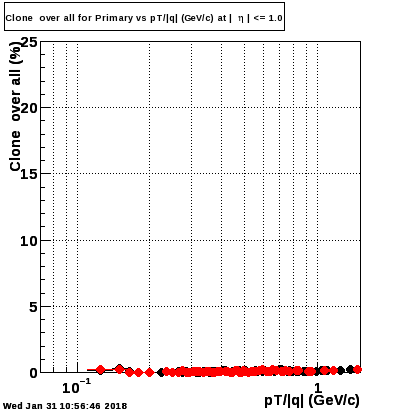

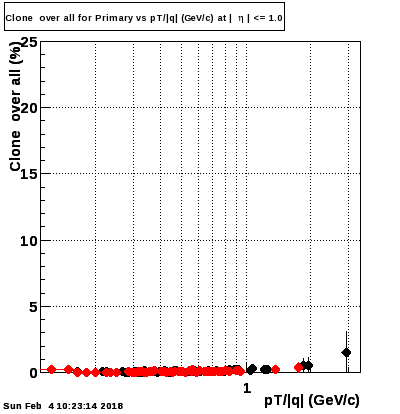

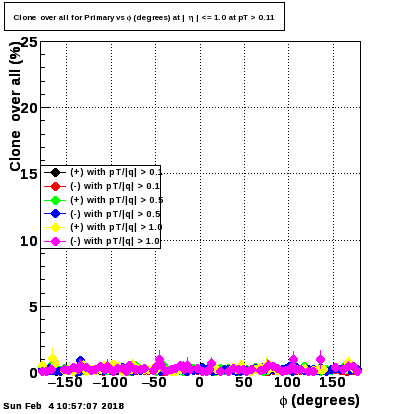

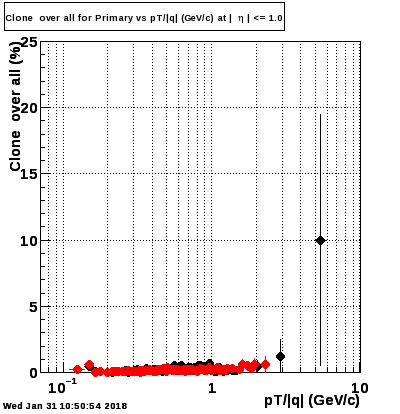

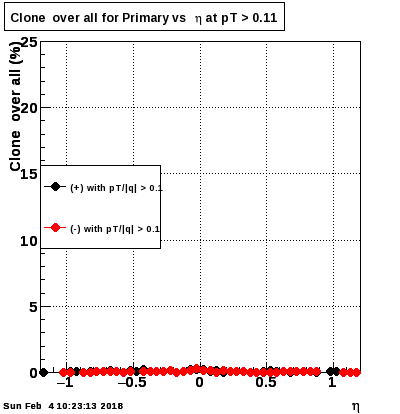

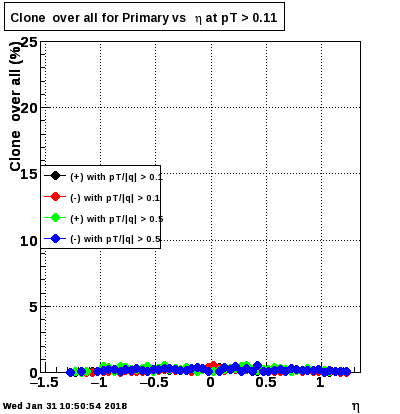

1.4.2.4. Primary tracks. Pions. Clone over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

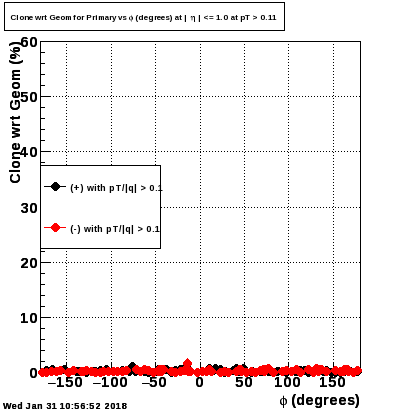

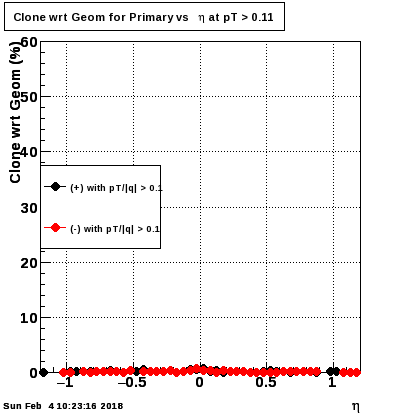

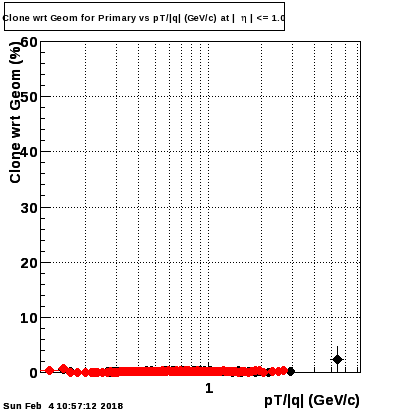

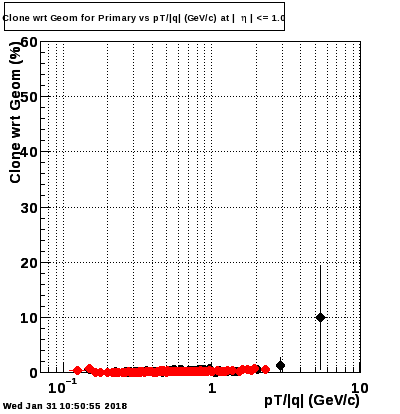

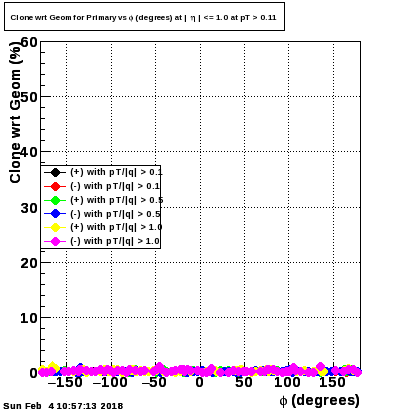

1.4.2.5. Primary tracks. Pions. Clone wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

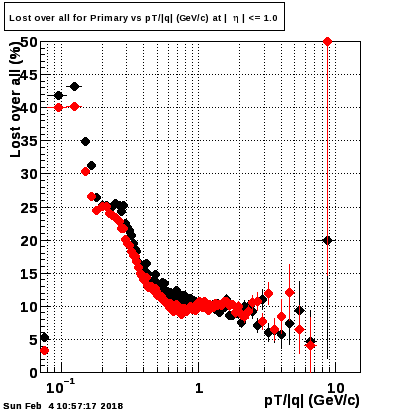

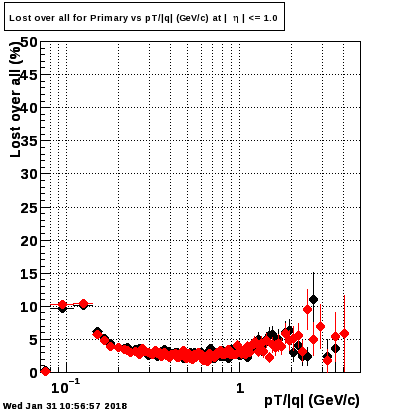

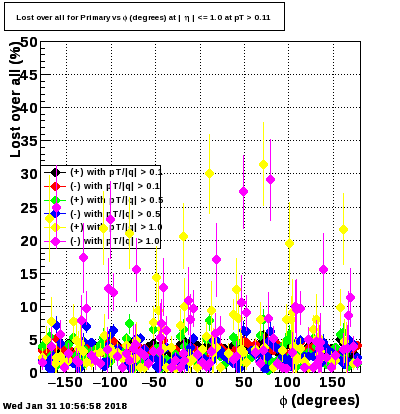

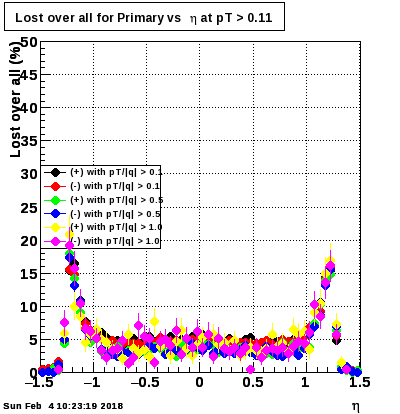

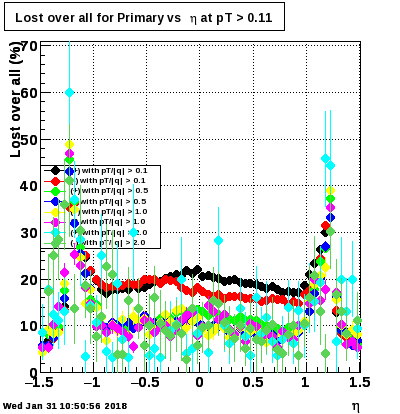

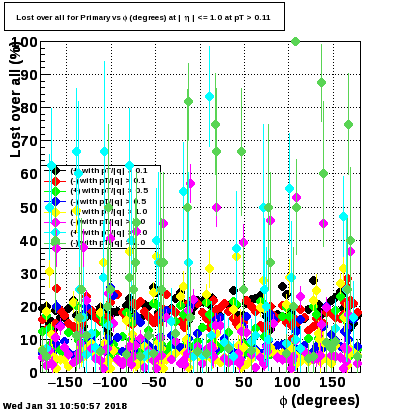

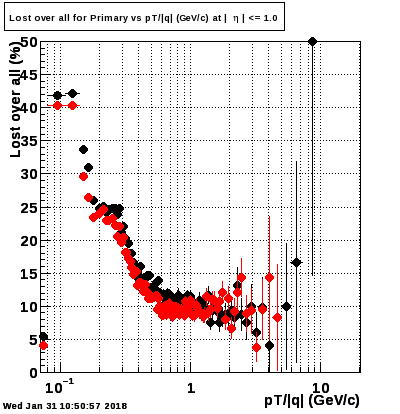

1.4.2.6. Primary tracks. Pions. Lost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

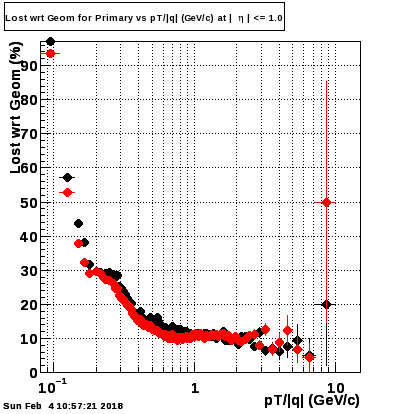

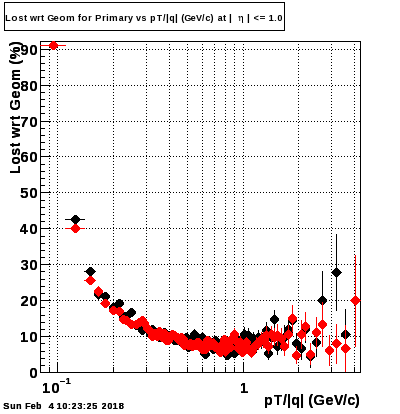

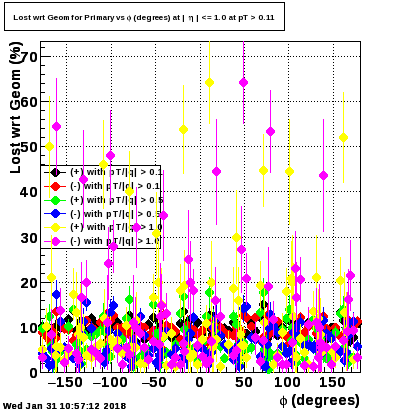

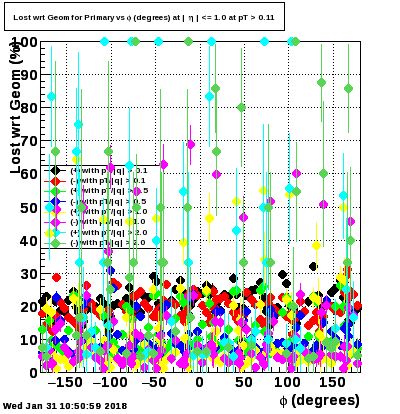

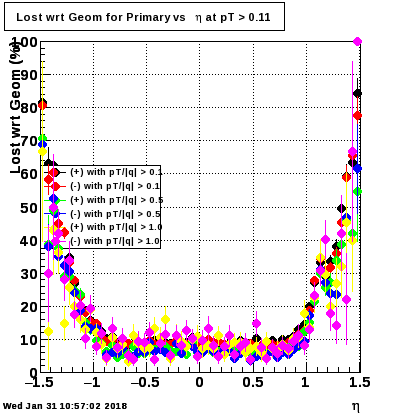

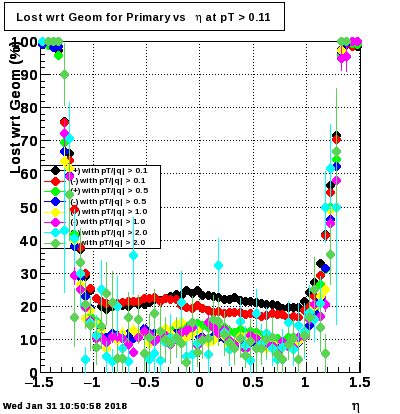

1.4.2.7. Primary tracks. Pions. Lost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3

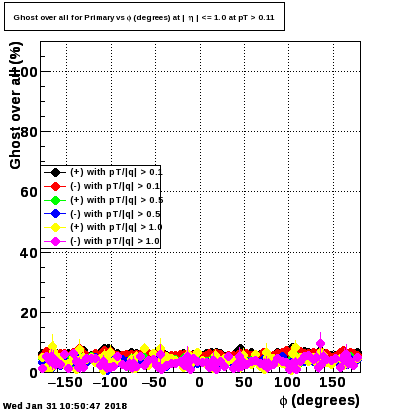

1.4.2.8. Primary tracks. Pions. Ghost over all.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.4.2.9. Primary tracks. Pions. Ghost wrt Geom.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

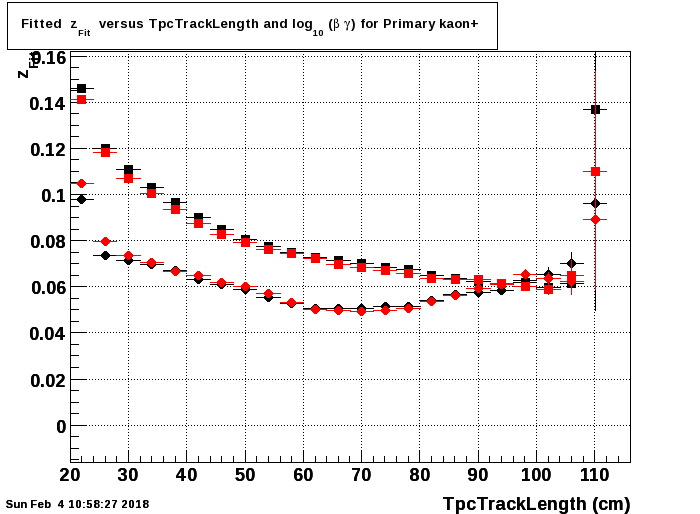

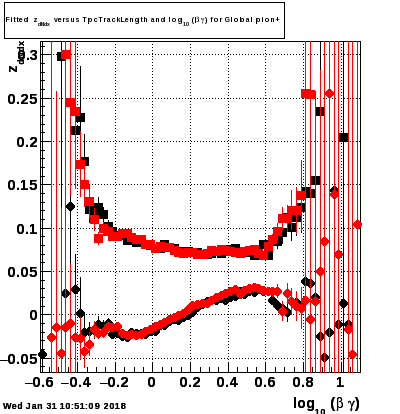

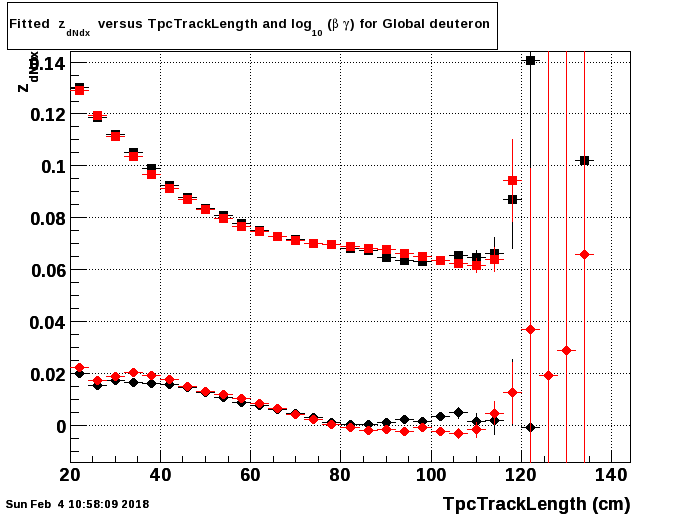

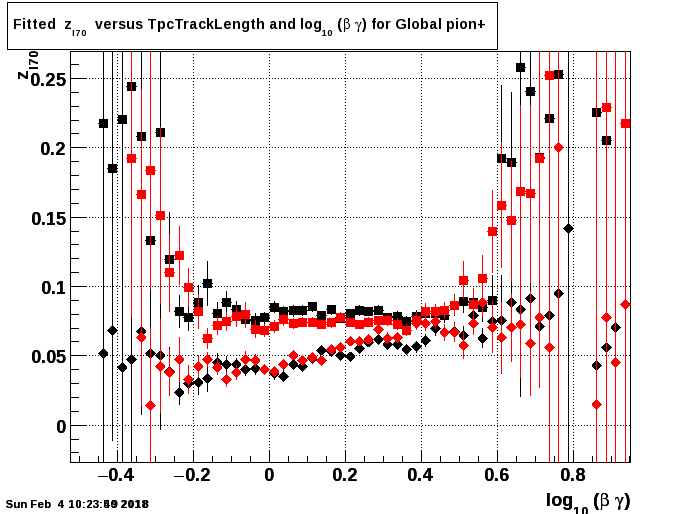

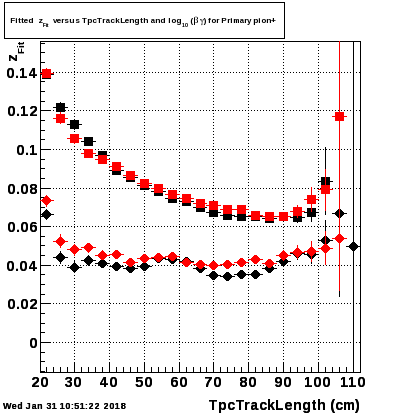

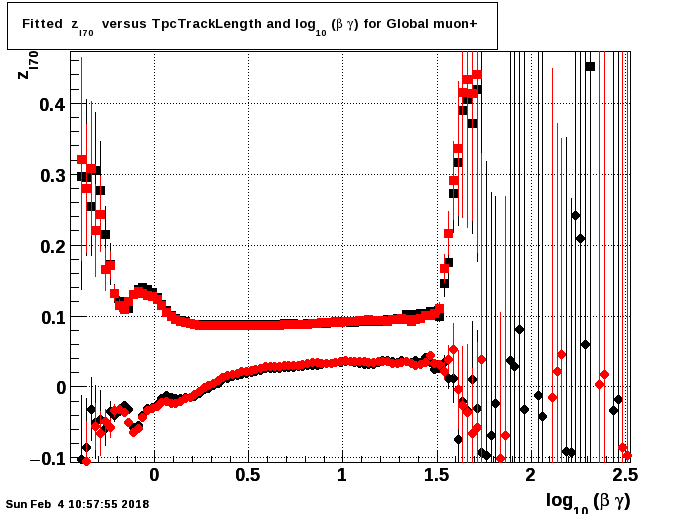

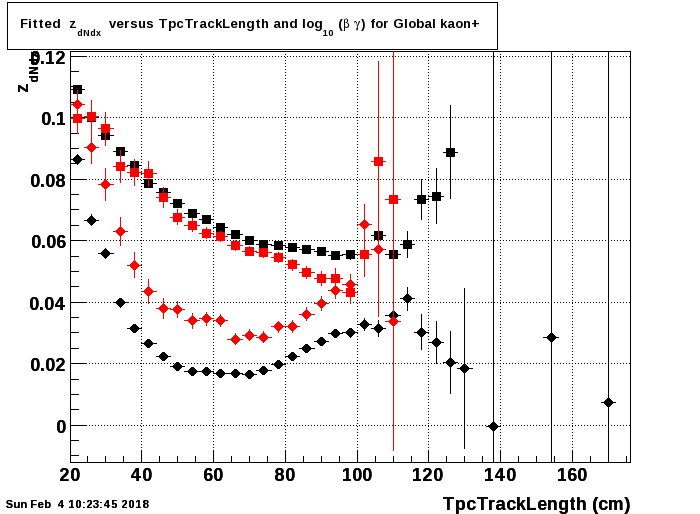

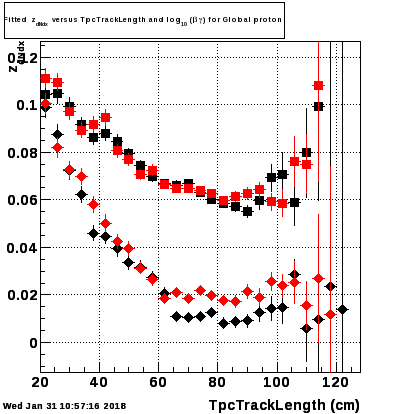

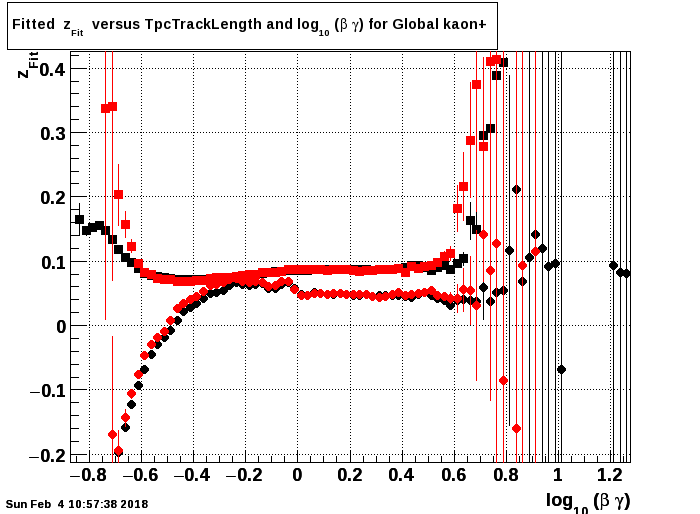

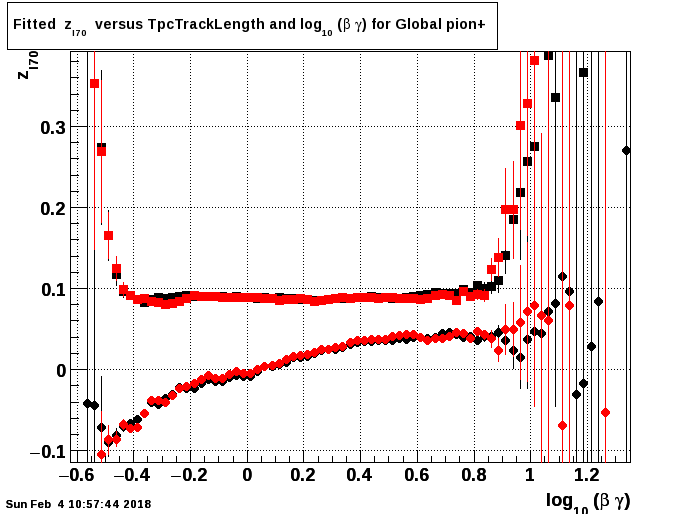

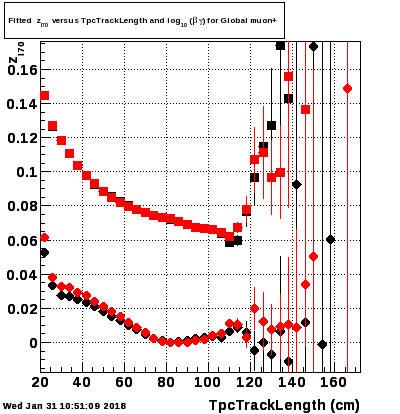

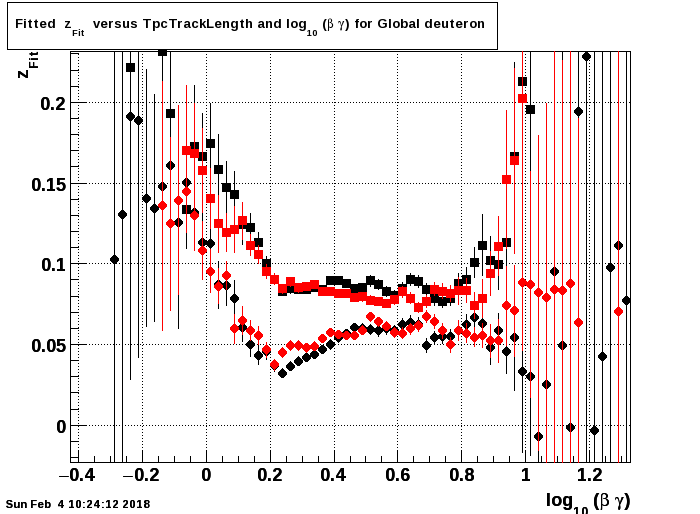

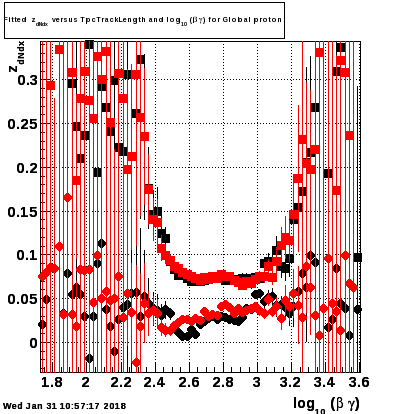

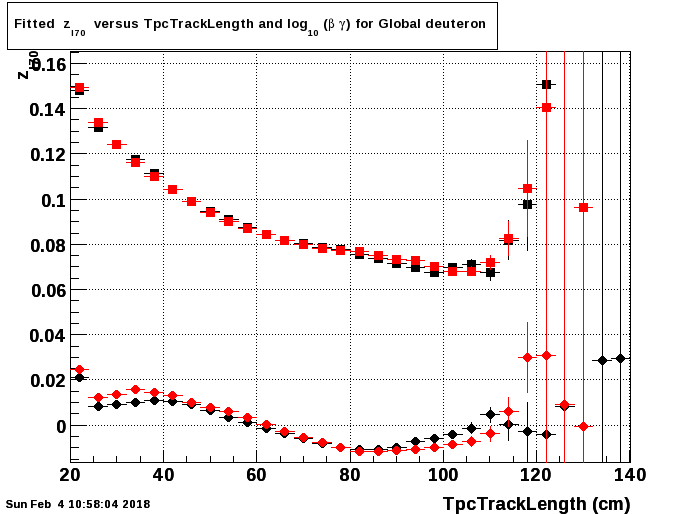

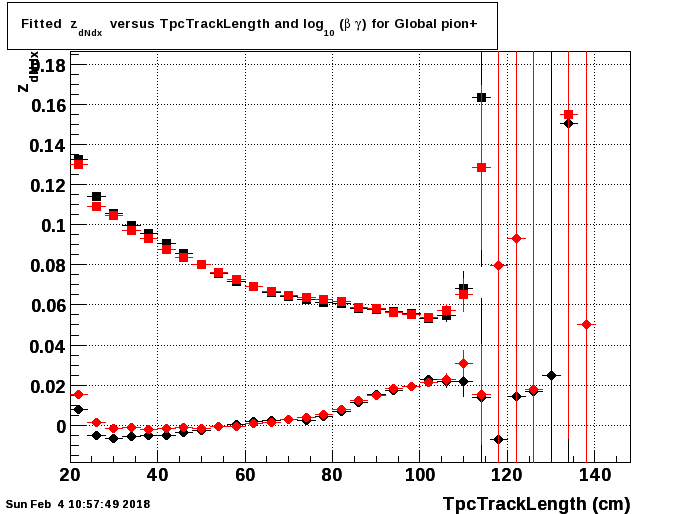

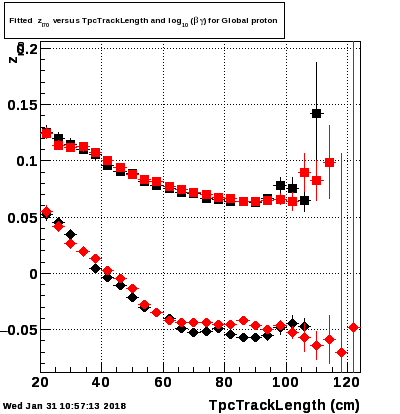

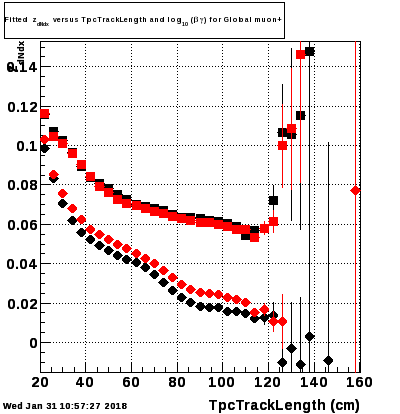

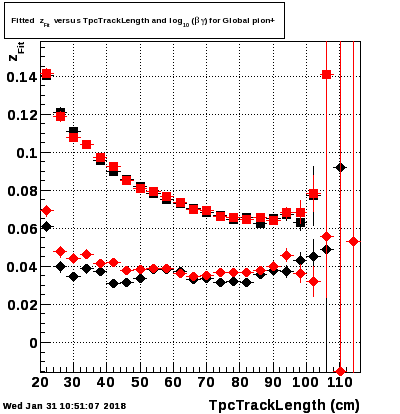

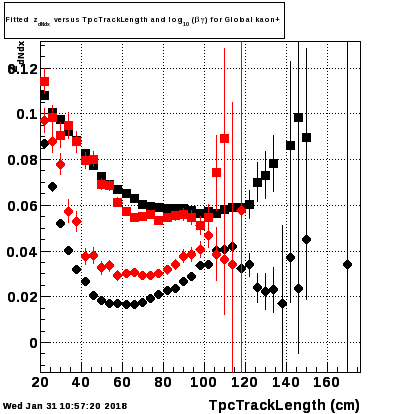

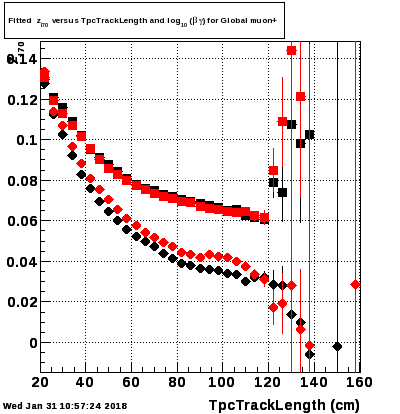

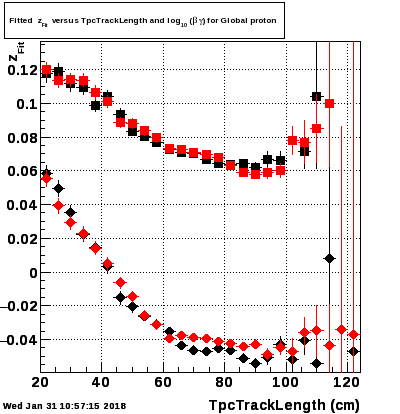

1.3. TPC dE/dx PiD.

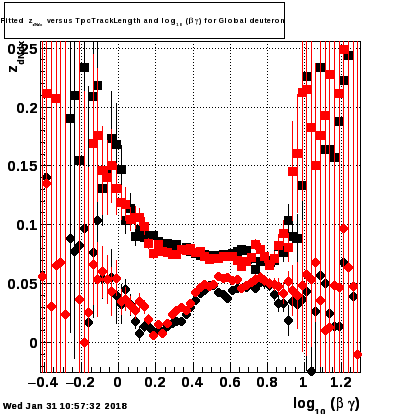

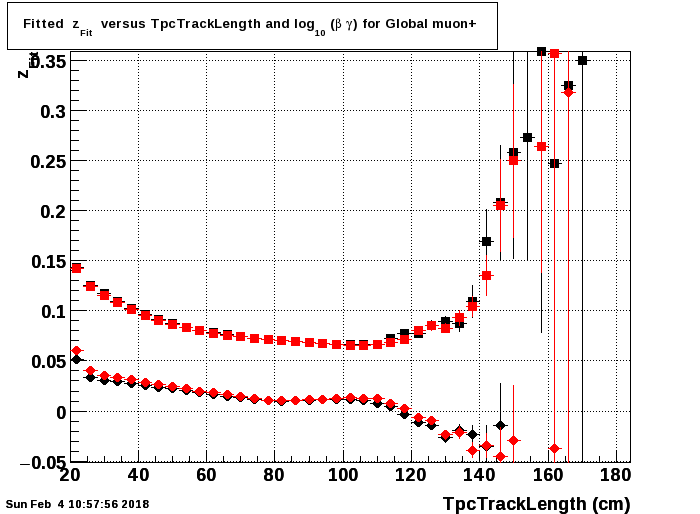

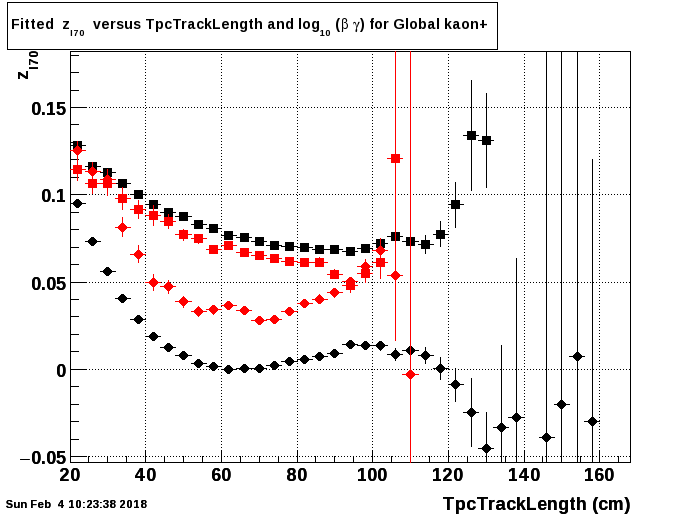

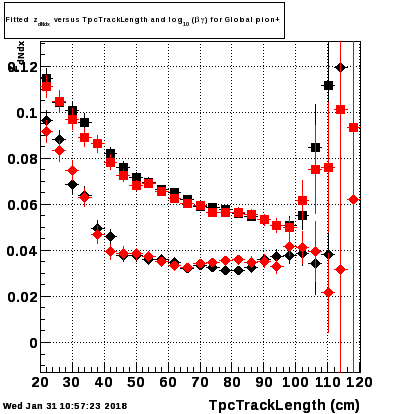

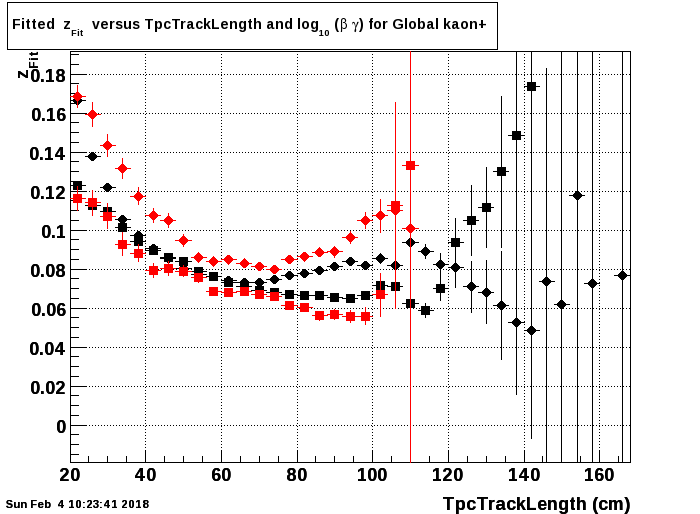

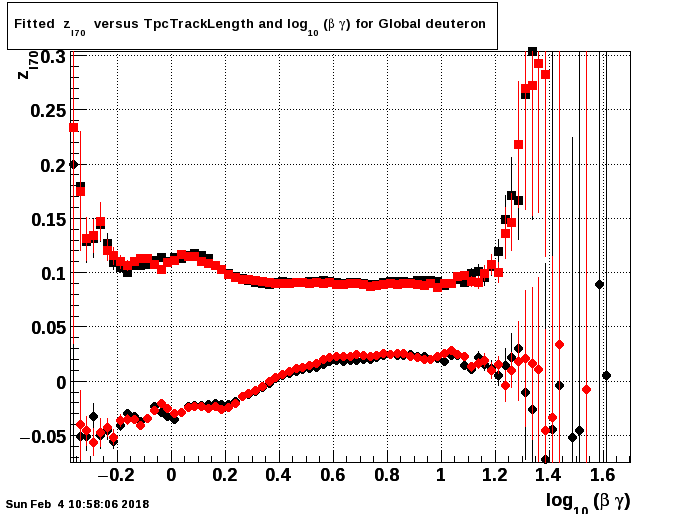

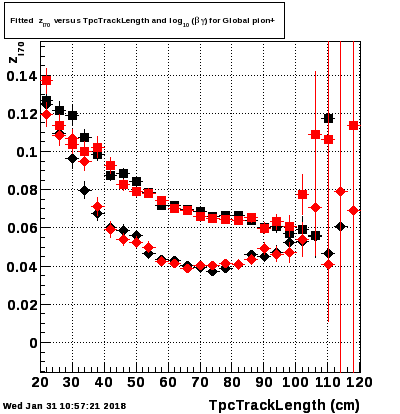

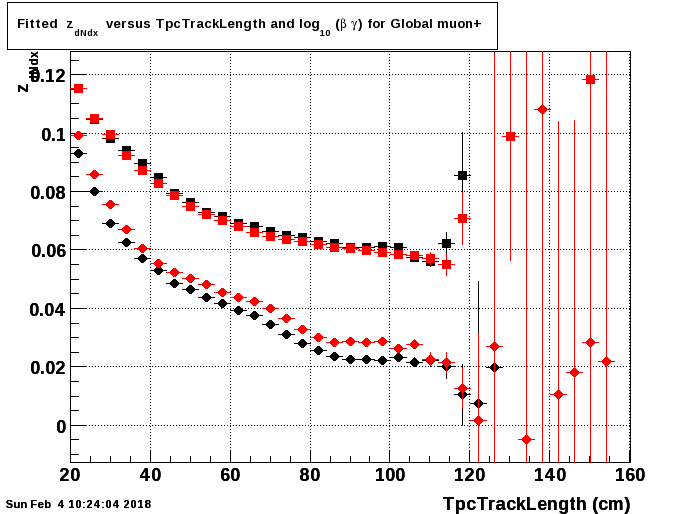

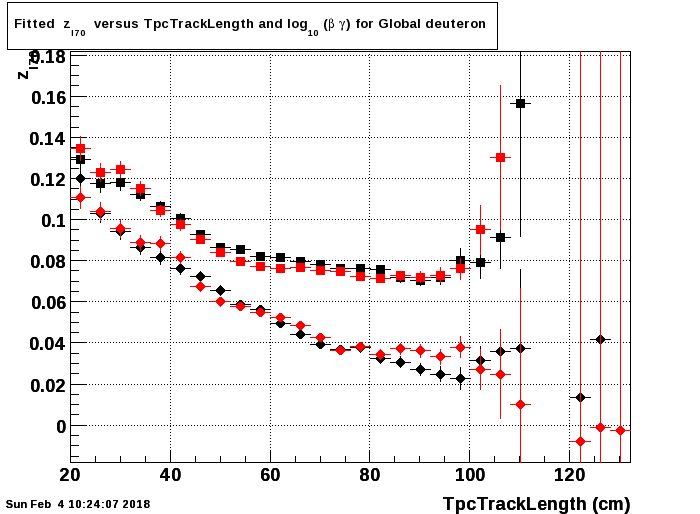

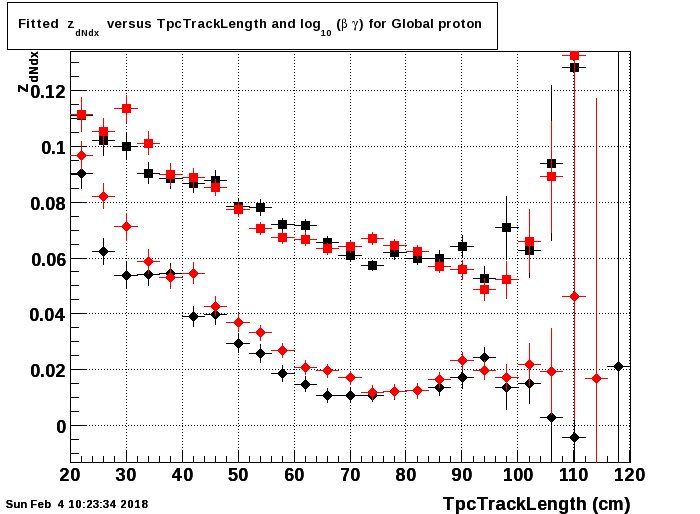

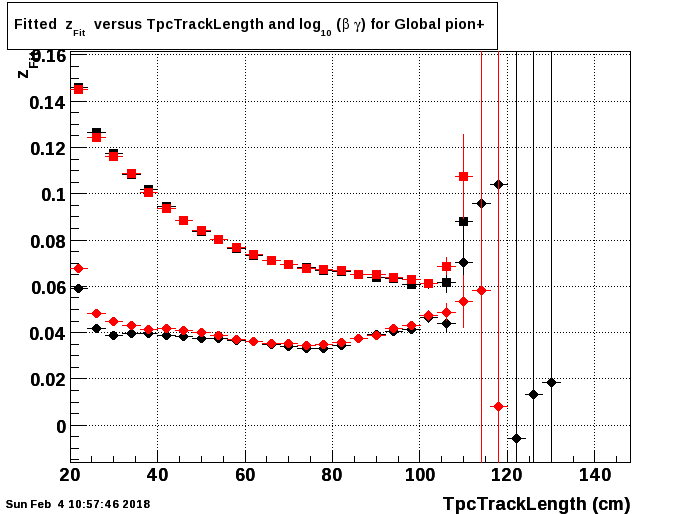

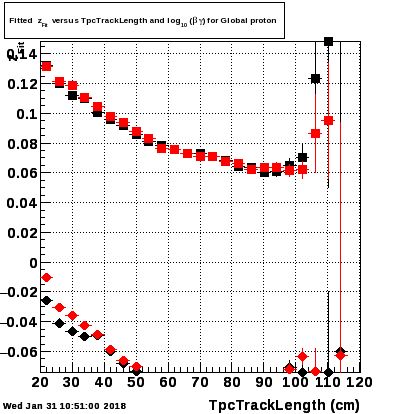

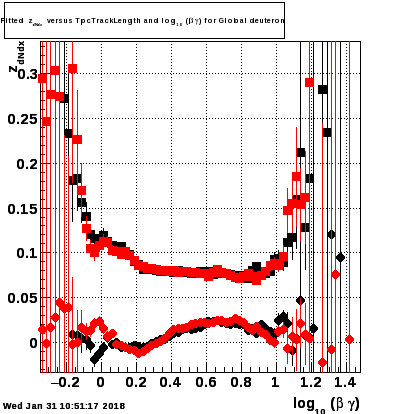

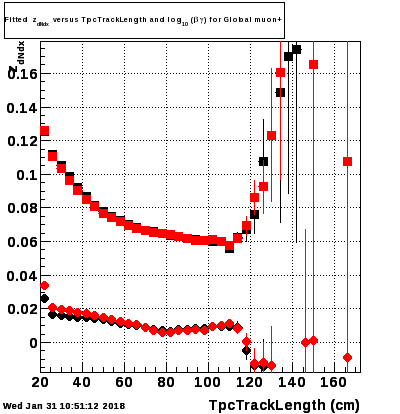

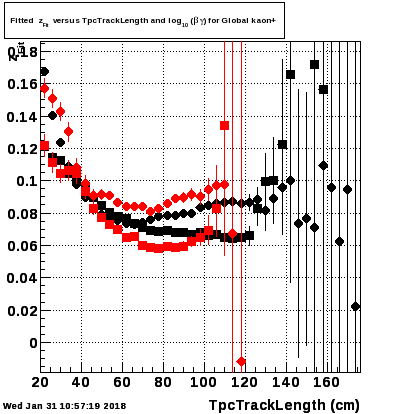

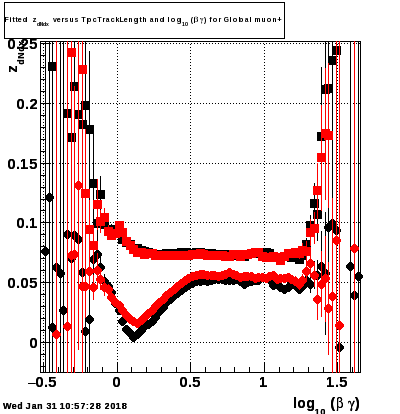

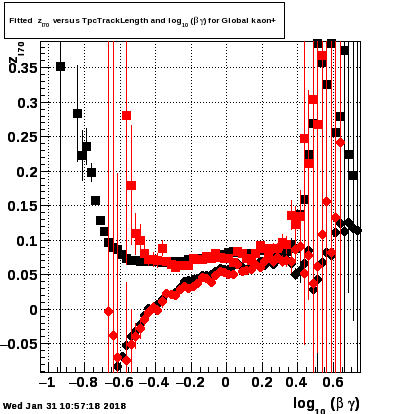

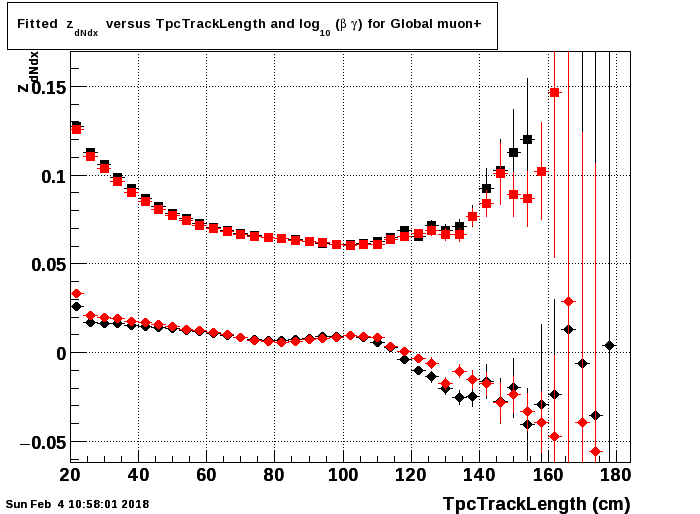

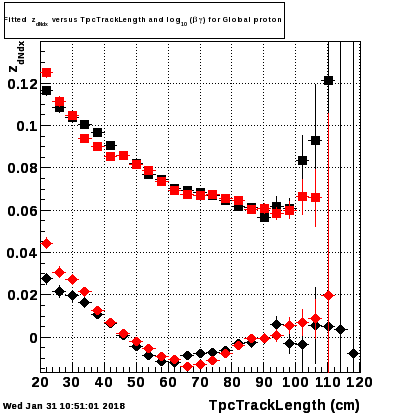

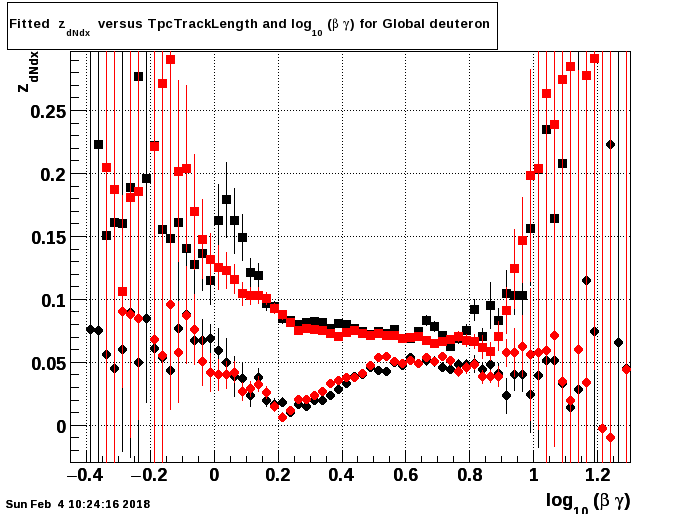

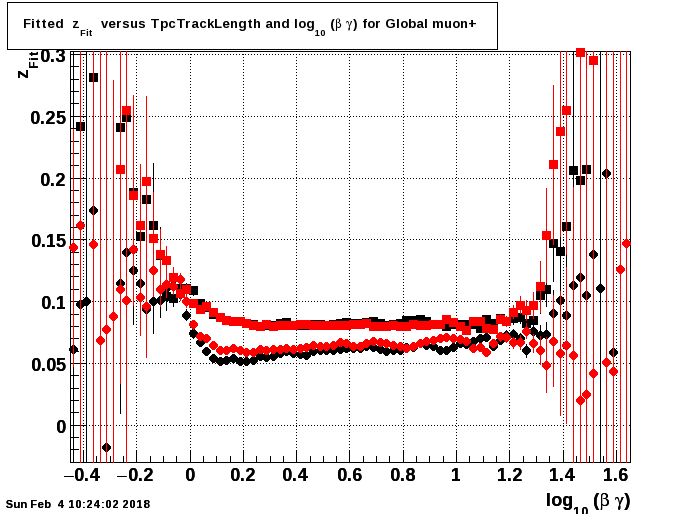

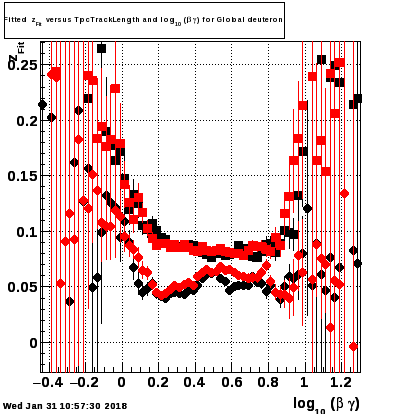

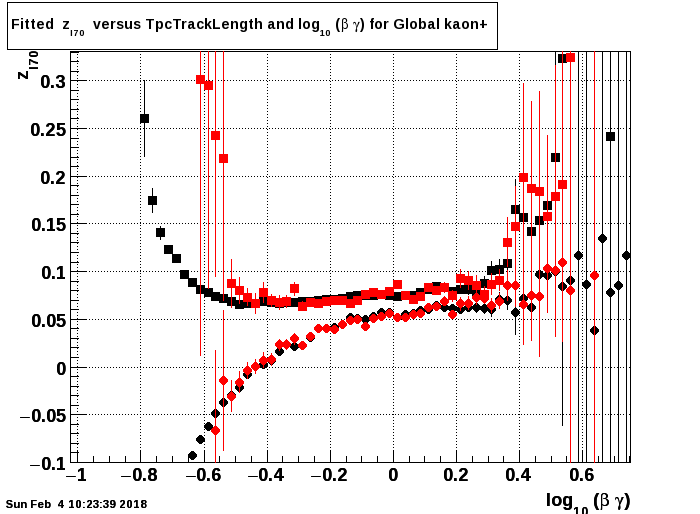

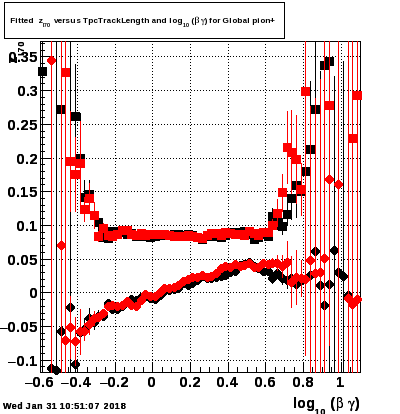

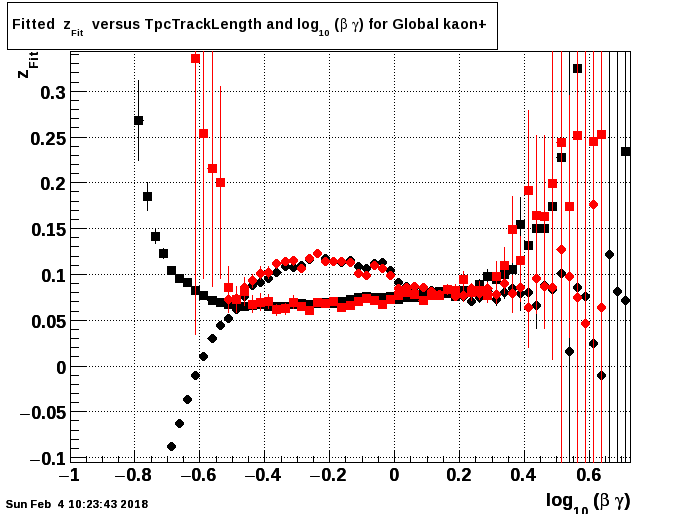

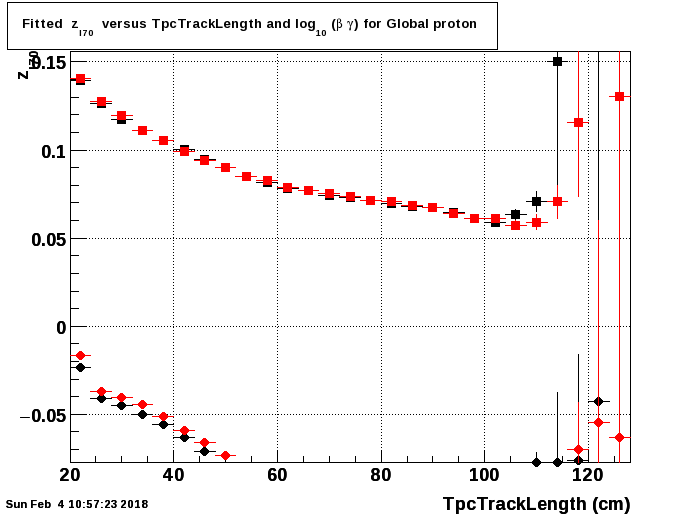

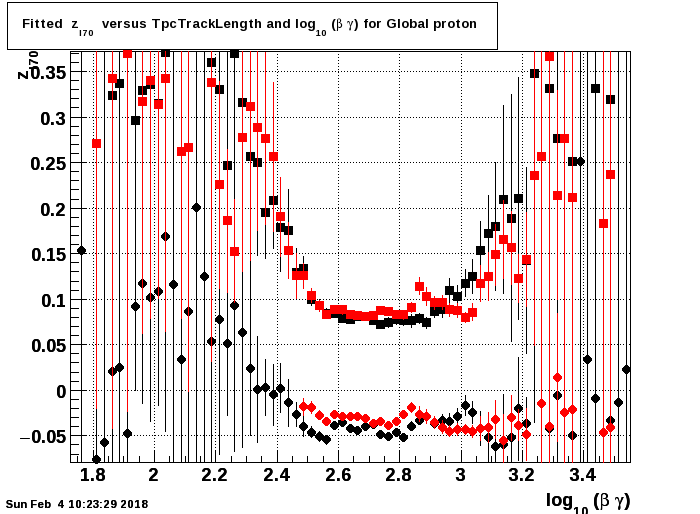

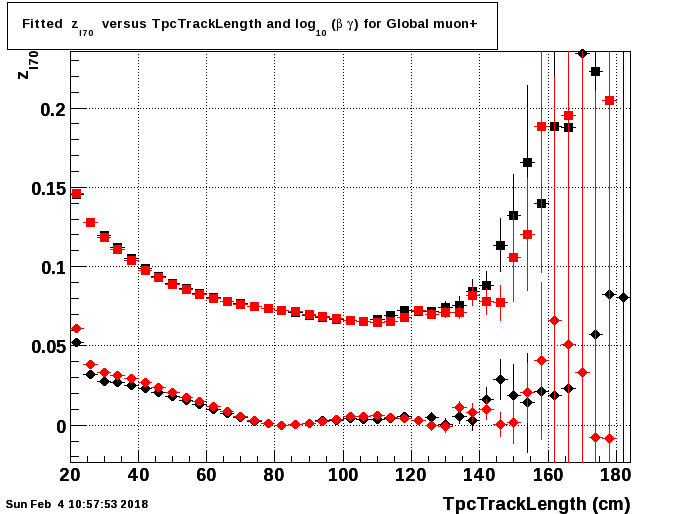

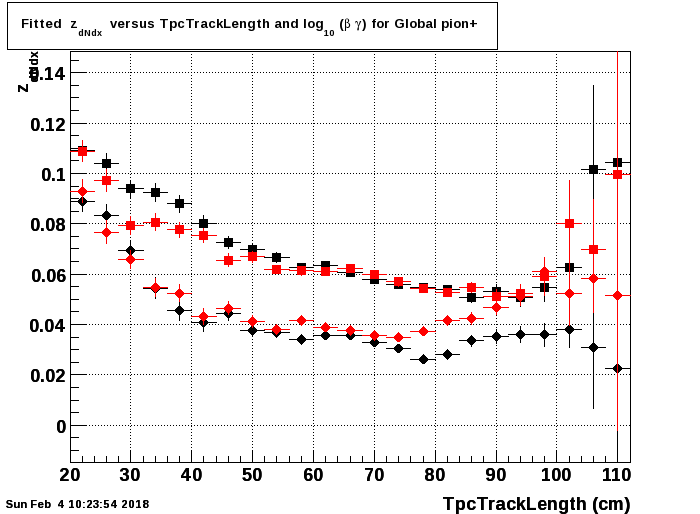

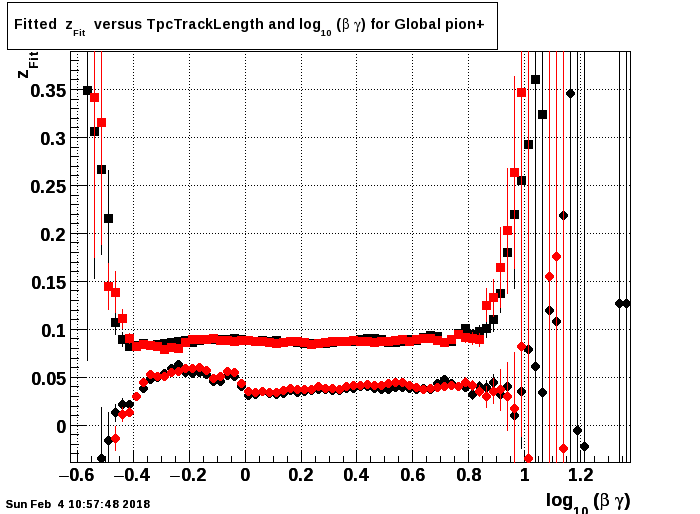

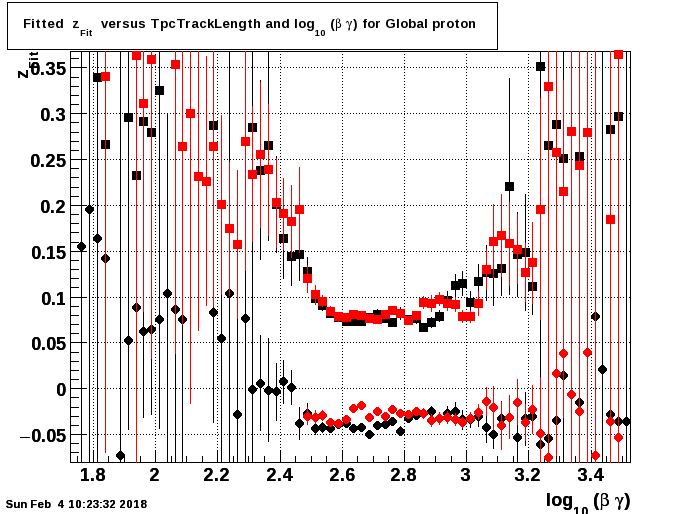

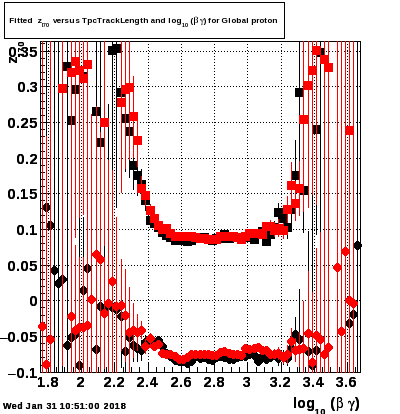

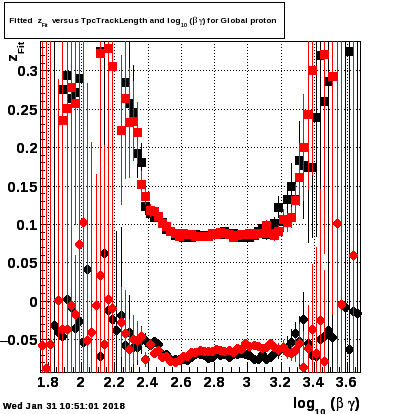

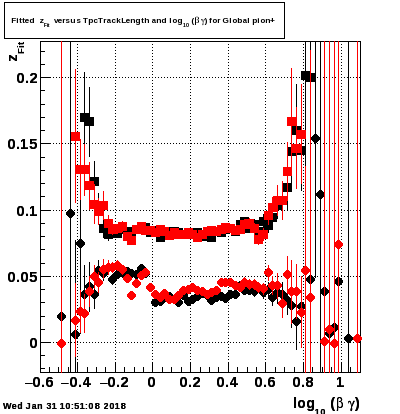

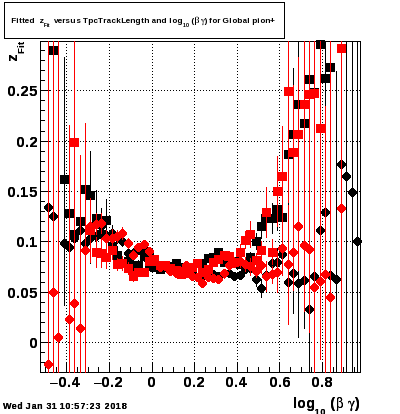

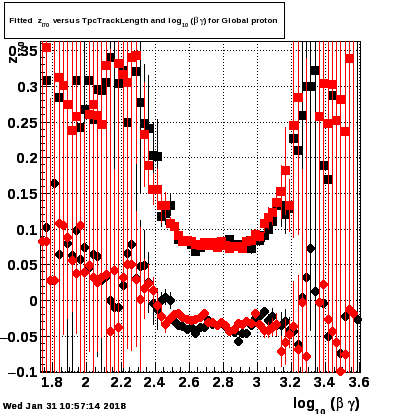

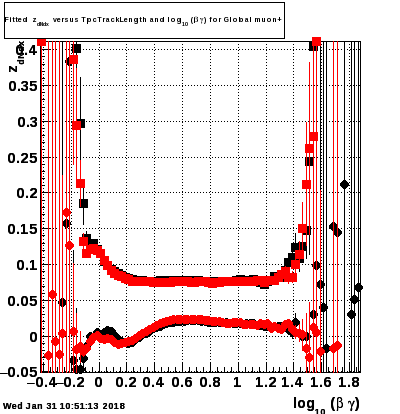

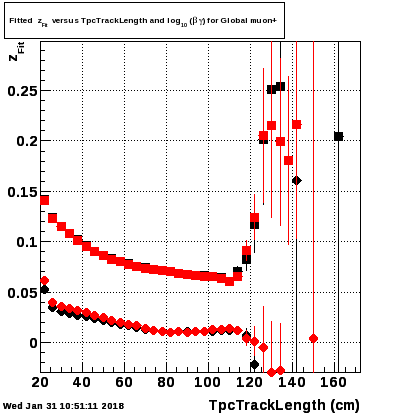

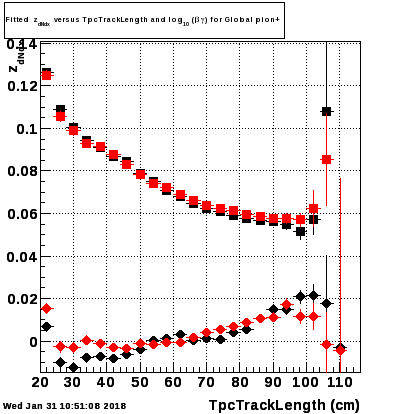

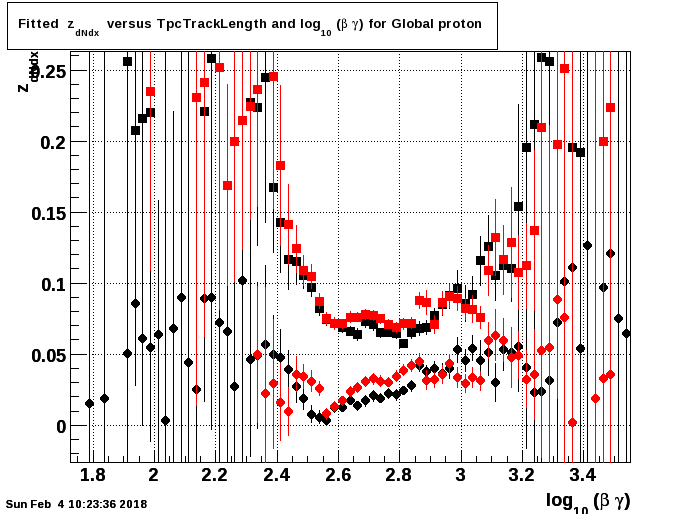

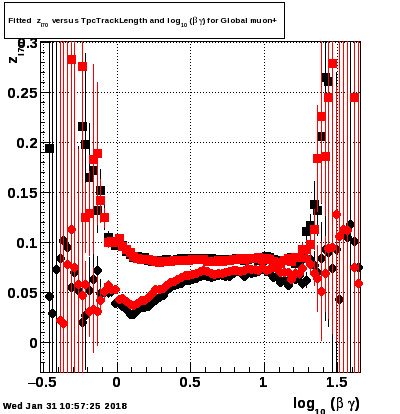

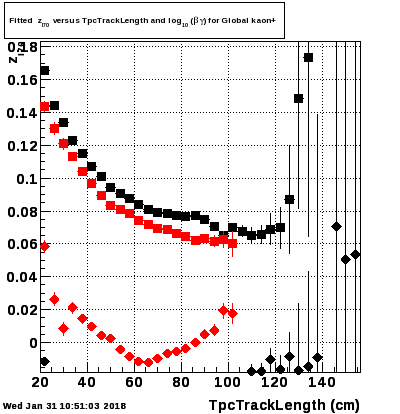

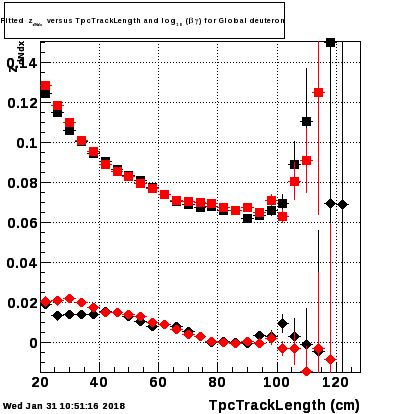

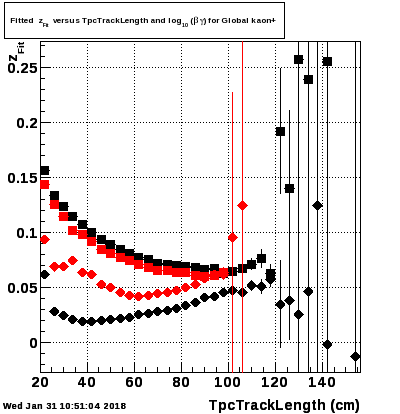

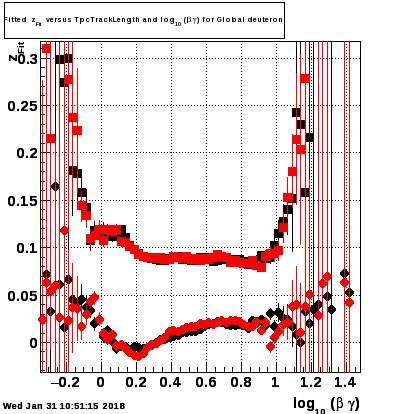

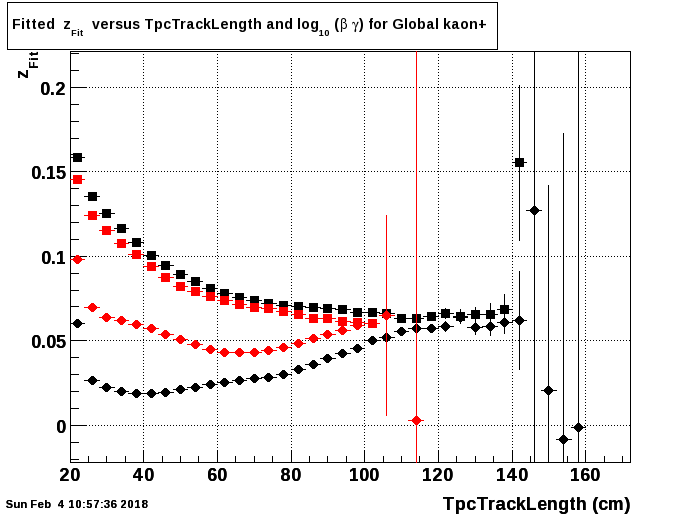

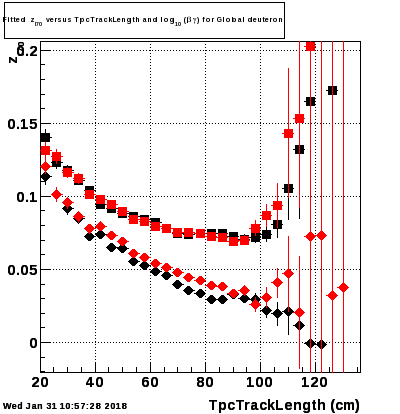

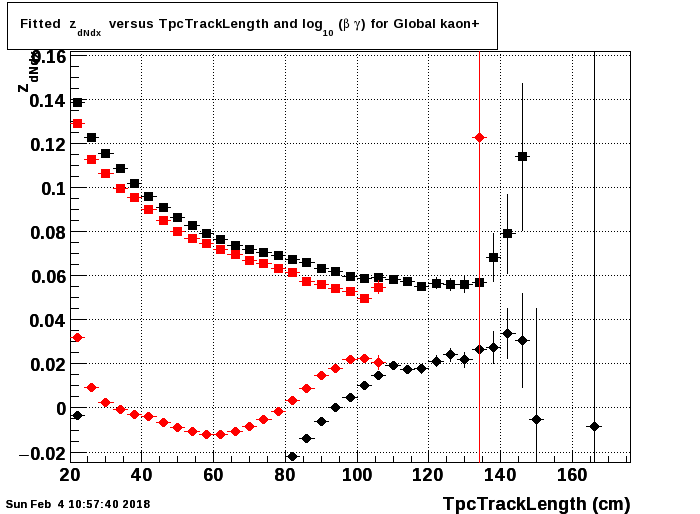

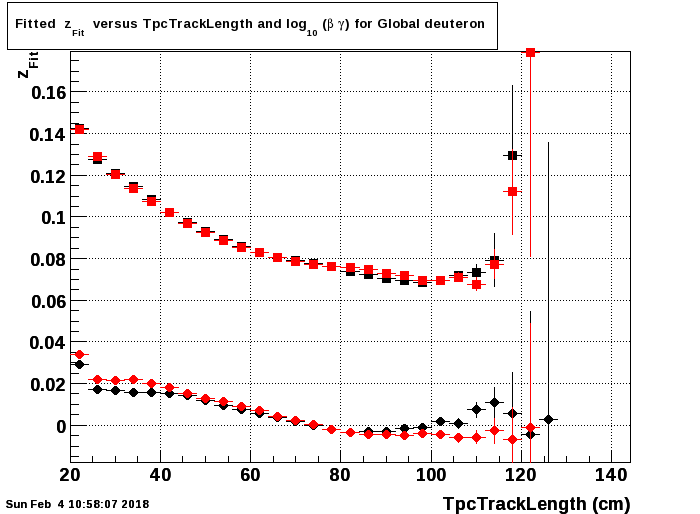

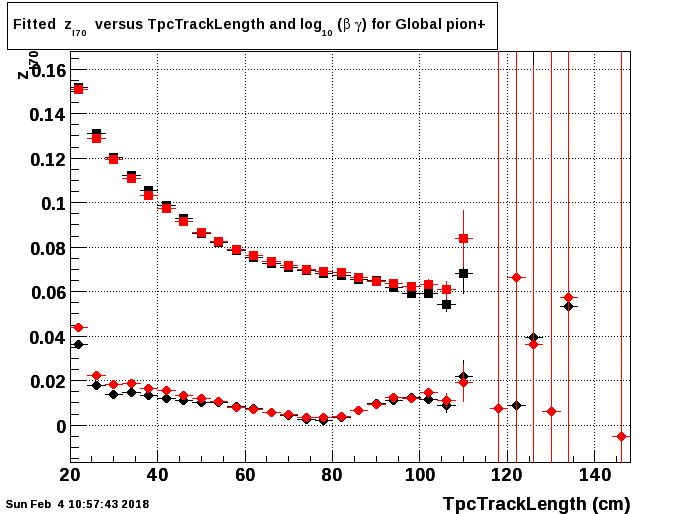

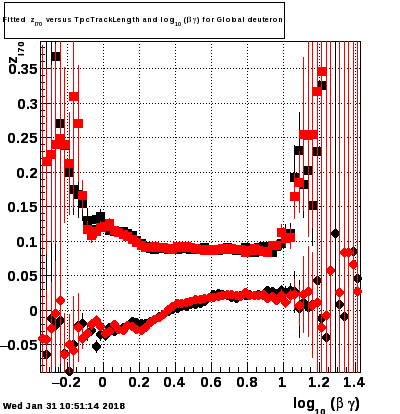

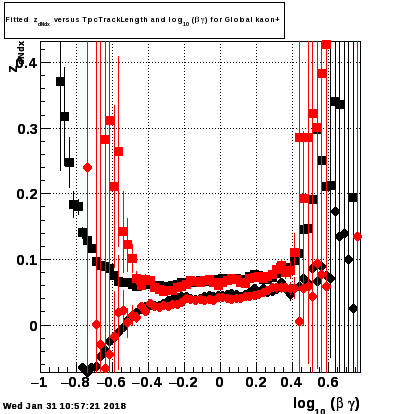

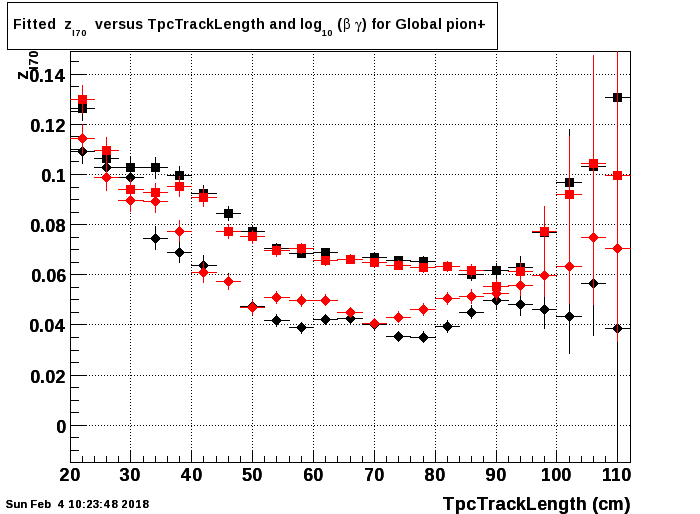

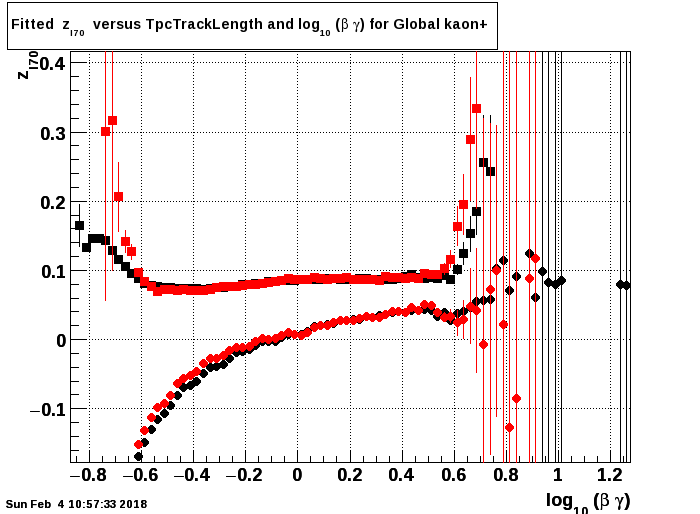

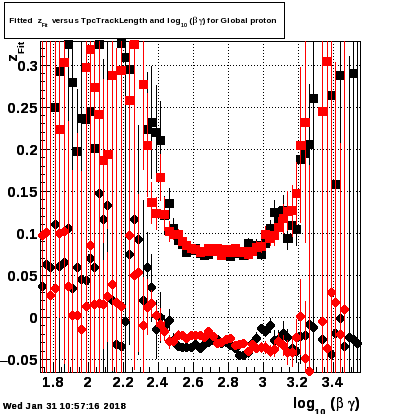

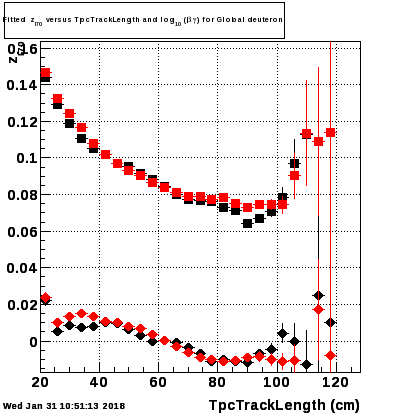

1.3.1. Global tracks.

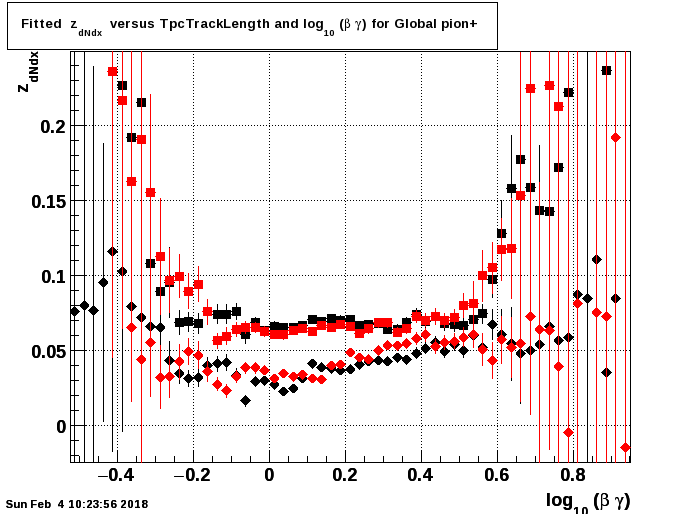

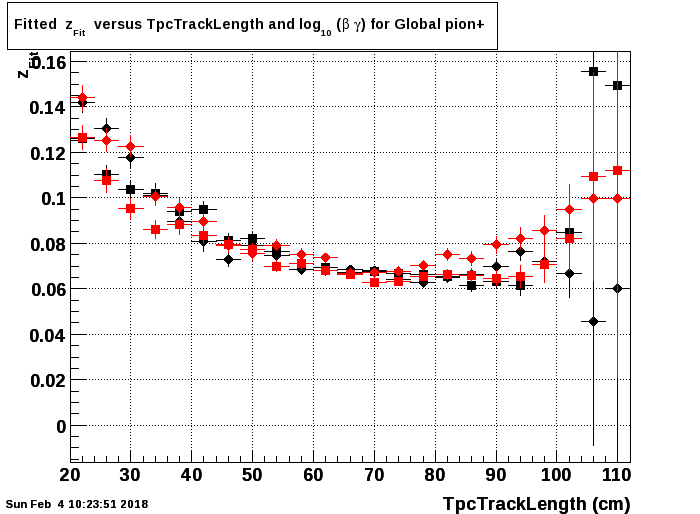

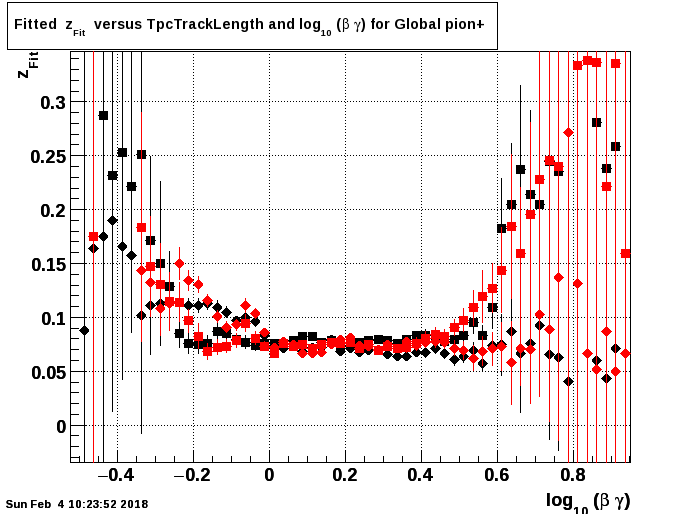

1.5.1.1.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.1.2.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.1.3.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.1.4.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.1.5.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.1.6.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.1.7.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.1.8.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.1.9.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

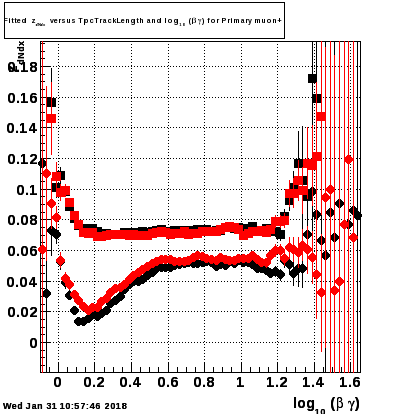

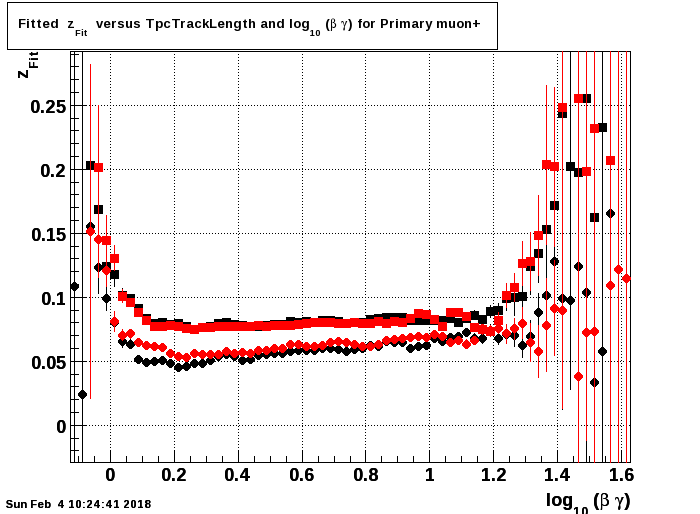

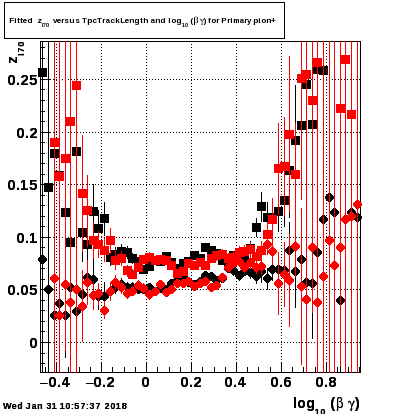

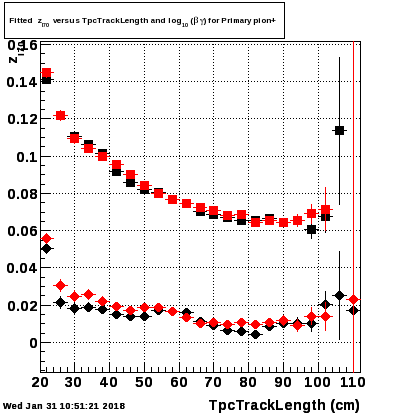

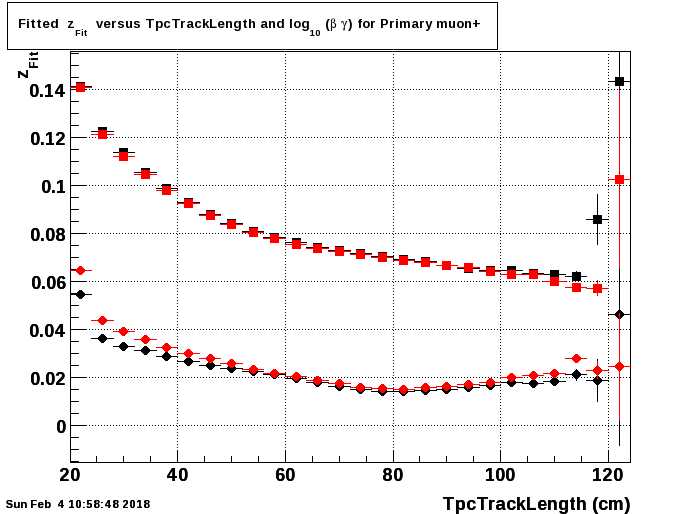

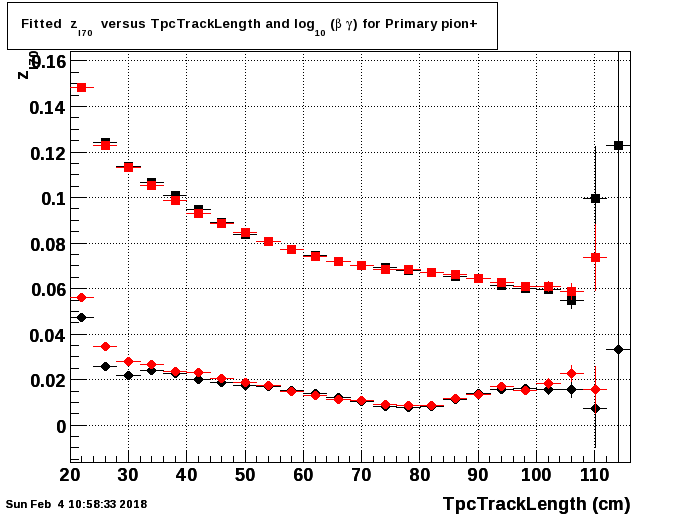

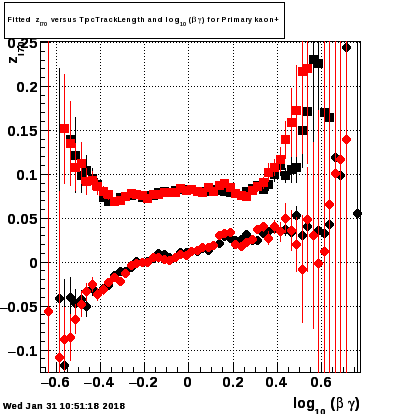

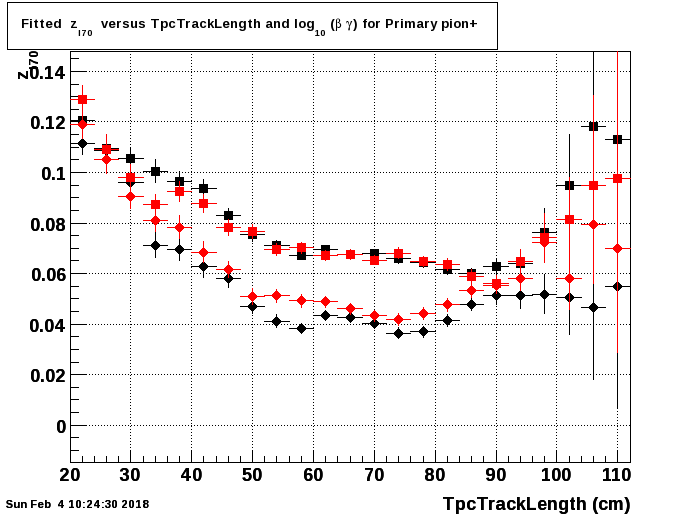

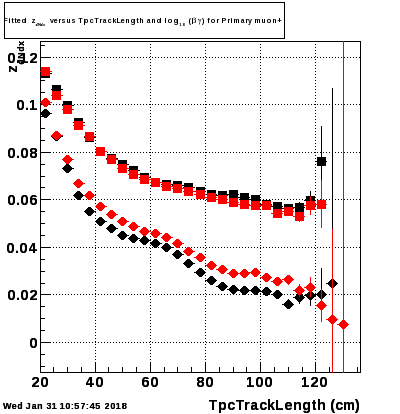

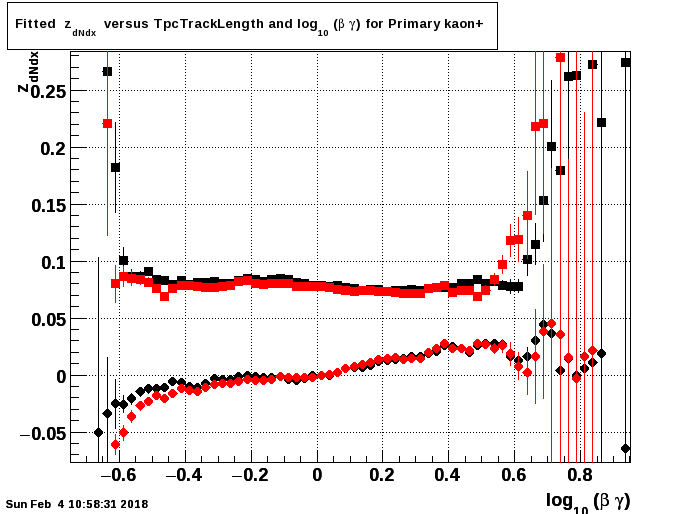

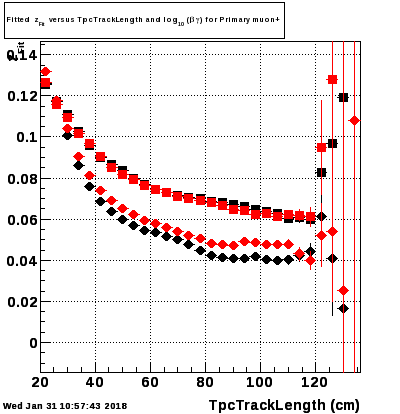

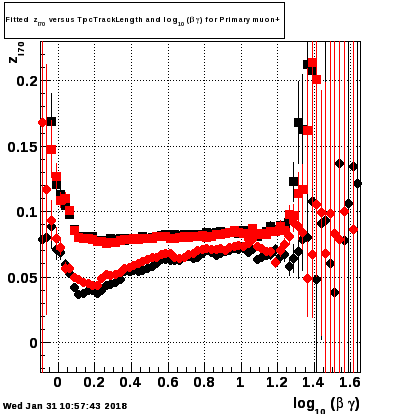

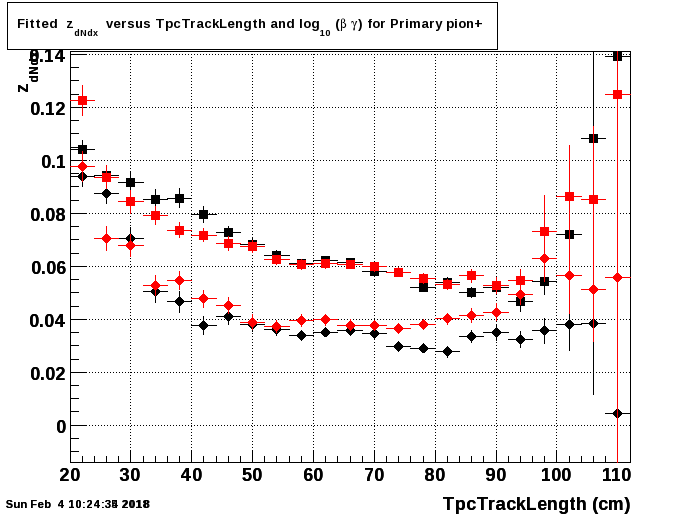

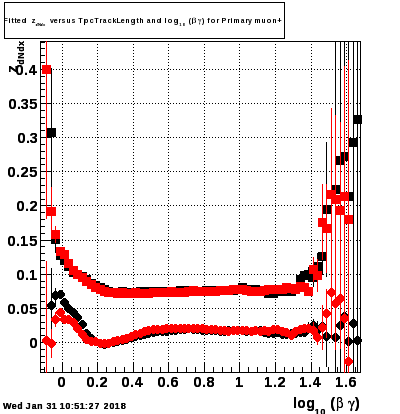

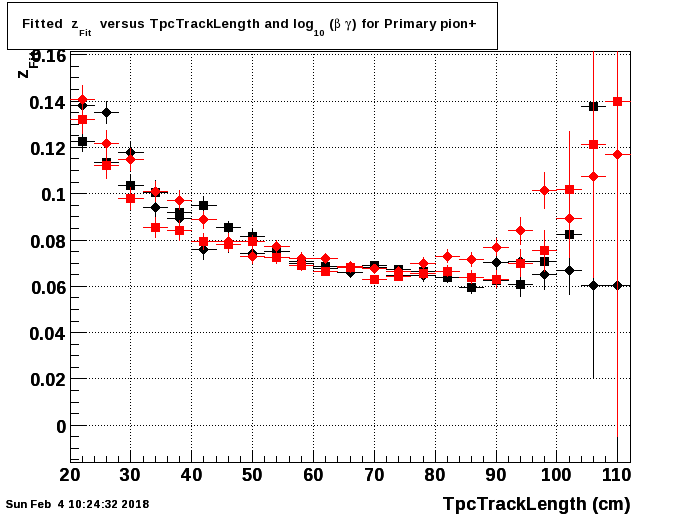

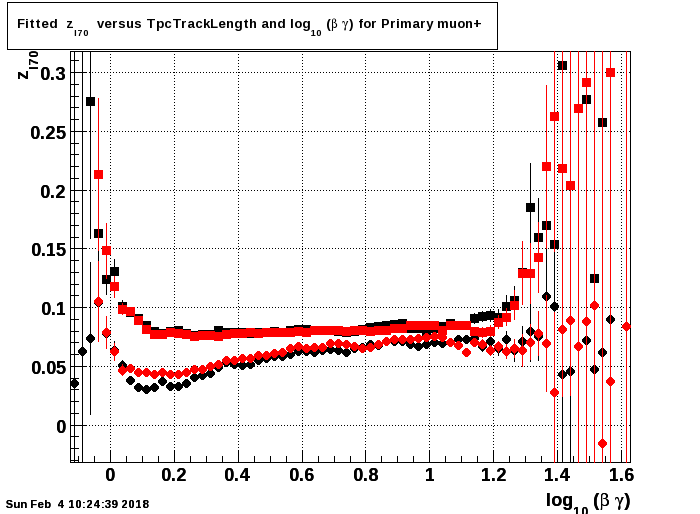

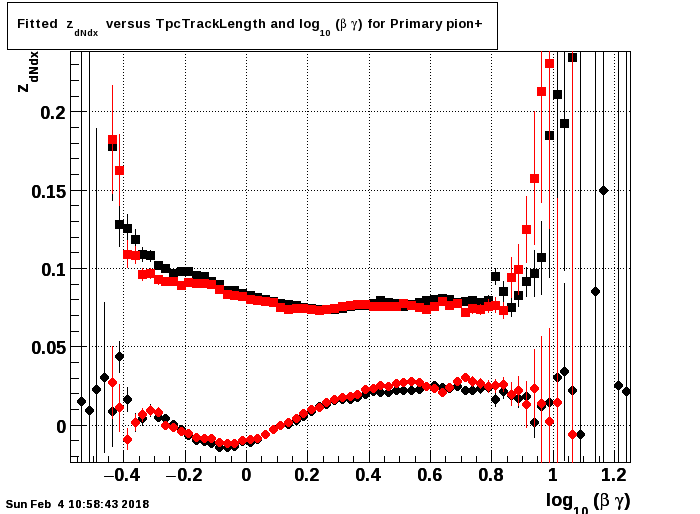

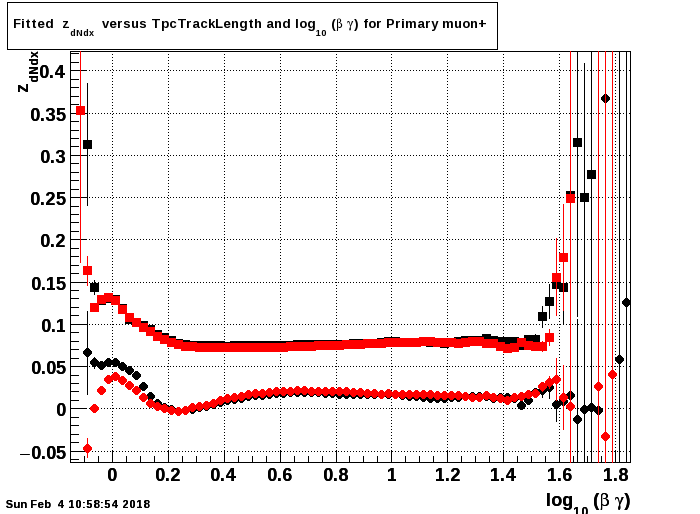

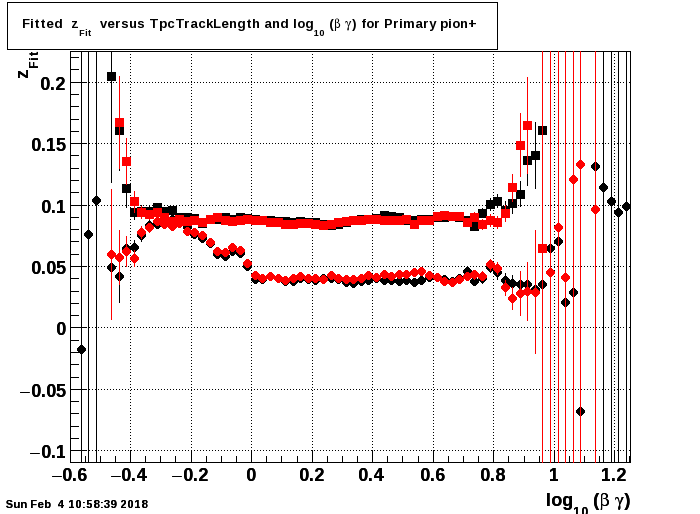

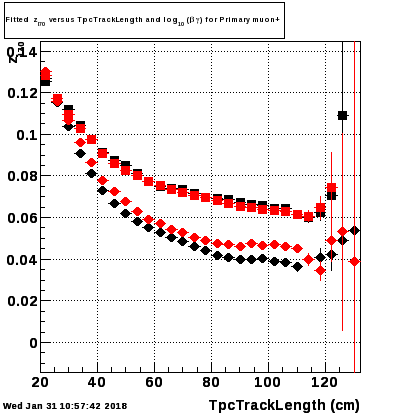

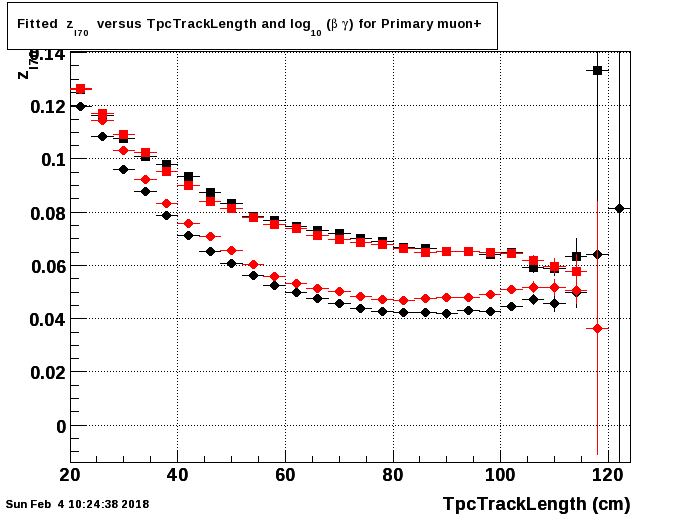

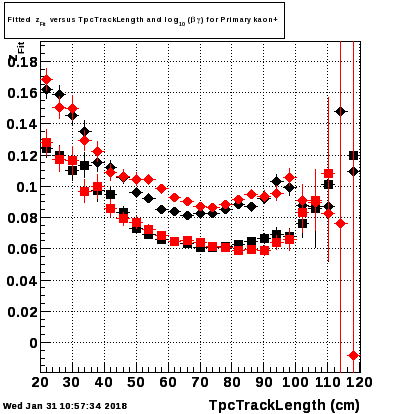

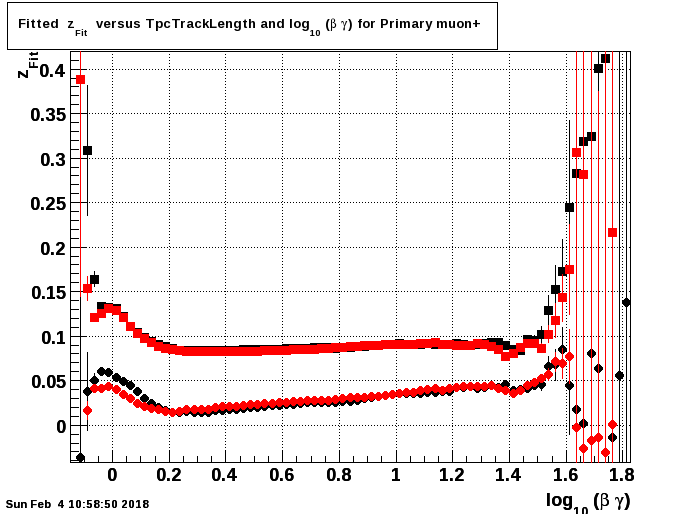

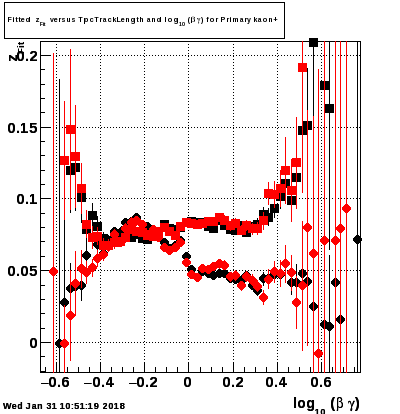

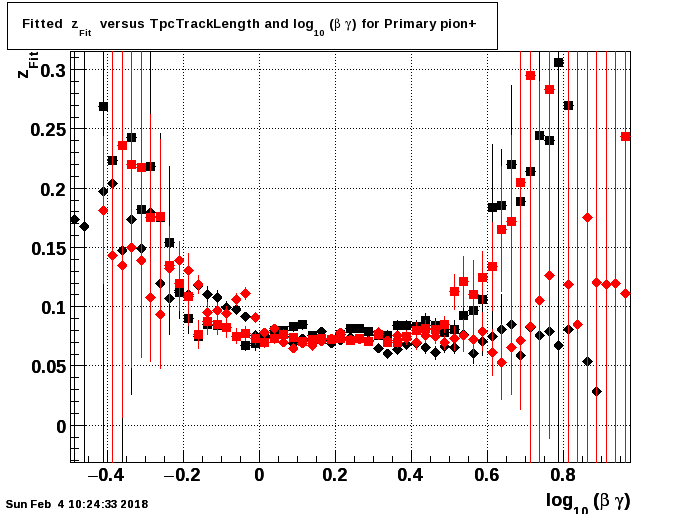

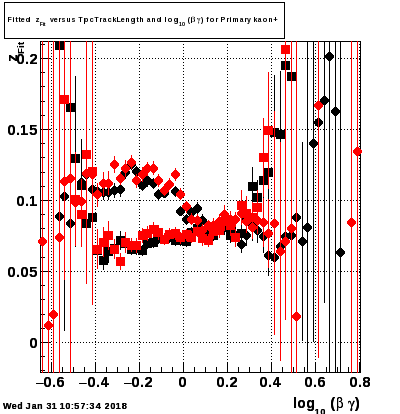

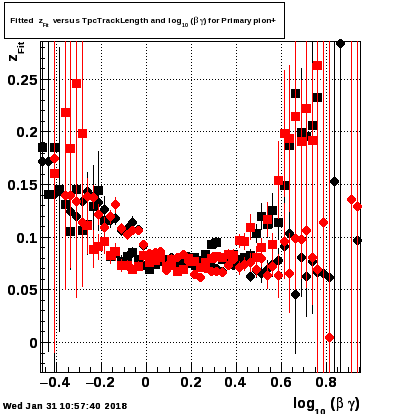

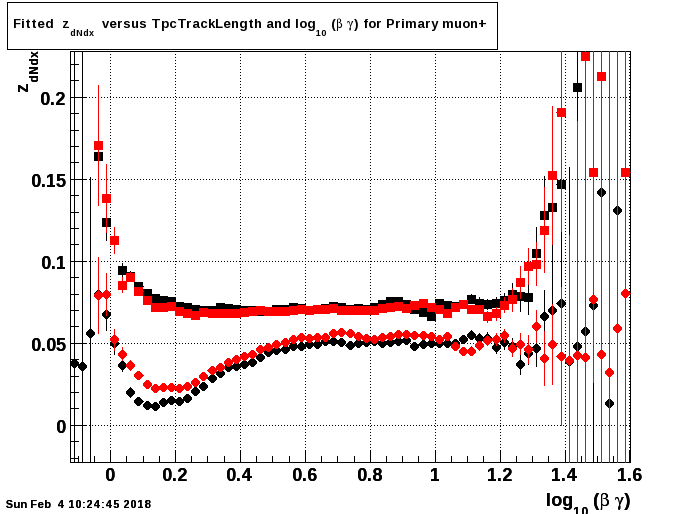

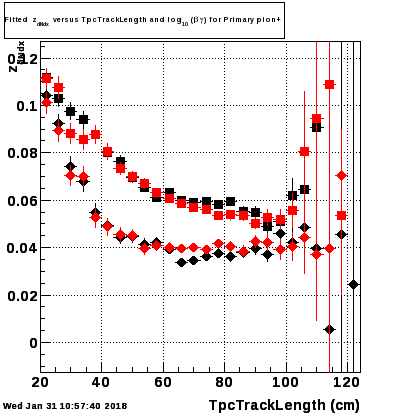

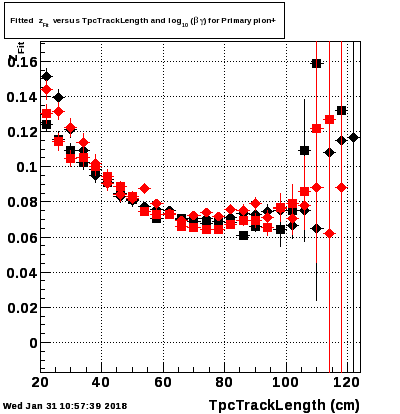

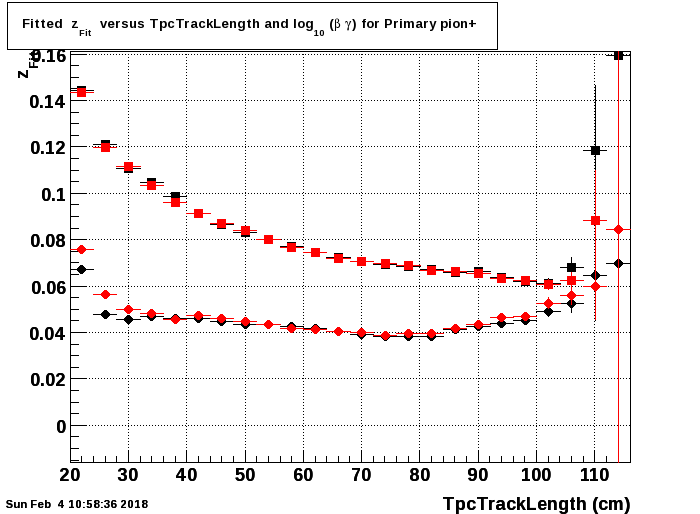

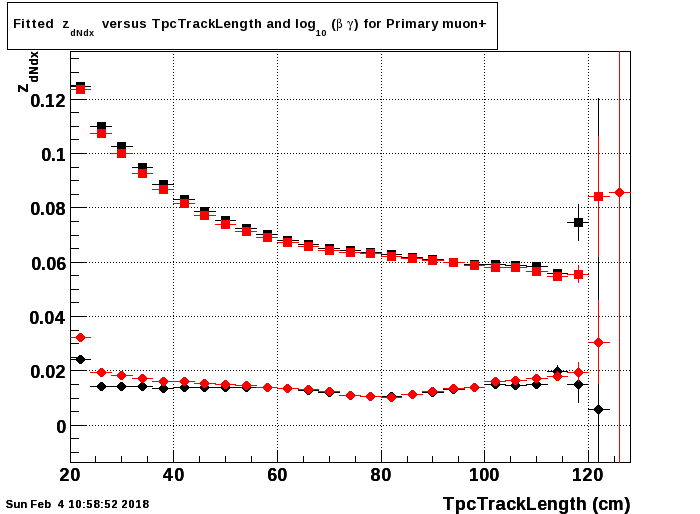

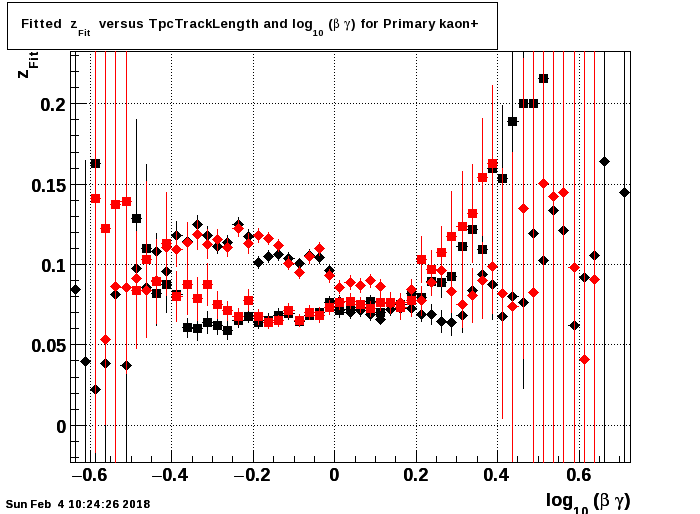

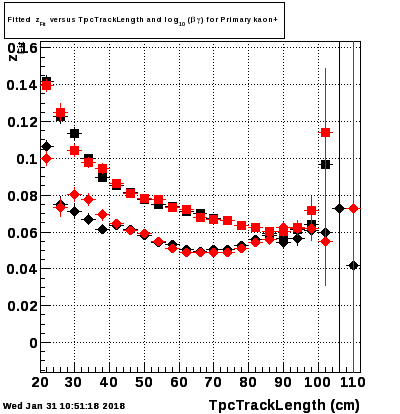

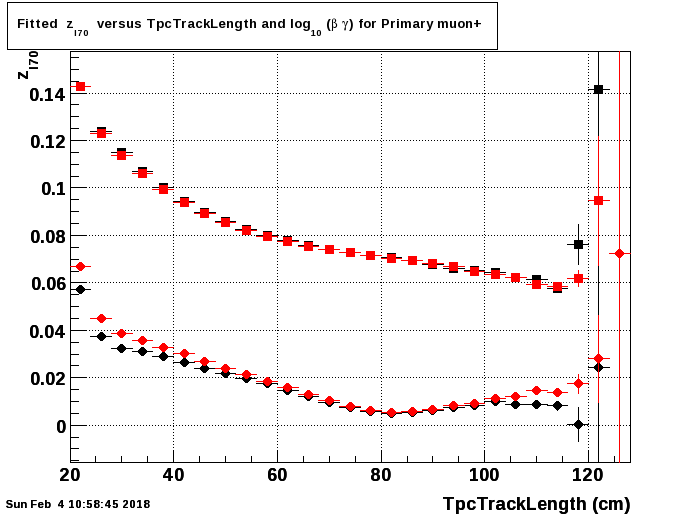

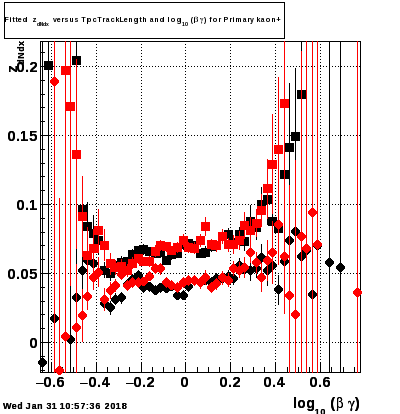

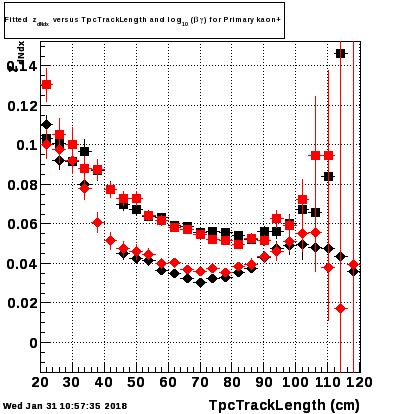

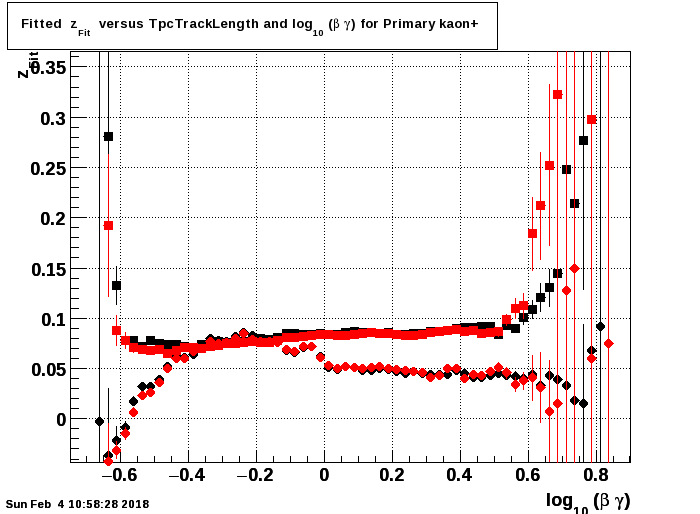

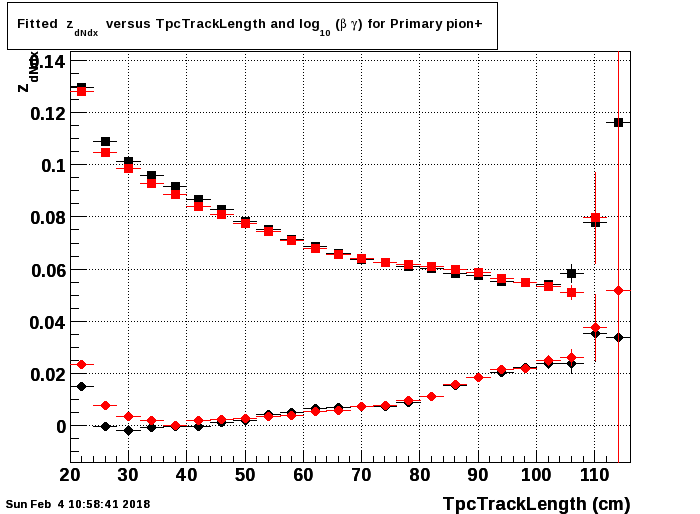

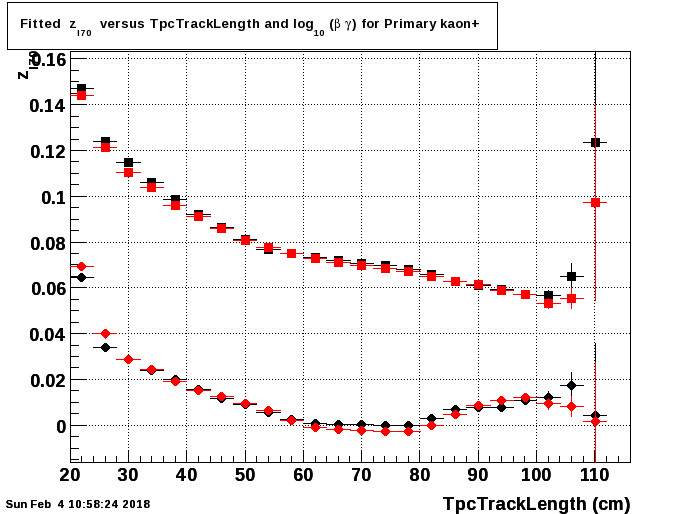

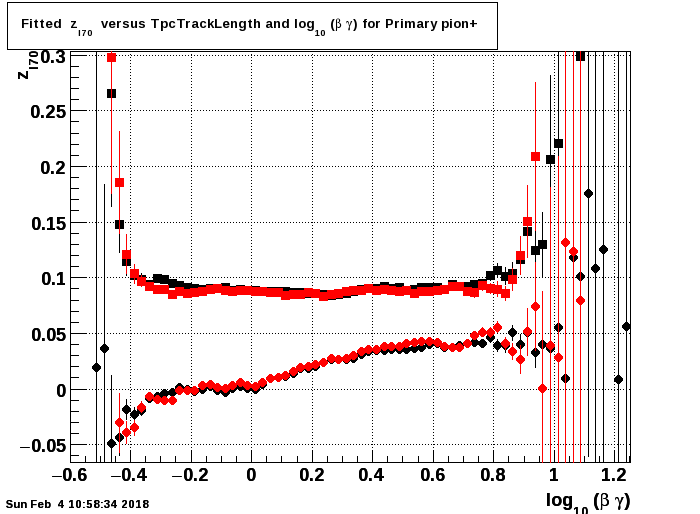

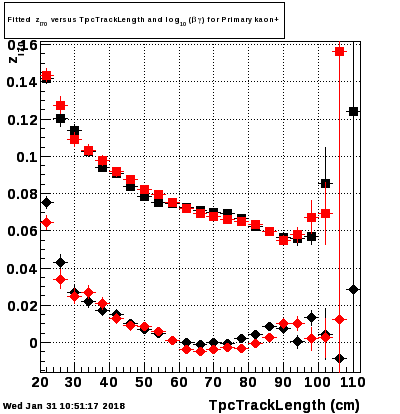

1.5.2. Primary tracks.

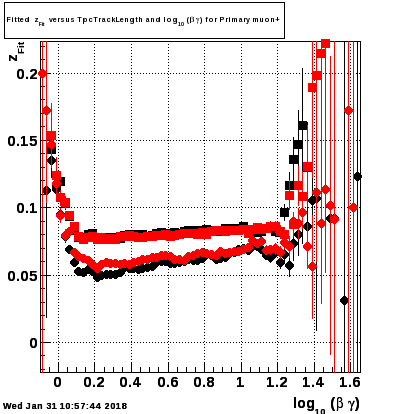

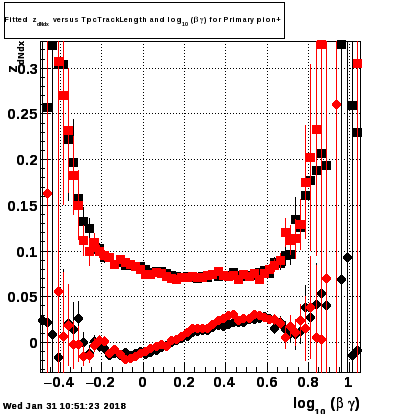

1.5.2.1.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.2.2.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.2.3.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.2.4.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6

1.5.2.5.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.2.6.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.2.7.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.2.8.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.2.9.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

)); ?>

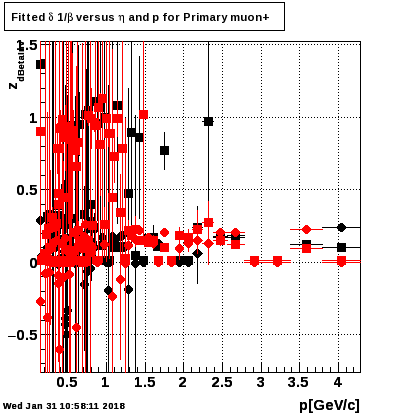

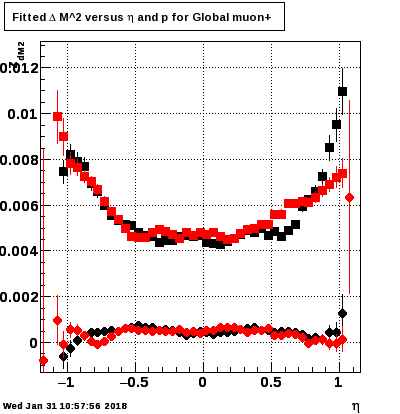

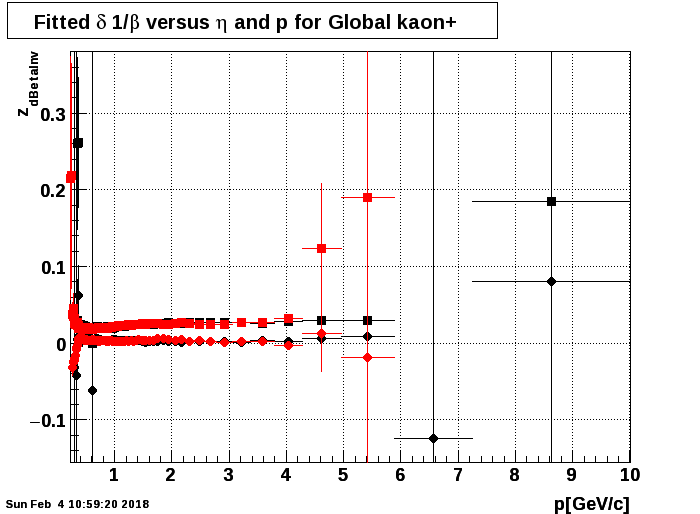

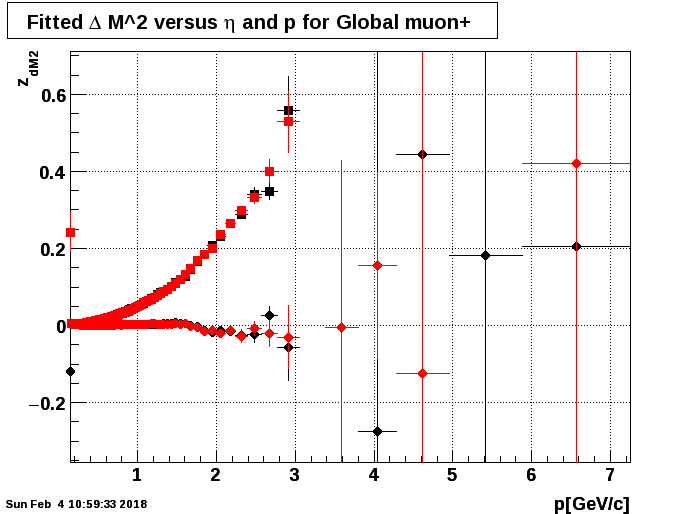

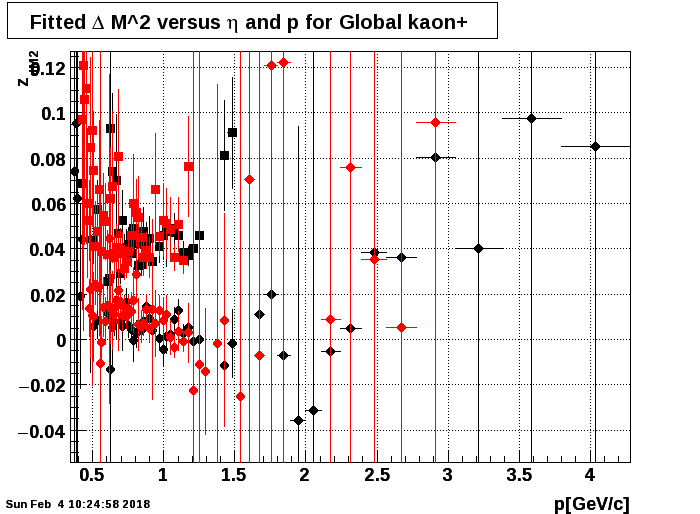

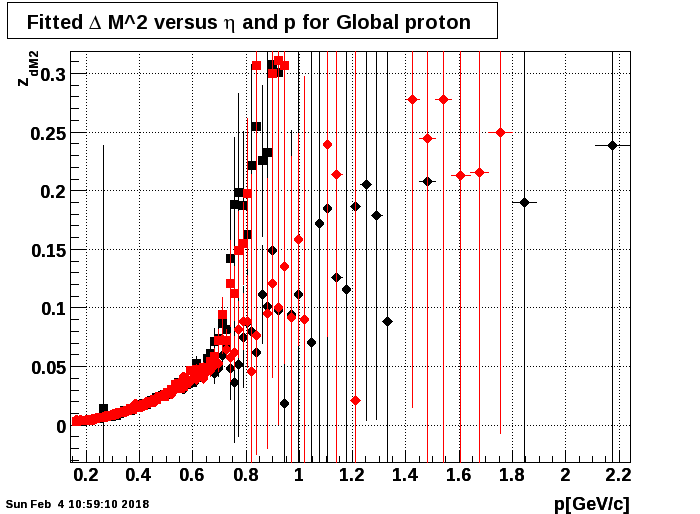

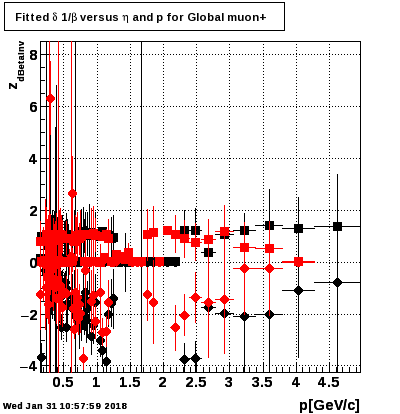

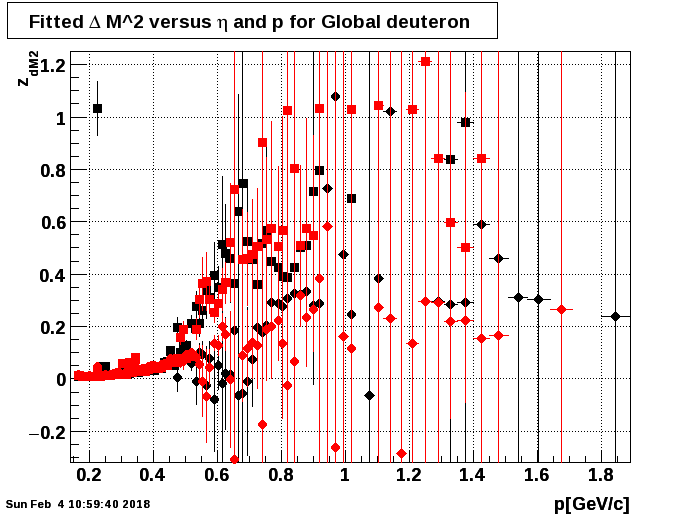

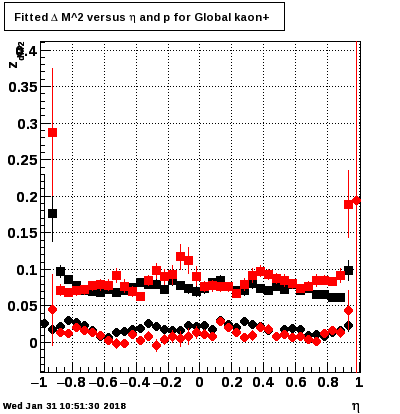

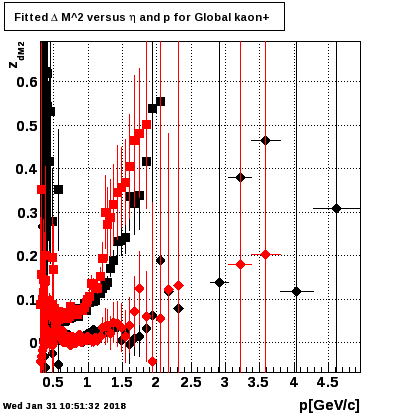

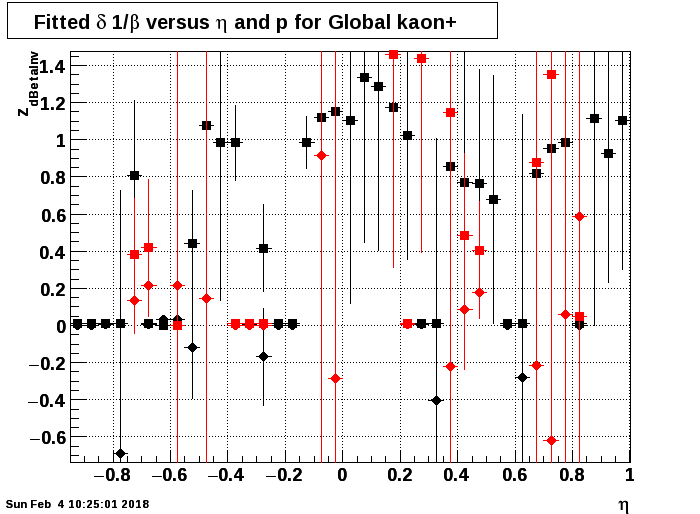

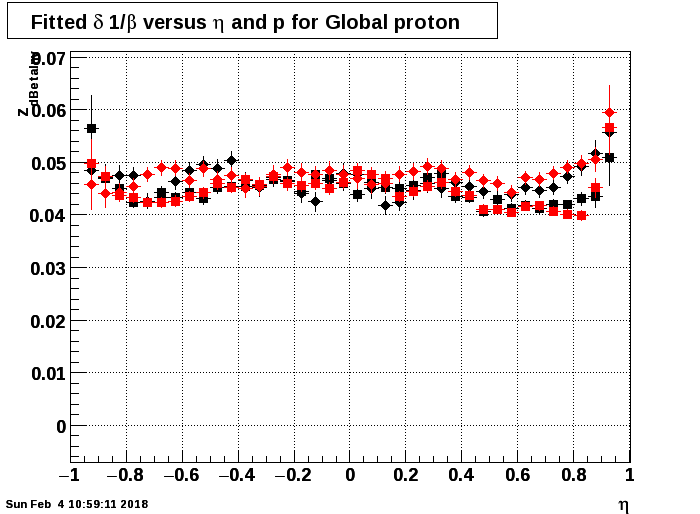

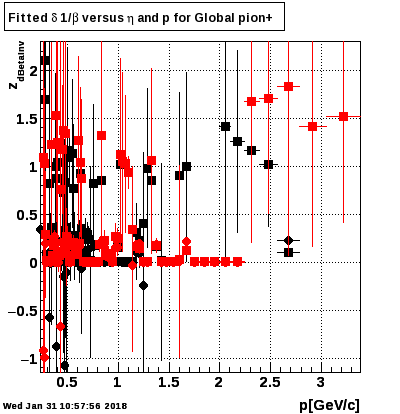

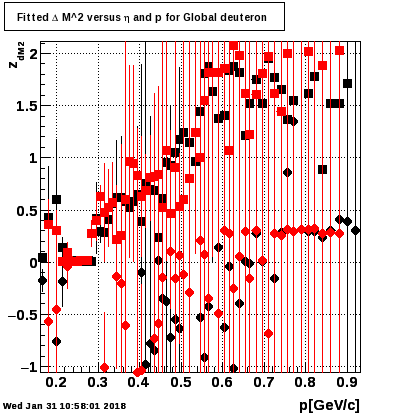

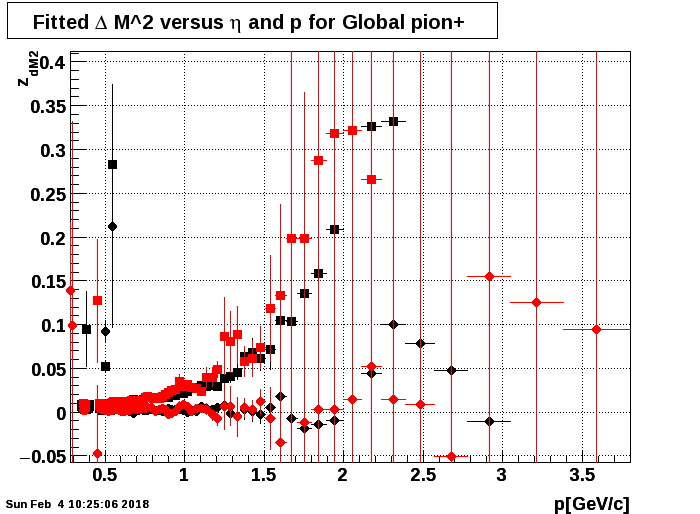

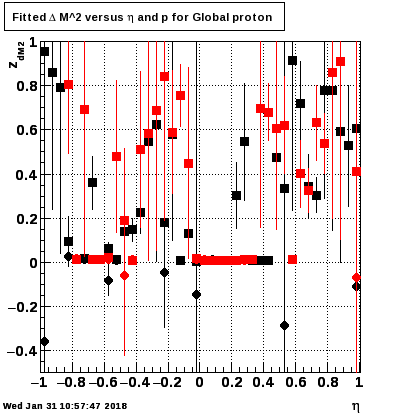

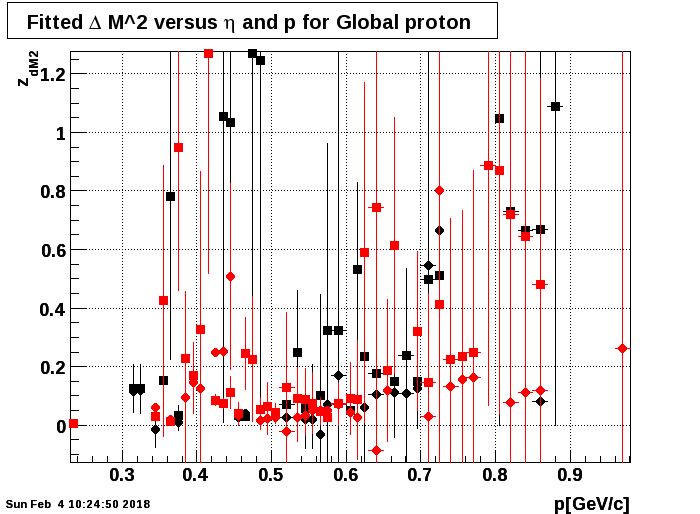

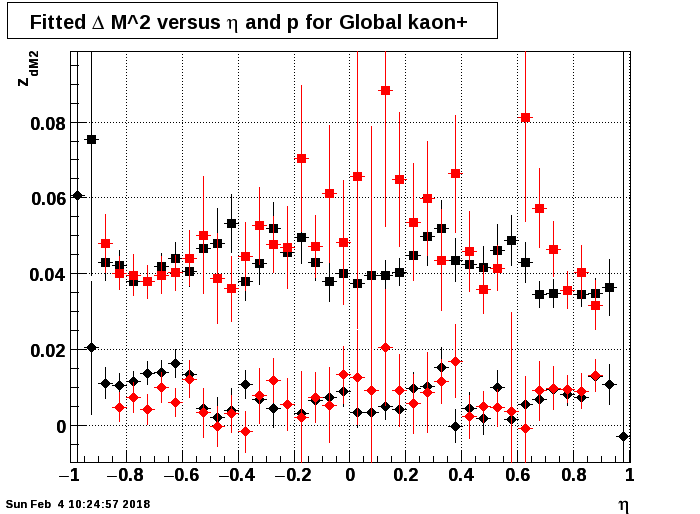

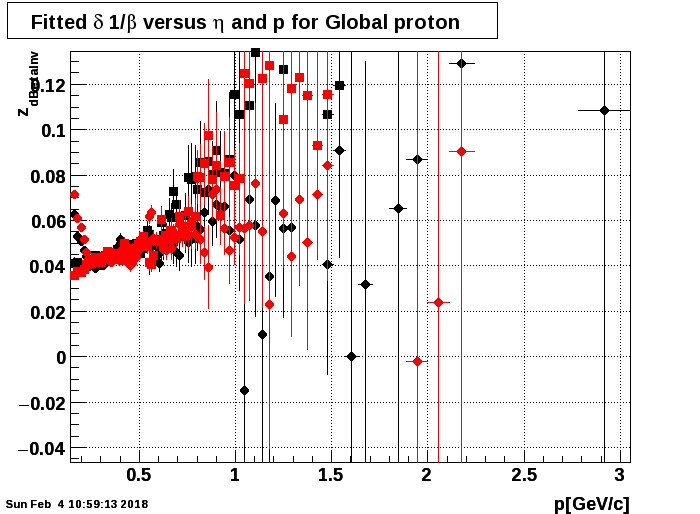

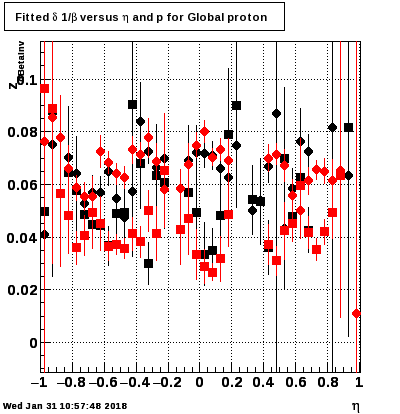

1.4. ToF PiD

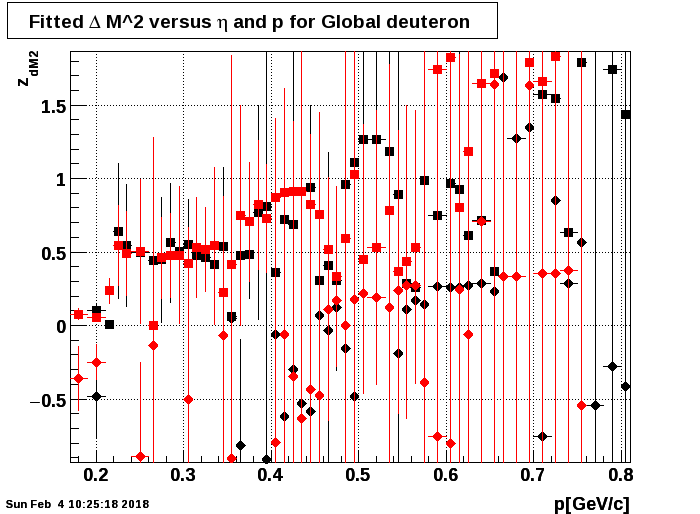

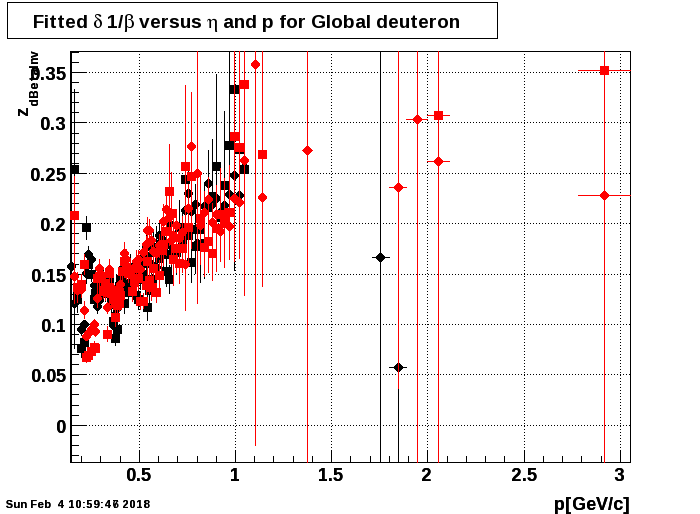

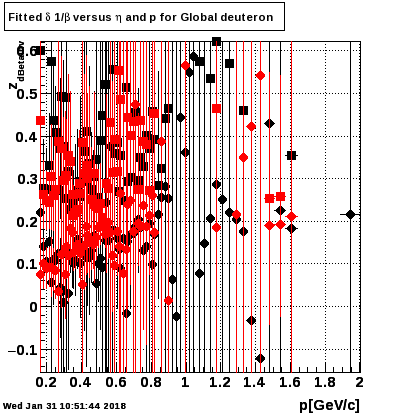

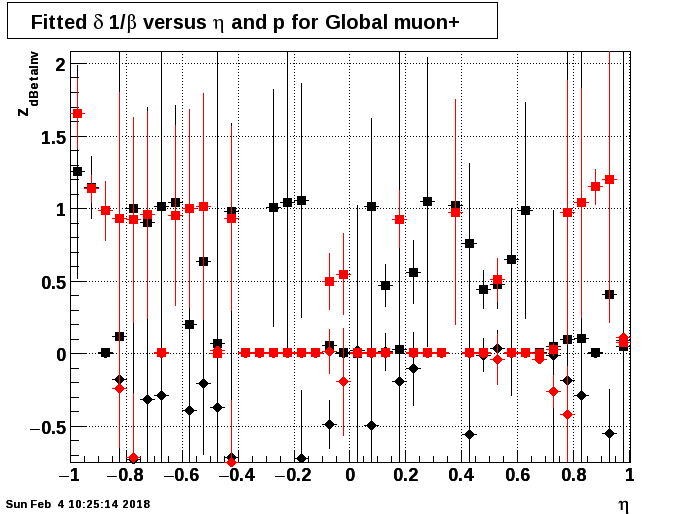

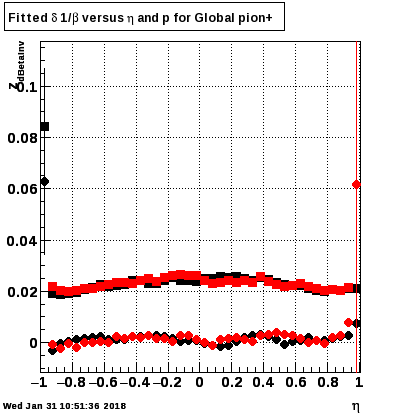

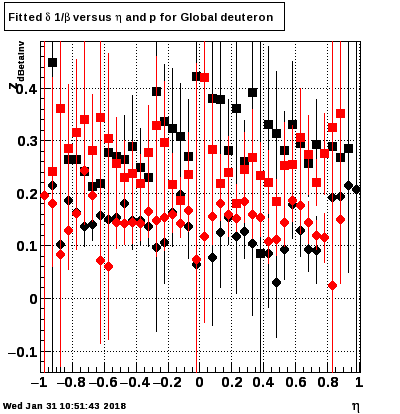

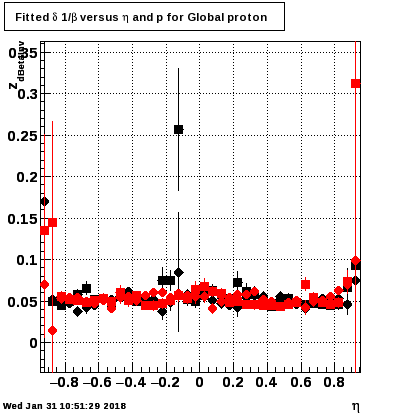

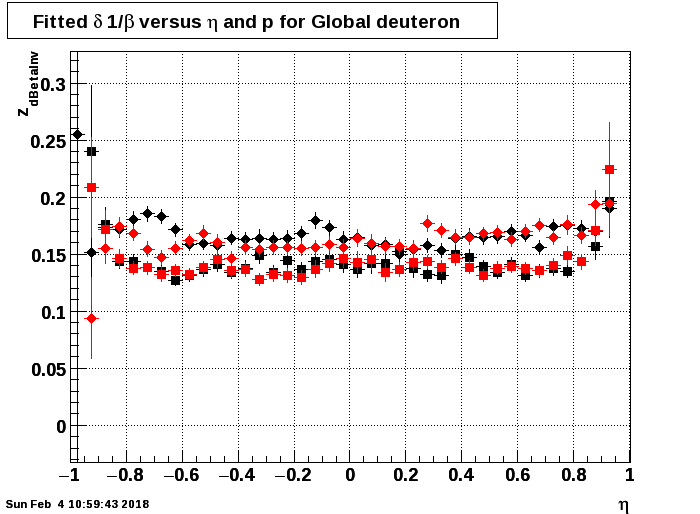

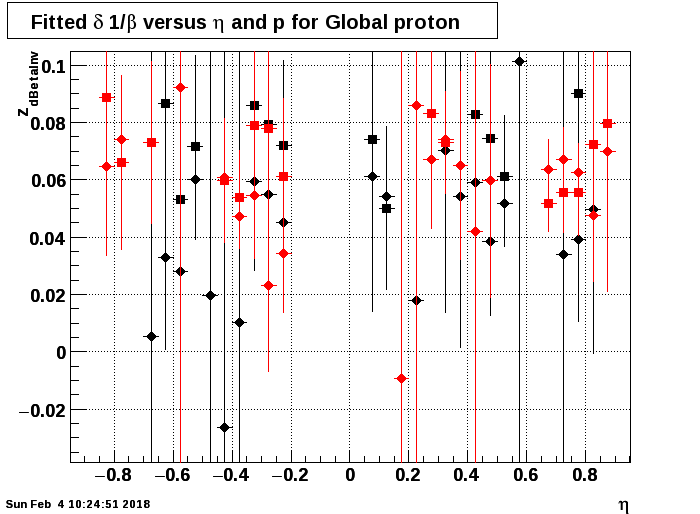

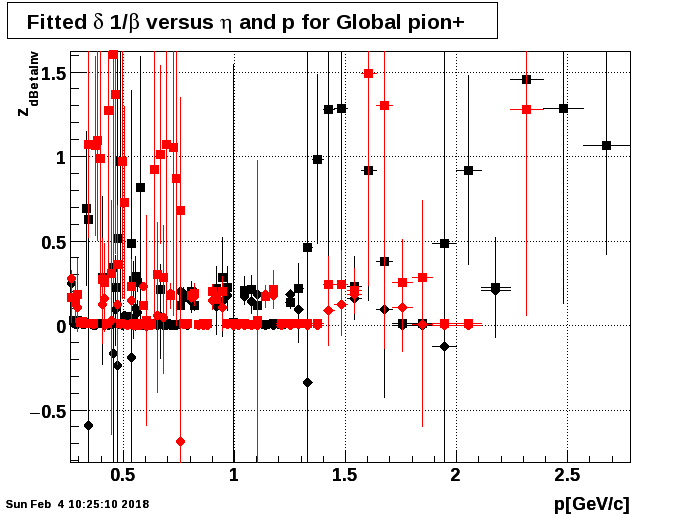

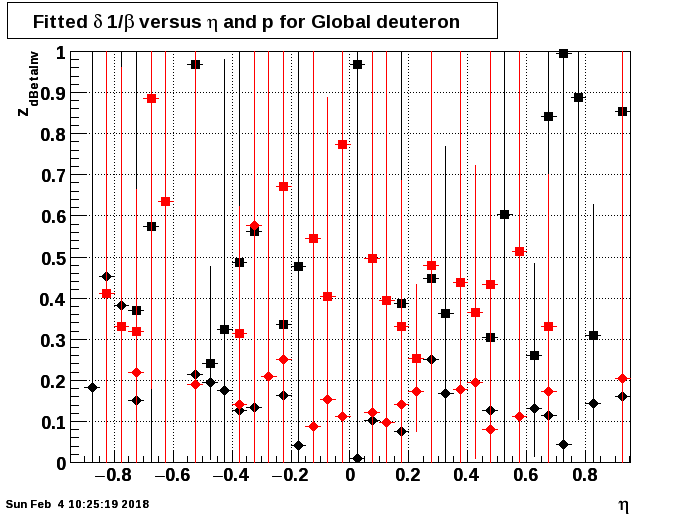

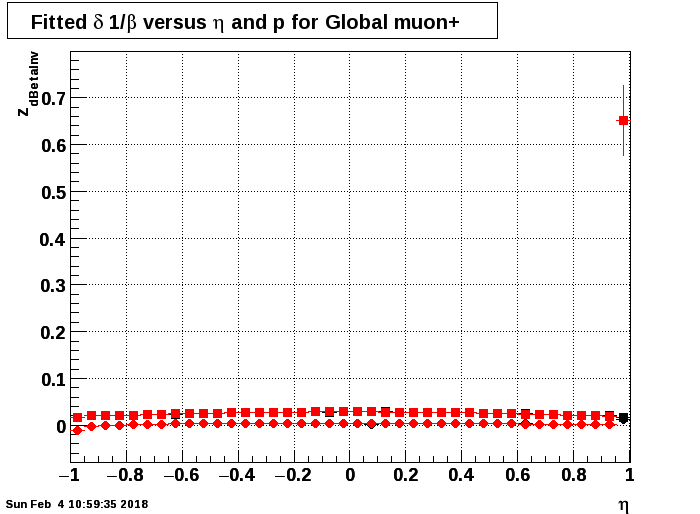

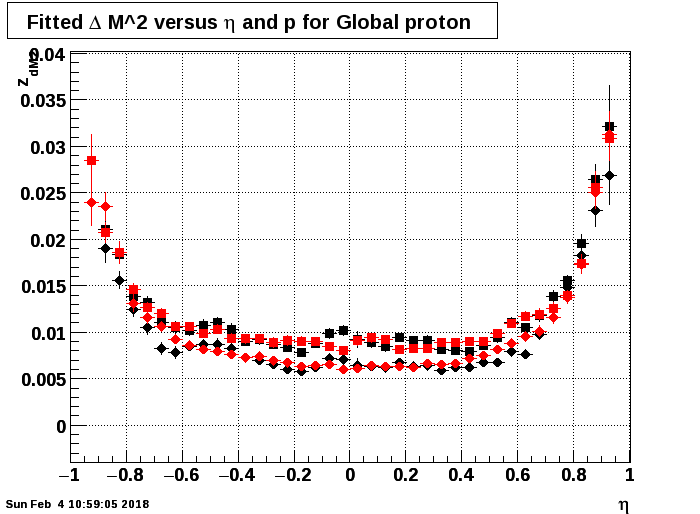

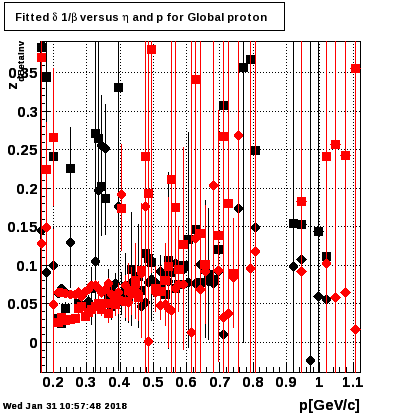

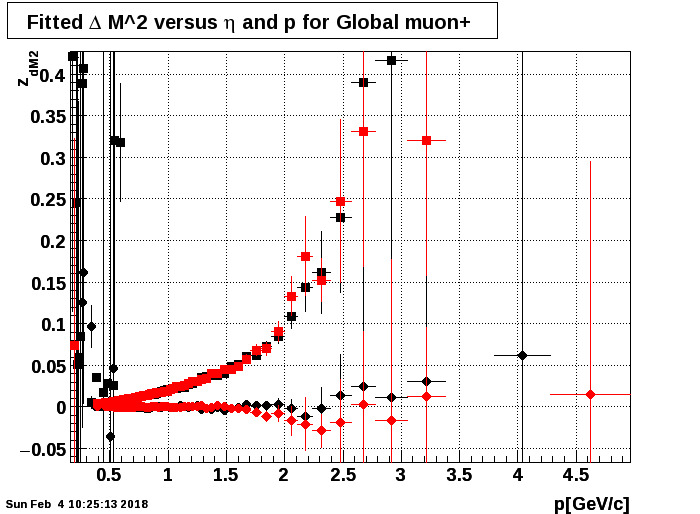

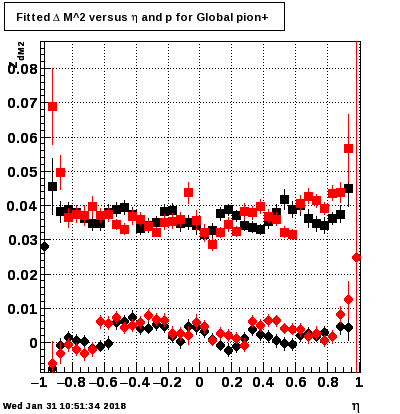

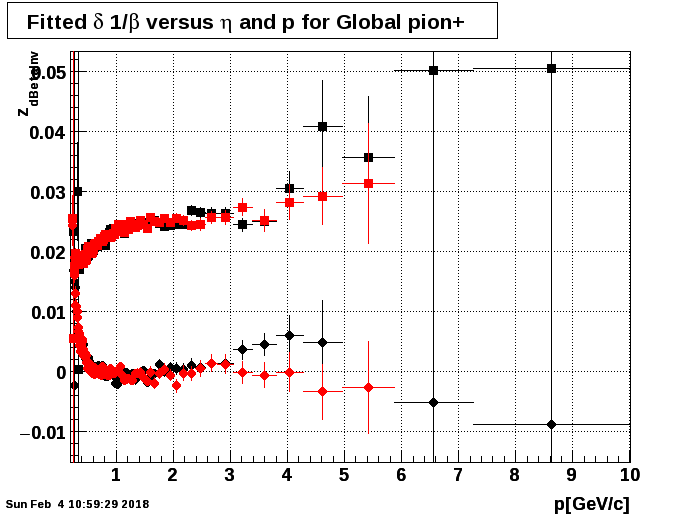

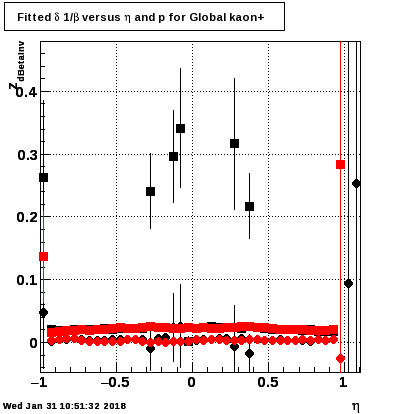

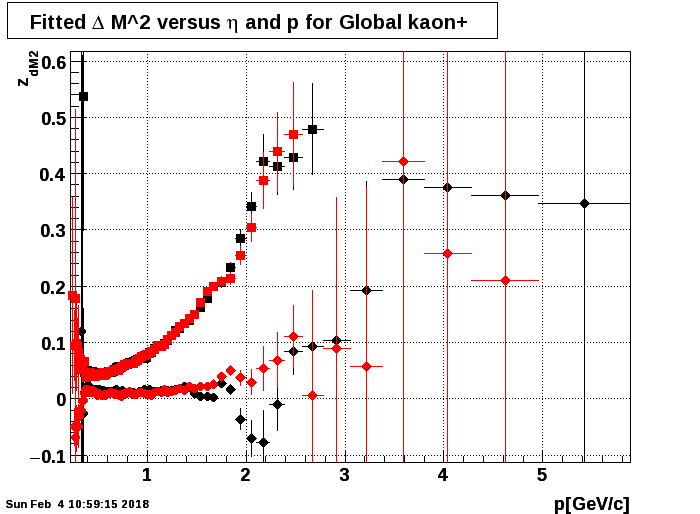

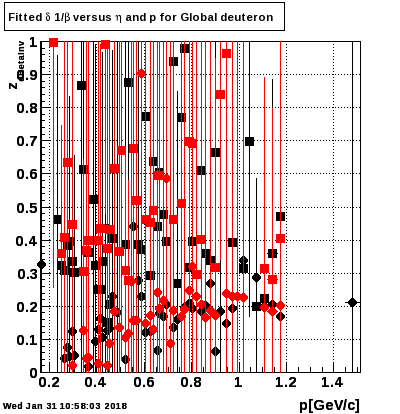

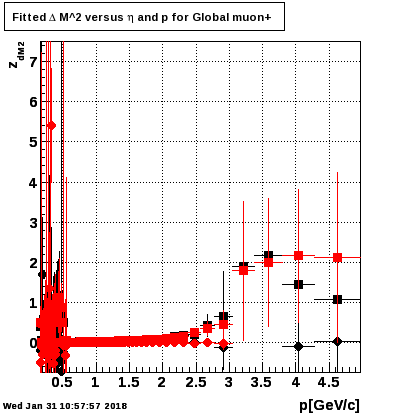

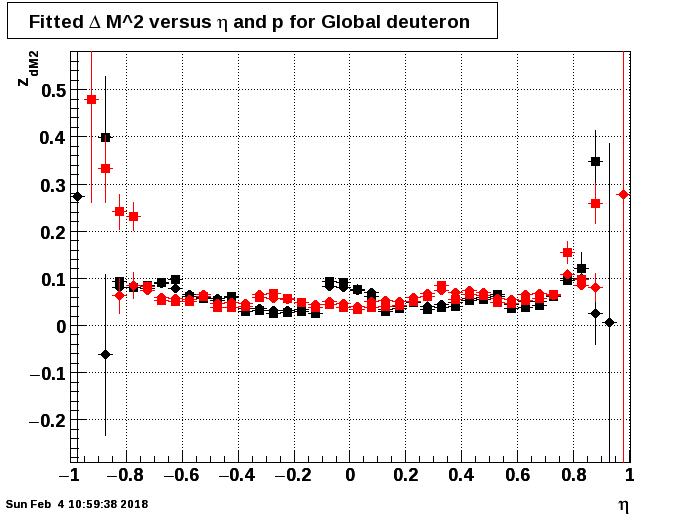

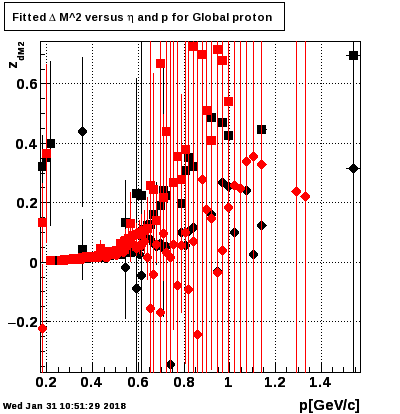

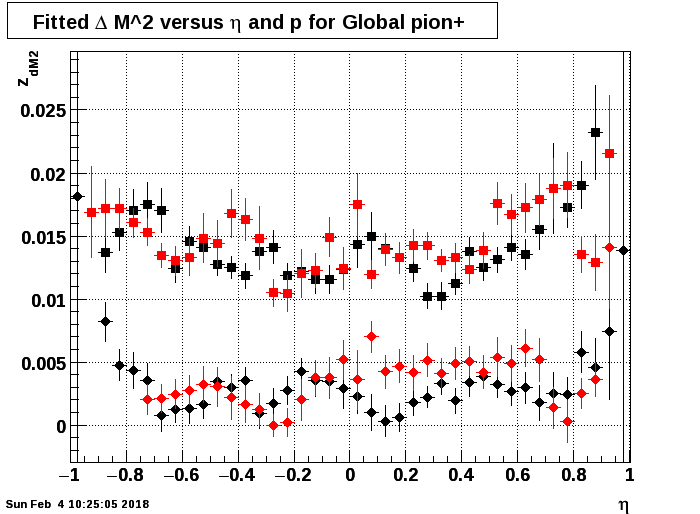

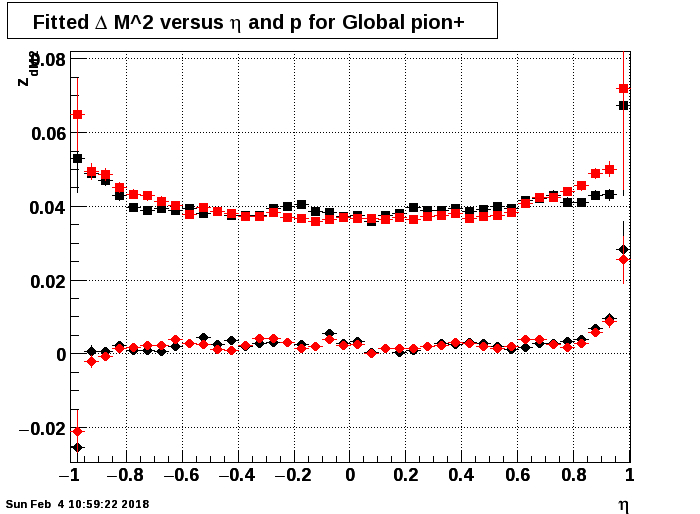

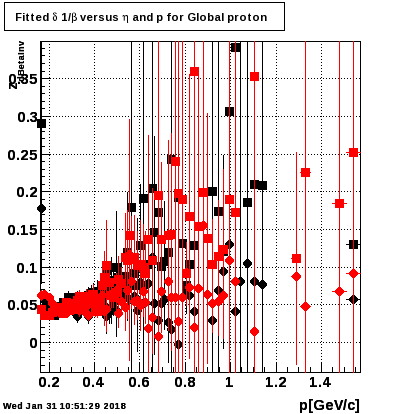

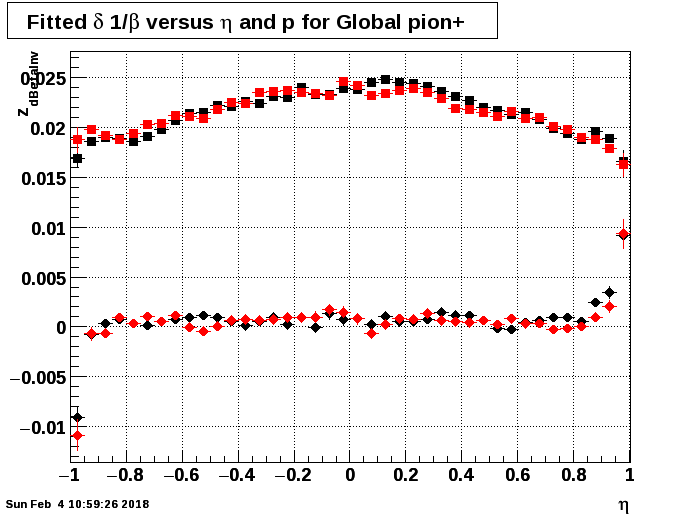

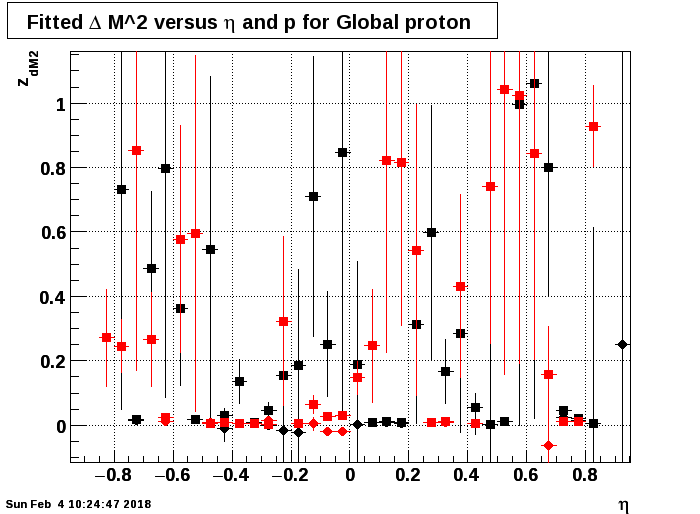

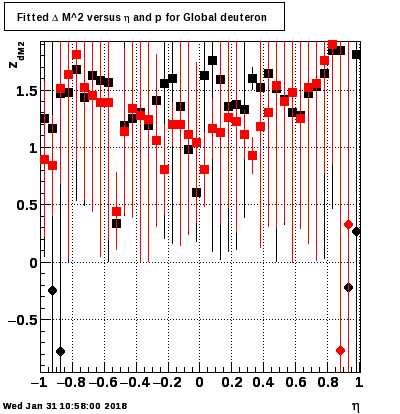

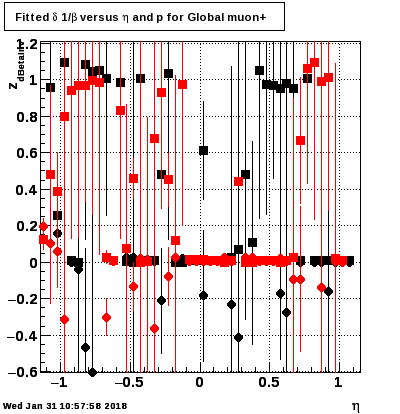

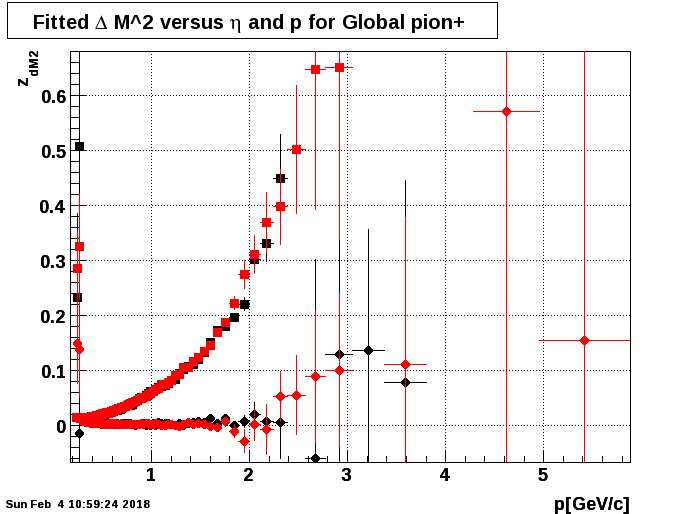

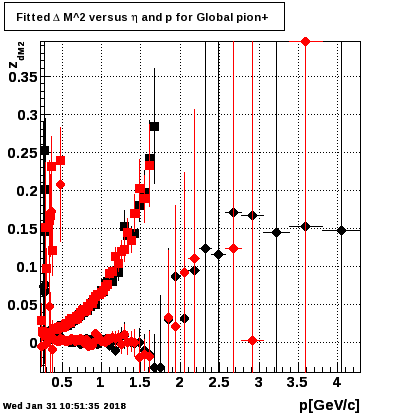

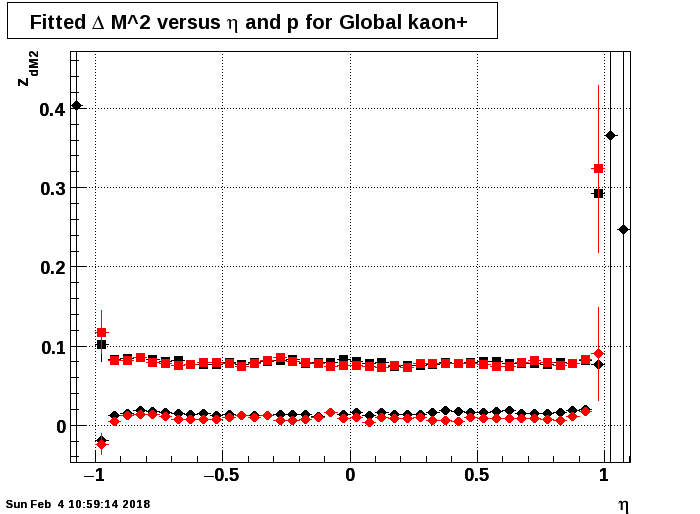

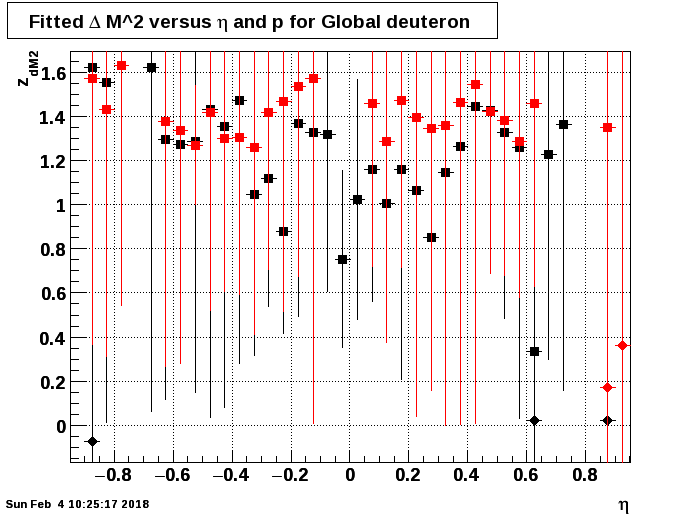

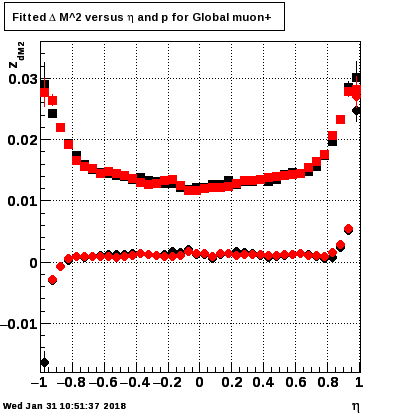

1.4.1. Global tracks.

1.5.3.1.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.5.3.2.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.5.3.5.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.5.3.4.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.5.3.5.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.5.3.6.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.3.7.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.3.8.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.5.3.9.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

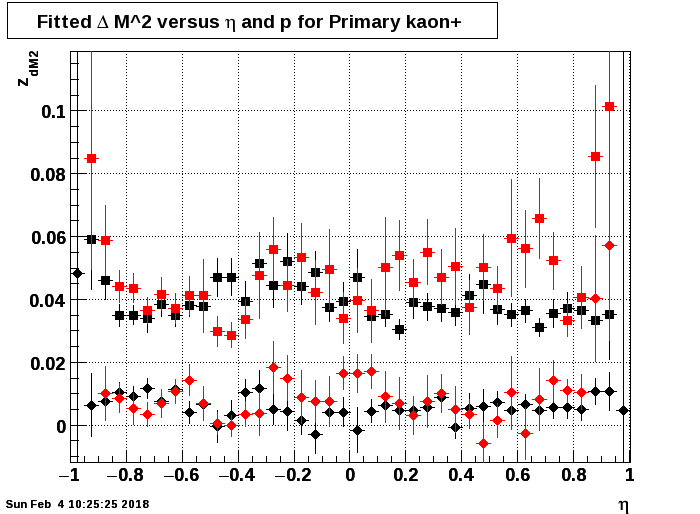

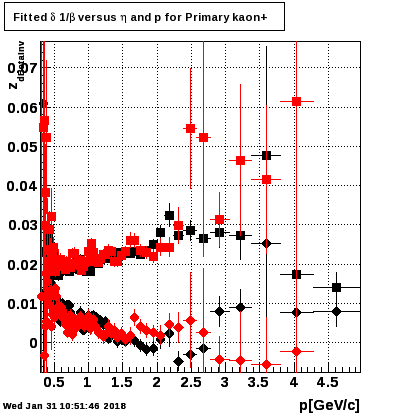

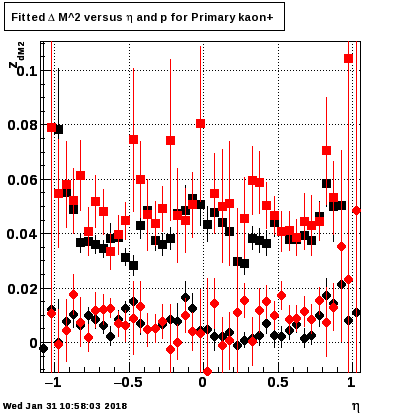

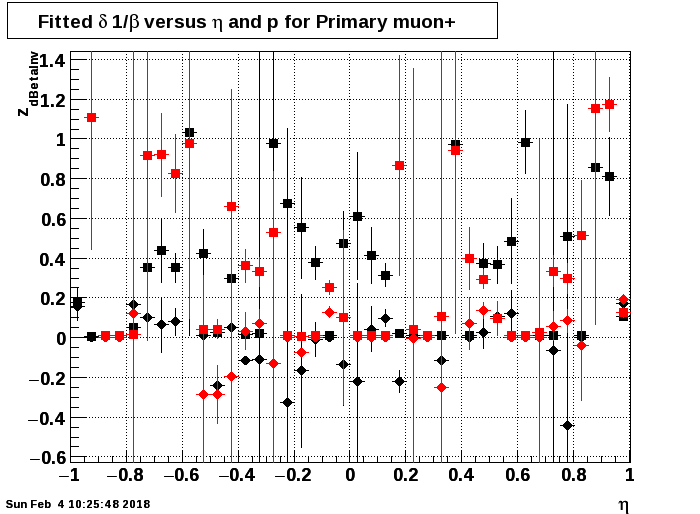

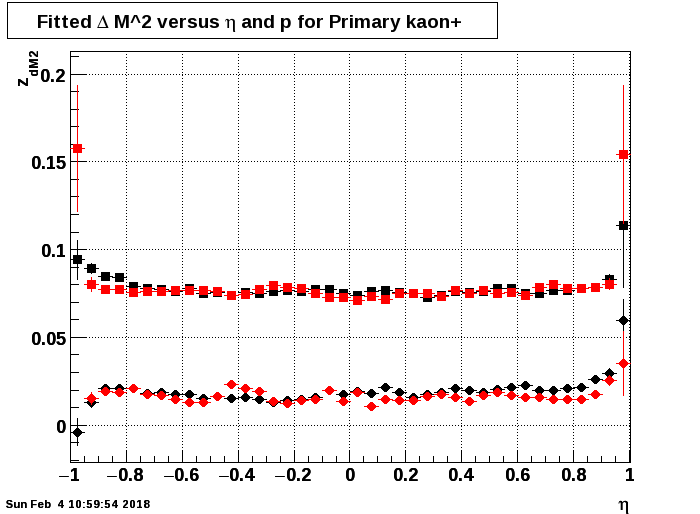

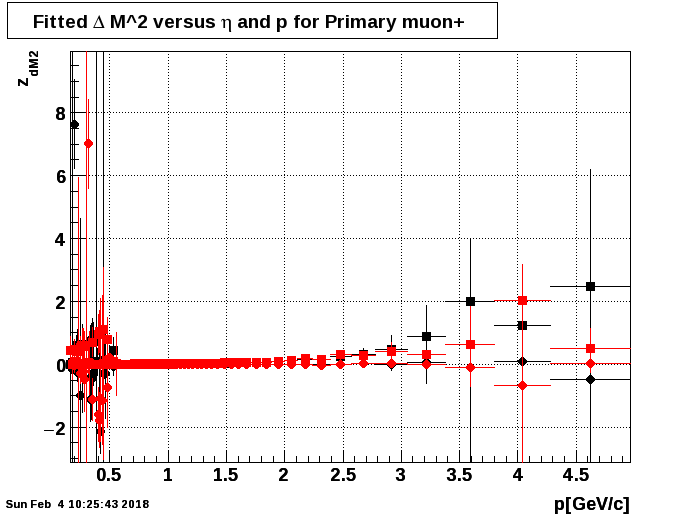

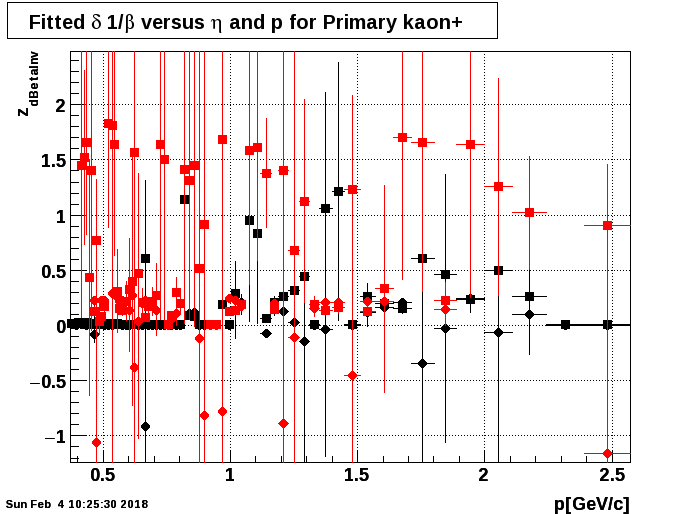

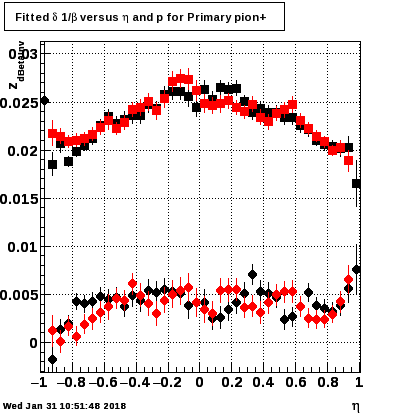

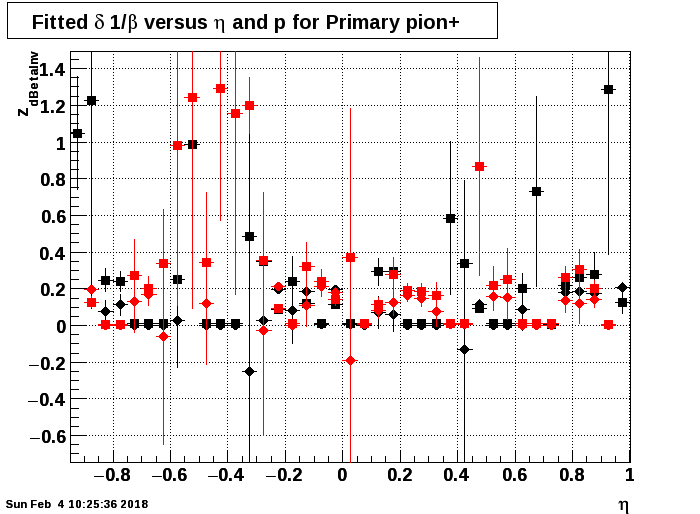

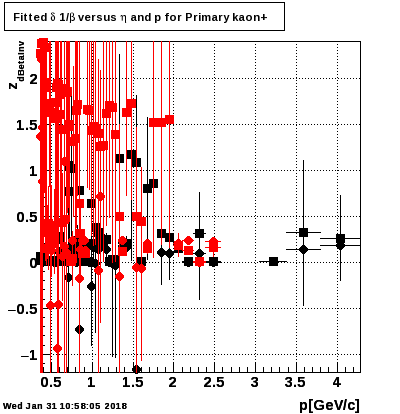

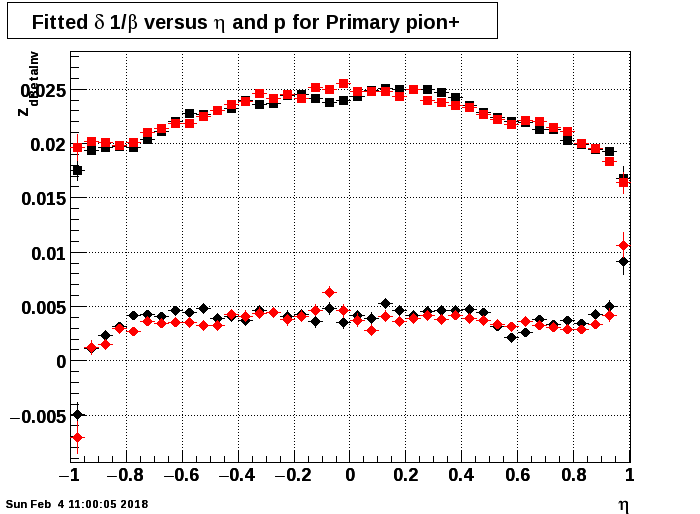

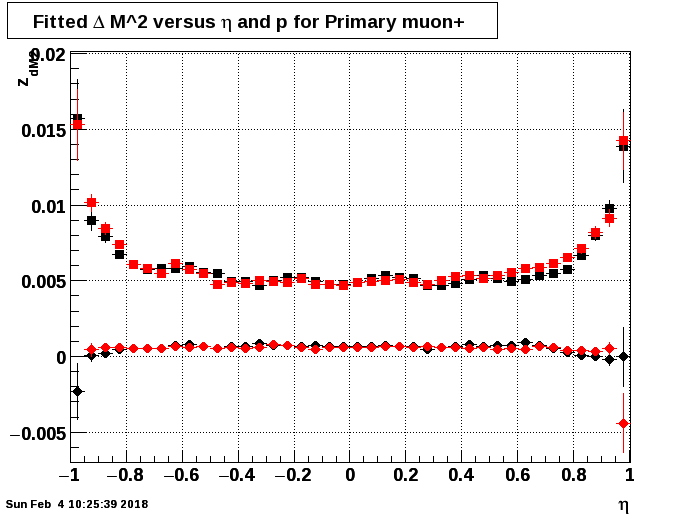

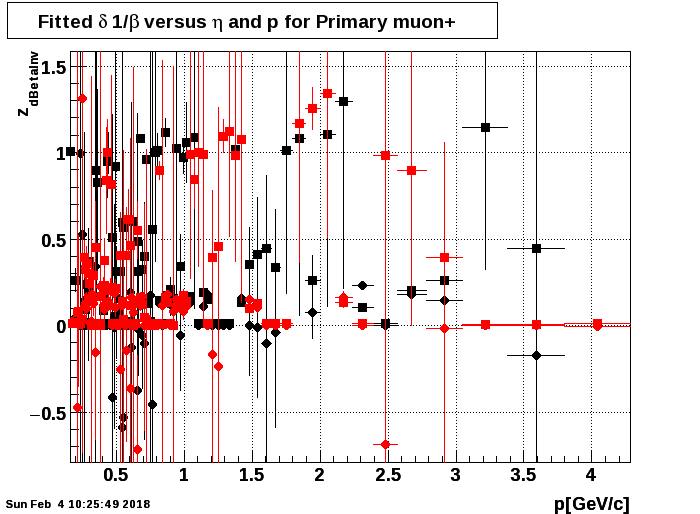

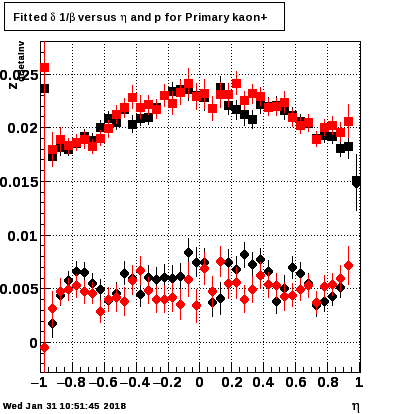

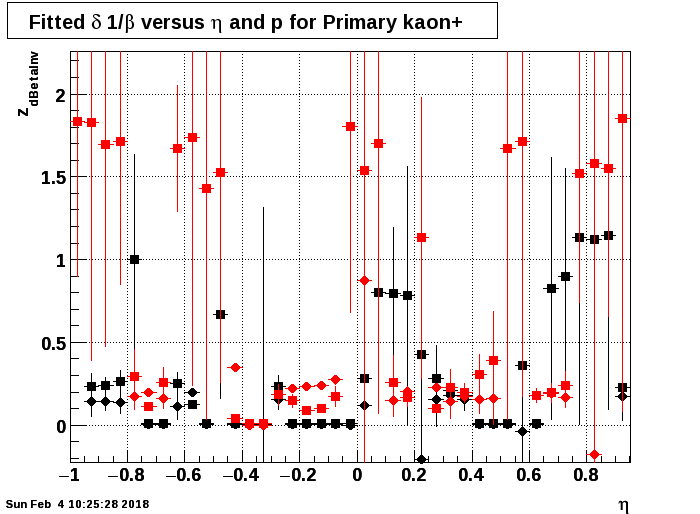

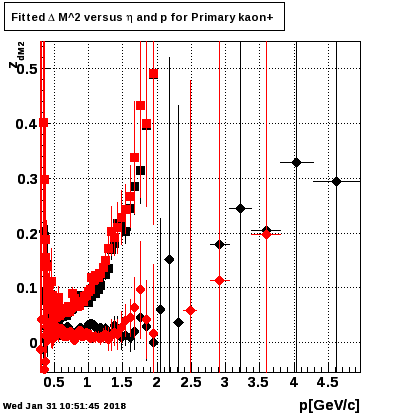

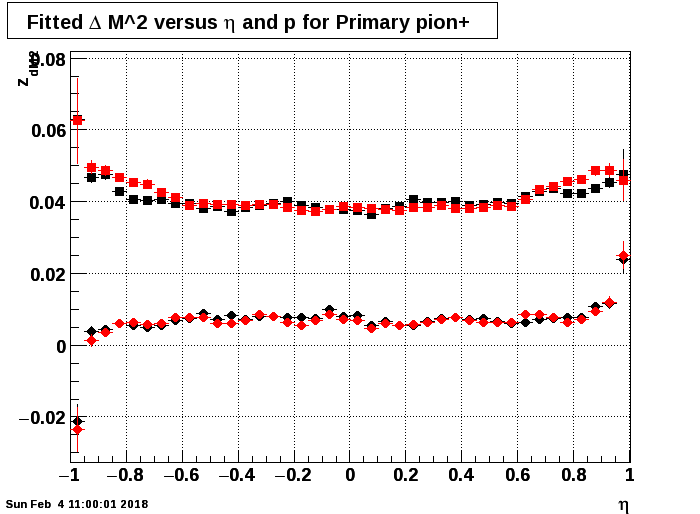

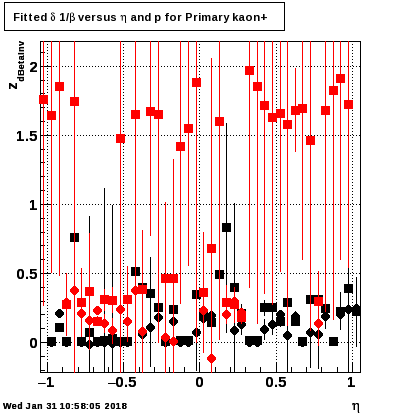

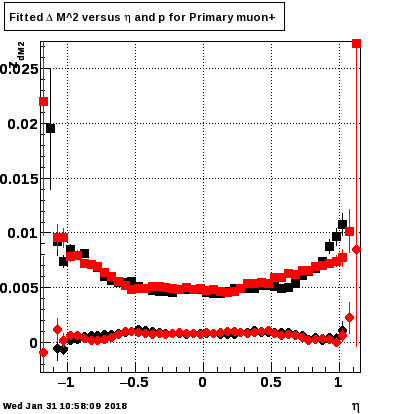

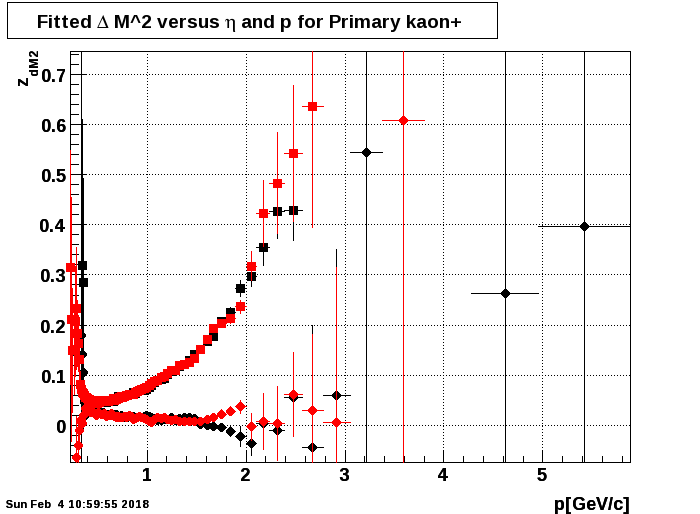

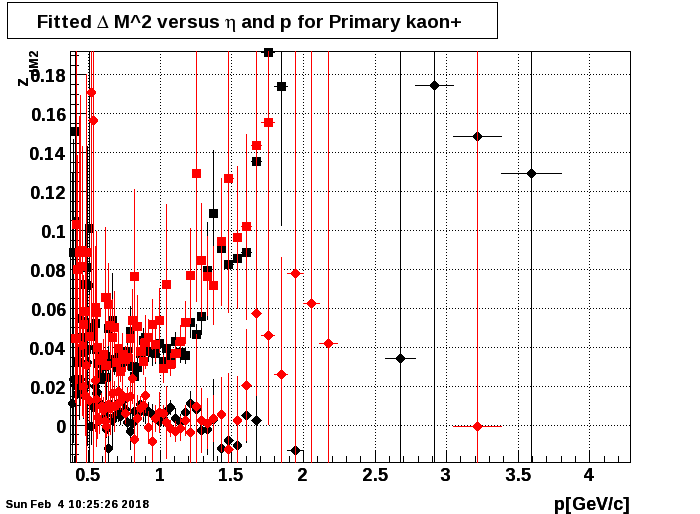

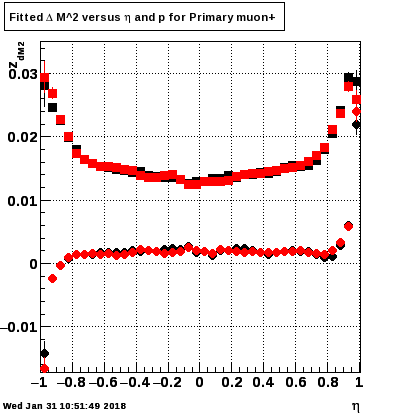

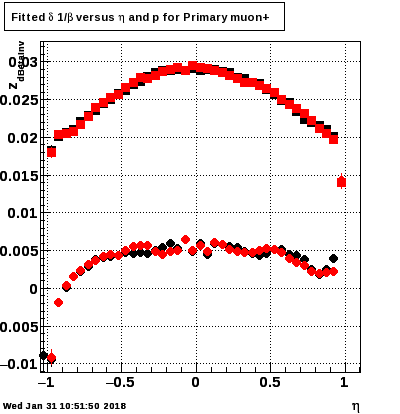

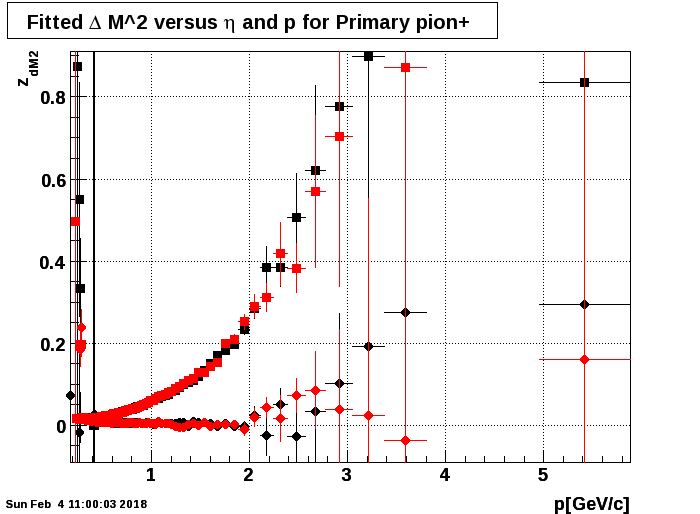

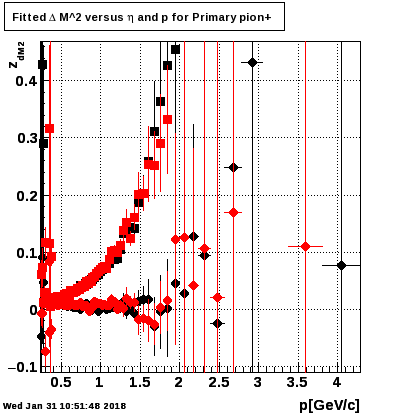

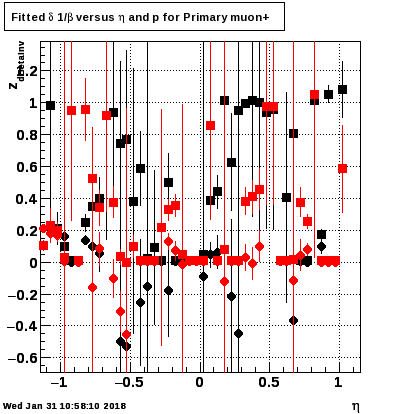

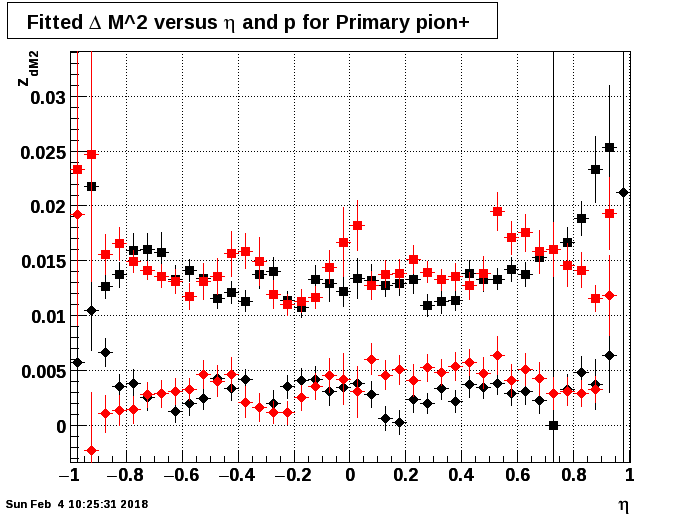

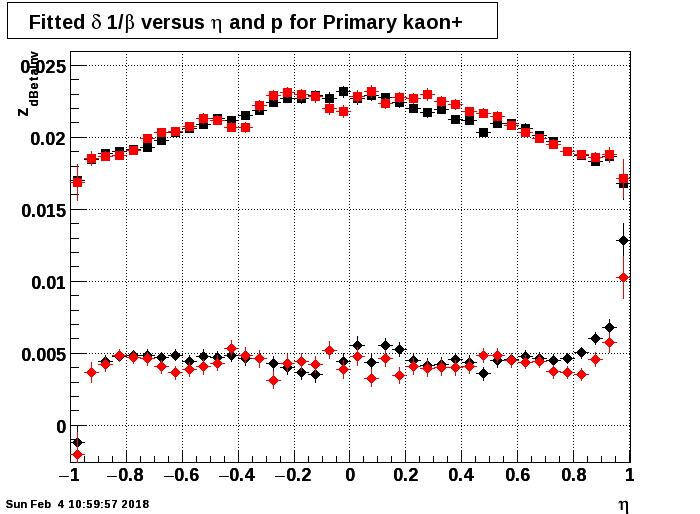

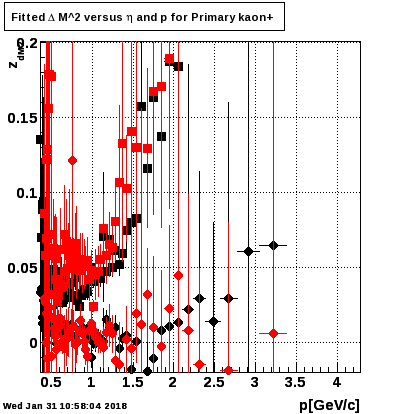

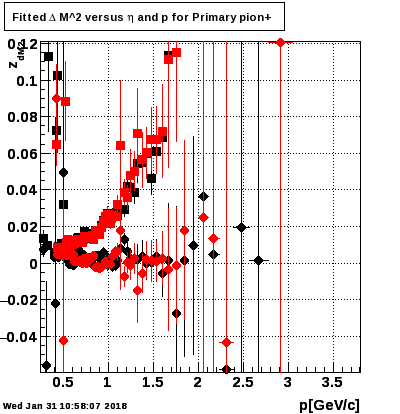

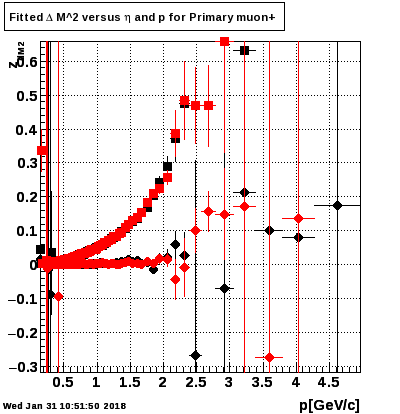

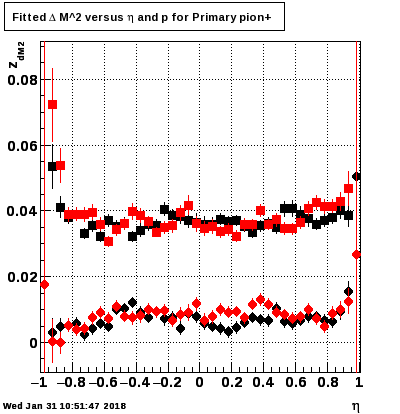

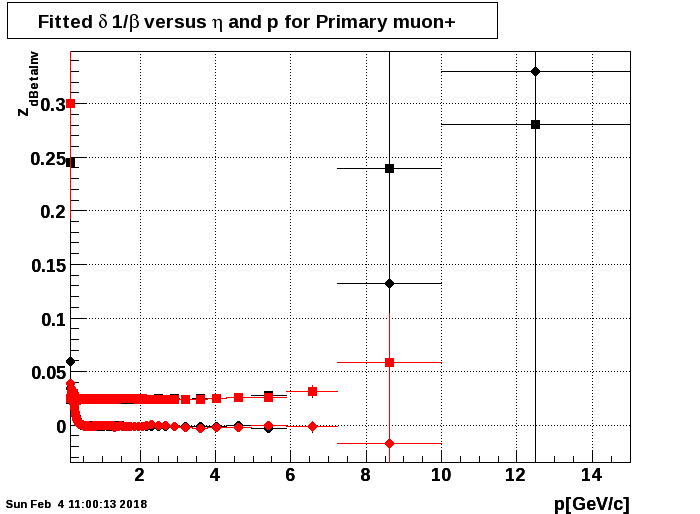

1.4.2. Primary tracks.

1.4.2.1.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.4.2.2.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.4.2.3.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.4.2.4.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
Fig.1
Fig.2
Fig.3
Fig.4

1.4.2.5.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.4.2.6.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.4.2.7.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.4.2.8.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

1.4.2.9.

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST

)); ?>

2. Vertices

2.1. Primary Vertices

G3.DEV2oldCA.z5cm	VMC.DEV2oldCA.z5cm	G3.DEV2.IST	VMC.DEV2.IST
