MTD MRPC gas box

Dimensions: 120cm x 20cm x 10cm

Gas components:  Freon (95%)+ Isobutane (5%) or Freon (92%)+ Isobutane (5%)+SF6 (3%)

Flow rate: <50cc per minute

HV: +-6.3KV

Mounted on a motion-control table.

One of geometry dimension of Large Area MRPC Module for MTD see Fig 1&2.

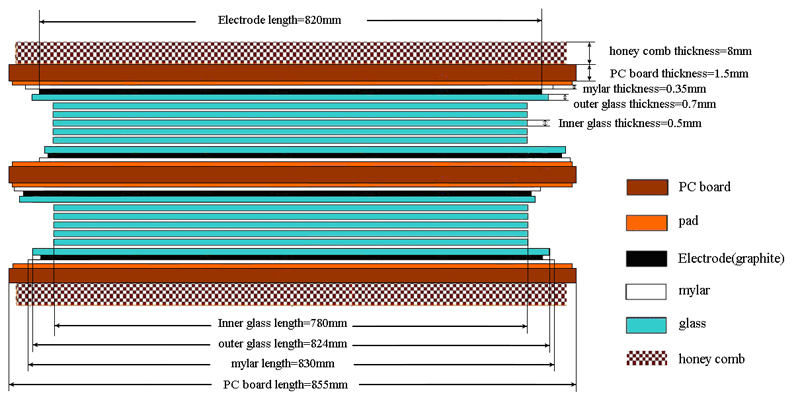

Fig 1: Front View

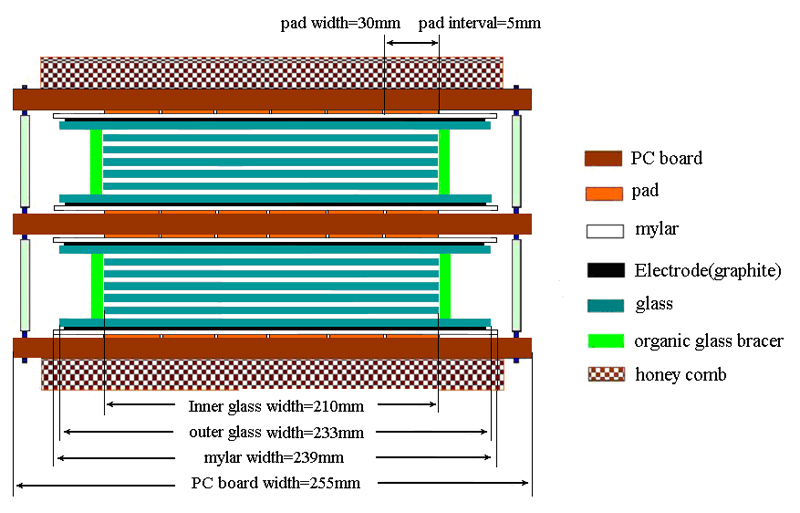

Fig 2: Side View
