	STAR SSD	- NUMEROTATION OF COMPONENTS
As of

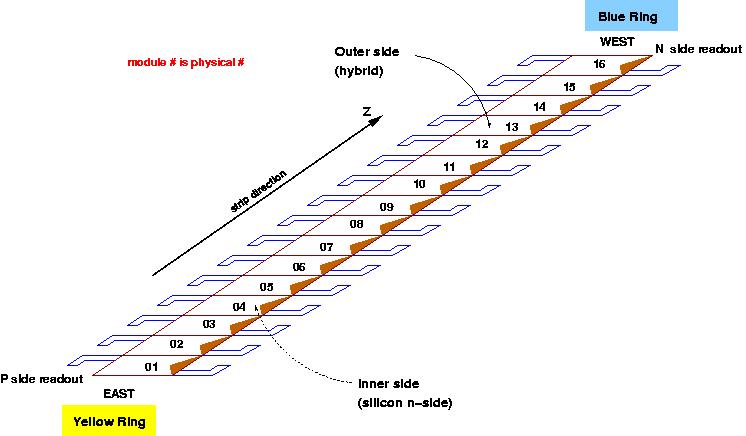

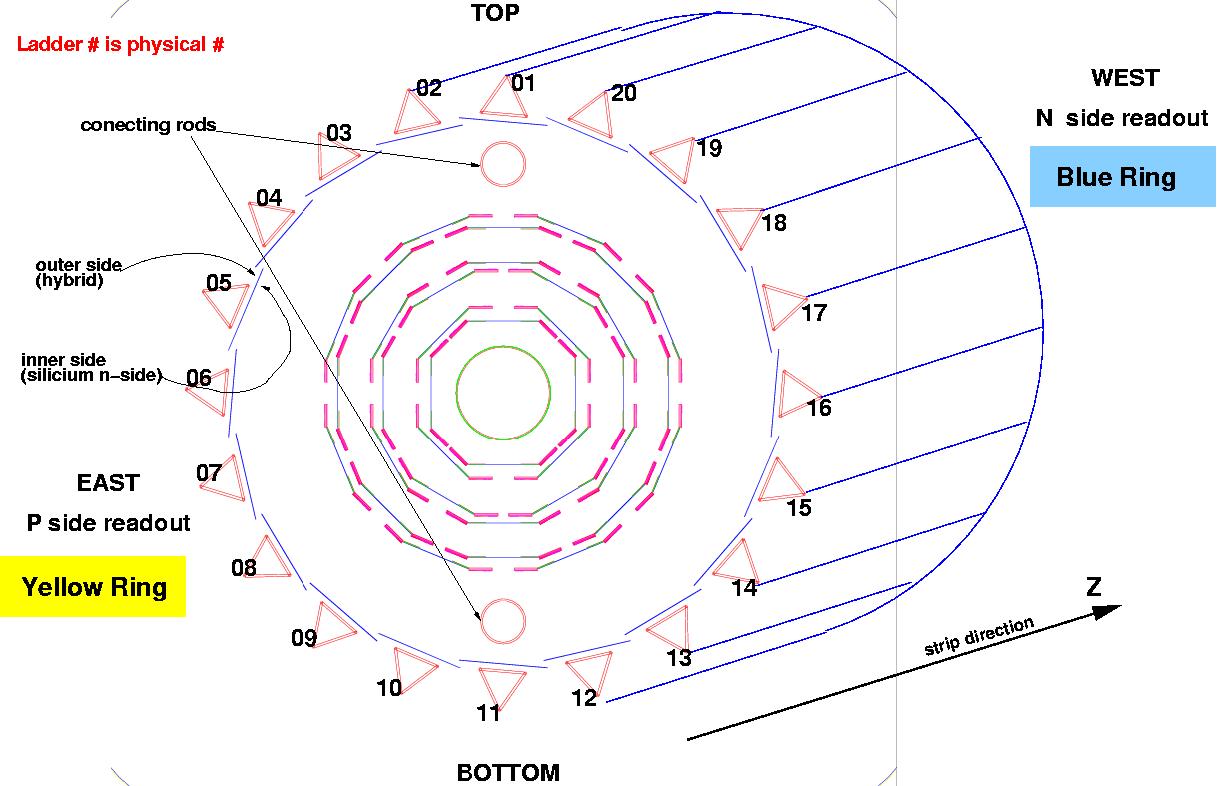

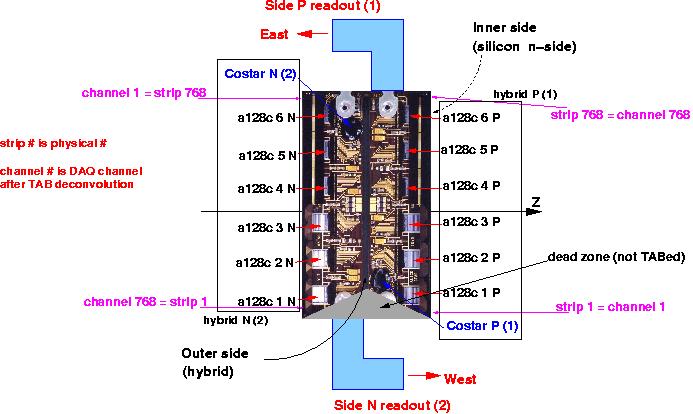

SSD level - Ladder level - Module level - Wafer level - Some equivalence - A128c and TAB level

The following drawings explain sSome equivalence between numerotations

How to convert strip into DAQ channel through TAB

Lilian's converson table Excel,
To convert from TAB numerotation (a128c channels) to DAQ channels (strips) C code,
To convert from DAQ channels (strips) to TAB numerotation (a128c channels) C code.

Jérôme baudot
