Fig 2

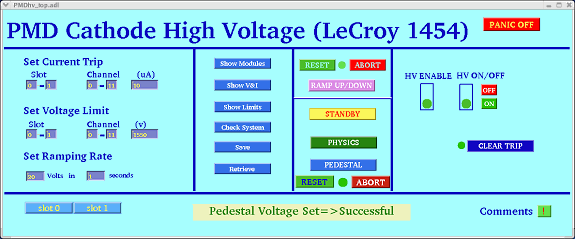

2. Left corner shows the current and voltage limit of “slot0
and “slot1” respectively. Ramping rate of the detector can be
changed by changing the value in “Set Ramping Rate” button
seen at the left bottom corner of the picture. Ramp rate is
measured in volts/sec. The HV of CPV plane can be changed
by clicking on to the button “slot0” shown on the left bottom

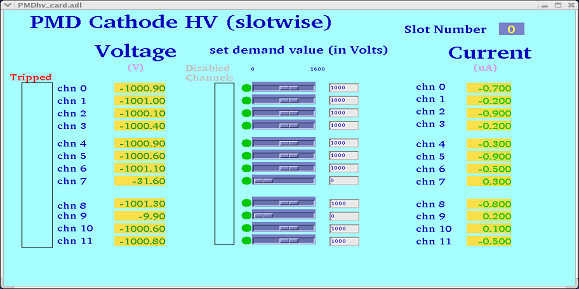

corner.  Clicking on to “Slot0” gives the following window :
Fig 3
