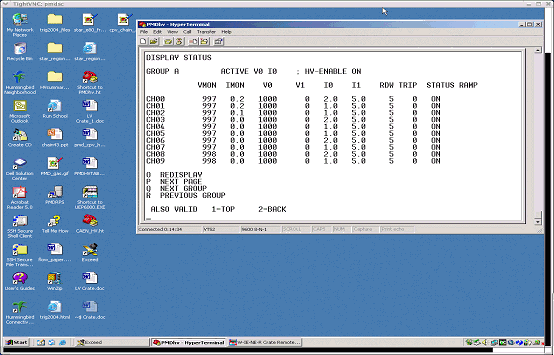

Fig. 4
VMON
Monitored voltage in the
PMD plane in volts.
IMON
Monitored current in the
PMD plane in
microamps.
V0, V1
HV programmed value
in volts.
I0, I1
Current limit
programmed value in
microamps. I1 must be
more than I0 for the
system to work.
Trip
Maximum time an
overcurrent is allowed to
last.
RDW: Ramp Down/Up
Maximum HV
decrease/increase rate in
Volts/Second.
Status
ON/OFF
Ramp
UP/DOWN
CH00
SM-1
CH01
SM-2
CH02
SM-3
CH03
SM-4
CH04
SM-5
CH05
SM-6
CH06
SM-7
CH07
SM-8
CH08
SM-9
CH09
SM-10
CH10
SM-11
CH11
SM-12
 |
