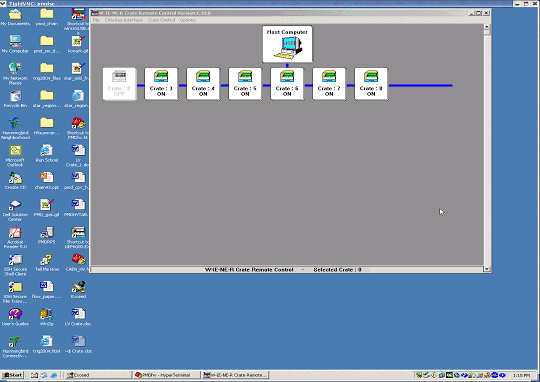

Fig 4
5. Crates 3/4/5 supply low voltage to the chains. Crate 6 is for
Le Croy HV slow control and also gives power to the fibre
optic transreceiver module used for daq and trigger
commands, tokens and the busy signal for the tcd. Crate 7 & 8
are the daq crate. DONOT RESET OR POWER CYCLE THE
CRATE 7 & 8 UNTILL UNLESS REQUIRED.
6. To check the current values in the chains, please double click
on crate 3 first. In this situation it will be highlighted with blue
colour. Current values can be shown in two views :
(a). Option 1: Crate view
(b). Option 2: Power supply view
7. Crate view is as follows:
 |
