Est Performances using the AssociationMaker


These results were produced with the newly produced gstar files with the correct number of wafers on the SVT layers. As far as I can tell they look ok. SRS does not complain anymore about unknown wafer id.

1 - Low density results.
20 events of the low density file were processed to quickly check the data quality. I used only one superpass requiring a hit in each SVT layer for thes test. I asked also the z position of the main vertex to be at less than 20 cm from the STAR center so basically I took all the events in the file.
Maria notices a strange distribution of the MC tracks in phi attributed to the wrong SVT geometry in gstar.

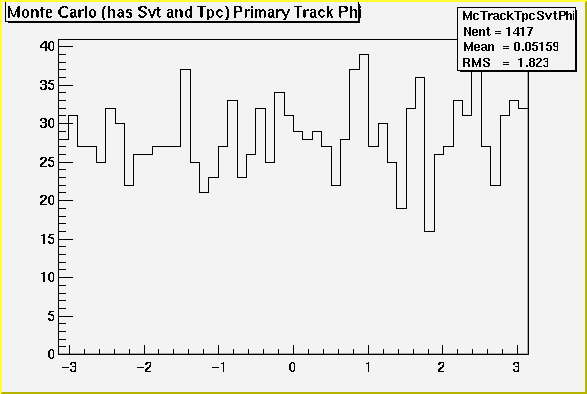

Asking for at least one hit in the MC track gives the following distribution :

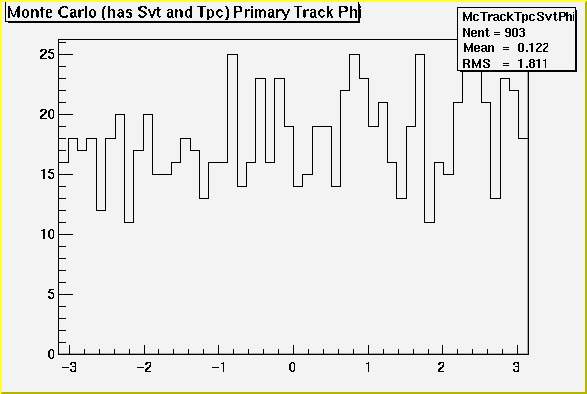

Asking for three hits in the MC track gives the following distribution :

So my guess is that we can consider this problem as fixed.

Now the Efficiencies. Maria defines two efficiency histograms in her Maker. One is :
                                mBestMatchMcTrackPt
mMatchedTracksEfficiencyRcMap = -------------------
                                 mRcPrimaryTrackPt
and the other is :
                                mBestMatchRcTrackPt
mMatchedTracksEfficiencyMcMap = -------------------
                                 mMcTrackTpcSvtPt

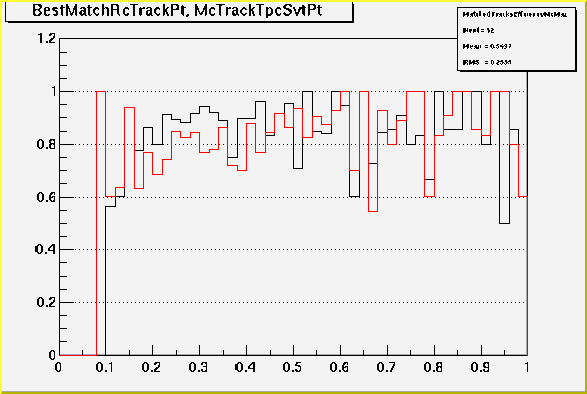

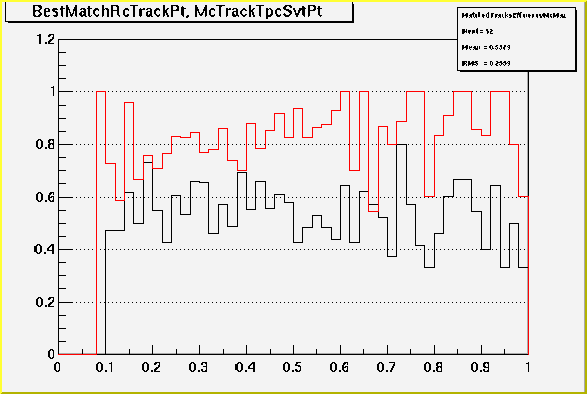

The following histograms are for respectively at least one hit and three hits in the MC tracks (one superpass implies 3 hits in the RC tracks).
The RcEfficiency is the red curve whereas the McEfficiency is the black curve.


Using the Est own evaluator I got an overall efficiency above 90% which is consistent with the McEfficiency

2 - Standard density results.
I have processed 5 standard density events in the same manner as the low density file. Only one superpass and 3 hit requirement in the association maker.

From the Est evaluator, I obtain these results cumulated over the 5 events :
StInfo: ******************** EST Evaluation Summary ************************
StInfo:  Total number of events :       5
StInfo:  Total number of ideal tracks   3403    2630    773      (all/prim/seco)
StInfo:  Number of ideal tracks/event   680.6   526     154.6    (all/prim/seco)
StInfo:   Total number of good tracks   2396    1972    424      (all/prim/seco)
StInfo:   Number of good tracks/event   479.2   394.4   84.8     (all/prim/seco)
StInfo:    Total number of bad tracks   291     174     117      (all/prim/seco)
StInfo:    Number of bad tracks/event   58.2    34.8    23.4     (all/prim/seco)
StInfo:       Tracking efficiency (%)   70.4085 74.981  54.8512  (all/prim/seco)
StInfo:                    Purity (%)   89.1701 91.8919 78.3734  (all/prim/seco)
QAInfo:est                 : Real Time = 144.30 seconds Cpu Time = 143.88 seconds, Entries = 12

Which is significantly lower than what I used to have when looking at year_2a fixed vertex events.
Typically I obtain efficiencies of 83% / 92% / 50% for all / prim / seco tracks.

The new file is a mixture of -15,-5,+5 and +15cm vertex displacement in z so it should affect the averaged efficiency. I looked at the Est histograms where the overall efficiency is calculated versus the vertex position in z. The histograms are in this ps file.
There is a z position dependance of the efficiency but which does not explain the differnce with the year_2a file.

I have saved into this ps file all the histo. maria has defined in her version of the AssociationMaker. I have enlarged the eta cut to +/-2 and lower the minimum number of tpc hits to 5 (as in est evaluator).
The results are close to the results from the Est evaluator but they are not consistent. For example, the number of ideal tracks is not equal to the number of MC tracks.
Last modified: Wed Mar 28 14:45:37 CEST 2001
