#include <StFmsDbMaker.h>

Inheritance diagram for StFmsDbMaker:

Collaboration diagram for StFmsDbMaker:

Public Member Functions
	StFmsDbMaker (const Char_t *name="fmsDb")

virtual	~StFmsDbMaker ()

virtual Int_t	Init ()

virtual Int_t	InitRun (Int_t runNumber)

virtual Int_t	Make ()

virtual Int_t	Finish ()

virtual void	Clear (const Char_t *opt)

void	setDebug (Int_t debug)
	debug mode, 0 for minimal message, >0 for more debug messages More...

fmsChannelGeometry_st *	ChannelGeometry ()
	getting the whole table More...

fmsDetectorPosition_st *	DetectorPosition ()
	getting the whole table More...

fmsMap_st *	Map ()

fmsPatchPanelMap_st *	PatchPanelMap ()

fmsQTMap_st *	QTMap ()

fmsGain_st *	Gain ()

fmsGainCorrection_st *	GainCorrection ()

Int_t	maxDetectorId ()
	Utility functions related to FMS ChannelGeometry. More...

Int_t	detectorId (Int_t ew, Int_t ns, Int_t type)
	maximum value of detector Id More...

Int_t	eastWest (Int_t detectorId)
	convert to detector Id More...

Int_t	northSouth (Int_t detectorId)
	east or west to the STAR IP More...

Int_t	type (Int_t detectorId)
	north or south side More...

Int_t	nRow (Int_t detectorId)
	type of the detector More...

Int_t	nColumn (Int_t detectorId)
	number of rows More...

Int_t	maxChannel (Int_t detectorId)
	number of column More...

Int_t	getRowNumber (Int_t detectorId, Int_t ch)
	maximum number of channels More...

Int_t	getColumnNumber (Int_t detectorId, Int_t ch)
	get the row number for the channel More...

Int_t	getChannelNumber (Int_t detectorId, Int_t row, Int_t column)
	get the column number for the channel More...

StThreeVectorF	getDetectorOffset (Int_t detectorId)
	get the channel number More...

Float_t	getXWidth (Int_t detectorId)
	get the offset of the detector More...

Float_t	getYWidth (Int_t detectorId)
	get the X width of the cell More...

StThreeVectorF	getStarXYZ (Int_t detectorId, Float_t FmsX, Float_t FmsY)
	get the Y width of the cell More...

Float_t	getPhi (Int_t detectorId, Float_t FmsX, Float_t FmsY)
	get the STAR frame coordinates More...

Float_t	getEta (Int_t detectorId, Float_t FmsX, Float_t FmsY, Float_t Vertex)
	get the STAR frame phi angle More...

Int_t	maxMap ()
	get the STAR frame pseudo rapidity assuming vertex is at (0,0,0) More...

void	getMap (Int_t detectorId, Int_t ch, Int_t qtCrate, Int_t qtSlot, Int_t *qtChannel)

void	getReverseMap (Int_t qtCrate, Int_t qtSlot, Int_t qtChannel, Int_t detectorId, Int_t ch)

Int_t	maxModule ()
	fmsPatchPanelMap related More...

Int_t	maxNS ()
	fmsQTMap related More...

Int_t	maxGain ()
	fmsGain/GainCorrection related More...

Int_t	maxGainCorrection ()

Float_t	getGain (Int_t detectorId, Int_t ch)

Float_t	getGainCorrection (Int_t detectorId, Int_t ch)
	get the gain for the channel More...

void	dumpFmsChannelGeometry (const Char_t *filename="dumpFmsChannelGeometry.txt")
	get the gain correction for the channel More...

void	dumpFmsDetectorPosition (const Char_t *filename="dumpFmsDetectorPosition.txt")

void	dumpFmsMap (const Char_t *filename="dumpFmsMap.txt")

void	dumpFmsPatchPanelMap (const Char_t *filename="dumpFmsPatchPanelMap.txt")

void	dumpFmsQTMap (const Char_t *filename="dumpFmsQTMap.txt")

void	dumpFmsGain (const Char_t *filename="dumpFmsGain.txt")

void	dumpFmsGainCorrection (const Char_t *filename="dumpFmsGainCorrection.txt")

Private Types
enum	{ mMaxCrate =8, mMaxSlot =17, mMaxCh =32 }

Private Member Functions
void	deleteArrays ()

virtual const Char_t *	GetCVS () const

Private Attributes
Int_t	mDebug

fmsChannelGeometry_st *	mChannelGeometry
	>0 dump tables to text files More...

Int_t	mMaxDetectorId
	channel configuration for each detector More...

fmsDetectorPosition_st *	mDetectorPosition
	max detector Id More...

fmsMap_st *	mMap
	position (in STAR frame) of each detector More...

fmsMap_st **	mmMap
	detector map More...

Int_t	mMaxMap

Int_t	mReverseMapDetectorId [mMaxCrate][mMaxSlot][mMaxCh]

Int_t	mReverseMapChannel [mMaxCrate][mMaxSlot][mMaxCh]

fmsPatchPanelMap_st *	mPatchPanelMap

Int_t	mMaxModule
	patch panel map More...

fmsQTMap_st *	mQTMap

Int_t	mMaxNS
	Qt map. More...

fmsGain_st *	mGain

fmsGain_st **	mmGain
	gain table More...

Int_t	mMaxGain

fmsGainCorrection_st *	mGainCorrection

fmsGainCorrection_st **	mmGainCorrection
	gain correction table More...

Int_t	mMaxGainCorrection

Detailed Description

Definition at line 38 of file StFmsDbMaker.h.

Member Enumeration Documentation

anonymous enum

private

Enumerator
mMaxCrate
mMaxSlot
mMaxCh

Definition at line 118 of file StFmsDbMaker.h.

Constructor & Destructor Documentation

StFmsDbMaker::StFmsDbMaker ( const Char_t * name = "fmsDb" )

StFmsDbMaker::~StFmsDbMaker ( )

virtual

Definition at line 39 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Member Function Documentation

fmsChannelGeometry_st * StFmsDbMaker::ChannelGeometry ( )

getting the whole table

Definition at line 271 of file StFmsDbMaker.cxx.

void StFmsDbMaker::Clear ( const Char_t * opt )

virtual

Definition at line 42 of file StFmsDbMaker.cxx.

void StFmsDbMaker::deleteArrays ( )

private

Definition at line 226 of file StFmsDbMaker.cxx.

Here is the caller graph for this function:

Int_t StFmsDbMaker::detectorId	(	Int_t	ew,
		Int_t	ns,
		Int_t	type
	)

maximum value of detector Id

Definition at line 330 of file StFmsDbMaker.cxx.

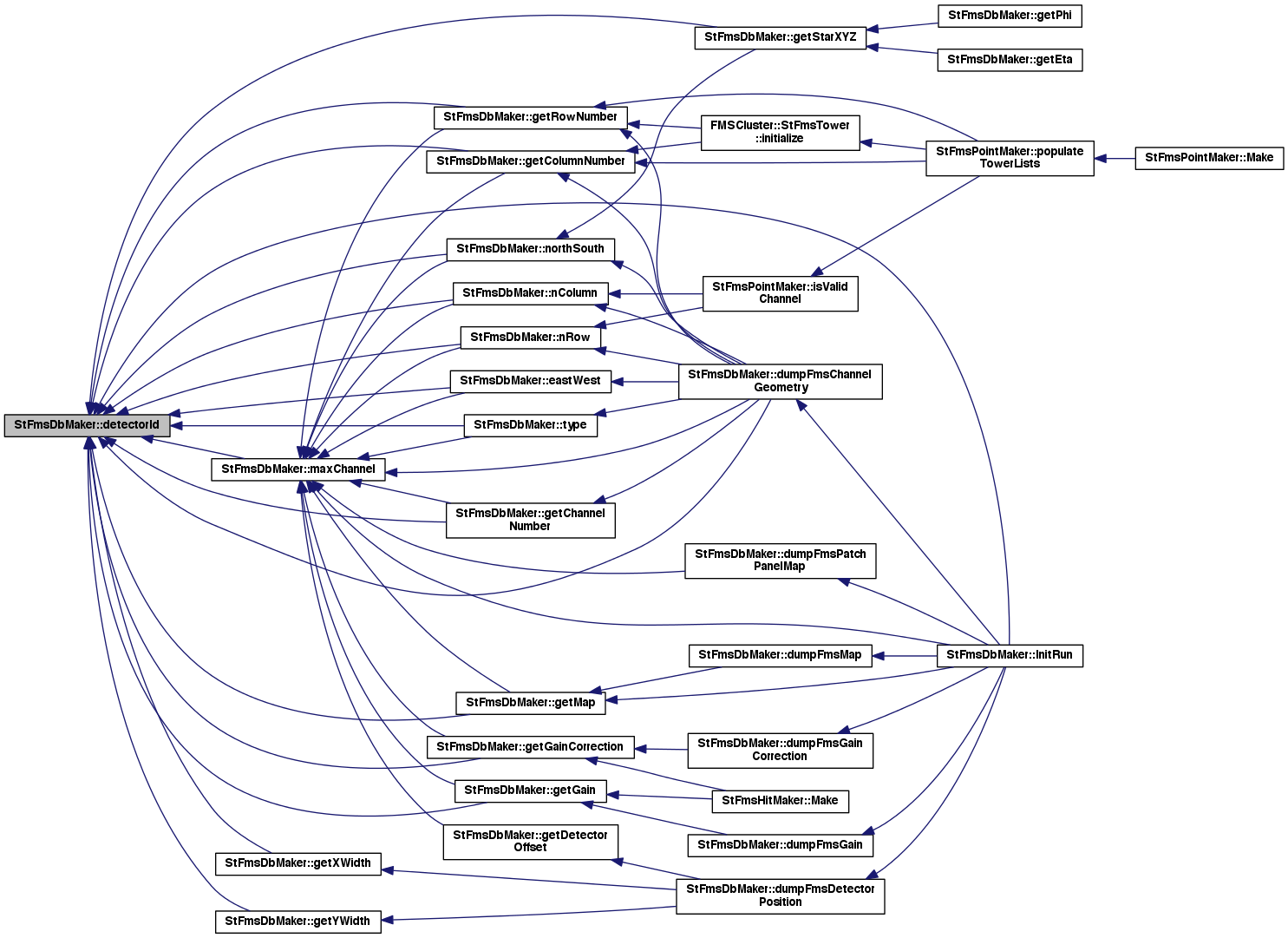

Here is the caller graph for this function:

fmsDetectorPosition_st * StFmsDbMaker::DetectorPosition ( )

getting the whole table

Definition at line 270 of file StFmsDbMaker.cxx.

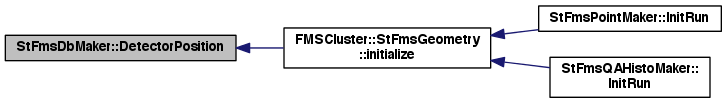

Here is the caller graph for this function:

void StFmsDbMaker::dumpFmsChannelGeometry ( const Char_t * filename = "dumpFmsChannelGeometry.txt" )

get the gain correction for the channel

text dump for debugging

Definition at line 411 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

void StFmsDbMaker::dumpFmsDetectorPosition ( const Char_t * filename = "dumpFmsDetectorPosition.txt" )

Definition at line 434 of file StFmsDbMaker.cxx.

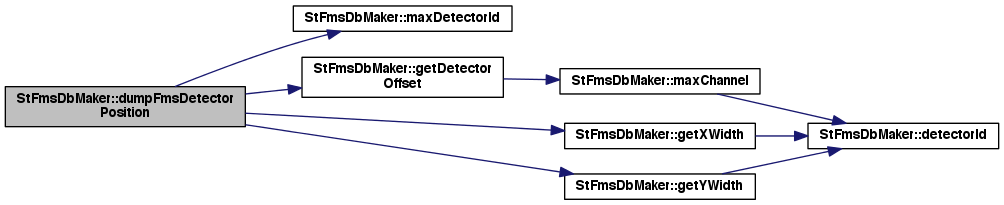

Here is the call graph for this function:

Here is the caller graph for this function:

void StFmsDbMaker::dumpFmsGain ( const Char_t * filename = "dumpFmsGain.txt" )

Definition at line 498 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

void StFmsDbMaker::dumpFmsGainCorrection ( const Char_t * filename = "dumpFmsGainCorrection.txt" )

Definition at line 514 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

void StFmsDbMaker::dumpFmsMap ( const Char_t * filename = "dumpFmsMap.txt" )

Definition at line 447 of file StFmsDbMaker.cxx.

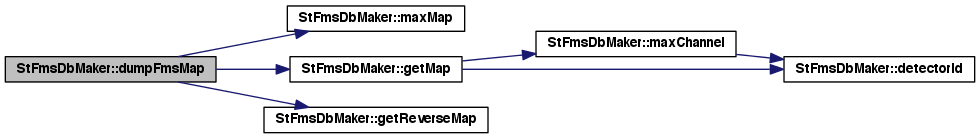

Here is the call graph for this function:

Here is the caller graph for this function:

void StFmsDbMaker::dumpFmsPatchPanelMap ( const Char_t * filename = "dumpFmsPatchPanelMap.txt" )

Definition at line 467 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

void StFmsDbMaker::dumpFmsQTMap ( const Char_t * filename = "dumpFmsQTMap.txt" )

Definition at line 479 of file StFmsDbMaker.cxx.

Here is the caller graph for this function:

Int_t StFmsDbMaker::eastWest ( Int_t detectorId )

convert to detector Id

Definition at line 280 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Int_t StFmsDbMaker::Finish ( )

virtual

Definition at line 43 of file StFmsDbMaker.cxx.

fmsGain_st * StFmsDbMaker::Gain ( )

Definition at line 275 of file StFmsDbMaker.cxx.

fmsGainCorrection_st * StFmsDbMaker::GainCorrection ( )

Definition at line 276 of file StFmsDbMaker.cxx.

Int_t StFmsDbMaker::getChannelNumber	(	Int_t	detectorId,
		Int_t	row,
		Int_t	column
	)

get the column number for the channel

Definition at line 350 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Int_t StFmsDbMaker::getColumnNumber	(	Int_t	detectorId,
		Int_t	ch
	)

get the row number for the channel

Definition at line 345 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

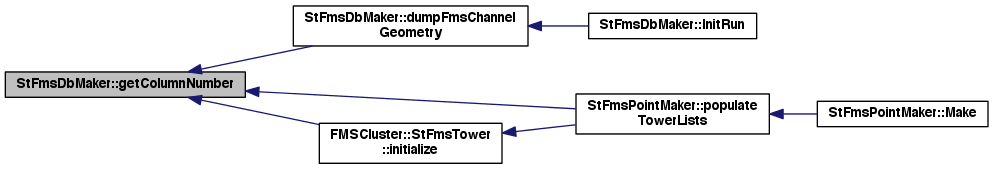

Here is the caller graph for this function:

virtual const Char_t* StFmsDbMaker::GetCVS ( ) const

inlineprivatevirtual

Definition at line 137 of file StFmsDbMaker.h.

StThreeVectorF StFmsDbMaker::getDetectorOffset ( Int_t detectorId )

get the channel number

Utility functions related to DetectorPosition

Definition at line 355 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Float_t StFmsDbMaker::getEta	(	Int_t	detectorId,
		Float_t	FmsX,
		Float_t	FmsY,
		Float_t	Vertex
	)

get the STAR frame phi angle

Definition at line 265 of file StFmsDbMaker.cxx.

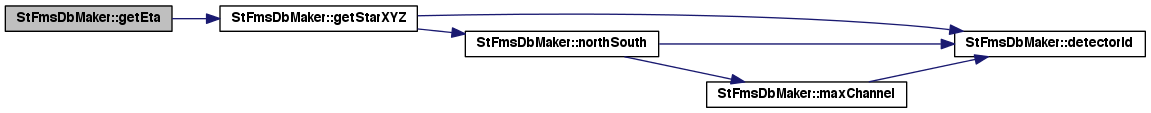

Here is the call graph for this function:

Float_t StFmsDbMaker::getGain	(	Int_t	detectorId,
		Int_t	ch
	)

Definition at line 401 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Float_t StFmsDbMaker::getGainCorrection	(	Int_t	detectorId,
		Int_t	ch
	)

get the gain for the channel

Definition at line 405 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

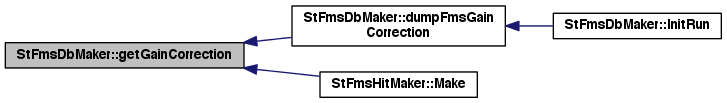

Here is the caller graph for this function:

void StFmsDbMaker::getMap	(	Int_t	detectorId,
		Int_t	ch,
		Int_t *	qtCrate,
		Int_t *	qtSlot,
		Int_t *	qtChannel
	)

Definition at line 373 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Float_t StFmsDbMaker::getPhi	(	Int_t	detectorId,
		Float_t	FmsX,
		Float_t	FmsY
	)

get the STAR frame coordinates

Definition at line 264 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

void StFmsDbMaker::getReverseMap	(	Int_t	qtCrate,
		Int_t	qtSlot,
		Int_t	qtChannel,
		Int_t *	detectorId,
		Int_t *	ch
	)

Definition at line 382 of file StFmsDbMaker.cxx.

Here is the caller graph for this function:

Int_t StFmsDbMaker::getRowNumber	(	Int_t	detectorId,
		Int_t	ch
	)

maximum number of channels

Definition at line 340 of file StFmsDbMaker.cxx.

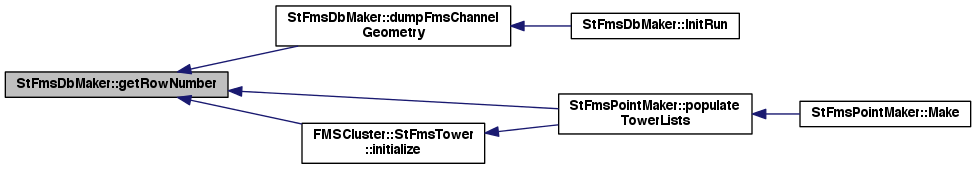

Here is the call graph for this function:

Here is the caller graph for this function:

StThreeVectorF StFmsDbMaker::getStarXYZ	(	Int_t	detectorId,
		Float_t	FmsX,
		Float_t	FmsY
	)

get the Y width of the cell

get coordinates in STAR frame, will be implemented when the detector position table is fill into the database and available

north side

south side

Definition at line 251 of file StFmsDbMaker.cxx.

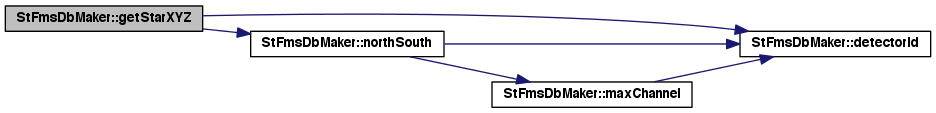

Here is the call graph for this function:

Here is the caller graph for this function:

Float_t StFmsDbMaker::getXWidth ( Int_t detectorId )

get the offset of the detector

Definition at line 361 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Float_t StFmsDbMaker::getYWidth ( Int_t detectorId )

get the X width of the cell

Definition at line 366 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Int_t StFmsDbMaker::Init ( )

virtual

Definition at line 40 of file StFmsDbMaker.cxx.

Int_t StFmsDbMaker::InitRun ( Int_t runNumber )

virtual

Accessing DBs

Getting DB tables

fmsChannelGeometry

fmsDetectorPosition

fmsPatchPanelMap

LOG_INFO << mMaxModule << "***********" << endm;

fmsQTMap

fmsMap

fmsGain

fmsGainCorrection

Debug

Definition at line 45 of file StFmsDbMaker.cxx.

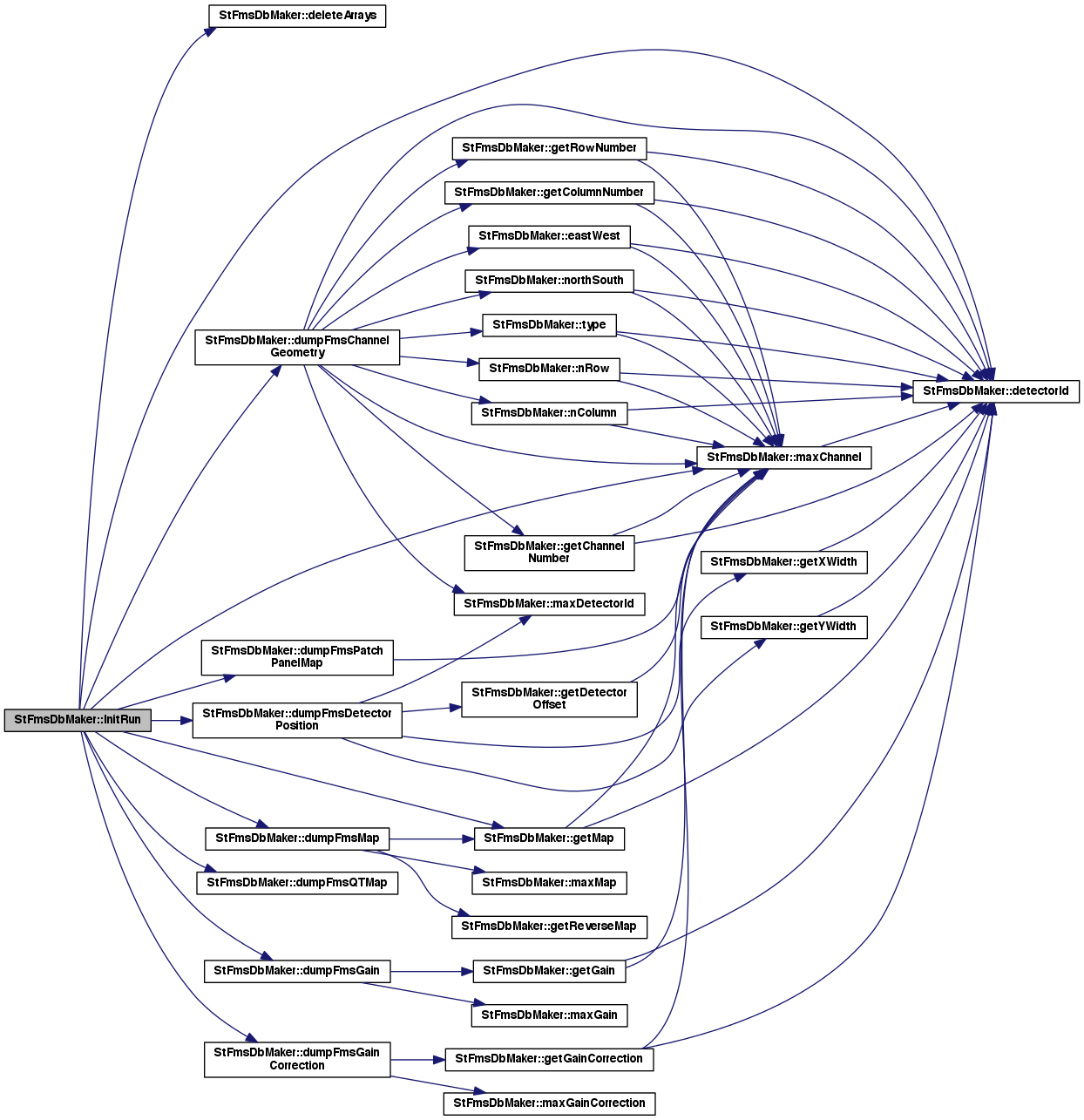

Here is the call graph for this function:

Int_t StFmsDbMaker::Make ( )

virtual

Definition at line 41 of file StFmsDbMaker.cxx.

fmsMap_st * StFmsDbMaker::Map ( )

Definition at line 272 of file StFmsDbMaker.cxx.

Int_t StFmsDbMaker::maxChannel ( Int_t detectorId )

number of column

Definition at line 321 of file StFmsDbMaker.cxx.

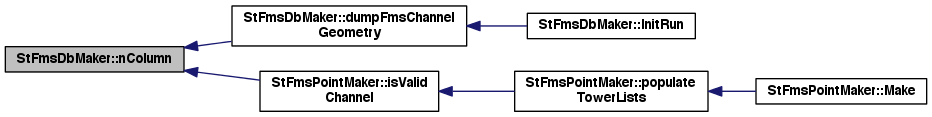

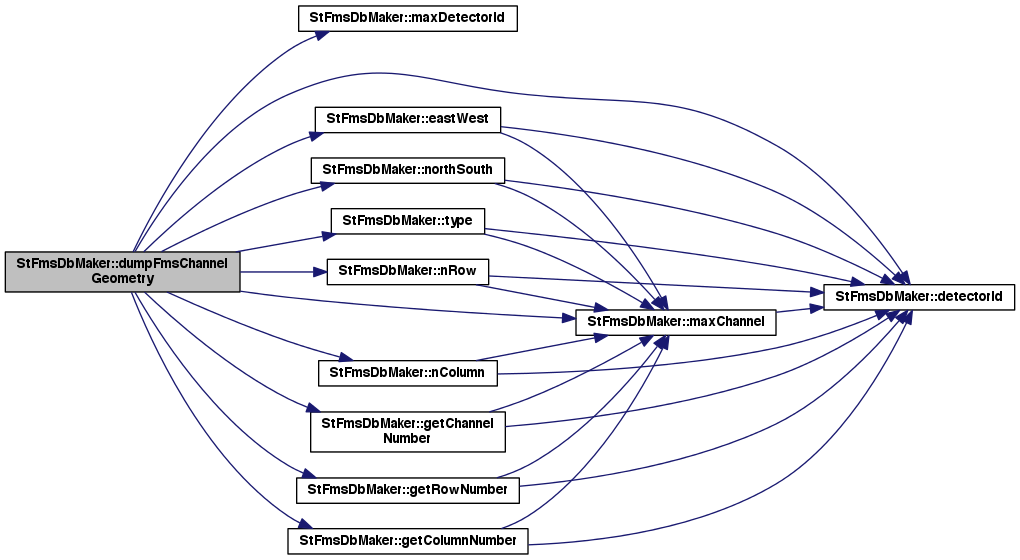

Here is the call graph for this function:

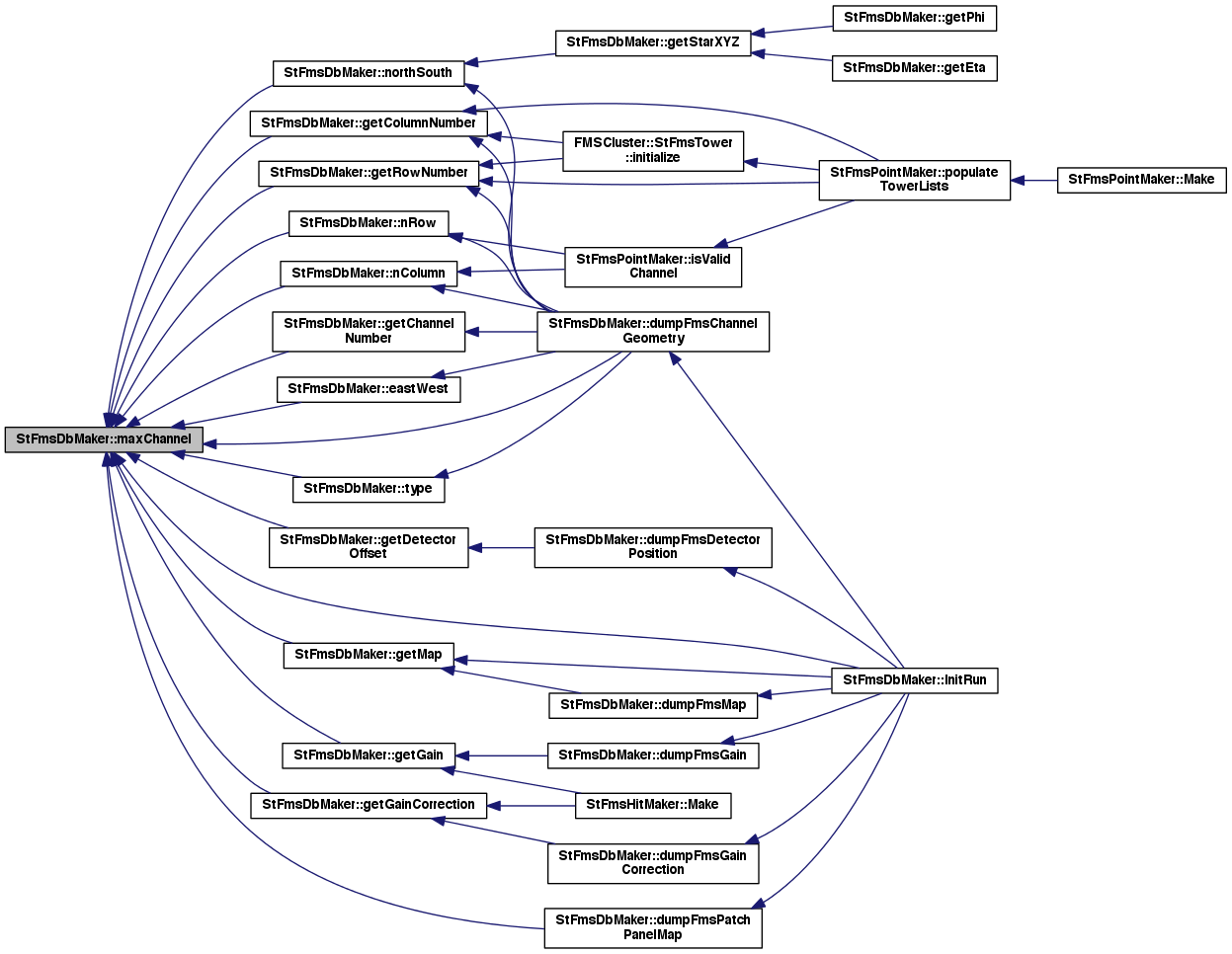

Here is the caller graph for this function:

Int_t StFmsDbMaker::maxDetectorId ( )

Utility functions related to FMS ChannelGeometry.

ChannelGeometry.

Definition at line 279 of file StFmsDbMaker.cxx.

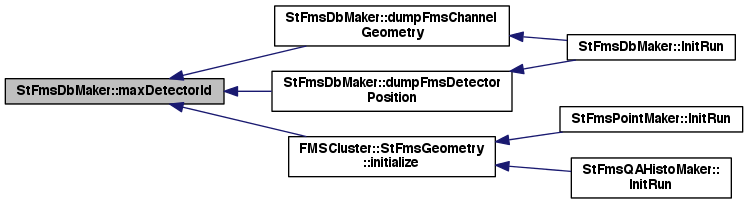

Here is the caller graph for this function:

Int_t StFmsDbMaker::maxGain ( )

fmsGain/GainCorrection related

fmsGain/GainCorrection

Definition at line 399 of file StFmsDbMaker.cxx.

Here is the caller graph for this function:

Int_t StFmsDbMaker::maxGainCorrection ( )

Definition at line 400 of file StFmsDbMaker.cxx.

Here is the caller graph for this function:

Int_t StFmsDbMaker::maxMap ( )

get the STAR frame pseudo rapidity assuming vertex is at (0,0,0)

fmsMap

fmsMap related

Definition at line 372 of file StFmsDbMaker.cxx.

Here is the caller graph for this function:

Int_t StFmsDbMaker::maxModule ( )

fmsPatchPanelMap related

fmsPatchPanelMap

Definition at line 393 of file StFmsDbMaker.cxx.

Int_t StFmsDbMaker::maxNS ( )

fmsQTMap related

fmsQTMap()

Definition at line 396 of file StFmsDbMaker.cxx.

Int_t StFmsDbMaker::nColumn ( Int_t detectorId )

number of rows

Definition at line 312 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Int_t StFmsDbMaker::northSouth ( Int_t detectorId )

east or west to the STAR IP

Definition at line 288 of file StFmsDbMaker.cxx.

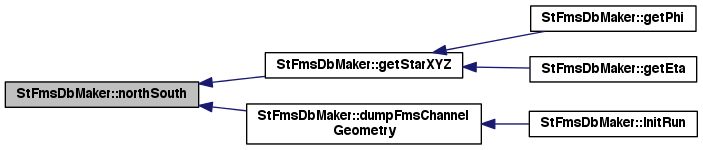

Here is the call graph for this function:

Here is the caller graph for this function:

Int_t StFmsDbMaker::nRow ( Int_t detectorId )

type of the detector

Definition at line 304 of file StFmsDbMaker.cxx.

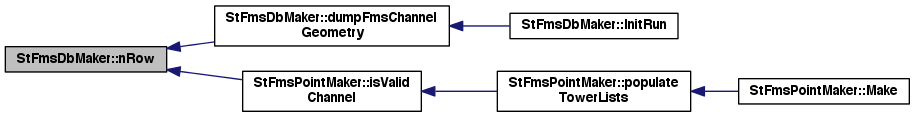

Here is the call graph for this function:

Here is the caller graph for this function:

fmsPatchPanelMap_st * StFmsDbMaker::PatchPanelMap ( )

Definition at line 273 of file StFmsDbMaker.cxx.

fmsQTMap_st * StFmsDbMaker::QTMap ( )

Definition at line 274 of file StFmsDbMaker.cxx.

void StFmsDbMaker::setDebug ( Int_t debug )

debug mode, 0 for minimal message, >0 for more debug messages

Definition at line 267 of file StFmsDbMaker.cxx.

Int_t StFmsDbMaker::type ( Int_t detectorId )

north or south side

Definition at line 296 of file StFmsDbMaker.cxx.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

fmsChannelGeometry_st* StFmsDbMaker::mChannelGeometry

private

>0 dump tables to text files

Definition at line 110 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mDebug

private

Definition at line 108 of file StFmsDbMaker.h.

fmsDetectorPosition_st* StFmsDbMaker::mDetectorPosition

private

max detector Id

Definition at line 113 of file StFmsDbMaker.h.

fmsGain_st* StFmsDbMaker::mGain

private

Definition at line 128 of file StFmsDbMaker.h.

fmsGainCorrection_st* StFmsDbMaker::mGainCorrection

private

Definition at line 132 of file StFmsDbMaker.h.

fmsMap_st* StFmsDbMaker::mMap

private

position (in STAR frame) of each detector

Definition at line 115 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mMaxDetectorId

private

channel configuration for each detector

Definition at line 111 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mMaxGain

private

Definition at line 130 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mMaxGainCorrection

private

Definition at line 134 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mMaxMap

private

Definition at line 117 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mMaxModule

private

patch panel map

Definition at line 123 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mMaxNS

private

Qt map.

Definition at line 126 of file StFmsDbMaker.h.

fmsGain_st** StFmsDbMaker::mmGain

private

gain table

Definition at line 129 of file StFmsDbMaker.h.

fmsGainCorrection_st** StFmsDbMaker::mmGainCorrection

private

gain correction table

Definition at line 133 of file StFmsDbMaker.h.

fmsMap_st** StFmsDbMaker::mmMap

private

detector map

Definition at line 116 of file StFmsDbMaker.h.

fmsPatchPanelMap_st* StFmsDbMaker::mPatchPanelMap

private

Definition at line 122 of file StFmsDbMaker.h.

fmsQTMap_st* StFmsDbMaker::mQTMap

private

Definition at line 125 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mReverseMapChannel[mMaxCrate][mMaxSlot][mMaxCh]

private

Definition at line 120 of file StFmsDbMaker.h.

Int_t StFmsDbMaker::mReverseMapDetectorId[mMaxCrate][mMaxSlot][mMaxCh]

private

Definition at line 119 of file StFmsDbMaker.h.

The documentation for this class was generated from the following files:

/Users/thomasburton/Documents/projects/StFms/StRoot/StFmsDbMaker/StFmsDbMaker.h
/Users/thomasburton/Documents/projects/StFms/StRoot/StFmsDbMaker/StFmsDbMaker.cxx

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
