TOWERS -> DATA SANITY:
Rows (A -> C) of plots monitor various types of DATA CORRUPTION:
  • A.1 - corruption correlations;
    A.2 - corrupt headers/event
  • B.1 - # crates off/event;
    B.2 - N256/event
  • C.1 - total events w/ crates off;
    C.2 - ghost peds/event

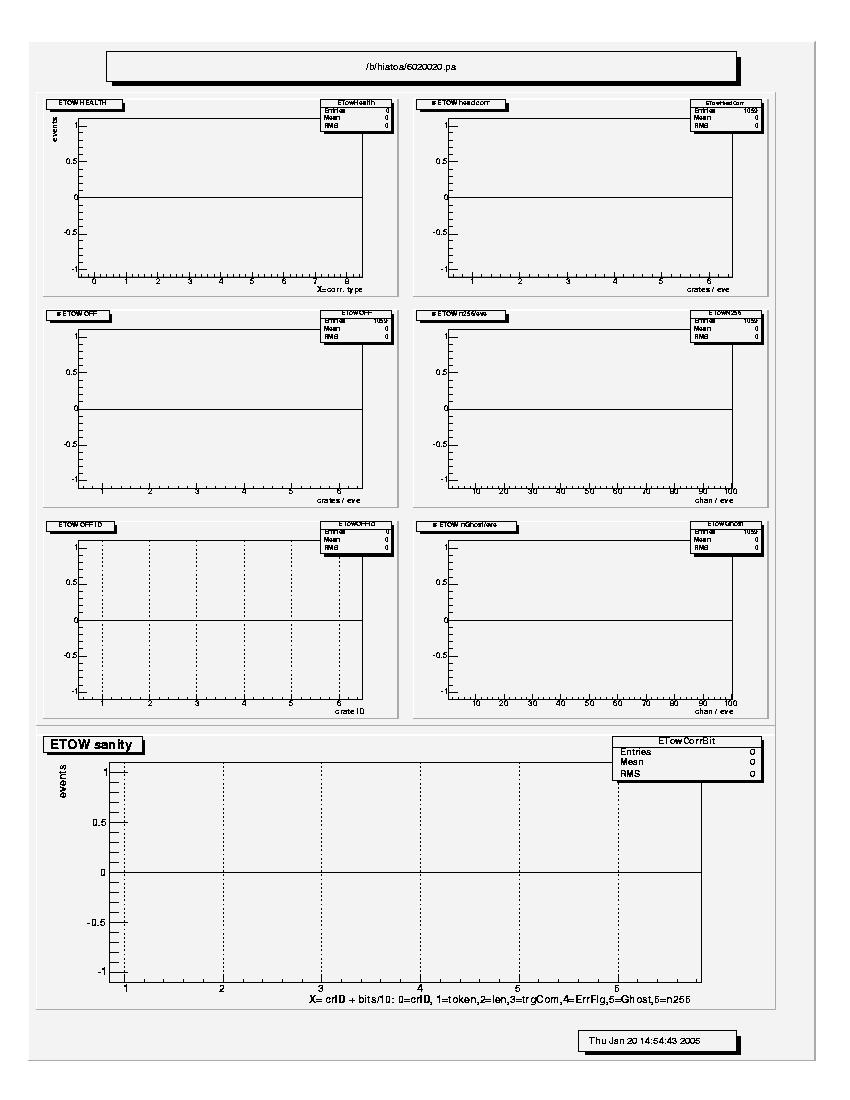

Lowest (full) plot:
ETOW SANITY SPECTRA for data errors -->
x = crID + bits/10: 0=crID, 1=token, 2=len, 3=trgCom, 4=ErrFlg, 5=Ghost, 6=n256

In general these spectra should have few/zero entries ... if not, shift leader/EEMC experts should be notified!

Click (right) here for larger plot image (Panitkin #45); more details can be found here

TOWER FEE CRATES:
THIS IS A PRIMARY CHECK

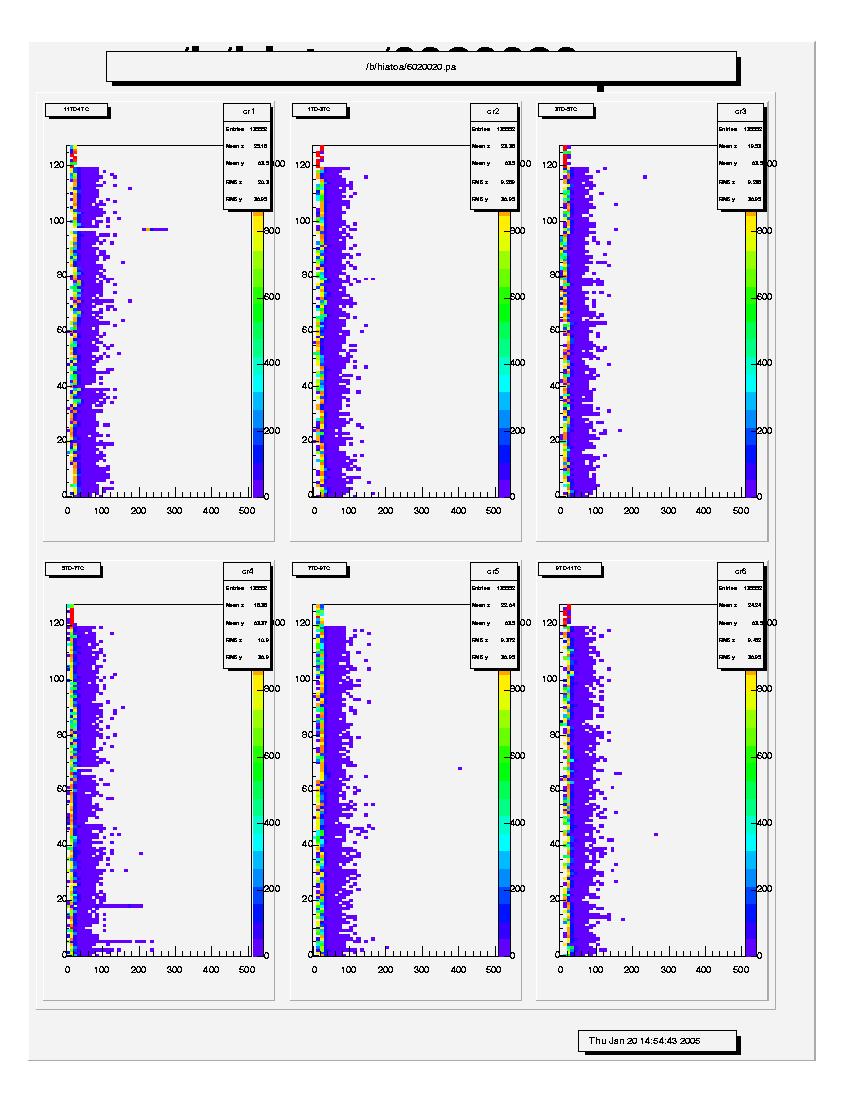

<-- spectra for the 6 tower crates (top:#1-#3 and bottom #4-#6); each has 120 channels of active tower FEE readout.

<-- if spectra are zero the associated power supplies are likely tripped. Restore supplies via CANBus, and then reconfigure associated crates.

  • crates 1&2 -- dual supply #94
  • crates 3&4 -- dual supply #92
  • crates 5&6 -- dual supply #93
<-- if spectra are "ratty" or missing segments ... reconfigure associated crates.

(Note: high pedestal in crate 1 ~ chn 197 is understood/to be fixed)

Click (right) here for larger plot image (Panitkin #47)

SMD & Pre/Post MAPMT FEE BOXES:

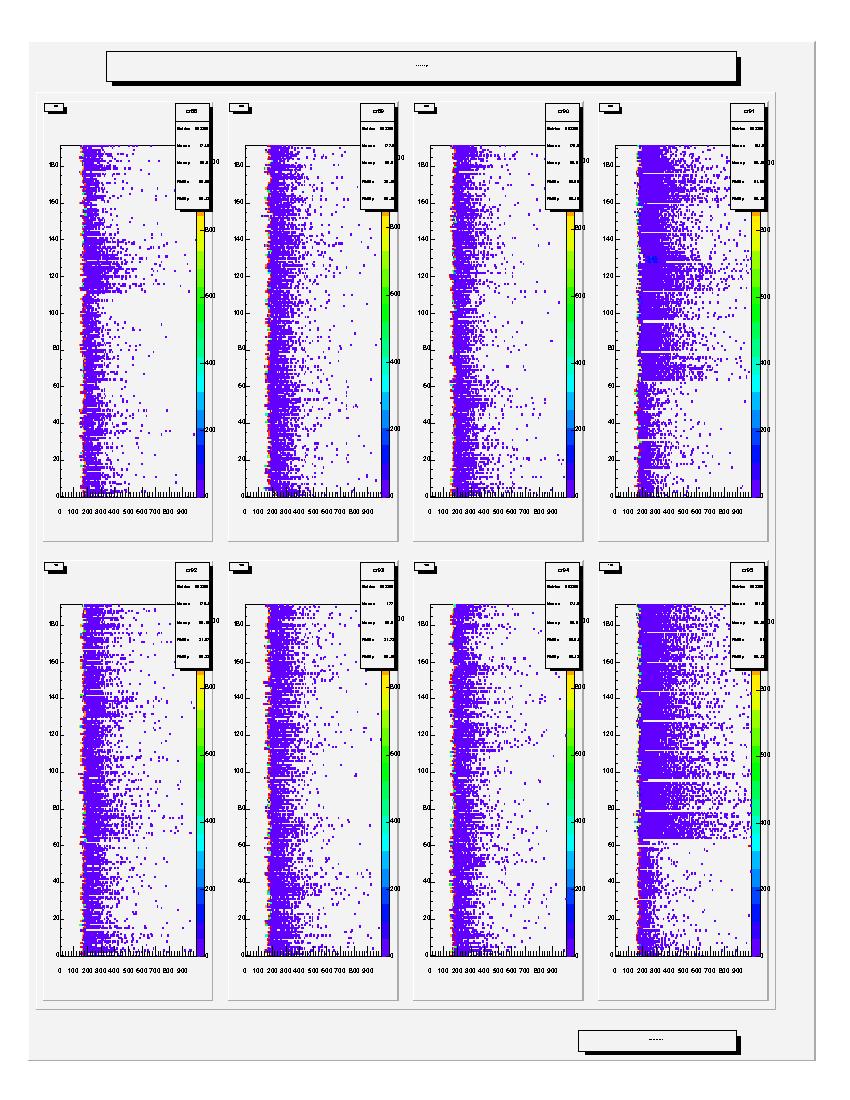

Spectra for (8 of 48) MAPMT boxes
(top: SMD #1-3; Pre/Post #1 for sector 6 and bottom SMD #1-3; Pre/Post #1 for sector 7); 192 channels readout/box.
The 6 MAPMT plots show sectors 12&1; 2&3; 4&5; 6&7; 8&9; and 10&11.

If spectra are zero the associated power supplies are likely tripped. Restore supplies via CANBus, and then reconfigure associated MAPMT boxes.

  • MAPMT boxes sectors #12-#3 -- dual supply #97
  • MAPMT boxes sectors #4-#7 -- dual supply #96
  • MAPMT brates #8-#11 -- dual supply #95
If spectra are "ratty" or missing segments ... reconfigure associated boxes. (Note: pictured here sector 4 gains have not been matched well -- the larger ADC values of the Pre-Shower in the "P" box are anticipated and every 16th channel for latter is LED).

Click (right) here for larger plot image (#55 of Panitkin MAPMT series #52-#57)

TOWER RESPONSE:

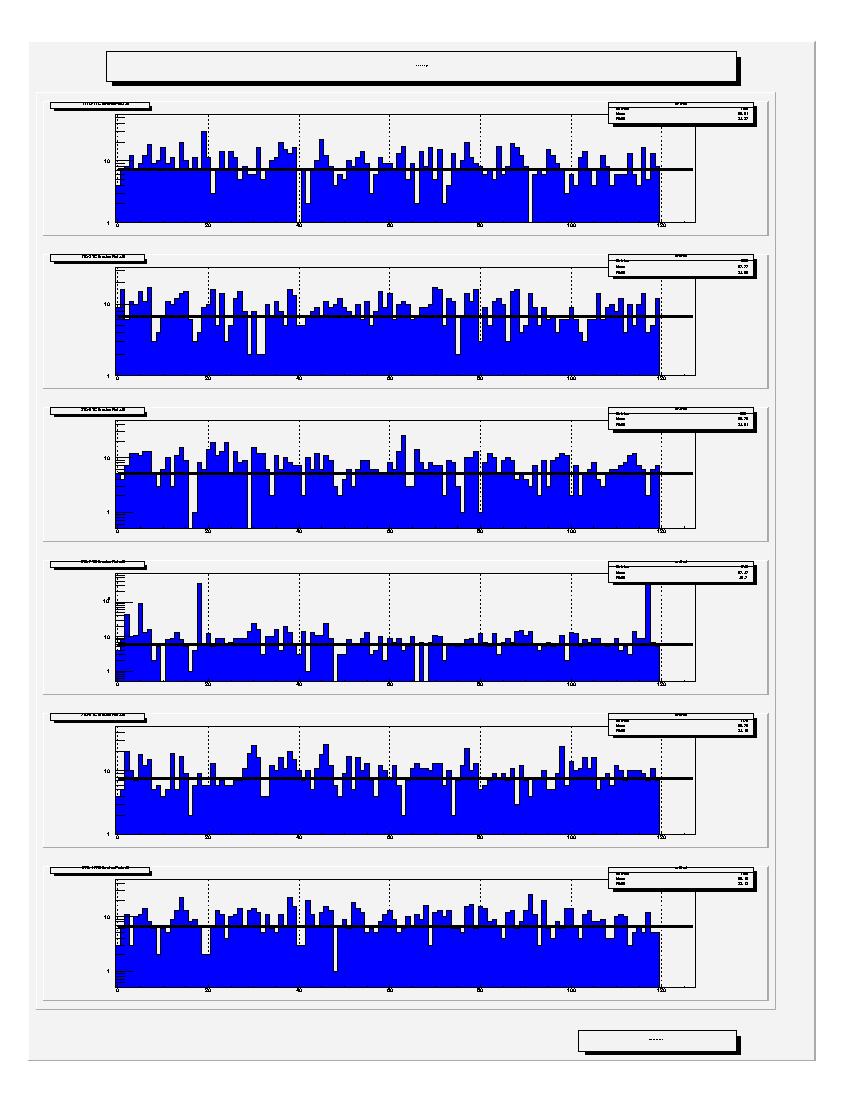

guidance, comment & plot
_UNDER
_CONSTRUCTION

Click (right) here for larger plot image

DSM LEVEL 0:

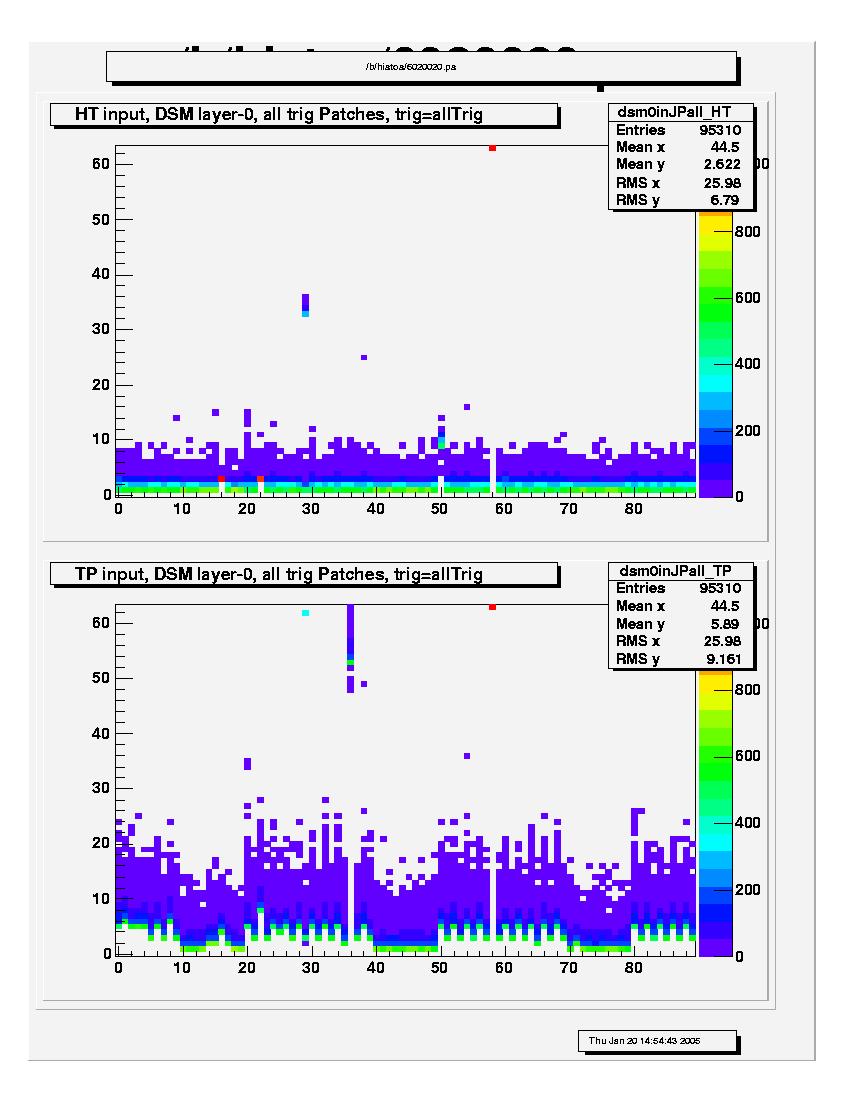

guidance, comment & plot
_UNDER
_CONSTRUCTION

Click (right) here for larger plot image

HIGH TOWERS (TRIGGER):

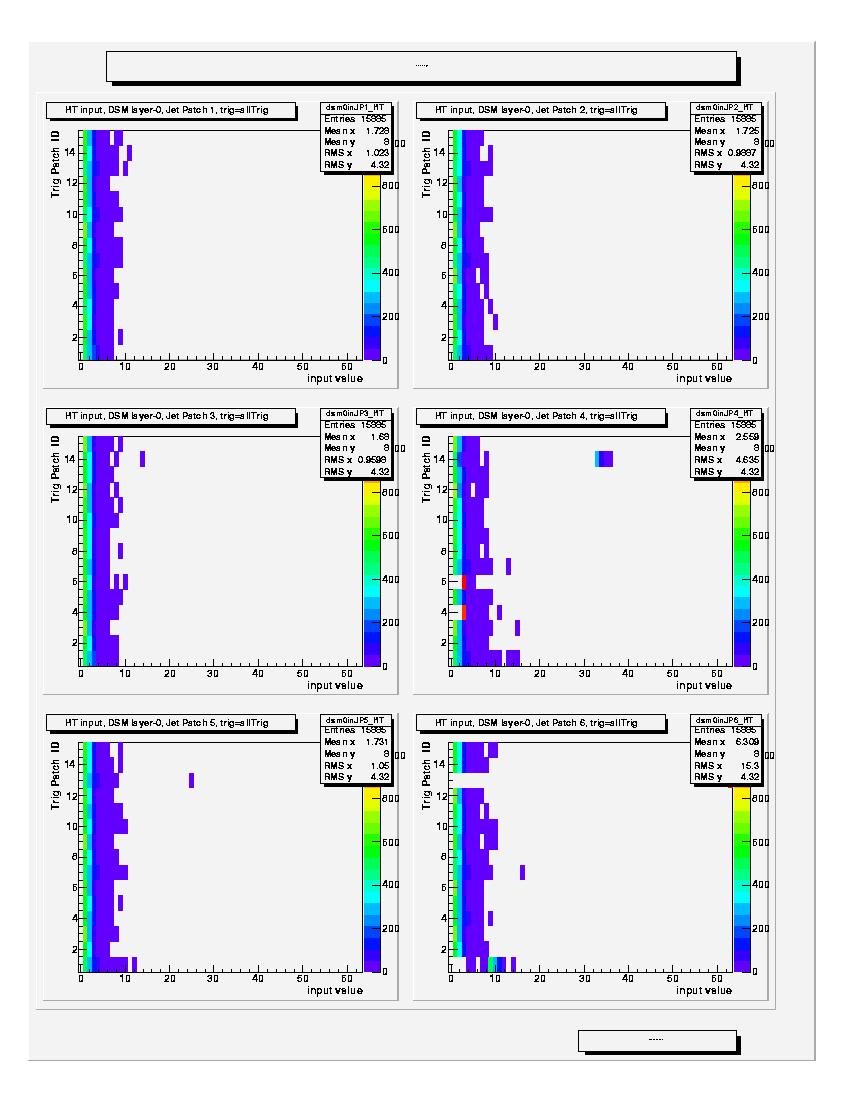

guidance, comment & plot
_UNDER
_CONSTRUCTION

Click (right) here for larger plot image

TRIGGER PATCHES:

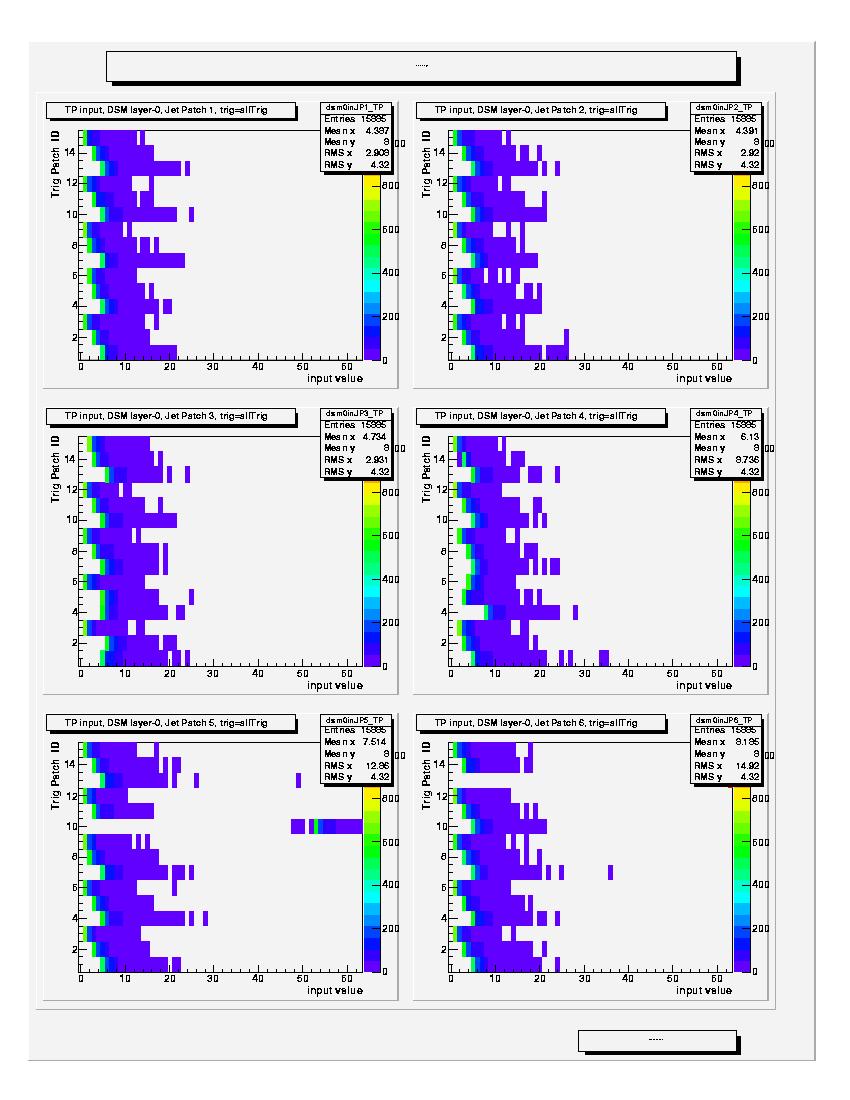

guidance, comment & plot
_UNDER
_CONSTRUCTION

Click (right) here for larger plot image

Note: more detailed notes on "2005" Panitikin plots (Jan Balewski writeup) can be found here
