Newsline:
|
May/03/2007 |

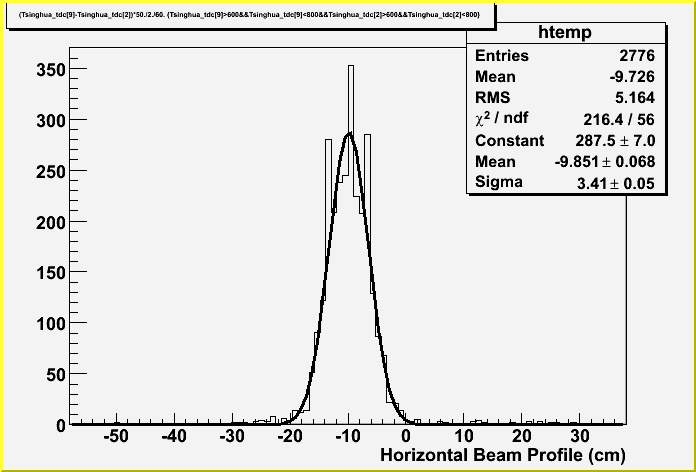

The
very first offline result, Horizontal Beam Profile is
plotted. (Preliminary,
Pic ) |
|
May/04/2007 |

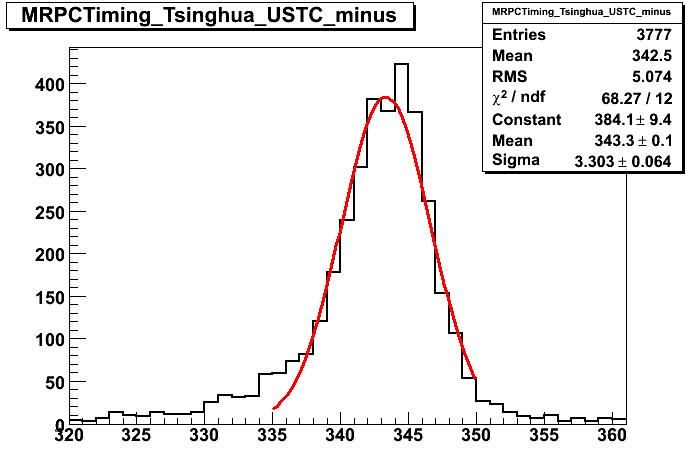

Timing
resolution, in which time unit is 50ps/CH, fitted by
Gaussian from RUN 30.
(Preliminary,
Pic) |
|
May/07/2007 |

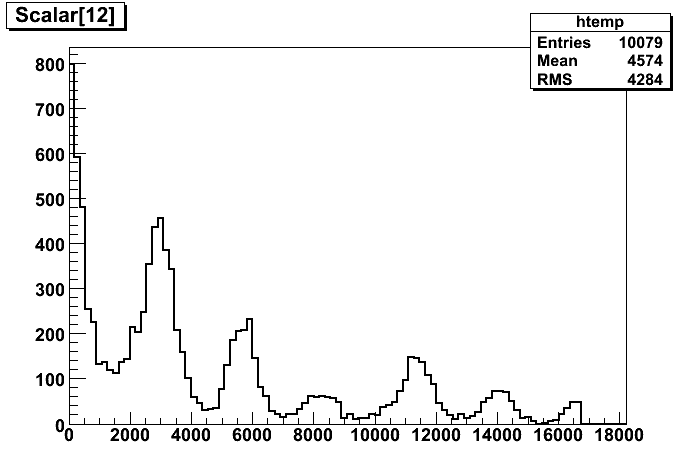

Phase of 60Hz pulse, 1MHz clock reset by 60Hz.
(Preliminary,
Pic,
Doc) |
|
May/08/2007 |

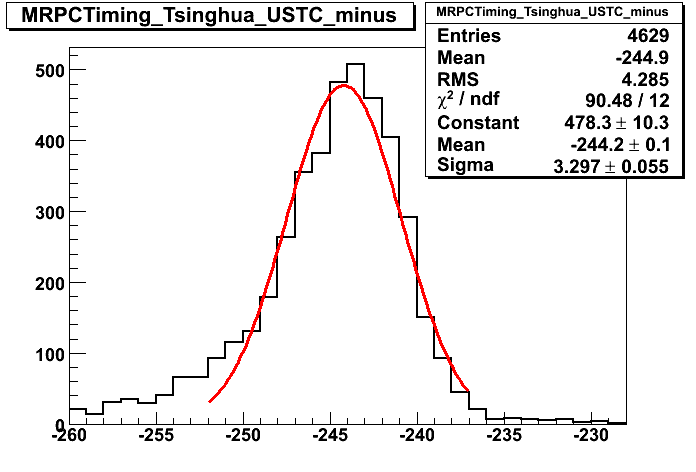

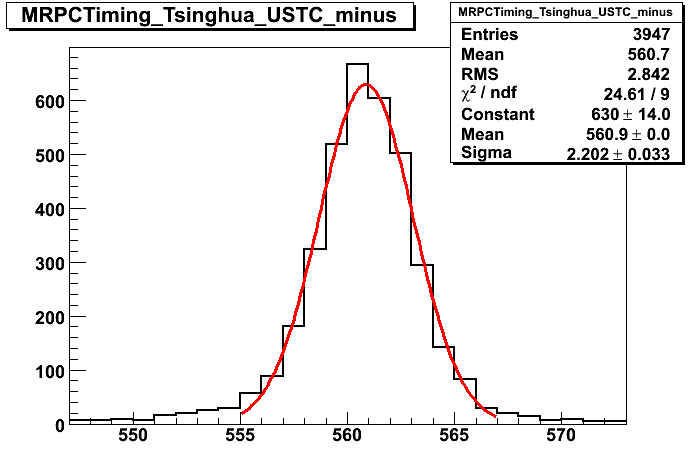

MRPCs' timing difference,
no slewing, from strip#1(RUN69) and #2(RUN65). (Preliminary,
Pic1&
Pic2) |
|
May/08/2007 |
Correlation with GEMs,
spacial resolution of MRPC is calculated.
(Preliminary,
Details) |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
|
